4 Using Application Builder

This section provides important background information about using Application Builder to build dynamically rendered applications.

This section contains the following topics:

See Also:

"Quick Start", "Application Builder Concepts", "Building an Application", "Controlling Page Layout", and "Adding Navigation"

Accessing Application Builder

An application is a collection of database-driven Web pages linked together using tabs, buttons, or hypertext links. The pages within an application share a common session state definition and authentication method. Application Builder is the tool you use to build the pages that comprise an application.

To access Application Builder:

  1. Log in to Oracle Application Express.

    The Workspace home page appears.

  2. To view the Application Builder home page you can either:

    • Click the Application Builder icon to link to the Application Builder home page.

    • Click the down arrow on the right side of the Application Builder icon to view a drop down menu. Then select the appropriate menu option.

    Description of new_menu.gif follows
    Description of the illustration new_menu.gif

    Note:

    For consistency, this document uses the primary navigation path (or drill-down approach) when explaining navigation.

About the Application Builder Home Page

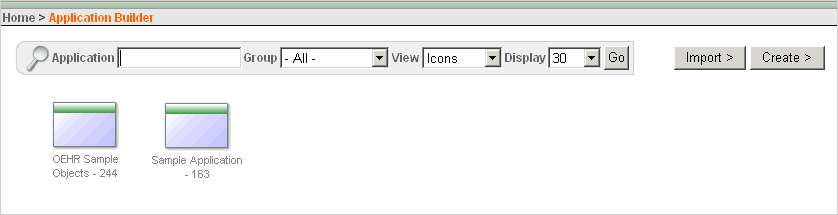

The Application Builder home page displays all installed applications.

Description of app_bldr_home.gif follows
Description of the illustration app_bldr_home.gif

You can customize the appearance of the Application Builder home page using the navigation bar at the top of the page. Available controls include:

The following buttons appear to the right of the navigation bar:

About the Tasks List

A Tasks list displays on the right side of the Application Builder home page.

Description of appbldr_task_list.gif follows
Description of the illustration appbldr_task_list.gif

The Tasks list contains the following links:

About the Recent List

The Recent list contains links to recently viewed applications.

Configuring Developer Preferences

Many pages in Application Builder include a navigation bar at the top of the page. You can use the controls in the navigation bar to customize the appearance of the page. Most navigation bars include a View and Display list. You can control the default display for both lists on the Developer Preferences page.

To edit developer preferences:

  1. On the Workspace home page, click the Application Builder icon.

  2. From the Tasks list, click Developer Preferences.

  3. From Set View Mode, select one of the following:

    • Icons (the default) displays the items on the page as a large icon.

    • Details displays the items on the page as a line in a report.

  4. From Report Rows, select the number items to display.

  5. Click Apply Changes.

About the Application Home Page

To view a specific application, select the application on the Application Builder home page. The Application home page appears. The application ID and the application name display at the top of the page. To link to the application definition, click application name.

Description of bldr_hm_top.gif follows
Description of the illustration bldr_hm_top.gif

The following large icons appear next:

About the Navigation Bar and Create Page Button

A navigation bar and the Create Page button display in the center of the Application home page. You can use these controls to search for pages, alter the page view, or create a page.

Description of bldr_hm_nav.gif follows
Description of the illustration bldr_hm_nav.gif

The Application home page navigation bar contains the following controls:

The Create Page button displays to the right of the navigation bar. Click Create Page to launch a wizard that walks you through creating a page. See "Managing Pages in an Application".

About the Tasks List

A Tasks list displays on the right side of the Application home page.

Description of bldr_task_list.gif follows
Description of the illustration bldr_task_list.gif

The Tasks list contains the following links:

Understanding Page Display Alternatives

You can control how the Application home page appears by making a selection from the View list and clicking Go. Available View modes include:

Icons mode (the default) displays each page as a large icon identified by the page name. To view a page, click the icon.

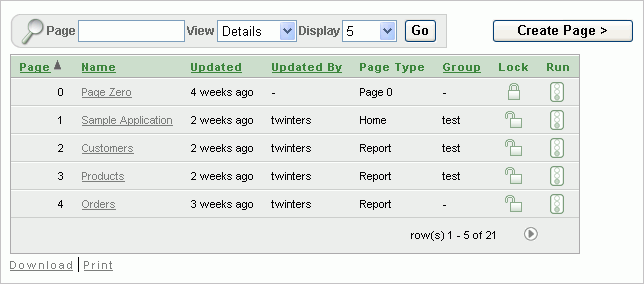

Details mode displays each page as a line in a report. Each line includes the page number, the page name, when the page was last updated, the page type, who updated it, any associated group, and lock status. To view a page, click the page name. Use the Lock icon to prevent conflicts during application development. Click the Run icon to run the associated page and render viewable HTML.

Description of bldr_hm_pglist.gif follows
Description of the illustration bldr_hm_pglist.gif

By Group displays currently defined page groups. You can use page groups to organize and manage the pages within an application. See "Grouping Pages".

By Type separates pages into categories, such as Login, Report, Tabular Form, Dynamic Form, Chart, and so on. The number of pages within each page category displays within a parenthesis to the right of the type name. To view a page, click the page type and then the page.

Description of bldr_hm_type_list.gif follows
Description of the illustration bldr_hm_type_list.gif

About the Recent List

The Recent list contains links to recently viewed pages within the current application. This list only appears when viewing the Application home page in Icon mode.

About the Action Bar

The Action bar displays beneath the Utilities tab in the upper right corner of most pages in Application Builder.

Description of bldr_hm_ico.gif follows
Description of the illustration bldr_hm_ico.gif

This bar contains the icons discussed in the sections that follow. Note that the Run Page icon, Edit Page icon, Developer Comment icon, and Find icon display on numerous pages in Application Builder, including pages for creating and managing shared components. See "Working with Shared Components".

Run Page Icon

Description of run_ico_green.gif follows
Description of the illustration run_ico_green.gif

The Run Page icon resembles a small, light green traffic light. Click this icon to render viewable HTML of the current page. If no page is selected, clicking this icon runs the first page in the application. When you run a page, the Application Express engine dynamically renders the page based on data stored in the database. See "Running a Page or Application".

Edit Icon

Description of edit_icon.gif follows
Description of the illustration edit_icon.gif

The Edit Page icon resembles a small green piece of paper and pencil. Click this icon to access the Page Definition of the current page. If no page is selected, clicking this icon displays the Page Definition of the first page in the application. See "About the Page Definition".

Shared Components Icon

Description of shared_comp_icon_2.gif follows
Description of the illustration shared_comp_icon_2.gif

The Shared Components icon resembles a small mechanical gear. Click this icon to view a list of shared components and user interface controls that can display or be applied on every page within an application. See "Working with Shared Components".

Developer Comment icon

Description of dev_comment_icon.gif follows
Description of the illustration dev_comment_icon.gif

The Developer Comment icon is the shape of a green balloon. Click this icon to record comments about an application, a specific page, or a group of pages. See "Adding Developer Comments".

Find Icon

Description of find_icon_2.gif follows
Description of the illustration find_icon_2.gif

The Find icon resembles a flashlight. Click this icon to search for items, pages, queries, tables, PL/SQL, images, and cascading style sheets (CSS) within the current application or the schemas associated with the workspace. See "Using the Find Icon".

About Application Attributes

Application attributes apply to an entire application. Once you create an application, the next logical step is to review and possibly update application attributes.

Topics in this section include:

See Also:

"How to Create a Packaged Application" for information on using the Supporting Objects utility to create a packaged application

Configuring the Application Definition

You use the attributes on the Edit Definition page to control the application name and availability and to define static substitution strings. Additionally, the Edit Definition page displays defined build options, the associated theme, template defaults, and component defaults. Required values are marked with a red asterisk (*).

Topics in this section include:

Accessing the Edit Definition Page

To edit the application definition:

  1. On the Workspace home page, click the Application Builder icon.

  2. Select an application.

  3. Click Shared Components.

    The Shared Components page appears.

  4. Under Application, click Definition.

    The Edit Definition page appears.

    Tip:

    You can also access the Edit Definition page by clicking the application name at the top of the Application home page.
About Navigation Alternatives

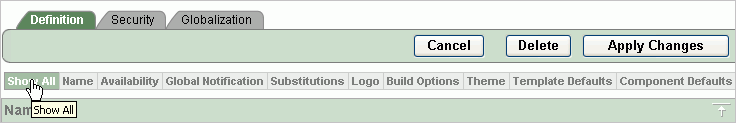

The Edit Definition page is divided into the following sections: Name, Availability, Global Notification, Substitutions, Logo, Build Options, Theme, Template Defaults, and Component Defaults. You can access these sections by scrolling down the page, or by clicking a navigation button at the top of the page.

Description of app_attribute_tabs.gif follows
Description of the illustration app_attribute_tabs.gif

When you select a button at the top of the page, the selected section appears and all other sections are temporarily hidden. To view all sections of the page, click Show All.

About the Edit Definition Page

The following sections describe the attributes available on the Edit Definition page.

Topics in this section include:

Name

Use Name to define basic characteristics of your application, including the application name, an optional alphanumeric alias, and a version number. Table 4-1 describes all Name attributes.

Table 4-1 Application Definition Attributes

Attribute Description

Name

Provides a short descriptive name for the application to distinguish it from other applications in your development environment.

Application Alias

Assigns an alternate alphanumeric application identifier. You can use this identifier in place of the application ID.For example, suppose you create an alias of myapp for application 105. Using f?p syntax, you could call application 105 as either:

  • f?p=105:1

  • f?p=myapp:1

See Also: "Using f?p Syntax to Link Pages"

Version

Includes the application's version number on a page. You can also automatically tie the version to the date of last modification using the following format masks:

  • YYYY.MM.DD

  • MM.DD.YYYY

  • DD.MM.YYYY

If your application version uses YYYY.MM.DD, then Application Builder replaces this format mask with the date of last modification of any application attribute.

Media Type

Enter the Internet Media Type. An Internet Media Type is two-part identifier for file formats on the Internet. A Media Type is composed of at least two parts: a type, a subtype, and one or more optional parameters. This Media Type is used in the Content-Type HTTP header when rendering the page.

The page-level Media Type overrides the application-level Media Type. The default value for this attribute is NULL. If both the page-level and application-level values for Media Type are NULL, the Media Type text/html is used.

Image Prefix

Determines the virtual path the Web server uses to point to the images directory distributed with Application Builder. During installation, the virtual path is configured as /i/.

When embedding an image in static text (for example, in page or region headers or footers), you can reference an image using the substitution string #IMAGE_PREFIX#. For example, to reference the image go.gif, you would use the following syntax:

<img src="#IMAGE_PREFIX#go.gif">

See Also: "IMAGE_PREFIX", "Managing Images", and "Referencing Images"

Proxy Server

Use this field to specify a proxy server.

For example, you may require a proxy server when using a region source type of URL. The URL region source embeds the results of the URL (that is, the page returned by navigating to the URL) as the region source. If you use a firewall and the target of a URL is outside the firewall relative to Application Builder, you may need to specify a proxy server.

You can reference values entered into this field from PL/SQL using the PL/SQL package variable APEX_APPLICATION.G_PROXY_SERVER.

Logging

Determines whether user activity is recorded in the Oracle Application Express activity log. When set to Yes, every page view is logged, enabling an administrator to monitor user activity for each application.

Disabling logging may be advisable for high volume applications.

Debugging

Controls debug mode for the current application. Available options include:

  • Yes enables the application to run in a debug mode.

  • No disables the application from running in debug mode.

Running an application in debug mode is useful when an application is under development. However, for a production application, it is a good idea to disable debugging and thus prevent users from viewing application logic.

Parsing Schema

Specifies the schema that all SQL and PL/SQL in the application is parsed as. You may use the #OWNER# substitution string to reference this value in SQL queries and PL/SQL (for example, in a region or a process).

Exact Substitutions

Determines if exact substitutions are supported. Use exact substitutions. Non-exact substitutions is a deprecated feature.

Exact substitutions use the following sytnax:

&ITEM.

Non-exact substitutions use the following sytnax:

&ITEM

Application Group

Displays the application group currently associated with this application. To select another application group, make a selection from the list. To remove an application from an existing group, select Unassigned.

See Also: "Creating Applications Groups"


Availability

Use Availability attributes to manage your application by defining an application status and build status. For example, if you select the status Restricted Access, you can specify which users have access and can run the application. Table 4-2 describes these attributes.

Table 4-2 Application Availability Attributes

Attribute Description

Status

Specifies whether the application is available or unavailable for use. Options include:

  • Available - Application is available with no restrictions.

  • Available with Edit Links - Application is available for use. For developers, the Developer toolbar displays at the bottom of each page. Requires the developer to be logged in to the Application Builder in the same browser session.

  • Available to Developers Only - Application is available to users having developer privileges.

  • Restricted Access - Application is available to developers named in the Restrict to comma separated user list.

  • Unavailable - Application cannot be run or edited. The message in Message for unavailable application displays when users attempt to access the application.

  • Unavailable (Status Shown with PL/SQL) - Application cannot be run or edited.

  • Unavailable (Redirect to URL) - Application cannot be run. The user is linked to the URL entered in Message for unavailable application.

See Also: "Changing Build Status for Multiple Applications" in Oracle Application Express Administration Guide, "Changing Application Build Status Set During Deployment" in Oracle Application Express Administration Guide, and "Controlling Access to Applications, Pages, and Page Components",

Build Status

Identifies the build status of the current application. Options include:

  • Run and Build Application - Developers and users can both run and develop the application.

  • Run Application Only - Users can only run the application. This option is intended for applications in a production instance.

See Also: "Changing Application Build Status Set During Deployment" in Oracle Application Express Administration Guide

Message for unavailable application

Use this attribute in conjunction with Status. If you set Status to Unavailable, Unavailable (Status Shown with PL/SQL), or Unavailable (Redirect to URL), the text you enter in this attribute displays. If you set Status to Available, the text you enter in this attribute does not display.

Restrict to comma separated user list (status must equal Restricted Access)

Use this attribute in conjunction with the Status Restricted Access. If you set Status to Restricted Access, only the users listed in this attribute can run the application. To use this attribute:

  1. From the Status list, select Restricted Access.

  2. Enter a comma-delimited list of users who can run the application in the field provided.


Global Notifications

You can use the Global Notifications attribute to communicate system status to application users. For example, you can use this attribute to notify users of scheduled downtime, or communicate other messages regarding application availability. If the page templates used in your application contain the #GLOBAL_NOTIFICATION# substitution string, the text entered here will display in that string's place.

To create a global notification:

  1. Include the #GLOBAL_NOTIFICATION# substitution string in your page template.

  2. Navigate to the Edit Definition page and enter a message in the Global Notifications attribute.

  3. Click Apply Changes.

Substitutions

Use these fields to define static substitution strings for your application. You can use static substitution string for phrases or labels that occur in many places within an application. To create a substitution string, enter the string name in the Substitution String column and the string value in the Substitution Value column.

Defining static substitution strings centrally enables you to change text strings in multiple places in your application by making a single change to the Substitution Value defined on this page.

Logo

Use Logo attributes to define an application logo. An application logo can be text-based or image-based. To use this feature, your page template must include the #LOGO# substitution string.

To define an application logo:

  1. For Logo Type, select one of the following:

    • Select Image to use an image for the application logo.

    • Select Text to use text for the application logo.

  2. In Logo, enter the following:

    • For an image, enter the complete image name, including the filename extension. For example:

      /i/oracle.gif

    • For text, enter the full text string. For example:

      Sample Application

  3. In Logo Attributes, enter the appropriate attributes for the logo.

    Image example:

    width="100" height="20" alt="Company Logo"


    Text example:

    style="font-family:Arial; color:#000000; font-size:18; white-space:nowrap; font-weight:bold;"

Build Options

Displays existing build options. Most applications have a build option attribute. Build Options have two possible values: INCLUDE and EXCLUDE. If you specify an attribute to be included, then the Application Express engine considers it at run time. However, if you specify an attribute to be excluded, then the Application Express engine treats it as if it did not exist.

Do not specify a build option unless you plan to exclude that object from specific installations.

Theme

Displays the current theme applied to the application. Themes are collections of templates that can be used to define the layout and style of an entire application. Each theme provides a complete set of templates that accommodate every user interface pattern that may be needed in an application.

Template Defaults

Lists the default templates for this application. To specify a default template at the application level, you can either:

You can also override this default by making a selection from the Page Template list on the Page Attributes page.

Table 4-3 describes template defaults for the current application.

Table 4-3 Application Template Defaults Attributes

Attribute Description

Default Page Template

Indicates the default page template to display pages. You can override this selection by making a selection from the Page Template list on the Page Attributes page.

See Also: "Editing Page Attributes"

Print Mode Page Template

Identifies the template to be used when the Application Express engine is in printer friendly mode.

When calling the Application Express engine to render a page, you have the option to specify whether the page should be displayed using the Print Mode Page Template specified.

If you specify Yes, then the page displays using a printer friendly template. The Application Express engine displays all text within HTML Form Fields as text. The printer friendly template does not need to have the #FORM_OPEN# or #FORM_CLOSE# substitution string.

See Also: "Optimizing a Page for Printing"

Error Page Template

Optional. Specifies a page template to use for errors that display on a separate page, as opposed to those that display inline.


Component Defaults

Displays the default templates used when running wizards. You can override these settings on the attributes page for each control or component. Table 4-4 describes component defaults for the current application.

Table 4-4 Component Defaults

Attribute Description

Calendar

Default calendar template used when you create a calendar.

Label

Default label template used when you create page items.

Report

Default report template used when you create report.

List

Default template used when you create a list.

Breadcrumb

Default template used when you create a breadcrumb.

Button

Default template used when you create buttons that are template controlled.

Region

Default template used when you create a region.

Chart Region

Default region template used when you create a chart.

Form Region

Default region template used when you create a form.

Report Region

Default region template used when you create a report.

Tabular Form Region

Default region template used when you create a tabular form.

Wizard Region

Default region template used when you create a wizard component.

Breadcrumb Region

Default region template used when you create a breadcrumb.

List Region

Default region template used when you create a list.


Configuring Security Attributes

You can provide security for your application by configuring attributes on the Edit Security Attributes page. The Security Attributes you choose apply to all pages within an application.

Topics in this section include:

Accessing the Edit Security Attributes Page

To access the Edit Security Attributes page:

  1. On the Workspace home page, click the Application Builder icon.

  2. Select an application.

  3. Click Shared Components.

    The Shared Components page appears.

  4. Under Security, click Edit Security Attributes.

The Edit Security Attributes page appears.

About Navigation Alternatives

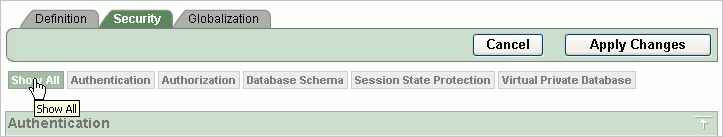

The Edit Security Attributes page is divided into the following sections: Authentication, Authorization, Database Schema, Session State Protection, and Virtual Private Database. You can access these sections by scrolling down the page, or by clicking a navigation button at the top of the page.

Description of sec_attribute_tabs.gif follows
Description of the illustration sec_attribute_tabs.gif

When you select a button at the top of the page, the selected section appears and all other sections are temporarily hidden. To view all sections of the page, click Show All.

About the Security Attributes Page

The following sections describe the attributes available on the Edit Security Attributes page.

Topics in this section include:

Authentication

Authentication is the process of establishing users' identities before they can access an application. Although you define multiple authentication schemes for your application, only one scheme can be current at a time. Table 4-5 describes the attributes available under Authentication.

Table 4-5 Authentication Attributes

Attribute Descriptions

Home Link

Specifies a URL or procedure that should be run when you run the application.

For example, Home Link could contain the relative URL used to locate the application home page. For example, f?p=6000:600 would specify application 6000 with a home page number of 600. In this example, the value you enter in Home Link replaces the #HOME_LINK# substitution string in application templates.

You can also use this attribute to name a procedure. For example, you could create a procedure such as personal_calendar which renders an HTML page to serve as the application home.

Note: Do not use the Home Link attribute to determine the page that displays after authentication. The page that displays after authentication is determined by other components within the application's authentication scheme.

See Also: "HOME_LINK"

Login URL

Replaces the substitution strings &LOGIN_URL. in HTML or #LOGIN_URL# in templates.

See Also: "LOGIN_URL" and "Creating an Authentication Scheme"

Public User

Identifies the Oracle schema used to connect to the database through the database access descriptor (DAD). The default value is ANONYMOUS in environments where the database server version is Oracle Database Express Edition and it is APEX_PUBLIC_USER for all other versions of the database server.

Once a user has been identified, the Application Express engine keeps track of each user by setting the value of the built-in substitution string APP_USER.

Note: Previous versions of Oracle Application Express used the built-in substitution string HTMLDB_PUBLIC_USER.

When APP_USER equals this value, the Application Express engine considers the current session to be a public user session. The Application Express engine supports the following built-in display conditions:

  • USER_IS_PUBLIC_USER

  • USER_IS_NOT_PUBLIC_USER

If the current application user (APP_USER) equals the value of this attribute, then the user is logged on as a public user. Some applications have public (not logged in) and a private (logged in) modes. By determining if the user is the public user, you can conditionally display or hide information.

For example, you can show a login button if the user is the public user and a logout link if the user is not a public user. Reference this value using APEX_APPLICATION.G_PUBLIC_USER. The Application Express engine also has built in condition types USER_IS_PUBLIC_USER and USER_IS_NOT_PUBLIC.

See Also: "HOME_LINK" and "Understanding Conditional Rendering and Processing"

Define Authentication Scheme

Click this button to define an authentication scheme.

See Also: "Understanding How Authentication Works" and "Creating an Authentication Scheme"


Authorization

Authorization controls user access to specific controls or components based on user privileges. You can specify an authorization scheme for your application, by making a selection from the Authorization Scheme list. You can assign only one authorization to an entire application. However, you can assign an authorization scheme to individual pages, page controls (such as a region, a button, or an item), or a shared component (such as a menu, a list, or a tab).

To create a authorization scheme, click Define Authorization Schemes.

An authorization scheme is a binary operation that either succeeds (equals true) or fails (equals false). If it succeeds, then the component or control can be viewed. If it fails, then the component or control cannot be viewed or processed. When you attach an authorization scheme to a page and it fails, an error message displays instead of the page. However, when you attach an authorization scheme to a page control (for example, a region, a button, or an item) and it fails, no error page displays. Instead, the control either does not display or is not processed or executed.

Database Schema

Use Parsing Schema to specify the database scheme for the current application. Once defined, all SQL and PL/SQL commands issued by the application will be performed with the rights and privileges of the defined database schema.

Session Timeout

Use the following attributes to reduce exposure to abandoned computers with an open Web browser by application:

  • Maximum Session Length in Seconds - Enter a positive integer representing how many seconds a session used by this application will exist. Leave the value NULL for the session to exist indefinitely. This session duration may be superseded by the operation of the job that runs every eight hours which deletes sessions older than 24 hours.

  • Session Timeout URL - Enter an optional URL to be redirected to when the Maximum Session Length in Seconds has been exceeded. If implemented in Oracle Application Express, the target page in this URL should be a public page. A common use for this page would be to inform the user of the session expiration and to present a login link or other options. If no URL is supplied, the user is redirected to the application home page.

  • Maximum Session Idle Time in Seconds - Enter a positive integer representing how many seconds of inactivity or idle time a session used by this application should permit. The idle time is the time between one page request and the next one. Leave the value NULL to prevent session idle time checks from being performed.

  • Idle Timeout URL - Enter an optional URL to be redirected to when the Maximum Session Idle Time in Seconds has been exceeded. If implemented in Oracle Application Express, the target page in this URL should be a public page. A common use for this page would be to inform the user of the session is redirected to the application home page. If no URL is supplied, the user is redirected to the application home page.

Session State Protection

Enabling Session State Protection can prevent hackers from tampering with URLs within your application. URL tampering can adversely affect program logic, session state contents, and information privacy.

To enable or disable Session State Protection for your application, make a selection from the Session State Protection list. Setting Session State Protection to Enabled turns on session state protection controls defined at the page and item level.

To configure Session State Protection, click Manage Session State Protection.

Virtual Private Database (VPD)

Use this attribute to enter a PL/SQL block that sets a Virtual Private Database (VPD) context for the current database session associated with the current "show page" or "accept page" request. The block you enter here is executed at a very early point during the page request, immediately after the APP_USER value is established. The value of APP_USER (using :APP_USER or v('APP_USER')) may be used within the block. Values of other items in session state may be referenced as well, but any such items must have been established in session state before the initiation of the current page request. Consider the following example:

dbms_session.set_context('CTX_USER_QRY','USERPRIV',my_package.my_function(:APP_USER));

The previous example sets the value of USERPRIV in the context named CTX_USER_QRY to the value returned by the function my_function in package my_package. The function is passed the current value of APP_USER as an input argument. Presumably, the named context would be used in a VPD policy ( created within the application's parsing schema) to effect the generation of predicates appropriate to the authenticated user.

Virtual Private Database, also know as Fine-Grained Access Control or FGAC, is an Oracle database feature that provides an application programming interface (API) that enables developers to assign security policies to database tables and views. Using PL/SQL, developers can create security policies with stored procedures and bind the procedures to a table or view by means of a call to an RDBMS package. Such policies are based on the content of application data stored within the database, or based on context variables provided by Oracle database. In this way, VPD permits access security mechanisms to be removed from applications, and to be situated closer to particular schemas.

The code entered in this section need not pertain to VPD/FGAC; in fact, it may not be related to security at all. Any code that needs to be executed at the earliest point in a page request can be placed here. For example, to set the database session time zone for every page request:

BEGIN
  EXECUTE IMMEDIATE 'alter session set time_zone = ''Australia/Sydney'' ';
END;

Configuring Globalization Attributes

In Application Builder you can develop applications that can run concurrently in different languages. A single application can be translated to support different languages. Use the attributes on the Edit Globalization Attributes page to specify globalization options such as the primary application language.

Topics in this section include:

Accessing the Globalization Attributes Page

To access the Edit Globalization Attributes page:

  1. On the Workspace home page, click the Application Builder icon.

  2. Select an application.

    The Application Builder home page appears.

  3. Click Shared Components.

    The Shared Components page appears.

  4. Under Globalization, click Edit Attributes.

    The Edit Globalization Attributes page appears.

About the Edit Globalization Attributes Page

The following sections describe the attributes available on the Edit Globalization Attributes page.

Application Primary Language

Identifies the language in which an application is developed. This language is the base language from which all translations are made. For example, suppose application 100 was authored in English, translated into French, and published as application 101. English would be the Application Primary Language.

All modifications to the application should be made to the primary language specified here.

Application Language Derived From

Determines how Application Builder determines or derives the application language.

The application primary language can be static, derived from the Web browser language, or determined from a user preference or item. The database language setting also determines how the date is displayed and how certain information is sorted.

This option enables you to disable browser derived language support. You also have the option of having the application language derived from an application preference.

Application Date Format

Determines the date format to be used in the application.

This date format is used to alter the NLS_DATE_FORMAT database session setting before showing or submitting any page in the application. This value can be a literal string containing a valid Oracle date format mask or an item reference using substitution syntax. If no value is specified, the default date format is derived from the database session at runtime.

Automatic CSV Encoding

Automatic CSV Encoding controls the encoding of all comma-delimited (CSV) report output in an application. The default value for Automatic CSV Encoding is No. If Automatic CSV Encoding is set to Yes, CSV report output is converted to a character set compatible with localized desktop applications. The character set for the CSV encoding is determined by the Application Language Derived From setting.

The encoding of pages in Application Builder is determined by the character set of the database access descriptor (DAD) used to access Oracle Application Express. For example, if the character set of the database access descriptor is AL32UTF8, all pages in all applications in the Oracle Application Express user interface are encoded in UTF-8.

By default, the CSV output from report regions is encoded in the same character set as the database access descriptor. However, some desktop spreadsheet applications require that the data is encoded in the client desktop operating system character set. In the case of multibyte data, the CSV output from report regions will often appear corrupted when opened by a desktop spreadsheet application. This is because the CSV output is encoded differently than what is required by the desktop application. Enabling Automatic CSV Encoding resolves this issue.

For example, if the user's language preference for an application is de, the CSV data is encoded in Western European Windows 1252, regardless of the Database Access Descriptor character set setting. If the user's language preference is zh-cn, the CSV data will be encoded in Chinese GBK.
