Image Processing

This page documents the functionality present in this library that deals with the management and manipulation of images. One thing to note is that there is no explicit image object. Instead, everything deals with array2d objects that contain various kinds of pixels or user defined generic image objects.

Pixel Types

Most image handling routines in dlib will accept images containing any pixel type. This is made possible by defining a traits class, pixel_traits, for each possible pixel type. This traits class enables image processing routines to determine how to handle each kind of pixel and therefore only pixels which have a pixel_traits definition may be used. The following list defines all the pixel types which come with pixel_traits definitions.
  • RGB
      There are two RGB pixel types in dlib, rgb_pixel and bgr_pixel. Each defines a 24bit RGB pixel type. The bgr_pixel is identical to rgb_pixel except that it lays the color channels down in memory in BGR order rather than RGB order and is therefore useful for interfacing with other image processing tools which expect this format (e.g. OpenCV).
  • RGB Alpha
      The rgb_alpha_pixel is an 8bit per channel RGB pixel with an 8bit alpha channel.
  • HSI
      The hsi_pixel is a 24bit pixel which represents a point in the Hue Saturation Intensity (HSI) color space.
  • LAB
      The lab_pixel is a 24bit pixel which represents a point in the CIELab color space.
  • Grayscale
      Any built in scalar type may be used as a grayscale pixel type. For example, unsigned char, int, double, etc.

Object Detection

If you want to create object detectors then try the scan_fhog_pyramid tool first. It is quite easy to use and train and will, in many cases, give excellent results. If that doesn't give good results then try the more powerful convolutional neural network based detector.

[top]

add_image_left_right_flips



This routine takes a set of images and bounding boxes within those images and doubles the size of the dataset by adding left/right flipped copies of each image as well as the corresponding bounding boxes. Therefore, this function is useful if you are training and object detector and your objects have a left/right symmetry.

C++ Example Programs: fhog_object_detector_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

add_image_rotations



This routine takes a set of images and bounding boxes within those images and grows the dataset by computing many different rotations of each image. It will also adjust the positions of the bounding boxes so that they still fall on the same objects in each rotated image.
More Details...
#include <dlib/image_transforms.h>
[top]

assign_all_pixels



This global function assigns all the pixels in an image a specific value.
More Details...
#include <dlib/image_transforms.h>
[top]

assign_border_pixels



This global function assigns all the pixels in the border of an image to a specific value.
More Details...
#include <dlib/image_transforms.h>
[top]

assign_image



This global function copies one image into another and performs any necessary color space conversions to make it work right.
More Details...
#include <dlib/image_transforms.h>
[top]

assign_image_scaled



This global function copies one image into another and performs any necessary color space conversions to make it work right. Additionally, if the dynamic range of the source image is too big to fit into the destination image then it will attempt to perform the appropriate scaling.
More Details...
#include <dlib/image_transforms.h>
[top]

assign_pixel



assign_pixel() is a templated function that can assign any pixel type to another pixel type. It will perform whatever conversion is necessary to make the assignment work. (E.g. color to grayscale conversion)
More Details...
#include <dlib/pixel.h>
[top]

assign_pixel_intensity



assign_pixel_intensity() is a templated function that can change the intensity of a pixel. So if the pixel in question is a grayscale pixel then it simply assigns that pixel the given value. However, if the pixel is not a grayscale pixel then it converts the pixel to the HSI color space and sets the I channel to the given intensity and then converts this HSI value back to the original pixel's color space.
More Details...
#include <dlib/pixel.h>
[top]

auto_threshold_image



This global function performs a simple binary thresholding on an image. Instead of taking a user supplied threshold it computes one from the image using k-means clustering.
More Details...
#include <dlib/image_transforms.h>
[top]

bgr_pixel



This is a simple struct that represents a BGR colored graphical pixel.

The difference between this object and the rgb_pixel is just that this struct lays its pixels down in memory in BGR order rather than RGB order. You only care about this if you are doing something like using the cv_image object to map an OpenCV image into a more object oriented form.


More Details...
#include <dlib/pixel.h>
[top]

binary_close



This global function performs a morphological closing on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_complement



This global function computes the complement of a binary image.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_difference



This global function computes the difference of two binary images.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_dilation



This global function performs the morphological operation of dilation on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_erosion



This global function performs the morphological operation of erosion on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_intersection



This global function computes the intersection of two binary images.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_open



This global function performs a morphological opening on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

binary_union



This global function computes the union of two binary images.
More Details...
#include <dlib/image_transforms.h>
[top]

binned_vector_feature_image



This object is a tool for performing image feature extraction. In particular, it wraps another image feature extractor and converts the wrapped image feature vectors into a high dimensional sparse vector. For example, if the lower level feature extractor outputs the vector [3,4,5] and this vector is hashed into the second bin of four bins then the output sparse vector is:
[0,0,0,0, 3,4,5,1, 0,0,0,0, 0,0,0,0].
That is, the output vector has a dimensionality that is equal to the number of hash bins times the dimensionality of the lower level vector plus one. The value in the extra dimension concatenated onto the end of the vector is always a constant value of of 1 and serves as a bias value. This means that, if there are N hash bins, these vectors are capable of representing N different linear functions, each operating on the vectors that fall into their corresponding hash bin.

The following feature extractors can be wrapped by the binned_vector_feature_image:
More Details...
#include <dlib/image_keypoint.h>
[top]

compute_box_dimensions



This function is a tool for computing a rectangle with a particular width/height ratio and area.
More Details...
#include <dlib/image_processing.h>
[top]

compute_dominant_angle



Computes and returns the dominant angle (i.e. the angle of the dominant gradient) at a given point and scale in an image. This function is part of the main processing of the SURF algorithm.
More Details...
#include <dlib/image_keypoint.h>
[top]

compute_surf_descriptor



Computes the 64 dimensional SURF descriptor vector of a box centered at a given center point, tilted at a given angle, and sized according to a given scale.
More Details...
#include <dlib/image_keypoint.h>
[top]

correlation_tracker



This is a tool for tracking moving objects in a video stream. You give it the bounding box of an object in the first frame and it attempts to track the object in the box from frame to frame.

This tool is an implementation of the method described in the following paper:

Danelljan, Martin, et al. "Accurate scale estimation for robust visual tracking." Proceedings of the British Machine Vision Conference BMVC. 2014.



C++ Example Programs: video_tracking_ex.cpp
Python Example Programs: correlation_tracker.py
More Details...
#include <dlib/image_processing.h>
[top]

create_grid_detection_template



This function is a tool for creating a detection template usable by the scan_image_pyramid object. This particular function creates a detection template with a grid of feature extraction regions.
More Details...
#include <dlib/image_processing.h>
[top]

create_overlapped_2x2_detection_template



This function is a tool for creating a detection template usable by the scan_image_pyramid object. This particular function creates a detection template with four overlapping feature extraction regions.
More Details...
#include <dlib/image_processing.h>
[top]

create_single_box_detection_template



This function is a tool for creating a detection template usable by the scan_image_pyramid object. This particular function creates a detection template with exactly one feature extraction region.
More Details...
#include <dlib/image_processing.h>
[top]

create_tiled_pyramid

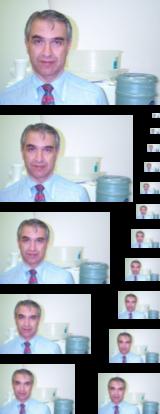

This function creates an image pyramid and packs the entire pyramid into one big image. It does this by tiling the different pyramid layers together and outputting the result. Here is an example:

Also, you can use the image_to_tiled_pyramid() and tiled_pyramid_to_image() routines to convert between the input image coordinate space and the tiled pyramid coordinate space.
More Details...
#include <dlib/image_transforms.h>
[top]

cv_image



This object is meant to be used as a simple wrapper around the OpenCV IplImage struct or Mat object. Using this class template you can turn an OpenCV image into something that looks like a normal dlib style image object.

So you should be able to use cv_image objects with many of the image processing functions in dlib as well as the GUI tools for displaying images on the screen.

Note that you can do the reverse conversion, from dlib to OpenCV, using the toMat routine.



C++ Example Programs: webcam_face_pose_ex.cpp
More Details...
#include <dlib/opencv.h>
[top]

determine_object_boxes



The scan_image_pyramid object represents a sliding window classifier system. For it to work correctly it needs to be given a set of object boxes which define the size and shape of each sliding window and these windows need to be able to match the sizes and shapes of targets the user wishes to detect. Therefore, the determine_object_boxes() routine is a tool for computing a set of object boxes which can meet this requirement.
More Details...
#include <dlib/image_processing.h>
[top]

disturb_colors



Applies a random color transform an image. This is done by creating a random_color_transform with the given parameters and then transforming each pixel in the image with the resulting transform.
More Details...
#include <dlib/image_transforms.h>
[top]

draw_fhog



This function takes a FHOG feature map which was created by extract_fhog_features and converts it into an image suitable for display on the screen. In particular, we draw all the hog cells into a grayscale image in a way that shows the magnitude and orientation of the gradient energy in each cell.

C++ Example Programs: fhog_ex.cpp, fhog_object_detector_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

draw_line



This global function draws a line on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

draw_rectangle



This global function draws a rectangle on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

draw_solid_circle



This global function draws a solid circle on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

draw_surf_points



This routine adds a bunch of surf_point objects onto an image_window object so they can be visualized.

C++ Example Programs: surf_ex.cpp
More Details...
#include <dlib/image_keypoint/draw_surf_points.h>
[top]

edge_orientation



This global function takes horizontal and vertical gradient magnitude values and returns the orientation of the gradient.
More Details...
#include <dlib/image_transforms.h>
[top]

equalize_histogram



This global function performs histogram equalization on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

evaluate_detectors



This function allows you to efficiently run a bunch of scan_fhog_pyramid based object_detectors over an image. Importantly, this function is faster than running each detector individually because it computes the HOG features only once and then reuses them for each detector.

C++ Example Programs: fhog_object_detector_ex.cpp
More Details...
#include <dlib/image_processing.h>
[top]

extract_fhog_features



This function implements the HOG feature extraction method described in the paper:
Object Detection with Discriminatively Trained Part Based Models by P. Felzenszwalb, R. Girshick, D. McAllester, D. Ramanan in IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 32, No. 9, Sep. 2010
This means that it takes an input image and outputs Felzenszwalb's 31 dimensional version of HOG features.

C++ Example Programs: fhog_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

extract_highdim_face_lbp_descriptors



This function extracts the high-dimensional LBP feature described in the paper:
Blessing of Dimensionality: High-dimensional Feature and Its Efficient Compression for Face Verification by Dong Chen, Xudong Cao, Fang Wen, and Jian Sun

More Details...
#include <dlib/image_transforms.h>
[top]

extract_histogram_descriptors



This function extracts histograms of pixel values from a set of windows in an image and returns the histograms.
More Details...
#include <dlib/image_transforms.h>
[top]

extract_image_chips



This function extracts "chips" from an image. That is, it takes a list of rectangular sub-windows (i.e. chips) within an image and extracts those sub-windows, storing each into its own image. It also allows the user to specify the scale and rotation for the chip.

C++ Example Programs: face_landmark_detection_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

extract_uniform_lbp_descriptors



Extracts histograms of uniform local-binary-patterns from an image. The histograms are from densely tiled windows that do not overlap and cover all of the image. We use the idea of uniform LBPs from the paper:
Face Description with Local Binary Patterns: Application to Face Recognition by Ahonen, Hadid, and Pietikainen.

More Details...
#include <dlib/image_transforms.h>
[top]

fill_rect



This global function draws a solid rectangle on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

find_candidate_object_locations



This function takes an input image and generates a set of candidate rectangles which are expected to bound any objects in the image. It does this by running a version of the segment_image routine on the image and then reports rectangles containing each of the segments as well as rectangles containing unions of adjacent segments. The basic idea is described in the paper:
Segmentation as Selective Search for Object Recognition by Koen E. A. van de Sande, et al.
Note that this function deviates from what is described in the paper slightly. See the code for details.

Python Example Programs: find_candidate_object_locations.py
More Details...
#include <dlib/image_transforms.h>
[top]

find_points_above_thresh



This routine finds all points in an image with a pixel value above a threshold. It also has the ability to produce an efficient random subsample of such points if the number of them is very large.
More Details...
#include <dlib/image_processing.h>
[top]

fine_hog_image



This object is a version of the hog_image that allows you to extract HOG features at a finer resolution.
More Details...
#include <dlib/image_keypoint.h>
[top]

flip_image_dataset_left_right



This routine takes a set of images and bounding boxes within those images and mirrors the entire dataset left to right. This means that all images are flipped left to right and the bounding boxes are adjusted so that they still sit on top of the same visual objects in the new flipped images.
More Details...
#include <dlib/image_transforms.h>
[top]

flip_image_left_right



This is a routine which can flip an image from left to right. (e.g. as if viewed through a mirror).
More Details...
#include <dlib/image_transforms.h>
[top]

flip_image_up_down



This routine flips an image upside down.
More Details...
#include <dlib/image_transforms.h>
[top]

float_spatially_filter_image_separable



This global function performs spatial filtering on an image with a user supplied separable filter. It is optimized to work only on float valued images with float valued filters.
More Details...
#include <dlib/image_transforms.h>
[top]

full_object_detection



This object represents the location of an object in an image along with the positions of each of its constituent parts.
More Details...
#include <dlib/image_processing.h>
[top]

gaussian_blur



This global function blurs an image by convolving it with a Gaussian filter.
More Details...
#include <dlib/image_transforms.h>
[top]

get_frontal_face_detector



This function returns an object_detector that is configured to find human faces that are looking more or less towards the camera. It is created using the scan_fhog_pyramid object.

C++ Example Programs: face_detection_ex.cpp, webcam_face_pose_ex.cpp
Python Example Programs: face_detector.py,
More Details...
#include <dlib/image_processing/frontal_face_detector.h>
[top]

get_histogram



This global function computes an image's histogram and returns it in the form of a column or row matrix object.
More Details...
#include <dlib/image_transforms.h>
[top]

get_interest_points



This function extracts interest points from a hessian_pyramid.
More Details...
#include <dlib/image_keypoint.h>
[top]

get_pixel_intensity



get_pixel_intensity() is a templated function that returns the grayscale intensity of a pixel. If the pixel isn't a grayscale pixel then it converts the pixel to grayscale and returns that value.
More Details...
#include <dlib/pixel.h>
[top]

get_surf_points



This function runs the complete SURF algorithm on an input image and returns the points it found. For a description of what exactly the SURF algorithm does you should read the following paper:
SURF: Speeded Up Robust Features By Herbert Bay, Tinne Tuytelaars, and Luc Van Gool

Also note that there are numerous flavors of the SURF algorithm you can put together using the functions in dlib. The get_surf_points() function is just an example of one way you might do so.



C++ Example Programs: surf_ex.cpp
More Details...
#include <dlib/image_keypoint.h>
[top]

haar_x



This is a function that operates on an integral_image and allows you to compute the response of a Haar wavelet oriented along the X axis.
More Details...
#include <dlib/image_transforms.h>
[top]

haar_y



This is a function that operates on an integral_image and allows you to compute the response of a Haar wavelet oriented along the Y axis.
More Details...
#include <dlib/image_transforms.h>
[top]

hashed_feature_image



This object is a tool for performing image feature extraction. In particular, it wraps another image feature extractor and converts the wrapped image feature vectors into sparse indicator vectors. It does this by hashing each feature vector and then returns a new vector which is zero everywhere except for the position determined by the hash.

The following feature extractors can be wrapped by the hashed_feature_image:

C++ Example Programs: object_detector_ex.cpp, train_object_detector.cpp
More Details...
#include <dlib/image_keypoint.h>
[top]

heatmap



Converts a grayscale image into a heatmap. This is useful if you want to display a grayscale image with more than 256 values. In particular, this function uses the following color mapping:


C++ Example Programs: image_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

hessian_pyramid



This object represents an image pyramid where each level in the pyramid holds determinants of Hessian matrices for the original input image. This object can be used to find stable interest points in an image.

This object is an implementation of the fast Hessian pyramid as described in the paper:
SURF: Speeded Up Robust Features By Herbert Bay, Tinne Tuytelaars, and Luc Van Gool
This implementation was also influenced by the very well documented OpenSURF library and its corresponding description of how the fast Hessian algorithm functions:
Notes on the OpenSURF Library by Christopher Evans

More Details...
#include <dlib/image_keypoint.h>
[top]

hog_image



This object is a tool for performing the image feature extraction algorithm described in the following paper:
Histograms of Oriented Gradients for Human Detection by Navneet Dalal and Bill Triggs


C++ Example Programs: object_detector_ex.cpp, train_object_detector.cpp
More Details...
#include <dlib/image_keypoint.h>
[top]

hough_transform



This object is a tool for computing the line finding version of the Hough transform given some kind of edge detection image as input. It also allows the edge pixels to be weighted such that higher weighted edge pixels contribute correspondingly more to the output of the Hough transform, allowing stronger edges to create correspondingly stronger line detections in the final Hough transform.

C++ Example Programs: hough_transform_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

hsi_pixel



This is a simple struct that represents a HSI colored graphical pixel.
More Details...
#include <dlib/pixel.h>
[top]

hysteresis_threshold



This global function performs hysteresis thresholding on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

integral_image



This is a specialization of the integral_image_generic template for the case where sums of pixel values should be represented with longs. E.g. if you use 8bit pixels in your original images then this is the appropriate kind of integral image to use with them.
More Details...
#include <dlib/image_transforms.h>
[top]

integral_image_generic



This object is an alternate way of representing image data that allows for very fast computations of sums of pixels in rectangular regions. To use this object you load it with a normal image and then you can use the get_sum_of_area() member function to compute sums of pixels in a given area in constant time.
More Details...
#include <dlib/image_transforms.h>
[top]

interest_point



This is a simple struct used to represent the interest points returned by the get_interest_points function.
More Details...
#include <dlib/image_keypoint.h>
[top]

interpolate_bilinear



This object is a tool for performing bilinear interpolation on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

interpolate_nearest_neighbor



This object is a tool for performing nearest neighbor interpolation on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

interpolate_quadratic



This object is a tool for performing quadratic interpolation on an image.
More Details...
#include <dlib/image_transforms.h>
[top]

jet



Converts a grayscale image into an image using the jet color scheme. This is useful if you want to display a grayscale image with more than 256 values. In particular, this function uses the following color mapping:

More Details...
#include <dlib/image_transforms.h>
[top]

jpeg_loader



This object loads a JPEG image file into an array2d of pixels.

Note that you must define DLIB_JPEG_SUPPORT if you want to use this object. You must also set your build environment to link to the libjpeg library. However, if you use CMake and dlib's default CMakeLists.txt file then it will get setup automatically.


More Details...
#include <dlib/image_io.h>
[top]

label_connected_blobs



This function labels each of the connected blobs in an image with a unique integer label.
More Details...
#include <dlib/image_transforms.h>
[top]

lab_pixel



This is a simple struct that represents a CIELab colored graphical pixel.
More Details...
#include <dlib/pixel.h>
[top]

load_bmp



This global function loads a MS Windows BMP file into an array2d of pixels.
More Details...
#include <dlib/image_io.h>
[top]

load_dng



This global function loads a dlib DNG file (a lossless compressed image format) into an array2d of pixels.
More Details...
#include <dlib/image_io.h>
[top]

load_image



This global function takes a file name, looks at its extension, and then loads it into an array2d of pixels using the appropriate image loading routine. The supported types are BMP, PNG, JPEG, GIF, and the dlib DNG file format.

Note that you can only load PNG, JPEG, and GIF files if you link against libpng, libjpeg, and libgif respectively. You will also need to #define DLIB_PNG_SUPPORT, DLIB_JPEG_SUPPORT, and DLIB_GIF_SUPPORT. Or use CMake and it will do all this for you.



C++ Example Programs: image_ex.cpp
More Details...
#include <dlib/image_io.h>
[top]

load_jpeg



This function loads a JPEG image file into an array2d of pixels.

Note that you must define DLIB_JPEG_SUPPORT if you want to use this object. You must also set your build environment to link to the libjpeg library. However, if you use CMake and dlib's default CMakeLists.txt file then it will get setup automatically.


More Details...
#include <dlib/image_io.h>
[top]

load_png



This function loads a Portable Network Graphics (PNG) image file into an array2d of pixels.

Note that you must define DLIB_PNG_SUPPORT if you want to use this object. You must also set your build environment to link to the libpng library. However, if you use CMake and dlib's default CMakeLists.txt file then it will get setup automatically.


More Details...
#include <dlib/image_io.h>
[top]

make_uniform_lbp_image



This function extracts the uniform local-binary-pattern feature at every pixel of an image and stores the output in a new image object. We use the idea of uniform LBPs from the paper:
Face Description with Local Binary Patterns: Application to Face Recognition by Ahonen, Hadid, and Pietikainen.

More Details...
#include <dlib/image_transforms.h>
[top]

max_filter



This function slides a rectangle over an input image and outputs a new image which contains the maximum valued pixel found inside the rectangle at each position in the input image.
More Details...
#include <dlib/image_transforms.h>
[top]

mmod_rect



This is a simple struct that is used to give training data and receive detections from the Max-Margin Object Detection loss layer.
More Details...
#include <dlib/image_processing.h>
[top]

nearest_neighbor_feature_image



This object is a tool for performing image feature extraction. In particular, it wraps another image feature extractor and converts the wrapped image feature vectors into sparse indicator vectors. It does this by finding the nearest neighbor for each feature vector and returning an indicator vector that is zero everywhere except for the position indicated by the nearest neighbor.

The following feature extractors can be wrapped by the nearest_neighbor_feature_image:
More Details...
#include <dlib/image_keypoint.h>
[top]

object_detector



This object is a tool for detecting the positions of objects in an image. In particular, it is a simple container to aggregate an instance of an image scanner object (either scan_fhog_pyramid, scan_image_pyramid, scan_image_boxes, or scan_image_custom), the weight vector needed by one of these image scanners, and finally an instance of test_box_overlap. The test_box_overlap object is used to perform non-max suppression on the output of the image scanner object.

Note that you can use the structural_object_detection_trainer to learn the parameters of an object_detector. See the example programs for an introduction.

Also note that dlib contains more powerful CNN based object detection tooling, which will usually run slower but produce much more general and accurate detectors.



C++ Example Programs: fhog_object_detector_ex.cpp, face_detection_ex.cpp, object_detector_ex.cpp, object_detector_advanced_ex.cpp, train_object_detector.cpp
Python Example Programs: face_detector.py, train_object_detector.py
More Details...
#include <dlib/image_processing.h>
[top]

pixel_traits



As the name implies, this is a traits class for pixel types. It allows you to determine what sort of pixel type you are dealing with.
More Details...
#include <dlib/pixel.h>
[top]

png_loader



This object loads a Portable Network Graphics (PNG) image file into an array2d of pixels.

Note that you must define DLIB_PNG_SUPPORT if you want to use this object. You must also set your build environment to link to the libpng library. However, if you use CMake and dlib's default CMakeLists.txt file then it will get setup automatically.


More Details...
#include <dlib/image_io.h>
[top]

poly_image



This object is a tool for extracting local feature descriptors from an image. In particular, it fits polynomials to local pixel patches and allows you to query the coefficients of these polynomials.
More Details...
#include <dlib/image_keypoint.h>
[top]

pyramid_disable



This object downsamples an image at a ratio of infinity to 1. That means it always outputs an image of size zero. This is useful because it can be supplied to routines which take a pyramid_down function object and it will essentially disable pyramid processing. This way, a pyramid oriented function can be turned into a regular routine which processes just the original undownsampled image.
More Details...
#include <dlib/image_transforms.h>
[top]

pyramid_down



This is a simple function object to help create image pyramids. It downsamples an image by a ratio of N to N-1 where N is supplied by the user as a template argument.
More Details...
#include <dlib/image_transforms.h>
[top]

pyramid_up



This routine upsamples an image. In particular, it takes a pyramid_down object (or an object with a compatible interface) as an argument and performs an upsampling which is the inverse of the supplied pyramid_down object.
More Details...
#include <dlib/image_transforms.h>
[top]

randomly_color_image



Randomly generates a mapping from gray level pixel values to the RGB pixel space and then uses this mapping to create a colored version an image.

This function is useful for displaying the results of some image segmentation. For example, the output of label_connected_blobs or segment_image.


More Details...
#include <dlib/image_transforms.h>
[top]

randomly_sample_image_features



Given a feature extractor such as the hog_image, this routine selects a random subsample of local image feature vectors from a set of images.
More Details...
#include <dlib/statistics.h>
[top]

random_color_transform



This object generates a random color balancing and gamma correction transform. It then allows you to apply that specific transform to as many rgb_pixel objects as you like.
More Details...
#include <dlib/image_transforms.h>
[top]

random_cropper



This object is a tool for extracting random crops of objects from a set of images. The crops are randomly jittered in scale, translation, and rotation but more or less centered on objects specified by mmod_rect objects.

C++ Example Programs: random_cropper_ex.cpp, dnn_mmod_ex.cpp, dnn_mmod_find_cars_ex.cpp, dnn_mmod_train_find_cars_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

remove_unobtainable_rectangles



Recall that the scan_image_pyramid and scan_image_boxes objects can't produce all possible rectangles as object detections since they only consider a limited subset of all possible object positions. Therefore, when training an object detector that uses these tools you must make sure the training data does not contain any object locations that are unobtainable by the image scanning model. The remove_unobtainable_rectangles() routine is a tool to filter out these unobtainable rectangles from the training.
More Details...
#include <dlib/image_processing.h>
[top]

render_face_detections



This function takes a set of full_object_detections which represent human faces annotated with 68 facial landmarks (according to the iBUG 300-W scheme) and converts them into a form suitable for display on an image_window.

For example, it will take the output of a shape_predictor that uses this facial landmarking scheme and will produce visualizations like this:



C++ Example Programs: face_landmark_detection_ex.cpp, webcam_face_pose_ex.cpp
More Details...
#include <dlib/image_processing/render_face_detections.h>
[top]

resize_image



This is a routine capable of resizing or stretching an image.
More Details...
#include <dlib/image_transforms.h>
[top]

rgb_alpha_pixel



This is a simple struct that represents an RGB colored graphical pixel with an alpha channel.
More Details...
#include <dlib/pixel.h>
[top]

rgb_pixel



This is a simple struct that represents an RGB colored graphical pixel.
More Details...
#include <dlib/pixel.h>
[top]

rotate_image



This is a routine for rotating an image.
More Details...
#include <dlib/image_transforms.h>
[top]

rotate_image_dataset



This routine takes a set of images and bounding boxes within those images and rotates the entire dataset by a user specified angle. This means that all images are rotated and the bounding boxes are adjusted so that they still sit on top of the same visual objects in the new rotated images.
More Details...
#include <dlib/image_transforms.h>
[top]

save_bmp



This global function saves an image as a MS Windows BMP file.

This routine can save images containing any type of pixel. However, it will convert all color pixels into rgb_pixel and grayscale pixels into uint8 type before saving to disk.


More Details...
#include <dlib/image_io.h>
[top]

save_dng



This global function saves an image as a dlib DNG file (a lossless compressed image format).

This routine can save images containing any type of pixel. However, the DNG format can natively store only the following pixel types: rgb_pixel, hsi_pixel, rgb_alpha_pixel, uint8, uint16, float, and double. All other pixel types will be converted into one of these types as appropriate before being saved to disk.


More Details...
#include <dlib/image_io.h>
[top]

save_jpeg



This global function writes an image to disk as a JPEG file.

Note that you must define DLIB_JPEG_SUPPORT if you want to use this function. You must also set your build environment to link to the libjpeg library. However, if you use CMake and dlib's default CMakeLists.txt file then it will get setup automatically.

This routine can save images containing any type of pixel. However, save_jpeg() can only natively store the following pixel types: rgb_pixel and uint8. All other pixel types will be converted into one of these types as appropriate before being saved to disk.


More Details...
#include <dlib/image_io.h>
[top]

save_png



This global function writes an image to disk as a PNG (Portable Network Graphics) file.

Note that you must define DLIB_PNG_SUPPORT if you want to use this function. You must also set your build environment to link to the libpng library. However, if you use CMake and dlib's default CMakeLists.txt file then it will get setup automatically.

This routine can save images containing any type of pixel. However, save_png() can only natively store the following pixel types: rgb_pixel, rgb_alpha_pixel, uint8, and uint16. All other pixel types will be converted into one of these types as appropriate before being saved to disk.


More Details...
#include <dlib/image_io.h>
[top]

scan_fhog_pyramid



This object is a tool for running a fixed sized sliding window classifier over an image pyramid. In particular, it slides a linear classifier over a HOG pyramid as discussed in the paper:
Histograms of Oriented Gradients for Human Detection by Navneet Dalal and Bill Triggs, CVPR 2005
However, we augment the method slightly to use the version of HOG features from:
Object Detection with Discriminatively Trained Part Based Models by P. Felzenszwalb, R. Girshick, D. McAllester, D. Ramanan IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 32, No. 9, Sep. 2010
Since these HOG features have been shown to give superior performance.

C++ Example Programs: fhog_object_detector_ex.cpp
Python Example Programs: train_object_detector.py
More Details...
#include <dlib/image_processing.h>
[top]

scan_image



This global function is a tool for sliding a set of rectangles over an image space and finding the locations where the sum of pixels in the rectangles exceeds a threshold. It is useful for implementing certain kinds of sliding window classifiers.
More Details...
#include <dlib/image_processing.h>
[top]

scan_image_boxes



This object is a tool for running a classifier over an image with the goal of localizing each object present. The localization is in the form of the bounding box around each object of interest.

Unlike the scan_image_pyramid object which scans a fixed sized window over an image pyramid, the scan_image_boxes tool allows you to define your own list of "candidate object locations" which should be evaluated. This is simply a list of rectangle objects which might contain objects of interest. The scan_image_boxes object will then evaluate the classifier at each of these locations and return the subset of rectangles which appear to have objects in them.

This object can also be understood as a general tool for implementing the spatial pyramid models described in the paper:
Beyond Bags of Features: Spatial Pyramid Matching for Recognizing Natural Scene Categories by Svetlana Lazebnik, Cordelia Schmid, and Jean Ponce


The following feature extractors can be used with the scan_image_boxes object:
More Details...
#include <dlib/image_processing.h>
[top]

scan_image_custom



This object is a tool for running a classifier over an image with the goal of localizing each object present. The localization is in the form of the bounding box around each object of interest.

Unlike the scan_image_pyramid and scan_image_boxes objects, this image scanner delegates all the work of constructing the object feature vector to a user supplied feature extraction object. That is, scan_image_custom simply asks the supplied feature extractor what boxes in the image we should investigate and then asks the feature extractor for the complete feature vector for each box. That is, scan_image_custom does not apply any kind of pyramiding or other higher level processing to the features coming out of the feature extractor. That means that when you use scan_image_custom it is completely up to you to define the feature vector used with each image box.


More Details...
#include <dlib/image_processing.h>
[top]

scan_image_movable_parts



This global function is a tool for sliding a set of rectangles over an image space and finding the locations where the sum of pixels in the rectangles exceeds a threshold. It is useful for implementing certain kinds of sliding window classifiers. The behavior of this routine is similar to scan_image except that it can also handle movable parts in addition to rigidly placed parts within the sliding window.
More Details...
#include <dlib/image_processing.h>
[top]

scan_image_pyramid



This object is a tool for running a sliding window classifier over an image pyramid. This object can also be understood as a general tool for implementing the spatial pyramid models described in the paper:
Beyond Bags of Features: Spatial Pyramid Matching for Recognizing Natural Scene Categories by Svetlana Lazebnik, Cordelia Schmid, and Jean Ponce
It also includes the ability to represent movable part models.

The following feature extractors can be used with the scan_image_pyramid object:

C++ Example Programs: object_detector_ex.cpp, object_detector_advanced_ex.cpp
More Details...
#include <dlib/image_processing.h>
[top]

segment_image



Attempts to segment an image into regions which have some visual consistency to them. In particular, this function implements the algorithm described in the paper:
Efficient Graph-Based Image Segmentation by Felzenszwalb and Huttenlocher.

More Details...
#include <dlib/image_transforms.h>
[top]

separable_3x3_filter_block_grayscale



This routine filters part of an image with a user supplied 3x3 separable filter. The output is a grayscale sub-image.
More Details...
#include <dlib/image_transforms.h>
[top]

separable_3x3_filter_block_rgb



This routine filters part of an image with a user supplied 3x3 separable filter. The output is a RGB sub-image.
More Details...
#include <dlib/image_transforms.h>
[top]

setup_grid_detection_templates



This routine uses determine_object_boxes to obtain a set of object boxes and then adds them to a scan_image_pyramid object as detection templates. It also uses create_grid_detection_template to create each feature extraction region. Therefore, the detection templates will extract features from a regular grid inside each object box.
More Details...
#include <dlib/image_processing.h>
[top]

setup_grid_detection_templates_verbose



This function is identical to setup_grid_detection_templates except that it also outputs information regarding the selected detection templates to standard out.

C++ Example Programs: object_detector_ex.cpp, train_object_detector.cpp
More Details...
#include <dlib/image_processing.h>
[top]

setup_hashed_features



This is a tool for configuring the hashed_feature_image or binned_vector_feature_image object with a random projection hash.

C++ Example Programs: object_detector_ex.cpp, train_object_detector.cpp
More Details...
#include <dlib/image_processing.h>
[top]

shape_predictor



This object is a tool that takes in an image region containing some object and outputs a set of point locations that define the pose of the object. The classic example of this is human face pose prediction, where you take an image of a human face as input and are expected to identify the locations of important facial landmarks such as the corners of the mouth and eyes, tip of the nose, and so forth. For example, here is the output of dlib's 68-face-landmark shape_predictor on an image from the HELEN dataset:



To create useful instantiations of this object you need to use the shape_predictor_trainer object to train a shape_predictor using a set of training images, each annotated with shapes you want to predict. To do this, the shape_predictor_trainer uses the state-of-the-art method from the paper:
One Millisecond Face Alignment with an Ensemble of Regression Trees by Vahid Kazemi and Josephine Sullivan, CVPR 2014


C++ Example Programs: face_landmark_detection_ex.cpp, train_shape_predictor_ex.cpp, webcam_face_pose_ex.cpp
Python Example Programs: train_shape_predictor.py, face_landmark_detection.py
More Details...
#include <dlib/image_processing.h>
[top]

skeleton



This function computes the skeletonization of an image. That is, given a binary image, we progressively thin the binary blobs until only a single pixel wide skeleton of the original blobs remains.
More Details...
#include <dlib/image_transforms.h>
[top]

sobel_edge_detector



This global function performs spatial filtering on an image using the sobel edge detection filters.

C++ Example Programs: image_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

spatially_filter_image



This global function performs spatial filtering on an image with a user supplied filter.
More Details...
#include <dlib/image_transforms.h>
[top]

spatially_filter_image_separable



This global function performs spatial filtering on an image with a user supplied separable filter.
More Details...
#include <dlib/image_transforms.h>
[top]

spatially_filter_image_separable_down



This global function performs spatial filtering on an image with a user supplied separable filter. Additionally, it produces a downsampled output.
More Details...
#include <dlib/image_transforms.h>
[top]

sub_image



This function returns a lightweight sub-image of another image. In particular, the returned sub-image simply holds a pointer to the original image, meaning there is no overhead for using or creating the sub-image.
More Details...
#include <dlib/image_transforms.h>
[top]

sum_filter



This function slides a rectangle over an input image and adds the sum of pixel values in each rectangle location to another image.
More Details...
#include <dlib/image_transforms.h>
[top]

sum_filter_assign



This function slides a rectangle over an input image and outputs a new image which contains the sum of pixels inside the rectangle at each position in the input image.
More Details...
#include <dlib/image_transforms.h>
[top]

suppress_non_maximum_edges



This global function performs non-maximum suppression on a gradient image.

C++ Example Programs: image_ex.cpp
More Details...
#include <dlib/image_transforms.h>
[top]

surf_point



This is a simple struct used to represent the SURF points returned by the get_surf_points function.

C++ Example Programs: surf_ex.cpp
More Details...
#include <dlib/image_keypoint.h>
[top]

test_box_overlap



This object is a simple function object for determining if two rectangles overlap.
More Details...
#include <dlib/image_processing.h>
[top]

threshold_image



This global function performs a simple binary thresholding on an image with a user supplied threshold.
More Details...
#include <dlib/image_transforms.h>
[top]

tile_images



This function takes an array of images and tiles them into a single large square image and returns this new big tiled image. Therefore, it is a useful method to visualize many small images at once.
More Details...
#include <dlib/image_transforms.h>
[top]

toMat



This routine converts a dlib style image into an instance of OpenCV's cv::Mat object. This is done by setting up the Mat object to point to the same memory as the dlib image.

Note that you can do the reverse conversion, from OpenCV to dlib, using the cv_image object.


More Details...
#include <dlib/opencv.h>
[top]

transform_image



This routine is a tool for transforming images using some kind of point mapping function (e.g. point_transform_affine) and pixel interpolation tool (e.g. interpolate_quadratic). An example application of this routine is for image rotation. Indeed, it is how rotate_image is implemented.
More Details...
#include <dlib/image_transforms.h>
[top]

upsample_image_dataset



This routine takes a set of images and bounding boxes within those images and upsamples the entire dataset. This means that all images are upsampled and the bounding boxes are adjusted so that they still sit on top of the same visual objects in the new images.
More Details...
#include <dlib/image_transforms.h>
[top]

zero_border_pixels



This global function zeros the pixels on the border of an image.
More Details...
#include <dlib/image_transforms.h>
