[top]gui_widgets
This component is a collection of various windowing widgets such as buttons,
labels, text boxes, and so on. It also includes the drawable
interface, drawable_window, and font handling objects.
dlib/gui_widgets/widgets_abstract.h
defines all of the high level graphical widgets provided by this
component that can appear in a drawable_window. To view the specifications for the other members of this
component look at dlib/gui_widgets/fonts_abstract.h,
dlib/gui_widgets/drawable_abstract.h,
and dlib/gui_widgets/base_widgets_abstract.h.
This component isn't actually a wrapper on top of OS APIs. Rather, it is
implemented on top of the gui_core
component. I put it on this page just because I expect that people would
look here when searching for the sort of functionality provided by this component.
Primary widgets
C++ Example Programs:
gui_api_ex.cpp,
image_ex.cpp,

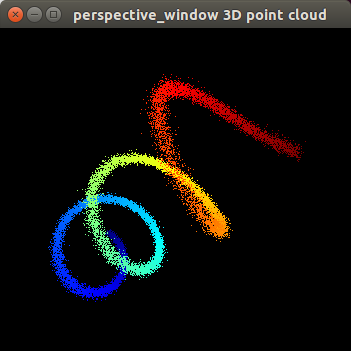

3d_point_cloud_ex.cpp,
surf_ex.cpp,
bayes_net_gui_ex.cpp#include <dlib/gui_widgets.h>
[top]sockets
This is a set of objects that provides an easy to use and object oriented
interface for dealing with TCP networking. There are currently two implementations,
one for UNIX and another for all versions of Windows after Windows95.
Both provide the exact same interface so programs written with them can be
recompiled on either platform without a problem.
You also may want to take note of the timeout object.
It provides a mechanism which you can use to add a timeout to a network operation.
C++ Example Programs:
iosockstream_ex.cpp,
sockets_ex.cpp,
sockstreambuf_ex.cpp,
server_http_ex.cpp,
server_iostream_ex.cppImplementations:sockets_kernel_1:
MS Windows implementation
sockets_kernel_2:
POSIX implementation
Extensions to sockets
[top]threads
This is a set of objects that provides an easy to use and object oriented interface
for creating multi-threaded programs. There are currently two implementations, one
for UNIX and another for any variant of MS Windows after Windows 95. Both provide
the exact same interface so programs written with them can be recompiled on either
platform without a problem.
You also probably want to take note of the pipe object.
It provides an easy to use typesafe mechanism to send messages between threads.
C++ Example Programs:
threads_ex.cpp,
logger_ex_2.cpp,
pipe_ex.cpp,
multithreaded_object_ex.cpp,
threaded_object_ex.cpp,
thread_function_ex.cpp,
thread_pool_ex.cppImplementations:threads_kernel_1:
MS Windows implementation
threads_kernel_2:
POSIX implementation
Extensions to threads
async
This function behaves just like std::async()
except that instead of spawning a new thread to process each task it submits
the task to a
dlib::thread_pool. Therefore, dlib::async() is
guaranteed to use a bounded number of threads unlike std::async(). This also
means that calls to dlib::async() will block if there aren't any free threads
in the thread pool.
More Details... auto_mutex
This extension adds a mechanism to automatically lock and unlock a mutex.
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
C++ Example Programs:
threads_ex.cppMore Details... auto_mutex_readonly
This extension adds a mechanism to automatically perform a readonly lock and unlock
of a
read_write_mutex.
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
More Details... auto_unlock
This extension adds a mechanism to automatically unlock a mutex.
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
More Details... create_new_thread_extension
This extension adds some templated overloads to the
create_new_thread() function. They allow you to create new threads using member functions from a class.
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
More Details... default_thread_pool
This function returns a reference to a global
thread_pool. If the DLIB_NUM_THREADS
environment variable is set to an integer then the thread pool will contain
DLIB_NUM_THREADS threads, otherwise it will contain
std::thread::hardware_concurrency() threads.
More Details... read_write_mutex
This extension adds a mutex object that can perform both normal "write locks" as well as "readonly locks".
See the specification for details.
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
More Details... rmutex
This extension adds a mutex object that can handle recursive calls
to lock().
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
More Details... rsignaler
This extension adds a signaler object that can be used with the rmutex object.
Also note that this extension is included by dlib/threads.h so you don't have to include
anything extra to get it.
More Details... thread_pool
This object represents a fixed size group of threads which you can
submit tasks to and then wait for those tasks to be completed. It also
provides a future object
that provides a container which allows you to safely pass objects into the tasks.
The implementation of this extension can be found
here. It is
implemented such that no memory allocations occur after the thread pool
has been constructed so long as the user doesn't call
any of the add_task_by_value() routines. The future object also doesn't
perform any memory allocations or contain any system resources such as mutex objects.
C++ Example Programs:
thread_pool_ex.cppMore Details...
Examples: C++
