CREATE MATERIALIZED VIEW LOG

Purpose

Use the CREATE MATERIALIZED VIEW LOG statement to create a materialized view log, which is a table associated with the master table of a materialized view.

Note:

The keyword SNAPSHOT is supported in place of MATERIALIZED VIEW for backward compatibility.

Materialized view logs are used for two types of materialized view refreshes: fast refresh and synchronous refresh.

Fast refresh uses a conventional materialized view log. During a fast refresh (also called an incremental refresh), when DML changes are made to master table data, Oracle Database stores rows describing those changes in the materialized view log and then uses the materialized view log to refresh materialized views based on the master table.

Synchronous refresh uses a special type of materialized view log called a staging log. During a synchronous refresh, DML changes are first described in the staging log and then applied to the master tables and the materialized views simultaneously. This guarantees that the master table data and materialized view data are in sync throughout the refresh process. This refresh method is useful in data warehousing environments.

Without a materialized view log, Oracle Database must reexecute the materialized view query to refresh the materialized view. This process is called a complete refresh. Usually, a complete refresh takes more time to complete than a fast refresh or a synchronous refresh.

A materialized view log is located in the master database in the same schema as the master table. A master table can have only one materialized view log defined on it.

To fast refresh or synchronous refresh a materialized join view, you must create a materialized view log for each of the tables referenced by the materialized view.

Fast refresh supports two types of materialized view logs: timestamp-based materialized view logs and commit SCN-based materialized view logs. Timestamp-based materialized view logs use timestamps and require some setup operations when preparing to refresh the materialized view. Commit SCN-based materialized view logs use commit SCN data rather than timestamps, which removes the need for the setup operations and thus can improve the speed of the materialized view refresh. If you specify the COMMIT SCN clause, then a commit SCN-based materialized view log is created. Otherwise, a time-stamp based materialized view log is created. Note that only new materialized view logs can take advantage of COMMIT SCN. Existing materialized view logs cannot be altered to add COMMIT SCN unless they are dropped and recreated. Refer to Oracle Database Data Warehousing Guide for more information.

Synchronous refresh supports only timestamp-based staging logs.

See Also:

Prerequisites

The privileges required to create a materialized view log directly relate to the privileges necessary to create the underlying objects associated with a materialized view log.

  • If you own the master table, then you can create an associated materialized view log if you have the CREATE TABLE privilege.

  • If you are creating a materialized view log for a table in another user's schema, then you must have the CREATE ANY TABLE and COMMENT ANY TABLE system privileges, as well as either the READ or SELECT object privilege on the master table or the READ ANY TABLE or SELECT ANY TABLE system privilege.

In either case, the owner of the materialized view log must have sufficient quota in the tablespace intended to hold the materialized view log or must have the UNLIMITED TABLESPACE system privilege.

See Also:

Oracle Database Data Warehousing Guide for more information about the prerequisites for creating a materialized view log

Restrictions

The statement CREATE MATERIALIZED VIEW LOG does not support the following columns in the Master Table:

  • Hidden columns

  • Identity columns

  • BFILE columns

  • Temporal validity columns

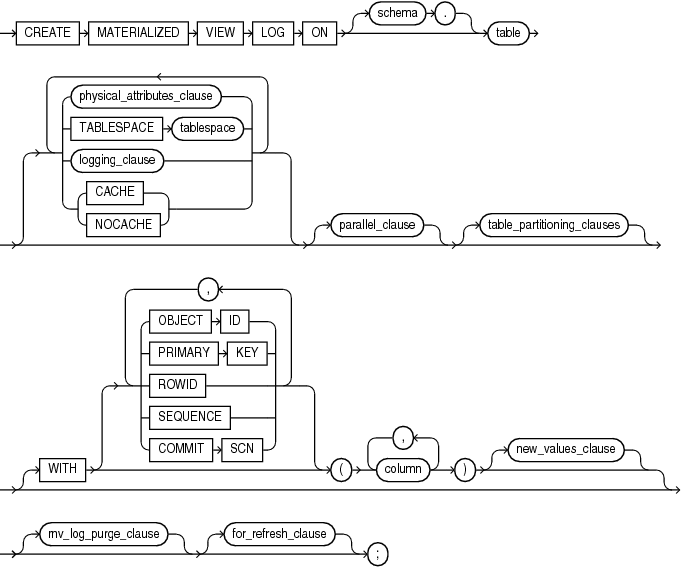

Syntax

Semantics

schema

Specify the schema containing the materialized view log master table. If you omit schema, then Oracle Database assumes the master table is contained in your own schema. Oracle Database creates the materialized view log in the schema of its master table. You cannot create a materialized view log for a table in the schema of the user SYS.

table

Specify the name of the master table for which the materialized view log is to be created. Oracle Database encrypts any columns in the materialized view log that are encrypted in the master table, using the same encryption algorithm.

Restrictions on Master Tables of Materialized View Logs

The following restrictions apply to master tables of materialized view logs:

  • You cannot create a materialized view log for a temporary table or for a view.

  • You cannot create a materialized view log for a master table with a virtual column.

physical_attributes_clause

Use the physical_attributes_clause to define physical and storage characteristics for the materialized view log.

See Also:

physical_attributes_clause and storage_clause for a complete description these clauses, including default values

TABLESPACE Clause

Specify the tablespace in which the materialized view log is to be created. If you omit this clause, then the database creates the materialized view log in the default tablespace of the schema of the materialized view log.

logging_clause

Specify either LOGGING or NOLOGGING to establish the logging characteristics for the materialized view log. The default is the logging characteristic of the tablespace in which the materialized view log resides.

See Also:

logging_clause for a full description of this clause

CACHE | NOCACHE

For data that will be accessed frequently, CACHE specifies that the blocks retrieved for this log are placed at the most recently used end of the least recently used (LRU) list in the buffer cache when a full table scan is performed. This attribute is useful for small lookup tables.

NOCACHE specifies that the blocks are placed at the least recently used end of the LRU list. The default is NOCACHE.

Note:

NOCACHE has no effect on materialized view logs for which you specify KEEP in the storage_clause.

See Also:

CREATE TABLE for information about specifying CACHE or NOCACHE

parallel_clause

The parallel_clause lets you indicate whether parallel operations will be supported for the materialized view log.

For complete information on this clause, refer to parallel_clause in the documentation on CREATE TABLE.

table_partitioning_clauses

Use the table_partitioning_clauses to indicate that the materialized view log is partitioned on specified ranges of values or on a hash function. Partitioning of materialized view logs is the same as partitioning of tables.

See Also:

table_partitioning_clauses in the CREATE TABLE documentation

WITH Clause

Use the WITH clause to indicate whether the materialized view log should record the primary key, rowid, object ID, or a combination of these row identifiers when rows in the master are changed. You can also use this clause to add a sequence to the materialized view log to provide additional ordering information for its records.

This clause also specifies whether the materialized view log records additional columns that might be referenced as filter columns, which are non-primary-key columns referenced by subquery materialized views, or join columns, which are non-primary-key columns that define a join in the subquery WHERE clause.

If you omit this clause, or if you specify the clause without PRIMARY KEY, ROWID, or OBJECT ID, then the database stores primary key values by default. However, the database does not store primary key values implicitly if you specify only OBJECT ID or ROWID at create time. A primary key log, created either explicitly or by default, performs additional checking on the primary key constraint.

OBJECT ID

Specify OBJECT ID to indicate that the system-generated or user-defined object identifier of every modified row should be recorded in the materialized view log.

Restriction on OBJECT ID

You can specify OBJECT ID only when creating a log on an object table, and you cannot specify it for storage tables.

PRIMARY KEY

Specify PRIMARY KEY to indicate that the primary key of all rows changed should be recorded in the materialized view log.

ROWID

Specify ROWID to indicate that the rowid of all rows changed should be recorded in the materialized view log.

SEQUENCE

Specify SEQUENCE to indicate that a sequence value providing additional ordering information should be recorded in the materialized view log. Sequence numbers are necessary to support fast refresh after some update scenarios.

See Also:

Oracle Database Data Warehousing Guide for more information on the use of sequence numbers in materialized view logs and for examples that use this clause

COMMIT SCN

Without the COMMIT SCN clause, the materialized view log is based on timestamps and requires some setup operations when preparing to refresh the materialized view. Specify COMMIT SCN to instruct the database to use commit SCN data rather than timestamps. This setting removes the need for the setup operations and thus can improve the speed of the materialized view refresh.

You can create the following types of local materialized views (including both ON COMMIT and ON DEMAND) on master tables with commit SCN-based materialized view logs:

  • Materialized aggregate views, including materialized aggregate views on a single table

  • Materialized join views

  • Primary-key-based and rowid-based single table materialized views

  • UNION ALL materialized views, where each UNION ALL branch is one of the above materialized view types

You cannot create remote materialized views on master tables with commit SCN-based materialized view logs.

Restrictions on COMMIT SCN

The following restrictions apply to COMMIT SCN:

  • Use of COMMIT SCN on a table with one or more LOB columns is not supported and causes ORA-32421.

  • Creating a materialized view on master tables with different types of materialized view logs (that is, a master table with timestamp-based materialized view logs and a master table with commit SCN-based materialized view logs) is not supported and causes ORA-32414.

  • If you specify COMMIT SCN, then you cannot specify FOR SYNCHRONOUS REFRESH.

column

Specify the columns whose values you want to be recorded in the materialized view log for all rows that are changed. Typically these columns are filter columns and join columns.

Restrictions on the WITH Clause

This clause is subject to the following restrictions:

  • You can specify only one PRIMARY KEY, one ROWID, one OBJECT ID, one SEQUENCE, and one column list for each materialized view log.

  • Primary key columns are implicitly recorded in the materialized view log. Therefore, you cannot specify any of the following combinations if column contains one of the primary key columns:

    WITH ... PRIMARY KEY ... (column)
    WITH ... (column) ... PRIMARY KEY
    WITH (column)

See Also:

NEW VALUES Clause

The NEW VALUES clause lets you determine whether Oracle Database saves both old and new values for update DML operations in the materialized view log.

INCLUDING

Specify INCLUDING to save both new and old values in the log. If this log is for a table on which you have a single-table materialized aggregate view, and if you want the materialized view to be eligible for fast refresh, then you must specify INCLUDING.

EXCLUDING

Specify EXCLUDING to disable the recording of new values in the log. This is the default. You can use this clause to avoid the overhead of recording new values. Do not use this clause if you have a fast-refreshable single-table materialized aggregate view defined on the master table.

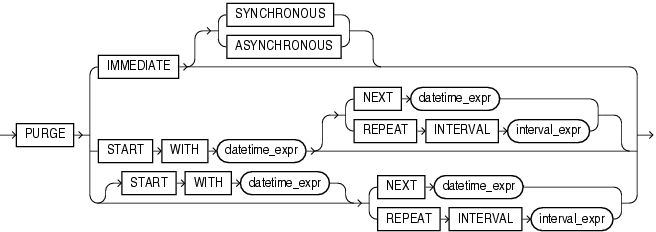

mv_log_purge_clause

Use this clause to specify the purge time for the materialized view log.

  • IMMEDIATE SYNCHRONOUS: the materialized view log is purged immediately after refresh. This is the default.

  • IMMEDIATE ASYNCHRONOUS: the materialized view log is purged in a separate Oracle Scheduler job after the refresh operation.

  • START WITH, NEXT, and REPEAT INTERVAL set up a scheduled purge that is independent of the materialized view refresh and is initiated during CREATE or ALTER MATERIALIZED VIEW LOG statement. This is very similar to scheduled refresh syntax in a CREATE or ALTER MATERIALIZED VIEW statement:

    • The START WITH datetime expression specifies when the purge starts.

    • The NEXT datetime expression computes the next run time for the purge.

    If you specify REPEAT INTERVAL, then the next run time will be: SYSDATE + interval_expr.

    A CREATE MATERIALIZED VIEW LOG statement with a scheduled purge creates an Oracle Scheduler job to perform log purge. The job calls the DBMS_SNAPSHOT.PURGE_LOG procedure to purge the materialized view logs. This process allows you to amortize the purging costs over several materialized view refreshes.

Restriction on mv_log_purge_clause

This clause is not valid for materialized view logs on temporary tables.

See Also:

Oracle Database Data Warehousing Guide for more information on purging materialized view logs

for_refresh_clause

Use this clause to specify the refresh method for which the materialized view log will be used. You can specify only one refresh method for any given master table.

FOR SYNCHRONOUS REFRESH

Specify this clause to create a staging log that can be used for synchronous refresh. Use staging_log_name to specify the name of the staging log to be created. The staging log will be created in the schema in which the master table resides.

After you create the staging log, you cannot perform DML operations directly on the master table. You must use the procedures in the DBMS_SYNC_REFRESH package to prepare and execute change data operations.

Restrictions on Synchronous Refresh

The following restrictions apply to synchronous refresh:

  • If you specify FOR SYNCHRONOUS REFRESH, then you cannot specify COMMIT SCN.

  • To be eligible for synchronous refresh, the master table must satisfy the following criteria:

    • If the master table is a fact table, then it must be partitioned.

    • The master table must have a key. If the master table is a dimension table, then it must have a primary key defined on it. If the master table is a fact table, then the set of columns that are the foreign keys of the dimension tables joined to the fact table are deemed to be the key.

    • The master table cannot have a non-NULL Virtual Private Database (VPD) policy or a trigger defined on it.

    Oracle Database may allow you to create a staging log on a master table even if all of the preceding criteria are not met. However, the master table will not be eligible for synchronous refresh.

  • Any existing materialized views on the master table must be refresh-on-demand materialized views. If an existing materialized view is a refresh-on-commit materialized view, then you must change it to a refresh-on-demand materialized view with the alter_mv_refresh clause of ALTER MATERIALIZED VIEW before you create the staging log.

See Also:

FOR FAST REFRESH

Specify this clause to create a materialized view log that can be used for fast refresh. The materialized view log will be created in the same schema in which the master table resides. This is the default.

Examples

Creating a Materialized View Log for Fast Refresh: Examples

The following statement creates a materialized view log on the oe.customers table that specifies physical and storage characteristics:

CREATE MATERIALIZED VIEW LOG ON customers
   PCTFREE 5
   TABLESPACE example
   STORAGE (INITIAL 10K);

The materialized view log on customers supports fast refresh for primary key materialized views only.

The following statement creates another version of the materialized view log with the ROWID clause, which enables fast refresh for more types of materialized views:

CREATE MATERIALIZED VIEW LOG ON customers WITH PRIMARY KEY, ROWID;

This materialized view log on customers makes fast refresh possible for rowid materialized views and for materialized join views. To provide for fast refresh of materialized aggregate views, you must also specify the SEQUENCE and INCLUDING NEW VALUES clauses, as shown in the example that follows.

Specify a Purge Repeat Interval for a Materialized View Log: Example

The following statement creates a materialized view log on the oe.orders table. The contents of the log will be purged once every five days, beginning five days after the creation date of the materialized view log:

CREATE MATERIALIZED VIEW LOG ON orders
  PCTFREE 5
  TABLESPACE example
  STORAGE (INITIAL 10K)
  PURGE REPEAT INTERVAL '5' DAY;

Specifying Filter Columns for Materialized View Logs: Example

The following statement creates a materialized view log on the sh.sales table and is used in "Creating Materialized Aggregate Views: Example". It specifies as filter columns all of the columns of the table referenced in that materialized view.

CREATE MATERIALIZED VIEW LOG ON sales
   WITH ROWID, SEQUENCE(amount_sold, time_id, prod_id)
   INCLUDING NEW VALUES;

Specifying Join Columns for Materialized View Logs: Example

The following statement creates a materialized view log on the order_items table of the sample oe schema. The log records primary keys and product_id, which is used as a join column in "Creating a Fast Refreshable Materialized View: Example".

CREATE MATERIALIZED VIEW LOG ON order_items WITH (product_id);

Including New Values in Materialized View Logs: Example

The following example creates a materialized view log on the oe.product_information table that specifies INCLUDING NEW VALUES:

CREATE MATERIALIZED VIEW LOG ON product_information
   WITH ROWID, SEQUENCE (list_price, min_price, category_id), PRIMARY KEY
   INCLUDING NEW VALUES;

You could create the following materialized aggregate view to use the product_information log:

CREATE MATERIALIZED VIEW products_mv
   REFRESH FAST ON COMMIT
   AS SELECT SUM(list_price - min_price), category_id
         FROM product_information
         GROUP BY category_id;

This materialized view is eligible for fast refresh because the log defined on its master table includes both old and new values.

Creating a Staging Log for Synchronous Refresh: Example

The following statement creates a staging log on the sh.sales fact table. The staging log is named mystage_log and is stored in the sh schema. It can be used for synchronous refresh.

CREATE MATERIALIZED VIEW LOG ON sales
   PCTFREE 5
   TABLESPACE example
   STORAGE (INITIAL 10K)
   FOR SYNCHRONOUS REFRESH USING mystage_log;
