A semantic network is a set of tables and views that holds RDF data (that is, semantic data). A semantic network is not created during installation. A DBA user must be explicitly call SEM_APIS.CREATE_SEM_NETWORK to create a semantic network before any RDF data can be stored in the database.

A semantic network contains, among other things, an RDF_LINK$ table for storing RDF triples or quads. By default, the RDF_LINK$ table is list-partitioned into a set of models. A model is a user-created container for storing RDF triples or quads.

The RDF_LINK$ table can optionally use list-hash composite partitioning where each model partition is subpartitioned by a hash of the predicate. Composite partitioning can improve SPARQL query performance on larger data sets through better parallelization and improved query optimizer statistics. For more information about how to enable composite partitioning, see:

• The options parameter descriptions for SEM_APIS.CREATE_SEM_MODEL and SEM_APIS.CREATE_SEM_NETWORK

• The usage notes for the options parameter for SEM_APIS.CREATE_ENTAILMENT, specifically for the MODEL_PARTITIONS=n option.

A semantic network can be created in and owned by either the MDSYS schema or a regular database user schema:

• If a network is created in the MDSYS schema, it is an unnamed semantic network available to the entire database.

  Having a single unnamed network was the only scenario available before Oracle Database Release 19c. That usage is still supported, but discouraged, for networks created starting with Release 19c.

• If the network is not created in the MDSYS schema, you can create or one more semantic networks in one or more regular database user schemas. Each such network is called a schema-private semantic network.

  The use of schema-private networks is encouraged.

You can have both an MDSYS-owned network and one or more schema-private networks in a single database or pluggable database.

An existing MDSYS-owned semantic network can be migrated to a shared schema-private semantic network by using the SEM_APIS.MOVE_SEM_NETWORK_DATA and SEM_APIS.APPEND_SEM_NETWORK_DATA procedures. See Moving, Restoring, and Appending a Semantic Network for details.

• Schema-Private Semantic Networks

• Types of Semantic Network Users

• Naming Conventions for Semantic Network Objects

• RDF_PARAMETER Table in Semantic Networks

• Sharing Schema-Private Semantic Networks

• Migrating from MDSYS to Schema-Private Semantic Networks


The SEM_MODEL$ view contains information about all models defined in a semantic network. When you create a model using the SEM_APIS.CREATE_SEM_MODEL procedure, you specify a name for the model, as well as a table and column to hold references to the semantic data, and the system automatically generates a model ID.

Oracle maintains the SEM_MODEL$ view automatically when you create and drop models. Users should never modify this view directly. For example, do not use SQL INSERT, UPDATE, or DELETE statements with this view.

The SEM_MODEL$ view contains the columns shown in Table 1-2.

When you create a model, a view for the triples associated with the model is also created under the network owner’s schema. This view has a name in the format SEMM_model-name, and it is visible only to the owner of the model and to users with suitable privileges. Each SEMM_model-name view contains a row for each triple (stored as a link in a network), and it has the columns shown in Table 1-3.

The RDF_VALUE$ table contains information about the subjects, properties, and objects used to represent RDF statements. It uniquely stores the text values (URIs or literals) for these three pieces of information, using a separate row for each part of each triple.

Oracle maintains the RDF_VALUE$ table automatically. Users should never modify this view directly. For example, do not use SQL INSERT, UPDATE, or DELETE statements with this view.

The RDF_VALUE$ table contains the columns shown in Table 1-4.

• Triple Uniqueness and Data Types for Literals


RDF subjects and objects are mapped to nodes in a semantic data network. Subject nodes are the start nodes of links, and object nodes are the end nodes of links. Non-literal nodes (that is, URIs and blank nodes) can be used as both subject and object nodes. Literals can be used only as object nodes.

Blank nodes can be used as subject and object nodes in the semantic network. Blank node identifiers are different from URIs in that they are scoped within a semantic model. Thus, although multiple occurrences of the same blank node identifier within a single semantic model necessarily refer to the same resource, occurrences of the same blank node identifier in two different semantic models do not refer to the same resource.

In an Oracle semantic network, this behavior is modeled by requiring that blank nodes are always reused (that is, are used to represent the same resource if the same blank node identifier is used) within a semantic model, and never reused between two different models. Thus, when inserting triples involving blank nodes into a model, you must use the SDO_RDF_TRIPLE_S constructor that supports reuse of blank nodes.

Properties are mapped to links that have their start node and end node as subjects and objects, respectively. Therefore, a link represents a complete triple.

When a triple is inserted into a model, the subject, property, and object text values are checked to see if they already exist in the database. If they already exist (due to previous statements in other models), no new entries are made; if they do not exist, three new rows are inserted into the RDF_VALUE$ table (described in Statements).

Inferencing is the ability to make logical deductions based on rules. Inferencing enables you to construct queries that perform semantic matching based on meaningful relationships among pieces of data, as opposed to just syntactic matching based on string or other values. Inferencing involves the use of rules, either supplied by Oracle or user-defined, placed in rulebases.

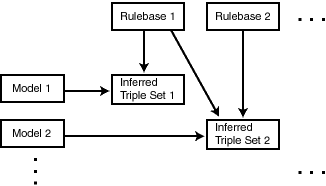

Figure 1-2 shows triple sets being inferred from model data and the application of rules in one or more rulebases. In this illustration, the database can have any number of semantic models, rulebases, and inferred triple sets, and an inferred triple set can be derived using rules in one or more rulebases.

Figure 1-2 Inferencing

Description of "Figure 1-2 Inferencing"

A rule is an object that can be applied to draw inferences from semantic data. A rule is identified by a name and consists of:

• An IF side pattern for the antecedents

• A THEN side pattern for the consequents

For example, the rule that a chairperson of a conference is also a reviewer of the conference could be represented as follows:

('chairpersonRule', -- rule name
 '(?r :ChairPersonOf ?c)', -- IF side pattern
 NULL,  -- filter condition
 '(?r :ReviewerOf ?c)', -- THEN side pattern
 SEM_ALIASES (SEM_ALIAS('', 'http://some.org/test/'))
)

For best performance, use a single-triple pattern on the THEN side of the rule. If a rule has multiple triple patterns on the THEN side, you can easily break it into multiple rules, each with a single-triple pattern, on the THEN side.

A rulebase is an object that contains rules. The following Oracle-supplied rulebases are provided:

• RDFS

• RDF (a subset of RDFS)

• OWLSIF (empty)

• RDFS++ (empty)

• OWL2EL (empty)

• OWL2RL (empty)

• OWLPrime (empty)

• SKOSCORE (empty)

The RDFS and RDF rulebases are created when you call the SEM_APIS.CREATE_SEM_NETWORK procedure to add RDF support to the database. The RDFS rulebase implements the RDFS entailment rules, as described in the World Wide Web Consortium (W3C) RDF Semantics document at http://www.w3.org/TR/rdf-mt/. The RDF rulebase represents the RDF entailment rules, which are a subset of the RDFS entailment rules. You can see the contents of these rulebases by examining the SEMR_RDFS and SEMR_RDF views.

You can also create user-defined rulebases using the SEM_APIS.CREATE_RULEBASE procedure. User-defined rulebases enable you to provide additional specialized inferencing capabilities.

For each rulebase, a table is created to hold rules in the rulebase, along with a view with a name in the format SEMR_rulebase-name (for example, SEMR_FAMILY_RB for a rulebase named FAMILY_RB). You must use this view to insert, delete, and modify rules in the rulebase. Each SEMR_rulebase-name view has the columns shown in Table 1-5.

Information about all rulebases is maintained in the SEM_RULEBASE_INFO view, which has the columns shown in Table 1-6 and one row for each rulebase.

EXECUTE SEM_APIS.CREATE_RULEBASE('family_rb', network_owner=>'RDFUSER', network_name=>'NET1');

INSERT INTO rdfuser.net1#semr_family_rb VALUES(
  'grandparent_rule',
  '(?x :parentOf ?y) (?y :parentOf ?z)',
  NULL,
  '(?x :grandParentOf ?z)',
  SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')));

-- Select all grandfathers and their grandchildren from the family model.
-- Use inferencing from both the RDFS and family_rb rulebases.
SELECT x$rdfterm grandfather, y$rdfterm grandchild
  FROM TABLE(SEM_MATCH(
    'PREFIX  rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
     PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
     PREFIX     : <http://www.example.org/family/>
     SELECT ?x ?y
     WHERE {?x :grandParentOf ?y . ?x rdf:type :Male}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null,  null, null,
    ' PLUS_RDFT=VC ',
    null, null,
    'RDFUSER', 'NET1'));

An entailment (rules index) is an object containing precomputed triples that can be inferred from applying a specified set of rulebases to a specified set of models. If a SEM_MATCH query refers to any rulebases, an entailment must exist for each rulebase-model combination in the query.

To create an entailment, use the SEM_APIS.CREATE_ENTAILMENT procedure. To drop (delete) an entailment, use the SEM_APIS.DROP_ENTAILMENT procedure.

When you create an entailment, a view for the triples associated with the entailment is also created under the network owner’s schema. This view has a name in the format SEMI_entailment-name, and it is visible only to the owner of the entailment and to users with suitable privileges. Each SEMI_entailment-name view contains a row for each triple (stored as a link in a network), and it has the same columns as the SEMM_model-name view, which is described in Table 1-3 in Metadata for Models.

Information about all entailments is maintained in the SEM_RULES_INDEX_INFO view, which has the columns shown in Table 1-7 and one row for each entailment.

Information about all database objects, such as models and rulebases, related to entailments is maintained in the SEM_RULES_INDEX_DATASETS view. This view has the columns shown in Table 1-8 and one row for each unique combination of values of all the columns.

Example 1-3 creates an entailment named family_rb_rix_family, using the family model and the RDFS and family_rb rulebases. (This example is an excerpt from Example 1-117 in Example: Family Information.)

BEGIN
  SEM_APIS.CREATE_ENTAILMENT(
    'rdfs_rix_family',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

A virtual model is a logical graph that can be used in a SEM_MATCH query. A virtual model is the result of a UNION or UNION ALL operation on one or more models and/or entailments.

Using a virtual model can provide several benefits:

• It can simplify management of access privileges for semantic data. For example, assume that you have created three semantic models and one entailment based on the three models and the OWLPrime rulebase. Without a virtual model, you must individually grant and revoke access privileges for each model and the entailment. However, if you create a virtual model that contains the three models and the entailment, you will only need to grant and revoke access privileges for the single virtual model.

• It can facilitate rapid updates to semantic models. For example, assume that virtual model VM1 contains model M1 and entailment R1 (that is, VM1 = M1 UNION ALL R1), and assume that semantic model M1_UPD is a copy of M1 that has been updated with additional triples and that R1_UPD is an entailment created for M1_UPD. Now, to have user queries over VM1 go to the updated model and entailment, you can redefine virtual model VM1 (that is, VM1 = M1_UPD UNION ALL R1_UPD).

• It can simplify query specification because querying a virtual model is equivalent to querying multiple models in a SEM_MATCH query. For example, assume that models m1, m2, and m3 already exist, and that an entailment has been created for m1, m2 ,and m3 using the OWLPrime rulebase. You could create a virtual model vm1 as follows:

  EXECUTE sem_apis.create_virtual_model('vm1', sem_models('m1', 'm2', 'm3'),
                                        sem_rulebases('OWLPRIME'),
                                        network_owner=>'RDFUSER',
                                        network_name=>'NET1');


  To query the virtual model, use the virtual model name as if it were a model in a SEM_MATCH query. For example, the following query on the virtual model:

  SELECT * FROM TABLE (sem_match('{…}', sem_models('vm1'), null, …));


  is equivalent to the following query on all the individual models:

  SELECT * FROM TABLE (sem_match('{…}', sem_models('m1', 'm2', 'm3'),
                                        sem_rulebases('OWLPRIME'), …));


  A SEM_MATCH query over a virtual model will query either the SEMV or SEMU view (SEMU by default and SEMV if the 'ALLOW_DUP=T' option is specified) rather than querying the UNION or UNION ALL of each model and entailment. For information about these views and options, see the reference section for the SEM_APIS.CREATE_VIRTUAL_MODEL procedure.

Virtual models use views (described later in this section) and add some metadata entries, but do not significantly increase system storage requirements.

To create a virtual model, use the SEM_APIS.CREATE_VIRTUAL_MODEL procedure. To drop (delete) a virtual model, use the SEM_APIS.DROP_VIRTUAL_MODEL procedure. A virtual model is dropped automatically if any of its component models, rulebases, or entailment are dropped. To replace a virtual model without dropping it, use the SEM_APIS.CREATE_VIRTUAL_MODEL procedure with the REPLACE=T option. Replacing a virtual model allows you to redefine it while maintaining any access privileges.

To query a virtual model, specify the virtual model name in the models parameter of the SEM_MATCH table function, as shown in Example 1-4.

For information about the SEM_MATCH table function, see Using the SEM_MATCH Table Function to Query Semantic Data, which includes information using certain attributes when querying a virtual model.

When you create a virtual model, an entry is created for it in the SEM_MODEL$ view, which is described in Table 1-2 in Metadata for Models. However, the values in several of the columns are different for virtual models as opposed to semantic models, as explained in Table 1-9.

Information about all virtual models is maintained in the SEM_VMODEL_INFO view, which has the columns shown in Table 1-10 and one row for each virtual model.

Information about all objects (models, rulebases, and entailments) related to virtual models is maintained in the SEM_VMODEL_DATASETS view. This view has the columns shown in Table 1-11 and one row for each unique combination of values of all the columns.

SELECT COUNT(protein)
  FROM TABLE (SEM_MATCH (
    'SELECT ?protein
     WHERE {
      ?protein rdf:type :Protein .
      ?protein :citation ?citation .
      ?citation :author "Bairoch A."}',
    SEM_MODELS('UNIPROT_VM'),
    NULL,
    SEM_ALIASES(SEM_ALIAS('', 'http://purl.uniprot.org/core/')),
    NULL,
    NULL,
    'ALLOW_DUP=T',
    NULL,
    NULL,
    'RDFUSER','NET1'));

RDF Semantic Graph supports the use of named graphs, which are described in the "RDF Dataset" section of the W3C SPARQL Query Language for RDF recommendation (http://www.w3.org/TR/rdf-sparql-query/#rdfDataset).

This support is provided by extending an RDF triple consisting of the traditional subject, predicate, and object, to include an additional component to represent a graph name. The extended RDF triple, despite having four components, will continue to be referred to as an RDF triple in this document. In addition, the following terms are sometimes used:

• N-Triple is a format that does not allow extended triples. Thus, n-triples can include only triples with three components.

• N-Quad is a format that allows both "regular" triples (three components) and extended triples (four components, including the graph name). For more information, see http://www.w3.org/TR/2013/NOTE-n-quads-20130409/.

  To load a file containing extended triples (possibly mixed with regular triples) into an Oracle database, the input file must be in N-Quad format.

The graph name component of an RDF triple must either be null or a URI. If it is null, the RDF triple is said to belong to a default graph; otherwise it is said to belong to a named graph whose name is designated by the URI.

Additionally, to support named graphs in SDO_RDF_TRIPLE_S object type (described in Semantic Data Types_ Constructors_ and Methods), a new syntax is provided for specifying a model-graph, that is, a combination of model and graph (if any) together, and the RDF_M_ID attribute holds the identifier for a model-graph: a combination of model ID and value ID for the graph (if any). The name of a model-graph is specified as model_name, and if a graph is present, followed by the colon (:) separator character and the graph name (which must be a URI and enclosed within angle brackets < >).

For example, in a medical data set the named graph component for each RDF triple might be a URI based on patient identifier, so there could be as many named graphs as there are unique patients, with each named graph consisting of data for a specific patient.

For information about performing specific operations with named graphs, see the following:

• Using constructors and methods: Semantic Data Types_ Constructors_ and Methods

• Loading: Loading N-Quad Format Data into a Staging Table Using an External Table and Loading Data into Named Graphs Using INSERT Statements

• Querying: GRAPH Keyword Support and Expressions in the SELECT Clause

• Inferencing: Using Named Graph Based Inferencing (Global and Local)

• Data Formats Related to Named Graph Support


The following database security considerations apply to the use of semantic data:

• When a model or entailment is created, the owner gets the SELECT privilege with the GRANT option on the associated view. Users that have the SELECT privilege on these views can perform SEM_MATCH queries against the associated model or entailment.

• When a rulebase is created, the owner gets the SELECT, INSERT, UPDATE, and DELETE privileges on the rulebase, with the GRANT option. Users that have the SELECT privilege on a rulebase can create an entailment that includes the rulebase. The INSERT, UPDATE, and DELETE privileges control which users can modify the rulebase and how they can modify it.

• To perform data manipulation language (DML) operations on a model, a user must have DML privileges for the corresponding base table.

• The creator of the base table corresponding to a model can grant privileges to other users.

• To perform data manipulation language (DML) operations on a rulebase, a user must have the appropriate privileges on the corresponding database view.

• The creator of a model can grant SELECT privileges on the corresponding database view to other users.

• A user can query only those models for which that user has SELECT privileges to the corresponding database views.

• Only the creator of a model or a rulebase can drop it.

The following constructor formats are available for inserting triples into a model table. The only difference is that in the second format the data type for the object is CLOB, to accommodate very long literals.

SDO_RDF_TRIPLE_S (
  model_name    VARCHAR2, -- Model name
  subject       VARCHAR2, -- Subject
  property      VARCHAR2, -- Property
  object        VARCHAR2, -- Object
  network_owner VARCHAR2 DEFAULT NULL,
  network_name  VARCHAR2 DEFAULT NULL)
  RETURN     SELF;

SDO_RDF_TRIPLE_S (
  model_name    VARCHAR2, -- Model name
  subject       VARCHAR2, -- Subject
  property      VARCHAR2, -- Property
  object        CLOB,     -- Object
  network_owner VARCHAR2 DEFAULT NULL,
  network_name  VARCHAR2 DEFAULT NULL)
  RETURN SELF;

Example 1-8 uses the first constructor format to insert several triples.

INSERT INTO articles_rdf_data VALUES (
  SDO_RDF_TRIPLE_S ('articles','<http://nature.example.com/Article1>',
    '<http://purl.org/dc/elements/1.1/creator>',
    '"Jane Smith"',
    'RDFUSER',
    'NET1'));

INSERT INTO articles_rdf_data VALUES (
  SDO_RDF_TRIPLE_S ('articles:<http://examples.com/ns#Graph1>',
    '<http://nature.example.com/Article102>',
    '<http://purl.org/dc/elements/1.1/creator>',
    '_:b1',
    'RDFUSER',
    'NET1'));

INSERT INTO articles_rdf_data VALUES (
  SDO_RDF_TRIPLE_S ('articles:<http://examples.com/ns#Graph1>',
    '_:b2',
    '<http://purl.org/dc/elements/1.1/creator>',
    '_:b1',
    'RDFUSER',
    'NET1'));

You can query semantic data even when the relevant entailment does not have a valid status if you specify the string value INCOMPLETE or INVALID for the index_status attribute of the SEM_MATCH table function. (The entailment status is stored in the STATUS column of the SEM_RULES_INDEX_INFO view, which is described in Entailments (Rules Indexes). The SEM_MATCH table function is described in Using the SEM_MATCH Table Function to Query Semantic Data.)

The index_status attribute value affects the query behavior as follows:

• If the entailment has a valid status, the query behavior is not affected by the value of the index_status attribute.

• If you provide no value or specify a null value for index_status, the query returns an error if the entailment does not have a valid status.

• If you specify the string INCOMPLETE for the index_status attribute, the query is performed if the status of the entailment is incomplete or valid.

• If you specify the string INVALID for the index_status attribute, the query is performed regardless of the actual status of the entailment (invalid, incomplete, or valid).

However, the following considerations apply if the status of the entailment is incomplete or invalid:

• If the status is incomplete, the content of an entailment may be approximate, because some triples that are inferable (due to the recent insertions into the underlying models) may not actually be present in the entailment, and therefore results returned by the query may be inaccurate.

• If the status is invalid, the content of the entailment may be approximate, because some triples that are no longer inferable (due to recent modifications to the underlying models or rulebases, or both) may still be present in the entailment, and this may affect the accuracy of the result returned by the query. In addition to possible presence of triples that are no longer inferable, some inferable rows may not actually be present in the entailment.

The SEM_MATCH table function accepts the syntax for the graph pattern in which a sequence of triple patterns is enclosed within curly braces. The period is usually required as a separator unless followed by the OPTIONAL, FILTER, UNION, or GRAPH keyword. With this syntax, you can do any combination of the following:

• Use the OPTIONAL construct to retrieve results even in the case of a partial match

• Use the FILTER construct to specify a filter expression in the graph pattern to restrict the solutions to a query

• Use the UNION construct to match one of multiple alternative graph patterns

• Use the GRAPH construct (explained in GRAPH Keyword Support) to scope graph pattern matching to a set of named graphs

In addition to arithmetic operators (+, -, *, /), Boolean operators and logical connectives (||, &&, !), and comparison operators (<, >, <=, >=, =, !=), several built-in functions are available for use in FILTER clauses. Table 1-13 lists built-in functions that you can use in the FILTER clause. In the Description column of Table 1-13, x, y, and z are arguments of the appropriate types.

See also the descriptions of the built-in functions defined in the SPARQL query language specification (http://www.w3.org/TR/sparql11-query/), to better understand the built-in functions available in SEM_MATCH.

In addition, Oracle provides some proprietary query functions that take advantage of Oracle Database features and help improve query performance. The following table lists these Oracle-specific query functions. Note that the built-in namespace prefix orardf expands to <http://xmlns.oracle.com/rdf/>.

The following XML Schema casting functions are available for use in FILTER clauses. These functions take an RDF term as input and return a new RDF term of the desired type or raise an error if the term cannot be cast to the desired type. Details of type casting can be found in Section 17.1 of the XPath query specification: http://www.w3.org/TR/xpath-functions/#casting-from-primitive-to-primitive. These functions use the XML Namespace xsd : http://www.w3.org/2001/XMLSchema#.

• xsd:string (RDF term)

• xsd:dateTime (RDF term)

• xsd:boolean (RDF term)

• xsd:integer (RDF term)

• xsd:float (RDF term)

• xsd:double (RDF term)

• xsd:decimal (RDF term)

If you use the syntax with curly braces to express a graph pattern:

• The query always returns canonical lexical forms for the matching values for the variables.

• Any hints specified in the options argument using HINT0={<hint-string>} (explained in Using the SEM_MATCH Table Function to Query Semantic Data), should be constructed only on the basis of the portion of the graph pattern inside the root BGP. For example, the only valid aliases for use in a hint specification for the query in Example 1-14 are t0, t1, ?x, and ?y. Inline query optimizer hints can be used to influence other parts of the graph pattern (see Inline Query Optimizer Hints).

• The FILTER construct is not supported for variables bound to long literals.

SELECT x, y
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, '', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, game
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male .
      OPTIONAL{?x :plays ?game}
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null,
    null,
    'HINT0={LEADING(t0 t1) USE_NL(?x ?y)}',
    null,
    null,
    'RDFUSER', 'NET1'));

SELECT x, y, game
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male .
      OPTIONAL{?x :plays ?game . ?y :plays ?game}
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null,
    'ALL_ORDERED ALL_BGP_HASH',
    null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, game, age
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male .
      OPTIONAL{?x :plays ?game
                          OPTIONAL {?y :plays ?game . ?y :age ?age} }
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, game, email
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male .
      OPTIONAL{?x :plays ?game}
      OPTIONAL{?x :email ?email}
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male . ?x :residentOf ?z
       FILTER (?z = "NY"  || ?z = "CA")}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, z
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male . ?x :email ?z
       FILTER (REGEX(STR(?z), "@oracle\\.com$"))}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y
  FROM TABLE(SEM_MATCH(
    '{?x :grandParentOf ?y . ?x rdf:type :Male
       {{?x :residentOf ?z} UNION {?x :ownsPropertyIn ?z}}
       FILTER (?z = "NY"  || ?z = "CA")}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

• GRAPH Keyword Support


SEM_MATCH allows fully-specified SPARQL ASK queries in the query parameter.

ASK queries are used to test whether or not a solution exists for a given query pattern. In contrast to other forms of SPARQL queries, ASK queries do not return any information about solutions to the query pattern. Instead, such queries return "true"^^xsd:boolean if a solution exists and "false"^^xsd:boolean if no solution exists.

All SPARQL ASK queries return the same columns: ASK, ASK$RDFVID, ASK$_PREFIX, ASK$_SUFFIX, ASK$RDFVTYP, ASK$RDFCLOB, ASK$RDFLTYP, ASK$RDFLANG, SEM$ROWNUM. Note that these columns are the same as a SPARQL SELECT syntax query that projects a single ?ask variable.

SPARQL ASK queries will generally give better performance than an equivalent SPARQL SELECT syntax query because the ASK query does not have to retrieve lexical values for query variables, and query execution can stop after a single result has been found.

SPARQL ASK queries use the same syntax as SPARQL SELECT queries, but the topmost SELECT clause must be replaced with the keyword ASK.

SELECT ask
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/electronics/>
     ASK
     WHERE
      {?x :price ?p .
       ?x :megapixels ?m .
       FILTER (?p < 50 && ?m > 10)
      }',
    SEM_Models('electronics'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SEM_MATCH allows fully-specified SPARQL CONSTRUCT queries in the query parameter.

CONSTRUCT queries are used to build RDF graphs from stored RDF data. In contrast to SPARQL SELECT queries, CONSTRUCT queries return a set of RDF triples rather than a set of query solutions (variable bindings).

All SPARQL CONSTRUCT queries return the same columns from SEM_MATCH. These columns correspond to the subject, predicate and object of an RDF triple, and there are 10 columns for each triple component. In addition, a SEM$ROWNUM column is returned. More specifically, the following columns are returned:

SUBJ
SUBJ$RDFVID
SUBJ$_PREFIX
SUBJ$_SUFFIX
SUBJ$RDFVTYP
SUBJ$RDFCLOB
SUBJ$RDFLTYP
SUBJ$RDFLANG
SUBJ$RDFTERM
SUBJ$RDFCLBT
PRED
PRED$RDFVID
PRED$_PREFIX
PRED$_SUFFIX
PRED$RDFVTYP
PRED$RDFCLOB
PRED$RDFLTYP
PRED$RDFLANG
PRED$RDFTERM
PRED$RDFCLBT
OBJ
OBJ$RDFVID
OBJ$_PREFIX
OBJ$_SUFFIX
OBJ$RDFVTYP
OBJ$RDFCLOB
OBJ$RDFLTYP
OBJ$RDFLANG
OBJ$RDFTERM
OBJ$RDFCLBT
SEM$ROWNUM

For each component, COMP, COMP$RDFVID, COMP$_PREFIX, COMP$_SUFFIX, COMP$RDFVTYP, COMP$RDFCLOB, COMP$RDFLTYP, and COMP$RDFLANG correspond to the same values as those from SPARQL SELECT queries. COMP$RDFTERM holds a VARCHAR2(4000) RDF term in N-Triple syntax, and COMP$RDFCLBT holds a CLOB RDF term in N-Triple syntax.

SPARQL CONSTRUCT queries use the same syntax as SPARQL SELECT queries, except the topmost SELECT clause is replaced with a CONSTRUCT template. The CONSTRUCT template determines how to construct the result RDF graph using the results of the query pattern defined in the WHERE clause. A CONSTRUCT template consists of the keyword CONSTRUCT followed by sequence of SPARQL triple patterns that are enclosed within curly braces. The keywords OPTIONAL, UNION, FILTER, MINUS, BIND, VALUES, and GRAPH are not allowed within CONSTRUCT templates, and property path expressions are not allowed within CONSTRUCT templates. These keywords, however, are allowed within the query pattern inside the WHERE clause.

SPARQL CONSTRUCT queries build result RDF graphs in the following manner. For each result row returned by the WHERE clause, variable values are substituted into the CONSTRUCT template to create one or more RDF triples. Suppose the graph pattern in the WHERE clause of Example 1-25 returns the following result rows.

The overall SEM_MATCH CONSTRUCT query in Example 1-25 would then return the following rows, which correspond to six RDF triples (two for each result row of the query pattern).

There are two SEM_MATCH query options that influence the behavior of SPARQL CONSTRUCT: CONSTRUCT_UNIQUE=T and CONSTRUCT_STRICT=T. Using the CONSTRUCT_UNIQUE=T query option ensures that only unique RDF triples are returned from the CONSTRUCT query. Using the CONSTRUCT_STRICT=T query option ensures that only valid RDF triples are returned from the CONSTRUCT query. Valid RDF triples are those that have (1) a URI or blank node in the subject position, (2) a URI in the predicate position, and (3) a URI, blank node or RDF literal in the object position. Both of these query options are turned off by default for improved query performance.

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  ent: <http://www.example.org/enterprise/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     CONSTRUCT
      {?e foaf:givenName  ?fname .
       ?e foaf:familyName ?lname
      }
     WHERE
      {?e ent:fname ?fname .
       ?e ent:lname ?lname
      }',
    SEM_Models('enterprise'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  ent: <http://www.example.org/enterprise/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     CONSTRUCT
      { ?e ent:fname       ?fname .
        ?e ent:lname       ?lname .
        ?e ent:dateOfBirth ?dob }
     WHERE
      { ?e ent:fname  ?fname .
        ?e ent:lname  ?lname .
        ?e ent:salary ?sal
      }
     ORDER BY DESC(?sal)
     LIMIT 2',
    SEM_Models('enterprise'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  ent: <http://www.example.org/enterprise/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     CONSTRUCT
      { ?e foaf:name  ?name }
     WHERE
      { SELECT ?e (CONCAT(?fname," ",?lname) AS ?name)
        WHERE { ?e ent:fname ?fname .
                ?e ent:lname ?lname }
      }',
    SEM_Models('enterprise'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  ent: <http://www.example.org/enterprise/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     CONSTRUCT
      { ?e ent:name ?name .
        ?e ent:dateOfBirth ?dob .
        ?e ent:ssn ?ssn
      }
     FROM ent:g1
     FROM ent:g2
     FROM NAMED ent:g3
     FROM NAMED ent:g4
     WHERE
      { ?e foaf:name ?name .
        GRAPH ent:g3 { ?e ent:dateOfBirth ?dob }
        GRAPH ent:g4 { ?e ent:ssn ?ssn }
      }',
    SEM_Models('enterprise'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  ent: <http://www.example.org/enterprise/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     CONSTRUCT
      {?e foaf:givenName  ?fname .
       ?e foaf:familyName ?lname
      }
     WHERE
      {?e ent:fname ?fname .
       ?e ent:lname ?lname
      }',
    SEM_Models('enterprise'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  ent: <http://www.example.org/enterprise/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     CONSTRUCT
     WHERE
      {?e ent:fname ?fname .
       ?e ent:lname ?lname
      }',
    SEM_Models('enterprise'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

• Typical SPARQL CONSTRUCT Workflow


SEM_MATCH allows fully-specified SPARQL DESCRIBE queries in the query parameter.

SPARQL DESCRIBE queries are useful for exploring RDF data sets. You can easily find information about a given resource or set of resources without knowing information about the exact RDF properties used in the data set. A DESCRIBE query returns a "description" of a resource r, where a "description" is the set of RDF triples in the query data set that contain r in either the subject or object position.

Like CONSTRUCT queries, DESCRIBE queries return an RDF graph instead of result bindings. Each DESCRIBE query, therefore, returns the same columns as a CONSTRUCT query (see Graph Patterns: Support for SPARQL CONSTRUCT Syntax for a listing of return columns).

SPARQL DESCRIBE queries use the same syntax as SPARQL SELECT queries, except the topmost SELECT clause is replaced with a DESCRIBE clause. A DESCRIBE clause consists of the DESCRIBE keyword followed by a sequence of URIs and/or variables separated by whitespace or the DESCRIBE keyword followed by a single * (asterisk).

Two SEM_MATCH query options affect SPARQL DESCRIBE queries: CONSTRUCT_UNIQUE=T and CONSTRUCT_STRICT=T. CONSTRUCT_UNIQUE=T ensures that duplicate triples are eliminated from the result, and CONSTRUCT_STRICT=T ensures that invalid triples are eliminated from the result. Both of these options are turned off by default. These options are described in more detail in Graph Patterns: Support for SPARQL CONSTRUCT Syntax.

See also the W3C SPARQL specification for more information on SPARQL DESCRIBE queries, specifically: http://www.w3.org/TR/sparql11-query/#describe

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
FROM TABLE(SEM_MATCH(
 'DESCRIBE <http://www.example.org/enterprise/emp_1>',
 SEM_Models('enterprise'),
 null, null, null, null, ' ', null, null,
 'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
FROM TABLE(SEM_MATCH(
 'PREFIX  ent: <http://www.example.org/enterprise/>
  DESCRIBE ?e
  WHERE
   { ?e ent:department ?dept .
     ?dept ent:locatedIn "New Hampshire" }',
 SEM_Models('enterprise'),
 null, null, null, null, ' ', null, null,
 'RDFUSER', 'NET1'));

SELECT subj$rdfterm, pred$rdfterm, obj$rdfterm
FROM TABLE(SEM_MATCH(
 'PREFIX  ent: <http://www.example.org/enterprise/>
  DESCRIBE *
  WHERE
   { ?e ent:department ?dept .
     ?dept ent:locatedIn "New Hampshire" }',
 SEM_Models('enterprise'),
 null, null, null, null, ' ', null, null,
 'RDFUSER', 'NET1'));

In addition to curly-brace graph patterns, SEM_MATCH allows fully-specified SPARQL SELECT queries in the query parameter. When using the SPARQL SELECT syntax option, SEM_MATCH supports the following query constructs: BASE, PREFIX, SELECT, SELECT DISTINCT, FROM, FROM NAMED, WHERE, ORDER BY, LIMIT, and OFFSET. Each SPARQL SELECT syntax query must include a SELECT clause and a graph pattern.

A key difference between curly-brace and SPARQL SELECT syntax when using SEM_MATCH is that only variables appearing in the SPARQL SELECT clause are returned from SEM_MATCH when using SPARQL SELECT syntax.

One additional column, SEM$ROWNUM, is returned from SEM_MATCH when using SPARQL SELECT syntax. This NUMBER column can be used to order the results of a SEM_MATCH query so that the result order matches the ordering specified by a SPARQL ORDER BY clause.

The SPARQL ORDER BY clause can be used to order the results of SEM_MATCH queries. This clause specifies a sequence of comparators used to order the results of a given query. A comparator consists of an expression composed of variables, RDF terms, arithmetic operators (+, -, *, /), Boolean operators and logical connectives (||, &&, !), comparison operators (<, >, <=, >=, =, !=), and any functions available for use in FILTER expressions.

The following order of operations is used when evaluating SPARQL SELECT queries:

1. Graph pattern matching

2. Grouping (see Grouping and Aggregation.)

3. Aggregates (see Grouping and Aggregation)

4. Having (see Grouping and Aggregation)

5. Values (see Value Assignment)

6. Select expressions

7. Order by

8. Projection

9. Distinct

10. Offset

11. Limit

See also the W3C SPARQL specification for more information on SPARQL BASE, PREFIX, SELECT, SELECT DISTINCT, FROM, FROM NAMED, WHERE, ORDER BY, LIMIT, and OFFSET constructs, specifically: http://www.w3.org/TR/sparql11-query/

SELECT y, name
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     SELECT ?y ?name
     WHERE
     {?x :grandParentOf ?y .
      ?x foaf:name ?name }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, name
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     SELECT *
     WHERE
     {?x :grandParentOf ?y .
      ?x foaf:name ?name }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT name
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     SELECT DISTINCT ?name
     WHERE
     {?x :grandParentOf ?y .
      ?x foaf:name ?name }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, z, email
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     PREFIX foaf: <http://xmlns.com/foaf/0.1/>
     PREFIX friends: <http://www.friends.com/>
     PREFIX contacts: <http://www.contacts.com/>
     SELECT *
     FROM friends:friends
     FROM contacts:contacts
     FROM NAMED :Smith
     FROM NAMED :Jones
     WHERE
     {?x foaf:frendOf ?y .
      ?x :email ?email .
      GRAPH ?g {
        ?x :grandParentOf ?z }
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT *
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/electronics/>
     SELECT *
     WHERE
      {?x :price ?p .
       ?x :discount ?d .
       ?x :tax ?t .
       ?x :cameraType ?cType .
      }
     ORDER BY DESC(?cType) ASC(?p * (1-?d) * (1+?t))',
    SEM_Models('electronics'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'))
ORDER BY SEM$ROWNUM;

SELECT *
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/electronics/>
     SELECT ?x ?cType ?p
     WHERE
      {?x :price ?p .
       ?x :cameraType ?cType .
      }
     ORDER BY ASC(?p)
     LIMIT 5',
    SEM_Models('electronics'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'))
ORDER BY SEM$ROWNUM;

SELECT *
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/electronics/>
     SELECT ?x ?cType ?p
     WHERE
      {?x :price ?p .
       ?x :cameraType ?cType .
      }
     ORDER BY ASC(?p)
     LIMIT 5
     OFFSET 5',
    SEM_Models('electronics'),
    SEM_Rulebases('RDFS'),
    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'))
ORDER BY SEM$ROWNUM;

SELECT *
  FROM TABLE(SEM_MATCH(
    'SELECT ?employee ?position
     WHERE
      {?x <http://www.example.org/employee> ?p .
       ?p <http://www.example.org/employee/name> ?employee .
       ?p <http://www.example.org/employee/position> ?pos .
       ?pos <http://www.example.org/positions/name> ?position
      }',
    SEM_Models('enterprise'),
    null,
     null, null, null, ' ', null, null,
   'RDFUSER', 'NET1'))
ORDER BY 1,2;

SELECT *
  FROM TABLE(SEM_MATCH(
    'BASE <http://www.example.org/>
     SELECT ?employee ?position
     WHERE
      {?x <employee> ?p .
       ?p <employee/name> ?employee .
       ?p <employee/position> ?pos .
       ?pos <positions/name> ?position
      }',
    SEM_Models('enterprise'),
    null,
    null, null, null, ' ', null, null,
   'RDFUSER', 'NET1'))
ORDER BY 1,2;

SEM_MATCH supports the following SPARQL 1.1 constructs:

• An expanded set of functions (all items in Table 1-13 in Graph Patterns: Support for Curly Brace Syntax_ and OPTIONAL_ FILTER_ UNION_ and GRAPH Keywords)

• Expressions in the SELECT Clause

• Subqueries

• Grouping and Aggregation

• Negation

• Value Assignment

• Property Paths


SEM_MATCH supports SPARQL 1.1 Federated Query (see http://www.w3.org/TR/sparql11-federated-query/#SPROT). The SERVICE construct can be used to retrieve results from a specified SPARQL endpoint URL. With this capability, you can combine local RDF data (native RDF data or RDF views of relational data) with other, possibly remote, RDF data served by a W3C standards-compliant SPARQL endpoint.

SELECT s, p, o
  FROM TABLE(SEM_MATCH(
    'SELECT ?s ?p ?o
     WHERE {
       SERVICE <http://www.example1.org/sparql>{ ?s ?p ?o }
     }',
    SEM_Models('electronics'),
    null, null, null, null, ' ',
    null, null,
    'RDFUSER', 'NET1'));

SELECT cType, name
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/electronics/>
     SELECT ?cType ?name
     WHERE {
       ?s :cameraType ?cType
       SERVICE <http://www.example1.org/sparql>{ ?s :name ?name }
      }',
    SEM_Models('electronics'),
    null, null, null, null, ' ',
    null, null,
    'RDFUSER', 'NET1'));

• Privileges Required to Execute Federated SPARQL Queries

• SPARQL SERVICE Join Push Down

• SPARQL SERVICE SILENT

• Using a Proxy Server with SPARQL SERVICE

• Accessing SPARQL Endpoints with HTTP Basic Authentication


In SEM_MATCH, the SPARQL comment construct has been overloaded to allow inline HINT0 query optimizer hints. In SPARQL, the hash (#) character indicates that the remainder of the line is a comment. To associate an inline hint with a particular BGP, place a HINT0 hint string inside a SPARQL comment and insert the comment between the opening curly bracket ({) and the first triple pattern in the BGP. Inline hints enable you to influence the execution plan for each BGP in a query.

Inline optimizer hints override any hints passed to SEM_MATCH through the options argument. For example, a global ALL_ORDERED hint applies to each BGP that does not specify an inline optimizer hint, but those BGPs with an inline hint use the inline hint instead of the ALL_ORDERED hint.

SELECT x, y, hp, cp
  FROM TABLE(SEM_MATCH(
    '{ # HINT0={ LEADING(t0) USE_NL(?x ?y ?bd) }
      ?x :grandParentOf ?y . ?x rdf:type :Male . ?x :birthDate ?bd
      OPTIONAL { # HINT0={ LEADING(t0 t1) BGP_JOIN(USE_HASH) }
                 ?x :homepage ?hp . ?x :cellPhoneNum ?cp }
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y
  FROM TABLE(SEM_MATCH(
    'SELECT ?x ?y
     WHERE {
       ?x :grandParentOf ?y . ?x rdf:type :Male . ?x :birthDate ?bd
       FILTER (
         NOT EXISTS {# HINT0={ ANTI_JOIN(HASH_AJ) }
                     ?x :homepage ?hp . ?x :cellPhoneNum ?cp })
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT s, t
  FROM TABLE(SEM_MATCH(
    'SELECT * WHERE {
       ?s :name ?full_name
       { SELECT (CONCAT(?fname, " ", ?lname) # HINT0={ NON_NULL }
                 AS ?full_name)
         WHERE {
           ?t :fname ?fname .
           ?t :lname ?lname }
         }
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')),
    null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

The Oracle-specific orardf:textContains SPARQL FILTER function uses full-text indexes on the RDF_VALUE$ table. This function has the following syntax (where orardf is a built-in prefix that expands to <http://xmlns.oracle.com/rdf/>):

orardf:textContains(variable, pattern)

The first argument to orardf:textContains must be a local variable (that is, a variable present in the BGP that contains the orardf:textContains filter), and the second argument must be a constant plain literal.

For example, orardf:textContains(x, y) returns true if x matches the expression y, where y is a valid expression for the Oracle Text SQL operator CONTAINS. For more information about such expressions, see Oracle Text Reference.

Before using orardf:textContains, you must create an Oracle Text index for the RDF network. To create such an index, invoke the SEM_APIS.ADD_DATATYPE_INDEX procedure as follows:

EXECUTE SEM_APIS.ADD_DATATYPE_INDEX('http://xmlns.oracle.com/rdf/text', network_owner=>'RDFUSER', network_name=>'NET1');

Performance for wildcard searches like orardf:textContains(?x, "%abc%") can be improved by using prefix and substring indexes. You can include any of the following options to the SEM_APIS.ADD_DATATYPE_INDEX procedure:

• prefix_index=true – for adding prefix index

• prefix_min_length=<number> – minimum length for prefix index tokens

• prefix_max_length=<number> – maximum length for prefix index tokens

• substring_index=true – for adding substring index

For more information about Oracle Text indexing elements, see Oracle Text Reference.

When performing large bulk loads into a semantic network with a text index, the overall load time may be faster if you drop the text index, perform the bulk load, and then re-create the text index. See Using Data Type Indexes for more information about data type indexing.

After creating a text index, you can use the orardf:textContains FILTER function in SEM_MATCH queries. Example 1-78 uses orardf:textContains to find all grandfathers whose names start with the letter A or B.

SELECT x, y, n
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     SELECT *
     WHERE {
       ?x :grandParentOf ?y . ?x rdf:type :Male . ?x :name ?n
       FILTER (orardf:textContains(?n, " A% | B% ")) }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null, null, null, ' ', null, null,
   'RDFUSER', 'NET1'));

SELECT x, y, n, scr
  FROM TABLE(SEM_MATCH(
    'PREFIX <http://www.example.org/family/>
     SELECT *
     WHERE {
       { SELECT ?x ?y ?n (orardf:textScore(123) AS ?scr)
         WHERE {
           ?x :grandParentOf ?y . ?x rdf:type :Male . ?x :name ?n
           FILTER (orardf:textContains(?n, " A% | B% ", 123)) }
       }
       FILTER (?scr > 0.5)
     }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null,
    null,
    null,
    ' REWRITE=F ',
    null, null,
    'RDFUSER', 'NET1'));

orardf:like(string, pattern)

SELECT x, y, n
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     SELECT *
     WHERE {
        ?x :grandParentOf ?y . ?y :name ?n
        FILTER (orardf:like(?x, "Ja%")) }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),

    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

SELECT x, y, n
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     SELECT *
     WHERE {
        ?x :grandParentOf ?y . ?y :name ?n
        FILTER (orardf:like(?n, "J__k"))
    }',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),

    null, null, null, ' ', null, null,
    'RDFUSER', 'NET1'));

EXECUTE SEM_APIS.ADD_DATATYPE_INDEX('http://xmlns.oracle.com/rdf/like');

RDF Semantic Graph supports storage and querying of spatial geometry data through the OGC GeoSPARQL standard and through Oracle-specific SPARQL extensions. Geometry data can be stored as orageo:WKTLiteral, ogc:wktLiteral, or ogc:gmlLiteral typed literals, and geometry data can be queried using several query functions for spatial operations. Spatial indexing for increased performance is also supported.

orageo is a built-in prefix that expands to <http://xmlns.oracle.com/rdf/geo/>, ogc is a built-in prefix that expands to <http://www.opengis.net/ont/geosparql#>, and ogcf is a built-in prefix that expands to <http://www.opengis.net/def/function/geosparql>.

• OGC GeoSPARQL Support

• Representing Spatial Data in RDF

• Validating Geometries

• Indexing Spatial Data

• Querying Spatial Data

• Using Long Literals with GeoSPARQL Queries


You can perform SEM_MATCH queries that return past data using Flashback Query. A TIMESTAMP or a System Change Number (SCN) value is passed to SEM_MATCH through the AS_OF hint. The AS_OF hint can have one of the following forms:

• AS_OF[TIMESTAMP,<TIMESTAMP_VALUE>], where <TIMESTAMP_VALUE> is a valid timestamp string with format 'YYYY/MM/DD HH24:MI:SS.FF'.

• AS_OF[SCN,<SCN_VALUE>], where <SCN_VALUE> is a valid SCN.

The AS_OF hint is internally transformed to perform a Flashback Query (SELECT AS OF) against the queried table or view containing triples of the specified model. This allows you to query the model as it existed in a prior time. For this feature to work, the invoker needs a flashback privilege on the queried metadata table or view (RDFM_model-name view for native models, SEMU_virtual-model-name and SEMV_virtual-model-name for virtual models, and underlying relational tables for RDF view models). For example: grant flashback on RDFUSER.NET1#RDFM_FAMILY to scott

SELECT x, name
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     SELECT *
     WHERE { ?x :name ?name }',
    SEM_Models('family'),
    null, null,
    null,null,' AS_OF=[TIMESTAMP,2016/05/02 13:06:03.979546]',
    null, null,
    'RDFUSER', 'NET1'));

SELECT x, name
  FROM TABLE(SEM_MATCH(
    'PREFIX : <http://www.example.org/family/>
     SELECT *
     WHERE { ?x :name ?name }',
    SEM_Models('family'),
    null, null,
    null,null,' AS_OF=[SCN,1429849]',
    null, null,
    'RDFUSER', 'NET1'));

This section describes some recommended practices for using the SEM_MATCH table function to query semantic data. It includes the following subsections:

• FILTER Constructs Involving xsd:dateTime, xsd:date, and xsd:time

• Function-Based Indexes for FILTER Constructs Involving Typed Literals

• FILTER Constructs Involving Relational Expressions

• Optimizer Statistics and Dynamic Sampling

• Multi-Partition Queries

• Compression on Systems with OLTP Index Compression

• Unbounded Property Path Expressions

• Nested Loop Pushdown for Property Paths

• Grouping and Aggregation

• Use of Bind Variables to Reduce Compilation Time

• Non-Null Expression Hints


The following considerations apply to SPARQL queries executed by RDF Semantic Graph using SEM_MATCH:

• Value assignment

  • A compile-time error is raised when undefined variables are referenced in the source of a value assignment.

• Grouping and aggregation

  • Non-grouping variables (query variables not used for grouping and therefore not valid for projection) cannot be reused as a target for value assignment.

  • Non-numeric values are ignored by the AVG and SUM aggregates.

  • By default, SEM_MATCH returns no rows for an aggregate query with a graph pattern that fails to match. The W3C specification requires a single, null row for this case. W3C-compliant behavior can be obtained with the STRICT_AGG_CARD=T query option for a small performance penalty.

• ORDER BY

  • When using SPARQL ORDER BY in SEM_MATCH, the containing SQL query should be ordered by SEM$ROWNUM to ensure that the desired ordering is maintained through any enclosing SQL blocks.

• Numeric computations

  • The native Oracle NUMBER type is used internally for all arithmetic operations, and the results of all arithmetic operations are serialized as xsd:decimal. Note that the native Oracle NUMBER type is more precise than both BINARY_FLOAT and BINARY_DOUBLE. See Oracle Database SQL Language Reference for more information on the NUMBER built-in data type.

  • Division by zero causes a runtime error instead of producing an unbound value.

• Negation

  • EXISTS and NOT EXISTS filters that reference potentially unbound variables are not supported in the following contexts:

    • Non-aliased expressions in GROUP BY

    • Input to aggregates

    • Expressions in ORDER BY

    • FILTER expressions within OPTIONAL graph patterns that also reference variables that do not appear inside of the OPTIONAL graph pattern

    The first three cases can be realized by first assigning the result of the EXISTS or NOT EXISTS filter to a variable using a BIND clause or SELECT expression.

    These restrictions do not apply to EXISTS and NOT EXISTS filters that only reference definitely bound variables.

• Blank nodes

  • Blank nodes are not supported within graph patterns.

  • The BNODE(literal) function returns the same blank node value every time it is called with the same literal argument.

• Property paths

  • Unbounded operators + and * use a 10-hop depth limit by default for performance reasons. This behavior can be changed to a truly unbounded search by setting a depth limit of 0. See Property Paths for details.

• Long literals (CLOBs)

  • SPARQL functions and aggregates do not support long literals by default.

  • Specifying the CLOB_EXP_SUPPORT=T query option enables long literal support for the following SPARQL functions: IF, COALESCE, STRLANG, STRDT, SUBSTR, STRBEFORE, STRAFTER, CONTAINS, STRLEN, STRSTARTS, STRENDS.

  • Specifying the CLOB_AGG_SUPPORT=T query option enables long literal support for the following aggregates: MIN, MAX, SAMPLE, GROUP_CONCAT.

• Canonicalization of RDF literals

  • By default, RDF literals returned from SPARQL functions and constant RDF literals used in value assignment statements (BIND, SELECT expressions, GROUP BY expressions) are canonicalized. This behavior is consistent with the SPARQL 1.1 D-Entailment Regime.

  • Canonicalization can be disabled with the PROJ_EXACT_VALUES=T query option.

The SEM_APIS.SPARQL_TO_SQL function allows the use of PL/SQL and JDBC bind variables. This is possible because the SQL translation returned from SEM_APIS.SPARQL_TO_SQL does not involve an ANYTYPE table function invocation. The basic strategy is to transform simple SPARQL BIND clauses into either JDBC or PL/SQL bind variables when the USE_BIND_VAR=PLSQL or USE_BIND_VAR=JDBC query option is specified. A simple SPARQL BIND clause is one with the form BIND (<constant> AS ?var).

With the bind variable option, the SQL translation will contain two bind variables for each transformed SPARQL query variable: one for the value ID, and one for the RDF term string. An RDF term value can be substituted for a SPARQL query variable by specifying the value ID (from RDF_VALUE$ table) as the first bind value and the RDF term string as the second bind value. The value ID for a bound-in RDF term is required for performance reasons. The typical workflow would be to look up the value ID for an RDF term from the RDF_VALUE$ table (or with SEM_APIS.RES2VID) and then bind the ID and RDF term into the translated SQL.

Multiple query variables can be transformed into bind variables in a single query. In such cases, bind variables in the SQL translation will appear in the same order as the SPARQL BIND clauses appear in the SPARQL query string. That is, the (id, term) pair for the first BIND clause should be bound first, and the (id, term) pair for the second BIND clause should be bound second.

The following example shows the use of bind variables for SEM_APIS.SPARQL_TO_SQL from a PL/SQL block. A dummy bind variable ?n is declared..

DECLARE
  sparql_stmt clob;
  sql_stmt    clob;
  cur         sys_refcursor;
  vid         number;
  term        varchar2(4000);
  c_val       varchar2(4000);
BEGIN
  -- Add a dummy bind clause in the SPARQL statement
  sparql_stmt := 'PREFIX : <http://www.example.org/family/>
                  SELECT ?c WHERE {
                  BIND("" as ?s)
                  ?s :parentOf ?c }';
  -- Get the SQL translation for SPARQL statement
  sql_stmt := sem_apis.sparql_to_sql(
                sparql_stmt,
                sem_models('family'),
                SEM_Rulebases('RDFS','family_rb'),
                null,
                null,' USE_BIND_VAR=PLSQL PLUS_RDFT=VC ', null, null,
                'RDFUSER', 'NET1');

  -- Execute with <http://www.example.org/family/Martha>
  term := '<http://www.example.org/family/Martha>';
  vid := sem_apis.res2vid('RDFUSER.NET1#RDF_VALUE$',term);

  dbms_output.put_line(chr(10)||'?s='||term);
  open cur for 'select c$rdfterm from('|| sql_stmt || ')' using vid,term;
  loop
    fetch cur into c_val;
    exit when cur%NOTFOUND;
    dbms_output.put_line('|-->?c='||c_val);
  end loop;
  close cur;

  -- Execute with <http://www.example.org/family/Sammy>
  term := '<http://www.example.org/family/Sammy>';
  vid := sem_apis.res2vid('RDFUSER.NET1#RDF_VALUE$',term);

  dbms_output.put_line(chr(10)||'?s='||term);
  open cur for 'select c$rdfterm from('|| sql_stmt || ')' using vid,term;
  loop
    fetch cur into c_val;
    exit when cur%NOTFOUND;
    dbms_output.put_line('|-->?c='||c_val);
  end loop;
  close cur;

END;
/

The following example shows the use of bind variables from Java for SEM_APIS.SPARQL_TO_SQL. In this case, the hint USE_BIND_VAR=JDBC is used.

public static void sparqlToSqlTest() {

    try {
        // Get connection
        Connection conn=DriverManager.getConnection(
                "jdbc:oracle:thin:@localhost:1521:orcl","testuser","testuser");

        String sparqlStmt =
            "PREFIX : http://www.example.org/family/ \n" +
            "SELECT ?c WHERE {  \n" +
            "  BIND(\"\" as ?s) \n" +
            "  ?s :parentOf ?c      \n" +
            "}";

        // Get SQL translation of SPARQL statement
        // through sem_apis.sparql_to_sql
        OracleCallableStatement ocs = (OracleCallableStatement)conn.prepareCall(
            "begin" +
            "  ? := " +
            "    sem_apis.sparql_to_sql('" +
            "      "+sparqlStmt+"'," +
            "      sem_models('family')," +
            "      SEM_Rulebases('RDFS','family_rb')," +
            "      null,null," +
            "  ' USE_BIND_VAR=JDBC PLUS_RDFT=VC " +
            " ',null,null,'RDFUSER','NET1');" +
            "end;");
        ocs.registerOutParameter(1,Types.VARCHAR);
        ocs.execute();
        String sqlStmt = ocs.getString(1);
        ocs.close();

        // Set up statement to look up value ids
        OracleCallableStatement ocsVid = (OracleCallableStatement)conn.prepareCall(
            "begin" +
            "  ? := sem_apis.res2vid(?,?);" +
            "end;");

        // Execute SQL setting values for a bind variable
        PreparedStatement stmt=conn.prepareStatement(sqlStmt);

        // Look up value id for first value
        long valueId = 0;
        String term = "<http://www.example.org/family/Martha>";
        ocsVid.registerOutParameter(1,Types.NUMERIC);
        ocsVid.setString(2,"RDFUSER.NET1#RDF_VALUE$");
        ocsVid.setString(3,term);
        ocsVid.execute();
        valueId = ocsVid.getLong(1);

        stmt.setLong(1, valueId);
        stmt.setString(2, term);
        ResultSet rs=stmt.executeQuery();

        // Print results
        System.out.println("\n?s="+term);
        while(rs.next()) {
            System.out.println("|-->?c=" + rs.getString("c$rdfterm"));
        }
        rs.close();

        // Execute the same query for a different URI
        // Look up value id for next value
        valueId = 0;
        term = "<http://www.example.org/family/Sammy>";
        ocsVid.registerOutParameter(1,Types.NUMERIC);
        ocsVid.setString(2,"RDFUSER.NET1#RDF_VALUE$");
        ocsVid.setString(3,term);
        ocsVid.execute();
        valueId = ocsVid.getLong(1);

        stmt.setLong(1, valueId);
        stmt.setString(2, term);
        rs=stmt.executeQuery();

        // Print results
        System.out.println("\n?s="+term);
        while(rs.next()) {
            System.out.println("|-->?c=" + rs.getString("c$rdfterm"));
        }
        rs.close();

        stmt.close();
        ocsVid.close();
        conn.close();

    } catch (SQLException e) {
        e.printStackTrace();
    }
}

The SEM_APIS.SPARQL_TO_SQL function avoids some limitations that are inherent in the SEM_MATCH table function due to its use of the rewritable table function interface. Specifically, SEM_APIS.SPARQL_TO_SQL adds the following capabilities.

• SPARQL query string arguments larger than 4000 bytes (32K bytes with long varchar support) can be used.

• The plain SQL returned from SEM_APIS.SPARQL_TO_SQL can be executed against read-only databases.

• The plain SQL returned from SEM_APIS.SPARQL_TO_SQL can support PL/SQL and JDBC bind variables.

SEM_MATCH, however, provides some unique capabilities that are not possible with SEM_APIS.SPARQL_TO_SQL..

• Support for projection optimization: If only the VAR$RDFVID column of a projected variable is selected from the SEM_MATCH invocation, the RDF_VALUE$ join for this variable will be avoided.

• Support for advanced features that require the procedural start-fetch-close table function execution: SERVICE_JPDWN=T and OVERLOADED_NL=T options with SPARQL SERVICE.

• The ability to execute queries interactively with tools like SQL*Plus.

You can load semantic data (and optionally associated non-semantic data) in bulk using a staging table. Call the SEM_APIS.LOAD_INTO_STAGING_TABLE procedure (described in SEM_APIS Package Subprograms) to load the data, and you can have during the load operation to check for syntax correctness. Then, you can call the SEM_APIS.BULK_LOAD_FROM_STAGING_TABLE procedure to load the data into the semantic store from the staging table. (If the data was not parsed during the load operation into the staging table, you must specify the PARSE keyword in the flags parameter when you call the SEM_APIS.BULK_LOAD_FROM_STAGING_TABLE procedure.)

The following example shows the format for the staging table, including all required columns and the required names for these columns, plus the optional RDF$STC_graph column which must be included if one or more of the RDF triples to be loaded include a graph name:

CREATE TABLE stage_table (
                     RDF$STC_sub varchar2(4000) not null,
                     RDF$STC_pred varchar2(4000) not null,
                     RDF$STC_obj varchar2(4000) not null,
                     RDF$STC_graph varchar2(4000)
);

If you also want to load non-semantic data, specify additional columns for the non-semantic data in the CREATE TABLE statement. The non-semantic column names must be different from the names of the required columns. The following example creates the staging table with two additional columns (SOURCE and ID) for non-semantic attributes.

CREATE TABLE stage_table_with_extra_cols (
                     source VARCHAR2(4000),
                     id NUMBER,
                     RDF$STC_sub varchar2(4000) not null,
                     RDF$STC_pred varchar2(4000) not null,
                     RDF$STC_obj varchar2(4000) not null,
                     RDF$STC_graph varchar2(4000)
);

Both the invoker and the network owner user must have the following privileges: SELECT privilege on the staging table, and INSERT privilege on the application table.

See also the following:

• Loading the Staging Table

• Recording Event Traces During Bulk Loading


• Loading Data into Named Graphs Using INSERT Statements


This section contains the following topics related to exporting semantic data, that is, retrieving semantic data from Oracle Database where the results are in N-Triple or N-Quad format that can be stored in a staging table.

• Retrieving Semantic Data from an Application Table

• Retrieving Semantic Data from an RDF Model

• Removing Model and Graph Information from Retrieved Blank Node Identifiers


Effective with Oracle Database Release 12.1, you can export and import a semantic network using the full database export and import features of the Oracle Data Pump utility. The network is moved as part of the full database export or import, where the whole database is represented in an Oracle dump (.dmp) file.

The following usage notes apply to using Data Pump to export or import a semantic network:

• The target database for an import must have the RDF Semantic Graph software installed, and there cannot be a pre-existing semantic network.

• Semantic networks using fine-grained access control (triple-level or resource-level OLS or VPD) cannot be exported or imported.

• Semantic document indexes for SEM_CONTAINS (MDSYS.SEMCONTEXT index type) and semantic indexes for SEM_RELATED (MDSYS.SEM_INDEXTYPE index type) must be dropped before an export and re-created after an import.

• Only default privileges for semantic network objects (those that exist just after object creation) are preserved during export and import. For example, if user A creates semantic model M and grants SELECT on RDFM_M to user B, only user A's SELECT privilege on RDFM_M will be present after the import. User B will not have SELECT privilege on RDFM_M after the import. Instead, user B's SELECT privilege will have to be granted again.

• The Data Pump command line option transform=oid:n must be used when exporting or importing semantic network data. For example, use a command in the following format:

  impdp system/<password-for-system> directory=dpump_dir dumpfile=rdf.dmp full=YES version=12 transform=oid:n


For Data Pump usage information and examples, see the relevant chapters in Part I of Oracle Database Utilities.

The SEM_APIS package includes utility procedures for transferring data into and out of a semantic network.

The contents of a semantic network can be moved to a staging schema. A semantic network in a staging schema can then be (1) exported with Oracle Data Pump or a similar tool, (2) appended to a different semantic network, or (3) restored back into the source semantic network. Move, restore and append operations mostly use partition exchange to move data rather than SQL inserts to copy data. Consequently, these operations are very efficient.

The procedures to move, restore, and append semantic network data are:

• SEM_APIS.MOVE_SEM_NETWORK_DATA

• SEM_APIS.RESTORE_SEM_NETWORK_DATA

• SEM_APIS.APPEND_SEM_NETWORK_DATA

conn sys/<password_for_sys> as sysdba;

-- create directory for datapump export
create directory dpump_dir as '<path_to_directory>';
grant read,write on directory dpump_dir to public;

-- create user to hold exported semantic network
grant connect, resource, unlimited tablespace to rdfexpimpu identified by <password>;

--  connect as a privileged user to move the network
conn system/<password_for_system>
-- move semantic network data to RDFEXPIMPU schema
exec sem_apis.move_sem_network_data(dest_schema=>'RDFEXPIMPU');

-- export moved network data with datapump
-- export rdfexpimpu schema
host expdp rdfexpimpu/<password> DIRECTORY=dpump_dir DUMPFILE=expuser.dmp version=12.2 logfile=export_move_sem_network_data.log

-- export any user application tables referenced by models in the semantic network
host expdp rdfuser/<password> tables=ATAB,ATAB2,ATAB3,GTAB DIRECTORY=dpump_dir DUMPFILE=exp_atabs.dmp version=12.2 logfile=export_move_atabs.log

-- export any user tables referenced in RDF Views
host expdp db_user1/<password> tables=EMP,WORKED_FOR,DEPT DIRECTORY=dpump_dir DUMPFILE=exp_rdfviewtabs.dmp version=12.2 logfile=export_move_rdfview_tabs.log

-- optionally restore the network data or drop the source semantic network
exec sem_apis.restore_sem_network_data(from_schema=>'RDFEXPIMPU');

conn sys/<password_for_sys>

-- create a user to hold the imported semantic network
grant connect, resource, unlimited tablespace to rdfexpimpu identified by <password>;

-- create users that own any associated application tables
grant connect, resource, unlimited tablespace to rdfuser identified by <password>;

-- create users that own any component tables of RDF views
grant connect, resource, unlimited tablespace to db_user1 identified by <password>;

conn system/<password_for_system>

-- import any application tables
host impdp rdfuser/<password> tables=ATAB,ATAB2,ATAB3,GTAB DIRECTORY=dpump_dir DUMPFILE=exp_atabs.dmp version=12.2 logfile=import_append_sem_network_data.log

-- import any RDF view component tables
host impdp db_user1/<password> tables=EMP,WORKED_FOR,DEPT DIRECTORY=dpump_dir DUMPFILE=exp_rdfviewtabs.dmp version=12.2 logfile=import_append_rdfview_tabs.log

-- import the previously moved semantic network
host impdp rdfexpimpu/<password> DIRECTORY=dpump_dir DUMPFILE=expuser.dmp version=12.2 logfile=import_append_atabs.log

-- create a new semantic network in which to append the imported one
exec sem_apis.create_sem_network('rdf_tablespace');

-- append the imported semantic network
exec sem_apis.append_sem_network_data(from_schema=>'RDFEXPIMPU');

conn sys/<password_for_sys>

-- create a user to hold the moved semantic network
grant connect, resource, unlimited tablespace to rdfexpimpu identified by rdfexpimpu;

conn system/<password_for_system>

-- move the existing MDSYS semantic network
exec sem_apis.move_sem_network_data(dest_schema=>'RDFEXPIMPU');

-- drop the existing MDSYS semantic network
exec sem_apis.drop_sem_network(cascade=>true);

-- create schema-private semantic network to hold the MDSYS network data
conn sys/<password_for_sys>

-- create an admin user to own the schema-private semantic network
create user rdfadmin identified by rdfadmin;
grant connect,resource,unlimited tablespace to rdfadmin;

conn system/<password_for_system>

-- create the schema-private semantic network
exec sem_apis.create_sem_network(tablespace_name=>'rdf_tablespace',network_owner=>'RDFADMIN',network_name=>'MYNET');

-- setup network sharing for rdfadmin’s schema-private semantic network
-- first grant network sharing privileges to rdfadmin
exec sem_apis.grant_network_sharing_privs(network_owner=>'RDFADMIN');
-- now connect as rdfadmin and enable sharing for all users of the old MDSYS semantic network
conn rdfadmin/<password>
-- enable sharing for rdfadmin’s network
exec sem_apis.enable_network_sharing(network_owner=>'RDFADMIN',network_name=>'MYNET');

-- grant access privileges to RDFUSER
exec sem_apis.grant_network_access_privs(network_owner=>'RDFADMIN',network_name=>'MYNET',network_user=>'RDFUSER');
-- grant access privileges to DB_USER1
exec sem_apis.grant_network_access_privs(network_owner=>'RDFADMIN',network_name=>'MYNET',network_user=>'DB_USER1');

-- append the exported network into the shared schema-private semantic network
-- after this step, migration will be complete, and the new shared schema-private semantic network will be ready to use
conn system/<password_for_system>
exec sem_apis.append_sem_network_data(from_schema=>'RDFEXPIMPU',network_owner=>'RDFADMIN',network_name=>'MYNET');

Information about all network indexes on models and entailments is maintained in the SEM_NETWORK_INDEX_INFO view, which includes (a partial list) the columns shown in Table 1-18 and one row for each network index.

In addition to the columns listed in Table 1-18, the SEM_NETWORK_INDEX_INFO view contains columns from the ALL_INDEXES and ALL_IND_PARTITIONS views (both described in Oracle Database Reference), including:

• From the ALL_INDEXES view: UNIQUENESS, COMPRESSION, PREFIX_LENGTH

• From the ALL_IND_PARTITIONS view: STATUS, TABLESPACE_NAME, BLEVEL, LEAF_BLOCKS, NUM_ROWS, DISTINCT_KEYS, AVG_LEAF_BLOCKS_PER_KEY, AVG_DATA_BLOCKS_PER_KEY, CLUSTERING_FACTOR, SAMPLE_SIZE, LAST_ANALYZED

Note that the information in the SEM_NETWORK_INDEX_INFO view may sometimes be stale. You can refresh this information by using the SEM_APIS.REFRESH_SEM_NETWORK_INDEX_INFO procedure.

If queries and inference against an existing model are executed efficiently, as the owner of the model, you can save the statistics of the existing model.

-- Login as the model owner (for example, SCOTT)
-- Create a stats table. This is required.
execute dbms_stats.create_stat_table('scott','rdf_stat_tab');

-- You must grant access to MDSYS
SQL> grant select, insert, delete, update on scott.rdf_stat_tab to MDSYS;

-- Now export the statistics of model TEST
execute sem_apis.export_model_stats('TEST','rdf_stat_tab', 'model_stat_saved_on_AUG_10', true, 'SCOTT', 'OBJECT_STATS', network_owner=>'RDFUSER', network_name=>'NET1');

You can also save the statistics of an entailment (entailed graph) by using SEM_APIS.EXPORT_ENTAILMENT_STATS .

execute sem_apis.create_entailment('test_inf',sem_models('test'),sem_rulebases('owl2rl'),0,null,network_owner=>'RDFUSER',network_name=>'NET1');
PL/SQL procedure successfully completed.

execute sem_apis.export_entailment_stats('TEST_INF','rdf_stat_tab', 'inf_stat_saved_on_AUG_10', true, 'SCOTT', 'OBJECT_STATS', network_owner=>'RDFUSER', network_name=>'NET1');

As the owner of a model, can restore the statistics that were previously saved with SEM_APIS.EXPORT_MODEL_STATS . This may be necessary if updates have been applied to this model and statistics have been re-collected. A change in statistics might cause a plan change to existing SPARQL queries, and if such a plan change is undesirable, then an old set of statistics can be restored.

execute sem_apis.import_model_stats('TEST','rdf_stat_tab', 'model_stat_saved_on_AUG_10', true, 'SCOTT', false, true, 'OBJECT_STATS', network_owner=>'RDFUSER', network_name=>'NET1');

You can also restore the statistics of an entailment (entailed graph) by using SEM_APIS.IMPORT_ENTAILMENT_STATS .

execute sem_apis.import_entailment_stats('TEST','rdf_stat_tab', 'inf_stat_saved_on_AUG_10', true, 'SCOTT', false, true, 'OBJECT_STATS', network_owner=>'RDFUSER', network_name=>'NET1');

You can save statistics at the network level.

-- Network owners and DBAs have privileges to gather network-wide
-- statistics with the SEM_PERF package.
--
-- This example assumes a schema-private semantic network named NET1
-- owned by RDFUSER.
--

conn RDFUSER/<password>

execute dbms_stats.create_stat_table('RDFUSER','rdf_stat_tab');
-- The next grant is only necessary if using the MDSYS semantic network
grant select, insert, delete, update on RDFUSER.rdf_stat_tab to MDSYS;

--
-- This API call will save the statistics of both the RDF_VALUE$ table
-- and RDF_LINK$ table
--
execute sem_perf.export_network_stats('rdf_stat_tab', 'NETWORK_ALL_saved_on_Aug_10', true, 'RDFUSER', 'OBJECT_STATS', network_owner=>'RDFUSER', network_name=>'NET1');

--
-- Alternatively, you can save statistics of only the RDF_VALUE$ table
--
execute sem_perf.export_network_stats('rdf_stat_tab', 'NETWORK_VALUE_TAB_saved_on_Aug_10', true, 'RDFUSER', 'OBJECT_STATS', options=> mdsys.sdo_rdf.VALUE_TAB_ONLY, network_owner=>'RDFUSER', network_name=>'NET1');

--
-- Or, you can save statistics of only the RDF_LINK$ table
--
execute sem_perf.export_network_stats('rdf_stat_tab', 'NETWORK_LINK_TAB_saved_on_Aug_10', true, 'RDFUSER', 'OBJECT_STATS', options=> mdsys.sdo_rdf.LINK_TAB_ONLY, network_owner=>'RDFUSER', network_name=>'NET1');

By default, SEM_PERF.GATHER_STATS creates extended statistics with column groups on the RDF_LINK$ table. The privileged user from Saving Statistics at the Network Level can drop these column groups using SEM_PERF.DROP_EXTENDED_STATS.

connect RDFUSER/<password>
execute sem_perf.drop_extended_stats(network_owner=>'RDFUSER', network_name=>'NET1');

See also the information about managing extended statistics in Oracle Database SQL Tuning Guide. .

The privileged user from Saving Statistics at the Network Level can restore the network level statistics using SEM_PERF.IMPORT_NETWORK_STATS .

conn RDFUSER/<password>

execute sem_perf.import_network_stats('rdf_stat_tab', 'NETWORK_ALL_saved_on_Aug_10', true, 'RDFUSER', false, true, 'OBJECT_STATS', network_owner=>'RDFUSER', network_name=>'NET1');

As the owner of a model, you can manually adjust the statistics for this model. (However, before you adjust statistics, you should save the statistics first so that they can be restored if necessary.) The following example sets two metrics: number of rows and number of blocks for the model.

execute sem_apis.set_model_stats('TEST', numrows=>10, numblks=>1,no_invalidate=>false,network_owner=>'RDFUSER',network_name=>'NET1');

You can also set the statistics for the entailment by using SEM_APIS.SET_ENTAILMENT_STATS .

execute sem_apis.set_entailment_stats('TEST_INF', numrows=>10, numblks=>1,no_invalidate=>false,network_owner=>'RDFUSER',network_name=>'NET1');

Removing statistics can also have an impact on execution plans. As owner of a model, you can remove the statistics for the model.

execute sem_apis.delete_model_stats('TEST', no_invalidate=> false, network_owner=>'RDFUSER', network_name=>'NET1');

You can also remove the statistics for the entailment by using SEM_APIS.DELETE_ENTAILMENT_STATS. (However, before you remove statistics of a model or an entailment, you should save the statistics first so that they can be restored if necessary.)

execute sem_apis.delete_entailment_stats('TEST_INF', no_invalidate=> false, network_owner=>'RDFUSER', network_name=>'NET1');

In some cases it may be necessary to tune the performance of SPARQL Update operations. Because SPARQL Update operations involve executing one or more SPARQL queries based on the WHERE clause in the UPDATE statement, the Best Practices for Query Performance also apply to SPARQL Update operations. The following considerations also apply:

• Delete operations require an appropriate index on the application table (associated with the apply_model model in SEM_APIS.UPDATE_MODEL) for good performance. Assuming an application table named APP_TAB with the SDO_RDF_TRIPLE_S column named TRIPLE, an index similar to the following is recommended (this is the same index used by RDF Semantic Graph Support for Apache Jena):

  -- Application table index for
  --  (graph_id, subject_id, predicate_id, canonical_object_id)
  CREATE INDEX app_tab_idx ON app_tab app (
    BITAND(app.triple.rdf_m_id,79228162514264337589248983040)/4294967296,
    app.triple.rdf_s_id,
    app.triple.rdf_p_id,
    app.triple.rdf_c_id)
  COMPRESS;


• Performance-related SEM_MATCH options can be passed to the match_options parameter of SEM_APIS.UPDATE_MODEL, and performance-related options such as PARALLEL and DYNAMIC_SAMPLING can be specified in the options parameter of that procedure. The following example uses the options parameter to specify a degree of parallelism of 4 and an optimizer dynamic sampling level of 6 for the update. In addition, the example uses ALLOW_DUP=T as a match option when matching against the virtual model VM1.

  BEGIN
    sem_apis.update_model(
     'electronics',
     'PREFIX : <http://www.example.org/electronics/>
      INSERT { graph :digitalCameras { ?s ?p ?o } }
      WHERE  { ?s :cameraType :digitalCamera .
               ?s ?p ?o }',
     match_models=>sem_models('VM1'),
     match_models=>sem_models('VM1'),
     match_options=>' ALLOW_DUP=T ',
     options=>' PARALLEL(4) DYNAMIC_SAMPLING(6) ',
     network_owner=>'RDFUSER', network_name=>'NET1');
  END;
  /


• Inline Query Optimizer Hints can be specified in the WHERE clause. The following example extends the preceding example by using the HINT0 hint in the WHERE clause and the FINAL_VALUE_NL hint in the match_options parameter.

  BEGIN
    sem_apis.update_model(
     'electronics',
     'PREFIX : <http://www.example.org/electronics/>
      INSERT { graph :digitalCameras { ?s ?p ?o } }
      WHERE  { # HINT0={ LEADING(t0 t1) USE_NL(t0 t1)
               ?s :cameraType :digitalCamera .
               ?s ?p ?o }',
     match_models=>sem_models('VM1'),
     match_options=>' ALLOW_DUP=T FINAL_VALUE_NL ',
     options=>' PARALLEL(4) DYNAMIC_SAMPLING(6) ',
     network_owner=>'RDFUSER', network_name=>'NET1');
  END;
  /


You can exercise some control over the number of transactions used and whether they are automatically committed by a SEM_APIS.UPDATE_MODEL operation.

By default, the SEM_APIS.UPDATE_MODEL procedure executes in a single transaction that is either committed upon successful completion or rolled back if an error occurs. For example, the following call executes three update operations (separated by semicolons) in a single transaction:

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert camera data
    INSERT DATA {
      elec:camera1 elec:name "Camera 1" .
      elec:camera1 elec:price 120 .
      elec:camera1 elec:cameraType elec:DigitalCamera .
      elec:camera2 elec:name "Camera 2" .
      elec:camera2 elec:price 150 .
      elec:camera2 elec:cameraType elec:DigitalCamera . };
    # insert ecom:price triples
    INSERT { ?c  ecom:price ?p }
    WHERE  { ?c  elec:price ?p };
    # delete elec:price triples
    DELETE WHERE { ?c elec:price ?p }',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

PL/SQL procedure successfully completed.

By contrast, the following example uses three separate SEM_APIS.UPDATE_MODEL calls to execute the same three update operations in three separate transactions:

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert camera data
    INSERT DATA {
      elec:camera1 elec:name "Camera 1" .
      elec:camera1 elec:price 120 .
      elec:camera1 elec:cameraType elec:DigitalCamera .
      elec:camera2 elec:name "Camera 2" .
      elec:camera2 elec:price 150 .
      elec:camera2 elec:cameraType elec:DigitalCamera . }',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;

PL/SQL procedure successfully completed.

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert ecom:price triples
    INSERT { ?c  ecom:price ?p }
    WHERE  { ?c  elec:price ?p }',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

PL/SQL procedure successfully completed.

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert elec:price triples
    DELETE WHERE { ?c elec:price ?p }',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

PL/SQL procedure successfully completed.

The AUTOCOMMIT=F option can be used to prevent separate transactions for each SEM_APIS.UPDATE_MODEL call. With this option, transaction management is the responsibility of the caller. The following example shows how to execute the update operations in the preceding example as a single transaction instead of three separate ones.

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert camera data
    INSERT DATA {
      elec:camera1 elec:name "Camera 1" .
      elec:camera1 elec:price 120 .
      elec:camera1 elec:cameraType elec:DigitalCamera .
      elec:camera2 elec:name "Camera 2" .
      elec:camera2 elec:price 150 .
      elec:camera2 elec:cameraType elec:DigitalCamera . }',
   options=>' AUTOCOMMIT=F ',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

PL/SQL procedure successfully completed.

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert ecom:price triples
    INSERT { ?c  ecom:price ?p }
    WHERE  { ?c  elec:price ?p }',
   options=>' AUTOCOMMIT=F ',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

PL/SQL procedure successfully completed.

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX elec: <http://www.example.org/electronics/>
    PREFIX ecom: <http://www.example.org/ecommerce/>
    # insert elec:price triples
    DELETE WHERE { ?c elec:price ?p }',
   options=>' AUTOCOMMIT=F ',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

PL/SQL procedure successfully completed.

COMMIT;

Commit complete.

However, the following cannot be used with the AUTOCOMMIT=F option:

• Bulk operations (FORCE_BULK=T, DEL_AS_INS=T)

• LOAD operations

• Materialization of intermediate data (STREAMING=F)

• Transaction Isolation Levels


SEM_APIS.UPDATE_MODEL supports bulk operations for efficient execution of large updates. The following options are provided; however, when using any of these bulk operations, serializable isolation (SERIALIZABLE=T) and autocommit false (AUTOCOMMMIT=F) cannot be used.

• Materialization of Intermediate Data (STREAMING=F)

• Using SEM_APIS.BULK_LOAD_FROM_STAGING_TABLE

• Using Delete as Insert (DEL_AS_INS=T)


Some settings that affect the SEM_APIS.UPDATE_MODEL procedure’s behavior can be modified at the session level through the use of the special MDSYS.SDO_SEM_UPDATE_CTX.SET_PARAM procedure. The following options can be set to true or false at the session level: autocommit, streaming, strict_bnode, and clob_support.

The MDSYS.SDO_SEM_UPDATE_CTX contains the following subprograms to get and set SEM_APIS.UPDATE_MODEL parameters at the session level:

SQL> describe mdsys.sdo_sem_update_ctx
FUNCTION GET_PARAM RETURNS VARCHAR2
 Argument Name                  Type                    In/Out Default?
 ------------------------------ ----------------------- ------ --------
 NAME                           VARCHAR2                IN
PROCEDURE SET_PARAM
 Argument Name                  Type                    In/Out Default?
 ------------------------------ ----------------------- ------ --------
 NAME                           VARCHAR2                IN
 VALUE                          VARCHAR2                IN

The following example causes all subsequent calls to the SEM_APIS.UPDATE_MODEL procedure to use the AUTOCOMMIT=F setting, until the end of the session or the next call to SEM_APIS.UPDATE_MODEL that specifies a different autocommit value.

begin
  mdsys.sdo_sem_update_ctx.set_param('autocommit','false');
end;
/

The format of the file to load affects the amount of parallelism that can be used during the load process. Load operations have two phases:

1. Loading from the file system to a staging table

2. Calling SEM_APIS.BULK_LOAD_FROM_STAGING_TABLE to load from a staging table into a semantic model

All supported data formats can use parallel execution in phase 2, but only N-Triple and N-Quad formats can use parallel execution in phase 1. In addition, if a load operation is interrupted during phase 2 after the staging table has been fully populated, loading can be resumed with the RESUME_LOAD=T keyword in the options parameter.

Load operations for RDF documents that contain object values longer than 4000 bytes may require additional operations. Load operations on Turtle and Trig documents will automatically load all triples/quads regardless of object value size. However, load operations on N-Triple and N-Quad documents will only load triples/quads with object values that are less than 4000 bytes in length. For N-Triple and N-Quad data, a second load operation should be issued with the LOAD_CLOB_ONLY=T option to also load triples/quads with object values larger than 4000 bytes.

Loads from Unix named pipes are only supported for N-Triple and N-Quad formats. Turtle and Trig files should be uncompressed, physical files.

Unicode characters are handled differently depending on the format of the RDF file to load. Unicode characters in N-Triple and N-Quad files should be escaped as \u<HEX><HEX><HEX><HEX> or \U<HEX><HEX><HEX><HEX><HEX><HEX><HEX><HEX> using the hex value of the Unicode codepoint value. Turtle and Trig files do not require Unicode escaping and can be directly loaded with unescaped Unicode values.

BEGIN
  -- short literal load
  sem_apis.update_model('electronics',
   'PREFIX : <http://www.example.org/electronics/>
    LOAD <file:///example1.nq>',
   options=> ' LOAD_DIR={MY_DIR} ',
   network_owner=>'RDFUSER', network_name=>'NET1');

  -- long literal load
  sem_apis.update_model('electronics',
   'PREFIX : <http://www.example.org/electronics/>
    LOAD <file:///example1.nq>',
   options=> ' LOAD_DIR={MY_DIR} LOAD_CLOB_ONLY=T ',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

By default, SPARQL Update operations do not manipulate values longer than 4000 bytes. To enable long literals support, specify CLOB_UPDATE_SUPPORT=T in the options parameter with the SEM_APIS.UPDATE_MODEL procedure.

Bulk load does not work for long literals; the FORCE_BULK=T option is ignored when used with the CLOB_UPDATE_SUPPORT=T option.

Some update operations only affect the graph of a set of RDF triples. Specifically, these operations are ADD, COPY and MOVE. For example, the MOVE operation example in Support for SPARQL Update Operations on a Semantic Model can be performed only updating triples having :digitalCameras as the graph. However, the performance of such operations can be improved by using ID-only operations over the RDF model. To run a large ADD, COPY, or MOVE operation as an ID-only operation, you can specify the STRICT_BNODE=F hint in the options parameter for the SEM_APIS.UPDATE_MODEL procedure.

ID-only operations may lead to incorrect blank nodes, however, because no two graphs should share the same blank node. RDF Semantic Graph uses a blank node prefixing scheme based on the model and graph combination that contains a blank node. These prefixes ensure that blank node identifiers are unique across models and graphs. An ID-only approach for ADD, COPY, and UPDATE operations does not update blank node prefixes.

BEGIN
  sem_apis.update_model('electronics',
   'PREFIX : <http://www.example.org/electronics/>
    INSERT DATA {
       GRAPH :cameras { :camera2 :owner _:bn1 .
                        _:bn1 :name "Axel" }
    };
    COPY :cameras TO :cameras2',
   options=>' STRICT_BNODE=F ',
   network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

SELECT count(s)
FROM TABLE( SEM_MATCH('
  PREFIX : <http://www.example.org/electronics/>
  SELECT *
  WHERE { { graph :cameras  {?s :name "Axel"  } }
          { graph :cameras2 {?s :name "Axel"  } } }
', sem_models('electronics'),null,null,null,null,' STRICT_DEFAULT=T ',
null, null, 'RDFUSER', 'NET1'));

EXECUTE sem_apis.cleanup_bnodes('electronics');

To load RDF data into memory, the compatibility must be set to 12.2 or later, and the inmemory_size value must be at least 100MB. The semantic network can then be loaded into memory using the SEM_APIS.ENABLE_INMEMORY procedure.

Before you use RDF data in memory, you should verify that the data is loaded into memory:

SQL> select pool, alloc_bytes, used_bytes, populate_status from V$INMEMORY_AREA;
POOL			   ALLOC_BYTES USED_BYTES POPULATE_STATUS
-------------------------- ----------- ---------- --------------------------
1MB POOL		    5.0418E+10 4.4603E+10 DONE
64KB POOL		    3202088960	  9568256  DONE

If the POPULATE_STATUS value is DONE, the RDF data has been fully loaded into memory.

To check if RDF data in memory is used, search for ‘TABLE ACCESS INMEMORY FULL’ in the execution plan:

--------------------------------------------------------------------------------------------------------------------------------------------
| Id  | Operation			  | Name      | Rows  | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |    TQ  |IN-OUT| PQ Distrib |
--------------------------------------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT		  |	      |     1 |    13 |   580  (60)| 00:00:01 |       |       |        |      | 	   |
|   1 |  VIEW				  |	      |     1 |    13 |   580  (60)| 00:00:01 |       |       |        |      | 	   |
|   2 |   VIEW				  |	      |     1 |    13 |   580  (60)| 00:00:01 |       |       |        |      | 	   |
|   3 |    SORT AGGREGATE		  |	      |     1 |    16 | 	   |	      |       |       |        |      | 	   |
|   4 |     PX COORDINATOR		  |	      |       |       | 	   |	      |       |       |        |      | 	   |
|   5 |      PX SEND QC (RANDOM)	  | :TQ10000  |     1 |    16 | 	   |	      |       |       |  Q1,00 | P->S | QC (RAND)  |
|   6 |       SORT AGGREGATE		  |	      |     1 |    16 | 	   |	      |       |       |  Q1,00 | PCWP | 	   |
|   7 |        PX BLOCK ITERATOR	  |	      |   242M|  3697M|   580  (60)| 00:00:01 |KEY(I) |KEY(I) |  Q1,00 | PCWC | 	   |
|   8 | 	TABLE ACCESS INMEMORY FULL| RDF_LINK$ |   242M|  3697M|   580  (60)| 00:00:01 |KEY(I) |KEY(I) |  Q1,00 | PCWP | 	   |
--------------------------------------------------------------------------------------------------------------------------------------------

To disable in-memory population of RDF data, use the SEM_APIS.DISABLE_INMEMORY procedure.

In addition to RDF data in memory, RDF in-memory virtual columns can be used to load lexical values for RDF terms in the RDF_LINK$ table into memory. To load the RDF in-memory virtual columns, you must first execute SEM_APIS.ENABLE_INMEMORY with administrative privileges, setting the inmemory_virtual_columns parameter to ENABLE. The in-memory virtual columns are created in the RDF_LINK$ table and loaded into memory at the virtual model level.

To load the virtual columns into memory, use the option ‘PXN=F INMEMORY=T’ in the call to SEM_APIS.CREATE_VIRTUAL_MODEL. For example (assuming a schema-private network named NET1 owned by a database user named RDFUSER):

EXECUTE  SEM_APIS.CREATE_VIRTUAL_MODEL ('vm2',SEM_MODELS('lubm1k','univbench'),SEM_RULEBASES ('owl2rl'),options=>'PXN=F INMEMORY=T', network_owner=>'RDFUSER', network_name=>'NET1');

You can check for in-memory virtual models by examining the MDSYS.RDF_MODEL$ view, where the INMEMORY column is set to T for an in-memory virtual model.

The in-memory virtual model removes the need for joins with the RDF_VALUE$ table. To check the usage of in-memory virtual models, use the same commands in Enabling Oracle Database In-Memory for RDF.

For best performance, fully populate the in-memory virtual columns before any query is processed, because unpopulated virtual columns are assembled at run time and this overhead may impair performance.

Sometimes, inconsistent query performance may result due to the use of indexes. If you want consistent performance across different workloads, even though it may mean negating some performance gains that normally result from indexing, you can make the RDF semantic network indexes invisible so that the query execution is done by pure memory scans. The following example makes the RDF semantic network indexes invisible in a schema-private network named NET1 owned by a database user named RDFUSER:

EXECUTE SEM_APIS.ALTER_SEM_INDEXES('VISIBILITY','N', network_owner=>'RDFUSER', network_name=>'NET1');

To make the RDF semantic network indexes visible again, use the following

EXECUTE SEM_APIS.ALTER_SEM_INDEXES('VISIBILITY','Y', network_owner=>'RDFUSER', network_name=>'NET1');

For an explanation of invisible and unusable indexes, see Oracle Database Administrator's Guide.

Before you can load RDF data and work with it, you must create the RDF semantic network and configure it. Configuration includes creating necessary database tablespaces and indexes.

1. Open SQL Developer.

2. Create a database connection for a user with DBA privileges (or use an existing connection with such privileges). For example:

   • Connection name: system

   • Username: system

   • Password: <password for system>

   • Hostname: system2@example.com

   • Port: 1521

   • Service Name: orcl

3. Open the DBA navigator.

   Select View, then DBA.

4. Add the system connection created earlier. For example:

   Click the + (Add Connection) icon.

   Select the system connection.

5. Create the necessary tablespaces, as explained in Create the Necessary Tablespaces.

6. Create the semantic network, as explained in Create the Semantic Network.

7. Create or adjust the necessary semantic indexes, as explained in Create or Adjust the Necessary Semantic Indexes.

RDF Bulk load operations can be invoked from SQL Developer. Two major steps are required: (1) loading data from the file system into a “staging“ table and (2) loading data from a “staging“ table into a semantic model.

Do the following to prepare for the actual bulk loading.

1. Prepare the RDF dataset or datasets.

   • The data must be on the file system of the Database server – not on the client system.

   • The data must be in N-triple or N-quad format. (Apache Jena, for example, can be used to convert other formats to N-triple/N-quad,)

   • A Unix named pipe can be used to decompress zipped files on the fly.

   For example, you can download RDF datasets from LinkedGeoData. For an introduction, see http://linkedgeodata.org/Datasets and http://linkedgeodata.org/RDFMapping.

   To download from LinkedGeoData, go to https://hobbitdata.informatik.uni-leipzig.de/LinkedGeoData/downloads.linkedgeodata.org/releases/ and browse the listed directories. For a fairly small dataset you can download https://hobbitdata.informatik.uni-leipzig.de/LinkedGeoData/downloads.linkedgeodata.org/releases/2014-09-09/2014-09-09-ontology.sorted.nt.bz2.

   Each .bz2 file is a compressed archive containing a comparable-named .nt file. To specify an .nt file as a data source, you must extract (decompress) the corresponding .bz2 file, unless you create a Unix named pipe to avoid having to store uncompressed data.

2. Create a regular, non-DBA user to perform the load.

   For example, using the DBA navigator (not the Connections navigator), expand the system connection, expand Security, right-click Users, and select Create New.

   Create a user (for example, named RDFUSER) with CONNECT, RESOURCE, and UNLIMITED TABLESPACE privileges.

3. Add a connection for this regular, non-DBA user (for example, a connection named RDFUSER).

   Default Tablespace: USERS

   Temporary Tablespace: TEMPTBS

4. As the system user, create a directory in the database that points to your RDF data directory.

   Using the Connections navigator (not the DBA navigator), expand the system connection, right-click Directory and select Create Directory.

   Directory Name: Desired directory name. For example: RDFDIR

   Database Server Directory: Desired location for the directory. For example: /home/oracle/RDF/MyData

   Click Apply.

5. Grant privileges on the directory to the regular, non-DBA user (for example, RDFUSER). For example, using the system connection's SQL Worksheet:

   SQL> grant read, write on directory RDFDIR to RDFUSER;

   Tip: you can use a named pipe to avoid having to store uncompressed data. For example:

   $ mkfifo named_pipe.nt
   $ bzcat myRdfFile.nt.bz2 > named_pipe.nt

6. Expand the regular, non-DBA user (for example, RDFUSER) connection and click RDF Semantic Graph.

7. Create a model to hold the RDF data.

   Click Model, then New Model.

   Model Name: Enter a model name (for example, MY_ONTOLOGY)

   Application Table: * Create new <Model_Name>_TPL table * (that is, have an application table with a triple column named TRIPLE automatically created)

   Model Tablespace: tablespace to hold the RDF data (for example, RDFTBS)

   Click Apply.

   To see the model, expand Models in the object hierarchy, and click the model name to bring up the SPARQL editor for that model.

   You can run a query and see that the model is empty.

Using the Models menu, perform a bulk load from the Models menu. Bulk load has two phases:

• Loading data from the file system into a simple "staging" table in the database. This uses an external table to read from the file system.

• Loading data from the staging table into the semantic network. Load from the staging table into the model (for example, MY_ONTOLOGY).

To perform these two phases:

1. Load data into the staging table.

   Right-click the model name (under Regular Models) and select Load RDF Data into Staging Table from External Table.

   For Source External Table, Source Table: Desired table name (for example, MY_ONTOLOGY_EXT).

   Log File: Desired file name (for example, my_ontology.log)

   Bad File: Desired file name (for example, my_ontology.bad)

   Source Table Owner: Schema of the table with RDF data (for example, RDFUSER)

   For Input Files, Input Files: Input file (for example, named_pipe.nt).

   For Staging Table, Staging table: Name for the staging table (for example, MY_ONTOLOGY_STAGE).

   If the table does not exist, check Create Staging Table.

   Input Format: Desired format (for example, N-QUAD)

   Staging Table Owner: Schema for the staging table (for example, RDFUSER)

2. Load from the staging table into the model.

   Note:

   Unicode data in the staging table should be escaped as specified in WC3 N-Triples format (http://www.w3.org/TR/rdf-testcases/#ntriples). You can use the SEM_APIS.ESCAPE_RDF_TERM function to escape Unicode values in the staging table. For example:

   create table esc_stage_tab(rdf$stc_sub, rdf$stc_pred, rdf$stc_obj);

   insert /*+ append nologging parallel */ into esc_stage_tab (rdf$stc_sub, rdf$stc_pred, rdf$stc_obj)
   select sem_apis.escape_rdf_term(rdf$stc_sub, options=>’ UNI_ONLY=T '), sem_apis.escape_rdf_term(rdf$stc_pred, options=>’ UNI_ONLY=T '), sem_apis.escape_rdf_term(rdf$stc_obj, options=>’ UNI_ONLY=T ')
   from stage_tab;


   Right-click the model name (under Regular Models) and select Bulk Load into Model from staging Table.

   Model: Name for the model (for example, MY_ONTOLOGY).

   (If the model does not exist, check Create Model. However, in this example, the model does already exist.)

   Staging Table Owner: Schema of the staging table (for example, RDFUSER)

   Staging Table Name: Name of the staging table (for example, MY_ONTOLOGY_STAGE)

   Parallel: Degree of parallelism (for example, 2)

   Suggestion: Check the following options: MBV_METHOD=SHADOW, Rebuild application table indexes, Create event trace table

   Click Apply.

Do the following after the bulk load operation.

1. Gather statistics for the whole semantic network.

   In the Connections navigator for a DBA user, expand the RDF Semantic Graph node for the connection and select Gather Statistics (DBA)).

2. Run some SPARQL queries on our model.

   In the Connections navigator, expand the RDF Semantic Graph node for the connection and select the model.

   Use the SPARQL Query Editor to enter and execute desired SPARQL queries.

3. Optionally, check the bulk load trace to get information about each step.

   Expand RDF Semantic Graph and then expand Bulk Load Traces to display a list of bulk load traces. Clicking one of them will show useful information about the execution time for the load, number of distinct values and triples, number of duplicate triples, and other details.

This section presents a simplified PL/SQL example of model for statements about journal articles. Example 1-116 contains descriptive comments, refers to concepts that are explained in this chapter, and uses functions and procedures documented in SEM_APIS Package Subprograms.

-- Basic steps:
-- After you have connected as a privileged user and called
-- SEM_APIS.CREATE_SEM_NETWORK to create a schema for storing RDF data,
-- connect as a regular database user and do the following.
-- 1. For each desired model, create an application table to allow DML operations on its data.
-- 2. For each desired model, create a model (SEM_APIS.CREATE_SEM_MODEL).
-- 3. Use various subprograms and constructors.

-- Create the application table for the model. Only one column: data for triples.
CREATE TABLE articles_rdf_data (triple SDO_RDF_TRIPLE_S) COMPRESS;

-- Create the model.
-- Note that we are using the schema-private network NET1 created in
-- "Quick Start for Using Semantic Data".
EXECUTE SEM_APIS.CREATE_SEM_MODEL('articles', 'articles_rdf_data', 'triple', network_owner=>'RDFUSER', network_name=>'NET1');

-- Information to be stored about some fictitious articles:
-- Article1, titled "All about XYZ" and written by Jane Smith, refers
--   to Article2 and Article3.
-- Article2, titled "A review of ABC" and written by Joe Bloggs,
--   refers to Article3.
-- Seven SQL statements to store the information. In each statement:
-- Each article is referred to by its complete URI The URIs in
--   this example are fictitious.
-- Each property is referred to by the URL for its definition, as
--   created by the Dublin Core Metadata Initiative.

-- Use SEM_APIS.UPDATE_MODEL to insert data with SPARQL Update statements

BEGIN
  SEM_APIS.UPDATE_MODEL('articles',
   'PREFIX  nature: <http://nature.example.com/>
    PREFIX      dc: <http://purl.org/dc/elements/1.1/>
    PREFIX dcterms: <http://purl.org/dc/terms/>

    INSERT DATA {

      # article1 has the title "All about XYZ".
      # article1 was created (written) by Jane Smith.
      # article1 references (refers to) article2 and article3
      nature:article1 dc:title "All about XYZ" ;
                      dc:creator "Jane Smith" ;
                      dcterms:references nature:article2,
                                         nature:article3 .

      # article2 has the title "A review of ABC".
      # article2 was created (written) by Joe Bloggs.
      # article2 references (refers to) article3.
      nature:article2 dc:title "A Review of ABC" ;
                      dc:creator "Joe Bloggs" ;
                      dcterms:references nature:article3 .
    }',
   network_owner=>'RDFUSER',
   network_name=>'NET1');
END;
/



-- Query semantic data with SEM_MATCH table function.

-- Get all article authors and titles
SELECT author$rdfterm, title$rdfterm
FROM TABLE(SEM_MATCH(
'PREFIX dc: <http://purl.org/dc/elements/1.1/>
 SELECT ?author ?title
 WHERE { ?article dc:creator ?author
                ; dc:title  ?title . }'
, SEM_MODELS('articles')
, null, null, null, null
, ' PLUS_RDFT=VC '
, null, null
, 'RDFUSER', 'NET1'));

-- Find all articles referenced by Article1
SELECT ref$rdfterm
FROM TABLE(SEM_MATCH(
'PREFIX dcterms: <http://purl.org/dc/terms/>
 PREFIX  nature: <http://nature.example.com/>
 SELECT ?ref
 WHERE { nature:article1 dcterms:references ?ref . }'
, SEM_MODELS('articles')
, null, null, null, null
, ' PLUS_RDFT=VC '
, null, null
, 'RDFUSER', 'NET1'));

This section presents a simplified PL/SQL example of a model for statements about family tree (genealogy) information. Example 1-116 contains descriptive comments, refers to concepts that are explained in this chapter, and uses functions and procedures documented in SEM_APIS Package Subprograms.

The family relationships in this example reflect the family tree shown in Figure 1-3. This figure also shows some of the information directly stated in the example: Cathy is the sister of Jack, Jack and Tom are male, and Cindy is female.

Figure 1-3 Family Tree for RDF Example

Description of "Figure 1-3 Family Tree for RDF Example"

-- Preparation: create tablespace; enable RDF support.
-- Connect as a privileged user. Example: CONNECT SYSTEM/password-for-SYSTEM
-- Create a tablespace for the RDF data. Example:
CREATE TABLESPACE rdf_tblspace
  DATAFILE 'rdf_tblspace.dat'
    SIZE 128M REUSE
    AUTOEXTEND ON NEXT 128M MAXSIZE 4G
  SEGMENT SPACE MANAGEMENT AUTO;

-- Call SEM_APIS.CREATE_SEM_NETWORK to create a schema-private semantic
-- network named NET1 owned by RDFUSER, which will create database
-- objects to store RDF data. Example:
EXECUTE SEM_APIS.CREATE_SEM_NETWORK('rdf_tblspace', network_owner=>'RDFUSER', network_name=>'NET1');

-- Connect as the user that is to perform the RDF operations (not SYSTEM),
-- and do the following:
-- 1. For each desired model, create an application table
-- 2. For each desired model, create a model (SEM_APIS.CREATE_SEM_MODEL).
-- 3. Use various subprograms and constructors.


-- Create the application table for the model.
CREATE TABLE family_rdf_data (triple SDO_RDF_TRIPLE_S) COMPRESS;

-- Create the model.
execute SEM_APIS.create_sem_model('family', 'family_rdf_data', 'triple', network_owner=>'RDFUSER', network_name=>'NET1');

-- Insert RDF triples using SEM_APIS.UPDATE_MODEL. These express the following information:
-----------------
-- John and Janice have two children, Suzie and Matt.
-- Matt married Martha, and they have two children:
--   Tom (male) and Cindy (female).
-- Suzie married Sammy, and they have two children:
--   Cathy (female) and Jack (male).

-- Person is a class that has two subslasses: Male and Female.
-- parentOf is a property that has two subproperties: fatherOf and motherOf.
-- siblingOf is a property that has two subproperties: brotherOf and sisterOf.
-- The domain of the fatherOf and brotherOf properties is Male.
-- The domain of the motherOf and sisterOf properties is Female.
------------------------

BEGIN

  -- Insert some TBox (schema) information.
  SEM_APIS.UPDATE_MODEL('family',
   'PREFIX    rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
    PREFIX   rdfs: <http://www.w3.org/2000/01/rdf-schema#>
    PREFIX family: <http://www.example.org/family/>

    INSERT DATA {

      # Person is a class.
      family:Person rdf:type rdfs:Class .

      # Male is a subclass of Person.
      family:Male rdfs:subClassOf family:Person .

      # Female is a subclass of Person.
      family:Female rdfs:subClassOf family:Person .

      # siblingOf is a property.
      family:siblingOf rdf:type rdf:Property .

      # parentOf is a property.
      family:parentOf rdf:type rdf:Property .

      # brotherOf is a subproperty of siblingOf.
      family:brotherOf rdfs:subPropertyOf family:siblingOf .

      # sisterOf is a subproperty of siblingOf.
      family:sisterOf rdfs:subPropertyOf family:siblingOf .

      # A brother is male.
      family:brotherOf rdfs:domain family:Male .

      # A sister is female.
      family:sisterOf rdfs:domain family:Female .

      # fatherOf is a subproperty of parentOf.
      family:fatherOf rdfs:subPropertyOf family:parentOf .

      # motherOf is a subproperty of parentOf.
      family:motherOf rdfs:subPropertyOf family:parentOf .

      # A father is male.
      family:fatherOf rdfs:domain family:Male .

      # A mother is female.
      family:motherOf rdfs:domain family:Female .
    }',
   network_owner=>'RDFUSER',
   network_name=>'NET1');

  -- Insert some ABox (instance) information.
  SEM_APIS.UPDATE_MODEL('family',
   'PREFIX    rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
    PREFIX   rdfs: <http://www.w3.org/2000/01/rdf-schema#>
    PREFIX family: <http://www.example.org/family/>

    INSERT DATA {
      # John is the father of Suzie and Matt
      family:John family:fatherOf family:Suzie .
      family:John family:fatherOf family:Matt .

      # Janice is the mother of Suzie and Matt
      family:Janice family:motherOf family:Suzie .
      family:Janice family:motherOf family:Matt .

      # Sammy is the father of Cathy and Jack
      family:Sammy family:fatherOf family:Cathy .
      family:Sammy family:fatherOf family:Jack .

      # Suzie is the mother of Cathy and Jack
      family:Suzie family:motherOf family:Cathy .
      family:Suzie family:motherOf family:Jack .

      # Matt is the father of Tom and Cindy
      family:Matt family:fatherOf family:Tom .
      family:Matt family:fatherOf family:Cindy .

      # Martha is the mother of Tom and Cindy
      family:Martha family:motherOf family:Tom .
      family:Martha family:motherOf family:Cindy .

      # Cathy is the sister of Jack
      family:Cathy family:sisterOf family:Jack .

      # Jack is male
      family:Jack rdf:type family:Male .

      # Tom is male.
      family:Tom rdf:type family:Male .

      # Cindy is female.
      family:Cindy rdf:type family:Female .
    }',
   network_owner=>'RDFUSER',
   network_name=>'NET1');

END;
/


-- RDFS inferencing in the family model
BEGIN
  SEM_APIS.CREATE_ENTAILMENT(
    'rdfs_rix_family',
    SEM_Models('family'),
    SEM_Rulebases('RDFS'),
    network_owner=>'RDFUSER',
    network_name=>'NET1');
END;
/

-- Select all males from the family model, without inferencing.
-- (Returns only Jack and Tom.)
SELECT m$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
     PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
     PREFIX     : <http://www.example.org/family/>
     SELECT ?m
     WHERE {?m rdf:type :Male}',
    SEM_Models('family'),
    null,  null,  null, null,
    ' PLUS_RDFT=VC ',
    null, null,
    'RDFUSER', 'NET1'));

-- Select all males from the family model, with RDFS inferencing.
-- (Returns Jack, Tom, John, Sammy, and Matt.)
SELECT m$rdfterm
  FROM TABLE(SEM_MATCH(
    'PREFIX  rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
     PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
     PREFIX     : <http://www.example.org/family/>
     SELECT ?m
     WHERE {?m rdf:type :Male}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS'),
    null, null, null,
    ' PLUS_RDFT=VC ',
    null, null,
    'RDFUSER', 'NET1'));

-- General inferencing in the family model

EXECUTE SEM_APIS.CREATE_RULEBASE('family_rb', network_owner=>'RDFUSER', network_name=>'NET1');

INSERT INTO rdfuser.net1#semr_family_rb VALUES(
  'grandparent_rule',
  '(?x :parentOf ?y) (?y :parentOf ?z)',
  NULL,
  '(?x :grandParentOf ?z)',
  SEM_ALIASES(SEM_ALIAS('','http://www.example.org/family/')));

COMMIT;

-- Because a new rulebase has been created, and it will be used in the
-- entailment, drop the preceding entailment and then re-create it.
EXECUTE SEM_APIS.DROP_ENTAILMENT ('rdfs_rix_family', network_owner=>'RDFUSER', network_name=>'NET1');

-- Re-create the entailment.
BEGIN
  SEM_APIS.CREATE_ENTAILMENT(
    'rdfs_rix_family',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    network_owner=>'RDFUSER', network_name=>'NET1');
END;
/

-- Select all grandfathers and their grandchildren from the family model,
-- without inferencing. (With no inferencing, no results are returned.)
SELECT x$rdfterm grandfather, y$rdfterm grandchild
  FROM TABLE(SEM_MATCH(
    'PREFIX  rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
     PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
     PREFIX     : <http://www.example.org/family/>
     SELECT ?x ?y
     WHERE {?x :grandParentOf ?y . ?x rdf:type :Male}',
    SEM_Models('family'),
    null, null,  null, null,
    ' PLUS_RDFT=VC ',
    null, null,
    'RDFUSER', 'NET1'));

-- Select all grandfathers and their grandchildren from the family model.
-- Use inferencing from both the RDFS and family_rb rulebases.
SELECT x$rdfterm grandfather, y$rdfterm grandchild
  FROM TABLE(SEM_MATCH(
    'PREFIX  rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
     PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
     PREFIX     : <http://www.example.org/family/>
     SELECT ?x ?y
     WHERE {?x :grandParentOf ?y . ?x rdf:type :Male}',
    SEM_Models('family'),
    SEM_Rulebases('RDFS','family_rb'),
    null,  null, null,
    ' PLUS_RDFT=VC ',
    null, null,
    'RDFUSER', 'NET1'));
