Figure 2-1 shows part of a disease ontology, which describes the classes and properties related to certain diseases. One requirement is to have a PATIENTS data table with a column named DIAGNOSIS, which must contain a value from the Diseases_and_Disorders class hierarchy.

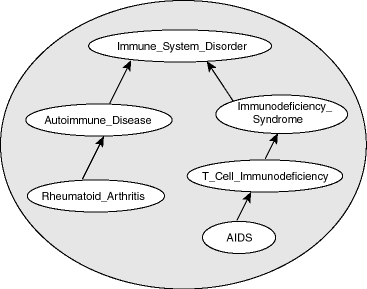

Figure 2-1 Disease Ontology Example

Description of "Figure 2-1 Disease Ontology Example"

In the disease ontology shown in Figure 2-1, the diagnosis Immune_System_Disorder includes two subclasses, Autoimmune_Disease and Immunodeficiency_Syndrome. The Autoimmune_Disease diagnosis includes the subclass Rheumatoid_Arthritis; and the Immunodeficiency_Syndrome diagnosis includes the subclass T_Cell_Immunodeficiency, which includes the subclass AIDS.

The data in the PATIENTS table might include the PATIENT_ID and DIAGNOSIS column values shown in Table 2-1.

To query ontologies, you can use the SEM_MATCH table function or the SEM_RELATED operator and its ancillary operators.

This section describes OWL vocabulary subsets that are supported.

Oracle Database supports the RDFS++, OWLSIF, and OWLPrime vocabularies, which have increasing expressivity, as well as OWL 2 RL. Each supported vocabulary has a corresponding rulebase; however, these rulebases do not need to be populated because the underlying entailment rules of these three vocabularies are internally implemented. The supported vocabularies are as follows:

• RDFS++: A minimal extension to RDFS; which is RDFS plus owl:sameAs and owl:InverseFunctionalProperty.

• OWLSIF: OWL with IF Semantic, with the vocabulary and semantics proposed for pD* semantics in Completeness, decidability and complexity of entailment for RDF Schema and a semantic extension involving the OWL vocabulary, by H.J. Horst, Journal of Web Semantics 3, 2 (2005), 79–115.

• OWLPrime: The following OWL capabilities:

  • Basics: class, subclass, property, subproperty, domain, range, type

  • Property characteristics: transitive, symmetric, functional, inverse functional, inverse

  • Class comparisons: equivalence, disjointness

  • Property comparisons: equivalence

  • Individual comparisons: same, different

  • Class expressions: complement

  • Property restrictions: hasValue, someValuesFrom, allValuesFrom

    As with pD*, the supported semantics for these value restrictions are only intensional (IF semantics).

• OWL 2 RL: Described in the "OWL 2 RL" section of the W3C OWL 2 Web Ontology Language Profiles recommendation (http://www.w3.org/TR/owl2-profiles/#OWL_2_RL) as: "The OWL 2 RL profile is aimed at applications that require scalable reasoning without sacrificing too much expressive power. It is designed to accommodate both OWL 2 applications that can trade the full expressivity of the language for efficiency, and RDF(S) applications that need some added expressivity from OWL 2."

  The system-defined rulebase OWL2RL supports all the standard production rules defined for OWL 2 RL. As with OWLPRIME, users will not see any rules in this OWL2RL rulebase. The rulebase OWL2RL will be created automatically if it does not already exist.

  The following code excerpt uses the OWL2RL rulebase:

  CREATE TABLE m1_tpl (triple SDO_RDF_TRIPLE_S) COMPRESS;
  EXECUTE sem_apis.create_sem_model('m1','m1_tpl','triple',network_owner=>'RDFUSER',network_name=>'NET1');
  -- Insert data into model M1. Details omitted
  ...
  -- Now run inference using the OWL2RL rulebase
  EXECUTE sem_apis.create_entailment('m1_inf',sem_models('m1'),sem_rulebases('owl2rl'),network_owner=>'RDFUSER',network_name=>'NET1');


  Note that inference-related optimizations, such as parallel inference and RAW8, are all applicable when the OWL2RL rulebase is used.

• OWL 2 EL: Described in the "OWL 2 EL" section of the W3C OWL 2 Web Ontology Language Profiles recommendation (http://www.w3.org/TR/owl2-profiles/#OWL_2_EL) as: "The OWL 2 EL profile is designed as a subset of OWL 2 that

  • is particularly suitable for applications employing ontologies that define very large numbers of classes and/or properties,

  • captures the expressive power used by many such ontologies, and

  • for which ontology consistency, class expression subsumption, and instance checking can be decided in polynomial time."

  A prime example of OWL 2 EL ontology is the biomedical ontology SNOMED Clinical Terms (SNOMED CT). For information about SNOMED CT, see: http://www.ihtsdo.org/snomed-ct/

  The system-defined rulebase OWL2EL supports the EL syntax.

  As with OWLPRIME and OWL2RL, users will not see any rules in this OWL2EL rulebase, and the OWL2EL rulebase will be created automatically if it does not already exist.

  The following code excerpt uses the OWL2EL rulebase against the well known SNOMED ontology:

  CREATE TABLE snomed_tpl (triple SDO_RDF_TRIPLE_S) COMPRESS;
  EXECUTE sem_apis.create_sem_model('snomed','snomed_tpl','triple',network_owner=>'RDFUSER',network_name=>'NET1') compress;
  -- Insert data into model SNOMED. Details omitted
  ...
  -- Now run inference using the OWL2EL rulebase
  EXECUTE sem_apis.create_entailment('snomed_inf',sem_models('snomed'),sem_rulebases('owl2el'),network_owner=>'RDFUSER',network_name=>'NET1');


  Note that the OWL2EL rulebase support does not include reflexive object properties (ReflexiveObjectProperty) simply because a reflexive object property will link every individual with itself, which would probably cause an unnecessary and costly expansion of the inference graph.

Table 2-2 lists the RDFS/OWL vocabulary constructs included in each supported rulebase.

OWL inference can be complex, depending on the size of the ontology, the actual vocabulary (set of language constructs) used, and the interactions among those language constructs. To enable you to find out how a triple is derived, you can use proof generation during inference. (Proof generation does require additional CPU time and disk resources.)

To generate the information required for proof, specify PROOF=T in the call to the SEM_APIS.CREATE_ENTAILMENT procedure, as shown in the following example:

EXECUTE sem_apis.create_entailment('owltst_idx', sem_models('owltst'), -
  sem_rulebases('owlprime'), SEM_APIS.REACH_CLOSURE, 'SAM', 'PROOF=T', network_owner=>'RDFUSER', network_name=>'NET1');

Specifying PROOF=T causes a view to be created containing proof for each inferred triple. The view name is the entailment name prefixed by MDSYS.SEMI_. Two relevant columns in this view are LINK_ID and EXPLAIN (the proof). The following example displays the LINK_ID value and proof of each generated triple (with LINK_ID values shortened for simplicity):

SELECT link_id || ' generated by ' || explain as
          triple_and_its_proof FROM RDFUSER.NET1#SEMI_OWLST_IDX;

TRIPLE_AND_ITS_PROOF
--------------------------------------------------------------------
8_5_5_4 generated by 4_D_5_5 : SYMM_SAMH_SYMM
8_4_5_4 generated by 8_5_5_4 4_D_5_5 : SAM_SAMH
. . .

A proof consists of one or more triple (link) ID values and the name of the rule that is applied on those triples:

link-id1 [link-id2 ... link-idn] : rule-name

SELECT to_char(x.triple.rdf_m_id, 'FMXXXXXXXXXXXXXXXX') ||'_'||
       to_char(x.triple.rdf_s_id, 'FMXXXXXXXXXXXXXXXX') ||'_'||
       to_char(x.triple.rdf_p_id, 'FMXXXXXXXXXXXXXXXX') ||'_'||
       to_char(x.triple.rdf_c_id, 'FMXXXXXXXXXXXXXXXX'),
       x.triple.get_triple()
  FROM (
   SELECT sdo_rdf_triple_s(
           t.canon_end_node_id,
           t.model_id,
           t.start_node_id,
           t.p_value_id,
           t.end_node_id) triple
     FROM (select * from rdfuser.net1#semm_owltst union all
           select * from rdfuser.net1#semi_owltst_idx
          ) t
    WHERE t.link_id IN ('4_D_5_5','8_5_5_4')
  ) x;

   LINK_ID  X.TRIPLE.GET_TRIPLE()(SUBJECT, PROPERTY, OBJECT)
----------  --------------------------------------------------------------
4_D_5_5 SDO_RDF_TRIPLE('<http://example.com/name/John>', '<http://www.w3.org/2002/07/owl#sameAs>', '<http://example.com/name/JohnQ>')
8_5_5_4 SDO_RDF_TRIPLE('<http://example.com/name/JohnQ>', '<http://www.w3.org/2002/07/owl#sameAs>', '<http://example.com/name/John>')

An OWL ontology may contain errors, such as unsatisfiable classes, instances belonging to unsatisfiable classes, and two individuals asserted to be same and different at the same time. You can use the SEM_APIS.VALIDATE_MODEL and SEM_APIS.VALIDATE_ENTAILMENT functions to detect inconsistencies in the original data model and in the entailment, respectively.

SQL>  -- Insert an offending triple.
SQL>  insert into owltst values (1, sdo_rdf_triple_s('owltst',
             'urn:C1', 'http://www.w3.org/2000/01/rdf-schema#subClassOf', 'http://www.w3.org/2002/07/owl#Nothing', 'RDFUSER', 'NET1'));

SQL> -- Drop entailment first.
SQL>  exec sem_apis.drop_entailment('owltst_idx', network_owner=>'RDFUSER', network_name=>'NET1');
PL/SQL procedure successfully completed.

SQL> -- Perform OWL inferencing.
SQL> exec sem_apis.create_entailment('owltst_idx', sem_models('OWLTST'), sem_rulebases('OWLPRIME') , network_owner=>'RDFUSER', network_name=>'NET1');
PL/SQL procedure successfully completed.

SQL > set serveroutput on;
SQL > -- Now invoke validation API: sem_apis.validate_entailment
SQL >
declare
  lva mdsys.rdf_longVarcharArray;
  idx int;
begin
  lva := sem_apis.validate_entailment(sem_models('OWLTST'), sem_rulebases('OWLPRIME'), network_owner=>'RDFUSER', network_name=>'NET1') ;

  if (lva is null) then
   dbms_output.put_line('No errors found.');
  else
    for idx in 1..lva.count loop
      dbms_output.put_line('Offending entry := ' || lva(idx)) ;
    end loop ;
  end if;
end ;
/

SQL> -- NOTE: The LINK_ID value and the numbers in the following
SQL> -- line are shortened for simplicity in this example. --

          Offending entry  := 1 10001 (4_2_4_8 2 4 8) Unsatisfiable class.

In addition to accepting OWL vocabularies, the SEM_APIS.CREATE_ENTAILMENT procedure accepts RDFS rulebases. The following example shows RDFS inference (all standard RDFS rules are defined in http://www.w3.org/TR/rdf-mt/):

EXECUTE sem_apis.create_entailment('rdfstst_idx', sem_models('my_model'), sem_rulebases('RDFS'), network_owner=>'RDFUSER', network_name=>'NET1');

Because rules RDFS4A, RDFS4B, RDFS6, RDFS8, RDFS10, RDFS13 may not generate meaningful inference for your applications, you can deselect those components for faster inference. The following example deselects these rules.

EXECUTE sem_apis.create_entailment('rdfstst_idx', sem_models('my_model'), sem_rulebases('RDFS'), SEM_APIS.REACH_CLOSURE, -
 'RDFS4A-, RDFS4B-, RDFS6-, RDFS8-, RDFS10-, RDFS13-'), network_owner=>'RDFUSER', network_name=>'NET1');

This section describes suggestions for improving the performance of inference operations.

• Collect statistics before inferencing. After you load a large RDF/OWL data model, you should execute the SEM_PERF.GATHER_STATS procedure. See the Usage Notes for that procedure (in SEM_PERF Package Subprograms) for important usage information.

• Allocate sufficient temporary tablespace for inference operations. OWL inference support in Oracle relies heavily on table joins, and therefore uses significant temporary tablespace.

• Use the appropriate implementations of the SVFH and AVFH inference components.

  The default implementations of the SVFH and AVFH inference components work best when the number of restriction classes defined by owl:someValuesFrom and/or owl:allValuesFrom is low (as in the LUBM data sets). However, when the number of such classes is high (as in the Gene Ontology http://www.geneontology.org/), using non-procedural implementations of SVFH and AVFH may significantly improve performance.

  To disable the procedural implementations and to select the non-procedural implementations of SVFH and AVFH, include 'PROCSVFH=F' and/or 'PROCAVFH=F' in the options to SEM_APIS.CREATE_ENTAILMENT. Using the appropriate implementation for an ontology can provide significant performance benefits. For example, selecting the non-procedural implementation of SVFH for the NCI Thesaurus ontology (see http://www.cancer.gov/research/resources/terminology) produced a 960% performance improvement for the SVFH inference component (tested on a dual-core, 8GB RAM desktop system with 3 SATA disks tied together with Oracle ASM).

See also Optimizing owl:sameAs Inference.

You can optimize inference performance for large owl:sameAs cliques by specifying 'OPT_SAMEAS=T' in the options parameter when performing OWLPrime entailment. (A clique is a graph in which every node of it is connected to, bidirectionally, every other node in the same graph.)

According to OWL semantics, the owl:sameAs construct is treated as an equivalence relation, so it is reflexive, symmetric, and transitive. As a result, during inference a full materialization of owl:sameAs-related entailments could significantly increase the size of the inferred graph. Consider the following example triple set:

:John  owl:sameAs  :John1 .
:John  owl:sameAs  :John2 .
:John2 :hasAge     "32" .

Applying OWLPrime inference (with the SAM component specified) to this set would generate the following new triples:

:John1  owl:sameAs  :John .
:John2  owl:sameAs  :John .
:John1  owl:sameAs  :John2 .
:John2  owl:sameAs  :John1 .
:John   owl:sameAs  :John .
:John1  owl:sameAs  :John1 .
:John2  owl:sameAs  :John2 .
:John   :hasAge     "32" .
:John1  :hasAge     "32" .

In the preceding example, :John, :John1 and :John2 are connected to each other with the owl:sameAs relationship; that is, they are members of an owl:sameAs clique. To provide optimized inference for large owl:sameAs cliques, you can consolidate owl:sameAs triples without sacrificing correctness by specifying 'OPT_SAMEAS=T' in the options parameter when performing OWLPrime entailment. For example:

EXECUTE sem_apis.create_entailment('M_IDX',sem_models('M'),
   sem_rulebases('OWLPRIME'),null,null,'OPT_SAMEAS=T', network_owner=>'RDFUSER', network_name=>'NET1');

When you specify this option, for each owl:sameAs clique, one resource from the clique is chosen as a canonical representative and all of the inferences for that clique are consolidated around that resource. Using the preceding example, if :John1 is the clique representative, after consolidation the inferred graph would contain only the following triples:

:John1 owl:sameAs :John1 .
:John1 :hasAge    "32" .

Some overhead is incurred with owl:sameAs consolidation. During inference, all asserted models are copied into the inference partition, where they are consolidated together with the inferred triples. Additionally, for very large asserted graphs, consolidating and removing duplicate triples incurs a large runtime overhead, so the OPT_SAMEAS=T option is recommended only for ontologies that have a large number of owl:sameAs relationships and large clique sizes.

After the OPT_SAMEAS=T option has been used for an entailment, all subsequent uses of SEM_APIS.CREATE_ENTAILMENT for that entailment must also use OPT_SAMEAS=T, or an error will be reported. To disable optimized sameAs handling, you must first drop the entailment.

Clique membership information is stored in a view named SEMC_entailment-name, where entailment-name is the name of the entailment (rules index). Each SEMC_entailment-name view has the columns shown in Table 2-3.

To save space, the SEMC_entailment-name view does not contain reflexive rows like (CLIQUE_ID, CLIQUE_ID).

• Querying owl:sameAs Consolidated Inference Graphs


Incremental inference can be used to update entailments (rules indexes) efficiently after triple additions. There are two ways to enable incremental inference for an entailment:

• Specify the options parameter value INC=T when creating the entailment. For example:

  EXECUTE sem_apis.create_entailment ('M_IDX',sem_models('M'),
    sem_rulebases('OWLPRIME'),null,null, 'INC=T', network_owner=>'RDFUSER', network_name=>'NET1');

• Use the SEM_APIS.ENABLE_INC_INFERENCE procedure.

  If you use this procedure, the entailment must have a VALID status. Before calling the procedure, if you do not own the models involved in the entailment, you must ensure that the respective model owners have used the SEM_APIS.ENABLE_CHANGE_TRACKING procedure to enable change tracking for those models.

When incremental inference is enabled for an entailment, the parameter INC=T must be specified when invoking the SEM_APIS.CREATE_ENTAILMENT procedure for that entailment.

Incremental inference for an entailment depends on triggers for the application tables of the models involved in creating the entailment. This means that incremental inference works only when triples are inserted in the application tables underlying the entailment using conventional path loads, unless you specify the triples by using the delta_in parameter in the call to the SEM_APIS.CREATE_ENTAILMENT procedure, as in the following example, in which the triples from model M_NEW will be added to model M, and entailment M_IDX will be updated with the new inferences:

EXECUTE sem_apis.create_entailment('M_IDX', sem_models('M'),
  sem_rulebases('OWLPRIME''), SEM_APIS.REACH_CLOSURE, null, null,
  sem_models('M_NEW'), network_owner=>'RDFUSER', network_name=>'NET1');

If multiple models are involved in the incremental inference call, then to specify the destination model to which the delta_in model or models are to be added, specify DEST_MODEL=<model_name> in the options parameter. For example, the following causes the semantic data in model M_NEW to be added to model M2:

EXECUTE sem_apis.create_entailment('M_IDX', sem_models('M1','M2','M3'),
sem_rulebases('OWLPRIME''), SEM_APIS.REACH_CLOSURE, null, 'DEST_MODEL=M2', sem_models('M_NEW')), network_owner=>'RDFUSER', network_name=>'NET1');

Another way to bypass the conventional path loading requirement when using incremental inference is to set the UNDO_RETENTION parameter to cover the intervals between entailments when you perform bulk loading. For example, if the last entailment was created 6 hours ago, the UNDO_RETENTION value should be set to greater than 6 hours; if it is less than that, then (given a heavy workload and limited undo space) it is not guaranteed that all relevant undo information will be preserved for incremental inference to apply. In such cases, the SEM_APIS.CREATE_ENTAILMENT procedure falls back to regular (non-incremental) inference.

To check if change tracking is enabled on a model, use the SEM_APIS.GET_CHANGE_TRACKING_INFO procedure. To get additional information about incremental inference for an entailment, use the SEM_APIS.GET_INC_INF_INFO procedure.

The following restrictions apply to incremental inference:

• It does not work with optimized owl:sameAs handling (OPT_SAMEAS), user-defined rules, VPD-enabled models, or version-enabled models.

• It supports only the addition of triples. With updates or deletions, the entailment will be completely rebuilt.

• It depends on triggers on application tables.

• Column types (RAW8 or NUMBER) used in incremental inference must be consistent. For instance, if RAW8=T is used to build the entailment initially, then for every subsequent SEM_APIS.CREATE_ENTAILMENT call the same option must be used. To change the column type to NUMBER, you must drop and rebuild the entailment.

Parallel inference can improve inference performance by taking advantage of the capabilities of a multi-core or multi-CPU architectures. To use parallel inference, specify the DOP (degree of parallelism) keyword and an appropriate value when using the SEM_APIS.CREATE_ENTAILMENT procedure. For example:

EXECUTE sem_apis.create_entailment('M_IDX',sem_models('M'),
      sem_rulebases('OWLPRIME'), sem_apis.REACH_CLOSURE, null, 'DOP=4',
      network_owner=>'RDFUSER', network_name=>'NET1');

Specifying the DOP keyword causes parallel execution to be enabled for an Oracle-chosen set of inference components

The success of parallel inference depends heavily on a good hardware configuration of the system on which the database is running. The key is to have a "balanced" system that implements the best practices for database performance tuning and Oracle SQL parallel execution. For example, do not use a single 1 TB disk for an 800 GB database, because executing SQL statements in parallel on a single physical disk can even be slower than executing SQL statements in serial mode. Parallel inference requires ample memory; for each CPU core, you should have at least 4 GB of memory.

Parallel inference is best suited for large ontologies; however, inference performance can also improve for small ontologies.

There is some transient storage overhead associated with using parallel inference. Parallel inference builds a source table that includes all triples based on all the source RDF/OWL models and existing inferred graph. This table might use an additional 10 to 30 percent of storage compared to the space required for storing data and index of the source models.

The default inferencing in Oracle Database takes all asserted triples from all the source model or models provided and applies semantic rules on top of all the asserted triples until an inference closure is reached. Even if the given source models contain one or more multiple named graphs, it makes no difference because all assertions, whether part of a named graph or not, are treated the same as if they come from a single graph. (For an introduction to named graph support in RDF Semantic Graph, see Named Graphs.)

This default inferencing can be thought of as completely "global" in that it does not consider named graphs at all.

However, if you use named graphs, you can override the default inferencing and have named graphs be considered by using either of the following features:

• Named graph based global inference (NGGI), which treats all specified named graphs as a unified graph. NGGI lets you narrow the scope of triples to be considered, while enabling great flexibility; it is explained in Named Graph Based Global Inference (NGGI).

• Named graph based local inference (NGLI), which treats each specified named graph as a separate entity. NGLI is explained in Named Graph Based Local Inference (NGLI).

For using NGGI and NGLI together, see a recommended usage flow in Using NGGI and NGLI Together.

You specify NGGI or NGLI through certain parameters and options to the SEM_APIS.CREATE_ENTAILMENT procedure when you create an entailment (rules index).

• Named Graph Based Global Inference (NGGI)

• Named Graph Based Local Inference (NGLI)

• Using NGGI and NGLI Together


Selective inferencing is component-based inferencing, in which you limit the inferencing to specific OWL components that you are interested in. To perform selective inferencing, use the inf_components_in parameter to the SEM_APIS.CREATE_ENTAILMENT procedure to specify a comma-delimited list of components. The final inferencing is determined by the union of rulebases specified and the components specified.

EXECUTE sem_apis.create_rulebase('my_rulebase', network_owner=>'RDFUSER', network_name=>'NET1');

EXECUTE sem_apis.create_entailment('owltst_idx', sem_models('owltst'), sem_rulebases('my_rulebase'), SEM_APIS.REACH_CLOSURE, 'SCOH,SPOH', network_owner=>'RDFUSER', network_name=>'NET1');

EXECUTE sem_apis.create_entailment('owltst_idx', sem_models('owltst'), sem_rulebases('OWLPRIME'), SEM_APIS.REACH_CLOSURE, 'SCOH-', network_owner=>'RDFUSER', network_name=>'NET1');

U   owl:sameAs   V  .
U     p    X  .        ==>   V  p   X   .

U   owl:sameAs   V  .
X     p    U  .        ==>   X   p   V   .

Referring to the ontology example in Example: Disease Ontology, consider the following query that requires semantic matching: Find all patients whose diagnosis is of the type 'Immune_System_Disorder'. A typical database query of the PATIENTS table (described in Example: Disease Ontology) involving syntactic match will not return any rows, because no rows have a DIAGNOSIS column containing the exact value Immune_System_Disorder. For example the following query will not return any rows:

SELECT diagnosis FROM patients WHERE diagnosis = 'Immune_System_Disorder';

SELECT diagnosis FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime')) = 1;

SEM_RELATED(
  sub  VARCHAR2,
  predExpr  VARCHAR2,
  obj  VARCHAR2,
  ontologyName  SEM_MODELS,
  ruleBases  SEM_RULEBASES,
  index_status  VARCHAR2,
  lower_bound INTEGER,
  upper_bound INTEGER
 ) RETURN INTEGER;

The SEM_DISTANCE ancillary operator computes the distance measure for the rows filtered using the SEM_RELATED operator. The SEM_DISTANCE operator has the following format:

SEM_DISTANCE (number) RETURN NUMBER;

The number attribute can be any number, as long as it matches the number that is the last attribute specified in the call to the SEM_RELATED operator (see Example 2-10). The number is used to match the invocation of the ancillary operator SEM_DISTANCE with a specific SEM_RELATED (primary operator) invocation, because a query can have multiple invocations of primary and ancillary operators.

SELECT diagnosis, SEM_DISTANCE(123) FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime'), 123) = 1;

SELECT diagnosis FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime'), 123) = 1
  ORDER BY SEM_DISTANCE(123);

SELECT diagnosis, SEM_DISTANCE(123) FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime'), 123) = 1
  AND SEM_DISTANCE(123) <= 3;

SELECT diagnosis FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime'), 2, 4) = 1;

• Computation of Distance Information


When using the SEM_RELATED operator, you can create a semantic index of type MDSYS.SEM_INDEXTYPE on the column that contains the ontology terms. Creating such an index will result in more efficient execution of the queries. The CREATE INDEX statement must contain the INDEXTYPE IS MDSYS.SEM_INDEXTYPE clause, to specify the type of index being created.

CREATE INDEX diagnosis_sem_idx
  ON patients (diagnosis)
  INDEXTYPE IS MDSYS.SEM_INDEXTYPE;

CREATE INDEX diagnosis_sem_idx
  ON patients (diagnosis)
  INDEXTYPE IS MDSYS.SEM_INDEXTYPE('ONTOLOGY_MODEL(medical_ontology),
    RULEBASE(OWLPrime)');

SELECT /*+ FIRST_ROWS */ diagnosis FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime'), 123) = 1
  ORDER BY SEM_DISTANCE(123);

If an index of type MDSYS.SEM_INDEXTYPE has been created on a table column that is the first parameter to the SEM_RELATED operator, the index will be used. For example, the following query retrieves all rows that have a value in the DIAGNOSIS column that is a subclass of (rdfs:subClassOf) Immune_System_Disorder.

SELECT diagnosis FROM patients
  WHERE SEM_RELATED (diagnosis,
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime')) = 1;

Assume, however, that this query instead needs to retrieve all rows that have a value in the DIAGNOSIS column for which Immune_System_Disorder is a subclass. You could rewrite the query as follows:

SELECT diagnosis FROM patients
  WHERE SEM_RELATED
    ('<http://www.example.org/medical_terms/Immune_System_Disorder>',
    '<http://www.w3.org/2000/01/rdf-schema#subClassOf>',
    diagnosis,
    sem_models('medical_ontology'), sem_rulebases('owlprime')) = 1;

However, in this case a semantic index on the DIAGNOSIS column will not be used, because it is not the first parameter to the SEM_RELATED operator. To cause the index to be used, you can change the preceding query to use the inverseOf keyword, as follows:

SELECT diagnosis FROM patients
  WHERE SEM_RELATED (diagnosis,
    'inverseOf(http://www.w3.org/2000/01/rdf-schema#subClassOf)',
    '<http://www.example.org/medical_terms/Immune_System_Disorder>',
    sem_models('medical_ontology'), sem_rulebases('owlprime')) = 1;

This form causes the table column (on which the index is built) to be the first parameter to the SEM_RELATED operator, and it retrieves all rows that have a value in the DIAGNOSIS column for which Immune_System_Disorder is a subclass.

By default, the semantic operator support assumes that the values stored in the table are URIs. These URIs can be from different namespaces. However, if the values in the table do not have URIs, you can use the URIPREFIX keyword to specify a URI when you create the semantic index. In this case, the specified URI is prefixed to the value in the table and stored in the index structure. (One implication is that multiple URIs cannot be used).

Example 2-15 creates a semantic index that uses a URI prefix.

CREATE INDEX diagnosis_sem_idx
  ON patients (diagnosis)
  INDEXTYPE IS MDSYS.SEM_INDEXTYPE
  PARAMETERS('URIPREFIX(<http://www.example.org/medical/>)');
