7 Cloning a PDB or Non-CDB
You can create a PDB by cloning a local PDB, a remote PDB, or a non-CDB.
This chapter contains the following topics:
- About Cloning a PDB or Non-CDB
Cloning means creating a new PDB from a source PDB or from a non-CDB. - Cloning a Local PDB
You can clone a local PDB by running aCREATE PLUGGABLE DATABASE
statement and specifying a local PDB in theFROM
statement. - Cloning a Remote PDB
You can clone a local PDB by running aCREATE PLUGGABLE DATABASE
statement, and specifying a database link to the remote PDB in theFROM
statement. - Cloning a Non-CDB
The procedure for cloning a non-CDB is very similar to the procedure for cloning a remote PDB. - About Refreshable Clone PDBs
TheCREATE PLUGGABLE DATABASE ... REFRESH MODE
statement clones a source PDB and configures the clone to be refreshable. Refreshing the clone PDB updates it with redo accumulated since the last redo log apply. - Cloning PDBs from PDB Snapshots
You can create PDBs from PDB snapshots by executing theCREATE PLUGGABLE DATABASE … USING SNAPSHOT
statement. - Creating Snapshot Copy PDBs
You can clone a PDB from snapshots of the underlying storage. - Creating a Split Mirror Clone PDBs
In Oracle ASM, a split mirror is the process of detaching a point-in-time media copy from a parent copy. After the split, updates to the parent do not affect the child copy.
Parent topic: Creating and Removing PDBs and Application Containers
7.1 About Cloning a PDB or Non-CDB
Cloning means creating a new PDB from a source PDB or from a non-CDB.
A typical use case is development testing. You can create one or more clones of a PDB or non-CDB and safely test them in isolation. For example, you might test a new or modified application on a cloned PDB before using the application with a production PDB.
This section contains the following topics:
- How Cloning Works
This technique creates a new PDB from a source PDB or non-CDB. The process automatically plugs the new PDB into the CDB. - User Interface for PDB Cloning
All forms of PDB cloning use theCREATE PLUGGABLE DATABASE
statement.
See Also:
Oracle Database Advanced Security Guide to learn about cloning a source with encrypted data or a keystore set
Parent topic: Cloning a PDB or Non-CDB

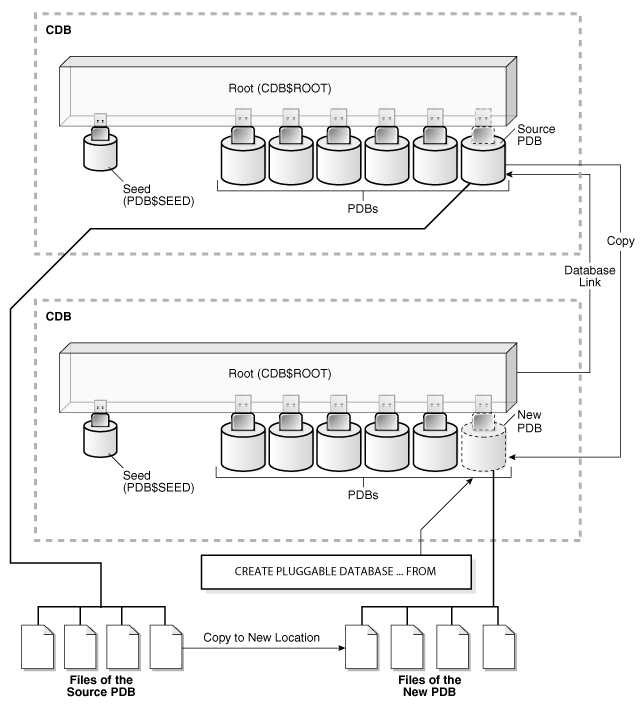

7.1.1 How Cloning Works
This technique creates a new PDB from a source PDB or non-CDB. The process automatically plugs the new PDB into the CDB.
To use this technique, you must specify the source in a CREATE PLUGGABLE DATABASE
statement. The source can be any of the following:
-
Local PDB
-
PDB in a remote CDB
-
Non-CDB
The target PDB is the copy of the source PDB or non-CDB. The copy is called a clone PDB.
The CREATE PLUGGABLE DATABASE
statement copies the files associated with the source to a new location and associates the files with the target PDB. When the CDB is in ARCHIVELOG
mode and local undo mode, the source PDB can be open in read/write mode and operational during the cloning process. This technique is known as hot cloning.
Note:
If you clone a PDB, and if the source database has encrypted data or a keystore set, then you must provide the keystore password by including the keystore identified bykeystore_password
clause in the CREATE PLUGGABLE DATABASE ... FROM
SQL statement. You must provide this password even if the source database is using an auto-login software keystore. You can determine whether the source database has encrypted data or a keystore by querying the DBA_ENCRYPTED_COLUMNS
data dictionary view.
In all cloning scenarios, when you run the CREATE PLUGGABLE DATABASE
statement in the application root, the clone PDB is created in the application container. The application name and version of the source PDB must match the application name and version of the application container.
The following graphic illustrates how this technique creates a new application PDB in an application container by cloning a local source application PDB. The source PDB can also be a PDB plugged into the local CDB root, a PDB plugged into a remote CDB root, or an application PDB plugged into a remote application root.
Figure 7-1 Clone a PDB in an Application Container
Description of "Figure 7-1 Clone a PDB in an Application Container"
See Also:
Parent topic: About Cloning a PDB or Non-CDB
7.1.2 User Interface for PDB Cloning
All forms of PDB cloning use the CREATE PLUGGABLE DATABASE
statement.
Cloning requires specifying the source PDB or non-CDB in a FROM
clause. The following table summarizes the most important clauses.
Table 7-1 CREATE PLUGGABLE DATABASE Options for PDB Cloning
Clause | Cloning Operation |
---|---|
|
Creates a PDB from a database-managed PDB snapshot. This type of snapshot is different from a storage-managed snapshot. Specify the PDB snapshot name, SCN, or timestamp. |
|
Creates a refreshable clone PDB. |
|
Creates a sparse PDB based on a storage-level snapshot. Snapshot copies are only supported on specific file systems. |
|
Creates a new PDB by splitting an ASM storage mirror. |
See Also:
Oracle Database SQL Language Reference to learn more about CREATE PLUGGABLE DATABASE
clauses
Parent topic: About Cloning a PDB or Non-CDB
7.2 Cloning a Local PDB
You can clone a local PDB by running a CREATE PLUGGABLE DATABASE
statement and specifying a local PDB in the FROM
statement.
This section contains the following topics:
- About Cloning a Local PDB
The simplest form of cloning copies a PDB from a CDB into the same CDB. - Cloning a Local PDB: Basic Steps
You can clone a local PDB by executingCREATE PLUGGABLE DATABASE
and specify the source PDB in theFROM
clause. - After Cloning a Local PDB
Certain rules regarding users and tablespaces apply after cloning a local PDB. - Cloning a Local PDB: Examples
The following examples clone a local source PDB namedpdb1
to a target PDB namedpdb2
given different factors.
Parent topic: Cloning a PDB or Non-CDB
7.2.1 About Cloning a Local PDB
The simplest form of cloning copies a PDB from a CDB into the same CDB.
Note:
You cannot use the FROM
clause in the CREATE PLUGGABLE DATABASE
statement to create a PDB from the PDB seed (PDB$SEED
) or from an application seed.
The following figure illustrates how to clone a local PDB.
Before cloning a PDB, address the questions that apply to cloning a PDB in "Table 5-3". The table describes which CREATE PLUGGABLE DATABASE
clauses to specify based on different factors.
Starting in Oracle Database 18c, you can clone a local PDB using DBCA.
See Also:
-
"Creating a PDB from Scratch" to learn how to create a PDB from the seed
Parent topic: Cloning a Local PDB
7.2.2 Cloning a Local PDB: Basic Steps
You can clone a local PDB by executing CREATE PLUGGABLE DATABASE
and specify the source PDB in the FROM
clause.
Prerequisites
You must meet the following prerequisites:
-
Complete the prerequisites described in "General Prerequisites for PDB Creation".
-
The current user must have the
CREATE PLUGGABLE DATABASE
system privilege in both the root and the source PDB. -
The source PDB cannot be closed.
-
If the CDB is not in local undo mode, then the source PDB must be in open read-only mode. This requirement does not apply if the CDB is in local undo mode.
-
If the CDB is not in
ARCHIVELOG
mode, then the source PDB must be in open read-only mode. This requirement does not apply if the CDB is inARCHIVELOG
mode. -
If you are creating an application PDB, then the application PDB must have the same character set and national character set as the application container.
If the database character set of the CDB is AL32UTF8, then the character set and national character set of the application container can be different from the CDB. However, all application PDBs in an application container must have same character set and national character set, matching that of the application container.
Note:
You can use theREFRESH MODE
clause to create a refreshable clone of a local PDB, but only if the database link loops back to the same CDB.
To clone a local PDB:
-
In SQL*Plus, ensure that the current container is the CDB root or an application root.
When the current container is the CDB root, the PDB is created in the CDB. When the current container is an application root, the application PDB is created in the application container.
-
Run the
CREATE PLUGGABLE DATABASE
statement, and specify the source PDB in theFROM
clause. Specify other clauses when required.After cloning a local PDB, the source and target PDBs are in the same CDB. The new PDB is in mounted mode, and its status is
NEW
. You can view the open mode of a PDB by querying theOPEN_MODE
column in theV$PDBS
view. You can view the status of a PDB by querying theSTATUS
column of theCDB_PDBS
orDBA_PDBS
view.A new default service is created for the PDB. The service has the same name as the PDB and can be used to access the PDB. Oracle Net Services must be configured properly for clients to access this service.
-
Open the new PDB in read/write mode.
You must open the new PDB in read/write mode for Oracle Database to complete the integration of the new PDB into the CDB. An error is returned if you attempt to open the PDB in read-only mode. After the PDB is opened in read/write mode, its status is
NORMAL
. -
Back up the new PDB.
A PDB cannot be recovered unless it is backed up.
Note:
If an error is returned during PDB creation, then the PDB being created might be in an UNUSABLE
state. You can check the PDB state by querying the CDB_PDBS
or DBA_PDBS
view. You can learn more about PDB creation errors by checking the alert log. An unusable PDB can only be dropped, and it must be dropped before you can create a PDB with the same name as the unusable PDB.
See Also:
-
"About the Current Container" and "About Container Access in a CDB"
-
Oracle Database Backup and Recovery User’s Guide to learn how to back up a PDB
Parent topic: Cloning a Local PDB
7.2.3 After Cloning a Local PDB
Certain rules regarding users and tablespaces apply after cloning a local PDB.
Users in the new PDB who used the default temporary tablespace of the source PDB use the default temporary tablespace of the new PDB. Users who used nondefault temporary tablespaces in the PDB continue to use the same local temporary tablespaces in the cloned PDB.
See Also:
Parent topic: Cloning a Local PDB
7.2.4 Cloning a Local PDB: Examples
The following examples clone a local source PDB named pdb1
to a target PDB named pdb2
given different factors.
In each example, the root to which the new PDB belongs depends on the current container when the CREATE PLUGGABLE DATABASE
statement is run:
-
When the current container is the CDB root, the database creates the PDB in the CDB root.
-
When the current container is an application root in an application container, the database creates an application PDB in the application root.
This section contains the following topics:
- Cloning a Local PDB Using No Clauses: Example
This example shows the simplest way to clone a PDB. - Cloning a Local PDB Using DBCA: Example
This example clones a PDB using the silent mode of DBCA. Hot cloning is supported. - Cloning a Local PDB with the PATH_PREFIX Clause: Example
This example explains how to clone a local PDB with thePATH_PREFIX
,FILE_NAME_CONVERT
, andSERVICE_NAME_CONVERT
clauses. - Cloning a Local PDB Using the STORAGE Clause: Example
This example clones a local PDB using theFILE_NAME_CONVERT
,STORAGE
, andSERVICE_NAME_CONVERT
clauses. - Cloning a Local PDB with the NO DATA Clause: Example
This example clones the data model definition of the PDB, but does not clone the data in the PDB.
Parent topic: Cloning a Local PDB
7.2.4.1 Cloning a Local PDB Using No Clauses: Example
This example shows the simplest way to clone a PDB.
This example assumes the following factors:
-
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. Therefore, theFILE_NAME_CONVERT
clause is not required. The files will be copied to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
The following statement clones the pdb2
PDB from the pdb1
PDB:
CREATE PLUGGABLE DATABASE pdb2 FROM pdb1;
See Also:
-
Oracle Database Administrator’s Guide for more information about Oracle Managed Files
-
Oracle Database Reference for information about the
PDB_FILE_NAME_CONVERT
initialization parameter
Parent topic: Cloning a Local PDB: Examples
7.2.4.2 Cloning a Local PDB Using DBCA: Example
This example clones a PDB using the silent mode of DBCA. Hot cloning is supported.
This example assumes the following factors:
-
The source CDB is a single-instance database with the SID
orcl
. -
The source PDB is
pdb1
. You intend forpdb1
to remain open during the cloning operation, which means that local undo andARCHIVELOG
mode are enabled in the CDB. Otherwise, DBCA closes the PDB during the clone operation, and after receiving confirmation, opens the source PDB in read-only mode. -
The new PDB is
pdb2
. -
You are running DBCA in noninteractive mode.
The following command clones the pdb2
PDB from the pdb1
PDB:
./dbca -silent
-createpluggabledatabase
-sourcedb orcl
-createpdbfrom PDB
-pdbName pdb2
-sourcepdb pdb1
See Also:
Oracle Database Administrator’s Guide for the DBCA command reference
Parent topic: Cloning a Local PDB: Examples
7.2.4.3 Cloning a Local PDB with the PATH_PREFIX Clause: Example
This example explains how to clone a local PDB with the PATH_PREFIX
, FILE_NAME_CONVERT
, and SERVICE_NAME_CONVERT
clauses.
This example assumes the following factors:
-
The path prefix must be added to the PDB's directory object paths. Therefore, the
PATH_PREFIX
clause is required. In this example, the path prefix /disk2/oracle/pdb2/ is added to the PDB’s directory object paths. -
The
FILE_NAME_CONVERT
clause is required to specify the target locations of the copied files. In this example, the files are copied from/disk1/oracle/pdb1
to/disk2/oracle/pdb2
.The
CREATE_FILE_DEST
clause is not used, and neither Oracle Managed Files nor thePDB_FILE_NAME_CONVERT
initialization parameter is used to specify the target locations of the copied files.To view the location of the data files for a PDB, run the query in "Example 19-7".
-
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required. -
The PDB that is being cloned (
pdb1
) has two user-defined services:salesrep_ca
andorders_ca
for the sales representatives and order entry personnel in California. The new services will be for the sales representatives and order entry personnel in Oregon, and the service names will be renamed tosalesrep_or
andorders_or
, respectively, in the cloned PDB (pdb2
). -
Future tablespaces created within the PDB will be created with the
NOLOGGING
attribute by default. This feature is available starting with Oracle Database 12c Release 1 (12.1.0.2).
The following statement clones the pdb2
PDB from the pdb1
PDB:
CREATE PLUGGABLE DATABASE pdb2 FROM pdb1
PATH_PREFIX = '/disk2/oracle/pdb2/'
FILE_NAME_CONVERT = ('/disk1/oracle/pdb1/', '/disk2/oracle/pdb2/')
SERVICE_NAME_CONVERT = ('salesrep_ca','salesrep_or','orders_ca','orders_or')
NOLOGGING;
Parent topic: Cloning a Local PDB: Examples
7.2.4.4 Cloning a Local PDB Using the STORAGE Clause: Example
This example clones a local PDB using the FILE_NAME_CONVERT
, STORAGE
, and SERVICE_NAME_CONVERT
clauses.
This example assumes the following factors:
-
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause is required to specify the target locations of the copied files. In this example, the files are copied from /disk1/oracle/pdb1 to /disk2/oracle/pdb2.The
CREATE_FILE_DEST
clause is not used, and neither Oracle Managed Files nor thePDB_FILE_NAME_CONVERT
initialization parameter is used to specify the target locations of the copied files.To view the location of the data files for a PDB, run the query in Example 19-7.
-
Storage limits must be enforced for the PDB. Therefore, the
STORAGE
clause is required. Specifically, all tablespaces that belong to the PDB must not exceed 2 gigabytes. -
The source PDB (
pdb1
) has two user-defined services:salesrep_ca
andorders_ca
for the sales representatives and order entry personnel in California. The new services will be for the sales representatives and order entry personnel in Oregon, and the service names will be renamed tosalesrep_or
andorders_or
, respectively, in the cloned PDB (pdb2
). -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
The following statement clones the pdb2
PDB from the pdb1
PDB:
CREATE PLUGGABLE DATABASE pdb2 FROM pdb1
FILE_NAME_CONVERT = ('/disk1/oracle/pdb1/', '/disk2/oracle/pdb2/')
STORAGE (MAXSIZE 2G)
SERVICE_NAME_CONVERT = ('salesrep_ca','salesrep_or','orders_ca','orders_or');
Parent topic: Cloning a Local PDB: Examples
7.2.4.5 Cloning a Local PDB with the NO DATA Clause: Example
This example clones the data model definition of the PDB, but does not clone the data in the PDB.
This example assumes the following factors:
-
The
NO DATA
clause is required because the goal is to clone the data model definition of the source PDB without cloning its data. -
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. Therefore, theFILE_NAME_CONVERT
clause is not required. The process copies the files to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
Assume that the source PDB pdb1
has a large amount of data. The following steps illustrate how the clone does not contain the data of the source PDB when the operation is complete:
-
With the source PDB
pdb1
as the current container, query a table with a large amount of data:SELECT COUNT(*) FROM tpch.lineitem; COUNT(*) ---------- 60001215
The table has over sixty million rows.
-
Clone the source PDB with the
NO DATA
clause:CREATE PLUGGABLE DATABASE pdb2 FROM pdb1 NO DATA;
-
Open the cloned PDB:
ALTER PLUGGABLE DATABASE pdb2 OPEN;
-
With the cloned PDB
pdb2
as the current container, query the table that has a large amount of data in the source PDB:SELECT COUNT(*) FROM tpch.lineitem; COUNT(*) ---------- 0
The table in the cloned PDB has no rows.
Parent topic: Cloning a Local PDB: Examples
7.3 Cloning a Remote PDB
You can clone a local PDB by running a CREATE PLUGGABLE DATABASE
statement, and specifying a database link to the remote PDB in the FROM
statement.
This section contains the following topics:
- About Cloning a Remote PDB
When the source is a PDB is in a remote CDB, you must use a database link to clone the PDB into the local CDB. - Cloning a Remote PDB: Basic Steps
You can create a PDB by cloning a remote PDB. After the cloning operation, the source and the target PDB are in different locations. - After Cloning a Remote PDB
Certain rules regarding users and tablespaces apply after cloning a remote PDB. - Cloning a Remote PDB: Examples
These examples clone a remote PDB or non-CDB given different factors.
Parent topic: Cloning a PDB or Non-CDB
7.3.1 About Cloning a Remote PDB
When the source is a PDB is in a remote CDB, you must use a database link to clone the PDB into the local CDB.
The database link must exist in the local CDB (not the remote CDB). When you issue the CREATE PLUGGABLE DATABASE
statement from the root of the local CDB, you must specify a database link to the remote CDB that contains the PDB being cloned in the FROM
clause. The database link connects from the local CDB to either to the root of the remote CDB or to the remote source PDB.
The following figure illustrates how this technique creates a new PDB when the source PDB is remote.
Figure 7-3 Creating a PDB by Cloning a Remote PDB
Description of "Figure 7-3 Creating a PDB by Cloning a Remote PDB"
Starting in Oracle Database 19c, you can clone a remote PDB using DBCA in silent mode.
Parent topic: Cloning a Remote PDB
7.3.2 Cloning a Remote PDB: Basic Steps
You can create a PDB by cloning a remote PDB. After the cloning operation, the source and the target PDB are in different locations.
General Prerequisites
The following prerequisites must be met:
-
Complete the prerequisites described in "General Prerequisites for PDB Creation".
-
The current user must have the
CREATE PLUGGABLE DATABASE
system privilege in the root of the CDB that will contain the target PDB. -
The source and target platforms must meet the following requirements:
-
They must have the same endianness.
-
The database options installed on the source platform must be the same as, or a subset of, the database options installed on the target platform.
-
-
If you are creating an application PDB, then the application name and version of the source PDB must match the application name and version of the target application container.
Prerequisites for Character Sets
-
If the character set of the CDB to which the PDB is being cloned is not AL32UTF8, then the source and target must have compatible character sets and national character sets. If the character set of the CDB to which the PDB is being cloned is AL32UTF8, then this requirement does not apply.
-
If you are creating an application PDB, then the application PDB must have the same character set and national character set as the application container.
If the database character set of the CDB is AL32UTF8, then the character set and national character set of the application container can different from the CDB. However, all application PDBs in an application container must have same character set and national character set, matching that of the application container.
Prerequisites for the Open Mode of the Source PDB
-
The source PDB must not be closed.
-
If the remote CDB is not in local undo mode, then the source PDB must be open in read-only mode.
See "About the CDB Undo Mode".
-
If the remote CDB is not in
ARCHIVELOG
mode, then the source PDB must be open in read-only mode. -
If you are creating a refreshable PDB, then the source PDB must be in
ARCHIVELOG
mode and local undo mode.
Prerequisites for the Database Link
The following prerequisites must be met:
-
A database link must enable a connection from the CDB to which the PDB is being cloned to the source PDB’s CDB. The database link can connect to either the root of the CDB, to an application PDB if the source is an application PDB, or to the PDB.
-
The user that the database link connects with must have the
CREATE PLUGGABLE DATABASE
system privilege. -
If the database link connects to the root in the CDB of the source PDB, then the user that the database link connects with must be a common user.
-
In an Oracle Data Guard environment, if you are performing a remote clone of a PDB into a primary CDB, then on the standby CDB set the
STANDBY_PDB_SOURCE_FILE_DBLINK
initialization parameter. This parameter specifies the name of the database link used inCREATE PLUGGABLE DATABASE ... FROM dblink
. The standby CDB attempts to copy the data files from the source PDB referenced in the database link, but only if the source PDB is open in read-only mode. Otherwise, you must copy data files to the Oracle Managed Files location on the standby CDB.
To clone a remote PDB:
-
In SQL*Plus, ensure that the current container is the root of the target CDB or the application root of the target application container.
-
Run the
CREATE PLUGGABLE DATABASE
statement, and specify the source PDB in theFROM
clause. Specify other clauses when required.After you create the PDB, it is in mounted mode, and its status is
NEW
. You can view the open mode of a PDB by querying theOPEN_MODE
column in theV$PDBS
view. You can view the status of a PDB by querying theSTATUS
column of theCDB_PDBS
orDBA_PDBS
view.A new default service is created for the PDB. The service has the same name as the PDB and can be used to access the PDB. Oracle Net Services must be configured properly for clients to access this service.
Note:
If an error is returned during PDB creation, then the PDB being created might be in an
UNUSABLE
state. You can check the PDB state by querying theCDB_PDBS
orDBA_PDBS
view, and you can learn more about PDB creation errors by checking the alert log. An unusable PDB can only be dropped, and it must be dropped before a PDB with the same name as the unusable PDB can be created. -
Open the new PDB in read/write mode.
You must open the new PDB in read/write mode for Oracle Database to complete the integration of the new PDB into the CDB. An error is returned if you attempt to open the PDB in read-only mode. After the PDB is opened in read/write mode, its status is
NORMAL
. -
Back up the PDB.
A PDB cannot be recovered unless it is backed up.
See Also:
-
Oracle Database Backup and Recovery User’s Guide for information about backing up a PDB
-
Oracle Data Guard Concepts and Administration to learn more about plugging in a PDB in an Oracle Data Guard environment
-
Oracle Database Globalization Support Guide to learn about the requirements for the compatibility of character sets
-
Oracle Database Reference for information about the
PDB_FILE_NAME_CONVERT
initialization parameter
Parent topic: Cloning a Remote PDB
7.3.3 After Cloning a Remote PDB
Certain rules regarding users and tablespaces apply after cloning a remote PDB.
The following applies after cloning a remote PDB:
-
Users in the new PDB who used the default temporary tablespace of the source PDB use the default temporary tablespace of the new PDB. Users who used nondefault temporary tablespaces in the PDB continue to use the same local temporary tablespaces in the cloned PDB.
-
User-created common user accounts that existed in the source CDB but not in the target CDB do not have privileges granted commonly. However, if the target CDB has a common user account with the same name as a common user account in the PDB, then the latter is linked to the former and has the privileges granted to this common user account in the target CDB.
If the cloned or plugged-in PDB has a common user account that does not exist in the target CDB, and if this user does not own objects in the PDB, then Oracle Database drops the user during the synchronization step; otherwise, the user account is locked in the target PDB. You have the following options regarding locked accounts:
-
Close the PDB, connect to the root, and create a common user account with the same name. When the PDB is opened in read/write mode, differences in roles and privileges granted commonly to the user account are resolved, and you can unlock the account. Privileges and roles granted locally to the user account remain unchanged during this process.
-
Create a new local user account in the PDB and use Data Pump to export/import the locked user's data into the new local user's schema.
-
Leave the user account locked.
-
Drop the user account.
-
See Also:
-
Oracle Database Security Guide for information about creating a local user
-
Oracle Database Utilities for information about using Oracle Data Pump with a CDB
Parent topic: Cloning a Remote PDB
7.3.4 Cloning a Remote PDB: Examples
These examples clone a remote PDB or non-CDB given different factors.
In each example, the root to which the new PDB belongs depends on the current container when the CREATE PLUGGABLE DATABASE
statement is run:
-
When the current container is the CDB root, the new PDB is created in the CDB root.
-
When the current container is an application root in an application container, the new PDB is created as an application PDB in the application root.
This section contains the following topics:
- Cloning a Remote PDB Using No Clauses: Example
This example clones a remote source PDB namedpdb1
to a target PDB namedpdb2
given different factors. - Cloning a Remote PDB Using DBCA: Example
This example uses DBCA to clone a PDB namedpdb1
from a remote CDB to the local CDB, where it will be renamedclonepdb1
.
Parent topic: Cloning a Remote PDB
7.3.4.1 Cloning a Remote PDB Using No Clauses: Example
This example clones a remote source PDB named pdb1
to a target PDB named pdb2
given different factors.
This example assumes the following factors:
-
The database link name to the remote PDB is
pdb1_link
. -
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. The files will be copied to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
The following statement clones the pdb2
PDB from the pdb1
remote PDB:
CREATE PLUGGABLE DATABASE pdb2 FROM pdb1@pdb1_link;
See Also:
-
Oracle Database Administrator’s Guide for more information about Oracle Managed Files
-
Oracle Database Reference for information about the
PDB_FILE_NAME_CONVERT
initialization parameter
Parent topic: Cloning a Remote PDB: Examples
7.3.4.2 Cloning a Remote PDB Using DBCA: Example
This example uses DBCA to clone a PDB named pdb1
from a remote CDB to the local CDB, where it will be renamed clonepdb1
.
Prerequisites
This scenario assumes the following:
-
The user in the local database has the
CREATE PLUGGABLE DATABASE
privilege in the root container. -
The remote CDB is in local undo mode.
-
The remote and local CDBs are in
ARCHIVELOG
mode. -
The common user in the remote CDB to whom the database link connects has the
CREATE PLUGGABLE DATABASE
,SESSION
, andSYSOPER
privilege. -
The local and remote CDBs have the same options installed.
Assumptions
This scenario assumes the following:
-
You are running DBCA on the host of the CDB that will contain the cloned PDB. The local CDB is named
loccdb1
. -
The remote (source) CDB is named
remcdb1
and resides on hostremcdb1host
. The instance name for the remote CDB isreminst
. -
The remote PDB, which is the PDB to be cloned, is named
rempdb1
. -
The common user
c##adminuser_remcdb1
resides inremcdb1
. -
The administrative user
locSYS
hasSYSDBA
privileges onloccdb1
, which is the CDB to which the PDB is being cloned. -
The administrative user
remSYS
hasSYSDBA
privileges onremcdb1
, which is the CDB that contains the PDB to be cloned. -
After cloning to
loccdb1
, the PDB will be renamedclonepdb1
.
This following silent command clones rempdb1
to loccdb1
:
./dbca -silent
-createPluggableDatabase
-createFromRemotePDB
-sourceDB remcdb1
-remotePDBName rempdb1
-remoteDBConnString remcdb1host:1521/reminst
-remoteDBSYSDBAUserName remSYS
-remoteDBSYSDBAUserPassword remsyspwd
-dbLinkUsername c##adminuser_remcdb1
-dbLinkUserPassword pwd4dblinkusr
-sysDBAUserName locSYS
-sysDBAPassword locsyspwd
-pdbName clonepdb1
See Also:
Oracle Database Administrator’s Guide for syntax and semantics of DBCA commands
Parent topic: Cloning a Remote PDB: Examples
7.4 Cloning a Non-CDB
The procedure for cloning a non-CDB is very similar to the procedure for cloning a remote PDB.
This section contains the following topics:
- About Cloning a Non-CDB
When the source is a non-CDB, you must specify a database link to the non-CDB in theFROM
clause. - Cloning a Non-CDB: Basic Steps
You can create a PDB by cloning a non-CDB. - Cloning a Remote Non-CDB: Example
This example creates a new PDB by cloning a remote source non-CDB namedmydb
to a target PDB namedpdb2
given different factors.
Parent topic: Cloning a PDB or Non-CDB
7.4.1 About Cloning a Non-CDB
When the source is a non-CDB, you must specify a database link to the non-CDB in the FROM
clause.
The following figure illustrates how this technique creates a new PDB when the source is a remote non-CDB.
Figure 7-4 Creating a PDB by Cloning a Non-CDB
Description of "Figure 7-4 Creating a PDB by Cloning a Non-CDB"
Parent topic: Cloning a Non-CDB
7.4.2 Cloning a Non-CDB: Basic Steps
You can create a PDB by cloning a non-CDB.
General Prerequisites
The following prerequisites must be met:
-
Complete the prerequisites described in "General Prerequisites for PDB Creation".
Note:
If you want to be able to recover the new PDB using backups of the source non-CDB, then you must use
DBMS_PDB.EXPORTRMANBACKUP
before cloning. -
The current user must have the
CREATE PLUGGABLE DATABASE
system privilege in the root of the CDB that will contain the target PDB. -
The source and target platforms must meet the following requirements:
-
They must have the same endianness.
-
The database options installed on the source platform must be the same as, or a subset of, the database options installed on the target platform.
-
-
The CDB and the non-CDB must be running Oracle Database 12c Release 1 (12.1.0.2) or later.
-
The CDB and the non-CDB must be running the same Oracle Database release.
-
The data block size of the newly created PDB must match the CDB.
-
If the non-CDB is in
NOARCHIVELOG
mode, then it must be open in read-only mode. If the non-CDB is inARCHIVELOG
mode, then it can be open read-only or read/write.
Prerequisites for Character Sets
-
If the character set of the CDB is not AL32UTF8, then the source and target must have compatible character sets and national character sets. If the character set of the CDB to which the PDB is being cloned is AL32UTF8, then this requirement does not apply.
-
If you are creating an application PDB, then the application PDB must have the same character set and national character set as the application container.
If the database character set of the CDB is AL32UTF8, then the character set and national character set of the application container can different from the CDB. However, all application PDBs in an application container must have same character set and national character set, matching that of the application container.
Prerequisites for the Database Link
The following prerequisites must be met:
-
A database link must enable a connection from the target CDB to the source CDB. The database link can connect to either the root of the CDB, to an application PDB if the source is an application PDB, or to the PDB.
-
The user that the database link connects with must have the
CREATE PLUGGABLE DATABASE
system privilege. -
If the database link connects to the root in the CDB of the source PDB, then the user that the database link connects with must be a common user.
-
In an Oracle Data Guard environment, if you are performing a remote clone of a PDB into a primary CDB, then on the standby CDB set the
STANDBY_PDB_SOURCE_FILE_DBLINK
initialization parameter. This parameter specifies the name of the database link used inCREATE PLUGGABLE DATABASE ... FROM dblink
. The standby CDB attempts to copy the data files from the source PDB referenced in the database link, but only if the source PDB is open in read-only mode. Otherwise, you must copy data files to the Oracle Managed Files location on the standby CDB.
To clone a remote non-CDB:
-
In SQL*Plus, ensure that the current container is the root of the target CDB or the application root of the target application container.
-
Run the
CREATE PLUGGABLE DATABASE
statement, and specify the source non-CDB in theFROM
clause. Specify other clauses when required.After you create the PDB, it is in mounted mode, and its status is
NEW
. You can view the open mode of a PDB by querying theOPEN_MODE
column in theV$PDBS
view. You can view the status of a PDB by querying theSTATUS
column of theCDB_PDBS
orDBA_PDBS
view.A new default service is created for the PDB. The service has the same name as the PDB and can be used to access the PDB. Oracle Net Services must be configured properly for clients to access this service.
Note:
If an error is returned during PDB creation, then the PDB being created might be in an
UNUSABLE
state. You can check the PDB state by querying theCDB_PDBS
orDBA_PDBS
view, and you can learn more about PDB creation errors by checking the alert log. An unusable PDB can only be dropped, and it must be dropped before a PDB with the same name as the unusable PDB can be created. -
Run the
ORACLE_HOME/rdbms/admin/noncdb_to_pdb.sql
script. This script must be run before the PDB can be opened for the first time.To run the
noncdb_to_pdb.sql
script, complete the following steps:-
Set the container to the newly created PDB.
The current user must have
SYSDBA
administrative privilege, and the privilege must be either commonly granted or locally granted in the PDB. The user must exercise the privilege usingAS SYSDBA
at connect time. -
Run the
noncdb_to_pdb.sql
script:@$ORACLE_HOME/rdbms/admin/noncdb_to_pdb.sql
The script opens the PDB, performs changes, and then closes the PDB.
-
-
Open the new PDB in read/write mode.
You must open the new PDB in read/write mode for Oracle Database to complete the integration of the new PDB into the CDB. An error is returned if you attempt to open the PDB in read-only mode. After the PDB is opened in read/write mode, its status is
NORMAL
. -
Back up the PDB.
A PDB cannot be recovered unless it is backed up.
See Also:
-
My Oracle Support Note 1928653.1 for a detailed example of cloning a PDB from a non-CDB
-
Oracle Database Backup and Recovery User’s Guide for information about backing up a PDB
-
Oracle Database Globalization Support Guide to learn about the requirements for the compatibility of character sets
-
Oracle Database Reference for information about the
PDB_FILE_NAME_CONVERT
initialization parameter
Parent topic: Cloning a Non-CDB
7.4.3 Cloning a Remote Non-CDB: Example
This example creates a new PDB by cloning a remote source non-CDB named mydb
to a target PDB named pdb2
given different factors.
This example assumes the following factors:
-
The database link name to the remote non-CDB is
mydb_link
. -
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. The files will be copied to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
The following statement creates the pdb2
PDB from the remote non-CDB named mydb
:
CREATE PLUGGABLE DATABASE pdb2 FROM mydb@mydb_link;
When the source database is a non-CDB, you can substitute NON$CDB
for the name of the non-CDB. For example, the following statement is equivalent to the previous example:
CREATE PLUGGABLE DATABASE pdb2 FROM NON$CDB@mydb_link;
See Also:
Oracle Database Administrator’s Guide for more information about Oracle Managed Files
Parent topic: Cloning a Non-CDB
7.5 About Refreshable Clone PDBs
The CREATE PLUGGABLE DATABASE ... REFRESH MODE
statement clones a source PDB and configures the clone to be refreshable. Refreshing the clone PDB updates it with redo accumulated since the last redo log apply.
This section contains the following topics:
- Purpose of Refreshable Clone PDBs
The cloning operation for production PDBs can take a long time. - Automatic and Manual Refresh Modes
You can configure the clone PDB to refresh automatically at set intervals, or you can refresh it manually with theALTER PLUGGABLE DATABASE REFRESH
statement. - Requirements for Refreshable Clone PDBs
Creation of a refreshable clone PDB requires a database link. The database link can point to the same CDB or a different CDB. - Creating a Refreshable Clone PDB: Scenario
This scenario creates a refreshable clone namedpdb1_ref_cln
from a remote PDB namedpdb1
.
Parent topic: Cloning a PDB or Non-CDB
7.5.1 Purpose of Refreshable Clone PDBs
The cloning operation for production PDBs can take a long time.
If PDBs are cloned infrequently to avoid a drag on the system, then the clone data becomes stale. A refreshable clone PDB solves this problem. When a refreshable clone is stale, you can quickly refresh it with recent redo. A typical practice is to maintain a “golden master” refreshable clone of a production PDB, and then take snapshot clones of the golden master for development and testing.
You can reverse the roles for source and clone PDBs using an ALTER PLUGGABLE DATABASE ... SWITCHOVER
statement. This capability is useful in the following situations:
-
Planned switchover
The CDB hosting the source PDB may experience significantly more overhead than the CDB hosting the clone PDB. To achieve load balancing, you can reverse the roles, making the clone the new source PDB, and the source PDB the new clone.
-
Unplanned switchover
The source PDB may suffer an unplanned failure. In this case, you can make the clone PDB the new source PDB, and resume normal operations.
See Also:
-
Oracle Database SQL Language Reference to learn more about
ALTER PLUGGABLE DATABASE ... SWITCHOVER
Parent topic: About Refreshable Clone PDBs
7.5.2 Automatic and Manual Refresh Modes
You can configure the clone PDB to refresh automatically at set intervals, or you can refresh it manually with the ALTER PLUGGABLE DATABASE REFRESH
statement.
The REFRESH MODE
clause is supported only in a CREATE PLUGGABLE DATABASE ... FROM
statement. You can use this clause to specify one of the following options:
-
Specify
REFRESH MODE NONE
, the default, to create a PDB that is not refreshable.You can change a refreshable clone PDB into an ordinary PDB by including the
REFRESH MODE NONE
clause in anALTER PLUGGABLE DATABASE
statement and then opening the PDB in read/write mode. You cannot change an ordinary PDB into a refreshable clone PDB. After a refreshable clone PDB is converted to an ordinary PDB, you cannot change it back into a refreshable clone PDB. -
Specify
REFRESH MODE MANUAL
to create a refreshable PDB that must be refreshed manually. -
Specify
REFRESH MODE EVERY number_of_minutes MINUTES
to create a refreshable PDB that is refreshed automatically after the specified number of minutes has passed. A refreshable PDB that uses automatic refresh can also be refreshed manually.
Note:
-
When you create a refreshable PDB, you can set the
REMOTE_RECOVERY_FILE_DEST
initialization parameter in the PDB. This initialization parameter specifies a directory from which to read archive log files during refresh operations if the source PDB is not available over its database link. -
If new data files are created in the source PDB, then the
PDB_FILE_NAME_CONVERT
initialization parameter must be set in the CDB to convert the data file paths from the source PDB to the clone PDB.
Example 7-1 A REFRESH MODE Clause That Specifies Automatic Refresh
This refresh mode clause specifies that a refreshable PDB is refreshed automatically every two hours (120 minutes):
REFRESH MODE EVERY 120 MINUTES
See Also:
Parent topic: About Refreshable Clone PDBs
7.5.3 Requirements for Refreshable Clone PDBs
Creation of a refreshable clone PDB requires a database link. The database link can point to the same CDB or a different CDB.
A refreshable clone PDB must be in either of the following states:
-
Closed
A refreshable PDB must be closed when a refresh is performed. If it is not closed when automatic refresh is attempted, then the refresh is deferred until the next scheduled refresh. If it is not closed when a user attempts to perform manual refresh, then an error is reported.
-
Open in read-only mode
The refreshable PDB must be kept in read-only mode to prevent out-of-sync changes on the refreshable PDB which do not occur on the source PDB. The refreshable PDB is intended to serve as a clone master and as such must accurately reflect the source PDB at the refreshed point in time.
Parent topic: About Refreshable Clone PDBs
7.5.4 Creating a Refreshable Clone PDB: Scenario
This scenario creates a refreshable clone named pdb1_ref_cln
from a remote PDB named pdb1
.
The clone PDB is a copy of the source PDB. You can refresh the clone PDB periodically to update it with any changes made to the source PDB.
Assumptions
This scenario assumes the following factors:
-
The database link name to the remote PDB is
pdb1_link
. -
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. The files will be copied to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required. -
The refreshable clone will be refreshed automatically every 60 minutes.
Note:
To create a refreshable PDB, the source PDB must be in ARCHIVELOG
mode and local undo mode.
To create a refreshable clone PDB:
-
In SQL*Plus, ensure that the current container is the CDB root or an application root.
When the current container is the CDB root, the PDB is created in the CDB. When the current container is an application root, the application PDB is created in the application container.
-
Execute the
CREATE PLUGGABLE DATABASE
statement.The following statement creates
pdb1_ref_cln
frompdb1
:CREATE PLUGGABLE DATABASE pdb1_ref_cln FROM pdb1@pdb1_link REFRESH MODE EVERY 60 MINUTES;
See Also:
Parent topic: About Refreshable Clone PDBs
7.6 Cloning PDBs from PDB Snapshots
You can create PDBs from PDB snapshots by executing the CREATE PLUGGABLE DATABASE … USING SNAPSHOT
statement.
This section contains the following topics:
- About Cloning PDBs from PDB Snapshots
A PDB snapshot is a database-managed, point-in-time copy of a PDB. A snapshot clone PDB is a PDB created from a snapshot. - Cloning a PDB from a PDB Snapshot: Scenario
This scenario creates a new PDB from a PDB snapshot by executingCREATE PLUGGABLE DATABASE ... USING SNAPSHOT
.
Parent topic: Cloning a PDB or Non-CDB
7.6.1 About Cloning PDBs from PDB Snapshots
A PDB snapshot is a database-managed, point-in-time copy of a PDB. A snapshot clone PDB is a PDB created from a snapshot.
Starting in Oracle Database 19c, the behavior of PDB snapshots depends on the setting of the CLONEDB
initialization parameter:
-
CLONEDB=TRUE
You can take snapshots of PDBs that are in read/write mode or read-only mode. The first snapshot of the PDB contains full copies of the original PDB files, but subsequent snapshots of the same PDB contain sparse files.
-
CLONEDB=FALSE
You can only take snapshots of read-only PDBs. Every snapshot is a full copy of the source PDB files. In this case, if you create a clone PDB based on a PDB snapshot, then the source PDB must remain read-only for the lifetime of the clone PDB.
Note:
See Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services.
PDB Snapshot Carousel
A PDB snapshot carousel is a library of up to 8 snapshots. The carousel enables you to perform a “hot clone” of a PDB to a specific SCN or point in time. A use case is to restore a snapshot from the carousel, typically the most recent snapshot, and then recover it to the required SCN or timestamp.
Cloning a PDB from a PDB Snapshot
The USING SNAPSHOT
clause of the CREATE PLUGGABLE DATABASE
statement creates an active PDB from an existing PDB snapshot. To view the available PDB snapshots, query the DBA_PDB_SNAPSHOTS
data dictionary view.
To clone a PDB from a snapshot, specify one of the following values in the USING SNAPSHOT
clause:
-
The PDB snapshot name
-
The PDB snapshot SCN in the following form:
USING SNAPSHOT AT SCN scn
-
The PDB snapshot timestamp in the following form:
USING SNAPSHOT AT TIME timestamp
If the PDB snapshot is a sparse copy (that is, it was created when CLONEDB=TRUE
and was not the first snapshot taken of the source PDB), then the PDB cloned from this snapshot is also sparse.
See Also:
-
Oracle Database SQL Language Reference for the syntax and semantics of the
USING SNAPSHOT
clause -
Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services
Parent topic: Cloning PDBs from PDB Snapshots
7.6.2 Cloning a PDB from a PDB Snapshot: Scenario
This scenario creates a new PDB from a PDB snapshot by executing CREATE PLUGGABLE DATABASE ... USING SNAPSHOT
.
Assumptions
This example assumes the following factors:
-
A PDB snapshot carousel exists with 8 daily snapshots of source PDB
salespdb
, named after the weekday, day of the month, and time when they were created:pdb1_mon_2_1201
,pdb1_tue_3_1201
,pdb1_wed_4_1201
, and so on. -
All snapshots were created when
salespdb
was in read/write mode and theCLONEDB
initialization parameter was set toTRUE
. All PDB snapshots except the first one are sparse. -
The new PDB will be a clone of a snapshot named
pdb1_wed_4_1201
, which is a snapshot ofpdb1
taken last Wednesday on the 4th of the month at 12:01 a.m. -
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. Therefore, theFILE_NAME_CONVERT
clause is not required. The files will be copied to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
To clone a PDB from a PDB snapshot:
-
In SQL*Plus, ensure that the current container is the CDB root or an application root.
When the current container is the CDB root, the PDB is created in the CDB. When the current container is an application root, the application PDB is created in the application container.
-
Execute the
CREATE PLUGGABLE DATABASE ... USING SNAPSHOT
statement.The following statement clones the
pdb1_copy
PDB from the PDB snapshot namedpdb1_wed_4_1201
:CREATE PLUGGABLE DATABASE pdb1_copy FROM pdb1 USING SNAPSHOT pdb1_wed_4_1201;
See Also:
-
Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services
Parent topic: Cloning PDBs from PDB Snapshots
7.7 Creating Snapshot Copy PDBs
You can clone a PDB from snapshots of the underlying storage.
This section contains the following topics:
- About Snapshot Copy PDBs
You can create a snapshot copy PDB by executing aCREATE PLUGGABLE DATABASE ... FROM ... SNAPSHOT COPY
statement. The source PDB is specified in theFROM
clause. - Creating a Snapshot Copy PDB: Scenario
This scenario create a snapshot copy PDB by specify theSNAPSHOT COPY
clause inCREATE PLUGGABLE DATABASE
. - Materializing a Snapshot Copy PDB
You can materialize a snapshot copy PDB by running anALTER PLUGGABLE DATABASE
statement with theMATERIALIZE
clause. Materializing a snapshot copy PDB copies all data blocks.
Parent topic: Cloning a PDB or Non-CDB
7.7.1 About Snapshot Copy PDBs
You can create a snapshot copy PDB by executing a CREATE PLUGGABLE DATABASE ... FROM ... SNAPSHOT COPY
statement. The source PDB is specified in the FROM
clause.
A snapshot copy reduces the time required to create the clone because it does not include a complete copy of the source data files. Furthermore, the snapshot copy PDB occupies a fraction of the space of the source PDB.
This section contains the following topics:
- Storage Requirements for Snapshot Copy PDBs
When you specify theSNAPSHOT COPY
clause inCREATE PLUGGABLE DATABASE ... FROM sourcepdb
, all data files of the source PDB must reside in the same storage type. - Types of Snapshots
In Oracle Multitenant, the term snapshot means different things depending on context.
Parent topic: Creating Snapshot Copy PDBs
7.7.1.1 Storage Requirements for Snapshot Copy PDBs
When you specify the SNAPSHOT COPY
clause in CREATE PLUGGABLE DATABASE ... FROM sourcepdb
, all data files of the source PDB must reside in the same storage type.
Storage requirements depend on the setting of the CLONEDB
initialization parameter:
-
CLONEDB=FALSE
The underlying file system for the source PDB files must support storage snapshots. Such file systems include Oracle Automatic Storage Management Cluster File System (Oracle ACFS) and Direct NFS Client storage. Oracle Exadata supports snapshot copy functionality on ASM configured with sparse ASM grid disks.
-
CLONEDB=TRUE
The underlying file system for the source PDB files can be any local file system, network file system (NFS), or clustered file system that has Direct NFS enabled and supports sparse files. Most UNIX systems meet these requirements, including Oracle ACFS and ZFS. However, when
CLONEDB=TRUE
, the source PDB must remain in open read-only mode when clones exist.
Direct NFS Client enables an Oracle database to access network attached storage (NAS) devices directly, rather than using the operating system kernel NFS client. If the files of the source PDB are stored on Direct NFS Client storage, then the following additional requirements must be met:
-
The source PDB files must be located on an NFS volume.
-
Storage credentials must be stored in a Transparent Data Encryption keystore.
-
The storage user must have the privileges required to create and destroy snapshots on the volume that hosts the files of the source PDB.
-
Credentials must be stored in the keystore using an
ADMINISTER KEY MANAGEMENT ADD SECRET
SQL statement.The following example configures an Oracle Database secret in a software keystore:
ADMINISTER KEY MANAGEMENT ADD SECRET 'secret' FOR CLIENT 'client_name' USING TAG 'storage_user' IDENTIFIED BY keystore_password WITH BACKUP;
Run this statement to add a separate entry for each storage server in the configuration. In the previous example, the following values must be specified:
-
secret
is the storage password. -
client_name
is the storage server. On a Linux or UNIX platform, it is the name entered in /etc/hosts or the IP address of the storage server. -
tag
is the user name passed to the storage server. -
keystore_password
is the password for the keystore.
-
You cannot unplug PDB clones created using the SNAPSHOT COPY
clause. You can only drop them. Attempting to unplug a clone created using the SNAPSHOT COPY
clause results in an error.
Storage clones are named and tagged using the GUID of the target PDB. You can query the CLONETAG
column of DBA_PDB_HISTORY
view to view clone tags for storage clones.
Note:
Snapshot copy behavior and efficiency are vendor specific and may vary between vendors.
See Also:
-
Oracle Automatic Storage Management Administrator's Guide for more information about Oracle ACFS
-
Oracle Grid Infrastructure Installation and Upgrade Guide for your operating system for information about Direct NFS Client
-
Oracle Database Advanced Security Guide for more information about Transparent Data Encryption
-
My Oracle Support Note 1597027.1 for more information about supported platforms for snapshot cloning of PDBs.
-
Oracle Exadata System Software User's Guide for information about Exadata support for PDB clones created using the
SNAPSHOT COPY
clause
Parent topic: About Snapshot Copy PDBs
7.7.1.2 Types of Snapshots
In Oracle Multitenant, the term snapshot means different things depending on context.
The principal difference is between a storage-managed snapshot and a database-managed snapshot. You can only create a snapshot copy PDB from a storage-managed snapshot. PDBs created from database-managed snapshots are standard clone PDBs. A database-managed snapshot does not involve storage-level snapshots. The following table explicates the differences.
Table 7-2 Types of Snapshots
Object | SQL Statement | Description |
---|---|---|
Storage-managed snapshot |
N/A |
A storage-managed snapshot is only supported on specific file systems. The storage and security credential requirements depend on the setting of the |
Snapshot copy PDB |
|
A snapshot copy PDB does not include a complete copy of the source data files. Rather, Oracle Database creates a storage-level snapshot of the underlying file system, and then creates the clone PDB from the snapshot. Unlike a standard clone PDB, the snapshot copy PDB is dependent on the storage snapshot. Therefore, you cannot unplug this PDB from the CDB root or plug it in to an application root. Also, you cannot drop the storage snapshot on which the PDB is based. Instead, you must materialize the snapshot copy PDB, which converts it into a full PDB with non-sparse files. |
PDB snapshot | ALTER PLUGGABLE DATABASE SNAPSHOT |
A PDB snapshot is a database-managed copy of a PDB. No storage-level snapshot is involved. If the snapshot is created when |
Clone PDB based on a PDB snapshot | CREATE PLUGGABLE DATABASE ... FROM ... USING SNAPSHOT |
If the snapshot was created when You cannot create a snapshot copy PDB that is based on a PDB snapshot by including both the |
See Also:
-
Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services
Parent topic: About Snapshot Copy PDBs
7.7.2 Creating a Snapshot Copy PDB: Scenario
This scenario create a snapshot copy PDB by specify the SNAPSHOT COPY
clause in CREATE PLUGGABLE DATABASE
.
Assumptions
This scenario assumes the following factors:
-
The new snapshot copy PDB will be created based on a PDB snapshot named
pdb1_snap3
, which is a PDB snapshot that is a copy ofpdb1
at a specific point in time and SCN. -
The
PATH_PREFIX
clause is not required. -
The
FILE_NAME_CONVERT
clause and theCREATE_FILE_DEST
clause are not required.Either Oracle Managed Files is enabled, or the
PDB_FILE_NAME_CONVERT
initialization parameter is set. Therefore, theFILE_NAME_CONVERT
clause is not required. The files will be copied to a new location based on the Oracle Managed Files configuration or the initialization parameter setting. -
Storage limits are not required for the PDB. Therefore, the
STORAGE
clause is not required. -
There is no file with the same name as the new temp file that will be created in the target location. Therefore, the
TEMPFILE REUSE
clause is not required.
To create a snapshot copy PDB:
-
In SQL*Plus, ensure that the current container is the CDB root or an application root.
When the current container is the CDB root, the PDB is created in the CDB. When the current container is an application root, the application PDB is created in the application container.
-
Execute the
CREATE PLUGABBLE DATABASE … SNAPSHOT COPY
statement.The following statement clones the
pdb1_snap_copy
PDB from thepdb1_snap3
PDB snapshot:CREATE PLUGGABLE DATABASE pdb1_snap_copy FROM pdb1 USING SNAPSHOT pdb1_snap3 SNAPSHOT COPY;
After
pdb1_snap_copy
is created, it is dependent on thepdb1_snap3
PDB snapshot. Therefore, you cannot droppdb1_snap3
whenpdb1_snap_copy
exists. However, you can transformpd1_snap_copy
from a snapshot copy PDB into a regular PDB by running anALTER PLUGGABLE DATABASE ... MATERIALIZE
statement. Materializing the PDB means thatpdb1_snap_copy
no longer depends onpdb1_snap3
, enabling you to droppdb1_snap3
.
See Also:
"Materializing a Snapshot Copy PDB"Parent topic: Creating Snapshot Copy PDBs
7.7.3 Materializing a Snapshot Copy PDB
You can materialize a snapshot copy PDB by running an ALTER PLUGGABLE DATABASE
statement with the MATERIALIZE
clause. Materializing a snapshot copy PDB copies all data blocks.
When you create a snapshot copy PDB, it is dependent on the source PDB. Because of this dependency, you cannot drop the source PDB.
Materializing the snapshot copy PDB transforms the snapshot copy PDB, which uses sparse files, into a full PDB, which does not use sparse files. Therefore, it is no longer dependent on the source PDB, which can be dropped.
Note:
A PDB snapshot created with the USING SNAPSHOT
clause and a snapshot copy PDB created with the SNAPSHOT COPY
clause are two distinct types of snapshots and should not be confused with each other. The USING SNAPSHOT
clause creates a full PDB that does not need to be materialized. The SNAPSHOT COPY
clause creates a sparse PDB that must be materialized if you want to drop the PDB snapshot on which it is based.
To materialize a PDB snapshot:
-
In SQL*Plus, ensure that the current container is the snapshot copy PDB that is being materialized.
-
Run an
ALTER PLUGGABLE DATABASE
statement with theMATERIALIZE
clause.
Example 7-2 Materializing a Snapshot Copy PDB
The following SQL statement materializes a snapshot copy PDB:
ALTER PLUGGABLE DATABASE MATERIALIZE;
See Also:
-
"About Snapshot Copy PDBs" for more information about snapshot copy PDBs
Parent topic: Creating Snapshot Copy PDBs
7.8 Creating a Split Mirror Clone PDBs
In Oracle ASM, a split mirror is the process of detaching a point-in-time media copy from a parent copy. After the split, updates to the parent do not affect the child copy.
Starting in Oracle Database 18c, the parent copy can be a PDB rather than a storage volume. The split mirror clone PDB resides on the same media as the parent. The principal use case is to rapidly provision test and development PDBs in an Oracle ASM environment.
Note:
Oracle ASM flex and extended disk groups are required for split mirror clone PDBs.
Mirror refresh is refreshing a split mirror clone PDB with changes from the parent PDB. In effect, this operation is equivalent to deleting the mirror split, and then taking a new mirror split.
To drop a split mirror clone PDB, enter ALTER PLUGGABLE DATABASE ... DROP MIRROR COPY
.
To create a split mirror clone PDB:
-
Start SQL*Plus, and connect to the CDB root.
-
Prepare the source PDB by issuing the
ALTER PLUGGABLE DATABASE ... PREPARE MIRROR COPY
statement. -
Create a clone PDB from the source PDB by issuing the
CREATE PLUGGABLE DATABASE ... FROM ... USING MIRROR COPY
statement. -
Optionally, query
V$ASM_DBCLONE_INFO
view to see the relationship between the source PDB, the cloned PDB, and their file groups.
See Also:
- Oracle Automatic Storage Management Administrator's Guide to learn how to create or drop a split mirror clone PDB
-
Oracle Database Reference to learn more about
V$ASM_DBCLONE_INFO
Parent topic: Cloning a PDB or Non-CDB
