16 Administering a PDB Snapshot Carousel

You can configure a PDB snapshot carousel for a specified PDB, create snapshots manually or automatically, and set the maximum number of snapshots.

This section contains the following topics:

16.1 About PDB Snapshot Carousel

A PDB snapshot carousel is a library of PDB snapshots.

A PDB snapshot is a point-in-time copy of a PDB. You can create snapshots manually using the SNAPSHOT clause of CREATE PLUGGABLE DATABASE (or ALTER PLUGGABLE DATABASE), or automatically using the EVERY interval clause.

Starting in Oracle Database 19c, you can make snapshots of source PDBs in read/write mode. The content of a PDB snapshot depends on the setting of the CLONEDB initialization parameter when the snapshot is created. When CLONEDB is TRUE, the snapshot is a sparse copy of the PDB data files. When CLONEDB is FALSE, the snapshot is a full copy of the PDB files.

This section contains the following topics:

See Also:

Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services

16.1.1 Purpose of PDB Snapshot Carousel

A PDB snapshot carousel is a useful way of maintaining a library of recent PDB copies for point-in-time recovery and cloning.

Cloning PDBs for Development and Testing

In a typical development use case, you clone a production PDB for testing. When the CDB is in ARCHIVELOG mode and local undo mode, the source production PDB can be opened in read/write mode and fully functional during the operation. This technique is known as hot cloning. The hot clone is transactionally consistent with the source PDB as of the SCN at the completion of the ALTER PLUGGABLE DATABASE ... OPEN statement.

For example, while the production PDB named pdb1_prod is open and in use, you create a refreshable clone named pdb1_test_master. You then configure pdb1_test_master to create automatic snapshots every day. When you need new PDBs for testing, create a full clone of any PDB snapshot, and then create sparse clones using CREATE PLUGGABLE DATABASE ... SNAPSHOT COPY.

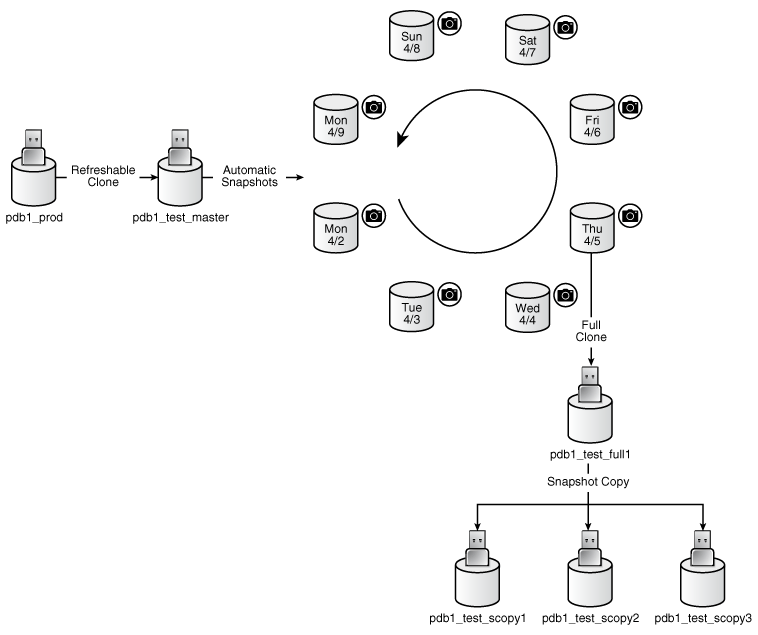

The following figure shows the creation of the clone pdb1_test_full1 from the PDB snapshot taken on April 5. The figure shows three snapshot copy PDBs created from pdb1_test_full1.

Figure 16-1 Automatic Snapshots of a Refreshable Clone PDB

Description of Figure 16-1 follows
Description of "Figure 16-1 Automatic Snapshots of a Refreshable Clone PDB"

Starting in Oracle Database 19c, when the CLONEDB initialization parameter is TRUE, you can create sparse, database-managed snapshots of a read/write PDB using ALTER PLUGGABLE DATABASE SNAPSHOT. Only the first database-managed PDB snapshot is full. You can clone sparse PDBs from the snapshots by executing CREATE PLUGGABLE DATABASE ... USING SNAPSHOT. Unlike in previous releases, the clone PDBs do not require the source PDB to remain in read/only mode for the lifetime of the clone PDBs.

Point-in-Time Restore with PDB Snapshot Carousel

A typical strategy is to take a snapshot of a PDB every day at the same time. Another strategy is to take a PDB snapshot manually before data loads. In either case, a PDB snapshot carousel enables you to restore a PDB using any available PDB snapshot.

For example, a sales history PDB named pdb1_prod generates an automatic snapshot every day at 12:01 a.m. On the daily data load on the afternoon of Monday 4/9, you accidentally load the wrong data, corrupting the PDB. You can create a new production PDB based on the Monday 4/9 snapshot, drop the corrupted PDB, and then retry the data load.

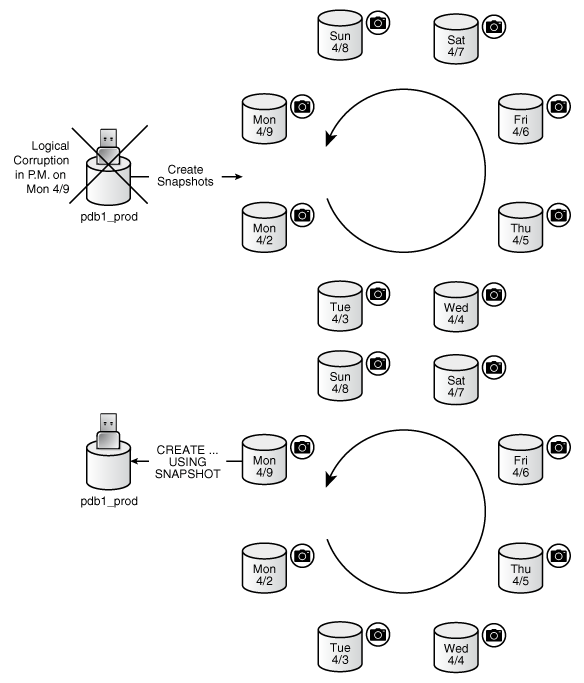

Figure 16-2 Restore a Production PDB Using a Snapshot

Description of Figure 16-2 follows
Description of "Figure 16-2 Restore a Production PDB Using a Snapshot"

See Also:

16.1.2 How PDB Snapshot Carousel Works

The carousel for a specific PDB is a circular library of copies for this PDB.

The database creates successive copies in the carousel either on demand or automatically. The database overwrites the oldest snapshot when the snapshot limit is reached.

This section includes the following topics:

16.1.2.1 Contents of a PDB Snapshot

The contents of a PDB snapshot depend on the setting of the CLONEDB initialization parameter.

Snapshot Names

The name of a database-managed PDB snapshot is either user-specified or system-generated. For system-generated snapshot names, SNAP_ is prefixed to a unique identifier, which contains the snapshot SCN. For example, the following query shows three snapshots with system-generated names and the SCNs at which they were taken:

SET LINESIZE 200
SET PAGESIZE 50000

COL CON_ID FORMAT 999999
COL CON_NAME FORMAT a15
COL SNAPSHOT_NAME FORMAT a27

SELECT CON_ID, CON_NAME, SNAPSHOT_NAME, SNAPSHOT_SCN FROM DBA_PDB_SNAPSHOTS;

 CON_ID CON_NAME        SNAPSHOT_NAME               SNAPSHOT_SCN
------- --------------- --------------------------- ------------
      5 HRPDB           SNAP_1389467754_993556301        2925293
      5 HRPDB           SNAP_1389467754_993556306        2925679
      5 HRPDB           SNAP_1389467754_993556309        2925698

Note:

See Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services.

Full and Sparse Snapshots

Using technologies such as sparseness and copy-on-write, snapshot clone PDBs created when CLONEDB is TRUE behave as full data set copies of a source PDB, without requiring all data to be replicated. Only data file headers are copied. If data blocks in the snapshot clone PDB are modified, then Oracle Database copies the affected blocks, causing the file headers of the source and clone PDBs to diverge. The source PDB headers point to the original data blocks, whereas the clone PDB headers point to the copied data blocks.

When CLONEDB is FALSE, data files of the PDB snapshot reside in an archive file on the file system. The archive has the file extension .pdb. No archived redo log files are included. Typically, the archive file is stored in the same directory as the PDB data files.

Snapshot Directories

Every PDB has its own snapshot directory. Within this directory, each snapshot has its own subdirectory named after the SCN at which it was taken. The following query shows the sparse PDB snapshots for hrpdb, which has a DBID of 1389467754:

SET LINESIZE 200
SET PAGESIZE 50000

COL SNAPSHOT_NAME FORMAT a27
COL FULL_SNAPSHOT_PATH FORMAT a65

SELECT SNAPSHOT_NAME, SNAPSHOT_SCN, FULL_SNAPSHOT_PATH FROM DBA_PDB_SNAPSHOTS;

SNAPSHOT_NAME               SNAPSHOT_SCN FULL_SNAPSHOT_PATH
--------------------------- ------------ ---------------------------------------
SNAP_1389467754_993556301        2925293 /d1/snapshots/pdb_1389467754/2925293/
SNAP_1389467754_993556306        2925679 /d1/snapshots/pdb_1389467754/2925679/
SNAP_1389467754_993556309        2925698 /d1/snapshots/pdb_1389467754/2925698/

Note:

If the snapshot were full instead of sparse, then the full snapshot path would specify an archive with the .pdb suffix.

The directory for /d1/snapshots/pdb_1389467754/2925698/ contains the following files:

archparlog_1_63_52d1986a_993552590.arc
o1_mf_salestbs_g03341t2_.dbf
o1_mf_sysext_g0333vqw_.dbf
o1_mf_undo_1_g033gd2j_.dbf
o1_mf_sysaux_g0333vqv_.dbf
o1_mf_system_g0333vqt_.dbf
HRPDB.xml

The set includes the data files, archived redo log files, and an XML file that contains metadata about the PDB snapshot. The following du command shows that the size of the snapshot data files, which are sparse, is small relative to the size of the data files:

% du -h *dbf
16K     o1_mf_salestbs_g03341t2_.dbf
16K     o1_mf_sysaux_g0333vqv_.dbf
16K     o1_mf_sysext_g0333vqw_.dbf
16K     o1_mf_system_g0333vqt_.dbf
16K     o1_mf_undo_1_g033gd2j_.dbf

The following data dictionary join shows the snapshot file names and types for snapshot 2925698:

SELECT f.SNAPSHOT_FILENAME, f.SNAPSHOT_FILETYPE
FROM   DBA_PDB_SNAPSHOTS s, DBA_PDB_SNAPSHOTFILE f
WHERE  s.SNAPSHOT_SCN=f.SNAPSHOT_SCN
AND    s.CON_ID=f.CON_ID
ORDER BY s.SNAPSHOT_SCN DESC;

SNAPSHOT_FILENAME                                                        SNAPSHOT
-----------------------------------------------------------------        --------
/d1/snapshots/pdb_1389467754/2925698/o1_mf_sysaux_g0333vqv_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925698/o1_mf_system_g0333vqt_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925698/HRPDB.xml                                XML
/d1/snapshots/pdb_1389467754/2925698/o1_mf_sysext_g0333vqw_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925698/o1_mf_salestbs_g03341t2_.dbf            DATA
/d1/snapshots/pdb_1389467754/2925698/o1_mf_undo_1_g033gd2j_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925698/archparlog_1_63_52d1986a_993552590.arc  ARCH
/d1/snapshots/pdb_1389467754/2925679/o1_mf_sysext_g0333vqw_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925679/o1_mf_salestbs_g03341t2_.dbf            DATA
/d1/snapshots/pdb_1389467754/2925679/o1_mf_undo_1_g033gd2j_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925679/o1_mf_sysaux_g0333vqv_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925679/archparlog_1_63_52d1986a_993552590.arc  ARCH
/d1/snapshots/pdb_1389467754/2925679/HRPDB.xml                                XML
/d1/snapshots/pdb_1389467754/2925679/o1_mf_system_g0333vqt_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925293/HRPDB.xml                                XML
/d1/snapshots/pdb_1389467754/2925293/o1_mf_system_g0333vqt_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925293/o1_mf_sysaux_g0333vqv_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925293/o1_mf_undo_1_g033gd2j_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925293/o1_mf_salestbs_g03341t2_.dbf            DATA
/d1/snapshots/pdb_1389467754/2925293/o1_mf_sysext_g0333vqw_.dbf              DATA
/d1/snapshots/pdb_1389467754/2925293/archparlog_1_63_52d1986a_993552590.arc  ARCH
16.1.2.2 Contents of a PDB Snapshot Carousel

The PDB snapshot carousel is the set of all existing snapshots for a PDB.

The MAX_PDB_SNAPSHOTS property specifies the maximum number of snapshots permitted in the carousel. The current setting is visible in the CDB_PROPERTIES view.

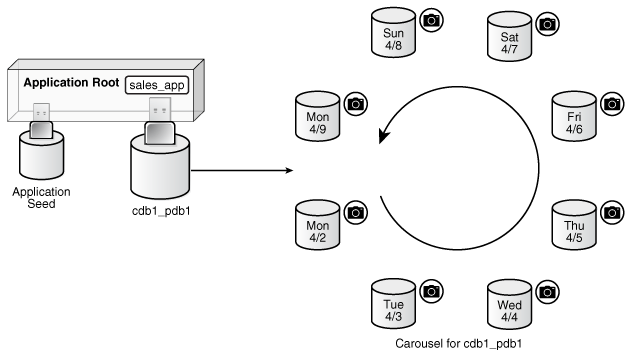

The following figure shows a carousel for cdb1_pdb1. In this example, the database takes a PDB snapshot automatically every day, maintaining a set of 8. After the first 8 snapshots have been created, every new snapshot replaces the oldest snapshot. For example, the Tuesday 4/10 snapshot replaces the Monday 4/2 snapshot; the Wednesday 4/11 snapshot replaces the Tuesday 4/3 snapshot; and so on.

Figure 16-3 PDB Snapshot Carousel

Description of Figure 16-3 follows
Description of "Figure 16-3 PDB Snapshot Carousel"

Starting Oracle Database 19c, all PDB snapshots in the carousel except the first one can be sparse, and the source PDB can remain in read/write mode. This feature significantly reduces the storage space consumed by the carousel.

See Also:

Oracle Database Licensing Information User Manual for details on which features are supported for different editions and services

16.1.3 User Interface for PDB Snapshot Carousel

The SNAPSHOT MODE clause controls creation of snapshots, and determines whether creation is manual, automatic, or disabled.

CREATE PLUGGABLE DATABASE Statement

To set the snapshot mode for a PDB, use one of the following values in the SNAPSHOT MODE clause of ALTER PLUGGABLE DATABASE or CREATE PLUGGABLE DATABASE:

  • MANUAL

    This clause, which is the default, enables the creation of manual snapshots of the PDB. To create a snapshot on demand, specify the SNAPSHOT snapshot_name clause in an ALTER PLUGGABLE DATABASE or CREATE PLUGGABLE DATABASE statement.

  • EVERY snapshot_interval [MINUTES|HOURS]

    This clause enables the automatic creation of snapshots after an interval of time. The following restrictions apply to the interval specified:

    • The minutes value must be less than 3000.

    • The hours value must be less than 2000.

    The database assigns each automatic snapshot a system-generated name. Note that manual snapshots are also supported for the PDB when EVERY is specified.

  • NONE

    This clause disables snapshot creation for the PDB.

See Also:

CLONEDB Initialization Parameter

Starting in Oracle Database 19c, the behavior of PDB snapshots depends on the setting of the CLONEDB initialization parameter:

  • CLONEDB=TRUE

    You can take snapshots of PDBs that are in read/write mode or read-only mode. The first snapshot of the PDB contains full copies of the original PDB files, but subsequent snapshots of the same PDB contain sparse files.

  • CLONEDB=FALSE

    You can only take snapshots of read-only PDBs. Every snapshot is a full copy of the source PDB files. In this case, if you create a clone PDB based on a PDB snapshot, then the source PDB must remain read-only for the lifetime of the clone PDB.

MAX_PDB_SNAPSHOTS Database Property

To set the maximum number of snapshots for a PDB, specify the MAX_PDB_SNAPSHOTS property in ALTER PLUGGABLE DATABASE or CREATE PLUGGABLE DATABASE. The default is for the property is 8, which is also the maximum value. When the maximum allowed number of snapshots has been created, the database purges the oldest snapshot. The CDB_PROPERTIES view shows the setting of MAX_PDB_SNAPSHOTS.

See Also:

Oracle Database SQL Language Reference for the syntax of the ALTER PLUGGABLE DATABASE statement

Snapshot-Related Data Dictionary Views

The following data dictionary views provide snapshot information:

  • The DBA_PDB_SNAPSHOTS view records metadata about PDB snapshots, including snapshot name, creation SCN, creation time, and file name.

  • The DBA_PDB_SNAPSHOTFILE view lists the names and types of the files in a PDB snapshot. This view is only populated when the snapshots are sparse.

  • The DBA_PDBS view has a SNAPSHOT_MODE and SNAPSHOT_INTERVAL column.

See Also:

Oracle Database Reference to learn about DBA_PDB_SNAPSHOTS, DBA_PDB_SNAPSHOTFILE, and DBA_PDBS

16.2 Setting the Maximum Number of Snapshots in a PDB Snapshot Carousel

You can set the maximum number of PDB snapshots for a PDB.

The MAX_PDB_SNAPSHOTS database property sets the maximum number of snapshots for every PDB in a PDB snapshot carousel. The default maximum is 8. You cannot set the property to a number greater than 8.

Prerequisites

The PDB must be open in read/write mode.

To set the maximum number of PDB snapshots for a PDB:

  1. In SQL*Plus, ensure that the current container is the PDB for which you want to set the limit.

  2. Optionally, query CDB_PROPERTIES for the current setting of the SET MAX_PDB_SNAPSHOTS property.

  3. Run an ALTER PLUGGABLE DATABASE or ALTER DATABASE statement with the SET MAX_PDB_SNAPSHOTS clause.

Example 16-1 Setting the Maximum Number of PDB Snapshots for a PDB

The following query shows the maximum in the carousel for cdb1_pdb1 (sample output included):

SET LINESIZE 150
COL CON_ID FORMAT 99999
COL PROPERTY_NAME FORMAT a17
COL PDB_NAME FORMAT a9
COL VALUE FORMAT a3
COL DESCRIPTION FORMAT a43

SELECT r.CON_ID, p.PDB_NAME, PROPERTY_NAME,
       PROPERTY_VALUE AS value, DESCRIPTION
FROM   CDB_PROPERTIES r, CDB_PDBS p
WHERE  r.CON_ID = p.CON_ID
AND    PROPERTY_NAME LIKE 'MAX_PDB%'
ORDER BY PROPERTY_NAME;

CON_ID PDB_NAME  PROPERTY_NAME     VAL DESCRIPTION
------ --------- ----------------- --- -------------------------------------------
     3 CDB1_PDB1 MAX_PDB_SNAPSHOTS 8   maximum number of snapshots for a given PDB

The following SQL statement sets the maximum number of PDB snapshots for the current PDB to 7:

ALTER PLUGGABLE DATABASE SET MAX_PDB_SNAPSHOTS=7;

Example 16-2 Dropping All Snapshots in a PDB Snapshot Carousel

To drop all snapshots in a PDB snapshot carousel, set the MAX_PDB_SNAPSHOTS database property to 0 (zero), as shown in the following statement:

ALTER PLUGGABLE DATABASE SET MAX_PDB_SNAPSHOTS=0;

This technique is faster than executing ALTER PLUGGABLE DATABASE ... DROP SNAPSHOT snapshot_name for every snapshot.

16.3 Configuring Automatic PDB Snapshots

Configure a PDB for automatic snapshots by using the SNAPSHOT MODE EVERY clause when creating or altering a PDB.

By default, a PDB is configured for manual snapshots.

Prerequisites

Note the following prerequisites for the ALTER PLUGGABLE DATABASE SNAPSHOT statement:

  • The CDB must be in local undo mode.

  • The administrator must have the privileges to create a PDB and drop a PDB.

To configure automatic snapshots when altering a PDB:

  1. In SQL*Plus, log in as an administrator to the PDB whose snapshot mode you intend to configure.

  2. Optionally, query DBA_PDBS to determine the current snapshot mode.

  3. Run ALTER PLUGGABLE DATABASE with the SNAPSHOT MODE EVERY interval clause, specifying either MINUTES or HOURS.

To configure automatic snapshots when creating a PDB:

  1. In SQL*Plus, log in as an administrator to the CDB root or application root.

  2. Optionally, query DBA_PDBS to determine the current snapshot mode.

  3. Run CREATE PLUGGABLE DATABASE with the SNAPSHOT MODE EVERY interval clause, specifying either MINUTES or HOURS.

Example 16-3 Configuring an Automatic Snapshot Every Day for an Existing PDB

This example assumes that you are logged in to the PDB whose snapshot mode you intend to change. Query the data dictionary to confirm that the PDB is currently in MANUAL mode (sample output included):

SELECT SNAPSHOT_MODE "S_MODE", SNAPSHOT_INTERVAL/60 "SNAP_INT_HRS" FROM DBA_PDBS;

S_MODE SNAP_INT_HRS
------ ------------
MANUAL

Change the snapshot mode to every 24 hours:

ALTER PLUGGABLE DATABASE SNAPSHOT MODE EVERY 24 HOURS;

Confirm the change to automatic mode:

SELECT SNAPSHOT_MODE "S_MODE", SNAPSHOT_INTERVAL/60 "SNAP_INT_HRS" FROM DBA_PDBS;

S_MODE SNAP_INT_HRS
------ ------------
AUTO             24

Example 16-4 Creating a PDB That Takes Snapshots Every Two Hours

This example assumes that you are logged in to the CDB root. The following statement creates cdb1_pdb3 from an existing PDB named cdb1_pdb1, and configures it to take snapshots automatically every 2 hours:

CREATE PLUGGABLE DATABASE cdb1_pdb3 FROM cdb1_pdb1
  FILE_NAME_CONVERT=('cdb1_pdb1','cdb1_pdb3')
  SNAPSHOT MODE EVERY 120 MINUTES;

16.4 Creating PDB Snapshots Manually

To create a PDB snapshot manually, specify the SNAPSHOT snapshot_name clause in ALTER PLUGGABLE DATABASE or CREATE PLUGGABLE DATABASE.

Prerequisites

Note the following prerequisites for the ALTER PLUGGABLE DATABASE SNAPSHOT statement:

  • The CDB must be in local undo mode. You can check the mode by using the following query, which returns TRUE when local undo is enabled:

    SELECT * FROM DATABASE_PROPERTIES WHERE PROPERTY_NAME='LOCAL_UNDO_ENABLED';
  • The DBA must have the privileges to create and drop a PDB.

  • If the source PDB is in read/write mode, then CLONEDB must be set to TRUE, in which case all snapshots except the first one are sparse.

To create a PDB snapshot:

  1. In SQL*Plus, log in as an administrator to the PDB whose snapshot you intend to create.

  2. Optionally, query DBA_PDBS.SNAPSHOT_MODE to confirm that the snapshot mode is not set to NONE.

  3. Run an ALTER PLUGGABLE DATABASE statement with the SNAPSHOT clause.

Example 16-5 Creating a PDB Snapshot with a User-Specified Name

The following SQL statements create two PDB snapshots of cdb1_pdb1, one before and one after a Wednesday data load:

ALTER PLUGGABLE DATABASE SNAPSHOT cdb1_pdb1_b4WLOAD;
-- data load
ALTER PLUGGABLE DATABASE SNAPSHOT cdb1_pdb1_afWLOAD;

The following query of DBA_PDB_SNAPSHOTS shows the locations of two snapshots of the PDB named cdb1_pdb1 (sample output included):

SET LINESIZE 150
COL CON_NAME FORMAT a9
COL SNAPSHOT_NAME FORMAT a20
COL SNAP_SCN FORMAT 9999999
COL FULL_SNAPSHOT_PATH FORMAT a45

SELECT CON_ID, CON_NAME, SNAPSHOT_NAME,
       SNAPSHOT_SCN AS snap_scn, FULL_SNAPSHOT_PATH
FROM   DBA_PDB_SNAPSHOTS
ORDER BY SNAP_SCN;

 CON_ID CON_NAME   SNAPSHOT_NAME        SNAP_SCN FULL_SNAPSHOT_PATH
------- --------- -------------------- -------- ------------------------------------------
      3 CDB1_PDB1 CDB1_PDB1_B4WLOAD     2962078 /d1/oracle/dbs/snap_3489077498_2962078.pdb
      3 CDB1_PDB1 CDB1_PDB1_AFWLOAD     2962938 /d1/oracle/dbs/snap_3489077498_2962938.pdb

If you do not specify a PDB snapshot name, then the database generates a unique name. Note that the snapshot paths in the preceding example are .pdb archives, which means that snapshots are full rather than sparse.

Example 16-6 Creating a PDB Snapshot with a System-Specified Name

The following SQL statement creates a snapshot, but does not specify a name:

ALTER PLUGGABLE DATABASE SNAPSHOT;

The following sample query shows that the database assigned the snapshot a name prefixed with SNAP_:

SET LINESIZE 150
COL CON_NAME FORMAT a9
COL SNAPSHOT_NAME FORMAT a25
COL SNAP_SCN FORMAT 9999999
COL FULL_SNAPSHOT_PATH FORMAT a45

SELECT CON_ID, CON_NAME, SNAPSHOT_NAME,
       SNAPSHOT_SCN AS snap_scn, FULL_SNAPSHOT_PATH
FROM   DBA_PDB_SNAPSHOTS
ORDER BY SNAP_SCN;

 CON_ID CON_NAME  SNAPSHOT_NAME             SNAP_SCN FULL_SNAPSHOT_PATH
------- --------- ------------------------- -------- ------------------------------------------
      3 CDB1_PDB1 CDB1_PDB1_B4WLOAD          2962078 /d1/oracle/dbs/snap_3489077498_2962078.pdb
      3 CDB1_PDB1 CDB1_PDB1_AFWLOAD          2962938 /d1/oracle/dbs/snap_3489077498_2962938.pdb
      3 CDB1_PDB1 SNAP_3489077498_960130367  2993525 /d1/oracle/dbs/snap_3489077498_2993525.pdb

16.5 Dropping a PDB Snapshot

You can drop a PDB snapshot by running an ALTER PLUGGABLE DATABASE statement with the DROP SNAPSHOT clause.

To drop all PDB snapshots based on a PDB, set the MAX_PDB_SNAPSHOTS property in the PDB to 0 (zero).

To drop a PDB snapshot:

  1. In SQL*Plus, ensure that the current container is the PDB from which you created the PDB snapshot.

  2. Run an ALTER PLUGGABLE DATABASE statement with the DROP SNAPSHOT clause.

Example 16-7 Dropping a PDB Snapshot

The following SQL statement drops a PDB snapshot named sales_snap:

ALTER PLUGGABLE DATABASE DROP SNAPSHOT sales_snap;

16.6 Viewing Metadata for PDB Snapshots

The data dictionary views DBA_PDB_SNAPSHOTS and DBA_PDB_SNAPSHOTFILE show the metadata for PDB snapshots.

DBA_PDB_SNAPSHOTS contains general information about the snapshot, including name, SCN, time, and path. DBA_PDB_SNAPSHOTFILE shows the path and file type of every file in a snapshot: data files, archived redo log files, and XML files.

Note:

DBA_PDB_SNAPSHOTFILE only shows sparse clone PDBs. To create sparse clones, the CLONEDB initialization parameter must be set to TRUE.

To view metadata for PDB snapshots:

  1. In SQL*Plus, log in to the database as an administrative user.

  2. Query DBA_PDB_SNAPSHOTS.

    For example, run the following query (sample output included):

    i
    COL SNAPSHOT_NAME FORMAT a30
    SELECT SNAPSHOT_NAME, SNAPSHOT_SCN, SNAPSHOT_TIME FROM DBA_PDB_SNAPSHOTS;

    SNAPSHOT_NAME                  SNAPSHOT_SCN SNAPSHOT_TIME
    ------------------------------ ------------ -------------
    HRPDB_SNAP_F                        3678939    1536262569
    HRPDB_SNAP_S                        4954803     986473745
  3. Query DBA_PDB_SNAPSHOTFILE.

    For example, run the following join query (sample output included):

    SET LINESIZE 120
    COL SNAPSHOT_NAME FORMAT a12
    COL SNAPSHOT_FILENAME FORMAT a63

    SELECT SNAPSHOT_NAME, SNAPSHOT_FILENAME, SNAPSHOT_FILETYPE AS TYPE
    FROM   DBA_PDB_SNAPSHOTS s, DBA_PDB_SNAPSHOTFILE f
    WHERE  s.SNAPSHOT_SCN=f.SNAPSHOT_SCN;

    SNAPSHOT_NAM SNAPSHOT_FILENAME                                             TYPE
    ------------ ------------------------------------------------------------- ----
    HRPDB_SNAP_S /d1/snapshots/4954803/o1_mf_undo_1_fry1l5bq_.dbf              DATA
    HRPDB_SNAP_S /d1/snapshots/4954803/o1_mf_salestbs_fry19m6h_.dbf            DATA
    HRPDB_SNAP_S /d1/snapshots/4954803/o1_mf_sysext_fry19d1n_.dbf              DATA
    HRPDB_SNAP_S /d1/snapshots/4954803/o1_mf_sysaux_fry19d1m_.dbf              DATA
    HRPDB_SNAP_S /d1/snapshots/4954803/o1_mf_system_fry19d1k_.dbf              DATA
    HRPDB_SNAP_S /d1/snapshots/4954803/HRPDB.xml                               XML
    HRPDB_SNAP_S /d1/snapshots/4954803/archparlog_1_274_b87ca51e_985963814.arc ARCH

Example 16-8 Querying Metadata for Full PDB Snapshots

The following query shows two PDB snapshots. The snapshots are full, not sparse, as indicated by the .pdb extension.


SET LINESIZE 200
SET PAGESIZE 50000

COL CON_ID FORMAT 999999
COL CON_NAME FORMAT a8
COL SNAPSHOT_NAME FORMAT a25
COL FULL_SNAPSHOT_PATH FORMAT a65

CON_ID  CON_NAME SNAPSHOT_NAME             SNAPSHOT_SCN FULL_SNAPSHOT_PATH
------- -------- ------------------------- ------------ -------------------------------
      5 HRPDB    SNAP_3286480866_994766895      3160319 /d1/snap_3286480866_3160319.pdb
      5 HRPDB    SNAP_3286480866_994767095      3165758 /d1/snap_3286480866_3165758.pdb

The following query of DBA_PDB_SNAPSHOTFILE returns no rows because this view is only populated when PDB snapshots are sparse:

SQL> SELECT COUNT(*) FROM DBA_PDB_SNAPSHOTFILE;

  COUNT(*)
----------
         0
