17 Using the XML Schema Processor for Java

Topics here cover how to use the Extensible Markup Language (XML) schema processor for Java.

Introduction to XML Validation

Topics cover the different techniques for XML validation.

Prerequisites for Using the XML Schema Processor for Java

Prerequisites for using the XML schema processor are covered.

This section assumes that you have working knowledge of these technologies:

To learn more about these technologies, consult the XML resources in Related Documents.

Standards and Specifications for the XML Schema Processor for Java

XML Schema is a World Wide Web Consortium (W3C) standard.

The Oracle XML Schema processor supports the W3C XML Schema specifications:

XML Validation with DTDs

Document type definition (DTDs) were originally developed for SGML. XML DTDs are a subset of those available in SGML and provide a mechanism for declaring constraints on XML markup. XML DTDs enable the specification of:

  • Which elements can be in your XML documents.

  • The content model of an XML element, that is, whether the element contains only data or has a set of subelements that defines its structure. DTDs can define whether a subelement is optional or mandatory and whether it can occur only once or multiple times.

  • Attributes of XML elements. DTDs can also specify whether attributes are optional or mandatory.

  • Entities that are legal in your XML documents.

An XML DTD is not itself written in XML, but is a context-independent grammar for defining the structure of an XML document. You can declare a DTD in an XML document itself or in a separate file from the XML document.

Validation is the process by which you verify an XML document against its associated DTD, ensuring that the structure, use of elements, and use of attributes are consistent with the definitions in the DTD. Thus, applications that handle XML documents can assume that the data matches the definition.

Using XDK, you can write an application that includes a validating XML parser; that is, a program that parses and validates XML documents against a DTD. Depending on its implementation, a validating parser may:

  • Either stop processing when it encounters an error, or continue.

  • Either report warnings and errors as they occur or in summary form at the end of processing.

  • Enable or disable validation mode

    Most processors can enable or disable validation mode, but they must still process entity definitions and other constructs of DTDs.

DTD Samples in XDK

An example DTD is shown, together with an example XML document that conforms to that DTD.

Example 17-1 shows the contents of a DTD named family.dtd, which is located in $ORACLE_HOME/xdk/demo/java/parser/common/. The <ELEMENT> tags specify the legal nomenclature and structure of elements in the document, whereas the <ATTLIST> tags specify the legal attributes of elements.

Example 17-2 shows the contents of an XML document named family.xml, which is also located in $ORACLE_HOME/xdk/demo/java/parser/common/. The <!DOCTYPE> element in family.xml specifies that this XML document conforms to the external DTD named family.dtd.

Example 17-1 family.dtd

<?xml version="1.0" encoding="UTF-8"?>
<!ELEMENT family (member*)>
<!ATTLIST family lastname CDATA #REQUIRED>
<!ELEMENT member (#PCDATA)>
<!ATTLIST member memberid ID #REQUIRED>
<!ATTLIST member dad IDREF #IMPLIED>
<!ATTLIST member mom IDREF #IMPLIED>

Example 17-2 family.xml

<?xml version="1.0" standalone="no"?>
<!DOCTYPE family SYSTEM "family.dtd">
<family lastname="Smith">
<member memberid="m1">Sarah</member>
<member memberid="m2">Bob</member>
<member memberid="m3" mom="m1" dad="m2">Joanne</member>
<member memberid="m4" mom="m1" dad="m2">Jim</member>
</family>

XML Validation with XML Schemas

Concepts involving validation using XML schemas are introduced.

The XML Schema language, also known as XML Schema Definition, was created by the W3C to use XML syntax to describe the content and the structure of XML documents. An XML schema is an XML document written in the XML Schema language. An XML schema document contains rules describing the structure of an input XML document, called an instance document. An instance document is valid if and only if it conforms to the rules of the XML schema.

The XML Schema language defines such things as:

  • Which elements and attributes are legal in the instance document

  • Which elements can be children of other elements

  • The order and number of child elements

  • Data types for elements and attributes

  • Default and fixed values for elements and attributes

A validating XML parser tries to determine whether an instance document conforms to the rules of its associated XML schema. Using XDK you can write a validating parser that performs this schema validation. Depending on its implementation, a validating parser may:

  • Either stop processing when it encounters an error, or continue.

  • Either report warnings and errors as they occur or in summary form at the end of processing.

The processor must consider entity definitions and other constructs that are defined in a DTD that is included by the instance document. The XML Schema language does not define what must occurs when an instance document includes both an XML schema and a DTD. Thus, the behavior of the application in such cases depends on the implementation.

XML Schema Samples in XDK

A sample XML document is shown which contains a purchase report that describes parts that have been ordered in different regions. This document is located at $ORACLE_HOME/xdk/demo/java/schema/report.xml. An XML schema document, report.xsd, which you can use to validate report.xml, is also shown.

Among other things, the XML schema defines the names of the elements that are legal in the instance document and the type of data that the elements can contain.

Example 17-3 report.xml

<purchaseReport
  xmlns="http://www.example.com/Report"
  xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.example.com/Report  report.xsd"
  period="P3M" periodEnding="1999-12-31">
 <regions>
  <zip code="95819">
   <part number="872-AA" quantity="1"/>
   <part number="926-AA" quantity="1"/>
   <part number="833-AA" quantity="1"/>
   <part number="455-BX" quantity="1"/>
  </zip>
  <zip code="63143">
   <part number="455-BX" quantity="4"/>
  </zip>
 </regions>
 <parts>
  <part number="872-AA">Lawnmower</part>
  <part number="926-AA">Baby Monitor</part>
  <part number="833-AA">Lapis Necklace</part>
  <part number="455-BX">Sturdy Shelves</part>
 </parts>
</purchaseReport>

Example 17-4 report.xsd

<schema targetNamespace="http://www.example.com/Report"
        xmlns="http://www.w3.org/2001/XMLSchema"
        xmlns:r="http://www.example.com/Report"
        elementFormDefault="qualified">
 <annotation>
  <documentation xml:lang="en">
   Report schema for Example.com
   Copyright 2000 Example.com. All rights reserved.
  </documentation>
 </annotation>
 <element name="purchaseReport">
  <complexType>
   <sequence>
    <element name="regions" type="r:RegionsType">
     <keyref name="dummy2" refer="r:pNumKey">
      <selector xpath="r:zip/r:part"/>
      <field xpath="@number"/>
     </keyref>
    </element>
    <element name="parts" type="r:PartsType"/>
   </sequence>
   <attribute name="period"       type="duration"/>
   <attribute name="periodEnding" type="date"/>
  </complexType>
  <unique name="dummy1">
   <selector xpath="r:regions/r:zip"/>
   <field xpath="@code"/>
  </unique>
  <key name="pNumKey">
   <selector xpath="r:parts/r:part"/>
   <field xpath="@number"/>
  </key>
 </element>
 <complexType name="RegionsType">
  <sequence>
   <element name="zip" maxOccurs="unbounded">
    <complexType>
     <sequence>
      <element name="part" maxOccurs="unbounded">
       <complexType>
        <complexContent>
         <restriction base="anyType">
          <attribute name="number"   type="r:SKU"/>
          <attribute name="quantity" type="positiveInteger"/>
         </restriction>
        </complexContent>
       </complexType>
      </element>
     </sequence>
     <attribute name="code" type="positiveInteger"/>
    </complexType>
   </element>
  </sequence>
 </complexType>
 <simpleType name="SKU">
  <restriction base="string">
   <pattern value="\d{3}-[A-Z]{2}"/>
  </restriction>
 </simpleType>
 <complexType name="PartsType">
  <sequence>
   <element name="part" maxOccurs="unbounded">
    <complexType>
     <simpleContent>
      <extension base="string">
       <attribute name="number" type="r:SKU"/>
      </extension>
     </simpleContent>
    </complexType>
   </element>
  </sequence>
 </complexType>
</schema>

Differences Between XML Schemas and DTDs

The XML Schema language includes most of the capabilities of the DTD specification. An XML schema serves a similar purpose to a DTD, but is more flexible in specifying document constraints.

Table 17-1 compares some features between the two validation mechanisms.

Table 17-1 Feature Comparison Between XML Schema and DTD

Feature XML Schema DTD

Element nesting

X

X

Element occurrence constraints

X

X

Permitted attributes

X

X

Attribute types and default values

X

X

Written in XML

X

Namespace support

X

Built-In data types

X

User-Defined data types

X

Include/Import

X

Refinement (inheritance)

X

These reasons are probably the most persuasive for choosing XML schema validation over DTD validation:

  • The XML Schema language enables you to define rules for the content of elements and attributes. You achieve control over content by using data types. With XML Schema data types you can more easily perform actions such as:

    • Declare which elements are to contain which types of data, for example, positive integers in one element and years in another

    • Process data obtained from a database

    • Define restrictions on data, for example, a number between 10 and 20

    • Define data formats, for example, dates in the form MM-DD-YYYY

    • Convert data between different data types, for example, strings to dates

  • Unlike DTD grammar, documents written in the XML Schema language are themselves written in XML. Thus, you can perform these actions:

    • Use your XML parser to parse your XML schema

    • Process your XML schema with the XML Document Object Model (DOM)

    • Transform your XML document with Extensible Stylesheet Language Transformation (XSLT)

    • Reuse your XML schemas in other XML schemas

    • Extend your XML schema by adding elements and attributes

    • Reference multiple XML schemas from the same document

Using the XML Schema Processor: Overview

The Oracle XML Schema processor is a SAX-based XML schema validator that you can use to validate instance documents against an XML schema. The processor supports both language example (LAX) and strict validation.

You can use the processor in these ways:

  • Enable it in the XML parser

  • Use it with a DOM tree to validate whole or part of an XML document

  • Use it as a component in a processing pipeline (like a content handler)

You can configure the schema processor in different ways depending on your requirements. For example, you can:

  • Use a fixed XML schema or automatically build a schema based on the schemaLocation attributes in an instance document.

  • Set XMLError and entityResolver to gain better control over the validation process.

  • Determine how much of an instance document is to be validated. You can use any of the validation modes specified in Table 12-1. You can also designate a type of element as the root of validation.

Using the XML Schema Processor for Java: Basic Process

XDK packages that are important for applications that process XML schemas are described.

These are the important packages for applications that process XML schemas:

  • oracle.xml.parser.v2, which provides APIs for XML parsing

  • oracle.xml.parser.schema, which provides APIs for XML Schema processing

The most important classes in the oracle.xml.parser.schema package are described in Table 17-2. These form the core of most XML schema applications.

Table 17-2 oracle.xml.parser.schema Classes

Class/Interface Description Methods

XMLSchema class

Represents XML Schema component model. An XMLSchema object is a set of XMLSchemaNodes that belong to different target namespaces. The XSDValidator class uses XMLSchema for schema validation or metadata.

The principal methods are:

  • get methods such as getElement() and getSchemaTargetNS() get information about the XML schema

  • printSchema() prints information about the XML schema

XMLSchemaNode class

Represents schema components in a target namespace, including type definitions, element and attribute delcarations, and group and attribute group definitions.

The principal methods are get methods such as getElementSet() and getAttributeDeclarations() get components of the XML schema.

XSDBuilder class

Builds an XMLSchema object from an XML schema document. The XMLSchema object is a set of objects (Infoset items) corresponding to top-level schema declarations and definitions. The schema document is XML parsed and converted to a DOM tree.

The principal methods are:

  • build() creates an XMLSchema object.

  • getObject() returns the XMLSchema object.

  • setEntityResolver() sets an EntityResolver for resolving imports and includes.

XSDValidator class

Validates an instance XML document against an XML schema. When registered, an XSDValidator object is inserted as a pipeline node between XMLParser and XMLDocument events handlers.

The principal methods are:

  • get methods such as getCurrentMode() and getElementDeclaration()

  • set methods such as setXMLProperty() and setDocumentLocator()

  • startDocument() receives notification of the beginning of the document.

  • startElement() receives notification of the beginning of the element.

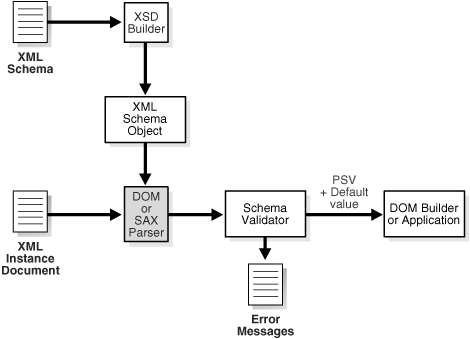

Figure 17-1 depicts the basic process of validating an instance document with the XML Schema processor for Java.

Figure 17-1 XML Schema Processor for Java

Description of Figure 17-1 follows
Description of "Figure 17-1 XML Schema Processor for Java"

The XML Schema processor performs these major tasks:

  1. A builder (XSDBuilder object) assembles the XML schema from an input XML schema document. Although instance documents and schemas need not exist specifically as files on the operating system, they are commonly referred to as files. They may exist as streams of bytes, fields in a database record, or collections of XML Infoset "Information Items."

    This task involves parsing the schema document into an object. The builder creates the schema object explicitly or implicitly:

  2. The XML schema validator uses the schema object to validate the instance document. This task has these steps:

    1. A Simple API for XML (SAX) parser parses the instance document into SAX events, which it passes to the validator.

    2. The validator receives SAX events as input and validates them against the schema object, sending an error message if it finds invalid XML components.

      Validation in the XML Parser describes the validation modes that you can use when validating the instance document. If you do not explicitly set a schema for validation with the XSDBuilder class, then the instance document must have the correct xsi:schemaLocation attribute pointing to the schema file. Otherwise, the program does not perform the validation. If the processor encounters errors, it generates error messages.

    3. The validator sends input SAX events, default values, or post-schema validation information to a DOM builder or application.

See Also:

Running the XML Schema Processor Demo Programs

Demo programs for the XML Schema processor for Java are included in $ORACLE_HOME/xdk/demo/java/schema.

Table 17-3 describes the XML files and programs that you can use to test the XML Schema processor.

Table 17-3 XML Schema Sample Files

File Description
cat.xsd

A sample XML schema used by the XSDSetSchema.java program to validate catalogue.xml. The cat.xsd schema specifies the structure of a catalogue of books.

catalogue.xml

A sample instance document that the XSDSetSchema.java program uses to validate against the cat.xsd schema.

catalogue_e.xml

A sample instance document used by the XSDSample.java program. When the program tries to validate this document against the cat.xsd schema, it generates schema errors.

DTD2Schema.java

This sample program converts a DTD (first argument) into an XML Schema and uses it to validate an XML file (second argument).

embeded_xsql.xsd

The XML schema used by XSDLax.java. The schema defines the structure of an XSQL page.

embeded_xsql.xml

The instance document used by XSDLax.java.

juicer1.xml

A sample XML document for use with xsdproperty.java. The XML schema that defines this document is juicer1.xsd.

juicer1.xsd

A sample XML schema for use with xsdproperty.java. This XML schema defines juicer1.xml.

juicer2.xml

A sample XML document for use with xsdproperty.java. The XML schema that defines this document is juicer2.xsd.

juicer2.xsd

A sample XML document for use with xsdproperty.java. This XML schema defines juicer2.xml.

report.xml

The sample XML file that XSDSetSchema.java uses to validate against the XML schema report.xsd.

report.xsd

A sample XML schema used by the XSDSetSchema.java program to validate the contents of report.xml. The report.xsd schema specifies the structure of a purchase order.

report_e.xml

When the program validates this sample XML file using XSDSample.java, it generates XML Schema errors.

xsddom.java

This program shows how to validate an instance document by get a DOM representation of the document and using an XSDValidator object to validate it.

xsdent.java

This program validates an XML document by redirecting the referenced schema in the SchemaLocation attribute to a local version.

xsdent.xml

This XML document describes a book. The file is used as an input to xsdent.java.

xsdent.xsd

This XML schema document defines the rules for xsdent.xml. The schema document contains a schemaLocation attribute set to xsdent-1.xsd.

xsdent-1.xsd

The XML schema document referenced by the schemaLocation attribute in xsdent.xsd.

xsdproperty.java

This demo shows how to configure the XML Schema processor to validate an XML document based on a complex type or element declaration.

xsdsax.java

This demo shows how to validate an XML document received as a SAX stream.

XSDLax.java

This demo is the same as XSDSetSchema.java but sets the SCHEMA_LAX_VALIDATION flag for LAX validation.

XSDSample.java

This program is a sample driver that you can use to process XML instance documents.

XSDSetSchema.java

This program is a sample driver to process XML instance documents by overriding the schemaLocation. The program uses the XML Schema specification from cat.xsd to validate the contents of catalogue.xml.

Documentation for how to compile and run the sample programs is located in the README in the same directory. The basic steps are:

  1. Change into the $ORACLE_HOME/xdk/demo/java/schema directory (UNIX) or %ORACLE_HOME%\xdk\demo\java\schema directory (Windows).
  2. Run make (UNIX) or Make.bat (Windows) at the command line.
  3. Add xmlparserv2.jar, xschema.jar, and the current directory to the CLASSPATH. These JAR files are located in $ORACLE_HOME/lib (UNIX) and %ORACLE_HOME%\lib (Windows). For example, you can set the CLASSPATH with the tcsh shell on UNIX:
    setenv CLASSPATH
     "$CLASSPATH":$ORACLE_HOME/lib/xmlparserv2.jar:$ORACLE_HOME/lib/schema.jar:.

    Note:

    The XML Schema processor requires JDK version 1.2 or later, and it is usable on any operating system with Java 1.2 support.

  4. Run the sample programs with the XML files that are included in the directory:
    • These examples use report.xsd to validate the contents of report.xml:

      java XSDSample report.xml
      java XSDSetSchema report.xsd report.xml

    • This example validates an instance document in Lax mode:

      java XSDLax embeded_xsql.xsd embeded_xsql.xml

    • These examples use cat.xsd to validate the contents of catalogue.xml:

      java XSDSample catalogue.xml
      java XSDSetSchema cat.xsd catalogue.xml

    • These examples generates error messages:

      java XSDSample catalogue_e.xml
      java XSDSample report_e.xml

    • This example uses the schemaLocation attribute in xsdent.xsd to redirect the XML schema to xsdent-1.xsd for validation:

      java xsdent xsdent.xml xsdent.xsd

    • This example generates a SAX stream from report.xml and validates it against the XML schema defined in report.xsd:

      java xsdsax report.xsd report.xml

    • This example creates a DOM representation of report.xml and validates it against the XML schema defined in report.xsd:

      java xsddom report.xsd report.xml

    • These examples configure validation starting with an element declaration or complex type definition:

      java xsdproperty juicer1.xml juicer1.xsd http://www.juicers.org \
      juicersType false > juicersType.out

      java xsdproperty juicer2.xml juicer2.xsd http://www.juicers.org \
      Juicers true > juicers_e.out

    • This example converts a DTD (dtd2schema.dtd) into an XML schema and uses it to validate an instance document (dtd2schema.xml):

      java DTD2Schema dtd2schema.dtd dtd2schema.xml

Using the XML Schema Processor Command-Line Utility

You can use the XML parser command-line utility (oraxml) to validate instance documents against XML schemas and DTDs.

See Also:

Using the Java XML Parser Command-Line Utility (oraxml) for information about how to run oraxml .

Using oraxml to Validate Against a Schema

An example shows how you can validate document report.xml against the XML schema report.xsd by invoking oraxml on the command line.

Example 17-5 Using oraxml to Validate Against a Schema

Invoke this command in directory $ORACLE_HOME/xdk/demo/java/schema:

oraxml -schema -enc report.xml

The expected output is:

The encoding of the input file: UTF-8
The input XML file is parsed without errors using Schema validation mode.
Using oraxml to Validate Against a DTD

An example shows how you can validate document family.xml against the DTD family.dtd by invoking oraxml on the command line.

Example 17-6 Using oraxml to Validate Against a DTD

Invoke this command in directory $ORACLE_HOME/xdk/demo/java/parser/common:

oraxml -dtd -enc family.xml

The expected output is:

The encoding of the input file: UTF-8
 The input XML file is parsed without errors using DTD validation mode.

Validating XML with XML Schemas

Topics cover various ways to validate XML documents using XML schemas.

Validating Against Internally Referenced XML Schemas

$ORACLE_HOME/xdk/demo/java/schema/XSDSample.java shows how to validate against an implicit XML Schema. The validation mode is implicit because the XML schema is referenced in the instance document itself.

Follow the steps in this section to write programs that use the setValidationMode() method of the oracle.xml.parser.v2.DOMParser class:

  1. Create a DOM parser to use for the validation of an instance document. this code fragment from XSDSample.java shows how to create the DOMParser object:
    public class XSDSample
    {
       public static void main(String[] args) throws Exception
       {
          if (args.length != 1)
          {
             System.out.println("Usage: java XSDSample <filename>");
             return;
          }
          process (args[0]);
       }

       public static void process (String xmlURI) throws Exception
       {
          DOMParser dp  = new DOMParser();
          URL       url = createURL(xmlURI);
          ...
       }
    ...
    }


    createURL() is a helper method that constructs a URL from a file name passed to the program as an argument.

  2. Set the validation mode for the validating DOM parser with the DOMParser.setValidationMode() method. For example, XSDSample.java shows how to specify XML schema validation:
    dp.setValidationMode(XMLParser.SCHEMA_VALIDATION);
    dp.setPreserveWhitespace(true);

  3. Set the output error stream with the DOMParser.setErrorStream() method. For example, XSDSample.java sets the error stream for the DOM parser object:
    dp.setErrorStream (System.out);

  4. Validate the instance document with the DOMParser.parse() method. You do not have to create an XML schema object explicitly because the schema is internally referenced by the instance document. For example, XSDSample.java validates the instance document:
    try
    {
      System.out.println("Parsing "+xmlURI);
      dp.parse(url);
      System.out.println("The input file <"+xmlURI+"> parsed without errors");
    }
    catch (XMLParseException pe)
    {
      System.out.println("Parser Exception: " + pe.getMessage());
    }
    catch (Exception e)
    {
      System.out.println("NonParserException: " + e.getMessage());
    }

Validating Against Externally Referenced XML Schemas

$ORACLE_HOME/xdk/demo/java/schema/XSDSetSchema.java shows how to validate an XML schema explicitly. The validation mode is explicit because you use the XSDBuilder class to specify the schema to use for validation: the schema is not specified in the instance document as in implicit validation.

Follow the basic steps in this section to write Java programs that use the build() method of the oracle.xml.parser.schema.XSDBuilder class:

  1. Build an XML schema object from the XML schema document with the XSDBuilder.build() method. This code fragment from XSDSetSchema.java shows how to create the object:
    public class XSDSetSchema
    {
       public static void main(String[] args) throws Exception
       {
          if (args.length != 2)
          {
             System.out.println("Usage: java XSDSample <schema_file> <xml_file>");
             return;
          }

          XSDBuilder builder = new XSDBuilder();
          URL    url =  createURL(args[0]);

          // Build XML Schema Object
          XMLSchema schemadoc = (XMLSchema)builder.build(url);
          process(args[1], schemadoc);
       }
    . . .


    The createURL() method is a helper method that constructs a URL from the schema document file name specified on the command line.

  2. Create a DOM parser to use for validation of the instance document. This code from XSDSetSchema.java shows how to pass the instance document file name and XML schema object to the process() method:
    public static void process(String xmlURI, XMLSchema schemadoc)throws Exception{
       DOMParser dp  = new DOMParser();
       URL       url = createURL (xmlURI);
       . . .

  3. Specify the schema object to use for validation with the DOMParser.setXMLSchema() method. This step is not necessary in implicit validation mode because the instance document already references the schema. For example, XSDSetSchema.java specifies the schema:
    dp.setXMLSchema(schemadoc);

  4. Set the validation mode for the DOM parser object with the DOMParser.setValidationMode() method. For example, XSDSample.java shows how to specify XML schema validation:
    dp.setValidationMode(XMLParser.SCHEMA_VALIDATION);
    dp.setPreserveWhitespace(true);

  5. Set the output error stream for the parser with the DOMParser.setErrorStream() method. For example, XSDSetSchema.java sets it:
    dp.setErrorStream (System.out);

  6. Validate the instance document against the XML schema with the DOMParser.parse() method. For example, XSDSetSchema.java includes this code:
    try
    {
       System.out.println("Parsing "+xmlURI);
       dp.parse (url);
       System.out.println("The input file <"+xmlURI+"> parsed without errors");
    }
    catch (XMLParseException pe)
    {
       System.out.println("Parser Exception: " + pe.getMessage());
    }
    catch (Exception e)
    {
       System.out.println ("NonParserException: " + e.getMessage());
    }

Validating a Subsection of an XML Document

In LAX mode, you can validate parts of an XML document without validating all of it. LAX parsing validates elements in a document that are declared in an associated XML schema. The processor does not consider the instance document invalid if it contains no elements declared in the schema.

By using LAX mode, you can define the schema only for the part of the XML to be validated. The $ORACLE_HOME/xdk/demo/java/schema/XSDLax.java program shows how to use LAX validation. The program follows the basic steps described in Validating Against Externally Referenced XML Schemas:

  1. Build an XML schema object from the user-specified XML schema document.
  2. Create a DOM parser to use for validation of the instance document.
  3. Specify the XML schema to use for validation.
  4. Set the validation mode for the DOM parser object.
  5. Set the output error stream for the parser.
  6. Validate the instance document against the XML schema by invoking DOMParser.parse().

To enable LAX validation, the program sets the validation mode in the parser to SCHEMA_LAX_VALIDATION rather than to SCHEMA_VALIDATION. This code fragment from XSDLax.java shows this technique:

dp.setXMLSchema(schemadoc);
dp.setValidationMode(XMLParser.SCHEMA_LAX_VALIDATION);
dp.setPreserveWhitespace (true);
. . .

You can test LAX validation by running the sample program:

java XSDLax embeded_xsql.xsd embeded_xsql.xml

Validating XML from a SAX Stream

$ORACLE_HOME/xdk/demo/java/schema/xsdsax.java shows how to validate an XML document received as a SAX stream. You instantiate an XSDValidator and register it with the SAX parser as the content handler.

Follow the steps in this section to write programs that validate XML from a SAX stream:

  1. Build an XML schema object from the user-specified XML schema document by invoking the XSDBuilder.build() method. This code fragment shows how to create the object:
    XSDBuilder builder = new XSDBuilder();
    URL    url =  XMLUtil.createURL(args[0]);

    // Build XML Schema Object
    XMLSchema schemadoc = (XMLSchema)builder.build(url);
    process(args[1], schemadoc);
    . . .


    createURL() is a helper method that constructs a URL from the file name specified on the command line.

  2. Create a SAX parser (SAXParser object) to use for validation of the instance document. This code fragment from saxxsd.java passes the handles to the XML document and schema document to the process() method:
    process(args[1], schemadoc);...public static void process(String xmlURI, XMLSchema schemadoc)
    throws Exception
    {
        SAXParser dp  = new SAXParser();
    ...

  3. Configure the SAX parser. This code fragment sets the validation mode for the SAX parser object with the XSDBuilder.setValidationMode() method:
    dp.setPreserveWhitespace (true);
    dp.setValidationMode(XMLParser.NONVALIDATING);

  4. Create and configure a validator (XSDValidator object). This code fragment shows this technique:
    XMLError err;... err = new XMLError();
    ...
    XSDValidator validator = new XSDValidator();
    ...
    validator.setError(err);

  5. Specify the XML schema to use for validation by invoking the XSDBuilder.setXMLProperty() method. The first argument is the name of the property, which is fixedSchema, and the second is the reference to the XML schema object. This code fragment shows this technique:
    validator.setXMLProperty(XSDNode.FIXED_SCHEMA, schemadoc);
    ...

  6. Register the validator as the SAX content handler for the parser. This code fragment shows this technique:
    dp.setContentHandler(validator);
    ...

  7. Validate the instance document against the XML schema by invoking the SAXParser.parse() method. This code fragment shows this technique:
    dp.parse (url);

Validating XML from a DOM

$ORACLE_HOME/xdk/demo/java/schema/xsddom.java shows how to validate an instance document by get a DOM representation of the document and using an XSDValidator object to validate it.

The xsddom.java program follows these steps:

  1. Build an XML schema object from the user-specified XML schema document by invoking the XSDBuilder.build() method. This code fragment shows how to create the object:
    XSDBuilder builder = new XSDBuilder();
    URL    url =  XMLUtil.createURL(args[0]);

    XMLSchema schemadoc = (XMLSchema)builder.build(url);
    process(args[1], schemadoc);


    createURL() is a helper method that constructs a URL from the file name specified on the command line.

  2. Create a DOM parser (DOMParser object) to use for validation of the instance document. This code fragment from domxsd.java passes the handles to the XML document and schema document to the process() method:
    process(args[1], schemadoc);...public static void process(String xmlURI, XMLSchema schemadoc)
    throws Exception
    {
        DOMParser dp  = new DOMParser();
        . . .

  3. Configure the DOM parser. This code fragment sets the validation mode for the parser object with the DOMParser.setValidationMode() method:
    dp.setPreserveWhitespace (true);
    dp.setValidationMode(XMLParser.NONVALIDATING);
    dp.setErrorStream (System.out);

  4. Parse the instance document. This code fragment shows this technique:
    dp.parse (url);

  5. Get the DOM representation of the input document. This code fragment shows this technique:
    XMLDocument doc = dp.getDocument();

  6. Create and configure a validator (XSDValidator object). This code fragment shows this technique:
    XMLError err;... err = new XMLError();
    ...
    XSDValidator validator = new XSDValidator();
    ...
    validator.setError(err);

  7. Specify the schema object to use for validation by invoking the XSDBuilder.setXMLProperty() method. The first argument is the name of the property, which in this example is fixedSchema, and the second is the reference to the schema object. This code fragment shows this technique:
    validator.setXMLProperty(XSDNode.FIXED_SCHEMA, schemadoc);
    . . .

  8. Get the root element (XMLElement) of the DOM tree and validate. This code fragment shows this technique:
    XMLElement root = (XMLElement)doc.getDocumentElement();
    XMLElement copy = (XMLElement)root.validateContent(validator, true);
    copy.print(System.out);

Validating XML from Designed Types and Elements

$ORACLE_HOME/xdk/demo/java/schema/xsdproperty.java shows how to configure the XML Schema processor to validate an XML document based on a complex type or element declaration.

The xsdproperty.java program follows these steps:

  1. Create String objects for the instance document name, XML schema name, root node namespace, root node local name, and specification of element or complex type ("true" means the root node is an element declaration). This code fragment shows this technique:

    String xmlfile = args[0];
    String xsdfile =  args[1];
    ...
    String ns = args[2]; //namespace for the root node
    String nm = args[3]; //root node's local name
    String el = args[4]; //true if root node is element declaration,
                         // otherwise, the root node is a complex type

  2. Create an XSD builder and use it to create the schema object. This code fragment shows this technique:

    XSDBuilder builder = new XSDBuilder();
    URL    url =  XMLUtil.createURL(xsdfile);
    XMLSchema  schema;
    ...
    schema = (XMLSchema) builder.build(url);

  3. Get the node. Invoke different methods depending on whether the node is an element declaration or a complex type:

    • If the node is an element declaration, pass the local name and namespace to the getElement() method of the schema object.

    • If the node is an element declaration, pass the namespace, local name, and root complex type to the getType() method of the schema object.

    xsdproperty.java uses this control structure:

    QxName qname = new QxName(ns, nm);
    ...
    XSDNode nd;
    ...
    if (el.equals("true"))
    {
      nd = schema.getElement(ns, nm);
      /* process ... */
    }
    else
    {
      nd = schema.getType(ns, nm, XSDNode.TYPE);
      /* process ... */
    }

  4. After getting the node, create a new parser and set the schema to the parser to enable schema validation. This code fragment shows this technique:

    DOMParser dp  = new DOMParser();
    URL       url = XMLUtil.createURL (xmlURI);

  5. Set properties on the parser and then parse the URL. Invoke the schemaValidatorProperty() method:

    1. Set the root element or type property on the parser to a fully qualified name.

      For a top-level element declaration, set the property name to XSDNode.ROOT_ELEMENT and the value to a QName, as showd by the process1() method.

      For a top-level type definition, set the property name to XSDNode.ROOT_TYPE and the value to a QName, as showd by the process2() method.

    2. Set the root node property on the parser to an element or complex type node.

      For an element node, set the property name to XSDNode.ROOT_NODE and the value to an XSDElement node, as showd by the process3() method.

      For a type node, set the property name to XSDNode.ROOT_NODE and the value to an XSDComplexType node, as showd by the process3() method.

    This code fragment shows the sequence of method invocation:

    if (el.equals("true"))
    {
       nd = schema.getElement(ns, nm);
       process1(xmlfile, schema, qname);
       process3(xmlfile, schema, nd);
    }
    else
    {
       nd = schema.getType(ns, nm, XSDNode.TYPE);
       process2(xmlfile, schema, qname);
       process3(xmlfile, schema, nd);
    }


    The processing methods are implemented:

      static void process1(String xmlURI, XMLSchema schema, QxName qname)
          throws Exception
      {
        /* create parser... */
        dp.setXMLSchema(schema);
        dp.setSchemaValidatorProperty(XSDNode.ROOT_ELEMENT, qname);
        dp.setPreserveWhitespace (true);
        dp.setErrorStream (System.out);
        dp.parse (url);
        ...
      }

      static void process2(String xmlURI, XMLSchema schema, QxName qname)
          throws Exception
      {
          /* create parser... */
        dp.setXMLSchema(schema);
        dp.setSchemaValidatorProperty(XSDNode.ROOT_TYPE, qname);
        dp.setPreserveWhitespace (true);
        dp.setErrorStream (System.out);
        dp.parse (url);
        ...
      }

      static void process3(String xmlURI, XMLSchema schema, XSDNode node)
          throws Exception
      {
          /* create parser... */

        dp.setXMLSchema(schema);
        dp.setSchemaValidatorProperty(XSDNode.ROOT_NODE, node);
        dp.setPreserveWhitespace (true);
        dp.setErrorStream (System.out);
        dp.parse (url);
        ...
      }

Tips and Techniques for Programming with XML Schemas

Topics include overriding schema location and converting a DTD to an XML schema.

Overriding the Schema Location with an Entity Resolver

When XSDBuilder builds a schema, it might need to include or import other schemas that are specified as URLs in a schemaLocation attribute. In some situations, you might want to override the schema locations specified in <import> and supply the builder with the required schema documents.

The xsdent.java demo described in Table 17-3 shows a case where a schema specified as schemaLocation needs to be imported. The document element in xsdent.xml file contains this attribute:

xsi:schemaLocation =  "http://www.example.com/BookCatalogue
                       xsdent.xsd">

The xsdent.xsd document contains these elements:

<schema xmlns="http://www.w3.org/2001/XMLSchema"
               targetNamespace="http://www.example.com/BookCatalogue"
               xmlns:catd = "http://www.example.com/Digest"
               xmlns:cat  = "http://www.example.com/BookCatalogue"
               elementFormDefault="qualified">
<import namespace = "http://www.example.com/Digest"
        schemaLocation = "xsdent-1.xsd" />

As an example of wanting to override schema locations specified in <import> and supplying the builder with the required schema documents, suppose that you have downloaded the schemas documents from external web sites and stored them in a database. In such a situation, you can set an entity resolver in the XSDBuilder. XSDBuilder passes the schema location to the resolver, which returns an InputStream, Reader, or URL as an InputSource. The builder can read the schema documents from the InputSource.

The xsdent.java program shows how you can override the schema location with an entity resolver. You must implement the EntityResolver interface, instantiate the entity resolver, and set it in the XML schema builder. In the demo code, sampleEntityResolver1 returns InputSource as an InputStream whereas sampleEntityResolver2 returns InputSource as a URL.

Follow these basic steps:

  1. Create a new XML schema builder:
    XSDBuilder builder = new XSDBuilder();

  2. Set the builder to your entity resolver. An entity resolver is a class that implements the EntityResolver interface. The purpose of the resolver is to enable the XML reader to intercept any external entities before including them. This code fragment creates an entity resolver and sets it in the builder:
    builder.setEntityResolver(new sampleEntityResolver1());


    The sampleEntityResolver1 class implements the resolveEntity() method. You can use this method to redirect external system identifiers to local URIs. The source code is:

    class sampleEntityResolver1 implements EntityResolver
    {
       public InputSource resolveEntity (String targetNS,  String systemId)
       throws SAXException, IOException
       {
          // perform any validation check if needed based on targetNS & systemId
          InputSource mySource = null;
          URL u = XMLUtil.createURL(systemId);
          // Create input source with InputStream as input
          mySource = new InputSource(u.openStream());
          mySource.setSystemId(systemId);
          return mySource;
       }
    }


    The sampleEntityResolver1 class initializes the InputSource with a stream.

  3. Build the XML schema object. This code shows this technique:
    schemadoc = builder.build(url);

  4. Validate the instance document against the XML schema. The program executes this statement:
    process(xmlfile, schemadoc);


    The process() method creates a DOM parser, configures it, and invokes the parse() method. The method is implemented:

    public static void process(String xmlURI, Object schemadoc)
        throws Exception
    {
      DOMParser dp  = new DOMParser();
      URL       url = XMLUtil.createURL (xmlURI);

      dp.setXMLSchema(schemadoc);
      dp.setValidationMode(XMLParser.SCHEMA_VALIDATION);
      dp.setPreserveWhitespace (true);
      dp.setErrorStream (System.out);
      try {
         dp.parse (url);
         ...
    }

Converting DTDs to XML Schemas

Because of the power and flexibility of the XML Schema language, you may want to convert your existing DTDs to XML schema documents. You can use XDK to perform this transformation.

The $ORACLE_HOME/xdk/demo/java/schema/DTD2Schema.java program shows how to convert a DTD. You can test the program:

java DTD2Schema dtd2schema.dtd dtd2schema.xml

Follow these basic steps to convert a DTD to an XML schema document:

  1. Parse the DTD with the DOMParser.parseDTD() method. This code fragment from DTD2Schema.java shows how to create the DTD object:
    XSDBuilder builder = new XSDBuilder();
    URL dtdURL = createURL(args[0]);
    DTD dtd = getDTD(dtdURL, "abc");


    The getDTD() method is implemented:

    private static DTD getDTD(URL dtdURL, String rootName)
       throws Exception
    {
       DOMParser parser = new DOMParser();
       DTD dtd;
       parser.setValidationMode(true);
       parser.setErrorStream(System.out);
       parser.showWarnings(true);
       parser.parseDTD(dtdURL, rootName);
       dtd = (DTD)parser.getDoctype();
       return dtd;
    }

  2. Convert the DTD to an XML schema DOM tree with the DTD.convertDTD2Sdhema() method. This code fragment from DTD2Schema.java shows this technique:
    XMLDocument dtddoc = dtd.convertDTD2Schema();

  3. Write the XML schema DOM tree to an output stream with the XMLDocument.print() method. This code fragment from DTD2Schema.java shows this technique:
    FileOutputStream fos = new FileOutputStream("dtd2schema.xsd.out");
    dtddoc.print(fos);

  4. Create an XML schema object from the schema DOM tree with the XSDBuilder.build() method. This code fragment from DTD2Schema.java shows this technique:
    XMLSchema schemadoc = (XMLSchema)builder.build(dtddoc, null);

  5. Validate an instance document against the XML schema with the DOMParser.parse() method. This code fragment from DTD2Schema.java shows this technique:
    validate(args[1], schemadoc);


    The validate() method is implemented:

    DOMParser dp  = new DOMParser();
    URL       url = createURL (xmlURI);
    dp.setXMLSchema(schemadoc);
    dp.setValidationMode(XMLParser.SCHEMA_VALIDATION);
    dp.setPreserveWhitespace (true);
    dp.setErrorStream (System.out);
    try
    {
       System.out.println("Parsing "+xmlURI);
       dp.parse (url);
       System.out.println("The input file <"+xmlURI+"> parsed without errors");
    }
    ...
