10 Optimizing Repopulation of the IM Column Store

The IM column store periodically refreshes objects that have been modified. You can control this behavior using initialization parameters and the DBMS_INMEMORY package.

This chapter contains the following topics:

10.1 About Repopulation of the IM Column Store

The automatic refresh of columnar data after significant modifications is called repopulation.

This section contains the following topics:

10.1.1 Row Modifications and the Transaction Journal

An In-Memory Compression Unit (IMCU) is a read-only structure that does not modify data in place when DML occurs on an internal table.

The Snapshot Metadata Unit (SMU) associated with each IMCU tracks row modifications in a transaction journal. If a query accesses the data, and discovers modified rows, then it can obtain the corresponding rowids from the transaction journal, and then retrieve the modified rows from the buffer cache.

As the number of modifications increase, so do the size of SMUs, and the amount of data that must be fetched from the transaction journal or database buffer cache. To avoid degrading query performance through journal access, background processes repopulate modified objects.

10.1.2 Automatic Repopulation

When DML occurs for objects in the IM column store, the database repopulates them automatically.

Automatic repopulation takes the following forms:

  • threshold-based repopulation

    This form depends on the percentage of stale entries in the transaction journal for an IMCU.

  • trickle repopulation

    This form supplements threshold-based repopulation by periodically refreshing columnar data even when the staleness threshold has not been reached.

During automatic repopulation, traditional access mechanisms are available. Data is always accessible from the buffer cache or disk. Additionally, the IM column store is always transactionally consistent with the data on disk. No matter where the query accesses the data, the database always returns consistent results.

10.1.3 Manual Repopulation of External Tables

External tables are not eligible for automatic repopulation.

The IM column store manages external tables differently from internal tables. Because external tables are read-only, they are not updated through DML, and thus do not rely on the transaction journal. For this reason, the database does not repopulate external tables automatically. However, you can refresh external tables manually by using DBMS_INMEMORY.REPOPULATE. In-Memory scans of external tables are only supported when the tables are completely populated in the IM column store.

Note:

Sessions that query In-Memory external tables must have the initialization parameter QUERY_REWRITE_INTEGRITY set to stale_tolerated. If an external table is modified, then the results from the IM column store are undefined.

See Also:

10.2 How Data Loading Works with the IM Column Store

The IM column store uses different mechanisms depending on the type of data loading: conventional DML, direct path loads, and partition exchange loads.

This section contains the following topics:

10.2.1 How Conventional DML Works with the IM Column Store

Conventional DML processes one row or array of rows at a time, and inserts rows below the high water mark. Regardless of whether the IM column store is enabled, the database processes DML using the buffer cache.

IMCUs are read-only. When a statement modifies a row in an IMCU, the IM column store records the rowid in the associated SMU.

A Column Compression Unit (CU) entry becomes stale when its value differs from the value in its corresponding journal entry. For example, a transaction may change an employee’s weekly salary from 1000 to 1200, but the actual value in the IMCU is still 1000. The transaction journal records the rowid of the stale row and its SCN.

Note:

The transaction journal does not record the new value. Rather, it indicates the corresponding row as stale as of a specific SCN.

This section contains the following topics:

10.2.1.1 Staleness Threshold

As the number of stale entries in an IMCU increases, the speed of the IMCU scan decreases.

Performance decreases because the database must fetch the modified rows from the buffer cache or disk, rather than from the IM column store. For this reason, Oracle Database repopulates an IMCU when the number of stale entries in an IMCU reaches an internal staleness threshold.

The database determines the threshold using heuristics that consider the frequency of IMCU access and the number of stale rows. Repopulation is more frequent for IMCUs that are accessed frequently or have a higher percentage of stale rows.

See Also:

10.2.1.2 Double Buffering

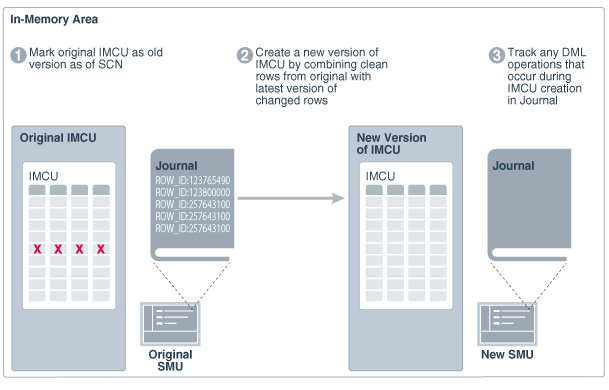

In double buffering, background processes create new IMCU versions by combining the original rows with the latest modified rows.

When the database begins either threshold-based repopulation or trickle repopulation, the IM column store uses double buffering. As shown in the following figure, the IM column store maintains two versions of an IMCU simultaneously, with the original stale IMCU remaining accessible to queries.

The basic steps of double buffering are:

  1. In the original SMU, the database marks the existing IMCU as the original version as of a specific SCN.

  2. Background processes create a new version of the IMCU by combining the original rows with the latest versions of the modified rows.

  3. In the journal of the new SMU, the database tracks DML operations that occur during IMCU creation.

In this way, the original IMCU stays online. The database keeps both old and new IMCUs versions for as long as they are useful, or until the IM column store is under space pressure.

10.2.2 How Direct Path Loads Work with the IM Column Store

A direct path load is an INSERT /*+APPEND*/ statement or a SQL*Loader operation in which DIRECT=true .

In a direct path load, the database writes formatted data blocks directly to the data files, bypassing the database buffer cache. The database appends the data above the high water mark, which is the boundary between used and unused space in a segment. Direct path loads operate are “all or nothing” operations: the operation either inserts all data or no data.

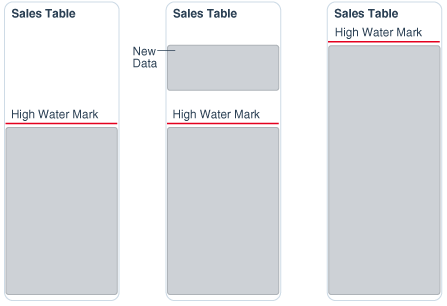

Figure 10-2 Direct Path Loads and the High Water Mark

Description of Figure 10-2 follows
Description of "Figure 10-2 Direct Path Loads and the High Water Mark"

When the segment is populated in the IM column store, a direct path load works as follows:

  1. You load data using a CREATE TABLE AS SELECT or INSERT /*+APPEND*/ statement. Only the current session is aware of the DML.

  2. You commit the statement.

  3. The high water mark moves to encompass the new data, which alerts the IMCU that data is missing. V$IM_SEGMENTS.BYTES_NOT_POPULATED now indicates the size of the newly inserted data.

  4. The IM column store manages repopulation based on the following algorithm:

    • If the affected object has a PRIORITY set to a value other than NONE, then the database repopulates the data.

    • If the affected object has a PRIORITY set to NONE, then the database repopulates at the next full scan of the object.

10.2.3 How a Partition Exchange Load Works with the IM Column Store

A partition exchange load is a technique that exchanges a table for a partition. An exchange load is almost instantaneous because it modifies metadata instead of data.

To perform an exchange load, follow these steps:

  1. Create a nonpartitoned table, called a source table.

  2. Load rows into the source table.

  3. Exchange an existing table partition, called the target partition, with the table.

For the target partition to be populated in the IM column store after the exchange, the source table must be populated in the IM column store before the exchange. The following scenarios are possible, depending on the whether the target partition is populated:

  • Before the exchange, the target partition is not populated in the IM column store. For example, the partition is empty.

    After the exchange, the source table is no longer populated in the IM column store. The source IMCUs are now associated with the target partition.

  • Before the exchange, the target partition is populated in the IM column store.

    After the exchange, the source table remains populated in the IM column store.

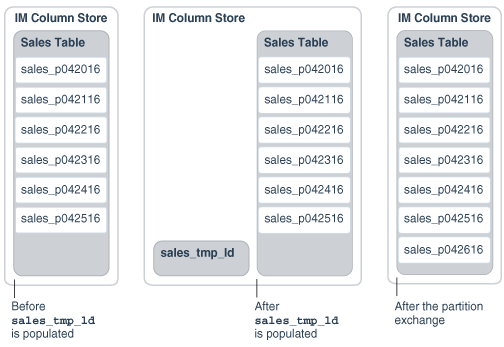

Example 10-1 INMEMORY Partition Exchange Load

In this example, the sales table, which is partitioned, has the INMEMORY attribute set at the table level. All non-empty partitions in this table are currently populated. The sales_p042616 partition is currently empty. Your goal is to populate the empty partition sales_p042616 with data contained in text files. The following figure illustrates the before and after scenarios.

To perform the exchange, do the following:

  1. Create an external table sales_tmp_ext using the CREATE TABLE ... ORGANIZATION EXTERNAL statement.

    The external table does not reside in the database, and can be in any format for which an access driver is provided. The table is read-only.

  2. Create a nonpartitioned table named sales_tmp_ld using CREATE TABLE ... AS SELECT * FROM sales_tmp_ext.

    The sales_tmp_ld table is not external, which means it stores rows in the data files.

  3. Set the INMEMORY attribute in sales_tmp_ld using an ALTER TABLE statement.

    The sales_tmp_ld table is now marked as INMEMORY, but it is not yet populated into the IM column store.

  4. Populate sales_tmp_ld into the IM column store by forcing a full table scan.

    For example, the following query forces a full scan:

    SELECT /*+ FULL(s) NO_PARALLEL(s) */ COUNT(*) FROM sales_tmp_ld s;
  5. Exchange the sales_p042616 partition with the sales_tmp_ld table.

    For example, alter the sales table as follows:

    ALTER TABLE sales EXCHANGE PARTITION sales_p042616 WITH TABLE sales_tmp_ld;

After the exchange completes, the sales_p042616 partition is populated in the IM column store, and the sales_tmp_ld is no longer populated.

See Also:

Oracle Database VLDB and Partitioning Guide to learn more about partition exchange loads

10.3 When the Database Repopulates the IM Column Store

The database repopulates the IM column store automatically according to an internal algorithm. You can manually disable repopulation, and influence its aggressiveness.

Note:

This section describes automatic repopulation. You can force repopulation manually by using the DBMS_INMEMORY.REPOPULATE procedure.

This section contains the following topics:

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn about the DBMS_INMEMORY.REPOPULATE procedure

10.3.1 Threshold-Based and Trickle Repopulation

Automatic repopulation takes two forms: threshold-based repopulation and trickle repopulation.

Automatic repopulation always checks stale journal entries and uses double buffering. However, repopulation has different triggers:

  • Threshold-based repopulation

    The database repopulates IMCUs when the number of changes recorded in the transaction journal reaches an internal staleness threshold. Threshold-based repopulation occurs automatically when INMEMORY_MAX_POPULATE_SERVERS initialization parameter is set to a value other than 0.

  • Trickle repopulation

    The IMCO (In-Memory Coordinator) background process periodically checks whether stale rows exist, and then adds IMCUs to a repopulation queue. This mechanism does not depend on meeting the staleness threshold. The INMEMORY_TRICKLE_REPOPULATE_SERVERS_PERCENT initialization parameter limits the number of background processes used for trickle repopulation. Setting this parameter to 0 disables trickle repopulation.

Trickle repopulation is analogous to Java garbage collection. The mechanism works as follows:

  1. IMCO wakes up.

  2. IMCO determines whether any population tasks need to be performed, including whether any stale entries exist in the transaction journal associated with an IMCU.

  3. If IMCO finds stale entries, then it triggers a Space Management Worker Process (Wnnn) to create a new version of the IMCU.

    During IMCU creation, the database records the rowids of modified rows in the transaction journal.

  4. IMCO sleeps for two minutes, and then returns to Step 1.

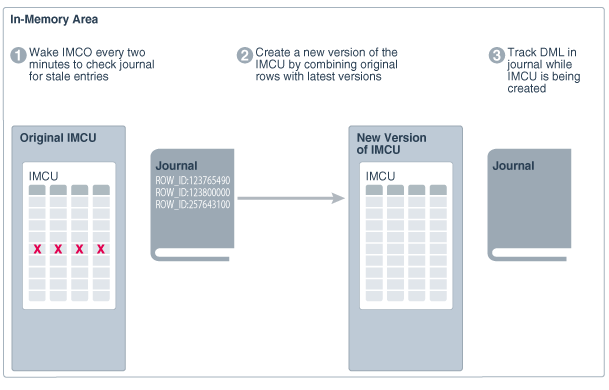

Figure 10-4 Trickle Repopulation

Description of Figure 10-4 follows
Description of "Figure 10-4 Trickle Repopulation"

For example, a database may be busy for 8 hours per day. Most SMUs contain a small number of transaction journal entries (below the staleness threshold). When the database is quiet, IMCO wakes up, checks the journals to determine which IMCUs have stale entries, and then uses trickle repopulation to refresh the IMCUs.

See Also:

10.3.2 Factors Affecting Repopulation

The algorithm that triggers repopulation is internal, and depends on several factors.

The principal factors affecting repopulation are as follows:

  • Rate of DML changes

    As the number of modified rows increases, the percentage of stale columnar data increases. The transaction journal grows, increasing the need to use the buffer cache to satisfy queries.

  • Type of DML operations

    Typically, inserts have less performance overhead than deletes and updates because inserts often go into a new data block.

  • Location of modified rows within a data block

    Changes grouped within the same database block or table partition have less effect then changes distributed across an entire table. Versioning every IMCU has a greater impact than versioning a small number of IMCUs.

  • Compression level applied to INMEMORY objects

    Because of double buffering, tables with higher compression levels incur more query and DML overhead during repopulation. For example, MEMCOMPRESS FOR CAPACITY HIGH incurs more overhead than MEMCOMPRESS FOR DML.

  • Number of active worker processes

    As the number of worker processes increases, more work occurs in parallel. Consequently, the rate of repopulation increases.

See Also:

10.4 Controls for Repopulation of the IM Column Store

Repopulation occurs automatically by default, but you can control its aggressiveness, or disable it altogether.

Initialization Parameters

The following initialization parameters influence background process behavior:

  • INMEMORY_MAX_POPULATE_SERVERS

    This parameter limits the maximum number of Wnnn processes available for population and repopulation (threshold-based and trickle). The default value is half the CPU_COUNT. This parameter acts as a throttle, preventing these server processes from overloading the rest of the database. Setting this parameter to 0 disables both population and repopulation.

    Caution:

    Be careful not to set the value of this parameter too high. If it is set close to the number of cores or higher, then no CPU may be available for the rest of the system to run.

  • INMEMORY_TRICKLE_REPOPULATE_SERVERS_PERCENT

    This parameter limits the percentage of the total population and repopulation processes that perform trickle repopulation. Its effect is to limit the number of IMCUs repopulated through trickle repopulation within a two-minute interval.

    The value for this parameter is a percentage of the INMEMORY_MAX_POPULATE_SERVERS value. For example, if INMEMORY_TRICKLE_REPOPULATE_SERVERS_PERCENT is 5 percent, and if INMEMORY_MAX_POPULATE_SERVERS is 20, then the IM column store uses an average of 1 core (.05 * 20) for trickle repopulation.

    To increase throughput at the expense of increased background CPU, set this parameter to higher values such as 5 or 10. A value greater than 50 is not allowed, so that at least half of the INMEMORY_MAX_POPULATE_SERVERS processes are available for other tasks.

    Setting this parameter to 0 disables trickle population.

See Also:

DBMS_INMEMORY.REPOPULATE Procedure

To manually repopulate a table, partition, or subpartition, use the DBMS_INMEMORY.REPOPULATE procedure. Only objects that are currently populated in the IM column store are eligible for repopulation.

The following values are possible for the force parameter:

  • FALSE — The database repopulates only IMCUs containing modified rows. This is the default.

  • TRUE — The database drops the segment, and then rebuilds it. The database increments the statistics and performs all other tasks related to initial population.

For example, IMCU 1 contains rows 1 to 500,000, and IMCU 2 contains rows 500,001 to 1,000,000. A statement modifies row 600,000. When force is FALSE, the database only repopulates IMCU 2. When force is TRUE, the database repopulates both IMCUs.

Consider further that the INMEMORY_VIRTUAL_COLUMNS initialization parameter is set to ENABLE, and an application creates a new virtual column. When force is FALSE, the database only repopulates IMCU 2 with the new column. When force is TRUE, the database repopulates both IMCUs with the new column.

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about DBMS_INMEMORY.REPOPULATE

10.5 Optimizing Trickle Repopulation: Tutorial

In this tutorial, you increase the percentage of background processes available for trickle repopulation.

Assumptions

This tutorial assumes the following:

  • The IM column store is enabled.

  • You want to devote more CPU to the Space Management Worker Processes (Wnnn) that perform trickle repopulation.

  • The database server has 12 CPU cores.

To increase the aggressiveness of repopulation:

  1. In SQL*Plus or SQL Developer, log in to the database as a user with administrative privileges.

  2. Show the settings for the initialization parameters relating to repopulation (sample output included):

    SHOW PARAMETER POPULATE_SERVERS

    NAME                                        TYPE        VALUE
    ------------------------------------        ----------- -----------
    inmemory_max_populate_servers               integer     12
    inmemory_trickle_repopulate_servers_percent integer     1


    The preceding output indicates that 12 cores are available for population and repopulation tasks. The INMEMORY_TRICKLE_REPOPULATE_SERVERS_PERCENT is 1% of the INMEMORY_MAX_POPULATE_SERVERS value. Of the server processes available for population and repopulation tasks, the IM column store can use a maximum of .12 CPU cores (.01 * 12) for trickle repopulation.

  3. Increase the trickle repopulation maximum to 25% of the INMEMORY_MAX_POPULATE_SERVERS initialization parameter value.

    For example, use the following statement:

    ALTER SYSTEM SET INMEMORY_TRICKLE_REPOPULATE_SERVERS_PERCENT=25;

    As a result, the IM column store now uses a maximum of 3 CPU cores (.25 * 12) for trickle repopulation, out of a total of 12 that are available for population and repopulation work.

See Also:
