9 Optimizing Aggregation

Database In-Memory provides optimizations to speed up aggregation and arithmetic.

This chapter contains the following topics:

9.1 Optimizing Joins with In-Memory Aggregation

Starting with Oracle Database 12c Release 1 (12.1.0.2), In-Memory Aggregation (IM aggregation) enables queries to aggregate while scanning.

This section contains the following topics:

9.1.1 About IM Aggregation

IM aggregation optimizes query blocks involving aggregation and joins from a large table to multiple small tables.

The KEY VECTOR and VECTOR GROUP BY operations use efficient arrays for joins and aggregation. The optimizer chooses VECTOR GROUP BY for GROUP BY operations based on cost. The optimizer does not choose VECTOR GROUP BY aggregations for GROUP BY ROLLUP, GROUPING SETS, or CUBE operations.

Note:

IM aggregation is also called vector aggregation and VECTOR GROUP BY aggregation.

IM aggregation requires INMEMORY_SIZE to be set to a nonzero value. However, IM aggregation does not require that the referenced tables be populated in the IM column store.

9.1.2 Purpose of IM Aggregation

IM aggregation preprocesses the small tables to accelerate the per-row work performed on the large table.

A typical analytic query aggregates from a fact table, and joins it to dimension tables. This type of query scans a large volume of data, with optional filtering, and performs a GROUP BY of between 1 and 40 columns. The first aggregation on the fact table processes the most rows.

Before Oracle Database 12c, the only GROUP BY operations were HASH and SORT. The VECTOR GROUP BY is an additional cost-based transformation that transforms a join between a dimension and fact table into a filter. The database can apply this filter during the fact table scan. The joins use key vectors, which are similar to Bloom filters, and the aggregation uses a VECTOR GROUP BY.

Note:

Although vector transformations are independent of the IM column store, they can be applied very efficiently to In-Memory data through SIMD vector processing.

IM aggregation enables vector joins and GROUP BY operations to occur simultaneously with the scan of the large table. Thus, these operations aggregate as they scan, and do not need to wait for table scans and join operations to complete. IM aggregation optimizes CPU usage, especially the CPU cache.

IM aggregation can greatly improve query performance. The database can create a report outline dynamically, and then fill in report details during the scan of the fact table.

This section contains the following topics:

See Also:

9.1.2.1 When IM Aggregation Is Useful

IM aggregation improves performance of queries that join relatively small tables to a relatively large fact table, and aggregate data in the fact table. This typically occurs in a star or snowflake query.

Both row-store tables and tables in the IM column store can benefit from IM aggregation.

Example 9-1 VECTOR GROUP BY

Consider the following query, which performs a join of the customers dimension table with the sales fact table:

SELECT c.customer_id, s.quantity_sold, s.amount_sold
FROM   customers c, sales s
WHERE  c.customer_id = s.customer_id
AND    c.country_id = 'FR';

When both tables are populated in the IM column store, the database can use SIMD vector processing to scan the row sets and apply filters. The following figure shows how the query uses vector joins. The optimizer converts the predicate on the customers table, c.country_id='FR' into a filter on the sales fact table. The filter is country_id='FR'. Because sales is stored in columnar format, the query only needs to scan one column to determine the result.

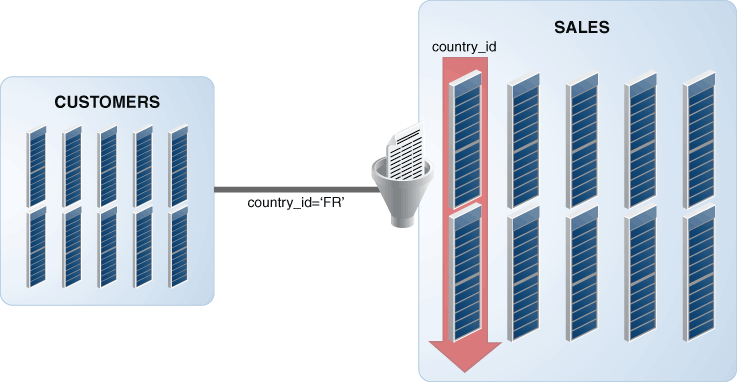

Figure 9-1 Vector Joins Using In-Memory Column Store

Description of Figure 9-1 follows
Description of "Figure 9-1 Vector Joins Using In-Memory Column Store"
9.1.2.2 When IM Aggregation Is Not Beneficial

IM aggregation benefits certain star queries when sufficient system resources exist. Other queries may receive little or no benefit.

Situations Where VECTOR GROUP BY Aggregation Is Not Advantageous

Specifically, VECTOR GROUP BY aggregation does not benefit performance in the following scenarios:

  • Joins are performed between two very large tables.

    By default, the optimizer chooses a VECTOR GROUP BY transformation only if a relatively small table is joined to a relatively large table.

  • Dimensions contain more than 2 billion rows.

    The VECTOR GROUP BY transformation is not used if a dimension contains more than 2 billion rows.

  • The system does not have sufficient memory.

    Most databases that use the IM column store benefit from IM aggregation.

9.1.3 How IM Aggregation Works

A typical analytic query distributes rows among processing stages.

The stages are as follows:

  1. Filtering tables and producing row sets

  2. Joining row sets

  3. Aggregating rows

The VECTOR GROUP BY transformation combines the work in the different stages, converting joins to filters and aggregating while scanning the fact table.

The unit of work between stages is called a data flow operator (DFO). VECTOR GROUP BY aggregation uses a DFO for each dimension to create a key vector structure and temporary table. When aggregating measure columns from the fact table, the database uses this key vector to translate a fact join key to its dense grouping key. The late materialization step joins on the dense grouping keys to the temporary tables.

This section contains the following topics:

9.1.3.1 When the Optimizer Chooses IM Aggregation

The optimizer decides whether to use vector transformation based on the size of the key vector (that is, the distinct join keys), the number of distinct grouping keys, and other factors. The optimizer tends to choose this transformation when dimension join keys have low cardinality.

Oracle Database uses VECTOR GROUP BY aggregation to perform data aggregation when the following conditions are met:

  • The queries or subqueries aggregate data from a fact table and join the fact table to one or more dimensions.

    Multiple fact tables joined to the same dimensions are also supported assuming that these fact tables are connected only through joins to the dimension. In this case, VECTOR GROUP BY aggregates fact table separately and then joins the results on the grouping keys.

  • The dimensions and fact table are connected to each other only through join columns.

    Specifically, the query must not have any other predicates that refer to columns across multiple dimensions or from both a dimension and the fact table. If a query performs a join between two or more tables and then joins the result to the fact, then VECTOR GROUP BY aggregation treats the multiple dimensions as a single dimension.

Note:

You can direct the database to use VECTOR GROUP BY aggregation for a query by using query block hints or table hints.

VECTOR GROUP BY aggregation does not support the following:

  • Semi-joins and anti-joins across multiple dimensions or between a dimension and the fact table

  • Equijoins across multiple dimensions

  • Aggregations performed using the DISTINCT function

Note:

Bloom filters and VECTOR GROUP BY aggregation and are mutually exclusive. Therefore, if a query uses Bloom filters to join row sets, then VECTOR GROUP BY aggregation is not applicable to the processing of this query.

See Also:

Oracle Database Data Warehousing Guide to learn more about SQL aggregation

9.1.3.2 Key Vector

A key vector is a data structure that maps between dense join keys and dense grouping keys.

A dense key is a numeric key that is stored as a native integer and has a range of values. A dense join key represents all join keys whose join columns come from a particular fact table or dimension. A dense grouping key represents all grouping keys whose grouping columns come from a particular fact table or dimension. A key vector enables fast lookups.

Example 9-2 Key Vector

Assume that the hr.locations tables has values for country_id as shown (only the first few results are shown):

SQL> SELECT country_id FROM locations;

CO
--
IT
IT
JP
JP
US
US
US
US
CA
CA
CN

A complex analytic query applies the filter WHERE country_id='US' to the locations table. A key vector for this filter might look like the following one-dimensional array:

0
0
0
0
1
1
1
1
0
0
0

In the preceding array, 1 is the dense grouping key for country_id='US'. The 0 values indicate rows in locations that do not match this filter. If a query uses the filter WHERE country_id IN ('US','JP'), then the array might look as follows, where 2 is the dense grouping key for JP and 1 is the dense grouping key for US:

0
0
2
2
1
1
1
1
0
0
0
9.1.3.3 Two Phases of IM Aggregation

Typically, VECTOR GROUP BY aggregation processes each dimension in sequence, and then processes the fact table.

When performing IM aggregation, the database proceeds as follows:

  1. Process each dimension sequentially as follows:

    1. Find the unique dense grouping keys.

    2. Create a key vector.

    3. Create a temporary table (CURSOR DURATION MEMORY).

    The following figure illustrates the steps in this phase, beginning with the scan of the dimension table in DFO 0, and ending with the creation of a temporary table. In the simplest form of parallel GROUP BY or join processing, the database processes each join or GROUP BY in its own DFO.

    Figure 9-2 Phase 1 of In-Memory Aggregation

    Description of Figure 9-2 follows
    Description of "Figure 9-2 Phase 1 of In-Memory Aggregation"
  2. Process the fact table.

    1. Process all the joins and aggregations using the key vectors created in the preceding phase.

    2. Join back the results to each temporary table.

    Figure 9-3 illustrates phase 2 in a join of the fact table with two dimensions. In DFO 0, the database performs a full scan of the fact table, and then uses the key vectors for each dimension to filter out nonmatching rows. DFO 2 joins the results of DFO 0 with DFO 1. DFO 4 joins the result of DFO 2 with DFO 3.

    Figure 9-3 Phase 2 of In-Memory Aggregation

    Description of Figure 9-3 follows
    Description of "Figure 9-3 Phase 2 of In-Memory Aggregation"
9.1.3.4 IM Aggregation: Scenario

This section gives a conceptual example of how VECTOR GROUP BY aggregation works.

Note:

The scenario does not use the sample schema tables or show an actual execution plan.

This section contains the following topics:

9.1.3.4.1 Sample Analytic Query of a Star Schema

This sample star schema in this scenario contains the sales_online fact table and two dimension tables: geography and products.

Each row in geography is uniquely identified by the geog_id column. Each row in products is uniquely identified by the prod_id column. Each row in sales_online is uniquely identified by the geog_id, prod_id, and amount sold.

Table 9-1 Sample Rows in geography Table

country state city geog_id

USA

WA

seattle

2

USA

WA

spokane

3

USA

CA

SF

7

USA

CA

LA

8

Table 9-2 Sample Rows in products Table

manuf category subcategory prod_id

Acme

sport

bike

4

Acme

sport

ball

3

Acme

electric

bulb

1

Acme

electric

switch

8

Table 9-3 Sample Rows in sales_online Table

prod_id geog_id amount

8

1

100

9

1

150

8

2

100

4

3

110

2

30

130

6

20

400

3

1

100

1

7

120

3

8

130

4

3

200

A manager asks the business question, "How many Acme products in each subcategory were sold online in Washington, and how many were sold in California?" To answer this question, an analytic query of the sales_online fact table joins the products and geography dimension tables as follows:

SELECT p.category, p.subcategory, g.country, g.state, SUM(s.amount)
FROM   sales_online s, products p, geography g
WHERE  s.geog_id = g.geog_id
AND    s.prod_id = p.prod_id
AND    g.state IN ('WA','CA')
AND    p.manuf = 'ACME'
GROUP BY category, subcategory, country, state
9.1.3.4.2 Step 1: Key Vector and Temporary Table Creation for geography Dimension

In the first phase of VECTOR GROUP BY aggregation for this query, the database creates a dense grouping key for each city/state combination for cities in the states of Washington or California.

In Table 9-6, the 1 is the USA,WA grouping key, and the 2 is the USA,CA grouping key.

Table 9-4 Dense Grouping Key for geography

country state city geog_id dense_gr_key_geog

USA

WA

seattle

2

1

USA

WA

spokane

3

1

USA

CA

SF

7

2

USA

CA

LA

8

2

A key vector for the geography table looks like the array represented by the final column in Table 9-5. The values are the geography dense grouping keys. Thus, the key vector indicates which rows in sales_online meet the geography.state filter criteria (a sale made in the state of CA or WA) and which country/state group each row belongs to (either the USA,WA group or USA,CA group).

Table 9-5 Online Sales

prod_id geog_id amount key vector for geography

8

1

100

0

9

1

150

0

8

2

100

1

4

3

110

1

2

30

130

0

6

20

400

0

3

1

100

0

1

7

120

2

3

8

130

2

4

3

200

1

Internally, the database creates a temporary table similar to the following:

CREATE TEMPORARY TABLE tt_geography AS
SELECT MAX(country), MAX(state), KEY_VECTOR_CREATE(...) dense_gr_key_geog
FROM   geography
WHERE  state IN ('WA','CA')
GROUP BY country, state

Table 9-6 shows rows in the tt_geography temporary table. The dense grouping key for the USA,WA combination is 1, and the dense grouping key for the USA,CA combination is 2.

Table 9-6 tt_geography

country state dense_gr_key_geog

USA

WA

1

USA

CA

2

9.1.3.4.3 Step 2: Key Vector and Temporary Table Creation for products Dimension

The database creates a dense grouping key for each distinct category/subcategory combination of an Acme product.

For example, in Table 9-7, the 4 is the dense grouping key for an Acme electric switch.

Table 9-7 Sample Rows in products Table

manuf category subcategory prod_id dense_gr_key_prod

Acme

sport

bike

4

1

Acme

sport

ball

3

2

Acme

electric

bulb

1

3

Acme

electric

switch

8

4

A key vector for the products table might look like the array represented by the final column in Table 9-8. The values represent the products dense grouping key. For example, the 4 represents the online sale of an Acme electric switch. Thus, the key vector indicates which rows in sales_online meet the products filter criteria (a sale of an Acme product).

Table 9-8 Key Vector

prod_id geog_id amount key vector for products

8

1

100

4

9

1

150

0

8

2

100

4

4

3

110

1

2

30

130

0

6

20

400

0

3

1

100

2

1

7

120

3

3

8

130

2

4

3

200

1

Internally, the database creates a temporary table similar to the following:

CREATE TEMPORTARY TABLE tt_products AS
SELECT MAX(category), MAX(subcategory), KEY_VECTOR_CREATE(...) dense_gr_key_prod
FROM   products
WHERE  manuf = 'ACME'
GROUP BY category, subcategory

Table 9-9 shows rows in this temporary table.

Table 9-9 tt_products

category subcategory dense_gr_key_prod

sport

bike

1

sport

ball

2

electric

bulb

3

electric

switch

4

9.1.3.4.4 Step 3: Key Vector Query Transformation

In this phase, the database processes the fact table.

The optimizer transforms the original query into the following equivalent query, which accesses the key vectors:

SELECT KEY_VECTOR_PROD(prod_id),
       KEY_VECTOR_GEOG(geog_id),
       SUM(amount)
FROM   sales_online
WHERE  KEY_VECTOR_PROD_FILTER(prod_id) IS NOT NULL
AND    KEY_VECTOR_GEOG_FILTER(geog_id) IS NOT NULL
GROUP BY KEY_VECTOR_PROD(prod_id), KEY_VECTOR_GEOG(geog_id)

The preceding transformation is not an exact rendition of the internal SQL, which is much more complicated, but a conceptual representation designed to illustrate the basic concept.

9.1.3.4.5 Step 4: Row Filtering from Fact Table

This phase obtains the amount sold for each combination of grouping keys.

The database uses the key vectors to filter out unwanted rows from the fact table. In Table 9-10, the first three columns represent the sales_online table. The last two columns provide the dense grouping keys for the geography and products tables.

Table 9-10 Dense Grouping Keys for the sales_online Table

prod_id geog_id amount dense_gr_key_prod dense_gr_key_geog

7

1

100

4

9

1

150

8

2

100

4

1

4

3

110

1

1

2

30

130

6

20

400

3

1

100

2

1

7

120

3

2

3

8

130

2

2

4

3

200

1

1

As shown in Table 9-11, the database retrieves only those rows from sales_online with non-null values for both dense grouping keys, indicating rows that satisfy all the filtering criteria.

Table 9-11 Filtered Rows from sales_online Table

geog_id prod_id amount dense_gr_key_prod dense_gr_key_geog

2

8

100

4

1

3

4

110

1

1

3

4

200

1

1

7

1

120

3

2

8

3

130

2

2

9.1.3.4.6 Step 5: Aggregation Using an Array

The database uses a multidimensional array to perform the aggregation.

In Table 9-12, the geography grouping keys are horizontal, and the products grouping keys are vertical. The database adds the values in the intersection of each dense grouping key combination. For example, for the intersection of the geography grouping key 1 and the products grouping key 1, the sum of 110 and 200 is 310.

Table 9-12 Aggregation Array

dgkp/dgkg 1 2

1

110,200

2

130

3

120

4

100

9.1.3.4.7 Step 6: Join Back to Temporary Tables

In the final stage of processing, the database uses the dense grouping keys to join back the rows to the temporary tables to obtain the names of the regions and categories.

The results look as follows:

CATEGORY SUBCATEGORY COUNTRY STATE AMOUNT
-------- ----------- ------- ----- ------
electric bulb        USA     CA    120
electric switch      USA     WA    100
sport    ball        USA     CA    130
sport    bike        USA     WA    310

9.1.4 Controls for IM Aggregation

IM aggregation is integrated with the optimizer. No new SQL or initialization parameters are required. IM aggregation does not need additional indexes, foreign keys, or dimensions.

You can use the following pairs of hints:

  • Query block hints

    VECTOR_TRANSFORM enables the vector transformation on the specified query block, regardless of costing. NO_VECTOR_TRANSFORM disables the vector transformation from engaging on the specified query block.

  • Table hints

    You can use the following pairs of hints:

    • VECTOR_TRANSFORM_FACT includes the specified FROM expressions in the fact table generated by the vector transformation. NO_VECTOR_TRANSFORM_FACT excludes the specified FROM expressions from the fact table generated by the vector transformation.

    • VECTOR_TRANSFORM_DIMS includes the specified FROM expressions in enabled dimensions generated by the vector transformation. NO_VECTOR_TRANSFORM_DIMS excludes the specified from expressions from enabled dimensions generated by the vector transformation.

See Also:

Oracle Database SQL Language Reference to learn more about the VECTOR_TRANSFORM_FACT and VECTOR_TRANSFORM_DIMS hints

9.1.5 In-Memory Aggregation: Example

In this example, the business question is "How many products were sold in each category in each calendar year?"

You write the following query, which joins the times, products, and sales tables:

SELECT t.calendar_year, p.prod_category, SUM(quantity_sold)
FROM   times t, products p, sales s
WHERE  t.time_id = s.time_id
AND    p.prod_id = s.prod_id
GROUP BY t.calendar_year, p.prod_category;

Example 9-3 VECTOR GROUP BY Execution Plan

The following example shows the execution plan contained in the current cursor. Steps 4 and 8 show the creation of the key vectors for the dimension tables times and products. Steps 17 and 18 show the use of the previously created key vectors. Step 15 shows the VECTOR GROUP BY operation.

----------------------------------------------------------
Execution Plan
----------------------------------------------------------
Plan hash value: 2093829546

-------------------------------------------------------------------------------------------------------------------
|Id| Operation                               | Name                   |Rows|Bytes|Cost(%CPU)|Time | Pstart| Pstop |
-------------------------------------------------------------------------------------------------------------------
|0 |SELECT STATEMENT                         |                        | 18 | 1116|302(90)|00:00:01|       |       |
|1 | TEMP TABLE TRANSFORMATION               |                        |    |     |       |        |       |       |
|2 |  LOAD AS SELECT (CURSOR DURATION MEMORY)|SYS_TEMP_0FD9D6608_F6A13|    |     |       |        |       |       |
|3 |   HASH GROUP BY                         |                        |  5 |  80 | 3 (67)|00:00:01|       |       |
|4 |    KEY VECTOR CREATE BUFFERED           | :KV0000                |  5 |  80 | 2 (50)|00:00:01|       |       |
|5 |     TABLE ACCESS INMEMORY FULL          | TIMES                  |1826|21912| 2 (50)|00:00:01|       |       |
|6 |  LOAD AS SELECT (CURSOR DURATION MEMORY)|SYS_TEMP_0FD9D6607_F6A13|    |     |       |        |       |       |
|7 |   HASH GROUP BY                         |                        |  5 | 125 | 2 (50)|00:00:01|       |       |
|8 |    KEY VECTOR CREATE BUFFERED           | :KV0001                |  5 | 125 | 1  (0)|00:00:01|       |       |
|9 |     TABLE ACCESS INMEMORY FULL          | PRODUCTS               | 72 |1512 | 1  (0)|00:00:01|       |       |
|10|  HASH GROUP BY                          |                        | 18 |1116 |297(91)|00:00:01|       |       |
|11|   HASH JOIN                             |                        | 18 |1116 |296(91)|00:00:01|       |       |
|12|    HASH JOIN                            |                        | 18 | 666 |294(91)|00:00:01|       |       |
|13|     TABLE ACCESS FULL                   |SYS_TEMP_0FD9D6608_F6A13|  5 |  80 | 2  (0)|00:00:01|       |       |
|14|     VIEW                                | VW_VT_0737CF93         | 18 | 378 |291(92)|00:00:01|       |       |
|15|      VECTOR GROUP BY                    |                        | 18 | 414 |291(92)|00:00:01|       |       |
|16|       HASH GROUP BY                     |                        | 18 | 414 |291(92)|00:00:01|       |       |
|17|        KEY VECTOR USE                   | :KV0000                |918K| 20M |285(92)|00:00:01|       |       |
|18|         KEY VECTOR USE                  | :KV0001                |918K| 16M |284(92)|00:00:01|       |       |
|19|          PARTITION RANGE ITERATOR       |                        |918K| 13M |282(92)|00:00:01|:KV0000|:KV0000|
|20|           TABLE ACCESS INMEMORY FULL    | SALES                  |918K| 13M |282(92)|00:00:01|:KV0000|:KV0000|
|21|    TABLE ACCESS FULL                    |SYS_TEMP_0FD9D6607_F6A13|  5 | 125 | 2  (0)|00:00:01|       |       |
-------------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

  11 - access("ITEM_9"=INTERNAL_FUNCTION("C0"))
  12 - access("ITEM_8"=INTERNAL_FUNCTION("C0"))
  20 - inmemory(SYS_OP_KEY_VECTOR_FILTER("S"."PROD_ID",:KV0001) AND SYS_OP_KEY_VECTOR_FILTER("S"."TIME_ID",:KV0000))
       filter(SYS_OP_KEY_VECTOR_FILTER("S"."PROD_ID",:KV0001) AND SYS_OP_KEY_VECTOR_FILTER("S"."TIME_ID",:KV0000))

Note
-----
   - vector transformation used for this statement


Statistics
----------------------------------------------------------
         26  recursive calls
         13  db block gets
        124  consistent gets
         67  physical reads
       2200  redo size
       1454  bytes sent via SQL*Net to client
        634  bytes received via SQL*Net from client
          3  SQL*Net roundtrips to/from client
          2  sorts (memory)
          0  sorts (disk)
         20  rows processed

9.2 Optimizing In-Memory Arithmetic

In-Memory Optimized Arithmetic uses an optimized NUMBER format for fast calculations using SIMD hardware.

This section contains the following topics:

9.2.1 About In-Memory Optimized Arithmetic

The In-Memory optimized NUMBER format enables fast calculations using SIMD hardware.

For tables compressed with QUERY LOW, NUMBER columns are encoded using an optimized format that enables native calculations in hardware. SIMD vector processing enables simple aggregations, GROUP BY aggregations, and arithmetic operations to benefit significantly. The performance improvement depends on the amount of time the aggregation spends on arithmetic computation. Some aggregations may benefit by up to a factor of 9.

Not all row sources in the query processing engine have support for the In-Memory optimized number format. Therefore, the IM column store must store both the traditional Oracle Database NUMBER data type and the In-Memory optimized number type. This dual storage increases space overhead, sometimes up to 15%.

9.2.2 Enabling and Disabling In-Memory Optimized Arithmetic

Control the feature by setting the initialization parameter INMEMORY_OPTIMIZED_ARITHMETIC to DISABLE (default) or ENABLE.

When set to ENABLE, Oracle Database uses an In-Memory optimized encoding for NUMBER columns in tables that use FOR QUERY LOW compression. When set to DISABLE, the database does not use the optimized encoding.

Switching from ENABLE to DISABLE does not drop the optimized number encoding for existing IMCUs immediately. Instead, as the IM column store repopulates IMCUs, the new IMCUs do not use the optimized encoding.

To enable and disable In-Memory Optimized Arithmetic:

  1. In SQL*Plus or SQL Developer, log in to the database as a user with the necessary privileges.

  2. Specify INMEMORY_OPTIMIZED_ARITHMETIC using the ALTER SYSTEM statement.

    The following example enables In-Memory Optimized Arithmetic:

    ALTER SYSTEM SET INMEMORY_OPTIMIZED_ARITHMETIC = 'ENABLE' SCOPE=BOTH;

See Also:

Oracle Database Reference to learn more about the INMEMORY_OPTIMIZED_ARITHMETIC initialization parameter
