11 Introduction to Oracle Java Message Service
The following topics describe the Oracle Java Message Service (JMS) interface to Oracle Database Advanced Queuing (AQ).
11.1 General Features of JMS and Oracle JMS
This section contains these topics:
11.1.1 JMS Connection and Session
This section contains these topics:
11.1.1.1 ConnectionFactory Objects
A ConnectionFactory
encapsulates a set of connection configuration parameters that has been defined by an administrator. A client uses it to create a connection with a JMS provider. In this case Oracle JMS, part of Oracle Database, is the JMS provider.
The three types of ConnectionFactory
objects are:
-
ConnectionFactory
-
QueueConnectionFactory
-
TopicConnectionFactory
11.1.1.2 Using AQjmsFactory to Obtain ConnectionFactory Objects
You can use the AQjmsFactory
class to obtain a handle to a ConnectionFactory
, QueueConnectionFactory
, or TopicConnectionFactory
object.
To obtain a ConnectionFactory
, which supports both point-to-point and publish/subscribe operations, use AQjmsFactory.getConnectionFactory()
. To obtain a QueueConnectionFactory
, use AQjmsFactory.getQueueConnectionFactory()
. To obtain a TopicConnectionFactory
, use AQjmsFactory.getTopicConnectionFactory()
.
The ConnectionFactory
, QueueConnectionFactory
, or TopicConnectionFactory
can be created using hostname, port number, and SID driver or by using JDBC URL and properties.
11.1.1.3 Using JNDI to Look Up ConnectionFactory Objects
A JMS administrator can register ConnectionFactory
objects in a Lightweight Directory Access Protocol (LDAP) server. The following setup is required to enable Java Naming and Directory Interface (JNDI) lookup in JMS:
11.1.1.4 JMS Connection
A JMS Connection
is an active connection between a client and its JMS provider. A JMS Connection
performs several critical services:
-
Encapsulates either an open connection or a pool of connections with a JMS provider
-
Typically represents an open TCP/IP socket (or a set of open sockets) between a client and a provider's service daemon
-
Provides a structure for authenticating clients at the time of its creation
-
Creates
Sessions
-
Provides connection metadata
-
Supports an optional
ExceptionListener
A JMS Connection
to the database can be created by invoking createConnection()
, createQueueConnection()
, or createTopicConnection()
and passing the parameters username
and password
on the ConnectionFactory
, QueueConnectionFactory
, or TopicConnectionFactory
object respectively.
Some of the methods that are supported on the Connection
object are
-
start()
This method starts or restart delivery of incoming messages.
-
stop()
This method temporarily stops delivery of incoming messages. When a
Connection
object is stopped, delivery to all of its message consumers is inhibited. Also, synchronous receive's block and messages are not delivered to message listener. -
close()
This method closes the JMS session and releases all associated resources.
-
createSession(true, 0)
This method creates a JMS
Session
using a JMSConnection
instance. -
createQueueSession(true,
0)
This method creates a
QueueSession
. -
createTopicSession(true,
0
)This method creates a
TopicSession
. -
setExceptionListener(ExceptionListener)
This method sets an exception listener for the
Connection
. This allows a client to be notified of a problem asynchronously. If aConnection
only consumes messages, then it has no other way to learn it has failed. -
getExceptionListener()
This method gets the
ExceptionListener
for thisConnection
.
A JMS client typically creates a Connection
, a Session
and several MessageProducer
and MessageConsumer
objects. In the current version only one open Session
for each Connection
is allowed, except in the following cases:
-
If the JDBC oci8 driver is used to create the JMS connection
-
If the user provides an
OracleOCIConnectionPool
instance during JMS connection creation
When a Connection
is created it is in stopped mode. In this state no messages can be delivered to it. It is typical to leave the Connection
in stopped mode until setup is complete. At that point the Connection
start()
method is called and messages begin arriving at the Connection
consumers. This setup convention minimizes any client confusion that can result from asynchronous message delivery while the client is still in the process of setup.
It is possible to start a Connection
and to perform setup subsequently. Clients that do this must be prepared to handle asynchronous message delivery while they are still in the process of setting up. A MessageProducer
can send messages while a Connection
is stopped.
11.1.1.5 JMS Session
A JMS Session
is a single threaded context for producing and consuming messages. Although it can allocate provider resources outside the Java Virtual Machine (JVM), it is considered a lightweight JMS object.
A Session
serves several purposes:
-
Constitutes a factory for
MessageProducer
andMessageConsumer
objects -
Provides a way to get a handle to destination objects (queues/topics)
-
Supplies provider-optimized message factories
-
Supports a single series of transactions that combines work spanning session
MessageProducer
andMessageConsumer
objects, organizing these into units -
Defines a serial order for the messages it consumes and the messages it produces
-
Serializes execution of
MessageListener
objects registered with it
In Oracle Database 10g, you can create as many JMS Sessions
as resources allow using a single JMS Connection
, when using either JDBC thin or JDBC thick (OCI) drivers.
Because a provider can allocate some resources on behalf of a Session
outside the JVM, clients should close them when they are not needed. Relying on garbage collection to eventually reclaim these resources may not be timely enough. The same is true for MessageProducer
and MessageConsumer
objects created by a Session
.
Methods on the Session
object include:
-
commit()
This method commits all messages performed in the transaction and releases locks currently held.
-
rollback()
This method rolls back any messages accomplished in the transaction and release locks currently held.
-
close()
This method closes the
Session
. -
getDBConnection()
This method gets a handle to the underlying JDBC connection. This handle can be used to perform other SQL DML operations as part of the same
Session
. The method is specific to Oracle JMS. -
acknowledge()
This method acknowledges message receipt in a nontransactional session.
-
recover()
This method restarts message delivery in a nontransactional session. In effect, the series of delivered messages in the session is reset to the point after the last acknowledged message.
The following are some Oracle JMS extensions:
-
createQueueTable()
This method creates a queue table.
-
getQueueTable()
This method gets a handle to an existing queue table.
-
createQueue()
This method creates a queue.
-
getQueue()
This method gets a handle to an existing queue.
-
createTopic()
This method creates a topic.
-
getTopic()
This method gets a handle to an existing topic.
The Session
object must be cast to AQjmsSession
to use any of the extensions.
Note:
The JMS specification expects providers to return null messages when receives are accomplished on a JMS Connection
instance that has not been started.
After you create a javax.jms.Connection
instance, you must call the start()
method on it before you can receive messages. If you add a line like t_conn.start();
any time after the connection has been created, but before the actual receive, then you can receive your messages.
11.1.2 JMS Destination
A Destination
is an object a client uses to specify the destination where it sends messages, and the source from which it receives messages. A Destination
object can be a Queue
or a Topic
. In Oracle Database Advanced Queuing, these map to a schema.queue
at a specific database. Queue
maps to a single-consumer queue, and Topic
maps to a multiconsumer queue.
11.1.2.1 Using a JMS Session to Obtain Destination Objects
Destination
objects are created from a Session
object using the following domain-specific Session
methods:
-
AQjmsSession.getQueue(queue_owner, queue_name)
This method gets a handle to a JMS queue.
-
AQjmsSession.getTopic(topic_owner, topic_name)
This method gets a handle to a JMS topic.
11.1.2.2 Using JNDI to Look Up Destination Objects

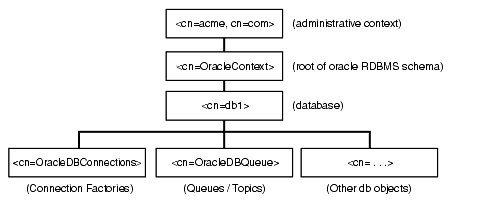

The database can be configured to register schema objects with an LDAP server. If a database has been configured to use LDAP and the GLOBAL_TOPIC_ENABLED parameter has been set to TRUE, then all JMS queues and topics are automatically registered with the LDAP server when they are created. The administrator can also create aliases to the queues and topics registered in LDAP. Queues and topics that are registered in LDAP can be looked up through JNDI using the name or alias of the queue or topic.
See Also:
11.1.2.3 JMS Destination Methods
Methods on the Destination
object include:
-
alter()
This method alters a
Queue
or aTopic
. -
schedulePropagation()
This method schedules propagation from a source to a destination.
-
unschedulePropagation()
This method unschedules a previously scheduled propagation.
-
enablePropagationSchedule()
This method enables a propagation schedule.
-
disablePropagationSchedule()
This method disables a propagation schedule.
-
start()
This method starts a
Queue
or aTopic
. The queue can be started for enqueue or dequeue. The topic can be started for publish or subscribe. -
stop()
This method stops a
Queue
or aTopic
. The queue is stopped for enqueue or dequeue. The topic is stopped for publish or subscribe. -
drop()
This method drops a
Queue
or aTopic
.
11.1.3 System-Level Access Control in JMS
Oracle8i or higher supports system-level access control for all queuing operations. This feature allows an application designer or DBA to create users as queue administrators. A queue administrator can invoke administrative and operational JMS interfaces on any queue in the database. This simplifies administrative work, because all administrative scripts for the queues in a database can be managed under one schema.
When messages arrive at the destination queues, sessions based on the source queue schema name are used for enqueuing the newly arrived messages into the destination queues. This means that you must grant enqueue privileges for the destination queues to schemas of the source queues.
To propagate to a remote destination queue, the login user (specified in the database link in the address field of the agent structure) should either be granted the ENQUEUE_ANY
privilege, or be granted the rights to enqueue to the destination queue. However, you are not required to grant any explicit privileges if the login user in the database link also owns the queue tables at the destination.
See Also:
11.1.4 Destination-Level Access Control in JMS
Oracle8i or higher supports access control for enqueue and dequeue operations at the queue or topic level. This feature allows the application designer to protect queues and topics created in one schema from applications running in other schemas. You can grant only minimal access privileges to the applications that run outside the schema of the queue or topic. The supported access privileges on a queue or topic are ENQUEUE
, DEQUEUE
and ALL
.
See Also:
11.1.5 Retention and Message History in JMS
Messages are often related to each other. For example, if a message is produced as a result of the consumption of another message, then the two are related. As the application designer, you may want to keep track of such relationships. Oracle Database Advanced Queuing allows users to retain messages in the queue table, which can then be queried in SQL for analysis.
Along with retention and message identifiers, Oracle Database Advanced Queuing lets you automatically create message journals, also called tracking journals or event journals. Taken together, retention, message identifiers and SQL queries make it possible to build powerful message warehouses.
11.1.6 Supporting Oracle Real Application Clusters in JMS
In Oracle Database 12c Release 1 (12.1), Advanced Queuing introduces high performing and scalable JMS Sharded Queues. A sharded queue is a single logical queue that is divided into multiple, independent, physical queues through system-maintained partitioning. Sharded queues are the preferred JMS queues for queues used across Oracle RAC instances, for queues with high enqueue or dequeue rates, or for queues with many subscribers. See "Sharded Queues and Oracle Real Application Clusters (Oracle RAC)" for more information.
For non-sharded queues, Oracle Real Application Clusters (Oracle RAC) can be used to improve Oracle Database Advanced Queuing performance by allowing different queues to be managed by different instances. You do this by specifying different instance affinities (preferences) for the queue tables that store the queues. This allows queue operations (enqueue/dequeue) or topic operations (publish/subscribe) on different queues or topics to occur in parallel.
The Oracle Database Advanced Queuing queue monitor process continuously monitors the instance affinities of the queue tables. The queue monitor assigns ownership of a queue table to the specified primary instance if it is available, failing which it assigns it to the specified secondary instance.
If the owner instance of a queue table terminates, then the queue monitor changes ownership to a suitable instance such as the secondary instance.
Oracle Database Advanced Queuing propagation can make use of Oracle Real Application Clusters, although it is transparent to the user. The affinities for jobs submitted on behalf of the propagation schedules are set to the same values as that of the affinities of the respective queue tables. Thus, a job_queue_process
associated with the owner instance of a queue table is handling the propagation from queues stored in that queue table, thereby minimizing pinging.
11.1.7 Supporting Statistics Views in JMS
Each instance keeps its own Oracle Database Advanced Queuing statistics information in its own System Global Area (SGA), and does not have knowledge of the statistics gathered by other instances. Then, when a GV$AQ
view is queried by an instance, all other instances funnel their statistics information to the instance issuing the query.
The GV$AQ
view can be queried at any time to see the number of messages in waiting, ready or expired state. The view also displays the average number of seconds messages have been waiting to be processed.
11.2 Structured Payload/Message Types in JMS
JMS messages are composed of a header, properties, and a body.
The header consists of header fields, which contain values used by both clients and providers to identify and route messages. All messages support the same set of header fields.
Properties are optional header fields. In addition to standard properties defined by JMS, there can be provider-specific and application-specific properties.
The body is the message payload. JMS defines various types of message payloads, and a type that can store JMS messages of any or all JMS-specified message types.
This section contains these topics:
11.2.1 JMS Message Headers
A JMS message header contains the following fields:
-
JMSDestination
This field contains the destination to which the message is sent. In Oracle Database Advanced Queuing this corresponds to the destination queue/topic. It is a
Destination
type set by JMS after theSend
method has completed. -
JMSDeliveryMode
This field determines whether the message is logged or not. JMS supports
PERSISTENT
delivery (where messages are logged to stable storage) andNONPERSISTENT
delivery (messages not logged). It is aINTEGER
set by JMS after theSend
method has completed. JMS permits an administrator to configure JMS to override the client-specified value forJMSDeliveryMode
. -
JMSMessageID
This field uniquely identifies a message in a provider. All message IDs must begin with the string
ID:
. It is aString
type set by JMS after theSend
method has completed. -
JMSTimeStamp
This field contains the time the message was handed over to the provider to be sent. This maps to Oracle Database Advanced Queuing message enqueue time. It is a
Long
type set by JMS after theSend
method has completed. -
JMSCorrelationID
This field can be used by a client to link one message with another. It is a
String
type set by the JMS client. -
JMSReplyTo
This field contains a
Destination
type supplied by a client when a message is sent. Clients can useoracle.jms.AQjmsAgent
;javax.jms.Queue
; orjavax.jms.Topic
. -
JMSType
This field contains a message type identifier supplied by a client at send time. It is a
String
type. For portability Oracle recommends that theJMSType
be symbolic values. -
JMSExpiration
This field is the sum of the enqueue time and the
TimeToLive
in non-Java EE compliance mode. In compliant mode, theJMSExpiration
header value in a dequeued message is the sum ofJMSTimeStamp
when the message was enqueued (Greenwich Mean Time, in milliseconds) and theTimeToLive
(in milliseconds). It is aLong
type set by JMS after theSend
method has completed. JMS permits an administrator to configure JMS to override the client-specified value forJMSExpiration
. -
JMSPriority
This field contains the priority of the message. It is a
INTEGER
set by JMS after theSend
method has completed. In Java EE-compliance mode, the permitted values for priority are0
–9
, with9
the highest priority and4
the default, in conformance with the Sun Microsystem JMS 1.1 standard. Noncompliant mode is the default. JMS permits an administrator to configure JMS to override the client-specified value forJMSPriority
. -
JMSRedelivered
This field is a Boolean set by the JMS provider.
See Also:
11.2.2 JMS Message Properties
JMS properties are set either explicitly by the client or automatically by the JMS provider (these are generally read-only). Some JMS properties are set using the parameters specified in Send
and Receive
operations.
Properties add optional header fields to a message. Properties allow a client, using a messageSelector
, to have a JMS provider select messages on its behalf using application-specific criteria. Property names are strings and values can be: Boolean
, byte
, short
, int
, long
, float
, double
, and string
.
JMS-defined properties, which all begin with "JMSX"
, include the following:
-
JMSXUserID
This field is the identity of the user sending the message. It is a
String
type set by JMS after theSend
method has completed. -
JMSXAppID
This field is the identity of the application sending the message. It is a
String
type set by JMS after theSend
method has completed. -
JMSXDeliveryCount
This field is the number of message delivery attempts. It is an
Integer
set by JMS after theSend
method has completed. -
JMSXGroupid
This field is the identity of the message group that this message belongs to. It is a
String
type set by the JMS client. -
JMSXGroupSeq
This field is the sequence number of a message within a group. It is an
Integer
set by the JMS client. -
JMSXRcvTimeStamp
This field is the time the message was delivered to the consumer (dequeue time). It is a
String
type set by JMS after theReceive
method has completed. -
JMSXState
This field is the message state, set by the provider. The message state can be
WAITING
,READY
,EXPIRED
, orRETAINED
.
Oracle-specific JMS properties, which all begin with JMS_Oracle
, include the following:
-
JMS_OracleExcpQ
This field is the queue name to send the message to if it cannot be delivered to the original destination. It is a
String
type set by the JMS client. Only destinations of typeEXCEPTION
can be specified in theJMS_OracleExcpQ
property. -
JMS_OracleDelay
This field is the time in seconds to delay the delivery of the message. It is an
Integer
set by the JMS client. This can affect the order of message delivery. -
JMS_OracleOriginalMessageId
This field is set to the message identifier of the message in the source if the message is propagated from one destination to another. It is a
String
type set by the JMS provider. If the message is not propagated, then this property has the same value asJMSMessageId
.
A client can add additional header fields to a message by defining properties. These properties can then be used in a messageSelector
to select specific messages.
11.2.3 JMS Message Bodies
JMS provides five forms of message body:
11.2.3.1 StreamMessage
A StreamMessage
object is used to send a stream of Java primitives. It is filled and read sequentially. It inherits from Message
and adds a StreamMessage
body. Its methods are based largely on those found in java.io.DataInputStream
and java.io.DataOutputStream
.
The primitive types can be read or written explicitly using methods for each type. They can also be read or written generically as objects. To use StreamMessage
objects, create the queue table with the SYS.AQ$_JMS_STREAM_MESSAGE
or AQ$_JMS_MESSAGE
payload types.
StreamMessage
objects support the conversions shown in Table 11-1. A value written as the row type can be read as the column type.
Table 11-1 StreamMessage Conversion
Input | Boolean | byte | short | char | int | long | float | double | String | byte[] |
---|---|---|---|---|---|---|---|---|---|---|
|
X |
- |
- |
- |
- |
- |
- |
- |
X |
- |
|
- |
X |
X |
- |
X |
X |
- |
- |
X |
- |
|
- |
- |
X |
- |
X |
X |
- |
- |
X |
- |
|
- |
- |
- |
X |
- |
- |
- |
- |
X |
- |
|
- |
- |
- |
- |
X |
X |
- |
- |
X |
- |
|
- |
- |
- |
- |
- |
X |
- |
- |
X |
- |
|
- |
- |
- |
- |
- |
- |
X |
X |
X |
- |
|
- |
- |
- |
- |
- |
- |
- |
X |
X |
- |
|
X |
X |
X |
X |
X |
X |
X |
X |
X |
- |
|
- |
- |
- |
- |
- |
- |
- |
- |
- |
X |
11.2.3.2 BytesMessage
A BytesMessage
object is used to send a message containing a stream of uninterpreted bytes. It inherits Message
and adds a BytesMessage
body. The receiver of the message interprets the bytes. Its methods are based largely on those found in java.io.DataInputStream
and java.io.DataOutputStream
.
This message type is for client encoding of existing message formats. If possible, one of the other self-defining message types should be used instead.
The primitive types can be written explicitly using methods for each type. They can also be written generically as objects. To use BytesMessage
objects, create the queue table with SYS.AQ$_JMS_BYTES_MESSAGE
or AQ$_JMS_MESSAGE
payload types.
11.2.3.3 MapMessage
A MapMessage
object is used to send a set of name-value pairs where the names are String
types, and the values are Java primitive types. The entries can be accessed sequentially or randomly by name. The order of the entries is undefined. It inherits from Message
and adds a MapMessage
body. The primitive types can be read or written explicitly using methods for each type. They can also be read or written generically as objects.
To use MapMessage
objects, create the queue table with the SYS.AQ$_JMS_MAP_MESSAGE
or AQ$_JMS_MESSAGE
payload types. MapMessage
objects support the conversions shown in Table 11-2. An "X" in the table means that a value written as the row type can be read as the column type.
Table 11-2 MapMessage Conversion
Input | Boolean | byte | short | char | int | long | float | double | String | byte[] |
---|---|---|---|---|---|---|---|---|---|---|
|
X |
- |
- |
- |
- |
- |
- |
- |
X |
- |
|
- |
X |
X |
- |
X |
X |
- |
- |
X |
- |
|
- |
- |
X |
- |
X |
X |
- |
- |
X |
- |
|
- |
- |
- |
X |
- |
- |
- |
- |
X |
- |
|
- |
- |
- |
- |
X |
X |
- |
- |
X |
- |
|
- |
- |
- |
- |
- |
X |
- |
- |
X |
- |
|
- |
- |
- |
- |
- |
- |
X |
X |
X |
- |
|
- |
- |
- |
- |
- |
- |
- |
X |
X |
- |
|
X |
X |
X |
X |
X |
X |
X |
X |
X |
- |
|
- |
- |
- |
- |
- |
- |
- |
- |
- |
X |
11.2.3.4 TextMessage
A TextMessage
object is used to send a message containing a java.lang.StringBuffer
. It inherits from Message
and adds a TextMessage
body. The text information can be read or written using methods getText()
and setText(
...)
. To use TextMessage
objects, create the queue table with the SYS.AQ$_JMS_TEXT_MESSAGE
or AQ$_JMS_MESSAGE
payload types.
11.2.3.5 ObjectMessage
An ObjectMessage
object is used to send a message that contains a serializable Java object. It inherits from Message and adds a body containing a single Java reference. Only serializable Java objects can be used. If a collection of Java objects must be sent, then one of the collection classes provided in JDK 1.4 can be used. The objects can be read or written using the methods getObject()
and setObject(
...)
.To use ObjectMessage
objects, create the queue table with the SYS.AQ$_JMS_OBJECT_MESSAGE
or AQ$_JMS_MESSAGE
payload types.
11.2.3.6 AdtMessage
An AdtMessage
object is used to send a message that contains a Java object that maps to an Oracle object type. These objects inherit from Message
and add a body containing a Java object that implements the CustomDatum
or ORAData
interface.
To use AdtMessage
objects, create the queue table with payload type as the Oracle object type. The AdtMessage
payload can be read and written using the getAdtPayload
and setAdtPayload
methods.
You can also use an AdtMessage
object to send messages to queues of type SYS.XMLType
. You must use the oracle.xdb.XMLType
class to create the message.
For AdtMessage
objects, the client can get:
-
JMSXDeliveryCount
-
JMSXRecvTimeStamp
-
JMSXState
-
JMS_OracleExcpQ
-
JMS_OracleDelay
See Also:
Oracle Database Java Developer's Guide for information about the CustomDatum
and ORAData
interfaces
11.2.4 Using Message Properties with Different Message Types
The following message properties can be set by the client using the setProperty
call. For StreamMessage
, BytesMessage
, ObjectMessage
, TextMessage
, and MapMessage
objects, the client can set:
-
JMSXAppID
-
JMSXGroupID
-
JMSXGroupSeq
-
JMS_OracleExcpQ
-
JMS_OracleDelay
For AdtMessage
objects, the client can set:
-
JMS_OracleExcpQ
-
JMS_OracleDelay
The following message properties can be obtained by the client using the getProperty
call. For StreamMessage
, BytesMessage
, ObjectMessage
, TextMessage
, and MapMessage
objects, the client can get:
-
JMSXuserID
-
JMSXAppID
-
JMSXDeliveryCount
-
JMSXGroupID
-
JMSXGroupSeq
-
JMSXRecvTimeStamp
-
JMSXState
-
JMS_OracleExcpQ
-
JMS_OracleDelay
-
JMS_OracleOriginalMessageID
11.2.5 Buffered Messaging with Oracle JMS
Users can send a nonpersistent JMS message by specifying the deliveryMode
to be NON_PERSISTENT
when sending a message. JMS nonpersistent messages are not required to be logged to stable storage, so they can be lost after a JMS system failure. JMS nonpersistent messages are similar to the buffered messages available in Oracle Database Advanced Queuing, but there are also important differences between the two.
Note:
Do not confuse Oracle JMS nonpersistent messages with Oracle Database Advanced Queuing nonpersistent queues, which are deprecated in Oracle Database 10g Release 2 (10.2).
See Also:
Transaction Commits and Client Acknowledgments
The JMS deliveryMode
is orthogonal to the transaction attribute of a message. JMS nonpersistent messages can be sent and received by either a transacted session or a nontransacted session. If a JMS nonpersistent message is sent and received by a transacted session, then the effect of the JMS operation is only visible after the transacted session commits. If it is received by a nontransacted session with CLIENT_ACKNOWLEDGE
acknowledgment mode, then the effect of receiving this message is only visible after the client acknowledges the message. Without the acknowledgment, the message is not removed and will be redelivered if the client calls Session.recover
.
Oracle Database Advanced Queuing buffered messages, however, do not support these transaction or acknowledgment concepts. Both sending and receiving a buffered message must be in the IMMEDIATE
visibility mode. The effects of the sending and receiving operations are therefore visible to the user immediately, no matter whether the session is committed or the messages are acknowledged.
Different APIs
Messages sent with the regular JMS send and publish methods are treated by Oracle Database Advanced Queuing as persistent messages. The regular JMS receive methods receive only AQ persistent messages. To send and receive buffered messages, you must use the Oracle extension APIs bufferSend
, bufferPublish
, and bufferReceive
.
See Also:
Oracle Database Advanced Queuing Java API Reference for more information on bufferSend
, bufferPublish
, and bufferReceive
Payload Limits
The Oracle Database Advanced Queuing implementation of buffered messages does not support LOB
attributes. This places limits on the payloads for the five types of standard JMS messages:
-
JMS
TextMessage
payloads cannot exceed 4000 bytes.This limit might be even lower with some database character sets, because during the Oracle JMS character set conversion, Oracle JMS sometimes must make a conservative choice of using
CLOB
instead ofVARCHAR
to store the text payload in the database. -
JMS
BytesMessage
payloads cannot exceed 2000 bytes. -
JMS
ObjectMessage
,StreamMessage
, andMapMessage
data serialized by JAVA cannot exceed 2000 bytes. -
For all other Oracle JMS ADT messages, the corresponding Oracle database ADT cannot contain
LOB
attributes.
Different Constants
The Oracle Database Advanced Queuing and Oracle JMS APIs use different numerical values to designate buffered and persistent messages, as shown in Table 11-3.
Table 11-3 Oracle Database AQ and Oracle JMS Buffered Messaging Constants
API | Persistent Message | Buffered Message |
---|---|---|
Oracle Database Advanced Queuing |
|
|
Oracle JMS |
|
|
11.3 Buffered Messaging in JMS
Buffered messaging fully supports JMS messaging standards. Oracle JMS extends those standards in several ways.
See Also:
Enqueuing JMS Buffered Messages
Oracle JMS allows applications to send buffered messages by setting JMSDeliveryMode
for individual messages, so persistent and buffered messages can be enqueued to the same JMS queue/topic.
Oracle JMS buffered messages can be ordered by enqueue time, priority, or both. The ordering does not extend across message types. So a persistent message sent later, for example, can be delivered before an buffered message sent earlier. Expiration is also supported for buffered messages in Oracle JMS.
See Also:
Dequeuing JMS Buffered Messages
JMS does not require subscribers to declare interest in just persistent messages or just buffered messages, so JMS subscribers can be interested in both message types.
Oracle JMS supports fast and efficient dequeue of messages by JMSMessageID
, selectors on message headers, and selectors on message properties. The Oracle JMS dequeue call checks for both persistent and buffered messages.
Note:
Oracle JMS persistent messages have unique message identifiers. Oracle JMS buffered message identifiers are unique only within a queue/topic.
If concurrent dequeue processes are dequeuing from the same queue as the same subscriber, then they will skip messages that are locked by the other process.
See Also:
Transactions Support
If buffered messages are enqueued in a transacted session, then JMS requires transaction support for them. Oracle JMS guarantees that transacted sessions involving buffered messages meet the following standards:
-
Atomicity
Both persistent and buffered messages within an Oracle JMS transaction are committed or rolled back atomically. Even if buffered messages were written to disk, as in the case of messages involving LOBs, rollback nevertheless removes them.
-
Consistency
If persistent and buffered messaging operations interleave in a transaction, then all Oracle JMS users share a consistent view of the affected queues/topics. All persistent and buffered messages enqueued by a transaction become visible at commit time. If a process ends in the middle of a transaction, then both persistent and buffered messages are undone. Oracle JMS users see either all persistent and buffered messages in a transaction or none of them.
-
Isolation
An buffered enqueue operation in a transaction is visible only to the owner transaction before the transaction is committed. It is visible to all consumers after the transaction is committed.
Messages locked by dequeue transaction may be browsed.
Acknowledging Message Receipt
Three values are defined for the ack_mode
parameter for acknowledging message receipt in nontransacted sessions:
-
DUPS_OK_ACKNOWLEDGE
In this mode, duplicate messages are allowed.
-
AUTO_ACKNOWLEDGE
In this mode, the session automatically acknowledges messages.
-
CLIENT_ACKNOWLEDGE
In this mode, the client explicitly acknowledges messages by calling the message producer acknowledge method. Acknowledging a message acknowledges all previously consumed messages.
See Also:
Buffered Messaging Quality of Service
JMS requires providers to support at-most-once delivery of unpropagated buffered messages. If recovery of buffered messages is disabled, then Oracle JMS meets this standard.
Duplicate delivery of messages is possible with the current implementation of message propagation. But this does not violate the JMS standard, because message propagation is an extension offered by Oracle JMS.
See Also:
"Propagating Buffered Messages" for the causes of duplicate delivery of buffered messages
JMS Types Support for Buffered Messages
Oracle JMS maps the JMS-defined types to Oracle user-defined types and creates queues of these user-defined types for storing JMS messages. Some of these types have LOB attributes, which Oracle JMS writes to disk whether the message is persistent or buffered.
The user-defined type SYS.AQ$_JMS_TEXT_MESSAGE
for JMS type JMSTextMessage
, for example, stores text strings smaller than 4k in a VARCHAR2
column. But it has a CLOB attribute for storing text strings larger than 4k.
Because JMS messages are often larger than 4k, Oracle JMS offers a new ADT that allows larger messages to be stored in memory. The disk representation of the ADT remains unchanged, but several VARCHAR2
/RAW
attributes allow for JMS messages of sizes up to 100k to be stored in memory. Messages larger than 100k can still be published as buffered messages, but they are written to disk.
See Also:
11.4 JMS Point-to-Point Model Features
In the point-to-point model, clients exchange messages from one point to another. Message producers and consumers send and receive messages using single-consumer queues. An administrator creates the single-consumer queues with the createQueue
method in AQjmsSession
. Before they can be used, the queues must be enabled for enqueue/dequeue using the start
call in AQjmsDestination
. Clients obtain a handle to a previously created queue using the getQueue
method on AQjmsSession
.
In a single-consumer queue, a message can be consumed exactly once by a single consumer. If there are multiple processes or operating system threads concurrently dequeuing from the same queue, then each process dequeues the first unlocked message at the head of the queue. A locked message cannot be dequeued by a process other than the one that has created the lock.
After processing, the message is removed if the retention time of the queue is 0, or it is retained for a specified retention time. As long as the message is retained, it can be either queried using SQL on the queue table view or dequeued by specifying the message identifier of the processed message in a QueueBrowser
.
QueueSender
A client uses a QueueSender
to send messages to a queue. It is created by passing a queue to the createSender
method in a client Session
. A client also has the option of creating a QueueSender
without supplying a queue. In that case a queue must be specified on every send operation.
A client can specify a default delivery mode, priority and TimeToLive
for all messages sent by the QueueSender
. Alternatively, the client can define these options for each message.
QueueReceiver
A client uses a QueueReceiver
to receive messages from a queue. It is created using the createQueueReceiver
method in a client Session
. It can be created with or without a messageSelector
.
QueueBrowser
A client uses a QueueBrowser
to view messages on a queue without removing them. The browser method returns a java
.util
.Enumeration
that is used to scan messages in the queue. The first call to nextElement
gets a snapshot of the queue. A QueueBrowser
can be created with or without a messageSelector
.
A QueueBrowser
can also optionally lock messages as it is scanning them. This is similar to a "SELECT
... for
UPDATE"
command on the message. This prevents other consumers from removing the message while they are being scanned.
MessageSelector
A messageSelector
allows the client to restrict messages delivered to the consumer to those that match the messageSelector
expression. A messageSelector
for queues containing payloads of type TextMessage
, StreamMessage
, BytesMessage
, ObjectMessage
, or MapMessage
can contain any expression that has one or more of the following:
-
JMS message identifier prefixed with "ID:"
JMSMessageID ='ID:23452345'
-
JMS message header fields or properties
JMSPriority < 3 AND JMSCorrelationID = 'Fiction' JMSCorrelationID LIKE 'RE%'
-
User-defined message properties
color IN ('RED', BLUE', 'GREEN') AND price < 30000
The messageSelector
for queues containing payloads of type AdtMessage
can contain any expression that has one or more of the following:
-
Message identifier without the "ID:" prefix
msgid = '23434556566767676'
-
Priority, correlation identifier, or both
priority < 3 AND corrid = 'Fiction'
-
Message payload
tab.user_data.color = 'GREEN' AND tab.user_data.price < 30000
11.5 JMS Publish/Subscribe Model Features
This section contains these topics:
11.5.1 JMS Publish/Subscribe Overview
JMS enables flexible and dynamic communication between applications functioning as publishers and applications playing the role of subscribers. The applications are not coupled together; they interact based on messages and message content.
In distributing messages, publisher applications are not required to handle or manage message recipients explicitly. This allows new subscriber applications to be added dynamically without changing any publisher application logic.
Similarly, subscriber applications receive messages based on message content without regard to which publisher applications are sending messages. This allows new publisher applications to be added dynamically without changing any subscriber application logic.
Subscriber applications specify interest by defining a rule-based subscription on message properties or the message content of a topic. The system automatically routes messages by computing recipients for published messages using the rule-based subscriptions.
In the publish/subscribe model, messages are published to and received from topics. A topic is created using the CreateTopic()
method in an AQjmsSession
. A client can obtain a handle to a previously-created topic using the getTopic()
method in AQjmsSession
.
11.5.2 DurableSubscriber
A client creates a DurableSubscriber
with the createDurableSubscriber()
method in a client Session
. It can be created with or without a messageSelector
.
A messageSelector
allows the client to restrict messages delivered to the subscriber to those that match the selector. The syntax for the selector is described in detail in createDurableSubscriber
in Oracle Database Advanced Queuing Java API Reference.
When subscribers use the same name, durable subscriber action depends on the Java EE compliance mode set for an Oracle Java Message Service (Oracle JMS) client at runtime.
In noncompliant mode, two durable TopicSubscriber
objects with the same name can be active against two different topics. In compliant mode, durable subscribers with the same name are not allowed. If two subscribers use the same name and are created against the same topic, but the selector used for each subscriber is different, then the underlying Oracle Database Advanced Queuing subscription is altered using the internal DBMS_AQJMS.ALTER_SUBSCRIBER()
call.
If two subscribers use the same name and are created against two different topics, and if the client that uses the same subscription name also originally created the subscription name, then the existing subscription is dropped and the new subscription is created.
If two subscribers use the same name and are created against two different topics, and if a different client (a client that did not originate the subscription name) uses an existing subscription name, then the subscription is not dropped and an error is thrown. Because it is not known if the subscription was created by JMS or PL/SQL, the subscription on the other topic should not be dropped.
See Also:
11.5.3 RemoteSubscriber
Remote subscribers are defined using the createRemoteSubscriber
call. The remote subscriber can be a specific consumer at the remote topic or all subscribers at the remote topic
A remote subscriber is defined using the AQjmsAgent
structure. An AQjmsAgent
consists of a name and address. The name refers to the consumer_name
at the remote topic. The address refers to the remote topic:
schema.topic_name[@dblink]
To publish messages to a particular consumer at the remote topic, the subscription_name
of the recipient at the remote topic must be specified in the name field of AQjmsAgent
. The remote topic must be specified in the address field of AQjmsAgent
.
To publish messages to all subscribers of the remote topic, the name field of AQjmsAgent
must be set to null. The remote topic must be specified in the address field of AQjmsAgent
.
11.5.4 TopicPublisher
Messages are published using TopicPublisher
, which is created by passing a Topic
to a createPublisher
method. A client also has the option of creating a TopicPublisher
without supplying a Topic
. In this case, a Topic
must be specified on every publish operation. A client can specify a default delivery mode, priority and TimeToLive
for all messages sent by the TopicPublisher
. It can also specify these options for each message.
11.5.5 Recipient Lists
In the JMS publish/subscribe model, clients can specify explicit recipient lists instead of having messages sent to all the subscribers of the topic. These recipients may or may not be existing subscribers of the topic. The recipient list overrides the subscription list on the topic for this message. Recipient lists functionality is an Oracle extension to JMS.
11.5.6 TopicReceiver
If the recipient name is explicitly specified in the recipient list, but that recipient is not a subscriber to the queue, then messages sent to it can be received by creating a TopicReceiver
. If the subscriber name is not specified, then clients must use durable subscribers at the remote site to receive messages. TopicReceiver
is an Oracle extension to JMS.
A TopicReceiver
can be created with a messageSelector
. This allows the client to restrict messages delivered to the recipient to those that match the selector.
See Also:
11.5.7 TopicBrowser
A client uses a TopicBrowser
to view messages on a topic without removing them. The browser method returns a java.util.Enumeration
that is used to scan topic messages. Only durable subscribers are allowed to create a TopicBrowser
. The first call to nextElement
gets a snapshot of the topic.
A TopicBrowser
can optionally lock messages as it is scanning them. This is similar to a SELECT
... for
UPDATE
command on the message. This prevents other consumers from removing the message while it is being scanned.
A TopicBrowser
can be created with a messageSelector
. This allows the client to restrict messages delivered to the browser to those that match the selector.
TopicBrowser
supports a purge feature. This allows a client using a TopicBrowser
to discard all messages that have been seen during the current browse operation on the topic. A purge is equivalent to a destructive receive of all of the seen messages (as if performed using a TopicSubscriber
).
For a purge, a message is considered seen if it has been returned to the client using a call to the nextElement()
operation on the java.lang.Enumeration
for the TopicBrowser
. Messages that have not yet been seen by the client are not discarded during a purge. A purge operation can be performed multiple times on the same TopicBrowser
.
The effect of a purge becomes stable when the JMS Session
used to create the TopicBrowser
is committed. If the operations on the session are rolled back, then the effects of the purge operation are also undone.
11.6 JMS Message Producer Features
11.6.1 Priority and Ordering of Messages
Message ordering dictates the order in which messages are received from a queue or topic. The ordering method is specified when the queue table for the queue or topic is created. Currently, Oracle Database Advanced Queuing supports ordering on message priority and enqueue time, producing four possible ways of ordering:
-
First-In, First-Out (FIFO)
If enqueue time was chosen as the ordering criteria, then messages are received in the order of the enqueue time. The enqueue time is assigned to the message by Oracle Database Advanced Queuing at message publish/send time. This is also the default ordering.
-
Priority Ordering
If priority ordering was chosen, then each message is assigned a priority. Priority can be specified as a message property at publish/send time by the
MessageProducer
. The messages are received in the order of the priorities assigned. -
FIFO Priority
If FIFO priority ordering was chosen, then the topic/queue acts like a priority queue. If two messages are assigned the same priority, then they are received in the order of their enqueue time.
-
Enqueue Time Followed by Priority
Messages with the same enqueue time are received according to their priorities. If the ordering criteria of two message is the same, then the order they are received is indeterminate. However, Oracle Database Advanced Queuing does ensure that messages produced in one session with a particular ordering criteria are received in the order they were sent.
All ordering schemes available for persistent messages are also available for buffered messages, but only within each message class. Ordering among persistent and buffered messages enqueued/published in the same session is not currently supported.
11.6.2 Specifying a Message Delay
Messages can be sent/published to a queue/topic with delay. The delay represents a time interval after which the message becomes available to the message consumer. A message specified with a delay is in a waiting state until the delay expires. Receiving by message identifier overrides the delay specification.
Delay is an Oracle Database Advanced Queuing extension to JMS message properties. It requires the Oracle Database Advanced Queuing background process queue monitor to be started.
11.6.3 Specifying a Message Expiration
Producers of messages can specify expiration limits, or TimeToLive
for messages. This defines the period of time the message is available for a Message Consumer.
TimeToLive
can be specified at send/publish time or using the set TimeToLive
method of a MessageProducer
, with the former overriding the latter. The Oracle Database Advanced Queuing background process queue monitor must be running to implement TimeToLive
.
11.6.4 Message Grouping
Messages belonging to a queue/topic can be grouped to form a set that can be consumed by only one consumer at a time. This requires the queue/topic be created in a queue table that is enabled for transactional message grouping. All messages belonging to a group must be created in the same transaction, and all messages created in one transaction belong to the same group.
Message grouping is an Oracle Database Advanced Queuing extension to the JMS specification.
You can use this feature to divide a complex message into a linked series of simple messages. For example, an invoice directed to an invoices queue could be divided into a header message, followed by several messages representing details, followed by the trailer message.
Message grouping is also very useful if the message payload contains complex large objects such as images and video that can be segmented into smaller objects.
The priority, delay, and expiration properties for the messages in a group are determined solely by the message properties specified for the first message (head) of the group. Properties specified for subsequent messages in the group are ignored.
Message grouping is preserved during propagation. The destination topic must be enabled for transactional grouping.
See Also:
"Dequeue Features" for a discussion of restrictions you must keep in mind if message grouping is to be preserved while dequeuing messages from a queue enabled for transactional grouping
11.7 JMS Message Consumer Features
This section contains these topics:
11.7.1 Receiving Messages
A JMS application can receive messages by creating a message consumer. Messages can be received synchronously using the receive
call or asynchronously using a message listener.
There are three modes of receive:
-
Block until a message arrives for a consumer
-
Block for a maximum of the specified time
-
Nonblocking
11.7.2 Message Navigation in Receive
If a consumer does not specify a navigation mode, then its first receive
in a session retrieves the first message in the queue or topic, its second receive
gets the next message, and so on. If a high priority message arrives for the consumer, then the consumer does not receive the message until it has cleared the messages that were already there before it.
To provide the consumer better control in navigating the queue for its messages, Oracle Database Advanced Queuing offers several navigation modes as JMS extensions. These modes can be set at the TopicSubscriber
, QueueReceiver
or the TopicReceiver
.
Two modes are available for ungrouped messages:
-
FIRST_MESSAGE
This mode resets the position to the beginning of the queue. It is useful for priority ordered queues, because it allows the consumer to remove the message on the top of the queue.
-
NEXT_MESSAGE
This mode gets whatever message follows the established position of the consumer. For example, a
NEXT_MESSAGE
applied when the position is at the fourth message will get the fifth message in the queue. This is the default action.
Three modes are available for grouped messages:
-
FIRST_MESSAGE
This mode resets the position to the beginning of the queue.
-
NEXT_MESSAGE
This mode sets the position to the next message in the same transaction.
-
NEXT_TRANSACTION
This mode sets the position to the first message in the next transaction.
Note:
Sharded queues does not support the three preceding modes.
The transaction grouping property can be negated if messages are received in the following ways:
-
Receive by specifying a correlation identifier in the selector
-
Receive by specifying a message identifier in the selector
-
Committing before all the messages of a transaction group have been received
If the consumer reaches the end of the queue while using the NEXT
_MESSAGE
or NEXT
_TRANSACTION
option, and you have specified a blocking receive()
, then the navigating position is automatically changed to the beginning of the queue.
By default, a QueueReceiver
, TopicReceiver
, or TopicSubscriber
uses FIRST_MESSAGE
for the first receive call, and NEXT_MESSAGE
for subsequent receive()
calls.
11.7.3 Browsing Messages
Aside from the usual receive
, which allows the dequeuing client to delete the message from the queue, JMS provides an interface that allows the JMS client to browse its messages in the queue. A QueueBrowser
can be created using the createBrowser
method from QueueSession
.
If a message is browsed, then it remains available for further processing. That does not necessarily mean that the message will remain available to the JMS session after it is browsed, because a receive
call from a concurrent session might remove it.
To prevent a viewed message from being removed by a concurrent JMS client, you can view the message in the locked mode. To do this, you must create a QueueBrowser
with the locked mode using the Oracle Database Advanced Queuing extension to the JMS interface. The lock on the message is released when the session performs a commit or a rollback.
To remove a message viewed by a QueueBrowser
, the session must create a QueueReceiver
and use the JMSmesssageID
as the selector.
11.7.4 Remove No Data
The consumer can remove a message from a queue or topic without retrieving it using the receiveNoData
call. This is useful when the application has already examined the message, perhaps using a QueueBrowser
. This mode allows the JMS client to avoid the overhead of retrieving a payload from the database, which can be substantial for a large message.
11.7.5 Retry with Delay Interval
If a transaction receiving a message from a queue/topic fails, then it is regarded as an unsuccessful attempt to remove the message. Oracle Database Advanced Queuing records the number of failed attempts to remove the message in the message history.
An application can specify the maximum number of retries supported on messages at the queue/topic level. If the number of failed attempts to remove a message exceeds this maximum, then the message is moved to an exception queue.
Oracle Database Advanced Queuing allows users to specify a retry_delay
along with max_retries
. This means that a message that has undergone a failed attempt at retrieving remains visible in the queue for dequeue after retry_delay
interval. Until then it is in the WAITING
state. The Oracle Database Advanced Queuing background process time manager enforces the retry delay property.
The maximum retries and retry delay are properties of the queue/topic. They can be set when the queue/topic is created or by using the alter method on the queue/topic. The default value for MAX_RETRIES
is 5
.
Note:
Sharded queues does not support retry delay.
11.7.6 Asynchronously Receiving Messages Using MessageListener
The JMS client can receive messages asynchronously by setting the MessageListener
using the setMessageListener
method.
When a message arrives for the consumer, the onMessage
method of the message listener is invoked with the message. The message listener can commit or terminate the receipt of the message. The message listener does not receive messages if the JMS Connection
has been stopped. The receive
call must not be used to receive messages once the message listener has been set for the consumer.
The JMS client can receive messages asynchronously for all consumers in the session by setting the MessageListener
at the session. No other mode for receiving messages must be used in the session once the message listener has been set.
11.7.7 Exception Queues
An exception queue is a repository for all expired or unserviceable messages. Applications cannot directly enqueue into exception queues. However, an application that intends to handle these expired or unserviceable messages can receive/remove them from the exception queue.
To retrieve messages from exception queues, the JMS client must use the point-to-point interface. The exception queue for messages intended for a topic must be created in a queue table with multiple consumers enabled. Like any other queue, the exception queue must be enabled for receiving messages using the start
method in the AQOracleQueue
class. You get an exception if you try to enable it for enqueue.
Sharded queues now supports Exception Queues through the DBMS_AQADM.CREATE_EXCEPTION_QUEUE
API.
PROCEDURE CREATE_EXCEPTION_QUEUE(
sharded_queue_name IN VARCHAR2,
exception_queue_name IN VARCHAR2 DEFAULT NULL,
multiple_consumers IN BOOLEAN DEFAULT FALSE,
storage_clause IN VARCHAR2 DEFAULT NULL,
sort_list IN VARCHAR DEFAULT NULL,
comment IN VARCHAR2 DEFAULT NULL
);
The exception queue is an Oracle-specific message property called "JMS_OracleExcpQ"
that can be set with the message before sending/publishing it. If an exception queue is not specified, then the default exception queue is used. For non-sharded queues, the default exception queue is automatically created when the queue table is created and is named AQ$_
queue_table_name
_E
. By default, no exception queue is created for sharded queues.
Messages are moved to the exception queue under the following conditions:
-
The message was not dequeued within the specified
timeToLive
.For messages intended for more than one subscriber, the message is moved to the exception queue if one or more of the intended recipients is not able to dequeue the message within the specified
timeToLive
. -
The message was received successfully, but the application terminated the transaction that performed the
receive
because of an error while processing the message. The message is returned to the queue/topic and is available for any applications that are waiting to receive messages.A
receive
is considered rolled back or undone if the application terminates the entire transaction, or if it rolls back to a savepoint that was taken before thereceive
.Because this was a failed attempt to receive the message, its retry count is updated. If the retry count of the message exceeds the maximum value specified for the queue/topic where it resides, then it is moved to the exception queue.
If a message has multiple subscribers, then the message is moved to the exception queue only when all the recipients of the message have exceeded the retry limit.
Note:
If a dequeue transaction failed because the server process died (including ALTER
SYSTEM
KILL
SESSION
) or SHUTDOWN
ABORT
on the instance, then RETRY_COUNT
is not incremented.
11.8 JMS Propagation
This section contains these topics:
Note:
Sharded queues does not support RemoteSubscriber, Scheduling Propagation, Enhanced Propagation Scheduling Capabilities, and Exception Handling During Propagation.
11.8.1 RemoteSubscriber
Oracle Database Advanced Queuing allows a subscriber at another database to subscribe to a topic. If a message published to the topic meets the criterion of the remote subscriber, then it is automatically propagated to the queue/topic at the remote database specified for the remote subscriber. Propagation is performed using database links and Oracle Net Services. This enables applications to communicate with each other without having to be connected to the same database.
There are two ways to implement remote subscribers:
-
The
createRemoteSubscriber
method can be used to create a remote subscriber to/on the topic. The remote subscriber is specified as an instance of the classAQjmsAgent
. -
The
AQjmsAgent
has a name and an address. The address consists of a queue/topic and the database link to the database of the subscriber.
There are two kinds of remote subscribers:
-
The remote subscriber is a topic.
This occurs when no name is specified for the remote subscriber in the
AQjmsAgent
object and the address is a topic. The message satisfying the subscriber's subscription is propagated to the remote topic. The propagated message is now available to all the subscriptions of the remote topic that it satisfies. -
A specific remote recipient is specified for the message.
The remote subscription can be for a particular consumer at the remote database. If the name of the remote recipient is specified (in the
AQjmsAgent
object), then the message satisfying the subscription is propagated to the remote database for that recipient only. The recipient at the remote database uses theTopicReceiver
interface to retrieve its messages. The remote subscription can also be for a point-to-point queue.
11.8.2 Scheduling Propagation
Propagation must be scheduled using the schedule_propagation
method for every topic from which messages are propagated to target destination databases.
A schedule indicates the time frame during which messages can be propagated from the source topic. This time frame can depend on several factors such as network traffic, the load at the source database, the load at the destination database, and so on. The schedule therefore must be tailored for the specific source and destination. When a schedule is created, a job is automatically submitted to the job_queue
facility to handle propagation.
The administrative calls for propagation scheduling provide great flexibility for managing the schedules. The duration or propagation window parameter of a schedule specifies the time frame during which propagation must take place. If the duration is unspecified, then the time frame is an infinite single window. If a window must be repeated periodically, then a finite duration is specified along with a next_time
function that defines the periodic interval between successive windows.
The propagation schedules defined for a queue can be changed or dropped at any time during the life of the queue. In addition there are calls for temporarily disabling a schedule (instead of dropping the schedule) and enabling a disabled schedule. A schedule is active when messages are being propagated in that schedule. All the administrative calls can be made irrespective of whether the schedule is active or not. If a schedule is active, then it takes a few seconds for the calls to be executed.
Job queue processes must be started for propagation to take place. At least 2 job queue processes must be started. The database links to the destination database must also be valid. The source and destination topics of the propagation must be of the same message type. The remote topic must be enabled for enqueue. The user of the database link must also have enqueue privileges to the remote topic.
See Also:
11.8.3 Enhanced Propagation Scheduling Capabilities
Catalog views defined for propagation provide the following information about active schedules:
-
Name of the background process handling the schedule
-
SID (session and serial number) for the session handling the propagation
-
Instance handling a schedule (if using Oracle RAC)
-
Previous successful execution of a schedule
-
Next planned execution of a schedule
The following propagation statistics are maintained for each schedule, providing useful information to queue administrators for tuning:
-
The total number of messages propagated in a schedule
-
Total number of bytes propagated in a schedule
-
Maximum number of messages propagated in a window
-
Maximum number of bytes propagated in a window
-
Average number of messages propagated in a window
-
Average size of propagated messages
-
Average time to propagated a message
Propagation has built-in support for handling failures and reporting errors. For example, if the database link specified is invalid, or if the remote database is unavailable, or if the remote topic/queue is not enabled for enqueuing, then the appropriate error message is reported. Propagation uses an exponential backoff scheme for retrying propagation from a schedule that encountered a failure. If a schedule continuously encounters failures, then the first retry happens after 30 seconds, the second after 60 seconds, the third after 120 seconds and so forth. If the retry time is beyond the expiration time of the current window, then the next retry is attempted at the start time of the next window. A maximum of 16 retry attempts are made after which the schedule is automatically disabled.
Note:
Once a retry attempt slips to the next propagation window, it will always do so; the exponential backoff scheme no longer governs retry scheduling. If the date function specified in the next_time
parameter of DBMS_AQADM.SCHEDULE_PROPAGATION()
results in a short interval between windows, then the number of unsuccessful retry attempts can quickly reach 16, disabling the schedule.
When a schedule is disabled automatically due to failures, the relevant information is written into the alert log. It is possible to check at any time if there were failures encountered by a schedule and if so how many successive failures were encountered, the error message indicating the cause for the failure and the time at which the last failure was encountered. By examining this information, an administrator can fix the failure and enable the schedule.
If propagation is successful during a retry, then the number of failures is reset to 0.
Propagation has built-in support for Oracle Real Application Clusters and is transparent to the user and the administrator. The job that handles propagation is submitted to the same instance as the owner of the queue table where the source topic resides. If at any time there is a failure at an instance and the queue table that stores the topic is migrated to a different instance, then the propagation job is also automatically migrated to the new instance. This minimizes the pinging between instances and thus offers better performance. Propagation has been designed to handle any number of concurrent schedules.
The number of job_queue_processes
is limited to a maximum of 1000 and some of these can be used to handle jobs unrelated to propagation. Hence, propagation has built in support for multitasking and load balancing. The propagation algorithms are designed such that multiple schedules can be handled by a single snapshot (job_queue
) process. The propagation load on a job_queue
processes can be skewed based on the arrival rate of messages in the different source topics. If one process is overburdened with several active schedules while another is less loaded with many passive schedules, then propagation automatically redistributes the schedules among the processes such that they are loaded uniformly.
11.8.4 Exception Handling During Propagation
When a system error such as a network failure occurs, Oracle Database Advanced Queuing continues to attempt to propagate messages using an exponential back-off algorithm. In some situations that indicate application errors in queue-to-dblink propagations, Oracle Database Advanced Queuing marks messages as UNDELIVERABLE
and logs a message in alert.log
. Examples of such errors are when the remote queue does not exist or when there is a type mismatch between the source queue and the remote queue. The trace files in the background_dump_dest
directory can provide additional information about the error.
When a new job queue process starts, it clears the mismatched type errors so the types can be reverified. If you have capped the number of job queue processes and propagation remains busy, then you might not want to wait for the job queue process to terminate and restart. Queue types can be reverified at any time using DBMS_AQADM.VERIFY_QUEUE_TYPES
.
Note:
When a type mismatch is detected in queue-to-queue propagation, propagation stops and throws an error. In such situations you must query the DBA_SCHEDULES
view to determine the last error that occurred during propagation to a particular destination. The message is not marked as UNDELIVERABLE
.
11.9 Message Transformation with JMS AQ
A transformation can be defined to map messages of one format to another. Transformations are useful when applications that use different formats to represent the same information must be integrated. Transformations can be SQL expressions and PL/SQL functions. Message transformation is an Oracle Database Advanced Queuing extension to the standard JMS interface.
The transformations can be created using the DBMS_TRANSFORM.create_transformation
procedure. Transformation can be specified for the following operations:
-
Sending a message to a queue or topic
-
Receiving a message from a queue or topic
-
Creating a
TopicSubscriber
-
Creating a
RemoteSubscriber
. This enables propagation of messages between topics of different formats.
Note:
JMS Sharded Queues does not support message transformation.
11.10 JMS Streaming
AQ JMS supports streaming with enqueue and dequeue for sharded queues through AQjmsBytesMessage
and AQjmsStreamMessage
for applications to send and receive large message data or payload.
JMS streaming reduces the memory requirement when dealing with large messages, by dividing the message payload into small chunks rather than sending or receiving a large contiguous array of bytes. As JMS standard does not have any streaming mechanism, AQ JMS will provide proprietary interfaces to expose AQ streaming enqueue and dequeue features. This allows users to easily use an existing java input output stream to send and receive message data or payload.
In order to allow the existing applications to work without any changes on upgrading database to RDBMS 12.2, the streaming APIs will be disabled by default.
The client application can enable JMS Streaming by using the system property oracle.jms.useJmsStreaming
set to true
.
Note:
JMS Streaming is supported only for thin drivers.
11.10.1 JMS Streaming with Enqueue
AQ JMS provides the new API setInputStream(java.io.InputStream)
in AQjmsBytesMessage
and AQjmsStreamMessage
, to set an input stream for message data.
/** * @param inputStream - InputStream to read the message payload * @throws JMSException - if the JMS provided fails to read the payload due to * some internal error */ public void setInputStream(InputStream inputStream) throws JMSException
The following code snippet creates a message of type AQjmsBytesMessage
and sets a FileInputStream
for the message data.
Session session = connection.createSession(false, Session.CLIENT_ACKNOWLEDGE); Destination destination = session.createQueue("queueName"); MessageProducer producer = session.createProducer(destination); AQjmsBytesMessage bytesMessage = (AQjmsBytesMessage)session.createBytesMessage(); InputStream input = new FileInputStream("somefile.data"); bytesMessage.setInputStream(input); producer.send(bytesMessage);
Note:
-
The methods in
BytesMessage
andStreamMessage
are based on the methods found injava.io.DataInputStream
andjava.io.DataOutputStream
, and hence, meaningful conversion of variousread*()
andwrite*()
methods is not possible with streaming. The following scenarios will result in an exception:-
bytesMessage.setInputStream(input);
bytesMessage.writeInt(99);
-
bytesMessage.writeInt(99);
bytesMessage.setInputStream(input);
-
-
As with normal enqueue operation, the enqueue with streaming is going to be a synchronous one and we will return the control to the client only after the enqueue is complete.
-
Streaming will be used with enqueue only when these APIs are explicitly used by the client. AQ JMS will not use streaming with enqueue with the normal enqueue, irrespective of the size of the message data.
11.10.2 JMS Streaming with Dequeue
The dequeue operation with streaming is achieved in two steps. The server decides whether to stream the message body or not based on the size of the message body. The default threshold limit is 10 MB. So when the message body is greater than 10MB and streaming is enabled by the client using the system property oracle.jms.useJmsStreaming, server will use streaming with dequeue.
-
This is the normal dequeue process where a client calls the
receive()
method.Destination destination = session.createQueue ("queueName"); AQjmsConsumer consumer = (AQjmsConsumer) session.createConsumer(destination); Message message = consumer.receive(10000);
-
When the client receives the message without the payload, client can figure out whether the streaming is used for dequeue by calling
isLargeBody()
on the received message./** * This method can be used by the client applications to check whether the message * contains large messaege body and hence requires streaming with dequeue. * * @return true when the message body is large and server decides to stream * the payload with dequeue */ public boolean isLargeBody()
A value of true returned by
isLargeBody()
indicates streaming with dequeue. When the dequeue uses streaming, AQ JMS will populate the length of the message body properly forAQjmsStreamMessage
along withAQjmsBytesMessage
. So the client application can call thegetBodyLength()
on the message to determine the size of the payload.public long getBodyLength()
Once client has the understanding about the streaming with dequeue, the message data can be fetched by using one of the following APIs on the received message.
The client application can use on the following APIs available in AQjmsBytesMessage
and AQjmsStreamMessage
to receive the message data.
/** * Writes the message body to the OutputStream specified. * * @param outputStream - the OutputStream to which message body can be written * @return the OutputStream containing the message body. * @throws JMSException - if the JMS provided fails to receive the message body * due to some internal error */ public OutputStream getBody(OutputStream outputStream) throws JMSException /** * Writes the message body to the OutputStream specified, with chunkSize bytes * written at a time. * * @param outputStream - the OutputStream to which message body can be written * @param chunkSize - the number of bytes to be written at a time, default value * 8192 (ie. 8KB) * @return the OutputStream containing the message body. * @throws JMSException - if the JMS provided fails to receive the message body * due to some internal error */ public OutputStream getBody(OutputStream outputStream, int chunkSize)throws JMSException /** * Writes the message body to the OutputStream specified. This method waits until * the message body is written completely to the OutputStream or the timeout expires. * * A timeout of zero never expires, and a timeout of negative value is ignored. * * @param outputStream - the OutputStream to which message body can be written * @param timeout - the timeout value (in milliseconds) * @return the OutputStream containing the message body. * @throws JMSException - if the JMS provided fails to receive the message body * due to some internal error */ public OutputStream getBody(OutputStream outputStream, long timeout) throws JMSException /** * Writes the message body to the OutputStream specified, chunkSize bytes at a time. * This method waits until the message body is written completely to the OutputStream * or the timeout expires. * * A timeout of zero never expires, and a timeout of negative value is ignored. * * @param outputStream - the OutputStream to which message body can be written * @param chunkSize - the number of bytes to be written at a time, * default value 8192 (ie. 8KB) * @param timeout - the timeout value (in milliseconds) * @return the OutputStream containing the message body. * @throws JMSException - if the JMS provided fails to receive the message body * due to some internal error */ public OutputStream getBody(OutputStream outputStream, int chunkSize, long timeout) throws JMSException
The following code snippet checks whether streaming is used with dequeue and the payload received will be written to a FileOutputStream
.
if (message instanceof BytesMessage && (AQjmsBytesMessage)message.isLargeBody()){ // optional : check the size of the payload and take appropriate action before // receiving the payload. (AQjmsBytesMessage) message.getBody(new FileOutputStream(new File("…"))); } else { // normal dequeue }
In general, when both the steps are complete, the message is considered as consumed completely. The AQ server keeps a lock on the message after Step 1 which will be released only after Step 2.
Considering the possible issues with partially consumed messages by the message consumers, we have restricted the Streaming APIs for the session with acknowledgement modes CLIENT_ACKNOWLEDGE
and SESSION_TRANSACTED
.
So all the messages including partially consumed messages are considered fully consumed when:
-
message.acknowledge()
is called withCLIENT_ACKNOWLEDGE
session. -
Session's
commit()
is called in a transacted session.
As in normal case, session rollback()
, rolls back the messages received in that session.
The JMS Streaming is available with the following restrictions:
-
Streaming is disabled by default, and can be enabled by the client application using the system property
oracle.jms.useJmsStreaming
-
Dequeue uses streaming when the size of the message data is more than the threshold value. The default threshold value is 10 MB.
-
Streaming support is available with
AQjmsBytesMessage
andAQjmsStreamMessage
-
Streaming support is available only for sharded queues
-
Streaming support is available only with thin drivers
-
Streaming support is not available when the message producer uses the message delivery mode as
NON_PERSISTENT
-
Streaming is not supported with message listener. So when a MessageConsumer has a message listener set and if the message data crosses threshold limit, internally we will use the normal dequeue.
-
Streaming support is available with Sessions using acknowledgement modes
CLIENT_ACKNOWLEDGE
andSESSION_TRANSACTED
.
11.11 Java EE Compliance
Oracle JMS conforms to the Oracle Sun Microsystems JMS 1.1 standard. You can define the Java EE compliance mode for an Oracle Java Message Service (Oracle JMS) client at runtime. For compliance, set the Java property oracle.jms.j2eeCompliant
to TRUE
as a command line option. For noncompliance, do nothing. FALSE
is the default value.
Features in Oracle Database Advanced Queuing that support Java EE compliance (and are also available in the noncompliant mode) include:
-
Nontransactional sessions
-
Durable subscribers
-
Temporary queues and topics
-
Nonpersistent delivery mode
-
Multiple JMS messages types on a single JMS queue or topic (using Oracle Database Advanced Queuing queues of the
AQ$_JMS_MESSAGE
type) -
The
noLocal
option for durable subscribers -
JMS Sharded Queues have native JMS support and conform to Java EE compliance
See Also:
-
Java Message Service Specification, version 1.1, March 18, 2002, Sun Microsystems, Inc.
-
"JMS Message Headers" for information on how the Java property
oracle.jms.j2eeCompliant
affects JMSPriority and JMSExpiration -
"DurableSubscriber" for information on how the Java property
oracle.jms.j2eeCompliant
affects durable subscribers
