DropShadow (JavaFX 8)

java.lang.Object
- javafx.scene.effect.Effect
- - javafx.scene.effect.DropShadow

public class DropShadow
extends Effect

A high-level effect that renders a shadow of the given content behind the content with the specified color, radius, and offset.

Example:



 DropShadow dropShadow = new DropShadow();
 dropShadow.setRadius(5.0);
 dropShadow.setOffsetX(3.0);
 dropShadow.setOffsetY(3.0);
 dropShadow.setColor(Color.color(0.4, 0.5, 0.5));  *

 Text text = new Text();
 text.setEffect(dropShadow);
 text.setCache(true);
 text.setX(10.0);
 text.setY(70.0);
 text.setFill(Color.web("0x3b596d"));
 text.setText("JavaFX drop shadow...");
 text.setFont(Font.font(null, FontWeight.BOLD, 40));

 DropShadow dropShadow2 = new DropShadow();
 dropShadow2.setOffsetX(6.0);
 dropShadow2.setOffsetY(4.0);

 Circle circle = new Circle();
 circle.setEffect(dropShadow2);
 circle.setCenterX(50.0);
 circle.setCenterY(125.0);
 circle.setRadius(30.0);
 circle.setFill(Color.STEELBLUE);
 circle.setCache(true);

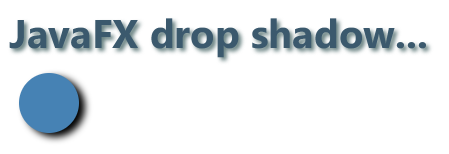

The code above produces the following:

Since:: JavaFX 2.0

Property Summary

All Methods Instance Methods Concrete Methods
Type	Property and Description
`ObjectProperty<BlurType>`	`blurType` The algorithm used to blur the shadow.
`ObjectProperty<Color>`	`color` The shadow `Color`.
`DoubleProperty`	`height` The vertical size of the shadow blur kernel.
`ObjectProperty<Effect>`	`input` The input for this `Effect`.
`DoubleProperty`	`offsetX` The shadow offset in the x direction, in pixels.
`DoubleProperty`	`offsetY` The shadow offset in the y direction, in pixels.
`DoubleProperty`	`radius` The radius of the shadow blur kernel.
`DoubleProperty`	`spread` The spread of the shadow.
`DoubleProperty`	`width` The horizontal size of the shadow blur kernel.

Constructor Summary

Constructors
Constructor and Description
`DropShadow()` Creates a new instance of DropShadow with default parameters.
`DropShadow(BlurType blurType, Color color, double radius, double spread, double offsetX, double offsetY)` Creates a new instance of DropShadow with the specified blurType, color, radius, spread, offsetX and offsetY.
`DropShadow(double radius, Color color)` Creates a new instance of DropShadow with specified radius and color.
`DropShadow(double radius, double offsetX, double offsetY, Color color)` Creates a new instance of DropShadow with the specified radius, offsetX, offsetY and color.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`ObjectProperty<BlurType>`	`blurTypeProperty()` The algorithm used to blur the shadow.
`ObjectProperty<Color>`	`colorProperty()` The shadow `Color`.
`BlurType`	`getBlurType()` Gets the value of the property blurType.
`Color`	`getColor()` Gets the value of the property color.
`double`	`getHeight()` Gets the value of the property height.
`Effect`	`getInput()` Gets the value of the property input.
`double`	`getOffsetX()` Gets the value of the property offsetX.
`double`	`getOffsetY()` Gets the value of the property offsetY.
`double`	`getRadius()` Gets the value of the property radius.
`double`	`getSpread()` Gets the value of the property spread.
`double`	`getWidth()` Gets the value of the property width.
`DoubleProperty`	`heightProperty()` The vertical size of the shadow blur kernel.
`ObjectProperty<Effect>`	`inputProperty()` The input for this `Effect`.
`DoubleProperty`	`offsetXProperty()` The shadow offset in the x direction, in pixels.
`DoubleProperty`	`offsetYProperty()` The shadow offset in the y direction, in pixels.
`DoubleProperty`	`radiusProperty()` The radius of the shadow blur kernel.
`void`	`setBlurType(BlurType value)` Sets the value of the property blurType.
`void`	`setColor(Color value)` Sets the value of the property color.
`void`	`setHeight(double value)` Sets the value of the property height.
`void`	`setInput(Effect value)` Sets the value of the property input.
`void`	`setOffsetX(double value)` Sets the value of the property offsetX.
`void`	`setOffsetY(double value)` Sets the value of the property offsetY.
`void`	`setRadius(double value)` Sets the value of the property radius.
`void`	`setSpread(double value)` Sets the value of the property spread.
`void`	`setWidth(double value)` Sets the value of the property width.
`DoubleProperty`	`spreadProperty()` The spread of the shadow.
`DoubleProperty`	`widthProperty()` The horizontal size of the shadow blur kernel.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Property Detail
  - input
```
public final ObjectProperty<Effect> inputProperty
```
    The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.

    Default value:

    null

    See Also:

    getInput(), setInput(Effect)
  - radius
```
public final DoubleProperty radiusProperty
```
    The radius of the shadow blur kernel. This attribute controls the distance that the shadow is spread to each side of the source pixels. Setting the radius is equivalent to setting both the width and height attributes to a value of (2 * radius + 1).
```
       Min:   0.0
       Max: 127.0
   Default:  10.0
  Identity:   0.0

```
    Default value:

    10.0

    See Also:

    getRadius(), setRadius(double)
  - width
```
public final DoubleProperty widthProperty
```
    The horizontal size of the shadow blur kernel. This attribute controls the horizontal size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
```
       Min:   0.0
       Max: 255.0
   Default:  21.0
  Identity:  <1.0

```
    Default value:

    21.0

    See Also:

    getWidth(), setWidth(double)
  - height
```
public final DoubleProperty heightProperty
```
    The vertical size of the shadow blur kernel. This attribute controls the vertical size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
```
       Min:   0.0
       Max: 255.0
   Default:  21.0
  Identity:  <1.0

```
    Default value:

    21.0

    See Also:

    getHeight(), setHeight(double)
  - blurType
```
public final ObjectProperty<BlurType> blurTypeProperty
```
    The algorithm used to blur the shadow.
```
       Min: n/a
       Max: n/a
   Default: BlurType.THREE_PASS_BOX
  Identity: n/a

```
    Default value:

    THREE_PASS_BOX

    See Also:

    getBlurType(), setBlurType(BlurType)
  - spread
```
public final DoubleProperty spreadProperty
```
    The spread of the shadow. The spread is the portion of the radius where the contribution of the source material will be 100%. The remaining portion of the radius will have a contribution controlled by the blur kernel. A spread of 0.0 will result in a distribution of the shadow determined entirely by the blur algorithm. A spread of 1.0 will result in a solid growth outward of the source material opacity to the limit of the radius with a very sharp cutoff to transparency at the radius.
```
       Min: 0.0
       Max: 1.0
   Default: 0.0
  Identity: 0.0

```
    Default value:

    0.0

    See Also:

    getSpread(), setSpread(double)
  - color
```
public final ObjectProperty<Color> colorProperty
```
    The shadow Color.
```
       Min: n/a
       Max: n/a
   Default: Color.BLACK
  Identity: n/a

```
    Default value:

    BLACK

    See Also:

    getColor(), setColor(Color)
  - offsetX
```
public final DoubleProperty offsetXProperty
```
    The shadow offset in the x direction, in pixels.
```
       Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0

```
    Default value:

    0.0

    See Also:

    getOffsetX(), setOffsetX(double)
  - offsetY
```
public final DoubleProperty offsetYProperty
```
    The shadow offset in the y direction, in pixels.
```
       Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0

```
    Default value:

    0.0

    See Also:

    getOffsetY(), setOffsetY(double)
- Constructor Detail
  - DropShadow
```
public DropShadow()
```
    Creates a new instance of DropShadow with default parameters.
  - DropShadow
```
public DropShadow(double radius,
                  Color color)
```
    Creates a new instance of DropShadow with specified radius and color.

    Parameters:

    radius - the radius of the shadow blur kernel

    color - the shadow Color

    Since:

    JavaFX 2.1
  - DropShadow
```
public DropShadow(double radius,
                  double offsetX,
                  double offsetY,
                  Color color)
```
    Creates a new instance of DropShadow with the specified radius, offsetX, offsetY and color.

    Parameters:

    radius - the radius of the shadow blur kernel

    offsetX - the shadow offset in the x direction

    offsetY - the shadow offset in the y direction

    color - the shadow Color

    Since:

    JavaFX 2.1
  - DropShadow
```
public DropShadow(BlurType blurType,
                  Color color,
                  double radius,
                  double spread,
                  double offsetX,
                  double offsetY)
```
    Creates a new instance of DropShadow with the specified blurType, color, radius, spread, offsetX and offsetY.

    Parameters:

    blurType - the algorithm used to blur the shadow

    color - the shadow Color

    radius - the radius of the shadow blur kernel

    spread - the portion of the radius where the contribution of the source material will be 100%

    offsetX - the shadow offset in the x direction

    offsetY - the shadow offset in the y direction

    Since:

    JavaFX 2.1
- Method Detail
  - setInput
```
public final void setInput(Effect value)
```
    Sets the value of the property input.

    Property description:

    The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.

    Default value:

    null
  - getInput
```
public final Effect getInput()
```
    Gets the value of the property input.

    Property description:

    The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.

    Default value:

    null
  - inputProperty
```
public final ObjectProperty<Effect> inputProperty()
```
    The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.

    Default value:

    null

    See Also:

    getInput(), setInput(Effect)
  - setRadius
```
public final void setRadius(double value)
```
    Sets the value of the property radius.
    Property description:
    The radius of the shadow blur kernel. This attribute controls the distance that the shadow is spread to each side of the source pixels. Setting the radius is equivalent to setting both the width and height attributes to a value of (2 * radius + 1).
    Min: 0.0 Max: 127.0 Default: 10.0 Identity: 0.0
    Default value:

    10.0
  - getRadius
```
public final double getRadius()
```
    Gets the value of the property radius.
    Property description:
    The radius of the shadow blur kernel. This attribute controls the distance that the shadow is spread to each side of the source pixels. Setting the radius is equivalent to setting both the width and height attributes to a value of (2 * radius + 1).
    Min: 0.0 Max: 127.0 Default: 10.0 Identity: 0.0
    Default value:

    10.0
  - radiusProperty
```
public final DoubleProperty radiusProperty()
```
    The radius of the shadow blur kernel. This attribute controls the distance that the shadow is spread to each side of the source pixels. Setting the radius is equivalent to setting both the width and height attributes to a value of (2 * radius + 1).
```
       Min:   0.0
       Max: 127.0
   Default:  10.0
  Identity:   0.0

```
    Default value:

    10.0

    See Also:

    getRadius(), setRadius(double)
  - setWidth
```
public final void setWidth(double value)
```
    Sets the value of the property width.
    Property description:
    The horizontal size of the shadow blur kernel. This attribute controls the horizontal size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
    Min: 0.0 Max: 255.0 Default: 21.0 Identity: <1.0
    Default value:

    21.0
  - getWidth
```
public final double getWidth()
```
    Gets the value of the property width.
    Property description:
    The horizontal size of the shadow blur kernel. This attribute controls the horizontal size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
    Min: 0.0 Max: 255.0 Default: 21.0 Identity: <1.0
    Default value:

    21.0
  - widthProperty
```
public final DoubleProperty widthProperty()
```
    The horizontal size of the shadow blur kernel. This attribute controls the horizontal size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
```
       Min:   0.0
       Max: 255.0
   Default:  21.0
  Identity:  <1.0

```
    Default value:

    21.0

    See Also:

    getWidth(), setWidth(double)
  - setHeight
```
public final void setHeight(double value)
```
    Sets the value of the property height.
    Property description:
    The vertical size of the shadow blur kernel. This attribute controls the vertical size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
    Min: 0.0 Max: 255.0 Default: 21.0 Identity: <1.0
    Default value:

    21.0
  - getHeight
```
public final double getHeight()
```
    Gets the value of the property height.
    Property description:
    The vertical size of the shadow blur kernel. This attribute controls the vertical size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
    Min: 0.0 Max: 255.0 Default: 21.0 Identity: <1.0
    Default value:

    21.0
  - heightProperty
```
public final DoubleProperty heightProperty()
```
    The vertical size of the shadow blur kernel. This attribute controls the vertical size of the total area over which the shadow of a single pixel is distributed by the blur algorithm. Values less than 1.0 are not distributed beyond the original pixel and so have no blurring effect on the shadow.
```
       Min:   0.0
       Max: 255.0
   Default:  21.0
  Identity:  <1.0

```
    Default value:

    21.0

    See Also:

    getHeight(), setHeight(double)
  - setBlurType
```
public final void setBlurType(BlurType value)
```
    Sets the value of the property blurType.
    Property description:
    The algorithm used to blur the shadow.
    Min: n/a Max: n/a Default: BlurType.THREE_PASS_BOX Identity: n/a
    Default value:

    THREE_PASS_BOX
  - getBlurType
```
public final BlurType getBlurType()
```
    Gets the value of the property blurType.
    Property description:
    The algorithm used to blur the shadow.
    Min: n/a Max: n/a Default: BlurType.THREE_PASS_BOX Identity: n/a
    Default value:

    THREE_PASS_BOX
  - blurTypeProperty
```
public final ObjectProperty<BlurType> blurTypeProperty()
```
    The algorithm used to blur the shadow.
```
       Min: n/a
       Max: n/a
   Default: BlurType.THREE_PASS_BOX
  Identity: n/a

```
    Default value:

    THREE_PASS_BOX

    See Also:

    getBlurType(), setBlurType(BlurType)
  - setSpread
```
public final void setSpread(double value)
```
    Sets the value of the property spread.
    Property description:
    The spread of the shadow. The spread is the portion of the radius where the contribution of the source material will be 100%. The remaining portion of the radius will have a contribution controlled by the blur kernel. A spread of 0.0 will result in a distribution of the shadow determined entirely by the blur algorithm. A spread of 1.0 will result in a solid growth outward of the source material opacity to the limit of the radius with a very sharp cutoff to transparency at the radius.
    Min: 0.0 Max: 1.0 Default: 0.0 Identity: 0.0
    Default value:

    0.0
  - getSpread
```
public final double getSpread()
```
    Gets the value of the property spread.
    Property description:
    The spread of the shadow. The spread is the portion of the radius where the contribution of the source material will be 100%. The remaining portion of the radius will have a contribution controlled by the blur kernel. A spread of 0.0 will result in a distribution of the shadow determined entirely by the blur algorithm. A spread of 1.0 will result in a solid growth outward of the source material opacity to the limit of the radius with a very sharp cutoff to transparency at the radius.
    Min: 0.0 Max: 1.0 Default: 0.0 Identity: 0.0
    Default value:

    0.0
  - spreadProperty
```
public final DoubleProperty spreadProperty()
```
    The spread of the shadow. The spread is the portion of the radius where the contribution of the source material will be 100%. The remaining portion of the radius will have a contribution controlled by the blur kernel. A spread of 0.0 will result in a distribution of the shadow determined entirely by the blur algorithm. A spread of 1.0 will result in a solid growth outward of the source material opacity to the limit of the radius with a very sharp cutoff to transparency at the radius.
```
       Min: 0.0
       Max: 1.0
   Default: 0.0
  Identity: 0.0

```
    Default value:

    0.0

    See Also:

    getSpread(), setSpread(double)
  - setColor
```
public final void setColor(Color value)
```
    Sets the value of the property color.
    Property description:
    The shadow Color.
    Min: n/a Max: n/a Default: Color.BLACK Identity: n/a
    Default value:

    BLACK
  - getColor
```
public final Color getColor()
```
    Gets the value of the property color.
    Property description:
    The shadow Color.
    Min: n/a Max: n/a Default: Color.BLACK Identity: n/a
    Default value:

    BLACK
  - colorProperty
```
public final ObjectProperty<Color> colorProperty()
```
    The shadow Color.
```
       Min: n/a
       Max: n/a
   Default: Color.BLACK
  Identity: n/a

```
    Default value:

    BLACK

    See Also:

    getColor(), setColor(Color)
  - setOffsetX
```
public final void setOffsetX(double value)
```
    Sets the value of the property offsetX.
    Property description:
    The shadow offset in the x direction, in pixels.
    Min: n/a Max: n/a Default: 0.0 Identity: 0.0
    Default value:

    0.0
  - getOffsetX
```
public final double getOffsetX()
```
    Gets the value of the property offsetX.
    Property description:
    The shadow offset in the x direction, in pixels.
    Min: n/a Max: n/a Default: 0.0 Identity: 0.0
    Default value:

    0.0
  - offsetXProperty
```
public final DoubleProperty offsetXProperty()
```
    The shadow offset in the x direction, in pixels.
```
       Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0

```
    Default value:

    0.0

    See Also:

    getOffsetX(), setOffsetX(double)
  - setOffsetY
```
public final void setOffsetY(double value)
```
    Sets the value of the property offsetY.
    Property description:
    The shadow offset in the y direction, in pixels.
    Min: n/a Max: n/a Default: 0.0 Identity: 0.0
    Default value:

    0.0
  - getOffsetY
```
public final double getOffsetY()
```
    Gets the value of the property offsetY.
    Property description:
    The shadow offset in the y direction, in pixels.
    Min: n/a Max: n/a Default: 0.0 Identity: 0.0
    Default value:

    0.0
  - offsetYProperty
```
public final DoubleProperty offsetYProperty()
```
    The shadow offset in the y direction, in pixels.
```
       Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0

```
    Default value:

    0.0

    See Also:

    getOffsetY(), setOffsetY(double)

Submit a bug or feature
For further API reference and developer documentation, see Java SE Documentation. That documentation contains more detailed, developer-targeted descriptions, with conceptual overviews, definitions of terms, workarounds, and working code examples.
Copyright © 2008, 2017, Oracle and/or its affiliates. All rights reserved. Use is subject to license terms. Also see the documentation redistribution policy.

Class DropShadow

Property Summary

Constructor Summary

Method Summary

Methods inherited from class java.lang.Object

Property Detail

input

radius

width

height

blurType

spread

color

offsetX

offsetY

Constructor Detail

DropShadow

DropShadow

DropShadow

DropShadow

Method Detail

setInput

getInput

inputProperty

setRadius

getRadius

radiusProperty

setWidth

getWidth

widthProperty

setHeight

getHeight

heightProperty

setBlurType

getBlurType

blurTypeProperty

setSpread

getSpread

spreadProperty

setColor

getColor

colorProperty

setOffsetX

getOffsetX

offsetXProperty

setOffsetY

getOffsetY

offsetYProperty
