46.7 Sending Messages from a Session Bean to an MDB

This section explains how to write, compile, package, deploy, and run an application that uses the JMS API in conjunction with a session bean. The application contains the following components:

  • An application client that invokes a session bean

  • A session bean that publishes several messages to a topic

  • A message-driven bean that receives and processes the messages using a durable topic subscription and a message selector

You will find the source files for this section in the tut-install/examples/jms/clientsessionmdb/ directory. Path names in this section are relative to this directory.

46.7.1 Writing the Application Components for the clientsessionmdb Example

This application demonstrates how to send messages from an enterprise bean (in this case, a session bean) rather than from an application client, as in the example in Receiving Messages Asynchronously Using a Message-Driven Bean. Figure 46-4 illustrates the structure of this application. Sending messages from an enterprise bean is very similar to sending messages from a managed bean, which was shown in Sending and Receiving Messages Using a Simple Web Application.

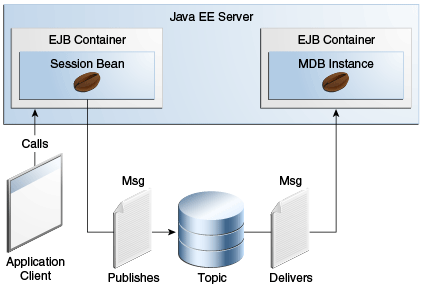

Figure 46-4 An Enterprise Bean Application: Client to Session Bean to Message-Driven Bean

Description of Figure 46-4 follows
Description of "Figure 46-4 An Enterprise Bean Application: Client to Session Bean to Message-Driven Bean"

The Publisher enterprise bean in this example is the enterprise-application equivalent of a wire-service news feed that categorizes news events into six news categories. The message-driven bean could represent a newsroom, where the sports desk, for example, would set up a subscription for all news events pertaining to sports.

The application client in the example injects the Publisher enterprise bean's remote home interface and then calls the bean's business method. The enterprise bean creates 18 text messages. For each message, it sets a String property randomly to one of six values representing the news categories and then publishes the message to a topic. The message-driven bean uses a message selector for the property to limit which of the published messages will be delivered to it.

46.7.1.1 Coding the Application Client: MyAppClient.java

The application client, MyAppClient.java, found under clientsessionmdb-app-client, performs no JMS API operations and so is simpler than the client in Receiving Messages Asynchronously Using a Message-Driven Bean. The client uses dependency injection to obtain the Publisher enterprise bean's business interface:

@EJB(name="PublisherRemote")
private static PublisherRemote publisher;

The client then calls the bean's business method twice.

46.7.1.2 Coding the Publisher Session Bean

The Publisher bean is a stateless session bean that has one business method. The Publisher bean uses a remote interface rather than a local interface because it is accessed from the application client.

The remote interface, PublisherRemote.java, found under clientsessionmdb-ejb, declares a single business method, publishNews.

The bean class, PublisherBean.java, also found under clientsessionmdb-ejb, implements the publishNews method and its helper method chooseType. The bean class injects SessionContext and Topic resources (the topic is defined in the message-driven bean). It then injects a JMSContext, which uses the preconfigured default connection factory unless you specify otherwise. The bean class begins as follows:

@Stateless
@Remote({
    PublisherRemote.class
})
public class PublisherBean implements PublisherRemote {

    @Resource
    private SessionContext sc;
    @Resource(lookup = "java:module/jms/newsTopic")
    private Topic topic;
    @Inject
    private JMSContext context;
    ...

The business method publishNews creates a JMSProducer and publishes the messages.

46.7.1.3 Coding the Message-Driven Bean: MessageBean.java

The message-driven bean class, MessageBean.java, found under clientsessionmdb-ejb, is almost identical to the one in Receiving Messages Asynchronously Using a Message-Driven Bean. However, the @MessageDriven annotation is different, because instead of a queue, the bean is using a topic, a durable subscription, and a message selector. The bean defines a topic for the use of the application; the definition uses the java:module scope because both the session bean and the message-driven bean are in the same module. Because the destination is defined in the message-driven bean, the @MessageDriven annotation uses the destinationLookup activation config property. (See Creating Resources for Java EE Applications for more information.) The annotation also sets the activation config properties messageSelector, subscriptionDurability, clientId, and subscriptionName, as follows:

@JMSDestinationDefinition(
        name = "java:module/jms/newsTopic",
        interfaceName = "javax.jms.Topic",
        destinationName = "PhysicalNewsTopic")
@MessageDriven(activationConfig = {
    @ActivationConfigProperty(propertyName = "destinationLookup",
            propertyValue = "java:module/jms/newsTopic"),
    @ActivationConfigProperty(propertyName = "destinationType",
            propertyValue = "javax.jms.Topic"),
    @ActivationConfigProperty(propertyName = "messageSelector",
            propertyValue = "NewsType = 'Sports' OR NewsType = 'Opinion'"),
    @ActivationConfigProperty(propertyName = "subscriptionDurability",
            propertyValue = "Durable"),
    @ActivationConfigProperty(propertyName = "clientId",
            propertyValue = "MyID"),
    @ActivationConfigProperty(propertyName = "subscriptionName",
            propertyValue = "MySub")
})

The topic is the one defined in the PublisherBean. The message selector in this case represents both the sports and opinion desks, just to demonstrate the syntax of message selectors.

The JMS resource adapter uses these properties to create a connection factory for the message-driven bean that allows the bean to use a durable subscription.

46.7.2 Running the clientsessionmdb Example

You can use either NetBeans IDE or Maven to build, deploy, and run the simplemessage example.

This example uses an annotation-defined topic and the preconfigured default connection factory java:comp/DefaultJMSConnectionFactory, so you do not have to create resources for it.

46.7.2.1 To Run clientsessionmdb Using NetBeans IDE

  1. Make sure that GlassFish Server has been started (see Starting and Stopping GlassFish Server).

  2. From the File menu, choose Open Project.

  3. In the Open Project dialog box, navigate to:

    tut-install/examples/jms/clientsessionmdb

  4. Select the clientsessionmdb folder.

  5. Make sure that the Open Required Projects check box is selected, then click Open Project.

  6. In the Projects tab, right-click the clientsessionmdb project and select Build. (If NetBeans IDE suggests that you run a priming build, click the box to do so.)

    This command creates the following:

    • An application client JAR file that contains the client class file and the session bean's remote interface, along with a manifest file that specifies the main class and places the EJB JAR file in its classpath

    • An EJB JAR file that contains both the session bean and the message-driven bean

    • An application EAR file that contains the two JAR files

    The clientsessionmdb.ear file is created in the clientsessionmdb-ear/target/ directory.

    The command then deploys the EAR file, retrieves the client stubs, and runs the client.

    The client displays these lines:

    To view the bean output,
     check <install_dir>/domains/domain1/logs/server.log.


    The output from the enterprise beans appears in the server log file. The Publisher session bean sends two sets of 18 messages numbered 0 through 17. Because of the message selector, the message-driven bean receives only the messages whose NewsType property is Sports or Opinion.

  7. Use the Services tab to undeploy the application after you have finished running it.

46.7.2.2 To Run clientsessionmdb Using Maven

  1. Make sure that GlassFish Server has been started (see Starting and Stopping GlassFish Server).

  2. Go to the following directory:

    tut-install/examples/jms/clientsessionmdb/

  3. To compile the source files and package, deploy, and run the application, enter the following command:

    mvn install


    This command creates the following:

    • An application client JAR file that contains the client class file and the session bean's remote interface, along with a manifest file that specifies the main class and places the EJB JAR file in its classpath

    • An EJB JAR file that contains both the session bean and the message-driven bean

    • An application EAR file that contains the two JAR files

    The clientsessionmdb.ear file is created in the clientsessionmdb-ear/target/ directory.

    The command then deploys the EAR file, retrieves the client stubs, and runs the client.

    The client displays these lines:

    To view the bean output,
     check <install_dir>/domains/domain1/logs/server.log.


    The output from the enterprise beans appears in the server log file. The Publisher session bean sends two sets of 18 messages numbered 0 through 17. Because of the message selector, the message-driven bean receives only the messages whose NewsType property is Sports or Opinion.

  4. Undeploy the application after you have finished running it:

    mvn cargo:undeploy
