46.6 Receiving Messages Asynchronously Using a Message-Driven Bean

If you are writing an application to run in the Java EE application client container or on the Java SE platform, and you want to receive messages asynchronously, you need to define a class that implements the MessageListener interface, create a JMSConsumer, and call the method setMessageListener.

If you're writing an application to run in the Java EE web or EJB container and want it to receive messages asynchronously, you also need to need to define a class that implements the MessageListener interface. However, instead of creating a JMSConsumer and calling the method setMessageListener, you must configure your message listener class to be a message-driven bean. The application server will then take care of the rest.

Message-driven beans can implement any messaging type. Most commonly, however, they implement the Java Message Service (JMS) technology.

This section describes a simple message-driven bean example. Before proceeding, you should read the basic conceptual information in the section What Is a Message-Driven Bean? as well as Using Message-Driven Beans to Receive Messages Asynchronously.

46.6.1 Overview of the simplemessage Example

The simplemessage application has the following components:

  • SimpleMessageClient: An application client that sends several messages to a queue

  • SimpleMessageBean: A message-driven bean that asynchronously processes the messages that are sent to the queue

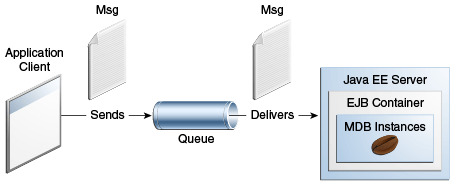

Figure 46-3 illustrates the structure of this application. The application client sends messages to the queue, which was created administratively using the Administration Console. The JMS provider (in this case, GlassFish Server) delivers the messages to the instances of the message-driven bean, which then processes the messages.

Figure 46-3 The simplemessage Application

Description of Figure 46-3 follows
Description of "Figure 46-3 The simplemessage Application"

The source code for this application is in the tut-install/examples/jms/simplemessage/ directory.

46.6.2 The simplemessage Application Client

The SimpleMessageClient sends messages to the queue that the SimpleMessageBean listens to. The client starts by injecting the connection factory and queue resources:

@Resource(lookup = "java:comp/DefaultJMSConnectionFactory")
private static ConnectionFactory connectionFactory;

@Resource(lookup = "jms/MyQueue")
private static Queue queue;

Next, the client creates the JMSContext in a try-with-resources block:

String text;
final int NUM_MSGS = 3;

try (JMSContext context = connectionFactory.createContext();) {

Finally, the client sends several text messages to the queue:

for (int i = 0; i < NUM_MSGS; i++) {
    text = "This is message " + (i + 1);
    System.out.println("Sending message: " + text);
    context.createProducer().send(queue, text);
}

46.6.3 The simplemessage Message-Driven Bean Class

The code for the SimpleMessageBean class illustrates the requirements of a message-driven bean class described in Using Message-Driven Beans to Receive Messages Asynchronously.

The first few lines of the SimpleMessageBean class use the @MessageDriven annotation's activationConfig attribute to specify configuration properties:

@MessageDriven(activationConfig = {
    @ActivationConfigProperty(propertyName = "destinationLookup",
            propertyValue = "jms/MyQueue"),
    @ActivationConfigProperty(propertyName = "destinationType",
            propertyValue = "javax.jms.Queue")
})

See Table 45-3 for a list of the available properties.

See Sending Messages from a Session Bean to an MDB for examples of the subscriptionDurability, clientId, subscriptionName, and messageSelector properties.

46.6.3.1 The onMessage Method

When the queue receives a message, the EJB container invokes the message listener method or methods. For a bean that uses JMS, this is the onMessage method of the MessageListener interface.

In the SimpleMessageBean class, the onMessage method casts the incoming message to a TextMessage and displays the text:

public void onMessage(Message inMessage) {

    try {
        if (inMessage instanceof TextMessage) {
            logger.log(Level.INFO,
                    "MESSAGE BEAN: Message received: {0}",
                    inMessage.getBody(String.class));
        } else {
            logger.log(Level.WARNING,
                    "Message of wrong type: {0}",
                    inMessage.getClass().getName());
        }
    } catch (JMSException e) {
        logger.log(Level.SEVERE,
                "SimpleMessageBean.onMessage: JMSException: {0}",
                e.toString());
        mdc.setRollbackOnly();
    }
}

46.6.4 Running the simplemessage Example

You can use either NetBeans IDE or Maven to build, deploy, and run the simplemessage example.

46.6.4.1 Creating Resources for the simplemessage Example

This example uses the queue named jms/MyQueue and the preconfigured default connection factory java:comp/DefaultJMSConnectionFactory.

If you have run the simple JMS examples in Writing Simple JMS Applications and have not deleted the resources, you already have the queue. Otherwise, follow the instructions in To Create Resources for the Simple Examples to create it.

For more information on creating JMS resources, see Creating JMS Administered Objects.

46.6.4.2 To Run the simplemessage Example Using NetBeans IDE

  1. Make sure that GlassFish Server has been started (see Starting and Stopping GlassFish Server).

  2. From the File menu, choose Open Project.

  3. In the Open Project dialog box, navigate to:

    tut-install/examples/jms/simplemessage

  4. Select the simplemessage folder.

  5. Make sure that the Open Required Projects check box is selected, then click Open Project.

  6. In the Projects tab, right-click the simplemessage project and select Build. (If NetBeans IDE suggests that you run a priming build, click the box to do so.)

    This command packages the application client and the message-driven bean, then creates a file named simplemessage.ear in the simplemessage-ear/target/ directory. It then deploys the simplemessage-ear module, retrieves the client stubs, and runs the application client.

    The output in the output window looks like this (preceded by application client container output):

    Sending message: This is message 1
    Sending message: This is message 2
    Sending message: This is message 3
    To see if the bean received the messages,
     check <install_dir>/domains/domain1/logs/server.log.


    In the server log file, lines similar to the following appear:

    MESSAGE BEAN: Message received: This is message 1
    MESSAGE BEAN: Message received: This is message 2
    MESSAGE BEAN: Message received: This is message 3


    The received messages may appear in a different order from the order in which they were sent.

  7. After you have finished running the application, undeploy it using the Services tab.

46.6.4.3 To Run the simplemessage Example Using Maven

  1. Make sure that GlassFish Server has been started (see Starting and Stopping GlassFish Server).

  2. In a terminal window, go to:

    tut-install/examples/jms/simplemessage/

  3. To compile the source files and package the application, use the following command:

    mvn install


    This target packages the application client and the message-driven bean, then creates a file named simplemessage.ear in the simplemessage-ear/target/ directory. It then deploys the simplemessage-ear module, retrieves the client stubs, and runs the application client.

    The output in the terminal window looks like this (preceded by application client container output):

    Sending message: This is message 1
    Sending message: This is message 2
    Sending message: This is message 3
    To see if the bean received the messages,
     check <install_dir>/domains/domain1/logs/server.log.


    In the server log file, lines similar to the following appear:

    MESSAGE BEAN: Message received: This is message 1
    MESSAGE BEAN: Message received: This is message 2
    MESSAGE BEAN: Message received: This is message 3


    The received messages may appear in a different order from the order in which they were sent.

  4. After you have finished running the application, undeploy it using the mvn cargo:undeploy command.
