2 Tables and Table Clusters

This chapter provides an introduction to schema objects and discusses tables, which are the most common types of schema objects.

This chapter contains the following sections:

Introduction to Schema Objects

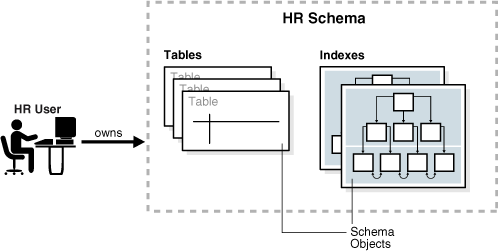

A database schema is a logical container for data structures, called schema objects. Examples of schema objects are tables and indexes. Schema objects are created and manipulated with SQL.

A database user has a password and various database privileges. Each user owns a single schema, which has the same name as the user. The schema contains the data for the user owning the schema. For example, the hr user owns the hr schema, which contains schema objects such as the employees table. In a production database, the schema owner usually represents a database application rather than a person.

Within a schema, each schema object of a particular type has a unique name. For example, hr.employees refers to the table employees in the hr schema. Figure 2-1 depicts a schema owner named hr and schema objects within the hr schema.

See Also:

"Overview of Database Security" to learn more about users and privileges

Schema Object Types

The most important schema objects in a relational database are tables. A table stores data in rows.

Oracle SQL enables you to create and manipulate many other types of schema objects, including the following:

  • Indexes

    Indexes are schema objects that contains an entry for each indexed row of the table or table cluster and provide direct, fast access to rows. Oracle Database supports several types of index. An index-organized table is a table in which the data is stored in an index structure. See Chapter 3, "Indexes and Index-Organized Tables".

  • Partitions

    Partitions are pieces of large tables and indexes. Each partition has its own name and may optionally have its own storage characteristics. See "Overview of Partitions".

  • Views

    Views are customized presentations of data in one or more tables or other views. You can think of them as stored queries. Views do not actually contain data. See "Overview of Views".

  • Sequences

    A sequence is a user-created object that can be shared by multiple users to generate integers. Typically, sequences are used to generate primary key values. See "Overview of Sequences".

  • Dimensions

    A dimension defines a parent-child relationship between pairs of column sets, where all the columns of a column set must come from the same table. Dimensions are commonly used to categorize data such as customers, products, and time. See "Overview of Dimensions".

  • Synonyms

    A synonym is an alias for another schema object. Because a synonym is simply an alias, it requires no storage other than its definition in the data dictionary. See "Overview of Synonyms".

  • PL/SQL subprograms and packages

    PL/SQL is the Oracle procedural extension of SQL. A PL/SQL subprogram is a named PL/SQL block that can be invoked with a set of parameters. A PL/SQL package groups logically related PL/SQL types, variables, and subprograms. See "PL/SQL Subprograms" and "PL/SQL Packages".

Other types of objects are also stored in the database and can be created and manipulated with SQL statements but are not contained in a schema. These objects include database users, roles, contexts, and directory objects.

See Also:

Schema Object Storage

Some schema objects store data in logical storage structures called segments. For example, a nonpartitioned heap-organized table or an index creates a segment. Other schema objects, such as views and sequences, consist of metadata only. This section describes only schema objects that have segments.

Oracle Database stores a schema object logically within a tablespace. There is no relationship between schemas and tablespaces: a tablespace can contain objects from different schemas, and the objects for a schema can be contained in different tablespaces. The data of each object is physically contained in one or more data files.

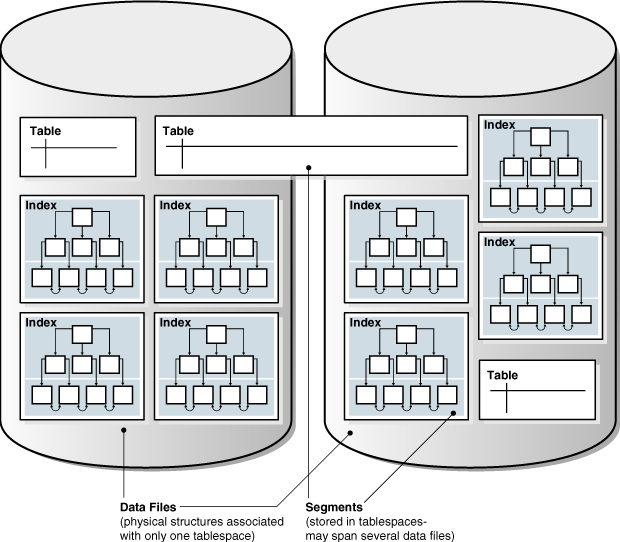

Figure 2-2 shows a possible configuration of table and index segments, tablespaces, and data files. The data segment for one table spans two data files, which are both part of the same tablespace. A segment cannot span multiple tablespaces.

Figure 2-2 Segments, Tablespaces, and Data Files

Description of Figure 2-2 follows
Description of "Figure 2-2 Segments, Tablespaces, and Data Files"

See Also:

Schema Object Dependencies

Some schema objects reference other objects, creating schema object dependencies. For example, a view contains a query that references tables or other views, while a PL/SQL subprogram invokes other subprograms. If the definition of object A references object B, then A is a dependent object with respect to B and B is a referenced object with respect to A.

Oracle Database provides an automatic mechanism to ensure that a dependent object is always up to date with respect to its referenced objects. When a dependent object is created, the database tracks dependencies between the dependent object and its referenced objects. When a referenced object changes in a way that might affect a dependent object, the dependent object is marked invalid. For example, if a user drops a table, no view based on the dropped table is usable.

An invalid dependent object must be recompiled against the new definition of a referenced object before the dependent object is usable. Recompilation occurs automatically when the invalid dependent object is referenced.

As an illustration of how schema objects can create dependencies, the following sample script creates a table test_table and then a procedure that queries this table:

CREATE TABLE test_table ( col1 INTEGER, col2 INTEGER );

CREATE OR REPLACE PROCEDURE test_proc
AS
BEGIN
 FOR x IN ( SELECT col1, col2 FROM test_table )
 LOOP
   -- process data
   NULL;
 END LOOP;
END;
/

The following query of the status of procedure test_proc shows that it is valid:

SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC';

OBJECT_NAME STATUS
----------- -------
TEST_PROC   VALID

After adding the col3 column to test_table, the procedure is still valid because the procedure has no dependencies on this column:

SQL> ALTER TABLE test_table ADD col3 NUMBER;

Table altered.

SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC';

OBJECT_NAME STATUS
----------- -------
TEST_PROC   VALID

However, changing the data type of the col1 column, which the test_proc procedure depends on in, invalidates the procedure:

SQL> ALTER TABLE test_table MODIFY col1 VARCHAR2(20);

Table altered.

SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC';

OBJECT_NAME STATUS
----------- -------
TEST_PROC   INVALID

Running or recompiling the procedure makes it valid again, as shown in the following example:

SQL> EXECUTE test_proc

PL/SQL procedure successfully completed.

SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC';

OBJECT_NAME STATUS
----------- -------
TEST_PROC   VALID

See Also:

Oracle Database Administrator's Guide and Oracle Database Advanced Application Developer's Guide to learn how to manage schema object dependencies

SYS and SYSTEM Schemas

All Oracle databases include default administrative accounts. Administrative accounts are highly privileged and are intended only for DBAs authorized to perform tasks such as starting and stopping the database, managing memory and storage, creating and managing database users, and so on.

The administrative account SYS is automatically created when a database is created. This account can perform all database administrative functions. The SYS schema stores the base tables and views for the data dictionary. These base tables and views are critical for the operation of Oracle Database. Tables in the SYS schema are manipulated only by the database and must never be modified by any user.

The SYSTEM account is also automatically created when a database is created. The SYSTEM schema stores additional tables and views that display administrative information, and internal tables and views used by various Oracle Database options and tools. Never use the SYSTEM schema to store tables of interest to nonadministrative users.

See Also:

Sample Schemas

An Oracle database may include sample schemas, which are a set of interlinked schemas that enable Oracle documentation and Oracle instructional materials to illustrate common database tasks. The hr schema is a sample schema that contains information about employees, departments and locations, work histories, and so on.

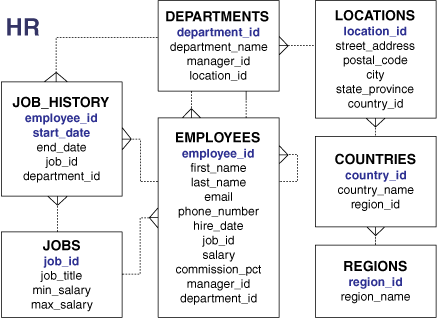

Figure 2-3 is an entity-relationship diagram of the tables in the hr schema. Most examples in this manual use objects from this schema.

Overview of Tables

A table is the basic unit of data organization in an Oracle database. A table describes an entity, which is something of significance about which information must be recorded. For example, an employee could be an entity.

Oracle Database tables fall into the following basic categories:

You can create a relational table with the following organizational characteristics:

A table is either permanent or temporary. A permanent table definition and data persist across sessions. A temporary table definition persists in the same way as a permanent table definition, but the data exists only for the duration of a transaction or session. Temporary tables are useful in applications where a result set must be held temporarily, perhaps because the result is constructed by running multiple operations.

This section contains the following topics:

See Also:

Oracle Database 2 Day DBA and Oracle Database Administrator's Guide to learn how to manage tables

Columns and Rows

A table definition includes a table name and set of columns. A column identifies an attribute of the entity described by the table. For example, the column employee_id in the employees table refers to the employee ID attribute of an employee entity.

In general, you give each column a column name, a data type, and a width when you create a table. For example, the data type for employee_id is NUMBER(6), indicating that this column can only contain numeric data up to 6 digits in width. The width can be predetermined by the data type, as with DATE.

A table can contain a virtual column, which unlike a nonvirtual column does not consume disk space. The database derives the values in a virtual column on demand by computing a set of user-specified expressions or functions. For example, the virtual column income could be a function of the salary and commission_pct columns.

After you create a table, you can insert, query, delete, and update rows using SQL. A row is a collection of column information corresponding to a record in a table. For example, a row in the employees table describes the attributes of a specific employee.

See Also:

Oracle Database Administrator's Guide to learn how to manage virtual columns

Example: CREATE TABLE and ALTER TABLE Statements

The Oracle SQL command to create a table is CREATE TABLE. Example 2-1 shows the CREATE TABLE statement for the employees table in the hr sample schema. The statement specifies columns such as employee_id, first_name, and so on, specifying a data type such as NUMBER or DATE for each column.

Example 2-1 CREATE TABLE employees

CREATE TABLE employees
    ( employee_id    NUMBER(6)
    , first_name     VARCHAR2(20)
    , last_name      VARCHAR2(25)
         CONSTRAINT     emp_last_name_nn  NOT NULL
    , email          VARCHAR2(25)
        CONSTRAINT     emp_email_nn  NOT NULL
    , phone_number   VARCHAR2(20)
    , hire_date      DATE
        CONSTRAINT     emp_hire_date_nn  NOT NULL
    , job_id         VARCHAR2(10)
        CONSTRAINT     emp_job_nn  NOT NULL
    , salary         NUMBER(8,2)
    , commission_pct NUMBER(2,2)
    , manager_id     NUMBER(6)
    , department_id  NUMBER(4)
    , CONSTRAINT     emp_salary_min
                     CHECK (salary > 0)
    , CONSTRAINT     emp_email_uk
                     UNIQUE (email)
    ) ;

Example 2-2 shows an ALTER TABLE statement that adds integrity constraints to the employees table. Integrity constraints enforce business rules and prevent the entry of invalid information into tables.

Example 2-2 ALTER TABLE employees

ALTER TABLE employees
ADD ( CONSTRAINT     emp_emp_id_pk
                       PRIMARY KEY (employee_id)
    , CONSTRAINT     emp_dept_fk
                       FOREIGN KEY (department_id)
                         REFERENCES departments
    , CONSTRAINT     emp_job_fk
                       FOREIGN KEY (job_id)
                         REFERENCES jobs (job_id)
    , CONSTRAINT     emp_manager_fk
                       FOREIGN KEY (manager_id)
                         REFERENCES employees
    ) ;

Example 2-3 shows 8 rows and 6 columns of the hr.employees table.

Example 2-3 Rows in the employees Table

EMPLOYEE_ID FIRST_NAME  LAST_NAME      SALARY COMMISSION_PCT DEPARTMENT_ID
----------- ----------- ------------- ------- -------------- -------------
        100 Steven      King            24000                           90
        101 Neena       Kochhar         17000                           90
        102 Lex         De Haan         17000                           90
        103 Alexander   Hunold           9000                           60
        107 Diana       Lorentz          4200                           60
        149 Eleni       Zlotkey         10500             .2            80
        174 Ellen       Abel            11000             .3            80
        178 Kimberely   Grant            7000            .15

The output in Example 2-3 illustrates some of the following important characteristics of tables, columns, and rows:

  • A row of the table describes the attributes of one employee: name, salary, department, and so on. For example, the first row in the output shows the record for the employee named Steven King.

  • A column describes an attribute of the employee. In the example, the employee_id column is the primary key, which means that every employee is uniquely identified by employee ID. Any two employees are guaranteed not to have the same employee ID.

  • A non-key column can contain rows with identical values. In the example, the salary value for employees 101 and 102 is the same: 17000.

  • A foreign key column refers to a primary or unique key in the same table or a different table. In this example, the value of 90 in department_id corresponds to the department_id column of the departments table.

  • A field is the intersection of a row and column. It can contain only one value. For example, the field for the department ID of employee 104 contains the value 60.

  • A field can lack a value. In this case, the field is said to contain a null value. The value of the commission_pct column for employee 100 is null, whereas the value in the field for employee 149 is .2. A column allows nulls unless a NOT NULL or primary key integrity constraint has been defined on this column, in which case no row can be inserted without a value for this column.

See Also:

Oracle Database SQL Language Reference for CREATE TABLE syntax and semantics

Oracle Data Types

Each column has a data type, which is associated with a specific storage format, constraints, and valid range of values. The data type of a value associates a fixed set of properties with the value. These properties cause Oracle Database to treat values of one data type differently from values of another. For example, you can multiply values of the NUMBER data type, but not values of the RAW data type.

When you create a table, you must specify a data type for each of its columns. Each value subsequently inserted in a column assumes the column data type.

Oracle Database provides several built-in data types. The most commonly used data types fall into the following categories:

Other important categories of built-in types include raw, large objects (LOBs), and collections. PL/SQL has data types for constants and variables, which include BOOLEAN, reference types, composite types (records), and user-defined types.

See Also:

Character Data Types

Character data types store character (alphanumeric) data in strings. The most commonly used character data type is VARCHAR2, which is the most efficient option for storing character data.

The byte values correspond to the character encoding scheme, generally called a character set or code page. The database character set is established at database creation. Examples of character sets are 7-bit ASCII, EBCDIC, and Unicode UTF-8.

The length semantics of character data types can be measured in bytes or characters. Byte semantics treat strings as a sequence of bytes. This is the default for character data types. Character semantics treat strings as a sequence of characters. A character is technically a code point of the database character set.

VARCHAR2 and CHAR Data Types

The VARCHAR2 data type stores variable-length character literals. The terms literal and constant value are synonymous and refer to a fixed data value. For example, 'LILA', 'St. George Island', and '101' are all character literals; 5001 is a numeric literal. Character literals are enclosed in single quotation marks so that the database can distinguish them from schema object names.

Note:

This manual uses the terms text literal, character literal, and string interchangeably.

When you create a table with a VARCHAR2 column, you specify a maximum string length. In Example 2-1, the last_name column has a data type of VARCHAR2(25), which means that any name stored in the column can have a maximum of 25 bytes.

For each row, Oracle Database stores each value in the column as a variable-length field unless a value exceeds the maximum length, in which case the database returns an error. For example, in a single-byte character set, if you enter 10 characters for the last_name column value in a row, then the column in the row piece stores only 10 characters (10 bytes), not 25. Using VARCHAR2 reduces space consumption.

In contrast to VARCHAR2, CHAR stores fixed-length character strings. When you create a table with a CHAR column, the column requires a string length. The default is 1 byte. The database uses blanks to pad the value to the specified length.

Oracle Database compares VARCHAR2 values using nonpadded comparison semantics and compares CHAR values using blank-padded comparison semantics.

See Also:

Oracle Database SQL Language Reference for details about blank-padded and nonpadded comparison semantics
NCHAR and NVARCHAR2 Data Types

The NCHAR and NVARCHAR2 data types store Unicode character data. Unicode is a universal encoded character set that can store information in any language using a single character set. NCHAR stores fixed-length character strings that correspond to the national character set, whereas NVARCHAR2 stores variable length character strings.

You specify a national character set when creating a database. The character set of NCHAR and NVARCHAR2 data types must be either AL16UTF16 or UTF8. Both character sets use Unicode encoding.

When you create a table with an NCHAR or NVARCHAR2 column, the maximum size is always in character length semantics. Character length semantics is the default and only length semantics for NCHAR or NVARCHAR2.

See Also:

Oracle Database Globalization Support Guide for information about Oracle's globalization support feature

Numeric Data Types

The Oracle Database numeric data types store fixed and floating-point numbers, zero, and infinity. Some numeric types also store values that are the undefined result of an operation, which is known as "not a number" or NAN.

Oracle Database stores numeric data in variable-length format. Each value is stored in scientific notation, with 1 byte used to store the exponent. The database uses up to 20 bytes to store the mantissa, which is the part of a floating-point number that contains its significant digits. Oracle Database does not store leading and trailing zeros.

NUMBER Data Type

The NUMBER data type stores fixed and floating-point numbers. The database can store numbers of virtually any magnitude. This data is guaranteed to be portable among different operating systems running Oracle Database. The NUMBER data type is recommended for most cases in which you must store numeric data.

You specify a fixed-point number in the form NUMBER(p,s), where p and s refer to the following characteristics:

  • Precision

    The precision specifies the total number of digits. If a precision is not specified, then the column stores the values exactly as provided by the application without any rounding.

  • Scale

    The scale specifies the number of digits from the decimal point to the least significant digit. Positive scale counts digits to the right of the decimal point up to and including the least significant digit. Negative scale counts digits to the left of the decimal point up to but not including the least significant digit. If you specify a precision without a scale, as in NUMBER(6), then the scale is 0.

In Example 2-1, the salary column is type NUMBER(8,2), so the precision is 8 and the scale is 2. Thus, the database stores a salary of 100,000 as 100000.00.

Floating-Point Numbers

Oracle Database provides two numeric data types exclusively for floating-point numbers: BINARY_FLOAT and BINARY_DOUBLE. These types support all of the basic functionality provided by the NUMBER data type. However, while NUMBER uses decimal precision, BINARY_FLOAT and BINARY_DOUBLE use binary precision, which enables faster arithmetic calculations and usually reduces storage requirements.

BINARY_FLOAT and BINARY_DOUBLE are approximate numeric data types. They store approximate representations of decimal values, rather than exact representations. For example, the value 0.1 cannot be exactly represented by either BINARY_DOUBLE or BINARY_FLOAT. They are frequently used for scientific computations. Their behavior is similar to the data types FLOAT and DOUBLE in Java and XMLSchema.

See Also:

Oracle Database SQL Language Reference to learn about precision, scale, and other characteristics of numeric types

Datetime Data Types

The datetime data types are DATE and TIMESTAMP. Oracle Database provides comprehensive time zone support for time stamps.

DATE Data Type

The DATE data type stores date and time. Although datetimes can be represented in character or number data types, DATE has special associated properties. The hire_date column in Example 2-1 has a DATE data type.

The database stores dates internally as numbers. Dates are stored in fixed-length fields of 7 bytes each, corresponding to century, year, month, day, hour, minute, and second.

Note:

Dates fully support arithmetic operations, so you add to and subtract from dates just as you can with numbers. See Oracle Database Advanced Application Developer's Guide.

The database displays dates according to the specified format model. A format model is a character literal that describes the format of a datetime in a character string. The standard date format is DD-MON-RR, which displays dates in the form 01-JAN-09.

RR is similar to YY (the last two digits of the year), but the century of the return value varies according to the specified two-digit year and the last two digits of the current year. Assume that in 1999 the database displays 01-JAN-09. If the date format uses RR, then 09 specifies 2009, whereas if the format uses YY, then 09 specifies 1909. You can change the default date format at both the instance and the session level.

Oracle Database stores time in 24-hour format—HH:MI:SS. If no time portion is entered, then by default the time in a date field is 00:00:00 A.M. In a time-only entry, the date portion defaults to the first day of the current month.

See Also:

TIMESTAMP Data Type

The TIMESTAMP data type is an extension of the DATE data type. It stores fractional seconds in addition to the information stored in the DATE data type. The TIMESTAMP data type is useful for storing precise time values, such as in applications that must track event order.

The DATETIME data types TIMESTAMP WITH TIME ZONE and TIMESTAMP WITH LOCAL TIME ZONE are time-zone aware. When a user selects the data, the value is adjusted to the time zone of the user session. This data type is useful for collecting and evaluating date information across geographic regions.

See Also:

Oracle Database SQL Language Reference for details about the syntax of creating and entering data in time stamp columns

Rowid Data Types

Every row stored in the database has an address. Oracle Database uses a ROWID data type to store the address (rowid) of every row in the database. Rowids fall into the following categories:

  • Physical rowids store the addresses of rows in heap-organized tables, table clusters, and table and index partitions.

  • Logical rowids store the addresses of rows in index-organized tables.

  • Foreign rowids are identifiers in foreign tables, such as DB2 tables accessed through a gateway. They are not standard Oracle Database rowids.

A data type called the universal rowid, or UROWID, supports all kinds of rowids.

Use of Rowids

Oracle Database uses rowids internally for the construction of indexes. A B-tree index, which is the most common type, contains an ordered list of keys divided into ranges. Each key is associated with a rowid that points to the associated row's address for fast access. End users and application developers can also use rowids for several important functions:

  • Rowids are the fastest means of accessing particular rows.

  • Rowids provide the ability to see how a table is organized.

  • Rowids are unique identifiers for rows in a given table.

You can also create tables with columns defined using the ROWID data type. For example, you can define an exception table with a column of data type ROWID to store the rowids of rows that violate integrity constraints. Columns defined using the ROWID data type behave like other table columns: values can be updated, and so on.

ROWID Pseudocolumn

Every table in an Oracle database has a pseudocolumn named ROWID. A pseudocolumn behaves like a table column, but is not actually stored in the table. You can select from pseudocolumns, but you cannot insert, update, or delete their values. A pseudocolumn is also similar to a SQL function without arguments. Functions without arguments typically return the same value for every row in the result set, whereas pseudocolumns typically return a different value for each row.

Values of the ROWID pseudocolumn are strings representing the address of each row. These strings have the data type ROWID. This pseudocolumn is not evident when listing the structure of a table by executing SELECT or DESCRIBE, nor does the pseudocolumn consume space. However, the rowid of each row can be retrieved with a SQL query using the reserved word ROWID as a column name.

Example 2-4 queries the ROWID pseudocolumn to show the rowid of the row in the employees table for employee 100.

Example 2-4 ROWID Pseudocolumn

SQL> SELECT ROWID FROM employees WHERE employee_id = 100;

ROWID
------------------
AAAPecAAFAAAABSAAA

See Also:

Format Models and Data Types

A format model is a character literal that describes the format of datetime or numeric data stored in a character string. A format model does not change the internal representation of the value in the database.

When you convert a character string into a date or number, a format model determines how the database interprets the string. In SQL, you can use a format model as an argument of the TO_CHAR and TO_DATE functions to format a value to be returned from the database or to format a value to be stored in the database.

The following statement selects the salaries of the employees in Department 80 and uses the TO_CHAR function to convert these salaries into character values with the format specified by the number format model '$99,990.99':

SQL> SELECT last_name employee, TO_CHAR(salary, '$99,990.99')
  2  FROM   employees
  3  WHERE  department_id = 80 AND last_name = 'Russell';

EMPLOYEE                  TO_CHAR(SAL
------------------------- -----------
Russell                    $14,000.00

The following example updates a hire date using the TO_DATE function with the format mask 'YYYY MM DD' to convert the string '1998 05 20' to a DATE value:

SQL> UPDATE employees
  2  SET hire_date = TO_DATE('1998 05 20','YYYY MM DD')
  3  WHERE last_name = 'Hunold';

See Also:

Oracle Database SQL Language Reference to learn more about format models

Integrity Constraints

Integrity constraints are named rules that restrict the values for one or more columns in a table. These rules prevent invalid data entry into tables. Also, constraints can prevent the deletion of a table when certain dependencies exist.

If a constraint is enabled, then the database checks data as it is entered or updated. Data that does not conform to the constraint is prevented from being entered. If a constraint is disabled, then data that does not conform to the constraint can be allowed to enter the database.

In Example 2-1, the CREATE TABLE statement specifies NOT NULL constraints for the last_name, email, hire_date, and job_id columns. The constraint clauses identify the columns and the conditions of the constraint. These constraints ensure that the specified columns contain no null values. For example, an attempt to insert a new employee without a job ID generates an error.

You can create a constraint when or after you create a table. Constraints can be temporarily disabled if needed. The database stores constraints in the data dictionary.

See Also:

Object Tables

An Oracle object type is a user-defined type with a name, attributes, and methods. Object types make it possible to model real-world entities such as customers and purchase orders as objects in the database.

An object type defines a logical structure, but does not create storage. Example 2-5 creates an object type named department_typ.

Example 2-5 Object Type

CREATE TYPE department_typ AS OBJECT
   ( d_name     VARCHAR2(100),
     d_address  VARCHAR2(200) );
/

An object table is a special kind of table in which each row represents an object. The CREATE TABLE statement in Example 2-6 creates an object table named departments_obj_t of the object type department_typ. The attributes (columns) of this table are derived from the definition of the object type. The INSERT statement inserts a row into this table.

Example 2-6 Object Table

CREATE TABLE departments_obj_t OF department_typ;
INSERT INTO departments_obj_t
  VALUES ('hr', '10 Main St, Sometown, CA');

Like a relational column, an object table can contain rows of just one kind of thing, namely, object instances of the same declared type as the table. By default, every row object in an object table has an associated logical object identifier (OID) that uniquely identifies it in an object table. The OID column of an object table is a hidden column.

See Also:

Temporary Tables

Oracle Database temporary tables hold data that exists only for the duration of a transaction or session. Data in a temporary table is private to the session, which means that each session can only see and modify its own data.

Temporary tables are useful in applications where a result set must be buffered. For example, a scheduling application enables college students to create optional semester course schedules. Each schedule is represented by a row in a temporary table. During the session, the schedule data is private. When the student decides on a schedule, the application moves the row for the chosen schedule to a permanent table. At the end of the session, the schedule data in the temporary data is automatically dropped.

Temporary Table Creation

The CREATE GLOBAL TEMPORARY TABLE statement creates a temporary table. The ON COMMIT clause specifies whether the table data is transaction-specific (default) or session-specific.

Unlike temporary tables in some other relational databases, when you create a temporary table in an Oracle database, you create a static table definition. The temporary table is a persistent object described in the data dictionary, but appears empty until your session inserts data into the table. You create a temporary table for the database itself, not for every PL/SQL stored procedure.

Because temporary tables are statically defined, you can create indexes for them with the CREATE INDEX statement. Indexes created on temporary tables are also temporary. The data in the index has the same session or transaction scope as the data in the temporary table. You can also create a view or trigger on a temporary table.

See Also:

Segment Allocation in Temporary Tables

Like permanent tables, temporary tables are defined in the data dictionary. Temporary segments are allocated when data is first inserted. Until data is loaded in a session the table appears empty. Temporary segments are deallocated at the end of the transaction for transaction-specific temporary tables and at the end of the session for session-specific temporary tables.

External Tables

An external table accesses data in external sources as if this data were in a table in the database. You can use SQL, PL/SQL, and Java to query the external data.

External tables are useful for querying flat files. For example, a SQL-based application may need to access records in a text file. The records are in the following form:

100,Steven,King,SKING,515.123.4567,17-JUN-03,AD_PRES,31944,150,90
101,Neena,Kochhar,NKOCHHAR,515.123.4568,21-SEP-05,AD_VP,17000,100,90
102,Lex,De Haan,LDEHAAN,515.123.4569,13-JAN-01,AD_VP,17000,100,90

You could create an external table, copy the file to the location specified in the external table definition, and use SQL to query the records in the text file.

External tables are also valuable for performing ETL tasks common in data warehouse environments. For example, external tables enable the pipelining of the data loading phase with the transformation phase, eliminating the need to stage data inside the database in preparation for further processing inside the database. See "Overview of Data Warehousing and Business Intelligence".

External Table Creation

Internally, creating an external table means creating metadata in the data dictionary. Unlike an ordinary table, an external table does not describe data stored in the database, nor does it describe how data is stored externally. Rather, external table metadata describes how the external table layer must present data to the database.

A CREATE TABLE ... ORGANIZATION EXTERNAL statement has two parts. The external table definition describes the column types. This definition is like a view that enables SQL to query external data without loading it into the database. The second part of the statement maps the external data to the columns.

External tables are read-only unless created with CREATE TABLE AS SELECT with the ORACLE_DATAPUMP access driver. Restrictions for external tables include no support for indexed columns, virtual columns, and column objects.

External Table Access Drivers

An access driver is an API that interprets the external data for the database. The access driver runs inside the database, which uses the driver to read the data in the external table. The access driver and the external table layer are responsible for performing the transformations required on the data in the data file so that it matches the external table definition. Figure 2-4 represents how external data is accessed.

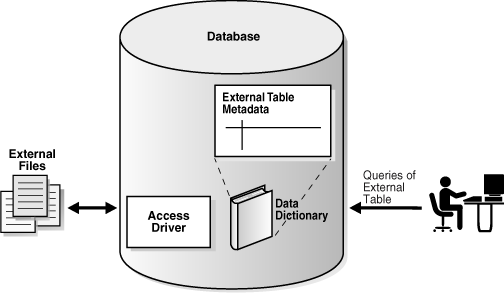

Figure 2-4 External Tables

Description of Figure 2-4 follows
Description of "Figure 2-4 External Tables"

Oracle provides the ORACLE_LOADER (default) and ORACLE_DATAPUMP access drivers for external tables. For both drivers, the external files are not Oracle data files.

ORACLE_LOADER enables read-only access to external files using SQL*Loader. You cannot create, update, or append to an external file using the ORACLE_LOADER driver.

The ORACLE_DATAPUMP driver enables you to unload external data. This operation involves reading data from the database and inserting the data into an external table, represented by one or more external files. After external files are created, the database cannot update or append data to them. The driver also enables you to load external data, which involves reading an external table and loading its data into a database.

See Also:

Table Storage

Oracle Database uses a data segment in a tablespace to hold table data. As explained in "User Segments", a segment contains extents made up of data blocks.

The data segment for a table (or cluster data segment, when dealing with a table cluster) is located in either the default tablespace of the table owner or in a tablespace named in the CREATE TABLE statement.

Table Organization

By default, a table is organized as a heap, which means that the database places rows where they fit best rather than in a user-specified order. Thus, a heap-organized table is an unordered collection of rows. As users add rows, the database places the rows in the first available free space in the data segment. Rows are not guaranteed to be retrieved in the order in which they were inserted.

Note:

Index-organized tables use a different principle of organization. See "Overview of Index-Organized Tables".

The hr.departments table is a heap-organized table. It has columns for department ID, name, manager ID, and location ID. As rows are inserted, the database stores them wherever they fit. A data block in the table segment might contain the unordered rows shown in Example 2-7.

Example 2-7 Rows in Departments Table

50,Shipping,121,1500
120,Treasury,,1700
70,Public Relations,204,2700
30,Purchasing,114,1700
130,Corporate Tax,,1700
10,Administration,200,1700
110,Accounting,205,1700

The column order is the same for all rows in a table. The database usually stores columns in the order in which they were listed in the CREATE TABLE statement, but this order is not guaranteed. For example, if a table has a column of type LONG, then Oracle Database always stores this column last in the row. Also, if you add a new column to a table, then the new column becomes the last column stored.

A table can contain a virtual column, which unlike normal columns does not consume space on disk. The database derives the values in a virtual column on demand by computing a set of user-specified expressions or functions. You can index virtual columns, collect statistics on them, and create integrity constraints. Thus, virtual columns are much like nonvirtual columns.

See Also:

Oracle Database SQL Language Reference to learn about virtual columns

Row Storage

The database stores rows in data blocks. Each row of a table containing data for less than 256 columns is contained in one or more row pieces.

If possible, Oracle Database stores each row as one row piece. However, if all of the row data cannot be inserted into a single data block, or if an update to an existing row causes the row to outgrow its data block, then the database stores the row using multiple row pieces (see "Data Block Format").

Rows in a table cluster contain the same information as rows in nonclustered tables. Additionally, rows in a table cluster contain information that references the cluster key to which they belong.

Rowids of Row Pieces

A rowid is effectively a 10-byte physical address of a row. As explained in "Rowid Data Types", every row in a heap-organized table has a rowid unique to this table that corresponds to the physical address of a row piece. For table clusters, rows in different tables that are in the same data block can have the same rowid.

Oracle Database uses rowids internally for the construction of indexes. For example, each key in a B-tree index is associated with a rowid that points to the address of the associated row for fast access (see "B-Tree Indexes"). Physical rowids provide the fastest possible access to a table row, enabling the database to retrieve a row in as little as a single I/O.

See Also:

"Rowid Format"

Storage of Null Values

A null is the absence of a value in a column. Nulls indicate missing, unknown, or inapplicable data.

Nulls are stored in the database if they fall between columns with data values. In these cases, they require 1 byte to store the length of the column (zero). Trailing nulls in a row require no storage because a new row header signals that the remaining columns in the previous row are null. For example, if the last three columns of a table are null, then no data is stored for these columns.

See Also:

Oracle Database SQL Language Reference to learn more about null values

Table Compression

The database can use table compression to reduce the amount of storage required for the table. Compression saves disk space, reduces memory use in the database buffer cache, and in some cases speeds query execution. Table compression is transparent to database applications.

Basic and OLTP Table Compression

Dictionary-based table compression provides good compression ratios for heap-organized tables. Oracle Database supports the following types of dictionary-based table compression:

  • Basic table compression

    This type of compression is intended for bulk load operations. The database does not compress data modified using conventional DML. You must use direct path loads, ALTER TABLE . . . MOVE operations, or online table redefinition to achieve basic compression.

  • OLTP table compression

    This type of compression is intended for OLTP applications and compresses data manipulated by any SQL operation.

For basic and OLTP table compression, the database stores compressed rows in row-major format. All columns of one row are stored together, followed by all columns of the next row, and so on (see Figure 12-7). Duplicate values are replaced with a short reference to a symbol table stored at the beginning of the block. Thus, information needed to re-create the uncompressed data is stored in the data block itself.

Compressed data blocks look much like normal data blocks. Most database features and functions that work on regular data blocks also work on compressed blocks.

You can declare compression at the tablespace, table, partition, or subpartition level. If specified at the tablespace level, then all tables created in the tablespace are compressed by default.

The following statement applies OLTP compression to the orders table:

ALTER TABLE oe.orders COMPRESS FOR OLTP;

The following example of a partial CREATE TABLE statement specifies OLTP compression for one partition and basic compression for the other partition:

CREATE TABLE sales (
    prod_id     NUMBER     NOT NULL,
    cust_id     NUMBER     NOT NULL, ... )
 PCTFREE 5 NOLOGGING NOCOMPRESS
 PARTITION BY RANGE (time_id)
 ( partition sales_2008 VALUES LESS THAN(TO_DATE(...)) COMPRESS BASIC,
   partition sales_2009 VALUES LESS THAN (MAXVALUE) COMPRESS FOR OLTP );

See Also:

Hybrid Columnar Compression

With Hybrid Columnar Compression, the database stores the same column for a group of rows together. The data block does not store data in row-major format, but uses a combination of both row and columnar methods.

Storing column data together, with the same data type and similar characteristics, dramatically increases the storage savings achieved from compression. The database compresses data manipulated by any SQL operation, although compression levels are higher for direct path loads. Database operations work transparently against compressed objects, so no application changes are required.

Types of Hybrid Columnar Compression

If your underlying storage supports Hybrid Columnar Compression, then you can specify the following compression types, depending on your requirements:

  • Warehouse compression

    This type of compression is optimized to save storage space, and is intended for data warehouse applications.

  • Online archival compression

    This type of compression is optimized for maximum compression levels, and is intended for historical data and data that does not change.

To achieve warehouse or online archival compression, you must use direct path loads, ALTER TABLE . . . MOVE operations, or online table redefinition.

Hybrid Columnar Compression is optimized for Data Warehousing and decision support applications on Exadata storage. Exadata maximizes the performance of queries on tables that are compressed using Hybrid Columnar Compression, taking advantage of the processing power, memory, and Infiniband network bandwidth that are integral to the Exadata storage server.

Other Oracle storage systems support Hybrid Columnar Compression, and deliver the same space savings as on Exadata storage, but do not deliver the same level of query performance. For these storage systems, Hybrid Columnar Compression is ideal for in-database archiving of older data that is infrequently accessed.

Compression Units

Hybrid Columnar Compression uses a logical construct called a compression unit to store a set of rows. When you load data into a table, the database stores groups of rows in columnar format, with the values for each column stored and compressed together. After the database has compressed the column data for a set of rows, the database fits the data into the compression unit.

For example, you apply Hybrid Columnar Compression to a daily_sales table. At the end of every day, you populate the table with items and the number sold, with the item ID and date forming a composite primary key. Table 2-1 shows a subset of the rows in daily_sales.

Table 2-1 Sample Table daily_sales

Item_ID Date Num_Sold Shipped_From Restock

1000

01-JUN-11

2

WAREHOUSE1

Y

1001

01-JUN-11

0

WAREHOUSE3

N

1002

01-JUN-11

1

WAREHOUSE3

N

1003

01-JUN-11

0

WAREHOUSE2

N

1004

01-JUN-11

2

WAREHOUSE1

N

1005

01-JUN-11

1

WAREHOUSE2

N


Assume that the rows in Table 2-1 are stored in one compression unit. Hybrid Columnar Compression stores the values for each column together, and then uses multiple algorithms to compress each column. The database chooses the algorithms based on a variety of factors, including the data type of the column, the cardinality of the actual values in the column, and the compression level chosen by the user.

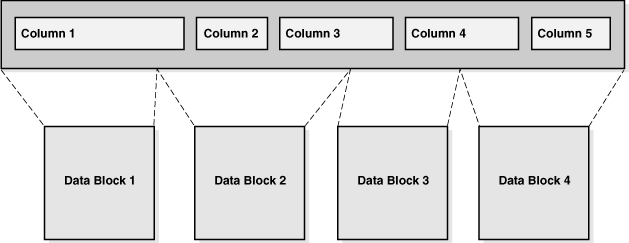

As shown in Figure 2-5, each compression unit can span multiple data blocks. The values for a particular column may or may not span multiple blocks.

Figure 2-5 Compression Unit

Description of Figure 2-5 follows
Description of "Figure 2-5 Compression Unit"

Hybrid Columnar Compression has implications for row locking (see "Row Locks (TX)"). When an update occurs for a row in an uncompressed data block, only the updated row is locked. In contrast, the database must lock all rows in the compression unit if an update is made to any row in the unit. Updates to rows using Hybrid Columnar Compression cause rowids to change.

Note:

When tables use Hybrid Columnar Compression, Oracle DML locks larger blocks of data (compression units), which may reduce concurrency.

See Also:

Overview of Table Clusters

A table cluster is a group of tables that share common columns and store related data in the same blocks. When tables are clustered, a single data block can contain rows from multiple tables. For example, a block can store rows from both the employees and departments tables rather than from only a single table.

The cluster key is the column or columns that the clustered tables have in common. For example, the employees and departments tables share the department_id column. You specify the cluster key when creating the table cluster and when creating every table added to the table cluster.

The cluster key value is the value of the cluster key columns for a particular set of rows. All data that contains the same cluster key value, such as department_id=20, is physically stored together. Each cluster key value is stored only once in the cluster and the cluster index, no matter how many rows of different tables contain the value.

For an analogy, suppose an HR manager has two book cases: one with boxes of employees folders and the other with boxes of departments folders. Users often ask for the folders for all employees in a particular department. To make retrieval easier, the manager rearranges all the boxes in a single book case. She divides the boxes by department ID. Thus, all folders for employees in department 20 and the folder for department 20 itself are in one box; the folders for employees in department 100 and the folder for department 100 are in a different box, and so on.

You can consider clustering tables when they are primarily queried (but not modified) and records from the tables are frequently queried together or joined. Because table clusters store related rows of different tables in the same data blocks, properly used table clusters offer the following benefits over nonclustered tables:

Typically, clustering tables is not appropriate in the following situations:

See Also:

Oracle Database Performance Tuning Guide for guidelines on when to use table clusters

Overview of Indexed Clusters

An indexed cluster is a table cluster that uses an index to locate data. The cluster index is a B-tree index on the cluster key. A cluster index must be created before any rows can be inserted into clustered tables.

Assume that you create the cluster employees_departments_cluster with the cluster key department_id, as shown in Example 2-8. Because the HASHKEYS clause is not specified, this cluster is an indexed cluster. Afterward, you create an index named idx_emp_dept_cluster on this cluster key.

Example 2-8 Indexed Cluster

CREATE CLUSTER employees_departments_cluster
   (department_id NUMBER(4))
SIZE 512;

CREATE INDEX idx_emp_dept_cluster ON CLUSTER employees_departments_cluster;

You then create the employees and departments tables in the cluster, specifying the department_id column as the cluster key, as follows (the ellipses mark the place where the column specification goes):

CREATE TABLE employees ( ... )
   CLUSTER employees_departments_cluster (department_id);

CREATE TABLE departments ( ... )
   CLUSTER employees_departments_cluster (department_id);

Finally, you add rows to the employees and departments tables. The database physically stores all rows for each department from the employees and departments tables in the same data blocks. The database stores the rows in a heap and locates them with the index.

Figure 2-6 shows the employees_departments_cluster table cluster, which contains employees and departments. The database stores rows for employees in department 20 together, department 110 together, and so on. If the tables are not clustered, then the database does not ensure that the related rows are stored together.

Figure 2-6 Clustered Table Data

Description of Figure 2-6 follows
Description of "Figure 2-6 Clustered Table Data"

The B-tree cluster index associates the cluster key value with the database block address (DBA) of the block containing the data. For example, the index entry for key 20 shows the address of the block that contains data for employees in department 20:

20,AADAAAA9d

The cluster index is separately managed, just like an index on a nonclustered table, and can exist in a separate tablespace from the table cluster.

See Also:

Overview of Hash Clusters

A hash cluster is like an indexed cluster, except the index key is replaced with a hash function. No separate cluster index exists. In a hash cluster, the data is the index.

With an indexed table or indexed cluster, Oracle Database locates table rows using key values stored in a separate index. To find or store a row in an indexed table or table cluster, the database must perform at least two I/Os:

  • One or more I/Os to find or store the key value in the index

  • Another I/O to read or write the row in the table or table cluster

To find or store a row in a hash cluster, Oracle Database applies the hash function to the cluster key value of the row. The resulting hash value corresponds to a data block in the cluster, which the database reads or writes on behalf of the issued statement.

Hashing is an optional way of storing table data to improve the performance of data retrieval. Hash clusters may be beneficial when the following conditions are met:

  • A table is queried much more often than modified.

  • The hash key column is queried frequently with equality conditions, for example, WHERE department_id=20. For such queries, the cluster key value is hashed. The hash key value points directly to the disk area that stores the rows.

  • You can reasonably guess the number of hash keys and the size of the data stored with each key value.

Hash Cluster Creation

The cluster key, like the key of an indexed cluster, is a single column or composite key shared by the tables in the cluster. The hash key values are actual or possible values inserted into the cluster key column. For example, if the cluster key is department_id, then hash key values could be 10, 20, 30, and so on.

Oracle Database uses a hash function that accepts an infinite number of hash key values as input and sorts them into a finite number of buckets. Each bucket has a unique numeric ID known as a hash value. Each hash value maps to the database block address for the block that stores the rows corresponding to the hash key value (department 10, 20, 30, and so on).

To create a hash cluster, you use the same CREATE CLUSTER statement as for an indexed cluster, with the addition of a hash key. The number of hash values for the cluster depends on the hash key. In Example 2-9, the number of departments that are likely to exist is 100, so HASHKEYS is set to 100.

Example 2-9 Hash Cluster

CREATE CLUSTER employees_departments_cluster
   (department_id NUMBER(4))
SIZE 8192 HASHKEYS 100;

After you create employees_departments_cluster, you can create the employees and departments tables in the cluster. You can then load data into the hash cluster just as in the indexed cluster described in Example 2-8.

See Also:

Oracle Database Administrator's Guide to learn how to create and manage hash clusters

Hash Cluster Queries

The database, not the user, determines how to hash the key values input by the user. For example, assume that users frequently execute queries such as the following, entering different department ID numbers for p_id:

SELECT *
FROM   employees
WHERE  department_id = :p_id;

SELECT *
FROM   departments
WHERE  department_id = :p_id;

SELECT *
FROM   employees e, departments d
WHERE  e.department_id = d.department_id
AND    d.department_id = :p_id;

If a user queries employees in department_id=20, then the database might hash this value to bucket 77. If a user queries employees in department_id=10, then the database might hash this value to bucket 15. The database uses the internally generated hash value to locate the block that contains the employee rows for the requested department.

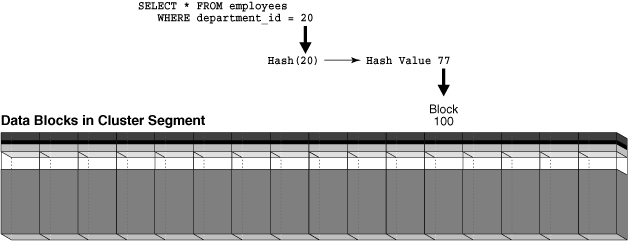

Figure 2-7 depicts a hash cluster segment as a horizontal row of blocks. As shown in the graphic, a query can retrieve data in a single I/O.

Figure 2-7 Retrieving Data from a Hash Cluster

Description of Figure 2-7 follows
Description of "Figure 2-7 Retrieving Data from a Hash Cluster"

A limitation of hash clusters is the unavailability of range scans on nonindexed cluster keys (see "Index Range Scan"). Assume that no separate index exists for the hash cluster created in Example 2-9. A query for departments with IDs between 20 and 100 cannot use the hashing algorithm because it cannot hash every possible value between 20 and 100. Because no index exists, the database must perform a full scan.

Hash Cluster Variations

A single-table hash cluster is an optimized version of a hash cluster that supports only one table at a time. A one-to-one mapping exists between hash keys and rows. A single-table hash cluster can be beneficial when users require rapid access to a table by primary key. For example, users often look up an employee record in the employees table by employee_id.

A sorted hash cluster stores the rows corresponding to each value of the hash function in such a way that the database can efficiently return them in sorted order. The database performs the optimized sort internally. For applications that always consume data in sorted order, this technique can mean faster retrieval of data. For example, an application might always sort on the order_date column of the orders table.

See Also:

Oracle Database Administrator's Guide to learn how to create single-table and sorted hash clusters

Hash Cluster Storage

Oracle Database allocates space for a hash cluster differently from an indexed cluster. In Example 2-9, HASHKEYS specifies the number of departments likely to exist, whereas SIZE specifies the size of the data associated with each department. The database computes a storage space value based on the following formula:

HASHKEYS * SIZE / database_block_size

Thus, if the block size is 4096 bytes in Example 2-9, then the database allocates at least 200 blocks to the hash cluster.

Oracle Database does not limit the number of hash key values that you can insert into the cluster. For example, even though HASHKEYS is 100, nothing prevents you from inserting 200 unique departments in the departments table. However, the efficiency of the hash cluster retrieval diminishes when the number of hash values exceeds the number of hash keys.

To illustrate the retrieval issues, assume that block 100 in Figure 2-7 is completely full with rows for department 20. A user inserts a new department with department_id 43 into the departments table. The number of departments exceeds the HASHKEYS value, so the database hashes department_id 43 to hash value 77, which is the same hash value used for department_id 20. Hashing multiple input values to the same output value is called a hash collision.

When users insert rows into the cluster for department 43, the database cannot store these rows in block 100, which is full. The database links block 100 to a new overflow block, say block 200, and stores the inserted rows in the new block. Both block 100 and 200 are now eligible to store data for either department. As shown in Figure 2-8, a query of either department 20 or 43 now requires two I/Os to retrieve the data: block 100 and its associated block 200. You can solve this problem by re-creating the cluster with a different HASHKEYS value.

Figure 2-8 Retrieving Data from a Hash Cluster When a Hash Collision Occurs

Description of Figure 2-8 follows
Description of "Figure 2-8 Retrieving Data from a Hash Cluster When a Hash Collision Occurs"

See Also:

Oracle Database Administrator's Guide to learn how to manage space in hash clusters
