8 Server-Side Programming: PL/SQL and Java

Chapter 7, "SQL" explains the Structured Query Language (SQL) language and how the database processes SQL statements. This chapter explains how Procedural Language/SQL (PL/SQL) or Java programs stored in the database can use SQL.

This chapter includes the following topics:

See Also:

Chapter 7, "SQL"

Introduction to Server-Side Programming

In a nonprocedural language such as SQL, the set of data to be operated on is specified, but not the operations to be performed or the manner in which they are to be carried out. In a procedural language program, most statement execution depends on previous or subsequent statements and on control structures, such as loops or conditional branches, that are not available in SQL.

For an illustration of the difference between procedural and nonprocedural languages, suppose that the following SQL statement queries the employees table:

SELECT employee_id, department_id, last_name, salary FROM employees;

The preceding statement requests data, but does not apply logic to the data. However, suppose you want an application to determine whether each employee in the data set deserves a raise based on salary and department performance. A necessary condition of a raise is that the employee did not receive more than three raises in the last five years. If a raise is called for, then the application must adjust the salary and email the manager; otherwise, the application must update a report.

The problem is how procedural database applications requiring conditional logic and program flow control can use SQL. The basic development approaches are as follows:

This chapter explains the second approach. The principal benefit of server-side programming is that functionality built into the database can be deployed anywhere. The database and not the application determines the best way to perform tasks on a given operating system. Also, subprograms increase scalability by centralizing application processing on the server, enabling clients to reuse code. Because subprogram calls are quick and efficient, a single call can start a compute-intensive stored subprogram, reducing network traffic.

You can use the following languages to store data logic in Oracle Database:

See Also:

Overview of PL/SQL

PL/SQL provides a server-side, stored procedural language that is easy-to-use, seamless with SQL, robust, portable, and secure. You can access and manipulate database data using procedural schema objects called PL/SQL program units.

PL/SQL program units generally are categorized as follows:

The PL/SQL compiler and interpreter are embedded in Oracle SQL Developer, giving developers a consistent and leveraged development model on both client and server. Also, PL/SQL stored procedures can be called from several database clients, such as Pro*C, JDBC, ODBC, or OCI, and from Oracle Reports and Oracle Forms.

See Also:

PL/SQL Subprograms

A PL/SQL subprogram is a named PL/SQL block that permits the caller to supply parameters that can be input only, output only, or input and output values. A subprogram solves a specific problem or performs related tasks and serves as a building block for modular, maintainable database applications.

A subprogram is either a procedure or a function. Procedures and functions are identical except that functions always return a single value to the caller, whereas procedures do not. The term procedure in this chapter means procedure or function.

See Also:

Advantages of PL/SQL Subprograms

As explained in "Introduction to Server-Side Programming", server-side programming has many advantages over client-side programming. PL/SQL subprograms provide the following advantages:

  • Improved performance

    • The amount of information that an application must send over a network is small compared with issuing individual SQL statements or sending the text of an entire PL/SQL block to Oracle Database, because the information is sent only once and thereafter invoked when it is used.

    • The compiled form of a procedure is readily available in the database, so no compilation is required at execution time.

    • If the procedure is present in the shared pool of the SGA, then the database need not retrieve it from disk and can begin execution immediately.

  • Memory allocation

    Because stored procedures take advantage of the shared memory capabilities of Oracle Database, it must load only a single copy of the procedure into memory for execution by multiple users. Sharing code among users results in a substantial reduction in database memory requirements for applications.

  • Improved productivity

    Stored procedures increase development productivity. By designing applications around a common set of procedures, you can avoid redundant coding. For example, you can write procedures to manipulate rows in the employees table. Any application can call these procedures without requiring SQL statements to be rewritten. If the methods of data management change, then only the procedures must be modified, not the applications that use the procedures.

    Stored procedures are perhaps the best way to achieve code reuse. Because any client application written in any language that connects to the database can invoke stored procedures, they provide maximum code reuse in all environments.

  • Integrity

    Stored procedures improve the integrity and consistency of your applications. By developing applications around a common group of procedures, you reduce the likelihood of coding errors.

    For example, you can test a subprogram to guarantee that it returns an accurate result and, after it is verified, reuse it in any number of applications without retesting. If the data structures referenced by the procedure are altered, then you must only recompile the procedure. Applications that call the procedure do not necessarily require modifications.

  • Security with definer's rights procedures

    Stored procedures can help enforce data security (see "Overview of Database Security"). A definer's rights procedure executes with the privileges of its owner, not its current user. Thus, you can restrict the database operations that users perform by allowing them to access data only through procedures and functions that run with the definer's privileges.

    For example, you can grant users access to a procedure that updates a table but not grant access to the table itself. When a user invokes the procedure, it runs with the privileges of its owner. Users who have only the privilege to run the procedure (but not privileges to query, update, or delete from the underlying tables) can invoke the procedure but not manipulate table data in any other way.

  • Inherited privileges and schema context with invoker's rights procedures

    An invoker's rights procedure executes in the current user's schema with the current user's privileges. In other words, an invoker's rights procedure is not tied to a particular user or schema. Invoker's rights procedures make it easy for application developers to centralize application logic, even when the underlying data is divided among user schemas.

    For example, an hr_manager user who runs an update procedure on the hr.employees table can update salaries, whereas an hr_clerk who runs the same procedure is restricted to updating address data.

See Also:

Creation of PL/SQL Subprograms

A subprogram created at the schema level with the CREATE PROCEDURE or CREATE FUNCTION statement is a standalone stored subprogram. Subprograms defined in a package are called package subprograms and are considered a part of the package. The database stores subprograms in the data dictionary as schema objects.

A subprogram has a specification, which includes descriptions of any parameters, and a body. Example 8-1 shows part of a creation statement for the standalone PL/SQL procedure hire_employees. The procedure inserts a row into the employees table.

Example 8-1 PL/SQL Procedure

CREATE PROCEDURE hire_employees
  (p_last_name VARCHAR2, p_job_id VARCHAR2, p_manager_id NUMBER, p_hire_date DATE,
   p_salary NUMBER, p_commission_pct NUMBER, p_department_id NUMBER)
IS
BEGIN
.
.
.
  INSERT INTO employees (employee_id, last_name, job_id, manager_id, hire_date,
    salary, commission_pct, department_id)
  VALUES (emp_sequence.NEXTVAL, p_last_name, p_job_id, p_manager_id, p_hire_date,
    p_salary, p_commission_pct, p_department_id);
.
.
.
END;

See Also:

Execution of PL/SQL Subprograms

Users can execute a subprogram interactively by:

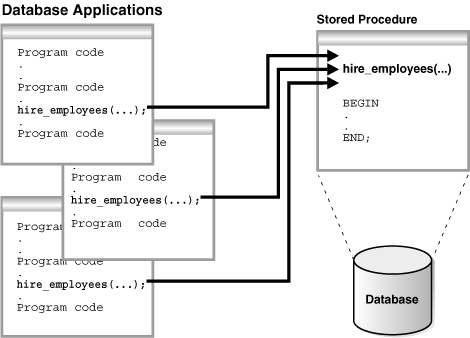

Figure 8-1 shows different database applications calling hire_employees.

Figure 8-1 Calling a PL/SQL Stored Procedure

Description of Figure 8-1 follows
Description of "Figure 8-1 Calling a PL/SQL Stored Procedure"

Alternatively, a privileged user can use Oracle Enterprise Manager or SQL*Plus to run the hire_employees procedure using a statement such as the following:

EXECUTE hire_employees ('TSMITH', 'CLERK', 1037, SYSDATE, 500, NULL, 20);

The preceding statement inserts a new record for TSMITH in the employees table.

A stored procedure depends on the objects referenced in its body. The database automatically tracks and manages these dependencies. For example, if you alter the definition of the employees table referenced by the hire_employees procedure in a manner that would affect this procedure, then the procedure must be recompiled to validate that it still works as designed. Usually, the database automatically administers such dependency management.

See Also:

PL/SQL Packages

A PL/SQL package is a group of related subprograms, along with the cursors and variables they use, stored together in the database for continued use as a unit. Packaged subprograms can be called explicitly by applications or users.

Oracle Database includes many supplied packages that extend database functionality and provide PL/SQL access to SQL features. For example, the UTL_HTTP package enables HTTP callouts from PL/SQL and SQL to access data on the Internet or to call Oracle Web Server Cartridges. You can use the supplied packages when creating applications or as a source of ideas when creating your own stored procedures.

Advantages of PL/SQL Packages

PL/SQL packages provide the following advantages:

  • Encapsulation

    Packages enable you to encapsulate or group stored procedures, variables, data types, and so on in a named, stored unit. Encapsulation provides better organization during development and also more flexibility. You can create specifications and reference public procedures without actually creating the package body. Encapsulation simplifies privilege management. Granting the privilege for a package makes package constructs accessible to the grantee.

  • Data security

    The methods of package definition enable you to specify which variables, cursors, and procedures are public and private. Public means that it is directly accessible to the user of a package. Private means that it is hidden from the user of a package.

    For example, a package can contain 10 procedures. You can define the package so that only three procedures are public and therefore available for execution by a user of the package. The remaining procedures are private and can only be accessed by the procedures within the package. Do not confuse public and private package variables with grants to PUBLIC.

  • Better performance

    An entire package is loaded into memory in small chunks when a procedure in the package is called for the first time. This load is completed in one operation, as opposed to the separate loads required for standalone procedures. When calls to related packaged procedures occur, no disk I/O is needed to run the compiled code in memory.

    A package body can be replaced and recompiled without affecting the specification. As a result, schema objects that reference a package's constructs (always through the specification) need not be recompiled unless the package specification is also replaced. By using packages, unnecessary recompilations can be minimized, resulting in less impact on overall database performance.

Creation of PL/SQL Packages

You create a package in two parts: the specification and the body. The package specification declares all public constructs of the package, whereas the body defines all constructs (public and private) of the package.

Example 8-1 shows part of a statement that creates the package specification for employees_management, which encapsulates several subprograms used to manage an employee database. Each part of the package is created with a different statement.

Example 8-2 PL/SQL Package

CREATE PACKAGE employees_management AS
  FUNCTION hire_employees (last_name VARCHAR2, job_id VARCHAR2, manager_id NUMBER,
    salary NUMBER, commission_pct NUMBER, department_id NUMBER) RETURN NUMBER;
  PROCEDURE fire_employees(employee_id NUMBER);
  PROCEDURE salary_raise(employee_id NUMBER, salary_incr NUMBER);
.
.
.
  no_sal EXCEPTION;
END employees_management;

The specification declares the function hire_employees, the procedures fire_employees and salary_raise, and the exception no_sal. All of these public program objects are available to users who have access to the package.

The CREATE PACKAGE BODY command defines objects declared in the specification. The package body must be created in the same schema as the package. After creating the package, you can develop applications that call any of these public procedures or functions or raise any of the public exceptions of the package.

See Also:

Oracle Database PL/SQL Language Reference to learn about the CREATE PACKAGE command

Execution of PL/SQL Package Subprograms

You can reference package contents from database triggers, stored subprograms, 3GL application programs, and Oracle tools. Figure 8-2 shows database applications invoking procedures and functions in the employees_management package.

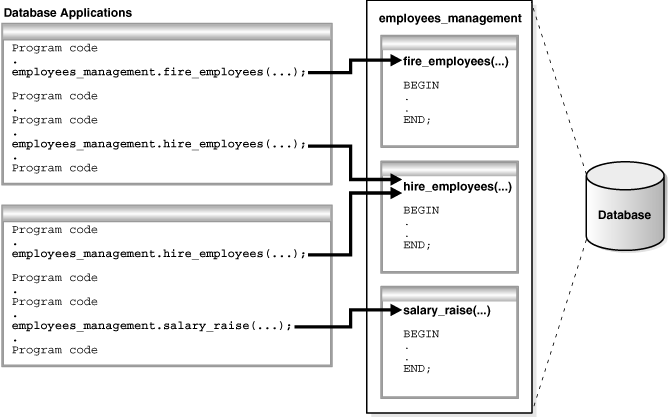

Figure 8-2 Calling Subprograms in a PL/SQL Package

Description of Figure 8-2 follows
Description of "Figure 8-2 Calling Subprograms in a PL/SQL Package"

Database applications explicitly call packaged procedures as necessary. After being granted the privileges for the employees_management package, a user can explicitly run any of the procedures contained in it. For example, SQL*Plus can issue the following statement to run the hire_employees package procedure:

EXECUTE employees_management.hire_employees ('TSMITH', 'CLERK', 1037, SYSDATE, 500, NULL, 20);

See Also:

PL/SQL Anonymous Blocks

An anonymous block is an unnamed, nonpersistent PL/SQL unit. Typical uses for anonymous blocks include:

  • Initiating calls to subprograms and package constructs

  • Isolating exception handling

  • Managing control by nesting code within other PL/SQL blocks

Anonymous blocks do not have the code reuse advantages of stored subprograms. Table 8-1 summarizes the differences between the two types of program units.

Table 8-1 Differences Between Anonymous Blocks and Subprograms

Is the PL/SQL Unit ... Anonymous Blocks Subprograms

Specified with a name?

No

Yes

Compiled with every reuse?

No

No

Stored in the database?

No

Yes

Invocable by other applications?

No

Yes

Capable of returning bind variable values?

Yes

Yes

Capable of returning function values?

No

Yes

Capable of accepting parameters?

No

Yes


An anonymous block consists of an optional declarative part, an executable part, and one or more optional exception handlers. The following sample anonymous block selects an employee last name into a variable and prints the name:

DECLARE
  v_lname VARCHAR2(25);
BEGIN
  SELECT last_name INTO v_lname
  FROM employees
  WHERE employee_id = 101;
  DBMS_OUTPUT.PUT_LINE('Employee last name is '||v_lname);
END;

Oracle Database compiles the PL/SQL block and places it in the shared pool of the SGA, but it does not store the source code or compiled version in the database for reuse beyond the current instance. Unlike triggers, an anonymous block is compiled each time it is loaded into memory. Shared SQL allows anonymous PL/SQL blocks in the shared pool to be reused and shared until they are flushed out of the shared pool.

See Also:

Oracle Database Advanced Application Developer's Guide to learn more about anonymous PL/SQL blocks

PL/SQL Language Constructs

PL/SQL blocks can include a variety of different PL/SQL language constructs. These constructs including the following:

  • Variables and constants

    You can declare these constructs within a procedure, function, or package. You can use a variable or constant in a SQL or PL/SQL statement to capture or provide a value when one is needed.

  • Cursors

    You can declare a cursor explicitly within a procedure, function, or package to facilitate record-oriented processing of Oracle Database data. The PL/SQL engine can also declare cursors implicitly.

  • Exceptions

    PL/SQL lets you explicitly handle internal and user-defined error conditions, called exceptions, that arise during processing of PL/SQL code.

PL/SQL can run dynamic SQL statements whose complete text is not known until run time. Dynamic SQL statements are stored in character strings that are entered into, or built by, the program at run time. This technique enables you to create general purpose procedures. For example, you can create a procedure that operates on a table whose name is not known until run time.

See Also:

PL/SQL Collections and Records

Many programming techniques use collection types such as arrays, bags, lists, nested tables, sets, and trees. To support these techniques in database applications, PL/SQL provides the data types TABLE and VARRAY, which enable you to declare associative arrays, nested tables, and variable-size arrays.

Collections

A collection is an ordered group of elements, all of the same type. Each element has a unique subscript that determines its position in the collection. To create a collection, you first define a collection type, and then declare a variable of that type.

Collections work like the arrays found in most third-generation programming languages. Also, collections can be passed as parameters. So, you can use them to move columns of data into and out of database tables or between client-side applications and stored subprograms.

Records

A record is a composite variable that can store data values of different types, similar to a struct type in C, C++, or Java. Records are useful for holding data from table rows, or certain columns from table rows.

Suppose you have data about an employee such as name, salary, and hire date. These items are dissimilar in type but logically related. A record containing a field for each item lets you treat the data as a logical unit.

You can use the %ROWTYPE attribute to declare a record that represents a table row or row fetched from a cursor. With user-defined records, you can declare your own fields.

See Also:

Oracle Database PL/SQL Language Reference for detailed information on using collections and records

How PL/SQL Runs

PL/SQL supports both native execution and interpreted execution. In interpreted execution, PL/SQL source code is compiled into a so-called bytecode representation, which is run by a portable virtual computer implemented as part of Oracle Database. In native execution, which offers the best performance on computationally intensive program units, the source code of PL/SQL program units is compiled directly to object code for the given platform. This object code is linked into Oracle Database.

The PL/SQL engine is the tool used to define, compile, and run PL/SQL program units. This engine is a special component of many Oracle products, including Oracle Database. While many Oracle products have PL/SQL components, this section specifically covers the program units that can be stored in Oracle Database and processed using Oracle Database PL/SQL engine. The PL/SQL capabilities of each Oracle tool are described in the documentation for this tool.

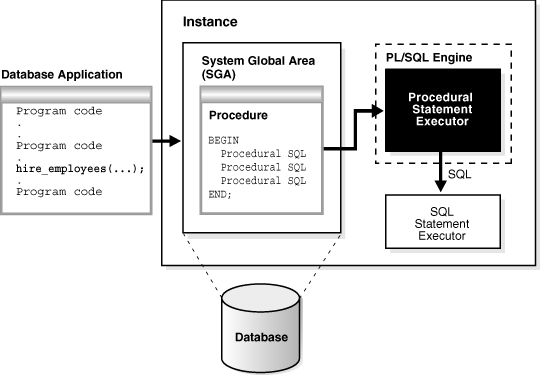

Figure 8-3 illustrates the PL/SQL engine contained in Oracle Database.

Figure 8-3 The PL/SQL Engine and Oracle Database

Description of Figure 8-3 follows
Description of "Figure 8-3 The PL/SQL Engine and Oracle Database"

The program unit is stored in a database. When an application calls a stored procedure, the database loads the compiled program unit into the shared pool in the system global area (SGA) (see "Shared Pool"). The PL/SQL and SQL statement executors work together to process the statements in the procedure.

You can call a stored procedure from another PL/SQL block, which can be either an anonymous block or another stored procedure. For example, you can call a stored procedure from Oracle Forms.

A PL/SQL procedure executing on Oracle Database can call an external procedure or function written in the C programming language and stored in a shared library. The C routine runs in a separate address space from that of Oracle Database.

See Also:

Overview of Java in Oracle Database

Java has emerged as the object-oriented programming language of choice. Java includes the following features:

Note:

This chapter assumes that you have some familiarity with the Java language.

The database provides Java programs with a dynamic data-processing engine that supports complex queries and multiple views of data. Client requests are assembled as data queries for immediate processing. Query results are generated dynamically.

The combination of Java and Oracle Database helps you create component-based, network-centric applications that can be easily updated as business needs change. In addition, you can move applications and data stores off the desktop and onto intelligent networks and network-centric servers. More importantly, you can access these applications and data stores from any client device.

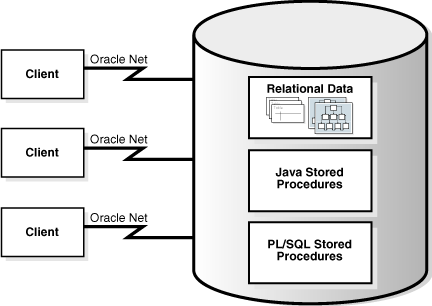

Figure 8-4 shows a traditional two-tier, client/server configuration in which clients call Java stored procedures in the same way that they call PL/SQL subprograms.

Figure 8-4 Two-Tier Client/Server Configuration

Two-Tier Client/Server Configuration
Description of "Figure 8-4 Two-Tier Client/Server Configuration"

See Also:

Oracle Database 2 Day + Java Developer's Guide for an introduction to using Java with Oracle Database

Overview of the Java Virtual Machine (JVM)

A JVM is a virtual processor that runs compiled Java code. Java source code compiles to low-level machine instructions, known as bytecodes, that are platform independent. The Java bytecodes are interpreted through the JVM into platform-dependent actions.

Overview of Oracle JVM

Oracle JVM is a complete, Java2-compliant environment for running pure Java applications. It is compatible with the JLS and the JVM specifications. It supports the standard Java binary format and APIs. In addition, Oracle Database adheres to standard Java language semantics, including dynamic class loading at run time.

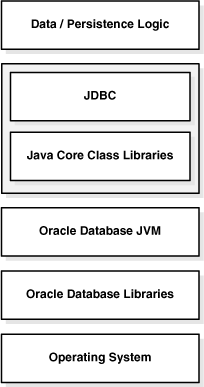

Figure 8-5 illustrates how Oracle Java applications reside on top of the Java core class libraries, which reside on top of the Oracle JVM. Because the Oracle Java support system is located within the database, the JVM interacts with database libraries, instead of directly interacting with the operating system.

Figure 8-5 Java Component Structure

Description of Figure 8-5 follows
Description of "Figure 8-5 Java Component Structure"

Unlike other Java environments, Oracle JVM is embedded within Oracle Database. Some important differences exist between Oracle JVM and typical client JVMs. For example, in a standard Java environment, you run a Java application through the interpreter by issuing the following command on the command line, where classname is the name of the class that you want the JVM to interpret first:

java classname

The preceding command causes the application to run within a process on your operating system. However, if you are not using the command-line interface, then you must load the application into the database, publish the interface, and then run the application within a database data dictionary.

See Also:

See Oracle Database Java Developer's Guide for a description of other differences between the Oracle JVM and typical client JVMs

Main Components of Oracle JVM

Oracle JVM runs in the same process space and address space as the database kernel by sharing its memory heaps and directly accessing its relational data. This design optimizes memory use and increases throughput.

Oracle JVM provides a run-time environment for Java objects. It fully supports Java data structures, method dispatch, exception handling, and language-level threads. It also supports all the core Java class libraries, including java.lang, java.io, java.net, java.math, and java.util.

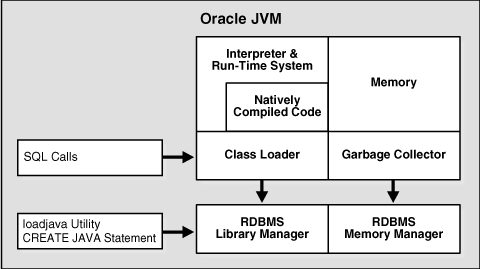

Figure 8-6 shows the main components of Oracle JVM.

Figure 8-6 Main Components of Oracle JVM

Main Components of Oracle JVM
Description of "Figure 8-6 Main Components of Oracle JVM"

Oracle JVM embeds the standard Java namespace in the database schemas. This feature lets Java programs access Java objects stored in Oracle Database and application servers across the enterprise.

In addition, Oracle JVM is tightly integrated with the scalable, shared memory architecture of the database. Java programs use call, session, and object lifetimes efficiently without user intervention. As a result, Oracle JVM and middle-tier Java business objects can be scaled, even when they have session-long state.

See Also:

Oracle Database Java Developer's Guide for a description of the main components of Oracle JVM

Java Programming Environment

Oracle furnishes enterprise application developers with an end-to-end Java solution for creating, deploying, and managing Java applications. The solution consists of client-side and server-side programmatic interfaces, tools to support Java development, and a Java Virtual Machine integrated with Oracle Database. All these products are compatible with Java standards.

The Java programming environment consists of the following additional features:

  • Java stored procedures as the Java equivalent and companion for PL/SQL. Java stored procedures are tightly integrated with PL/SQL. You can call Java stored procedures from PL/SQL packages and procedures from Java stored procedures.

  • The JDBC and SQLJ programming interfaces for accessing SQL data.

  • Tools and scripts that assist in developing, loading, and managing classes.

Java Stored Procedures

A Java stored procedure is a Java method published to SQL and stored in the database. Like a PL/SQL subprogram, a Java procedure can be invoked directly with products like SQL*Plus or indirectly with a trigger. You can access it from any Oracle Net client—OCI, precompiler, or JDBC.

To publish Java methods, you write call specifications, which map Java method names, parameter types, and return types to their SQL counterparts. When called by client applications, a Java stored procedure can accept arguments, reference Java classes, and return Java result values.

Applications calling the Java method by referencing the name of the call specification. The run-time system looks up the call specification definition in the Oracle data dictionary and runs the corresponding Java method.

In addition, you can use Java to develop powerful programs independently of PL/SQL. Oracle Database provides a fully compliant implementation of the Java programming language and JVM.

See Also:

Oracle Database Java Developer's Guide explains how to write stored procedures in Java, how to access them from PL/SQL, and how to access PL/SQL functionality from Java

Java and PL/SQL Integration

You can call existing PL/SQL programs from Java and Java programs from PL/SQL. This solution protects and leverages your PL/SQL and Java code.

Oracle Database offers two different approaches for accessing SQL data from Java, JDBC and SQLJ. Both approaches are available on the client and server. As a result, you can deploy applications on the client and server without modifying the code.

JDBC Drivers

JDBC is a database access protocol that enables you to connect to a database and run SQL statements and queries to the database. The core Java class libraries provide only one JDBC API, java.sql. However, JDBC is designed to enable vendors to supply drivers that offer the necessary specialization for a particular database. Oracle provides the distinct JDBC drivers shown in the following table.

Driver Description
JDBC Thin driver You can use the JDBC Thin driver to write pure Java applications and applets that access Oracle SQL data. The JDBC Thin driver is especially well-suited for Web-based applications and applets, because you can dynamically download it from a Web page, similar to any other Java applet.
JDBC OCI driver The JDBC OCI driver accesses Oracle-specific native code, that is, non-Java code, and libraries on the client or middle tier, providing a performance boost compared to the JDBC Thin driver, at the cost of significantly larger size and client-side installation.
JDBC server-side internal driver Oracle Database uses the server-side internal driver when the Java code runs on the server. It allows Java applications running in Oracle JVM on the server to access locally defined data, that is, data on the same system and in the same process, with JDBC. It provides a performance boost, because of its ability to use the underlying Oracle RDBMS libraries directly, without the overhead of an intervening network connection between the Java code and SQL data. By supporting the same Java-SQL interface on the server, Oracle Database does not require you to rework code when deploying it.

SQLJ

SQLJ is an ANSI standard for embedding SQL statements in Java programs. You can use SQLJ in stored procedures, triggers, and methods within the Oracle Database environment. In addition, you can combine SQLJ programs with JDBC.

SQLJ provides a simple, but powerful, way to develop client-side and middle-tier applications that access databases from Java (see "SQLJ"). A developer writes a program using SQLJ and then uses the SQLJ translator to translate embedded SQL to pure JDBC-based Java code. At run time, the program can communicate with multi-vendor databases using standard JDBC drivers.

The following example shows a simple SQLJ executable statement:

String name;
#sql  { SELECT first_name INTO :name FROM employees WHERE employee_id=112 };
System.out.println("Name is " + name + ", employee number = " + employee_id);

Because Oracle Database provides a complete Java environment, you cannot compile SQLJ programs on a client that will run on the database. Instead, you can compile them directly on the server.

Overview of Triggers

A database trigger is a compiled stored program unit, written in either PL/SQL or Java, that Oracle Database invokes ("fires") automatically whenever one of the following operations occurs:

  1. DML statements on a particular table or view, issued by any user

    DML statements modify data in schema objects. For example, inserting and deleting rows are DML operations.

  2. DDL statements issued either by a particular user or any user

    DDL statements define schema objects. For example, creating a table and adding a column are DDL operations.

  3. Database events

    User login or logoff, errors, and database startup or shutdown are events that can invoke triggers.

Triggers are schema objects that are similar to subprograms but differ in the way they are invoked. A subprogram is explicitly run by a user, application, or trigger. Triggers are implicitly invoked by the database when a triggering event occurs.

Advantages of Triggers

The correct use of triggers enables you to build and deploy applications that are more robust and that use the database more effectively. You can use triggers to:

  • Automatically generate derived column values

  • Prevent invalid transactions

  • Provide auditing and event logging

  • Record information about table access

You can use triggers to enforce low-level business rules common for all client applications. For example, several applications may access the employees table. If a trigger on this table ensures the format of inserted data, then this business logic does not need to be reproduced in every client. Because the trigger cannot be circumvented by the application, the business logic in the trigger is used automatically.

You can use both triggers and integrity constraints to define and enforce any type of integrity rule. However, Oracle strongly recommends that you only use triggers to enforce complex business rules not definable using an integrity constraint (see "Introduction to Data Integrity").

Excessive use of triggers can result in complex interdependencies that can be difficult to maintain in a large application. For example, when a trigger is invoked, a SQL statement within its trigger action potentially can fire other triggers, resulting in cascading triggers that can produce unintended effects.

See Also:

Oracle Database 2 Day Developer's Guide and Oracle Database PL/SQL Language Reference for guidelines and restrictions when planning triggers for your application

Types of Triggers

Triggers can be categorized according to their means of invocation and the type of actions they perform. Oracle Database supports the following types of triggers:

  • Row triggers

    A row trigger fires each time the table is affected by the triggering statement. For example, if a statement updates multiple rows, then a row trigger fires once for each row affected by the UPDATE. If a triggering statement affects no rows, then a row trigger is not run. Row triggers are useful if the code in the trigger action depends on data provided by the triggering statement or rows that are affected.

  • Statement triggers

    A statement trigger is fired once on behalf of the triggering statement, regardless of the number of rows affected by the triggering statement. For example, if a statement deletes 100 rows from a table, a statement-level DELETE trigger is fired only once. Statement triggers are useful if the code in the trigger action does not depend on the data provided by the triggering statement or the rows affected.

  • INSTEAD OF triggers

    An INSTEAD OF trigger is fired by Oracle Database instead of executing the triggering statement. These triggers are useful for transparently modifying views that cannot be modified directly through DML statements.

  • Event triggers

    You can use triggers to publish information about database events to subscribers. Event triggers are divided into the following categories:

    • A system event trigger can be caused by events such as database instance startup and shutdown or error messages.

    • A user event trigger is fired because of events related to user logon and logoff, DDL statements, and DML statements.

Timing for Triggers

You can define the trigger timingwhether the trigger action is to be run before or after the triggering statement. A simple trigger is a single trigger on a table that enables you to specify actions for exactly one of the following timing points:

  • Before the firing statement

  • Before each row affected by the firing statement

  • After each row affected by the firing statement

  • After the firing statement

For statement and row triggers, a BEFORE trigger can enhance security and enable business rules before making changes to the database. The AFTER trigger is ideal for logging actions.

A compound trigger can fire at multiple timing points. Compound triggers help program an approach in which the actions that you implement for various timing points share common data.

See Also:

Oracle Database PL/SQL Language Reference to learn about compound triggers

Creation of Triggers

The CREATE TRIGGER statement creates or replaces a database trigger. A PL/SQL trigger has the following general syntactic form:

CREATE TRIGGER trigger_name
  triggering_statement
  [trigger_restriction]
BEGIN
 triggered_action;
END;

A PL/SQL trigger has the following basic components:

  • Trigger name

    The name must be unique with respect to other triggers in the same schema. For example, the name may be part_reorder_trigger.

  • The trigger event or statement

    A triggering event or statement is the SQL statement, database event, or user event that causes a trigger to be invoked. For example, a user updates a table.

  • Trigger restriction

    A trigger restriction specifies a Boolean expression that must be true for the trigger to fire. For example, the trigger is not invoked unless the number of available parts is less than a present reorder amount.

  • Triggered action

    A triggered action is the procedure that contains the SQL statements and code to be run when a triggering statement is issued and the trigger restriction evaluates to true. For example, a user inserts a row into a pending orders table.

Suppose that you create the orders and lineitems tables as follows:

CREATE TABLE orders
( order_id NUMBER PRIMARY KEY,
  /* other attributes */
  line_items_count NUMBER DEFAULT 0 );

CREATE TABLE lineitems
( order_id REFERENCES orders,
  seq_no   NUMBER,
  /* other attributes */
  CONSTRAINT lineitems PRIMARY KEY(order_id,seq_no) );

The orders table contains a row for each unique order, whereas the lineitems table contains a row for each item in an order. Example 8-3 shows a sample trigger that automatically updates the orders table with the number of items in an order.

Example 8-3 lineitems_trigger

CREATE OR REPLACE TRIGGER lineitems_trigger
  AFTER INSERT OR UPDATE OR DELETE ON lineitems
  FOR EACH ROW
BEGIN
  IF (INSERTING OR UPDATING)
  THEN
    UPDATE orders SET line_items_count = NVL(line_items_count,0)+1
    WHERE order_id = :new.order_id;
  END IF;
  IF (DELETING OR UPDATING)
  THEN
    UPDATE orders SET line_items_count = NVL(line_items_count,0)-1
    WHERE order_id = :old.order_id;
  END IF;
END;
/

In Example 8-3, the triggering statement is an INSERT, UPDATE, or DELETE on the lineitems table. No triggering restriction exists. The trigger is invoked for each row changed. The trigger has access to the old and new column values of the current row affected by the triggering statement. Two correlation names exist for every column of the table being modified: the old value (:old), and the new value (:new).

If rows in lineitems are inserted or updated for an order, then after the action the trigger calculates the number of items in this order and updates the orders table with the count. Table 8-2 illustrates a scenario in which a customer initiates two orders and adds and removes line items from the orders.

Table 8-2 Row-Level Trigger Scenario

SQL Statement Triggered SQL Statement Description
SQL> INSERT INTO orders
(order_id) VALUES (78);

1 row created.


The customer creates an order with ID 78. At this point the customer has no items in the order.

Because no action is performed on the lineitems table, the trigger is not invoked.

SQL> INSERT INTO orders
(order_id) VALUES (92);

1 row created.


The customer creates a separate order with ID 92. At this point the customer has no items in the order.

Because no action is performed on the lineitems table, the trigger is not invoked.

SQL> INSERT INTO lineitems
(order_id, seq_no) VALUES (78,1);

1 row created.
UPDATE orders SET
line_items_count = NVL(NULL,0)+1
WHERE order_id = 78;

The customer adds an item to order 78.

The INSERT invokes the trigger. The triggered statement increases the line item count for order 78 from 0 to 1.

SQL> INSERT INTO lineitems
(order_id, seq_no) VALUES (78,2);

1 row created.
UPDATE orders SET
line_items_count = NVL(1,0)+1
WHERE order_id = 78;

The customer adds an additional item to order 78.

The INSERT invokes the trigger. The triggered statement increases the line item count for order 78 from 1 to 2.

SQL> SELECT * FROM orders;

 ORDER_ID LINE_ITEMS_COUNT
--------- ----------------
      78                2
      92                0


The customer queries the status of the two orders. Order 78 contains two items. Order 92 contains no items.

SQL> SELECT * FROM lineitems;

  ORDER_ID     SEQ_NO
---------- ----------
        78          1
        78          2


The customer queries the status of the line items. Each item is uniquely identified by the order ID and the sequence number.

SQL> UPDATE lineitems SET order_id = 92;

2 rows updated.
UPDATE orders SET
line_items_count = NVL(NULL,0)+1
WHERE order_id = 92;

UPDATE orders SET
line_items_count = NVL(2,0)-1
WHERE order_id = 78;
UPDATE orders SET
line_items_count = NVL(1,0)+1
WHERE order_id = 92;

UPDATE orders SET
line_items_count = NVL(1,0)-1
WHERE order_id = 78;

The customer moves the line items that were in order 78 to order 92.

The UPDATE statement changes 2 rows in the lineitems tables, which invokes the trigger once for each row.

Each time the trigger is invoked, both IF conditions in the trigger are met. The first condition increments the count for order 92, whereas the second condition decreases the count for order 78. Thus, four total UPDATE statements are run.

SQL> SELECT * FROM orders;

 ORDER_ID LINE_ITEMS_COUNT
--------- ----------------
       78                0
       92                2

The customer queries the status of the two orders. The net effect is that the line item count for order 92 has increased from 0 to 2, whereas the count for order 78 has decreased from 2 to 0.

SQL> SELECT * FROM lineitems;

  ORDER_ID     SEQ_NO
---------- ----------
        92          1
        92          2

The customer queries the status of the line items. Each item is uniquely identified by the order ID and the sequence number.

SQL> DELETE FROM lineitems;

2 rows deleted.
UPDATE orders SET
line_items_count = NVL(2,0)-1
WHERE order_id = 92;

UPDATE orders SET
line_items_count = NVL(1,0)-1
WHERE order_id = 92;

The customer now removes all line items from all orders.

The DELETE statement changes 2 rows in the lineitems tables, which invokes the trigger once for each row. For each trigger invocation, only one IF condition in the trigger is met. Each time the condition decreases the count for order 92 by 1. Thus, two total UPDATE statements are run.

SQL> SELECT * FROM orders;

 ORDER_ID LINE_ITEMS_COUNT
--------- ----------------
       78                0
       92                0

SQL> SELECT * FROM lineitems;

no rows selected

The customer queries the status of the two orders. Neither order contains line items.

The customer also queries the status of the line items. No items exist.


See Also:

Execution of Triggers

Oracle Database executes a trigger internally using the same steps as for subprogram execution. The only subtle difference is that a user has the right to fire a trigger if he or she has the privilege to run the triggering statement. With this exception, the database validates and runs triggers the same way as stored subprograms.

See Also:

Oracle Database PL/SQL Language Reference to learn more about trigger execution

Storage of Triggers

Oracle Database stores PL/SQL triggers in compiled form in a database schema, just like PL/SQL stored procedures. When a CREATE TRIGGER statement commits, the compiled PL/SQL code is stored in the database and the source code of the PL/SQL trigger is removed from the shared pool.

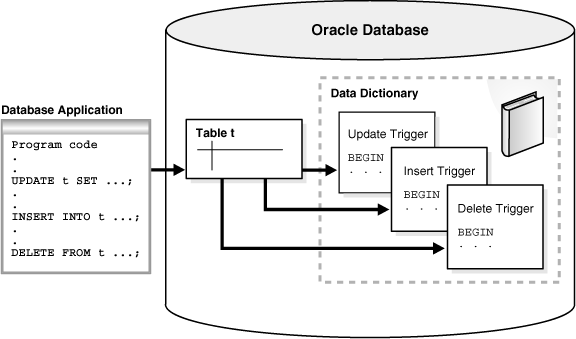

Figure 8-7 shows a database application with SQL statements that implicitly invoke PL/SQL triggers. The triggers are stored separately from their associated tables.

Java triggers are stored in the same manner as PL/SQL triggers. However, a Java trigger references Java code that was separately compiled with a CALL statement. Thus, creating a Java trigger involves creating Java code and creating the trigger that references this Java code.

See Also:

Oracle Database PL/SQL Language Reference to learn about compiling and storing triggers
