Version: 3.0.3
wxHtmlWindow Class Reference

#include <wx/html/htmlwin.h>

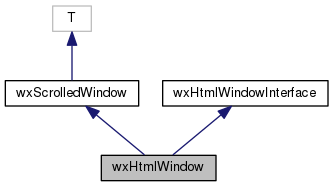

+ Inheritance diagram for wxHtmlWindow:

Detailed Description

wxHtmlWindow is probably the only class you will directly use unless you want to do something special (like adding new tag handlers or MIME filters).

The purpose of this class is to display rich content pages (either local file or downloaded via HTTP protocol) in a window based on a subset of the HTML standard. The width of the window is constant - given in the constructor - and virtual height is changed dynamically depending on page size. Once the window is created you can set its content by calling SetPage() with raw HTML, LoadPage() with a wxFileSystem location or LoadFile() with a filename.

Note
If you want complete HTML/CSS support as well as a Javascript engine, see instead wxWebView.
wxHtmlWindow uses the wxImage class for displaying images, as such you need to initialize the handlers for any image formats you use before loading a page. See wxInitAllImageHandlers and wxImage::AddHandler.

Styles

This class supports the following styles:

  • wxHW_SCROLLBAR_NEVER:
    Never display scrollbars, not even when the page is larger than the window.
  • wxHW_SCROLLBAR_AUTO:
    Display scrollbars only if page's size exceeds window's size.
  • wxHW_NO_SELECTION:
    Don't allow the user to select text.

Events emitted by this class

The following event handler macros redirect the events to member function handlers 'func' with prototypes like:

void handlerFuncName(wxHtmlCellEvent& event) or void handlerFuncName( wxHtmlLinkEvent& event)

Event macros for events emitted by this class:

  • EVT_HTML_CELL_CLICKED(id, func):
    A wxHtmlCell was clicked.
  • EVT_HTML_CELL_HOVER(id, func):
    The mouse passed over a wxHtmlCell.
  • EVT_HTML_LINK_CLICKED(id, func):
    A wxHtmlCell which contains an hyperlink was clicked.

Library:  wxHTML
Category:  HTML
See also
wxHtmlLinkEvent, wxHtmlCellEvent

Public Member Functions

 wxHtmlWindow ()
 Default ctor. More...

 wxHtmlWindow (wxWindow *parent, wxWindowID id=wxID_ANY, const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, long style=wxHW_DEFAULT_STYLE, const wxString &name="htmlWindow")
 Constructor. More...

bool AppendToPage (const wxString &source)
 Appends HTML fragment to currently displayed text and refreshes the window. More...

wxHtmlContainerCellGetInternalRepresentation () const
 Returns pointer to the top-level container. More...

wxString GetOpenedAnchor () const
 Returns anchor within currently opened page (see wxHtmlWindow::GetOpenedPage). More...

wxString GetOpenedPage () const
 Returns full location of the opened page. More...

wxString GetOpenedPageTitle () const
 Returns title of the opened page or wxEmptyString if the current page does not contain <TITLE> tag. More...

wxHtmlWinParserGetParser () const
 Returns a pointer to the current parser. More...

wxFrameGetRelatedFrame () const
 Returns the related frame. More...

bool HistoryBack ()
 Moves back to the previous page. More...

bool HistoryCanBack ()
 Returns true if it is possible to go back in the history i.e. More...

bool HistoryCanForward ()
 Returns true if it is possible to go forward in the history i.e. More...

void HistoryClear ()
 Clears history. More...

bool HistoryForward ()
 Moves to next page in history. More...

bool LoadFile (const wxFileName &filename)
 Loads an HTML page from a file and displays it. More...

virtual bool LoadPage (const wxString &location)
 Unlike SetPage() this function first loads the HTML page from location and then displays it. More...

virtual void OnLinkClicked (const wxHtmlLinkInfo &link)
 Called when user clicks on hypertext link. More...

virtual wxHtmlOpeningStatus OnOpeningURL (wxHtmlURLType type, const wxString &url, wxString *redirect) const
 Called when an URL is being opened (either when the user clicks on a link or an image is loaded). More...

virtual void OnSetTitle (const wxString &title)
 Called on parsing <TITLE> tag. More...

virtual void ReadCustomization (wxConfigBase *cfg, wxString path=wxEmptyString)
 This reads custom settings from wxConfig. More...

void SelectAll ()
 Selects all text in the window. More...

void SelectLine (const wxPoint &pos)
 Selects the line of text that pos points at. More...

void SelectWord (const wxPoint &pos)
 Selects the word at position pos. More...

wxString SelectionToText ()
 Returns the current selection as plain text. More...

void SetBorders (int b)
 This function sets the space between border of window and HTML contents. More...

void SetFonts (const wxString &normal_face, const wxString &fixed_face, const int *sizes=NULL)
 This function sets font sizes and faces. More...

void SetStandardFonts (int size=-1, const wxString &normal_face=wxEmptyString, const wxString &fixed_face=wxEmptyString)
 Sets default font sizes and/or default font size. More...

virtual bool SetPage (const wxString &source)
 Sets the source of a page and displays it, for example: More...

void SetRelatedFrame (wxFrame *frame, const wxString &format)
 Sets the frame in which page title will be displayed. More...

void SetRelatedStatusBar (int index)
 After calling SetRelatedFrame(), this sets statusbar slot where messages will be displayed. More...

void SetRelatedStatusBar (wxStatusBar *statusbar, int index=0)
 Sets the associated statusbar where messages will be displayed. More...

wxString ToText ()
 Returns content of currently displayed page as plain text. More...

virtual void WriteCustomization (wxConfigBase *cfg, wxString path=wxEmptyString)
 Saves custom settings into wxConfig. More...

- Public Member Functions inherited from wxScrolled< T >
 wxScrolled ()
 Default constructor. More...

 wxScrolled (wxWindow *parent, wxWindowID id=-1, const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, long style=wxHSCROLL|wxVSCROLL, const wxString &name="scrolledWindow")
 Constructor. More...

void CalcScrolledPosition (int x, int y, int *xx, int *yy) const
 Translates the logical coordinates to the device ones. More...

wxPoint CalcScrolledPosition (const wxPoint &pt) const

void CalcUnscrolledPosition (int x, int y, int *xx, int *yy) const
 Translates the device coordinates to the logical ones. More...

wxPoint CalcUnscrolledPosition (const wxPoint &pt) const

bool Create (wxWindow *parent, wxWindowID id=-1, const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, long style=wxHSCROLL|wxVSCROLL, const wxString &name="scrolledWindow")
 Creates the window for two-step construction. More...

void DisableKeyboardScrolling ()
 Disable use of keyboard keys for scrolling. More...

void DoPrepareDC (wxDC &dc)
 Call this function to prepare the device context for drawing a scrolled image. More...

void EnableScrolling (bool xScrolling, bool yScrolling)
 Enable or disable use of wxWindow::ScrollWindow() for scrolling. More...

void ShowScrollbars (wxScrollbarVisibility horz, wxScrollbarVisibility vert)
 Set the scrollbar visibility. More...

void GetScrollPixelsPerUnit (int *xUnit, int *yUnit) const
 Get the number of pixels per scroll unit (line), in each direction, as set by SetScrollbars(). More...

void GetViewStart (int *x, int *y) const
 Get the position at which the visible portion of the window starts. More...

wxPoint GetViewStart () const
 This is a simple overload of GetViewStart(int*,int*); see that function for more info. More...

void GetVirtualSize (int *x, int *y) const
 Gets the size in device units of the scrollable window area (as opposed to the client size, which is the area of the window currently visible). More...

bool IsRetained () const
 Motif only: true if the window has a backing bitmap. More...

virtual void OnDraw (wxDC &dc)
 Called by the default paint event handler to allow the application to define painting behaviour without having to worry about calling DoPrepareDC(). More...

void PrepareDC (wxDC &dc)
 This function is for backwards compatibility only and simply calls DoPrepareDC() now. More...

void Scroll (int x, int y)
 Scrolls a window so the view start is at the given point. More...

void Scroll (const wxPoint &pt)
 This is an overload of Scroll(int,int); see that function for more info. More...

void SetScrollRate (int xstep, int ystep)
 Set the horizontal and vertical scrolling increment only. More...

void SetScrollbars (int pixelsPerUnitX, int pixelsPerUnitY, int noUnitsX, int noUnitsY, int xPos=0, int yPos=0, bool noRefresh=false)
 Sets up vertical and/or horizontal scrollbars. More...

void SetTargetWindow (wxWindow *window)
 Call this function to tell wxScrolled to perform the actual scrolling on a different window (and not on itself). More...

wxWindowGetTargetWindow () const

void SetTargetRect (const wxRect &rect)

wxRect GetTargetRect () const

int GetScrollPageSize (int orient) const

void SetScrollPageSize (int orient, int pageSize)

int GetScrollLines (int orient) const

void SetScale (double xs, double ys)

double GetScaleX () const

double GetScaleY () const

virtual void AdjustScrollbars ()

bool IsAutoScrolling () const
 Are we generating the autoscroll events? More...

void StopAutoScrolling ()
 Stop generating the scroll events when mouse is held outside the window. More...

virtual bool SendAutoScrollEvents (wxScrollWinEvent &event) const
 This method can be overridden in a derived class to forbid sending the auto scroll events - note that unlike StopAutoScrolling() it doesn't stop the timer, so it will be called repeatedly and will typically return different values depending on the current mouse position. More...

- Public Member Functions inherited from wxHtmlWindowInterface
 wxHtmlWindowInterface ()
 Ctor. More...

virtual ~wxHtmlWindowInterface ()

virtual void SetHTMLWindowTitle (const wxString &title)=0
 Called by the parser to set window's title to given text. More...

virtual void OnHTMLLinkClicked (const wxHtmlLinkInfo &link)=0
 Called when a link is clicked. More...

virtual wxHtmlOpeningStatus OnHTMLOpeningURL (wxHtmlURLType type, const wxString &url, wxString *redirect) const =0
 Called when the parser needs to open another URL (e.g. More...

virtual wxPoint HTMLCoordsToWindow (wxHtmlCell *cell, const wxPoint &pos) const =0
 Converts coordinates pos relative to given cell to physical coordinates in the window. More...

virtual wxWindowGetHTMLWindow ()=0
 Returns the window used for rendering (may be NULL). More...

virtual wxColour GetHTMLBackgroundColour () const =0
 Returns background colour to use by default. More...

virtual void SetHTMLBackgroundColour (const wxColour &clr)=0
 Sets window's background to colour clr. More...

virtual void SetHTMLBackgroundImage (const wxBitmap &bmpBg)=0
 Sets window's background to given bitmap. More...

virtual void SetHTMLStatusText (const wxString &text)=0
 Sets status bar text. More...

virtual wxCursor GetHTMLCursor (wxHtmlWindowInterface::HTMLCursor type) const =0
 Returns mouse cursor of given type. More...


Static Public Member Functions

static void AddFilter (wxHtmlFilter *filter)
 Adds input filter to the static list of available filters. More...


Protected Member Functions

virtual bool OnCellClicked (wxHtmlCell *cell, wxCoord x, wxCoord y, const wxMouseEvent &event)
 This method is called when a mouse button is clicked inside wxHtmlWindow. More...

virtual void OnCellMouseHover (wxHtmlCell *cell, wxCoord x, wxCoord y)
 This method is called when a mouse moves over an HTML cell. More...

- Protected Member Functions inherited from wxScrolled< T >
virtual wxSize GetSizeAvailableForScrollTarget (const wxSize &size)
 Function which must be overridden to implement the size available for the scroll target for the given size of the main window. More...


Additional Inherited Members

- Public Types inherited from wxHtmlWindowInterface
enum  HTMLCursor {
  HTMLCursor_Default,
  HTMLCursor_Link,
  HTMLCursor_Text
}
 Type of mouse cursor. More...


Constructor & Destructor Documentation

wxHtmlWindow::wxHtmlWindow ( )

Default ctor.

wxHtmlWindow::wxHtmlWindow ( wxWindow parent,
wxWindowID  id = wxID_ANY,
const wxPoint pos = wxDefaultPosition,
const wxSize size = wxDefaultSize,
long  style = wxHW_DEFAULT_STYLE,
const wxString name = "htmlWindow"
)

Constructor.

The parameters are the same as wxScrolled::wxScrolled() constructor.

Member Function Documentation

static void wxHtmlWindow::AddFilter ( wxHtmlFilter filter)
static

Adds input filter to the static list of available filters.

These filters are present by default:

  • text/html MIME type
  • image/* MIME types
  • Plain Text filter (this filter is used if no other filter matches)
bool wxHtmlWindow::AppendToPage ( const wxString source)

Appends HTML fragment to currently displayed text and refreshes the window.

Parameters
sourceHTML code fragment
Returns
false if an error occurred, true otherwise.
wxHtmlContainerCell* wxHtmlWindow::GetInternalRepresentation ( ) const

Returns pointer to the top-level container.

See also
Cells and Containers, Printing Framework Overview
wxString wxHtmlWindow::GetOpenedAnchor ( ) const

Returns anchor within currently opened page (see wxHtmlWindow::GetOpenedPage).

If no page is opened or if the displayed page wasn't produced by call to LoadPage(), empty string is returned.

wxString wxHtmlWindow::GetOpenedPage ( ) const

Returns full location of the opened page.

If no page is opened or if the displayed page wasn't produced by call to LoadPage(), empty string is returned.

wxString wxHtmlWindow::GetOpenedPageTitle ( ) const

Returns title of the opened page or wxEmptyString if the current page does not contain <TITLE> tag.

wxHtmlWinParser* wxHtmlWindow::GetParser ( ) const

Returns a pointer to the current parser.

wxFrame* wxHtmlWindow::GetRelatedFrame ( ) const

Returns the related frame.

bool wxHtmlWindow::HistoryBack ( )

Moves back to the previous page.

Only pages displayed using LoadPage() are stored in history list.

bool wxHtmlWindow::HistoryCanBack ( )

Returns true if it is possible to go back in the history i.e.

HistoryBack() won't fail.

bool wxHtmlWindow::HistoryCanForward ( )

Returns true if it is possible to go forward in the history i.e.

HistoryForward() won't fail.

void wxHtmlWindow::HistoryClear ( )

Clears history.

bool wxHtmlWindow::HistoryForward ( )

Moves to next page in history.

Only pages displayed using LoadPage() are stored in history list.

bool wxHtmlWindow::LoadFile ( const wxFileName filename)

Loads an HTML page from a file and displays it.

Returns
false if an error occurred, true otherwise
See also
LoadPage()
virtual bool wxHtmlWindow::LoadPage ( const wxString location)
virtual

Unlike SetPage() this function first loads the HTML page from location and then displays it.

Parameters
locationThe address of the document. See the wxFileSystem Overview for details on the address format and wxFileSystem for a description of how the file is opened.
Returns
false if an error occurred, true otherwise
See also
LoadFile()
virtual bool wxHtmlWindow::OnCellClicked ( wxHtmlCell cell,
wxCoord  x,
wxCoord  y,
const wxMouseEvent event
)
protectedvirtual

This method is called when a mouse button is clicked inside wxHtmlWindow.

The default behaviour is to emit a wxHtmlCellEvent and, if the event was not processed or skipped, call OnLinkClicked() if the cell contains an hypertext link.

Overloading this method is deprecated; intercept the event instead.

Parameters
cellThe cell inside which the mouse was clicked, always a simple (i.e. non-container) cell
xThe logical x coordinate of the click point
yThe logical y coordinate of the click point
eventThe mouse event containing other information about the click
Returns
true if a link was clicked, false otherwise.
virtual void wxHtmlWindow::OnCellMouseHover ( wxHtmlCell cell,
wxCoord  x,
wxCoord  y
)
protectedvirtual

This method is called when a mouse moves over an HTML cell.

Default behaviour is to emit a wxHtmlCellEvent.

Overloading this method is deprecated; intercept the event instead.

Parameters
cellThe cell inside which the mouse is currently, always a simple (i.e. non-container) cell
xThe logical x coordinate of the click point
yThe logical y coordinate of the click point
virtual void wxHtmlWindow::OnLinkClicked ( const wxHtmlLinkInfo link)
virtual

Called when user clicks on hypertext link.

Default behaviour is to emit a wxHtmlLinkEvent and, if the event was not processed or skipped, call LoadPage() and do nothing else.

Overloading this method is deprecated; intercept the event instead.

Also see wxHtmlLinkInfo.

virtual wxHtmlOpeningStatus wxHtmlWindow::OnOpeningURL ( wxHtmlURLType  type,
const wxString url,
wxString redirect
) const
virtual

Called when an URL is being opened (either when the user clicks on a link or an image is loaded).

The URL will be opened only if OnOpeningURL() returns wxHTML_OPEN. This method is called by wxHtmlParser::OpenURL.

You can override OnOpeningURL() to selectively block some URLs (e.g. for security reasons) or to redirect them elsewhere. Default behaviour is to always return wxHTML_OPEN.

Parameters
typeIndicates type of the resource. Is one of
  • wxHTML_URL_PAGE: Opening a HTML page.
  • wxHTML_URL_IMAGE: Opening an image.
  • wxHTML_URL_OTHER: Opening a resource that doesn't fall into any other category.
urlURL being opened.
redirectPointer to wxString variable that must be filled with an URL if OnOpeningURL() returns wxHTML_REDIRECT.

The return value is:

  • wxHTML_OPEN: Open the URL.
  • wxHTML_BLOCK: Deny access to the URL, wxHtmlParser::OpenURL will return NULL.
  • wxHTML_REDIRECT: Don't open url, redirect to another URL. OnOpeningURL() must fill *redirect with the new URL. OnOpeningURL() will be called again on returned URL.
virtual void wxHtmlWindow::OnSetTitle ( const wxString title)
virtual

Called on parsing <TITLE> tag.

virtual void wxHtmlWindow::ReadCustomization ( wxConfigBase cfg,
wxString  path = wxEmptyString
)
virtual

This reads custom settings from wxConfig.

It uses the path 'path' if given, otherwise it saves info into currently selected path. The values are stored in sub-path wxHtmlWindow. Read values: all things set by SetFonts(), SetBorders().

Parameters
cfgwxConfig from which you want to read the configuration.
pathOptional path in config tree. If not given current path is used.
void wxHtmlWindow::SelectAll ( )

Selects all text in the window.

See also
SelectLine(), SelectWord()
wxString wxHtmlWindow::SelectionToText ( )

Returns the current selection as plain text.

Returns an empty string if no text is currently selected.

void wxHtmlWindow::SelectLine ( const wxPoint pos)

Selects the line of text that pos points at.

Note that pos is relative to the top of displayed page, not to window's origin, use wxScrolled::CalcUnscrolledPosition() to convert physical coordinate.

See also
SelectAll(), SelectWord()
void wxHtmlWindow::SelectWord ( const wxPoint pos)

Selects the word at position pos.

Note that pos is relative to the top of displayed page, not to window's origin, use wxScrolled::CalcUnscrolledPosition() to convert physical coordinate.

See also
SelectAll(), SelectLine()
void wxHtmlWindow::SetBorders ( int  b)

This function sets the space between border of window and HTML contents.

See image:

Parameters
bindentation from borders in pixels
void wxHtmlWindow::SetFonts ( const wxString normal_face,
const wxString fixed_face,
const int *  sizes = NULL
)

This function sets font sizes and faces.

See wxHtmlDCRenderer::SetFonts for detailed description.

See also
SetSize()
virtual bool wxHtmlWindow::SetPage ( const wxString source)
virtual

Sets the source of a page and displays it, for example:

htmlwin -> SetPage("<html><body>Hello, world!</body></html>");

If you want to load a document from some location use LoadPage() instead.

Parameters
sourceThe HTML to be displayed.
Returns
false if an error occurred, true otherwise.
void wxHtmlWindow::SetRelatedFrame ( wxFrame frame,
const wxString format
)

Sets the frame in which page title will be displayed.

format is the format of the frame title, e.g. "HtmlHelp : %s". It must contain exactly one s. This s is substituted with HTML page title.

void wxHtmlWindow::SetRelatedStatusBar ( int  index)

After calling SetRelatedFrame(), this sets statusbar slot where messages will be displayed.

(Default is -1 = no messages.)

Parameters
indexStatusbar slot number (0..n)
void wxHtmlWindow::SetRelatedStatusBar ( wxStatusBar statusbar,
int  index = 0
)

Sets the associated statusbar where messages will be displayed.

Call this instead of SetRelatedFrame() if you want statusbar updates only, no changing of the frame title.

Parameters
statusbarStatusbar pointer
indexStatusbar slot number (0..n)
Since
2.9.0
void wxHtmlWindow::SetStandardFonts ( int  size = -1,
const wxString normal_face = wxEmptyString,
const wxString fixed_face = wxEmptyString
)

Sets default font sizes and/or default font size.

See wxHtmlDCRenderer::SetStandardFonts for detailed description.

See also
SetFonts()
wxString wxHtmlWindow::ToText ( )

Returns content of currently displayed page as plain text.

virtual void wxHtmlWindow::WriteCustomization ( wxConfigBase cfg,
wxString  path = wxEmptyString
)
virtual

Saves custom settings into wxConfig.

It uses the path 'path' if given, otherwise it saves info into currently selected path. Regardless of whether the path is given or not, the function creates sub-path wxHtmlWindow.

Saved values: all things set by SetFonts(), SetBorders().

Parameters
cfgwxConfig to which you want to save the configuration.
pathOptional path in config tree. If not given, the current path is used.
