Version: 3.0.3
wxHtmlContainerCell Class Reference

#include <wx/html/htmlcell.h>

+ Inheritance diagram for wxHtmlContainerCell:

Detailed Description

The wxHtmlContainerCell class is an implementation of a cell that may contain more cells in it.

It is heavily used in the wxHTML layout algorithm.

Library:  wxHTML
Category:  HTML
See also
Cells and Containers

Public Member Functions

 wxHtmlContainerCell (wxHtmlContainerCell *parent)
 Constructor. More...

int GetAlignHor () const
 Returns container's horizontal alignment. More...

int GetAlignVer () const
 Returns container's vertical alignment. More...

wxColour GetBackgroundColour ()
 Returns the background colour of the container or wxNullColour if no background colour is set. More...

int GetIndent (int ind) const
 Returns the indentation. More...

int GetIndentUnits (int ind) const
 Returns the units of indentation for ind where ind is one of the wxHTML_INDENT_* constants. More...

void InsertCell (wxHtmlCell *cell)
 Inserts a new cell into the container. More...

void SetAlign (const wxHtmlTag &tag)
 Sets the container's alignment (both horizontal and vertical) according to the values stored in tag. More...

void SetAlignHor (int al)
 Sets the container's horizontal alignment. More...

void SetAlignVer (int al)
 Sets the container's vertical alignment. More...

void SetBackgroundColour (const wxColour &clr)
 Sets the background colour for this container. More...

void SetBorder (const wxColour &clr1, const wxColour &clr2, int border=1)
 Sets the border (frame) colours. More...

void SetIndent (int i, int what, int units=wxHTML_UNITS_PIXELS)
 Sets the indentation (free space between borders of container and subcells). More...

void SetMinHeight (int h, int align=wxHTML_ALIGN_TOP)
 Sets minimal height of the container. More...

void SetWidthFloat (int w, int units)
 Sets floating width adjustment. More...

void SetWidthFloat (const wxHtmlTag &tag, double pixel_scale=1.0)
 Sets floating width adjustment. More...

- Public Member Functions inherited from wxHtmlCell
 wxHtmlCell ()
 Constructor. More...

virtual bool AdjustPagebreak (int *pagebreak, const wxArrayInt &known_pagebreaks, int pageHeight) const
 This method is used to adjust pagebreak position. More...

virtual void Draw (wxDC &dc, int x, int y, int view_y1, int view_y2, wxHtmlRenderingInfo &info)
 Renders the cell. More...

virtual void DrawInvisible (wxDC &dc, int x, int y, wxHtmlRenderingInfo &info)
 This method is called instead of Draw() when the cell is certainly out of the screen (and thus invisible). More...

virtual const wxHtmlCellFind (int condition, const void *param) const
 Returns pointer to itself if this cell matches condition (or if any of the cells following in the list matches), NULL otherwise. More...

int GetDescent () const
 Returns descent value of the cell (m_Descent member). More...

virtual wxHtmlCellGetFirstChild () const
 Returns pointer to the first cell in the list. More...

int GetHeight () const
 Returns height of the cell (m_Height member). More...

const wxStringGetId () const
 Returns unique cell identifier if there is any, the empty string otherwise. More...

virtual wxHtmlLinkInfoGetLink (int x=0, int y=0) const
 Returns hypertext link if associated with this cell or NULL otherwise. More...

virtual wxCursor GetMouseCursor (wxHtmlWindowInterface *window) const
 Returns cursor to show when mouse pointer is over the cell. More...

virtual wxCursor GetMouseCursorAt (wxHtmlWindowInterface *window, const wxPoint &rePos) const
 Returns cursor to show when mouse pointer is over the specified point. More...

wxHtmlCellGetNext () const
 Returns pointer to the next cell in list (see htmlcell.h if you're interested in details). More...

wxHtmlContainerCellGetParent () const
 Returns pointer to parent container. More...

int GetPosX () const
 Returns X position within parent (the value is relative to parent's upper left corner). More...

int GetPosY () const
 Returns Y position within parent (the value is relative to parent's upper left corner). More...

int GetWidth () const
 Returns width of the cell (m_Width member). More...

virtual void Layout (int w)
 Layouts the cell. More...

virtual bool ProcessMouseClick (wxHtmlWindowInterface *window, const wxPoint &pos, const wxMouseEvent &event)
 This function is simple event handler. More...

void SetId (const wxString &id)
 Sets unique cell identifier. More...

void SetLink (const wxHtmlLinkInfo &link)
 Sets the hypertext link associated with this cell. More...

void SetNext (wxHtmlCell *cell)
 Sets the next cell in the list. More...

void SetParent (wxHtmlContainerCell *p)
 Sets parent container of this cell. More...

virtual void SetPos (int x, int y)
 Sets the cell's position within parent container. More...

virtual wxString ConvertToText (wxHtmlSelection *sel) const
 Converts the cell into text representation. More...

- Public Member Functions inherited from wxObject
 wxObject ()
 Default ctor; initializes to NULL the internal reference data. More...

 wxObject (const wxObject &other)
 Copy ctor. More...

virtual ~wxObject ()
 Destructor. More...

virtual wxClassInfoGetClassInfo () const
 This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefDataGetRefData () const
 Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool IsKindOf (const wxClassInfo *info) const
 Determines whether this class is a subclass of (or the same class as) the given class. More...

bool IsSameAs (const wxObject &obj) const
 Returns true if this object has the same data pointer as obj. More...

void Ref (const wxObject &clone)
 Makes this object refer to the data in clone. More...

void SetRefData (wxObjectRefData *data)
 Sets the wxObject::m_refData pointer. More...

void UnRef ()
 Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void UnShare ()
 This is the same of AllocExclusive() but this method is public. More...

void operator delete (void *buf)
 The delete operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More...

void * operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
 The new operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More...


Additional Inherited Members

- Protected Member Functions inherited from wxObject
void AllocExclusive ()
 Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefDataCreateRefData () const
 Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefDataCloneRefData (const wxObjectRefData *data) const
 Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...

- Protected Attributes inherited from wxObject
wxObjectRefDatam_refData
 Pointer to an object which is the object's reference-counted data. More...


Constructor & Destructor Documentation

wxHtmlContainerCell::wxHtmlContainerCell ( wxHtmlContainerCell parent)

Constructor.

parent is pointer to parent container or NULL.

Member Function Documentation

int wxHtmlContainerCell::GetAlignHor ( ) const

Returns container's horizontal alignment.

int wxHtmlContainerCell::GetAlignVer ( ) const

Returns container's vertical alignment.

wxColour wxHtmlContainerCell::GetBackgroundColour ( )

Returns the background colour of the container or wxNullColour if no background colour is set.

int wxHtmlContainerCell::GetIndent ( int  ind) const

Returns the indentation.

ind is one of the wxHTML_INDENT_* constants.

Note
You must call GetIndentUnits() with same ind parameter in order to correctly interpret the returned integer value. It is NOT always in pixels!
int wxHtmlContainerCell::GetIndentUnits ( int  ind) const

Returns the units of indentation for ind where ind is one of the wxHTML_INDENT_* constants.

void wxHtmlContainerCell::InsertCell ( wxHtmlCell cell)

Inserts a new cell into the container.

void wxHtmlContainerCell::SetAlign ( const wxHtmlTag tag)

Sets the container's alignment (both horizontal and vertical) according to the values stored in tag.

(Tags ALIGN parameter is extracted.) In fact it is only a front-end to SetAlignHor() and SetAlignVer().

void wxHtmlContainerCell::SetAlignHor ( int  al)

Sets the container's horizontal alignment.

During wxHtmlCell::Layout each line is aligned according to al value.

Parameters
alnew horizontal alignment. May be one of these values:
  • wxHTML_ALIGN_LEFT: lines are left-aligned (default)
  • wxHTML_ALIGN_JUSTIFY: lines are justified
  • wxHTML_ALIGN_CENTER: lines are centered
  • wxHTML_ALIGN_RIGHT: lines are right-aligned

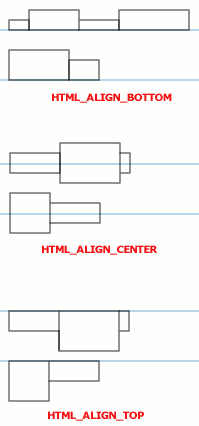

void wxHtmlContainerCell::SetAlignVer ( int  al)

Sets the container's vertical alignment.

This is per-line alignment!

Parameters
alnew vertical alignment. May be one of these values:
  • wxHTML_ALIGN_BOTTOM: cells are over the line (default)
  • wxHTML_ALIGN_CENTER: cells are centered on line
  • wxHTML_ALIGN_TOP: cells are under the line
void wxHtmlContainerCell::SetBackgroundColour ( const wxColour clr)

Sets the background colour for this container.

void wxHtmlContainerCell::SetBorder ( const wxColour clr1,
const wxColour clr2,
int  border = 1
)

Sets the border (frame) colours.

A border is a rectangle around the container.

Parameters
clr1Colour of top and left lines
clr2Colour of bottom and right lines
borderSize of the border in pixels
void wxHtmlContainerCell::SetIndent ( int  i,
int  what,
int  units = wxHTML_UNITS_PIXELS
)

Sets the indentation (free space between borders of container and subcells).

Parameters
iIndentation value.
whatDetermines which of the four borders we're setting. It is OR combination of following constants:
  • wxHTML_INDENT_TOP: top border
  • wxHTML_INDENT_BOTTOM: bottom
  • wxHTML_INDENT_LEFT: left
  • wxHTML_INDENT_RIGHT: right
  • wxHTML_INDENT_HORIZONTAL: left and right
  • wxHTML_INDENT_VERTICAL: top and bottom
  • wxHTML_INDENT_ALL: all 4 borders
unitsUnits of i. This parameter affects interpretation of value.
  • wxHTML_UNITS_PIXELS: i is number of pixels
  • wxHTML_UNITS_PERCENT: i is interpreted as percents of width of parent container
void wxHtmlContainerCell::SetMinHeight ( int  h,
int  align = wxHTML_ALIGN_TOP
)

Sets minimal height of the container.

When container's wxHtmlCell::Layout is called, m_Height is set depending on layout of subcells to the height of area covered by layed-out subcells. Calling this method guarantees you that the height of container is never smaller than h - even if the subcells cover much smaller area.

Parameters
hThe minimal height.
alignIf height of the container is lower than the minimum height, empty space must be inserted somewhere in order to ensure minimal height. This parameter is one of wxHTML_ALIGN_TOP, wxHTML_ALIGN_BOTTOM, wxHTML_ALIGN_CENTER. It refers to the contents, not to the empty place.
void wxHtmlContainerCell::SetWidthFloat ( int  w,
int  units
)

Sets floating width adjustment.

The normal behaviour of container is that its width is the same as the width of parent container (and thus you can have only one sub-container per line). You can change this by setting the floating width adjustment.

Parameters
wWidth of the container. If the value is negative it means complement to full width of parent container. E.g. sets the width of container to parent's width minus 50 pixels. This is useful when creating tables - you can call SetWidthFloat(50) and SetWidthFloat(-50).
unitsUnits of w This parameter affects the interpretation of value.
  • wxHTML_UNITS_PIXELS: w is number of pixels
  • wxHTML_UNITS_PERCENT: w is interpreted as percents of width of parent container
void wxHtmlContainerCell::SetWidthFloat ( const wxHtmlTag tag,
double  pixel_scale = 1.0
)

Sets floating width adjustment.

The normal behaviour of container is that its width is the same as the width of parent container (and thus you can have only one sub-container per line). You can change this by setting the floating width adjustment.

Parameters
tagIn the second version of method, w and units info is extracted from tag's WIDTH parameter.
pixel_scaleThis is number of real pixels that equals to 1 HTML pixel.
