Using XPCOM Components

Applications like the Mozilla browser are sophisticated, modularized clients of XPCOM components. In fact, virtually all of the functionality that you associate with a browser - navigation, window management, managing cookies, bookmarks, security, searching, rendering, and other features - is defined in XPCOM components and accessed by means of those component interfaces. Mozilla is made of XPCOM components.

This chapter demonstrates how Mozilla uses some of these XPCOM objects, such as the CookieManager, and shows how access to the WebLock component will be defined.

Component Examples

You can find out more about how you can use the particular components described here in the XPCOM API Reference. For now, what's important to see is how components like the ones in this section are obtained and used by the Mozilla browser.

Cookie Manager

Cookie management is one of the many sets of functionality that is made available to the browser in the form of an XPCOM component and that can be reused by developers who want similar functionality in their applications. Whenever a user accesses the Cookie Manager dialog to view, organize, or remove cookies that have been stored on the system, they are using the CookieManager component behind the scenes. The Cookie Manager Dialog shows user interface^{[cookie-manager-ui]} that is presented to the user in Mozilla for working with the CookieManager component.

The Cookie Manager Dialog

This dialog is written in XUL and JavaScript, and uses a part of XPCOM called XPConnect to seamlessly connect to the CookieManager component (see Connecting to Components from the Interface below). XUL is just one way to expose the functionality of the CookieManager component-but it's a particularly useful one in the Mozilla world.

The functionality of the CookieManager component is available through the nsICookieManager interface, which is comprised of the public methods in the table below.

The nsICookieManager Interface

In XPCOM the interface is guaranteed to stay the same even if the underlying implementation changes. The interfaces are public, in other words, and the implementations are private^{[private-xpcom-interfaces]}. When a user selects one of the cookies displayed in the list and then clicks the Remove button, the Remove method in the nsICookieManager interface is called. The function is carried out by the CookieManager component, and the selected cookie is deleted from disk and removed from the displayed list.

The snippet in Getting the CookieManager Component in JavaScript shows how the Remove() method from the XPCOM CookieManager component can be called from JavaScript:

Getting the CookieManager Component in JavaScript

// xpconnect to cookiemanager
// get the cookie manager component in JavaScript
var cmgr = Components.classes["@mozilla.org/cookiemanager;1"]
                     .getService();
cmgr = cmgr.QueryInterface(Components.interfaces.nsICookieManager);
// called as part of a largerDeleteAllCookies() function
function FinalizeCookieDeletions() {
  for (var c=0; c<deletedCookies.length; c++) {
    cmgr.remove(deletedCookies[c].host,
                deletedCookies[c].name,
                deletedCookies[c].path);
  }
  deletedCookies.length = 0;
}

This isn't quite all there is to it, of course, but this shows an important aspect of XPCOM. The contractual arrangements that XPCOM enforces open up the way to binary interoperability - to being able to access, use, and reuse XPCOM components at runtime. And they make it possible to use components written in other languages - such as JavaScript, Python, and others - and to use C++-based XPCOM components from these other languages as well.

In the Mozilla browser, components are used as often from JavaScript in the interface as they are from C++ or any other language. In fact, a search of the Mozilla source code reveals that this CookieManager component is called only from JavaScript. We'll be using this component from JavaScript ourselves as part of this tutorial^{[cookie-manager-in-tutorial]}.

The WebBrowserFind Component

Components are used all over - in high-level browser-like functionality such as nsWebBrowserFind, which provides find() and findNext() methods for finding content in web pages, and in low-level tasks such as the manipulation of data. Though not every API in Mozilla is or should be "XPCOMified", much if not all of the typical functionality that browsers provide is available in components that can be reused via browser extensions and/or Gecko embedders.

In addition to the CookieManager component, for example, the WebBrowserFind component is another part of a large set of web browsing interfaces you can use. Its nsIWebBrowserFind interface is shown in The nsIWebBrowserFind Interface. To use this component, you access it through the nsIWebBrowserFind interface and call its methods.

The nsIWebBrowserFind Interface

Once you use the interface to get to the component, you can ask the component what other interfaces it supports. This service, which is defined in the basic nsISupports interface and implemented by all XPCOM components, allows you to query and switch interfaces on a component as part of the runtime object typing capabilities of XPCOM. It is handled by the QueryInterface method, which was introduced in the chapter An Overview of XPCOM. The XPCOM API Reference provides a full reference of the XPCOM components available in Mozilla.

The WebLock Component

Now it's time to look at the WebLock component as another example of XPCOM components (since you'll be creating it shortly). In object-oriented programming, it's typical to design the interface first-to define the functionality that's going to be provided in the abstract, without worrying about how this functionality will be achieved. So we'll put aside the details of the implementation until the next chapter and look at the component from the outside-at the interface to the WebLock component.

The IWebLock Interface

The WebLock component is software that implements all of these methods in the way described by the interface definition. It registers itself for use when the browser starts up, and provides a factory that creates an instance of it for use when the user or administrator clicks the weblock icon in the browser's user interface.

Component Use in Mozilla

So how are components obtained and used in Mozilla? You've seen some enticing snippets of JavaScript in earlier sections of this chapter, but we haven't explained how XPCOM makes components available in general.

This section discusses practical component use in Mozilla. It's divided into three subsections: one about actually finding all these binary components in Mozilla and two others corresponding to the two main ways that clients typically access XPCOM components:

Finding Mozilla Components

This book attempts to provide reference information for XPCOM components and their interfaces that are frozen as of the time of this writing. The Mozilla embedding project tracks the currently frozen interfaces.

Mozilla also has some tools that can find and display information about the interfaces available in Gecko such as the XPCOM Component Viewer, described below, and MXR, which is a web-based source code viewing tool.

The challenge to making good information about XPCOM components available to prospective clients, however, is that the process of freezing the interfaces that are implemented by these components is still ongoing. The Component Viewer does not distinguish between components that are frozen and those that are not. In the source code you view in MXR, interfaces that have been frozen are marked at the top with @status frozen.

The XPCOM Component Viewer

The XPCOM Component Viewer is an add-on you can install in your browser (in sandbox, not available for now).
Alternatively, you can try XPCOMViewer, a similar add-on.

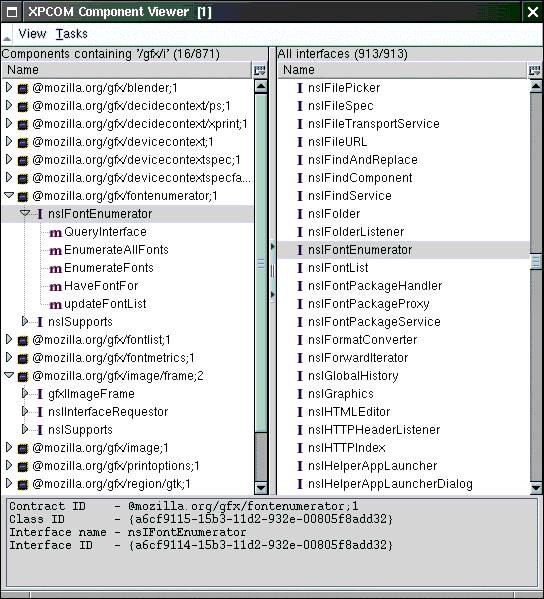

XPCOM Component Viewer

The left column shows the components - in this case a subset returned from a search on "gfx" as part of the contract ID and the right column a list of the interfaces. When you open a component on the left, you can see the interfaces it implements along with a list of the methods provided by each interface.

The XPCOM Component Viewer can be extremely useful for this sort of gross interrogation, but again: it displays all of the components and interfaces in your build, many of which are not practical for actual reuse or stable enough to be used reliably in your own application development. Use comprehensive lists like this with caution.

Using XPCOM Components in Your Cpp

XPConnect makes it easy to acecss XPCOM components as JavaScript objects, but using XPCOM components in C++ is not much more difficult.

Managing Cookies from Cpp duplicates code from Getting the CookieManager Component in JavaScript, but in C++ instead of JavaScript.

Managing Cookies from Cpp

nsCOMPtr<nsIServiceManager> servMan;
nsresult rv = NS_GetServiceManager(getter_AddRefs(servMan));
if (NS_FAILED(rv))
  return -1;
nsCOMPtr<nsICookieManager> cookieManager;
rv = servMan->GetServiceByContractID("@mozilla.org/cookiemanager",
                                     NS_GET_IID(nsICookieManager),
                                     getter_AddRefs(cookieManager));
if (NS_FAILED(rv))
  return -1;
PRUint32 len;
deletedCookies->GetLength(&len);
for (int c=0; c<len; c++)
    cookieManager->Remove(deletedCookies[c].host,
                          deletedCookies[c].name,
                          deletedCookies[c].path,
                          PR_FALSE);

XXX: In the original document, there were only the first three parameters to the |Remove| call. I added |PR_FALSE| as a fourth parameter because the interface seems to require it: http://lxr.mozilla.org/mozilla/source/netwerk/cookie/public/nsICookieManager.idl#64 This problem also appears in the JavaScript version below, and I've added |false| as a fourth parameter there as well.

If your application is written in C++, then Managing Cookies from Cpp shows the steps you take to get an XPCOM component, specify the interface on that component you want to use, and call methods on that interface.

XPConnect: Using XPCOM Components From Script

The CookieManager component we discussed at the beginning of this chapter provides a good opportunity to talk further about using components from JavaScript. In the following code fragment from the Cookie Manager dialog in Mozilla, you can see a singleton of the CookieManager component being created with the getService() method and used to provide the functionality that lets users load and remove cookies from the user interface.

Managing Cookies from JavaScript

var cmgr = Components.classes["@mozilla.org/cookiemanager;1"]
                     .getService();
cmgr = cmgr.QueryInterface(Components.interfaces.nsICookieManager);
function loadCookies() {
  // load cookies into a table
  var enumerator = cmgr.enumerator;
  var count = 0;
  var showPolicyField = false;
  while (enumerator.hasMoreElements()) {
    var nextCookie = enumerator.getNext();
    nextCookie = nextCookie.QueryInterface(Components.interfaces.nsICookie);
    /* .... */
}
function FinalizeCookieDeletions() {
  for (var c=0; c<deletedCookies.length; c++) {
    cmgr.remove(deletedCookies[c].host,
                deletedCookies[c].name,
                deletedCookies[c].path,
                false);
  }
  deletedCookies.length = 0;
}

XXX: In the original document, there were only the first three parameters to the |remove| call. I added |false| as a fourth parameter because the interface seems to require it: http://lxr.mozilla.org/mozilla/source/netwerk/cookie/public/nsICookieManager.idl#64 This problem also appears in the C++ version above, and I've added |PR_FALSE| as a fourth parameter there as well.

Beyond the methods that are being called on the CookieManager itself (e.g., cookiemanager.remove, which maps to the remove() function in The nsICookieManager Interface), note the special XPConnect objects and methods that reflect the XPCOM component into JavaScript.

Components is the JavaScript object that controls the connection to components, and classes is an array of all of the classes you can ask for by contract ID. To instantiate an XPCOM component in JavaScript, you create a new Component object and pass in the contract ID for the component you want and ask for either a singleton or an instance of that component to be returned:

var cmgr = Components.classes["@mozilla.org/cookiemanager;1"]
                     .getService();

The resulting cookiemanager object then provides access to all of the methods for that component that have been defined in IDL and compiled into the type library. Using the CookieManager component, you could write code like this to delete all cookies from the system:

cmgr = Components.classes["@mozilla.org/cookiemanager;1"]
                 .getService();
cmgr = cmgr.QueryInterface(Components.interfaces.nsICookieManager);
// delete all cookies
function trashEm() {
   cmgr.removeAll();
}

Another vital feature of the XPConnect glue this example shows is the availability of the QueryInterface method on all objects that are reflected into JavaScript from XPCOM. As in C++, you can use this method to ask for other interfaces that are available on the given object.

Remember, QueryInterface allows you to query an object for the interfaces it supports. In the case of the snippet in The nsICookieManager Interface, the QueryInterface method is being used to get the nsICookie interface from the enumerator so that, for instance, the JavaScript code can access the value and name attributes for each cookie.

1. Note: cookie-manager-ui
   Note that the interface is not part of the component itself. XPCOM makes it easy to use components like CookieManager from Mozilla's Cross Platform Front End (XPFE) and other user interfaces, but the component itself doesn't provide its own UI.
2. Note: private-xpcom-interfaces
   There are exceptions to this. Some XPCOM interfaces are also private and not made for general use. Private interfaces do not have the same requirements as the ones that are made available publicly in IDL.
3. Note: cookie-manager-in-tutorial
   The CookieManager component is used to persist for the web locking functionality described in this tutorial.
