pylab_examples example code: subplots_adjust.pyΒΆ

(Source code, png, pdf)

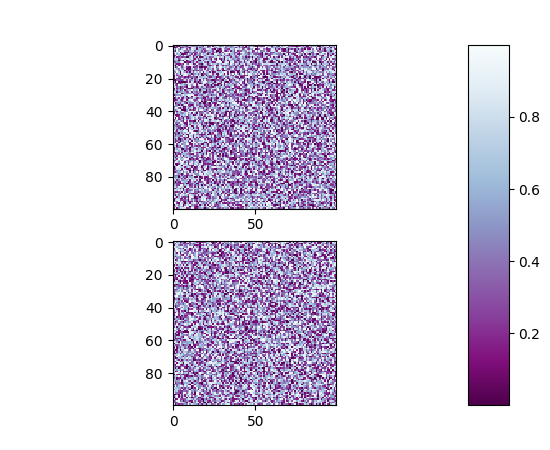

../../_images/subplots_adjust.png
import matplotlib.pyplot as plt
import numpy as np

plt.subplot(211)
plt.imshow(np.random.random((100, 100)), cmap=plt.cm.BuPu_r)
plt.subplot(212)
plt.imshow(np.random.random((100, 100)), cmap=plt.cm.BuPu_r)

plt.subplots_adjust(bottom=0.1, right=0.8, top=0.9)
cax = plt.axes([0.85, 0.1, 0.075, 0.8])
plt.colorbar(cax=cax)
plt.show()

Keywords: python, matplotlib, pylab, example, codex (see Search examples)
