pylab_examples example code: subplot_toolbar.pyΒΆ

(Source code)

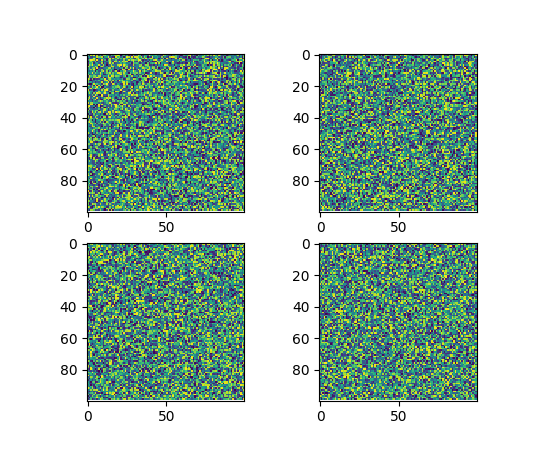

../../_images/subplot_toolbar_00.png

(png, pdf)

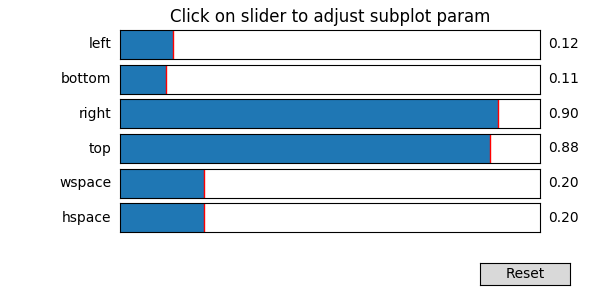

../../_images/subplot_toolbar_01.png

(png, pdf)

import matplotlib.pyplot as plt
import numpy.random as rnd

fig = plt.figure()
plt.subplot(221)
plt.imshow(rnd.random((100, 100)))
plt.subplot(222)
plt.imshow(rnd.random((100, 100)))
plt.subplot(223)
plt.imshow(rnd.random((100, 100)))
plt.subplot(224)
plt.imshow(rnd.random((100, 100)))

plt.subplot_tool()
plt.show()
