How to Print Text

The JTextComponent class provides support for printing text documents. The JTextComponent API includes methods that allow you to implement both basic and advanced printing tasks. Supported formats include HTML, RTF, and plain text. For common printing tasks such as simply printing a text document, use the print method directly. The print method has several forms with various argument sets. This method prepares your text document, gets a corresponding Printable object, and sends it to a printer.

If the default implementation of the Printable object does not meet your needs, you can customize the printing layout by overriding the getPrintable method to wrap the default Printable or even replace it altogether.

The easiest way to print your text component is to call the print method without parameters. See the code example below.

try {
    boolean complete = textComponent.print();
    if (complete) {
        /* show a success message  */
        ...
    } else {
        /*show a message indicating that printing was cancelled */
        ...
    }
} catch (PrinterException pe) {
    /* Printing failed, report to the user */
    ...
}

When you call the print method with no parameters, a print dialog is displayed, and then your text component is printed interactively without a header or a footer. The code example below shows the print method signature with the complete set of arguments.

boolean complete = textComponent.print(MessageFormat headerFormat,
                                       MessageFormat footerFormat,
                                       boolean showPrintDialog,
                                       PrintService service
                                       PrintRequestAttributeSet attributes,
                                       boolean interactive);

When you call the print method with all arguments, you explicitly choose printing features such as header and footer text, printing attributes, a destination print service, and also whether to show a print dialog or not, and whether to print interactively or non-interactively. To decide which parameters suit your needs best, see the description of available features below.

The JTextComponent printing API provides the following features:

• Printing Interactively or Non-interactively
• Displaying a Print Dialog
• Adding a Header or a Footer (or Both) to a Printing Layout
• Automatic Layout and Pagination

Printing Interactively or Non-interactively

In interactive mode a progress dialog with an abort option is shown for the duration of printing. Here is a sample of a progress dialog.

This dialog allows the user to keep track of printing progress. The progress dialog is modal when the print method is called on the event dispatch thread and non-modal otherwise. It is important that your document remain unchanged while being printed, otherwise the printing behavior is undefined. The print method ensures that your document will not be changed and disables the component for the duration of printing.

If you call the print method on the event dispatch thread in non-interactive mode, then all events including repaints will be blocked. That is why printing non-interactively on EDT is only recommended for applications with non-visible GUI.

Print Dialog

You can display a standard print dialog which allows the user to do the following:

• Select a printer
• Specify number of copies
• Change printing attributes
• Cancel printing before it has been started
• Start printing

You may notice that the print dialog does not specify the total number of pages in the printout. This is because the text printing implementation uses the Printable API and the total number of pages is not known before printing time.

Adding a Header or a Footer (or Both) to a Printing Layout

Headers and footers are provided by MessageFormat parameters. These parameters allow the header and footer to be localized. Read the documentation for the MessageFormat class as characters such as single quotes are special and need to be avoided. Both headers and footers are centered. You can insert a page number by using {0}.

MessageFormat footer = new MessageFormat("Page - {0}");

Since the total number of pages in the output is not known before printing time, there is no way to specify a numbering format like "Page 1 of 5".

Automatic Layout and Pagination

With the use of the JTextComponent printing API you do not need to take care of layout and pagination. Both layout and pagination are done automatically. The document content is formatted to fit the page size and spreads across multiple pages. You only need to specify an appropriate footer text format to the print method if you want to insert a page number in the footer. As demonstrated earlier, you can specify the page number in your footer by including "{0}" in the string given to the MessageFormat footer parameter. In the printed output, {0} will be replaced by the current page number.

Text Area Printing Example

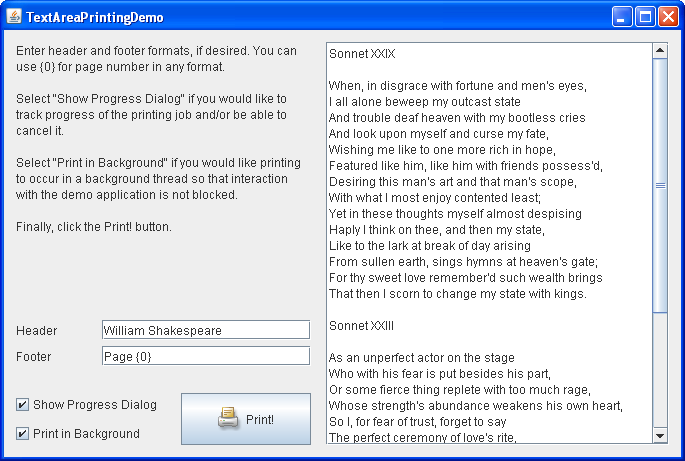

Let us look at an example called TextAreaPrintingDemo. The main feature of this demo is printing a text document either on the event dispatch thread or on a background thread depending on the user's choice. This demo displays a text area, allows to select several printing features, and prints the text area's content according to the selected options. The entire code for this program can be found in TextAreaPrintingDemo.java. This demo's rich GUI is built in the NetBeans IDE GUI builder. Here is a picture of the TextAreaPrintingDemo application.

---

Try this:

1. Click the Launch button to run TextAreaPrintingDemo using Java™ Web Start (download JDK 7 or later). Alternatively, to compile and run the example yourself, consult the example index.

2. Edit the text in the Header or Footer checkboxes or both to provide a different header or footer.
3. Clear the Show Progress Dialog checkbox if you want to print without displaying a progress dialog, which means printing non-interactively. Note that you will not be able to cancel printing once it has been started.
4. Clear the Print in Background checkbox to select printing on the event dispatch thread. Note that printing on EDT non-interactively will make your application unresponsive — interaction with your application will be blocked for the duration of the printing process.
5. Click the Print button to print the text area's content according to the selected options.

Whenever a web-launched application tries to print, Java Web Start opens up a security dialog asking the user for permission to print unless this permission has already been granted in the system settings. To proceed with printing the user has to accept the request.

An action listener is registered for the Print button. As the user clicks the Print button the actionPerformed method calls the print method, which initiates a printing task. The printing task is a SwingWorker object. The code example below shows how the PrintingTask class is implemented.

private class PrintingTask extends SwingWorker<Object, Object> {
    private final MessageFormat headerFormat;
    private final MessageFormat footerFormat;
    private final boolean interactive;
    private volatile boolean complete = false;
    private volatile String message;

    public PrintingTask(MessageFormat header, MessageFormat footer,
                        boolean interactive) {
        this.headerFormat = header;
        this.footerFormat = footer;
        this.interactive = interactive;
    }

    @Override
    protected Object doInBackground() {
        try {
            complete = text.print(headerFormat, footerFormat,
                    true, null, null, interactive);
            message = "Printing " + (complete ? "complete" : "canceled");
        } catch (PrinterException ex) {
            message = "Sorry, a printer error occurred";
        } catch (SecurityException ex) {
            message =
                "Sorry, cannot access the printer due to security reasons";
        }
        return null;
    }

    @Override
    protected void done() {
        message(!complete, message);
    }
}

The code example below shows how the print method obtains the set of selected options from the GUI components, then creates an instance of the PrintingTask class, and performs printing.

private void print(java.awt.event.ActionEvent evt) {
        MessageFormat header = createFormat(headerField);
        MessageFormat footer = createFormat(footerField);
        boolean interactive = interactiveCheck.isSelected();
        boolean background = backgroundCheck.isSelected();

        PrintingTask task = new PrintingTask(header, footer, interactive);
        if (background) {
            task.execute();
        } else {
            task.run()
        }
    }

The code in bold illustrates how PrintingTask's methods are invoked depending on the background parameter's value. Whenever the user prefers to print on a background thread, the execute method is called, which schedules the printing task for the execution on a background thread. Otherwise the run method performs the printing task on EDT.

Since printing large documents is a time-consuming task, it is recommended to perform printing on a background thread.

Text Batch Printing Example

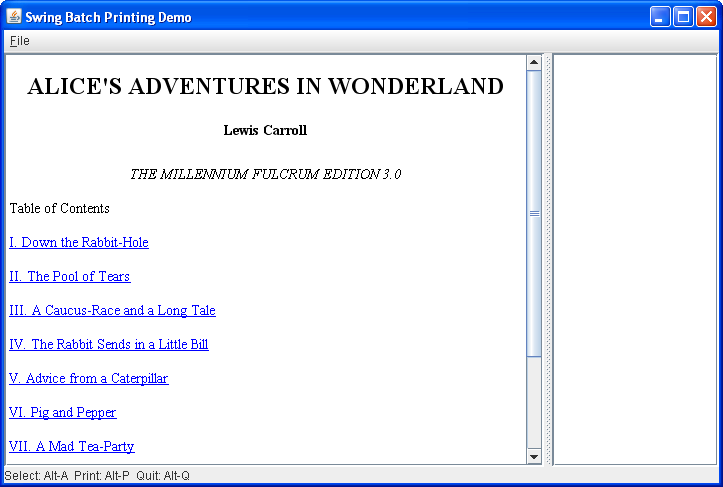

The TextBatchPrintingDemo example illustrates printing non-visible HTML text documents on background threads. When launched, this demo displays a page with a list of URLs. You can visit an HTML page, add the displayed page to the print list, and once you select all pages that you need, you can print them all at once on background threads. The entire code for this program can be found in TextBatchPrintingDemo.java. Here is a picture of the TextBatchPrintingDemo application.

---

Try this:

1. Click the Launch button to run TextBatchPrintingDemo using Java™ Web Start (download JDK 7 or later). Alternatively, to compile and run the example yourself, consult the example index.

2. Click on any link to view the corresponding HTML page.
3. Press ALT+A or choose File > Add Page menu item to add the displayed page to a print list shown on the right.
4. Press ALT+H or choose File > Home Page menu item to return to the demo's home page.
5. Add as many pages to the print list as you need.
6. Press ALT+C or choose File > Clear Selected menu item if you need to clear the print list and build at again.
7. Press ALT+P or choose File > Print Selected menu item to print the selected pages.
8. Press ALT+Q or choose File > Quit menu item to quit the application.

You can find the printing code in the printSelectedPages method. When called, this method first obtains the amount of pages selected for printing. The code example below shows how the printSelectedPages method creates a Runnable object for each page and then prints the current page on a separate thread.

for (int i = 0; i < n; i++) {
    final PageItem item = (PageItem) pages.getElementAt(i);
    // This method is called from EDT.  Printing is a time-consuming
    // task, so it should be done outside EDT, in a separate thread.
    Runnable printTask = new Runnable() {
        public void run() {
            try {
                item.print(
                        // Two "false" args mean "no print dialog" and
                        // "non-interactive" (ie, batch-mode printing).
                                null, null, false, printService, null, false);
            } catch (PrinterException pe) {
                JOptionPane.showMessageDialog(null,
                        "Error printing " + item.getPage() + "\n" + pe,
                        "Print Error", JOptionPane.WARNING_MESSAGE);
            }
        }
    };
    new Thread(printTask).start();

Text Printing API

This section lists methods defined in the JTextComponent class that allow you to print text documents.

Method	Purpose
boolean print() boolean print(MessageFormat, MessageFormat) boolean print(MessageFormat, MessageFormat, boolean, PrintRequestAttributeSet, boolean, PrintService)	When called without arguments, displays a print dialog, and then prints this text component interactively without a header or a footer text. Returns true if the user continued printing and false if the user cancelled printing. When called with the two MessageFormat arguments, displays a print dialog, and then prints this text component interactively with the specified header and footer text. When called with a full set of arguments, prints this text component according to the specified arguments. The two MessageFormat arguments specify header and footer text. The first boolean argument defines whether to show a print dialog or not. Another boolean argument specifies whether to print interactively or not. With two other arguments you can specify printing attributes and a print service. Whenever a PrintService argument is omitted, the default printer will be used.
Printable getPrintable(MessageFormat, MessageFormat)	Returns a Printable object for printing your text component. Override this method to get a customized Printable object. You can wrap one Printable object into another in order to obtain complex reports and documents.

Examples That Use Text Printing

This table lists examples that use text printing and points to where those examples are described.

Example	Where Described	Notes
TextAreaPrintingDemo	This page	Demonstrates the basics of text printing and provides a rich GUI. Allows the user to specify header or footer text, turn the print dialog on or off, select printing interactively or non-interactively, and then print according to the selected options.
TextBatchPrintingDemo	This page	This demo displays a text component with a list of URLs, allows the user to view HTML pages, add them to the print list, and print all selected pages at once on background threads.
