org.jfree.chart.renderer.xy

Class XYStepAreaRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.xy.AbstractXYItemRenderer

org.jfree.chart.renderer.xy.XYStepAreaRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, java.util.EventListener, AnnotationChangeListener, LegendItemSource, XYItemRenderer, org.jfree.util.PublicCloneable

public class XYStepAreaRenderer
extends AbstractXYItemRenderer
implements XYItemRenderer, java.lang.Cloneable, org.jfree.util.PublicCloneable, java.io.Serializable

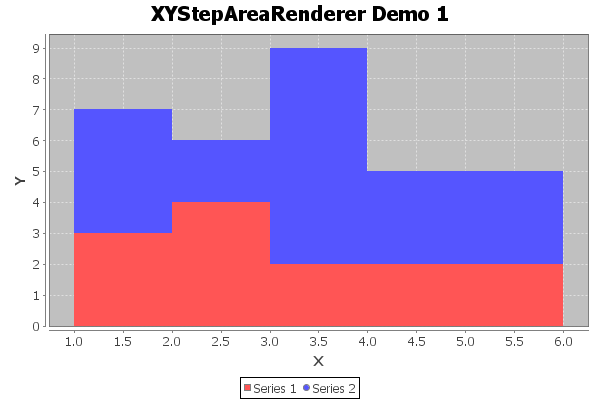

A step chart renderer that fills the area between the step and the x-axis. The example shown here is generated by the XYStepAreaRendererDemo1.java program included in the JFreeChart demo collection:

See Also:

Serialized Form

Field Summary

Fields

Modifier and Type	Field and Description
static int	AREA Useful constant for specifying the type of rendering (area only).
static int	AREA_AND_SHAPES Useful constant for specifying the type of rendering (area and shapes).
protected java.awt.Polygon	pArea Area of the complete series
static int	SHAPES Useful constant for specifying the type of rendering (shapes only).

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
XYStepAreaRenderer() Constructs a new renderer.
XYStepAreaRenderer(int type) Constructs a new renderer.
XYStepAreaRenderer(int type, XYToolTipGenerator toolTipGenerator, XYURLGenerator urlGenerator) Constructs a new renderer.

Method Summary

Modifier and Type	Method and Description
java.lang.Object	clone() Returns a clone of the renderer.
void	drawItem(java.awt.Graphics2D g2, XYItemRendererState state, java.awt.geom.Rectangle2D dataArea, PlotRenderingInfo info, XYPlot plot, ValueAxis domainAxis, ValueAxis rangeAxis, XYDataset dataset, int series, int item, CrosshairState crosshairState, int pass) Draws the visual representation of a single data item.
boolean	equals(java.lang.Object obj) Tests this renderer for equality with an arbitrary object.
boolean	getPlotArea() Returns true if Area is being plotted by the renderer.
double	getRangeBase() Returns the value on the range axis which defines the 'lower' border of the area.
boolean	getShapesVisible() Returns true if shapes are being plotted by the renderer.
double	getStepPoint() Returns the fraction of the domain position between two points on which the step is drawn.
XYItemRendererState	initialise(java.awt.Graphics2D g2, java.awt.geom.Rectangle2D dataArea, XYPlot plot, XYDataset data, PlotRenderingInfo info) Initialises the renderer.
boolean	isOutline() Returns a flag that controls whether or not outlines of the areas are drawn.
boolean	isShapesFilled() Returns the flag that controls whether or not the shapes are filled.
protected static double	restrictValueToDataArea(double value, XYPlot plot, java.awt.geom.Rectangle2D dataArea) Helper method which returns a value if it lies inside the visible dataArea and otherwise the corresponding coordinate on the border of the dataArea.
void	setOutline(boolean show) Sets a flag that controls whether or not outlines of the areas are drawn, and sends a RendererChangeEvent to all registered listeners.
void	setPlotArea(boolean flag) Sets a flag that controls whether or not areas are drawn for each data item and sends a RendererChangeEvent to all registered listeners.
void	setRangeBase(double val) Sets the value on the range axis which defines the default border of the area, and sends a RendererChangeEvent to all registered listeners.
void	setShapesFilled(boolean filled) Sets the 'shapes filled' for ALL series and sends a RendererChangeEvent to all registered listeners.
void	setShapesVisible(boolean flag) Sets the flag that controls whether or not shapes are displayed for each data item, and sends a RendererChangeEvent to all registered listeners.
void	setStepPoint(double stepPoint) Sets the step point and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.xy.AbstractXYItemRenderer

addAnnotation, addAnnotation, addEntity, annotationChanged, calculateDomainMarkerTextAnchorPoint, drawAnnotations, drawDomainGridLine, drawDomainLine, drawDomainMarker, drawItemLabel, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, findDomainBounds, findDomainBounds, findRangeBounds, findRangeBounds, getAnnotations, getBaseItemLabelGenerator, getBaseToolTipGenerator, getDrawingSupplier, getItemLabelGenerator, getItemLabelGenerator, getLegendItem, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPassCount, getPlot, getSeriesItemLabelGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, getURLGenerator, isPointInRect, lineTo, moveTo, removeAnnotation, removeAnnotations, setBaseItemLabelGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesToolTipGenerator, setToolTipGenerator, setURLGenerator, updateCrosshairValues, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hashCode, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.xy.XYItemRenderer

addAnnotation, addAnnotation, addChangeListener, drawAnnotations, drawDomainGridLine, drawDomainMarker, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, findDomainBounds, findRangeBounds, getBaseItemLabelFont, getBaseItemLabelGenerator, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getBaseToolTipGenerator, getItemLabelFont, getItemLabelFont, getItemLabelGenerator, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendItem, getLegendItemLabelGenerator, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPassCount, getPlot, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelGenerator, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesToolTipGenerator, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getToolTipGenerator, getURLGenerator, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeAnnotation, removeAnnotations, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelGenerator, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setBaseToolTipGenerator, setItemLabelFont, setItemLabelGenerator, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendItemLabelGenerator, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPlot, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelGenerator, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesToolTipGenerator, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke, setToolTipGenerator, setURLGenerator

Methods inherited from interface org.jfree.chart.LegendItemSource

getLegendItems

Field Detail

SHAPES

public static final int SHAPES

Useful constant for specifying the type of rendering (shapes only).

See Also:

Constant Field Values

AREA

public static final int AREA

Useful constant for specifying the type of rendering (area only).

See Also:

Constant Field Values

AREA_AND_SHAPES

public static final int AREA_AND_SHAPES

Useful constant for specifying the type of rendering (area and shapes).

See Also:

Constant Field Values

pArea

protected transient java.awt.Polygon pArea

Area of the complete series

Constructor Detail

XYStepAreaRenderer

public XYStepAreaRenderer()

Constructs a new renderer.

XYStepAreaRenderer

public XYStepAreaRenderer(int type)

Constructs a new renderer.

Parameters:

type - the type of the renderer.

XYStepAreaRenderer

public XYStepAreaRenderer(int type,
                          XYToolTipGenerator toolTipGenerator,
                          XYURLGenerator urlGenerator)

Constructs a new renderer.

To specify the type of renderer, use one of the constants: AREA, SHAPES or AREA_AND_SHAPES.

Parameters:

type - the type of renderer.

toolTipGenerator - the tool tip generator to use (null permitted).

urlGenerator - the URL generator (null permitted).

Method Detail

isOutline

public boolean isOutline()

Returns a flag that controls whether or not outlines of the areas are drawn.

Returns:

The flag.

See Also:

setOutline(boolean)

setOutline

public void setOutline(boolean show)

Sets a flag that controls whether or not outlines of the areas are drawn, and sends a RendererChangeEvent to all registered listeners.

Parameters:

show - the flag.

See Also:

isOutline()

getShapesVisible

public boolean getShapesVisible()

Returns true if shapes are being plotted by the renderer.

Returns:

true if shapes are being plotted by the renderer.

See Also:

setShapesVisible(boolean)

setShapesVisible

public void setShapesVisible(boolean flag)

Sets the flag that controls whether or not shapes are displayed for each data item, and sends a RendererChangeEvent to all registered listeners.

Parameters:

flag - the flag.

See Also:

getShapesVisible()

isShapesFilled

public boolean isShapesFilled()

Returns the flag that controls whether or not the shapes are filled.

Returns:

A boolean.

See Also:

setShapesFilled(boolean)

setShapesFilled

public void setShapesFilled(boolean filled)

Sets the 'shapes filled' for ALL series and sends a RendererChangeEvent to all registered listeners.

Parameters:

filled - the flag.

See Also:

isShapesFilled()

getPlotArea

public boolean getPlotArea()

Returns true if Area is being plotted by the renderer.

Returns:

true if Area is being plotted by the renderer.

See Also:

setPlotArea(boolean)

setPlotArea

public void setPlotArea(boolean flag)

Sets a flag that controls whether or not areas are drawn for each data item and sends a RendererChangeEvent to all registered listeners.

Parameters:

flag - the flag.

See Also:

getPlotArea()

getRangeBase

public double getRangeBase()

Returns the value on the range axis which defines the 'lower' border of the area.

Returns:

double the value on the range axis which defines the 'lower' border of the area.

See Also:

setRangeBase(double)

setRangeBase

public void setRangeBase(double val)

Sets the value on the range axis which defines the default border of the area, and sends a RendererChangeEvent to all registered listeners. E.g. setRangeBase(Double.NEGATIVE_INFINITY) lets areas always reach the lower border of the plotArea.

Parameters:

val - the value on the range axis which defines the default border of the area.

See Also:

getRangeBase()

getStepPoint

public double getStepPoint()

Returns the fraction of the domain position between two points on which the step is drawn. The default is 1.0d, which means the step is drawn at the domain position of the second`point. If the stepPoint is 0.5d the step is drawn at half between the two points.

Returns:

The fraction of the domain position between two points where the step is drawn.

Since:

1.0.18

See Also:

setStepPoint(double)

setStepPoint

public void setStepPoint(double stepPoint)

Sets the step point and sends a RendererChangeEvent to all registered listeners.

Parameters:

stepPoint - the step point (in the range 0.0 to 1.0)

Since:

1.0.18

See Also:

getStepPoint()

initialise

public XYItemRendererState initialise(java.awt.Graphics2D g2,
                                      java.awt.geom.Rectangle2D dataArea,
                                      XYPlot plot,
                                      XYDataset data,
                                      PlotRenderingInfo info)

Initialises the renderer. Here we calculate the Java2D y-coordinate for zero, since all the bars have their bases fixed at zero.

Specified by:

initialise in interface XYItemRenderer

Overrides:

initialise in class AbstractXYItemRenderer

Parameters:

g2 - the graphics device.

dataArea - the area inside the axes.

plot - the plot.

data - the data.

info - an optional info collection object to return data back to the caller.

Returns:

The number of passes required by the renderer.

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     XYItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     PlotRenderingInfo info,
                     XYPlot plot,
                     ValueAxis domainAxis,
                     ValueAxis rangeAxis,
                     XYDataset dataset,
                     int series,
                     int item,
                     CrosshairState crosshairState,
                     int pass)

Draws the visual representation of a single data item.

Specified by:

drawItem in interface XYItemRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the area within which the data is being drawn.

info - collects information about the drawing.

plot - the plot (can be used to obtain standard color information etc).

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset.

series - the series index (zero-based).

item - the item index (zero-based).

crosshairState - crosshair information for the plot (null permitted).

pass - the pass index.

equals

public boolean equals(java.lang.Object obj)

Tests this renderer for equality with an arbitrary object.

Overrides:

equals in class AbstractXYItemRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.

clone

public java.lang.Object clone()
                       throws java.lang.CloneNotSupportedException

Returns a clone of the renderer.

Specified by:

clone in interface org.jfree.util.PublicCloneable

Overrides:

clone in class AbstractXYItemRenderer

Returns:

A clone.

Throws:

java.lang.CloneNotSupportedException - if the renderer cannot be cloned.

restrictValueToDataArea

protected static double restrictValueToDataArea(double value,
                                                XYPlot plot,
                                                java.awt.geom.Rectangle2D dataArea)

Helper method which returns a value if it lies inside the visible dataArea and otherwise the corresponding coordinate on the border of the dataArea. The PlotOrientation is taken into account. Useful to avoid possible sun.dc.pr.PRException: endPath: bad path which occurs when trying to draw lines/shapes which in large part lie outside of the visible dataArea.

Parameters:

value - the value which shall be

dataArea - the area within which the data is being drawn.

plot - the plot (can be used to obtain standard color information etc).

Returns:

double value inside the data area.
