org.jfree.chart.renderer.xy

Class XYBoxAndWhiskerRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.xy.AbstractXYItemRenderer

org.jfree.chart.renderer.xy.XYBoxAndWhiskerRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, java.util.EventListener, AnnotationChangeListener, LegendItemSource, XYItemRenderer, org.jfree.util.PublicCloneable

public class XYBoxAndWhiskerRenderer
extends AbstractXYItemRenderer
implements XYItemRenderer, java.lang.Cloneable, org.jfree.util.PublicCloneable, java.io.Serializable

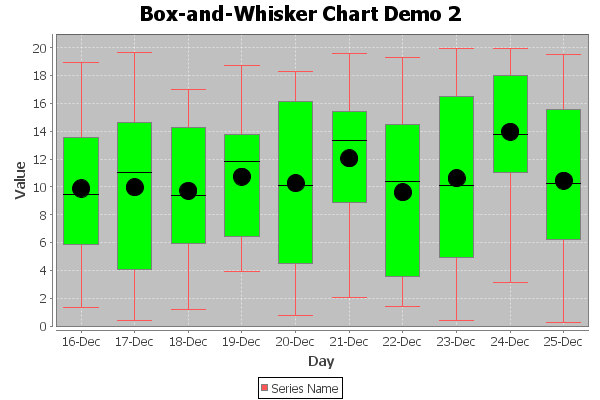

A renderer that draws box-and-whisker items on an XYPlot. This renderer requires a BoxAndWhiskerXYDataset). The example shown here is generated by the BoxAndWhiskerChartDemo2.java program included in the JFreeChart demo collection:

This renderer does not include any code to calculate the crosshair point.

See Also:

Serialized Form

Field Summary

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
XYBoxAndWhiskerRenderer() Creates a new renderer for box and whisker charts.
XYBoxAndWhiskerRenderer(double boxWidth) Creates a new renderer for box and whisker charts.

Method Summary

Modifier and Type	Method and Description
java.lang.Object	clone() Returns a clone of the renderer.
protected void	drawEllipse(java.awt.geom.Point2D point, double oRadius, java.awt.Graphics2D g2) Draws an ellipse to represent an outlier.
protected void	drawHighFarOut(double aRadius, java.awt.Graphics2D g2, double xx, double m) Draws a triangle to indicate the presence of far out values.
void	drawHorizontalItem(java.awt.Graphics2D g2, java.awt.geom.Rectangle2D dataArea, PlotRenderingInfo info, XYPlot plot, ValueAxis domainAxis, ValueAxis rangeAxis, XYDataset dataset, int series, int item, CrosshairState crosshairState, int pass) Draws the visual representation of a single data item.
void	drawItem(java.awt.Graphics2D g2, XYItemRendererState state, java.awt.geom.Rectangle2D dataArea, PlotRenderingInfo info, XYPlot plot, ValueAxis domainAxis, ValueAxis rangeAxis, XYDataset dataset, int series, int item, CrosshairState crosshairState, int pass) Draws the visual representation of a single data item.
protected void	drawLowFarOut(double aRadius, java.awt.Graphics2D g2, double xx, double m) Draws a triangle to indicate the presence of far out values.
protected void	drawMultipleEllipse(java.awt.geom.Point2D point, double boxWidth, double oRadius, java.awt.Graphics2D g2) Draws two ellipses to represent overlapping outliers.
void	drawVerticalItem(java.awt.Graphics2D g2, java.awt.geom.Rectangle2D dataArea, PlotRenderingInfo info, XYPlot plot, ValueAxis domainAxis, ValueAxis rangeAxis, XYDataset dataset, int series, int item, CrosshairState crosshairState, int pass) Draws the visual representation of a single data item.
boolean	equals(java.lang.Object obj) Tests this renderer for equality with another object.
Range	findRangeBounds(XYDataset dataset) Returns the range of values the renderer requires to display all the items from the specified dataset.
java.awt.Paint	getArtifactPaint() Returns the paint used to paint the various artifacts such as outliers, farout symbol, median line and the averages ellipse.
java.awt.Paint	getBoxPaint() Returns the paint used to fill boxes.
double	getBoxWidth() Returns the width of each box.
boolean	getFillBox() Returns the flag that controls whether or not the box is filled.
protected java.awt.Paint	lookupBoxPaint(int series, int item) Returns the box paint or, if this is null, the item paint.
void	setArtifactPaint(java.awt.Paint paint) Sets the paint used to paint the various artifacts such as outliers, farout symbol, median line and the averages ellipse, and sends a RendererChangeEvent to all registered listeners.
void	setBoxPaint(java.awt.Paint paint) Sets the paint used to fill boxes and sends a RendererChangeEvent to all registered listeners.
void	setBoxWidth(double width) Sets the box width and sends a RendererChangeEvent to all registered listeners.
void	setFillBox(boolean flag) Sets the flag that controls whether or not the box is filled and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.xy.AbstractXYItemRenderer

addAnnotation, addAnnotation, addEntity, annotationChanged, calculateDomainMarkerTextAnchorPoint, drawAnnotations, drawDomainGridLine, drawDomainLine, drawDomainMarker, drawItemLabel, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, findDomainBounds, findDomainBounds, findRangeBounds, getAnnotations, getBaseItemLabelGenerator, getBaseToolTipGenerator, getDrawingSupplier, getItemLabelGenerator, getItemLabelGenerator, getLegendItem, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPassCount, getPlot, getSeriesItemLabelGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, getURLGenerator, initialise, isPointInRect, lineTo, moveTo, removeAnnotation, removeAnnotations, setBaseItemLabelGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesToolTipGenerator, setToolTipGenerator, setURLGenerator, updateCrosshairValues, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hashCode, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.xy.XYItemRenderer

addAnnotation, addAnnotation, addChangeListener, drawAnnotations, drawDomainGridLine, drawDomainMarker, drawRangeLine, drawRangeMarker, fillDomainGridBand, fillRangeGridBand, findDomainBounds, getBaseItemLabelFont, getBaseItemLabelGenerator, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getBaseToolTipGenerator, getItemLabelFont, getItemLabelFont, getItemLabelGenerator, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendItem, getLegendItemLabelGenerator, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPassCount, getPlot, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelGenerator, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesToolTipGenerator, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getToolTipGenerator, getURLGenerator, initialise, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeAnnotation, removeAnnotations, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelGenerator, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setBaseToolTipGenerator, setItemLabelFont, setItemLabelGenerator, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendItemLabelGenerator, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPlot, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelGenerator, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesToolTipGenerator, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke, setToolTipGenerator, setURLGenerator

Methods inherited from interface org.jfree.chart.LegendItemSource

getLegendItems

Constructor Detail

XYBoxAndWhiskerRenderer

public XYBoxAndWhiskerRenderer()

Creates a new renderer for box and whisker charts.

XYBoxAndWhiskerRenderer

public XYBoxAndWhiskerRenderer(double boxWidth)

Creates a new renderer for box and whisker charts.

Use -1 for the box width if you prefer the width to be calculated automatically.

Parameters:

boxWidth - the box width.

Method Detail

getBoxWidth

public double getBoxWidth()

Returns the width of each box.

Returns:

The box width.

See Also:

setBoxWidth(double)

setBoxWidth

public void setBoxWidth(double width)

Sets the box width and sends a RendererChangeEvent to all registered listeners.

If you set the width to a negative value, the renderer will calculate the box width automatically based on the space available on the chart.

Parameters:

width - the width.

See Also:

getBoxWidth()

getBoxPaint

public java.awt.Paint getBoxPaint()

Returns the paint used to fill boxes.

Returns:

The paint (possibly null).

See Also:

setBoxPaint(Paint)

setBoxPaint

public void setBoxPaint(java.awt.Paint paint)

Sets the paint used to fill boxes and sends a RendererChangeEvent to all registered listeners.

Parameters:

paint - the paint (null permitted).

See Also:

getBoxPaint()

getFillBox

public boolean getFillBox()

Returns the flag that controls whether or not the box is filled.

Returns:

A boolean.

See Also:

setFillBox(boolean)

setFillBox

public void setFillBox(boolean flag)

Sets the flag that controls whether or not the box is filled and sends a RendererChangeEvent to all registered listeners.

Parameters:

flag - the flag.

See Also:

setFillBox(boolean)

getArtifactPaint

public java.awt.Paint getArtifactPaint()

Returns the paint used to paint the various artifacts such as outliers, farout symbol, median line and the averages ellipse.

Returns:

The paint (never null).

See Also:

setArtifactPaint(Paint)

setArtifactPaint

public void setArtifactPaint(java.awt.Paint paint)

Sets the paint used to paint the various artifacts such as outliers, farout symbol, median line and the averages ellipse, and sends a RendererChangeEvent to all registered listeners.

Parameters:

paint - the paint (null not permitted).

See Also:

getArtifactPaint()

findRangeBounds

public Range findRangeBounds(XYDataset dataset)

Returns the range of values the renderer requires to display all the items from the specified dataset.

Specified by:

findRangeBounds in interface XYItemRenderer

Overrides:

findRangeBounds in class AbstractXYItemRenderer

Parameters:

dataset - the dataset (null permitted).

Returns:

The range (null if the dataset is null or empty).

See Also:

AbstractXYItemRenderer.findDomainBounds(XYDataset)

lookupBoxPaint

protected java.awt.Paint lookupBoxPaint(int series,
                                        int item)

Returns the box paint or, if this is null, the item paint.

Parameters:

series - the series index.

item - the item index.

Returns:

The paint used to fill the box for the specified item (never null).

Since:

1.0.10

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     XYItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     PlotRenderingInfo info,
                     XYPlot plot,
                     ValueAxis domainAxis,
                     ValueAxis rangeAxis,
                     XYDataset dataset,
                     int series,
                     int item,
                     CrosshairState crosshairState,
                     int pass)

Draws the visual representation of a single data item.

Specified by:

drawItem in interface XYItemRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the area within which the plot is being drawn.

info - collects info about the drawing.

plot - the plot (can be used to obtain standard color information etc).

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset (must be an instance of BoxAndWhiskerXYDataset).

series - the series index (zero-based).

item - the item index (zero-based).

crosshairState - crosshair information for the plot (null permitted).

pass - the pass index.

drawHorizontalItem

public void drawHorizontalItem(java.awt.Graphics2D g2,
                               java.awt.geom.Rectangle2D dataArea,
                               PlotRenderingInfo info,
                               XYPlot plot,
                               ValueAxis domainAxis,
                               ValueAxis rangeAxis,
                               XYDataset dataset,
                               int series,
                               int item,
                               CrosshairState crosshairState,
                               int pass)

Draws the visual representation of a single data item.

Parameters:

g2 - the graphics device.

dataArea - the area within which the plot is being drawn.

info - collects info about the drawing.

plot - the plot (can be used to obtain standard color information etc).

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset (must be an instance of BoxAndWhiskerXYDataset).

series - the series index (zero-based).

item - the item index (zero-based).

crosshairState - crosshair information for the plot (null permitted).

pass - the pass index.

drawVerticalItem

public void drawVerticalItem(java.awt.Graphics2D g2,
                             java.awt.geom.Rectangle2D dataArea,
                             PlotRenderingInfo info,
                             XYPlot plot,
                             ValueAxis domainAxis,
                             ValueAxis rangeAxis,
                             XYDataset dataset,
                             int series,
                             int item,
                             CrosshairState crosshairState,
                             int pass)

Draws the visual representation of a single data item.

Parameters:

g2 - the graphics device.

dataArea - the area within which the plot is being drawn.

info - collects info about the drawing.

plot - the plot (can be used to obtain standard color information etc).

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset (must be an instance of BoxAndWhiskerXYDataset).

series - the series index (zero-based).

item - the item index (zero-based).

crosshairState - crosshair information for the plot (null permitted).

pass - the pass index.

drawEllipse

protected void drawEllipse(java.awt.geom.Point2D point,
                           double oRadius,
                           java.awt.Graphics2D g2)

Draws an ellipse to represent an outlier.

Parameters:

point - the location.

oRadius - the radius.

g2 - the graphics device.

drawMultipleEllipse

protected void drawMultipleEllipse(java.awt.geom.Point2D point,
                                   double boxWidth,
                                   double oRadius,
                                   java.awt.Graphics2D g2)

Draws two ellipses to represent overlapping outliers.

Parameters:

point - the location.

boxWidth - the box width.

oRadius - the radius.

g2 - the graphics device.

drawHighFarOut

protected void drawHighFarOut(double aRadius,
                              java.awt.Graphics2D g2,
                              double xx,
                              double m)

Draws a triangle to indicate the presence of far out values.

Parameters:

aRadius - the radius.

g2 - the graphics device.

xx - the x value.

m - the max y value.

drawLowFarOut

protected void drawLowFarOut(double aRadius,
                             java.awt.Graphics2D g2,
                             double xx,
                             double m)

Draws a triangle to indicate the presence of far out values.

Parameters:

aRadius - the radius.

g2 - the graphics device.

xx - the x value.

m - the min y value.

equals

public boolean equals(java.lang.Object obj)

Tests this renderer for equality with another object.

Overrides:

equals in class AbstractXYItemRenderer

Parameters:

obj - the object (null permitted).

Returns:

true or false.

clone

public java.lang.Object clone()
                       throws java.lang.CloneNotSupportedException

Returns a clone of the renderer.

Specified by:

clone in interface org.jfree.util.PublicCloneable

Overrides:

clone in class AbstractXYItemRenderer

Returns:

A clone.

Throws:

java.lang.CloneNotSupportedException - if the renderer cannot be cloned.
