org.jfree.chart.renderer.category

Class ScatterRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

org.jfree.chart.renderer.category.ScatterRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, LegendItemSource, CategoryItemRenderer, org.jfree.util.PublicCloneable

public class ScatterRenderer
extends AbstractCategoryItemRenderer
implements java.lang.Cloneable, org.jfree.util.PublicCloneable, java.io.Serializable

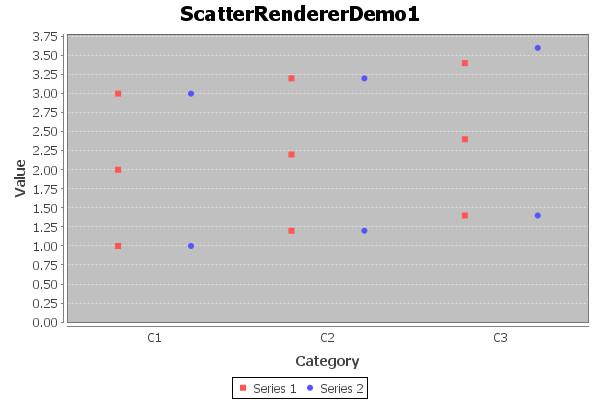

A renderer that handles the multiple values from a MultiValueCategoryDataset by plotting a shape for each value for each given item in the dataset. The example shown here is generated by the ScatterRendererDemo1.java program included in the JFreeChart Demo Collection:

Since:

1.0.7

See Also:

Serialized Form

Field Summary

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
ScatterRenderer() Constructs a new renderer.

Method Summary

Modifier and Type	Method and Description
java.lang.Object	clone() Returns an independent copy of the renderer.
void	drawItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, CategoryDataset dataset, int row, int column, int pass) Draw a single data item.
boolean	equals(java.lang.Object obj) Tests this renderer for equality with an arbitrary object.
Range	findRangeBounds(CategoryDataset dataset) Returns the range of values the renderer requires to display all the items from the specified dataset.
boolean	getBaseShapesFilled() Returns the base 'shape filled' attribute.
boolean	getDrawOutlines() Returns true if outlines should be drawn for shapes, and false otherwise.
double	getItemMargin() Returns the item margin, which is the gap between items within a category (expressed as a percentage of the overall category width).
boolean	getItemShapeFilled(int series, int item) Returns the flag used to control whether or not the shape for an item is filled.
LegendItem	getLegendItem(int datasetIndex, int series) Returns a legend item for a series.
boolean	getSeriesShapesFilled(int series) Returns the flag used to control whether or not the shapes for a series are filled.
boolean	getUseFillPaint() Returns true if the renderer should use the fill paint setting to fill shapes, and false if it should just use the regular paint.
boolean	getUseOutlinePaint() Returns the flag that controls whether the outline paint is used for shape outlines.
boolean	getUseSeriesOffset() Returns the flag that controls whether or not the x-position for each data item is offset within the category according to the series.
void	setBaseShapesFilled(boolean flag) Sets the base 'shapes filled' flag and sends a RendererChangeEvent to all registered listeners.
void	setDrawOutlines(boolean flag) Sets the flag that controls whether outlines are drawn for shapes, and sends a RendererChangeEvent to all registered listeners.
void	setItemMargin(double margin) Sets the item margin, which is the gap between items within a category (expressed as a percentage of the overall category width), and sends a RendererChangeEvent to all registered listeners.
void	setSeriesShapesFilled(int series, boolean filled) Sets the 'shapes filled' flag for a series and sends a RendererChangeEvent to all registered listeners.
void	setSeriesShapesFilled(int series, java.lang.Boolean filled) Sets the 'shapes filled' flag for a series and sends a RendererChangeEvent to all registered listeners.
void	setUseFillPaint(boolean flag) Sets the flag that controls whether the fill paint is used to fill shapes, and sends a RendererChangeEvent to all registered listeners.
void	setUseOutlinePaint(boolean use) Sets the flag that controls whether the outline paint is used for shape outlines, and sends a RendererChangeEvent to all registered listeners.
void	setUseSeriesOffset(boolean offset) Sets the flag that controls whether or not the x-position for each data item is offset within its category according to the series, and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

addEntity, addItemEntity, calculateDomainMarkerTextAnchorPoint, calculateRangeMarkerTextAnchorPoint, createState, drawBackground, drawDomainGridline, drawDomainMarker, drawItemLabel, drawOutline, drawRangeGridline, drawRangeLine, drawRangeMarker, findRangeBounds, getBaseItemLabelGenerator, getBaseItemURLGenerator, getBaseToolTipGenerator, getColumnCount, getDomainAxis, getDrawingSupplier, getItemLabelGenerator, getItemMiddle, getItemURLGenerator, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPassCount, getPlot, getRangeAxis, getRowCount, getSeriesItemLabelGenerator, getSeriesItemURLGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, hashCode, initialise, setBaseItemLabelGenerator, setBaseItemURLGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setItemURLGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesItemURLGenerator, setSeriesToolTipGenerator, setToolTipGenerator, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.chart.renderer.category.CategoryItemRenderer

addChangeListener, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setItemLabelFont, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke

Constructor Detail

ScatterRenderer

public ScatterRenderer()

Constructs a new renderer.

Method Detail

getUseSeriesOffset

public boolean getUseSeriesOffset()

Returns the flag that controls whether or not the x-position for each data item is offset within the category according to the series.

Returns:

A boolean.

See Also:

setUseSeriesOffset(boolean)

setUseSeriesOffset

public void setUseSeriesOffset(boolean offset)

Sets the flag that controls whether or not the x-position for each data item is offset within its category according to the series, and sends a RendererChangeEvent to all registered listeners.

Parameters:

offset - the offset.

See Also:

getUseSeriesOffset()

getItemMargin

public double getItemMargin()

Returns the item margin, which is the gap between items within a category (expressed as a percentage of the overall category width). This can be used to match the offset alignment with the bars drawn by a BarRenderer).

Returns:

The item margin.

See Also:

setItemMargin(double), getUseSeriesOffset()

setItemMargin

public void setItemMargin(double margin)

Sets the item margin, which is the gap between items within a category (expressed as a percentage of the overall category width), and sends a RendererChangeEvent to all registered listeners.

Parameters:

margin - the margin (0.0 <= margin < 1.0).

See Also:

getItemMargin(), getUseSeriesOffset()

getDrawOutlines

public boolean getDrawOutlines()

Returns true if outlines should be drawn for shapes, and false otherwise.

Returns:

A boolean.

See Also:

setDrawOutlines(boolean)

setDrawOutlines

public void setDrawOutlines(boolean flag)

Sets the flag that controls whether outlines are drawn for shapes, and sends a RendererChangeEvent to all registered listeners.

In some cases, shapes look better if they do NOT have an outline, but this flag allows you to set your own preference.

Parameters:

flag - the flag.

See Also:

getDrawOutlines()

getUseOutlinePaint

public boolean getUseOutlinePaint()

Returns the flag that controls whether the outline paint is used for shape outlines. If not, the regular series paint is used.

Returns:

A boolean.

See Also:

setUseOutlinePaint(boolean)

setUseOutlinePaint

public void setUseOutlinePaint(boolean use)

Sets the flag that controls whether the outline paint is used for shape outlines, and sends a RendererChangeEvent to all registered listeners.

Parameters:

use - the flag.

See Also:

getUseOutlinePaint()

getItemShapeFilled

public boolean getItemShapeFilled(int series,
                                  int item)

Returns the flag used to control whether or not the shape for an item is filled. The default implementation passes control to the getSeriesShapesFilled method. You can override this method if you require different behaviour.

Parameters:

series - the series index (zero-based).

item - the item index (zero-based).

Returns:

A boolean.

getSeriesShapesFilled

public boolean getSeriesShapesFilled(int series)

Returns the flag used to control whether or not the shapes for a series are filled.

Parameters:

series - the series index (zero-based).

Returns:

A boolean.

setSeriesShapesFilled

public void setSeriesShapesFilled(int series,
                                  java.lang.Boolean filled)

Sets the 'shapes filled' flag for a series and sends a RendererChangeEvent to all registered listeners.

Parameters:

series - the series index (zero-based).

filled - the flag.

setSeriesShapesFilled

public void setSeriesShapesFilled(int series,
                                  boolean filled)

Sets the 'shapes filled' flag for a series and sends a RendererChangeEvent to all registered listeners.

Parameters:

series - the series index (zero-based).

filled - the flag.

getBaseShapesFilled

public boolean getBaseShapesFilled()

Returns the base 'shape filled' attribute.

Returns:

The base flag.

setBaseShapesFilled

public void setBaseShapesFilled(boolean flag)

Sets the base 'shapes filled' flag and sends a RendererChangeEvent to all registered listeners.

Parameters:

flag - the flag.

getUseFillPaint

public boolean getUseFillPaint()

Returns true if the renderer should use the fill paint setting to fill shapes, and false if it should just use the regular paint.

Returns:

A boolean.

setUseFillPaint

public void setUseFillPaint(boolean flag)

Sets the flag that controls whether the fill paint is used to fill shapes, and sends a RendererChangeEvent to all registered listeners.

Parameters:

flag - the flag.

findRangeBounds

public Range findRangeBounds(CategoryDataset dataset)

Returns the range of values the renderer requires to display all the items from the specified dataset. This takes into account the range between the min/max values, possibly ignoring invisible series.

Specified by:

findRangeBounds in interface CategoryItemRenderer

Overrides:

findRangeBounds in class AbstractCategoryItemRenderer

Parameters:

dataset - the dataset (null permitted).

Returns:

The range (or null if the dataset is null or empty).

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     CategoryItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     CategoryPlot plot,
                     CategoryAxis domainAxis,
                     ValueAxis rangeAxis,
                     CategoryDataset dataset,
                     int row,
                     int column,
                     int pass)

Draw a single data item.

Specified by:

drawItem in interface CategoryItemRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the area in which the data is drawn.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset.

row - the row index (zero-based).

column - the column index (zero-based).

pass - the pass index.

getLegendItem

public LegendItem getLegendItem(int datasetIndex,
                                int series)

Returns a legend item for a series.

Specified by:

getLegendItem in interface CategoryItemRenderer

Overrides:

getLegendItem in class AbstractCategoryItemRenderer

Parameters:

datasetIndex - the dataset index (zero-based).

series - the series index (zero-based).

Returns:

The legend item.

See Also:

AbstractCategoryItemRenderer.getLegendItems()

equals

public boolean equals(java.lang.Object obj)

Tests this renderer for equality with an arbitrary object.

Overrides:

equals in class AbstractCategoryItemRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.

clone

public java.lang.Object clone()
                       throws java.lang.CloneNotSupportedException

Returns an independent copy of the renderer.

Specified by:

clone in interface org.jfree.util.PublicCloneable

Overrides:

clone in class AbstractCategoryItemRenderer

Returns:

A clone.

Throws:

java.lang.CloneNotSupportedException - should not happen.
