org.jfree.chart.renderer.category

Class CategoryStepRenderer

java.lang.Object

org.jfree.chart.renderer.AbstractRenderer

org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

org.jfree.chart.renderer.category.CategoryStepRenderer

All Implemented Interfaces:

java.io.Serializable, java.lang.Cloneable, LegendItemSource, CategoryItemRenderer, org.jfree.util.PublicCloneable

public class CategoryStepRenderer
extends AbstractCategoryItemRenderer
implements java.lang.Cloneable, org.jfree.util.PublicCloneable, java.io.Serializable

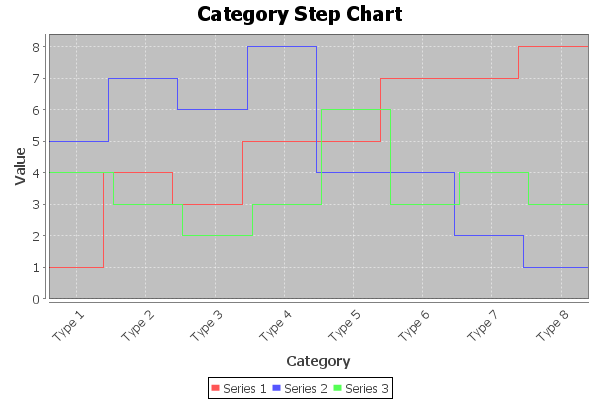

A "step" renderer similar to XYStepRenderer but that can be used with the CategoryPlot class. The example shown here is generated by the CategoryStepChartDemo1.java program included in the JFreeChart Demo Collection:

See Also:

Serialized Form

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
protected static class	CategoryStepRenderer.State State information for the renderer.

Field Summary

Fields

Modifier and Type	Field and Description
static int	STAGGER_WIDTH The stagger width.

Fields inherited from class org.jfree.chart.renderer.AbstractRenderer

DEFAULT_OUTLINE_PAINT, DEFAULT_OUTLINE_STROKE, DEFAULT_PAINT, DEFAULT_SHAPE, DEFAULT_STROKE, DEFAULT_VALUE_LABEL_FONT, DEFAULT_VALUE_LABEL_PAINT, ZERO

Constructor Summary

Constructors

Constructor and Description
CategoryStepRenderer() Creates a new renderer (stagger defaults to false).
CategoryStepRenderer(boolean stagger) Creates a new renderer.

Method Summary

Modifier and Type	Method and Description
protected CategoryItemRendererState	createState(PlotRenderingInfo info) Creates a new state instance.
void	drawItem(java.awt.Graphics2D g2, CategoryItemRendererState state, java.awt.geom.Rectangle2D dataArea, CategoryPlot plot, CategoryAxis domainAxis, ValueAxis rangeAxis, CategoryDataset dataset, int row, int column, int pass) Draw a single data item.
protected void	drawLine(java.awt.Graphics2D g2, CategoryStepRenderer.State state, PlotOrientation orientation, double x0, double y0, double x1, double y1) Draws a line taking into account the specified orientation.
boolean	equals(java.lang.Object obj) Tests this renderer for equality with an arbitrary object.
LegendItem	getLegendItem(int datasetIndex, int series) Returns a legend item for a series.
boolean	getStagger() Returns the flag that controls whether the series steps are staggered.
void	setStagger(boolean shouldStagger) Sets the flag that controls whether or not the series steps are staggered and sends a RendererChangeEvent to all registered listeners.

Methods inherited from class org.jfree.chart.renderer.category.AbstractCategoryItemRenderer

addEntity, addItemEntity, calculateDomainMarkerTextAnchorPoint, calculateRangeMarkerTextAnchorPoint, clone, drawBackground, drawDomainGridline, drawDomainMarker, drawItemLabel, drawOutline, drawRangeGridline, drawRangeLine, drawRangeMarker, findRangeBounds, findRangeBounds, getBaseItemLabelGenerator, getBaseItemURLGenerator, getBaseToolTipGenerator, getColumnCount, getDomainAxis, getDrawingSupplier, getItemLabelGenerator, getItemMiddle, getItemURLGenerator, getLegendItemLabelGenerator, getLegendItems, getLegendItemToolTipGenerator, getLegendItemURLGenerator, getPassCount, getPlot, getRangeAxis, getRowCount, getSeriesItemLabelGenerator, getSeriesItemURLGenerator, getSeriesToolTipGenerator, getToolTipGenerator, getToolTipGenerator, hashCode, initialise, setBaseItemLabelGenerator, setBaseItemURLGenerator, setBaseToolTipGenerator, setItemLabelGenerator, setItemURLGenerator, setLegendItemLabelGenerator, setLegendItemToolTipGenerator, setLegendItemURLGenerator, setPlot, setSeriesItemLabelGenerator, setSeriesItemURLGenerator, setSeriesToolTipGenerator, setToolTipGenerator, updateCrosshairValues

Methods inherited from class org.jfree.chart.renderer.AbstractRenderer

addChangeListener, calculateLabelAnchorPoint, clearSeriesPaints, clearSeriesStrokes, fireChangeEvent, getAutoPopulateSeriesFillPaint, getAutoPopulateSeriesOutlinePaint, getAutoPopulateSeriesOutlineStroke, getAutoPopulateSeriesPaint, getAutoPopulateSeriesShape, getAutoPopulateSeriesStroke, getBaseCreateEntities, getBaseFillPaint, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseLegendShape, getBaseLegendTextFont, getBaseLegendTextPaint, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getCreateEntities, getDataBoundsIncludesVisibleSeriesOnly, getDefaultEntityRadius, getItemCreateEntity, getItemFillPaint, getItemLabelAnchorOffset, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getLegendShape, getLegendTextFont, getLegendTextPaint, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesCreateEntities, getSeriesFillPaint, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, getTreatLegendShapeAsLine, hasListener, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, lookupLegendShape, lookupLegendTextFont, lookupLegendTextPaint, lookupSeriesFillPaint, lookupSeriesOutlinePaint, lookupSeriesOutlineStroke, lookupSeriesPaint, lookupSeriesShape, lookupSeriesStroke, notifyListeners, removeChangeListener, setAutoPopulateSeriesFillPaint, setAutoPopulateSeriesOutlinePaint, setAutoPopulateSeriesOutlineStroke, setAutoPopulateSeriesPaint, setAutoPopulateSeriesShape, setAutoPopulateSeriesStroke, setBaseCreateEntities, setBaseCreateEntities, setBaseFillPaint, setBaseFillPaint, setBaseItemLabelFont, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseLegendShape, setBaseLegendTextFont, setBaseLegendTextPaint, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlinePaint, setBaseOutlineStroke, setBaseOutlineStroke, setBasePaint, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseShape, setBaseStroke, setBaseStroke, setCreateEntities, setCreateEntities, setDataBoundsIncludesVisibleSeriesOnly, setDefaultEntityRadius, setFillPaint, setFillPaint, setItemLabelAnchorOffset, setItemLabelFont, setItemLabelFont, setItemLabelPaint, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setLegendShape, setLegendTextFont, setLegendTextPaint, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlinePaint, setOutlineStroke, setOutlineStroke, setPaint, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesCreateEntities, setSeriesCreateEntities, setSeriesFillPaint, setSeriesFillPaint, setSeriesItemLabelFont, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesOutlineStroke, setSeriesPaint, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesShape, setSeriesStroke, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setShape, setStroke, setStroke, setTreatLegendShapeAsLine

Methods inherited from class java.lang.Object

finalize, getClass, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jfree.util.PublicCloneable

clone

Methods inherited from interface org.jfree.chart.renderer.category.CategoryItemRenderer

addChangeListener, getBaseItemLabelFont, getBaseItemLabelPaint, getBaseItemLabelsVisible, getBaseNegativeItemLabelPosition, getBaseOutlinePaint, getBaseOutlineStroke, getBasePaint, getBasePositiveItemLabelPosition, getBaseSeriesVisible, getBaseSeriesVisibleInLegend, getBaseShape, getBaseStroke, getItemLabelFont, getItemLabelFont, getItemLabelPaint, getItemLabelPaint, getItemOutlinePaint, getItemOutlineStroke, getItemPaint, getItemShape, getItemStroke, getItemVisible, getNegativeItemLabelPosition, getNegativeItemLabelPosition, getPositiveItemLabelPosition, getPositiveItemLabelPosition, getSeriesItemLabelFont, getSeriesItemLabelPaint, getSeriesNegativeItemLabelPosition, getSeriesOutlinePaint, getSeriesOutlineStroke, getSeriesPaint, getSeriesPositiveItemLabelPosition, getSeriesShape, getSeriesStroke, getSeriesVisible, getSeriesVisible, getSeriesVisibleInLegend, getSeriesVisibleInLegend, isItemLabelVisible, isSeriesItemLabelsVisible, isSeriesVisible, isSeriesVisibleInLegend, removeChangeListener, setBaseItemLabelFont, setBaseItemLabelPaint, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseItemLabelsVisible, setBaseNegativeItemLabelPosition, setBaseNegativeItemLabelPosition, setBaseOutlinePaint, setBaseOutlineStroke, setBasePaint, setBasePositiveItemLabelPosition, setBasePositiveItemLabelPosition, setBaseSeriesVisible, setBaseSeriesVisible, setBaseSeriesVisibleInLegend, setBaseSeriesVisibleInLegend, setBaseShape, setBaseStroke, setItemLabelFont, setItemLabelPaint, setItemLabelsVisible, setItemLabelsVisible, setItemLabelsVisible, setNegativeItemLabelPosition, setNegativeItemLabelPosition, setOutlinePaint, setOutlineStroke, setPaint, setPositiveItemLabelPosition, setPositiveItemLabelPosition, setSeriesItemLabelFont, setSeriesItemLabelPaint, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesItemLabelsVisible, setSeriesNegativeItemLabelPosition, setSeriesNegativeItemLabelPosition, setSeriesOutlinePaint, setSeriesOutlineStroke, setSeriesPaint, setSeriesPositiveItemLabelPosition, setSeriesPositiveItemLabelPosition, setSeriesShape, setSeriesStroke, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisible, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setSeriesVisibleInLegend, setShape, setStroke

Field Detail

STAGGER_WIDTH

public static final int STAGGER_WIDTH

The stagger width.

See Also:

Constant Field Values

Constructor Detail

CategoryStepRenderer

public CategoryStepRenderer()

Creates a new renderer (stagger defaults to false).

CategoryStepRenderer

public CategoryStepRenderer(boolean stagger)

Creates a new renderer.

Parameters:

stagger - should the horizontal part of the step be staggered by series?

Method Detail

getStagger

public boolean getStagger()

Returns the flag that controls whether the series steps are staggered.

Returns:

A boolean.

setStagger

public void setStagger(boolean shouldStagger)

Sets the flag that controls whether or not the series steps are staggered and sends a RendererChangeEvent to all registered listeners.

Parameters:

shouldStagger - a boolean.

getLegendItem

public LegendItem getLegendItem(int datasetIndex,
                                int series)

Returns a legend item for a series.

Specified by:

getLegendItem in interface CategoryItemRenderer

Overrides:

getLegendItem in class AbstractCategoryItemRenderer

Parameters:

datasetIndex - the dataset index (zero-based).

series - the series index (zero-based).

Returns:

The legend item.

See Also:

AbstractCategoryItemRenderer.getLegendItems()

createState

protected CategoryItemRendererState createState(PlotRenderingInfo info)

Creates a new state instance. This method is called from AbstractCategoryItemRenderer.initialise(Graphics2D, Rectangle2D, CategoryPlot, int, PlotRenderingInfo), and we override it to ensure that the state contains a working Line2D instance.

Overrides:

createState in class AbstractCategoryItemRenderer

Parameters:

info - the plot rendering info (null is permitted).

Returns:

A new state instance.

drawLine

protected void drawLine(java.awt.Graphics2D g2,
                        CategoryStepRenderer.State state,
                        PlotOrientation orientation,
                        double x0,
                        double y0,
                        double x1,
                        double y1)

Draws a line taking into account the specified orientation.

In version 1.0.5, the signature of this method was changed by the addition of the 'state' parameter. This is an incompatible change, but is considered a low risk because it is unlikely that anyone has subclassed this renderer. If this *does* cause trouble for you, please report it as a bug.

Parameters:

g2 - the graphics device.

state - the renderer state.

orientation - the plot orientation.

x0 - the x-coordinate for the start of the line.

y0 - the y-coordinate for the start of the line.

x1 - the x-coordinate for the end of the line.

y1 - the y-coordinate for the end of the line.

drawItem

public void drawItem(java.awt.Graphics2D g2,
                     CategoryItemRendererState state,
                     java.awt.geom.Rectangle2D dataArea,
                     CategoryPlot plot,
                     CategoryAxis domainAxis,
                     ValueAxis rangeAxis,
                     CategoryDataset dataset,
                     int row,
                     int column,
                     int pass)

Draw a single data item.

Specified by:

drawItem in interface CategoryItemRenderer

Parameters:

g2 - the graphics device.

state - the renderer state.

dataArea - the area in which the data is drawn.

plot - the plot.

domainAxis - the domain axis.

rangeAxis - the range axis.

dataset - the dataset.

row - the row index (zero-based).

column - the column index (zero-based).

pass - the pass index.

equals

public boolean equals(java.lang.Object obj)

Tests this renderer for equality with an arbitrary object.

Overrides:

equals in class AbstractCategoryItemRenderer

Parameters:

obj - the object (null permitted).

Returns:

A boolean.
