DBVERIFY: Offline Database Verification Utility

20 DBVERIFY: Offline Database Verification Utility

DBVERIFY is an external command-line utility that performs a physical data structure integrity check.

DBVERIFY can be used on offline or online databases, as well on backup files. You use DBVERIFY primarily when you need to ensure that a backup database (or data file) is valid before it is restored, or as a diagnostic aid when you have encountered data corruption problems. Because DBVERIFY can be run against an offline database, integrity checks are significantly faster.

DBVERIFY checks are limited to cache-managed blocks (that is, data blocks). Because DBVERIFY is only for use with data files, it does not work against control files or redo logs.

There are two command-line interfaces to DBVERIFY. With the first interface, you specify disk blocks of a single data file for checking. With the second interface, you specify a segment for checking. Both interfaces are started with the dbv command. The following sections provide descriptions of these interfaces:

Using DBVERIFY to Validate Disk Blocks of a Single Data File
In this mode, DBVERIFY scans one or more disk blocks of a single data file and performs page checks.
Using DBVERIFY to Validate a Segment
In this mode, DBVERIFY enables you to specify a table segment or index segment for verification.

Parent topic: Other Utilities

20.1 Using DBVERIFY to Validate Disk Blocks of a Single Data File

In this mode, DBVERIFY scans one or more disk blocks of a single data file and performs page checks.

If the file you are verifying is an Oracle Automatic Storage Management (Oracle ASM) file, then you must supply a USERID. This is because DBVERIFY needs to connect to an Oracle instance to access Oracle ASM files.

DBVERIFY Syntax When Validating Blocks of a Single File
Using DBVERIFY to validate blocks of a single file.
DBVERIFY Parameters When Validating Blocks of a Single File
Describes the DBVERIFY parameters used to validate blocks of a single file.
Sample DBVERIFY Output For a Single Data File
Sample verification for a single data file.

Parent topic: DBVERIFY: Offline Database Verification Utility

20.1.1 DBVERIFY Syntax When Validating Blocks of a Single File

Using DBVERIFY to validate blocks of a single file.

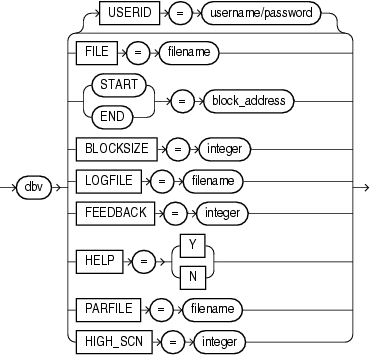

The syntax for DBVERIFY when you want to validate disk blocks of a single data file is as follows:

Description of the illustration dbverify.eps

Parent topic: Using DBVERIFY to Validate Disk Blocks of a Single Data File

20.1.2 DBVERIFY Parameters When Validating Blocks of a Single File

Describes the DBVERIFY parameters used to validate blocks of a single file.

For example:

Parameter	Description
`USERID`	Specifies your username and password. This parameter is only necessary when the files being verified are Oracle ASM files. If you do specify this parameter, both a username and a password must be entered; otherwise a `DBV-00112: USERID incorrectly specified` error is returned.
`FILE`	The name of the database file to verify.
`START`	The starting block address to verify. Specify block addresses in Oracle blocks (as opposed to operating system blocks). If you do not specify `START`, then DBVERIFY defaults to the first block in the file.
`END`	The ending block address to verify. If you do not specify `END`, then DBVERIFY defaults to the last block in the file.
`BLOCKSIZE`	`BLOCKSIZE` is required only if the file to be verified does not have a block size of 2 KB. If the file does not have block size of 2 KB and you do not specify `BLOCKSIZE`, then you will receive the error DBV-00103.
`HIGH_SCN`	When a value is specified for `HIGH_SCN`, DBVERIFY writes diagnostic messages for each block whose block-level SCN exceeds the value specified. This parameter is optional. There is no default.
`LOGFILE`	Specifies the file to which logging information should be written. The default sends output to the terminal display.
`FEEDBACK`	Causes DBVERIFY to send a progress display to the terminal in the form of a single period (.) for `n` number of pages verified during the DBVERIFY run. If `n` = 0, then there is no progress display.
`HELP`	Provides online help.
`PARFILE`	Specifies the name of the parameter file to use. You can store various values for DBVERIFY parameters in flat files. This enables you to customize parameter files to handle different types of data files and to perform specific types of integrity checks on data files.

Parent topic: Using DBVERIFY to Validate Disk Blocks of a Single Data File

20.1.3 Sample DBVERIFY Output For a Single Data File

Sample verification for a single data file.

The following is a sample verification of the file t_db1.dbf.The feedback parameter has been given the value 100 to display one period (.) for every 100 pages processed. A portion of the resulting output is also shown.

% dbv FILE=t_db1.dbf FEEDBACK=100
.
.
.
DBVERIFY - Verification starting : FILE = t_db1.dbf

................................................................................


DBVERIFY - Verification complete

Total Pages Examined         : 9216
Total Pages Processed (Data) : 2044
Total Pages Failing   (Data) : 0
Total Pages Processed (Index): 733
Total Pages Failing   (Index): 0
Total Pages Empty            : 5686
Total Pages Marked Corrupt   : 0

Total Pages Influx           : 0

Notes:

Pages = Blocks
Total Pages Examined = number of blocks in the file
Total Pages Processed = number of blocks that were verified (formatted blocks)
Total Pages Failing (Data) = number of blocks that failed the data block checking routine
Total Pages Failing (Index) = number of blocks that failed the index block checking routine
Total Pages Marked Corrupt = number of blocks for which the cache header is invalid, thereby making it impossible for DBVERIFY to identify the block type
Total Pages Influx = number of blocks that are being read and written to at the same time. If the database is open when DBVERIFY is run, then DBVERIFY reads blocks multiple times to get a consistent image. But because the database is open, there may be blocks that are being read and written to at the same time (INFLUX). DBVERIFY cannot get a consistent image of pages that are in flux.

Parent topic: Using DBVERIFY to Validate Disk Blocks of a Single Data File

20.2 Using DBVERIFY to Validate a Segment

In this mode, DBVERIFY enables you to specify a table segment or index segment for verification.

It checks to ensure that a row chain pointer is within the segment being verified.

This mode requires that you specify a segment (data or index) to be validated. It also requires that you log on to the database with SYSDBA privileges, because information about the segment must be retrieved from the database.

During this mode, the segment is locked. If the specified segment is an index, then the parent table is locked. Note that some indexes, such as IOTs, do not have parent tables.

DBVERIFY Syntax When Validating a Segment
Using DBVERIFY to validate a segment.
DBVERIFY Parameters When Validating a Single Segment
Describes the DBVERIFY parameters used to validate a single segment.
Sample DBVERIFY Output For a Validated Segment
Sample verification for a validated segment.

Parent topic: DBVERIFY: Offline Database Verification Utility

20.2.1 DBVERIFY Syntax When Validating a Segment

Using DBVERIFY to validate a segment.

The syntax for DBVERIFY when you want to validate a segment is as follows:

Description of the illustration dbverify_seg.eps

Parent topic: Using DBVERIFY to Validate a Segment

20.2.2 DBVERIFY Parameters When Validating a Single Segment

Describes the DBVERIFY parameters used to validate a single segment.

For example:

Parameter	Description
`USERID`	Specifies your username and password. If you do not enter both a username and a password, the error `DBV-00112: USERID incorrectly specified` is returned. If you are connecting to a container database (CDB), you would enter username@cdbname/password.
`SEGMENT_ID`	Specifies the segment to verify. It is composed of the tablespace ID number (`tsn`), segment header file number (`segfile`), and segment header block number (`segblock`). You can get this information from `SYS_USER_SEGS. T`he relevant columns are `TABLESPACE_ID`, `HEADER_FILE`, and `HEADER_BLOCK`. You must have `SYSDBA` privileges to query `SYS_USER_SEGS`.
`HIGH_SCN`	When a value is specified for `HIGH_SCN`, DBVERIFY writes diagnostic messages for each block whose block-level SCN exceeds the value specified. This parameter is optional. There is no default.
`LOGFILE`	Specifies the file to which logging information should be written. The default sends output to the terminal display.
`FEEDBACK`	Causes DBVERIFY to send a progress display to the terminal in the form of a single period (.) for `n` number of pages verified during the DBVERIFY run. If `n` = 0, then there is no progress display.
`HELP`	Provides online help.
`PARFILE`	Specifies the name of the parameter file to use. You can store various values for DBVERIFY parameters in flat files. This enables you to customize parameter files to handle different types of data files and to perform specific types of integrity checks on data files.

Parent topic: Using DBVERIFY to Validate a Segment

20.2.3 Sample DBVERIFY Output For a Validated Segment

Sample verification for a validated segment.

The following is a sample of the output that would be shown for a DBVERIFY operation to validate SEGMENT_ID 1.2.67.

DBVERIFY - Verification starting : SEGMENT_ID = 1.2.67

DBVERIFY - Verification complete

Total Pages Examined         : 8
Total Pages Processed (Data) : 0
Total Pages Failing   (Data) : 0
Total Pages Processed (Index): 1
Total Pages Failing   (Index): 0
Total Pages Processed (Other): 2
Total Pages Processed (Seg)  : 1
Total Pages Failing   (Seg)  : 0
Total Pages Empty            : 4
Total Pages Marked Corrupt   : 0
Total Pages Influx           : 0
Highest block SCN            : 7358 (0.7358)

Parent topic: Using DBVERIFY to Validate a Segment
