Shard Architecture

Applications perceive the pool of databases as a single logical database. Applications can elastically scale data, transactions, and users to any level, on any platform, by adding databases (shards) to the pool. Oracle Database supports scaling up to 1000 shards.

The following figure illustrates the major architectural components of Oracle Sharding:

• Sharded database (SDB) – a single logical Oracle Database that is horizontally partitioned across a pool of physical Oracle Databases (shards) that share no hardware or software

• Shards - independent physical Oracle databases that host a subset of the sharded database

• Global service - database services that provide access to data in an SDB

• Shard catalog – an Oracle Database that supports automated shard deployment, centralized management of a sharded database, and multi-shard queries

• Shard directors – network listeners that enable high performance connection routing based on a sharding key

• Connection pools - at runtime, act as shard directors by routing database requests across pooled connections

• Management interfaces - GDSCTL (command-line utility) and Oracle Enterprise Manager (GUI)

Figure 2-1 Oracle Sharding Architecture

Description of "Figure 2-1 Oracle Sharding Architecture"

Sharding and Partitioning

Oracle Sharding is essentially distributed partitioning because it extends partitioning by supporting the distribution of table partitions across shards.

Partitions are distributed across shards at the tablespace level, based on a sharding key. Examples of keys include customer ID, account number, and country ID. The following data types are supported for the sharding key:

• NUMBER

• INTEGER

• SMALLINT

• RAW

• (N)VARCHAR

• (N)VARCHAR2

• (N)CHAR

• DATE

• TIMESTAMP

Each partition of a sharded table resides in a separate tablespace, and each tablespace is associated with a specific shard. Depending on the sharding method, the association can be established automatically or defined by the administrator.

Even though the partitions of a sharded table reside in multiple shards, to the application, the table looks and behaves exactly the same as a partitioned table in a single database. SQL statements issued by an application never have to refer to shards or depend on the number of shards and their configuration.

Tablespace Sets

Oracle Sharding creates and manages tablespaces as a unit called a tablespace set. The PARTITIONS AUTO clause specifies that the number of partitions should be automatically determined. This type of hashing provides more flexibility and efficiency in migrating data between shards, which is important for elastic scalability.

A tablespace is a logical unit of data distribution in an SDB. The distribution of partitions across shards is achieved by automatically creating partitions in tablespaces that reside on different shards. To minimize the number of multi-shard joins, the corresponding partitions of related tables are always stored in the same shard. Each partition of a sharded table is stored in a separate tablespace.

How a Table Family Is Sharded

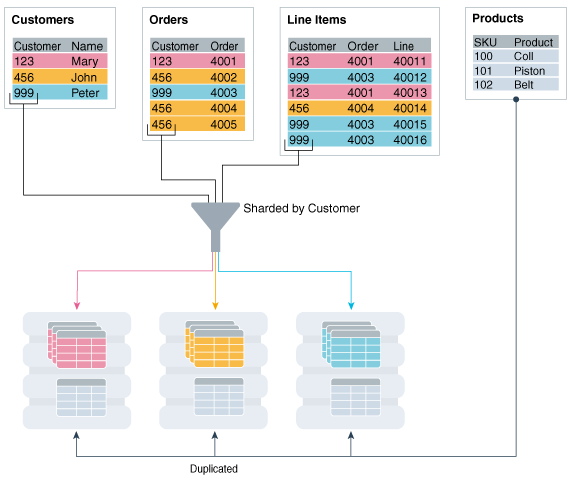

To illustrate sharding of a table family, consider the example of the Customers–Orders–LineItems schema. The tables in this schema may look as shown in the examples below. The three tables have a parent-child relationship, with Customers being the root table.

Customers table:

CustNo    Name       Address        Location  Class
--------- ---------- -------------- --------- ------
123       Brown      100 Main St    us3       Gold
456       Jones      300 Pine Ave   us1       Silver
999       Smith      453 Cherry St  us2       Bronze

Orders table:

OrderNo   CustNo   OrderDate
--------- -------- -----------
4001      123      14-FEB-2013
4002      456      09-MAR-2013
4003      456      05-APR-2013
4004      123      27-MAY-2013
4005      999      01-SEP-2013

LineItems table:

LineNo  OrderNo  CustNo  StockNo    Quantity
------  -------  ------  -------    --------
40011   4001     123     05683022   1
40012   4001     123     45423609   4
40013   4001     123     68584904   1
40021   4002     456     05683022   1
40022   4002     456     45423509   3
40022   4003     456     80345330   16
40041   4004     123     45423509   1
40042   4004     123     68584904   2
40051   4005     999     80345330   12

The tables can be sharded by the customer number, CustNo, in the Customers table, which is the root. The shard containing data pertaining to customer 123 is shown in the following example tables.

Customers table:

CustNo    Name       Address        Location   Class
--------- ---------- -------------- ---------- ------
123       Brown      100 Main St    us3        Gold

Orders table:

OrderNo   CustNo   OrderDate
--------- -------- -----------
4001      123      14-FEB-2013
4004      123      27-MAY-2013

LineItems table:

LineNo  OrderNo  CustNo  StockNo    Quantity
------  -------  ------  -------    --------
40011   4001     123     05683022   1
40012   4001     123     45423609   4
40013   4001     123     68584904   1
40041   4004     123     45423509   1
40042   4004     123     68584904   2

Creating a Sharded Table Family Using CREATE TABLE

The recommended way to create a sharded table family is to specify parent-child relationships between tables using reference partitioning.

The appropriate CREATE TABLE statements for Customers–Orders–LineItems schema are shown below. The first statement creates the root table of the table family – Customers.

CREATE SHARDED TABLE Customers
( CustNo      NUMBER NOT NULL
, Name        VARCHAR2(50)
, Address     VARCHAR2(250)
, CONSTRAINT RootPK PRIMARY KEY(CustNo)
)
PARTITION BY CONSISTENT HASH (CustNo)
PARTITIONS AUTO
TABLESPACE SET ts1
;

The following two statements create the Orders and LineItems tables, which are a child and grandchild of the Customers table.

CREATE SHARDED TABLE Orders
( OrderNo   NUMBER NOT NULL
, CustNo    NUMBER NOT NULL
, OrderDate DATE
, CONSTRAINT OrderPK PRIMARY KEY (CustNo, OrderNo)
, CONSTRAINT CustFK  FOREIGN KEY (CustNo) REFERENCES Customers(CustNo)
)
PARTITION BY REFERENCE (CustFK)
;

CREATE SHARDED TABLE LineItems
( CustNo    NUMBER NOT NULL
, LineNo    NUMBER(2) NOT NULL
, OrderNo   NUMBER(5) NOT NULL
, StockNo   NUMBER(4)
, Quantity  NUMBER(2)
, CONSTRAINT LinePK  PRIMARY KEY (CustNo, OrderNo, LineNo)
, CONSTRAINT LineFK  FOREIGN KEY (CustNo, OrderNo) REFERENCES Orders(CustNo, OrderNo)
)
PARTITION BY REFERENCE (LineFK)
;

In the example statements above, corresponding partitions of all tables in the family are stored in the same tablespace set – TS1. However, it is possible to specify separate tablespace sets for each table.

Partitioning by reference simplifies the syntax since the partitioning scheme is only specified for the root table. Also, partition management operations that are performed on the root table are automatically propagated to its descendents. For example, when adding a partition to the root table, a new partition is created on all its descendents.

Note that in the example statements above, the partitioning column CustNo used as the sharding key is present in all three tables. This is despite the fact that reference partitioning, in general, allows a child table to be equi-partitioned with the parent table without having to duplicate the key columns in the child table. The reason for this is that reference partitioning requires a primary key in a parent table because the primary key must be specified in the foreign key constraint of a child table used to link the child to its parent. However, a primary key on a sharded table must either be the same as the sharding key, or contain the sharding key as the leading column. This makes it possible to enforce global uniqueness of a primary key without coordination with other shards – a critical requirement for linear scalability.

To summarize, the use of reference-partitioned tables in a sharded database requires adhering to the following rules:

• A primary key on a sharded table must either be the same as the sharding key, or another column(s) prefixed by the sharding key. This is required to enforce global uniqueness of a primary key without coordination with other shards.

• Reference partitioning requires a primary key in a parent table, because the primary key must be specified in the foreign key constraint of a child table to link the child to its parent. For example, to link the LineItems (child) table to the Orders (parent) table, you need a primary key in the Orders table. The second rule implies that the primary key in the Orders table is prefixed by the CustNo value. (This is an existing partitioning rule not specific to Oracle Sharding.)

In some cases it is impossible or undesirable to create primary and foreign key constraints that are required for reference partitioning. For such cases, specifying parent-child relationships in a table family requires that all tables are explicitly equi-partitioned and each child table is created with the PARENT clause in CREATE SHARDED TABLE that contains the name of its parent. An example of the syntax is shown below.

 CREATE SHARDED TABLE Customers
( CustNo      NUMBER NOT NULL
, Name        VARCHAR2(50)
, Address     VARCHAR2(250)
, region      VARCHAR2(20)
, class       VARCHAR2(3)
, signup      DATE
)
PARTITION BY CONSISTENT HASH (CustNo)
PARTITIONS AUTO
TABLESPACE SET ts1
;

CREATE SHARDED TABLE Orders
( OrderNo   NUMBER
, CustNo    NUMBER NOT NULL
, OrderDate DATE
)
PARENT Customers
PARTITION BY CONSISTENT HASH (CustNo)
PARTITIONS AUTO
TABLESPACE SET ts1
;

CREATE SHARDED TABLE LineItems
( LineNo    NUMBER
, OrderNo   NUMBER
, CustNo    NUMBER NOT NULL
, StockNo   NUMBER
, Quantity  NUMBER
)
PARENT Customers
PARTITION BY CONSISTENT HASH (CustNo)
PARTITIONS AUTO
TABLESPACE SET ts1
;

Because the partitioning scheme is fully specified in all of the CREATE SHARDED TABLE statements, any table can be independently subpartitioned. This is not permitted with reference partitioning where subpartitions can only be specified for the root table and the subpartitioning scheme is the same for all tables in a table family.

Note that this method only supports two-level table families, that is, all children must have the same parent and grandchildren cannot exist. This is not a limitation as long as the partitioning column from the parent table exists in all of the child tables.

Chunks

The unit of data migration between shards is a chunk. A chunk is a set of tablespaces that store corresponding partitions of all tables in a table family. A chunk contains a single partition from each table of a set of related tables. This guarantees that related data from different sharded tables can be moved together. The number of chunks within each shard is specified when the SDB is created.

Multiple Table Families in a Sharded Database

A sharded database can have multiple table families, where all data from different table families reside in the same chunks, which contain partitions from different table families sharing the same hash key range. Cross-table family queries should be minimal and only carried out on the sharding coordinator. Each table family is associated with a different global service. Applications from different table families each have their own connection pool and service, and use their own sharding key for routing to the correct shard.

Each table family is identified by its root table. Tables in the different table families should not be related to each other. Each table family should have its own sharding key definition, while the same restriction on having the same sharding key columns in child tables still holds true within each table family. This means that all tables from different table families are sharded the same way with consistent hash into the same number of chunks, with each chunk containing data from all the table families.

The following example shows you how to create multiple table families using the PARENT clause.

CREATE SHARDED TABLE Customers <=== Table Family #1
( CustId NUMBER NOT NULL
, Name VARCHAR2(50)
, Address VARCHAR2(250)
, region VARCHAR2(20)
, class VARCHAR2(3)
, signup DATE
)
PARTITION BY CONSISTENT HASH (CustId)
PARTITIONS AUTO
TABLESPACE SET ts1
;

CREATE SHARDED TABLE Orders
( OrderNo NUMBER
, CustId NUMBER
, OrderDate DATE
)
PARENT Customers
PARTITION BY CONSISTENT HASH (CustId)
PARTITIONS AUTO
TABLESPACE SET ts1
;

CREATE SHARDED TABLE LineItems
( LineNo NUMBER
, OrderNo NUMBER
, CustId NUMBER
, StockNo NUMBER
, Quantity NUMBER
)
)
PARENT Customers
PARTITION BY CONSISTENT HASH (CustId)
PARTITIONS AUTO
TABLESPACE SET ts1
;

CREATE SHARDED TABLE Products <=== Table Family #2
( ProdId NUMBER NOT NULL,
  CONSTRAINT pk_products PRIMARY KEY (ProdId)
)
PARTITION BY CONSISTENT HASH (ProdId)
PARTITIONS AUTO
TABLESPACE SET ts_2
;

ORA-3850 is thrown if a tablespace set has already been used by an existing table family and you try to use it for another table family.

When you create the first root table (that is, the first table family) all of the existing global services are automatically associated with it. You can use the GDSCTL command MODIFY SERVICE to change the table family service association after more table families are created. For example,

GDSCTL> MODIFY SERVICE –GDSPOOL shdpool –TABLE_FAMILY sales.customer -SERVICE sales

Creating a Duplicated Table Using CREATE TABLE

The duplicated Products table can be created using the following statement.

CREATE DUPLICATED TABLE Products
( StockNo     NUMBER PRIMARY KEY
, Description VARCHAR2(20)
, Price       NUMBER(6,2))
;

Updating Duplicated Table and Synchronizing Their Contents

Oracle Sharding synchronizes the contents of duplicated tables using Materialized View Replication. A duplicated table on each shard is represented by a materialized view. The master table for the materialized views is located in the shard catalog. The CREATE DUPLICATED TABLE statement automatically creates the master table, materialized views, and other objects required for materialized view replication.

In Oracle Database 12c Release 2, a client must connect to the shard catalog database to update a duplicated table. In Oracle Database 18c and later, you can update a duplicated table on a shard. The update is first propagated over a dblink from the shard to the master table on the shard catalog. Then the update is asynchronously propagated to all other shards as a result of a materialized view refresh.

The materialized views on all of the shards are automatically refreshed at a configurable frequency. The refresh frequency of all duplicated tables is controlled by the database initialization parameter SHRD_DUPL_TABLE_REFRESH_RATE. The default value for the parameter is 60 seconds.

Verifying DDL Propagation

You can check the status of the DDL propagation to the shards by using the GDSCTL show ddl and config shard commands. This check is mandatory when a DDL is executed using SQL*Plus on the shard catalog, because SQL*Plus does not return the execution status on all of the shards. When a DDL fails on a shard, all further DDLs on that shard are blocked until the failure is resolved and the GDSCTL recover shard command is executed. Note that the user must have GSM_ADMIN privileges to execute these GDSCTL commands.

Creating Objects Locally and Globally

When a DDL to create an object is issued using the GDSCTL sql command, the object is created on all of the shards. A master copy of the object is also created in the shard catalog database. An object that exists on all shards, and the catalog database, is called an SDB object.

When connecting to the shard catalog using SQL*Plus, two types of objects can be created: SDB objects and local objects. Local objects are traditional objects that exist only in the shard catalog. Local objects can be used for administrative purposes, or they can be used by multi-shard queries originated from the catalog database, to generate and store a report, for example.

The type of object (SDB or local) that is created in a SQL*Plus session depends on whether the SHARD DDL mode is enabled in the session. This mode is enabled by default on the shard catalog database for the SDB user – a user that exists on all of the shards and the shard catalog database. All of the objects created while SHARD DDL is enabled in a session are SDB objects. To create a local object, the SDB user must first run alter session disable shard ddl. All of the objects created while SHARD DDL is disabled are local objects. To enable SHARD DDL in the session, the SDB user must run alter session enable shard ddl.

See ALTER SESSION for more information about the SHARD DDL session parameter.

Creating the SDB User to Create Schema Objects

Local users that only exist in the shard catalog database do not have the privileges to create schema objects in the SDB. Therefore, the first step of creating the SDB schema is to create the SDB user, by connecting to the shard catalog database as SYSDBA, enabling SHARD DDL, and executing the CREATE USER command. When the SDB user connects to the catalog database, the SHARD DDL mode is enabled by default.

DDL Execution Examples

The following examples demonstrate the steps to issue a DDL, check its execution status, and what to do when errors are encountered. The examples are given for the case when a DDL is issued using SQL*Plus, but the same status checking and corrective actions apply when using the GDSCTL sql command.

NOSHARD is the default for a sequence. If the SHARD clause is specified, this property is registered in the sequence object’s dictionary table, and is shown using the DBA_SEQUENCES, USER_SEQUENCES, and ALL_SEQUENCES views.

When SHARD is specified, the EXTEND and NOEXTEND clauses define the behavior of a sharded sequence. When EXTEND is specified, the generated sequence values are all of length (x+y), where x is the length of a SHARD offset of size 4 (corresponding to the width of the maximum number of shards, that is, 1000) affixed at beginning of the sequence values, and y is the maximum number of digits in the sequence MAXVALUE/MINVALUE.

The default setting for the SHARD clause is NOEXTEND. With the NOEXTEND setting, the generated sequence values are at most as wide as the maximum number of digits in the sequence MAXVALUE/MINVALUE. This setting is useful for integration with existing applications where sequences are used to populate fixed width columns. On invocation of NEXTVAL on a sequence with SHARD NOEXTEND specified, a user error is thrown if the generated value requires more digits of representation than the sequence’s MAXVALUE/MINVALUE.

If the SCALE clause is also specified with the SHARD clause, the sequence generates scalable values within a shard for multiple instances and sessions, which are globally unique. When EXTEND is specified with both the SHARD and SCALE keywords, the generated sequence values are all of length (x+y+z), where x is the length of a prepended SHARD offset of size 4, y is the length of the scalable offset (default 6), and z is the maximum number of digits in the sequence MAXVALUE/MINVALUE.
