3.8 RESTORE
Purpose
Use the RESTORE command to restore, validate, or preview RMAN backups. Typically, you restore backups when a media failure has damaged a current data file, control file, or archived redo log or before performing a point-in-time recovery.
Prerequisites
To restore data files to their current location, the database must be started, mounted, or open with the tablespaces or data files to be restored offline.
If you use RMAN in a Data Guard environment, then connect RMAN to a recovery catalog.
If you are performing a trial restore of the production database, then perform either of the following actions before restoring the database in the test environment:
-
If the test database uses a fast recovery area that is physically different from the recovery area used by the production database, then set
DB_RECOVERY_FILE_DESTin the test database instance to the new location. -
If the test database uses a fast recovery area that is physically the same as the recovery area used by the production database, then set
DB_UNIQUE_NAMEin the test database instance to a different name from the production database.
If you do not perform either of the preceding actions, then RMAN assumes that you are restoring the production database and deletes flashback logs from the fast recovery area because they are considered unusable.
If you restore encrypted databases or tablespaces, then the Oracle keystore must be open before performing the restore operation.
To restore data files in a destination CDB using preplugin backups, the root must be open and you must connect to the root as a common user with the SYSDBA or SYSBACKUP privilege.
Usage Notes
The RESTORE command restores full backups, level 0 incremental backups, or image copies. You can restore files to their default location or a different location.
By default, RMAN examines read-only data files to make sure they exist, are readable, and have the correct checkpoint. If any of the conditions is not met, then RMAN restores the files. If all of the conditions are met, then RMAN does not restore the files.
You cannot use a single RESTORE command to restore data files belonging to more than one PDB backups.
Backup Selection
By default, RESTORE chooses the most recent backup set or file copy, that is, the file copy or backup set that needs the least media recovery. RMAN only restores backups created on the same type of channels allocated by the RESTORE command. For example, if you made backups of a data file with DISK and sbt channels, and if only a DISK channel is allocated for the RESTORE command, then RMAN does not restore the sbt backups. If you do not manually allocate channels, then RMAN allocates all automatic channels that it possibly needs, subject to any restrictions imposed by the DEVICE TYPE option.
In an Oracle RAC configuration, RMAN automatically restores backups, control file copies, and data file copies from channels that can read the files on tape or a local file system. For example, if channel ch1 connected to inst1 can read log 1000 from its tape drive, but channel ch2 connected to inst2 cannot read the same log from its tape drive, then ch2 cannot participate in restoring the log and so ch1 restores the log. Autolocation is automatically enabled when the channels have different PARMS or CONNECT settings.
If data file names are symbolic links, then the control file stores the file names of the link files but RMAN performs I/O on the data files pointed to by the link files. If a link file is lost and you restore a data file without re-creating the symbolic link, then RMAN restores the data file to the location of the link file rather than to the location pointed to by the link file.
See Also:
Oracle Database Backup and Recovery User's Guide for details on restore failover
Restore Operations for CDBs and PDBs
The RESTORE command can be used to restore a whole multitenant container database (CDB), the root, one or more pluggable databases (PDBs), and tablespaces in a PDB. The information in this section about restoring data is also applicable to restoring CDBs and PDBs.
The process of restoring CDBs and PDBs is similar to that of non-CDBs. The only differences are in connecting to the database and in the commands used. To restore a whole CDB, the root, or multiple PDBs, you connect to the root. To restore a particular PDB, you connect to that PDB. While restoring PDBs, use RESTORE PLUGGABLE DATABASE. To restore a CDB, use RESTORE DATABASE and to restore the root, use RESTORE DATABASE ROOT.
See Also:
-
Oracle Database Backup and Recovery User’s Guide for more information on how to restore CDBs and PDBs
Restore Operations for Sparse Databases
RMAN also enables you to perform restore for both multitenant and non-CDB sparse databases with the COMPATIBLE initialization parameter set to 12.2 or higher. RMAN lets you restore a data file, tablespace, PDB, or CDB by identifying the most relevant backup set or image copy of the selected sparse backup. To restore a sparse backup, run the RESTORE FROM SPARSE command.
For non-temp sparse files, if the sparse data file was originally on a sparse disk group but the alternate location specified by DB_CREATE_FILE_DEST is a non-sparse disk group, then RMAN creates the data file in its original disk group (instead of the diskgroup specified by DB_CREATE_FILE_DEST)
Restore Operations Using Encrypted Backup Sets
As explained in "Encryption of Backup Sets", how RMAN handles encrypted backup sets during restore operations depends on the encryption mode with which the backup was created. You can use CONFIGURE and SET to manage the RMAN backup encryption settings for your database. Note the following restore considerations:
-
For transparent-mode encrypted backups, the required passwords must be available in the Oracle software keystore. The same keystore used when creating the backup must be open and available when restoring it. If a password-based keystore was used while creating the backups, then you must use
SET DECRYPTION WALLET OPEN IDENTIFIED BYto provide the password used to open the keystore. -
For password-mode encrypted backups, the required passwords must be provided with
SET DECRYPTION. -
For dual-mode encrypted backups, the required passwords must be available in the Oracle software keystore or provided with
SET DECRYPTION.
Note:
Keystore-based encryption is more secure than password-based encryption because no passwords are involved. Use password-based encryption only when absolutely necessary because your backups must be transportable.
Restore Failover
If a backup piece, image copy or proxy copy is inaccessible or if a block is corrupted, then RMAN performs restore failover. The RESTORE command automatically looks for another usable copy of a backup or image copy on the same device and other devices. If no usable copies are available, then RMAN searches for previous backups. RMAN continuously searches for previous usable backups until it has exhausted all possibilities. RMAN automatically uses eligible backups from previous database incarnations if required.
If you are restoring a data file for which no backups are available, then RMAN creates an empty data file with the checkpoint change as creation SCN. During recovery, all archived redo log files back to the creation of the data file are restored, and all changes during the history of the data file are reapplied to re-create its contents.
See Also:
"Encryption of Backup Sets" and the extended discussion in Oracle Database Backup and Recovery User's Guide
Location of Restored Data Files
If you restore data files to the default location, then RMAN overwrites files with the same file names. By default, RMAN does not restore a data file if it is in the correct place and its header contains the expected data. RMAN does not scan the data file body for corrupt blocks.
If RMAN detects that the default file name cannot be used (for example, the file may be an Oracle-managed file or on an Automatic Storage Management disk group), then RMAN attempts to create a new file in the same location or disk group.
RMAN restores data files to the location currently stored in the recovery catalog. This default behavior eliminates problems with restoring data files to locations that may have become obsolete since the time of the original backup. It also means that if you have changed the location of the data files from their original backup location, that RMAN restores the files to the most current or changed location.
To restore files to a nondefault location, use SET NEWNAME commands to rename the restored files and then use a SWITCH command to make the restored files current (as illustrated in Example 3-25). If you do not issue SWITCH commands, then RMAN considers the restored files as valid copies for use in future restore operations. Table 3-8 describes the behavior of the RESTORE, SET NEWNAME, and SWITCH commands.
Table 3-8 SET NEWNAME, SWITCH, and RESTORE
| SET NEWNAME Run | SWITCH Run | RESTORE Behavior |
|---|---|---|
|
No |
N/A |
RMAN restores the files to the most recent location stored in the recovery catalog. |
|
Yes |
Yes |
RMAN restores the files to the path names specified by |
|
Yes |
No |
RMAN restores the files to the path names specified by |
Because temp files cannot be backed up and because no redo is ever generated for them, RMAN never restores or recovers temp files. RMAN does track the names of temp files, but only so that it can automatically re-create them when needed.
RMAN Behavior When Restoring Control Files
The behavior of RMAN when restoring control files depend on a variety of factors, which are summarized in Table 3-9. Required commands and options for restoring autobackups are summarized in Table 3-10.
Table 3-9 RESTORE CONTROLFILE Scenarios
| RMAN Connection | RESTORE CONTROLFILE; | RESTORE CONTROLFILE FROM AUTOBACKUP; | RESTORE CONTROLFILE ... TO 'filename'; | RESTORE CONTROLFILE ... FROM 'media_handle' or TAG 'user_tag'; |
|---|---|---|---|---|
|
No catalog, target database started in |
Error. Must specify |
Restores to |
Must specify |
First run |
|
No catalog, target database mounted or open |
Error. Must use |
Error. Must use |
Restores only to |
|
|
Catalog, target database started in |
Restores to |
Only use with recovery catalog for testing. |
Restores only to |
Restores from specified file. If |
|
Catalog, target database mounted or open |
Error. Must use |
Do not use with recovery catalog. |
Restores only to |
If you use RMAN in a Data Guard environment, then RMAN transparently converts primary control files to standby control files and vice versa. RMAN automatically updates file names for data files, online redo logs, standby redo logs, and temp files when you issue RESTORE and RECOVER. The recovery catalog always contains the correct information about the backup file names for each database, as explained in "RMAN Backups in a Data Guard Environment".
Control File and Server Parameter File Autobackup Options
When restoring an autobackup, the commands and options that you use depend on the autobackup type (control file or server parameter file) and location (inside or outside fast recovery area). The options are summarized in Table 3-10.
Table 3-10 RESTORE ... FROM AUTOBACKUP
| Restore Object | Autobackup Location | Run SET DBID? | Specify RECOVERY AREA on RESTORE? | Specify DB_NAME or DB_UNIQUE_NAME on RESTORE? | Run SET CONTROLFILE AUTOBACKUP FORMAT? |
|---|---|---|---|---|---|
|
SPFILE |
Recovery area |
No |
Yes |
Yes |
No |
|
SPFILE |
Outside recovery area |
Yes |
No |
No |
Only if autobackup is not in default location |
|
Control file |
Recovery area |
No |
Only if autobackup is in noncurrent recovery area |
Only if autobackup is in noncurrent recovery area and uses a noncurrent |
No |
|
Control file |
Outside recovery area |
Yes |
No |
No |
Only if autobackup is not in default location |
Restoring Control Files From Archived Backups in NOCATALOG Mode
You can offload backups stored on disk either to tape or Oracle Cloud. When control file autobackup is enabled, and you use one of the following commands to archive disk backups to tape or Oracle Cloud, RMAN includes a backup of the latest control file to tape or Oracle Cloud:
-
BACKUP BACKUPSET ALL -
BACKUP RECOVERY AREA -
BACKUP DATAFILE COPY ALL
To restore these backups, when a recovery catalog is not used, you must configure one or more disk and SBT channels (for tape or Oracle Cloud).
See Example 3-29.
Restoring Data Files and Control Files Using Files from a Remote Host
Starting with Oracle Database 12c, you can restore a database, data files, control files, tablespaces, or an spfile using files from a remote database. RMAN connects to the remote database and transfers the required files, over the network, to the target database using backup sets. This is very useful in a Data Guard environment. You can restore data files on a primary database by connecting to a standby database over the network. You can also restore data files on a standby database by connecting to the primary database.
While restoring files from a remote host over the network, you must use FROM SERVICE to specify the service name of the remote host from which the files are obtained. Optionally, use SECTION SIZE to restore files from the source database as multisection backup sets. You can compress the transferred files by specifying the USING COMPRESSED BACKUPSET.
To encrypt the files being transferred from the source database, use the SET ENCRYPTION command before the RESTORE command. You can also use SET COMPRESSION ALGORITHM to specify the algorithm used to compress the backup sets before transferring them over the network.
Prerequisites for Restoring Files Using a Remote Host
-
The password file on the source database and the target database must be the same.
-
The
tnsnames.orafile in the target database must contain an entry that corresponds to the remote database.
Syntax
(restoreObject::=, restoreSpecOperand::=, deviceSpecifier::=, untilClause::=)
(archivelogRecordSpecifier::=, datafileSpec::=, foreignFileSpec::=)
Semantics

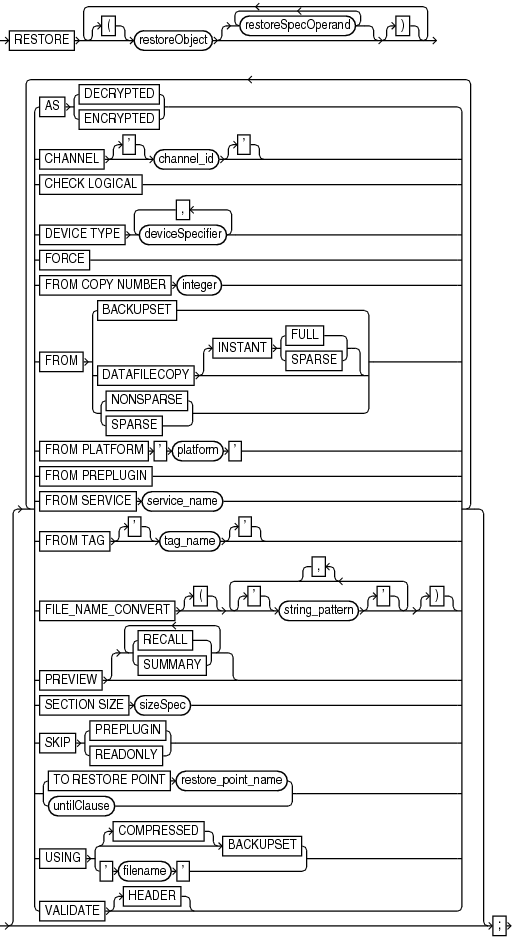

restore
This clause enables you to select which files you want to restore and specify parameters that control the behavior of the restore operation.
| Syntax Element | Description |
|---|---|
|
Specifies the files to be restored. |
|
|
Specifies options for the |
|
|
|
Restores backups of a database or specified tablespaces by encrypting the restored data file blocks. This is useful when you want use existing RMAN backups to move an on-premise database to Oracle Cloud. The on-premise database and its backups are unencrypted. Restoring these backups using The target database must be mounted. The wallet must be created and open before you run the To use this clause, the Note: This clause is supported only when restoring whole databases or tablespaces. Note: You cannot use the |
|
|
Restores backups of an encrypted database or tablespace such that the restored data blocks are not encrypted. This is useful when moving a database on Oracle Cloud to an on-premise installation by using existing RMAN backups. Encryption is used for data files and backups fon Oracle Cloud. You can choose to restore the backups of the encrypted database or tablespace that were created on Oracle Cloud and create an on-premise database that does not use encryption. The target database must be mounted. You can only restore tablespaces encrypted with the database key as unencrypted backups. This includes tablespaces that were previously restored with encryption or tablespaces created on Oracle Cloud without an explicit encryption clause. Tablespaces that are created as encrypted or that are explicitly rekeyed after a restore operation with encryption will not be decrypted. To use this clause, the Note: It is recommended that you do not decrypt the Note: This clause is supported only when restoring whole databases or tablespaces. Note: You cannot use the |
|
|
Refer to the |
|
|
Tests data and index blocks that pass physical corruption checks for logical corruption, for example, corruption of a row piece or index entry. If RMAN finds logical corruption, then it logs the block in the alert log and server session trace file. If the total number of physical and logical corruptions detected in a file is less than its When restoring a backup data file, RMAN honors the Note: The |
|
|
Allocates automatic channels for the specified device type only. For example, if you configure automatic disk and tape channels, and issue Note: You cannot manually allocate channels within a See Also: |
|
|
Overrides the restartable restore feature and restores all files regardless of whether they must be restored. If you do not specify |
FROM COPY NUMBER integer |
Specifies the copy number of the backup piece within a set of duplexed backup pieces. If no duplexing was performed, the copy number is 1. Otherwise, the copy number value ranges from 2 to 4.
|
|
|
Restores from backup sets only. By default If you use the |
|
|
Restores data file copies only. By default |
FROM SPARSE |
Restores data files from the appropriate sparse backup set or image copy of the selected backup. The restored data files are sparse. If no sparse backup is available for this operation, the restore will fail.
The database compatibility parameter must be set to 12.2 or higher to perform |
FROM NONSPARSE |
Restores data files from the appropriate non-sparse backup. This selected backup can be in either the backup set format or image copy format. The restored data files are non-sparse. If no non-sparse backup is available for this operation, the restore will fail. |
|
|
This clause is reserved for a future release. |
|
|
This clause is reserved for a future release. |
|
|
Specifies the name of the platform on which the cross platform backup was created. Cross-platform data transportation is supported starting with Oracle Database 12c Release 1 (12.1). This clause must be accompanied by a To perform cross-platform tablespace transport by connecting over the network to a remote database, use the |
|
|
Restores data files and archived redo log files in the target CDB by using preplugin backups that were created before a source non-CDB or PDB was plugged in to the target CDB as a PDB. |
|
|
Restores data files, control files, or the spfile on the target database using files transferred over the network from a remote database. To perform cross-platform tablespace transport by connecting over the network to a remote database, use the |
|
|
Refer to the |
|
|
Specifies how Oracle Database file names on the source CDB map to the corresponding files on the destination CDB during cross-platform transport of a PDB to a destination CDB. Specifies pairs of strings used to convert the file names. You can use as many pairs of source and destination replacement strings as required. For example, you can set the string pattern to a value such as:
|
|
|
Reports—but does not restore—the backups and archived redo log files that RMAN could use to restore and recover the database to the specified time. RMAN queries the metadata and does not actually read the backup files. The Some media managers provide status information to RMAN about which backups are offsite. Offsite backups are stored in a remote location, such as a secure storage facility, and cannot be used without retrieving media. Offsite backups are marked as If a needed backup is stored offsite, but the media manager does not support offsite backups, then your options are:
See Also: |
|
|
Instructs the media manager to retrieve the backup media needed for the specified restore operation from offsite storage (see Example 3-32). When restoring backups that are stored in archive storage in Oracle Cloud Infrastructure Classic, use this option to first recall backups before you restore them. Note: This option only works if your media manager supports this functionality. You can use |
|
|
Summarizes the backups that RMAN would restore. The output is in the same format as the output of the |
|
|
Restores a multi-section backup. |
|
|
Excludes preplugin data files. |
|
|
Does not restore read-only files. |
TO RESTORE POINT restore_point_name |
Specifies a restore point, with the SCN at which the restore point was created as the upper, inclusive limit. Because the limit is inclusive, RMAN selects only files that it can use to restore files up to and including the SCN corresponding to the restore point. |
|
Limits the selection to backup sets or file copies that are suitable for a point-in-time recovery to the specified time, SCN, or log sequence number. In the absence of any other criteria, RMAN selects the most current file copy or backup set to restore. The time specified in the See Also: |
|
|
|
Specifies that the files being restored, over the network, must be transferred from the remote database as compressed backup sets. By default, RMAN transfers files as backup sets. Therefore, even when you omit the |
|
|
RMAN identifies which backup sets, data file copies, and archived redo log files must be restored, and then validates them (see Example 3-33). No files are restored. For files on both disk and tape, RMAN reads all blocks in the backup piece or image copy. RMAN also validates offsite backups. The validation is identical to a real restore operation except that RMAN does not write output files. Note: If you use See Also: |
|
|
Reports and validates—but does not restore—the backups that RMAN could use to restore to the specified time. When you specify this option, RMAN performs the same functions as when you run See Also: The descriptions of the |

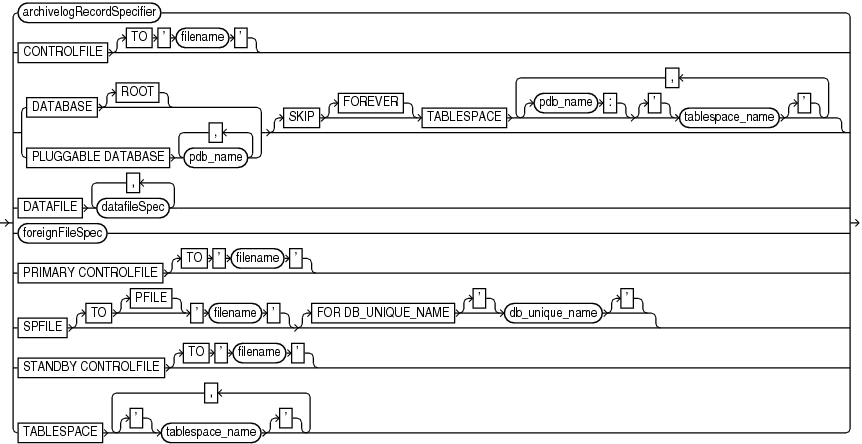

restoreObject
This subclause specifies the objects to be restored: control files, data files, archived redo log files, or the server parameter file. RMAN does not support backup and recovery of the change tracking file. RMAN re-creates the change tracking file after database restore and recovery; the next incremental backup after any recovery can use the file. Thus, restore and recovery has no user-visible effect on change tracking.
| Syntax Element | Description |
|---|---|
|
Restores the specified range of archived redo log files. The default restore location is Because the
Note: The database can be started, mounted, or open for this operation. See Also: |
|
|
|
Restores either a standby or backup control file depending on the target database role. If the control file is lost, then restore the control file (see Table 3-9) and restore the database after mounting the restored control file. You must always run the Note: If the target database is not mounted, and if RMAN is not connected to a recovery catalog, then you must specify the When you run |
|
|
Restores the control file to the specified file name. Table 3-9 explains RMAN behavior when restoring the control file with the |
APPLICATION ROOT DATABASE |
Specifies all data files in the application root. Connect to the CDB root as a common user with the |
|
|
Restores all data files in the database except those that are offline. By default, RMAN restores data files in read-only tablespaces. In a CDB, restores the whole CDB. You connect to the root to restore the CDB. In a PDB, restores the data files in the specified PDB. To backup a PDB, connect to that PDB. See "Connecting to CDBs and PDBs". In an application container, restores the entire application container. This includes the application root and all application PDBs that belong to this application root. You connect to the application root as an application common user with the Unlike Note: To restore offline data files you must use |
|
|
In a CDB, restores all online data files belonging to the root. Connect to the root as described in "Connecting to CDBs and PDBs". In an application container, restores online data files belonging to the application root and all application PDBs. Connect to the application root as an application common user with the |
|
|
In a CDB, restores all data files belonging to the specified PDB. No other PDBs are affected; they can remain open and operational. Use a comma-separated list to restore multiple PDBs. Connect to the root as described in "Connecting to CDBs and PDBs". In an application container, connect to the CDB root as a common user with the To restore all data files belonging to a specified application PDB, connect to the application root as an application common user with the |
SKIP [FOREVER] TABLESPACE tablespace_name |
Excludes the specified tablespaces from the restore operation. This option is useful to avoid restoring tablespaces containing temporary data. In a CDB, refers to a tablespace in the root when connected to the root, and refers to a tablespace in a PDB when connected directly to the PDB. Specifying the |
|
|
In a CDB, excludes the specified tablespaces from the restore operation. This syntax is required only when connected to the root. When connected directly to a PDB, use |
|
|
Restores the data files specified by file name or absolute data file number (see Example 3-25). Note: Do not specify a data file more than once in a restore job. For example, the following command is invalid because data file 1 is both specified explicitly and implied by the RESTORE TABLESPACE SYSTEM DATAFILE 1; See Also: |
|
Restores a cross-platform backup that uses backup sets. Specifying Use the To plug the restored tablespaces in to the destination database, you use the export dump file containing the tablespace metadata that was created along with the backup. Use Note: This clause can be used only to restore data that was backed up using backup sets. It cannot be used for backups created as image copies. See Also: |
|
|
|
|
|
|
Restores a control file for a primary database in a Data Guard environment. RMAN restores either a normal or standby control file as appropriate, depending on the most recent database role known to the recovery catalog ( Assume that you perform a switchover from primary database |
|
|
Restores a primary or standby server parameter file to the location from which it was backed up. RMAN cannot overwrite a server parameter file currently in use by the target database. By default RMAN restores the most current server parameter file. Specify the If the server parameter file is lost, then connect RMAN to the target database (and recovery catalog if used) and run Note: If the target database is not mounted, and if RMAN is not connected to a recovery catalog, then you must specify the |
|
|
Restores a primary or standby server parameter file to the location specified by the |
FOR DB_UNIQUE_NAME db_unique_name |
Specifies the When In a Data Guard environment, the primary and standby hosts may have different channel configurations for communicating with their associated SBT backup and disk devices. If both the primary and standby databases are known to the recovery catalog, then the configuration settings for both databases are recorded in the recovery catalog. Because the two databases have the same Note: Using See Also: Oracle Data Guard Concepts and Administration for a detailed procedure for restoring the server parameter file in a Data Guard environment |
|
|
Restores the standby control file to the specified file name. Table 3-9 explains the RMAN behavior when restoring the control file with the |
|
|
Restores a control file for a standby database. RMAN can transparently restore a normal control file backup and make it usable for a standby database. RMAN restores either a normal or standby control file as appropriate, depending on the most recent database role known to the recovery catalog ( If you restore the control file of a database whose See Also: Table 3-9 for restrictions and usage notes Note: You must always run the |
|
|
Restores all data files in the specified tablespaces (see Example 3-24). RMAN translates the tablespace name internally into a list of data files. If you rename a tablespace (for example, from Note: RMAN can back up and restore dictionary-managed temporary tablespaces, but it cannot back up locally managed temporary tablespaces. However, RMAN automatically re-creates locally managed temporary tablespaces after restoring the database. |

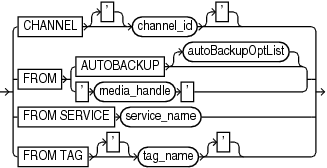

restoreSpecOperand
This subclause specifies options for the restoreObject clause. These parameters override the parameters with the same name at the RESTORE command level.
| Syntax Element | Description |
|---|---|
|
|
Specifies the case-sensitive name of a channel to use for this restore operation. If you do not specify a channel, then |
|
Restores a control file autobackup (see Example 3-27). This option is only valid on the RMAN begins the search on the current day or on the day specified with the See Also: Table 3-9 for restrictions and usage notes. |
|
|
Specifies parameters that control the search for a control file autobackup. |
|
|
|
Specifies the name of the control file copy or backup piece containing a control file. The See Also: Table 3-9 for restrictions and usage notes. |
|
|
Restores data files or control files using backups transferred, over the network, from the remote database. |
|
|
Overrides the default selection of the most recent backups or file copy available. The tag restricts the automatic selection to backup sets or file copies created with the specified tag. If multiple backup sets or copies have a matching tag, then RMAN selects the most recent one. Tag names are not case sensitive. See Also: |

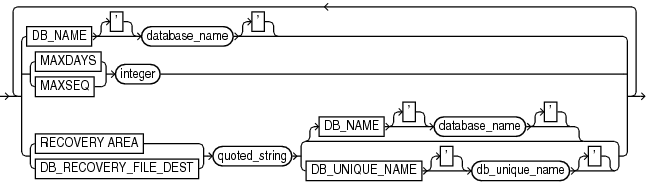

autoBackupOptList
This subclause specifies parameters that control the search for a control file autobackup.
| Syntax Element | Description |
|---|---|
|
|
Provides a The default value of the |
|
|
Limits the search for a control file autobackup to within the specified number of days earlier. |
|
|
Specifies the highest sequence number for the control file autobackup search. |
|
|
Specifies a path to the fast recovery area to search for autobackups. |
DB_RECOVERY_FILE_DEST 'pathname' |
|
DB_NAME database_name |
Provides a The default value of the |
DB_UNIQUE_NAME db_unique_name |
Specifies the The default value of the |
Examples
Example 3-24 Restoring a Tablespace
This example takes a tablespace offline, restores it, then performs media recovery.
ALTER TABLESPACE users OFFLINE IMMEDIATE; RESTORE TABLESPACE users; RECOVER TABLESPACE users; ALTER TABLESPACE users ONLINE;
Example 3-25 Setting a New Name for a Restored Data File
Assume that /disk1, which contains data file 9, suffers a media failure. This example specifies a new name for the data file, restores it, updates the control file to use the new name, recovers it, and then brings it online:
RUN
{
ALTER DATABASE DATAFILE 9 OFFLINE;
SET NEWNAME FOR DATAFILE 9 TO '/disk2/users01.dbf';
RESTORE DATAFILE 9;
SWITCH DATAFILE ALL;
RECOVER DATAFILE 9;
ALTER DATABASE DATAFILE 9 ONLINE;
}Example 3-26 Restoring the Control File When Using a Recovery Catalog
Assume that you want to restore the control file backup with the tag monday_cf_backup. You start the RMAN client, connect to the target and recovery catalog databases, and run the following commands:
RUN
{ # SET DBID is not necessary when RMAN is connected to a recovery catalog
STARTUP FORCE NOMOUNT;
RESTORE CONTROLFILE FROM TAG 'monday_cf_backup';
ALTER DATABASE MOUNT;
RESTORE DATABASE;
RECOVER DATABASE;
}
ALTER DATABASE OPEN RESETLOGS; # required after recovery with backup control file
RMAN restores the control file to its default location and replicates it automatically to all CONTROL_FILES locations. RMAN mounts the control file and restores and recovers the database. RMAN automatically updates the control file to reflect the structure of the restored database based on the metadata in the recovery catalog.
Example 3-27 Recovering the Database with a Control File Autobackup
Assume that the control file and some data files are lost and must be restored from tape. Because RMAN does not use a recovery catalog in this scenario, the SET DBID command is necessary to identify the control file to be restored. The example restores the control file from tape, mounts the database, and then restores and recovers the database.
CONNECT TARGET /
STARTUP FORCE NOMOUNT;
SET DBID 36508508; # required when restoring control file in NOCATALOG mode
RUN
{
ALLOCATE CHANNEL c1 DEVICE TYPE sbt;
RESTORE CONTROLFILE FROM AUTOBACKUP;
ALTER DATABASE MOUNT;
RESTORE DATABASE;
RECOVER DATABASE;
}
ALTER DATABASE OPEN RESETLOGS;Example 3-28 Restoring a Control File Autobackup to a Nondefault Location
This example is a variation on Example 3-27. In this scenario, the control file autobackup is located on disk in a nondefault location. RMAN starts searching for backups with a sequence number of 20, and searches backward for 5 months:
CONNECT TARGET /
STARTUP FORCE NOMOUNT
SET DBID 36508508; # required when restoring control file in NOCATALOG mode
RUN
{
SET CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE DISK
TO '/disk1/prod_cf_auto_%F';
RESTORE CONTROLFILE TO '/tmp/cf_auto.dbf' FROM AUTOBACKUP
MAXSEQ 20 MAXDAYS 150;
ALTER DATABASE MOUNT;
RESTORE DATABASE;
RECOVER DATABASE;
}
ALTER DATABASE OPEN RESETLOGS;Example 3-29 Restoring Control File Autobackups Stored on Tape or Oracle Cloud
Database backups are created on disk according to a backup schedule. Control file autobackups are enabled, but a recovery catalog is not used. Subsequently, these backup sets are backed up to Oracle Cloud using the BACKUP BACKUPSET ALL command. This example restores a control file using the autobackup that was created on Oracle Cloud. RMAN scans both disk and Oracle Cloud backups and then retrieves the latest control file autobackup. You must configure one disk channel and one SBT channel, for Oracle Cloud.
RUN
{
SET DBID 1928835918;
ALLOCATE CHANNEL disk1 DEVICE TYPE DISK;
ALLOCATE CHANNEL sbt1 DEVICE TYPE 'SBT_TAPE' PARMS 'SBT_LIBRARY=/disk1/oss/libopc.so ENV=(OPC_PFILE=/disk1/oss/opc_sbt.ora)';
RESTORE CONTROLFILE FROM AUTOBACKUP;
}Example 3-30 Restoring a Server Parameter File Autobackup to the Current Location
The following series of commands restores the current server parameter file in NOCATALOG mode and then starts the instance with the restored server parameter file.
CONNECT TARGET /
SET DBID 1620189241; # set dbid to dbid of target database
STARTUP FORCE NOMOUNT; # start instance with dummy SPFILE
RUN
{
ALLOCATE CHANNEL c1 DEVICE TYPE sbt;
RESTORE SPFILE FROM AUTOBACKUP; # FROM AUTOBACKUP needed in NOCATALOG mode
STARTUP FORCE; # startup with restored SPFILE
}Example 3-31 Previewing Backups
This example shows the results of a RESTORE ... PREVIEW command, which identifies the backup sets RMAN selects for use in restoring archived redo log files.
RMAN> RESTORE ARCHIVELOG ALL DEVICE TYPE sbt PREVIEW;
Starting restore at 01-MAR-13
released channel: ORA_SBT_TAPE_1
allocated channel: ORA_SBT_TAPE_1
channel ORA_SBT_TAPE_1: SID=85 device type=SBT_TAPE
channel ORA_SBT_TAPE_1: Oracle Secure Backup
List of Backup Sets
===================
BS Key Size Device Type Elapsed Time Completion Time
------- ---------- ----------- ------------ ---------------
53 1.25M SBT_TAPE 00:00:18 01-MAR-13
BP Key: 53 Status: AVAILABLE Compressed: NO Tag: TAG20130301T150155
Handle: 2aibhej3_1_1 Media: RMAN-DEFAULT-000001
List of Archived Logs in backup set 53
Thrd Seq Low SCN Low Time Next SCN Next Time
---- ------- ---------- --------- ---------- ---------
1 8 526376 01-MAR-13 527059 01-MAR-13
1 9 527059 01-MAR-13 527074 01-MAR-13
1 10 527074 01-MAR-13 527091 01-MAR-13
1 11 527091 01-MAR-13 527568 01-MAR-13
1 12 527568 01-MAR-13 527598 01-MAR-13
validation succeeded for backup piece
Finished restore at 01-MAR-13Example 3-32 Recalling Offsite Backups from Offsite Storage
When used with a media manager that reports information about offsite storage of backups and supports recalling offsite backups, RESTORE ... PREVIEW RECALL requests that any media needed to restore archived redo log files from backup be recalled from offsite storage.
RMAN> RESTORE ARCHIVELOG ALL PREVIEW RECALL;
Starting restore at 10-JUN-13
using channel ORA_DISK_1
using channel ORA_SBT_TAPE_1
List of Backup Sets
===================
BS Key Size Device Type Elapsed Time Completion Time
------- ---------- ----------- ------------ ---------------
31 12.75M SBT_TAPE 00:00:02 10-JUN-13
BP Key: 33 Status: AVAILABLE Compressed: NO Tag: TAG20130610T152755
Handle: 15gmknbs Media: /v1,15gmknbs
List of Archived Logs in backup set 31
Thrd Seq Low SCN Low Time Next SCN Next Time
---- ------- ---------- --------- ---------- ---------
1 1 221154 06-JUN-13 222548 06-JUN-13
1 2 222548 06-JUN-13 222554 06-JUN-13
1 3 222554 06-JUN-13 222591 06-JUN-13
1 4 222591 06-JUN-13 246629 07-JUN-13
1 5 246629 07-JUN-13 262451 10-JUN-13
BS Key Size Device Type Elapsed Time Completion Time
------- ---------- ----------- ------------ ---------------
32 256.00K SBT_TAPE 00:00:01 10-JUN-13
BP Key: 34 Status: AVAILABLE Compressed: NO Tag: TAG20130610T153105
Handle: 17gmknhp_1_1 Media: /v1,17gmknhp_1_1
List of Archived Logs in backup set 32
Thrd Seq Low SCN Low Time Next SCN Next Time
---- ------- ---------- --------- ---------- ---------
1 6 262451 10-JUN-13 262547 10-JUN-13
1 7 262547 10-JUN-13 262565 10-JUN-13
Initiated recall for the following list of offsite backup files
==========================================================
Handle: 15gmknbs Media: /v1,15gmknbs
Finished restore at 10-JUN-13Example 3-33 Validating the Restore of a Backup
The following example illustrates using RESTORE... VALIDATE to confirm that backups required to restore the database are present on disk or tape, readable, and not corrupted:
RMAN> RESTORE DATABASE VALIDATE; Starting restore at 01-MAR-13 using channel ORA_DISK_1 allocated channel: ORA_SBT_TAPE_1 channel ORA_SBT_TAPE_1: SID=85 device type=SBT_TAPE channel ORA_SBT_TAPE_1: Oracle Secure Backup channel ORA_DISK_1: starting validation of datafile backup set channel ORA_DISK_1: reading from backup piece /disk2/PROD/backupset/2013_03_01/o1_mf_nnndf_TAG20130301T161038_2ygtvzg0_.bkp channel ORA_DISK_1: piece handle=/disk2/PROD/backupset/2013_03_01/o1_mf_nnndf_TAG20130301T161038_2ygtvzg0_.bkp tag=TAG20130301T161038 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: validation complete, elapsed time: 00:00:16 Finished restore at 01-MAR-13
Example 3-34 Restoring Data Files on the Primary Database Using the Standby
This example restores the data file users.dbf that was lost on the primary database by restoring it, over the network, from the standby database:
RESTORE DATAFILE '/oradata/files/users.dbf'
FROM SERVICE standby_tns
SECTION SIZE 200M
USING COMPRESSED BACKUPSET;
The service name of the remote database that contains the data file to be restored is standby_tns. The SECTION SIZE clause indicates that the data file is restored using multisection backup sets. The USING COMPRESSED BACKUPSET clause specifies that the backup sets are compressed using the default compression algorithm that is configured for RMAN.
Example 3-35 Restoring a Database from a Cross-Platform Database Backup
This example restores the database using a cross-platform backup that was created in Example 2-34. This backup was created on a Microsoft Windows IA (32-bit) platform and is being restored on Linux x86 64-bit. The backup set containing the database is stored in /tmp/xplat_restores/full_db.bck. The restored data files are stored in /oradata/datafiles using unique file names that begin with df_
RESTORE FROM PLATFORM 'Microsoft Windows IA (32-bit)' ALL FOREIGN DATAFILES FORMAT '/oradata/datafiles/df_%U' FROM BACKUPSET '/tmp/xplat_restores/full_db.bck';
Example 3-36 Restoring a Tablespace from a Cross-Platform Tablespace Backup
This example restores the tablespace example from the cross-platform backup created in Example 2-35. The backup set containing the tablespace to be restored is stored in /tmp/xplat_restores/example_readonly.bck. The restored data files use unique names that being with example_readonly_. The metadata required to plug this tablespace into the target database is stored in the backup set /tmp/xplat_restores/example_dmp.bck.
RESTORE FOREIGN TABLESPACE example FORMAT '/tmp/xplat_restores/example_readonly_%U_%n' FROM BACKUPSET '/tmp/xplat_restores/example_readonly.bck' DUMP FILE DATAPUMP DESTINATION '/tmp/datapump' FROM BACKUPSET '/tmp/xplat_restores/example_dmp.bck';
See Also:
Oracle Database Backup and Recovery User's Guide for an example of backing up and restoring multiple tablespaces
Example 3-37 Restoring a Tablespace Using a Cross-Platform Backup Consisting of Multiple Backup Sets
This example restores the tablespace example from a cross-platform backup consisting of multiple backup sets that was created in Example 2-36. You must use a separate BACKUPSET clause for each backup set. The backup sets must be listed in the order in which they were created, starting with the first backup set.
RESTORE
BACKUPSET '/tmp/xplat_restores/db_multiple_59nkcln6_1_1'
BACKUPSET '/tmp/xplat_restores/db_multiple_5ankcln7_1_1'
BACKUPSET '/tmp/xplat_restores/db_multiple_5bnkcln8_1_1'
BACKUPSET '/tmp/xplat_restores/db_multiple_5cnkcln9_1_1'
DUMP FILE
FROM BACKUPSET '/tmp/xplat_restores/db_multiple.dmp';
Example 3-38 Restoring a Tablespace Using a Cross-Platform Consistent Backup that Contains Multiple Backup Pieces
This example restores the tablespace example from a cross-platform backup consisting of multiple backup pieces that was created in Example 2-37. The export dump file containing the metadata of the tablespace is stored in /tmp/xplat_restores/example_mutli-piece_dmp.bck. The FROM BACKUPSET clause contains a comma-separated list of all the backup pieces. List the backup pieces in the same order in which they were created.
RESTORE
FOREIGN TABLESPACE sales
FORMAT '/tmp/xplat_restores/datafiles/example_mult_%u'
FROM BACKUPSET
'/tmp/xplat_restores/example_multi-piece_0lnjnujs_1_1',
'/tmp/xplat_restores/example_multi-piece_0lnjnujs_2_1',
'/tmp/xplat_restores/example_multi-piece_0lnjnujs_3_1'
DUMP FILE
FROM BACKUPSET '/tmp/xplat_restores/example_multi-piece_dmp.bck';
Example 3-39 Restoring a Cross-Platform Inconsistent Tablespace Backup
This example restores the tablespace example from the cross-platform inconsistent backup created in Example 2-38. The restored data files are stored using unique names that begin with inconsist_. Because the tablespace was not read-only when the backup was created, you cannot directly plug it into the target database. You must apply an incremental backup of the tablespace taken when the tablespace is read-only to the recovered foreign data files.
RESTORE
FOREIGN TABLESPACE example
FORMAT '/tmp/xplat_restores/datafiles/inconsist_%u'
FROM BACKUPSET '/tmp/xplat_backups/example_inconsist.bck';
Example 3-40 Restoring a PDB into a New CDB Using Cross-platform Backups of the PDB
This example restores a cross-platform backup of the pluggable database (PDB) pdb3 on the destination CDB. The destination CDB and the source CDB are on different platforms, but use the same endian format.
The destination CDB is open in read-write mode. The backup set contained the cross-platform backup of the source PDB is stored in /u02/backups/backup_full_pdb3.bck. The metadata required to plug the source PDB into the destination CDB is stored in /u02/backups/metadata_pdb3.xml. The FILE_NAME_CONVERT clause specifies how file names on the source CDB must be renamed in the destination CDB.
RESTORE FROM PLATFORM 'Linux x86 64-bit’
USING '/u02/backups/metadata_pdb3.xml’
FILE_NAME_CONVERT = ('/u01/oradata’,’/u02/oradata/cdb’)
FOREIGN PLUGGABLE DATABASE pdb3 FORMAT '/u02/oradata/cdb/pdb3_%U’
FROM BACKUPSET '/u02/backups/backup_full_pdb3.bck’;
Example 3-41 Moving an On-premise Database to Oracle Cloud with Encryption
This example moves an on-premise database to Oracle Cloud by restoring database backups. The on-premise database does not use encryption and the database backups are also not encrypted. However, the database on Oracle Cloud must use encryption. Therefore, to maintain consistency and security, the backups of the unencrypted database must be restored on Oracle Cloud using encryption. You can achieve this by using the AS ENCRYPTED clause with the RESTORE command. The Oracle keystore must be open before the RESTORE...AS ENCRYPTED command is run.
The COMPATIBLE parameter for the on-premise database is set to 12.2 and the backups are created with COMPATIBLE set to 12.2. The following commands restore the unencrypted backups to create a database on Oracle Cloud with encryption:
SELECT ts#, encryptionalg, encryptedts, key_version, status FROM v$encrypted_tablespaces;
STARTUP FORCE MOUNT;
RESTORE DATABASE AS ENCRYPTED;
RECOVER DATABASE;
ALTER DATABASE OPEN;Example 3-42 Moving a Database from Oracle Cloud to an On-premise Model
This example moves a database from Oracle Cloud, which uses encryption, to an on-premise model. Because encryption is not mandatory for on-premise databases, you decide to restore the encrypted backups from Oracle Cloud without using encryption. Use the AS DECRYPTED clause of the RESTORE command to perform this restore operation.
The COMPATIBLE parameter for the on-premise database is set to 12.2. Backups were created with COMPATIBLE set to 12.2. The following commands restore the encrypted backups from Oracle Cloud to an on-premise database and without using encryption:
SELECT ts#, encryptionalg, encryptedts, key_version, status FROM v$encrypted_tablespaces;
STARTUP FORCE MOUNT;
RESTORE DATABASE AS DECRYPTED
RECOVER DATABASE;
ALTER DATABASE OPEN;
