13.49 PIPELINED Clause

Instructs the database to iteratively return the results of a table function or polymorphic table function .

Use only with a table function, to specify that it is pipelined. A pipelined table function returns a row to its invoker immediately after processing that row and continues to process rows. To return a row (but not control) to the invoker, the function uses the "PIPE ROW Statement".

A table function returns a collection type.

A polymorphic table function is a table function whose return type is determined by the arguments.

You query both kinds of table functions by using the TABLE keyword before the function name in the FROM clause of the query. For example:

SELECT * FROM TABLE(function_name(...))

The TABLE operator is optional when the table function arguments list or empty list () appears. For example:

SELECT * FROM function_name()

the database then returns rows as they are produced by the function.

The PIPELINED option can appear in the following SQL statements:

Topics

Syntax

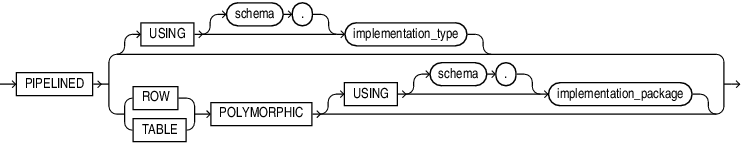

pipelined_clause ::=

Description of pipelined_clause.eps follows
Description of the illustration pipelined_clause.eps

Semantics

pipelined_clause

The pipelined_clause can appear only once in the function.

PIPELINED

To make a pipelined function, include the pipelined_clause in the function definition. If you declare the pipelined function before defining it, you must specify the PIPELINED option in the function declaration.

{ IS | USING }

  • If you specify the keyword PIPELINED alone (PIPELINED IS ...), then the PL/SQL function body must use the PIPE keyword. This keyword instructs the database to return single elements of the collection out of the function, instead of returning the whole collection as a single value.

  • You can specify the PIPELINED USING implementation_type clause to predefine an interface containing the start, fetch, and close operations. The implementation type must implement the ODCITable interface and must exist at the time the table function is created. This clause is useful for table functions implemented in external languages such as C++ and Java.

    If the return type of the function is ANYDATASET, then you must also define a describe method (ODCITableDescribe) as part of the implementation type of the function.

[schema.] implementation_type

The implementation type must be an ADT containing the implementation of the ODCIAggregate subprograms. If you do not specify schema, then the database assumes that the implementation type is in your schema.

Restriction on PIPELINED

You cannot specify PIPELINED for a nested function.

Note:

You cannot run a pipelined table function over a database link. The reason is that the return type of a pipelined table function is a SQL user-defined type, which can be used only in a single database (as explained in Oracle Database Object-Relational Developer's Guide). Although the return type of a pipelined table function might appear to be a PL/SQL type, the database actually converts that PL/SQL type to a corresponding SQL user-defined type.

PIPELINED [ ROW | TABLE ] POLYMORPHIC [ USING [schema.] implementation_package ]

The polymorphic table function elaborator can appear in standalone function declaration or package function declaration.

PIPELINED

Required when defining a polymorphic table function.

ROW

Specify ROW when a single input argument of type TABLE determines new columns using any single row.

TABLE

Specify TABLE when a single input argument of type TABLE determines the new columns using the current row and operates on an entire table or a logical partition of a table.

POLYMORPHIC

Restrictions on POLYMORPHIC

The following are not allowed for POLYMORPHIC table functions:

  • PARALLEL_ENABLE clause

  • RESULT_CACHE clause

  • DETERMINISTIC option

  • AUTHID property (Invoker’s Rights and Definer’s Rights Clause)

[USING [schema.] implementation_package]

References the polymorphic table function (PTF) implementation package. The specification must include DESCRIBE method. The specification of OPEN, FETCH_ROWS and CLOSE methods is optional. The specification for the implementation package must already exist (unless the PTF and its implementation reside in the same package).

If a polymorphic table function and its implementation methods are defined in the same package, then the USING clause is optional.
