35.3 OCI XStream Functions

Lists and describes OCI XStream Functions.

This section and Table 35-2 describe the OCI XStream functions.

Table 35-2 OCI XStream Functions

Function Purpose

LCR Functions

To get and set one or more values of an LCR. Note: These calls do not require a server round-trip.

OCILCRAttributesGet()

Gets extra attribute information in (ROW or DDL) LCR.

OCILCRAttributesSet()

Populates extra attribute information in ROW or DDL LCR.

OCILCRComparePosition()

Compares two position LCRID values.

OCILCRConvertPosition()

Converts an LCRID value to the specified version (1 or 2).

OCILCRFree()

Frees the LCR

OCILCRHeaderGet()

Returns the common header fields for a ROW or DDL LCR

OCILCRHeaderSet()

Initializes the common header fields for a ROW or DDL LCR

OCILCRDDLInfoGet()

Retrieves specific fields in a DDL LCR

OCILCRDDLInfoSet()

Populates DDL-specific fields in a DDL LCR

OCILCRLobInfoGet()

Returns the LOB information for a piece-wise LOB LCR

OCILCRLobInfoSet()

Sets the LOB information for a piece-wise LOB LCR

OCILCRNew()

Constructs a new LCR object of the specified type (row or DDL) for the given duration

OCILCRRowColumnInfoGet()

Returns the column fields in a row LCR

OCILCRRowColumnInfoSet()

Populates column fields in a row LCR

OCILCRRowStmtGet()

Returns the generated SQL statement for the row LCR, with values in-lined

OCILCRRowStmtWithBindVarGet()

Returns the generated SQL statement, which uses bind variables for column values

OCILCRSCNsFromPosition()

Gets the SCN and commit SCN from a position value

OCILCRSCNToPosition()

Converts SCN to position

OCILCRWhereClauseGet()

Gets the WHERE clause statement for the given row LCR

OCILCRWhereClauseWithBindVarGet()

Gets the WHERE clause statement with bind variables for the given row LCR

XStream In Functions

To send an LCR stream to an XStream inbound server

OCIXStreamInAttach()

Attaches to an inbound server

OCIXStreamInChunkSend()

Sends chunk data to the inbound server

OCIXStreamInCommit()

Commits the given transaction

OCIXStreamInDetach()

Detaches from the inbound server

OCIXStreamInErrorGet()

Returns the first error encountered by the inbound server since the attach call

OCIXStreamInFlush()

Flushes the network while attaching to an XStream inbound server

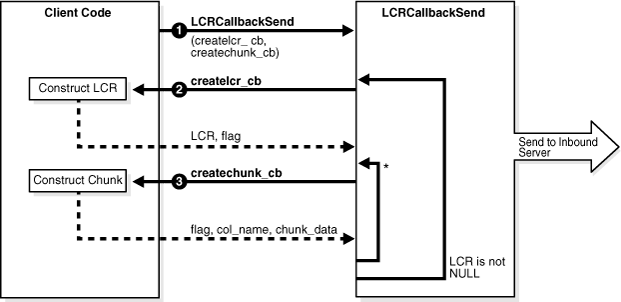

OCIXStreamInLCRCallbackSend()

Sends the LCR stream to the attached inbound server using callbacks

OCIXStreamInLCRSend()

Sends the LCR stream to the attached inbound server using callbacks

OCIXStreamInProcessedLWMGet()

Gets the local processed low position

OCIXStreamInSessionSet()

Sets session attributes for XStream In functions

XStream Out Functions

To receive an LCR stream from an XStream outbound server

OCIXStreamOutAttach()

Attaches to an outbound server

OCIXStreamOutChunkReceive()

Retrieves data of each LOB or LONG or XMLType column one chunk at a time

OCIXStreamOutDetach()

Detaches from the outbound server

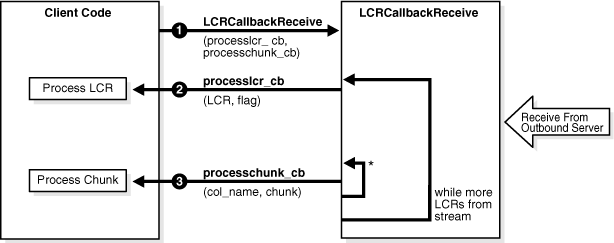

OCIXStreamOutLCRCallbackReceive()

Gets the LCR stream from the outbound server using callbacks

OCIXStreamOutLCRReceive()

Receives an LCR stream from an outbound server without using callbacks

OCIXStreamOutProcessedLWMSet()

Updates the local copy of the processed low-water mark

OCIXStreamOutSessionSet()

Sets session attributes for XStream Out functions

35.3.1 OCILCRAttributesGet()

Gets extra attribute information in (ROW or DDL) LCR.

Purpose

It gets any extra non-first class attributes that are not populated through OCILCRHeaderGet(), OCILCRDDLInfoGet(), or OCILCRProcedureInfoGet(), for example, edition name.

Syntax

sword OCILCRAttributesGet (      OCISvcCtx   *svchp,
                                 OCIError    *errhp,
                                 ub2         *num_attrs,
                                 oratext     **attr_names,
                                 ub2         *attr_namesl,
                                 ub2         *attr_dtyp,
                                 void        **attr_valuesp,
                                 OCIInd      *attr_indp,
                                 ub2         *attr_alensp,
                                 void        *lcrp,
                                 ub2          array_size,
                                 ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

num_attrs (OUT)

Number of extra attributes.

attr_names (OUT)

An array of extra attribute name pointers.

attr_namesl (OUT)

An array of extra attribute name lengths.

attr_dtyp (OUT)

An array of extra attribute data types. Valid data types: see Comments.

attr_valuesp (OUT)

An array of extra attribute data value pointers.

attr_indp (OUT)

An indicator array. Each returned element is an OCIInd value (OCI_IND_NULL or OCI_IND_NOTNULL).

attr_alensp (OUT)

An array of actual extra attribute data lengths. Each element in alensp is the length in bytes.

lcrp (IN)

Pointer to ROW or DDL LCR.

array_size (IN)

Size of the array argument in the other parameters. If array_size is not large enough to accommodate the number of attributes in the requested attribute list, then OCI_ERROR is returned. Parameter num_attrs returns the expected size.

mode (IN)

Specify OCI_DEFAULT.

Comments

The valid data types for attr_dtyp are:

SQLT_CHR
SQLT_INT
SQLT_RDD

35.3.2 OCILCRAttributesSet()

Populates extra attribute information in ROW or DDL LCR.

Purpose

It populates any extra non-first class attributes that cannot be set through OCILCRHeaderSet(), OCILCRDDLInfoSet(), or OCILCRRowColumnInfoSet(), for example, edition name.

Syntax

sword OCILCRAttributesSet (      OCISvcCtx   *svchp,
                                 OCIError    *errhp,
                                 ub2          num_attrs,
                                 oratext    **attr_names,
                                 ub2         *attr_names_lens,
                                 ub2         *attr_dtyp,
                                 void       **attr_valuesp,
                                 OCIInd      *attr_indp,
                                 ub2         *attr_alensp,
                                 void        *lcrp,
                                 ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

num_attrs (IN)

Number of extra attributes.

attr_names (IN)

Pointer to an array of extra attribute names. Attribute names must be canonicalized.

attr_names_lens (IN)

Pointer to an array of extra attribute name lengths.

attr_dtyp (IN)

Pointer to an array of extra attribute data types. See valid data types in Comments of OCILCRRowColumnInfoSet().

attr_valuesp (IN)

Address of an array of extra attribute data values.

attr_indp (IN)

Pointer to an indicator array. For all data types, this is a pointer to an array of OCIInd values (OCI_IND_NULL or OCI_IND_NOTNULL).

attr_alensp (IN)

Pointer to an array of actual extra attribute data lengths. Each element in attr_lensp is the length in bytes.

lcrp (IN/OUT)

Pointer to a ROW or DDL LCR.

mode (IN)

Specify OCI_DEFAULT.

Comments

Valid attributes are:

#define OCI_LCR_ATTR_THREAD_NO              "THREAD#"
#define OCI_LCR_ATTR_ROW_ID                 "ROW_ID"
#define OCI_LCR_ATTR_SESSION_NO             "SESSION#"
#define OCI_LCR_ATTR_SERIAL_NO              "SERIAL#"
#define OCI_LCR_ATTR_USERNAME               "USERNAME"
#define OCI_LCR_ATTR_TX_NAME                "TX_NAME"
#define OCI_LCR_ATTR_EDITION_NAME           "EDITION_NAME"
#define OCI_LCR_ATTR_MESSAGE_TRACKING_LABEL "MESSAGE_TRACKING_LABEL"
#define OCI_LCR_ATTR_CURRENT_USER           "CURRENT_USER"
#define OCI_LCR_ATTR_ROOT_NAME              "ROOT_NAME"

Related Topics

35.3.3 OCILCRComparePosition()

Compares two position LCRID values.

Purpose

These LCRIDs can have different versions. The provided position must be a valid LCRID for Oracle Database 12c Release 2 (12.2).

Syntax

sword OCILCRComparePosition(OCISvcCtx  *svchp,
                            OCIError   *errhp,
                            ub1        *position1,
                            ub2         position1_len,
                            ub1        *position2,
                            ub2         position2_len,
                            ub4         mode,
                            sb2        *result);

Parameters

svchp (IN)
OCI service context.
errhp (IN)
OCI Error handle.
position1 (IN)
The first position value to compare.
position1_len (IN)
The length of position1.
position2 (IN)
The second position value to compare.
position2_len (IN)
The length of position2.
mode (IN)
The mode flags.
result (OUT)

0 if both values are equal.

-1 if position1 is less than position2.

1 if position1 is greater than position2.

Returns

OCI_SUCCESS if the conversion succeeds, OCI_ERROR otherwise.

Usage Notes

Supported modes are:
  • 0 - Complete byte comparison.

  • 2 - Smaller length is smaller value

35.3.4 OCILCRConvertPosition()

Converts an LCRID value to the specified version (1 or 2).

Purpose

The provided LCRID must be valid for Oracle Database 12c Release 2 (12.2).

Syntax

sword OCILCRConvertPosition(OCISvcCtx  *svchp,
                            OCIError   *errhp,
                            ub1        *in_position,
                            ub2         in_position_len,
                            ub1        *out_position,
                            ub2        *out_position_len,
                            ub1         to_version,
                            ub4         mode);

Parameters

svchp (IN)

OCI service context.

errhp (IN)

OCI Error handle.

in_position (IN)

The position value to convert.

in_position_len (IN)

The length of in_position.

out_position (OUT)

The result position value (in the specified version). The memory must be preallocated.

out_position_len (OUT)

The length of out_position.

to_version (IN)

The version to which to convert to. The value 1 should be specified for the original OCI_LCRID_V1 format. The value 2 should be specified for the OCI_LCRID_V2 format.

#define  OCI_LCRID_V1       1
#define  OCI_LCRID_V2       2
mode (IN)

The mode flags.

Returns

OCI_SUCCESS if the conversion succeeds.

OCI_SUCCESS if the LCRID is already in the desired version.

OCI_ERROR if the conversion fails.

Usage Notes

None.

35.3.5 OCILCRFree()

Frees the LCR.

Purpose

Frees the LCR.

Syntax

sword OCILCRFree ( OCISvcCtx   *svchp,
                   OCIError    *errhp,
                   void        *lcrp,
                   ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

lcrp (IN/OUT)

Streams LCR pointer.

mode (IN)

Specify OCI_DEFAULT.

35.3.6 OCILCRDDLInfoGet()

Retrieves specific fields in a DDL LCR.

Purpose

Retrieves specific fields in a DDL LCR.

Syntax

sword OCILCRDDLInfoGet ( OCISvcCtx    *svchp,
                         OCIError     *errhp,
                         oratext     **object_type,
                         ub2          *object_type_len,
                         oratext     **ddl_text,
                         ub4          *ddl_text_len,
                         oratext     **logon_user,
                         ub2          *logon_user_len,
                         oratext     **current_schema,
                         ub2          *current_schema_len,
                         oratext     **base_table_owner,
                         ub2          *base_table_owner_len,
                         oratext     **base_table_name,
                         ub2          *base_table_name_len,
                         oraub8       *flag,
                         void         *ddl_lcrp,
                         ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

object_type (OUT)

The type of object on which the DDL statement was executed. (See OCILCRDDLInfoSet().) Optional. If not NULL, then both object_type and object_type_len arguments must not be NULL.

object_type_len (OUT)

Length of the object_type string without the NULL terminator.

ddl_text (OUT)

The text of the DDL statement. Optional. If not NULL, then both ddl_text and ddl_text_len arguments must not be NULL.

ddl_text_len (OUT)

DDL text length in bytes without the NULL terminator.

logon_user (OUT)

Canonicalized (follows a rule or procedure) name of the user whose session executed the DDL statement. Optional. If not NULL, then both logon_user and logon_user_len arguments must not be NULL.

logon_user_len (OUT)

Length of the logon_user string without the NULL terminator.

current_schema (OUT)

The canonicalized schema name that is used if no schema is specified explicitly for the modified database objects in ddl_text. Optional. If not NULL, then both current_schema and current_schema_len arguments must not be NULL.

current_schema_len (OUT)

Length of the current_schema string without the NULL terminator.

base_table_owner (OUT)

If the DDL statement is a table-related DDL (such as CREATE TABLE and ALTER TABLE), or if the DDL statement involves a table (such as creating a trigger on a table), then base_table_owner specifies the canonicalized owner of the table involved. Otherwise, base_table_owner is NULL. Optional. If not NULL, then both base_table_owner and base_table_owner_len arguments must not be NULL.

base_table_owner_len (OUT)

Length of the base_table_owner string without the NULL terminator.

base_table_name (OUT)

If the DDL statement is a table-related DDL (such as CREATE TABLE and ALTER TABLE), or if the DDL statement involves a table (such as creating a trigger on a table), then base_table_name specifies the canonicalized name of the table involved. Otherwise, base_table_name is NULL. Optional. If not NULL, then both base_table_name and base_table_name_len arguments must not be NULL.

base_table_name_len (OUT)

Length of the base_table_name string without the NULL terminator.

flag (OUT)

DDL LCR flag. Optional. Data not returned if argument is NULL. Future extension not used currently.

ddl_lcrp (IN)

DDL LCR. Cannot be NULL.

mode (IN)

Specify OCI_DEFAULT.

Related Topics

35.3.7 OCILCRHeaderGet()

Returns the common header fields for ROW or DDL LCR.

Purpose

All returned pointers point directly to the corresponding LCR fields.

Syntax

sword OCILCRHeaderGet ( OCISvcCtx    *svchp,
                        OCIError     *errhp,
                        oratext     **src_db_name,
                        ub2          *src_db_name_len,
                        oratext     **cmd_type,
                        ub2          *cmd_type_len,
                        oratext     **owner,
                        ub2          *owner_len,
                        oratext     **oname,
                        ub2          *oname_len,
                        ub1         **tag,
                        ub2          *tag_len,
                        oratext     **txid,
                        ub2          *txid_len,
                        OCIDate      *src_time,
                        ub2          *old_columns,
                        ub2          *new_columns,
                        ub1         **position,
                        ub2          *position_len,
                        oraub8       *flag,
                        void         *lcrp,
                        ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

src_db_name (OUT)

Canonicalized source database name. Must be non-NULL.

src_db_name_len (OUT)

Length of the src_db_name string in bytes excluding the NULL terminator.

cmd_type (OUT)

For row LCRs: One of the following values:

Note:

The values, #define OCI_LCR_ROW_CMD_ROLLBACK and #define OCI_LCR_ROW_CMD_START_TX, is functionality that is available starting with Oracle Database 11g Release 2 (11.2.0.2).

#define OCI_LCR_ROW_CMD_INSERT
#define OCI_LCR_ROW_CMD_DELETE
#define OCI_LCR_ROW_CMD_UPDATE
#define OCI_LCR_ROW_CMD_COMMIT
#define OCI_LCR_ROW_CMD_ROLLBACK
#define OCI_LCR_ROW_CMD_START_TX
#define OCI_LCR_ROW_CMD_LOB_WRITE
#define OCI_LCR_ROW_CMD_LOB_TRIM
#define OCI_LCR_ROW_CMD_LOB_ERASE

For DDL LCRs: One of the command types in OCI_ATTR_SQLFNCODE.

cmd_type_len (OUT)

Length of the cmd_type string in bytes excluding the NULL terminator.

owner (OUT)

Canonicalized table owner name. Must be non-NULL. For procedure LCRs, the package or procedure owner is returned in owner.

owner_len (OUT)

Length of the owner string in bytes excluding the NULL terminator.

oname (OUT)

Canonicalized table name. Must be non-NULL. For procedure LCRs, the procedure name is returned in oname.

oname_len (OUT)

Length of the oname string in bytes excluding the NULL terminator.

tag (OUT)

A binary tag that enables tracking of the LCR. For example, you can use this tag to determine the original source database of the DML statement if apply forwarding is used.

tag_len (OUT)

Number of bytes in the tag.

txid (OUT)

Transaction ID. Must be non-NULL

txid_len (OUT)

Length of the string in bytes excluding the NULL terminator.

src_time (OUT)

The time when the change was generated in the redo log file of the source database.

old_columns (OUT)

Number of columns in the OLD column list. Returns 0 if the input LCR is a DDL LCR. Optional.

new_columns (OUT)

Number of columns in the NEW column list. Returns 0 if the input LCR is a DDL LCR. Optional.

position (OUT)

Position for LCR.

position_len (OUT)

Length of position.

flag (OUT)

LCR flag. Possible flags are listed in Comments.

lcrp (IN)

lcrp cannot be NULL.

mode (IN)

OCILCR_NEW_ONLY_MODE - If this mode is specified, then the new_columns returned is the count of the columns in the NEW column list only. Otherwise, the new_columns returned is the number of distinct columns present in either the NEW or the OLD column list of the given row LCR.

OCI_LCR_APPCON_REPLAY - If this mode is specified, then it indicates the LCR is replayed from the application container sync statement.

Comments

LCR flag.

#define OCI_ROWLCR_HAS_ID_KEY_ONLY  /* only has ID key cols */
#define OCI_ROWLCR_SEQ_LCR          /* sequence lcr */

OCILCRProcedureInfoGet() can be called to get the package name.

35.3.8 OCILCRRowStmtGet()

Returns the generated SQL statement for the row LCR, with values in-lined.

Purpose

Users must preallocate the memory for sql_stmt, and *sql_stmt_len must be set to the size of the allocated buffer, when it is passed in. If *sql_stmt_len is not large enough to hold the generated SQL statement, then an error is raised.

Syntax

sword OCILCRRowStmtGet ( OCISvcCtx   *svchp,
                         OCIError    *errhp,
                         oratext     *row_stmt,
                         ub4         *row_stmt_len,
                         void        *row_lcrp,
                         ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

row_stmt (IN/OUT)

The generated SQL statement for the row LCR.

row_stmt_len (IN/OUT)

Set to the size of the allocated buffer for row_stmt when passed in; returns the length of row_stmt.

row_lcrp (IN)

Pointer to row LCR.

mode (IN)

Specify OCI_DEFAULT.

35.3.9 OCILCRRowStmtWithBindVarGet()

Returns the generated SQL statement, which uses bind variables for column values.

Purpose

The values for the bind variables are returned separately in arrays. You must preallocate the memory for sql_stmt and the arrays, *sql_stmt_len must be set to the size of the allocated buffer, and array_size must be the length of the arrays. The actual column values in bind_var_valuesp points to the values inside the LCR, so it is a shallow copy. If array_size is not large enough to hold all the variables, or if *sql_stmt_len is not large enough to hold the generated SQL statement, then an error is raised.

Syntax

sword OCILCRRowStmtWithBindVarGet ( OCISvcCtx    *svchp,
                                    OCIError     *errhp,
                                    oratext      *row_stmt,
                                    ub4          *row_stmt_len,
                                    ub2          *num_bind_var,
                                    ub2          *bind_var_dtyp,
                                    void         **bind_var_valuesp,
                                    OCIInd       *bind_var_indp,
                                    ub2          *bind_var_alensp,
                                    ub1          *bind_var_csetidp,
                                    ub1          *bind_var_csetfp,
                                    void         *row_lcrp,
                                    oratext     **chunk_column_names,
                                    ub2          *chunk_column_namesl,
                                    oraub8       *chunk_column_flags,
                                    ub2           array_size,
                                    oratext      *bind_var_syntax,
                                    ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

row_stmt (IN/OUT)

The generated SQL statement for the row LCR.

row_stmt_len (IN/OUT)

Set to the size of the allocated buffer for row_stmt when passed in; returns the length of row_stmt.

num_bind_var (OUT)

The number of bind variables.

bind_var_dtyp (IN/OUT)

Array of data types for the bind variables.

bind_var_valuesp (IN/OUT)

Array of values for the bind variables.

bind_var_indp (IN/OUT)

Array of NULL indicators for the bind variables.

bind_var_alensp (IN/OUT)

Array of lengths for the bind variable values.

bind_var_csetidp (IN/OUT)

Array of character set IDs for the bind variables.

bind_var_csetfp (IN/OUT)

Array of character set forms for the bind variables.

row_lcrp (IN)

Pointer to row LCR.

chunk_column_names (OUT)

Array of LOB column names in LCR.

chunk_column_namesl (OUT)

Array of LOB column name lengths.

chunk_column_flags (OUT)

Array of LOB column flags. Possible flags are listed in Comments.

array_size (IN)

Size of each of the parameter arrays.

bind_var_syntax (IN)

Either (:) (binds are of the form :1, :2, and so on.) or (?) (binds are of the form (?)).

mode (IN)

Specify OCI_DEFAULT.

Comments

The following LCR column flags can be combined using bitwise OR operator.

#define OCI_LCR_COLUMN_LOB_DATA     /* column contains LOB data */
#define OCI_LCR_COLUMN_LONG_DATA    /* column contains long data */
#define OCI_LCR_COLUMN_EMPTY_LOB    /* column has an empty LOB  */
#define OCI_LCR_COLUMN_LAST_CHUNK   /* last chunk of current column */
#define OCI_LCR_COLUMN_AL16UTF16    /* column is in AL16UTF16 fmt */
#define OCI_LCR_COLUMN_NCLOB        /* column has NCLOB data */
#define OCI_LCR_COLUMN_XML_DATA     /* column contains xml data */
#define OCI_LCR_COLUMN_XML_DIFF     /* column contains xmldiff data */
#define OCI_LCR_COLUMN_ENCRYPTED    /* column is encrypted */
#define OCI_LCR_COLUMN_UPDATED      /* col is updated */

/* OCI_LCR_COLUMN_UPDATED is set only for the modified columns in the NEW
 * column list of an update LCR.
 */

35.3.10 OCILCRNew()

Constructs a new Streams LCR object of the specified type (ROW or DDL) for the given duration.

Purpose

Constructs a new Streams LCR object of the specified type (ROW or DDL) for the given duration.

Syntax

sword OCILCRNew ( OCISvcCtx     *svchp,
                  OCIError      *errhp,
                  OCIDuration    duration,
                  ub1            lcrtype,
                  void          **lcrp,
                  ub4            mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

duration (IN)

Memory for the LCR is allocated for this specified duration.

lcrtype (IN)

LCR type. Values are:

#define OCI_LCR_XROW
#define OCI_LCR_XDDL
lcrp (IN/OUT)

If *lcrp is not NULL, an error is raised.

mode (IN)

Specify OCI_DEFAULT.

Comments

Note:

  • After creation, you are not allowed to change the type of the LCR (ROW or DDL) or duration of the memory allocation.

  • Use OCILCRHeaderSet() to populate common header fields for row or DDL LCR.

  • After the LCR header is initialized, use OCILCRRowColumnInfoSet() or OCILCRDDLInfoSet() to populate operation specific elements. Use OCILCRExtraAttributesSet() to populate extra attribute information.

  • Use OCILCRFree() to free the LCR created by this function.

35.3.11 OCILCRRowColumnInfoGet()

Returns the column fields in a row LCR.

Purpose

Returns the column fields in a row LCR.

Syntax

sword OCILCRRowColumnInfoGet ( OCISvcCtx    *svchp,
                               OCIError     *errhp,
                               ub2           column_value_type,
                               ub2          *num_columns,
                               oratext     **column_names,
                               ub2          *column_name_lens,
                               ub2          *column_dtyp,
                               void        **column_valuesp,
                               OCIInd       *column_indp,
                               ub2          *column_alensp,
                               ub1          *column_csetfp,
                               oraub8       *column_flags,
                               ub2          *column_csid,
                               void         *row_lcrp,
                               ub2           array_size,
                               ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

column_value_type (IN)

ROW LCR column value type; either of:

#define OCI_LCR_ROW_COLVAL_OLD
#define OCI_LCR_ROW_COLVAL_NEW
num_columns (OUT)

Number of columns in the specified column array.

column_names (OUT)

An array of column name pointers.

column_name_lens (OUT)

An array of column name lengths.

column_dtyp (OUT)

An array of column data types. Optional. Data is not returned if column_dtyp is NULL.

column_valuesp (OUT)

An array of column data pointers.

column_indp (OUT)

An array of indicators.

column_alensp (OUT)

An array of column lengths. Each returned element is the length in bytes.

column_csetfp (OUT)

An array of character set forms for the columns. Optional. Data is not returned if the argument is NULL.

column_flags (OUT)

An array of column flags. Optional. Data is not returned if the argument is NULL. See Comments for the values.

column_csid (OUT)

An array of character set IDs for the columns.

row_lcrp (IN)

row_lcrp cannot be NULL.

array_size (IN)

Size of each of the parameter arrays. An error is returned if array_size is less than the number of columns in the requested column list. The actual size of the requested column list is returned through the num_columns parameter.

mode (IN)

OCILCR_NEW_ONLY_MODE - If this mode is specified, then the new_columns returned is the count of the columns in the NEW column list only. Otherwise, the new_columns returned is the number of distinct columns present in either the NEW or the OLD column list of the given row LCR.

Comments

  • For INSERT, this function must only be called to get the NEW column values.

  • For DELETE, this function must only be called to get the OLD column values.

  • For UPDATE, this function can be called twice, once to get the NEW column values and once to get the OLD column values.

  • This function must not be called for COMMIT operations.

The following LCR column flags can be combined using bitwise OR operator.

#define OCI_LCR_COLUMN_LOB_DATA     /* column contains LOB data */
#define OCI_LCR_COLUMN_LONG_DATA    /* column contains long data */
#define OCI_LCR_COLUMN_EMPTY_LOB    /* column has an empty LOB  */
#define OCI_LCR_COLUMN_LAST_CHUNK   /* last chunk of current column */
#define OCI_LCR_COLUMN_AL16UTF16    /* column is in AL16UTF16 fmt */
#define OCI_LCR_COLUMN_NCLOB        /* column has NCLOB data */
#define OCI_LCR_COLUMN_XML_DATA     /* column contains xml data */
#define OCI_LCR_COLUMN_XML_DIFF     /* column contains xmldiff data */
#define OCI_LCR_COLUMN_ENCRYPTED    /* column is encrypted */
#define OCI_LCR_COLUMN_UPDATED      /* col is updated */

/* OCI_LCR_COLUMN_UPDATED is set only for the modified columns in the NEW
 * column list of an update LCR.
 */

Table 35-3 lists the currently supported table column data types. For each data type, it lists the corresponding LCR column data type, the C program variable type to cast the LCR column value, and the OCI functions that can manipulate the column values returned from OCILCRRowColumnInfoGet().

Table 35-3 Table Column Data Types

Table Column Data Types LCR Column Data Type Program Variable Conversion Function

VARCHAR, NVARCHAR2

SQLT_CHR

char *



NUMBER

SQLT_VNU

OCINumber

OCINumberToInt()

OCINumberToReal()

OCINumberToText()

DATE

SQLT_ODT

OCIDate

OCIDateToText()

Can access structure directly to get date and time fields.

RAW

SQLT_BIN

unsigned char *



CHAR, NCHAR

SQL_AFC

char *



BINARY_FLOAT

SQLT_BFLOAT

float



BINARY_DOUBLE

SQLT_BDOUBLE

double



TIMESTAMP

SQLT_TIMESTAMP

OCIDateTime *

OCIDateTimeGetTime()

OCIDateTimeGetDate()

OCIDateTimeGetTimeZoneOffset()

OCIDateTimeToText()

TIMESTAMP WITH TIME ZONE

SQLT_TIMESTAMP_TZ

OCIDateTime *

OCIDateTimeGetTime()

OCIDateTimeGetDate()

OCIDateTimeGetTimeZoneOffset()

OCIDateTimeToText()

TIMESTAMP WITH LOCAL TIME ZONE

SQLT_TIMESTAMP_LTZ

OCIDateTime *

OCIDateTimeGetTime()

OCIDateTimeGetDate()

OCIDateTimeGetTimeZoneOffset()

OCIDateTimeToText()

INTERVAL YEAR TO MONTH

SQLT_INTERVAL_YM

OCIInterval *

OCIIntervalToText()

OCIIntervalGetYearMonth()

INTERVAL DAY TO SECOND

SQLT_INTERVAL_DS

OCIInterval *

OCIIntervalToText()

OCIIntervalGetDaySecond()

UROWID

SQLT_RDD

OCIRowid *

OCIRowidToChar()

CLOB

SQLT_CHR or SQLT_BIN

unsigned char *

Foot 1

NCLOB

SQLT_BIN

unsigned char *

Footref 1

BLOB

SQLT_BIN

unsigned char *

Footref 1

LONG

SQLT_CHR

char *

Footref 1

LONG RAW

SQLT_BIN

unsigned char *

Footref 1

XMLType

SQLT_CHR or SQLT_BIN

unsigned char *



Footnote 1

Call OCIXStreamOutChunkReceive() to get column data.

35.3.12 OCILCRRowColumnInfoSet()

Populates column fields in a row LCR.

Purpose

Populates column fields in a row LCR.

Syntax

sword OCILCRRowColumnInfoSet ( OCISvcCtx    *svchp,
                               OCIError     *errhp,
                               ub2           column_value_type,
                               ub2           num_columns,
                               oratext     **column_names,
                               ub2          *column_name_lens,
                               ub2          *column_dtyp,
                               void        **column_valuesp,
                               OCIInd       *column_indp,
                               ub2          *column_alensp,
                               ub1          *column_csetfp,
                               oraub8       *column_flags,
                               ub2          *column_csid,
                               void         *row_lcrp,
                               ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

column_value_type (IN)

ROW LCR Column value types:

#define OCI_LCR_ROW_COLVAL_OLD
#define OCI_LCR_ROW_COLVAL_NEW
num_columns (IN)

Number of columns in each of the array parameters.

column_names (IN)

Pointer to an array of column names. Column names must be canonicalized. Column names must follow Oracle Database naming conventions and size limitations.

column_name_lens (IN)

Pointer to an array of column name lengths.

column_dtyp (IN)

Pointer to an array of column data types. See Comments for valid data types.

column_valuesp (IN)

Pointer to an array of column data pointers.

column_indp (IN)

Pointer to an indicator array. For all data types, this is a pointer to an array of OCIInd values (OCI_IND_NULL or OCI_IND_NOTNULL).

column_alensp (IN)

Pointer to an array of actual column lengths in bytes.

column_csetfp (IN)

Pointer to an array of character set forms for the columns. The default form is SQLCS_IMPLICIT. Setting this attribute causes the database or national character set to be used on the client side. Set this attribute to SQLCS_NCHAR for the national character set or SQLCS_IMPLICIT for the database character set. Pass 0 for non-character columns.

column_flags (IN)

Pointer to an array of column flags. (See Comments for the list of valid LCR column flags.)

column_csid (IN)

Pointer to an array of character set IDs for the columns.

row_lcrp (IN/OUT)

row_lcrp cannot be NULL.

mode (IN)

Specify OCI_DEFAULT.

Comments

Note:

  • For INSERT, this function must only be called to specify the NEW column values.

  • For DELETE, this function must only be called to specify the OLD column values.

  • For UPDATE, this function can be called twice, once to specify the NEW column values and once to specify the OLD column values.

  • This function must not be called for COMMIT operations.

The following LCR column flags can be combined using the bitwise OR operator.

#define OCI_LCR_COLUMN_LOB_DATA     /* column contains LOB data */
#define OCI_LCR_COLUMN_LONG_DATA    /* column contains long data */
#define OCI_LCR_COLUMN_EMPTY_LOB    /* column has an empty LOB  */
#define OCI_LCR_COLUMN_LAST_CHUNK   /* last chunk of current column */
#define OCI_LCR_COLUMN_AL16UTF16    /* column is in AL16UTF16 fmt */
#define OCI_LCR_COLUMN_NCLOB        /* column has NCLOB data */
#define OCI_LCR_COLUMN_XML_DATA     /* column contains xml data */
#define OCI_LCR_COLUMN_XML_DIFF     /* column contains xmldiff data */
#define OCI_LCR_COLUMN_ENCRYPTED    /* column is encrypted */
#define OCI_LCR_COLUMN_UPDATED      /* col is updated */

/* OCI_LCR_COLUMN_UPDATED is set only for the modified columns in the NEW
 * column list of an update LCR.
 */

Valid data types are:

SQLT_AFC           SQLT_TIMESTAMP
SQLT_DAT           SQLT_TIMESTAMP_TZ
SQLT_BFLOAT        SQLT_TIMESTAMP_LTZ
SQLT_BDOUBLE       SQLT_INTERVAL_YM
SQLT_NUM           SQLT_INTERVAL_DS
SQLT_VCS
SQLT_ODT
SQLT_INT
SQLT_BIN
SQLT_CHR
SQLT_RDD
SQLT_VST
SQLT_INT
SQLT_FLT

35.3.13 OCILCRDDLInfoSet()

Populates DDL-specific fields in a DDL LCR.

Purpose

Populates DDL-specific fields in a DDL LCR.

Syntax

sword OCILCRDDLInfoSet ( OCISvcCtx    *svchp,
                         OCIError     *errhp,
                         oratext      *object_type,
                         ub2           object_type_len,
                         oratext      *ddl_text,
                         ub4           ddl_text_len,
                         oratext      *logon_user,
                         ub2           logon_user_len,
                         oratext      *current_schema,
                         ub2           current_schema_len,
                         oratext      *base_table_owner,
                         ub2           base_table_owner_len,
                         oratext      *base_table_name,
                         ub2           base_table_name_len,
                         oraub8        flag,
                         void         *ddl_lcrp,
                         ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

object_type (IN)

The type of object on which the DDL statement was executed. See Comments for the valid object types.

object_type_len (IN)

Length of the object_type string without the NULL terminator.

ddl_text (IN)

The text of the DDL statement. This parameter must be set to a non-NULL value. DDL text must be in Oracle Database DDL format.

ddl_text_len (IN)

DDL text length in bytes without the NULL terminator.

logon_user (IN)

Canonicalized name of the user whose session executed the DDL statement.

logon_user_len (IN)

Length of the logon_user string without the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

current_schema (IN)

The canonicalized schema name that is used if no schema is specified explicitly for the modified database objects in ddl_text. If a schema is specified in ddl_text that differs from the one specified for current_schema, then the function uses the schema specified in ddl_text.

This parameter must be set to a non-NULL value.

current_schema_len (IN)

Length of the current_schema string without the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

base_table_owner (IN)

If the DDL statement is a table-related DDL (such as CREATE TABLE or ALTER TABLE), or if the DDL statement involves a table (such as creating a trigger on a table), then base_table_owner specifies the canonicalized owner of the table involved. Otherwise, base_table_owner is NULL.

base_table_owner_len (IN)

Length of the base_table_owner string without the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

base_table_name (IN)

If the DDL statement is a table-related DDL (such as CREATE TABLE or ALTER TABLE), or if the DDL statement involves a table (such as creating a trigger on a table), then base_table_name specifies the canonicalized name of the table involved. Otherwise, base_table_name is NULL.

base_table_name_len (IN)

Length of the base_table_name without the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

flag (IN)

DDL LCR flag. (Not currently used; used for future extension.) Specify OCI_DEFAULT.

ddl_lcrp (IN/OUT)

ddl_lcrp cannot be NULL.

mode (IN)

Specify OCI_DEFAULT.

Comments

The following are valid object types:

CLUSTER
FUNCTION
INDEX
OUTLINE
PACKAGE
PACKAGE BODY
PROCEDURE
SEQUENCE
SYNONYM
TABLE
TRIGGER
TYPE
USER
VIEW

NULL is also a valid object type. Specify NULL for all object types not listed.

35.3.14 OCILCRGetLCRIDVersion()

Determines the LCRID version of a given position.

Purpose

Determines the LCRID version of a given position.

Syntax

sword OCILCRGetLCRIDVersion(OCISvcCtx  *svchp,
                            OCIError   *errhp,
                            ub1        *position,
                            ub2         position_len,
                            ub1        *version);

Parameters

svchp (IN)

The OCI service context.

errhp (IN)

The OCI Error handle.

position (IN)

The position.

position_len (IN)

The length of position.

version (OUT)

The LCRID version for the given input position. A value of 1 should be specified for the original OCI_LCRID_V1 format. A value of 2 should be specified for the OCI_LCRID_V2 format.

#define  OCI_LCRID_V1       1
#define  OCI_LCRID_V2       2

Returns

OCI_SUCCESS if the LCRID version is valid, OCI_ERROR otherwise.

Usage Notes

None.

35.3.15 OCILCRHeaderSet()

Initializes the common header fields for ROW or DDL LCR.

Purpose

Initializes the common header fields for row or DDL LCR.

Syntax

sword OCILCRHeaderSet ( OCISvcCtx  *svchp,
                        OCIError   *errhp,
                        oratext    *src_db_name,
                        ub2         src_db_name_len,
                        oratext    *cmd_type,
                        ub2         cmd_type_len,
                        oratext    *owner,
                        ub2         owner_len,
                        oratext    *oname,
                        ub2         oname_len,
                        ub1        *tag,
                        ub2         tag_len,
                        oratext    *txid,
                        ub2         txid_len,
                        OCIDate    *src_time,
                        ub1        *position,
                        ub2         position_len,
                        oraub8      flag,
                        void       *lcrp,
                        ub4         mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

src_db_name (IN)

Canonicalized source database name. Must be non-NULL.

src_db_name_len (IN)

Length of the src_db_name string in bytes excluding the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

cmd_type (IN)

For row LCRs: One of the following values:

Note:

The values, #define OCI_LCR_ROW_CMD_ROLLBACK and #define OCI_LCR_ROW_CMD_START_TX, are available starting with Oracle Database 11g Release 2 (11.2.0.2).

#define OCI_LCR_ROW_CMD_INSERT
#define OCI_LCR_ROW_CMD_DELETE
#define OCI_LCR_ROW_CMD_UPDATE
#define OCI_LCR_ROW_CMD_COMMIT
#define OCI_LCR_ROW_CMD_ROLLBACK
#define OCI_LCR_ROW_CMD_START_TX
#define OCI_LCR_ROW_CMD_LOB_WRITE
#define OCI_LCR_ROW_CMD_LOB_TRIM
#define OCI_LCR_ROW_CMD_LOB_ERASE

For DDL LCRs: One of the command types in OCI_ATTR_SQLFNCODE.

cmd_type_len (IN)

Length of cmd_type.

owner (IN)

Canonicalized table owner name. Owner is not required for COMMIT LCR.

owner_len (IN)

Length of the owner string in bytes excluding the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

oname (IN)

Canonicalized table name. Not required for COMMIT LCR.

oname_len (IN)

Length of the oname string in bytes excluding the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

tag (IN)

A binary tag that enables tracking of the LCR. For example, you can use this tag to determine the original source database of the DML statement if apply forwarding is used.

tag_len (IN)

Number of bytes in the tag. Cannot exceed 2000 bytes.

txid (IN)

Transaction ID. Must be non-NULL.

txid_len (IN)

Length of the txid string in bytes, excluding the NULL terminator. Must follow Oracle Database naming conventions and size limitations.

src_time (IN)

The time when the change was generated in the online redo log file of the source database.

position (IN)

Position for LCR. Must be non-NULL and byte-comparable.

position_len (IN)

Length of position. Must be greater than zero.

flag (IN)

LCR flag. Possible flags are listed in Comments.

lcrp (IN/OUT)

lcrp cannot be NULL.

mode (IN)

Specify OCI_DEFAULT.

Comments

Note:

  • This function sets all internal fields of the LCR to NULL including extra attributes.

  • This function does not deep copy the passed-in values. You must ensure data is valid for the duration of the LCR.

  • For COMMIT LCRs, owner and oname information are not required. Provide valid values for src_db_name, cmd_type, tag, txid, and position.

  • For ROW LCRs, use OCILCRRowColumnInfoSet() to populate row LCR-specific column information.

  • For DDL LCRs, use OCILCRDDLInfoSet() to populate DDL operation specific information.

  • For ROW or DDL LCRs, use OCILCRAttributesSet() to populate extra attribute information.

The following are LCR flags:

#define OCI_ROWLCR_HAS_ID_KEY_ONLY  /* only has ID key cols */
#define OCI_ROWLCR_SEQ_LCR          /* sequence lcr */

35.3.16 OCILCRLobInfoGet()

Returns the LOB information for a piece-wise LOB LCR generated from a DBMS_LOB or OCILob procedure.

Purpose

Returns the LOB information for a piece-wise LOB LCR generated from a DBMS_LOB or OCILob procedure.

Syntax

sword OCILCRLobInfoGet ( OCISvcCtx   *svchp,
                         OCIError    *errhp,
                         oratext    **column_name,
                         ub2         *column_name_len,
                         ub2         *column_dty,
                         oraub8      *column_flag,
                         ub4         *offset,
                         ub4         *size,
                         void        *row_lcrp,
                         ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

column_name (OUT)

LOB column name.

column_name_len (OUT)

Length of LOB column name.

column_dty (OUT)

Column data type (either SQLT_CHR or SQLT_BIN).

column_flag (OUT)

Column flag. See Comments in OCILCRRowColumnInfoSet().

offset (OUT)

LOB operation offset in code points. Only returned for LOB WRITE and LOB TRIM operations. This is the same as the offset parameter for OCILobErase() or the offset parameter in OCILobWrite().

size (OUT)

LOB operation size in code points. Only returned for LOB TRIM and LOB ERASE operations. This is the same as the new_length parameter in OCILobTrim() or the amtp parameter in OCILobErase().

row_lcrp (IN)

Pointer to a row LCR.

mode (IN)

Specify OCI_DEFAULT.

Comments

Returns OCI_SUCCESS or OCI_ERROR.

Related Topics

35.3.17 OCILCRLobInfoSet()

Sets the LOB information for a piece-wise LOB LCR.

Purpose

This call is valid when the input LCR is a LOB_WRITE, LOB_ERASE, or LOB_TRIM; otherwise, an error is returned.

Syntax

sword OCILCRLobInfoSet ( OCISvcCtx   *svchp,
                         OCIError    *errhp,
                         oratext     *column_name,
                         ub2          column_name_len,
                         ub2          column_dty,
                         oraub8       column_flag,
                         ub4          offset,
                         ub4          size,
                         void        *row_lcrp,
                         ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

column_name (IN)

LOB column name.

column_name_len (IN)

Length of LOB column name.

column_dty (IN)

Column data type (either SQLT_CHR or SQLT_BIN).

column_flag (IN)

Column flag. See Comments in OCILCRRowColumnInfoSet().

offset (IN)

LOB operation offset in code points. Only required for LOB WRITE and LOB TRIM operations. This is the same as the soffset parameter for OCILobErase() or the offset parameter in OCILobWrite().

size (IN)

LOB operation size in code points. Only required for LOB TRIM and LOB ERASE operations.This is the same as the new_length parameter in OCILobTrim() or the amtp parameter in OCILobErase().

row_lcrp (IN/OUT)

Pointer to a row LCR.

mode (IN)

Specify OCI_DEFAULT.

Comments

Returns OCI_SUCCESS or OCI_ERROR.

Related Topics

35.3.18 OCILCRSCNsFromPosition()

Returns the SCN and the commit SCN from the position value.

Purpose

The input position must be one that is obtained from an XStream outbound server. An error is returned if the input position does not conform to the expected format.

Syntax

sword OCILCRSCNsFromPosition ( OCISvcCtx   *svchp,
                               OCIError    *errhp,
                               ub1         *position,
                               ub2          position_len,
                               OCINumber   *scn,
                               OCINumber   *commit_scn,
                               ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

position (IN)

LCR position value.

position_len (IN)

Length of LCR position value.

scn (OUT)

SCN number embedded in the given LCR position.

commit_scn (OUT)

The commit SCN embedded in the given position.

mode (IN)

Mode flags used for future expansion. Specify OCI_DEFAULT.

Comments

This function can handle both version 1 and version 2 position (LCRID) values.

35.3.19 OCILCRSCNToPosition()

Converts an SCN to a position.

Purpose

The generated position can be passed as the last_position to OCIXStreamOutAttach() to filter the LCRs with commit SCN less than the given SCN and the LCR's SCN less than the given SCN. Therefore, the first LCR sent by the outbound server is either:

  • A commit LCR at the given SCN, or

  • The first LCR of the subsequent transaction with commit SCN greater than or equal to the given SCN.

Syntax

sword OCILCRSCNToPosition ( OCISvcCtx  *svchp,
                            OCIError   *errhp,
                            ub1        *position,
                            ub2        *position_len,
                            OCINumber  *scn,
                            ub4         mode );

Parameters

svchp (IN)

OCI service context.

errhp (IN)

OCI error handle.

position (OUT)

The resulting position. You must preallocate OCI_LCR_MAX_POSITION_LEN bytes.

position_len (OUT)

Length of position.

scn (IN)

The SCN to be stored in position.

mode (IN)

Mode flags (Not currently used; used for future extension).

Comments

Returns OCI_SUCCESS if the conversion succeeds, OCI_ERROR otherwise.

This function will return a version 1 LCRID.

An error will be raised if the SCN value is larger than the maximum value.

35.3.20 OCILCRScnToPosition2()

Converts SCN to position (LCRID), which can handle both version 1 and version 2.

Purpose

Converts SCN to position (LCRID) for either version 1 or version 2.

Syntax

sword OCILCRSCNToPosition2(OCISvcCtx  *svchp,
                           OCIError   *errhp,
                           ub1        *position,
                           ub2        *position_len,
                           OCINumber  *scn,
                           ub1         version,
                           ub4         mode);

Parameters

svchp (IN)

The OCI service context.

errhp (IN)

The OCI Error handle.

position (OUT)

The result position value (in the specified version) returned. The memory must be preallocated.

position_len (OUT)

The length of position.

scn (IN)

The SCN value to be stored in position.

version (IN)

The version to which to convert the LCRID value. A value of 1 should be specified for version 1. A value of 2 should be specified for version 2.

#define  OCI_LCRID_V1       1
#define  OCI_LCRID_V2       2
mode (IN)

The mode flags (Not currently used; used for future extension)..

Returns

OCI_SUCCESS if the conversion is successful, OCI_ERROR otherwise.

Usage Notes

If version 1 is specified, and the SCN value is larger than the maximum value, then an error will be raised.

The given SCN value is assumed to be the commit SCN value.

35.3.21 OCILCRWhereClauseGet()

Gets the WHERE clause statement for the given row LCR.

Purpose

Gets the WHERE clause statement for the given row LCR.

Syntax

sword OCILCRWhereClauseGet ( OCISvcCtx  *svchp,
                             OCIError   *errhp,
                             oratext    *wc_stmt,
                             ub4        *wc_stmt_len,
                             void       *row_lcrp,
                             ub4         mode );

Parameters

svchp (IN/OUT)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

wc_stmt (OUT)

SQL statement equivalent to the LCR.

wc_stmt_len (IN/OUT)

Length of the wc_stmt buffer.

row_lcrp (IN)

Row LCR to be converted to SQL.

mode (IN)

Mode flags used for future expansion. Specify OCI_DEFAULT.

Comments

The WHERE clause generated for an INSERT LCR has all the columns that are being inserted. This WHERE clause could be used to identify the inserted row after it is inserted, for example, like "returning ROWID".

INSERT INTO TAB(COL1) VALUES (10) -> WHERE COL1=10

The WHERE clause generated for UPDATE has all the columns in the old column list. However, the values of the columns are that of the new value if it exists in the new column list of the UPDATE. If the column does not have a new value, then the old column value is used.

UPDATE TAB SET COL1 = 10 WHERE COL1 = 20 -> WHERE COL1 = 10
UPDATE TAB SET COL2 = 20 WHERE COL1 = 20 -> WHERE COL1 = 20

The WHERE clause for DELETE uses the columns and values from the old column list.

LOB piecewise operations use the new columns and values for generating the WHERE clause.

Returns

OCI_SUCCESS or OCI_ERROR.

35.3.22 OCILCRWhereClauseWithBindVarGet()

Gets the WHERE clause statement with bind variables for the given row LCR.

Purpose

Gets the WHERE clause statement with bind variables for the given row LCR.

Syntax

sword OCILCRWhereClauseWithBindVarGet ( OCISvcCtx  *svchp,
                                        OCIError   *errhp,
                                        oratext    *wc_stmt,
                                        ub4        *wc_stmt_len,
                                        ub2        *num_bind_var,
                                        ub2        *bind_var_dtyp,
                                        void       **bind_var_valuesp,
                                        OCIInd     *bind_var_indp,
                                        ub2        *bind_var_alensp,
                                        ub2        *bind_var_csetidp,
                                        ub1        *bind_var_csetfp,
                                        void       *row_lcrp,
                                        ub2         array_size,
                                        oratext    *bind_var_syntax,
                                        ub4         mode );

Parameters

svchp (IN/OUT)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

wc_stmt (OUT)

SQL statement equivalent to the LCR.

wc_stmt_len (IN/OUT)

Length of the wc_stmt buffer.

num_bind_var (OUT)

Number of bind variables.

bind_var_dtyp (OUT)

Array of data types of bind variables.

bind_var_valuesp (OUT)

Array of values of bind variables.

bind_var_indp (OUT)

Array of NULL indicators of bind variables.

bind_var_alensp (OUT)

Array of lengths of bind values.

bind_var_csetidp (OUT)

Array of char set IDs of binds.

bind_var_csetfp (OUT)

Array of char set forms of binds.

row_lcrp (IN)

Row LCR to be converted to SQL.

array_size (IN)

Size of the array of bind values.

bind_var_syntax (IN)

Native syntax to be used for binds.

mode (IN)

Mode flags for future expansion. Specify OCI_DEFAULT.

Comments

If array_size is not large enough to accommodate the number of columns in the requested column list, then OCI_ERROR is returned. The expected array_size is returned through the num_bind_var parameter.

bind_var_syntax for Oracle Database should contain (:). This generates positional binds such as :1, :2, :3, and so on. For non-Oracle databases input the string that must be used for binds.

The WHERE clause generated for INSERT LCR has all the columns that are being inserted. This WHERE clause can identify the inserted row after it is inserted, for example, like "returning ROWID".

INSERT INTO TAB(COL1) VALUES (10) -> WHERE COL1=10

The WHERE clause generated for UPDATE has all the columns in the old column list. However, the values of the columns are that of the new column value of the column if it exists in the new values of the UPDATE. If the column appears only in the old column, then the old column value is used.

UPDATE TAB SET COL1 = 10 WHERE COL1 = 20 -> WHERE COL1 = 10
UPDATE TAB SET COL2 = 20 WHERE COL1 = 20 -> WHERE COL1 = 20

The WHERE clause for DELETE uses the columns and values from the old column list.

LOB piecewise operations use the new columns and values for generating the WHERE clause.

Returns

OCI_SUCCESS or OCI_ERROR.

35.3.23 OCIXStreamInAttach()

Attaches to an inbound server.

Purpose

The client application must connect to the database using a dedicated connection.

Syntax

sword OCIXStreamInAttach ( OCISvcCtx  *svchp,
                           OCIError   *errhp,
                           oratext    *server_name,
                           ub2         server_name_len,
                           oratext    *source_name,
                           ub2         source_name_len,
                           ub1        *last_position,
                           ub2        *last_position_len,
                           ub4         mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

server_name (IN)

XStream inbound server name.

server_name_len (IN)

Length of the XStream inbound server name.

source_name (IN)

Source name to identify the data source.

source_name_len (IN)

Source name length.

last_position (OUT)

Last position received by inbound server. Optional. If specified, then you must preallocate OCI_LCR_MAX_POSITION_LEN bytes for the return value.

last_position_len (OUT)

Length of last_position. Must be non-NULL if last_position is non-NULL.

mode (IN)

OCIXSTREAM_IN_ATTACH_RESTART_INBOUND - If this mode is specified, then this function can notify the server to restart the inbound server regardless of whether it is in a disabled or aborted state. If you do not pass in this mode and the inbound server is in an aborted state when this call is made, then the function returns an error.

Comments

The name of the inbound server must be provided because multiple inbound servers can be configured in one Oracle instance. This function returns OCI_ERROR if any error is encountered while attaching to the inbound server. Only one client can attach to an XStream inbound server at any time. An error is returned if multiple clients attempt to attach to the same inbound server or if the same client attempts to attach to multiple inbound servers concurrently.

This function returns the last position received by the inbound server. Having successfully attached to the server, the client should resume sending LCRs with positions greater than this last_position since the inbound server discards all LCRs with positions less than or equal to the last_position.

Returns either OCI_SUCCESS or OCI_ERROR status code.

35.3.24 OCIXStreamInDetach()

Detaches from the inbound server.

Purpose

Detaches from the inbound server.

Syntax

sword OCIXStreamInDetach ( OCISvcCtx  *svchp,
                           OCIError   *errhp,
                           ub1        *processed_low_position,
                           ub2        *processed_low_position_len,
                           ub4         mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

processed_low_position (OUT)

The server's processed low position.

processed_low_position_len (OUT)

Length of processed_low_position.

mode (IN)

Specify OCI_DEFAULT.

Comments

You must pass in a preallocated buffer for the position argument. The maximum length of this buffer is OCI_LCR_MAX_POSITION_LEN. This position is exposed in DBA_XSTREAM_INBOUND_PROGRESS view

This call returns the server's processed low position. If this function is invoked while a OCIXStreamInLCRSend() call is in progress, then it immediately terminates that call before detaching from the inbound server.

Returns either OCI_SUCCESS or OCI_ERROR status code.

35.3.25 OCIXStreamInLCRSend()

Sends an LCR stream from the client to the attached inbound server.

Purpose

To avoid a network round-trip for every OCIXStreamInLCRSend() call, the connection is tied to this call and terminates the call after an ACK interval since the LCR stream is initiated to the server.

Syntax

sword OCIXStreamInLCRSend ( OCISvcCtx   *svchp,
                            OCIError    *errhp,
                            void        *lcrp,
                            ub1          lcrtype,
                            oraub8       flag,
                            ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

lcrp (IN)

Pointer to the new LCR to send. It cannot be NULL.

lcrtype (IN)

LCR type. Either of:

#define OCI_LCR_XROW
#define OCI_LCR_XDDL
flag (IN)

If bit OCI_XSTREAM_MORE_ROW_DATA (0x01) is set, then LCR contains more chunk data. You must call OCIXStreamInChunkSend() before calling OCIXStreamInLCRSend() again.

mode (IN)

Specify OCI_DEFAULT.

Comments

Return codes are:

  • OCI_STILL_EXECUTING means that the current call is still in progress. The connection associated with the specified service context handle is still tied to this call for streaming the LCRs to the server. An error is returned if you attempt to use the same connection to execute any OCI calls that require database round-trip, for example, OCIStmtExecute(), OCIStmtFetch(), OCILobRead(), and so on. OCILCR* calls are local calls; thus, they are valid while this call is in progress.

  • OCI_SUCCESS means the current call is completed. You can execute OCIStmt*, OCILob*, and so on from the same service context.

  • OCI_ERROR means this call encounters some errors. Use OCIErrorGet() to obtain information about the error.

Related Topics

35.3.26 OCIXStreamInLCRCallbackSend()

Sends an LCR stream to the attached inbound server.

Purpose

You must specify a callback to construct each LCR for streaming. If some LCRs contain chunk data, then a second callback must be provided to create each chunk data.

Syntax

sword OCIXStreamInLCRCallbackSend (
          OCISvcCtx                       *svchp,
          OCIError                        *errhp,
          OCICallbackXStreamInLCRCreate    createlcr_cb,
          OCICallbackXStreamInChunkCreate  createchunk_cb,
          void                            *usrctxp,
          ub4                              mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

createlcr_cb (IN)

Client callback procedure to be invoked to generate an LCR for streaming. Cannot be NULL.

createchunk_cb (IN)

Client callback procedure to be invoked to create each chunk. Can be NULL if you do not need to send any LCR with LOB or LONG or XMLType columns. OCI_ERROR is returned if this argument is NULL and you attempt to send an LCR with additional chunk data.

usrctxp (IN)

User context to pass to both callback functions.

mode (IN)

Specify OCI_DEFAULT fore now.

Comments

Return code: OCI_ERROR or OCI_SUCCESS.

The createlcr_cb argument must be of type OCICallbackXStreamInLCRCreate:

typedef sb4  (*OCICallbackXStreamInLCRCreate)
              void  *usrctxp, void **lcrp, ub1 *lcrtyp, oraub8 *flag);

Parameters of OCICallbackXStreamInLCRCreate():

usrctxp (IN/OUT)

Pointer to the user context.

lcrp (OUT)

Pointer to the LCR to be sent.

lcrtyp (OUT)

LCR type (OCI_LCR_XROW or OCI_LCR_XDDL).

flag (OUT)

If OCI_XSTREAM_MORE_ROW_DATA is set, then the current LCR has more chunk data.

The input parameter to the callback is the user context. The output parameters are the new LCR, its type, and a flag. If the generated LCR contains additional chunk data, then this flag must have the OCI_XSTREAM_MORE_ROW_DATA (0x01) bit set. The valid return codes from the OCICallbackXStreamInLCRCreate() callback function are OCI_CONTINUE or OCI_SUCCESS. This callback function must return OCI_CONTINUE to continue processing the OCIXStreamInLCRCallbackSend() call. Any return code other than OCI_CONTINUE signals that the client wants to terminate the OCIXStreamInLCRCallbackSend() call immediately. In addition, a NULL LCR returned from the OCICallbackXStreamInLCRCreate() callback function signals that the client wants to terminate the current call.

The createchunk_cb argument must be of type OCICallbackXStreamInChunkCreate:

typedef sb4 (*OCICallbackXStreamInChunkCreate)
void     *usrctxp,
oratext  **column_name,
ub2      *column_name_len,
ub2      *column_dty,
oraub8   *column_flag,
ub2      *column_csid,
ub4      *chunk_bytes,
ub1      **chunk_data,
oraub8   *flag);

The input parameters of the createchunk_cb() procedure are the user context and the information about the chunk.

Parameters of OCICallbackXStreamInChunkCreate():

usrctxp (IN/OUT)

Pointer to the user context.

column_name (OUT)

Column name of the current chunk.

column_name_len (OUT)

Length of the column name.

column_name_dty (OUT)

Chunk data type (SQLT_CHR or SQLT_BIN).

column_flag (OUT)

See Comments in OCIXStreamInChunkSend().

column_csid (OUT)

Column character set ID. Relevant only if the column is an XMLType column (that is, column_flag has the OCI_LCR_COLUMN_XML_DATA bit set).

chunk_bytes (OUT)

Chunk data length in bytes.

chunk_data (OUT)

Chunk data pointer.

flag (OUT)

If OCI_XSTREAM_MORE_ROW_DATA is set, then the current LCR has more chunk data.

The OCIXStreamInLCRCallbackSend() function invokes the createlcr_cb() procedure to obtain each LCR to send to the server. If the return flag from the createlcr_cb() procedure has the OCI_XSTREAM_MORE_ROW_DATA bit set, then it invokes the createchunk_cb() procedure to obtain each chunk. It repeatedly calls the createchunk_cb() procedure while the flag returned from this callback has the OCI_XSTREAM_MORE_ROW_DATA bit set. When this bit is not set, this function cycles back to invoke the createlcr_cb() procedure to get the next LCR. This cycle is repeated until the createlcr_cb() procedure returns a NULL LCR or when at the transaction boundary after an ACK interval has elapsed since the call began.

The valid return codes from the OCICallbackXStreamInChunkCreate() callback function are OCI_CONTINUE or OCI_SUCCESS. This callback function must return OCI_CONTINUE to continue processing the OCIXStreamInLCRCallbackSend() call. Any return code other than OCI_CONTINUE signals that the client wants to terminate the OCIXStreamInLCRCallbackSend() call immediately.

Because terminating the current call flushes the network and incurs another network round-trip in the next call, you must avoid returning a NULL LCR immediately when there is no LCR to send. Doing this can greatly reduce network throughput and affect performance. During short idle periods, you can add some delays in the callback procedure instead of returning a NULL LCR immediately to avoid flushing the network too frequently.

Figure 35-1 shows the execution flow of the OCIXStreamInLCRCallbackSend() function.

Figure 35-1 Execution Flow of the OCIXStreamInLCRCallbackSend() Function

Description of Figure 35-1 follows
Description of "Figure 35-1 Execution Flow of the OCIXStreamInLCRCallbackSend() Function"

* While OCI_XSTREAM_MORE_ROW_DATA is set

Description of Figure 35-1:

  • At 1, the user invokes the OCIXStreamInLCRCallbackSend() providing two callbacks. This function initiates an LCR inbound stream to the server.

  • At 2, this function invokes the createlcr_cb() procedure to get an LCR from the callback to send to the server. If the return LCR is NULL, then this function exits.

  • If the flag from 2 indicates the current LCR has more data (that is, the OCI_XSTREAM_MORE_ROW_DATA bit is set), then this function proceeds to 3; otherwise, it loops back to 2 to get the next LCR.

  • At 3, this function invokes createchunk_cb() to get the chunk data to send to the server. If the flag from this callback has the OCI_XSTREAM_MORE_ROW_DATA bit set, then it repeats 3; otherwise, it loops back to 2 to get the next LCR from the user. If any callback function returns any values other than OCI_CONTINUE, then the OCIXStreamInLCRCallbackSend() call terminates.

    Following is a sample client pseudocode snippet for callback mode (error checking is not included for simplicity):

    main
    {
       /* Attach to inbound server */
       OCIXStreamInAttach();

       /* Get the server's processed low position to determine
        * the position of the first LCR to generate.
        */
       OCIXStreamInProcessedLWMGet(&lwm);

       while (TRUE)
       {
          /* Initiate LCR inbound stream */
          OCIXStreamInLCRCallbackSend(createlcr_cb, createchunk_cb);

          OCIXStreamInProcessedLWMGet(&lwm);

          if (some terminating condition)
             break;
       }
       OCIXStreamInDetach(&lwm);
    }


    createlcr_cb (IN usrctx, OUT lcr, OUT flag)
    {
       if (have more LCRs to send)
       {
          /* construct lcr */
          OCILCRHeaderSet(lcr);
          OCILCRRowColumnInfoSet(lcr);

          if (lcr has LOB | LONG | XMLType columns)
             Set OCI_XSTREAM_MORE_ROW_DATA flag;

          if (lcr is LOB_ERASE | LOB_TRIM | LOB_WRITE)
             OCILCRLobInfoSet(lcr);
       }
       else if (idle timeout expires)
       {
          lcr = null;
       }
    }

    createchunk_cb (IN usrctx, OUT chunk, OUT flag)
    {
       /* set col_name, col_flag, chunk data, and so on */
       construct_chunk;

       if (last chunk of current column)
       {
          set col_flag |= OCI_LCR_COLUMN_LAST_CHUNK;

          if (last column)
             clear OCI_XSTREAM_MORE_ROW_DATA flag;
       }
    }

Related Topics

35.3.27 OCIXStreamInProcessedLWMGet()

Gets the local processed low position that is cached at the client.

Purpose

This function can be called anytime while the client is attached to an XStream inbound server. Clients, using the callback mode to stream LCRs to the server (see OCIXStreamInLCRCallbackSend()), can invoke this function while in the callback procedures.

Syntax

sword OCIXStreamInProcessedLWMGet ( OCISvcCtx  *svchp,
                                    OCIError   *errhp,
                                    ub1        *processed_low_position,
                                    ub2        *processed_low_position_len,
                                    ub4         mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

processed_low_position (OUT)

The processed low position maintained at the client.

processed_low_position_len (OUT)

Length of processed_low_position.

mode (IN)

Specify OCI_DEFAULT.

Comments

After attaching to an XStream inbound server, a local copy of the server's processed low position (see OCIXStreamOutProcessedLWMSet()) is cached at the client. This local copy is refreshed with the server's low position when each of the following calls returns OCI_SUCCESS:

  • OCIXStreamInAttach()

  • OCIXStreamInLCRSend()

  • OCIXStreamInLCRCallbackSend()

  • OCIXStreamInFlush()

Return code: OCI_ERROR or OCI_SUCCESS.

You must pass in a preallocated buffer for the position argument. The maximum length of this buffer is OCI_LCR_MAX_POSITION_LEN. This position is exposed in the DBA_XSTREAM_INBOUND_PROGRESS view.

The client can use this position to periodically purge the logs used to generate the LCRs at or below this position.

35.3.28 OCIXStreamInErrorGet()

Returns the first error encountered by the inbound server since attaching to it.

Purpose

Returns the first error encountered by the inbound server since the OCIXStreamInAttach() call.

Syntax

sword OCIXStreamInErrorGet ( OCISvcCtx *svchp,
                             OCIError  *errhp,
                             sb4       *errcodep,
                             oratext   *msgbuf,
                             ub2        msg_bufsize,
                             ub2       *msg_len,
                             oratext   *txn_id,
                             ub2        txn_id_bufsize,
                             ub2       *txn_id_len );

Parameters

svchp (IN/OUT)

OCI service handle.

errhp (IN/OUT)

Error Handle.

errcodep (OUT)

Error code.

msgbuf (IN/OUT)

Preallocated message buffer.

msg_bufsize (IN)

Message buffer size.

msg_len (OUT)

Length of returned error message.

txn_id (IN/OUT)

Preallocated transaction ID buffer.

txn_id_bufsize (IN)

The transaction ID buffer size.

txn_id_len (OUT)

Length of the returned transaction ID.

Comments

The maximum size for the returned transaction ID is OCI_LCR_MAX_TXID_LEN. If the allocated buffer for txn_id is too small, then this routine returns ORA-29258. The maximum size for the returned error msg is OCI_ERROR_MAXMSG_SIZE. If the allocated size for msgbuf is too small, then the returned message is truncated.

35.3.29 OCIXStreamInFlush()

Used to flush the network while attaching to an XStream inbound server.

Purpose

It terminates any in-progress OCIXStreamInLCRSend() call associated with the specified service context.

Syntax

sword OCIXStreamInFlush ( OCISvcCtx    *svchp,
                          OCIError     *errhp,
                          ub4           mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

mode (IN)

OCIXSTREAM_IN_FLUSH_WAIT_FOR_COMPLETE - If this mode is specified, then this function flushes the network, and then waits for all complete and rollback transactions that have been sent to the inbound server to complete before returning control to the client.

Comments

Return code: OCI_ERROR or OCI_SUCCESS.

Each call incurs a database round-trip to get the server's processed low position, which you can retrieve afterward using OCIXStreamInProcessedLWMGet(). Call this function only when there is no LCR to send to the server and the client wants to know the progress of the attached inbound server.

This call returns OCI_ERROR if it is invoked from the callback functions of OCIXStreamInLCRCallbackSend().

35.3.30 OCIXStreamInChunkSend()

Sends a chunk to the inbound server.

Purpose

This function is valid during the execution of the OCIXStreamInLCRSend() call.

Syntax

sword OCIXStreamInChunkSend (  OCISvcCtx   *svchp,
                               OCIError    *errhp,
                               oratext     *column_name,
                               ub2          column_name_len,
                               ub2          column_dty,
                               oraub8       column_flag,
                               ub2          column_csid,
                               ub4          chunk_bytes,
                               ub1         *chunk_data,
                               oraub8       flag,
                               ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

column_name (IN)

Name of column associated with the given data. Column name must be canonicalized and must follow Oracle Database naming convention.

column_name_len (IN)

Length of column name.

column_dty (IN)

LCR chunk data type (must be SQLT_CHR or SQLT_BIN). See Table 35-5.

column_flag (IN)

Column flag. (See Comments for valid column flags.) Must specify OCI_LCR_COLUMN_LAST_CHUNK for the last chunk of each LOB or LONG or XMLType column.

column_csid (IN)

Column character set ID. This is required only if the column_flag has OCI_LCR_COLUMN_XML_DATA bit set.

chunk_bytes (IN)

Chunk data length in bytes.

chunk_data (IN)

Pointer to column data chunk. If the column is NCLOB or varying width CLOB, then the input chunk data must be in AL16UTF16 format. The chunk data must be in the character set defined in Table 35-5.

flag (IN)

If OCI_XSTREAM_MORE_ROW_DATA (0x01) bit is set, then the current row change contains more data. You must clear this bit when sending the last chunk of the current LCR.

mode (IN)

Specify OCI_DEFAULT.

Comments

You can call OCIXStreamInChunkSend() to send a chunk of large argument data for a procedure LCR to the XStream Inbound server.

The following LCR column flags can be combined using bitwise OR operator.

#define OCI_LCR_COLUMN_LOB_DATA     /* column contains LOB data */
#define OCI_LCR_COLUMN_LONG_DATA    /* column contains long data */
#define OCI_LCR_COLUMN_EMPTY_LOB    /* column has an empty LOB  */
#define OCI_LCR_COLUMN_LAST_CHUNK   /* last chunk of current column */
#define OCI_LCR_COLUMN_AL16UTF16    /* column is in AL16UTF16 fmt */
#define OCI_LCR_COLUMN_NCLOB        /* column has NCLOB data */
#define OCI_LCR_COLUMN_XML_DATA     /* column contains xml data */
#define OCI_LCR_COLUMN_XML_DIFF     /* column contains xmldiff data */
#define OCI_LCR_COLUMN_ENCRYPTED    /* column is encrypted */
#define OCI_LCR_COLUMN_UPDATED      /* col is updated */
#define OCI_LCR_COLUMN_32K_DATA     /* col contains 32K data */
#define OCI_LCR_COLUMN_OBJECT_DATA  /* col contains object data in xml format */

In Streams, LOB, LONG, or XMLType column data is broken up into multiple chunks. For a row change containing columns of these data types, its associated LCR only contains data for the other column types. All LOB, LONG or XMLType columns are either represented in the LCR as NULL or not included in the LCR as defined in Table 35-4.

OCILCRRowColumnInfoSet() is provided to generate a list of scalar columns in an LCR. For LOB, LONG, and XMLType columns, OCIXStreamInChunkSend() is provided to set the value of each chunk in a column. For a large column, this function can be invoked consecutively multiple times with smaller chunks of data. The XStream inbound server can assemble these chunks and apply the accumulated change to the designated column.

The LCR of a row change must contain all the scalar columns that can uniquely identify a row at the apply site. Table 35-4 describes the required column list in each LCR for each DML operation.

Table 35-4 Required Column List in the First LCR

Command Type of the First LCR of a Row Change Columns Required in the First LCR

INSERT

The NEW column list must contain all non-NULL scalar columns. All LOB, XMLType, and LONG columns with chunk data must be included in this NEW column list. Each must have NULL value and OCI_LCR_COLUMN_EMPTY_LOB flag specified.

UPDATE

The OLD column list must contain the key columns.

The NEW column list must contain all updated scalar columns. All LOB, XMLType, and LONG columns with chunk data must be included in this NEW column list. Each must have NULL value and OCI_LCR_COLUMN_EMPTY_LOB flag specified.

DELETE

The OLD column list must contain the key columns.

LOB_WRITE, LOB_TRIM, LOB_ERASE

The NEW column list must contain the key columns and the modified LOB column.

After constructing each LCR, you can call OCIXStreamInLCRSend() to send that LCR. Afterward, OCIXStreamInChunkSend() can be called repeatedly to send the chunk data for each LOB or LONG or XMLType column in that LCR. Sending the chunk value for different columns cannot be interleaved. If a column contains multiple chunks, then this function must be called consecutively using the same column name before proceeding to a new column. The ordering of the columns is irrelevant.

When invoking this function, you must pass OCI_XSTREAM_MORE_ROW_DATA as the flag argument if there is more data for the current LCR. When sending the last chunk of the current LCR, then this flag must be cleared to signal the end of the current LCR.

This function is valid only for INSERT, UPDATE, and LOB_WRITE operations. Multiple LOB, LONG, or XMLType columns can be specified for INSERT and UPDATE, while only one LOB column is allowed for LOB_WRITE operation.

The following is a sample client pseudocode snippet for non-callback mode (error checking is not included for simplicity):

main
{
   /* Attach to inbound server */
   OCIXStreamInAttach();

   /* Get the server's processed low position to determine
    * the position of the first LCR to generate.
    */
   OCIXStreamInProcessedLWMGet(&lwm);

   while (TRUE)
   {
      flag = 0;
      /* construct lcr */
      OCILCRHeaderSet(lcr);
      OCILCRRowColumnInfoSet(lcr);

      if (lcr has LOB | LONG | XMLType columns)
         set OCI_XSTREAM_MORE_ROW_DATA flag;

      status = OCIXStreamInLCRSend(lcr, flag);

      if (status == OCI_STILL_EXECUTING &&
             (OCI_XSTREAM_MORE_ROW_DATA flag set))
      {
         for each LOB/LONG/XMLType column in row change
         {
            for each chunk in column
            {
               /* set col_name, col_flag, chunk data */
               construct chunk;

               if (last chunk of current column)
                   col_flag |= OCI_LCR_COLUMN_LAST_CHUNK;

               if (last chunk of last column)
                  clear OCI_XSTREAM_MORE_ROW_DATA flag;

               OCIXStreamInChunkSend(chunk, col_flag, flag);
            }
         }
      }
      else if (status == OCI_SUCCESS)
      {
         /* get lwm when SendLCR call ends successfully. */
         OCIXStreamInProcessedLWMGet(&lwm);
      }

      if (some terminating_condition)
        break;
   }

   OCIXStreamInDetach();
}

35.3.31 OCIXStreamInCommit()

Commits the given transaction.

Purpose

This function lets the client notify the inbound server about a transaction that has been executed by the client rather than by the server. So that if the same transaction is retransmitted during apply restart, it is ignored by the inbound server. A commit LCR must be supplied for the inbound server to extract the transaction ID and the position of the commit.

Syntax

sword OCIXStreamInCommit ( OCISvcCtx *svchp,
                           OCIError  *errhp,
                           void      *lcrp,
                           ub4        mode );

Parameters

svchp (IN/OUT)

OCI service handle.

errhp (IN/OUT)

Error Handle to which errors should be reported.

lcrp (IN)

Pointer to the LCR to send. Must be a commit LCR.

mode (IN)

Mode flags. Not used currently; used for future extension.

Comments

The position of the input LCR must be higher than DBA_XSTREAM_INBOUND_PROGRESS.APPLIED_HIGH_POSITION, and the LCR's source database must match DBA_APPLY_PROGRESS.SOURCE_DATABASE of the attached inbound server.

If there is any pre-commit handler defined, it is executed when this commit LCR is executed.

Assume a sample use case in which a situation where the inbound server does not support certain data types, but the client can do the work directly. The client performs the transaction changes directly to the database and then invokes the OCIXStreamInCommit() to commit the transaction by way of the inbound server. Note that the client should not directly commit the transaction itself. Rather, the transaction changes are committed with this command (OCIXStreamInCommit()) so that the transaction is atomic. Thus, if the inbound server becomes disabled during the client transaction, then the entire transaction is correctly rolled back.

35.3.32 OCIXStreamInSessionSet()

Sets session attributes for XStream In functions.

Purpose

Sets session attributes for XStream In functions.

Syntax

sword OCIXStreamInSessionSet(OCISvcCtx   *svchp,
                             OCIError    *errhp,
                             oratext     *attribute_name,
                             ub2          attribute_name_len,
                             void        *attribute_value,
                             ub2          attribute_value_len,
                             ub2          attribute_dty,
                             ub4          mode);

Parameters

svchp (IN)

Service handle context.

errhp (IN)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

attribute_name (IN)

An attribute name.

Valid values for attribute_name are:

#define  OCIXSTREAM_ATTR_ATTACH_TIMEOUT "ATTACH_TIMEOUT_SECS"
#define  OCIXSTREAM_ATTR_MAX_ATTACH_RETRIES "MAX_ATTACH_RETRIES"
attribute_name_len (IN)

An attribute name length.

The maximum value for attribute_name_len is OCIXSTREAM_SESSION_SET_MAX_PARAM_LEN:
#define  OCIXSTREAM_SESSION_SET_MAX_PARAM_LEN   128
attribute_value (IN)

The attribute value.

attribute_value_len (IN)

The attribute value length.

The maximum value for attribute_value_len is 128.

attribute_dty (IN)

Pointer to an array of attribute data types. The only valid value for attribute_dty is DTYUB2. An error is returned if you try a data type other than DTYUB2 for ATTACH_TIMEOUT_SECS and MAX_ATTACH_RETRIES.

mode (IN)

Specify OCI_DEFAULT.

Comments

You must invoke OCIXStreamInSessionSet() before calling OCIXStreamInAttach().

Returns

OCI_SUCCESS if successful, otherwise OCI_ERROR.

35.3.33 OCIXStreamOutAttach()

Attaches to an XStream outbound server.

Purpose

The client application must connect to the database using a dedicated connection.

Syntax

sword OCIXStreamOutAttach ( OCISvcCtx   *svchp,
                            OCIError    *errhp,
                            oratext     *server_name,
                            ub2          server_name_len,
                            ub1         *last_position,
                            ub2          last_position_len,
                            ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

server_name (IN)

XStream outbound server name.

server_name_len (IN)

Length of XStream outbound server name.

last_position (IN)

Position to the last received LCR. Can be NULL.

last_position_len (IN)

Length of last_position.

mode (IN)

OCIXSTREAM_OUT_ATTACH_APP_FREE_LCR - If this mode is specified, then the application is in charge of freeing the LCRs from the outbound server.

OCIXSTREAM_OUT_ATTACH_APP_CONTAINER - If this mode is specified, then the application is capturing application container statements (ALTER PLUGGABLE DATABASE APPLICATIONS LCRs). The XStream application should set this mode option if it is intending to replicate ALTER PLUGGABLE DATABASE APPLICATIONS LCRs to other application containers.

OCIXSTREAM_OUT_ATTACH_EXTENDED_TXID - If this mode is specified, then the application is making a request for extended transaction ID format. The typical transaction ID format is xidusn.xidslt.xidsqn. The extended transaction ID format is pdbuid.xidusn.xidslt.xidsqn. Use this mode if the XStream Out server is configured to capture changes from multiple containers and the source database has local undo mode enabled.

Comments

The OCIEnv environment handle must be created with OCI_OBJECT mode, and the service context must be in a connected state to issue this function. This function does not support nonblocking mode. It returns either the OCI_SUCCESS or OCI_ERROR status code.

The name of the outbound server must be provided because multiple outbound servers can be configured in one Oracle Database instance. This function returns OCI_ERROR if it encounters any error while attaching to the outbound server. Only one client can attach to an XStream outbound server at any time. An error is returned if multiple clients attempt to attach to the same outbound server or if the same client attempts to attach to multiple outbound servers using the same service handle.

The last_position parameter is used to establish the starting point of the stream. This call returns OCI_ERROR if the specified position is non-NULL and less than the server's processed low position (see OCIXStreamOutProcessedLWMSet()); otherwise, LCRs with positions greater than the specified last_position are sent to the user.

If the last_position is NULL, then the stream starts from the processed low position maintained in the server.

35.3.34 OCIXStreamOutDetach()

Detaches from the outbound server.

Purpose

Detaches from the outbound server.

Syntax

sword OCIXStreamOutDetach ( OCISvcCtx   *svchp,
                            OCIError    *errhp,
                            ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle that you can pass to OCIErrorGet() for diagnostic information in case of an error.

mode (IN)

Specify OCI_DEFAULT.

Comments

This function sends the current local processed low position to the server before detaching from the outbound server. The outbound server automatically restarts after this call. This function returns OCI_ERROR if it is invoked while a OCIXStreamOutReceive() call is in progress.

35.3.35 OCIXStreamOutLCRReceive()

Receives an LCR, including a procedure LCR, from an outbound stream.

Purpose

If an LCR is available, then this function immediately returns that LCR. The duration of each LCR is limited to the interval between two successive OCIXStreamOutLCRReceive() calls. When there is no LCR available in the stream, this call returns a NULL LCR after an idle timeout.

Syntax

sword OCIXStreamOutLCRReceive ( OCISvcCtx     *svchp,
                                OCIError      *errhp,
                                void         **lcrp,
                                ub1           *lcrtype,
                                oraub8        *flag,
                                ub1           *fetch_low_position,
                                ub2           *fetch_low_position_len,
                                ub4            mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

lcrp (OUT)

Pointer to the LCR received from the stream; can include a procedure LCR. If there is an available LCR, then this LCR is returned with status code OCI_STILL_EXECUTING. When the call ends, a NULL LCR is returned with status code OCI_SUCCESS.

lcrtype (OUT)

This value is valid only when lcrp is not NULL.

flag (OUT)

Return flag. If bit OCI_XSTREAM_MORE_ROW_DATA (0x01) is set, then this LCR has more data. You must use OCIXStreamOutReceiveChunk() function to get the remaining data.

fetch_low_position (OUT)

XStream outbound server's fetch low position. This value is returned only when the return code is OCI_SUCCESS. Optional. If non-NULL, then you must preallocate OCI_LCR_MAX_POSITION_LEN bytes for the return value.

fetch_low_position_len (OUT)

Length of fetch_low_position.

mode (IN)

Specify OCI_DEFAULT.

Comments

To avoid a network round-trip for every OCIXStreamOutLCRReceive() call, the connection is tied to this call and allows the server to fill up the network buffer with LCRs so subsequent calls can quickly receive the LCRs from the network. The server ends each call at the transaction boundary after an ACK interval elapses since the call began. When there is no LCR in the stream, the server ends the call after the idle timeout elapses.

Return codes:

  • OCI_STILL_EXECUTING means that the current call is still in progress. The connection associated with the specified service context handle is still tied to this call for streaming the LCRs from the server. An error is returned if you attempt to use the same connection to execute any OCI calls that require database round-trip, for example, OCIStmtExecute(), OCIStmtFetch(), OCILobRead(), and so on. OCILCR* calls do not require round-trips; thus, they are valid while the call is in progress.

  • OCI_SUCCESS means that the current call is completed. You are free to execute OCIStmt*, OCILob*, and so on from the same service context.

  • OCI_ERROR means the current call encounters some errors. Use OCIErrorGet() to obtain information about the error.

This call always returns a NULL LCR when the return code is OCI_SUCCESS. In addition, it returns the fetch low position to denote that the outbound server has received all transactions with commit position lower than or equal to this value.

See Also:

35.3.36 OCIXStreamOutLCRCallbackReceive()

Used to get the LCR stream from the outbound server using callbacks.

Purpose

You must supply a callback procedure to be invoked for each LCR received. If some LCRs in the stream may contain LOB or LONG or XMLType columns, then a second callback must be supplied to process each chunk (see OCIXStreamOutChunkReceive()).

Syntax

sword OCIXStreamOutLCRCallbackReceive (
           OCISvcCtx                           *svchp,
           OCIError                            *errhp,
           OCICallbackXStreamOutLCRProcess      processlcr_cb,
           OCICallbackXStreamOutChunkProcess    processchunk_cb,
           void                                *usrctxp,
           ub1                                 *fetch_low_position,
           ub2                                 *fetch_low_position_len,
           ub4                                  mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

processlcr_cb (IN)

Callback function to process each LCR received by the client. Cannot be NULL.

processchunk_cb (IN)

Callback function to process each chunk in the received LCR. Can be NULL if you do not expect to receive any LCRs with additional chunk data.

usrctxp (IN)

User context to pass to both callback procedures.

fetch_low_position (OUT)

XStream outbound server's fetch low position (see OCIXStreamOutLCRReceive()). Optional.

fetch_low_position_len (OUT)

Length of fetch_low_position.

mode (IN)

Specify OCI_DEFAULT.

Comments

Return code: OCI_SUCCESS or OCI_ERROR.

The processlcr_cb argument must be of type OCICallbackXStreamOutLCRProcess:

typedef sb4  (*OCICallbackXStreamOutLCRProcess)
               (void  *usrctxp, void *lcrp, ub1 lcrtyp, oraub8 flag);

Parameters of OCICallbackXStreamOutLCRProcess():

usrctxp (IN/OUT)

Pointer to the user context.

lcrp (IN)

Pointer to the LCR just received.

lcrtyp (IN)

LCR type (OCI_LCR_XROW or OCI_LCR_XDDL).

flag (IN)

If OCI_XSTREAM_MORE_ROW_DATA is set, then the current LCR has more chunk data.

The input parameters of the processlcr_cb() procedure are the user context, the LCR just received, its type, and a flag to indicate whether the LCR contains more data. If there is an LCR available, then this callback is invoked immediately. If there is no LCR in the stream, after an idle timeout, then this call ends with OCI_SUCCESS return code.

You can invoke the callback OCICallbackXStreamOutLCRProcess to process procedure LCRs as well.

The valid return codes from the OCICallbackXStreamOutLCRProcess() callback function are OCI_CONTINUE or OCI_SUCCESS. This callback function must return OCI_CONTINUE to continue processing the OCIXStreamOutLCRCallbackReceive() call. Any return code other than OCI_CONTINUE signals that the client wants to terminate OCIXStreamOutLCRCallbackReceive() immediately.

The processchunk_cb argument must be of type OCICallbackXStreamOutChunkProcess:

typedef sb4  (*OCICallbackXStreamOutChunkProcess)
(void        *usrctxp,
oratext      *column_name,
ub2          column_name_len,
ub2          column_dty,
oraub8       column_flag,
ub2          column_csid,
ub4          chunk_bytes,
ub1          *chunk_data,
oraub8       flag );

Parameters of OCICallbackXStreamOutChunkProcess():

usrctxp (IN/OUT)

Pointer to the user context.

column_name (IN)

Column name of the current chunk.

column_name_len (IN)

Length of the column name.

column_name_dty (IN)

Chunk data type (SQLT_CHR or SQLT_BIN).

column_flag (IN)

See Comments in OCIXStreamInChunkSend().

column_csid (IN)

Column character set ID. Relevant only if the column is an XMLType column (that is, column_flag has the OCI_LCR_COLUMN_XML_DATA bit set).

chunk_bytes (IN)

Chunk data length in bytes.

chunk_data (IN)

Chunk data pointer.

flag (IN)

If OCI_XSTREAM_MORE_ROW_DATA is set, then the current LCR has more chunk data.

The input parameters of the processchunk_cb() procedure are the user context, the information about the chunk, and a flag. When the flag argument has the OCI_XSTREAM_MORE_ROW_DATA (0x01) bit set, then there is more data for the current LCR.

The valid return codes from the OCICallbackXStreamOutChunkProcess() callback function are OCI_CONTINUE or OCI_SUCCESS. This callback function must return OCI_CONTINUE to continue processing the OCIXStreamOutLCRCallbackReceive() call. Any return code other than OCI_CONTINUE signals that the client wants to terminate OCIXStreamOutLCRCallbackReceive() immediately.

OCI calls are provided to access each field in the LCR. If the LCR contains only scalar column(s), then the duration of that LCR is limited only to the processlcr_cb() procedure. If the LCR contains some chunk data, then the duration of the LCR is extended until all the chunks have been processed. If you want to access the LCR data at a later time, then a copy of the LCR must be made before it is freed.

As for OCIXStreamOutLCRReceive(), the server ends each call at the transaction boundary after each ACK interval since the call began, or after each idle timeout. The default ACK interval is 30 seconds, and the default idle timeout is one second. See "Server Handle Attributes" to tune these values. This function also returns the fetch low position when the call ends.

Figure 35-2 shows the execution flow of the OCIXStreamOutLCRCallbackReceive() function.

Figure 35-2 Execution Flow of the OCIXStreamOutLCRCallbackReceive() Function

Description of Figure 35-2 follows
Description of "Figure 35-2 Execution Flow of the OCIXStreamOutLCRCallbackReceive() Function"

* While OCI_XSTREAM_MORE_ROW_DATA is set.

Description of Figure 35-2:

  • At 1, the client invokes OCIXStreamOutLCRCallbackReceive() providing two callbacks. This function initiates an LCR outbound stream from the server.

  • At 2, this function receives an LCR from the stream and invokes processlcr_cb() procedure with the LCR just received. It passes OCI_XSTREAM_MORE_ROW_DATA flag to processlcr_cb() if the current LCR has additional data.

  • If the current LCR has no additional chunk, then this function repeats 2 for the next LCR in the stream.

  • At 3, if the current LCR contains additional chunk data, then this function invokes processchunk_cb() for each chunk received with the OCI_XSTREAM_MORE_ROW_DATA flag. This flag is cleared when the callback is invoked on the last chunk of the current LCR.

  • If there is more LCR in the stream, then it loops back to 2. This process continues until the end of the current call, or when there is no LCR in the stream for one second, or if a callback function returns any value other than OCI_CONTINUE.

Here is sample pseudocode for callback mode:

main
{
   /* Attach to outbound server specifying last position */
   OCIXStreamOutAttach(last_pos);

   /* Update the local processed low position */
   OCIXStreamOutProcessedLWMSet(lwm);

   while (TRUE)
   {
      OCIXStreamOutLCRCallbackReceive(processlcr_cb,
                                      processchunk_cb, fwm);

      /* Use fetch low position(fwm)
       * to update processed lwm if applied.
       */

      /* Update the local lwm so it is sent to
       * server during next call.
       */
      OCIXStreamOutProcessedLWMSet(lwm);
      if (some terminating_condition)
         break;
   }
   OCIXStreamOutDetach();
}

processlcr_cb (IN lcr, IN flag)
{
   /* Process the LCR just received */
   OCILCRHeaderGet(lcr);
   OCILCRRowColumnInfoGet(lcr);

   if (lcr is LOB_WRITE | LOB_TRIM | LOB_ERASE)
      OCILCRLobInfoGet(lcr);

   if (OCI_XSTREAM_MORE_ROW_DATA flag set)
      prepare_for_chunk_data;
   else
      process_end_of_row;
}

processchunk_cb (IN chunk, IN flag)
{
   process_chunk;

   if (OCI_XSTREAM_MORE_ROW_DATA flag not set)
      process_end_of_row;
}

35.3.37 OCIXStreamOutProcessedLWMSet()

Updates the local copy of the processed low position.

Purpose

This function can be called anytime between OCIXStreamOutAttach() and OCIXStreamOutDetach() calls. Clients using the callback mechanism to stream LCRs from the server (see OCIXStreamOutLCRCallbackReceive()), can invoke this function while in the callback procedures.

Syntax

sword OCIXStreamOutProcessedLWMSet ( OCISvcCtx  *svchp,
                                     OCIError   *errhp,
                                     ub1        *processed_low_position,
                                     ub2         processed_low_position_len,
                                     ub4         mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

processed_low_position (IN)

The processed low position maintained at the client.

processed_low_position_len (IN)

Length of processed_low_position.

mode (IN)

Specify OCI_DEFAULT.

Comments

The processed low position denotes that all LCRs at or below it have been processed. After successfully attaching to an XStream outbound server, a local copy of the processed low position is maintained at the client. Periodically, this position is sent to the server so that archived redo log files containing already processed transactions can be purged.

Return code: OCI_SUCCESS or OCI_ERROR.

Clients using XStreamOut functions must keep track of the processed low position based on what they have processed and call this function whenever their processed low position has changed. This is done so that a more current value is sent to the server during the next update, which occurs at the beginning of the OCIXStreamOutLCRCallbackReceive() and OCIXStreamDetach() calls. For an OCIXStreamOutLCRReceive() call, the processed low position is sent to the server when it initiates a request to start the outbound stream. It is not sent while the stream is in progress.

You can query the DBA_XSTREAM_OUTBOUND_PROGRESS view to confirm that the processed low position has been saved in the server.

35.3.38 OCIXStreamOutChunkReceive()

Retrieves data of each LOB or LONG or XMLType column one chunk at a time.

Purpose

Allows the client to retrieve the data of each LOB or LONG or XMLType column one chunk at a time.

Syntax

sword OCIXStreamOutChunkReceive ( OCISvcCtx   *svchp,
                                  OCIError    *errhp,
                                  oratext    **column_name,
                                  ub2         *column_name_len,
                                  ub2         *column_dty,
                                  oraub8      *column_flag,
                                  ub2         *column_csid,
                                  ub4         *chunk_bytes,
                                  ub1        **chunk_data,
                                  oraub8      *flag,
                                  ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

column_name (OUT)

Name of the column that has data.

column_name_len (OUT)

Length of the column name.

column_dty (OUT)

Column chunk data type (either SQLT_CHR or SQLT_BIN).

column_flag (OUT)

Column flag. See Comments for valid flags.

column_csid (OUT)

Column character set ID. This is returned only for XMLType column, that is, column_flag has OCI_LCR_COLUMN_XML_DATA bit set.

chunk_bytes (OUT)

Number of bytes in the returned chunk.

chunk_data (OUT)

Pointer to the chunk data in the LCR. The client must not deallocate this buffer since the LCR and its contents are maintained by this function.

flag (OUT)

If OCI_XSTREAM_MORE_ROW_DATA (0x01) is set, then the current LCR has more chunks coming.

mode (IN)

Specify OCI_DEFAULT.

Comments

In Streams, LOB, LONG, or XMLType column data is broken up into multiple LCRs based on how they are stored in the online redo log files. Thus, for a row change containing these columns multiple LCRs may be constructed. The first LCR of a row change contains the column data for all the scalar columns. All LOB or LONG or XMLType columns in the first LCR are set to NULL because their data are sent in subsequent LCRs for that row change. These column data are stored in the LCR as either RAW (SQLT_BIN) or VARCHAR2 (SQLT_CHR) chunks as shown in Table 35-5.

Table 35-5 Storage of LOB or LONG Data in the LCR

Source Column Data Type Streams LCR Data Type Streams LCR Character Set

BLOB

RAW

N/A

Fixed-width CLOB

VARCHAR2

Client Character Set

Varying-width CLOB

RAW

AL16UTF16

NCLOB

RAW

AL16UTF16

XMLType

RAW

Column csid obtained from the chunk

In Streams, LOB, LONG, or XMLType column data is broken up into multiple chunks based on how they are stored in the online redo log files. For a row change containing columns of these data types, its associated LCR only contains data for the other scalar columns. All LOB, LONG, or XMLType columns are either represented in the LCR as NULL or not included in the LCR. The actual data for these columns are sent following each LCR as RAW (SQLT_BIN) or VARCHAR2 (SQLT_CHR) chunks as shown in Table 35-5.

The following LCR column flags can be combined using the bitwise OR operator.

#define OCI_LCR_COLUMN_LOB_DATA     /* column contains LOB data */
#define OCI_LCR_COLUMN_LONG_DATA    /* column contains long data */
#define OCI_LCR_COLUMN_EMPTY_LOB    /* column has an empty LOB  */
#define OCI_LCR_COLUMN_LAST_CHUNK   /* last chunk of current column */
#define OCI_LCR_COLUMN_AL16UTF16    /* column is in AL16UTF16 fmt */
#define OCI_LCR_COLUMN_NCLOB        /* column has NCLOB data */
#define OCI_LCR_COLUMN_XML_DATA     /* column contains xml data */
#define OCI_LCR_COLUMN_XML_DIFF     /* column contains xmldiff data */
#define OCI_LCR_COLUMN_ENCRYPTED    /* column is encrypted */
#define OCI_LCR_COLUMN_UPDATED      /* col is updated */
#define OCI_LCR_COLUMN_32K_DATA     /* col contains 32K data */
#define OCI_LCR_COLUMN_OBJECT_DATA  /* col contains object data in xml format */

Return code: OCI_ERROR or OCI_SUCCESS.

This call returns a NULL column name and NULL chunk data if it is invoked when the current LCR does not contain the LOB, LONG, or XMLType columns. This function is valid only when an OCIXStreamOutLCRReceive() call is in progress. An error is returned if it is called during other times.

If the return flag from OCIXStreamOutLCRReceive() has OCI_XSTREAM_MORE_ROW_DATA bit set, then you must iteratively call OCIXStreamOutChunkReceive() to retrieve all the chunks belonging to that row change before getting the next row change (that is, before making the next OCIXStreamOutLCRReceive() call); otherwise, an error is returned.

Here is sample pseudocode for non-callback mode:

main
{
   /* Attach to outbound server specifying last position */
   OCIXStreamOutAttach(last_pos);

   /* Update the local processed low position */
   OCIXStreamOutProcessedLWMSet(lwm);

   while (TRUE)
   {
      status = OCIXStreamOutLCRReceive(lcr, flag, fwm);

      if (status == OCI_STILL_EXECUTING)
      {
         /* Process LCR just received */
         OCILCRHeaderGet(lcr);
         OCILCRRowColumnInfoGet(lcr);

         while (OCI_XSTREAM_MORE_ROW_DATA flag set)
         {
            OCIXStreamReceiveChunk(chunk, flag, );

            process_chunk;
         }
         process_end_of_row;
      }
      else if (status == OCI_SUCCESS)
      {
         /* Use fetch low position(fwm)
          * to update processed lwm if applied.
          */

         /* Update the local lwm so it is sent to
          * server during next call.
          */
         OCIXStreamOutProcessedLWMSet(lwm);

          if (some terminating_condition)
            break;
       }
   }
   OCIXStreamOutDetach();
}

35.3.39 OCIXStreamOutGetNextChunk()

While in the ProcessLCRStream() callback function, retrieves the next chunk in the current LCR until all chunks are retrieved.

Purpose

While in the ProcessLCRStream() callback function, the client must repeatedly call OCIXStreamOutGetNextChunk() to retrieve all the chunks in the current LCR (that is, until either OCI_ERROR or OCI_SUCCESS is returned). If this is not done, an error will be raised when the callback function ends.

Syntax

sword OCIXStreamOutGetNextChunk ( OCISvcCtx   *svchp,
                                  OCIError    *errhp,
                                  oratext    **column_name,
                                  ub2         *column_name_len,
                                  ub2         *column_dty,
                                  oraub8      *column_flag,
                                  ub4         *rtn_bytes,
                                  ub1        **bufp,
                                  ub4         *op_offset,
                                  ub4         *op_size,
                                  ub4          mode );

Parameters

svchp (IN)

Service handle context.

errhp (IN/OUT)

An error handle you can pass to OCIErrorGet() for diagnostic information in the event of an error.

column_name (OUT)

Name of LOB column which the data belongs to.

column_name_len (OUT)

Length of column name.

column_dty (OUT)

Column data type (either SQLT_CHR or SQLT_BIN).

column_flag (OUT)

Column flag. Valid values are listed in Comments.

rtn_bytes (OUT)

Number of bytes in returned buffer.

bufp (OUT)

Pointer to the LOB chunk data in the LCR. The client should not de-allocate this buffer since the LCR and its contents are maintained by the function.

op_offset (OUT)

LOB operation offset. Optional. Data is not returned if the argument is NULL. Relevant only for LOB_WRITE and LOB_TRIM operation; otherwise, a zero is returned.

op_size (OUT)

LOB operation size. Optional. Data not returned if the argument is NULL. Relevant only for LOB_TRIM and LOB_ERASE operation; otherwise, a zero is returned.

mode (IN)

Specify OCI_DEFAULT for now.

Comments

The OCIEnv environment handle must be created with OCI_OBJECT mode, and the service context must be in connected state to issue this function.

In streams, LOB or LONG column data is broken up into multiple LCRs based on how they are stored in the redo logs. Thus, for a row change containing Re LONG columns, multiple LCRs can be constructed. The first LCR of a row change contains the column data for all the scalar columns. All LOB or LONG columns in the first LCR are set to NULL since their data are sent in subsequent LCRs for that row change. LONG column data is implicitly converted to LOB before the data is sent to the client. LOB or LONG data is stored in the LCR as RAW (SQLT_BIN) or VARCHAR2 (SQLT_CHR) as shown in Table 35-5:

The OCIXStreamOutProcessLCRStream() function allows the client to retrieve the data of each LOB or LONG column one chunk at a time. All the chunks belonging to one column are returned in a contiguous order. Chunk data from one column is returned entirely before switching to the next column. There is no fixed ordering on how the columns are returned. The client should not rely on the ordering of LOB columns but rely on the returned column names.

Invoking OCIXStreamOutGetNextChunk() when the current LCR contains only scalar columns results in a NULL column name, and no data is returned.

The returned column flag provides more information on each chunk data. For example, the flag OCI_LCR_COLUMN_LAST_CHUNK is always returned on the last chunk of each column:

The following flags can specify a column property. Multiples of these flags can be combined using the bitwise OR operator.

#define OCI_LCR_COLUMN_LOB_DATA /* column contains lob data */
#define OCI_LCR_COLUMN_LONG_DATA /* column contains long data */
#define OCI_LCR_COLUMN_EMPTY_LOB /* column has an empty lob */
#define OCI_LCR_COLUMN_LAST_CHUNK /* last chunk of column */
#define OCI_LCR_COLUMN_AL16UTF16 /* column is in AL16UTF16 fmt */
#define OCI_LCR_COLUMN_NCLOB /* column has NCLOB data */
#define OCI_LCR_COLUMN_XML_DATA /* column contains xml data */
#define OCI_LCR_COLUMN_XML_DIFF /* column contains xmldiff */
#define OCI_LCR_COLUMN_ENCRYPTED /* column is encrypted */

During an OCIXStreamOutProcessLCRStream() call, the client provides a callback function that will be invoked each time an LCR is retrieved. For an LCR containing LOB or LONG columns, the first LCR of a row change is passed to this callback function. From within this callback function, the client can repeatedly call OCIXStreamOutGetNextChunk() to retrieve all the chunks for each LOB or LONG column. When this function returns OCI_SUCCESS, it means the client has consumed all the data for the current row change.

While in the ProcessLCRStream callback function the client must repeatedly call OCIXStreamOutGetNextChunk() to retrieve all the chunks in the current LCR (that is, until either OCI_ERROR or OCI_SUCCESS is returned). If this is not done, an error is raised when the callback function ends.

This function is valid only during the duration that the ProcessLCRStream callback function is invoked. An error is raised if it is called during other times.

This function returns the following values:

  • OCI_SUCCESS means that all the data for the current LCR has been retrieved. You can check the returned column and buffer information to access the returned column data.

  • OCI_NEED_DATA means there is more data in the stream for the current LCR. You can check the returned column and buffer information to access the returned column data.

  • OCI_ERROR means there is an error. You can use OCIErrorGet() to get the error code.

Following is a sample client code snippet (error checking is not included for simplicity):

main()
{
...
OCIServerAttach(...); /* Connect to Oracle db */
/* Attach to the outbound server named ‘TT1' */
OCIXStreamOutAttach(...,“TT1", 3, hwm, hwm_len, (OCIDate *)0, OCI_DEFAULT);
/*--------------------------------------------------------
Initialize the LWM by querying the client's system tables
or set to zero and let the outbound server determines the LWM.
--------------------------------------------------------*/
Init_lwm(&lwm);
/*---------------------------------------------------------
ProcessLCR_CB is a callback function to process each LCR (see below).
usrctxp is the user context to be passed to the callback function.
--------------------------------------------------------*/
while (OCIXStreamOutProcessLCRStream(..., lwm, lwm_len,(OCIDate *)0,
       ProcessLCR_CB, usrctxp, 0, OCI_DEFAULT) == OCI_SUCCESS)
{
/* Client maintains LWM. */
Maintain_lwm(&lwm);
...
}
/* detach from the outbound server */
OCIXStreamOutDetach(..., lwm, lwm_len, (OCIDate *)0, OCI_DEFAULT);
}
/* Sample callback routine to OCIXStreamOutProcessLCRStream() */
sb4 ProcessLCR_CB (void *ctxp, void *lcrp, ub1 lcrtyp)
{
/* Get header information for current LCR */
status = OCILCRGetHeader(lcrp,...);
if (status != OCI_SUCCESS)
    handle_error();
if (lcrtype == OCI_LCR_XROW)
  {
   if (OCILcrRowGetColumnInfo(lcrp, ...) != OCI_SUCCESS)
     handle_error();
   process_scalar_columns(...);
   do
   {
     status = OCIXStreamOutGetNextChunk(..., &colname, &colnamelen,
                                        &coldty, &flag, &rtn_bytes,
                                        bufp, ...);
     if (status == OCI_ERROR)
          handle_error();
     process_lob_chunk(...);
   } while (status == OCI_NEED_DATA);
       if (status == OCI_ERROR)
         handle_error();
  }
return OCI_CONTINUE;
}

35.3.40 OCIXStreamOutSessionSet()

Sets session attributes for XStream Out functions.

Purpose

Sets session attributes for XStream Out functions.

Syntax

sword OCIXStreamOutSessionSet(OCISvcCtx   *svchp,
                              OCIError    *errhp,
                              oratext     *attribute_name,
                              ub2          attribute_name_len,
                              void        *attribute_value,
                              ub2          attribute_value_len,
                              ub2          attribute_dty,
                              ub4          mode);

Parameters

svchp (IN)

Service handle context.

errhp (IN)

An error handle you can pass to OCIErrorGet() for diagnostic information in case of an error.

attribute_name (IN)

An attribute name.

Valid values for attribute_name are:

#define  OCIXSTREAM_ATTR_ATTACH_TIMEOUT "ATTACH_TIMEOUT_SECS"
#define  OCIXSTREAM_ATTR_MAX_ATTACH_RETRIES "MAX_ATTACH_RETRIES"
attribute_name_len (IN)

An attribute name length.

The maximum value for attribute_name_len is OCIXSTREAM_SESSION_SET_MAX_PARAM_LEN:
#define  OCIXSTREAM_SESSION_SET_MAX_PARAM_LEN   128
attribute_value (IN)

The attribute value.

attribute_value_len (IN)

The attribute value length.

The maximum value for attribute_value_len is 128.

attribute_dty (IN)

Pointer to an array of attribute data types. The only valid value for attribute_dty is DTYUB2. An error is returned if you try a data type other than DTYUB2 for ATTACH_TIMEOUT_SECS and MAX_ATTACH_RETRIES.

mode (IN)

Specify OCI_DEFAULT.

Comments

You must invoke OCIXStreamOutSessionSet() before calling OCIXStreamOutAttach().

Returns

OCI_SUCCESS if successful, otherwise OCI_ERROR.
