Example 13-2 Using AQ Grouping Notification Attributes in an OCI Notification Callback

ub4 notifyCB1(void *ctx, OCISubscription *subscrhp, void *pay, ub4 payl,
              void *desc, ub4 mode)
{
 oratext            *subname;
 ub4                 size;
 OCIColl            *msgid_array = (OCIColl *)0;
 ub4                 msgid_cnt = 0;
 OCIRaw             *msgid;
 void              **msgid_ptr;
 sb4                 num_msgid = 0;
 void               *elemind = (void *)0;
 boolean             exist;
 ub2                 flags;
 oratext            *hexit = (oratext *)"0123456789ABCDEF";
 ub4                 i, j;

 /* get subscription name */
 OCIAttrGet(subscrhp, OCI_HTYPE_SUBSCRIPTION, (void *)&subname, &size,
            OCI_ATTR_SUBSCR_NAME,ctxptr->errhp);

 /* print subscripton name */
 printf("Got notification for %.*s\n", size, subname);
 fflush((FILE *)stdout);

 /* get the #ntfns received in this group */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY, (void *)&msgid_cnt, &size,
            OCI_ATTR_AQ_NTFN_GROUPING_COUNT, ctxptr->errhp);

 /* get the group - collection of msgids */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY, (void *)&msgid_array, &size,
            OCI_ATTR_AQ_NTFN_GROUPING_MSGID_ARRAY, ctxptr->errhp);

 /* get notification flag - regular, timeout, or grouping notification? */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY, (void *)&flags, &size,
            OCI_ATTR_NFY_FLAGS, ctxptr->errhp);

 /* print notification flag */
 printf("Flag: %d\n", (int)flags);

 /* get group (collection) size */
 if (msgid_array)
   checkerr(ctxptr->errhp,
        OCICollSize(ctxptr->envhp, ctxptr->errhp,
        CONST OCIColl *) msgid_array, &num_msgid),
        "Inside notifyCB1-OCICollSize");
 else
   num_msgid =0;

 /* print group size */
 printf("Collection size: %d\n", num_msgid);

 /* print all msgids in the group */
 for(i = 0; i < num_msgid; i++)
 {
   ub4  rawSize;                                             /* raw size    */
   ub1 *rawPtr;                                              /* raw pointer */
     /* get msgid from group */
   checkerr(ctxptr->errhp,
        OCICollGetElem(ctxptr->envhp, ctxptr->errhp,
               (OCIColl *) msgid_array, i, &exist,
               (void **)(&msgid_ptr), &elemind),
        "Inside notifyCB1-OCICollGetElem");
   msgid = *msgid_ptr;
   rawSize = OCIRawSize(ctxptr->envhp, msgid);
   rawPtr = OCIRawPtr(ctxptr->envhp, msgid);

   /* print msgid size */
   printf("Msgid size: %d\n", rawSize);

   /* print msgid in hexadecimal format */
   for (j = 0; j < rawSize; j++)
   {                                           /* for each byte in the raw */
     printf("%c", hexit[(rawPtr[j] & 0xf0) >> 4]);
     printf("%c", hexit[(rawPtr[j] & 0x0f)]);
   }
   printf("\n");
 }

 /* print #ntfns received in group */
 printf("Notification Count: %d\n", msgid_cnt);
 printf("\n");
 printf("***********************************************************\n");
 fflush((FILE *)stdout);
 return 1;
}

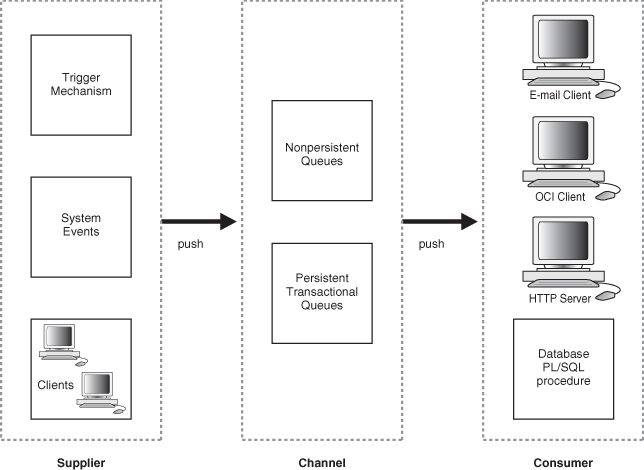

Example 13-3 Implementing a Publish Subscription Notification

----------------------------------------------------------
----create queue table for persistent multiple consumers
----------------------------------------------------------
---- Create or replace a queue table
begin
  DBMS_AQADM.CREATE_QUEUE_TABLE(
  QUEUE_TABLE=>'pubsub.raw_msg_table',
  MULTIPLE_CONSUMERS => TRUE,
  QUEUE_PAYLOAD_TYPE =>'RAW',
  COMPATIBLE => '8.1.5');
end;
/
----------------------------------------------------------
---- Create a persistent queue for publishing messages
----------------------------------------------------------
---- Create a queue for logon events
begin
  DBMS_AQADM.CREATE_QUEUE(QUEUE_NAME=>'pubsub.logon',
  QUEUE_TABLE=>'pubsub.raw_msg_table',
  COMMENT=>'Q for error triggers');
end;
/
----------------------------------------------------------
---- Start the queue
----------------------------------------------------------
begin
  DBMS_AQADM.START_QUEUE('pubsub.logon');
end;
/
----------------------------------------------------------
---- define new_enqueue for convenience
----------------------------------------------------------
create or replace procedure new_enqueue(queue_name  in varchar2,
                                        payload  in raw ,
correlation in varchar2 := NULL,
exception_queue in varchar2 := NULL)
as
  enq_ct     dbms_aq.enqueue_options_t;
  msg_prop   dbms_aq.message_properties_t;
  enq_msgid  raw(16);
  userdata   raw(1000);
begin
  msg_prop.exception_queue := exception_queue;
  msg_prop.correlation := correlation;
  userdata := payload;
  DBMS_AQ.ENQUEUE(queue_name,enq_ct, msg_prop,userdata,enq_msgid);
end;
/
----------------------------------------------------------
---- add subscriber with rule based on current user name,
---- using correlation_id
----------------------------------------------------------
declare
subscriber sys.aq$_agent;
begin
  subscriber := sys.aq$_agent('SNOOP', null, null);
  dbms_aqadm.add_subscriber(queue_name => 'pubsub.logon',
                            subscriber => subscriber,
                            rule => 'CORRID = ''ix'' ');
end;
/
----------------------------------------------------------
---- create a trigger on logon on database
----------------------------------------------------------
---- create trigger on after logon
create or replace trigger systrig2
   AFTER LOGON
   ON DATABASE
   begin
     new_enqueue('pubsub.logon', hextoraw('9999'), dbms_standard.login_user);
   end;
/

----------------------------------------------------------
---- create a PL/SQL callback for notification of logon
---- of user 'ix' on database
----------------------------------------------------------
----
create or replace procedure plsqlnotifySnoop(
  context raw, reginfo sys.aq$_reg_info, descr sys.aq$_descriptor,
  payload raw, payloadl number)
as
begin
 dbms_output.put_line('Notification : User ix Logged on\n');
end;
/

Example 13-4 Registering for Notification Using Callback Functions

...
static ub4 namespace = OCI_SUBSCR_NAMESPACE_AQ;

static OCISubscription *subscrhpSnoop = (OCISubscription *)0;
static OCISubscription *subscrhpSnoopMail = (OCISubscription *)0;
static OCISubscription *subscrhpSnoopServer = (OCISubscription *)0;

/* callback function for notification of logon of user 'ix' on database */

static ub4 notifySnoop(ctx, subscrhp, pay, payl, desc, mode)
    void *ctx;
    OCISubscription *subscrhp;
    void *pay;
    ub4 payl;
    void *desc;
    ub4 mode;
{
    printf("Notification : User ix Logged on\n");
  (void)OCIHandleFree((void *)subscrhpSnoop,
            (ub4) OCI_HTYPE_SUBSCRIPTION);
    return 1;
}

static void checkerr(errhp, status)
OCIError *errhp;
sword status;
{
  text errbuf[512];
  ub4 buflen;
  sb4 errcode;

  if (status == OCI_SUCCESS) return;

  switch (status)
  {
  case OCI_SUCCESS_WITH_INFO:
    printf("Error - OCI_SUCCESS_WITH_INFO\n");
    break;
  case OCI_NEED_DATA:
    printf("Error - OCI_NEED_DATA\n");
    break;
  case OCI_NO_DATA:
    printf("Error - OCI_NO_DATA\n");
    break;
  case OCI_ERROR:
    OCIErrorGet ((void *) errhp, (ub4) 1, (text *) NULL, &errcode,
            errbuf, (ub4) sizeof(errbuf), (ub4) OCI_HTYPE_ERROR);
    printf("Error - %s\n", errbuf);
    break;
  case OCI_INVALID_HANDLE:
    printf("Error - OCI_INVALID_HANDLE\n");
    break;
  case OCI_STILL_EXECUTING:
    printf("Error - OCI_STILL_EXECUTING\n");
    break;
  case OCI_CONTINUE:
    printf("Error - OCI_CONTINUE\n");
    break;
  default:
    printf("Error - %d\n", status);
    break;
  }
}

static void initSubscriptionHn (subscrhp,
                         subscriptionName,
                         func,
                         recpproto,
                         recpaddr,
                         recppres)
OCISubscription **subscrhp;
  char * subscriptionName;
  void * func;
  ub4 recpproto;
  char * recpaddr;
  ub4 recppres;
{
    /* allocate subscription handle */
    (void) OCIHandleAlloc((void *) envhp, (void **)subscrhp,
        (ub4) OCI_HTYPE_SUBSCRIPTION,
        (size_t) 0, (void **) 0);

    /* set subscription name in handle */
    (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
        (void *) subscriptionName,
        (ub4) strlen((char *)subscriptionName),
        (ub4) OCI_ATTR_SUBSCR_NAME, errhp);

    /* set callback function in handle */
    if (func)
      (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
          (void *) func, (ub4) 0,
          (ub4) OCI_ATTR_SUBSCR_CALLBACK, errhp);

    /* set context in handle */
    (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
        (void *) 0, (ub4) 0,
       (ub4) OCI_ATTR_SUBSCR_CTX, errhp);

    /* set namespace in handle */
    (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
        (void *) &namespace, (ub4) 0,
        (ub4) OCI_ATTR_SUBSCR_NAMESPACE, errhp);

    /* set receive with protocol in handle */
    (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
        (void *) &recpproto, (ub4) 0,
        (ub4) OCI_ATTR_SUBSCR_RECPTPROTO, errhp);

    /* set recipient address in handle */
    if (recpaddr)
      (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
          (void *) recpaddr, (ub4) strlen(recpaddr),
          (ub4) OCI_ATTR_SUBSCR_RECPT, errhp);

    /* set receive with presentation in handle */
    (void) OCIAttrSet((void *) *subscrhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
        (void *) &recppres, (ub4) 0,
        (ub4) OCI_ATTR_SUBSCR_RECPTPRES, errhp);

    printf("Begining Registration for subscription %s\n", subscriptionName);
    checkerr(errhp, OCISubscriptionRegister(svchp, subscrhp, 1, errhp,
        OCI_DEFAULT));
   printf("done\n");

}


int main( argc, argv)
int    argc;
char * argv[];
{
    OCISession *authp = (OCISession *) 0;

/*****************************************************
Initialize OCI Process/Environment
Initialize Server Contexts
Connect to Server
Set Service Context
******************************************************/

/* Registration Code Begins */
/* Each call to initSubscriptionHn allocates
   and initializes a Registration Handle */

/* Register for OCI notification */
    initSubscriptionHn(    &subscrhpSnoop,    /* subscription handle*/
    (char*) "PUBSUB.LOGON:SNOOP", /* subscription name */
                                  /*<queue_name>:<agent_name> */
        (void*)notifySnoop,  /* callback function */
        OCI_SUBSCR_PROTO_OCI, /* receive with protocol */
        (char *)0, /* recipient address */
        OCI_SUBSCR_PRES_DEFAULT); /* receive with presentation */

/* Register for email notification */
    initSubscriptionHn(    &subscrhpSnoopMail,  /* subscription handle */
     (char*) "PUBSUB.LOGON:SNOOP",              /* subscription name */
                                                /* <queue_name>:<agent_name> */
        (void*)0, /* callback function */
        OCI_SUBSCR_PROTO_MAIL, /* receive with protocol */
        (char*)  "xyz@company.com", /* recipient address */
        OCI_SUBSCR_PRES_DEFAULT); /* receive with presentation */

/* Register for server to server notification */
    initSubscriptionHn(    &subscrhpSnoopServer, /* subscription handle */
       (char*)  "PUBSUB.LOGON:SNOOP",            /* subscription name */
                                                 /* <queue_name>:<agent_name> */
        (void*)0, /* callback function */
        OCI_SUBSCR_PROTO_SERVER, /* receive with protocol */
         (char*) "pubsub.plsqlnotifySnoop", /* recipient address */
        OCI_SUBSCR_PRES_DEFAULT); /* receive with presentation */

    checkerr(errhp, OCITransCommit(svchp, errhp, (ub4) OCI_DEFAULT));

/*****************************************************
The Client Process does not need a live Session for Callbacks.
End Session and Detach from Server.
******************************************************/

    OCISessionEnd ( svchp,  errhp, authp, (ub4) OCI_DEFAULT);

    /* detach from server */
    OCIServerDetach( srvhp, errhp, OCI_DEFAULT);

   while (1)    /* wait for callback */
    sleep(1);
}

Example 13-5 LDAP Registration

...

  /* To use the LDAP registration feature, OCI_EVENTS | OCI_EVENTS |OCI_USE_LDAP*/
  /*   must be set in OCIEnvCreate or OCIEnvNlsCreate */
  /*     (Note: OCIInitialize is deprecated): */
  (void) OCIInitialize((ub4) OCI_EVENTS|OCI_OBJECT|OCI_USE_LDAP, (void *)0,
                       (void * (*)(void *, size_t)) 0,
                       (void * (*)(void *, void *, size_t))0,
                       (void (*)(void *, void *)) 0 );

...

  /* set LDAP attributes in the environment handle */

  /* LDAP host name */
  (void) OCIAttrSet((void *)envhp, OCI_HTYPE_ENV, (void *)"yow", 3,
                    OCI_ATTR_LDAP_HOST, (OCIError *)errhp);

  /* LDAP server port */
  ldap_port = 389;
  (void) OCIAttrSet((void *)envhp, OCI_HTYPE_ENV, (void *)&ldap_port,
                    (ub4)0, OCI_ATTR_LDAP_PORT, (OCIError *)errhp);

  /* bind DN of the client, normally the enterprise user name */
  (void) OCIAttrSet((void *)envhp, OCI_HTYPE_ENV, (void *)"cn=orcladmin",
                    12, OCI_ATTR_BIND_DN, (OCIError *)errhp);

  /* password of the client */
  (void) OCIAttrSet((void *)envhp, OCI_HTYPE_ENV, (void *)"welcome",
                    7, OCI_ATTR_LDAP_CRED, (OCIError *)errhp);

  /* authentication method is "simple", username/password authentication */
  ldap_auth = 0x01;
  (void) OCIAttrSet((void *)envhp, OCI_HTYPE_ENV, (void *)&ldap_auth,
                    (ub4)0, OCI_ATTR_LDAP_AUTH, (OCIError *)errhp);

  /* administrative context: this is the DN above cn=oraclecontext */
  (void) OCIAttrSet((void *)envhp, OCI_HTYPE_ENV, (void *)"cn=acme,cn=com",
                    14, OCI_ATTR_LDAP_CTX, (OCIError *)errhp);

...

  /* retrieve the LDAP attributes from the environment handle */

  /* LDAP host */
  (void) OCIAttrGet((void *)envhp, OCI_HTYPE_ENV, (void *)&buf,
                    &szp,  OCI_ATTR_LDAP_HOST,  (OCIError *)errhp);

  /* LDAP server port */
  (void) OCIAttrGet((void *)envhp, OCI_HTYPE_ENV, (void *)&intval,
                    0,  OCI_ATTR_LDAP_PORT,  (OCIError *)errhp);

  /* client binding DN */
  (void) OCIAttrGet((void *)envhp, OCI_HTYPE_ENV, (void *)&buf,
                    &szp,  OCI_ATTR_BIND_DN,  (OCIError *)errhp);

  /* client password */
  (void) OCIAttrGet((void *)envhp, OCI_HTYPE_ENV, (void *)&buf,
                    &szp,  OCI_ATTR_LDAP_CRED,  (OCIError *)errhp);

  /* administrative context */
  (void) OCIAttrGet((void *)envhp, OCI_HTYPE_ENV, (void *)&buf,
                    &szp,  OCI_ATTR_LDAP_CTX,  (OCIError *)errhp);

  /* client authentication method */
  (void) OCIAttrGet((void *)envhp, OCI_HTYPE_ENV, (void *)&intval,
                    0,  OCI_ATTR_LDAP_AUTH,  (OCIError *)errhp);

  ...

  /* to set up the server DN descriptor in the subscription handle */

  /* allocate a server DN descriptor, dn is of type "OCIServerDNs **",
     subhp is of type "OCISubscription **" */
  (void) OCIDescriptorAlloc((void *)envhp, (void **)dn,
                         (ub4) OCI_DTYPE_SRVDN, (size_t)0, (void **)0);

  /* now *dn is the server DN descriptor, add the DN of the first database
     that you want to register */
  (void) OCIAttrSet((void *)*dn, (ub4) OCI_DTYPE_SRVDN,
                    (void *)"cn=server1,cn=oraclecontext,cn=acme,cn=com",
                    42, (ub4)OCI_ATTR_SERVER_DN, errhp);
  /* add the DN of another database in the descriptor */
  (void) OCIAttrSet((void *)*dn, (ub4) OCI_DTYPE_SRVDN,
                    (void *)"cn=server2,cn=oraclecontext,cn=acme,cn=com",
                    42, (ub4)OCI_ATTR_SERVER_DN, errhp);

  /* set the server DN descriptor into the subscription handle */
  (void) OCIAttrSet((void *) *subhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (void *) *dn, (ub4)0, (ub4) OCI_ATTR_SERVER_DNS, errhp);

  ...

  /* now you will try to get the server DN information from the subscription
     handle */

  /* first, get the server DN descriptor out */
  (void) OCIAttrGet((void *) *subhp, (ub4) OCI_HTYPE_SUBSCRIPTION,
                    (void *)dn, &szp, OCI_ATTR_SERVER_DNS, errhp);

  /* then, get the number of server DNs in the descriptor */
  (void) OCIAttrGet((void *) *dn, (ub4)OCI_DTYPE_SRVDN, (void *)&intval,
                    &szp, (ub4)OCI_ATTR_DN_COUNT, errhp);

  /* allocate an array of char * to hold server DN pointers returned by
     an Oracle database*/
    if (intval)
    {
      arr = (char **)malloc(intval*sizeof(char *));
      (void) OCIAttrGet((void *)*dn, (ub4)OCI_DTYPE_SRVDN, (void *)arr,
                        &intval, (ub4)OCI_ATTR_SERVER_DN, errhp);
    }

  /* OCISubscriptionRegister() calls have two modes: OCI_DEFAULT and
     OCI_REG_LDAPONLY. If OCI_DEFAULT is used, there should be only one
     server DN in the server DN descriptor. The registration request will
     be sent to the database. If a database connection is not available,
     the registration request will be detoured to the LDAP server. However,
     if mode OCI_REG_LDAPONLY is used, the registration request
     will be directly sent to LDAP. This mode should be used when there is
     more than one server DN in the server DN descriptor or you are sure
     that a database connection is not available.

     In this example, two DNs are entered, so you should use mode
     OCI_REG_LDAPONLY in LDAP registration. */
  OCISubscriptionRegister(svchp, subhp, 1, errhp, OCI_REG_LDAPONLY);

  ...

  /* as OCISubscriptionRegister(), OCISubscriptionUnregister() also has
     mode OCI_DEFAULT and OCI_REG_LDAPONLY. The usage is the same. */

  OCISubscriptionUnRegister(svchp, *subhp, errhp, OCI_REG_LDAPONLY);
}
...

Example 13-6 Enqueue Buffered Messaging

...
OCIAQMsgProperties  *msgprop;
OCIAQEnqueueOptions *enqopt;
message              msg;    /* message is an object type */
null_message         nmsg;   /* message indicator */
...
/* Allocate descriptors */
  OCIDescriptorAlloc(envhp, (void **)&enqopt, OCI_DTYPE_AQENQ_OPTIONS, 0,
                     (void **)0));

 OCIDescriptorAlloc(envhp, (void **)&msgprop,OCI_DTYPE_AQMSG_PROPERTIES, 0,
                    (void **)0));

/* Set delivery mode to buffered */
 dlvm = OCI_MSG_BUFFERED;
 OCIAttrSet(enqopt,  OCI_DTYPE_AQENQ_OPTIONS, (void *)&dlvm, sizeof(ub2),
            OCI_ATTR_MSG_DELIVERY_MODE, errhp);
/* Set visibility to Immediate (visibility must always be immediate for buffered
   messages) */
vis = OCI_ENQ_ON_COMMIT;

OCIAttrSet(enqopt, OCI_DTYPE_AQENQ_OPTIONS,(void *)&vis, sizeof(ub4),
           OCI_ATTR_VISIBILITY, errhp)

/* Message was an object type created earlier, msg_tdo is its type
   descriptor object */
OCIAQEnq(svchp, errhp, "Test_Queue", enqopt, msgprop, msg_tdo, (void **)&mesg,
         (void **)&nmesg, (OCIRaw **)0, 0));
...

Example 13-7 Dequeue Buffered Messaging

...
OCIAQMsgProperties  *msgprop;
OCIAQDequeueOptions *deqopt;
...
OCIDescriptorAlloc(envhp, (void **)&mprop, OCI_DTYPE_AQMSG_PROPERTIES, 0,
                   (void **)0));
OCIDescriptorAlloc(envhp, (void **)&deqopt, OCI_DTYPE_AQDEQ_OPTIONS, 0,
                   (void **)0);

/* Set visibility to Immediate (visibility must always be immediate for buffered
   message operations) */
vis = OCI_ENQ_ON_COMMIT;
OCIAttrSet(deqopt, OCI_DTYPE_AQDEQ_OPTIONS,(void *)&vis, sizeof(ub4),
           OCI_ATTR_VISIBILITY, errhp)
/* delivery mode is buffered */
dlvm  = OCI_MSG_BUFFERED;
OCIAttrSet(deqopt, OCI_DTYPE_AQDEQ_OPTIONS, (void *)&dlvm,  sizeof(ub2),
           OCI_ATTR_MSG_DELIVERY_MODE, errhp);
/* Set the consumer for which to dequeue the message (this must be specified
   regardless of the type of message being dequeued).
*/
consumer = "FIRST_SUBSCRIBER";
OCIAttrSet(deqopt, OCI_DTYPE_AQDEQ_OPTIONS, (void *)consumer,
           (ub4)strlen((char*)consumer), OCI_ATTR_CONSUMER_NAME, errhp);
/* Dequeue the message but do not return the payload (to simplify the code
   fragment)
*/
OCIAQDeq(svchp, errhp,  "test_queue", deqopt, msgprop, msg_tdo, (void **)0,
         (void **)0, (OCIRaw**)0, 0);
...
