15 On-demand Analysis and Diagnostic Collection

Run Oracle Trace File Analyzer on demand using tfactl command-line tool.

15.1 Collecting Diagnostics and Analyzing Logs On-Demand

The tfactl command can use a combination of different database command tools when it performs analysis.

The tfactl command enables you to access all tools using common syntax. Using common syntax hides the complexity of the syntax differences between the tools.

Use the Oracle Trace File Analyzer tools to perform analysis and resolve problems. If you need more help, then use the tfactl command to collect diagnostics for Oracle Support.

Oracle Trace File Analyzer does the following:

  • Collects all relevant log data from a time of your choosing.

  • Trims log files around the time, collecting only what is necessary for diagnosis.

  • Packages all diagnostics on the node where tfactl was run from.

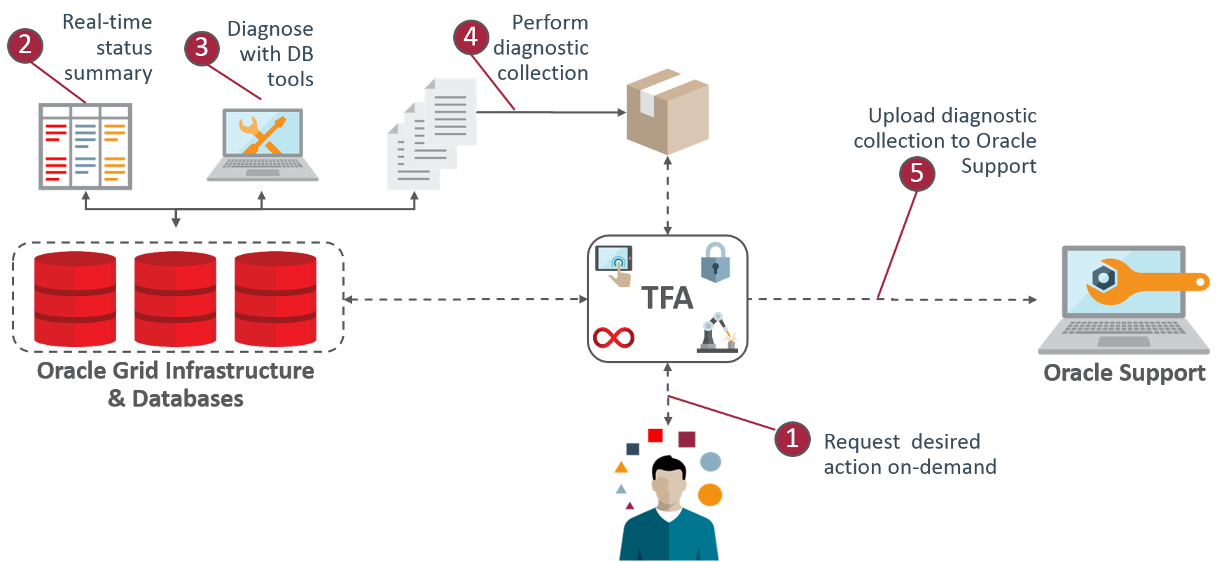

Figure 15-1 On-Demand Collections

Description of Figure 15-1 follows
Description of "Figure 15-1 On-Demand Collections"

15.2 Viewing System and Cluster Summary

The summary command gives you a real-time report of system and cluster status.

Syntax

tfactl summary [options]

For more help use:
tfactl summary -help

15.3 Investigating Logs for Errors

Use Oracle Trace File Analyzer to analyze all your logs across your cluster to identify recent errors.

  1. To find all errors in the last one day:
    $ tfactl analyze –last 1d
  2. To find all errors over a specified duration:
    $ tfactl analyze –last 18h
  3. To find all occurrences of a specific error on any node, for example, to report ORA-00600 errors:
    $ tfactl analyze -search “ora-00600" -last 8h

Example 15-1 Analyzing logs

tfactl analyze –last 14d

Jun/02/2016 11:44:39 to Jun/16/2016 11:44:39 tfactl> analyze -last 14d
INFO: analyzing all (Alert and Unix System Logs) logs for the last 20160 minutes...  Please wait...
INFO: analyzing host: myserver69

                        Report title: Analysis of Alert,System Logs
                   Report date range: last ~14 day(s)
          Report (default) time zone: EST - Eastern Standard Time
                 Analysis started at: 16-Jun-2016 02:45:02 PM EDT
               Elapsed analysis time: 0 second(s).
                  Configuration file:
/u01/app/tfa/myserver69/tfa_home/ext/tnt/conf/tnt.prop
                 Configuration group: all
                 Total message count:            957, from 02-May-2016
09:04:07 PM EDT to 16-Jun-2016 12:45:41 PM EDT
   Messages matching last ~14 day(s):            225, from 03-Jun-2016
02:17:32 PM EDT to 16-Jun-2016 12:45:41 PM EDT
         last ~14 day(s) error count:              2, from 09-Jun-2016
09:56:47 AM EDT to 09-Jun-2016 09:56:58 AM EDT last ~14 day(s) ignored error count: 0
  last ~14 day(s) unique error count: 2

Message types for last ~14 day(s)
    Occurrences percent  server name          type
    ----------- -------  -------------------- -----
            223   99.1%  myserver69           generic
              2    0.9%  myserver69           ERROR
    ----------- -------
            225  100.0%

Unique error messages for last ~14 day(s)
    Occurrences percent  server name          error
    ----------- -------  -------------------- -----
              1   50.0%  myserver69           Errors in file
/u01/app/racusr/diag/rdbms/rdb11204/RDB112041/trace/RDB112041_ora_25401.trc
(incident=6398):
                                              ORA-07445: exception
encountered: core dump [] [] [] [] [] []
                                              Incident details in:
/u01/app/racusr/diag/rdbms/rdb11204/RDB112041/incident/incdir_6398/RDB112041_ora_25401_i6398.trc

                                              Use ADRCI or Support Workbench to package the incident.
                                              See Note 411.1 at My Oracle Support for error and packaging details.

              1   50.0%  myserver69           Errors in file
/u01/app/racusr/diag/rdbms/rdb11204/RDB112041/trace/RDB112041_ora_25351.trc
(incident=6394):
                                              ORA-00700: soft internal error, arguments: [kgerev1], [600], [600], [700], [], [], [], [], [], [], [], []
                                              Incident details in:
/u01/app/racusr/diag/rdbms/rdb11204/RDB112041/incident/incdir_6394/RDB112041_ora_25351_i6394.trc

                                              Errors in file /u01/app/racusr/diag/rdbms/rdb11204/RDB112041/trace/RDB112041_ora_25351.trc
(incident=6395):
                                              ORA-00600: internal error code, arguments: [], [], [], [], [], [], [], [], [], [], [], []
                                              Incident details in:
/u01/app/racusr/diag/rdbms/rdb11204/RDB112041/incident/incdir_6395/RDB112041_ora_25351_i6395.trc

                                              Dumping diagnostic data in directory=[cdmp_20160609095648], requested by (instance=1, osid=25351), summary=[incident=6394].
                                              Use ADRCI or Support Workbench to package the incident.
                                              See Note 411.1 at My Oracle Support for error and packaging details.

    ----------- -------
              2  100.0%
 See Change Which Directories Get Collected for more details.

15.4 Analyzing Logs Using the Included Tools

Oracle Database support tools bundle is available only when you download Oracle Trace File Analyzer from My Oracle Support note 1513912.1.

Oracle Trace File Analyzer with Oracle Database support tools bundle includes the following tools:

Table 15-1 Tools included in Linux and UNIX

Tool Description

orachk or exachk

Provides health checks for the Oracle stack.

Oracle Trace File Analyzer installs either Oracle EXAchk for engineered systems or Oracle ORAchk for all non-engineered systems.

For more information, see My Oracle Support notes 1070954.1 and 1268927.2.

oswatcher

Collects and archives operating system metrics. These metrics are useful for instance or node evictions and performance Issues.

For more information, see My Oracle Support note 301137.1.

procwatcher

Automates and captures database performance diagnostics and session level hang information.

For more information, see My Oracle Support note 459694.1.

oratop

Provides near real-time database monitoring.

For more information, see My Oracle Support note 1500864.1.

alertsummary

Provides summary of events for one or more database or ASM alert files from all nodes.

ls

Lists all files Oracle Trace File Analyzer knows about for a given file name pattern across all nodes.

pstack

Generates the process stack for the specified processes across all nodes.

grep

Searches for a given string in the alert or trace files with a specified database.

summary

Provides high-level summary of the configuration.

vi

Opens alert or trace files for viewing a given database and file name pattern in the vi editor.

tail

Runs a tail on an alert or trace files for a given database and file name pattern.

param

Shows all database and operating system parameters that match a specified pattern.

dbglevel

Sets and unsets multiple CRS trace levels with one command.

history

Shows the shell history for the tfactl shell.

changes

Reports changes in the system setup over a given time period. The report includes database parameters, operating system parameters, and the patches applied.

calog

Reports major events from the cluster event log.

events

Reports warnings and errors seen in the logs.

managelogs

Shows disk space usage and purges ADR log and trace files.

ps

Finds processes.

triage

Summarizes oswatcher or exawatcher data.

Table 15-2 Tools included in Microsoft Windows

Tool Description

calog

Reports major events from the cluster event log.

changes

Reports changes in the system setup over a given time period. The report includes database parameters, operating system parameters, and patches applied.

dir

Lists all files Oracle Trace File Analyzer knows about for a given file name pattern across all nodes.

events

Reports warnings and errors seen in the logs.

findstr

Searches for a given string in the alert or trace files with a specified database.

history

Shows the shell history for the tfactl shell.

managelogs

Shows disk space usage and purges ADR log and trace files.

notepad

Opens alert or trace files for viewing a given database and file name pattern in the notepad editor.

param

Shows all database and operating system parameters that match a specified pattern.

summary

Provides high-level summary of the configuration.

tasklist

Finds processes.

To verify which tools you have installed:

$ tfactl toolstatus

You can run each tool using tfactl either in command line or shell mode.

To run a tool from the command line:

$ tfactl run tool

The following example shows how to use tfactl in shell mode. Running the command starts tfactl, connects to the database MyDB, and then runs oratop:

$ tfactl
tfactl > database MyDB
MyDB tfactl > oratop

15.5 Searching Oracle Trace File Analyzer Metadata

You can search all metadata stored in the Oracle Trace File Analyzer index using tfactl search -showdatatypes|-json [json_details].

You can search for all events for a particular Oracle Database between certain dates, for example,
tfactl search -json
'{
  "data_type":"event",
  "content":"oracle",
  "database":"rac11g",
  "from":"01/20/2017 00:00:00",
  "to":"12/20/2018 00:00:00"
 }'

To list all index events: tfactl search -json '{"data_type":"event"}'

To list all available datatypes: tfactl search -showdatatypes

15.6 Collecting Diagnostic Data and Using One Command Service Request Data Collections

To perform an on-demand diagnostic collection:

$ tfactl diagcollect

Running the command trims and collects all important log files updated in the past 12 hours across the whole cluster. Oracle Trace File Analyzer stores collections in the repository directory. You can change the diagcollect timeframe with the –last n h|d option.

Oracle Support often asks you to run a Service Request Data Collection (SRDC). The SRDC depends on the type of problem you experienced. It is a series of many data gathering instructions aimed at diagnosing your problem. Collecting the SRDC manually can be difficult, with many different steps required.

Oracle Trace File Analyzer can run SRDC collections with a single command:

$ tfactl diagcollect -srdc srdc_type –sr sr_number

To run SRDCs, use one of the Oracle privileged user accounts:

  • ORACLE_HOME owner

  • GRID_HOME owner

Table 15-3 One Command Service Request Data Collections

Type of Problem Available SRDCs Collection Scope

ORA Errors

ORA-00020

ORA-00060

ORA-00600

ORA-00700

ORA-01031

ORA-01555

ORA-01578

ORA-01628

ORA-04030

ORA-04031

ORA-07445

ORA-08102

ORA-08103

ORA-27300

ORA-27301

ORA-27302

ORA-29548

ORA-30036

Local-only

Oracle Database performance problems

dbperf

Cluster-wide

Data Pump Import performance problems

dbimpdpperf

Local-only

SQL performance problems

dbsqlperf

Local-only

Transparent Data Encryption (TDE) problems

dbtde

Local-only

Oracle Database resource problems

dbunixresources

Local-only

Other internal Oracle Database errors

internalerror

Local-only

Oracle Database patching problems

dbpatchinstall

dbpatchconflict

Local-only

Original Oracle Database Export (exp)

dbexp

dbexpdp

dbexpdpapi

dbexpdpperf

dbexpdptts

Local-only

Original Oracle Database Import (imp)

dbimp

dbimpdp

dbimpdpperf

Local-only

RMAN

dbrman

dbrman600

dbrmanperf

Local-only

System change number

dbscn

Local-only

Oracle GoldenGate

dbggclassicmode

dbggintegratedmode

Local-only

Oracle Database install / upgrade problems

dbinstall

dbupgrade

dbpreupgrade

Local-only

Oracle Database storage problems

dbasm

Local-only

Excessive SYSAUX space is used by the Automatic Workload Repository (AWR)

dbawrspace

Local-only

Oracle Database startup / shutdown problems

dbshutdown

dbstartup



XDB Installation or invalid object problems

dbxdb

Local-only

Oracle Data Guard problems

dbdataguard

Local-only

Alert log messages of Corrupt block relative dba problems

dbblockcorruption

Local-only

ASM / DBFS / DNFS / ACFS problems

dnfs

Local-only

Create / maintain partitioned / subpartitioned table / index problems

dbpartition

Local-only

Slow Create / Alter / Drop commands against partitioned table / index

dbpartitionperf

Local-only

SQL performance problems

dbsqlperf

Local-only

UNDO corruption problems

dbundocorruption

Local-only

Listener errors: TNS-12516 / TNS-12518 / TNS-12519 / TNS-12520

listener_services

Local-only

Naming service errors: ORA-12154 / ORA-12514 / ORA-12528

naming_services

Local-only

Standard information for Oracle Database auditing

dbaudit

Local-only

Enterprise Manager tablespace usage metric problems

emtbsmetrics

Local-only (on Enterprise Manager Agent target)

Enterprise Manager general metrics page or threshold problems

emmetricalert

Local-only (on Enterprise Manager Agent target and repository database)

Enterprise Manager debug log collection

Run emdebugon, reproduce the problem then run emdebugoff, which disables debug again and collects debug logs

emdebugon

emdebugoff

Local-only (on Enterprise Manager Agent target and Oracle Management Service)

Enterprise Manager target discovery / add problems

emcliadd

emclusdisc

emdbsys

emgendisc

emprocdisc

Local-only

Enterprise Manager OMS restart problems

emrestartoms

Local-only

Enterprise Manager Agent performance problems

emagentperf

Local-only

Enterprise Manager OMS Crash problems

emomscrash

Local-only

Enterprise Manager Java heap usage or performance problems

emomsheap

Local-only

Enterprise Manager OMS crash, restart or performance problems

emomshungcpu

Local-only

Oracle Exalogic full Exalogs data collection information

esexalogic

Local-only

For more information about SRDCs, run tfactl diagcollect –srdc -help.

What the SRDCs collect varies for each type, for example:

Table 15-4 SRDC collections

Command What gets collected

$ tfactl diagcollect –srdc ORA-04031

  • IPS package

  • Patch listing

  • AWR report

  • Memory information

  • RDA HCVE output

$ tfactl diagcollect –srdc dbperf

  • ADDM report

  • AWR for good period and problem period

  • AWR Compare Period report

  • ASH report for good and problem period

  • OSWatcher

  • IPS package (if there are any errors during problem period)

  • Oracle ORAchk (performance-related checks)

Oracle Trace File Analyzer prompts you to enter the information required based on the SRDC type.

For example, when you run ORA-4031 SRDC:

$ tfactl diagcollect –srdc ORA-04031

Oracle Trace File Analyzer prompts to enter event date/time and database name.

  1. Oracle Trace File Analyzer scans the system to identify recent events in the system (up to 10).

  2. Once the relevant event is chosen, Oracle Trace File Analyzer then proceeds with diagnostic collection.

  3. Oracle Trace File Analyzer identifies all the required files.

  4. Oracle Trace File Analyzer trims all the files where applicable.

  5. Oracle Trace File Analyzer packages all data in a zip file ready to provide to support.

You can also run an SRDC collection in non-interactive silent mode. Provide all the required parameters up front as follows:

$ tfactl diagcollect –srdc srdc_type -database db -from "date time" -to "date time"

Example 15-2 Diagnostic Collection

$ tfactl diagcollect

Collecting data for the last 12 hours for all components...
Collecting data for all nodes

Collection Id : 20160616115923myserver69

Detailed Logging at :
/u01/app/tfa/repository/collection_Thu_Jun_16_11_59_23_PDT_2016_node_all/diagcollect_20160616115923_myserver69.log
2016/06/16 11:59:27 PDT : Collection Name :
tfa_Thu_Jun_16_11_59_23_PDT_2016.zip
2016/06/16 11:59:28 PDT : Collecting diagnostics from hosts :
[myserver70, myserver71, myserver69]
2016/06/16 11:59:28 PDT : Scanning of files for Collection in progress...
2016/06/16 11:59:28 PDT : Collecting additional diagnostic information...
2016/06/16 11:59:33 PDT : Getting list of files satisfying time range
[06/15/2016 23:59:27 PDT, 06/16/2016 11:59:33 PDT]
2016/06/16 11:59:37 PDT : Collecting ADR incident files...
2016/06/16 12:00:32 PDT : Completed collection of additional diagnostic information...
2016/06/16 12:00:39 PDT : Completed Local Collection
2016/06/16 12:00:40 PDT : Remote Collection in Progress...
.--------------------------------------.
|          Collection Summary          |
+------------+-----------+------+------+
| Host       | Status    | Size | Time |
+------------+-----------+------+------+
| myserver71 | Completed | 15MB |  64s |
| myserver70 | Completed | 14MB |  67s |
| myserver69 | Completed | 14MB |  71s |
'------------+-----------+------+------'

Logs are being collected to:
/u01/app/tfa/repository/collection_Thu_Jun_16_11_59_23_PDT_2016_node_all
/u01/app/tfa/repository/collection_Thu_Jun_16_11_59_23_PDT_2016_node_all/myserver71.tfa_Thu_Jun_16_11_59_23_PDT_2016.zip
/u01/app/tfa/repository/collection_Thu_Jun_16_11_59_23_PDT_2016_node_all/myserver69.tfa_Thu_Jun_16_11_59_23_PDT_2016.zip
/u01/app/tfa/repository/collection_Thu_Jun_16_11_59_23_PDT_2016_node_all/myserver70.tfa_Thu_Jun_16_11_59_23_PDT_2016.zip

Example 15-3 One command SRDC

$ tfactl diagcollect –srdc ora600
Enter value for EVENT_TIME [YYYY-MM-DD HH24:MI:SS,<RETURN>=ALL] :
Enter value for DATABASE_NAME [<RETURN>=ALL] :

1. Jun/09/2016 09:56:47 : [rdb11204] ORA-00600: internal error code,
arguments: [], [], [], [], [], [], [], [], [], [], [], [] 2. May/19/2016 14:19:30 : [rdb11204] ORA-00600: internal error code,
arguments: [], [], [], [], [], [], [], [], [], [], [], [] 3. May/13/2016 10:14:30 : [rdb11204] ORA-00600: internal error code,
arguments: [], [], [], [], [], [], [], [], [], [], [], [] 4. May/13/2016 10:14:09 : [rdb11204] ORA-00600: internal error code,
arguments: [], [], [], [], [], [], [], [], [], [], [], []

Please choose the event : 1-4 [1] 1
Selected value is : 1 ( Jun/09/2016 09:56:47 ) Collecting data for local node(s) Scanning files
from Jun/09/2016 03:56:47 to Jun/09/2016 15:56:47

Collection Id : 20160616115820myserver69

Detailed Logging at :
/u01/app/tfa/repository/srdc_ora600_collection_Thu_Jun_16_11_58_20_PDT_2016_node_local/diagcollect_20160616115820_myserver69.log
2016/06/16 11:58:23 PDT : Collection Name :
tfa_srdc_ora600_Thu_Jun_16_11_58_20_PDT_2016.zip
2016/06/16 11:58:23 PDT : Scanning of files for Collection in progress...
2016/06/16 11:58:23 PDT : Collecting additional diagnostic information...
2016/06/16 11:58:28 PDT : Getting list of files satisfying time range
[06/09/2016 03:56:47 PDT, 06/09/2016 15:56:47 PDT]
2016/06/16 11:58:30 PDT : Collecting ADR incident files...
2016/06/16 11:59:02 PDT : Completed collection of additional diagnostic information...
2016/06/16 11:59:06 PDT : Completed Local Collection
.---------------------------------------.
|           Collection Summary          |
+------------+-----------+-------+------+
| Host       | Status    | Size  | Time |
+------------+-----------+-------+------+
| myserver69 | Completed | 7.9MB |  43s |
'------------+-----------+-------+------'

Note:

For more information about how to diagnose and resolve ORA-00600 errors using Oracle Trace File Analyzer diagnostics, see ORA-600 (ORA-00600 Internal Error) Detection, Diagnosis & Resolution.

15.7 Uploading Collections to Oracle Support

To enable collection uploads, configure Oracle Trace File Analyzer with your My Oracle Support user name and password.

For example:
tfactl setupmos

Oracle Trace File Analyzer stores your login details securely within an encrypted wallet. You can store only a single user’s login details.

  1. Run a diagnostic collection using the –sr sr_number option.
    tfactl diagcollect diagcollect options -sr sr_number
    At the end of collection, Oracle Trace File Analyzer automatically uploads all collections to your Service Request.

Oracle Trace File Analyzer can also upload any other file to your Service Request.

You can upload using the wallet, which was setup previously by root using tfactl setupmos.

tfactl upload -sr sr_number -wallet space-separated list of files to upload

You can also upload without the wallet. When uploading without the wallet tfactl prompts for the password.

tfactl upload -sr sr_number -user user_id space-separated list of files to upload
-bash-4.1# tfactl setupmos
Enter User Id: john.doe@oracle.com
Enter Password:
Wallet does not exist ... creating
Wallet created successfully
USER details added/updated in the wallet
PASSWORD details added/updated in the wallet
SUCCESS - CERTIMPORT - Successfully imported certificate
-bash-4.1# su - oradb


-bash-4.1$ /opt/oracle.tfa/tfa/myserver69/tfa_home/bin/tfactl diagcollect -srdc ORA-00600 -sr 3-15985570811
Enter the time of the ORA-00600 [YYYY-MM-DD HH24:MI:SS,RETURN=ALL] :
Enter the Database Name [RETURN=ALL] :

1. Oct/23/2017 03:03:40 : [ogg11204] ORA-00600: internal error code, arguments: [gc_test_error], [0], [0], [], [], [], [], [], [], [], [], []
2. Sep/26/2017 10:03:10 : [ogg11204] ORA-00600: internal error code, arguments: [], [], [], [], [], [], [], [], [], [], [], []
3. Sep/26/2017 10:02:49 : [ogg11204] ORA-00600: internal error code, arguments: [], [], [], [], [], [], [], [], [], [], [], []
4. Sep/26/2017 10:02:33 : [ogg11204] ORA-00600: internal error code, arguments: [], [], [], [], [], [], [], [], [], [], [], []
5. Jan/09/2016 13:01:02 : [+ASM1] ORA-00600: internal error code, arguments: [ksdhng:msg_checksum], [9070324609822233070], [15721744232659255108], [0x7FFBDC07A9E8], [], [], [], [], [], [], [], []

Please choose the event : 1-5 [1] 1
Selected value is : 1 ( Oct/23/2017 03:03:40 )
Scripts to be run by this srdc: ipspack rdahcve1210 rdahcve1120 rdahcve1110
Components included in this srdc: OS CRS DATABASE NOCHMOS
Use of uninitialized value $db_home in length at /opt/oracle.tfa/tfa/myserver69/tfa_home/bin/common/dbutil.pm line 186.
Collecting data for local node(s)
Scanning files from Oct/22/2017 21:03:40 to Oct/23/2017 09:03:40

Collection Id : 20180430080045myserver69

Detailed Logging at : /opt/oracle.tfa/tfa/repository/srdc_ora600_collection_Mon_Apr_30_08_00_45_PDT_2018_node_local/diagcollect_20180430080045_myserver69.log
2018/04/30 08:00:50 PDT : NOTE : Any file or directory name containing the string .com will be renamed to replace .com with dotcom
2018/04/30 08:00:50 PDT : Collection Name : tfa_srdc_ora600_Mon_Apr_30_08_00_45_PDT_2018.zip
2018/04/30 08:00:50 PDT : Scanning of files for Collection in progress...
2018/04/30 08:00:50 PDT : Collecting additional diagnostic information...
2018/04/30 08:01:15 PDT : Getting list of files satisfying time range [10/22/2017 21:03:40 PDT, 10/23/2017 09:03:40 PDT]
2018/04/30 08:01:34 PDT : Collecting ADR incident files...
2018/04/30 08:02:21 PDT : Completed collection of additional diagnostic information...
2018/04/30 08:02:24 PDT : Completed Local Collection
2018/04/30 08:02:24 PDT : Uploading collection to SR - 3-15985570811
2018/04/30 08:02:27 PDT : Successfully uploaded collection to SR
.---------------------------------------.
|           Collection Summary          |
+------------+-----------+-------+------+
| Host       | Status    | Size  | Time |
+------------+-----------+-------+------+
| myserver69 | Completed | 559kB |  94s |
'------------+-----------+-------+------'

Logs are being collected to: /opt/oracle.tfa/tfa/repository/srdc_ora600_collection_Mon_Apr_30_08_00_45_PDT_2018_node_local
/opt/oracle.tfa/tfa/repository/srdc_ora600_collection_Mon_Apr_30_08_00_45_PDT_2018_node_local/myserver69.tfa_srdc_ora600_Mon_Apr_30_08_00_45_PDT_2018.zip
