19 Managing and Configuring Oracle Trace File Analyzer

This section helps you manage Oracle Trace File Analyzer daemon, diagnostic collections, and the collection repository.

19.1 Querying Oracle Trace File Analyzer Status and Configuration

Use the print command to query the status or configuration.

Table 19-1 Configuration Listing and Descriptions

Configuration Listing Default Value Description

Automatic diagnostic collection

ON

Triggers a collection if a significant problem occurs.

Possible values:

  • ON

  • OFF

Trimming of files during diagnostic collection

ON

Trims the log files to only entries within the time range of the collection.

Possible values:

  • ON

  • OFF

Repository maximum size in MB

Smaller of either 10GB or 50% of free space in the file system.

The largest size the repository can be.

Trace Level

1

Increases the level of verbosity.

Possible values:

  • 1

  • 2

  • 3

  • 4

A value of 1 results in the least amount of trace. A value of 4 results in the most amount of trace.

Oracle recommends changing the trace level value only at the request of Oracle Support.

Automatic Purging

ON

Purges collections when:

Free space in the repository falls below 1GB.

Or

Before closing the repository.

Purging removes collections from largest size through to smallest. Purging continues until the repository has enough space to open.

Minimum Age of Collections to Purge (Hours)

12

The least number of hours to keep a collection, after which it is eligible for purging.

Minimum Space free to enable Alert Log Scan (MB)

500

Suspends log scanning if free space in the tfa_home falls below this value.

Example 19-1 Print Configuration

$ tfactl print config
.------------------------------------------------------------------------.
|                             node1                              		  |
+-----------------------------------------------------------+------------+
| Configuration Parameter                                   | Value      |
+-----------------------------------------------------------+------------+
| TFA Version                                               |12.2.1.0.0  |
| Java Version                                              | 1.8        |
| Public IP Network                                         | true       |
| Automatic Diagnostic Collection                           | true       |
| Alert Log Scan                                            | true       |
| Disk Usage Monitor                                        | true       |
| Managelogs Auto Purge                                     | false      |
| Trimming of files during diagcollection                   | true       |
| Inventory Trace level                                     | 1          |
| Collection Trace level                                    | 1          |
| Scan Trace level                                          | 1          |
| Other Trace level                                         | 1          |
| Repository current size (MB)                              | 447        |
| Repository maximum size (MB)                              | 10240      |
| Max Size of TFA Log (MB)                                  | 50         |
| Max Number of TFA Logs                                    | 10         |
| Max Size of Core File (MB)                                | 20         |
| Max Collection Size of Core Files (MB)                    | 200        |
| Minimum Free Space to enable Alert Log Scan (MB)          | 500        |
| Time interval between consecutive Disk Usage Snapshot(minutes)  | 60   |
| Time interval between consecutive Managelogs Auto Purge(minutes)| 60   |
| Logs older than the time period will be auto purged(days[d]|hours[h])|30d|
| Automatic Purging                                         | true       |
| Age of Purging Collections (Hours)                        | 12         |
| TFA IPS Pool Size                                         | 5          |
'-----------------------------------------------------------+------------'

Related Topics

19.2 Managing the Oracle Trace File Analyzer Daemon

Oracle Trace File Analyzer runs from init on UNIX systems or init/upstart/systemd on Linux, or Microsoft Windows uses a Windows Service so that Oracle Trace File Analyzer starts automatically whenever a node starts.

To manage Oracle Trace File Analyzer daemon:

The init control file /etc/init.d/init.tfa is platform dependant.
  1. To start or stop Oracle Trace File Analyzer manually:
    • tfactl start: Starts the Oracle Trace File Analyzer daemon

    • tfactl stop: Stops the Oracle Trace File Analyzer daemon

    If the Oracle Trace File Analyzer daemon fails, then the operating system restarts the daemon automatically.

  2. To enable or disable automatic restarting of the Oracle Trace File Analyzer daemon:
    • tfactl disable: Disables automatic restarting of the Oracle Trace File Analyzer daemon.

    • tfactl enable: Enables automatic restarting of the Oracle Trace File Analyzer daemon.

19.3 Managing the Repository

Oracle Trace File Analyzer stores all diagnostic collections in the repository.

The repository size is the maximum space Oracle Trace File Analyzer is able to use on disk to store collections.

19.3.1 Purging the Repository Automatically

Oracle Trace File Analyzer closes the repository, if:

  • Free space in TFA_HOME  is less than 100 MB, also stops indexing

  • Free space in ORACLE_BASE  is less than 100 MB, also stops indexing

  • Free space in the repository is less than 1 GB

  • Current size of the repository is greater than the repository max size (reposizeMB)

The Oracle Trace File Analyzer daemon monitors and automatically purges the repository when the free space falls below 1 GB or before closing the repository. Purging removes collections from largest size through to smallest until the repository has enough space to open.

Oracle Trace File Analyzer automatically purges only the collections that are older than minagetopurge. By default, minagetopurge  is 12 hours.

To purge the repository automatically

  1. To change the minimum age to purge:
    set minagetopurge=number of hours
    For example:
    $ tfactl set minagetopurge=48

    Purging the repository automatically is enabled by default.

  2. To disable or enable automatic purging:
    set autopurge=ON|OFF
    For example:
    $ tfactl set autopurge=ON
  3. To change the location of the repository:
    set repositorydir=dir
    For example:
    $ tfactl set repositorydir=/opt/mypath
  4. To change the size of the repository:
    set reposizeMB
    For example:
    $ tfactl set reposizeMB=20480

Related Topics

19.3.2 Purging the Repository Manually

To purge the repository manually:

  1. To view the status of the Oracle Trace File Analyzer repository:
    tfactl print repository
  2. To view statistics about collections:
    tfactl print collections
  3. To manually purge collections that are older than a specific time:
    tfactl purge -older number[h|d] [-force]

Related Topics

19.4 Managing Collections

Manage directories configured in Oracle Trace File Analyzer and diagnostic collections.

19.4.1 Including Directories

Add directories to the Oracle Trace File Analyzer configuration to include the directories in diagnostic collections.

Oracle Trace File Analyzer then stores diagnostic collection metadata about the:

  • Directory

  • Subdirectories

  • Files in the directory and all sub directories

All Oracle Trace File Analyzer users can add directories they have read access to.

To manage directories:

  1. To view the current directories configured in Oracle Trace File Analyzer
    tfactl print directories [ -node all | local | n1,n2,... ]
    [ -comp component_name1,component_name2,.. ]
    [ -policy  exclusions | noexclusions ]
    [ -permission public | private ]
  2. To add directories:
    tfactl directory add dir
    [ -public ]
    [ -exclusions | -noexclusions | -collectall ]
    [ -node all | n1,n2,... ]
  3. To remove a directory from being collected:
    tfactl directory remove dir [ -node all | n1,n2,... ]

19.4.2 Managing the Size of Collections

Use the Oracle Trace File Analyzer configuration options trimfiles, maxcorefilesize, maxcorecollectionsize, and diagcollect -nocores to reduce the size of collections.

To manage the size of collections:

  1. To trim files during diagnostic collection:
    tfactl set trimfiles=ON|OFF
    • When set to ON (default), Oracle Trace File Analyzer trims files to include data around the time of the event

    • When set to OFF, any file that was written to at the time of the event is collected in its entirety

  2. To set the maximum size of core file to n MB (default 20 MB):
    tfactl set maxcorefilesize=n

    Oracle Trace File Analyzer skips core files that are greater than maxcorefilesize.

  3. To set the maximum collection size of core files to n MB (default 200 MB):
    tfactl set maxcorecollectionsize=n

    Oracle Trace File Analyzer skips collecting core files after maxcorecollectionsize is reached.

  4. To prevent the collection of core files with diagnostic collections:
    tfactl diagcollect -nocores

19.5 Configuring the Host

You must have root or sudo access to tfactl to add hosts to Oracle Trace File Analyzer configuration.

To add, remove, and replace SSL certificates:

  1. To view the list of current hosts in the Oracle Trace File Analyzer configuration:
    tfactl print hosts
  2. To add a host to the Oracle Trace File Analyzer configuration for the first time:
    1. If necessary, install and start Oracle Trace File Analyzer on the new host.
    2. From the existing host, synchronize authentication certificates for all hosts by running:
      tfactl syncnodes

      If needed, then Oracle Trace File Analyzer displays the current node list it is aware of and prompts you to update this node list.

    3. Select Y, and then enter the name of the new host.

      Oracle Trace File Analyzer contacts Oracle Trace File Analyzer on the new host to synchronize certificates and add each other to their respective hosts lists.

  3. To remove a host:
    tfactl host remove host
  4. To add a host and the certificates that are already synchronized:
    tfactl host add host

    Oracle Trace File Analyzer generates self-signed SSL certificates during install. Replace those certificates with one of the following:

    • Personal self-signed certificate

    • CA-signed certificate

19.6 Configuring the Ports

The Oracle Trace File Analyzer daemons in a cluster communicate securely over ports 5000 to 5005.

If the port range is not available on your system, then replace it with the ports available on your system.

To change the ports:

  1. To set the primary port use the tfactl set port command:
    tfactl set port=port_1
    Or, specify a comma-delimited list of sequentially numbered ports to use. You can specify a maximum of five ports.
    tfactl set port=port_1,port_2,port_3,port_4,port_5
  2. Restart Oracle Trace File Analyzer on all nodes:
    tfactl stop
    tfactl start

19.7 Configuring SSL and SSL Certificates

View and restrict SSL/TLS protocols. Configure Oracle Trace File Analyzer to use self-signed or CA-signed certificates.

19.7.1 Configuring SSL/TLS Protocols

The Oracle Trace File Analyzer daemons in a cluster communicate securely using the SSL/TLS protocols.

The SSL protocols available for use by Oracle Trace File Analyzer are:

  • TLSv1.2

  • TLCv1.1

  • TLSv1

Oracle Trace File Analyzer always restricts use of older the protocols SSLv3 and SSLv2Hello.

To view and restrict protocols:

  1. To view the available and restricted protocols:
    tfactl print protocols
    For example:
    $ tfactl print protocols
    .---------------------------------------.
    |                 node1                 |
    +---------------------------------------+
    | Protocols                             |
    +---------------------------------------+
    | Available : [TLSv1, TLSv1.2, TLSv1.1] |
    | Restricted : [SSLv3, SSLv2Hello]      |
    '---------------------------------------'

  2. To restrict the use of certain protocols:
    tfactl restrictprotocol [-force] protocol
    For example:
    $ tfactl restrictprotocol TLSv1

19.7.2 Configuring Self-Signed Certificates

Use Java keytool to replace self-signed SSL certificates with personal self-signed certificates.

To configure Oracle Trace File Analyzer to use self-signed certificates:

  1. Create a private key and keystore file containing the self-signed certificate for the server:
    $ keytool -genkey -alias server_full -keyalg RSA -keysize 2048 -validity 18263 -keystore myserver.jks
  2. Create a private key and keystore file containing the private key and self signed-certificate for the client:
    $ keytool -genkey -alias client_full -keyalg RSA -keysize 2048 -validity 18263 -keystore myclient.jks
  3. Export the server public key certificate from the server keystore:
    $ keytool -export -alias server_full -file myserver_pub.crt -keystore myserver.jks -storepass password
  4. Export the client public key certificate from the server keystore:
    $ keytool -export -alias client_full -file myclient_pub.crt -keystore myclient.jks -storepass password
  5. Import the server public key certificate into the client keystore:
    $ keytool -import -alias server_pub -file myserver_pub.crt -keystore myclient.jks -storepass password
  6. Import the client public key certificate into the server keystore:
    $ keytool -import -alias client_pub -file myclient_pub.crt  -keystore myserver.jks -storepass password
  7. Restrict the permissions on the keystores to root  read-only.
    $ chmod 400 myclient.jks myserver.jks
  8. Copy the keystores (jks files) to each node.
  9. Configure Oracle Trace File Analyzer to use the new certificates:
    $ tfactl set sslconfig
  10. Restart the Oracle Trace File Analyzer process to start using new certificates:
    $ tfactl stop
    $ tfactl start

19.7.3 Configuring CA-Signed Certificates

Use Java keytool and openssl to replace self-signed SSL certificates with the Certificate Authority (CA) signed certificates.

To configure Oracle Trace File Analyzer to use CA-signed certificates:

  1. Create a private key for the server request:
    $ openssl genrsa -aes256 -out myserver.key 2048
  2. Create a private key for the client request:
    $ openssl genrsa -aes256 -out myclient.key 2048
  3. Create a Certificate Signing Request (CSR) for the server:
    $ openssl req -key myserver.key -new -sha256 -out myserver.csr
  4. Create a Certificate Signing Request (CSR) for the client:
    $ openssl req -key myclient.key -new -sha256 -out myclient.csr
  5. Send the resulting CSR for the client and the server to the relevant signing authority.

    The signing authority sends back the signed certificates:

    • myserver.cert

    • myclient.cert

    • CA root certificate

  6. Convert the certificates to JKS format for the server and the client:
    $ openssl pkcs12 -export -out serverCert.pkcs12 -in myserver.cert -inkey myserver.key
    $ keytool -v -importkeystore -srckeystore serverCert.pkcs12 -srcstoretype PKCS12 -destkeystore myserver.jks -deststoretype JKS
    $ openssl pkcs12 -export -out clientCert.pkcs12 -in myclient.cert -inkey myclient.key
    $ keytool -v -importkeystore -srckeystore clientCert.pkcs12 -srcstoretype PKCS12 -destkeystore myclient.jks -deststoretype JKS
  7. Import the server public key into to the client jks file:
    $ keytool -import -v -alias server-ca -file myserver.cert -keystore myclient.jks
  8. Import the client public key to the server jks file:
    $ keytool -import -v -alias client-ca -file myclient.cert -keystore myserver.jks
  9. Import the CA root certificate from the signing authority into the Oracle Trace File Analyzer server certificate:
    $ keytool -importcert -trustcacerts -alias inter -file caroot.cert -keystore myserver.jks
  10. Restrict the permissions on the keystores to root  read-only:
    $ chmod 400 myclient.jks myserver.jks
  11. Copy the keystores (jks files) to each node.
  12. Configure Oracle Trace File Analyzer to use the new certificates:
    $ tfactl set sslconfig
  13. Restart the Oracle Trace File Analyzer process to start using the new certificates.
    $ tfactl stop
    $ tfactl start

19.7.4 Configuring SSL Cipher Suite

The cipher suite is a set of cryptographic algorithms used by the TLS/SSL protocols to create keys and encrypt data.

Oracle Trace File Analyzer supports any of the cipher suites used by JRE 1.8.

The default cipher suite used is TLS_RSA_WITH_AES_128_CBC_SHA256.

  1. You can change the cipher suite with the command:
    tfactl set ciphersuite=cipher_suite
    For example:
    tfactl set ciphersuite=TLS_RSA_WITH_AES_128_GCM_SHA256

19.8 Configuring Email Notification Details

Configure Oracle Trace File Analyzer to send an email to the registered email address after an automatic collection completes.

To send emails, configure the system on which Oracle Trace Analyzer is running. You must configure notification with a user email address to enable it to work.

To configure email notification details:

  1. To set the notification email to use for a specific ORACLE_HOME, include the operating system owner in the command:
    tfactl set notificationAddress=os_user:email
    For example:
    tfactl set notificationAddress=oracle:some.body@example.com
  2. To set the notification email to use for any ORACLE_HOME:
    tfactl set notificationAddress=email
    For example:
    tfactl set notificationAddress=another.body@example.com
  3. Configure the SMTP server using tfactl set smtp.

    Set the SMTP parameters when prompted.

    Table 19-2 tfactl diagnosetfa Command Parameters

    Parameter Description

    smtp.host

    Specify the SMTP server host name.

    smtp.port

    Specify the SMTP server port.

    smtp.user

    Specify the SMTP user.

    smtp.password

    Specify password for the SMTP user.

    smtp.auth

    Set the Authentication flag to true or false.

    smtp.ssl

    Set the SSL flag to true or false.

    smtp.from

    Specify the from mail ID.

    smtp.to

    Specify the comma-delimited list of recipient mail IDs.

    smtp.cc

    Specify the comma-delimited list of CC mail IDs.

    smtp.bcc

    Specify the comma-delimited list of BCC mail IDs.

    smtp.debug

    Set the Debug flag to true or false.

    Note:

    You can view current SMTP configuration details using tfactl print smtp.

  4. Verify SMTP configuration by sending a test email using tfactl sendmail email_address.

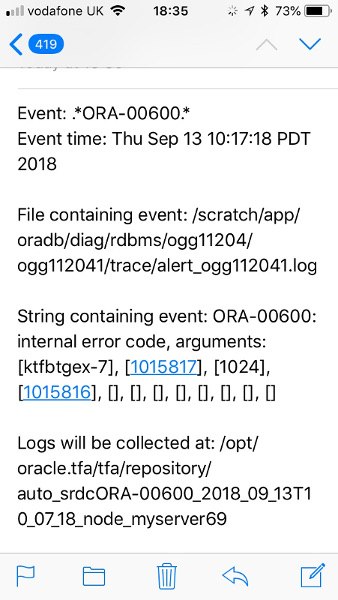

    When Oracle Trace File Analyzer detects a significant error has occurred it will send an email notification as follows:

  5. Do the following after receiving the notification email:
    1. To find the root cause, inspect the referenced collection details.
    2. If you can fix the issue, then resolve the underlying cause of the problem.
    3. If you do not know the root cause of the problem, then log an SR with Oracle Support, and upload the collection details.

Example 19-2 tfactl set smtp

# /u01/app/11.2.0.4/grid/bin/tfactl set smtp

.---------------------------.
| SMTP Server Configuration |
+---------------+-----------+
| Parameter | Value |
+---------------+-----------+
| smtp.auth | false |
| smtp.from | tfa |
| smtp.user | - |
| smtp.cc | - |
| smtp.port | 25 |
| smtp.bcc | - |
| smtp.password | ******* |
| smtp.host | localhost |
| smtp.to | - |
| smtp.debug | true |
| smtp.ssl | true |
'---------------+-----------'

Enter the SMTP property you want to update : smtp.host

Enter value for smtp.host : myhost.domain.com

SMTP Property smtp.host updated with myhost.domain.com

Do you want to continue ? [Y]|N : N

#
