3 Overview of How To Use Oracle XML DB
An overview of the various ways of using Oracle XML DB is presented.
This overview illustrates how to do the following: create and partition XMLType
tables and columns; enforce data integrity, load, query, and update database XML content; and generate XML data from relational data. It also explains how Oracle XML DB determines which character sets are used for XML documents.
Purchase Order Documents Illustrate Key XML Schema Features
Many of the examples presented in this chapter illustrate techniques for accessing and managing XML content in purchase-order documents. Purchase orders are highly structured documents, but you can also use the techniques shown here to work with XML documents that have little structure.
The purchase-order documents used for the examples here conform to a purchase-order XML schema that demonstrates some key features of a typical XML document:
-
Global element
PurchaseOrder
is an instance of thecomplexType
PurchaseOrderType
-
PurchaseOrderType
defines the set of nodes that make up aPurchaseOrder
element -
LineItems
element consists of a collection ofLineItem
elements -
Each
LineItem
element consists of two elements:Description
andPart
-
Part
element has attributesId
,Quantity
, andUnitPrice
- Creating XMLType Tables and Columns
Creating a table or column ofXMLType
is straightforward because it is an abstract data type. - Creating Virtual Columns on XMLType Data Stored as Binary XML
You can create virtual columns only forXMLType
data that is stored as binary XML. Such columns are useful for partitioning or constraining the data. - Partitioning Tables That Contain XMLType Data Stored as Binary XML
You can partition a table that containsXMLType
data stored as binary XML. - Enforcing XML Data Integrity Using the Database
You can combine the power of SQL and XML with the ability of the database to enforce rules. - Loading XML Content into Oracle XML DB

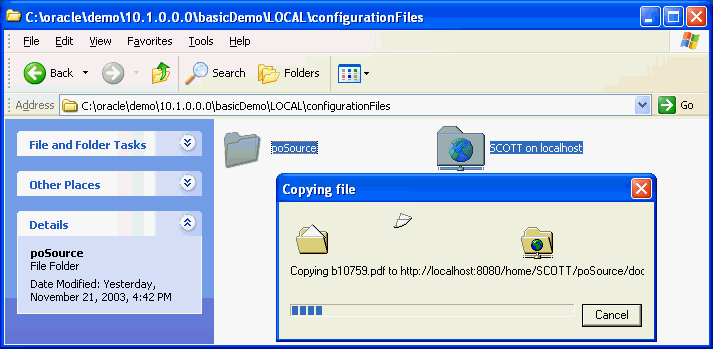

There are several ways to load XML content into Oracle XML DB. - Querying XML Content Stored in Oracle XML DB
There are many ways to query XML content in Oracle XML DB and retrieve it. - Updating XML Content Stored in Oracle XML DB
You can update XML content, replacing either the entire contents of a document or only particular parts of a document. - Generating XML Data from Relational Data
You can use Oracle XML DB to generate XML data from relational data. - Character Sets of XML Documents
There are a few ways in which Oracle XML DB determines which character sets are used for XML documents
See Also:
-
Application Design Considerations for Oracle XML DB for recommended Oracle XML DB features for most uses
-
XMLType APIs, XML Schema and Object-Relational XMLType, and Oracle XML DB Repository for information about more advanced Oracle XML DB features
-
Purchase-Order XML Schemas for the purchase-order XML schemas used for examples in this chapter
Parent topic: Oracle XML DB Basics
3.1 Creating XMLType Tables and Columns
Creating a table or column of XMLType
is straightforward because it is an abstract data type.
The basic CREATE TABLE
statement, specifying no storage options and no XML schema, stores XMLType
data as binary XML.Foot 1
Example 3-1 creates an XMLType
column, and Example 3-2 creates an XMLType
table.
Example 3-1 Creating a Table with an XMLType Column
CREATE TABLE mytable1 (key_column VARCHAR2(10) PRIMARY KEY, xml_column XMLType);
Example 3-2 Creating a Table of XMLType
CREATE TABLE mytable2 OF XMLType;
Related Topics
Parent topic: Overview of How To Use Oracle XML DB
3.2 Creating Virtual Columns on XMLType Data Stored as Binary XML
You can create virtual columns only for XMLType
data that is stored as binary XML. Such columns are useful for partitioning or constraining the data.
You create virtual columns for XML data the same way you create them for other data types, but you use a slightly different syntax. (In particular, you cannot specify constraints in association with the column definition.)
You create a virtual column based on an XML element or attribute by defining it in terms of a SQL expression that involves that element or attribute. The column is thus function-based.
You use SQL/XML functions XMLCast
and XMLQuery
to do this, as shown in Example 3-3 and Example 3-4. The XQuery expression argument to function XMLQuery
must be a simple XPath expression that uses only the child and attribute axes.
Example 3-3 creates XMLType
table po_binaryxml
, stored as binary XML. It creates virtual column date_col
, which represents the XML data in attribute /PurchaseOrder/@orderDate
.
Example 3-4 creates relational table rel_tab
, which has two columns: VARCHAR2
column key_col
for the primary key, and XMLType
column xml_col
for the XML data.
Because XMLType
is an abstract data type, if you create virtual columns on an XMLType
table or column then those columns are hidden. They do not show up in DESCRIBE
statements, for example. This hiding enables tools that use operations such as DESCRIBE
to function normally and not be misled by the virtual columns.
Note:
If you use a virtual column for interval partitioning then it must have data type NUMBER
or DATE
, otherwise an error is raised. Use SQL/XML functions XMLCast
and XMLQuery
to cast to the proper data type.
See Also:
Oracle Database SQL Language Reference for information about creating tables with virtual columns
Example 3-3 Creating a Virtual Column for an XML Attribute in an XMLType Table
CREATE TABLE po_binaryxml OF XMLType
XMLTYPE STORE AS BINARY XML
VIRTUAL COLUMNS
(date_col AS (XMLCast(XMLQuery('/PurchaseOrder/@orderDate'
PASSING OBJECT_VALUE RETURNING CONTENT)
AS DATE)));
Example 3-4 Creating a Virtual Column for an XML Attribute in an XMLType Column
CREATE TABLE reltab (key_col VARCHAR2(10) PRIMARY KEY,
xml_col XMLType)
XMLTYPE xml_col STORE AS BINARY XML
VIRTUAL COLUMNS
(date_col AS (XMLCast(XMLQuery('/PurchaseOrder/@orderDate'
PASSING xml_col RETURNING CONTENT)
AS DATE)));
3.3 Partitioning Tables That Contain XMLType Data Stored as Binary XML
You can partition a table that contains XMLType
data stored as binary XML.
There are two possibilities:
-
The table is relational, with an
XMLType
column and a non-XMLType
column. -
The table is of data type
XMLType
.
In the case of an XMLType
column, you use the non-XMLType
column as the partitioning key. This is illustrated in Example 3-5.
This case presents nothing new or specific with respect to XML data. The fact that one of the columns contains XMLType
data is irrelevant. Things are different for the other case: partitioning an XMLType
table.
XML data has its own structure, which (except for object-relational storage of XMLType
) is not reflected directly in database data structure. For XMLType
data stored as binary XML, individual XML elements and attributes are not mapped to individual database columns or tables.
Therefore, to partition binary XML data according to the values of individual elements or attributes, the standard approach for relational data does not apply. Instead, you must create virtual columns that represent the XML data of interest, and then use those virtual columns to define the constraints or partitions that you need.
The technique is as follows:
-
Define virtual columns that correspond to the XML elements or attributes that you are interested in.
-
Use those columns to partition the
XMLType
data as a whole.
This is illustrated in Example 3-6: virtual column date_col
targets the orderDate
attribute of element PurchaseOrder
in a purchase-order document. This column is used as the partitioning key.
For best performance using a partitioned table containing XML data, Oracle recommends that you use an XMLType
column rather than an XMLType
table, and you therefore partition using a non-XMLType
column.
Note:
-
You can partition an
XMLType
table using a virtual column only if the storage model is binary XML. Range, hash, and list partitioning are supported. -
Partitioning of
XMLType
tables stored as XML is supported starting with 11g Release 2 (11.2). It is supported only if the database compatibility (parametercompatible
in fileinit.ora
) is 11.2 or higher. -
If a relational table has an
XMLType
column, you cannot partition the table using that column to define virtual columns of XML data.
Example 3-5 Partitioning a Relational Table That Has an XMLType Column
CREATE TABLE reltab (key_col VARCHAR2(10) PRIMARY KEY,
xml_col XMLType)
XMLTYPE xml_col STORE AS BINARY XML
PARTITION BY RANGE (key_col)
(PARTITION P1 VALUES LESS THAN ('abc'),
PARTITION P2 VALUES LESS THAN (MAXVALUE));
Example 3-6 Partitioning an XMLType Table
CREATE TABLE po_binaryxml OF XMLType
XMLTYPE STORE AS BINARY XML
VIRTUAL COLUMNS
(date_col AS (XMLCast(XMLQuery('/PurchaseOrder/@orderDate'
PASSING OBJECT_VALUE RETURNING CONTENT)
AS DATE)))
PARTITION BY RANGE (date_col)
(PARTITION orders2001 VALUES LESS THAN (to_date('01-JAN-2002')),
PARTITION orders2002 VALUES LESS THAN (MAXVALUE));
3.4 Enforcing XML Data Integrity Using the Database
You can combine the power of SQL and XML with the ability of the database to enforce rules.
You can use SQL to supplement the functionality provided by XML schema. Only well-formed XML documents can be stored in XMLType
tables or columns. A well-formed XML document is one that conforms to the syntax of the XML version declared in its XML declaration. This includes having a single root element, properly nested tags, and so forth. Additionally, if the XMLType
table or column is constrained to an XML schema then only documents that conform to that XML schema can be stored in that table or column. Any attempt to store or insert any other kind of XML document in an XML schema-based XMLType
raises an error. Example 3-7 illustrates this.
Such an error occurs only when content is inserted directly into an XMLType
table. It indicates that Oracle XML DB did not recognize the document as a member of the class defined by the XML schema. For a document to be recognized as a member of the class defined by the schema, the following conditions must be true:
-
The name of the XML document root element must match the name of global element used to define the
XMLType
table or column. -
The XML document must include the appropriate attributes from the
XMLSchema-instance
namespace, or the XML document must be explicitly associated with the XML schema using theXMLType
constructor orXMLType
methodcreateSchemaBasedXML()
.
If the constraining XML schema declares a targetNamespace
, then the instance documents must contain the appropriate namespace declarations to place the root element of the document in the targetNamespace
defined by the XML schema.
Note:
XML constraints are enforced only within individual XML documents. Database (SQL) constraints are enforced across sets of XML documents.
Example 3-7 Error From Attempting to Insert an Incorrect XML Document
INSERT INTO purchaseorder
VALUES (XMLType(bfilename('XMLDIR', 'Invoice.xml'), nls_charset_id('AL32UTF8')))
VALUES (XMLType(bfilename('XMLDIR', 'Invoice.xml'), nls_charset_id('AL32UTF8')))
*
ERROR at line 2:
ORA-19007: Schema - does not match expected
http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd.
- Enforcing Referential Integrity Using SQL Constraints
You can use SQL constraints and database triggers to ensure data-integrity properties such as uniqueness and foreign-key relations.
Related Topics
Parent topic: Overview of How To Use Oracle XML DB
3.4.1 Enforcing Referential Integrity Using SQL Constraints
You can use SQL constraints and database triggers to ensure data-integrity properties such as uniqueness and foreign-key relations.
The W3C XML Schema Recommendation defines a powerful language for defining the contents of an XML document. However, there are some simple data management concepts that are not currently addressed by the W3C XML Schema Recommendation. These include the ability to ensure that the value of an element or attribute has either of these properties:
-
It is unique across a set of XML documents (a
UNIQUE
constraint). -
It exists in a particular data source that is outside of the current document (
FOREIGN KEY
constraint).
With Oracle XML DB, however, you can enforce such constraints. The mechanisms that you use to enforce integrity on XML data are the same as those you use to enforce integrity on relational data. Simple rules, such as uniqueness and foreign-key relationships, can be enforced by specifying SQL constraints. More complex rules can be enforced by specifying database triggers.
Oracle XML DB lets you use the database to enforce business rules on XML content, in addition to enforcing rules that can be specified using XML Schema constructs. The database enforces these business rules regardless of whether XML is inserted directly into a table or uploaded using one of the protocols supported by Oracle XML DB Repository.
XML data has its own structure, which (except for object-relational storage of XMLType
) is not reflected directly in database data structure. For XMLType
data stored as binary XML, individual XML elements and attributes are not mapped to individual database columns or tables.
Therefore, to constrain binary XML data according to the values of individual elements or attributes, the standard approach for relational data does not apply. Instead, you must create virtual columns that represent the XML data of interest, and then use those virtual columns to define the constraints that you need.
The technique is as follows:
-
Define virtual columns that correspond to the XML elements or attributes that you are interested in.
-
Use those columns to constrain the
XMLType
data as a whole.
The binary XML data can be in an XMLType
table or an XMLType
column of a relational table. In the former case, you can include creation of the constraint as part of the CREATE TABLE
statement, if you like. For the latter case, you must create the constraint using an ALTER TABLE
statement, after the relational table has been created.
See also:
Example 3-8 Constraining a Binary XML Table Using a Virtual Column
This example illustrates the technique for an XMLType
table. It defines virtual column c_xtabref
using the Reference
element in a purchase-order document. It defines uniqueness constraint reference_is_unique
on that column, which ensures that the value of node /PurchaseOrder/Reference/text()
is unique across all documents that are stored in the table. It fills the table with the data from OE.purchaseorder
. It then tries to insert a duplicate document, DuplicateReference.xml
, which violates the uniqueness constraint, raising an error.
CREATE TABLE po_binaryxml OF XMLType (CONSTRAINT reference_is_unique UNIQUE (c_xtabref)) XMLTYPE STORE AS BINARY XML VIRTUAL COLUMNS (c_xtabref AS (XMLCast(XMLQuery('/PurchaseOrder/Reference' PASSING OBJECT_VALUE RETURNING CONTENT) AS VARCHAR2(32)))); INSERT INTO po_binaryxml SELECT OBJECT_VALUE FROM OE.purchaseorder; 132 rows created. INSERT INTO po_binaryxml VALUES (XMLType(bfilename('XMLDIR', 'DuplicateReference.xml'), nls_charset_id('AL32UTF8'))); INSERT INTO po_binaryxml * ERROR at line 1: ORA-00001: unique constraint (OE.REFERENCE_IS_UNIQUE) violated
Example 3-9 Constraining a Binary XML Column Using a Virtual Column: Uniqueness
This example illustrates the technique for an XMLType
column of a relational table. It defines virtual column c_xcolref
and uniqueness constraint fk_ref
, which references the uniqueness constraint defined in Example 3-8. As in Example 3-8, this ensures that the value of node /PurchaseOrder/Reference/text()
is unique across all documents that are stored in XMLType
column po_binxml_col
.
The example fills the XMLType
column with the same data from OE.purchaseorder
. It then tries to insert duplicate document, DuplicateReference.xml
, which violates the uniqueness constraint, raising an error.
CREATE TABLE po_reltab (po_binxml_col XMLType) XMLTYPE po_binxml_col STORE AS BINARY XML VIRTUAL COLUMNS (c_xcolref AS (XMLCast (XMLQuery('/PurchaseOrder/Reference' PASSING po_binxml_col RETURNING CONTENT) AS VARCHAR2(32)))); ALTER TABLE po_reltab ADD CONSTRAINT reference_is_unique UNIQUE (c_xcolref)); INSERT INTO po_reltab SELECT OBJECT_VALUE FROM OE.purchaseorder; INSERT INTO po_reltab VALUES (XMLType(bfilename('XMLDIR', 'DuplicateReference.xml'), nls_charset_id('AL32UTF8'))); INSERT INTO po_reltab * ERROR at line 1: ORA-00001: unique constraint (OE.REFERENCE_IS_UNIQUE) violated
Example 3-10 Constraining a Binary XML Column Using a Virtual Column: Foreign Key
This example is similar to Example 3-9, but it uses a foreign-key constraint, fk_ref
, which references the column with the uniqueness constraint defined in Example 3-8. Insertion of the document in file DuplicateReference.xml
succeeds here, since that document is in (virtual) column c_tabref
of table po_binaryxml
. Insertion of a document that does not match any document in table po_binaryxml
.
CREATE TABLE po_reltab (po_binxml_col XMLType) XMLTYPE po_binxml_col STORE AS BINARY XML VIRTUAL COLUMNS (c_xcolref AS (XMLCast (XMLQuery('/PurchaseOrder/Reference' PASSING po_binxml_col RETURNING CONTENT) AS VARCHAR2(32)))); ALTER TABLE po_reltab ADD CONSTRAINT fk_ref FOREIGN KEY (c_xcolref) REFERENCES po_binaryxml(c_xtabref); INSERT INTO po_reltab VALUES (XMLType(bfilename('XMLDIR', 'DuplicateReference.xml'), nls_charset_id('AL32UTF8'))); INSERT INTO po_reltab VALUES ('<PurchaseOrder><Reference>Not Compliant</Reference></PurchaseOrder>'); INSERT INTO po_reltab VALUES ('<PurchaseOrder><Reference>Not Compliant </Reference></PurchaseOrder>') * ERROR at line 1: ORA-02291: integrity constraint (OE.FK_REF) violated - parent key not found
Example 3-11 Enforcing Database Integrity When Loading XML Using FTP
Integrity rules defined using constraints and triggers are also enforced when XML schema-based XML content is loaded into Oracle XML DB Repository. This example shows that database integrity is also enforced when a protocol, such as FTP, is used to upload XML schema-based XML content into Oracle XML DB Repository. In this case, additional constraints, besides uniqueness, were also violated.
$ ftp localhost 2100
Connected to localhost.
220 mdrake-sun FTP Server (Oracle XML DB/Oracle Database 10g Enterprise Edition
Release 10.1.0.0.0 - Beta) ready.
Name (localhost:oracle10): QUINE
331 Password required for QUINE
Password: password
230 QUINE logged in
ftp> cd /source/schemas
250 CWD Command successful
ftp> put InvalidReference.xml
200 PORT Command successful
150 ASCII Data Connection
550- Error Response
ORA-00604: error occurred at recursive SQL level 1
ORA-31154: invalid XML document
ORA-19202: Error occurred in XML processing
LSX-00221: "SBELL-20021009" is too short (minimum length is 18)
ORA-06512: at "SYS.XMLTYPE", line 333
ORA-06512: at "QUINE.VALIDATE_PURCHASEORDER", line 3
ORA-04088: error during execution of trigger 'QUINE.VALIDATE_PURCHASEORDER'
550 End Error Response
ftp> put InvalidElement.xml
200 PORT Command successful
150 ASCII Data Connection
550- Error Response
ORA-30937: No schema definition for 'UserName' (namespace '##local') in parent
'PurchaseOrder'
550 End Error Response
ftp> put DuplicateReference.xml
200 PORT Command successful
150 ASCII Data Connection
550- Error Response
ORA-00604: error occurred at recursive SQL level 1
ORA-00001: unique constraint (QUINE.REFERENCE_IS_UNIQUE) violated
550 End Error Response
ftp> put InvalidUser.xml
200 PORT Command successful
150 ASCII Data Connection
550- Error Response
ORA-00604: error occurred at recursive SQL level 1
ORA-02291: integrity constraint (QUINE.USER_IS_VALID) violated - parent key not
found
550 End Error Response
When an error occurs while a document is being uploaded using a protocol, Oracle XML DB provides the client with the full SQL error trace. How the error is interpreted and reported to you is determined by the error-handling built into the client application. Some clients, such as a command line FTP tool, report the error returned by Oracle XML DB, while others, such as Microsoft Windows Explorer, report a generic error message.
3.5 Loading XML Content into Oracle XML DB
There are several ways to load XML content into Oracle XML DB.
- Loading XML Content Using SQL or PL/SQL
- Loading XML Content Using Java
With a DOM you can use Java to load aSQLXML
instance. - Loading XML Content Using C
With a DOM you can use C code to load anXMLType
instance. - Loading Large XML Files that Contain Small XML Documents
When loading large XML files consisting of a collection of smaller XML documents, it is often more efficient to use Simple API for XML (SAX) parsing to break the file into a set of smaller documents, and then insert those documents. - Loading Large XML Files Using SQL*Loader
You can use SQL*Loader to load large amounts of XML data into Oracle Database. - Loading XML Documents into the Repository Using DBMS_XDB_REPOS
You can use PL/SQL packageDBMS_XDB_REPOS
to load XML documents into Oracle XML DB Repository. You can access repository documents (resources) using path-based rather than table-based techniques. - Loading Documents into the Repository Using Protocols
You can load documents, including XML documents, from a local file system into Oracle XML DB Repository using popular protocols.
Parent topic: Overview of How To Use Oracle XML DB
3.5.1 Loading XML Content Using SQL or PL/SQL
You can use a simple INSERT
operation in SQL or PL/SQL to load an XML document into the database.
Before the document can be stored as an XMLType
column or table, you must convert it into an XMLType
instance using one of the XMLType
constructors.
XMLType
constructors allow an XMLType
instance to be created from different sources, including VARCHAR
, CLOB
, and BFILE
values. The constructors accept additional arguments that reduce the amount of processing associated with XMLType
creation. For example, if you are sure that a given source XML document is valid, you can provide an argument to the constructor that disables the type-checking that is otherwise performed.
In addition, if the source data is not encoded in the database character set, an XMLType
instance can be constructed using a BFILE
or BLOB
value. The encoding of the source data is specified through the character set id (csid
) argument of the constructor.
When you use SQL INSERT
to insert a large document containing collections into XMLType
tables (but not into XMLType
columns), Oracle XML DB optimizes load time and memory usage.
Example 3-13 shows how to insert XML content into an XMLType
table. Before making this insertion, you must create a database directory object that points to the directory containing the file to be processed. To do this, you must have the CREATE ANY DIRECTORY
privilege.
See Also:
-
Oracle Database PL/SQL Packages and Types Reference for a description of the
XMLType
constructors -
Oracle Database SQL Language Reference, under
GRANT
Example 3-12 Creating a Database Directory
CREATE DIRECTORY xmldir AS path_to_folder_containing_XML_file;
Example 3-13 Inserting XML Content into an XMLType Table
INSERT INTO mytable2 VALUES (XMLType(bfilename('XMLDIR', 'purchaseOrder.xml'), nls_charset_id('AL32UTF8')));
The value passed to nls_charset_id
indicates that the encoding for the file to be read is UTF-8.
3.5.2 Loading XML Content Using Java
With a DOM you can use Java to load a SQLXML
instance.
Example 3-14 shows how to load XML content into Oracle XML DB by first creating a SQLXML
instance in Java, given a Document Object Model (DOM).
A simple bulk loader application is available at Oracle XML DB on OTN. It shows how to load a directory of XML files into Oracle XML DB using Java Database Connectivity (JDBC). JDBC is a set of Java interfaces to Oracle Database.
Example 3-14 Inserting Content into an XMLType Table Using Java
public void doInsert(Connection conn, Document doc)
throws Exception
{
String query = "INSERT INTO purchaseorder VALUES (?)";
SQLXML sx = conn.createSQLXML();
DOMResult dom = sx.setResult(DOMResult.class);
dom.setNode(doc);
PreparedStatement statement = conn.prepareStatement(query);
statement.setSQLXML(1, sx);
statement.execute();
}
Parent topic: Loading XML Content into Oracle XML DB
3.5.3 Loading XML Content Using C
With a DOM you can use C code to load an XMLType
instance.
Example 3-15 shows how to insert XML content into an XMLType
table using C code, by creating an XMLType
instance given a DOM (see Oracle XML Developer's Kit Programmer's Guide). See Loading XML Data Using C (OCI) for a complete listing of this example.
Note:
For simplicity in demonstrating this feature, this example does not perform the password management techniques that a deployed system normally uses. In a production environment, follow the Oracle Database password management guidelines, and disable any sample accounts. See Oracle Database Security Guide for password management guidelines and other security recommendations.
Example 3-15 Inserting Content into an XMLType Table Using C
. . .
void main()
{
OCIType *xmltdo;
xmldocnode *doc;
ocixmldbparam params[1];
xmlerr err;
xmlctx *xctx;
oratext *ins_stmt;
sword status;
xmlnode *root;
oratext buf[10000];
/* Initialize envhp, svchp, errhp, dur, stmthp */
init_oci_connect();
/* Get an XML context */
params[0].name_ocixmldbparam = XCTXINIT_OCIDUR;
params[0].value_ocixmldbparam = &dur;
xctx = OCIXmlDbInitXmlCtx(envhp, svchp, errhp, params, 1);
if (!(doc = XmlLoadDom(xctx, &err, "file", filename,
"schema_location", schemaloc, NULL)))
{
printf("Parse failed.\n");
return;
}
else
printf("Parse succeeded.\n");
root = XmlDomGetDocElem(xctx, doc);
printf("The xml document is :\n");
XmlSaveDom(xctx, &err, (xmlnode *)doc, "buffer", buf, "buffer_length", 10000, NULL);
printf("%s\n", buf);
/* Insert the document into my_table */
ins_stmt = (oratext *)"insert into purchaseorder values (:1)";
status = OCITypeByName(envhp, errhp, svchp, (const text *) "SYS",
(ub4) strlen((const char *)"SYS"), (const text *) "XMLTYPE",
(ub4) strlen((const char *)"XMLTYPE"), (CONST text *) 0,
(ub4) 0, OCI_DURATION_SESSION, OCI_TYPEGET_HEADER,
(OCIType **) &xmltdo);
if (status == OCI_SUCCESS)
{
status = exec_bind_xml(svchp, errhp, stmthp, (void *)doc,
xmltdo, ins_stmt);
}
if (status == OCI_SUCCESS)
printf ("Insert successful\n");
else
printf ("Insert failed\n");
/* Free XML instances */
if (doc)
XmlFreeDocument((xmlctx *)xctx, (xmldocnode *)doc);
/* Free XML CTX */
OCIXmlDbFreeXmlCtx(xctx);
free_oci();
}
Parent topic: Loading XML Content into Oracle XML DB
3.5.4 Loading Large XML Files that Contain Small XML Documents
When loading large XML files consisting of a collection of smaller XML documents, it is often more efficient to use Simple API for XML (SAX) parsing to break the file into a set of smaller documents, and then insert those documents.
SAX is an XML standard interface provided by XML parsers for event-based applications. You can use SAX to load a database table from very large XML files in the order of 30 MB or larger, by creating individual documents from a collection of nodes. You can also bulk load XML files.
See Also:
-
SAX Project for information about SAX
-
Oracle XML DB on OTN, for an application example that loads large files using SAX
Parent topic: Loading XML Content into Oracle XML DB
3.5.5 Loading Large XML Files Using SQL*Loader
You can use SQL*Loader to load large amounts of XML data into Oracle Database.
SQL*Loader loads in one of two modes, conventional or direct path. Table 3-1 compares these modes.
Table 3-1 SQL*Loader – Conventional and Direct-Path Load Modes
Conventional Load Mode | Direct-Path Load Mode |
---|---|
Uses SQL to load data into Oracle Database. This is the default mode. |
Bypasses SQL and streams the data directly into Oracle Database. |
Advantage: Follows SQL semantics. For example triggers are fired and constraints are checked. |
Advantage: This loads data much faster than the conventional load mode. |
Disadvantage: This loads data slower than with the direct load mode. |
Disadvantage: SQL semantics is not obeyed. For example triggers are not fired and constraints are not checked. |
When loading LOBs with SQL*Loader direct-path load, much memory can be used. If the message SQL*Loader 700 (out of memory)
appears, then it is likely that more rows are being included in each load call than can be handled by your operating system and process memory. Workaround: use the ROWS
option to read a smaller number of rows in each data save.
Related Topics
Parent topic: Loading XML Content into Oracle XML DB
3.5.6 Loading XML Documents into the Repository Using DBMS_XDB_REPOS
You can use PL/SQL package DBMS_XDB_REPOS
to load XML documents into Oracle XML DB Repository. You can access repository documents (resources) using path-based rather than table-based techniques.
To load an XML document into the repository under a given path, use PL/SQL function DBMS_XDB_REPOS.createResource
. Example 3-16 illustrates this.
Many operations for configuring and using Oracle XML DB are based on processing one or more XML documents. Examples include registering an XML schema and performing an XSL transformation. The easiest way to make these XML documents available to Oracle Database is to load them into Oracle XML DB Repository.
Example 3-16 Inserting XML Content into the Repository Using CREATERESOURCE
DECLARE
res BOOLEAN;
BEGIN
res := DBMS_XDB_REPOS.createResource('/home/QUINE/purchaseOrder.xml',
bfilename('XMLDIR', 'purchaseOrder.xml'),
nls_charset_id('AL32UTF8'));
END;/
Parent topic: Loading XML Content into Oracle XML DB
3.5.7 Loading Documents into the Repository Using Protocols
You can load documents, including XML documents, from a local file system into Oracle XML DB Repository using popular protocols.
Oracle XML DB Repository can store XML documents that are either XML schema-based or non-schema-based. It can also store content that is not XML data, such as HTML files, image files, and Microsoft Word documents.
You can load XML documents from a local file system into Oracle XML DB Repository using protocols such as WebDAV, from Windows Explorer or other tools that support WebDAV. Figure 3-1 shows a simple drag and drop operation for copying the contents of the SCOTT
folder from the local hard drive to folder poSource
in Oracle XML DB Repository.
Figure 3-1 Loading Content into the Repository Using Windows Explorer
Description of "Figure 3-1 Loading Content into the Repository Using Windows Explorer"
The copied folder might contain, for example, an XML schema document, an HTML page, and some XSLT stylesheets.
Parent topic: Loading XML Content into Oracle XML DB
3.6 Querying XML Content Stored in Oracle XML DB
There are many ways to query XML content in Oracle XML DB and retrieve it.
Note:
For efficient query performance you typically need to create indexes. For information about indexing XML data, see Indexes for XMLType Data.
- PurchaseOrder XML Document Used in Examples
An XML schema defines the purchase-order documents used in examples. - Retrieving the Content of an XML Document Using Pseudocolumn OBJECT_VALUE
PseudocolumnOBJECT_VALUE
can be used as an alias for the value of an object table. - Accessing Fragments or Nodes of an XML Document Using XMLQUERY
You can use SQL/XML functionXMLQuery
to extract the nodes that match an XQuery expression. The result is returned as an instance ofXMLType
. - Accessing Text Nodes and Attribute Values Using XMLCAST and XMLQUERY
You can access text node and attribute values using SQL/XML standard functionsXMLQuery
andXMLCast
. - Searching an XML Document Using XMLEXISTS, XMLCAST, and XMLQUERY
You can use SQL/XML standard functionsXMLExists
,XMLCast
, andXMLQuery
in a SQLWHERE
clause to limit query results. - Performing SQL Operations on XMLType Fragments Using XMLTABLE
You can use SQL/XML functionXMLTable
to perform SQL operations on a set of nodes that match an XQuery expression.
Parent topic: Overview of How To Use Oracle XML DB
3.6.1 PurchaseOrder XML Document Used in Examples
An XML schema defines the purchase-order documents used in examples.
Examples presented here are based on the PurchaseOrder
XML document shown in Example 3-17.
Example 3-17 PurchaseOrder XML Instance Document
<PurchaseOrder
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation=
"http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd">
<Reference>SBELL-2002100912333601PDT</Reference>
<Actions>
<Action>
<User>SVOLLMAN</User>
</Action>
</Actions>
<Reject/>
<Requestor>Sarah J. Bell</Requestor>
<User>SBELL</User>
<CostCenter>S30</CostCenter>
<ShippingInstructions>
<name>Sarah J. Bell</name>
<address>400 Oracle Parkway
Redwood Shores
CA
94065
USA</address>
<telephone>650 506 7400</telephone>
</ShippingInstructions>
<SpecialInstructions>Air Mail</SpecialInstructions>
<LineItems>
<LineItem ItemNumber="1">
<Description>A Night to Remember</Description>
<Part Id="715515009058" UnitPrice="39.95" Quantity="2"/>
</LineItem>
<LineItem ItemNumber="2">
<Description>The Unbearable Lightness Of Being</Description>
<Part Id="37429140222" UnitPrice="29.95" Quantity="2"/>
</LineItem>
<LineItem ItemNumber="3">
<Description>Sisters</Description>
<Part Id="715515011020" UnitPrice="29.95" Quantity="4"/>
</LineItem>
</LineItems>
</PurchaseOrder>
Parent topic: Querying XML Content Stored in Oracle XML DB
3.6.2 Retrieving the Content of an XML Document Using Pseudocolumn OBJECT_VALUE
Pseudocolumn OBJECT_VALUE
can be used as an alias for the value of an object table.
For an XMLType
table that consists of a single column of XMLType
, the entire XML document is retrieved. (OBJECT_VALUE
replaces the value(x)
and SYS_NC_ROWINFO$
aliases used in releases prior to Oracle Database 10g Release 1.)
In Example 3-18, the SQL*Plus settings PAGESIZE
and LONG
are used to ensure that the entire document is printed correctly, without line breaks. (The output has been formatted for readability.)
Example 3-18 Retrieving an Entire XML Document Using OBJECT_VALUE
SELECT OBJECT_VALUE FROM purchaseorder;
OBJECT_VALUE
-----------------------------------------------------------------------
<PurchaseOrder xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="http://localhost:8080/source/schemas
/poSource/xsd/purchaseOrder.xsd">
<Reference>SBELL-2002100912333601PDT</Reference>
<Actions>
<Action>
<User>SVOLLMAN</User>
</Action>
</Actions>
<Reject/>
<Requestor>Sarah J. Bell</Requestor>
<User>SBELL</User>
<CostCenter>S30</CostCenter>
<ShippingInstructions>
<name>Sarah J. Bell</name>
<address>400 Oracle Parkway
Redwood Shores
CA
94065
USA</address>
<telephone>650 506 7400</telephone>
</ShippingInstructions>
<SpecialInstructions>Air Mail</SpecialInstructions>
<LineItems>
<LineItem ItemNumber="1">
<Description>A Night to Remember</Description>
<Part Id="715515009058" UnitPrice="39.95" Quantity="2"/>
</LineItem>
<LineItem ItemNumber="2">
<Description>The Unbearable Lightness Of Being</Description>
<Part Id="37429140222" UnitPrice="29.95" Quantity="2"/>
</LineItem>
<LineItem ItemNumber="3">
<Description>Sisters</Description>
<Part Id="715515011020" UnitPrice="29.95" Quantity="4"/>
</LineItem>
</LineItems>
</PurchaseOrder>
1 row selected.
Parent topic: Querying XML Content Stored in Oracle XML DB
3.6.3 Accessing Fragments or Nodes of an XML Document Using XMLQUERY
You can use SQL/XML function XMLQuery
to extract the nodes that match an XQuery expression. The result is returned as an instance of XMLType
.
Example 3-19 illustrates this with several queries.
Example 3-19 Accessing XML Fragments Using XMLQUERY
The following query returns an XMLType
instance containing the Reference
element that matches the XPath expression.
SELECT XMLQuery('/PurchaseOrder/Reference' PASSING OBJECT_VALUE RETURNING CONTENT)
FROM purchaseorder;
XMLQUERY('/PURCHASEORDER/REFERENCE'PASSINGOBJECT_
-------------------------------------------------
<Reference>SBELL-2002100912333601PDT</Reference>
1 row selected.
The following query returns an XMLType
instance containing the first LineItem
element in the LineItems
collection:
SELECT XMLQuery('/PurchaseOrder/LineItems/LineItem[1]'
PASSING OBJECT_VALUE RETURNING CONTENT)
FROM purchaseorder;
XMLQUERY('/PURCHASEORDER/LINEITEMS/LINEITEM[1]'PASSINGOBJECT_
-------------------------------------------------------------
<LineItem ItemNumber="1">
<Description>A Night to Remember</Description>
<Part Id="715515009058" UnitPrice="39.95" Quantity="2"/>
</LineItem>
1 row selected.
The following query returns an XMLType
instance that contains the three Description
elements that match the XPath expression. These elements are returned as nodes in a single XMLType
instance. The XMLType
instance does not have a single root node; it is an XML fragment.
SELECT XMLQuery('/PurchaseOrder/LineItems/LineItem/Description'
PASSING OBJECT_VALUE RETURNING CONTENT)
FROM purchaseorder;
XMLQUERY('/PURCHASEORDER/LINEITEMS/LINEITEM/DESCRIPTION'PASSINGOBJECT_
----------------------------------------------------------------------
<Description>A Night to Remember</Description>
<Description>The Unbearable Lightness Of Being</Description>
<Description>Sisters</Description>
1 row selected.
Parent topic: Querying XML Content Stored in Oracle XML DB
3.6.4 Accessing Text Nodes and Attribute Values Using XMLCAST and XMLQUERY
You can access text node and attribute values using SQL/XML standard functions XMLQuery
and XMLCast
.
To do this, the XQuery expression passed to XMLQuery
must uniquely identify a single text node or attribute value within the document – that is, a leaf node. Example 3-20 illustrates this using several queries.
See Also:
XQuery and Oracle XML DB for information on SQL/XML functions XMLQuery
and XMLCast
Example 3-20 Accessing a Text Node Value Using XMLCAST and XMLQuery
The following query returns the value of the text node associated with the Reference
element that matches the target XPath expression. The value is returned as a VARCHAR2
value.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/Reference/text()'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(30))
FROM purchaseorder;
XMLCAST(XMLQUERY('$P/PURCHASEO
------------------------------
SBELL-2002100912333601PDT
1 row selected.
The following query returns the value of the text node associated with a Description
element contained in a LineItem
element. The particular LineItem
element is specified by its Id
attribute value. The predicate that identifies the LineItem
element is [Part/@Id="715515011020"]
. The at-sign character (@
) specifies that Id
is an attribute rather than an element. The value is returned as a VARCHAR2
value.
SELECT XMLCast(
XMLQuery('$p/PurchaseOrder/LineItems/LineItem[Part/@Id="715515011020"]/Description/text()'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(30))
FROM purchaseorder;
XMLCAST(XMLQUERY('$P/PURCHASEO
------------------------------
Sisters
1 row selected.
The following query returns the value of the text node associated with the Description
element contained in the first LineItem
element. The first LineItem
element is indicated by the position predicate[1]
.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/LineItems/LineItem[1]/Description'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(4000))
FROM purchaseorder;
XMLCAST(XMLQUERY('$P/PURCHASEORDER/LINEITEMS/LINEITEM[1]/DESCRIPTION'PASSINGOBJECT_VALUEAS"P"
---------------------------------------------------------------------------------------------
A Night to Remember
1 row selected.
Parent topic: Querying XML Content Stored in Oracle XML DB
3.6.5 Searching an XML Document Using XMLEXISTS, XMLCAST, and XMLQUERY
You can use SQL/XML standard functions XMLExists
, XMLCast
, and XMLQuery
in a SQL WHERE
clause to limit query results.
SQL/XML standard function XMLExists
evaluates whether or not a given document contains a node that matches a W3C XPath expression. It returns a Boolean value of true
if the document contains the node specified by the XPath expression supplied to the function and a value of false
if it does not. Since XPath expressions can contain predicates, XMLExists
can determine whether or not a given node exists in the document, and whether or not a node with the specified value exists in the document.
Similarly, functions XMLCast
and XMLQuery
let you limit query results to documents that satisfy some property. Example 3-21 illustrates the use of XMLExists
, XMLCast
, and XMLQuery
to search for documents.
Example 3-22 performs a join based on the values of a node in an XML document and data in another, relational table.
See Also:
XQuery and Oracle XML DB for information about SQL/XML functions XMLQuery
, XMLExists
, and XMLCast
Example 3-21 Searching XML Content Using XMLExists, XMLCast, and XMLQuery
The following query uses XMLExists
to check if the XML document contains an element named Reference
that is a child of the root element PurchaseOrder
:
SELECT count(*) FROM purchaseorder WHERE XMLExists('$p/PurchaseOrder/Reference' PASSING OBJECT_VALUE AS "p"); COUNT(*) ---------- 132 1 row selected.
The following query checks if the value of the text node associated with the Reference
element is SBELL-2002100912333601PDT
:
SELECT count(*) FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
COUNT(*)
----------
1
1 row selected.
This query checks whether the XML document contains a root element PurchaseOrder
that contains a LineItems
element that contains a LineItem
element that contains a Part
element with an Id
attribute.
SELECT count(*) FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder/LineItems/LineItem/Part/@Id'
PASSING OBJECT_VALUE AS "p");
COUNT(*)
----------
132
1 row selected.
The following query checks whether the XML document contains a root element PurchaseOrder
that contains a LineItems
element that contains a LineItem
element that contains a Part
element with Id
attribute value 715515009058
.
SELECT count(*) FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder/LineItems/LineItem/Part[@Id="715515009058"]'
PASSING OBJECT_VALUE AS "p");
COUNT(*)
----------
21
The following query checks whether the XML document contains a root element PurchaseOrder
that contains a LineItems
element whose third LineItem
element contains a Part
element with Id
attribute value 715515009058
.
SELECT count(*) FROM purchaseorder
WHERE XMLExists(
'$p/PurchaseOrder/LineItems/LineItem[3]/Part[@Id="715515009058"]'
PASSING OBJECT_VALUE AS "p");
COUNT(*)
----------
1
1 row selected.
The following query limits the results of the SELECT
statement to rows where the text node associated with element User
starts with the letter S
. XQuery does not include support for LIKE
-based queries.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/Reference' PASSING OBJECT_VALUE AS "p" RETURNING CONTENT) AS VARCHAR2(30)) FROM purchaseorder WHERE XMLCast(XMLQuery('$p/PurchaseOrder/User' PASSING OBJECT_VALUE AS "p" RETURNING CONTENT) AS VARCHAR2(30)) LIKE 'S%'; XMLCAST(XMLQUERY('$P/PURCHASEORDER ---------------------------------- SBELL-20021009123336231PDT SBELL-20021009123336331PDT SKING-20021009123336321PDT ... 36 rows selected.
The following query uses XMLExists
to limit the results of a SELECT
statement to rows where the text node of element User
contains the value SBELL
.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/Reference' PASSING OBJECT_VALUE AS "p"
RETURNING CONTENT)
AS VARCHAR2(30)) "Reference"
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[User="SBELL"]' PASSING OBJECT_VALUE AS "p");
Reference
------------------------------
SBELL-20021009123336231PDT
SBELL-20021009123336331PDT
SBELL-20021009123337353PDT
SBELL-20021009123338304PDT
SBELL-20021009123338505PDT
SBELL-20021009123335771PDT
SBELL-20021009123335280PDT
SBELL-2002100912333763PDT
SBELL-2002100912333601PDT
SBELL-20021009123336362PDT
SBELL-20021009123336532PDT
SBELL-20021009123338204PDT
SBELL-20021009123337673PDT
13 rows selected.
The following query uses SQL/XML functions XMLQuery
and XMLExists
to find the Reference
element for any PurchaseOrder
element whose first LineItem
element contains an order for the item with Id
715515009058
. Function XMLExists
is used in the WHERE
clause to determine which rows are selected, and XMLQuery
is used in the SELECT
list to control which part of the selected documents appears in the result.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/Reference' PASSING OBJECT_VALUE AS "p" RETURNING CONTENT) AS VARCHAR2(30)) "Reference" FROM purchaseorder WHERE XMLExists('$p/PurchaseOrder/LineItems/LineItem[1]/Part[@Id="715515009058"]' PASSING OBJECT_VALUE AS "p"); Reference ------------------------- SBELL-2002100912333601PDT 1 row selected.
Example 3-22 Joining Data from an XMLType Table and a Relational Table
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/Reference' PASSING OBJECT_VALUE AS "p" RETURNING CONTENT) AS VARCHAR2(30)) FROM purchaseorder p, hr.employees e WHERE XMLCast(XMLQuery('$p/PurchaseOrder/User' PASSING OBJECT_VALUE AS "p" RETURNING CONTENT) AS VARCHAR2(30)) = e.email AND e.employee_id = 100; XMLCAST(XMLQUERY('$P/PURCHASEOREDER ----------------------------------- SKING-20021009123336321PDT SKING-20021009123337153PDT SKING-20021009123335560PDT SKING-20021009123336952PDT SKING-20021009123336622PDT SKING-20021009123336822PDT SKING-20021009123336131PDT SKING-20021009123336392PDT SKING-20021009123337974PDT SKING-20021009123338294PDT SKING-20021009123337703PDT SKING-20021009123337383PDT SKING-20021009123337503PDT 13 rows selected.
Parent topic: Querying XML Content Stored in Oracle XML DB
3.6.6 Performing SQL Operations on XMLType Fragments Using XMLTABLE
You can use SQL/XML function XMLTable
to perform SQL operations on a set of nodes that match an XQuery expression.
Example 3-19 demonstrates how to extract an XMLType
instance that contains the node or nodes that match an XPath expression. When the document contains multiple nodes that match the supplied XPath expression, such a query returns an XML fragment that contains all of the matching nodes. Unlike an XML document, an XML fragment has no single element that is the root element.
This kind of result is common in these cases:
-
When you retrieve the set of elements contained in a collection, in which case all nodes in the fragment are of the same type – see Example 3-23
-
When the target XPath expression ends in a wildcard, in which case the nodes in the fragment can be of different types – see Example 3-25
You can use SQL/XML function XMLTable
to break up an XML fragment contained in an XMLType
instance, inserting the collection-element data into a new, virtual table, which you can then query using SQL — in a join expression, for example. In particular, converting an XML fragment into a virtual table makes it easier to process the result of evaluating an XMLQuery
expression that returns multiple nodes.
See Also:
XQuery and Oracle XML DB for more information about SQL/XML function XMLTable
Example 3-23 shows how to access the text nodes for each Description
element in the PurchaseOrder
document. It breaks up the single XML Fragment output from Example 3-19 into multiple text nodes.
Example 3-24 counts the number of elements in a collection. It also shows how SQL keywords such as ORDER BY
and GROUP BY
can be applied to the virtual table data created by SQL/XML function XMLTable
.
Example 3-25 shows how to use SQL/XML function XMLTable
to count the number of child elements of a given element. The XPath expression passed to XMLTable
contains a wildcard (*
) that matches all elements that are direct descendants of a PurchaseOrder
element. Each row of the virtual table created by XMLTable
contains a node that matches the XPath expression. Counting the number of rows in the virtual table provides the number of element children of element PurchaseOrder
.
Example 3-23 Accessing Description Nodes Using XMLTABLE
SELECT des.COLUMN_VALUE
FROM purchaseorder p,
XMLTable('/PurchaseOrder/LineItems/LineItem/Description'
PASSING p.OBJECT_VALUE) des
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
COLUMN_VALUE
------------
<Description>A Night to Remember</Description>
<Description>The Unbearable Lightness Of Being</Description>
<Description>Sisters</Description>
3 rows selected.
To use SQL to process the contents of the text nodes, the example converts the collection of Description
nodes into a virtual table, using SQL/XML function XMLTable
. The virtual table has three rows, each of which contains a single XMLType
instance with a single Description
element.
The XPath expression targets the Description
elements. The PASSING
clause says to use the contents (OBJECT_VALUE
) of XMLType
table purchaseorder
as the context for evaluating the XPath expression.
The XMLTable
expression thus depends on the purchaseorder
table. This is a left lateral join. This correlated join ensures a one-to-many (1:N) relationship between the purchaseorder
row accessed and the rows generated from it by XMLTable
. Because of this correlated join, the purchaseorder
table must appear before the XMLTable
expression in the FROM
list. This is a general requirement in any situation where the PASSING
clause refers to a column of the table.
Each XMLType
instance in the virtual table contains a single Description
element. You can use the COLUMNS
clause of XMLTable
to break up the data targeted by the XPath expression 'Description'
into a column named description
of SQL data type VARCHAR2(256)
. The 'Description'
expression that defines this column is relative to the context XPath expression, '/PurchaseOrder/LineItems/LineItem'
.
SELECT des.description FROM purchaseorder p, XMLTable('/PurchaseOrder/LineItems/LineItem' PASSING p.OBJECT_VALUE COLUMNS description VARCHAR2(256) PATH 'Description') des WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]' PASSING OBJECT_VALUE AS "p"); DESCRIPTION --------------------------------- A Night to Remember The Unbearable Lightness Of Being Sisters 3 rows selected.
The COLUMNS
clause lets you specify precise SQL data types, which can make static type-checking more helpful. This example uses only a single column (description
). To expose data that is contained at multiple levels in an XMLType
table as individual rows in a relational view, apply XMLTable
to each document level to be broken up and stored in relational columns. See Example 9-2 for an example.
Example 3-24 Counting the Number of Elements in a Collection Using XMLTABLE
SELECT reference, count(*) FROM purchaseorder, XMLTable('/PurchaseOrder' PASSING OBJECT_VALUE COLUMNS reference VARCHAR2(32) PATH 'Reference', lineitem XMLType PATH 'LineItems/LineItem'), XMLTable('LineItem' PASSING lineitem) WHERE XMLExists('$p/PurchaseOrder[User="SBELL"]' PASSING OBJECT_VALUE AS "p") GROUP BY reference ORDER BY reference; REFERENCE COUNT(*) -------------------------- -------- SBELL-20021009123335280PDT 20 SBELL-20021009123335771PDT 21 SBELL-2002100912333601PDT 3 SBELL-20021009123336231PDT 25 SBELL-20021009123336331PDT 10 SBELL-20021009123336362PDT 15 SBELL-20021009123336532PDT 14 SBELL-20021009123337353PDT 10 SBELL-2002100912333763PDT 21 SBELL-20021009123337673PDT 10 SBELL-20021009123338204PDT 14 SBELL-20021009123338304PDT 24 SBELL-20021009123338505PDT 20 13 rows selected.
The query in this example locates the set of XML documents that match the XPath expression to SQL/XML function XMLExists
. It generates a virtual table with two columns:
-
reference
, containing theReference
node for each document selected -
lineitem
, containing the set ofLineItem
nodes for each document selected
It counts the number of LineItem
nodes for each document. A correlated join ensures that the GROUP BY
correctly determines which LineItem
elements belong to which PurchaseOrder
element.
Example 3-25 Counting the Number of Child Elements in an Element Using XMLTABLE
SELECT count(*)
FROM purchaseorder p, XMLTable('/PurchaseOrder/*' PASSING p.OBJECT_VALUE)
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
COUNT(*)
----------
9
1 row selected.
Parent topic: Querying XML Content Stored in Oracle XML DB
3.7 Updating XML Content Stored in Oracle XML DB
You can update XML content, replacing either the entire contents of a document or only particular parts of a document.
The ability to perform partial updates on XML documents is very powerful, particularly when you make small changes to large documents, as it can significantly reduce the amount of network traffic and disk input-output required to perform the update.
You can make multiple changes to a document in a single operation. Each change uses an XQuery expression to identify a node to be updated, and specifies the new value for that node.
Example 3-26 updates the text node associated with element
User
.
Example 3-27 replaces an entire element within an XML document. The
XQuery expression references the element, and the replacement value is passed as an
XMLType
object.
You can make multiple changes to a document in one statement. Example 3-28 changes the values of text nodes belonging to elements
CostCenter
and SpecialInstructions
in a single SQL
UPDATE
statement.
Example 3-26 Updating a Text Node
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/User' PASSING OBJECT_VALUE AS "p"
RETURNING CONTENT)
AS VARCHAR2(60))
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
XMLCAST(XMLQUERY('$P/PURCHAS
----------------------------
SBELL
1 row selected.
UPDATE purchaseorder
SET OBJECT_VALUE =
XMLQuery('copy $i := $p1 modify
(for $j in $i/PurchaseOrder/User
return replace value of node $j with $p2)
return $i'
PASSING OBJECT_VALUE AS "p1", 'SKING' AS "p2" RETURNING CONTENT)
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
1 row updated.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/User' PASSING OBJECT_VALUE AS "p"
RETURNING CONTENT)
AS VARCHAR2(60))
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
XMLCAST(XMLQUERY('$P/PURCHAS
----------------------------
SKING
1 row selected.
Example 3-27 Replacing an Entire Element Using XQuery Update
SELECT XMLQuery('$p/PurchaseOrder/LineItems/LineItem[1]'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
XMLQUERY('$P/PURCHAS
--------------------
<LineItem ItemNumber="1">
<Description>A Night to Remember</Description>
<Part Id="715515009058" UnitPrice="39.95" Quantity="2"/>
</LineItem>
1 row selected.
UPDATE purchaseorder
SET OBJECT_VALUE =
XMLQuery('copy $i := $p1 modify
(for $j in $i/PurchaseOrder/LineItems/LineItem[1]
return replace node $j with $p2)
return $i'
PASSING OBJECT_VALUE AS "p1",
XMLType('<LineItem ItemNumber="1">
<Description>The Lady Vanishes</Description>
<Part Id="37429122129" UnitPrice="39.95"
Quantity="1"/>
</LineItem>') AS "p2"
RETURNING CONTENT)
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
1 row updated.
SELECT XMLQuery('$p/PurchaseOrder/LineItems/LineItem[1]'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
XMLQUERY('$P/PURCHAS
--------------------
<LineItem ItemNumber="1">
<Description>The Lady Vanishes</Description>
<Part Id="37429122129" UnitPrice="39.95" Quantity="1"/>
</LineItem>
1 row selected.
Example 3-28 Changing Text Node Values Using XQuery Update
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/CostCenter'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(4)) "Cost Center",
XMLCast(XMLQuery('$p/PurchaseOrder/SpecialInstructions'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(2048)) "Instructions"
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
Cost Center Instructions
------------ ------------
S30 Air Mail
1 row selected.
UPDATE purchaseorder
SET OBJECT_VALUE =
XMLQuery('copy $i := $p1 modify
((for $j in $i/PurchaseOrder/CostCenter
return replace value of node $j with $p2),
(for $j in $i/PurchaseOrder/SpecialInstructions
return replace value of node $j with $p3))
return $i'
PASSING OBJECT_VALUE AS "p1",
'B40' AS "p2",
'Priority Overnight Service' AS "p3"
RETURNING CONTENT)
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
1 row updated.
SELECT XMLCast(XMLQuery('$p/PurchaseOrder/CostCenter'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(4)) "Cost Center",
XMLCast(XMLQuery('$p/PurchaseOrder/SpecialInstructions'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(2048)) "Instructions"
FROM purchaseorder
WHERE XMLExists('$p/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]'
PASSING OBJECT_VALUE AS "p");
Cost Center Instructions
------------ --------------------------
B40 Priority Overnight Service
1 row selected.
Parent topic: Overview of How To Use Oracle XML DB
3.8 Generating XML Data from Relational Data
You can use Oracle XML DB to generate XML data from relational data.
- Generating XML Data from Relational Data Using SQL/XML Functions
You can use standard SQL/XML functions to generate one or more XML documents. - Generating XML Data from Relational Data Using DBURITYPE
You can generate XML data from relational data using SQL functionDBURIType
.
Parent topic: Overview of How To Use Oracle XML DB
3.8.1 Generating XML Data from Relational Data Using SQL/XML Functions
You can use standard SQL/XML functions to generate one or more XML documents.
SQL/XML function XMLQuery
is the most general way to do this. Other SQL/XML functions that you can use for this are the following:
-
XMLElement
creates a element -
XMLAttributes
adds attributes to an element -
XMLForest
creates forest of elements -
XMLAgg
creates a single element from a collection of elements
The query in Example 3-29 uses these functions to generate an XML document that contains information from the tables departments
, locations
, countries
, employees
, and jobs
.
This query generates element Department
for each row in the departments
table.
-
Each
Department
element contains attributeDepartmentID
. The value ofDepartmentID
comes from thedepartment_id
column. TheDepartment
element contains sub-elementsName
,Location
, andEmployeeList
. -
The text node associated with the
Name
element comes from thename
column in thedepartments
table. -
The
Location
element has child elementsAddress
,City
,State
,Zip
, andCountry
. These elements are constructed by creating a forest of named elements from columns in thelocations
andcountries
tables. The values in the columns become the text node for the named element. -
The
EmployeeList
element contains an aggregation ofEmployee
Elements. The content of theEmployeeList
element is created by a subquery that returns the set of rows in theemployees
table that correspond to the current department. EachEmployee
element contains information about the employee. The contents of the elements and attributes for eachEmployee
element is taken from tablesemployees
andjobs
.
The output generated by SQL/XML functions is generally not pretty-printed. The only exception is function XMLSerialize
— use XMLSerialize
to pretty-print. This lets the other SQL/XML functions (1) avoid creating a full DOM when generating the required output, and (2) reduce the size of the generated document. This lack of pretty-printing by most SQL/XML functions does not matter to most applications. However, it makes verifying the generated output manually more difficult.
You can also create and query an XMLType
view that is built using the SQL/XML generation functions. Example 3-30 and Example 3-31 illustrate this. Such an XMLType
view has the effect of persisting relational data as XML content. Rows in XMLType
views can also be persisted as documents in Oracle XML DB Repository.
In Example 3-31, the XPath expression passed to SQL/XML function XMLExists
restricts the query result set to the node that contains the Executive
department information. The result is shown pretty-printed here for clarity.
Note:
XPath rewrite on XML expressions that operate on XMLType
views is only supported when nodes referenced in the XPath expression are not descendants of an element created using SQL function XMLAgg
.
Example 3-29 Generating XML Data Using SQL/XML Functions
SELECT XMLElement(
"Department",
XMLAttributes(d.Department_id AS "DepartmentId"),
XMLForest(d.department_name AS "Name"),
XMLElement(
"Location",
XMLForest(street_address AS "Address",
city AS "City",
state_province AS "State",
postal_code AS "Zip",
country_name AS "Country")),
XMLElement(
"EmployeeList",
(SELECT XMLAgg(
XMLElement(
"Employee",
XMLAttributes(e.employee_id AS "employeeNumber"),
XMLForest(
e.first_name AS "FirstName",
e.last_name AS "LastName",
e.email AS "EmailAddress",
e.phone_number AS "PHONE_NUMBER",
e.hire_date AS "StartDate",
j.job_title AS "JobTitle",
e.salary AS "Salary",
m.first_name || ' ' || m.last_name AS "Manager"),
XMLElement("Commission", e.commission_pct)))
FROM hr.employees e, hr.employees m, hr.jobs j
WHERE e.department_id = d.department_id
AND j.job_id = e.job_id
AND m.employee_id = e.manager_id)))
AS XML
FROM hr.departments d, hr.countries c, hr.locations l
WHERE department_name = 'Executive'
AND d.location_id = l.location_id
AND l.country_id = c.country_id;
The query returns the following XML:
XML
--------------------------------------------------------------------------------
<Department DepartmentId="90"><Name>Executive</Name><Location><Address>2004
Charade Rd</Address><City>Seattle</City><State>Washingto
n</State><Zip>98199</Zip><Country>United States of
America</Country></Location><EmployeeList><Employee
employeeNumber="101"><FirstNa
me>Neena</FirstName><LastName>Kochhar</LastName><EmailAddress>NKOCHHAR</EmailAdd
ess><PHONE_NUMBER>515.123.4568</PHONE_NUMBER><Start
Date>2005-09-21</StartDate><JobTitle>Administration Vice
President</JobTitle><Salary>17000</Salary><Manager>Steven King</Manager><Com
mission></Commission></Employee><Employee
employeeNumber="102"><FirstName>Lex</FirstName><LastName>De
Haan</LastName><EmailAddress>L
DEHAAN</EmailAddress><PHONE_NUMBER>515.123.4569</PHONE
NUMBER><StartDate>2001-01-13</StartDate><JobTitle>Administration Vice Presiden
t</JobTitle><Salary>17000</Salary><Manager>Steven
King</Manager><Commission></Commission></Employee></EmployeeList></Department>
Example 3-30 Creating XMLType Views Over Conventional Relational Tables
CREATE OR REPLACE VIEW department_xml OF XMLType
WITH OBJECT ID (substr(
XMLCast(
XMLQuery('$p/Department/Name'
PASSING OBJECT_VALUE AS "p" RETURNING CONTENT)
AS VARCHAR2(30)),
1,
128))
AS
SELECT XMLElement(
"Department",
XMLAttributes(d.department_id AS "DepartmentId"),
XMLForest(d.department_name AS "Name"),
XMLElement("Location", XMLForest(street_address AS "Address",
city AS "City",
state_province AS "State",
postal_code AS "Zip",
country_name AS "Country")),
XMLElement(
"EmployeeList",
(SELECT XMLAgg(
XMLElement(
"Employee",
XMLAttributes(e.employee_id AS "employeeNumber"),
XMLForest(e.first_name AS "FirstName",
e.last_name AS "LastName",
e.email AS "EmailAddress",
e.phone_number AS "PHONE_NUMBER",
e.hire_date AS "StartDate",
j.job_title AS "JobTitle",
e.salary AS "Salary",
m.first_name || ' ' ||
m.last_name AS "Manager"),
XMLElement("Commission", e.commission_pct)))
FROM hr.employees e, hr.employees m, hr.jobs j
WHERE e.department_id = d.department_id
AND j.job_id = e.job_id
AND m.employee_id = e.manager_id))).extract('/*')
AS XML
FROM hr.departments d, hr.countries c, hr.locations l
WHERE d.location_id = l.location_id
AND l.country_id = c.country_id;
Example 3-31 Querying XMLType Views
SELECT OBJECT_VALUE FROM department_xml
WHERE XMLExists('$p/Department[Name="Executive"]' PASSING OBJECT_VALUE AS "p");
OBJECT_VALUE
------------------------------------------------
<Department DepartmentId="90">
<Name>Executive</Name>
<Location>
<Address>2004 Charade Rd</Address>
<City>Seattle</City>
<State>Washington</State>
<Zip>98199</Zip>
<Country>United States of America</Country>
</Location>
<EmployeeList>
<Employee employeeNumber="101">
<FirstName>Neena</FirstName>
<LastName>Kochhar</LastName>
<EmailAddress>NKOCHHAR</EmailAddress>
<PHONE_NUMBER>515.123.4568</PHONE_NUMBER>
<StartDate>2005-09-21</StartDate>
<JobTitle>Administration Vice President</JobTitle>
<Salary>17000</Salary>
<Manager>Steven King</Manager>
<Commission/>
</Employee>
<Employee employeeNumber="102">
<FirstName>Lex</FirstName>
<LastName>De Haan</LastName>
<EmailAddress>LDEHAAN</EmailAddress>
<PHONE_NUMBER>515.123.4569</PHONE_NUMBER>
<StartDate>2001-01-13</StartDate>
<JobTitle>Administration Vice President</JobTitle>
<Salary>17000</Salary>
<Manager>Steven King</Manager>
<Commission/>
</Employee>
</EmployeeList>
</Department>
1 row selected.
As can be seen from the following execution plan output, Oracle XML DB is able to correctly rewrite the XPath-expression argument in the XMLExists
expression into a SELECT
statement on the underlying relational tables.
SELECT OBJECT_VALUE FROM department_xml
WHERE XMLExists('$p/Department[Name="Executive"]' PASSING OBJECT_VALUE AS "p");
PLAN_TABLE_OUTPUT
------------------------------------------------------------------------------------------------------------
Plan hash value: 2414180351
------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 80 | 3 (0)| 00:00:01 |
| 1 | SORT AGGREGATE | | 1 | 115 | | |
|* 2 | HASH JOIN | | 10 | 1150 | 7 (15)| 00:00:01 |
|* 3 | HASH JOIN | | 10 | 960 | 5 (20)| 00:00:01 |
| 4 | TABLE ACCESS BY INDEX ROWID BATCHED| EMPLOYEES | 10 | 690 | 2 (0)| 00:00:01 |
|* 5 | INDEX RANGE SCAN | EMP_DEPARTMENT_IX | 10 | | 1 (0)| 00:00:01 |
| 6 | TABLE ACCESS FULL | JOBS | 19 | 513 | 2 (0)| 00:00:01 |
| 7 | TABLE ACCESS FULL | EMPLOYEES | 107 | 2033 | 2 (0)| 00:00:01 |
| 8 | NESTED LOOPS | | 1 | 80 | 3 (0)| 00:00:01 |
| 9 | NESTED LOOPS | | 1 | 68 | 3 (0)| 00:00:01 |
|* 10 | TABLE ACCESS FULL | DEPARTMENTS | 1 | 19 | 2 (0)| 00:00:01 |
| 11 | TABLE ACCESS BY INDEX ROWID | LOCATIONS | 1 | 49 | 1 (0)| 00:00:01 |
|* 12 | INDEX UNIQUE SCAN | LOC_ID_PK | 1 | | 0 (0)| 00:00:01 |
|* 13 | INDEX UNIQUE SCAN | COUNTRY_C_ID_PK | 1 | 12 | 0 (0)| 00:00:01 |
------------------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - access("M"."EMPLOYEE_ID"="E"."MANAGER_ID")
3 - access("J"."JOB_ID"="E"."JOB_ID")
5 - access("E"."DEPARTMENT_ID"=:B1)
10 - filter("D"."DEPARTMENT_NAME"='Executive')
12 - access("D"."LOCATION_ID"="L"."LOCATION_ID")
13 - access("L"."COUNTRY_ID"="C"."COUNTRY_ID")
30 rows selected.
Parent topic: Generating XML Data from Relational Data
3.8.2 Generating XML Data from Relational Data Using DBURITYPE
You can generate XML data from relational data using SQL function DBURIType
.
Function DBURIType
exposes one or more rows in a given table or view as a single XML document. The name of the root element is derived from the name of the table or view. The root element contains a set of ROW
elements. There is one ROW
element for each row in the table or view. The children of each ROW
element are derived from the columns in the table or view. Each child element contains a text node with the value of the column for the given row.
Example 3-32 shows how to use SQL function DBURIType
to access the contents of table departments
in database schema HR
. It uses method getXML()
to return the resulting document as an XMLType
instance.
Example 3-33 shows how to use an XPath predicate to restrict the rows that are included in an XML document generated using DBURIType
. The XPath expression in the example restricts the XML document to DEPARTMENT_ID
columns with value 10
.
SQL function DBURIType
provides a simple way to expose some or all rows in a relational table as one or more XML documents. The URL passed to function DBURIType
can be extended to return a single column from the view or table, but in that case the URL must also include predicates that identify a single row in the target table or view.
Example 3-34 illustrates this. The predicate [DEPARTMENT_ID="10"]
causes the query to return the value of column department_name
for the departments
row where column department_id
has the value 10
.
SQL function DBURIType
is less flexible than the SQL/XML functions:
-
It provides no way to control the shape of the generated document.
-
The data can come only from a single table or view.
-
The generated document consists of one or more
ROW
elements. EachROW
element contains a child for each column in the target table. -
The names of the child elements are derived from the column names.
To control the names of the XML elements, to include columns from more than one table, or to control which columns from a table appear in the generated document, create a relational view that exposes the desired set of columns as a single row, and then use function DBURIType
to generate an XML document from the contents of that view.
Example 3-32 Generating XML Data from a Relational Table Using DBURIType and getXML()
SELECT DBURIType('/HR/DEPARTMENTS').getXML() FROM DUAL;
DBURITYPE('/HR/DEPARTMENTS').GETXML()
------------------------------------------------------
<?xml version="1.0"?>
<DEPARTMENTS>
<ROW>
<DEPARTMENT_ID>10</DEPARTMENT_ID>
<DEPARTMENT_NAME>Administration</DEPARTMENT_NAME>
<MANAGER_ID>200</MANAGER_ID>
<LOCATION_ID>1700</LOCATION_ID>
</ROW>
...
<ROW>
<DEPARTMENT_ID>20</DEPARTMENT_ID>
<DEPARTMENT_NAME>Marketing</DEPARTMENT_NAME>
<MANAGER_ID>201</MANAGER_ID>
<LOCATION_ID>1800</LOCATION_ID>
</ROW>
</DEPARTMENTS>
Example 3-33 Restricting Rows Using an XPath Predicate
SELECT DBURIType('/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]').getXML()
FROM DUAL;
DBURITYPE('/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]').GETXML()
------------------------------------------------------------------
<?xml version="1.0"?>
<ROW>
<DEPARTMENT_ID>10</DEPARTMENT_ID>
<DEPARTMENT_NAME>Administration</DEPARTMENT_NAME>
<MANAGER_ID>200</MANAGER_ID>
<LOCATION_ID>1700</LOCATION_ID>
</ROW>
1 row selected.
Example 3-34 Restricting Rows and Columns Using an XPath Predicate
SELECT DBURIType(
'/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]/DEPARTMENT_NAME').getXML()
FROM DUAL;
DBURITYPE('/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]/DEPARTMENT_NAME').GETXML()
-----------------------------------------------------------------------------
<?xml version="1.0"?>
<DEPARTMENT_NAME>Administration</DEPARTMENT_NAME>
1 row selected.
Parent topic: Generating XML Data from Relational Data
3.9 Character Sets of XML Documents
There are a few ways in which Oracle XML DB determines which character sets are used for XML documents
Caution:
AL32UTF8 is the Oracle Database character set that is appropriate for XMLType
data. It is equivalent to the IANA registered standard UTF-8 encoding, which supports all valid XML characters.
Do not confuse Oracle Database database character set UTF8 (no hyphen) with database character set AL32UTF8 or with character encoding UTF-8. Database character set UTF8 has been superseded by AL32UTF8. Do not use UTF8 for XML data. Character set UTF8 supports only Unicode version 3.1 and earlier. It does not support all valid XML characters. AL32UTF8 has no such limitation.
Using database character set UTF8 for XML data could potentially stop a system or affect security negatively. If a character that is not supported by the database character set appears in an input-document element name, a replacement character (usually "?
") is substituted for it. This terminates parsing and raises an exception. It can cause an irrecoverable error.
- XML Encoding Declaration
You can use an XML encoding declaration to explicitly specify the character encoding to use for a given XML entity. - Character-Set Determination When Loading XML Documents into the Database
Except for XML data obtained from aCLOB
orVARCHAR
value, character encoding is determined by an encoding declaration when a document is loaded into the database. - Character-Set Determination When Retrieving XML Documents from the Database
Except for XML data stored in aCLOB
orVARCHAR
value, you can specify the encoding to be used when it is retrieved from Oracle XML DB using a SQL client, programmatic APIs, or transfer protocols.
Parent topic: Overview of How To Use Oracle XML DB
3.9.1 XML Encoding Declaration
You can use an XML encoding declaration to explicitly specify the character encoding to use for a given XML entity.
Each XML document is composed of units called entities. Each entity in an XML document can use a different encoding for its characters. Entities that are stored in an encoding other than UTF-8 or UTF-16 must begin with an XML declaration containing an encoding specification indicating the character encoding in use. For example:
<?xml version='1.0' encoding='EUC-JP' ?>
Entities encoded in UTF-16 must begin with the Byte Order Mark (BOM), as described in Appendix F of the XML 1.0 Reference. For example, on big-endian platforms, the BOM required of a UTF-16 data stream is #xFEFF
.
In the absence of both the encoding declaration and the BOM, the XML entity is assumed to be encoded in UTF-8. Because ASCII is a subset of UTF-8, ASCII entities do not require an encoding declaration.
In many cases, external sources of information are available, besides the XML data, to provide the character encoding in use. For example, the encoding of the data can be obtained from the charset
parameter of the Content-Type
field in an HTTP(S) request as follows:
Content-Type: text/xml; charset=ISO-8859-4
Parent topic: Character Sets of XML Documents
3.9.2 Character-Set Determination When Loading XML Documents into the Database
Except for XML data obtained from a CLOB
or VARCHAR
value, character encoding is determined by an encoding declaration when a document is loaded into the database.
For XML data obtained from a CLOB
or VARCHAR
value, any encoding declaration present is ignored,, because these two data types are always encoded in the database character set.
In addition, when loading data into Oracle XML DB, either through programmatic APIs or transfer protocols, you can provide external encoding to override the document encoding declaration. An error is raised if you try to load a schema-based XML document that contains characters that are not legal in the determined encoding.
The following examples show different ways to specify external encoding:
-
Using PL/SQL function
DBMS_XDB_REPOS.createResource
to create a file resource from aBFILE
, you can specify the file encoding with theCSID
argument. If a zeroCSID
is specified then the file encoding is auto-detected from the document encoding declaration.CREATE DIRECTORY xmldir AS '/private/xmldir'; CREATE OR REPLACE PROCEDURE loadXML(filename VARCHAR2, file_csid NUMBER) IS xbfile BFILE; RET BOOLEAN; BEGIN xbfile := bfilename('XMLDIR', filename); ret := DBMS_XDB_REPOS.createResource('/public/mypurchaseorder.xml', xbfile, file_csid); END;/
-
Use the FTP protocol to load documents into Oracle XML DB. Use the
quote set_charset
FTP command to indicate the encoding of the files to be loaded.ftp> quote set_charset Shift_JIS ftp> put mypurchaseorder.xml
-
Use the HTTP(S) protocol to load documents into Oracle XML DB. Specify the encoding of the data to be transmitted to Oracle XML DB in the request header.
Content-Type: text/xml; charset= EUC-JP
Parent topic: Character Sets of XML Documents
3.9.3 Character-Set Determination When Retrieving XML Documents from the Database
Except for XML data stored in a CLOB
or VARCHAR
value, you can specify the encoding to be used when it is retrieved from Oracle XML DB using a SQL client, programmatic APIs, or transfer protocols.
When XML data is stored as a CLOB
or VARCHAR2
value, the encoding declaration, if present, is always ignored for retrieval, just as for storage. The encoding of a retrieved document can thus be different from the encoding explicitly declared in that document.
The character set for an XML document retrieved from the database is determined in the following ways:
-
SQL client – If a SQL client (such as SQL*Plus) is used to retrieve XML data, then the character set is determined by the client-side environment variable
NLS_LANG
. In particular, this setting overrides any explicit character-set declarations in the XML data itself.For example, if you set the client side
NLS_LANG
variable toAMERICAN_AMERICA.AL32UTF8
and then retrieve an XML document with encodingEUC_JP
provided by declaration<?xml version="1.0" encoding="EUC-JP"?>
, the character set of the retrieved document isAL32UTF8
, notEUC_JP
. -
PL/SQL and APIs – Using PL/SQL or programmatic APIs, you can retrieve XML data into
VARCHAR
,CLOB
, orXMLType
data types. As for SQL clients, you can control the encoding of the retrieved data by settingNLS_LANG
.You can also retrieve XML data into a
BLOB
value usingXMLType
andURIType
methods. These let you specify the character set of the returnedBLOB
value. Here is an example:CREATE OR REPLACE FUNCTION getXML(pathname VARCHAR2, charset VARCHAR2) RETURN BLOB IS xblob BLOB; BEGIN SELECT XMLSERIALIZE(DOCUMENT e.RES AS BLOB ENCODING charset) INTO xblob FROM RESOURCE_VIEW e WHERE equals_path(e.RES, pathname) = 1; RETURN xblob; END; /
-
FTP – You can use the FTP
quote set_nls_locale
command to set the character set:ftp> quote set_nls_locale EUC-JP ftp> get mypurchaseorder.xml
-
HTTP(S) – You can use the
Accept-Charset
parameter in an HTTP(S) request:/httptest/mypurchaseorder.xml 1.1 HTTP/Host: localhost:2345 Accept: text/* Accept-Charset: iso-8859-1, utf-8
Related Topics
See Also:
Oracle Database Globalization Support Guide for information about NLS_LANG
Parent topic: Character Sets of XML Documents
Footnote Legend
Footnote 1:The XMLType
storage model for XML schema-based data is whatever was specified during registration of the referenced XML schema. If no storage model was specified during registration, then object-relational storage is used.
