12 Managing Archived Redo Log Files
You manage the archived redo log files by completing tasks such as choosing between NOARCHIVELOG
or ARCHIVELOG
mode and specifying archive destinations.
- What Is the Archived Redo Log?
Oracle Database lets you save filled groups of redo log files to one or more offline destinations, known collectively as the archived redo log. - Choosing Between NOARCHIVELOG and ARCHIVELOG Mode
You must choose between running your database inNOARCHIVELOG
orARCHIVELOG
mode. - Controlling Archiving
You can set the archiving mode for your database and adjust the number of archiver processes. - Specifying Archive Destinations
Before you can archive redo logs, you must determine the destination to which you will archive, and familiarize yourself with the various destination states. - About Log Transmission Modes
The two modes of transmitting archived logs to their destination are normal archiving transmission and standby transmission mode. Normal transmission involves transmitting files to a local disk. Standby transmission involves transmitting files through a network to either a local or remote standby database. - Managing Archive Destination Failure
Sometimes archive destinations can fail, causing problems when you operate in automatic archiving mode. Oracle Database provides procedures to help you minimize the problems associated with destination failure. - Controlling Trace Output Generated by the Archivelog Process
Background processes always write to a trace file when appropriate. In the case of the archivelog process, you can control the output that is generated to the trace file. - Viewing Information About the Archived Redo Log
You can display information about the archived redo log using dynamic performance views or theARCHIVE
LOG
LIST
command.
See Also:
-
Using Oracle Managed Files for information about creating an archived redo log that is both created and managed by the Oracle Database server
-
Oracle Real Application Clusters Administration and Deployment Guide for information specific to archiving in the Oracle Real Application Clusters environment
Parent topic: Oracle Database Structure and Storage
12.1 What Is the Archived Redo Log?
Oracle Database lets you save filled groups of redo log files to one or more offline destinations, known collectively as the archived redo log.
The process of turning redo log files into archived redo log files is called archiving. This process is only possible if the database is running in ARCHIVELOG
mode. You can choose automatic or manual archiving.
An archived redo log file is a copy of one of the filled members of a redo log group. It includes the redo entries and the unique log sequence number of the identical member of the redo log group. For example, if you are multiplexing your redo log, and if group 1 contains identical member files a_log1
and b_log1
, then the archiver process (ARCn) will archive one of these member files. Should a_log1
become corrupted, then ARCn can still archive the identical b_log1
. The archived redo log contains a copy of every group created since you enabled archiving.
When the database is running in ARCHIVELOG
mode, the log writer process (LGWR) cannot reuse and hence overwrite a redo log group until it has been archived. The background process ARCn automates archiving operations when automatic archiving is enabled. The database starts multiple archiver processes as needed to ensure that the archiving of filled redo logs does not fall behind.
You can use archived redo log files to:
-
Recover a database
-
Update a standby database
-
Get information about the history of a database using the LogMiner utility
See Also:
The following sources document the uses for archived redo log files:
-
Oracle Data Guard Concepts and Administration discusses setting up and maintaining a standby database
-
Oracle Database Utilities contains instructions for using the LogMiner PL/SQL package
Parent topic: Managing Archived Redo Log Files
12.2 Choosing Between NOARCHIVELOG and ARCHIVELOG Mode
You must choose between running your database in NOARCHIVELOG
or ARCHIVELOG
mode.
The choice of whether to enable the archiving of filled groups of redo log files depends on the availability and reliability requirements of the application running on the database. If you cannot afford to lose any data in your database in the event of a disk failure, use ARCHIVELOG
mode. The archiving of filled redo log files can require you to perform extra administrative operations.
- Running a Database in NOARCHIVELOG Mode
When you run your database inNOARCHIVELOG
mode, you disable the archiving of the redo log. - Running a Database in ARCHIVELOG Mode
When you run a database inARCHIVELOG
mode, you enable the archiving of the redo log.
Parent topic: Managing Archived Redo Log Files
12.2.1 Running a Database in NOARCHIVELOG Mode
When you run your database in NOARCHIVELOG
mode, you disable the archiving of the redo log.
The database control file indicates that filled groups are not required to be archived. Therefore, when a filled group becomes inactive after a log switch, the group is available for reuse by LGWR.
NOARCHIVELOG
mode protects a database from instance failure but not from media failure. Only the most recent changes made to the database, which are stored in the online redo log groups, are available for instance recovery. If a media failure occurs while the database is in NOARCHIVELOG
mode, you can only restore the database to the point of the most recent full database backup. You cannot recover transactions subsequent to that backup.
In NOARCHIVELOG
mode you cannot perform online tablespace backups, nor can you use online tablespace backups taken earlier while the database was in ARCHIVELOG
mode. To restore a database operating in NOARCHIVELOG
mode, you can use only whole database backups taken while the database is closed. Therefore, if you decide to operate a database in NOARCHIVELOG
mode, take whole database backups at regular, frequent intervals.
Parent topic: Choosing Between NOARCHIVELOG and ARCHIVELOG Mode
12.2.2 Running a Database in ARCHIVELOG Mode
When you run a database in ARCHIVELOG
mode, you enable the archiving of the redo log.
The database control file indicates that a group of filled redo log files cannot be reused by LGWR until the group is archived. A filled group becomes available for archiving immediately after a redo log switch occurs.
The archiving of filled groups has these advantages:
-
A database backup, together with online and archived redo log files, guarantees that you can recover all committed transactions in the event of an operating system or disk failure.
-
If you keep archived logs available, you can use a backup taken while the database is open and in normal system use.
-
You can keep a standby database current with its original database by continuously applying the original archived redo log files to the standby.
You can configure an instance to archive filled redo log files automatically, or you can archive manually. For convenience and efficiency, automatic archiving is usually best. Figure 12-1 illustrates how the archiver process (ARC0 in this illustration) writes filled redo log files to the database archived redo log.
If all databases in a distributed database operate in ARCHIVELOG
mode, you can perform coordinated distributed database recovery. However, if any database in a distributed database is in NOARCHIVELOG
mode, recovery of a global distributed database (to make all databases consistent) is limited by the last full backup of any database operating in NOARCHIVELOG
mode.

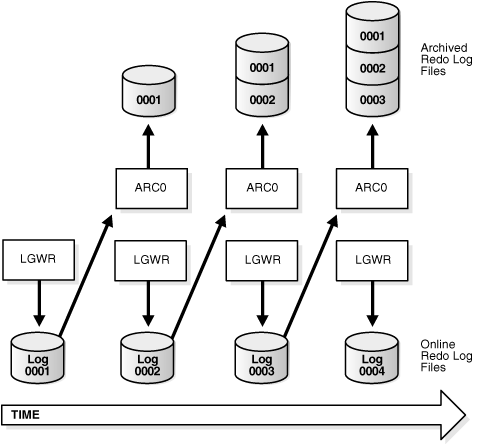

Figure 12-1 Redo Log File Use in ARCHIVELOG Mode
Description of "Figure 12-1 Redo Log File Use in ARCHIVELOG Mode"
Tip:
It is good practice to move archived redo log files and corresponding database backups from the local disk to permanent offline storage media such as tape. A primary value of archived logs is database recovery, so you want to ensure that these logs are safe should disaster strike your primary database.
Parent topic: Choosing Between NOARCHIVELOG and ARCHIVELOG Mode
12.3 Controlling Archiving
You can set the archiving mode for your database and adjust the number of archiver processes.
- Setting the Initial Database Archiving Mode
You set the initial archiving mode as part of database creation in theCREATE DATABASE
statement. - Changing the Database Archiving Mode
To change the archiving mode of the database, use theALTER DATABASE
statement with theARCHIVELOG
orNOARCHIVELOG
clause. - Performing Manual Archiving
For convenience and efficiency, automatic archiving is usually best. However, you can configure your database for manual archiving only. - Adjusting the Number of Archiver Processes
TheLOG_ARCHIVE_MAX_PROCESSES
initialization parameter specifies the number of ARCn processes that the database initially starts. The default is four processes.
See Also:
Your Oracle operating system specific documentation for additional information on controlling archiving modes
Parent topic: Managing Archived Redo Log Files
12.3.1 Setting the Initial Database Archiving Mode
You set the initial archiving mode as part of database creation in the CREATE DATABASE
statement.
Usually, you can use the default of NOARCHIVELOG
mode at database creation because there is no need to archive the redo information generated by that process. After creating the database, decide whether to change the initial archiving mode.
If you specify ARCHIVELOG
mode, you must have initialization parameters set that specify the destinations for the archived redo log files (see "Setting Initialization Parameters for Archive Destinations").
Parent topic: Controlling Archiving
12.3.2 Changing the Database Archiving Mode
To change the archiving mode of the database, use the ALTER DATABASE
statement with the ARCHIVELOG
or NOARCHIVELOG
clause.
To change the archiving mode, you must be connected to the database with administrator privileges (AS SYSDBA
).
The following steps switch the database archiving mode from NOARCHIVELOG
to ARCHIVELOG
:
Parent topic: Controlling Archiving
12.3.3 Performing Manual Archiving
For convenience and efficiency, automatic archiving is usually best. However, you can configure your database for manual archiving only.
When you operate your database in manual ARCHIVELOG
mode, you must archive inactive groups of filled redo log files or your database operation can be temporarily suspended.
To operate your database in manual archiving mode:
-
Follow the procedure described in "Changing the Database Archiving Mode ", but replace the
ALTER
DATABASE
statement with the following statement:ALTER DATABASE ARCHIVELOG MANUAL;
-
Connect to the database as a user with administrator privileges.
-
Ensure that the database is either mounted or open.
-
Use the
ALTER SYSTEM
statement with theARCHIVE LOG
clause to manually archive filled redo log files. For example, the following statement archives all unarchived redo log files:ALTER SYSTEM ARCHIVE LOG ALL;
When you use manual archiving mode, you cannot specify any standby databases in the archiving destinations.
Even when automatic archiving is enabled, you can use manual archiving for such actions as rearchiving an inactive group of filled redo log members to another location. In this case, it is possible for the instance to reuse the redo log group before you have finished manually archiving, and thereby overwrite the files. If this happens, the database writes an error message to the alert log.
Related Topics
Parent topic: Controlling Archiving
12.3.4 Adjusting the Number of Archiver Processes
The LOG_ARCHIVE_MAX_PROCESSES
initialization parameter specifies the number of ARCn processes that the database initially starts. The default is four processes.
To avoid any run-time overhead of starting additional ARCn processes:
-
Set the
LOG_ARCHIVE_MAX_PROCESSES
initialization parameter to specify that up to 30 ARCn processes be started at instance startup.
The LOG_ARCHIVE_MAX_PROCESSES
parameter is dynamic, so you can change it using the ALTER SYSTEM
statement.
The following statement configures the database to start six ARCn processes upon startup:
ALTER SYSTEM SET LOG_ARCHIVE_MAX_PROCESSES=6;
The statement also has an immediate effect on the currently running instance. It increases or decreases the current number of running ARCn processes to six.
Parent topic: Controlling Archiving
12.4 Specifying Archive Destinations
Before you can archive redo logs, you must determine the destination to which you will archive, and familiarize yourself with the various destination states.
The dynamic performance (V$) views, listed in "Viewing Information About the Archived Redo Log", provide all needed archive information.
- Setting Initialization Parameters for Archive Destinations
You can choose to archive redo logs to a single destination or to multiple destinations. - Expanding Alternate Destinations with Log Archive Destination Groups
You can expand the number of alternate archive destinations by using log archive destination groups. - Understanding Archive Destination Status
Several variables determine an archive destination’s status. - Specifying Alternate Destinations
To specify that a location be an archive destination only in the event of a failure of another destination, you can make it an alternate destination. Both local and remote destinations can be alternates.
Parent topic: Managing Archived Redo Log Files
12.4.1 Setting Initialization Parameters for Archive Destinations
You can choose to archive redo logs to a single destination or to multiple destinations.
Destinations can be local—within the local file system or an Oracle Automatic Storage Management (Oracle ASM) disk group—or remote (on a standby database). When you archive to multiple destinations, a copy of each filled redo log file is written to each destination. These redundant copies help ensure that archived logs are always available in the event of a failure at one of the destinations.
To archive to only a single destination:
-
Specify that destination using the
LOG_ARCHIVE_DEST
initialization parameter.
To archive to multiple destinations:
-
Choose to archive to two or more locations using the
LOG_ARCHIVE_DEST_
n
initialization parameters, or to archive only to a primary and secondary destination using theLOG_ARCHIVE_DEST
andLOG_ARCHIVE_DUPLEX_DEST
initialization parameters.
For local destinations, in addition to the local file system or an Oracle ASM disk group, you can archive to the Fast Recovery Area. The database uses the Fast Recovery Area to store and automatically manage disk space for a variety of files related to backup and recovery. See Oracle Database Backup and Recovery User's Guide for details about the Fast Recovery Area.
Typically, you determine archive log destinations during database planning, and you set the initialization parameters for archive destinations during database installation. However, you can use the ALTER
SYSTEM
command to dynamically add or change archive destinations after your database is running. Any destination changes that you make take effect at the next log switch (automatic or manual).
The following table summarizes the archive destination alternatives, which are further described in the sections that follow.
Method | Initialization Parameter | Host | Example |
---|---|---|---|
1 |
where: n is an integer from 1 to 31. Archive destinations 1 to 10 are available for local or remote locations. Archive destinations 11 to 31 are available for remote locations only. |
Local or remote |
|
2 |
|
Local only |
|
- Method 1: Using the LOG_ARCHIVE_DEST_n Parameter
You can use theLOG_ARCHIVE_DEST_
n
initialization parameter to specify different destinations for archived logs. - Method 2: Using LOG_ARCHIVE_DEST and LOG_ARCHIVE_DUPLEX_DEST
To specify a maximum of two locations, use theLOG_ARCHIVE_DEST
parameter to specify a primary archive destination and theLOG_ARCHIVE_DUPLEX_DEST
to specify an optional secondary archive destination.
Parent topic: Specifying Archive Destinations
12.4.1.1 Method 1: Using the LOG_ARCHIVE_DEST_n Parameter
You can use the LOG_ARCHIVE_DEST_
n
initialization parameter to specify different destinations for archived logs.
Set the LOG_ARCHIVE_DEST_
n
initialization parameter (where n is an integer from 1 to 31) to specify from one to 31. Each numerically suffixed parameter uniquely identifies an individual destination.
You specify the location for LOG_ARCHIVE_DEST_
n
using the keywords explained in the following table:
Keyword | Indicates | Example |
---|---|---|
|
A local file system location or Oracle ASM disk group |
|
|
The Fast Recovery Area |
|
|
Remote archival through Oracle Net service name. |
|
If you use the LOCATION
keyword, specify one of the following:
-
A valid path name in your operating system's local file system
-
An Oracle ASM disk group
-
The keyword
USE_DB_RECOVERY_FILE_DEST
to indicate the Fast Recovery Area
If you specify SERVICE
, supply a net service name that Oracle Net can resolve to a connect descriptor for a standby database. The connect descriptor contains the information necessary for connecting to the remote database.
Perform the following steps to set the destination for archived redo log files using the LOG_ARCHIVE_DEST_
n
initialization parameter:
The LOG_ARCHIVE_FORMAT
initialization parameter is ignored in some cases. See Oracle Database Reference for more information about this parameter.
12.4.1.2 Method 2: Using LOG_ARCHIVE_DEST and LOG_ARCHIVE_DUPLEX_DEST
To specify a maximum of two locations, use the LOG_ARCHIVE_DEST
parameter to specify a primary archive destination and the LOG_ARCHIVE_DUPLEX_DEST
to specify an optional secondary archive destination.
All locations must be local. Whenever the database archives a redo log, it archives it to every destination specified by either set of parameters.
Perform the following steps the use method 2:
Note:
If you configure a Fast Recovery Area (by setting the DB_RECOVERY_FILE_DEST
and DB_RECOVERY_FILE_DEST_SIZE
parameters) and do not specify any local archive destinations, the database automatically selects the Fast Recovery Area as a local archive destination and sets LOG_ARCHIVE_DEST_1
to USE_DB_RECOVERY_FILE_DEST
.
WARNING:
You must ensure that there is sufficient disk space at all times for archive log destinations. If the database encounters a disk full error as it attempts to archive a log file, a fatal error occurs and the database stops responding. You can check the alert log for a disk full message.
See Also:
-
Oracle Database Reference for additional information about the initialization parameters used to control the archiving of redo logs
-
Oracle Data Guard Concepts and Administration for information about using the
LOG_ARCHIVE_DEST_
n
initialization parameter for specifying a standby destination. There are additional keywords that can be specified with this initialization parameter that are not discussed in this book. -
Oracle Database Net Services Administrator's Guide for a discussion of net service names and connect descriptors.
-
Oracle Database Backup and Recovery User's Guide for information about the Fast Recovery Area
12.4.2 Expanding Alternate Destinations with Log Archive Destination Groups
You can expand the number of alternate archive destinations by using log archive destination groups.
- About Log Archive Destination Groups
A log archive destination group specifies multiple archive destinations, and the destinations in the group can be prioritized. You can specify multiple groups to expand the number of possible archive destinations for your database. - Specifying Log Archive Destination Groups
Use theGROUP
attribute of theLOG_ARCHIVE_DEST_n
initialization parameter to specify log archive destination groups.
Parent topic: Specifying Archive Destinations
12.4.2.1 About Log Archive Destination Groups
A log archive destination group specifies multiple archive destinations, and the destinations in the group can be prioritized. You can specify multiple groups to expand the number of possible archive destinations for your database.
To specify a log archive destination group, use the GROUP
attribute of the LOG_ARCHIVE_DEST_n
initialization parameter. There can be up to 30 log archive destinations included in a group. One member of each group is active, and the others are available for use in the event of a failure of the active destination. If the active destination becomes inactive, then Oracle Database switches to an available destination as long as one or more are available in the group. You can indicate which destinations to use first by prioritizing the destinations with the PRIORITY
attribute.
A log archive destination group is referenced by a group number, which is specified when the group is created. There can be up to eight groups. To specify where to archive the redo data within a group, all of the log archive destinations must specify the SERVICE
attribute.
To prioritize the destinations in a group, set the PRIORITY
attribute for a destination to an integer in the range of 1 through 8. The lower number indicates the higher priority. The priority determines which destination within a group to make active when the database is mounted or when the active destination fails. For example, a PRIORITY
value of 2
is higher priority than a PRIORITY
value of 7
. Therefore, if the currently active destination with the PRIORITY
value of 1
in the group becomes inactive, then the destination with the PRIORITY
value of 2
is used before the destination with the PRIORITY
value of 7
. If the PRIORITY
attribute is not set for a destination, then the default value is 1
.
The priority is also considered when a previously failed destination becomes available. If an active destination fails, and Oracle Database switches to a destination with a lower priority, then Oracle Database switches back to the destination with higher priority when it becomes available again. For example, if an active destination with priority 1 becomes inactive, and Oracle Database switches to a destination with priority 2, then Oracle Database switches back to the destination with priority 1 when it becomes available again, even if the priority 2 destination did not fail.
However, more than one destination assigned to the same group can have the same priority. For example, there can be three destinations with priority 1. In such a group, a failure of the active destination results in a switch to another member with the same priority. In this case, there is no switch back to the original destination when it becomes available again because both destinations have the same priority. If the second destination fails after the first destination has become available again, then the database will switch to the first destination or to another destination in the group with the same priority.
12.4.2.2 Specifying Log Archive Destination Groups
Use the GROUP
attribute of the LOG_ARCHIVE_DEST_n
initialization parameter to specify log archive destination groups.
You can create up to eight log archive destination groups, and each group can have up to 30 destinations specified.
ARCHIVELOG
mode.
-
Set the
LOG_ARCHIVE_DEST_n
initialization parameter, and include theGROUP
attribute to specify log archive destination groups.Optionally, include the
PRIORITY
attribute to specify which log archive destination within a group to make active when the system is started or when a destination fails.
Example 12-1 Specifying Two Log Archive Destination Groups
This example specifies two log archive destination groups (1 and 2). Each group has three log archive destinations specified.
LOG_ARCHIVE_DEST_1 = 'SERVICE=SITEa VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1'
LOG_ARCHIVE_DEST_2 = 'SERVICE=SITEb VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1'
LOG_ARCHIVE_DEST_3 = 'SERVICE=SITEc VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1'
LOG_ARCHIVE_DEST_4 = 'SERVICE=SITE1 VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=2'
LOG_ARCHIVE_DEST_5 = 'SERVICE=SITE2 VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=2'
LOG_ARCHIVE_DEST_6 = 'SERVICE=SITE3 VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=2'
Example 12-2 Specifying Priority Within a Log Archive Destination Group
This example specifies different priority levels for destinations within a single log archive destination group. Specifically, destination 1 and 2 are both at priority level 1, destination 3 is at priority level 2, and destination 4 is at priority level 3.
LOG_ARCHIVE_DEST_1 = 'SERVICE=SITE1 SYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1 PRIORITY=1'
LOG_ARCHIVE_DEST_2 = 'SERVICE=SITE2 SYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1 PRIORITY=1'
LOG_ARCHIVE_DEST_3 = 'SERVICE=SITE3 ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1 PRIORITY=2'
LOG_ARCHIVE_DEST_4 = 'SERVICE=SITE4 ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) GROUP=1 PRIORITY=3'
In this example, sites 1, 2 and 3 could be Oracle Data Guard far sync instances that only forward the redo, and site 4 is the actual remote standby database. Alternatively, sites 1, 2, 3, and 4 could all be standby databases which are configured to cascade the redo to the other sites when they are the active destination.
The following priority rules are followed:
-
The default active destination can be destination 1 or destination 2 because both are at priority level 1.
-
If destination 1 is active but then becomes unavailable, then Oracle Database switches to destination 2. Similarly, if destination 2 is active but then becomes unavailable, then Oracle Database switches to destination 1. When either destination 1 or 2 is available, one of them is used.
-
If both destination 1 and destination 2 become unavailable, then destination 3 is used.
-
If, when destination 3 is active, destination 1 or destination 2 becomes available, Oracle Database switches to the available priority 1 destination.
-
If destination 1, 2, and 3 all become unavailable, then destination 4 is used.
-
If, when destination 4 is active, destination 1, 2, or 3 becomes available, Oracle Database switches to the available priority 1 destination first and then to the available priority 2 destination.
12.4.3 Understanding Archive Destination Status
Several variables determine an archive destination’s status.
Each archive destination has the following variable characteristics that determine its status:
-
Valid/Invalid: indicates whether the disk location or service name information is specified and valid
-
Enabled/Disabled: indicates the availability state of the location and whether the database can use the destination
-
Active/Inactive: indicates whether there was a problem accessing the destination
Several combinations of these characteristics are possible. To obtain the current status and other information about each destination for an instance, query the V$ARCHIVE_DEST
view.
The LOG_ARCHIVE_DEST_STATE_
n
(where n is an integer from 1 to 31) initialization parameter lets you control the availability state of the specified destination (n).
-
ENABLE
indicates that the database can use the destination. -
DEFER
indicates that the location is temporarily disabled. -
ALTERNATE
indicates that the destination is an alternate. The availability state of an alternate destination isDEFER
. If its parent destination fails, the availability state of the alternate becomesENABLE
.ALTERNATE
cannot be specified for destinationsLOG_ARCHIVE_DEST_11
toLOG_ARCHIVE_DEST_31
.
Parent topic: Specifying Archive Destinations
12.4.4 Specifying Alternate Destinations
To specify that a location be an archive destination only in the event of a failure of another destination, you can make it an alternate destination. Both local and remote destinations can be alternates.
The following example makes LOG_ARCHIVE_DEST_4
an alternate for LOG_ARCHIVE_DEST_3
:
ALTER SYSTEM SET LOG_ARCHIVE_DEST_4 = 'LOCATION=/disk4/arch'; ALTER SYSTEM SET LOG_ARCHIVE_DEST_3 = 'LOCATION=/disk3/arch MAX_FAILURE=1 ALTERNATE=LOG_ARCHIVE_DEST_4'; ALTER SYSTEM SET LOG_ARCHIVE_DEST_STATE_4=ALTERNATE; SQL> SELECT dest_name, status, destination FROM v$archive_dest; DEST_NAME STATUS DESTINATION ----------------------- --------- ---------------------------------------------- LOG_ARCHIVE_DEST_1 VALID /disk1/arch LOG_ARCHIVE_DEST_2 VALID /disk2/arch LOG_ARCHIVE_DEST_3 VALID /disk3/arch LOG_ARCHIVE_DEST_4 ALTERNATE /disk4/arch
Parent topic: Specifying Archive Destinations
12.5 About Log Transmission Modes
The two modes of transmitting archived logs to their destination are normal archiving transmission and standby transmission mode. Normal transmission involves transmitting files to a local disk. Standby transmission involves transmitting files through a network to either a local or remote standby database.
- Normal Transmission Mode
In normal transmission mode, the archiving destination is another disk drive of the database server. - Standby Transmission Mode
In standby transmission mode, the archiving destination is either a local or remote standby database.
Parent topic: Managing Archived Redo Log Files
12.5.1 Normal Transmission Mode
In normal transmission mode, the archiving destination is another disk drive of the database server.
In this configuration archiving does not contend with other files required by the instance and can complete more quickly. Specify the destination with either the LOG_ARCHIVE_DEST_
n
or LOG_ARCHIVE_DEST
parameters.
Parent topic: About Log Transmission Modes
12.5.2 Standby Transmission Mode
In standby transmission mode, the archiving destination is either a local or remote standby database.
Note:
You can maintain a standby database on a local disk, but Oracle strongly encourages you to maximize disaster protection by maintaining your standby database at a remote site.
See Also:
-
Oracle Database Net Services Administrator's Guide for information about connecting to a remote database using a service name
Parent topic: About Log Transmission Modes
12.6 Managing Archive Destination Failure
Sometimes archive destinations can fail, causing problems when you operate in automatic archiving mode. Oracle Database provides procedures to help you minimize the problems associated with destination failure.
- Specifying the Minimum Number of Successful Destinations
The optional initialization parameterLOG_ARCHIVE_MIN_SUCCEED_DEST=
n
determines the minimum number of destinations to which the database must successfully archive a redo log group before it can reuse online log files. The default value is 1. Valid values for n are 1 to 2 if you are using duplexing, or 1 to 31 if you are multiplexing. - Rearchiving to a Failed Destination
Use theREOPEN
attribute of theLOG_ARCHIVE_DEST_
n
parameter to specify whether and when ARCn should attempt to rearchive to a failed destination following an error.REOPEN
applies to all errors, not justOPEN
errors.
Parent topic: Managing Archived Redo Log Files
12.6.1 Specifying the Minimum Number of Successful Destinations
The optional initialization parameter LOG_ARCHIVE_MIN_SUCCEED_DEST=
n
determines the minimum number of destinations to which the database must successfully archive a redo log group before it can reuse online log files. The default value is 1. Valid values for n are 1 to 2 if you are using duplexing, or 1 to 31 if you are multiplexing.
- Specifying Mandatory and Optional Destinations
TheLOG_ARCHIVE_DEST_
n
initialization parameter lets you specify whether a destination isOPTIONAL
(the default) orMANDATORY
. - Specifying the Number of Successful Destinations: Scenarios
You can see the relationship between theLOG_ARCHIVE_DEST_
n
andLOG_ARCHIVE_MIN_SUCCEED_DEST
initialization parameters most easily through sample scenarios.
Parent topic: Managing Archive Destination Failure
12.6.1.1 Specifying Mandatory and Optional Destinations
The LOG_ARCHIVE_DEST_
n
initialization parameter lets you specify whether a destination is OPTIONAL
(the default) or MANDATORY
.
-
Set the destination as
OPTIONAL
(the default) orMANDATORY
in theLOG_ARCHIVE_DEST_
n
initialization parameter.
The LOG_ARCHIVE_MIN_SUCCEED_DEST=
n
parameter uses all MANDATORY
destinations plus some number of non-standby OPTIONAL
destinations to determine whether LGWR can overwrite the online log. The following rules apply:
-
Omitting the
MANDATORY
attribute for a destination is the same as specifyingOPTIONAL
. -
You must have at least one local destination, which you can declare
OPTIONAL
orMANDATORY
. -
The
MANDATORY
attribute can only be specified for destinationsLOG_ARCHIVE_DEST_1
throughLOG_ARCHIVE_DEST_10
. -
When you specify a value for
LOG_ARCHIVE_MIN_SUCCEED_DEST=
n
, Oracle Database will treat at least one local destination asMANDATORY
, because the minimum value forLOG_ARCHIVE_MIN_SUCCEED_DEST
is 1. -
The
LOG_ARCHIVE_MIN_SUCCEED_DEST
value cannot be greater than the number of destinations, nor can it be greater than the number ofMANDATORY
destinations plus the number ofOPTIONAL
local destinations. -
If you
DEFER
aMANDATORY
destination, and the database overwrites the online log without transferring the archived log to the standby site, then you must transfer the log to the standby manually.
If you are duplexing the archived logs, you can establish which destinations are mandatory or optional by using the LOG_ARCHIVE_DEST
and LOG_ARCHIVE_DUPLEX_DEST
parameters. The following rules apply:
-
Any destination declared by
LOG_ARCHIVE_DEST
is mandatory. -
Any destination declared by
LOG_ARCHIVE_DUPLEX_DEST
is optional ifLOG_ARCHIVE_MIN_SUCCEED_DEST = 1
and mandatory ifLOG_ARCHIVE_MIN_SUCCEED_DEST = 2
.
Parent topic: Specifying the Minimum Number of Successful Destinations
12.6.1.2 Specifying the Number of Successful Destinations: Scenarios
You can see the relationship between the LOG_ARCHIVE_DEST_
n
and LOG_ARCHIVE_MIN_SUCCEED_DEST
initialization parameters most easily through sample scenarios.
- Scenario for Archiving to Optional Local Destinations
In this scenario, you archive to three local destinations, each of which you declare asOPTIONAL
. - Scenario for Archiving to Both Mandatory and Optional Destinations
In this scenario, you archive toMANDATORY
andOPTIONAL
local destinations.
Parent topic: Specifying the Minimum Number of Successful Destinations
12.6.1.2.1 Scenario for Archiving to Optional Local Destinations
In this scenario, you archive to three local destinations, each of which you declare as OPTIONAL
.
Table 12-1 illustrates the possible values for LOG_ARCHIVE_MIN_SUCCEED_DEST=
n
in this case.
Table 12-1 LOG_ARCHIVE_MIN_SUCCEED_DEST Values for Scenario 1
Value | Meaning |
---|---|
1 |
The database can reuse log files only if at least one of the |
2 |
The database can reuse log files only if at least two of the |
3 |
The database can reuse log files only if all of the |
4 or greater |
|
This scenario shows that even though you do not explicitly set any of your destinations to MANDATORY
using the LOG_ARCHIVE_DEST_
n
parameter, the database must successfully archive to one or more of these locations when LOG_ARCHIVE_MIN_SUCCEED_DEST
is set to 1, 2, or 3.
12.6.1.2.2 Scenario for Archiving to Both Mandatory and Optional Destinations
In this scenario, you archive to MANDATORY
and OPTIONAL
local destinations.
Consider a case in which:
-
You specify two
MANDATORY
destinations. -
You specify two
OPTIONAL
destinations. -
No destination is a standby database.
Table 12-2 shows the possible values for LOG_ARCHIVE_MIN_SUCCEED_DEST=
n
.
Table 12-2 LOG_ARCHIVE_MIN_SUCCEED_DEST Values for Scenario 2
Value | Meaning |
---|---|
1 |
The database ignores the value and uses the number of |
2 |
The database can reuse log files even if no |
3 |
The database can reuse logs only if at least one |
4 |
The database can reuse logs only if both |
5 or greater |
|
This case shows that the database must archive to the destinations you specify as MANDATORY
, regardless of whether you set LOG_ARCHIVE_MIN_SUCCEED_DEST
to archive to a smaller number of destinations.
12.6.2 Rearchiving to a Failed Destination
Use the REOPEN
attribute of the LOG_ARCHIVE_DEST_
n
parameter to specify whether and when ARCn should attempt to rearchive to a failed destination following an error. REOPEN
applies to all errors, not just OPEN
errors.
REOPEN=
n
sets the minimum number of seconds before ARCn should try to reopen a failed destination. The default value for n is 300 seconds. A value of 0 is the same as turning off the REOPEN
attribute; ARCn will not attempt to archive after a failure. If you do not specify the REOPEN
keyword, ARCn will never reopen a destination following an error.
You cannot use REOPEN
to specify the number of attempts ARCn should make to reconnect and transfer archived logs. The REOPEN
attempt either succeeds or fails.
When you specify REOPEN
for an OPTIONAL
destination, the database can overwrite online logs if there is an error. If you specify REOPEN
for a MANDATORY
destination, the database stalls the production database when it cannot successfully archive. In this situation, consider the following options:
-
Archive manually to the failed destination.
-
Change the destination by deferring the destination, specifying the destination as optional, or changing the service.
-
Drop the destination.
When using the REOPEN
keyword, note the following:
-
ARCn reopens a destination only when starting an archive operation from the beginning of the log file, never during a current operation. ARCn always retries the log copy from the beginning.
-
If you specified
REOPEN
, either with a specified time the default, ARCn checks to see whether the time of the recorded error plus theREOPEN
interval is less than the current time. If it is, ARCn retries the log copy. -
The
REOPEN
clause successfully affects theACTIVE=TRUE
destination state. TheVALID
andENABLED
states are not changed.Something wrong here. A destination can be inactive, or valid, or disabled. There is no ACTIVE status. So I think maybe it should say, "The REOPEN clause sets the destination status to VALID" ...? DL
Parent topic: Managing Archive Destination Failure
12.7 Controlling Trace Output Generated by the Archivelog Process
Background processes always write to a trace file when appropriate. In the case of the archivelog process, you can control the output that is generated to the trace file.
To control the output that is generated to the trace file for the archivelog process:
-
Set the
LOG_ARCHIVE_TRACE
initialization parameter to specify a trace level, such as 0, 1, 2, 4, 8, and so on.
You can combine tracing levels by specifying a value equal to the sum of the individual levels that you would like to trace. For example, setting LOG_ARCHIVE_TRACE=12
will generate trace level 8 and 4 output. You can set different values for the primary and any standby database.
The default value for the LOG_ARCHIVE_TRACE
parameter is 0. At this level, the archivelog process generates appropriate alert and trace entries for error conditions.
You can change the value of this parameter dynamically using the ALTER SYSTEM
statement. For example:
ALTER SYSTEM SET LOG_ARCHIVE_TRACE=12;
Changes initiated in this manner will take effect at the start of the next archiving operation.
See Also:
-
Oracle Database Reference for more information about the
LOG_ARCHIVE_TRACE
initialization parameter, including descriptions of the valid values for this parameter -
Oracle Data Guard Concepts and Administration for information about using this parameter with a standby database
Parent topic: Managing Archived Redo Log Files
12.8 Viewing Information About the Archived Redo Log
You can display information about the archived redo log using dynamic performance views or the ARCHIVE
LOG
LIST
command.
- Archived Redo Log Files Views
You can query a set of dynamic performance views for information about archived redo log files. - Using the ARCHIVE LOG LIST Command
The SQL*Plus commandARCHIVE LOG LIST
displays archiving information for the connected instance.
Parent topic: Managing Archived Redo Log Files
12.8.1 Archived Redo Log Files Views
You can query a set of dynamic performance views for information about archived redo log files.
Several dynamic performance views contain useful information about archived redo log files, as summarized in the following table.
Dynamic Performance View | Description |
---|---|
Shows if the database is in |
|
Displays historical archived log information from the control file. If you use a recovery catalog, the |
|
Describes the current instance, all archive destinations, and the current value, mode, and status of these destinations. |
|
Displays information about the state of the various archive processes for an instance. |
|
Contains information about any backups of archived logs. If you use a recovery catalog, the |
|
Displays all redo log groups for the database and indicates which need to be archived. |
|
Contains log history information such as which logs have been archived and the SCN range for each archived log. |
Parent topic: Viewing Information About the Archived Redo Log
12.8.2 Using the ARCHIVE LOG LIST Command
The SQL*Plus command ARCHIVE LOG LIST
displays archiving information for the connected instance.
For example:
SQL> ARCHIVE LOG LIST Database log mode Archive Mode Automatic archival Enabled Archive destination D:\oracle\oradata\IDDB2\archive Oldest online log sequence 11160 Next log sequence to archive 11163 Current log sequence 11163
This display tells you all the necessary information regarding the archived redo log settings for the current instance:
-
The database is currently operating in
ARCHIVELOG
mode. -
Automatic archiving is enabled.
-
The archived redo log destination is D:\oracle\oradata\IDDB2\archive.
-
The oldest filled redo log group has a sequence number of 11160.
-
The next filled redo log group to archive has a sequence number of 11163.
-
The current redo log file has a sequence number of 11163.
See Also:
SQL*Plus User's Guide and Reference for more information on the ARCHIVE LOG LIST
command
Parent topic: Viewing Information About the Archived Redo Log
