3 Examples of Analytic Workspace Manager Plug-ins

Example 3-1 The ViewXMLPlugin Class

import java.awt.BorderLayout;
import java.awt.Font;
import java.awt.Frame;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.IOException;
import java.sql.Connection;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import javax.swing.JButton;
import javax.swing.JDialog;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTextArea;

import oracle.AWXML.AW;
import oracle.olap.awm.plugin.AWMPlugin;
import oracle.olapi.metadata.mdm.MdmBaseMeasure;
import oracle.olapi.metadata.mdm.MdmDerivedMeasure;
import oracle.olapi.metadata.mdm.MdmMetadataProvider;
import oracle.olapi.metadata.mdm.MdmObject;

/**
 * An implementation of the AWMPlugin interface that displays the XML
 * representation of an Oracle OLAP measure object.
 */
public class ViewXMLPlugin implements AWMPlugin
{
  public boolean isSupported(Connection conn, String type, Object obj,
                             AW aw, Map params)
  {
    // Support MdmBaseMeasure and MdmDerivedMeasure objects.
    if (obj instanceof MdmBaseMeasure || obj instanceof MdmDerivedMeasure)
    {
      return true;
    }
    return false;
  }

  public String getMenu(Connection conn, String type, Object obj, AW aw,
                        Map params)
  {
    // Text to display on the right-click menu.
    String menu = "View XML Example Plug-in";
    return menu;
  }

  public void handle(Frame parent, Connection conn, String type, Object obj,
                     AW aw, Map params)
  {
    if (obj instanceof MdmObject)
    {
      // Get the MdmMetadataProvider to use in exporting the XML.
      Object objdp = params.get("DATAPROVIDER");
      if (objdp != null)
      {
        MdmObject mobj = (MdmObject)obj;
        MdmMetadataProvider mdp = (MdmMetadataProvider)objdp;

        // Get the XML representation of the MdmObject.
        List objects = new ArrayList();
        objects.add(mobj);
        Map renameMap = null;
        boolean includeOwnerString = true;
        String title = "XML for " + mobj.getName();
        try
        {
          String xml =
            mdp.exportFullXML(objects, renameMap, includeOwnerString);
          // Create a dialog box and display the XML.
          DisplayXMLDialog dxd = new DisplayXMLDialog(parent, title, true,
                                                      xml);
        }
        catch (IOException ie)
        {
          // Ignore error.
        }
      }
    }
  }

  public boolean refreshTree(Connection conn, String type, Object obj, AW aw,
                             Map params)
  {
    // This example does not create new metadata objects, so return false.
    return false;
  }

  /**
   * An inner class that creates a dialog box that displays the XML.
   */
  class DisplayXMLDialog extends JDialog implements ActionListener
  {
    /**
     * Creates a DisplayXMLDialog for displaying the contents of the xml
     * parameter.
     *
     * @param parent A Frame that is provided by Analytic Workspace Manager.
     * @param title A String that contains text to use as the title for the
     *              dialog box.
     * @param modal A boolean that specifies whether the dialog box is modal.
     * @param xml A String that contains the XML to display.
     */
    public DisplayXMLDialog(Frame parent, String title, boolean modal,
                            String xml)
    {
      super(parent);
      setLocation(200, 200);
      setTitle(title);
      setModal(modal);

      try
      {
        displayXML(xml);
      }
      catch (Exception e)
      {
        e.printStackTrace();
      }
    }

    /**
     * Creates a dialog box and displays the contents of a String.
     *
     * @param xml A String that contains the XML to display.
     */
    private void displayXML(String xml)
    {
      JTextArea ta = new JTextArea(xml);
      ta.setEditable(false);
      Font of = ta.getFont();
      Font f = new Font("Courier New", of.getStyle(), of.getSize());
      ta.setFont(f);

      JScrollPane p = new JScrollPane();
      p.getViewport().add(ta);

      JPanel buttonPane = new JPanel();
      JButton button = new JButton("Close");
      buttonPane.add(button);
      button.addActionListener(this);
      getContentPane().add(buttonPane, BorderLayout.SOUTH);

      getContentPane().add(p, BorderLayout.NORTH);
      setDefaultCloseOperation(DISPOSE_ON_CLOSE);
      pack();
      setVisible(true);
    }

    /**
     * Performs an action for the Close button.
     *
     * @param e An ActionEvent for the Close button.
     */
    public void actionPerformed(ActionEvent e)
    {
      setVisible(false);
      dispose();
    }
  }
}

Example 3-2 The DeleteDimPlugin Class

package plugin11202;

import java.awt.Frame;
import java.sql.Connection;
import java.util.Map;
import javax.swing.JOptionPane;
import oracle.AWXML.AW;
import oracle.olap.awm.plugin.AWMPlugin;
import oracle.olapi.metadata.mdm.MdmMetadataProvider;
import oracle.olapi.metadata.mdm.MdmObject;
import oracle.olapi.metadata.mdm.MdmPrimaryDimension;
import oracle.olapi.metadata.mdm.MdmSchema;

/**
 * An implementation of the AWMPlugin interface that can delete
 * an Oracle OLAP dimension object in a custom folder.
 */
public class DeleteDimPlugin implements AWMPlugin
{
  // This plug-in applies to dimension objects in a custom folder.
  public boolean isSupported(Connection conn, String type, Object obj, AW aw,
                             Map params)
  {
    if (params != null)
    {
      // Get the value of the type attribute of the AWMNode that specifies this
      // plug-in.
      Object nodeType = params.get("TYPE");
      if (nodeType != null && ((String)nodeType).equalsIgnoreCase("dimobj"))
        return true;
    }
    return false;
  }

  public String getMenu(Connection conn, String type, Object obj, AW aw,
                        Map params)
  {
    Object dimName = null;
    if (obj != null && obj instanceof String)
    {
      dimName = (String) obj;
    }
    // Text to display on the right-click menu.

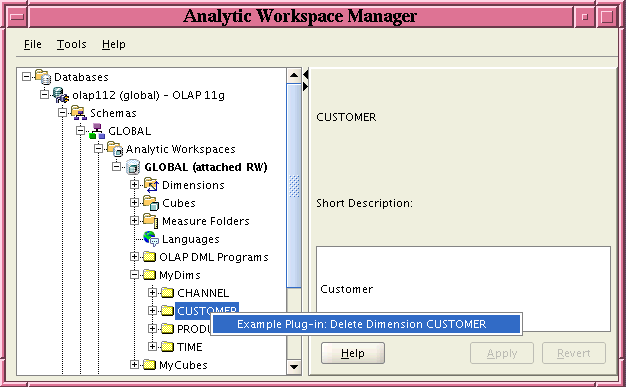

    return "Example Plug-in: Delete Dimension " + dimName;
  }

  public void handle(Frame parent, Connection conn, String type, Object obj,
                     AW aw, Map params)
  {
    String dimName = "";
    // The obj parameter should be the name of the currently selected dimension.
    if (obj != null && obj instanceof String)
    {
      dimName = (String) obj;

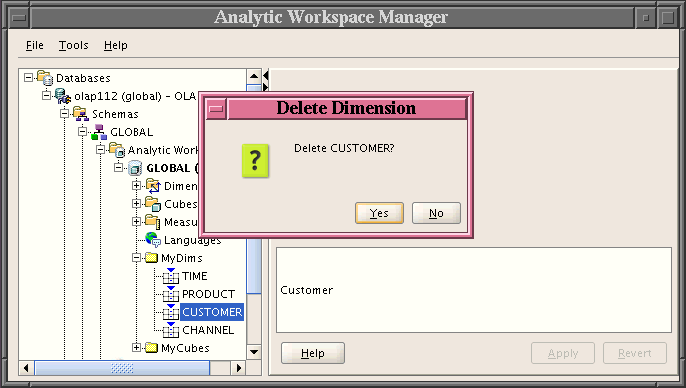

      String title = "Delete Dimension";
      if (JOptionPane.showConfirmDialog(parent, "Delete " + dimName + "?",
                                        title, JOptionPane.YES_NO_OPTION) ==
                                        JOptionPane.NO_OPTION)
        return;
    }

    if (params != null)
    {
      Map bindMap = (Map)params.get("BIND_MAP");
      if (bindMap != null)
      {
        // Get the name of the owner, which is also the name of the schema.
        String owner = (String)bindMap.get("owner");
        // Get the currently selected dimension.
        MdmPrimaryDimension dim = getDimension(dimName, owner, params);

        if (dim != null)
        {
          // Get the schema object that contains the dimension.
          MdmSchema schema = dim.getOwner();
          schema.removeDimension(dim);
          MdmMetadataProvider mdp = getMetadataProvider(params);
          // Get the TransactionProvider and commit the current Transaction.
          try
          {
            mdp.getDataProvider()
               .getTransactionProvider()
               .commitCurrentTransaction();
            JOptionPane.showMessageDialog(parent,
                                          owner + "." + dimName +
                                          " dimension has been deleted.");
          }
          catch (Exception e)
          {
            JOptionPane.showMessageDialog(parent, e.getMessage(), "Error",
                                          JOptionPane.ERROR_MESSAGE);
            // Roll back the current Transaction.
            try
            {
              mdp.getDataProvider()
                 .getTransactionProvider()
                 .rollbackCurrentTransaction();
            }
            catch (Exception e2)
            {
              // Ignore the exception.
            }
          }
        }
      }
      else
      {
        return;
      }
    }
  }

  public boolean refreshTree(Connection conn, String type, Object obj, AW aw,
                             Map params)
  {
    return true;
  }

  // Get the MdmMetadataProvider.
  private MdmMetadataProvider getMetadataProvider(Map params)
  {
    Object dp = params.get("DATAPROVIDER");
    if (dp instanceof MdmMetadataProvider)
    {
      MdmMetadataProvider mdp = (MdmMetadataProvider)dp;
      return mdp;
    }
    return null;
  }

  // Get the currently selected dimension.
  private MdmPrimaryDimension getDimension(String dimName, String schema,
                                           Map params)
  {
    if (params != null)
    {
      MdmMetadataProvider mdp = getMetadataProvider(params);
      if (mdp != null)
      {
        // Get the dimension from the MdmMetadataProvider.
        MdmObject mobj = mdp.getMetadataObject(schema + "." + dimName);
        if (mobj != null && mobj instanceof MdmPrimaryDimension)
        {
          MdmPrimaryDimension dim = (MdmPrimaryDimension)mobj;
          return dim;
        }
      }
    }
    return null;
  }
}

Example 3-3 Creating a dimension.xml Document

<?xml version="1.0" encoding="US-ASCII" ?>
<AWMTree>
  <AWMNode name="MyLevels"
           type="levelobj"
           sql="select level_name from user_cube_dim_levels where dimension_name = {dimension_name} ">
    <AWMNode type="levelview"
             viewClass="plugin11202.LevelViewerPlugin"/>
  </AWMNode>
</AWMTree>

Example 3-4 The LevelViewerPlugin Class

package plugin11202;

import java.awt.FlowLayout;
import java.sql.Connection;
import java.util.Map;
import javax.swing.JLabel;
import javax.swing.JPanel;
import oracle.olap.awm.plugin.ViewerPlugin;

public class LevelViewerPlugin implements ViewerPlugin
{
  public boolean isViewerForType(Connection conn, String name)
    throws Exception
  {
    return true;
  }

  public JPanel getPanel(Connection conn, String name, Map params)
    throws Exception
  {
    JPanel panel = new JPanel();
    panel.setLayout(new FlowLayout());
    // Get the name of the current level.
    Object obj = params.get("levelobj");
    if (obj instanceof String)
    {
      String levelName = (String)obj;
      panel.add(new JLabel(levelName));
    }
    return panel;
  }

  public void cleanup(String name)
  {
  }
}

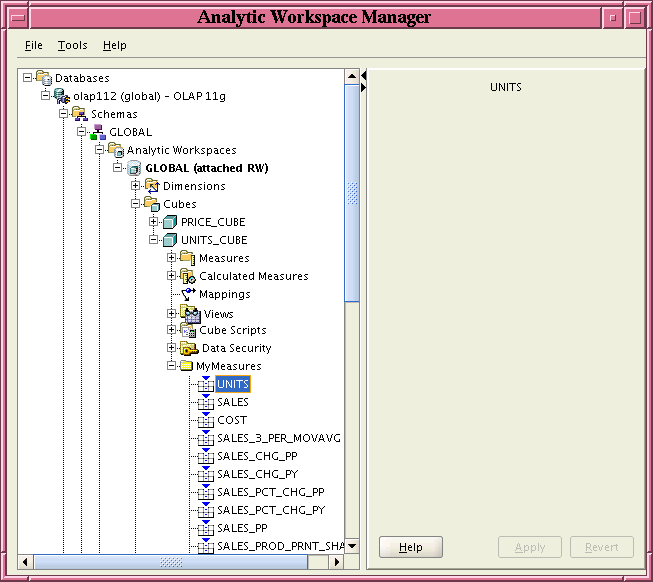

Example 3-5 Creating a cube.xml Document

<?xml version="1.0" encoding="US-ASCII" ?>
<AWMTree>
  <AWMNode name="MyMeasures"
           type="measureobj"
           sql="select measure_name from user_cube_measures where cube_name = {cube_name}">
    <AWMNode type="measureview"
             viewClass="plugin11202.MeasureViewerPlugin"/>
  </AWMNode>
</AWMTree>

Example 3-6 The MeasureViewerPlugin Class

package plugin11202;

import java.awt.FlowLayout;
import java.sql.Connection;
import java.util.Map;
import javax.swing.JLabel;
import javax.swing.JPanel;
import oracle.olap.awm.plugin.ViewerPlugin;

public class MeasureViewerPlugin implements ViewerPlugin
{
  public boolean isViewerForType(Connection conn, String name)
    throws Exception
  {
    return true;
  }

  public JPanel getPanel(Connection conn, String name, Map params)
    throws Exception
  {
    JPanel panel = new JPanel();
    panel.setLayout(new FlowLayout());

    // Get the name of the current measure.
    Object measureobj = null;
    if (params != null)
      measureobj = params.get("measureobj");

    if (measureobj instanceof String)
    {
      String measureName = (String)measureobj;
      panel.add(new JLabel(measureName));
    }
    return panel;
  }

  public void cleanup(String name)
  {
  }
}

Example 3-7 Creating an aw.xml Document

<?xml version="1.0" encoding="US-ASCII" ?>
<AWMTree>

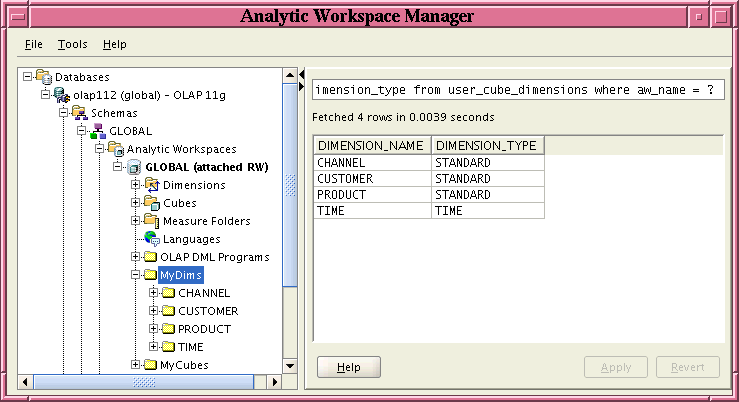

  <AWMNode name="MyDims"
           type="mydimfolder"
           viewSql="select dimension_name, dimension_type from user_cube_dimensions where aw_name = {aw_name}">

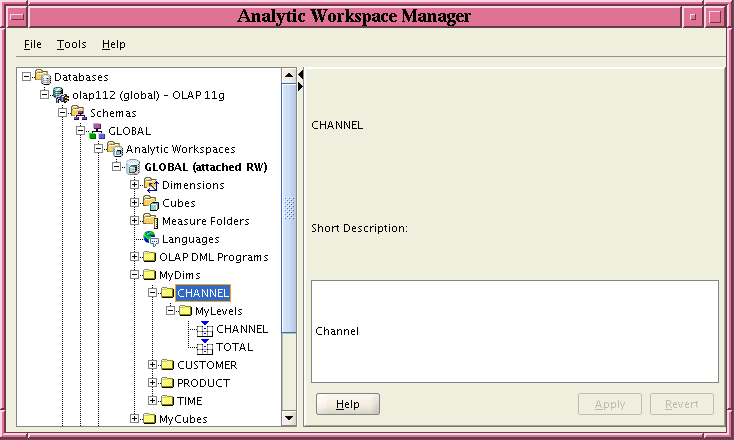

    <AWMNode type="dimobj"
             sql="select dimension_name from user_cube_dimensions where aw_name = {aw_name}"
             viewClass="plugin11202.DimEditorPlugin">
    </AWMNode>

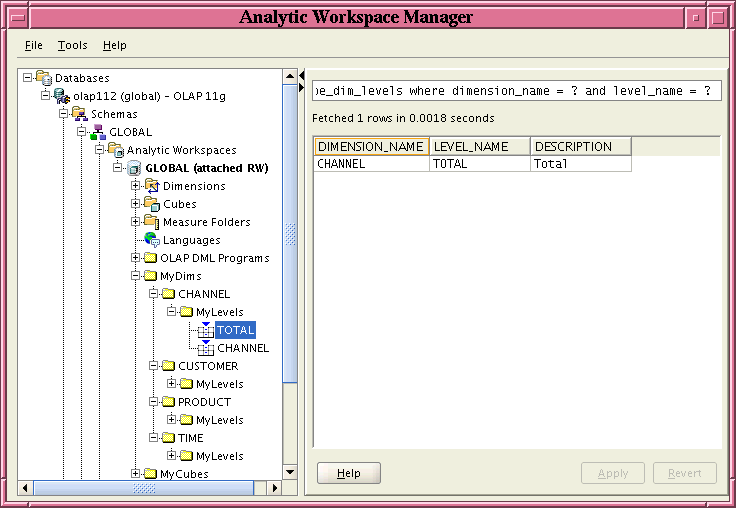

      <AWMNode name="MyLevels"
               type="levelobj"
               sql="select level_name from user_cube_dim_levels where dimension_name = {dimobj}">
        <AWMNode sql="select * from user_cube_dim_levels where dimension_name = {dimobj} and level_name = {levelobj}"/>
      </AWMNode>
  </AWMNode>

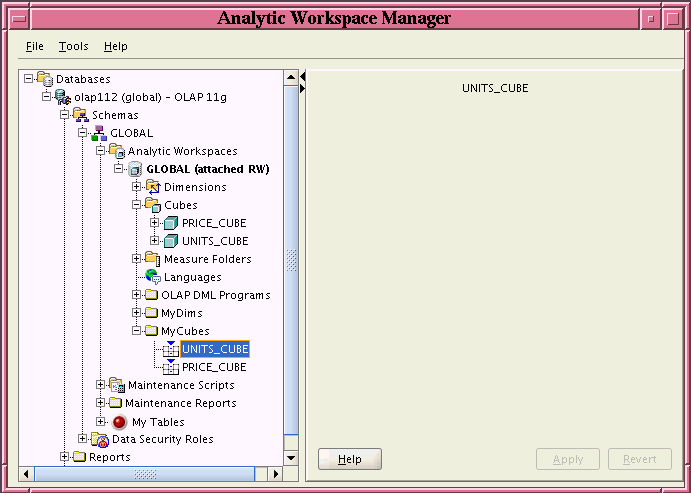

  <AWMNode name="MyCubes"
           type="cubeobj"
           sql="select cube_name from user_cubes where aw_name = {aw_name}">
    <AWMNode type="mycubeview"
             viewClass="plugin11202.CubeViewerPlugin"/>
  </AWMNode>
</AWMTree>

Example 3-8 The CubeViewerPlugin Class

package plugin11202;

import java.awt.FlowLayout;
import java.sql.Connection;
import java.util.Map;
import javax.swing.JLabel;
import javax.swing.JPanel;
import oracle.olap.awm.plugin.ViewerPlugin;

public class CubeViewerPlugin implements ViewerPlugin
{
  public boolean isViewerForType(Connection conn, String name)
    throws Exception
  {
    return true;
  }

  public JPanel getPanel(Connection conn, String name, Map params)
    throws Exception
  {
    JPanel panel = new JPanel();
    panel.setLayout(new FlowLayout());
    // Get the name of the current cube.
    Object cubeobj = null;
    if (params != null)
      cubeobj = params.get("cubeobj");
    if (cubeobj instanceof String)
    {
      String cubeName = (String)cubeobj;
      panel.add(new JLabel(cubeName));
    }
    return panel;
  }

  public void cleanup(String name)
  {
  }
}

Example 3-9 The DimEditorPlugin Class

package plugin11202;

import java.awt.Component;
import java.awt.GridLayout;
import java.sql.Connection;
import java.util.Map;
import javax.swing.JLabel;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.JTextField;
import javax.swing.event.DocumentEvent;
import javax.swing.event.DocumentListener;
import oracle.olap.awm.plugin.EditorPlugin;
import oracle.olap.awm.plugin.PanelChanged;
import oracle.olapi.metadata.mdm.MdmDescriptionType;
import oracle.olapi.metadata.mdm.MdmMetadataProvider;
import oracle.olapi.metadata.mdm.MdmObject;
import oracle.olapi.metadata.mdm.MdmPrimaryDimension;

public class DimEditorPlugin implements EditorPlugin
{
  private JTextField shortDescTextField;
  private PanelChanged parentPanelChanged;
  private JPanel panel;
  private JLabel dimNameLabel;
  private MdmDescriptionType mdmShortDescrDescrType;

  public DimEditorPlugin()
  {
    panel = new JPanel();
    panel.setLayout(new GridLayout(3, 1));
    dimNameLabel = new JLabel();
    panel.add(dimNameLabel);
    shortDescTextField = new JTextField();
    panel.add(new JLabel("Short Description:"));
    panel.add(shortDescTextField);
    shortDescTextField.getDocument().addDocumentListener(new DocumentListener()
        {
          public void insertUpdate(DocumentEvent e)
          {
            changed();
          }

          public void removeUpdate(DocumentEvent e)
          {
            changed();
          }

          public void changedUpdate(DocumentEvent e)
          {
            changed();
          }
        });
  }

  public boolean isViewerForType(Connection conn, String name)
    throws Exception
  {
    return true;
  }

  // Get the MdmMetadataProvider of the session.
  private MdmMetadataProvider getMetadataProvider(Map params)
  {
    Object dp = params.get("DATAPROVIDER");
    if (dp instanceof MdmMetadataProvider)
    {
      MdmMetadataProvider mdp = (MdmMetadataProvider)dp;
      return mdp;
    }
    return null;
  }

  // Get the currently selected dimension and the schema from the params Map.
  // Get the MdmMetadataProvider and get the MdmPrimaryDimension for the
  // dimension.
  private MdmPrimaryDimension getDimension(Map params)
  {
    Object obj = null;
    String schema = "";
    if (params != null)
    {
      obj = params.get("dimobj");
      schema = (String)params.get("schema");
    }
    if (obj instanceof String)
    {
      String dimName = (String)obj;
      MdmMetadataProvider mdp = getMetadataProvider(params);
      if (mdp != null)
      {
        MdmObject mobj = mdp.getMetadataObject(schema + "." + dimName);
        if (mobj != null && mobj instanceof MdmPrimaryDimension)
        {
          MdmPrimaryDimension dim = (MdmPrimaryDimension)mobj;
          return dim;
        }
        else
          System.out.println("Cannot get the " + dimName + " dimension.");
      }
    }
    return null;
  }

  // Get the dimension and the short description of it.
  // Display the short description.
  private void read(Map params)
  {
    MdmPrimaryDimension dim = getDimension(params);
    if (dim != null)
    {
      dimNameLabel.setText(dim.getName());
      mdmShortDescrDescrType =
        MdmDescriptionType.getShortDescriptionDescriptionType();
      String shortDesc = dim.getDescription(mdmShortDescrDescrType);
      shortDescTextField.setText(shortDesc);
    }
  }

  public JPanel getPanel(Connection conn, String name, Map params)
    throws Exception
  {
    read(params);
    return panel;
  }

  public void cleanup(String name)
  {
  }

  public boolean validate(Connection conn, Component parent, String name,
                          Map params)
    throws Exception
  {
    String invalidDescr = "foo";
    if (shortDescTextField.getText().equals(invalidDescr))
    {
      JOptionPane.showMessageDialog(parent, "Description cannot be " +
                                    invalidDescr + ".");
      return false;
    }
    return true;
  }

  public void revert(Connection conn, Component parent, String name,
                     Map params)
    throws Exception
  {
    read(params);
  }

  public void showHelp(Connection conn, Component parent, String name,
                       Map params)
    throws Exception
  {
    JOptionPane.showMessageDialog(parent, "In Help.");
  }

  public boolean save(Connection conn, Component parent, String name,
                      Map params)
    throws Exception
  {
    // Get the currently selected dimension and set the short description for
    // it.
    MdmPrimaryDimension dim = getDimension(params);
    dim.setDescription(mdmShortDescrDescrType, shortDescTextField.getText());
    // Get the MdmMetadataProvider.
    MdmMetadataProvider mdp = getMetadataProvider(params);
    if (mdp == null)
      return false;
    // Get the DataProvider and the TransactionProvider and commit the current
    // Transaction. If the Transaction is not committable, roll it back.
    try
    {
      mdp.getDataProvider().getTransactionProvider().commitCurrentTransaction();
    }
    catch (Exception e)
    {
      JOptionPane.showMessageDialog(parent, e.getMessage(), "Error",
                                    JOptionPane.ERROR_MESSAGE);
      try
      {
        mdp.getDataProvider()
           .getTransactionProvider()
           .rollbackCurrentTransaction();
      }
      catch (Exception e2)
      {
        // Ignore the exception.
      }
    }
    return true;
  }

  public void setValueChanged(Connection conn, String name, Map params,
                              PanelChanged parentPanelChanged)
  {
    this.parentPanelChanged = parentPanelChanged;
  }


  // Calls the changed() method of the PanelChanged object supplied by
  // Analytic Workspace Manager when it calls the setValueChanged method.
  public void changed()
  {
    if (parentPanelChanged != null)
      parentPanelChanged.changed();
  }
}
