Chapter 15 The InnoDB Storage Engine

Table of Contents

15.1 Introduction to InnoDB
15.1.1 Benefits of Using InnoDB Tables
15.1.2 Best Practices for InnoDB Tables
15.1.3 Checking InnoDB Availability
15.1.4 Testing and Benchmarking with InnoDB
15.1.5 Turning Off InnoDB
15.2 InnoDB and the ACID Model
15.3 InnoDB Multi-Versioning
15.4 InnoDB Architecture
15.4.1 Buffer Pool
15.4.2 Change Buffer
15.4.3 Adaptive Hash Index
15.4.4 Redo Log Buffer
15.4.5 System Tablespace
15.4.6 InnoDB Data Dictionary
15.4.7 Doublewrite Buffer
15.4.8 Undo Logs
15.4.9 File-Per-Table Tablespaces
15.4.10 General Tablespaces
15.4.11 Undo Tablespace
15.4.12 Temporary Tablespace
15.4.13 Redo Log
15.5 InnoDB Locking and Transaction Model
15.5.1 InnoDB Locking
15.5.2 InnoDB Transaction Model
15.5.3 Locks Set by Different SQL Statements in InnoDB
15.5.4 Phantom Rows
15.5.5 Deadlocks in InnoDB
15.6 InnoDB Configuration
15.6.1 InnoDB Startup Configuration
15.6.2 Configuring InnoDB for Read-Only Operation
15.6.3 InnoDB Buffer Pool Configuration
15.6.4 Configuring the Memory Allocator for InnoDB
15.6.5 Configuring InnoDB Change Buffering
15.6.6 Configuring Thread Concurrency for InnoDB
15.6.7 Configuring the Number of Background InnoDB I/O Threads
15.6.8 Using Asynchronous I/O on Linux
15.6.9 Configuring the InnoDB Master Thread I/O Rate
15.6.10 Configuring Spin Lock Polling
15.6.11 Configuring InnoDB Purge Scheduling
15.6.12 Configuring Optimizer Statistics for InnoDB
15.6.13 Configuring the Merge Threshold for Index Pages
15.7 InnoDB Tablespaces
15.7.1 Resizing the InnoDB System Tablespace
15.7.2 Changing the Number or Size of InnoDB Redo Log Files
15.7.3 Using Raw Disk Partitions for the System Tablespace
15.7.4 InnoDB File-Per-Table Tablespaces
15.7.5 Creating a File-Per-Table Tablespace Outside the Data Directory
15.7.6 Copying File-Per-Table Tablespaces to Another Server
15.7.7 Storing InnoDB Undo Logs in Separate Tablespaces
15.7.8 Truncating Undo Logs That Reside in Undo Tablespaces
15.7.9 InnoDB General Tablespaces
15.7.10 InnoDB Tablespace Encryption
15.8 InnoDB Tables and Indexes
15.8.1 Creating InnoDB Tables
15.8.2 Role of the .frm File for InnoDB Tables
15.8.3 Physical Row Structure of InnoDB Tables
15.8.4 Moving or Copying InnoDB Tables to Another Machine
15.8.5 Converting Tables from MyISAM to InnoDB
15.8.6 AUTO_INCREMENT Handling in InnoDB
15.8.7 InnoDB and FOREIGN KEY Constraints
15.8.8 Limits on InnoDB Tables
15.8.9 Clustered and Secondary Indexes
15.8.10 InnoDB FULLTEXT Indexes
15.8.11 Physical Structure of an InnoDB Index
15.8.12 Sorted Index Builds
15.9 InnoDB Table and Page Compression
15.9.1 InnoDB Table Compression
15.9.2 InnoDB Page Compression
15.10 InnoDB File-Format Management
15.10.1 Enabling File Formats
15.10.2 Verifying File Format Compatibility
15.10.3 Identifying the File Format in Use
15.10.4 Modifying the File Format
15.11 InnoDB Row Storage and Row Formats
15.11.1 Overview of InnoDB Row Storage
15.11.2 Specifying the Row Format for a Table
15.11.3 DYNAMIC and COMPRESSED Row Formats
15.11.4 COMPACT and REDUNDANT Row Formats
15.12 InnoDB Disk I/O and File Space Management
15.12.1 InnoDB Disk I/O
15.12.2 File Space Management
15.12.3 InnoDB Checkpoints
15.12.4 Defragmenting a Table
15.12.5 Reclaiming Disk Space with TRUNCATE TABLE
15.13 InnoDB and Online DDL
15.13.1 Overview of Online DDL
15.13.2 Performance and Concurrency Considerations for Online DDL
15.13.3 SQL Syntax for Online DDL
15.13.4 Combining or Separating DDL Statements
15.13.5 Examples of Online DDL
15.13.6 Implementation Details of Online DDL
15.13.7 How Crash Recovery Works with Online DDL
15.13.8 Online DDL for Partitioned InnoDB Tables
15.13.9 Limitations of Online DDL
15.14 InnoDB Startup Options and System Variables
15.15 InnoDB INFORMATION_SCHEMA Tables
15.15.1 InnoDB INFORMATION_SCHEMA Tables about Compression
15.15.2 InnoDB INFORMATION_SCHEMA Transaction and Locking Information
15.15.3 InnoDB INFORMATION_SCHEMA System Tables
15.15.4 InnoDB INFORMATION_SCHEMA FULLTEXT Index Tables
15.15.5 InnoDB INFORMATION_SCHEMA Buffer Pool Tables
15.15.6 InnoDB INFORMATION_SCHEMA Metrics Table
15.15.7 InnoDB INFORMATION_SCHEMA Temporary Table Information Table
15.15.8 Retrieving InnoDB Tablespace Metadata from INFORMATION_SCHEMA.FILES
15.16 InnoDB Integration with MySQL Performance Schema
15.16.1 Monitoring ALTER TABLE Progress for InnoDB Tables Using Performance Schema
15.16.2 Monitoring InnoDB Mutex Waits Using Performance Schema
15.17 InnoDB Monitors
15.17.1 InnoDB Monitor Types
15.17.2 Enabling InnoDB Monitors
15.17.3 InnoDB Standard Monitor and Lock Monitor Output
15.18 InnoDB Backup and Recovery
15.18.1 InnoDB Backup
15.18.2 InnoDB Recovery
15.19 InnoDB and MySQL Replication
15.20 InnoDB memcached Plugin
15.20.1 Benefits of the InnoDB memcached Plugin

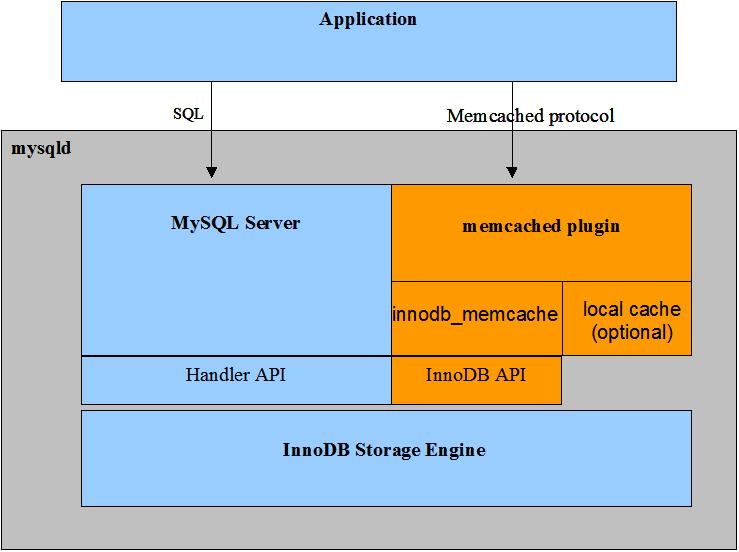

15.20.2 InnoDB memcached Architecture
15.20.3 Setting Up the InnoDB memcached Plugin
15.20.4 Security Considerations for the InnoDB memcached Plugin
15.20.5 Writing Applications for the InnoDB memcached Plugin
15.20.6 The InnoDB memcached Plugin and Replication
15.20.7 InnoDB memcached Plugin Internals
15.20.8 Troubleshooting the InnoDB memcached Plugin
15.21 InnoDB Troubleshooting
15.21.1 Troubleshooting InnoDB I/O Problems
15.21.2 Forcing InnoDB Recovery
15.21.3 Troubleshooting InnoDB Data Dictionary Operations
15.21.4 InnoDB Error Handling

15.1 Introduction to InnoDB

InnoDB is a general-purpose storage engine that balances high reliability and high performance. In MySQL 5.7, InnoDB is the default MySQL storage engine. Unless you have configured a different default storage engine, issuing a CREATE TABLE statement without an ENGINE= clause creates an InnoDB table.

Key Advantages of InnoDB

Key advantages of InnoDB include:

Table 15.1 InnoDB Storage Engine Features

Storage limits64TBTransactionsYesLocking granularityRow
MVCCYesGeospatial data type supportYesGeospatial indexing supportYes[a]
B-tree indexesYesT-tree indexesNoHash indexesNo[b]
Full-text search indexesYes[c]Clustered indexesYesData cachesYes
Index cachesYesCompressed dataYes[d]Encrypted data[e]Yes
Cluster database supportNoReplication support[f]YesForeign key supportYes
Backup / point-in-time recovery[g]YesQuery cache supportYesUpdate statistics for data dictionaryYes

[a] InnoDB support for geospatial indexing is available in MySQL 5.7.5 and higher.

[b] InnoDB utilizes hash indexes internally for its Adaptive Hash Index feature.

[c] InnoDB support for FULLTEXT indexes is available in MySQL 5.6.4 and higher.

[d] Compressed InnoDB tables require the InnoDB Barracuda file format.

[e] Implemented in the server (via encryption functions). Data-at-rest tablespace encryption is available in MySQL 5.7 and higher.

[f] Implemented in the server, rather than in the storage engine.

[g] Implemented in the server, rather than in the storage engine.


To compare the features of InnoDB with other storage engines provided with MySQL, see the Storage Engine Features table in Chapter 16, Alternative Storage Engines.

InnoDB Enhancements and New Features

For information about InnoDB enhancements and new features in MySQL 5.7, refer to:

Additional InnoDB Information and Resources

15.1.1 Benefits of Using InnoDB Tables

If you use MyISAM tables but are not committed to them for technical reasons, you may find InnoDB tables beneficial for the following reasons:

  • If your server crashes because of a hardware or software issue, regardless of what was happening in the database at the time, you don't need to do anything special after restarting the database. InnoDB crash recovery automatically finalizes any changes that were committed before the time of the crash, and undoes any changes that were in process but not committed. Just restart and continue where you left off.

  • The InnoDB storage engine maintains its own buffer pool that caches table and index data in main memory as data is accessed. Frequently used data is processed directly from memory. This cache applies to many types of information and speeds up processing. On dedicated database servers, up to 80% of physical memory is often assigned to the InnoDB buffer pool.

  • If you split up related data into different tables, you can set up foreign keys that enforce referential integrity. Update or delete data, and the related data in other tables is updated or deleted automatically. Try to insert data into a secondary table without corresponding data in the primary table, and the bad data gets kicked out automatically.

  • If data becomes corrupted on disk or in memory, a checksum mechanism alerts you to the bogus data before you use it.

  • When you design your database with appropriate primary key columns for each table, operations involving those columns are automatically optimized. It is very fast to reference the primary key columns in WHERE clauses, ORDER BY clauses, GROUP BY clauses, and join operations.

  • Inserts, updates, and deletes are optimized by an automatic mechanism called change buffering. InnoDB not only allows concurrent read and write access to the same table, it caches changed data to streamline disk I/O.

  • Performance benefits are not limited to giant tables with long-running queries. When the same rows are accessed over and over from a table, a feature called the Adaptive Hash Index takes over to make these lookups even faster, as if they came out of a hash table.

  • You can compress tables and associated indexes.

  • You can create and drop indexes with much less impact on performance and availability.

  • Truncating a file-per-table tablespace is very fast, and can free up disk space for the operating system to reuse, rather than freeing up space within the system tablespace that only InnoDB could reuse.

  • The storage layout for table data is more efficient for BLOB and long text fields, with the DYNAMIC row format.

  • You can monitor the internal workings of the storage engine by querying INFORMATION_SCHEMA tables.

  • You can monitor the performance details of the storage engine by querying Performance Schema tables.

  • You can freely mix InnoDB tables with tables from other MySQL storage engines, even within the same statement. For example, you can use a join operation to combine data from InnoDB and MEMORY tables in a single query.

  • InnoDB has been designed for CPU efficiency and maximum performance when processing large data volumes.

  • InnoDB tables can handle large quantities of data, even on operating systems where file size is limited to 2GB.

For InnoDB-specific tuning techniques you can apply in your application code, see Section 9.5, “Optimizing for InnoDB Tables”.

15.1.2 Best Practices for InnoDB Tables

This section describes best practices when using InnoDB tables.

  • Specifying a primary key for every table using the most frequently queried column or columns, or an auto-increment value if there is no obvious primary key.

  • Using joins wherever data is pulled from multiple tables based on identical ID values from those tables. For fast join performance, define foreign keys on the join columns, and declare those columns with the same data type in each table. Adding foreign keys ensures that referenced columns are indexed, which can improve performance. Foreign keys also propagate deletes or updates to all affected tables, and prevent insertion of data in a child table if the corresponding IDs are not present in the parent table.

  • Turning off autocommit. Committing hundreds of times a second puts a cap on performance (limited by the write speed of your storage device).

  • Grouping sets of related DML operations into transactions, by bracketing them with START TRANSACTION and COMMIT statements. While you don't want to commit too often, you also don't want to issue huge batches of INSERT, UPDATE, or DELETE statements that run for hours without committing.

  • Not using LOCK TABLES statements. InnoDB can handle multiple sessions all reading and writing to the same table at once, without sacrificing reliability or high performance. To get exclusive write access to a set of rows, use the SELECT ... FOR UPDATE syntax to lock just the rows you intend to update.

  • Enabling the innodb_file_per_table option to put the data and indexes for individual tables into separate files, instead of in a single giant system tablespace. This setting is required to use some of the other features, such as table compression and fast truncation.

    The innodb_file_per_table option is enabled by default as of MySQL 5.6.6.

  • Evaluating whether your data and access patterns benefit from the InnoDB table compression feature (ROW_FORMAT=COMPRESSED) on the CREATE TABLE statement. You can compress InnoDB tables without sacrificing read/write capability.

  • Running your server with the option --sql_mode=NO_ENGINE_SUBSTITUTION to prevent tables being created with a different storage engine if there is an issue with the engine specified in the ENGINE= clause of CREATE TABLE.

15.1.3 Checking InnoDB Availability

To determine whether your server supports InnoDB:

  • Issue the command SHOW ENGINES; to see all the different MySQL storage engines. Look for DEFAULT in the InnoDB line. Alternatively, query the INFORMATION_SCHEMA ENGINES table. (Now that InnoDB is the default MySQL storage engine, only very specialized environments might not support it.)

  • If InnoDB is not present, you have a mysqld binary that was compiled without InnoDB support and you need to get a different one.

  • If InnoDB is present but disabled, go back through your startup options and configuration file and get rid of any skip-innodb option.

15.1.4 Testing and Benchmarking with InnoDB

If InnoDB is not your default storage engine, you can determine if your database server or applications work correctly with InnoDB by restarting the server with --default-storage-engine=InnoDB defined on the command line or with default-storage-engine=innodb defined in the [mysqld] section of the my.cnf configuration file.

Since changing the default storage engine only affects new tables as they are created, run all your application installation and setup steps to confirm that everything installs properly. Then exercise all the application features to make sure all the data loading, editing, and querying features work. If a table relies on some MyISAM-specific feature, you'll receive an error; add the ENGINE=MyISAM clause to the CREATE TABLE statement to avoid the error.

If you did not make a deliberate decision about the storage engine, and you just want to preview how certain tables work when they're created under InnoDB, issue the command ALTER TABLE table_name ENGINE=InnoDB; for each table. Or, to run test queries and other statements without disturbing the original table, make a copy like so:

CREATE TABLE InnoDB_Table (...) ENGINE=InnoDB AS SELECT * FROM MyISAM_Table;

To get a true idea of the performance with a full application under a realistic workload, install the latest MySQL server and run benchmarks.

Test the full application lifecycle, from installation, through heavy usage, and server restart. Kill the server process while the database is busy to simulate a power failure, and verify that the data is recovered successfully when you restart the server.

Test any replication configurations, especially if you use different MySQL versions and options on the master and the slaves.

15.1.5 Turning Off InnoDB

Oracle recommends InnoDB as the preferred storage engine for typical database applications, from single-user wikis and blogs running on a local system, to high-end applications pushing the limits of performance. In MySQL 5.7, InnoDB is the default storage engine for new tables.

Important

InnoDB cannot be disabled. The --skip-innodb option is deprecated and has no effect, and its use results in a warning. It will be removed in a future MySQL release. This also applies to its synonyms (--innodb=OFF, --disable-innodb, and so forth).

15.2 InnoDB and the ACID Model

The ACID model is a set of database design principles that emphasize aspects of reliability that are important for business data and mission-critical applications. MySQL includes components such as the InnoDB storage engine that adhere closely to the ACID model, so that data is not corrupted and results are not distorted by exceptional conditions such as software crashes and hardware malfunctions. When you rely on ACID-compliant features, you do not need to reinvent the wheel of consistency checking and crash recovery mechanisms. In cases where you have additional software safeguards, ultra-reliable hardware, or an application that can tolerate a small amount of data loss or inconsistency, you can adjust MySQL settings to trade some of the ACID reliability for greater performance or throughput.

The following sections discuss how MySQL features, in particular the InnoDB storage engine, interact with the categories of the ACID model:

  • A: atomicity.

  • C: consistency.

  • I:: isolation.

  • D: durability.

Atomicity

The atomicity aspect of the ACID model mainly involves InnoDB transactions. Related MySQL features include:

  • Autocommit setting.

  • COMMIT statement.

  • ROLLBACK statement.

  • Operational data from the INFORMATION_SCHEMA tables.

Consistency

The consistency aspect of the ACID model mainly involves internal InnoDB processing to protect data from crashes. Related MySQL features include:

Isolation

The isolation aspect of the ACID model mainly involves InnoDB transactions, in particular the isolation level that applies to each transaction. Related MySQL features include:

  • Autocommit setting.

  • SET ISOLATION LEVEL statement.

  • The low-level details of InnoDB locking. During performance tuning, you see these details through INFORMATION_SCHEMA tables.

Durability

The durability aspect of the ACID model involves MySQL software features interacting with your particular hardware configuration. Because of the many possibilities depending on the capabilities of your CPU, network, and storage devices, this aspect is the most complicated to provide concrete guidelines for. (And those guidelines might take the form of buy new hardware.) Related MySQL features include:

  • InnoDB doublewrite buffer, turned on and off by the innodb_doublewrite configuration option.

  • Configuration option innodb_flush_log_at_trx_commit.

  • Configuration option sync_binlog.

  • Configuration option innodb_file_per_table.

  • Write buffer in a storage device, such as a disk drive, SSD, or RAID array.

  • Battery-backed cache in a storage device.

  • The operating system used to run MySQL, in particular its support for the fsync() system call.

  • Uninterruptible power supply (UPS) protecting the electrical power to all computer servers and storage devices that run MySQL servers and store MySQL data.

  • Your backup strategy, such as frequency and types of backups, and backup retention periods.

  • For distributed or hosted data applications, the particular characteristics of the data centers where the hardware for the MySQL servers is located, and network connections between the data centers.

15.3 InnoDB Multi-Versioning

InnoDB is a multi-versioned storage engine: it keeps information about old versions of changed rows, to support transactional features such as concurrency and rollback. This information is stored in the tablespace in a data structure called a rollback segment (after an analogous data structure in Oracle). InnoDB uses the information in the rollback segment to perform the undo operations needed in a transaction rollback. It also uses the information to build earlier versions of a row for a consistent read.

Internally, InnoDB adds three fields to each row stored in the database. A 6-byte DB_TRX_ID field indicates the transaction identifier for the last transaction that inserted or updated the row. Also, a deletion is treated internally as an update where a special bit in the row is set to mark it as deleted. Each row also contains a 7-byte DB_ROLL_PTR field called the roll pointer. The roll pointer points to an undo log record written to the rollback segment. If the row was updated, the undo log record contains the information necessary to rebuild the content of the row before it was updated. A 6-byte DB_ROW_ID field contains a row ID that increases monotonically as new rows are inserted. If InnoDB generates a clustered index automatically, the index contains row ID values. Otherwise, the DB_ROW_ID column does not appear in any index.

Undo logs in the rollback segment are divided into insert and update undo logs. Insert undo logs are needed only in transaction rollback and can be discarded as soon as the transaction commits. Update undo logs are used also in consistent reads, but they can be discarded only after there is no transaction present for which InnoDB has assigned a snapshot that in a consistent read could need the information in the update undo log to build an earlier version of a database row.

Commit your transactions regularly, including those transactions that issue only consistent reads. Otherwise, InnoDB cannot discard data from the update undo logs, and the rollback segment may grow too big, filling up your tablespace.

The physical size of an undo log record in the rollback segment is typically smaller than the corresponding inserted or updated row. You can use this information to calculate the space needed for your rollback segment.

In the InnoDB multi-versioning scheme, a row is not physically removed from the database immediately when you delete it with an SQL statement. InnoDB only physically removes the corresponding row and its index records when it discards the update undo log record written for the deletion. This removal operation is called a purge, and it is quite fast, usually taking the same order of time as the SQL statement that did the deletion.

If you insert and delete rows in smallish batches at about the same rate in the table, the purge thread can start to lag behind and the table can grow bigger and bigger because of all the dead rows, making everything disk-bound and very slow. In such a case, throttle new row operations, and allocate more resources to the purge thread by tuning the innodb_max_purge_lag system variable. See Section 15.14, “InnoDB Startup Options and System Variables” for more information.

Multi-Versioning and Secondary Indexes

InnoDB multiversion concurrency control (MVCC) treats secondary indexes differently than clustered indexes. Records in a clustered index are updated in-place, and their hidden system columns point undo log entries from which earlier versions of records can be reconstructed. Unlike clustered index records, secondary index records do not contain hidden system columns nor are they updated in-place.

When a secondary index column is updated, old secondary index records are delete-marked, new records are inserted, and delete-marked records are eventually purged. When a secondary index record is delete-marked or the secondary index page is updated by a newer transaction, InnoDB looks up the database record in the clustered index. In the clustered index, the record's DB_TRX_ID is checked, and the correct version of the record is retrieved from the undo log if the record was modified after the reading transaction was initiated.

If a secondary index record is marked for deletion or the secondary index page is updated by a newer transaction, the covering index technique is not used. Instead of returning values from the index structure, InnoDB looks up the record in the clustered index.

However, if the index condition pushdown (ICP) optimization is enabled, and parts of the WHERE condition can be evaluated using only fields from the index, the MySQL server still pushes this part of the WHERE condition down to the storage engine where it is evaluated using the index. If no matching records are found, the clustered index lookup is avoided. If matching records are found, even among delete-marked records, InnoDB looks up the record in the clustered index.

15.4 InnoDB Architecture

This section provides an introduction to the major components of the InnoDB storage engine architecture.

15.4.1 Buffer Pool

The buffer pool is an area in main memory where InnoDB caches table and index data as data is accessed. The buffer pool allows frequently used data to be processed directly from memory, which speeds up processing. On dedicated database servers, up to 80% of physical memory is often assigned to the InnoDB buffer pool.

For efficiency of high-volume read operations, the buffer pool is divided into pages that can potentially hold multiple rows. For efficiency of cache management, the buffer pool is implemented as a linked list of pages; data that is rarely used is aged out of the cache, using a variation of the LRU algorithm.

For more information, see Section 15.6.3.1, “The InnoDB Buffer Pool”, and Section 15.6.3, “InnoDB Buffer Pool Configuration”.

15.4.2 Change Buffer

The change buffer is a special data structure that caches changes to secondary index pages when affected pages are not in the buffer pool. The buffered changes, which may result from INSERT, UPDATE, or DELETE operations (DML), are merged later when the pages are loaded into the buffer pool by other read operations.

Unlike clustered indexes, secondary indexes are usually non-unique, and inserts into secondary indexes happen in a relatively random order. Similarly, deletes and updates may affect secondary index pages that are not adjacently located in an index tree. Merging cached changes at a later time, when affected pages are read into the buffer pool by other operations, avoids substantial random access I/O that would be required to read-in secondary index pages from disk.

Periodically, the purge operation that runs when the system is mostly idle, or during a slow shutdown, writes the updated index pages to disk. The purge operation can write disk blocks for a series of index values more efficiently than if each value were written to disk immediately.

Change buffer merging may take several hours when there are numerous secondary indexes to update and many affected rows. During this time, disk I/O is increased, which can cause a significant slowdown for disk-bound queries. Change buffer merging may also continue to occur after a transaction is committed. In fact, change buffer merging may continue to occur after a server shutdown and restart (see Section 15.21.2, “Forcing InnoDB Recovery” for more information).

In memory, the change buffer occupies part of the InnoDB buffer pool. On disk, the change buffer is part of the system tablespace, so that index changes remain buffered across database restarts.

The type of data cached in the change buffer is governed by the innodb_change_buffering configuration option. For more information, see Section 15.6.5, “Configuring InnoDB Change Buffering”. You can also configure the maximum change buffer size. For more information, see Section 15.6.5.1, “Configuring the Change Buffer Maximum Size”.

Monitoring the Change Buffer

The following options are available for change buffer monitoring:

  • InnoDB Standard Monitor output includes status information for the change buffer. To view monitor data, issue the SHOW ENGINE INNODB STATUS command.

    mysql> SHOW ENGINE INNODB STATUS\G

    Change buffer status information is located under the INSERT BUFFER AND ADAPTIVE HASH INDEX heading and appears similar to the following:

    -------------------------------------
    INSERT BUFFER AND ADAPTIVE HASH INDEX
    -------------------------------------
    Ibuf: size 1, free list len 0, seg size 2, 0 merges
    merged operations:
     insert 0, delete mark 0, delete 0
    discarded operations:
     insert 0, delete mark 0, delete 0
    Hash table size 4425293, used cells 32, node heap has 1 buffer(s)
    13577.57 hash searches/s, 202.47 non-hash searches/s

    For more information, see Section 15.17.3, “InnoDB Standard Monitor and Lock Monitor Output”.

  • The INFORMATION_SCHEMA.INNODB_METRICS table provides most of the data points found in InnoDB Standard Monitor output, plus other data points. To view change buffer metrics and a description of each, issue the following query:

    mysql> SELECT NAME, COMMENT FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME LIKE '%ibuf%'\G

    For INNODB_METRICS table usage information, see Section 15.15.6, “InnoDB INFORMATION_SCHEMA Metrics Table”.

  • The INFORMATION_SCHEMA.INNODB_BUFFER_PAGE table provides metadata about each page in the buffer pool, including change buffer index and change buffer bitmap pages. Change buffer pages are identified by PAGE_TYPE. IBUF_INDEX is the page type for change buffer index pages, and IBUF_BITMAP is the page type for change buffer bitmap pages.

    Warning

    Querying the INNODB_BUFFER_PAGE table can introduce significant performance overhead. To avoid impacting performance, reproduce the issue you want to investigate on a test instance and run your queries on the test instance.

    For example, you can query the INNODB_BUFFER_PAGE table to determine the approximate number of IBUF_INDEX and IBUF_BITMAP pages as a percentage of total buffer pool pages.

    SELECT
    (SELECT COUNT(*) FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
    WHERE PAGE_TYPE LIKE 'IBUF%'
    ) AS change_buffer_pages,
    (
    SELECT COUNT(*)
    FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
    ) AS total_pages,
    (
    SELECT ((change_buffer_pages/total_pages)*100)
    ) AS change_buffer_page_percentage;
    +---------------------+-------------+-------------------------------+
    | change_buffer_pages | total_pages | change_buffer_page_percentage |
    +---------------------+-------------+-------------------------------+
    |                  25 |        8192 |                        0.3052 |
    +---------------------+-------------+-------------------------------+

    For information about other data provided by the INNODB_BUFFER_PAGE table, see Section 24.31.1, “The INFORMATION_SCHEMA INNODB_BUFFER_PAGE Table”. For related usage information, see Section 15.15.5, “InnoDB INFORMATION_SCHEMA Buffer Pool Tables”.

  • Performance Schema provides change buffer mutex wait instrumentation for advanced performance monitoring. To view change buffer instrumentation, issue the following query:

    mysql> SELECT * FROM performance_schema.setup_instruments
    WHERE NAME LIKE '%wait/synch/mutex/innodb/ibuf%';
    +-------------------------------------------------------+---------+-------+
    | NAME                                                  | ENABLED | TIMED |
    +-------------------------------------------------------+---------+-------+
    | wait/synch/mutex/innodb/ibuf_bitmap_mutex             | YES     | YES   |
    | wait/synch/mutex/innodb/ibuf_mutex                    | YES     | YES   |
    | wait/synch/mutex/innodb/ibuf_pessimistic_insert_mutex | YES     | YES   |
    +-------------------------------------------------------+---------+-------+

    For information about monitoring InnoDB mutex waits, see Section 15.16.2, “Monitoring InnoDB Mutex Waits Using Performance Schema”.

15.4.3 Adaptive Hash Index

The adaptive hash index (AHI) lets InnoDB perform more like an in-memory database on systems with appropriate combinations of workload and ample memory for the buffer pool, without sacrificing any transactional features or reliability. This feature is enabled by the innodb_adaptive_hash_index option, or turned off by --skip-innodb_adaptive_hash_index at server startup.

Based on the observed pattern of searches, MySQL builds a hash index using a prefix of the index key. The prefix of the key can be any length, and it may be that only some of the values in the B-tree appear in the hash index. Hash indexes are built on demand for those pages of the index that are often accessed.

If a table fits almost entirely in main memory, a hash index can speed up queries by enabling direct lookup of any element, turning the index value into a sort of pointer. InnoDB has a mechanism that monitors index searches. If InnoDB notices that queries could benefit from building a hash index, it does so automatically.

With some workloads, the speedup from hash index lookups greatly outweighs the extra work to monitor index lookups and maintain the hash index structure. Sometimes, the read/write lock that guards access to the adaptive hash index can become a source of contention under heavy workloads, such as multiple concurrent joins. Queries with LIKE operators and % wildcards also tend not to benefit from the AHI. For workloads where the adaptive hash index is not needed, turning it off reduces unnecessary performance overhead. Because it is difficult to predict in advance whether this feature is appropriate for a particular system, consider running benchmarks with it both enabled and disabled, using a realistic workload. The architectural changes in MySQL 5.6 and higher make more workloads suitable for disabling the adaptive hash index than in earlier releases, although it is still enabled by default.

In MySQL 5.7, the adaptive hash index search system is partitioned. Each index is bound to a specific partition, and each partition is protected by a separate latch. Partitioning is controlled by the innodb_adaptive_hash_index_parts configuration option. In earlier releases, the adaptive hash index search system was protected by a single latch which could become a point of contention under heavy workloads. The innodb_adaptive_hash_index_parts option is set to 8 by default. The maximum setting is 512.

The hash index is always built based on an existing B-tree index on the table. InnoDB can build a hash index on a prefix of any length of the key defined for the B-tree, depending on the pattern of searches that InnoDB observes for the B-tree index. A hash index can be partial, covering only those pages of the index that are often accessed.

You can monitor the use of the adaptive hash index and the contention for its use in the SEMAPHORES section of the output of the SHOW ENGINE INNODB STATUS command. If you see many threads waiting on an RW-latch created in btr0sea.c, then it might be useful to disable adaptive hash indexing.

For more information about the performance characteristics of hash indexes, see Section 9.3.8, “Comparison of B-Tree and Hash Indexes”.

15.4.4 Redo Log Buffer

The redo log buffer is the memory area that holds data to be written to the redo log. Redo log buffer size is defined by the innodb_log_buffer_size configuration option. The redo log buffer is periodically flushed to the log file on disk. A large redo log buffer enables large transactions to run without the need to write redo log to disk before the transactions commit. Thus, if you have transactions that update, insert, or delete many rows, making the log buffer larger saves disk I/O.

The innodb_flush_log_at_trx_commit option controls how the contents of the redo log buffer are written to the log file. The innodb_flush_log_at_timeout option controls redo log flushing frequency.

15.4.5 System Tablespace

The InnoDB system tablespace contains the InnoDB data dictionary (metadata for InnoDB-related objects) and is the storage area for the doublewrite buffer, the change buffer, and undo logs. The system tablespace also contains table and index data for any user-created tables that are created in the system tablespace. The system tablespace is considered a shared tablespace since it is shared by multiple tables.

The system tablespace is represented by one or more data files. By default, one system data file, named ibdata1, is created in the MySQL data directory. The size and number of system data files is controlled by the innodb_data_file_path startup option.

For related information, see Section 15.6.1, “InnoDB Startup Configuration”, and Section 15.7.1, “Resizing the InnoDB System Tablespace”.

15.4.6 InnoDB Data Dictionary

The InnoDB data dictionary is comprised of internal system tables that contain metadata used to keep track of objects such as tables, indexes, and table columns. The metadata is physically located in the InnoDB system tablespace. For historical reasons, data dictionary metadata overlaps to some degree with information stored in InnoDB table metadata files (.frm files).

15.4.7 Doublewrite Buffer

The doublewrite buffer is a storage area located in the system tablespace where InnoDB writes pages that are flushed from the InnoDB buffer pool, before the pages are written to their proper positions in the data file. Only after flushing and writing pages to the doublewrite buffer, does InnoDB write pages to their proper positions. If there is an operating system, storage subsystem, or mysqld process crash in the middle of a page write, InnoDB can later find a good copy of the page from the doublewrite buffer during crash recovery.

Although data is always written twice, the doublewrite buffer does not require twice as much I/O overhead or twice as many I/O operations. Data is written to the doublewrite buffer itself as a large sequential chunk, with a single fsync() call to the operating system.

The doublewrite buffer is enabled by default in most cases. To disable the doublewrite buffer, set innodb_doublewrite to 0.

If system tablespace files (ibdata files) are located on Fusion-io devices that support atomic writes, doublewrite buffering is automatically disabled and Fusion-io atomic writes are used for all data files. Because the doublewrite buffer setting is global, doublewrite buffering is also disabled for data files residing on non-Fusion-io hardware. This feature is only supported on Fusion-io hardware and is only enabled for Fusion-io NVMFS on Linux. To take full advantage of this feature, an innodb_flush_method setting of O_DIRECT is recommended.

15.4.8 Undo Logs

An undo log is a collection of undo log records associated with a single transaction. An undo log record contains information about how to undo the latest change by a transaction to a clustered index record. If another transaction needs to see the original data (as part of a consistent read operation), the unmodified data is retrieved from the undo log records. Undo logs exist within undo log segments, which are contained within rollback segments. By default, rollback segments are physically part of the system tablespace. However, rollback segments can reside in separate undo tablespaces. For more information, see Section 15.7.7, “Storing InnoDB Undo Logs in Separate Tablespaces”. For information about multi-versioning, see Section 15.3, “InnoDB Multi-Versioning”.

InnoDB supports 128 rollback segments, 32 of which are reserved as non-redo rollback segments for temporary table transactions. Each transaction that updates a temporary table (excluding read-only transactions) is assigned two rollback segments, one redo-enabled rollback segment and one non-redo rollback segment. Read-only transactions are only assigned non-redo rollback segments, as read-only transactions are only permitted to modify temporary tables.

This leaves 96 available rollback segments, each of which supports up to 1023 concurrent data-modifying transactions, for a total limit of approximately 96K concurrent data-modifying transactions. The 96K limit assumes that transactions do not modify temporary tables. If all data-modifying transactions also modify temporary tables, the total limit is approximately 32K concurrent data modifying transactions. For more information about rollback segments that are reserved for temporary table transactions, see Section 15.4.12.1, “InnoDB Temporary Table Undo Logs”.

The innodb_undo_logs option defines the number of rollback segments used by InnoDB.

15.4.9 File-Per-Table Tablespaces

A file-per-table tablespace is a single-table tablespace that is created in its own data file rather than in the system tablespace. Tables are created in file-per-table tablespaces when the innodb_file_per_table option is enabled. Otherwise, InnoDB tables are created in the system tablespace. Each file-per-table tablespace is represented by a single .ibd data file, which is created in the database directory by default.

File per-table tablespaces support DYNAMIC and COMPRESSED row formats which support features such as off-page storage for variable length data and table compression. For information about these features, and about other advantages of file-per-table tablespaces, see Section 15.7.4, “InnoDB File-Per-Table Tablespaces”.

15.4.10 General Tablespaces

A shared InnoDB tablespace created using CREATE TABLESPACE syntax. General tablespaces can be created outside of the MySQL data directory, are capable of holding multiple tables, and support tables of all row formats.

Tables are added to a general tablespace using CREATE TABLE tbl_name ... TABLESPACE [=] tablespace_name or ALTER TABLE tbl_name TABLESPACE [=] tablespace_name syntax.

For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

15.4.11 Undo Tablespace

An undo tablespace comprises one or more files that contain undo logs. Undo logs exist within undo log segments, which are contained within rollback segments. By default, rollback segments are physically part of the system tablespace. However, rollback segments can reside in separate undo tablespaces. An undo tablespace is created when the undo log is separated from the system tablespace using the innodb_undo_tablespaces and innodb_undo_directory configuration options.

For more information, see Section 15.7.7, “Storing InnoDB Undo Logs in Separate Tablespaces”.

15.4.12 Temporary Tablespace

The temporary tablespace is a tablespace for non-compressed InnoDB temporary tables and related objects. The configuration option, innodb_temp_data_file_path, defines a relative path for the temporary tablespace data file. If innodb_temp_data_file_path is not defined, a single auto-extending 12MB data file named ibtmp1 is created in the data directory. The temporary tablespace is recreated on each server start and receives a dynamically generated space ID, which helps avoid conflicts with existing space IDs. The temporary tablespace cannot reside on a raw device. Startup is refused if the temporary tablespace cannot be created.

The temporary tablespace is removed on normal shutdown or on an aborted initialization. The temporary tablespace is not removed when a crash occurs. In this case, the database administrator may remove the temporary tablespace manually or restart the server with the same configuration, which removes and recreates the temporary tablespace.

15.4.12.1 InnoDB Temporary Table Undo Logs

Temporary table undo logs are used for temporary tables and related objects. This type of undo log is not a redo log, as temporary tables are not recovered during crash recovery and do not require redo logs. Temporary table undo logs are, however, used for rollback while the server is running. This special type of non-redo undo log benefits performance by avoiding redo logging I/O for temporary tables and related objects. Temporary table undo logs reside in the temporary tablespace. The default temporary tablespace file, ibtmp1, is located in the data directory by default and is always recreated on server startup. A user defined location for the temporary tablespace file can be specified by setting innodb_temp_data_file_path.

32 rollback segments are reserved for temporary table undo logs for transactions that modify temporary tables and related objects, which means that the maximum number of rollback segments available for data-modifying transactions that generate undo records is 96. With 96 available rollback segments, the limit on concurrent data-modifying transactions is 96K. For more information see Section 15.3, “InnoDB Multi-Versioning” and Section 15.8.8, “Limits on InnoDB Tables”.

15.4.13 Redo Log

The redo log is a disk-based data structure used during crash recovery to correct data written by incomplete transactions. During normal operations, the redo log encodes requests to change InnoDB table data that result from SQL statements or low-level API calls. Modifications that did not finish updating the data files before an unexpected shutdown are replayed automatically during initialization, and before the connections are accepted. For information about the role of the redo log in crash recovery, see Section 15.18.2, “InnoDB Recovery”.

By default, the redo log is physically represented on disk as a set of files, named ib_logfile0 and ib_logfile1. MySQL writes to the redo log files in a circular fashion. Data in the redo log is encoded in terms of records affected; this data is collectively referred to as redo. The passage of data through the redo log is represented by an ever-increasing LSN value.

For related information, see:

15.4.13.1 Group Commit for Redo Log Flushing

InnoDB, like any other ACID-compliant database engine, flushes the redo log of a transaction before it is committed. InnoDB uses group commit functionality to group multiple such flush requests together to avoid one flush for each commit. With group commit, InnoDB issues a single write to the log file to perform the commit action for multiple user transactions that commit at about the same time, significantly improving throughput.

For more information about performance of COMMIT and other transactional operations, see Section 9.5.2, “Optimizing InnoDB Transaction Management”.

15.5 InnoDB Locking and Transaction Model

To implement a large-scale, busy, or highly reliable database application, to port substantial code from a different database system, or to tune MySQL performance, it is important to understand InnoDB locking and the InnoDB transaction model.

This section discusses several topics related to InnoDB locking and the InnoDB transaction model with which you should be familiar.

15.5.1 InnoDB Locking

This section describes lock types used by InnoDB.

Shared and Exclusive Locks

InnoDB implements standard row-level locking where there are two types of locks, shared (S) locks and exclusive (X) locks.

  • A shared (S) lock permits the transaction that holds the lock to read a row.

  • An exclusive (X) lock permits the transaction that holds the lock to update or delete a row.

If transaction T1 holds a shared (S) lock on row r, then requests from some distinct transaction T2 for a lock on row r are handled as follows:

  • A request by T2 for an S lock can be granted immediately. As a result, both T1 and T2 hold an S lock on r.

  • A request by T2 for an X lock cannot be granted immediately.

If a transaction T1 holds an exclusive (X) lock on row r, a request from some distinct transaction T2 for a lock of either type on r cannot be granted immediately. Instead, transaction T2 has to wait for transaction T1 to release its lock on row r.

Intention Locks

InnoDB supports multiple granularity locking which permits coexistence of row-level locks and locks on entire tables. To make locking at multiple granularity levels practical, additional types of locks called intention locks are used. Intention locks are table-level locks in InnoDB that indicate which type of lock (shared or exclusive) a transaction requires later for a row in that table. There are two types of intention locks used in InnoDB (assume that transaction T has requested a lock of the indicated type on table t):

For example, SELECT ... LOCK IN SHARE MODE sets an IS lock and SELECT ... FOR UPDATE sets an IX lock.

The intention locking protocol is as follows:

  • Before a transaction can acquire an S lock on a row in table t, it must first acquire an IS or stronger lock on t.

  • Before a transaction can acquire an X lock on a row, it must first acquire an IX lock on t.

These rules can be conveniently summarized by means of the following lock type compatibility matrix.

 XIXSIS
XConflictConflictConflictConflict
IXConflictCompatibleConflictCompatible
SConflictConflictCompatibleCompatible
ISConflictCompatibleCompatibleCompatible

A lock is granted to a requesting transaction if it is compatible with existing locks, but not if it conflicts with existing locks. A transaction waits until the conflicting existing lock is released. If a lock request conflicts with an existing lock and cannot be granted because it would cause deadlock, an error occurs.

Thus, intention locks do not block anything except full table requests (for example, LOCK TABLES ... WRITE). The main purpose of IX and IS locks is to show that someone is locking a row, or going to lock a row in the table.

Transaction data for an intention lock appears similar to the following in SHOW ENGINE INNODB STATUS and InnoDB monitor output:

TABLE LOCK table `test`.`t` trx id 10080 lock mode IX

Record Locks

A record lock is a lock on an index record. For example, SELECT c1 FROM t WHERE c1 = 10 FOR UPDATE; prevents any other transaction from inserting, updating, or deleting rows where the value of t.c1 is 10.

Record locks always lock index records, even if a table is defined with no indexes. For such cases, InnoDB creates a hidden clustered index and uses this index for record locking. See Section 15.8.9, “Clustered and Secondary Indexes”.

Transaction data for a record lock appears similar to the following in SHOW ENGINE INNODB STATUS and InnoDB monitor output:

RECORD LOCKS space id 58 page no 3 n bits 72 index `PRIMARY` of table `test`.`t`
trx id 10078 lock_mode X locks rec but not gap
Record lock, heap no 2 PHYSICAL RECORD: n_fields 3; compact format; info bits 0
 0: len 4; hex 8000000a; asc     ;;
 1: len 6; hex 00000000274f; asc     'O;;
 2: len 7; hex b60000019d0110; asc        ;;

Gap Locks

A gap lock is a lock on a gap between index records, or a lock on the gap before the first or after the last index record. For example, SELECT c1 FROM t WHERE c1 BETWEEN 10 and 20 FOR UPDATE; prevents other transactions from inserting a value of 15 into column t.c1, whether or not there was already any such value in the column, because the gaps between all existing values in the range are locked.

A gap might span a single index value, multiple index values, or even be empty.

Gap locks are part of the tradeoff between performance and concurrency, and are used in some transaction isolation levels and not others.

Gap locking is not needed for statements that lock rows using a unique index to search for a unique row. (This does not include the case that the search condition includes only some columns of a multiple-column unique index; in that case, gap locking does occur.) For example, if the id column has a unique index, the following statement uses only an index-record lock for the row having id value 100 and it does not matter whether other sessions insert rows in the preceding gap:

SELECT * FROM child WHERE id = 100;

If id is not indexed or has a nonunique index, the statement does lock the preceding gap.

It is also worth noting here that conflicting locks can be held on a gap by different transactions. For example, transaction A can hold a shared gap lock (gap S-lock) on a gap while transaction B holds an exclusive gap lock (gap X-lock) on the same gap. The reason conflicting gap locks are allowed is that if a record is purged from an index, the gap locks held on the record by different transactions must be merged.

Gap locks in InnoDB are purely inhibitive, which means they only stop other transactions from inserting to the gap. They do not prevent different transactions from taking gap locks on the same gap. Thus, a gap X-lock has the same effect as a gap S-lock.

Gap locking can be disabled explicitly. This occurs if you change the transaction isolation level to READ COMMITTED or enable the innodb_locks_unsafe_for_binlog system variable (which is now deprecated). Under these circumstances, gap locking is disabled for searches and index scans and is used only for foreign-key constraint checking and duplicate-key checking.

There are also other effects of using the READ COMMITTED isolation level or enabling innodb_locks_unsafe_for_binlog. Record locks for nonmatching rows are released after MySQL has evaluated the WHERE condition. For UPDATE statements, InnoDB does a semi-consistent read, such that it returns the latest committed version to MySQL so that MySQL can determine whether the row matches the WHERE condition of the UPDATE.

Next-Key Locks

A next-key lock is a combination of a record lock on the index record and a gap lock on the gap before the index record.

InnoDB performs row-level locking in such a way that when it searches or scans a table index, it sets shared or exclusive locks on the index records it encounters. Thus, the row-level locks are actually index-record locks. A next-key lock on an index record also affects the gap before that index record. That is, a next-key lock is an index-record lock plus a gap lock on the gap preceding the index record. If one session has a shared or exclusive lock on record R in an index, another session cannot insert a new index record in the gap immediately before R in the index order.

Suppose that an index contains the values 10, 11, 13, and 20. The possible next-key locks for this index cover the following intervals, where a round bracket denotes exclusion of the interval endpoint and a square bracket denotes inclusion of the endpoint:

(negative infinity, 10]
(10, 11]
(11, 13]
(13, 20]
(20, positive infinity)

For the last interval, the next-key lock locks the gap above the largest value in the index and the supremum pseudo-record having a value higher than any value actually in the index. The supremum is not a real index record, so, in effect, this next-key lock locks only the gap following the largest index value.

By default, InnoDB operates in REPEATABLE READ transaction isolation level. In this case, InnoDB uses next-key locks for searches and index scans, which prevents phantom rows (see Section 15.5.4, “Phantom Rows”).

Transaction data for a next-key lock appears similar to the following in SHOW ENGINE INNODB STATUS and InnoDB monitor output:

RECORD LOCKS space id 58 page no 3 n bits 72 index `PRIMARY` of table `test`.`t`
trx id 10080 lock_mode X
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info bits 0
 0: len 8; hex 73757072656d756d; asc supremum;;

Record lock, heap no 2 PHYSICAL RECORD: n_fields 3; compact format; info bits 0
 0: len 4; hex 8000000a; asc     ;;
 1: len 6; hex 00000000274f; asc     'O;;
 2: len 7; hex b60000019d0110; asc        ;;

Insert Intention Locks

An insert intention lock is a type of gap lock set by INSERT operations prior to row insertion. This lock signals the intent to insert in such a way that multiple transactions inserting into the same index gap need not wait for each other if they are not inserting at the same position within the gap. Suppose that there are index records with values of 4 and 7. Separate transactions that attempt to insert values of 5 and 6, respectively, each lock the gap between 4 and 7 with insert intention locks prior to obtaining the exclusive lock on the inserted row, but do not block each other because the rows are nonconflicting.

The following example demonstrates a transaction taking an insert intention lock prior to obtaining an exclusive lock on the inserted record. The example involves two clients, A and B.

Client A creates a table containing two index records (90 and 102) and then starts a transaction that places an exclusive lock on index records with an ID greater than 100. The exclusive lock includes a gap lock before record 102:

mysql> CREATE TABLE child (id int(11) NOT NULL, PRIMARY KEY(id)) ENGINE=InnoDB;
mysql> INSERT INTO child (id) values (90),(102);

mysql> START TRANSACTION;
mysql> SELECT * FROM child WHERE id > 100 FOR UPDATE;
+-----+
| id  |
+-----+
| 102 |
+-----+

Client B begins a transaction to insert a record into the gap. The transaction takes an insert intention lock while it waits to obtain an exclusive lock.

mysql> START TRANSACTION;
mysql> INSERT INTO child (id) VALUES (101);

Transaction data for an insert intention lock appears similar to the following in SHOW ENGINE INNODB STATUS and InnoDB monitor output:

RECORD LOCKS space id 31 page no 3 n bits 72 index `PRIMARY` of table `test`.`child`
trx id 8731 lock_mode X locks gap before rec insert intention waiting
Record lock, heap no 3 PHYSICAL RECORD: n_fields 3; compact format; info bits 0
 0: len 4; hex 80000066; asc    f;;
 1: len 6; hex 000000002215; asc     " ;;
 2: len 7; hex 9000000172011c; asc     r  ;;...

AUTO-INC Locks

An AUTO-INC lock is a special table-level lock taken by transactions inserting into tables with AUTO_INCREMENT columns. In the simplest case, if one transaction is inserting values into the table, any other transactions must wait to do their own inserts into that table, so that rows inserted by the first transaction receive consecutive primary key values.

The innodb_autoinc_lock_mode configuration option controls the algorithm used for auto-increment locking. It allows you to choose how to trade off between predictable sequences of auto-increment values and maximum concurrency for insert operations.

For more information, see Section 15.8.6, “AUTO_INCREMENT Handling in InnoDB”.

Predicate Locks for Spatial Indexes

InnoDB supports SPATIAL indexing of columns containing spatial columns (see Section 12.5.3.5, “Optimizing Spatial Analysis”).

To handle locking for operations involving SPATIAL indexes, next-key locking does not work well to support REPEATABLE READ or SERIALIZABLE transaction isolation levels. There is no absolute ordering concept in multidimensional data, so it is not clear which is the next key.

To enable support of isolation levels for tables with SPATIAL indexes, InnoDB uses predicate locks. A SPATIAL index contains minimum bounding rectangle (MBR) values, so InnoDB enforces consistent read on the index by setting a predicate lock on the MBR value used for a query. Other transactions cannot insert or modify a row that would match the query condition.

15.5.2 InnoDB Transaction Model

In the InnoDB transaction model, the goal is to combine the best properties of a multi-versioning database with traditional two-phase locking. InnoDB performs locking at the row level and runs queries as nonlocking consistent reads by default, in the style of Oracle. The lock information in InnoDB is stored space-efficiently so that lock escalation is not needed. Typically, several users are permitted to lock every row in InnoDB tables, or any random subset of the rows, without causing InnoDB memory exhaustion.

15.5.2.1 Transaction Isolation Levels

Transaction isolation is one of the foundations of database processing. Isolation is the I in the acronym ACID; the isolation level is the setting that fine-tunes the balance between performance and reliability, consistency, and reproducibility of results when multiple transactions are making changes and performing queries at the same time.

InnoDB offers all four transaction isolation levels described by the SQL:1992 standard: READ UNCOMMITTED, READ COMMITTED, REPEATABLE READ, and SERIALIZABLE. The default isolation level for InnoDB is REPEATABLE READ.

A user can change the isolation level for a single session or for all subsequent connections with the SET TRANSACTION statement. To set the server's default isolation level for all connections, use the --transaction-isolation option on the command line or in an option file. For detailed information about isolation levels and level-setting syntax, see Section 14.3.6, “SET TRANSACTION Syntax”.

InnoDB supports each of the transaction isolation levels described here using different locking strategies. You can enforce a high degree of consistency with the default REPEATABLE READ level, for operations on crucial data where ACID compliance is important. Or you can relax the consistency rules with READ COMMITTED or even READ UNCOMMITTED, in situations such as bulk reporting where precise consistency and repeatable results are less important than minimizing the amount of overhead for locking. SERIALIZABLE enforces even stricter rules than REPEATABLE READ, and is used mainly in specialized situations, such as with XA transactions and for troubleshooting issues with concurrency and deadlocks.

The following list describes how MySQL supports the different transaction levels. The list goes from the most commonly used level to the least used.

  • REPEATABLE READ

    This is the default isolation level for InnoDB. Consistent reads within the same transaction read the snapshot established by the first read. This means that if you issue several plain (nonlocking) SELECT statements within the same transaction, these SELECT statements are consistent also with respect to each other. See Section 15.5.2.3, “Consistent Nonlocking Reads”.

    For locking reads (SELECT with FOR UPDATE or LOCK IN SHARE MODE), UPDATE, and DELETE statements, locking depends on whether the statement uses a unique index with a unique search condition, or a range-type search condition.

    • For a unique index with a unique search condition, InnoDB locks only the index record found, not the gap before it.

    • For other search conditions, InnoDB locks the index range scanned, using gap locks or next-key locks to block insertions by other sessions into the gaps covered by the range. For information about gap locks and next-key locks, see Section 15.5.1, “InnoDB Locking”.

  • READ COMMITTED

    Each consistent read, even within the same transaction, sets and reads its own fresh snapshot. For information about consistent reads, see Section 15.5.2.3, “Consistent Nonlocking Reads”.

    For locking reads (SELECT with FOR UPDATE or LOCK IN SHARE MODE), UPDATE statements, and DELETE statements, InnoDB locks only index records, not the gaps before them, and thus permits the free insertion of new records next to locked records. Gap locking is only used for foreign-key constraint checking and duplicate-key checking.

    Because gap locking is disabled, phantom problems may occur, as other sessions can insert new rows into the gaps. For information about phantoms, see Section 15.5.4, “Phantom Rows”.

    If you use READ COMMITTED, you must use row-based binary logging.

    Using READ COMMITTED has additional effects:

    • For UPDATE or DELETE statements, InnoDB holds locks only for rows that it updates or deletes. Record locks for nonmatching rows are released after MySQL has evaluated the WHERE condition. This greatly reduces the probability of deadlocks, but they can still happen.

    • For UPDATE statements, if a row is already locked, InnoDB performs a semi-consistent read, returning the latest committed version to MySQL so that MySQL can determine whether the row matches the WHERE condition of the UPDATE. If the row matches (must be updated), MySQL reads the row again and this time InnoDB either locks it or waits for a lock on it.

    Consider the following example, beginning with this table:

    CREATE TABLE t (a INT NOT NULL, b INT) ENGINE = InnoDB;
    INSERT INTO t VALUES (1,2),(2,3),(3,2),(4,3),(5,2);
    COMMIT;


    In this case, table has no indexes, so searches and index scans use the hidden clustered index for record locking (see Section 15.8.9, “Clustered and Secondary Indexes”).

    Suppose that one client performs an UPDATE using these statements:

    SET autocommit = 0;
    UPDATE t SET b = 5 WHERE b = 3;


    Suppose also that a second client performs an UPDATE by executing these statements following those of the first client:

    SET autocommit = 0;
    UPDATE t SET b = 4 WHERE b = 2;


    As InnoDB executes each UPDATE, it first acquires an exclusive lock for each row, and then determines whether to modify it. If InnoDB does not modify the row, it releases the lock. Otherwise, InnoDB retains the lock until the end of the transaction. This affects transaction processing as follows.

    When using the default REPEATABLE READ isolation level, the first UPDATE acquires x-locks and does not release any of them:

    x-lock(1,2); retain x-lock
    x-lock(2,3); update(2,3) to (2,5); retain x-lock
    x-lock(3,2); retain x-lock
    x-lock(4,3); update(4,3) to (4,5); retain x-lock
    x-lock(5,2); retain x-lock


    The second UPDATE blocks as soon as it tries to acquire any locks (because first update has retained locks on all rows), and does not proceed until the first UPDATE commits or rolls back:

    x-lock(1,2); block and wait for first UPDATE to commit or roll back


    If READ COMMITTED is used instead, the first UPDATE acquires x-locks and releases those for rows that it does not modify:

    x-lock(1,2); unlock(1,2)
    x-lock(2,3); update(2,3) to (2,5); retain x-lock
    x-lock(3,2); unlock(3,2)
    x-lock(4,3); update(4,3) to (4,5); retain x-lock
    x-lock(5,2); unlock(5,2)


    For the second UPDATE, InnoDB does a semi-consistent read, returning the latest committed version of each row to MySQL so that MySQL can determine whether the row matches the WHERE condition of the UPDATE:

    x-lock(1,2); update(1,2) to (1,4); retain x-lock
    x-lock(2,3); unlock(2,3)
    x-lock(3,2); update(3,2) to (3,4); retain x-lock
    x-lock(4,3); unlock(4,3)
    x-lock(5,2); update(5,2) to (5,4); retain x-lock


    The effects of using the READ COMMITTED isolation level are the same as enabling the deprecated innodb_locks_unsafe_for_binlog configuration option, with these exceptions:

    • Enabling innodb_locks_unsafe_for_binlog is a global setting and affects all sessions, whereas the isolation level can be set globally for all sessions, or individually per session.

    • innodb_locks_unsafe_for_binlog can be set only at server startup, whereas the isolation level can be set at startup or changed at runtime.

    READ COMMITTED therefore offers finer and more flexible control than innodb_locks_unsafe_for_binlog.

  • READ UNCOMMITTED

    SELECT statements are performed in a nonlocking fashion, but a possible earlier version of a row might be used. Thus, using this isolation level, such reads are not consistent. This is also called a dirty read. Otherwise, this isolation level works like READ COMMITTED.

  • SERIALIZABLE

    This level is like REPEATABLE READ, but InnoDB implicitly converts all plain SELECT statements to SELECT ... LOCK IN SHARE MODE if autocommit is disabled. If autocommit is enabled, the SELECT is its own transaction. It therefore is known to be read only and can be serialized if performed as a consistent (nonlocking) read and need not block for other transactions. (To force a plain SELECT to block if other transactions have modified the selected rows, disable autocommit.)

15.5.2.2 autocommit, Commit, and Rollback

In InnoDB, all user activity occurs inside a transaction. If autocommit mode is enabled, each SQL statement forms a single transaction on its own. By default, MySQL starts the session for each new connection with autocommit enabled, so MySQL does a commit after each SQL statement if that statement did not return an error. If a statement returns an error, the commit or rollback behavior depends on the error. See Section 15.21.4, “InnoDB Error Handling”.

A session that has autocommit enabled can perform a multiple-statement transaction by starting it with an explicit START TRANSACTION or BEGIN statement and ending it with a COMMIT or ROLLBACK statement. See Section 14.3.1, “START TRANSACTION, COMMIT, and ROLLBACK Syntax”.

If autocommit mode is disabled within a session with SET autocommit = 0, the session always has a transaction open. A COMMIT or ROLLBACK statement ends the current transaction and a new one starts.

If a session that has autocommit disabled ends without explicitly committing the final transaction, MySQL rolls back that transaction.

Some statements implicitly end a transaction, as if you had done a COMMIT before executing the statement. For details, see Section 14.3.3, “Statements That Cause an Implicit Commit”.

A COMMIT means that the changes made in the current transaction are made permanent and become visible to other sessions. A ROLLBACK statement, on the other hand, cancels all modifications made by the current transaction. Both COMMIT and ROLLBACK release all InnoDB locks that were set during the current transaction.

Grouping DML Operations with Transactions

By default, connection to the MySQL server begins with autocommit mode enabled, which automatically commits every SQL statement as you execute it. This mode of operation might be unfamiliar if you have experience with other database systems, where it is standard practice to issue a sequence of DML statements and commit them or roll them back all together.

To use multiple-statement transactions, switch autocommit off with the SQL statement SET autocommit = 0 and end each transaction with COMMIT or ROLLBACK as appropriate. To leave autocommit on, begin each transaction with START TRANSACTION and end it with COMMIT or ROLLBACK. The following example shows two transactions. The first is committed; the second is rolled back.

shell> mysql test

mysql> CREATE TABLE customer (a INT, b CHAR (20), INDEX (a));
Query OK, 0 rows affected (0.00 sec)
mysql> -- Do a transaction with autocommit turned on.
mysql> START TRANSACTION;
Query OK, 0 rows affected (0.00 sec)
mysql> INSERT INTO customer VALUES (10, 'Heikki');
Query OK, 1 row affected (0.00 sec)
mysql> COMMIT;
Query OK, 0 rows affected (0.00 sec)
mysql> -- Do another transaction with autocommit turned off.
mysql> SET autocommit=0;
Query OK, 0 rows affected (0.00 sec)
mysql> INSERT INTO customer VALUES (15, 'John');
Query OK, 1 row affected (0.00 sec)
mysql> INSERT INTO customer VALUES (20, 'Paul');
Query OK, 1 row affected (0.00 sec)
mysql> DELETE FROM customer WHERE b = 'Heikki';
Query OK, 1 row affected (0.00 sec)
mysql> -- Now we undo those last 2 inserts and the delete.
mysql> ROLLBACK;
Query OK, 0 rows affected (0.00 sec)
mysql> SELECT * FROM customer;
+------+--------+
| a    | b      |
+------+--------+
|   10 | Heikki |
+------+--------+
1 row in set (0.00 sec)
mysql>
Transactions in Client-Side Languages

In APIs such as PHP, Perl DBI, JDBC, ODBC, or the standard C call interface of MySQL, you can send transaction control statements such as COMMIT to the MySQL server as strings just like any other SQL statements such as SELECT or INSERT. Some APIs also offer separate special transaction commit and rollback functions or methods.

15.5.2.3 Consistent Nonlocking Reads

A consistent read means that InnoDB uses multi-versioning to present to a query a snapshot of the database at a point in time. The query sees the changes made by transactions that committed before that point of time, and no changes made by later or uncommitted transactions. The exception to this rule is that the query sees the changes made by earlier statements within the same transaction. This exception causes the following anomaly: If you update some rows in a table, a SELECT sees the latest version of the updated rows, but it might also see older versions of any rows. If other sessions simultaneously update the same table, the anomaly means that you might see the table in a state that never existed in the database.

If the transaction isolation level is REPEATABLE READ (the default level), all consistent reads within the same transaction read the snapshot established by the first such read in that transaction. You can get a fresher snapshot for your queries by committing the current transaction and after that issuing new queries.

With READ COMMITTED isolation level, each consistent read within a transaction sets and reads its own fresh snapshot.

Consistent read is the default mode in which InnoDB processes SELECT statements in READ COMMITTED and REPEATABLE READ isolation levels. A consistent read does not set any locks on the tables it accesses, and therefore other sessions are free to modify those tables at the same time a consistent read is being performed on the table.

Suppose that you are running in the default REPEATABLE READ isolation level. When you issue a consistent read (that is, an ordinary SELECT statement), InnoDB gives your transaction a timepoint according to which your query sees the database. If another transaction deletes a row and commits after your timepoint was assigned, you do not see the row as having been deleted. Inserts and updates are treated similarly.

Note

The snapshot of the database state applies to SELECT statements within a transaction, not necessarily to DML statements. If you insert or modify some rows and then commit that transaction, a DELETE or UPDATE statement issued from another concurrent REPEATABLE READ transaction could affect those just-committed rows, even though the session could not query them. If a transaction does update or delete rows committed by a different transaction, those changes do become visible to the current transaction. For example, you might encounter a situation like the following:

SELECT COUNT(c1) FROM t1 WHERE c1 = 'xyz';
-- Returns 0: no rows match.
DELETE FROM t1 WHERE c1 = 'xyz';
-- Deletes several rows recently committed by other transaction.

SELECT COUNT(c2) FROM t1 WHERE c2 = 'abc';
-- Returns 0: no rows match.
UPDATE t1 SET c2 = 'cba' WHERE c2 = 'abc';
-- Affects 10 rows: another txn just committed 10 rows with 'abc' values.
SELECT COUNT(c2) FROM t1 WHERE c2 = 'cba';
-- Returns 10: this txn can now see the rows it just updated.

You can advance your timepoint by committing your transaction and then doing another SELECT or START TRANSACTION WITH CONSISTENT SNAPSHOT.

This is called multi-versioned concurrency control.

In the following example, session A sees the row inserted by B only when B has committed the insert and A has committed as well, so that the timepoint is advanced past the commit of B.

             Session A              Session B

           SET autocommit=0;      SET autocommit=0;
time
|          SELECT * FROM t;
|          empty set
|                                 INSERT INTO t VALUES (1, 2);
|
v          SELECT * FROM t;
           empty set
                                  COMMIT;

           SELECT * FROM t;
           empty set

           COMMIT;

           SELECT * FROM t;
           ---------------------
           |    1    |    2    |
           ---------------------

If you want to see the freshest state of the database, use either the READ COMMITTED isolation level or a locking read:

SELECT * FROM t LOCK IN SHARE MODE;

With READ COMMITTED isolation level, each consistent read within a transaction sets and reads its own fresh snapshot. With LOCK IN SHARE MODE, a locking read occurs instead: A SELECT blocks until the transaction containing the freshest rows ends (see Section 15.5.2.4, “Locking Reads”).

Consistent read does not work over certain DDL statements:

  • Consistent read does not work over DROP TABLE, because MySQL cannot use a table that has been dropped and InnoDB destroys the table.

  • Consistent read does not work over ALTER TABLE, because that statement makes a temporary copy of the original table and deletes the original table when the temporary copy is built. When you reissue a consistent read within a transaction, rows in the new table are not visible because those rows did not exist when the transaction's snapshot was taken. In this case, the transaction returns an error: ER_TABLE_DEF_CHANGED, Table definition has changed, please retry transaction.

The type of read varies for selects in clauses like INSERT INTO ... SELECT, UPDATE ... (SELECT), and CREATE TABLE ... SELECT that do not specify FOR UPDATE or LOCK IN SHARE MODE:

15.5.2.4 Locking Reads

If you query data and then insert or update related data within the same transaction, the regular SELECT statement does not give enough protection. Other transactions can update or delete the same rows you just queried. InnoDB supports two types of locking reads that offer extra safety:

  • SELECT ... LOCK IN SHARE MODE

    Sets a shared mode lock on any rows that are read. Other sessions can read the rows, but cannot modify them until your transaction commits. If any of these rows were changed by another transaction that has not yet committed, your query waits until that transaction ends and then uses the latest values.

  • SELECT ... FOR UPDATE

    For index records the search encounters, locks the rows and any associated index entries, the same as if you issued an UPDATE statement for those rows. Other transactions are blocked from updating those rows, from doing SELECT ... LOCK IN SHARE MODE, or from reading the data in certain transaction isolation levels. Consistent reads ignore any locks set on the records that exist in the read view. (Old versions of a record cannot be locked; they are reconstructed by applying undo logs on an in-memory copy of the record.)

These clauses are primarily useful when dealing with tree-structured or graph-structured data, either in a single table or split across multiple tables. You traverse edges or tree branches from one place to another, while reserving the right to come back and change any of these pointer values.

All locks set by LOCK IN SHARE MODE and FOR UPDATE queries are released when the transaction is committed or rolled back.

Note

Locking of rows for update using SELECT FOR UPDATE only applies when autocommit is disabled (either by beginning transaction with START TRANSACTION or by setting autocommit to 0. If autocommit is enabled, the rows matching the specification are not locked.

Locking Read Examples

Suppose that you want to insert a new row into a table child, and make sure that the child row has a parent row in table parent. Your application code can ensure referential integrity throughout this sequence of operations.

First, use a consistent read to query the table PARENT and verify that the parent row exists. Can you safely insert the child row to table CHILD? No, because some other session could delete the parent row in the moment between your SELECT and your INSERT, without you being aware of it.

To avoid this potential issue, perform the SELECT using LOCK IN SHARE MODE:

SELECT * FROM parent WHERE NAME = 'Jones' LOCK IN SHARE MODE;

After the LOCK IN SHARE MODE query returns the parent 'Jones', you can safely add the child record to the CHILD table and commit the transaction. Any transaction that tries to acquire an exclusive lock in the applicable row in the PARENT table waits until you are finished, that is, until the data in all tables is in a consistent state.

For another example, consider an integer counter field in a table CHILD_CODES, used to assign a unique identifier to each child added to table CHILD. Do not use either consistent read or a shared mode read to read the present value of the counter, because two users of the database could see the same value for the counter, and a duplicate-key error occurs if two transactions attempt to add rows with the same identifier to the CHILD table.

Here, LOCK IN SHARE MODE is not a good solution because if two users read the counter at the same time, at least one of them ends up in deadlock when it attempts to update the counter.

To implement reading and incrementing the counter, first perform a locking read of the counter using FOR UPDATE, and then increment the counter. For example:

SELECT counter_field FROM child_codes FOR UPDATE;
UPDATE child_codes SET counter_field = counter_field + 1;

A SELECT ... FOR UPDATE reads the latest available data, setting exclusive locks on each row it reads. Thus, it sets the same locks a searched SQL UPDATE would set on the rows.

The preceding description is merely an example of how SELECT ... FOR UPDATE works. In MySQL, the specific task of generating a unique identifier actually can be accomplished using only a single access to the table:

UPDATE child_codes SET counter_field = LAST_INSERT_ID(counter_field + 1);
SELECT LAST_INSERT_ID();

The SELECT statement merely retrieves the identifier information (specific to the current connection). It does not access any table.

15.5.3 Locks Set by Different SQL Statements in InnoDB

A locking read, an UPDATE, or a DELETE generally set record locks on every index record that is scanned in the processing of the SQL statement. It does not matter whether there are WHERE conditions in the statement that would exclude the row. InnoDB does not remember the exact WHERE condition, but only knows which index ranges were scanned. The locks are normally next-key locks that also block inserts into the gap immediately before the record. However, gap locking can be disabled explicitly, which causes next-key locking not to be used. For more information, see Section 15.5.1, “InnoDB Locking”. The transaction isolation level also can affect which locks are set; see Section 15.5.2.1, “Transaction Isolation Levels”.

If a secondary index is used in a search and index record locks to be set are exclusive, InnoDB also retrieves the corresponding clustered index records and sets locks on them.

Differences between shared and exclusive locks are described in Section 15.5.1, “InnoDB Locking”.

If you have no indexes suitable for your statement and MySQL must scan the entire table to process the statement, every row of the table becomes locked, which in turn blocks all inserts by other users to the table. It is important to create good indexes so that your queries do not unnecessarily scan many rows.

For SELECT ... FOR UPDATE or SELECT ... LOCK IN SHARE MODE, locks are acquired for scanned rows, and expected to be released for rows that do not qualify for inclusion in the result set (for example, if they do not meet the criteria given in the WHERE clause). However, in some cases, rows might not be unlocked immediately because the relationship between a result row and its original source is lost during query execution. For example, in a UNION, scanned (and locked) rows from a table might be inserted into a temporary table before evaluation whether they qualify for the result set. In this circumstance, the relationship of the rows in the temporary table to the rows in the original table is lost and the latter rows are not unlocked until the end of query execution.

InnoDB sets specific types of locks as follows.

  • SELECT ... FROM is a consistent read, reading a snapshot of the database and setting no locks unless the transaction isolation level is set to SERIALIZABLE. For SERIALIZABLE level, the search sets shared next-key locks on the index records it encounters. However, only an index record lock is required for statements that lock rows using a unique index to search for a unique row.

  • SELECT ... FROM ... LOCK IN SHARE MODE sets shared next-key locks on all index records the search encounters. However, only an index record lock is required for statements that lock rows using a unique index to search for a unique row.

  • SELECT ... FROM ... FOR UPDATE sets an exclusive next-key lock on every record the search encounters. However, only an index record lock is required for statements that lock rows using a unique index to search for a unique row.

    For index records the search encounters, SELECT ... FROM ... FOR UPDATE blocks other sessions from doing SELECT ... FROM ... LOCK IN SHARE MODE or from reading in certain transaction isolation levels. Consistent reads ignore any locks set on the records that exist in the read view.

  • UPDATE ... WHERE ... sets an exclusive next-key lock on every record the search encounters. However, only an index record lock is required for statements that lock rows using a unique index to search for a unique row.

  • When UPDATE modifies a clustered index record, implicit locks are taken on affected secondary index records. The UPDATE operation also takes shared locks on affected secondary index records when performing duplicate check scans prior to inserting new secondary index records, and when inserting new secondary index records.

  • DELETE FROM ... WHERE ... sets an exclusive next-key lock on every record the search encounters. However, only an index record lock is required for statements that lock rows using a unique index to search for a unique row.

  • INSERT sets an exclusive lock on the inserted row. This lock is an index-record lock, not a next-key lock (that is, there is no gap lock) and does not prevent other sessions from inserting into the gap before the inserted row.

    Prior to inserting the row, a type of gap lock called an insert intention gap lock is set. This lock signals the intent to insert in such a way that multiple transactions inserting into the same index gap need not wait for each other if they are not inserting at the same position within the gap. Suppose that there are index records with values of 4 and 7. Separate transactions that attempt to insert values of 5 and 6 each lock the gap between 4 and 7 with insert intention locks prior to obtaining the exclusive lock on the inserted row, but do not block each other because the rows are nonconflicting.

    If a duplicate-key error occurs, a shared lock on the duplicate index record is set. This use of a shared lock can result in deadlock should there be multiple sessions trying to insert the same row if another session already has an exclusive lock. This can occur if another session deletes the row. Suppose that an InnoDB table t1 has the following structure:

    CREATE TABLE t1 (i INT, PRIMARY KEY (i)) ENGINE = InnoDB;


    Now suppose that three sessions perform the following operations in order:

    Session 1:

    START TRANSACTION;
    INSERT INTO t1 VALUES(1);


    Session 2:

    START TRANSACTION;
    INSERT INTO t1 VALUES(1);


    Session 3:

    START TRANSACTION;
    INSERT INTO t1 VALUES(1);


    Session 1:

    ROLLBACK;


    The first operation by session 1 acquires an exclusive lock for the row. The operations by sessions 2 and 3 both result in a duplicate-key error and they both request a shared lock for the row. When session 1 rolls back, it releases its exclusive lock on the row and the queued shared lock requests for sessions 2 and 3 are granted. At this point, sessions 2 and 3 deadlock: Neither can acquire an exclusive lock for the row because of the shared lock held by the other.

    A similar situation occurs if the table already contains a row with key value 1 and three sessions perform the following operations in order:

    Session 1:

    START TRANSACTION;
    DELETE FROM t1 WHERE i = 1;


    Session 2:

    START TRANSACTION;
    INSERT INTO t1 VALUES(1);


    Session 3:

    START TRANSACTION;
    INSERT INTO t1 VALUES(1);


    Session 1:

    COMMIT;


    The first operation by session 1 acquires an exclusive lock for the row. The operations by sessions 2 and 3 both result in a duplicate-key error and they both request a shared lock for the row. When session 1 commits, it releases its exclusive lock on the row and the queued shared lock requests for sessions 2 and 3 are granted. At this point, sessions 2 and 3 deadlock: Neither can acquire an exclusive lock for the row because of the shared lock held by the other.

  • INSERT ... ON DUPLICATE KEY UPDATE differs from a simple INSERT in that an exclusive next-key lock rather than a shared lock is placed on the row to be updated when a duplicate-key error occurs.

  • REPLACE is done like an INSERT if there is no collision on a unique key. Otherwise, an exclusive next-key lock is placed on the row to be replaced.

  • INSERT INTO T SELECT ... FROM S WHERE ... sets an exclusive index record lock (without a gap lock) on each row inserted into T. If the transaction isolation level is READ COMMITTED, or innodb_locks_unsafe_for_binlog is enabled and the transaction isolation level is not SERIALIZABLE, InnoDB does the search on S as a consistent read (no locks). Otherwise, InnoDB sets shared next-key locks on rows from S. InnoDB has to set locks in the latter case: In roll-forward recovery from a backup, every SQL statement must be executed in exactly the same way it was done originally.

    CREATE TABLE ... SELECT ... performs the SELECT with shared next-key locks or as a consistent read, as for INSERT ... SELECT.

    When a SELECT is used in the constructs REPLACE INTO t SELECT ... FROM s WHERE ... or UPDATE t ... WHERE col IN (SELECT ... FROM s ...), InnoDB sets shared next-key locks on rows from table s.

  • While initializing a previously specified AUTO_INCREMENT column on a table, InnoDB sets an exclusive lock on the end of the index associated with the AUTO_INCREMENT column. In accessing the auto-increment counter, InnoDB uses a specific AUTO-INC table lock mode where the lock lasts only to the end of the current SQL statement, not to the end of the entire transaction. Other sessions cannot insert into the table while the AUTO-INC table lock is held; see Section 15.5.2, “InnoDB Transaction Model”.

    InnoDB fetches the value of a previously initialized AUTO_INCREMENT column without setting any locks.

  • If a FOREIGN KEY constraint is defined on a table, any insert, update, or delete that requires the constraint condition to be checked sets shared record-level locks on the records that it looks at to check the constraint. InnoDB also sets these locks in the case where the constraint fails.

  • LOCK TABLES sets table locks, but it is the higher MySQL layer above the InnoDB layer that sets these locks. InnoDB is aware of table locks if innodb_table_locks = 1 (the default) and autocommit = 0, and the MySQL layer above InnoDB knows about row-level locks.

    Otherwise, InnoDB's automatic deadlock detection cannot detect deadlocks where such table locks are involved. Also, because in this case the higher MySQL layer does not know about row-level locks, it is possible to get a table lock on a table where another session currently has row-level locks. However, this does not endanger transaction integrity, as discussed in Section 15.5.5.2, “Deadlock Detection and Rollback”. See also Section 15.8.8, “Limits on InnoDB Tables”.

15.5.4 Phantom Rows

The so-called phantom problem occurs within a transaction when the same query produces different sets of rows at different times. For example, if a SELECT is executed twice, but returns a row the second time that was not returned the first time, the row is a phantom row.

Suppose that there is an index on the id column of the child table and that you want to read and lock all rows from the table having an identifier value larger than 100, with the intention of updating some column in the selected rows later:

SELECT * FROM child WHERE id > 100 FOR UPDATE;

The query scans the index starting from the first record where id is bigger than 100. Let the table contain rows having id values of 90 and 102. If the locks set on the index records in the scanned range do not lock out inserts made in the gaps (in this case, the gap between 90 and 102), another session can insert a new row into the table with an id of 101. If you were to execute the same SELECT within the same transaction, you would see a new row with an id of 101 (a phantom) in the result set returned by the query. If we regard a set of rows as a data item, the new phantom child would violate the isolation principle of transactions that a transaction should be able to run so that the data it has read does not change during the transaction.

To prevent phantoms, InnoDB uses an algorithm called next-key locking that combines index-row locking with gap locking. InnoDB performs row-level locking in such a way that when it searches or scans a table index, it sets shared or exclusive locks on the index records it encounters. Thus, the row-level locks are actually index-record locks. In addition, a next-key lock on an index record also affects the gap before that index record. That is, a next-key lock is an index-record lock plus a gap lock on the gap preceding the index record. If one session has a shared or exclusive lock on record R in an index, another session cannot insert a new index record in the gap immediately before R in the index order.

When InnoDB scans an index, it can also lock the gap after the last record in the index. Just that happens in the preceding example: To prevent any insert into the table where id would be bigger than 100, the locks set by InnoDB include a lock on the gap following id value 102.

You can use next-key locking to implement a uniqueness check in your application: If you read your data in share mode and do not see a duplicate for a row you are going to insert, then you can safely insert your row and know that the next-key lock set on the successor of your row during the read prevents anyone meanwhile inserting a duplicate for your row. Thus, the next-key locking enables you to lock the nonexistence of something in your table.

Gap locking can be disabled as discussed in Section 15.5.1, “InnoDB Locking”. This may cause phantom problems because other sessions can insert new rows into the gaps when gap locking is disabled.

15.5.5 Deadlocks in InnoDB

A deadlock is a situation where different transactions are unable to proceed because each holds a lock that the other needs. Because both transactions are waiting for a resource to become available, neither ever release the locks it holds.

A deadlock can occur when transactions lock rows in multiple tables (through statements such as UPDATE or SELECT ... FOR UPDATE), but in the opposite order. A deadlock can also occur when such statements lock ranges of index records and gaps, with each transaction acquiring some locks but not others due to a timing issue. For a deadlock example, see Section 15.5.5.1, “An InnoDB Deadlock Example”.

To reduce the possibility of deadlocks, use transactions rather than LOCK TABLES statements; keep transactions that insert or update data small enough that they do not stay open for long periods of time; when different transactions update multiple tables or large ranges of rows, use the same order of operations (such as SELECT ... FOR UPDATE) in each transaction; create indexes on the columns used in SELECT ... FOR UPDATE and UPDATE ... WHERE statements. The possibility of deadlocks is not affected by the isolation level, because the isolation level changes the behavior of read operations, while deadlocks occur because of write operations. For more information about avoiding and recovering from deadlock conditions, see Section 15.5.5.3, “How to Minimize and Handle Deadlocks”.

When deadlock detection is enabled (the default) and a deadlock does occur, InnoDB detects the condition and rolls back one of the transactions (the victim). If deadlock detection is disabled using the innodb_deadlock_detect configuration option, InnoDB relies on the innodb_lock_wait_timeout setting to roll back transactions in case of a deadlock. Thus, even if your application logic is correct, you must still handle the case where a transaction must be retried. To see the last deadlock in an InnoDB user transaction, use the SHOW ENGINE INNODB STATUS command. If frequent deadlocks highlight a problem with transaction structure or application error handling, run with the innodb_print_all_deadlocks setting enabled to print information about all deadlocks to the mysqld error log. For more information about how deadlocks are automatically detected and handled, see Section 15.5.5.2, “Deadlock Detection and Rollback”.

15.5.5.1 An InnoDB Deadlock Example

The following example illustrates how an error can occur when a lock request would cause a deadlock. The example involves two clients, A and B.

First, client A creates a table containing one row, and then begins a transaction. Within the transaction, A obtains an S lock on the row by selecting it in share mode:

mysql> CREATE TABLE t (i INT) ENGINE = InnoDB;
Query OK, 0 rows affected (1.07 sec)

mysql> INSERT INTO t (i) VALUES(1);
Query OK, 1 row affected (0.09 sec)

mysql> START TRANSACTION;
Query OK, 0 rows affected (0.00 sec)

mysql> SELECT * FROM t WHERE i = 1 LOCK IN SHARE MODE;
+------+
| i    |
+------+
|    1 |
+------+

Next, client B begins a transaction and attempts to delete the row from the table:

mysql> START TRANSACTION;
Query OK, 0 rows affected (0.00 sec)

mysql> DELETE FROM t WHERE i = 1;

The delete operation requires an X lock. The lock cannot be granted because it is incompatible with the S lock that client A holds, so the request goes on the queue of lock requests for the row and client B blocks.

Finally, client A also attempts to delete the row from the table:

mysql> DELETE FROM t WHERE i = 1;
ERROR 1213 (40001): Deadlock found when trying to get lock;
try restarting transaction

Deadlock occurs here because client A needs an X lock to delete the row. However, that lock request cannot be granted because client B already has a request for an X lock and is waiting for client A to release its S lock. Nor can the S lock held by A be upgraded to an X lock because of the prior request by B for an X lock. As a result, InnoDB generates an error for one of the clients and releases its locks. The client returns this error:

ERROR 1213 (40001): Deadlock found when trying to get lock;
try restarting transaction

At that point, the lock request for the other client can be granted and it deletes the row from the table.

15.5.5.2 Deadlock Detection and Rollback

When deadlock detection is enabled (the default), InnoDB automatically detects transaction deadlocks and rolls back a transaction or transactions to break the deadlock. InnoDB tries to pick small transactions to roll back, where the size of a transaction is determined by the number of rows inserted, updated, or deleted.

InnoDB is aware of table locks if innodb_table_locks = 1 (the default) and autocommit = 0, and the MySQL layer above it knows about row-level locks. Otherwise, InnoDB cannot detect deadlocks where a table lock set by a MySQL LOCK TABLES statement or a lock set by a storage engine other than InnoDB is involved. Resolve these situations by setting the value of the innodb_lock_wait_timeout system variable.

When InnoDB performs a complete rollback of a transaction, all locks set by the transaction are released. However, if just a single SQL statement is rolled back as a result of an error, some of the locks set by the statement may be preserved. This happens because InnoDB stores row locks in a format such that it cannot know afterward which lock was set by which statement.

If a SELECT calls a stored function in a transaction, and a statement within the function fails, that statement rolls back. Furthermore, if ROLLBACK is executed after that, the entire transaction rolls back.

If the LATEST DETECTED DEADLOCK section of InnoDB Monitor output includes a message stating, TOO DEEP OR LONG SEARCH IN THE LOCK TABLE WAITS-FOR GRAPH, WE WILL ROLL BACK FOLLOWING TRANSACTION, this indicates that the number of transactions on the wait-for list has reached a limit of 200. A wait-for list that exceeds 200 transactions is treated as a deadlock and the transaction attempting to check the wait-for list is rolled back. The same error may also occur if the locking thread must look at more than 1,000,000 locks owned by transactions on the wait-for list.

For techniques to organize database operations to avoid deadlocks, see Section 15.5.5, “Deadlocks in InnoDB”.

Disabling Deadlock Detection

On high concurrency systems, deadlock detection can cause a slowdown when numerous threads wait for the same lock. At times, it may be more efficient to disable deadlock detection and rely on the innodb_lock_wait_timeout setting for transaction rollback when a deadlock occurs. Deadlock detection can be disabled using the innodb_deadlock_detect configuration option.

15.5.5.3 How to Minimize and Handle Deadlocks

This section builds on the conceptual information about deadlocks in Section 15.5.5.2, “Deadlock Detection and Rollback”. It explains how to organize database operations to minimize deadlocks and the subsequent error handling required in applications.

Deadlocks are a classic problem in transactional databases, but they are not dangerous unless they are so frequent that you cannot run certain transactions at all. Normally, you must write your applications so that they are always prepared to re-issue a transaction if it gets rolled back because of a deadlock.

InnoDB uses automatic row-level locking. You can get deadlocks even in the case of transactions that just insert or delete a single row. That is because these operations are not really atomic; they automatically set locks on the (possibly several) index records of the row inserted or deleted.

You can cope with deadlocks and reduce the likelihood of their occurrence with the following techniques:

  • At any time, issue the SHOW ENGINE INNODB STATUS command to determine the cause of the most recent deadlock. That can help you to tune your application to avoid deadlocks.

  • If frequent deadlock warnings cause concern, collect more extensive debugging information by enabling the innodb_print_all_deadlocks configuration option. Information about each deadlock, not just the latest one, is recorded in the MySQL error log. Disable this option when you are finished debugging.

  • Always be prepared to re-issue a transaction if it fails due to deadlock. Deadlocks are not dangerous. Just try again.

  • Keep transactions small and short in duration to make them less prone to collision.

  • Commit transactions immediately after making a set of related changes to make them less prone to collision. In particular, do not leave an interactive mysql session open for a long time with an uncommitted transaction.

  • If you use locking reads (SELECT ... FOR UPDATE or SELECT ... LOCK IN SHARE MODE), try using a lower isolation level such as READ COMMITTED.

  • When modifying multiple tables within a transaction, or different sets of rows in the same table, do those operations in a consistent order each time. Then transactions form well-defined queues and do not deadlock. For example, organize database operations into functions within your application, or call stored routines, rather than coding multiple similar sequences of INSERT, UPDATE, and DELETE statements in different places.

  • Add well-chosen indexes to your tables. Then your queries need to scan fewer index records and consequently set fewer locks. Use EXPLAIN SELECT to determine which indexes the MySQL server regards as the most appropriate for your queries.

  • Use less locking. If you can afford to permit a SELECT to return data from an old snapshot, do not add the clause FOR UPDATE or LOCK IN SHARE MODE to it. Using the READ COMMITTED isolation level is good here, because each consistent read within the same transaction reads from its own fresh snapshot.

  • If nothing else helps, serialize your transactions with table-level locks. The correct way to use LOCK TABLES with transactional tables, such as InnoDB tables, is to begin a transaction with SET autocommit = 0 (not START TRANSACTION) followed by LOCK TABLES, and to not call UNLOCK TABLES until you commit the transaction explicitly. For example, if you need to write to table t1 and read from table t2, you can do this:

    SET autocommit=0;
    LOCK TABLES t1 WRITE, t2 READ, ...;
    ... do something with tables t1 and t2 here ...
    COMMIT;
    UNLOCK TABLES;


    Table-level locks prevent concurrent updates to the table, avoiding deadlocks at the expense of less responsiveness for a busy system.

  • Another way to serialize transactions is to create an auxiliary semaphore table that contains just a single row. Have each transaction update that row before accessing other tables. In that way, all transactions happen in a serial fashion. Note that the InnoDB instant deadlock detection algorithm also works in this case, because the serializing lock is a row-level lock. With MySQL table-level locks, the timeout method must be used to resolve deadlocks.

15.6 InnoDB Configuration

This section provides configuration information and procedures for InnoDB initialization, startup, and various components and features of the InnoDB storage engine. For information about optimizing database operations for InnoDB tables, see Section 9.5, “Optimizing for InnoDB Tables”.

15.6.1 InnoDB Startup Configuration

The first decisions to make about InnoDB configuration involve the configuration of data files, log files, page size, and memory buffers. It is recommended that you define data file, log file, and page size configuration before creating the InnoDB instance. Modifying data file or log file configuration after the InnoDB instance is created may involve a non-trivial procedure, and page size can only be defined when the InnoDB instance is first initialized.

In addition to these topics, this section provides information about specifying InnoDB options in a configuration file, viewing InnoDB initialization information, and important storage considerations.

Specifying Options in a MySQL Configuration File

Because MySQL uses data file, log file, and page size configuration settings to initialize the InnoDB instance, it is recommended that you define these settings in a configuration file that MySQL reads at startup, prior to initializing InnoDB for the first time. InnoDB is initialized when the MySQL server is started, and the first initialization of InnoDB normally occurs the first time you start the MySQL server.

You can place InnoDB options in the [mysqld] group of any option file that your server reads when it starts. The locations of MySQL option files are described in Section 5.2.6, “Using Option Files”.

To make sure that mysqld reads options only from a specific file, use the --defaults-file option as the first option on the command line when starting the server:

mysqld --defaults-file=path_to_configuration_file

Viewing InnoDB Initialization Information

To view InnoDB initialization information during startup, start mysqld from a command prompt. When mysqld is started from a command prompt, initialization information is printed to the console.

For example, on Windows, if mysqld is located in C:\Program Files\MySQL\MySQL Server 5.7\bin, start the MySQL server like this:

C:\> "C:\Program Files\MySQL\MySQL Server 5.7\bin\mysqld" --console

On Unix-like systems, mysqld is located in the bin directory of your MySQL installation:

sell> bin/mysqld --user=mysql &

If you do not send server output to the console, check the error log after startup to see the initialization information InnoDB printed during the startup process.

For information about starting MySQL using other methods, see Section 2.10.5, “Starting and Stopping MySQL Automatically”.

Important Storage Considerations

Review the following storage-related considerations before proceeding with your startup configuration.

  • In some cases, database performance improves if the data is not all placed on the same physical disk. Putting log files on a different disk from data is very often beneficial for performance. For example, you can place system tablespace data files and log files on different disks. You can also use raw disk partitions (raw devices) for InnoDB data files, which may speed up I/O. See Section 15.7.3, “Using Raw Disk Partitions for the System Tablespace”.

  • InnoDB is a transaction-safe (ACID compliant) storage engine for MySQL that has commit, rollback, and crash-recovery capabilities to protect user data. However, it cannot do so if the underlying operating system or hardware does not work as advertised. Many operating systems or disk subsystems may delay or reorder write operations to improve performance. On some operating systems, the very fsync() system call that should wait until all unwritten data for a file has been flushed might actually return before the data has been flushed to stable storage. Because of this, an operating system crash or a power outage may destroy recently committed data, or in the worst case, even corrupt the database because of write operations having been reordered. If data integrity is important to you, perform some pull-the-plug tests before using anything in production. On OS X 10.3 and higher, InnoDB uses a special fcntl() file flush method. Under Linux, it is advisable to disable the write-back cache.

    On ATA/SATA disk drives, a command such hdparm -W0 /dev/hda may work to disable the write-back cache. Beware that some drives or disk controllers may be unable to disable the write-back cache.

  • With regard to InnoDB recovery capabilities that protect user data, InnoDB uses a file flush technique involving a structure called the doublewrite buffer, which is enabled by default (innodb_doublewrite=ON). The doublewrite buffer adds safety to recovery following a crash or power outage, and improves performance on most varieties of Unix by reducing the need for fsync() operations. It is recommended that the innodb_doublewrite option remains enabled if you are concerned with data integrity or possible failures. For additional information about the doublewrite buffer, see Section 15.12.1, “InnoDB Disk I/O”.

  • Before using NFS with InnoDB, review potential issues outlined in Using NFS with MySQL.

System Tablespace Data File Configuration

System tablespace data files are configured using the innodb_data_file_path and innodb_data_home_dir configuration options.

The innodb_data_file_path configuration option is used to configure the InnoDB system tablespace data files. The value of innodb_data_file_path should be a list of one or more data file specifications. If you name more than one data file, separate them by semicolon (;) characters:

innodb_data_file_path=datafile_spec1[;datafile_spec2]...

For example, the following setting explicitly creates a minimally sized system tablespace:

[mysqld]
innodb_data_file_path=ibdata1:12M:autoextend

This setting configures a single 12MB data file named ibdata1 that is auto-extending. No location for the file is given, so by default, InnoDB creates it in the MySQL data directory.

Sizes are specified using K, M, or G suffix letters to indicate units of KB, MB, or GB.

A tablespace containing a fixed-size 50MB data file named ibdata1 and a 50MB auto-extending file named ibdata2 in the data directory can be configured like this:

[mysqld]
innodb_data_file_path=ibdata1:50M;ibdata2:50M:autoextend

The full syntax for a data file specification includes the file name, its size, and several optional attributes:

file_name:file_size[:autoextend[:max:max_file_size]]

The autoextend and max attributes can be used only for the last data file in the innodb_data_file_path line.

If you specify the autoextend option for the last data file, InnoDB extends the data file if it runs out of free space in the tablespace. The increment is 64MB at a time by default. To modify the increment, change the innodb_autoextend_increment system variable.

If the disk becomes full, you might want to add another data file on another disk. For tablespace reconfiguration instructions, see Section 15.7.1, “Resizing the InnoDB System Tablespace”.

InnoDB is not aware of the file system maximum file size, so be cautious on file systems where the maximum file size is a small value such as 2GB. To specify a maximum size for an auto-extending data file, use the max attribute following the autoextend attribute. Use the max attribute only in cases where constraining disk usage is of critical importance, because exceeding the maximum size causes a fatal error, possibly including a crash. The following configuration permits ibdata1 to grow up to a limit of 500MB:

[mysqld]
innodb_data_file_path=ibdata1:12M:autoextend:max:500M

InnoDB creates tablespace files in the MySQL data directory by default (datadir). To specify a location explicitly, use the innodb_data_home_dir option. For example, to create two files named ibdata1 and ibdata2 in a directory named myibdata, configure InnoDB like this:

[mysqld]
innodb_data_home_dir = /path/to/myibdata/
innodb_data_file_path=ibdata1:50M;ibdata2:50M:autoextend
Note

A trailing slash is required when specifying a value for innodb_data_home_dir.

InnoDB does not create directories, so make sure that the myibdata directory exists before you start the server. Use the Unix or DOS mkdir command to create any necessary directories.

Make sure that the MySQL server has the proper access rights to create files in the data directory. More generally, the server must have access rights in any directory where it needs to create data files.

InnoDB forms the directory path for each data file by textually concatenating the value of innodb_data_home_dir to the data file name. If the innodb_data_home_dir option is not specified in my.cnf at all, the default value is the dot directory ./, which means the MySQL data directory. (The MySQL server changes its current working directory to its data directory when it begins executing.)

If you specify innodb_data_home_dir as an empty string, you can specify absolute paths for the data files listed in the innodb_data_file_path value. The following example is equivalent to the preceding one:

[mysqld]
innodb_data_home_dir =
innodb_data_file_path=/path/to/myibdata/ibdata1:50M;/path/to/myibdata/ibdata2:50M:autoextend

InnoDB Log File Configuration

By default, InnoDB creates two 48MB log files in the MySQL data directory (datadir) named ib_logfile0 and ib_logfile1.

The following options can be used to modify the default configuration:

  • innodb_log_group_home_dir defines directory path to the InnoDB log files (the redo logs). If this option is not configured, InnoDB log files are created in the MySQL data directory (datadir).

    You might use this option to place InnoDB log files in a different physical storage location than InnoDB data files to avoid potential I/O resource conflicts. For example:

    [mysqld]
    innodb_log_group_home_dir = /dr3/iblogs

    Note

    InnoDB does not create directories, so make sure that the log directory exists before you start the server. Use the Unix or DOS mkdir command to create any necessary directories.

    Make sure that the MySQL server has the proper access rights to create files in the log directory. More generally, the server must have access rights in any directory where it needs to create log files.

  • innodb_log_files_in_group defines the number of log files in the log group. The default and recommended value is 2.

  • innodb_log_file_size defines the size in bytes of each log file in the log group. The combined size of log files (innodb_log_file_size * innodb_log_files_in_group) cannot exceed a maximum value that is slightly less than 512GB. A pair of 255 GB log files, for example, approaches the limit but does not exceed it. The default log file size is 48MB. Generally, the combined size of the log files should be large enough that the server can smooth out peaks and troughs in workload activity, which often means that there is enough redo log space to handle more than an hour of write activity. The larger the value, the less checkpoint flush activity is needed in the buffer pool, saving disk I/O. For additional information, see Section 9.5.4, “Optimizing InnoDB Redo Logging”.

InnoDB Undo Tablespace Configuration

By default, InnoDB undo logs are part of the system tablespace. However, you can choose to store InnoDB undo logs in one or more separate undo tablespaces, typically on a different storage device.

The innodb_undo_directory configuration option defines the path where InnoDB creates separate tablespaces for the undo logs. This option is typically used in conjunction with the innodb_undo_logs and innodb_undo_tablespaces options, which determine the disk layout of the undo logs outside the system tablespace.

For more information, see Section 15.7.7, “Storing InnoDB Undo Logs in Separate Tablespaces”.

InnoDB Temporary Tablespace Configuration

By default, InnoDB creates a single auto-extending temporary tablespace data file named ibtmp1 that is slightly larger than 12MB in the innodb_data_home_dir directory. The default temporary tablespace data file configuration can be modified at startup using the innodb_temp_data_file_path configuration option.

The innodb_temp_data_file_path option specifies the path, file name, and file size for InnoDB temporary tablespace data files. The full directory path for a file is formed by concatenating innodb_data_home_dir to the path specified by innodb_temp_data_file_path. File size is specified in KB, MB, or GB (1024MB) by appending K, M, or G to the size value. The sum of the sizes of the files must be slightly larger than 12MB.

The innodb_data_home_dir default value is the MySQL data directory (datadir).

InnoDB Page Size Configuration

The innodb_page_size option specifies the page size for all InnoDB tablespaces in a MySQL instance. This value is set when the instance is created and remains constant afterward. Valid values are 64k, 32k, 16k (the default), 8k, and 4k. Alternatively, you can specify page size in bytes (65536, 32768, 16384, 8192, 4096).

The default page size of 16k is appropriate for a wide range of workloads, particularly for queries involving table scans and DML operations involving bulk updates. Smaller page sizes might be more efficient for OLTP workloads involving many small writes, where contention can be an issue when a single page contains many rows. Smaller pages might also be efficient with SSD storage devices, which typically use small block sizes. Keeping the InnoDB page size close to the storage device block size minimizes the amount of unchanged data that is rewritten to disk.

InnoDB Memory Configuration

MySQL allocates memory to various caches and buffers to improve performance of database operations. When allocating memory for InnoDB, always consider memory required by the operating system, memory allocated to other applications, and memory allocated for other MySQL buffers and caches. For example, if you use MyISAM tables, consider the amount of memory allocated for the key buffer (key_buffer_size). For an overview of MySQL buffers and caches, see Section 9.12.4.1, “How MySQL Uses Memory”.

Buffers specific to InnoDB are configured using the following parameters:

Warning

On 32-bit GNU/Linux x86, be careful not to set memory usage too high. glibc may permit the process heap to grow over thread stacks, which crashes your server. It is a risk if the memory allocated to the mysqld process for global and per-thread buffers and caches is close to or exceeds 2GB.

A formula similar to the following that calculates global and per-thread memory allocation for MySQL can be used to estimate MySQL memory usage. You may need to modify the formula to account for buffers and caches in your MySQL version and configuration. For an overview of MySQL buffers and caches, see Section 9.12.4.1, “How MySQL Uses Memory”.

innodb_buffer_pool_size
+ key_buffer_size
+ max_connections*(sort_buffer_size+read_buffer_size+binlog_cache_size)
+ max_connections*2MB

Each thread uses a stack (often 2MB, but only 256KB in MySQL binaries provided by Oracle Corporation.) and in the worst case also uses sort_buffer_size + read_buffer_size additional memory.

On Linux, if the kernel is enabled for large page support, InnoDB can use large pages to allocate memory for its buffer pool. See Section 9.12.4.2, “Enabling Large Page Support”.

15.6.2 Configuring InnoDB for Read-Only Operation

You can now query InnoDB tables where the MySQL data directory is on read-only media, by enabling the --innodb-read-only configuration option at server startup.

How to Enable

To prepare an instance for read-only operation, make sure all the necessary information is flushed to the data files before storing it on the read-only medium. Run the server with change buffering disabled (innodb_change_buffering=0) and do a slow shutdown.

To enable read-only mode for an entire MySQL instance, specify the following configuration options at server startup:

  • --innodb-read-only=1

  • If the instance is on read-only media such as a DVD or CD, or the /var directory is not writeable by all: --pid-file=path_on_writeable_media and --event-scheduler=disabled

Usage Scenarios

This mode of operation is appropriate in situations such as:

  • Distributing a MySQL application, or a set of MySQL data, on a read-only storage medium such as a DVD or CD.

  • Multiple MySQL instances querying the same data directory simultaneously, typically in a data warehousing configuration. You might use this technique to avoid bottlenecks that can occur with a heavily loaded MySQL instance, or you might use different configuration options for the various instances to tune each one for particular kinds of queries.

  • Querying data that has been put into a read-only state for security or data integrity reasons, such as archived backup data.

Note

This feature is mainly intended for flexibility in distribution and deployment, rather than raw performance based on the read-only aspect. See Section 9.5.3, “Optimizing InnoDB Read-Only Transactions” for ways to tune the performance of read-only queries, which do not require making the entire server read-only.

How It Works

When the server is run in read-only mode through the --innodb-read-only option, certain InnoDB features and components are reduced or turned off entirely:

  • No change buffering is done, in particular no merges from the change buffer. To make sure the change buffer is empty when you prepare the instance for read-only operation, disable change buffering (innodb_change_buffering=0) and do a slow shutdown first.

  • There is no crash recovery phase at startup. The instance must have performed a slow shutdown before being put into the read-only state.

  • Because the redo log is not used in read-only operation, you can set innodb_log_file_size to the smallest size possible (1 MB) before making the instance read-only.

  • All background threads other than I/O read threads are turned off. As a consequence, a read-only instance cannot encounter any deadlocks.

  • Information about deadlocks, monitor output, and so on is not written to temporary files. As a consequence, SHOW ENGINE INNODB STATUS does not produce any output.

  • If the MySQL server is started with --innodb-read-only but the data directory is still on writeable media, the root user can still perform DCL operations such as GRANT and REVOKE.

  • Changes to configuration option settings that would normally change the behavior of write operations, have no effect when the server is in read-only mode.

  • The MVCC processing to enforce isolation levels is turned off. All queries read the latest version of a record, because update and deletes are not possible.

  • The undo log is not used. Disable any settings for the innodb_undo_tablespaces and innodb_undo_directory configuration options.

15.6.3 InnoDB Buffer Pool Configuration

This section provides configuration and tuning information for the InnoDB buffer pool.

15.6.3.1 The InnoDB Buffer Pool

InnoDB maintains a storage area called the buffer pool for caching data and indexes in memory. Knowing how the InnoDB buffer pool works, and taking advantage of it to keep frequently accessed data in memory, is an important aspect of MySQL tuning. For information about how the InnoDB buffer pool works, see InnoDB Buffer Pool LRU Algorithm.

You can configure the various aspects of the InnoDB buffer pool to improve performance.

InnoDB Buffer Pool LRU Algorithm

InnoDB manages the buffer pool as a list, using a variation of the least recently used (LRU) algorithm. When room is needed to add a new page to the pool, InnoDB evicts the least recently used page and adds the new page to the middle of the list. This midpoint insertion strategy treats the list as two sublists:

  • At the head, a sublist of new (or young) pages that were accessed recently.

  • At the tail, a sublist of old pages that were accessed less recently.

This algorithm keeps pages that are heavily used by queries in the new sublist. The old sublist contains less-used pages; these pages are candidates for eviction.

The LRU algorithm operates as follows by default:

  • 3/8 of the buffer pool is devoted to the old sublist.

  • The midpoint of the list is the boundary where the tail of the new sublist meets the head of the old sublist.

  • When InnoDB reads a page into the buffer pool, it initially inserts it at the midpoint (the head of the old sublist). A page can be read in because it is required for a user-specified operation such as an SQL query, or as part of a read-ahead operation performed automatically by InnoDB.

  • Accessing a page in the old sublist makes it young, moving it to the head of the buffer pool (the head of the new sublist). If the page was read in because it was required, the first access occurs immediately and the page is made young. If the page was read in due to read-ahead, the first access does not occur immediately (and might not occur at all before the page is evicted).

  • As the database operates, pages in the buffer pool that are not accessed age by moving toward the tail of the list. Pages in both the new and old sublists age as other pages are made new. Pages in the old sublist also age as pages are inserted at the midpoint. Eventually, a page that remains unused for long enough reaches the tail of the old sublist and is evicted.

By default, pages read by queries immediately move into the new sublist, meaning they stay in the buffer pool longer. A table scan (such as performed for a mysqldump operation, or a SELECT statement with no WHERE clause) can bring a large amount of data into the buffer pool and evict an equivalent amount of older data, even if the new data is never used again. Similarly, pages that are loaded by the read-ahead background thread and then accessed only once move to the head of the new list. These situations can push frequently used pages to the old sublist, where they become subject to eviction. For information about optimizing this behavior, see Section 15.6.3.4, “Making the Buffer Pool Scan Resistant”, and Section 15.6.3.5, “Configuring InnoDB Buffer Pool Prefetching (Read-Ahead)”.

InnoDB Standard Monitor output contains several fields in the BUFFER POOL AND MEMORY section that pertain to operation of the buffer pool LRU algorithm. For details, see Section 15.6.3.9, “Monitoring the Buffer Pool Using the InnoDB Standard Monitor”.

InnoDB Buffer Pool Configuration Options

Several configuration options affect different aspects of the InnoDB buffer pool.

15.6.3.2 Configuring InnoDB Buffer Pool Size

You can configure InnoDB buffer pool size offline (at startup) or online, while the server is running. Behavior described in this section applies to both methods. For additional information about configuring buffer pool size online, see Configuring InnoDB Buffer Pool Size Online.

When increasing or decreasing innodb_buffer_pool_size, the operation is performed in chunks. Chunk size is defined by the innodb_buffer_pool_chunk_size configuration option, which has a default of 128M. For more information, see Configuring InnoDB Buffer Pool Chunk Size.

Buffer pool size must always be equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances. If you configure innodb_buffer_pool_size to a value that is not equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances, buffer pool size is automatically adjusted to a value that is equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances that is not less than the specified buffer pool size.

In the following example, innodb_buffer_pool_size is set to 8G, and innodb_buffer_pool_instances is set to 16. innodb_buffer_pool_chunk_size is 128M, which is the default value.

8G is a valid innodb_buffer_pool_size value because 8G is a multiple of innodb_buffer_pool_instances=16 * innodb_buffer_pool_chunk_size=128M, which is 2G.

shell> mysqld --innodb_buffer_pool_size=8G --innodb_buffer_pool_instances=16

mysql> SELECT @@innodb_buffer_pool_size/1024/1024/1024;
+------------------------------------------+
| @@innodb_buffer_pool_size/1024/1024/1024 |
+------------------------------------------+
|                           8.000000000000 |
+------------------------------------------+

In this example, innodb_buffer_pool_size is set to 9G, and innodb_buffer_pool_instances is set to 16. innodb_buffer_pool_chunk_size is 128M, which is the default value. In this case, 9G is not a multiple of innodb_buffer_pool_instances=16 * innodb_buffer_pool_chunk_size=128M, so innodb_buffer_pool_size is adjusted to 10G, which is the next multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances that is not less than the specified buffer pool size.

shell> mysqld --innodb_buffer_pool_size=9G --innodb_buffer_pool_instances=16

mysql> SELECT @@innodb_buffer_pool_size/1024/1024/1024;
+------------------------------------------+
| @@innodb_buffer_pool_size/1024/1024/1024 |
+------------------------------------------+
|                          10.000000000000 |
+------------------------------------------+
Configuring InnoDB Buffer Pool Chunk Size

innodb_buffer_pool_chunk_size can be increased or decreased in 1MB (1048576 byte) units but can only be modified at startup, in a command line string or in a MySQL configuration file.

Command line:

shell> mysqld --innodb_buffer_pool_chunk_size=134217728

Configuration file:

[mysqld]
innodb_buffer_pool_chunk_size=134217728

The following conditions apply when altering innodb_buffer_pool_chunk_size:

  • If the new innodb_buffer_pool_chunk_size value * innodb_buffer_pool_instances is larger than the current buffer pool size when the buffer pool is initialized, innodb_buffer_pool_chunk_size is truncated to innodb_buffer_pool_size / innodb_buffer_pool_instances.

    For example, if the buffer pool is initialized with a size of 2GB (2147483648 bytes), 4 buffer pool instances, and a chunk size of 1GB (1073741824 bytes), chunk size is truncated to a value equal to innodb_buffer_pool_size / innodb_buffer_pool_instances, as shown below:

    shell> mysqld --innodb_buffer_pool_size=2147483648 --innodb_buffer_pool_instances=4
    --innodb_buffer_pool_chunk_size=1073741824;

    mysql> SELECT @@innodb_buffer_pool_size;
    +---------------------------+
    | @@innodb_buffer_pool_size |
    +---------------------------+
    |                2147483648 |
    +---------------------------+

    mysql> SELECT @@innodb_buffer_pool_instances;
    +--------------------------------+
    | @@innodb_buffer_pool_instances |
    +--------------------------------+
    |                              4 |
    +--------------------------------+

    # Chunk size was set to 1GB (1073741824 bytes) on startup but was
    # truncated to innodb_buffer_pool_size / innodb_buffer_pool_instances

    mysql> SELECT @@innodb_buffer_pool_chunk_size;
    +---------------------------------+
    | @@innodb_buffer_pool_chunk_size |
    +---------------------------------+
    |                       536870912 |
    +---------------------------------+
  • Buffer pool size must always be equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances. If you alter innodb_buffer_pool_chunk_size, innodb_buffer_pool_size is automatically adjusted to a value that is equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances that is not less than current buffer pool size. The adjustment occurs when the buffer pool is initialized. This behavior is demonstrated in the following example:

    # The buffer pool has a default size of 128MB (134217728 bytes)

    mysql> SELECT @@innodb_buffer_pool_size;
    +---------------------------+
    | @@innodb_buffer_pool_size |
    +---------------------------+
    |                 134217728 |
    +---------------------------+

    # The chunk size is also 128MB (134217728 bytes)

    mysql> SELECT @@innodb_buffer_pool_chunk_size;
    +---------------------------------+
    | @@innodb_buffer_pool_chunk_size |
    +---------------------------------+
    |                       134217728 |
    +---------------------------------+

    # There is a single buffer pool instance

    mysql> SELECT @@innodb_buffer_pool_instances;
    +--------------------------------+
    | @@innodb_buffer_pool_instances |
    +--------------------------------+
    |                              1 |
    +--------------------------------+

    # Chunk size is decreased by 1MB (1048576 bytes) at startup
    # (134217728 - 1048576 = 133169152):

    shell> mysqld --innodb_buffer_pool_chunk_size=133169152

    mysql> SELECT @@innodb_buffer_pool_chunk_size;
    +---------------------------------+
    | @@innodb_buffer_pool_chunk_size |
    +---------------------------------+
    |                       133169152 |
    +---------------------------------+

    # Buffer pool size increases from 134217728 to 266338304
    # Buffer pool size is automatically adjusted to a value that is equal to
    # or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances
    # that is not less than current buffer pool size

    mysql> SELECT @@innodb_buffer_pool_size;
    +---------------------------+
    | @@innodb_buffer_pool_size |
    +---------------------------+
    |                 266338304 |
    +---------------------------+

    This example demonstrates the same behavior but with multiple buffer pool instances:

    # The buffer pool has a default size of 2GB (2147483648 bytes)

    mysql> SELECT @@innodb_buffer_pool_size;
    +---------------------------+
    | @@innodb_buffer_pool_size |
    +---------------------------+
    |                2147483648 |
    +---------------------------+

    # The chunk size is .5 GB (536870912 bytes)

    mysql> SELECT @@innodb_buffer_pool_chunk_size;
    +---------------------------------+
    | @@innodb_buffer_pool_chunk_size |
    +---------------------------------+
    |                       536870912 |
    +---------------------------------+

    # There are 4 buffer pool instances

    mysql> SELECT @@innodb_buffer_pool_instances;
    +--------------------------------+
    | @@innodb_buffer_pool_instances |
    +--------------------------------+
    |                              4 |
    +--------------------------------+

    # Chunk size is decreased by 1MB (1048576 bytes) at startup
    # (536870912 - 1048576 = 535822336):

    shell> mysqld --innodb_buffer_pool_chunk_size=535822336

    mysql> SELECT @@innodb_buffer_pool_chunk_size;
    +---------------------------------+
    | @@innodb_buffer_pool_chunk_size |
    +---------------------------------+
    |                       535822336 |
    +---------------------------------+

    # Buffer pool size increases from 2147483648 to 4286578688
    # Buffer pool size is automatically adjusted to a value that is equal to
    # or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances
    # that is not less than current buffer pool size of 2147483648

    mysql> SELECT @@innodb_buffer_pool_size;
    +---------------------------+
    | @@innodb_buffer_pool_size |
    +---------------------------+
    |                4286578688 |
    +---------------------------+

    Care should be taken when changing innodb_buffer_pool_chunk_size, as changing this value can increase the size of the buffer pool, as shown in the examples above. Before you change innodb_buffer_pool_chunk_size, calculate the effect on innodb_buffer_pool_size to ensure that the resulting buffer pool size is acceptable.

Note

To avoid potential performance issues, the number of chunks (innodb_buffer_pool_size / innodb_buffer_pool_chunk_size) should not exceed 1000.

Configuring InnoDB Buffer Pool Size Online

The innodb_buffer_pool_size configuration option can be set dynamically using a SET statement, allowing you to resize the buffer pool without restarting the server. For example:

mysql> SET GLOBAL innodb_buffer_pool_size=402653184;

Active transactions and operations performed through InnoDB APIs should be completed before resizing the buffer pool. When initiating a resizing operation, the operation does not start until all active transactions are completed. Once the resizing operation is in progress, new transactions and operations that require access to the buffer pool must wait until the resizing operation finishes. The exception to the rule is that concurrent access to the buffer pool is permitted while the buffer pool is defragmented and pages are withdrawn when buffer pool size is decreased. A drawback of allowing concurrent access is that it could result in a temporary shortage of available pages while pages are being withdrawn.

Note

Nested transactions could fail if initiated after the buffer pool resizing operation begins.

Monitoring Online Buffer Pool Resizing Progress

The Innodb_buffer_pool_resize_status reports buffer pool resizing progress. For example:

mysql> SHOW STATUS WHERE Variable_name='InnoDB_buffer_pool_resize_status';
+----------------------------------+----------------------------------+
| Variable_name                    | Value                            |
+----------------------------------+----------------------------------+
| Innodb_buffer_pool_resize_status | Resizing also other hash tables. |
+----------------------------------+----------------------------------+

Buffer pool resizing progress is also logged in the server error log file. This example shows notes that are logged when increasing the size of the buffer pool:

[Note] InnoDB: Resizing buffer pool from 134217728 to 4294967296. (unit=134217728)
[Note] InnoDB: disabled adaptive hash index.
[Note] InnoDB: buffer pool 0 : 31 chunks (253952 blocks) was added.
[Note] InnoDB: buffer pool 0 : hash tables were resized.
[Note] InnoDB: Resized hash tables at lock_sys, adaptive hash index, dictionary.
[Note] InnoDB: completed to resize buffer pool from 134217728 to 4294967296.
[Note] InnoDB: re-enabled adaptive hash index.

This example shows notes that are logged when decreasing the size of the buffer pool:

[Note] InnoDB: Resizing buffer pool from 4294967296 to 134217728. (unit=134217728)
[Note] InnoDB: disabled adaptive hash index.
[Note] InnoDB: buffer pool 0 : start to withdraw the last 253952 blocks.
[Note] InnoDB: buffer pool 0 : withdrew 253952 blocks from free list. tried to relocate 0 pages.
(253952/253952)
[Note] InnoDB: buffer pool 0 : withdrawn target 253952 blocks.
[Note] InnoDB: buffer pool 0 : 31 chunks (253952 blocks) was freed.
[Note] InnoDB: buffer pool 0 : hash tables were resized.
[Note] InnoDB: Resized hash tables at lock_sys, adaptive hash index, dictionary.
[Note] InnoDB: completed to resize buffer pool from 4294967296 to 134217728.
[Note] InnoDB: re-enabled adaptive hash index.
Online Buffer Pool Resizing Internals

The resizing operation is performed by a background thread. When increasing the size of the buffer pool, the resizing operation:

  • Adds pages in chunks (chunk size is defined by innodb_buffer_pool_chunk_size)

  • Coverts hash tables, lists, and pointers to use new addresses in memory

  • Adds new pages to the free list

While these operations are in progress, other threads are blocked from accessing the buffer pool.

When decreasing the size of the buffer pool, the resizing operation:

  • Defragments the buffer pool and withdraws (frees) pages

  • Removes pages in chunks (chunk size is defined by innodb_buffer_pool_chunk_size)

  • Converts hash tables, lists, and pointers to use new addresses in memory

Of these operations, only defragmenting the buffer pool and withdrawing pages allow other threads to access to the buffer pool concurrently.

15.6.3.3 Configuring Multiple Buffer Pool Instances

For systems with buffer pools in the multi-gigabyte range, dividing the buffer pool into separate instances can improve concurrency, by reducing contention as different threads read and write to cached pages. This feature is typically intended for systems with a buffer pool size in the multi-gigabyte range. Multiple buffer pool instances are configured using the innodb_buffer_pool_instances configuration option, and you might also adjust the innodb_buffer_pool_size value.

When the InnoDB buffer pool is large, many data requests can be satisfied by retrieving from memory. You might encounter bottlenecks from multiple threads trying to access the buffer pool at once. You can enable multiple buffer pools to minimize this contention. Each page that is stored in or read from the buffer pool is assigned to one of the buffer pools randomly, using a hashing function. Each buffer pool manages its own free lists, flush lists, LRUs, and all other data structures connected to a buffer pool, and is protected by its own buffer pool mutex.

To enable multiple buffer pool instances, set the innodb_buffer_pool_instances configuration option to a value greater than 1 (the default) up to 64 (the maximum). This option takes effect only when you set innodb_buffer_pool_size to a size of 1GB or more. The total size you specify is divided among all the buffer pools. For best efficiency, specify a combination of innodb_buffer_pool_instances and innodb_buffer_pool_size so that each buffer pool instance is at least 1GB.

For information about modifying InnoDB buffer pool size, see Section 15.6.3.2, “Configuring InnoDB Buffer Pool Size”.

15.6.3.4 Making the Buffer Pool Scan Resistant

Rather than using a strict LRU algorithm, InnoDB uses a technique to minimize the amount of data that is brought into the buffer pool and never accessed again. The goal is to make sure that frequently accessed (hot) pages remain in the buffer pool, even as read-ahead and full table scans bring in new blocks that might or might not be accessed afterward.

Newly read blocks are inserted into the middle of the LRU list. All newly read pages are inserted at a location that by default is 3/8 from the tail of the LRU list. The pages are moved to the front of the list (the most-recently used end) when they are accessed in the buffer pool for the first time. Thus, pages that are never accessed never make it to the front portion of the LRU list, and age out sooner than with a strict LRU approach. This arrangement divides the LRU list into two segments, where the pages downstream of the insertion point are considered old and are desirable victims for LRU eviction.

For an explanation of the inner workings of the InnoDB buffer pool and specifics about the LRU algorithm, see Section 15.6.3.1, “The InnoDB Buffer Pool”.

You can control the insertion point in the LRU list and choose whether InnoDB applies the same optimization to blocks brought into the buffer pool by table or index scans. The configuration parameter innodb_old_blocks_pct controls the percentage of old blocks in the LRU list. The default value of innodb_old_blocks_pct is 37, corresponding to the original fixed ratio of 3/8. The value range is 5 (new pages in the buffer pool age out very quickly) to 95 (only 5% of the buffer pool is reserved for hot pages, making the algorithm close to the familiar LRU strategy).

The optimization that keeps the buffer pool from being churned by read-ahead can avoid similar problems due to table or index scans. In these scans, a data page is typically accessed a few times in quick succession and is never touched again. The configuration parameter innodb_old_blocks_time specifies the time window (in milliseconds) after the first access to a page during which it can be accessed without being moved to the front (most-recently used end) of the LRU list. The default value of innodb_old_blocks_time is 1000. Increasing this value makes more and more blocks likely to age out faster from the buffer pool.

Both innodb_old_blocks_pct and innodb_old_blocks_time are dynamic, global and can be specified in the MySQL option file (my.cnf or my.ini) or changed at runtime with the SET GLOBAL command. Changing the setting requires the SUPER privilege.

To help you gauge the effect of setting these parameters, the SHOW ENGINE INNODB STATUS command reports buffer pool statistics. For details, see Section 15.6.3.9, “Monitoring the Buffer Pool Using the InnoDB Standard Monitor”.

Because the effects of these parameters can vary widely based on your hardware configuration, your data, and the details of your workload, always benchmark to verify the effectiveness before changing these settings in any performance-critical or production environment.

In mixed workloads where most of the activity is OLTP type with periodic batch reporting queries which result in large scans, setting the value of innodb_old_blocks_time during the batch runs can help keep the working set of the normal workload in the buffer pool.

When scanning large tables that cannot fit entirely in the buffer pool, setting innodb_old_blocks_pct to a small value keeps the data that is only read once from consuming a significant portion of the buffer pool. For example, setting innodb_old_blocks_pct=5 restricts this data that is only read once to 5% of the buffer pool.

When scanning small tables that do fit into memory, there is less overhead for moving pages around within the buffer pool, so you can leave innodb_old_blocks_pct at its default value, or even higher, such as innodb_old_blocks_pct=50.

The effect of the innodb_old_blocks_time parameter is harder to predict than the innodb_old_blocks_pct parameter, is relatively small, and varies more with the workload. To arrive at an optimal value, conduct your own benchmarks if the performance improvement from adjusting innodb_old_blocks_pct is not sufficient.

15.6.3.5 Configuring InnoDB Buffer Pool Prefetching (Read-Ahead)

A read-ahead request is an I/O request to prefetch multiple pages in the buffer pool asynchronously, in anticipation that these pages will be needed soon. The requests bring in all the pages in one extent. InnoDB uses two read-ahead algorithms to improve I/O performance:

Linear read-ahead is a technique that predicts what pages might be needed soon based on pages in the buffer pool being accessed sequentially. You control when InnoDB performs a read-ahead operation by adjusting the number of sequential page accesses required to trigger an asynchronous read request, using the configuration parameter innodb_read_ahead_threshold. Before this parameter was added, InnoDB would only calculate whether to issue an asynchronous prefetch request for the entire next extent when it read in the last page of the current extent.

The configuration parameter innodb_read_ahead_threshold controls how sensitive InnoDB is in detecting patterns of sequential page access. If the number of pages read sequentially from an extent is greater than or equal to innodb_read_ahead_threshold, InnoDB initiates an asynchronous read-ahead operation of the entire following extent. innodb_read_ahead_threshold can be set to any value from 0-64. The default value is 56. The higher the value, the more strict the access pattern check. For example, if you set the value to 48, InnoDB triggers a linear read-ahead request only when 48 pages in the current extent have been accessed sequentially. If the value is 8, InnoDB triggers an asynchronous read-ahead even if as few as 8 pages in the extent are accessed sequentially. You can set the value of this parameter in the MySQL configuration file, or change it dynamically with the SET GLOBAL command, which requires the SUPER privilege.

Random read-ahead is a technique that predicts when pages might be needed soon based on pages already in the buffer pool, regardless of the order in which those pages were read. If 13 consecutive pages from the same extent are found in the buffer pool, InnoDB asynchronously issues a request to prefetch the remaining pages of the extent. To enable this feature, set the configuration variable innodb_random_read_ahead to ON.

The SHOW ENGINE INNODB STATUS command displays statistics to help you evaluate the effectiveness of the read-ahead algorithm. Statistics include counter information for the following global status variables:

This information can be useful when fine-tuning the innodb_random_read_ahead setting.

For more information about I/O performance, see Section 9.5.8, “Optimizing InnoDB Disk I/O” and Section 9.12.2, “Optimizing Disk I/O”.

15.6.3.6 Configuring InnoDB Buffer Pool Flushing

InnoDB performs certain tasks in the background, including flushing of dirty pages (those pages that have been changed but are not yet written to the database files) from the buffer pool.

InnoDB starts flushing buffer pool pages when the percentage of dirty pages in the buffer pool reaches the low water mark setting defined by innodb_max_dirty_pages_pct_lwm. This option is intended to control the ratio of dirty pages in the buffer pool and ideally prevent the percentage of dirty pages from reaching innodb_max_dirty_pages_pct. If the percentage of dirty pages in the buffer pool exceeds innodb_max_dirty_pages_pct, InnoDB begins to aggressively flush buffer pool pages.

InnoDB uses an algorithm to estimate the required rate of flushing, based on the speed of redo log generation and the current rate of flushing. The intent is to smooth overall performance by ensuring that buffer flush activity keeps up with the need to keep the buffer pool clean. Automatically adjusting the rate of flushing can help to avoid sudden dips in throughput, when excessive buffer pool flushing limits the I/O capacity available for ordinary read and write activity.

InnoDB uses its log files in a circular fashion. Before reusing a portion of a log file, InnoDB flushes to disk all dirty buffer pool pages whose redo entries are contained in that portion of the log file, a process known as a sharp checkpoint. If a workload is write-intensive, it generates a lot of redo information, all written to the log file. If all available space in the log files is used up, a sharp checkpoint occurs, causing a temporary reduction in throughput. This situation can happen even if innodb_max_dirty_pages_pct is not reached.

InnoDB uses a heuristic-based algorithm to avoid such a scenario, by measuring the number of dirty pages in the buffer pool and the rate at which redo is being generated. Based on these numbers, InnoDB decides how many dirty pages to flush from the buffer pool each second. This self-adapting algorithm is able to deal with sudden changes in workload.

Internal benchmarking has shown that this algorithm not only maintains throughput over time, but can also improve overall throughput significantly.

Because adaptive flushing can significantly affect the I/O pattern of a workload, the innodb_adaptive_flushing configuration parameter lets you turn off this feature. The default value for innodb_adaptive_flushing is ON, enabling the adaptive flushing algorithm. You can set the value of this parameter in the MySQL option file (my.cnf or my.ini) or change it dynamically with the SET GLOBAL command, which requires the SUPER privilege.

For information about fine-tuning InnoDB buffer pool flushing behavior, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”.

For more information about InnoDB I/O performance, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

15.6.3.7 Fine-tuning InnoDB Buffer Pool Flushing

The configuration options innodb_flush_neighbors and innodb_lru_scan_depth let you fine-tune certain aspects of the flushing process for the InnoDB buffer pool. These options primarily help write-intensive workloads. With heavy DML activity, flushing can fall behind if it is not aggressive enough, resulting in excessive memory use in the buffer pool; or, disk writes due to flushing can saturate your I/O capacity if that mechanism is too aggressive. The ideal settings depend on your workload, data access patterns, and storage configuration (for example, whether data is stored on HDD or SSD devices).

For systems with constant heavy workloads, or workloads that fluctuate widely, several configuration options let you fine-tune the flushing behavior for InnoDB tables:

These options feed into the formula used by the innodb_adaptive_flushing option.

The innodb_adaptive_flushing, innodb_io_capacity and innodb_max_dirty_pages_pct options are limited or extended by the following options:

The InnoDB adaptive flushing mechanism is not appropriate in all cases. It gives the most benefit when the redo log is in danger of filling up. The innodb_adaptive_flushing_lwm option specifies a low water mark percentage of redo log capacity; when that threshold is crossed, InnoDB turns on adaptive flushing even if not specified by the innodb_adaptive_flushing option.

If flushing activity falls far behind, InnoDB can flush more aggressively than specified by innodb_io_capacity. innodb_io_capacity_max represents an upper limit on the I/O capacity used in such emergency situations, so that the spike in I/O does not consume all the capacity of the server.

InnoDB tries to flush data from the buffer pool so that the percentage of dirty pages does not exceed the value of innodb_max_dirty_pages_pct. The default value for innodb_max_dirty_pages_pct is 75.

Note

The innodb_max_dirty_pages_pct setting establishes a target for flushing activity. It does not affect the rate of flushing. For information about managing the rate of flushing, see Section 15.6.3.6, “Configuring InnoDB Buffer Pool Flushing”.

The innodb_max_dirty_pages_pct_lwm option specifies a low water mark value that represents the percentage of dirty pages where pre-flushing is enabled to control the dirty page ratio and ideally prevent the percentage of dirty pages from reaching innodb_max_dirty_pages_pct. A value of innodb_max_dirty_pages_pct_lwm=0 disables the pre-flushing behavior.

Most of the options referenced above are most applicable to servers that run write-heavy workloads for long periods of time and have little reduced load time to catch up with changes waiting to be written to disk.

innodb_flushing_avg_loops defines the number of iterations for which InnoDB keeps the previously calculated snapshot of the flushing state, which controls how quickly adaptive flushing responds to foreground load changes. Setting a high value for innodb_flushing_avg_loops means that InnoDB keeps the previously calculated snapshot longer, so adaptive flushing responds more slowly. A high value also reduces positive feedback between foreground and background work, but when setting a high value it is important to ensure that InnoDB redo log utilization does not reach 75% (the hardcoded limit at which async flushing starts) and that the innodb_max_dirty_pages_pct setting keeps the number of dirty pages to a level that is appropriate for the workload.

Systems with consistent workloads, a large innodb_log_file_size, and small spikes that do not reach 75% redo log space utilization should use a high innodb_flushing_avg_loops value to keep flushing as smooth as possible. For systems with extreme load spikes or log files that do not provide a lot of space, consider a smaller innodb_flushing_avg_loops value. A smaller value allows flushing to closely track the load and helps avoid reaching 75% redo log space utilization.

15.6.3.8 Saving and Restoring the Buffer Pool State

To reduce the warmup period after restarting the server, InnoDB saves a percentage of the most recently used pages for each buffer pool at server shutdown and restores these pages at server startup. The percentage of recently used pages that is stored is defined by the innodb_buffer_pool_dump_at_shutdown configuration option.

After restarting a busy server, there is typically a warmup period with steadily increasing throughput, as disk pages that were in the buffer pool are brought back into memory (as the same data is queried, updated, and so on). The ability to restore the buffer pool at startup shortens the warmup period by reloading disk pages that were in the buffer pool before the restart rather than waiting for DML operations to access corresponding rows. Also, I/O requests can be performed in large batches, making the overall I/O faster. Page loading happens in the background, and does not delay database startup.

In addition to saving the buffer pool state at shutdown and restoring it at startup, you can save and restore the buffer pool state at any time, while the server is running. For example, you can save the state of the buffer pool after reaching a stable throughput under a steady workload. You could also restore the previous buffer pool state after running reports or maintenance jobs that bring data pages into the buffer pool that are only requited for those operations, or after running some other non-typical workload.

Even though a buffer pool can be many gigabytes in size, the buffer pool data that InnoDB saves to disk is tiny by comparison. Only tablespace IDs and page IDs necessary to locate the appropriate pages are saved to disk. This information is derived from the INNODB_BUFFER_PAGE_LRU INFORMATION_SCHEMA table. By default, tablespace ID and page ID data is saved in a file named ib_buffer_pool, which is saved to the InnoDB data directory. The file name and location can be modified using the innodb_buffer_pool_filename configuration parameter.

Because data is cached in and aged out of the buffer pool as it is with regular database operations, there is no problem if the disk pages are recently updated, or if a DML operation involves data that has not yet been loaded. The loading mechanism skips requested pages that no longer exist.

The underlying mechanism involves a background thread that is dispatched to perform the dump and load operations.

Disk pages from compressed tables are loaded into the buffer pool in their compressed form. Pages are uncompressed as usual when page contents are accessed during DML operations. Because uncompressing pages is a CPU-intensive process, it is more efficient for concurrency to perform the operation in a connection thread rather than in the single thread that performs the buffer pool restore operation.

Operations related to saving and restoring the buffer pool state are described in the following topics:

Configuring the Dump Percentage for Buffer Pool Pages

Before dumping pages from the buffer pool, you can configure the percentage of most-recently-used buffer pool pages that you want to dump by setting the innodb_buffer_pool_dump_pct option. If you plan to dump buffer pool pages while the server is running, you can configure the option dynamically:

SET GLOBAL innodb_buffer_pool_dump_pct=40;

If you plan to dump buffer pool pages at server shutdown, set innodb_buffer_pool_dump_pct in your configuration file.

[mysqld]
      innodb_buffer_pool_dump_pct=40

The innodb_buffer_pool_dump_pct default value was changed from 100 (dump all pages) to 25 (dump 25% of most-recently-used pages) in MySQL 5.7 when innodb_buffer_pool_dump_at_shutdown and innodb_buffer_pool_load_at_startup were enabled by default.

Saving the Buffer Pool State at Shutdown and Restoring it at Startup

To save the state of the buffer pool at server shutdown, issue the following statement prior to shutting down the server:

SET GLOBAL innodb_buffer_pool_dump_at_shutdown=ON;

innodb_buffer_pool_dump_at_shutdown is enabled by default.

To restore the buffer pool state at server startup, specify the --innodb_buffer_pool_load_at_startup option when starting the server:

mysqld --innodb_buffer_pool_load_at_startup=ON;

innodb_buffer_pool_load_at_startup is enabled by default.

Saving and Restoring the Buffer Pool State Online

To save the state of the buffer pool while MySQL server is running, issue the following statement:

SET GLOBAL innodb_buffer_pool_dump_now=ON;

To restore the buffer pool state while MySQL is running, issue the following statement:

SET GLOBAL innodb_buffer_pool_load_now=ON;
Displaying Buffer Pool Dump Progress

To display progress when saving the buffer pool state to disk, issue the following statement:

SHOW STATUS LIKE 'Innodb_buffer_pool_dump_status';

If the operation has not yet started, not started is returned. If the operation is complete, the completion time is printed (e.g. Finished at 110505 12:18:02). If the operation is in progress, status information is provided (e.g. Dumping buffer pool 5/7, page 237/2873).

Displaying Buffer Pool Load Progress

To display progress when loading the buffer pool, issue the following statement:

SHOW STATUS LIKE 'Innodb_buffer_pool_load_status';

If the operation has not yet started, not started is returned. If the operation is complete, the completion time is printed (e.g. Finished at 110505 12:23:24). If the operation is in progress, status information is provided (e.g. Loaded 123/22301 pages).

Aborting a Buffer Pool Load Operation

To abort a buffer pool load operation, issue the following statement:

SET GLOBAL innodb_buffer_pool_load_abort=ON;
Monitoring Buffer Pool Load Progress Using Performance Schema

You can monitor buffer pool load progress using Performance Schema.

The following example demonstrates how to enable the stage/innodb/buffer pool load stage event instrument and related consumer tables to monitor buffer pool load progress.

For information about buffer pool dump and load procedures used in this example, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”. For information about Performance Schema stage event instruments and related consumers, see Section 25.10.5, “Performance Schema Stage Event Tables”.

  1. Enable the stage/innodb/buffer pool load instrument:

    mysql> UPDATE performance_schema.setup_instruments SET ENABLED = 'YES'
           WHERE NAME LIKE 'stage/innodb/buffer%';

  2. Enable the stage event consumer tables, which include events_stages_current, events_stages_history, and events_stages_history_long.

    mysql> UPDATE performance_schema.setup_consumers SET ENABLED = 'YES'
           WHERE NAME LIKE '%stages%';

  3. Dump the current buffer pool state by enabling innodb_buffer_pool_dump_now.

    mysql> SET GLOBAL innodb_buffer_pool_dump_now=ON;

  4. Check the buffer pool dump status to ensure that the operation has completed.

    mysql> SHOW STATUS LIKE 'Innodb_buffer_pool_dump_status'\G
    *************************** 1. row ***************************
    Variable_name: Innodb_buffer_pool_dump_status
            Value: Buffer pool(s) dump completed at 150202 16:38:58

  5. Load the buffer pool by enabling innodb_buffer_pool_load_now:

    mysql> SET GLOBAL innodb_buffer_pool_load_now=ON;

  6. Check the current status of the buffer pool load operation by querying the Performance Schema events_stages_current table. The WORK_COMPLETED column shows the number of buffer pool pages loaded. The WORK_ESTIMATED column provides an estimate of the remaining work, in pages.

    mysql> SELECT EVENT_NAME, WORK_COMPLETED, WORK_ESTIMATED
           FROM performance_schema.events_stages_current;
    +-------------------------------+----------------+----------------+
    | EVENT_NAME                    | WORK_COMPLETED | WORK_ESTIMATED |
    +-------------------------------+----------------+----------------+
    | stage/innodb/buffer pool load |           5353 |           7167 |
    +-------------------------------+----------------+----------------+


    The events_stages_current table returns an empty set if the buffer pool load operation has completed. In this case, you can check the events_stages_history table to view data for the completed event. For example:

    mysql> SELECT EVENT_NAME, WORK_COMPLETED, WORK_ESTIMATED
           FROM performance_schema.events_stages_history;
    +-------------------------------+----------------+----------------+
    | EVENT_NAME                    | WORK_COMPLETED | WORK_ESTIMATED |
    +-------------------------------+----------------+----------------+
    | stage/innodb/buffer pool load |           7167 |           7167 |
    +-------------------------------+----------------+----------------+

Note

You can also monitor buffer pool load progress using Performance Schema when loading the buffer pool at startup using innodb_buffer_pool_load_at_startup. In this case, the stage/innodb/buffer pool load instrument and related consumers must be enabled at startup. For more information, see Section 25.2.2, “Performance Schema Startup Configuration”.

15.6.3.9 Monitoring the Buffer Pool Using the InnoDB Standard Monitor

InnoDB Standard Monitor output, which can be accessed using SHOW ENGINE INNODB STATUS, provides metrics that pertain to operation of the InnoDB buffer pool. Buffer pool metrics are located in the BUFFER POOL AND MEMORY section of InnoDB Standard Monitor output and appear similar to the following:

----------------------
BUFFER POOL AND MEMORY
----------------------
Total large memory allocated 2198863872
Dictionary memory allocated 776332
Buffer pool size   131072
Free buffers       124908
Database pages     5720
Old database pages 2071
Modified db pages  910
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 4, not young 0
0.10 youngs/s, 0.00 non-youngs/s
Pages read 197, created 5523, written 5060
0.00 reads/s, 190.89 creates/s, 244.94 writes/s
Buffer pool hit rate 1000 / 1000, young-making rate 0 / 1000 not
0 / 1000
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read
ahead 0.00/s
LRU len: 5720, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]

The following table describes InnoDB buffer pool metrics reported by the InnoDB Standard Monitor.

Note

Per second averages provided in InnoDB Standard Monitor output are based on the elapsed time since InnoDB Standard Monitor output was last printed.

Table 15.2 InnoDB Buffer Pool Metrics

NameDescription
Total memory allocatedThe total memory allocated for the buffer pool in bytes.
Dictionary memory allocatedThe total memory allocated for the InnoDB data dictionary in bytes.
Buffer pool sizeThe total size in pages allocated to the buffer pool.
Free buffersThe total size in pages of the buffer pool free list.
Database pagesThe total size in pages of the buffer pool LRU list.
Old database pagesThe total size in pages of the buffer pool old LRU sublist.
Modified db pagesThe current number of pages modified in the buffer pool.
Pending readsThe number of buffer pool pages waiting to be read in to the buffer pool.
Pending writes LRUThe number of old dirty pages within the buffer pool to be written from the bottom of the LRU list.
Pending writes flush listThe number of buffer pool pages to be flushed during checkpointing.
Pending writes single pageThe number of pending independent page writes within the buffer pool.
Pages made youngThe total number of pages made young in the buffer pool LRU list (moved to the head of sublist of new pages).
Pages made not youngThe total number of pages not made young in the buffer pool LRU list (pages that have remained in the old sublist without being made young).
youngs/sThe per second average of accesses to old pages in the buffer pool LRU list that have resulted in making pages young. See the notes that follow this table for more information.
non-youngs/sThe per second average of accesses to old pages in the buffer pool LRU list that have resulted in not making pages young. See the notes that follow this table for more information.
Pages readThe total number of pages read from the buffer pool.
Pages createdThe total number of pages created within the buffer pool.
Pages writtenThe total number of pages written from the buffer pool.
reads/sThe per second average number of buffer pool page reads per second.
creates/sThe per second average number of buffer pool pages created per second.
writes/sThe per second average number of buffer pool page writes per second.
Buffer pool hit rateThe buffer pool page hit rate for pages read from the buffer pool memory vs from disk storage.
young-making rateThe average hit rate at which page accesses have resulted in making pages young. See the notes that follow this table for more information.
not (young-making rate)The average hit rate at which page accesses have not resulted in making pages young. See the notes that follow this table for more information.
Pages read aheadThe per second average of read ahead operations.
Pages evicted without accessThe per second average of the pages evicted without being accessed from the buffer pool.
Random read aheadThe per second average of random read ahead operations.
LRU lenThe total size in pages of the buffer pool LRU list.
unzip_LRU lenThe total size in pages of the buffer pool unzip_LRU list.
I/O sumThe total number of buffer pool LRU list pages accessed, for the last 50 seconds.
I/O curThe total number of buffer pool LRU list pages accessed.
I/O unzip sumThe total number of buffer pool unzip_LRU list pages accessed.
I/O unzip curThe total number of buffer pool unzip_LRU list pages accessed.

Notes:

  • The youngs/s metric only relates to old pages. It is based on the number of accesses to pages and not the number of pages. There can be multiple accesses to a given page, all of which are counted. If you see very low youngs/s values when there are no large scans occurring, you might need to reduce the delay time or increase the percentage of the buffer pool used for the old sublist. Increasing the percentage makes the old sublist larger, so pages in that sublist take longer to move to the tail and to be evicted. This increases the likelihood that the pages will be accessed again and be made young.

  • The non-youngs/s metric only relates to old pages. It is based on the number of accesses to pages and not the number of pages. There can be multiple accesses to a given page, all of which are counted. If you do not see a lot of non-youngs/s when you are doing large table scans (and lots of youngs/s), increase the delay value.

  • The young-making rate accounts for accesses to all buffer pool pages, not just accesses to pages in the old sublist. The young-making rate and not rate do not normally add up to the overall buffer pool hit rate. Page hits in the old sublist cause pages to move to the new sublist, but page hits in the new sublist cause pages to move to the head of the list only if they are a certain distance from the head.

  • not (young-making rate) is the average hit rate at which page accesses have not resulted in making pages young due to the delay defined by innodb_old_blocks_time not being met, or due to page hits in the new sublist that did not result in pages being moved to the head. This rate accounts for accesses to all buffer pool pages, not just accesses to pages in the old sublist.

InnoDB buffer pool server status variables and the INNODB_BUFFER_POOL_STATS table provide many of the same buffer pool metrics found in InnoDB Standard Monitor output. For more information about the INNODB_BUFFER_POOL_STATS table, see Example 15.19, “Querying the INNODB_BUFFER_POOL_STATS Table”.

15.6.4 Configuring the Memory Allocator for InnoDB

When InnoDB was developed, the memory allocators supplied with operating systems and run-time libraries were often lacking in performance and scalability. At that time, there were no memory allocator libraries tuned for multi-core CPUs. Therefore, InnoDB implemented its own memory allocator in the mem subsystem. This allocator is guarded by a single mutex, which may become a bottleneck. InnoDB also implements a wrapper interface around the system allocator (malloc and free) that is likewise guarded by a single mutex.

Today, as multi-core systems have become more widely available, and as operating systems have matured, significant improvements have been made in the memory allocators provided with operating systems. These new memory allocators perform better and are more scalable than they were in the past. Most workloads, especially those where memory is frequently allocated and released (such as multi-table joins), benefit from using a more highly tuned memory allocator as opposed to the internal, InnoDB-specific memory allocator.

You can control whether InnoDB uses its own memory allocator or an allocator of the operating system, by setting the value of the system configuration parameter innodb_use_sys_malloc in the MySQL option file (my.cnf or my.ini). If set to ON or 1 (the default), InnoDB uses the malloc and free functions of the underlying system rather than manage memory pools itself. This parameter is not dynamic, and takes effect only when the system is started. To continue to use the InnoDB memory allocator, set innodb_use_sys_malloc to 0.

When the InnoDB memory allocator is disabled, InnoDB ignores the value of the parameter innodb_additional_mem_pool_size. The InnoDB memory allocator uses an additional memory pool for satisfying allocation requests without having to fall back to the system memory allocator. When the InnoDB memory allocator is disabled, all such allocation requests are fulfilled by the system memory allocator.

On Unix-like systems that use dynamic linking, replacing the memory allocator may be as easy as making the environment variable LD_PRELOAD or LD_LIBRARY_PATH point to the dynamic library that implements the allocator. On other systems, some relinking may be necessary. Please refer to the documentation of the memory allocator library of your choice.

Since InnoDB cannot track all memory use when the system memory allocator is used (innodb_use_sys_malloc is ON), the section BUFFER POOL AND MEMORY in the output of the SHOW ENGINE INNODB STATUS command only includes the buffer pool statistics in the Total memory allocated. Any memory allocated using the mem subsystem or using ut_malloc is excluded.

Note

innodb_use_sys_malloc and innodb_additional_mem_pool_size were deprecated in MySQL 5.6 and removed in MySQL 5.7.

For more information about the performance implications of InnoDB memory usage, see Section 9.10, “Buffering and Caching”.

15.6.5 Configuring InnoDB Change Buffering

When INSERT, UPDATE, and DELETE operations are performed on a table, the values of indexed columns (particularly the values of secondary keys) are often in an unsorted order, requiring substantial I/O to bring secondary indexes up to date. InnoDB has a change buffer that caches changes to secondary index entries when the relevant page is not in the buffer pool, thus avoiding expensive I/O operations by not immediately reading in the page from disk. The buffered changes are merged when the page is loaded to the buffer pool, and the updated page is later flushed to disk. The InnoDB main thread merges buffered changes when the server is nearly idle, and during a slow shutdown.

Because it can result in fewer disk reads and writes, the change buffer feature is most valuable for workloads that are I/O-bound, for example applications with a high volume of DML operations such as bulk inserts.

However, the change buffer occupies a part of the buffer pool, reducing the memory available to cache data pages. If the working set almost fits in the buffer pool, or if your tables have relatively few secondary indexes, it may be useful to disable change buffering. If the working set fits entirely within the buffer, change buffering does not impose extra overhead, because it only applies to pages that are not in the buffer pool.

You can control the extent to which InnoDB performs change buffering using the innodb_change_buffering configuration parameter. You can enable or disable buffering for inserts, delete operations (when index records are initially marked for deletion) and purge operations (when index records are physically deleted). An update operation is a combination of an insert and a delete. The default innodb_change_buffering value is all.

Permitted innodb_change_buffering values include:

  • all

    The default value: buffer inserts, delete-marking operations, and purges.

  • none

    Do not buffer any operations.

  • inserts

    Buffer insert operations.

  • deletes

    Buffer delete-marking operations.

  • changes

    Buffer both inserts and delete-marking operations.

  • purges

    Buffer the physical deletion operations that happen in the background.

You can set the innodb_change_buffering parameter in the MySQL option file (my.cnf or my.ini) or change it dynamically with the SET GLOBAL command, which requires the SUPER privilege. Changing the setting affects the buffering of new operations; the merging of existing buffered entries is not affected.

For related information, see Section 15.4.2, “Change Buffer”. For information about configuring change buffer size, see Section 15.6.5.1, “Configuring the Change Buffer Maximum Size”.

15.6.5.1 Configuring the Change Buffer Maximum Size

As of MySQL 5.6.2, the innodb_change_buffer_max_size configuration option allows you to configure the maximum size of the change buffer as a percentage of the total size of the buffer pool. By default, innodb_change_buffer_max_size is set to 25. The maximum setting is 50.

You might consider increasing innodb_change_buffer_max_size on a MySQL server with heavy insert, update, and delete activity, where change buffer merging does not keep pace with new change buffer entries, causing the change buffer to reach its maximum size limit.

You might consider decreasing innodb_change_buffer_max_size on a MySQL server with static data used for reporting, or if the change buffer consumes too much of the memory space that is shared with the buffer pool, causing pages to age out of the buffer pool sooner than desired.

Test different settings with a representative workload to determine an optimal configuration. The innodb_change_buffer_max_size setting is dynamic, which allows you modify the setting without restarting the server.

15.6.6 Configuring Thread Concurrency for InnoDB

InnoDB uses operating system threads to process requests from user transactions. (Transactions may issue many requests to InnoDB before they commit or roll back.) On modern operating systems and servers with multi-core processors, where context switching is efficient, most workloads run well without any limit on the number of concurrent threads. Scalability improvements in MySQL 5.5 and up reduce the need to limit the number of concurrently executing threads inside InnoDB.

In situations where it is helpful to minimize context switching between threads, InnoDB can use a number of techniques to limit the number of concurrently executing operating system threads (and thus the number of requests that are processed at any one time). When InnoDB receives a new request from a user session, if the number of threads concurrently executing is at a pre-defined limit, the new request sleeps for a short time before it tries again. A request that cannot be rescheduled after the sleep is put in a first-in/first-out queue and eventually is processed. Threads waiting for locks are not counted in the number of concurrently executing threads.

You can limit the number of concurrent threads by setting the configuration parameter innodb_thread_concurrency. Once the number of executing threads reaches this limit, additional threads sleep for a number of microseconds, set by the configuration parameter innodb_thread_sleep_delay, before being placed into the queue.

Previously, it required experimentation to find the optimal value for innodb_thread_sleep_delay, and the optimal value could change depending on the workload. In MySQL 5.6.3 and higher, you can set the configuration option innodb_adaptive_max_sleep_delay to the highest value you would allow for innodb_thread_sleep_delay, and InnoDB automatically adjusts innodb_thread_sleep_delay up or down depending on the current thread-scheduling activity. This dynamic adjustment helps the thread scheduling mechanism to work smoothly during times when the system is lightly loaded and when it is operating near full capacity.

The default value for innodb_thread_concurrency and the implied default limit on the number of concurrent threads has been changed in various releases of MySQL and InnoDB. The default value of innodb_thread_concurrency is 0, so that by default there is no limit on the number of concurrently executing threads.

InnoDB causes threads to sleep only when the number of concurrent threads is limited. When there is no limit on the number of threads, all contend equally to be scheduled. That is, if innodb_thread_concurrency is 0, the value of innodb_thread_sleep_delay is ignored.

When there is a limit on the number of threads (when innodb_thread_concurrency is > 0), InnoDB reduces context switching overhead by permitting multiple requests made during the execution of a single SQL statement to enter InnoDB without observing the limit set by innodb_thread_concurrency. Since an SQL statement (such as a join) may comprise multiple row operations within InnoDB, InnoDB assigns a specified number of tickets that allow a thread to be scheduled repeatedly with minimal overhead.

When a new SQL statement starts, a thread has no tickets, and it must observe innodb_thread_concurrency. Once the thread is entitled to enter InnoDB, it is assigned a number of tickets that it can use for subsequently entering InnoDB to perform row operations. If the tickets run out, the thread is evicted, and innodb_thread_concurrency is observed again which may place the thread back into the first-in/first-out queue of waiting threads. When the thread is once again entitled to enter InnoDB, tickets are assigned again. The number of tickets assigned is specified by the global option innodb_concurrency_tickets, which is 5000 by default. A thread that is waiting for a lock is given one ticket once the lock becomes available.

The correct values of these variables depend on your environment and workload. Try a range of different values to determine what value works for your applications. Before limiting the number of concurrently executing threads, review configuration options that may improve the performance of InnoDB on multi-core and multi-processor computers, such as innodb_adaptive_hash_index.

For general performance information about MySQL thread handling, see Section 9.12.5.1, “How MySQL Uses Threads for Client Connections”.

15.6.7 Configuring the Number of Background InnoDB I/O Threads

InnoDB uses background threads to service various types of I/O requests. You can configure the number of background threads that service read and write I/O on data pages using the innodb_read_io_threads and innodb_write_io_threads configuration parameters. These parameters signify the number of background threads used for read and write requests, respectively. They are effective on all supported platforms. You can set values for these parameters in the MySQL option file (my.cnf or my.ini); you cannot change values dynamically. The default value for these parameters is 4 and permissible values range from 1-64.

The purpose of these configuration options to make InnoDB more scalable on high end systems. Each background thread can handle up to 256 pending I/O requests. A major source of background I/O is read-ahead requests. InnoDB tries to balance the load of incoming requests in such way that most background threads share work equally. InnoDB also attempts to allocate read requests from the same extent to the same thread, to increase the chances of coalescing the requests. If you have a high end I/O subsystem and you see more than 64 × innodb_read_io_threads pending read requests in SHOW ENGINE INNODB STATUS output, you might improve performance by increasing the value of innodb_read_io_threads.

On Linux systems, InnoDB uses the asynchronous I/O subsystem by default to perform read-ahead and write requests for data file pages, which changes the way that InnoDB background threads service these types of I/O requests. For more information, see Section 15.6.8, “Using Asynchronous I/O on Linux”.

For more information about InnoDB I/O performance, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

15.6.8 Using Asynchronous I/O on Linux

InnoDB uses the asynchronous I/O subsystem (native AIO) on Linux to perform readahead and write requests for data file pages. This behavior is controlled by the innodb_use_native_aio configuration option, which applies to Linux systems only and is enabled by default. On other Unix-like systems, InnoDB uses synchronous I/O only. Historically, InnoDB only used asynchronous I/O on Windows systems. Using the asynchronous I/O subsystem on Linux requires the libaio library.

With synchronous I/O, query threads queue I/O requests, and InnoDB background threads retrieve the queued requests one at a time, issuing a synchronous I/O call for each. When an I/O request is completed and the I/O call returns, the InnoDB background thread that is handling the request calls an I/O completion routine and returns to process the next request. The number of requests that can be processed in parallel is n, where n is the number of InnoDB background threads. The number of InnoDB background threads is controlled by innodb_read_io_threads and innodb_write_io_threads. See Section 15.6.7, “Configuring the Number of Background InnoDB I/O Threads”.

With native AIO, query threads dispatch I/O requests directly to the operating system, thereby removing the limit imposed by the number of background threads. InnoDB background threads wait for I/O events to signal completed requests. When a request is completed, a background thread calls an I/O completion routine and resumes waiting for I/O events.

The advantage of native AIO is scalability for heavily I/O-bound systems that typically show many pending reads/writes in SHOW ENGINE INNODB STATUS\G output. The increase in parallel processing when using native AIO means that the type of I/O scheduler or properties of the disk array controller have a greater influence on I/O performance.

A potential disadvantage of native AIO is less control over the number of I/O requests dispatched to the operating system at once. Too many I/O requests dispatched to the operating system for parallel processing could adversely affect disk read response times.

If a problem with the asynchronous I/O subsystem in the OS prevents InnoDB from starting, you can start the server with innodb_use_native_aio=0. This option may also be disabled automatically during startup if InnoDB detects a potential problem such as a combination of tmpdir location, tmpfs file system, and Linux kernel that does not support asynchronous I/O on tmpfs.

15.6.9 Configuring the InnoDB Master Thread I/O Rate

The master thread in InnoDB is a thread that performs various tasks in the background. Most of these tasks are I/O related, such as flushing dirty pages from the buffer pool or writing changes from the insert buffer to the appropriate secondary indexes. The master thread attempts to perform these tasks in a way that does not adversely affect the normal working of the server. It tries to estimate the free I/O bandwidth available and tune its activities to take advantage of this free capacity. Historically, InnoDB has used a hard coded value of 100 IOPs (input/output operations per second) as the total I/O capacity of the server.

The parameter innodb_io_capacity indicates the overall I/O capacity available to InnoDB. This parameter should be set to approximately the number of I/O operations that the system can perform per second. The value depends on your system configuration. When innodb_io_capacity is set, the master threads estimates the I/O bandwidth available for background tasks based on the set value. Setting the value to 100 reverts to the old behavior.

You can set the value of innodb_io_capacity to any number 100 or greater. The default value is 200, reflecting that the performance of typical modern I/O devices is higher than in the early days of MySQL. Typically, values around the previous default of 100 are appropriate for consumer-level storage devices, such as hard drives up to 7200 RPMs. Faster hard drives, RAID configurations, and SSDs benefit from higher values.

The innodb_io_capacity setting is a total limit for all buffer pool instances. When dirty pages are flushed, the innodb_io_capacity limit is divided equally among buffer pool instances. For more information, see the innodb_io_capacity system variable description.

You can set the value of this parameter in the MySQL option file (my.cnf or my.ini) or change it dynamically with the SET GLOBAL command, which requires the SUPER privilege.

The innodb_flush_sync configuration option causes the innodb_io_capacity setting to be ignored during bursts of I/O activity that occur at checkpoints. innodb_flush_sync is enabled by default.

Formerly, the InnoDB master thread also performed any needed purge operations. In MySQL 5.6.5 and higher, those I/O operations are moved to other background threads, whose number is controlled by the innodb_purge_threads configuration option.

For more information about InnoDB I/O performance, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

15.6.10 Configuring Spin Lock Polling

Many InnoDB mutexes and rw-locks are reserved for a short time. On a multi-core system, it can be more efficient for a thread to continuously check if it can acquire a mutex or rw-lock for a while before sleeping. If the mutex or rw-lock becomes available during this polling period, the thread can continue immediately, in the same time slice. However, too-frequent polling by multiple threads of a shared object can cause cache ping pong, different processors invalidating portions of each others' cache. InnoDB minimizes this issue by waiting a random time between subsequent polls. The delay is implemented as a busy loop.

You can control the maximum delay between testing a mutex or rw-lock using the parameter innodb_spin_wait_delay. The duration of the delay loop depends on the C compiler and the target processor. (In the 100MHz Pentium era, the unit of delay was one microsecond.) On a system where all processor cores share a fast cache memory, you might reduce the maximum delay or disable the busy loop altogether by setting innodb_spin_wait_delay=0. On a system with multiple processor chips, the effect of cache invalidation can be more significant and you might increase the maximum delay.

The default value of innodb_spin_wait_delay is 6. The spin wait delay is a dynamic, global parameter that you can specify in the MySQL option file (my.cnf or my.ini) or change at runtime with the command SET GLOBAL innodb_spin_wait_delay=delay, where delay is the desired maximum delay. Changing the setting requires the SUPER privilege.

For performance considerations for InnoDB locking operations, see Section 9.11, “Optimizing Locking Operations”.

15.6.11 Configuring InnoDB Purge Scheduling

The purge operations (a type of garbage collection) that InnoDB performs automatically may be performed by one or more separate threads rather than as part of the master thread. The use of separate threads improves scalability by allowing the main database operations to run independently from maintenance work happening in the background.

To control this feature, increase the value of the configuration option innodb_purge_threads. If DML action is concentrated on a single table or a few tables, keep the setting low so that the threads do not contend with each other for access to the busy tables. If DML operations are spread across many tables, increase the setting. Its maximum is 32.

There is another related configuration option, innodb_purge_batch_size with a default value of 300 and maximum value of 5000. This option is mainly intended for experimentation and tuning of purge operations, and should not be interesting to typical users.

For more information about InnoDB I/O performance, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

15.6.12 Configuring Optimizer Statistics for InnoDB

This section describes how to configure persistent and non-persistent optimizer statistics for InnoDB tables.

Persistent optimizer statistics are persisted across server restarts, allowing for greater plan stability and more consistent query performance. Persistent optimizer statistics also provide control and flexibility with these additional benefits:

  • You can use the innodb_stats_auto_recalc configuration option to control whether statistics are updated automatically after substantial changes to a table.

  • You can use the STATS_PERSISTENT, STATS_AUTO_RECALC, and STATS_SAMPLE_PAGES clauses with CREATE TABLE and ALTER TABLE statements to configure optimizer statistics for individual tables.

  • You can query optimizer statistics data in the mysql.innodb_table_stats and mysql.innodb_index_stats tables.

  • You can view the last_update column of the mysql.innodb_table_stats and mysql.innodb_index_stats tables to see when statistics were last updated.

  • You can manually modify the mysql.innodb_table_stats and mysql.innodb_index_stats tables to force a specific query optimization plan or to test alternative plans without modifying the database.

The persistent optimizer statistics feature is enabled by default (innodb_stats_persistent=ON).

Non-persistent optimizer statistics are cleared on each server restart and after some other operations, and recomputed on the next table access. As a result, different estimates could be produced when recomputing statistics, leading to different choices in execution plans and variations in query performance.

This section also provides information about estimating ANALYZE TABLE complexity, which may be useful when attempting to achieve a balance between accurate statistics and ANALYZE TABLE execution time.

15.6.12.1 Configuring Persistent Optimizer Statistics Parameters

The persistent optimizer statistics feature improves plan stability by storing statistics to disk and making them persistent across server restarts so that the optimizer is more likely to make consistent choices each time for a given query.

Optimizer statistics are persisted to disk when innodb_stats_persistent=ON or when individual tables are created or altered with STATS_PERSISTENT=1. innodb_stats_persistent is enabled by default.

Formerly, optimizer statistics were cleared on each server restart and after some other operations, and recomputed on the next table access. Consequently, different estimates could be produced when recalculating statistics, leading to different choices in query execution plans and thus variations in query performance.

Persistent statistics are stored in the mysql.innodb_table_stats and mysql.innodb_index_stats tables, as described in Section 15.6.12.1.5, “InnoDB Persistent Statistics Tables”.

To revert to using non-persistent optimizer statistics, you can modify tables using an ALTER TABLE tbl_name STATS_PERSISTENT=0 statement. For related information, see Section 15.6.12.2, “Configuring Non-Persistent Optimizer Statistics Parameters”

15.6.12.1.1 Configuring Automatic Statistics Calculation for Persistent Optimizer Statistics

The innodb_stats_auto_recalc configuration option, which is enabled by default, determines whether statistics are calculated automatically whenever a table undergoes substantial changes (to more than 10% of the rows). You can also configure automatic statistics recalculation for individual tables using a STATS_AUTO_RECALC clause in a CREATE TABLE or ALTER TABLE statement. innodb_stats_auto_recalc is enabled by default.

Because of the asynchronous nature of automatic statistics recalculation (which occurs in the background), statistics may not be recalculated instantly after running a DML operation that affects more than 10% of a table, even when innodb_stats_auto_recalc is enabled. In some cases, statistics recalculation may be delayed by a few seconds. If up-to-date statistics are required immediately after changing significant portions of a table, run ANALYZE TABLE to initiate a synchronous (foreground) recalculation of statistics.

If innodb_stats_auto_recalc is disabled, ensure the accuracy of optimizer statistics by issuing the ANALYZE TABLE statement for each applicable table after making substantial changes to indexed columns. You might run this statement in your setup scripts after representative data has been loaded into the table, and run it periodically after DML operations significantly change the contents of indexed columns, or on a schedule at times of low activity. When a new index is added to an existing table, index statistics are calculated and added to the innodb_index_stats table regardless of the value of innodb_stats_auto_recalc.

Caution

To ensure statistics are gathered when a new index is created, either enable the innodb_stats_auto_recalc option, or run ANALYZE TABLE after creating each new index when the persistent statistics mode is enabled.

15.6.12.1.2 Configuring Optimizer Statistics Parameters for Individual Tables

innodb_stats_persistent, innodb_stats_auto_recalc, and innodb_stats_persistent_sample_pages are global configuration options. To override these system-wide settings and configure optimizer statistics parameters for individual tables, you can define STATS_PERSISTENT, STATS_AUTO_RECALC, and STATS_SAMPLE_PAGES clauses in CREATE TABLE or ALTER TABLE statements.

  • STATS_PERSISTENT specifies whether to enable persistent statistics for an InnoDB table. The value DEFAULT causes the persistent statistics setting for the table to be determined by the innodb_stats_persistent configuration option. The value 1 enables persistent statistics for the table, while the value 0 turns off this feature. After enabling persistent statistics through a CREATE TABLE or ALTER TABLE statement, issue an ANALYZE TABLE statement to calculate the statistics, after loading representative data into the table.

  • STATS_AUTO_RECALC specifies whether to automatically recalculate persistent statistics for an InnoDB table. The value DEFAULT causes the persistent statistics setting for the table to be determined by the innodb_stats_auto_recalc configuration option. The value 1 causes statistics to be recalculated when 10% of the data in the table has changed. The value 0 prevents automatic recalculation for this table; with this setting, issue an ANALYZE TABLE statement to recalculate the statistics after making substantial changes to the table.

  • STATS_SAMPLE_PAGES specifies the number of index pages to sample when estimating cardinality and other statistics for an indexed column, such as those calculated by ANALYZE TABLE.

All three clauses are specified in the following CREATE TABLE example:

CREATE TABLE `t1` (
`id` int(8) NOT NULL auto_increment,
`data` varchar(255),
`date` datetime,
PRIMARY KEY  (`id`),
INDEX `DATE_IX` (`date`)
) ENGINE=InnoDB,
  STATS_PERSISTENT=1,
  STATS_AUTO_RECALC=1,
STATS_SAMPLE_PAGES=25;
15.6.12.1.3 Configuring the Number of Sampled Pages for InnoDB Optimizer Statistics

The MySQL query optimizer uses estimated statistics about key distributions to choose the indexes for an execution plan, based on the relative selectivity of the index. Operations such as ANALYZE TABLE cause InnoDB to sample random pages from each index on a table to estimate the cardinality of the index. (This technique is known as random dives.)

To give you control over the quality of the statistics estimate (and thus better information for the query optimizer), you can change the number of sampled pages using the parameter innodb_stats_persistent_sample_pages, which can be set at runtime.

innodb_stats_persistent_sample_pages has a default value of 20. As a general guideline, consider modifying this parameter when encountering the following issues:

  1. Statistics are not accurate enough and the optimizer chooses suboptimal plans, as shown by EXPLAIN output. The accuracy of statistics can be checked by comparing the actual cardinality of an index (as returned by running SELECT DISTINCT on the index columns) with the estimates provided in the mysql.innodb_index_stats persistent statistics table.

    If it is determined that statistics are not accurate enough, the value of innodb_stats_persistent_sample_pages should be increased until the statistics estimates are sufficiently accurate. Increasing innodb_stats_persistent_sample_pages too much, however, could cause ANALYZE TABLE to run slowly.

  2. ANALYZE TABLE is too slow. In this case innodb_stats_persistent_sample_pages should be decreased until ANALYZE TABLE execution time is acceptable. Decreasing the value too much, however, could lead to the first problem of inaccurate statistics and suboptimal query execution plans.

    If a balance cannot be achieved between accurate statistics and ANALYZE TABLE execution time, consider decreasing the number of indexed columns in the table or limiting the number of partitions to reduce ANALYZE TABLE complexity. The number of columns in the table's primary key is also important to consider, as primary key columns are appended to each non-unique index.

    For related information, see Section 15.6.12.3, “Estimating ANALYZE TABLE Complexity for InnoDB Tables”.

15.6.12.1.4 Including Delete-marked Records in Persistent Statistics Calculations

By default, InnoDB reads uncommitted data when calculating statistics. In the case of an uncommitted transaction that deletes rows from a table, InnoDB excludes records that are delete-marked when calculating row estimates and index statistics, which can lead to non-optimal execution plans for other transactions that are operating on the table concurrently using a transaction isolation level other than READ UNCOMMITTED. To avoid this scenario, innodb_stats_include_delete_marked can be enabled to ensure that InnoDB includes delete-marked records when calculating persistent optimizer statistics.

When innodb_stats_include_delete_marked is enabled, ANALYZE TABLE considers delete-marked records when recalculating statistics.

innodb_stats_include_delete_marked is a global setting that affects all InnoDB tables, and it is only applicable to persistent optimizer statistics.

innodb_stats_include_delete_marked was introduced in MySQL 5.7.16.

15.6.12.1.5 InnoDB Persistent Statistics Tables

The persistent statistics feature relies on the internally managed tables in the mysql database, named innodb_table_stats and innodb_index_stats. These tables are set up automatically in all install, upgrade, and build-from-source procedures.

Table 15.3 Columns of innodb_table_stats

Column nameDescription
database_nameDatabase name
table_nameTable name, partition name, or subpartition name
last_updateA timestamp indicating the last time that InnoDB updated this row
n_rowsThe number of rows in the table
clustered_index_sizeThe size of the primary index, in pages
sum_of_other_index_sizesThe total size of other (non-primary) indexes, in pages

Table 15.4 Columns of innodb_index_stats

Column nameDescription
database_nameDatabase name
table_nameTable name, partition name, or subpartition name
index_nameIndex name
last_updateA timestamp indicating the last time that InnoDB updated this row
stat_nameThe name of the statistic, whose value is reported in the stat_value column
stat_valueThe value of the statistic that is named in stat_name column
sample_sizeThe number of pages sampled for the estimate provided in the stat_value column
stat_descriptionDescription of the statistic that is named in the stat_name column

Both the innodb_table_stats and innodb_index_stats tables include a last_update column showing when InnoDB last updated index statistics, as shown in the following example:

mysql> select * from innodb_table_stats \G
*************************** 1. row ***************************
           database_name: sakila
              table_name: actor
             last_update: 2014-05-28 16:16:44
                  n_rows: 200
    clustered_index_size: 1
sum_of_other_index_sizes: 1
...
mysql> select * from innodb_index_stats \G
*************************** 1. row ***************************
   database_name: sakila
      table_name: actor
      index_name: PRIMARY
     last_update: 2014-05-28 16:16:44
       stat_name: n_diff_pfx01
      stat_value: 200
     sample_size: 1
     ...

The innodb_table_stats and innodb_index_stats tables are ordinary tables and can be updated manually. The ability to update statistics manually makes it possible to force a specific query optimization plan or test alternative plans without modifying the database. If you manually update statistics, issue the FLUSH TABLE tbl_name command to make MySQL reload the updated statistics.

15.6.12.1.6 InnoDB Persistent Statistics Tables Example

The innodb_table_stats table contains one row per table. The data collected is demonstrated in the following example.

Table t1 contains a primary index (columns a, b) secondary index (columns c, d), and unique index (columns e, f):

CREATE TABLE t1 (
a INT, b INT, c INT, d INT, e INT, f INT,
PRIMARY KEY (a, b), KEY i1 (c, d), UNIQUE KEY i2uniq (e, f)
) ENGINE=INNODB;

After inserting five rows of sample data, the table appears as follows:

mysql> SELECT * FROM t1;
+---+---+------+------+------+------+
| a | b | c    | d    | e    | f    |
+---+---+------+------+------+------+
| 1 | 1 |   10 |   11 |  100 |  101 |
| 1 | 2 |   10 |   11 |  200 |  102 |
| 1 | 3 |   10 |   11 |  100 |  103 |
| 1 | 4 |   10 |   12 |  200 |  104 |
| 1 | 5 |   10 |   12 |  100 |  105 |
+---+---+------+------+------+------+

To immediately update statistics, run ANALYZE TABLE (if innodb_stats_auto_recalc is enabled, statistics are updated automatically within a few seconds assuming that the 10% threshold for changed table rows is reached):

mysql> ANALYZE TABLE t1;
+---------+---------+----------+----------+
| Table   | Op      | Msg_type | Msg_text |
+---------+---------+----------+----------+
| test.t1 | analyze | status   | OK       |
+---------+---------+----------+----------+

Table statistics for table t1 show the last time InnoDB updated the table statistics (2014-03-14 14:36:34), the number of rows in the table (5), the clustered index size (1 page), and the combined size of the other indexes (2 pages).

mysql> SELECT * FROM mysql.innodb_table_stats WHERE table_name like 't1'\G
*************************** 1. row ***************************
           database_name: test
              table_name: t1
             last_update: 2014-03-14 14:36:34
                  n_rows: 5
    clustered_index_size: 1
sum_of_other_index_sizes: 2

The innodb_index_stats table contains multiple rows for each index. Each row in the innodb_index_stats table provides data related to a particular index statistic which is named in the stat_name column and described in the stat_description column. For example:

mysql> SELECT index_name, stat_name, stat_value, stat_description
    -> FROM mysql.innodb_index_stats WHERE table_name like 't1';
+------------+--------------+------------+-----------------------------------+
| index_name | stat_name    | stat_value | stat_description                  |
+------------+--------------+------------+-----------------------------------+
| PRIMARY    | n_diff_pfx01 |          1 | a                                 |
| PRIMARY    | n_diff_pfx02 |          5 | a,b                               |
| PRIMARY    | n_leaf_pages |          1 | Number of leaf pages in the index |
| PRIMARY    | size         |          1 | Number of pages in the index      |
| i1         | n_diff_pfx01 |          1 | c                                 |
| i1         | n_diff_pfx02 |          2 | c,d                               |
| i1         | n_diff_pfx03 |          2 | c,d,a                             |
| i1         | n_diff_pfx04 |          5 | c,d,a,b                           |
| i1         | n_leaf_pages |          1 | Number of leaf pages in the index |
| i1         | size         |          1 | Number of pages in the index      |
| i2uniq     | n_diff_pfx01 |          2 | e                                 |
| i2uniq     | n_diff_pfx02 |          5 | e,f                               |
| i2uniq     | n_leaf_pages |          1 | Number of leaf pages in the index |
| i2uniq     | size         |          1 | Number of pages in the index      |
+------------+--------------+------------+-----------------------------------+

The stat_name column shows the following types of statistics:

  • size: Where stat_name=size, the stat_value column displays the total number of pages in the index.

  • n_leaf_pages: Where stat_name=n_leaf_pages, the stat_value column displays the number of leaf pages in the index.

  • n_diff_pfxNN: Where stat_name=n_diff_pfx01, the stat_value column displays the number of distinct values in the first column of the index. Where stat_name=n_diff_pfx02, the stat_value column displays the number of distinct values in the first two columns of the index, and so on. Additionally, where stat_name=n_diff_pfxNN, the stat_description column shows a comma separated list of the index columns that are counted.

To further illustrate the n_diff_pfxNN statistic, which provides cardinality data, consider the t1 table example. As shown below, the t1 table is created with a primary index (columns a, b), a secondary index (columns c, d), and a unique index (columns e, f):

CREATE TABLE t1 (
  a INT, b INT, c INT, d INT, e INT, f INT,
  PRIMARY KEY (a, b), KEY i1 (c, d), UNIQUE KEY i2uniq (e, f)
) ENGINE=INNODB;

After inserting five rows of sample data, the table appears as follows:

mysql> SELECT * FROM t1;
+---+---+------+------+------+------+
| a | b | c    | d    | e    | f    |
+---+---+------+------+------+------+
| 1 | 1 |   10 |   11 |  100 |  101 |
| 1 | 2 |   10 |   11 |  200 |  102 |
| 1 | 3 |   10 |   11 |  100 |  103 |
| 1 | 4 |   10 |   12 |  200 |  104 |
| 1 | 5 |   10 |   12 |  100 |  105 |
+---+---+------+------+------+------+

When you query the index_name, stat_name, stat_value, and stat_description where stat_name LIKE 'n_diff%', the following result set is returned:

mysql> SELECT index_name, stat_name, stat_value, stat_description
    -> FROM mysql.innodb_index_stats
    -> WHERE table_name like 't1' AND stat_name LIKE 'n_diff%';
+------------+--------------+------------+------------------+
| index_name | stat_name    | stat_value | stat_description |
+------------+--------------+------------+------------------+
| PRIMARY    | n_diff_pfx01 |          1 | a                |
| PRIMARY    | n_diff_pfx02 |          5 | a,b              |
| i1         | n_diff_pfx01 |          1 | c                |
| i1         | n_diff_pfx02 |          2 | c,d              |
| i1         | n_diff_pfx03 |          2 | c,d,a            |
| i1         | n_diff_pfx04 |          5 | c,d,a,b          |
| i2uniq     | n_diff_pfx01 |          2 | e                |
| i2uniq     | n_diff_pfx02 |          5 | e,f              |
+------------+--------------+------------+------------------+

For the PRIMARY index, there are two n_diff% rows. The number of rows is equal to the number of columns in the index.

Note

For non-unique indexes, InnoDB appends the columns of the primary key.

  • Where index_name=PRIMARY and stat_name=n_diff_pfx01, the stat_value is 1, which indicates that there is a single distinct value in the first column of the index (column a). The number of distinct values in column a is confirmed by viewing the data in column a in table t1, in which there is a single distinct value (1). The counted column (a) is shown in the stat_description column of the result set.

  • Where index_name=PRIMARY and stat_name=n_diff_pfx02, the stat_value is 5, which indicates that there are five distinct values in the two columns of the index (a,b). The number of distinct values in columns a and b is confirmed by viewing the data in columns a and b in table t1, in which there are five distinct values: (1,1), (1,2), (1,3), (1,4) and (1,5). The counted columns (a,b) are shown in the stat_description column of the result set.

For the secondary index (i1), there are four n_diff% rows. Only two columns are defined for the secondary index (c,d) but there are four n_diff% rows for the secondary index because InnoDB suffixes all non-unique indexes with the primary key. As a result, there are four n_diff% rows instead of two to account for the both the secondary index columns (c,d) and the primary key columns (a,b).

  • Where index_name=i1 and stat_name=n_diff_pfx01, the stat_value is 1, which indicates that there is a single distinct value in the first column of the index (column c). The number of distinct values in column c is confirmed by viewing the data in column c in table t1, in which there is a single distinct value: (10). The counted column (c) is shown in the stat_description column of the result set.

  • Where index_name=i1 and stat_name=n_diff_pfx02, the stat_value is 2, which indicates that there are two distinct values in the first two columns of the index (c,d). The number of distinct values in columns c an d is confirmed by viewing the data in columns c and d in table t1, in which there are two distinct values: (10,11) and (10,12). The counted columns (c,d) are shown in the stat_description column of the result set.

  • Where index_name=i1 and stat_name=n_diff_pfx03, the stat_value is 2, which indicates that there are two distinct values in the first three columns of the index (c,d,a). The number of distinct values in columns c, d, and a is confirmed by viewing the data in column c, d, and a in table t1, in which there are two distinct values: (10,11,1) and (10,12,1). The counted columns (c,d,a) are shown in the stat_description column of the result set.

  • Where index_name=i1 and stat_name=n_diff_pfx04, the stat_value is 5, which indicates that there are five distinct values in the four columns of the index (c,d,a,b). The number of distinct values in columns c, d, a and b is confirmed by viewing the data in columns c, d, a, and b in table t1, in which there are five distinct values: (10,11,1,1), (10,11,1,2), (10,11,1,3), (10,12,1,4) and (10,12,1,5). The counted columns (c,d,a,b) are shown in the stat_description column of the result set.

For the unique index (i2uniq), there are two n_diff% rows.

  • Where index_name=i2uniq and stat_name=n_diff_pfx01, the stat_value is 2, which indicates that there are two distinct values in the first column of the index (column e). The number of distinct values in column e is confirmed by viewing the data in column e in table t1, in which there are two distinct values: (100) and (200). The counted column (e) is shown in the stat_description column of the result set.

  • Where index_name=i2uniq and stat_name=n_diff_pfx02, the stat_value is 5, which indicates that there are five distinct values in the two columns of the index (e,f). The number of distinct values in columns e and f is confirmed by viewing the data in columns e and f in table t1, in which there are five distinct values: (100,101), (200,102), (100,103), (200,104) and (100,105). The counted columns (e,f) are shown in the stat_description column of the result set.

15.6.12.1.7 Retrieving Index Size Using the innodb_index_stats Table

The size of indexes for tables, partitions, or subpartitions can be retrieved using the innodb_index_stats table. In the following example, index sizes are retrieved for table t1. For a definition of table t1 and corresponding index statistics, see Section 15.6.12.1.6, “InnoDB Persistent Statistics Tables Example”.

mysql> SELECT SUM(stat_value) pages, index_name,
    -> SUM(stat_value)*@@innodb_page_size size
    -> FROM mysql.innodb_index_stats WHERE table_name='t1'
    -> AND stat_name = 'size' GROUP BY index_name;
+-------+------------+-------+
| pages | index_name | size  |
+-------+------------+-------+
|     1 | PRIMARY    | 16384 |
|     1 | i1         | 16384 |
|     1 | i2uniq     | 16384 |
+-------+------------+-------+

For partitions or subpartitions, the same query with a modified WHERE clause can be used to retrieve index sizes. For example, the following query retrieves index sizes for partitions of table t1:

mysql> SELECT SUM(stat_value) pages, index_name,
    -> SUM(stat_value)*@@innodb_page_size size
    -> FROM mysql.innodb_index_stats WHERE table_name like 't1#P%'
-> AND stat_name = 'size' GROUP BY index_name;

15.6.12.2 Configuring Non-Persistent Optimizer Statistics Parameters

This section describes how to configure non-persistent optimizer statistics. Optimizer statistics are not persisted to disk when innodb_stats_persistent=OFF or when individual tables are created or altered with STATS_PERSISTENT=0. Instead, statistics are stored in memory, and are lost when the server is shut down. Statistics are also updated periodically by certain operations and under certain conditions.

As of MySQL 5.6.6, optimizer statistics are persisted to disk by default, enabled by the innodb_stats_persistent configuration option. For information about persistent optimizer statistics, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”.

Optimizer Statistics Updates

Non-persistent optimizer statistics are updated when:

Configuring the Number of Sampled Pages

The MySQL query optimizer uses estimated statistics about key distributions to choose the indexes for an execution plan, based on the relative selectivity of the index. When InnoDB updates optimizer statistics, it samples random pages from each index on a table to estimate the cardinality of the index. (This technique is known as random dives.)

To give you control over the quality of the statistics estimate (and thus better information for the query optimizer), you can change the number of sampled pages using the parameter innodb_stats_transient_sample_pages. The default number of sampled pages is 8, which could be insufficient to produce an accurate estimate, leading to poor index choices by the query optimizer. This technique is especially important for large tables and tables used in joins. Unnecessary full table scans for such tables can be a substantial performance issue. See Section 9.2.1.19, “Avoiding Full Table Scans” for tips on tuning such queries. innodb_stats_transient_sample_pages is a global parameter that can be set at runtime.

The value of innodb_stats_transient_sample_pages affects the index sampling for all InnoDB tables and indexes when innodb_stats_persistent=0. Be aware of the following potentially significant impacts when you change the index sample size:

  • Small values like 1 or 2 can result in inaccurate estimates of cardinality.

  • Increasing the innodb_stats_transient_sample_pages value might require more disk reads. Values much larger than 8 (say, 100), can cause a significant slowdown in the time it takes to open a table or execute SHOW TABLE STATUS.

  • The optimizer might choose very different query plans based on different estimates of index selectivity.

Whatever value of innodb_stats_transient_sample_pages works best for a system, set the option and leave it at that value. Choose a value that results in reasonably accurate estimates for all tables in your database without requiring excessive I/O. Because the statistics are automatically recalculated at various times other than on execution of ANALYZE TABLE, it does not make sense to increase the index sample size, run ANALYZE TABLE, then decrease sample size again.

Smaller tables generally require fewer index samples than larger tables. If your database has many large tables, consider using a higher value for innodb_stats_transient_sample_pages than if you have mostly smaller tables.

15.6.12.3 Estimating ANALYZE TABLE Complexity for InnoDB Tables

ANALYZE TABLE complexity for InnoDB tables is dependent on:

  • The number of pages sampled, as defined by innodb_stats_persistent_sample_pages.

  • The number of indexed columns in a table

  • The number of partitions. If a table has no partitions, the number of partitions is considered to be 1.

Using these parameters, an approximate formula for estimating ANALYZE TABLE complexity would be:

The value of innodb_stats_persistent_sample_pages * number of indexed columns in a table * the number of partitions

Typically, the greater the resulting value, the greater the execution time for ANALYZE TABLE.

Note

innodb_stats_persistent_sample_pages defines the number of pages sampled at a global level. To set the number of pages sampled for an individual table, use the STATS_SAMPLE_PAGES option with CREATE TABLE or ALTER TABLE. For more information, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”.

If innodb_stats_persistent=OFF, the number of pages sampled is defined by innodb_stats_transient_sample_pages. See Section 15.6.12.2, “Configuring Non-Persistent Optimizer Statistics Parameters” for additional information.

For a more in-depth approach to estimating ANALYZE TABLE complexity, consider the following example.

In Big O notation, ANALYZE TABLE complexity is described as:

 O(n_sample
  * (n_cols_in_uniq_i
     + n_cols_in_non_uniq_i
     + n_cols_in_pk * (1 + n_non_uniq_i))
  * n_part)

where:

  • n_sample is the number of pages sampled (defined by innodb_stats_persistent_sample_pages)

  • n_cols_in_uniq_i is total number of all columns in all unique indexes (not counting the primary key columns)

  • n_cols_in_non_uniq_i is the total number of all columns in all non-unique indexes

  • n_cols_in_pk is the number of columns in the primary key (if a primary key is not defined, InnoDB creates a single column primary key internally)

  • n_non_uniq_i is the number of non-unique indexes in the table

  • n_part is the number of partitions. If no partitions are defined, the table is considered to be a single partition.

Now, consider the following table (table t), which has a primary key (2 columns), a unique index (2 columns), and two non-unique indexes (two columns each):

 CREATE TABLE t (
  a INT,
  b INT,
  c INT,
  d INT,
  e INT,
  f INT,
  g INT,
  h INT,
  PRIMARY KEY (a, b),
  UNIQUE KEY i1uniq (c, d),
  KEY i2nonuniq (e, f),
  KEY i3nonuniq (g, h)
);

For the column and index data required by the algorithm described above, query the mysql.innodb_index_stats persistent index statistics table for table t. The n_diff_pfx% statistics show the columns that are counted for each index. For example, columns a and b are counted for the primary key index. For the non-unique indexes, the primary key columns (a,b) are counted in addition to the user defined columns.

Note

For additional information about the InnoDB persistent statistics tables, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”

  SELECT index_name, stat_name, stat_description
  FROM mysql.innodb_index_stats
  WHERE
  database_name='test' AND
  table_name='t' AND
  stat_name like 'n_diff_pfx%';

  +------------+--------------+------------------+
  | index_name | stat_name    | stat_description |
  +------------+--------------+------------------+
  | PRIMARY    | n_diff_pfx01 | a                |
  | PRIMARY    | n_diff_pfx02 | a,b              |
  | i1uniq     | n_diff_pfx01 | c                |
  | i1uniq     | n_diff_pfx02 | c,d              |
  | i2nonuniq  | n_diff_pfx01 | e                |
  | i2nonuniq  | n_diff_pfx02 | e,f              |
  | i2nonuniq  | n_diff_pfx03 | e,f,a            |
  | i2nonuniq  | n_diff_pfx04 | e,f,a,b          |
  | i3nonuniq  | n_diff_pfx01 | g                |
  | i3nonuniq  | n_diff_pfx02 | g,h              |
  | i3nonuniq  | n_diff_pfx03 | g,h,a            |
  | i3nonuniq  | n_diff_pfx04 | g,h,a,b          |
  +------------+--------------+------------------+

Based on the index statistics data shown above and the table definition, the following values can be determined:

  • n_cols_in_uniq_i, the total number of all columns in all unique indexes not counting the primary key columns, is 2 (c and d)

  • n_cols_in_non_uniq_i, the total number of all columns in all non-unique indexes, is 4 (e, f, g and h)

  • n_cols_in_pk, the number of columns in the primary key, is 2 (a and b)

  • n_non_uniq_i, the number of non-unique indexes in the table, is 2 (i2nonuniq and i3nonuniq))

  • n_part, the number of partitions, is 1.

You can now calculate innodb_stats_persistent_sample_pages * (2 + 4 + 2 * (1 + 2)) * 1 to determine the number of leaf pages that are scanned. With innodb_stats_persistent_sample_pages set to the default value of 20, and with a default page size of 16 KiB (innodb_page_size=16384), you can then estimate that 20 * 12 * 16384 bytes are read for table t, or about 4 MiB.

Note

All 4 MiB may not be read from disk, as some leaf pages may already be cached in the buffer pool.

15.6.13 Configuring the Merge Threshold for Index Pages

You can configure the MERGE_THRESHOLD value for index pages. If the page-full percentage for an index page falls below the MERGE_THRESHOLD value when a row is deleted or when a row is shortened by an UPDATE operation, InnoDB attempts to merge the index page with a neighboring index page. The default MERGE_THRESHOLD value is 50, which is the previously hardcoded value. The minimum MERGE_THRESHOLD value is 1 and the maximum value is 50.

When the page-full percentage for an index page falls below 50%, which is the default MERGE_THRESHOLD setting, InnoDB attempts to merge the index page with a neighboring page. If both pages are close to 50% full, a page split can occur soon after the pages are merged. If this merge-split behavior occurs frequently, it can have an adverse affect on performance. To avoid frequent merge-splits, you can lower the MERGE_THRESHOLD value so that InnoDB attempts page merges at a lower page-full percentage. Merging pages at a lower page-full percentage leaves more room in index pages and helps reduce merge-split behavior.

The MERGE_THRESHOLD for index pages can be defined for a table or for individual indexes. A MERGE_THRESHOLD value defined for an individual index takes priority over a MERGE_THRESHOLD value defined for the table. If undefined, the MERGE_THRESHOLD value defaults to 50.

Setting MERGE_THRESHOLD for a Table

You can set the MERGE_THRESHOLD value for a table using the table_option COMMENT clause of the CREATE TABLE statement. For example:

CREATE TABLE t1 (
   id INT,
  KEY id_index (id)
) COMMENT='MERGE_THRESHOLD=45';

You can also set the MERGE_THRESHOLD value for an existing table using the table_option COMMENT clause with ALTER TABLE:

CREATE TABLE t1 (
   id INT,
  KEY id_index (id)
);

ALTER TABLE t1 COMMENT='MERGE_THRESHOLD=40';

Setting MERGE_THRESHOLD for Individual Indexes

To set the MERGE_THRESHOLD value for an individual index, you can use the index_option COMMENT clause with CREATE TABLE, ALTER TABLE, or CREATE INDEX, as shown in the following examples:

  • Setting MERGE_THRESHOLD for an individual index using CREATE TABLE:

    CREATE TABLE t1 (
       id INT,
      KEY id_index (id) COMMENT 'MERGE_THRESHOLD=40'
    );
  • Setting MERGE_THRESHOLD for an individual index using ALTER TABLE:

    CREATE TABLE t1 (
       id INT,
      KEY id_index (id)
    );

    ALTER TABLE t1 DROP KEY id_index;
    ALTER TABLE t1 ADD KEY id_index (id) COMMENT 'MERGE_THRESHOLD=40';
  • Setting MERGE_THRESHOLD for an individual index using CREATE INDEX:

    CREATE TABLE t1 (id INT);
    CREATE INDEX id_index ON t1 (id) COMMENT 'MERGE_THRESHOLD=40';
Note

You cannot modify the MERGE_THRESHOLD value at the index level for GEN_CLUST_INDEX, which is the clustered index created by InnoDB when an InnoDB table is created without a primary key or unique key index. You can only modify the MERGE_THRESHOLD value for GEN_CLUST_INDEX by setting MERGE_THRESHOLD for the table.

Querying the MERGE_THRESHOLD Value for an Index

The current MERGE_THRESHOLD value for an index can be obtained by querying the INNODB_SYS_INDEXES table. For example:

mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_INDEXES WHERE NAME='id_index' \G
*************************** 1. row ***************************
       INDEX_ID: 91
           NAME: id_index
       TABLE_ID: 68
           TYPE: 0
       N_FIELDS: 1
        PAGE_NO: 4
          SPACE: 57
MERGE_THRESHOLD: 40

You can use SHOW CREATE TABLE to view the MERGE_THRESHOLD value for a table, if explicitly defined using the table_option COMMENT clause:

mysql> SHOW CREATE TABLE t2 \G
*************************** 1. row ***************************
       Table: t2
Create Table: CREATE TABLE `t2` (
  `id` int(11) DEFAULT NULL,
  KEY `id_index` (`id`) COMMENT 'MERGE_THRESHOLD=40'
) ENGINE=InnoDB DEFAULT CHARSET=latin1
Note

A MERGE_THRESHOLD value defined at the index level takes priority over a MERGE_THRESHOLD value defined for the table. If undefined, MERGE_THRESHOLD defaults to 50% (MERGE_THRESHOLD=50, which is the previously hardcoded value.

Likewise, you can use SHOW INDEX to view the MERGE_THRESHOLD value for an index, if explicitly defined using the index_option COMMENT clause:

mysql> SHOW INDEX FROM t2 \G
*************************** 1. row ***************************
        Table: t2
   Non_unique: 1
     Key_name: id_index
 Seq_in_index: 1
  Column_name: id
    Collation: A
  Cardinality: 0
     Sub_part: NULL
       Packed: NULL
         Null: YES
   Index_type: BTREE
      Comment:
Index_comment: MERGE_THRESHOLD=40

Measuring the Effect of MERGE_THRESHOLD Settings

The INNODB_METRICS table provides two counters that can be used to measure the effect of a MERGE_THRESHOLD setting on index page merges.

mysql> SELECT NAME, COMMENT FROM INFORMATION_SCHEMA.INNODB_METRICS
WHERE NAME like '%index_page_merge%';
+-----------------------------+----------------------------------------+
| NAME                        | COMMENT                                |
+-----------------------------+----------------------------------------+
| index_page_merge_attempts   | Number of index page merge attempts    |
| index_page_merge_successful | Number of successful index page merges |
+-----------------------------+----------------------------------------+

When lowering the MERGE_THRESHOLD value, the objectives are:

  • A smaller number of page merge attempts and successful page merges

  • A similar number of page merge attempts and successful page merges

A MERGE_THRESHOLD setting that is too small could result in large data files due to an excessive amount of empty page space.

For information about using INNODB_METRICS counters, see Section 15.15.6, “InnoDB INFORMATION_SCHEMA Metrics Table”.

15.7 InnoDB Tablespaces

15.7.1 Resizing the InnoDB System Tablespace

This section describes how to increase or decrease the size of the InnoDB system tablespace.

Increasing the Size of the InnoDB System Tablespace

The easiest way to increase the size of the InnoDB system tablespace is to configure it from the beginning to be auto-extending. Specify the autoextend attribute for the last data file in the tablespace definition. Then InnoDB increases the size of that file automatically in 64MB increments when it runs out of space. The increment size can be changed by setting the value of the innodb_autoextend_increment system variable, which is measured in megabytes.

You can expand the system tablespace by a defined amount by adding another data file:

  1. Shut down the MySQL server.

  2. If the previous last data file is defined with the keyword autoextend, change its definition to use a fixed size, based on how large it has actually grown. Check the size of the data file, round it down to the closest multiple of 1024 × 1024 bytes (= 1MB), and specify this rounded size explicitly in innodb_data_file_path.

  3. Add a new data file to the end of innodb_data_file_path, optionally making that file auto-extending. Only the last data file in the innodb_data_file_path can be specified as auto-extending.

  4. Start the MySQL server again.

For example, this tablespace has just one auto-extending data file ibdata1:

innodb_data_home_dir =
innodb_data_file_path = /ibdata/ibdata1:10M:autoextend

Suppose that this data file, over time, has grown to 988MB. Here is the configuration line after modifying the original data file to use a fixed size and adding a new auto-extending data file:

innodb_data_home_dir =
innodb_data_file_path = /ibdata/ibdata1:988M;/disk2/ibdata2:50M:autoextend

When you add a new data file to the system tablespace configuration, make sure that the filename does not refer to an existing file. InnoDB creates and initializes the file when you restart the server.

Decreasing the Size of the InnoDB System Tablespace

You cannot remove a data file from the system tablespace. To decrease the system tablespace size, use this procedure:

  1. Use mysqldump to dump all your InnoDB tables, including InnoDB tables located in the MySQL database. As of 5.6, there are five InnoDB tables included in the MySQL database:

    mysql> select table_name from information_schema.tables where table_schema='mysql' and engine='InnoDB';
    +----------------------+
    | table_name           |
    +----------------------+
    | innodb_index_stats   |
    | innodb_table_stats   |
    | slave_master_info    |
    | slave_relay_log_info |
    | slave_worker_info    |
    +----------------------+
    5 rows in set (0.00 sec)

  2. Stop the server.

  3. Remove all the existing tablespace files (*.ibd), including the ibdata and ib_log files. Do not forget to remove *.ibd files for tables located in the MySQL database.

  4. Remove any .frm files for InnoDB tables.

  5. Configure a new tablespace.

  6. Restart the server.

  7. Import the dump files.

Note

If your databases only use the InnoDB engine, it may be simpler to dump all databases, stop the server, remove all databases and InnoDB log files, restart the server, and import the dump files.

15.7.2 Changing the Number or Size of InnoDB Redo Log Files

To change the number or the size of your InnoDB redo log files, perform the following steps:

  1. Stop the MySQL server and make sure that it shuts down without errors.

  2. Edit my.cnf to change the log file configuration. To change the log file size, configure innodb_log_file_size. To increase the number of log files, configure innodb_log_files_in_group.

  3. Start the MySQL server again.

If InnoDB detects that the innodb_log_file_size differs from the redo log file size, it writes a log checkpoint, closes and removes the old log files, creates new log files at the requested size, and opens the new log files.

15.7.3 Using Raw Disk Partitions for the System Tablespace

You can use raw disk partitions as data files in the InnoDB system tablespace. This technique enables nonbuffered I/O on Windows and on some Linux and Unix systems without file system overhead. Perform tests with and without raw partitions to verify whether this change actually improves performance on your system.

When you use a raw disk partition, ensure that the user ID that runs the MySQL server has read and write privileges for that partition. For example, if you run the server as the mysql user, the partition must be readable and writeable by mysql. If you run the server with the --memlock option, the server must be run as root, so the partition must be readable and writeable by root.

The procedures described below involve option file modification. For additional information, see Section 5.2.6, “Using Option Files”.

Allocating a Raw Disk Partition on Linux and Unix Systems

  1. When you create a new data file, specify the keyword newraw immediately after the data file size for the innodb_data_file_path option. The partition must be at least as large as the size that you specify. Note that 1MB in InnoDB is 1024 × 1024 bytes, whereas 1MB in disk specifications usually means 1,000,000 bytes.

    [mysqld]
    innodb_data_home_dir=
    innodb_data_file_path=/dev/hdd1:3Gnewraw;/dev/hdd2:2Gnewraw

  2. Restart the server. InnoDB notices the newraw keyword and initializes the new partition. However, do not create or change any InnoDB tables yet. Otherwise, when you next restart the server, InnoDB reinitializes the partition and your changes are lost. (As a safety measure InnoDB prevents users from modifying data when any partition with newraw is specified.)

  3. After InnoDB has initialized the new partition, stop the server, change newraw in the data file specification to raw:

    [mysqld]
    innodb_data_home_dir=
    innodb_data_file_path=/dev/hdd1:3Graw;/dev/hdd2:2Graw

  4. Restart the server. InnoDB now permits changes to be made.

Allocating a Raw Disk Partition on Windows

On Windows systems, the same steps and accompanying guidelines described for Linux and Unix systems apply except that the innodb_data_file_path setting differs slightly on Windows.

  1. When you create a new data file, specify the keyword newraw immediately after the data file size for the innodb_data_file_path option:

    [mysqld]
    innodb_data_home_dir=
    innodb_data_file_path=//./D::10Gnewraw


    The //./ corresponds to the Windows syntax of \\.\ for accessing physical drives. In the example above, D: is the drive letter of the partition.

  2. Restart the server. InnoDB notices the newraw keyword and initializes the new partition.

  3. After InnoDB has initialized the new partition, stop the server, change newraw in the data file specification to raw:

    [mysqld]
    innodb_data_home_dir=
    innodb_data_file_path=//./D::10Graw

  4. Restart the server. InnoDB now permits changes to be made.

15.7.4 InnoDB File-Per-Table Tablespaces

Historically, all InnoDB tables and indexes were stored in the system tablespace. This monolithic approach was targeted at machines dedicated entirely to database processing, with carefully planned data growth, where any disk storage allocated to MySQL would never be needed for other purposes. InnoDB's file-per-table tablespace feature provides a more flexible alternative, where each InnoDB table and its indexes are stored in a separate .ibd data file. Each such .ibd data file represents an individual tablespace. This feature is controlled by the innodb_file_per_table configuration option, which is enabled by default in MySQL 5.6.6 and higher.

Advantages of File-Per-Table Tablespaces

  • You can reclaim disk space when truncating or dropping a table stored in a file-per-table tablepace. Truncating or dropping tables stored in the shared system tablespace creates free space internally in the system tablespace data files (ibdata files) which can only be used for new InnoDB data.

    Similarly, a table-copying ALTER TABLE operation on table that resides in a shared tablespace can increase the amount of space used by the tablespace. Such operations may require as much additional space as the data in the table plus indexes. The additional space required for the table-copying ALTER TABLE operation is not released back to the operating system as it is for file-per-table tablespaces.

  • The TRUNCATE TABLE operation is faster when run on tables stored in file-per-table tablepaces.

  • You can store specific tables on separate storage devices, for I/O optimization, space management, or backup purposes. In previous releases, you had to move entire database directories to other drives and create symbolic links in the MySQL data directory, as described in Section 9.12.3, “Using Symbolic Links”. In MySQL 5.6.6 and higher, you can specify the location of each table using the syntax CREATE TABLE ... DATA DIRECTORY = absolute_path_to_directory, as explained in Section 15.7.5, “Creating a File-Per-Table Tablespace Outside the Data Directory”.

  • You can run OPTIMIZE TABLE to compact or recreate a file-per-table tablespace. When you run an OPTIMIZE TABLE, InnoDB creates a new .ibd file with a temporary name, using only the space required to store actual data. When the optimization is complete, InnoDB removes the old .ibd file and replaces it with the new one. If the previous .ibd file grew significantly but the actual data only accounted for a portion of its size, running OPTIMIZE TABLE can reclaim the unused space.

  • You can move individual InnoDB tables rather than entire databases.

  • You can copy individual InnoDB tables from one MySQL instance to another (known as the transportable tablespace feature).

  • Tables created in file-per-table tablespaces use the Barracuda file format. The Barracuda file format enables features such as compressed and dynamic row formats.

  • You can enable more efficient storage for tables with large BLOB or TEXT columns using the dynamic row format.

  • File-per-table tablespaces may improve chances for a successful recovery and save time when a corruption occurs, when a server cannot be restarted, or when backup and binary logs are unavailable.

  • File-per-table tablespaces are convenient for per-table status reporting when copying or backing up tables.

  • You can monitor table size at a file system level, without accessing MySQL.

  • Common Linux file systems do not permit concurrent writes to a single file when innodb_flush_method is set to O_DIRECT. As a result, there are possible performance improvements when using file-per-table tablespaces in conjunction with innodb_flush_method.

  • The system tablespace stores the data dictionary and undo logs, and is limited in size by InnoDB tablespace size limits. See Section 15.8.8, “Limits on InnoDB Tables”. With file-per-table tablespaces, each table has its own tablespace, which provides room for growth.

Potential Disadvantages of File-Per-Table Tablespaces

  • With file-per-table tablespaces, each table may have unused space, which can only be utilized by rows of the same table. This could lead to wasted space if not properly managed.

  • fsync operations must run on each open table rather than on a single file. Because there is a separate fsync operation for each file, write operations on multiple tables cannot be combined into a single I/O operation. This may require InnoDB to perform a higher total number of fsync operations.

  • mysqld must keep one open file handle per table, which may impact performance if you have numerous tables in file-per-table tablespaces.

  • More file descriptors are used.

  • innodb_file_per_table is enabled by default in MySQL 5.6.6 and higher. You may consider disabling it if backward compatibility with MySQL 5.5 or 5.1 is a concern. Disabling innodb_file_per_table prevents ALTER TABLE from moving an InnoDB table from the system tablespace to an individual .ibd file in cases where ALTER TABLE recreates the table (ALGORITHM=COPY).

    For example, when restructuring the clustered index for an InnoDB table, the table is re-created using the current setting for innodb_file_per_table. This behavior does not apply when adding or dropping InnoDB secondary indexes. When a secondary index is created without rebuilding the table, the index is stored in the same file as the table data, regardless of the current innodb_file_per_table setting. This behavior also does not apply to tables added to the system tablespace using CREATE TABLE ... TABLESPACE or ALTER TABLE ... TABLESPACE syntax. These tables are not affected by the innodb_file_per_table setting.

  • If many tables are growing there is potential for more fragmentation which can impede DROP TABLE and table scan performance. However, when fragmentation is managed, having files in their own tablespace can improve performance.

  • The buffer pool is scanned when dropping a file-per-table tablespace, which can take several seconds for buffer pools that are tens of gigabytes in size. The scan is performed with a broad internal lock, which may delay other operations. Tables in the system tablespace are not affected.

  • The innodb_autoextend_increment variable, which defines increment size (in MB) for extending the size of an auto-extending shared tablespace file when it becomes full, does not apply to file-per-table tablespace files, which are auto-extending regardless of the innodb_autoextend_increment setting. The initial extensions are by small amounts, after which extensions occur in increments of 4MB.

15.7.4.1 Enabling and Disabling File-Per-Table Tablespaces

The innodb_file_per_table option is enabled by default as of MySQL 5.6.6.

To set the innodb_file_per_table option at startup, start the server with the --innodb_file_per_table command-line option, or add this line to the [mysqld] section of my.cnf:

[mysqld]
innodb_file_per_table=1

You can also set innodb_file_per_table dynamically, while the server is running:

SET GLOBAL innodb_file_per_table=1;

With innodb_file_per_table enabled, you can store InnoDB tables in a tbl_name.ibd file. Unlike the MyISAM storage engine, with its separate tbl_name.MYD and tbl_name.MYI files for indexes and data, InnoDB stores the data and the indexes together in a single .ibd file. The tbl_name.frm file is still created as usual.

If you disable innodb_file_per_table in your startup options and restart the server, or disable it with the SET GLOBAL command, InnoDB creates new tables inside the system tablespace unless you have explicitly placed the table in file-per-table tablespace or general tablespace using the CREATE TABLE ... TABLESPACE option.

You can always read and write any InnoDB tables, regardless of the file-per-table setting.

To move a table from the system tablespace to its own tablespace, change the innodb_file_per_table setting and rebuild the table:

SET GLOBAL innodb_file_per_table=1;
ALTER TABLE table_name ENGINE=InnoDB;

Tables added to the system tablespace using CREATE TABLE ... TABLESPACE or ALTER TABLE ... TABLESPACE syntax are not affected by the innodb_file_per_table setting. To move these tables from the system tablespace to a file-per-table tablespace, they must be moved explicitly using ALTER TABLE ... TABLESPACE syntax.

Note

InnoDB always needs the system tablespace because it puts its internal data dictionary and undo logs there. The .ibd files are not sufficient for InnoDB to operate.

When a table is moved out of the system tablespace into its own .ibd file, the data files that make up the system tablespace remain the same size. The space formerly occupied by the table can be reused for new InnoDB data, but is not reclaimed for use by the operating system. When moving large InnoDB tables out of the system tablespace, where disk space is limited, you may prefer to enable innodb_file_per_table and recreate the entire instance using the mysqldump command. As mentioned above, tables added to the system tablespace using CREATE TABLE ... TABLESPACE or ALTER TABLE ... TABLESPACE syntax are not affected by the innodb_file_per_table setting. These tables must be moved individually.

15.7.5 Creating a File-Per-Table Tablespace Outside the Data Directory

To create a new InnoDB file-per-table tablespace in a specific location outside the MySQL data directory, use the DATA DIRECTORY = absolute_path_to_directory clause of the CREATE TABLE statement.

Plan the location in advance, because you cannot use the DATA DIRECTORY clause with the ALTER TABLE statement. The directory you specify could be on another storage device with particular performance or capacity characteristics, such as a fast SSD or a high-capacity HDD.

Within the destination directory, MySQL creates a subdirectory corresponding to the database name, and within that a .ibd file for the new table. In the database directory beneath the MySQL DATADIR directory, MySQL creates a table_name.isl file containing the path name for the table. The .isl file is treated by MySQL like a symbolic link. (Using actual symbolic links has never been supported for InnoDB tables.)

The following example demonstrates creating a file-per-table tablespace outside the MySQL data directory. It shows the .ibd created in the specified directory, and the .isl created in the database directory beneath the MySQL data directory.

mysql> USE test;
Database changed

mysql> SHOW VARIABLES LIKE 'innodb_file_per_table';
+-----------------------+-------+
| Variable_name         | Value |
+-----------------------+-------+
| innodb_file_per_table | ON    |
+-----------------------+-------+
1 row in set (0.00 sec)

mysql> CREATE TABLE t1 (c1 INT PRIMARY KEY) DATA DIRECTORY = '/alternative/directory';
Query OK, 0 rows affected (0.03 sec)

# MySQL creates a .ibd file for the new table in a subdirectory that corresponding
# to the database name

db_user@ubuntu:~/alternative/directory/test$ ls
t1.ibd

# MySQL creates a .isl file containing the path name for the table in a directory
# beneath the MySQL data directory

db_user@ubuntu:~/mysql/data/test$ ls
db.opt  t1.frm  t1.isl

You can also use CREATE TABLE ... TABLESPACE in combination with the DATA DIRECTORY clause to create a file-per-table tablespace outside the MySQL data directory. To do so, you must specify innodb_file_per_table as the tablespace name.

CREATE TABLE t2 (c1 INT PRIMARY KEY) TABLESPACE = innodb_file_per_table
  DATA DIRECTORY = '/alternative/directory';

You do not have to enable innodb_file_per_table when using this method.

Usage Notes:

  • MySQL initially holds the .ibd file open, preventing you from dismounting the device, but might eventually close the table if the server is busy. Be careful not to accidentally dismount an external device while MySQL is running, or to start MySQL while the device is disconnected. Attempting to access a table when the associated .ibd file is missing causes a serious error that requires a server restart.

    A server restart might fail if the .ibd file is still not at the expected path. In this case, manually remove the table_name.isl file in the database directory, and after restarting perform a DROP TABLE to delete the .frm file and remove the information about the table from the data dictionary.

  • Before tables on an NFS-mounted volume, review potential issues outlined in Using NFS with MySQL.

  • If you use an LVM snapshot, file copy, or other file-based mechanism to back up the .ibd file, always use the FLUSH TABLES ... FOR EXPORT statement first to make sure all changes that were buffered in memory are flushed to disk before the backup occurs.

  • The DATA DIRECTORY clause is a supported alternative to using symbolic links, which has always been problematic and was never supported for individual InnoDB tables.

15.7.6 Copying File-Per-Table Tablespaces to Another Server

This section describes how to copy file-per-table tablespaces from one database server to another, otherwise known as the Transportable Tablespaces feature.

For information about other InnoDB table copying methods, see Section 15.8.4, “Moving or Copying InnoDB Tables to Another Machine”.

There are many reasons why you might copy an InnoDB file-per-table tablespace to a different database server:

  • To run reports without putting extra load on a production server.

  • To set up identical data for a table on a new slave server.

  • To restore a backed-up version of a table or partition after a problem or mistake.

  • As a faster way of moving data around than importing the results of a mysqldump command. The data is available immediately, rather than having to be re-inserted and the indexes rebuilt.

  • To move a file-per-table tablespace to a server with storage medium that better suits system requirements. For example, you may want to have busy tables on an SSD device, or large tables on a high-capacity HDD device.

Limitations and Usage Notes

  • The tablespace copy procedure is only possible when innodb_file_per_table is set to ON, which is the default setting as of MySQL 5.6.6. Tables residing in the shared system tablespace cannot be quiesced.

  • When a table is quiesced, only read-only transactions are allowed on the affected table.

  • When importing a tablespace, the page size must match the page size of the importing instance.

  • DISCARD TABLESPACE is not supported for tablespaces with a parent-child (primary key-foreign key) relationship when foreign_key_checks is set to 1. Before discarding a tablespace for parent-child tables, set foreign_key_checks=0. Partitioned InnoDB tables do not support foreign keys.

  • ALTER TABLE ... IMPORT TABLESPACE does not enforce foreign key constraints on imported data. If there are foreign key constraints between tables, all tables should be exported at the same (logical) point in time. Partitioned InnoDB tables do not support foreign keys.

  • ALTER TABLE ... IMPORT TABLESPACE and ALTER TABLE ... IMPORT PARTITION ... TABLESPACE do not require a .cfg metadata file to import a tablespace. However, metadata checks are not performed when importing without a .cfg file, and a warning similar to the following is issued:

    Message: InnoDB: IO Read error: (2, No such file or directory) Error opening '.\
    test\t.cfg', will attempt to import without schema verification
    1 row in set (0.00 sec)


    The ability to import without a .cfg file may be more convenient when no schema mismatches are expected. Additionally, the ability to import without a .cfg file could be useful in crash recovery scenarios in which metadata cannot be collected from an .ibd file.

  • Due to a .cfg metadata file limitation, schema mismatches are not reported for partition type or partition definition differences when importing tablespace files for partitioned tables. Column differences are reported.

  • When running ALTER TABLE ... DISCARD PARTITION ... TABLESPACE and ALTER TABLE ... IMPORT PARTITION ... TABLESPACE on subpartitioned tables, both partition and subpartition table names are allowed. When a partition name is specified, subpartitions of that partition are included in the operation.

  • In MySQL 5.6 or later, importing a tablespace file from another server works if both servers have GA (General Availability) status and their versions are within the same series. Otherwise, the file must have been created on the server into which it is imported.

  • In replication scenarios, innodb_file_per_table must be set to ON on both the master and slave.

  • On Windows, InnoDB stores database, tablespace, and table names internally in lowercase. To avoid import problems on case-sensitive operating systems such as Linux and UNIX, create all databases, tablespaces, and tables using lowercase names. A convenient way to accomplish this is to add the following line to the [mysqld] section of your my.cnf or my.ini file before creating databases, tablespaces, or tables:

    [mysqld]
    lower_case_table_names=1

  • ALTER TABLE ... DISCARD TABLESPACE and ALTER TABLE ...IMPORT TABLESPACE are not supported with tables that belong to an InnoDB general tablespace. For more information, see CREATE TABLESPACE.

  • The default row format for InnoDB tables is configurable using the innodb_default_row_format configuration option. Attempting to import a table that does not explicitly define a row format (ROW_FORMAT), or that uses ROW_FORMAT=DEFAULT, could result in a schema mismatch error if the innodb_default_row_format setting on the source server differs from the setting on the destination server. For related information, see Section 15.11.2, “Specifying the Row Format for a Table”.

  • When exporting a tablespace that is encrypted using the InnoDB tablespace encryption feature, InnoDB generates a .cfp file in addition to a .cfg metadata file. The .cfp file must be copied to the destination server together with the .cfg file and tablespace file before performing the ALTER TABLE ... IMPORT TABLESPACE operation on the destination server. The .cfp file contains a transfer key and an encrypted tablespace key. On import, InnoDB uses the transfer key to decrypt the tablespace key. For related information, see Section 15.7.10, “InnoDB Tablespace Encryption”.

15.7.6.1 Transportable Tablespace Examples

Note

If you are transporting tables that are encrypted using the InnoDB tablespace encryption, see Limitations and Usage Notes before you begin for additional procedural information.

Example 1: Copying an InnoDB Table From One Server To Another

This procedure demonstrates how to copy a regular InnoDB table from a running MySQL server instance to another running instance. The same procedure with minor adjustments can be used to perform a full table restore on the same instance.

  1. On the source server, create a table if one does not exist:

    mysql> use test;
    mysql> CREATE TABLE t(c1 INT) engine=InnoDB;

  2. On the destination server, create a table if one does not exist:

    mysql> use test;
    mysql> CREATE TABLE t(c1 INT) engine=InnoDB;

  3. On the destination server, discard the existing tablespace. (Before a tablespace can be imported, InnoDB must discard the tablespace that is attached to the receiving table.)

    mysql> ALTER TABLE t DISCARD TABLESPACE;

  4. On the source server, run FLUSH TABLES ... FOR EXPORT to quiesce the table and create the .cfg metadata file:

    mysql> use test;
    mysql> FLUSH TABLES t FOR EXPORT;


    The metadata (.cfg) is created in the InnoDB data directory.

    Note

    FLUSH TABLES ... FOR EXPORT is available as of MySQL 5.6.6. The statement ensures that changes to the named table have been flushed to disk so that a binary table copy can be made while the server is running. When FLUSH TABLES ... FOR EXPORT is run, InnoDB produces a .cfg file in the same database directory as the table. The .cfg file contains metadata used for schema verification when importing the tablespace file.

  5. Copy the .ibd file and .cfg metadata file from the source server to the destination server. For example:

    shell> scp /path/to/datadir/test/t.{ibd,cfg} destination-server:/path/to/datadir/test

    Note

    The .ibd file and .cfg file must be copied before releasing the shared locks, as described in the next step.

  6. On the source server, use UNLOCK TABLES to release the locks acquired by FLUSH TABLES ... FOR EXPORT:

    mysql> use test;
    mysql> UNLOCK TABLES;

  7. On the destination server, import the tablespace:

    mysql> use test;
    mysql> ALTER TABLE t IMPORT TABLESPACE;

    Note

    The ALTER TABLE ... IMPORT TABLESPACE feature does not enforce foreign key constraints on imported data. If there are foreign key constraints between tables, all tables should be exported at the same (logical) point in time. In this case you would stop updating the tables, commit all transactions, acquire shared locks on the tables, and then perform the export operation.

Example 2: Copying an InnoDB Partitioned Table From One Server To Another

This procedure demonstrates how to copy a partitioned InnoDB table from a running MySQL server instance to another running instance. The same procedure with minor adjustments can be used to perform a full restore of a partitioned InnoDB table on the same instance.

  1. On the source server, create a partitioned table if one does not exist. In the following example, a table with three partitions (p0, p1, p2) is created:

    mysql> use test;
    mysql> CREATE TABLE t1 (i int) ENGINE = InnoDB PARTITION BY KEY (i) PARTITIONS 3;


    In the /datadir/test directory, there is a separate tablespace (.ibd) file for each of the three partitions.

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1.frm  t1#P#p0.ibd  t1#P#p1.ibd  t1#P#p2.ibd

  2. On the destination server, create the same partitioned table:

    mysql> use test;
    mysql> CREATE TABLE t1 (i int) ENGINE = InnoDB PARTITION BY KEY (i) PARTITIONS 3;


    In the /datadir/test directory, there is a separate tablespace (.ibd) file for each of the three partitions.

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1.frm  t1#P#p0.ibd  t1#P#p1.ibd  t1#P#p2.ibd

  3. On the destination server, discard the tablespace for the partitioned table. (Before the tablespace can be imported on the destination server, the tablespace that is attached to the receiving table must be discarded.)

    mysql> ALTER TABLE t1 DISCARD TABLESPACE;


    The three .ibd files that make up the tablespace for the partitioned table are discarded from the /datadir/test directory, leaving the following files:

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1.frm

  4. On the source server, run FLUSH TABLES ... FOR EXPORT to quiesce the partitioned table and create the .cfg metadata files:

    mysql> use test;
    mysql> FLUSH TABLES t1 FOR EXPORT;


    Metadata (.cfg) files, one for each tablespace (.ibd) file, are created in the /datadir/test directory on the source server:

    mysql> \! ls /path/to/datadir/test/
    db.opt t1#P#p0.ibd  t1#P#p1.ibd  t1#P#p2.ibd
    t1.frm  t1#P#p0.cfg  t1#P#p1.cfg  t1#P#p2.cfg

    Note

    FLUSH TABLES ... FOR EXPORT statement ensures that changes to the named table have been flushed to disk so that binary table copy can be made while the server is running. When FLUSH TABLES ... FOR EXPORT is run, InnoDB produces a .cfg metadata file for the table's tablespace files in the same database directory as the table. The .cfg files contain metadata used for schema verification when importing tablespace files. FLUSH TABLES ... FOR EXPORT can only be run on the table, not on individual table partitions.

  5. Copy the .ibd and .cfg files from the source server database directory to the destination server database directory. For example:

    shell> scp /path/to/datadir/test/t1*.{ibd,cfg} destination-server:/path/to/datadir/test

    Note

    The .ibd and .cfg files must be copied before releasing the shared locks, as described in the next step.

  6. On the source server, use UNLOCK TABLES to release the locks acquired by FLUSH TABLES ... FOR EXPORT:

    mysql> use test;
    mysql> UNLOCK TABLES;

  7. On the destination server, import the tablespace for the partitioned table:

    mysql> use test;
    mysql> ALTER TABLE t1 IMPORT TABLESPACE;

Example 3: Copying InnoDB Table Partitions From One Server To Another

This procedure demonstrates how to copy InnoDB table partitions from a running MySQL server instance to another running instance. The same procedure with minor adjustments can be used to perform a restore of InnoDB table partitions on the same instance. In the following example, a partitioned table with four partitions (p0, p1, p2, p3) is created on the source server. Two of the partitions (p2 and p3) are copied to the destination server.

  1. On the source server, create a partitioned table if one does not exist. In the following example, a table with four partitions (p0, p1, p2, p3) is created:

    mysql> use test;
    mysql> CREATE TABLE t1 (i int) ENGINE = InnoDB PARTITION BY KEY (i) PARTITIONS 4;


    In the /datadir/test directory, there is a separate tablespace (.ibd) file for each of the four partitions.

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1.frm  t1#P#p0.ibd  t1#P#p1.ibd  t1#P#p2.ibd t1#P#p3.ibd

  2. On the destination server, create the same partitioned table:

    mysql> use test;
    mysql> CREATE TABLE t1 (i int) ENGINE = InnoDB PARTITION BY KEY (i) PARTITIONS 4;


    In the /datadir/test directory, there is a separate tablespace (.ibd) file for each of the four partitions.

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1.frm  t1#P#p0.ibd  t1#P#p1.ibd  t1#P#p2.ibd t1#P#p3.ibd

  3. On the destination server, discard the tablespace partitions that you plan to import from the source server. (Before tablespace partitions can be imported on the destination server, the corresponding partitions that are attached to the receiving table must be discarded.)

    mysql> ALTER TABLE t1 DISCARD PARTITION p2, p3 TABLESPACE;


    The .ibd files for the two discarded partitions are removed from the /datadir/test directory on the destination server, leaving the following files:

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1.frm  t1#P#p0.ibd  t1#P#p1.ibd

    Note

    When ALTER TABLE ... DISCARD PARTITION ... TABLESPACE is run on subpartitioned tables, both partition and subpartition table names are allowed. When a partition name is specified, subpartitions of that partition are included in the operation.

  4. On the source server, run FLUSH TABLES ... FOR EXPORT to quiesce the partitioned table and create the .cfg metadata files.

    mysql> use test;
    mysql> FLUSH TABLES t1 FOR EXPORT;


    The metadata files (.cfg files) are created in the /datadir/test directory on the source server. There is a .cfg file for each tablespace (.ibd) file.

    mysql> \! ls /path/to/datadir/test/
    db.opt  t1#P#p0.ibd  t1#P#p1.ibd  t1#P#p2.ibd t1#P#p3.ibd
    t1.frm  t1#P#p0.cfg  t1#P#p1.cfg  t1#P#p2.cfg t1#P#p3.cfg

    Note

    FLUSH TABLES ... FOR EXPORT statement ensures that changes to the named table have been flushed to disk so that binary table copy can be made while the server is running. When FLUSH TABLES ... FOR EXPORT is run, InnoDB produces a .cfg metadata file for the table's tablespace files in the same database directory as the table. The .cfg files contain metadata used for schema verification when importing tablespace files. FLUSH TABLES ... FOR EXPORT can only be run on the table, not on individual table partitions.

  5. Copy the .ibd and .cfg files from the source server database directory to the destination server database directory. In this example, only the .ibd and .cfg files for partition 2 (p2) and partition 3 (p3) are copied to the data directory on the destination server. Partition 0 (p0) and partition 1 (p1) remain on the source server.

    shell> scp t1#P#p2.ibd  t1#P#p2.cfg t1#P#p3.ibd t1#P#p3.cfg destination-server:/path/to/datadir/test

    Note

    The .ibd files and .cfg files must be copied before releasing the shared locks, as described in the next step.

  6. On the source server, use UNLOCK TABLES to release the locks acquired by FLUSH TABLES ... FOR EXPORT:

    mysql> use test;
    mysql> UNLOCK TABLES;

  7. On the destination server, import the tablespace partitions (p2 and p3):

    mysql> use test;
    mysql> ALTER TABLE t1 IMPORT PARTITION p2, p3 TABLESPACE;

    Note

    When ALTER TABLE ... IMPORT PARTITION ... TABLESPACE is run on subpartitioned tables, both partition and subpartition table names are allowed. When a partition name is specified, subpartitions of that partition are included in the operation.

15.7.6.2 Transportable Tablespace Internals

The following information describes internals and error log messaging for the transportable tablespaces copy procedure for a regular InnoDB table.

When ALTER TABLE ... DISCARD TABLESPACE is run on the destination instance:

  • The table is locked in X mode.

  • The tablespace is detached from the table.

When FLUSH TABLES ... FOR EXPORT is run on the source instance:

  • The table being flushed for export is locked in shared mode.

  • The purge coordinator thread is stopped.

  • Dirty pages are synchronized to disk.

  • Table metadata is written to the binary .cfg file.

Expected error log messages for this operation:

2013-09-24T13:10:19.903526Z 2 [Note] InnoDB: Sync to disk of '"test"."t"' started.
2013-09-24T13:10:19.903586Z 2 [Note] InnoDB: Stopping purge
2013-09-24T13:10:19.903725Z 2 [Note] InnoDB: Writing table metadata to './test/t.cfg'
2013-09-24T13:10:19.904014Z 2 [Note] InnoDB: Table '"test"."t"' flushed to disk


When UNLOCK TABLES is run on the source instance:

  • The binary .cfg file is deleted.

  • The shared lock on the table or tables being imported is released and the purge coordinator thread is restarted.

Expected error log messages for this operation:

2013-09-24T13:10:21.181104Z 2 [Note] InnoDB: Deleting the meta-data file './test/t.cfg'
2013-09-24T13:10:21.181180Z 2 [Note] InnoDB: Resuming purge

When ALTER TABLE ... IMPORT TABLESPACE is run on the destination instance, the import algorithm performs the following operations for each tablespace being imported:

  • Each tablespace page is checked for corruption.

  • The space ID and log sequence numbers (LSNs) on each page are updated

  • Flags are validated and LSN updated for the header page.

  • Btree pages are updated.

  • The page state is set to dirty so that it is written to disk.

Expected error log messages for this operation:

2013-07-18 15:15:01 34960 [Note] InnoDB: Importing tablespace for table 'test/t' that was exported from host 'ubuntu'
2013-07-18 15:15:01 34960 [Note] InnoDB: Phase I - Update all pages
2013-07-18 15:15:01 34960 [Note] InnoDB: Sync to disk
2013-07-18 15:15:01 34960 [Note] InnoDB: Sync to disk - done!
2013-07-18 15:15:01 34960 [Note] InnoDB: Phase III - Flush changes to disk
2013-07-18 15:15:01 34960 [Note] InnoDB: Phase IV - Flush complete
Note

You may also receive a warning that a tablespace is discarded (if you discarded the tablespace for the destination table) and a message stating that statistics could not be calculated due to a missing .ibd file:

2013-07-18 15:14:38 34960 [Warning] InnoDB: Table "test"."t" tablespace is set as discarded.
2013-07-18 15:14:38 7f34d9a37700 InnoDB: cannot calculate statistics for table "test"."t" because the .ibd file is missing. For help, please refer to
http://dev.mysql.com/doc/refman/5.7/en/innodb-troubleshooting.html

15.7.7 Storing InnoDB Undo Logs in Separate Tablespaces

You can store InnoDB undo logs in one or more separate undo tablespaces outside of the system tablespace. This layout is different from the default configuration in which undo logs reside in the system tablespace. The I/O patterns for undo logs make undo tablespaces good candidates to move to SSD storage, while keeping the system tablespace on hard disk storage. Users cannot drop the separate tablespaces created to hold InnoDB undo logs, or the individual segments inside those tablespaces. However, undo logs stored in undo tablespaces can be truncated. For more information, see Section 15.7.8, “Truncating Undo Logs That Reside in Undo Tablespaces”.

Because undo tablespace files handle I/O operations formerly done inside the system tablespace, the definition of system tablespace is extended to include undo tablespace files.

The undo tablespace feature involves the following configuration options:

The innodb_undo_tablespaces and innodb_undo_directory configuration options are non-dynamic startup options that can only be enabled when initializing a MySQL instance, which means that undo tablespaces can only be created when initializing a MySQL instance.

Configuring Separate Undo Tablespaces

The following procedure assumes the configuration is performed on a test instance prior to production deployment.

  1. Chose a directory location where you want InnoDB to create separate undo tablespaces for the undo logs. Specify the directory path as the argument to the innodb_undo_directory option in your MySQL configuration file or startup script. If no path is specified, undo tablespaces are created in the MySQL data directory, as defined by datadir.

  2. Decide on a starting value for the innodb_undo_logs option, which defines the number of rollback segments used by InnoDB. (Undo logs exist within undo log segments, which are contained within rollback segments.) You can start with a relatively low value and increase it over time to examine the effect on performance.

    One rollback segment is always assigned to the system tablespace, and 32 rollback segments are reserved for use by temporary tables and are hosted in the temporary tablespace (ibtmp1). Therefore, to allocate rollback segments to undo tablespaces, innodb_undo_logs must be set to a value greater than 33. For example, if you have two undo tablespaces (innodb_undo_tablespaces=2), innodb_undo_logs must be set to 35 to assign one rollback segment to each of the two undo tablespaces.

    Note

    When you configure separate undo tablespaces, the rollback segment in the system tablespace is rendered inactive.

  3. Decide on a non-zero value for the innodb_undo_tablespaces option. The rollback segments specified by the innodb_undo_logs value are divided between this number of separate tablespaces. The innodb_undo_tablespaces value is fixed for the life of the MySQL instance, so if you are uncertain about the optimal value, estimate on the high side.

  4. Create a new MySQL instance, using the values you chose in the configuration file or in your MySQL startup script. Use a realistic workload with data volume similar to your production servers. Alternatively, use the transportable tablespaces feature to copy existing database tables to your newly configured MySQL instance. See Section 15.7.6, “Copying File-Per-Table Tablespaces to Another Server” for more information.

  5. Benchmark the performance of I/O intensive workloads.

  6. Periodically increase the value of innodb_undo_logs and rerun performance tests. Find the value where you stop experiencing gains in I/O performance.

  7. Deploy a new production instance using the ideal settings for these options. Set it up as a slave server in a replication configuration, or transfer data from an earlier production instance.

Performance and Scalability Considerations

Keeping the undo logs in separate files allows the MySQL team to implement I/O and memory optimizations related to this transactional data. For example, because the undo data is written to disk and then rarely used (only in case of crash recovery), it does not need to be kept in the file system memory cache, in turn allowing a higher percentage of system memory to be devoted to the InnoDB buffer pool.

The typical SSD best practice of keeping the InnoDB system tablespace on a hard drive and moving the per-table tablespaces to SSD, is assisted by moving the undo information into separate tablespace files.

Internals

The physical undo tablespace files are named undoN.ibd, where N is the space ID, including leading zeros.

Prior to MySQL 5.7.18, space IDs were assigned to undo tablespaces in a consecutive order starting with space ID 1. As of MySQL 5.7.18, The first undo tablespace can be assigned a space ID other than 1. Space ID values for undo tablespaces are still assigned in a consecutive order.

MySQL instances containing separate undo tablespaces cannot be downgraded to earlier releases such as MySQL 5.5 or 5.1.

15.7.8 Truncating Undo Logs That Reside in Undo Tablespaces

You can truncate undo logs that reside in undo tablespaces, provided that the following conditions are true:

  • Your MySQL instance is configured with a minimum of two undo tablespaces (innodb_undo_tablespaces=2). When an undo tablespace is truncated, it is temporarily taken offline. For the server to function, there must be at least one other active undo tablespace. The number of undo tablespaces is defined by the innodb_undo_tablespaces option, which can only be set when the MySQL instance is initialized. The default value is 0. To check the value of innodb_undo_tablespaces, submit the following query:

    mysql> SELECT @@innodb_undo_tablespaces;
    +---------------------------+
    | @@innodb_undo_tablespaces |
    +---------------------------+
    |                         2 |
    +---------------------------+
    1 row in set (0.00 sec)
  • innodb_undo_logs, which defines the number of rollback segments used by InnoDB, must be set to 35 or greater. A setting of 35 or greater ensures that a redo-enabled undo log is assigned to each of the two undo tablespaces. With an innodb_undo_logs setting of 35:

    • The first rollback segment always resides in the system tablespace (when undo tablespaces are present, this rollback segment is inactive)

    • Rollback segments 2 to 33 reside in the shared temporary tablespace (ibtmp1)

    • The 34th rollback segment resides in the first undo tablespace (if present)

    • The 35th rollback segment resides in the second undo tablespace (if present)

    There is a many-to-one relationship between rollback segments and undo tablespaces. If the number of allocated rollback segments is greater than 35, the additional rollback segments are assigned to undo tablespaces in a round-robin fashion. For example, if you have 2 undo tablespaces (undo tablespace 1 and undo-tablespace 2) and innodb_undo_logs=37, undo-tablespace 1 and undo-tablespace 2 would each be assigned a second rollback segment.

    By default, innodb_undo_logs is set to 128, which is also the maximum value. To check the value of innodb_undo_logs, submit the following query:

    mysql> SELECT @@innodb_undo_logs;
    +--------------------+
    | @@innodb_undo_logs |
    +--------------------+
    |                128 |
    +--------------------+
    1 row in set (0.00 sec)

    innodb_undo_logs is a dynamic global variable and can be configured using a SET GLOBAL statement:

    mysql> SET GLOBAL innodb_undo_logs=128;

Enabling Truncation of Undo Tablespaces

To truncate undo logs that reside in undo tablespaces, you must first enable innodb_undo_log_truncate.

mysql> SET GLOBAL innodb_undo_log_truncate=ON;

When you enable innodb_undo_log_truncate, undo tablespace files that exceed the size limit defined by innodb_max_undo_log_size are marked for truncation. innodb_max_undo_log_size is a dynamic global variable with a default value of 1024 MiB (1073741824 bytes).

mysql> SELECT @@innodb_max_undo_log_size;
+----------------------------+
| @@innodb_max_undo_log_size |
+----------------------------+
|                 1073741824 |
+----------------------------+
1 row in set (0.00 sec)

You can configure innodb_max_undo_log_size using a SET GLOBAL statement:

mysql> SET GLOBAL innodb_max_undo_log_size=2147483648;
Query OK, 0 rows affected (0.00 sec)

When innodb_undo_log_truncate is enabled:

  1. Undo tablespaces that exceed the innodb_max_undo_log_size setting are marked for truncation. Selection of an undo tablespace for truncation is performed in a round-robin fashion to avoid truncating the same undo tablespace each time.

  2. Rollback segments residing in the selected undo tablespace are made inactive so that they are not allocated to new transactions. Existing transactions that are currently using rollback segments are allowed to complete.

  3. The purge system frees rollback segments that are no longer needed.

  4. After all rollback segments in the undo tablespace are freed, the truncate operation runs and the undo tablespace is truncated to its initial size. The initial size of an undo tablespace file is 10MB.

    Note

    If you check the size of an undo tablespace after a truncation operation, the file size may be larger than 10MB due to immediate use following the completion of the truncation operation. The innodb_undo_directory option defines the location of undo tablespace files. The default value of . represents directory where InnoDB creates its other log files by default.

    mysql> select @@innodb_undo_directory;
    +-------------------------+
    | @@innodb_undo_directory |
    +-------------------------+
    | .                       |
    +-------------------------+
    1 row in set (0.00 sec)
  5. The rollback segments are reactivated so that they can be allocated to new transactions.

Expediting Truncation of Undo Tablespace Files

An undo tablespace cannot be truncated until its rollback segments are freed. Normally, the purge system frees rollback segments once every 128 times that purge is invoked. To expedite the truncation of undo tablespaces, you can use the innodb_purge_rseg_truncate_frequency option to temporarily increase the frequency with which the purge system frees rollback segments. By default, innodb_purge_rseg_truncate_frequency is 128, which is also the maximum value.

mysql> select @@innodb_purge_rseg_truncate_frequency;
+----------------------------------------+
| @@innodb_purge_rseg_truncate_frequency |
+----------------------------------------+
|                                    128 |
+----------------------------------------+
1 row in set (0.00 sec)

To increase the frequency with which the purge thread frees rollback segments, decrease the value of innodb_purge_rseg_truncate_frequency. For example:

mysql> SET GLOBAL innodb_purge_rseg_truncate_frequency=32;
Query OK, 0 rows affected (0.00 sec)

Performance Impact of Truncating Undo Tablespace Files Online

While an undo tablespace truncation operation is in progress, rollback segments in one undo tablespace are temporarily deactivated. For example, if you have 2 undo tablespaces (innodb_undo_tablespaces=2) and 128 allocated undo logs (innodb_undo_logs=128), 95 of the undo logs reside in the two undo tablespaces (48 rollback segments in one undo tablespace and 47 in the other). If the first undo tablespace is taken offline, 48 undo logs are made inactive, reducing the undo log resource by slightly more than half. While the truncation operation is in progress, the remaining undo logs assume responsibility for the entire system load, which may result in a slight performance degradation. The degree of performance degradation depends on a number of factors including:

  • Number of undo tablespaces

  • Number of undo logs

  • Undo tablespace size

  • Speed of the I/O susbsystem

  • Existing long running transactions

  • System load

15.7.9 InnoDB General Tablespaces

A general tablespace is a new type of InnoDB tablespace, introduced in MySQL 5.7. The general tablespace feature provides the following capabilities:

  • Similar to the system tablespace, general tablespaces are shared tablespaces that can store data for multiple tables.

  • General tablespaces have a potential memory advantage over file-per-table tablespaces. The server keeps tablespace metadata in memory for the lifetime of a tablespace. Multiple tables in fewer general tablespaces consume less memory for tablespace metadata than the same number of tables in separate file-per-table tablespaces.

  • General tablespace data files may be placed in a directory relative to or independent of the MySQL data directory, which provides you with many of the data file and storage management capabilities of file-per-table tablespaces. As with file-per-table tablespaces, the ability to place data files outside of the MySQL data directory allows you to manage performance of critical tables separately, setup RAID or DRBD for specific tables, or bind tables to particular disks, for example.

  • General tablespaces support both Antelope and Barracuda file formats, and therefore support all table row formats and associated features. With support for both file formats, general tablespaces have no dependence on innodb_file_format or innodb_file_per_table settings, nor do these variables have any effect on general tablespaces.

  • The TABLESPACE option can be used with CREATE TABLE to create tables in a general tablespaces, file-per-table tablespace, or in the system tablespace.

  • The TABLESPACE option can be used with ALTER TABLE to move tables between general tablespaces, file-per-table tablespaces, and the system tablespace. Previously, it was not possible to move a table from a file-per-table tablespace to the system tablespace. With the general tablespace feature, you can now do so.

Creating a General Tablespace

General tablespaces are created using CREATE TABLESPACE syntax.

CREATE TABLESPACE tablespace_name
    ADD DATAFILE 'file_name'
    [FILE_BLOCK_SIZE = value]
        [ENGINE [=] engine_name]

A general tablespace may be created in the MySQL data directory or in a directory outside of the MySQL data directory. To avoid conflicts with implicitly created file-per-table tablespaces, creating a general tablespace in a subdirectory under the MySQL data directory is not supported. Also, when creating a general tablespace outside of the MySQL data directory, the directory must exist prior to creating the tablespace.

An isl file is created in the MySQL data directory when a general tablespace is created outside of the MySQL data directory.

Examples:

Creating a general tablespace in the MySQL data directory:

mysql> CREATE TABLESPACE `ts1` ADD DATAFILE 'ts1.ibd' Engine=InnoDB;

Creating a general tablespace in a directory outside of the MySQL data directory:

mysql> CREATE TABLESPACE `ts1` ADD DATAFILE '/my/tablespace/directory/ts1.ibd' Engine=InnoDB;

You can specify a path that is relative to the MySQL data directory as long as the tablespace directory is not under the MySQL data directory. In this example, the my_tablespace directory is at the same level as the MySQL data directory:

mysql> CREATE TABLESPACE `ts1` ADD DATAFILE '../my_tablespace/ts1.ibd' Engine=InnoDB;
Note

The ENGINE = InnoDB clause must be defined as part of the CREATE TABLESPACE statement or InnoDB must be defined as the default storage engine (default_storage_engine=InnoDB).

Adding Tables to a General Tablespace

After creating an InnoDB general tablespace, you can use CREATE TABLE tbl_name ... TABLESPACE [=] tablespace_name or ALTER TABLE tbl_name TABLESPACE [=] tablespace_name to add tables to the tablespace, as shown in the following examples:

CREATE TABLE:

mysql> CREATE TABLE t1 (c1 INT PRIMARY KEY) TABLESPACE ts1 ROW_FORMAT=COMPACT;

ALTER TABLE:

mysql> ALTER TABLE t2 TABLESPACE ts1;

For detailed syntax information, see CREATE TABLE and ALTER TABLE.

General Tablespace Row Format Support

General tablespaces support all table row formats (REDUNDANT, COMPACT, DYNAMIC, COMPRESSED) with the caveat that compressed and uncompressed tables cannot coexist in the same general tablespace due to different physical page sizes.

For a general tablespace to contain compressed tables (ROW_FORMAT=COMPRESSED), FILE_BLOCK_SIZE must be specified, and the FILE_BLOCK_SIZE value must be a valid compressed page size in relation to the innodb_page_size value. Also, the physical page size of the compressed table (KEY_BLOCK_SIZE) must be equal to FILE_BLOCK_SIZE/1024. For example, if innodb_page_size=16K and FILE_BLOCK_SIZE=8K, the KEY_BLOCK_SIZE of the table must be 8.

The following table shows permitted FILE_BLOCK_SIZE and KEY_BLOCK_SIZE values for each innodb_page_size value. FILE_BLOCK_SIZE values may also be specified in bytes. To determine a valid KEY_BLOCK_SIZE value for a given FILE_BLOCK_SIZE, divide the FILE_BLOCK_SIZE value by 1024. Table compression is not support for 32K and 64K InnoDB page sizes. For more information about KEY_BLOCK_SIZE, see CREATE TABLE, and Section 15.9.1.2, “Creating Compressed Tables”.

Table 15.5 FILE_BLOCK_SIZE and KEY_BLOCK_SIZE Values for CREATE TABLESPACE

InnoDB Page Size (innodb_page_size)Permitted FILE_BLOCK_SIZE ValuesPermitted KEY_BLOCK_SIZE Values
64K64K (65536)Compression is not supported
32K32K (32768)Compression is not supported
16K16K (16384)N/A: If innodb_page_size is equal to FILE_BLOCK_SIZE, the tablespace cannot contain a compressed table.
8K (8192)8
4K (4096)4
2K (2048)2
1K (1024)1
8K8K (8192)N/A: If innodb_page_size is equal to FILE_BLOCK_SIZE, the tablespace cannot contain a compressed table.
4K (4096)4
2K (2048)2
1K (1024)1
4K4K (4096)N/A: If innodb_page_size is equal to FILE_BLOCK_SIZE, the tablespace cannot contain a compressed table.
2K (2048)2
1K (1024)1

This example demonstrates creating a general tablespace and adding a compressed table. The example assumes a default innodb_page_size of 16K. The FILE_BLOCK_SIZE of 8192 requires that the compressed table have a KEY_BLOCK_SIZE of 8.

mysql> CREATE TABLESPACE `ts2` ADD DATAFILE 'ts2.ibd' FILE_BLOCK_SIZE = 8192 Engine=InnoDB;
Query OK, 0 rows affected (0.01 sec)

mysql> CREATE TABLE t4 (c1 INT PRIMARY KEY) TABLESPACE ts2 ROW_FORMAT=COMPRESSED
KEY_BLOCK_SIZE=8;
Query OK, 0 rows affected (0.00 sec)

If you do not specify FILE_BLOCK_SIZE when creating a general tablespace, FILE_BLOCK_SIZE defaults to innodb_page_size. When FILE_BLOCK_SIZE is equal to innodb_page_size, the tablespace may only contain tables with an uncompressed row format (COMPACT, REDUNDANT, and DYNAMIC row formats).

Moving Non-Partitioned Tables Between Tablespaces Using ALTER TABLE

You can use ALTER TABLE with the TABLESPACE option to move a non-partitioned InnoDB table to an existing general tablespace, to a new file-per-table tablespace, or to the system tablespace.

Note

Running an ALTER TABLE tbl_name TABLESPACE [=] tablespace_name operation on a partitioned table only modifies the table's default tablespace. It does not move the table's partitions.

To move a non-partitioned table from a file-per-table tablespace or from the system tablespace to a general tablespace, specify the name of the general tablespace. The general tablespace must exist. See CREATE TABLESPACE for more information.

ALTER TABLE tbl_name TABLESPACE [=] tablespace_name

To move a non-partitioned table from a general tablespace or file-per-table tablespace to the system tablespace, specify innodb_system as the tablespace name.

ALTER TABLE tbl_name ... TABLESPACE [=] innodb_system

To move a non-partitioned table from the system tablespace or a general tablespace to a file-per-table tablespace, specify innodb_file_per_table as the tablespace name.

ALTER TABLE tbl_name ... TABLESPACE [=] innodb_file_per_table

ALTER TABLE ... TABLESPACE operations always cause a full table rebuild, even if the TABLESPACE attribute has not changed from its previous value.

ALTER TABLE ... TABLESPACE syntax does not support moving a table from a temporary tablespace to a persistent tablespace.

The DATA DIRECTORY clause is permitted with CREATE TABLE ... TABLESPACE=innodb_file_per_table but is otherwise not supported for use in combination with the TABLESPACE option.

General Tablespace Table Partition Support

The TABLESPACE option may be used to assign individual table partitions or subpartitions to a general tablespace, a separate file-per-table tablespace, or the system tablespace. All partitions must belong to the same storage engine. Usage is demonstrated in the following examples.

mysql> CREATE TABLESPACE `ts1` ADD DATAFILE 'ts1.ibd' Engine=InnoDB;
mysql> CREATE TABLESPACE `ts2` ADD DATAFILE 'ts2.ibd' Engine=InnoDB;

mysql> CREATE TABLE t1 (a INT, b INT) ENGINE = InnoDB
    ->  PARTITION BY RANGE(a) SUBPARTITION BY KEY(b) (
    ->    PARTITION p1 VALUES LESS THAN (100) TABLESPACE=`ts1`,
    ->    PARTITION p2 VALUES LESS THAN (1000) TABLESPACE=`ts2`,
    ->    PARTITION p3 VALUES LESS THAN (10000) TABLESPACE `innodb_file_per_table`,
    ->    PARTITION p4 VALUES LESS THAN (100000) TABLESPACE `innodb_system`);

mysql> CREATE TABLE t2 (a INT, b INT) ENGINE = InnoDB
    ->  PARTITION BY RANGE(a) SUBPARTITION BY KEY(b) (
    ->    PARTITION p1 VALUES LESS THAN (100) TABLESPACE=`ts1`
    ->      (SUBPARTITION sp1,
    ->       SUBPARTITION sp2),
    ->    PARTITION p2 VALUES LESS THAN (1000)
    ->      (SUBPARTITION sp3,
    ->       SUBPARTITION sp4 TABLESPACE=`ts2`),
    ->    PARTITION p3 VALUES LESS THAN (10000)
    ->      (SUBPARTITION sp5 TABLESPACE `innodb_system`,
    ->       SUBPARTITION sp6 TABLESPACE `innodb_file_per_table`));

The TABLESPACE option is also supported with ALTER TABLE.

mysql> ALTER TABLE t1 ADD PARTITION (PARTITION p5 VALUES LESS THAN (1000000) TABLESPACE = `ts1`);
Note

If the TABLESPACE = tablespace_name option is not defined, the ALTER TABLE ... ADD PARTITION operation adds the partition to the table's default tablespace, which can be specified at the table level during CREATE TABLE or ALTER TABLE.

To verify that partitions were placed in the specified tablespaces, you can query INFORMATION_SCHEMA.INNODB_SYS_TABLES:

mysql> SELECT NAME, SPACE, SPACE_TYPE FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES
    -> WHERE NAME LIKE '%t1%';
+-----------------------+-------+------------+
| NAME                  | SPACE | SPACE_TYPE |
+-----------------------+-------+------------+
| test/t1#P#p1#SP#p1sp0 |    57 | General    |
| test/t1#P#p2#SP#p2sp0 |    58 | General    |
| test/t1#P#p3#SP#p3sp0 |    59 | Single     |
| test/t1#P#p4#SP#p4sp0 |     0 | System     |
| test/t1#P#p5#SP#p5sp0 |    57 | General    |
+-----------------------+-------+------------+

mysql> SELECT NAME, SPACE, SPACE_TYPE FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES
    -> WHERE NAME LIKE '%t2%';
+---------------------+-------+------------+
| NAME                | SPACE | SPACE_TYPE |
+---------------------+-------+------------+
| test/t2#P#p1#SP#sp1 |    57 | General    |
| test/t2#P#p1#SP#sp2 |    57 | General    |
| test/t2#P#p2#SP#sp3 |    60 | Single     |
| test/t2#P#p2#SP#sp4 |    58 | General    |
| test/t2#P#p3#SP#sp5 |     0 | System     |
| test/t2#P#p3#SP#sp6 |    61 | Single     |
+---------------------+-------+------------+

Moving Table Partitions Between Tablespaces Using ALTER TABLE

To move table partitions to a different tablespace, you must move each partition using an ALTER TABLE tbl_name REORGANIZE PARTITION statement.

The following example demonstrates how to move table partitions to a different tablespace. INFORMATION_SCHEMA.INNODB_SYS_TABLES and INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES are queried to verify that partitions are placed in the expected tablespace.

Note

If the TABLESPACE = tablespace_name option is not defined in the REORGANIZE PARTITION statement, InnoDB moves the partition to the table's default tablespace. In this example, tablespace ts1, which is defined at the table level, is the default tablespace for table t1. Partition P3 is moved from the system tablespace to tablespace ts1 since no TABLESPACE option is specified in the ALTER TABLE t1 REORGANIZE PARTITION statement for partition P3.

To change a partitioned table's default tablespace, you can run ALTER TABLE tbl_name TABLESPACE [=] tablespace_name on the partitioned table.

mysql> CREATE TABLESPACE ts1 ADD DATAFILE 'ts1.ibd';
mysql> CREATE TABLESPACE ts2 ADD DATAFILE 'ts2.ibd';

mysql> CREATE TABLE t1 ( a INT NOT NULL, PRIMARY KEY (a))
    ->  ENGINE=InnoDB TABLESPACE ts1
    ->  PARTITION BY RANGE (a) PARTITIONS 3 (
    ->    PARTITION P1 VALUES LESS THAN (2),
    ->    PARTITION P2 VALUES LESS THAN (4) TABLESPACE `innodb_file_per_table`,
    ->    PARTITION P3 VALUES LESS THAN (6) TABLESPACE `innodb_system`);


mysql> SELECT A.NAME as partition_name, A.SPACE_TYPE as space_type, B.NAME as space_name
    -> FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES A
    -> LEFT JOIN INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES B
    -> ON A.SPACE = B.SPACE WHERE A.NAME LIKE '%t1%' ORDER BY A.NAME;
+----------------+------------+--------------+
| partition_name | space_type | space_name   |
+----------------+------------+--------------+
| test/t1#P#P1   | General    | ts1          |
| test/t1#P#P2   | Single     | test/t1#P#P2 |
| test/t1#P#P3   | System     | NULL         |
+----------------+------------+--------------+

mysql> ALTER TABLE t1 REORGANIZE PARTITION P1
    -> INTO (PARTITION P1 VALUES LESS THAN (2) TABLESPACE = `ts2`);

mysql> ALTER TABLE t1 REORGANIZE PARTITION P2
    -> INTO (PARTITION P2 VALUES LESS THAN (4) TABLESPACE = `ts2`);

mysql> ALTER TABLE t1 REORGANIZE PARTITION P3
    -> INTO (PARTITION P3 VALUES LESS THAN (6));

mysql> SELECT A.NAME AS partition_name, A.SPACE_TYPE AS space_type, B.NAME AS space_name
    -> FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES A
    -> LEFT JOIN INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES B
    -> ON A.SPACE = B.SPACE WHERE A.NAME LIKE '%t1%' ORDER BY A.NAME;
+----------------+------------+------------+
| partition_name | space_type | space_name |
+----------------+------------+------------+
| test/t1#P#P1   | General    | ts2        |
| test/t1#P#P2   | General    | ts2        |
| test/t1#P#P3   | General    | ts1        |
+----------------+------------+------------+

Dropping a General Tablespace

The DROP TABLESPACE statement is used to drop an InnoDB general tablespace.

All tables must be dropped from the tablespace prior to a DROP TABLESPACE operation. If the tablespace is not empty, DROP TABLESPACE returns an error.

If a DROP TABLESPACE operation on an empty general tablespace returns an error, the tablespace may contain an orphan temporary or intermediate table that was left by an ALTER TABLE operation that was interrupted by a server exit. For more information, see Section 15.21.3, “Troubleshooting InnoDB Data Dictionary Operations”.

A general InnoDB tablespace is not deleted automatically when the last table in the tablespace is dropped. The tablespace must be dropped explicitly using DROP TABLESPACE tablespace_name.

A general tablespace does not belong to any particular database. A DROP DATABASE operation can drop tables that belong to a general tablespace but it cannot drop the tablespace, even if the DROP DATABASE operation drops all tables that belong to the tablespace. A general tablespace must be dropped explicitly using DROP TABLESPACE tablespace_name.

Similar to the system tablespace, truncating or dropping tables stored in a general tablespace creates free space internally in the general tablespace .ibd data file which can only be used for new InnoDB data. Space is not released back to the operating system as it is when a file-per-table tablespace is deleted during a DROP TABLE operation.

This example demonstrates how to drop an InnoDB general tablespace. The general tablespace ts1 is created with a single table. The table must be dropped before dropping the tablespace.

mysql> CREATE TABLESPACE `ts1` ADD DATAFILE 'ts1.ibd' Engine=InnoDB;
Query OK, 0 rows affected (0.01 sec)

mysql> CREATE TABLE t1 (c1 INT PRIMARY KEY) TABLESPACE ts10 Engine=InnoDB;
Query OK, 0 rows affected (0.02 sec)

mysql> DROP TABLE t1;
Query OK, 0 rows affected (0.01 sec)

mysql> DROP TABLESPACE ts1;
Query OK, 0 rows affected (0.01 sec)
Note

tablespace_name is a case-sensitive identifier in MySQL.

General Tablespace Limitations

  • A generated or existing tablespace cannot be changed to a general tablespace.

  • Creation of temporary general tablespaces is not supported.

  • General tablespaces do not support temporary tables.

  • Tables stored in a general tablespace may only be opened in MySQL releases that support general tablespaces.

  • Similar to the system tablespace, truncating or dropping tables stored in a general tablespace creates free space internally in the general tablespace .ibd data file which can only be used for new InnoDB data. Space is not released back to the operating system as it is for file-per-table tablespaces.

    Additionally, a table-copying ALTER TABLE operation on table that resides in a shared tablespace (a general tablespace or the system tablespace) can increase the amount of space used by the tablespace. Such operations require as much additional space as the data in the table plus indexes. The additional space required for the table-copying ALTER TABLE operation is not released back to the operating system as it is for file-per-table tablespaces.

  • ALTER TABLE ... DISCARD TABLESPACE and ALTER TABLE ...IMPORT TABLESPACE are not supported for tables that belong to a general tablespace.

For more information see Section 14.1.19, “CREATE TABLESPACE Syntax”.

15.7.10 InnoDB Tablespace Encryption

InnoDB supports data encryption for InnoDB tables stored in file-per-table tablespaces. This feature provides at-rest encryption for physical tablespace data files.

InnoDB tablespace encryption uses a two tier encryption key architecture, consisting of a master encryption key and tablespace keys. When an InnoDB table is encrypted, a tablespace key is encrypted and stored in the tablespace header. When an application or authenticated user wants to access encrypted tablespace data, InnoDB uses a master encryption key to decrypt the tablespace key. The decrypted version of a tablespace key never changes, but the master encryption key may be changed as required. This action is referred to as master key rotation.

The InnoDB tablespace encryption feature relies on a keyring plugin for master encryption key management.

All MySQL editions provide a keyring_file plugin, which stores master encryption key data in a keyring file in the location specified by the keyring_file_data configuration option.

Warning

The InnoDB tablespace encryption feature in non-enterprise editions of MySQL uses the keyring_file plugin for encryption key management, which is not intended as a regulatory compliance solution. Security standards such as PCI, FIPS, and others require use of key management systems to secure, manage, and protect encryption keys in key vaults or hardware security modules (HSMs).

MySQL Enterprise Edition offers the keyring_okv plugin, which includes a KMIP client (KMIP v1.2) that works with Oracle Key Vault (OKV) to provide encryption key management. When InnoDB tablespace encryption uses OKV for encryption key management, the feature is referred to as MySQL Enterprise Transparent Data Encryption (TDE).

A secure and robust encryption key management solution such as OKV is critical for security and for compliance with various security standards. Among other benefits, using a key vault ensures that keys are stored securely, never lost, and only known to authorized key administrators. A key vault also maintains an encryption key history.

InnoDB tablespace encryption supports the Advanced Encryption Standard (AES) block-based encryption algorithm. It uses Electronic Codebook (ECB) block encryption mode for tablespace key encryption and Cipher Block Chaining (CBC) block encryption mode for data encryption.

For frequently asked questions about the InnoDB tablespace encryption feature, see Section A.16, “MySQL 5.7 FAQ: InnoDB Tablespace Encryption”.

InnoDB Tablespace Encryption Prerequisites

  • A keyring plugin (the keyring_file plugin or keyring_okv plugin) must be installed and configured. Keyring plugin installation is performed at startup using the --early-plugin-load option. Early loading ensures that the plugin is available prior to initialization of the InnoDB storage engine. For keyring plugin installation and configuration instructions, see Section 7.5.4, “The MySQL Keyring”.

    Only one keyring plugin should be enabled at a time. Enabling multiple keyring plugins is not supported.

    Important

    Once encrypted tables are created in a MySQL instance, the keyring plugin that was loaded when creating the encrypted tables must continue to be loaded using the --early-plugin-load option, prior to InnoDB initialization. Failing to do so results in errors on startup and during InnoDB recovery.

    To verify that a keyring plugin is active, use the SHOW PLUGINS statement or query the INFORMATION_SCHEMA.PLUGINS table. For example:

    mysql> SELECT PLUGIN_NAME, PLUGIN_STATUS FROM INFORMATION_SCHEMA.PLUGINS
        -> WHERE PLUGIN_NAME LIKE 'keyring%';
    +--------------+---------------+
    | PLUGIN_NAME  | PLUGIN_STATUS |
    +--------------+---------------+
    | keyring_file | ACTIVE        |
    +--------------+---------------+

  • The innodb_file_per_table option must be enabled (the default). InnoDB tablespace encryption only supports file-per-table tablespaces. Alternatively, you can specify the TABLESPACE='innodb_file_per_table' option when creating an encrypted table or altering an existing table to enable encryption.

  • Before using the InnoDB tablespace encryption feature with production data, ensure that you have taken steps to prevent loss of the master encryption key. If the master encryption key is lost, data stored in encrypted tablespace files is unrecoverable. If you are using the keyring_file plugin, it is recommended that you create a backup of the keyring file immediately after creating the first encrypted table and before and after master key rotation. The keyring file location is defined by the keyring_file_data configuration option. If you are using the keyring_okv plugin, ensure that you have performed the necessary keyring_okv plugin and Oracle Key Vault (OKV) configuration. For keyring plugin configuration, see Section 7.5.4, “The MySQL Keyring”. For OKV configuration, refer to the OKV documentation available at the Oracle Key Vault site.

Enabling and Disabling InnoDB Tablespace Encryption

To enable encryption for a new InnoDB table, specify the ENCRYPTION option in a CREATE TABLE statement.

mysql> CREATE TABLE t1 (c1 INT) ENCRYPTION='Y';

To enable encryption for an existing InnoDB table, specify the ENCRYPTION option in an ALTER TABLE statement.

mysql> ALTER TABLE t1 ENCRYPTION='Y';

To disable encryption for an InnoDB table, set ENCRYPTION='N' using ALTER TABLE.

mysql> ALTER TABLE t1 ENCRYPTION='N';
Note

Plan appropriately when altering an existing table with the ENCRYPTION option. ALTER TABLE ... ENCRYPTION operations rebuild the table using ALGORITHM=COPY. ALGORITM=INPLACE is not supported.

InnoDB Tablespace Encryption and Master Key Rotation

The master encryption key should be rotated periodically and whenever you suspect that the key may have been compromised.

Master key rotation is an atomic, instance-level operation. Each time the master encryption key is rotated, all tablespace keys in the MySQL instance are re-encrypted and saved back to their respective tablespace headers. As an atomic operation, re-encryption must succeed for all tablespace keys once a rotation operation is initiated. If master key rotation is interrupted by a server failure, InnoDB rolls the operation forward on server restart. For more information, see InnoDB Tablespace Encryption and Recovery.

Rotating the master encryption key only changes the master encryption key and re-encrypts tablespace keys. It does not decrypt or re-encrypt associated tablespace data.

Rotating the master encryption key requires the SUPER privilege.

To rotate the master encryption key, run:

mysql> ALTER INSTANCE ROTATE INNODB MASTER KEY;

ALTER INSTANCE ROTATE INNODB MASTER KEY supports concurrent DML. However, it cannot be run concurrently with CREATE TABLE ... ENCRYPTED or ALTER TABLE ... ENCRYPTED operations, and locks are taken to prevent conflicts that could arise from concurrent execution of these statements. If one of the conflicting statements is running, it must complete before another can proceed.

InnoDB Tablespace Encryption and Recovery

If a server failure occurs during master key rotation, InnoDB continues the operation on server restart.

The keyring plugin that was installed when tables were encrypted must be loaded prior to storage engine initialization so that the information necessary to decrypt tablespace data pages can be retrieved from tablespace headers before InnoDB initialization and recovery activities access tablespace data. (See InnoDB Tablespace Encryption Prerequisites.)

When InnoDB initialization and recovery begin, the master key rotation operation resumes. Due to the server failure, some tablespaces keys may already be encrypted using the new master encryption key. InnoDB reads the encryption data from each tablespace header, and if the data indicates that the tablespace key is encrypted using the old master encryption key, InnoDB retrieves the old key from the keyring and uses it to decrypt the tablepace key. InnoDB then re-encrypts the tablespace key using the new master encryption key and saves the re-encrypted tablespace key back to the tablespace header.

Exporting Encrypted Tables

When an encrypted table is exported, InnoDB generates a transfer key that is used to encrypt the tablespace key. The encrypted tablespace key and transfer key are stored in a tablespace_name.cfp file. This file together with the encrypted tablespace file is required to perform an import operation. On import, InnoDB uses the transfer key to decrypt the tablespace key in the tablespace_name.cfp file. For related information, see Section 15.7.6, “Copying File-Per-Table Tablespaces to Another Server”.

InnoDB Tablespace Encryption and Replication

Identifying Tables that Use InnoDB Tablespace Encryption

When the ENCRYPTION option is specified in a CREATE TABLE or ALTER TABLE statement, it is recorded in the CREATE_OPTIONS field of INFORMATION_SCHEMA.TABLES. This field may be queried to identify encrypted tables in a MySQL instance.

mysql> SELECT TABLE_SCHEMA, TABLE_NAME, CREATE_OPTIONS FROM INFORMATION_SCHEMA.TABLES
    -> WHERE CREATE_OPTIONS LIKE '%ENCRYPTION="Y"%';
+--------------+------------+----------------+
| TABLE_SCHEMA | TABLE_NAME | CREATE_OPTIONS |
+--------------+------------+----------------+
| test         | t1         | ENCRYPTION="Y" |
+--------------+------------+----------------+

InnoDB Tablespace Encryption Usage Notes

  • If the server exits or is stopped during normal operation, it is recommended to restart the server using the same encryption settings that were configured previously.

  • The first master encryption key is generated when the first new or existing table is encrypted.

  • Master key rotation re-encrypts tablespaces keys but does not change the tablespace key itself. To change a tablespace key, you must disable and re-enable table encryption using ALTER TABLE tbl_name ENCRYPTION, which is an ALGORITHM=COPY operation that rebuilds the table.

  • If a table is created with both the COMPRESSION and ENCRYPTION options, compression is performed before tablespace data is encrypted.

  • keyring_file plugin usage notes:

    • If a keyring file is empty or missing, the first execution of ALTER INSTANCE ROTATE INNODB MASTER KEY creates a master encryption key.

    • Uninstalling the keyring_file plugin does not remove an existing keyring file.

    • It is recommended that you not place the keyring file under the same directory as tablespace data files. The location of the keyring file is specified by the keyring_file_data option.

    • Modifying the keyring_file_data option at runtime or restarting the server with a new keyring_file_data setting can cause previously encrypted tables to become inaccessible, resulting in the loss of data.

InnoDB Tablespace Encryption Limitations

  • Advanced Encryption Standard (AES) is the only supported encryption algorithm. InnoDB tablespace encryption uses Electronic Codebook (ECB) block encryption mode for tablespace key encryption and Cipher Block Chaining (CBC) block encryption mode for data encryption.

  • Altering the ENCRYPTION attribute of a table is an ALGORITHM=COPY operation. ALGORITHM=INPLACE is not supported.

  • InnoDB tablespace encryption only supports InnoDB tables that are stored in a file-per-table tablespaces. Encryption is not supported for tables stored in other InnoDB tablespace types including general tablespaces, the system tablespace, undo log tablespaces, and the temporary tablespace.

  • You cannot move or copy an encrypted table from a file-per-table tablespace to an unsupported InnoDB tablespace type.

  • Tablespace encryption only applies to data in the tablespace. Data is not encrypted in the redo log, undo log, or binary log.

  • Direct migration from the keyring_file plugin to the keyring_okv plugin, or vice-versa, is currently unsupported. Changing keyring plugins requires decrypting tables, uninstalling the current keyring plugin, installing and configuring the other keyring plugin, and re-encrypting tables.

15.8 InnoDB Tables and Indexes

15.8.1 Creating InnoDB Tables

To create an InnoDB table, use the CREATE TABLE statement. You do not need to specify the ENGINE=InnoDB clause if InnoDB is defined as the default storage engine, which is the default as of MySQL 5.5. You might still use ENGINE=InnoDB clause if you plan to use mysqldump or replication to replay the CREATE TABLE statement on a server where the default storage engine is not InnoDB.

-- Default storage engine = InnoDB.
CREATE TABLE t1 (a INT, b CHAR (20), PRIMARY KEY (a));
-- Backward-compatible with older MySQL.
CREATE TABLE t2 (a INT, b CHAR (20), PRIMARY KEY (a)) ENGINE=InnoDB;

An InnoDB table and its indexes can be created in the system tablespace, in a file-per-table tablespace, or in a general tablespace. When innodb_file_per_table is enabled, which is the default setting as of MySQL 5.6.6, an InnoDB table is implicitly created in an individual file-per-table tablespace. Conversely, when innodb_file_per_table is disabled, an InnoDB table is implicitly created in the system tablespace. With general tablespaces, you can use CREATE TABLE ... TABLESPACE syntax to explicitly create an InnoDB table in any of the three tablespace types.

When you create an InnoDB table, MySQL creates a .frm file in a database directory under the MySQL data directory. For a table created in a file-per-table tablespace, an .ibd file is also created. A table created in the system tablespace is created in the existing system tablespace ibdata files. A table created in a general tablespace is created in an existing general tablespace .ibd file.

Internally, InnoDB adds an entry for each table to the InnoDB data dictionary. The entry includes the database name. For example, if table t1 is created in the test database, the data dictionary entry is 'test/t1'. This means you can create a table of the same name (t1) in a different database, and the table names do not collide inside InnoDB.

Viewing the Properties of InnoDB Tables

To view the properties of InnoDB tables, issue a SHOW TABLE STATUS statement:

mysql > SHOW TABLE STATUS FROM test LIKE 't%' \G;
*************************** 1. row ***************************
           Name: t1
         Engine: InnoDB
        Version: 10
     Row_format: Compact
           Rows: 0
 Avg_row_length: 0
    Data_length: 16384
Max_data_length: 0
   Index_length: 0
      Data_free: 0
 Auto_increment: NULL
    Create_time: 2015-03-16 15:13:31
    Update_time: NULL
     Check_time: NULL
      Collation: latin1_swedish_ci
       Checksum: NULL
 Create_options:
        Comment:
1 row in set (0.00 sec)

In the status output, you see the Row format property of table t1 is Compact. The Dynamic or Compressed row format is required take advantage of InnoDB features such as table compression and off-page storage for long column values. To use these row formats, you can enable innodb_file_per_table (the default as of MySQL 5.6.6) and set innodb_file_format to Barracuda, which implicitly creates InnoDB tables in file-per-table tablespaces:

SET GLOBAL innodb_file_per_table=1;
SET GLOBAL innodb_file_format=barracuda;
CREATE TABLE t3 (a INT, b CHAR (20), PRIMARY KEY (a)) ROW_FORMAT=DYNAMIC;
CREATE TABLE t4 (a INT, b CHAR (20), PRIMARY KEY (a)) ROW_FORMAT=COMPRESSED;

Or, you can use CREATE TABLE ... TABLESPACE syntax to create an InnoDB table in a general tablespace. General tablespaces support all row formats. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

CREATE TABLE t1 (c1 INT PRIMARY KEY) TABLESPACE ts1 ROW_FORMAT=DYNAMIC;

CREATE TABLE ... TABLESPACE syntax can also be used to create InnoDB tables with a Dynamic row format in the system tablespace, along side tables with a Compact or Redundant row format.

CREATE TABLE t1 (c1 INT PRIMARY KEY) TABLESPACE = innodb_system ROW_FORMAT=DYNAMIC;

InnoDB table properties may also be queried using the InnoDB Information Schema system tables:

SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME='test/t1' \G
*************************** 1. row ***************************
     TABLE_ID: 45
         NAME: test/t1
         FLAG: 1
       N_COLS: 5
        SPACE: 35
  FILE_FORMAT: Antelope
   ROW_FORMAT: Compact
ZIP_PAGE_SIZE: 0
   SPACE_TYPE: Single
1 row in set (0.00 sec)

Defining a Primary Key for InnoDB Tables

Always set up a primary key for each InnoDB table, specifying the column or columns that:

  • Are referenced by the most important queries.

  • Are never left blank.

  • Never have duplicate values.

  • Rarely if ever change value once inserted.

For example, in a table containing information about people, you would not create a primary key on (firstname, lastname) because more than one person can have the same name, some people have blank last names, and sometimes people change their names. With so many constraints, often there is not an obvious set of columns to use as a primary key, so you create a new column with a numeric ID to serve as all or part of the primary key. You can declare an auto-increment column so that ascending values are filled in automatically as rows are inserted:

-- The value of ID can act like a pointer between related items in different tables.
CREATE TABLE t5 (id INT AUTO_INCREMENT, b CHAR (20), PRIMARY KEY (id));
-- The primary key can consist of more than one column. Any autoinc column must come first.
CREATE TABLE t6 (id INT AUTO_INCREMENT, a INT, b CHAR (20), PRIMARY KEY (id,a));

Although the table works correctly without defining a primary key, the primary key is involved with many aspects of performance and is a crucial design aspect for any large or frequently used table. It is recommended that you always specify a primary key in the CREATE TABLE statement. If you create the table, load data, and then run ALTER TABLE to add a primary key later, that operation is much slower than defining the primary key when creating the table.

15.8.2 Role of the .frm File for InnoDB Tables

MySQL stores its data dictionary information for tables in .frm files in database directories. Unlike other MySQL storage engines, InnoDB also encodes information about the table in its own internal data dictionary inside the tablespace. When MySQL drops a table or a database, it deletes one or more .frm files as well as the corresponding entries inside the InnoDB data dictionary. You cannot move InnoDB tables between databases simply by moving the .frm files.

15.8.3 Physical Row Structure of InnoDB Tables

The physical row structure of an InnoDB table depends on the row format specified when the table is created. If a row format is not specified, the default row format is used. The innodb_file_format default is Barracuda and the default row format is defined by the innodb_default_row_format configuration option, which has a default value of DYNAMIC.

The REDUNDANT format is available to retain compatibility with older versions of MySQL.

To check the row format of an InnoDB table, you can use SHOW TABLE STATUS. For example:

mysql> SHOW TABLE STATUS IN test1\G
*************************** 1. row ***************************
           Name: t1
         Engine: InnoDB
        Version: 10
     Row_format: Dynamic
           Rows: 0
 Avg_row_length: 0
    Data_length: 16384
Max_data_length: 0
   Index_length: 16384
      Data_free: 0
 Auto_increment: 1
    Create_time: 2016-09-14 16:29:38
    Update_time: NULL
     Check_time: NULL
      Collation: latin1_swedish_ci
       Checksum: NULL
 Create_options:
        Comment:

You can also check the row format of an InnoDB table by querying INFORMATION_SCHEMA.INNODB_SYS_TABLES.

mysql> SELECT NAME, ROW_FORMAT FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME='test1/t1';
+----------+------------+
| NAME     | ROW_FORMAT |
+----------+------------+
| test1/t1 | Dynamic    |
+----------+------------+

Redundant Row Format Characteristics

Rows in InnoDB tables that use REDUNDANT row format have the following characteristics:

  • Each index record contains a 6-byte header. The header is used to link together consecutive records, and also in row-level locking.

  • Records in the clustered index contain fields for all user-defined columns. In addition, there is a 6-byte transaction ID field and a 7-byte roll pointer field.

  • If no primary key was defined for a table, each clustered index record also contains a 6-byte row ID field.

  • Each secondary index record also contains all the primary key fields defined for the clustered index key that are not in the secondary index.

  • A record contains a pointer to each field of the record. If the total length of the fields in a record is less than 128 bytes, the pointer is one byte; otherwise, two bytes. The array of these pointers is called the record directory. The area where these pointers point is called the data part of the record.

  • Internally, InnoDB stores fixed-length character columns such as CHAR(10) in a fixed-length format. InnoDB does not truncate trailing spaces from VARCHAR columns.

  • InnoDB encodes fixed-length fields greater than or equal to 768 bytes in length as variable-length fields, which can be stored off-page. For example, a CHAR(255) column can exceed 768 bytes if the maximum byte length of the character set is greater than 3, as it is with utf8mb4.

  • An SQL NULL value reserves one or two bytes in the record directory. Besides that, an SQL NULL value reserves zero bytes in the data part of the record if stored in a variable length column. In a fixed-length column, it reserves the fixed length of the column in the data part of the record. Reserving the fixed space for NULL values enables an update of the column from NULL to a non-NULL value to be done in place without causing fragmentation of the index page.

COMPACT Row Format Characteristics

The COMPACT row format decreases row storage space by about 20% compared to the REDUNDANT format at the cost of increasing CPU use for some operations. If your workload is a typical one that is limited by cache hit rates and disk speed, COMPACT format is likely to be faster. If the workload is a rare case that is limited by CPU speed, compact format might be slower.

Rows in InnoDB tables that use COMPACT row format have the following characteristics:

  • Each index record contains a 5-byte header that may be preceded by a variable-length header. The header is used to link together consecutive records, and also in row-level locking.

  • The variable-length part of the record header contains a bit vector for indicating NULL columns. If the number of columns in the index that can be NULL is N, the bit vector occupies CEILING(N/8) bytes. (For example, if there are anywhere from 9 to 15 columns that can be NULL, the bit vector uses two bytes.) Columns that are NULL do not occupy space other than the bit in this vector. The variable-length part of the header also contains the lengths of variable-length columns. Each length takes one or two bytes, depending on the maximum length of the column. If all columns in the index are NOT NULL and have a fixed length, the record header has no variable-length part.

  • For each non-NULL variable-length field, the record header contains the length of the column in one or two bytes. Two bytes are only needed if part of the column is stored externally in overflow pages or the maximum length exceeds 255 bytes and the actual length exceeds 127 bytes. For an externally stored column, the 2-byte length indicates the length of the internally stored part plus the 20-byte pointer to the externally stored part. The internal part is 768 bytes, so the length is 768+20. The 20-byte pointer stores the true length of the column.

  • The record header is followed by the data contents of the non-NULL columns.

  • Records in the clustered index contain fields for all user-defined columns. In addition, there is a 6-byte transaction ID field and a 7-byte roll pointer field.

  • If no primary key was defined for a table, each clustered index record also contains a 6-byte row ID field.

  • Each secondary index record also contains all the primary key fields defined for the clustered index key that are not in the secondary index. If any of these primary key fields are variable length, the record header for each secondary index has a variable-length part to record their lengths, even if the secondary index is defined on fixed-length columns.

  • Internally, for nonvariable-length character sets, InnoDB stores fixed-length character columns such as CHAR(10) in a fixed-length format.

    InnoDB does not truncate trailing spaces from VARCHAR columns.

  • Internally, for variable-length character sets such as utf8mb3 and utf8mb4, InnoDB attempts to store CHAR(N) in N bytes by trimming trailing spaces. If the byte length of a CHAR(N) column value exceeds N bytes, InnoDB trims trailing spaces to a minimum of the column value byte length. The maximum length of a CHAR(N) column is the maximum character byte length × N.

    InnoDB reserves a minimum of N bytes for CHAR(N). Reserving the minimum space N in many cases enables column updates to be done in place without causing fragmentation of the index page. By comparison, for ROW_FORMAT=REDUNDANT, CHAR(N) columns occupy the maximum character byte length × N.

    InnoDB encodes fixed-length fields greater than or equal to 768 bytes in length as variable-length fields, which can be stored off-page. For example, a CHAR(255) column can exceed 768 bytes if the maximum byte length of the character set is greater than 3, as it is with utf8mb4.

    ROW_FORMAT=DYNAMIC and ROW_FORMAT=COMPRESSED handle CHAR storage in the same way as ROW_FORMAT=COMPACT.

DYNAMIC and COMPRESSED Row Formats

DYNAMIC and COMPRESSED row formats are variations of the COMPACT row format. For information about these row formats, see Section 15.11.3, “DYNAMIC and COMPRESSED Row Formats”.

15.8.4 Moving or Copying InnoDB Tables to Another Machine

This section describes techniques for moving or copying some or all InnoDB tables to a different server. For example, you might move an entire MySQL instance to a larger, faster server; you might clone an entire MySQL instance to a new replication slave server; you might copy individual tables to another server to develop and test an application, or to a data warehouse server to produce reports.

On Windows, InnoDB always stores database and table names internally in lowercase. To move databases in a binary format from Unix to Windows or from Windows to Unix, create all databases and tables using lowercase names. A convenient way to accomplish this is to add the following line to the [mysqld] section of your my.cnf or my.ini file before creating any databases or tables:

[mysqld]
lower_case_table_names=1

Techniques for moving or copying InnoDB tables include:

Transportable Tablespaces

Introduced in MySQL 5.6.6, the transportable tablespaces feature uses FLUSH TABLES ... FOR EXPORT to ready InnoDB tables for copying from one server instance to another. To use this feature, InnoDB tables must be created with innodb_file_per_table set to ON so that each InnoDB table has its own tablespace. For usage information, see Section 15.7.6, “Copying File-Per-Table Tablespaces to Another Server”.

MySQL Enterprise Backup

The MySQL Enterprise Backup product lets you back up a running MySQL database, including InnoDB and MyISAM tables, with minimal disruption to operations while producing a consistent snapshot of the database. When MySQL Enterprise Backup is copying InnoDB tables, reads and writes to both InnoDB and MyISAM tables can continue. During the copying of MyISAM and other non-InnoDB tables, reads (but not writes) to those tables are permitted. In addition, MySQL Enterprise Backup can create compressed backup files, and back up subsets of InnoDB tables. In conjunction with the MySQL binary log, you can perform point-in-time recovery. MySQL Enterprise Backup is included as part of the MySQL Enterprise subscription.

For more details about MySQL Enterprise Backup, see Section 29.2, “MySQL Enterprise Backup Overview”.

Copying Data Files (Cold Backup Method)

You can move an InnoDB database simply by copying all the relevant files listed under "Cold Backups" in Section 15.18.1, “InnoDB Backup”.

Like MyISAM data files, InnoDB data and log files are binary-compatible on all platforms having the same floating-point number format. If the floating-point formats differ but you have not used FLOAT or DOUBLE data types in your tables, then the procedure is the same: simply copy the relevant files.

When you move or copy file-per-table .ibd files, the database directory name must be the same on the source and destination systems. The table definition stored in the InnoDB shared tablespace includes the database name. The transaction IDs and log sequence numbers stored in the tablespace files also differ between databases.

To move an .ibd file and the associated table from one database to another, use a RENAME TABLE statement:

RENAME TABLE db1.tbl_name TO db2.tbl_name;

If you have a clean backup of an .ibd file, you can restore it to the MySQL installation from which it originated as follows:

  1. The table must not have been dropped or truncated since you copied the .ibd file, because doing so changes the table ID stored inside the tablespace.

  2. Issue this ALTER TABLE statement to delete the current .ibd file:

    ALTER TABLE tbl_name DISCARD TABLESPACE;

  3. Copy the backup .ibd file to the proper database directory.

  4. Issue this ALTER TABLE statement to tell InnoDB to use the new .ibd file for the table:

    ALTER TABLE tbl_name IMPORT TABLESPACE;

    Note

    The ALTER TABLE ... IMPORT TABLESPACE feature does not enforce foreign key constraints on imported data.

In this context, a clean .ibd file backup is one for which the following requirements are satisfied:

  • There are no uncommitted modifications by transactions in the .ibd file.

  • There are no unmerged insert buffer entries in the .ibd file.

  • Purge has removed all delete-marked index records from the .ibd file.

  • mysqld has flushed all modified pages of the .ibd file from the buffer pool to the file.

You can make a clean backup .ibd file using the following method:

  1. Stop all activity from the mysqld server and commit all transactions.

  2. Wait until SHOW ENGINE INNODB STATUS shows that there are no active transactions in the database, and the main thread status of InnoDB is Waiting for server activity. Then you can make a copy of the .ibd file.

Another method for making a clean copy of an .ibd file is to use the MySQL Enterprise Backup product:

  1. Use MySQL Enterprise Backup to back up the InnoDB installation.

  2. Start a second mysqld server on the backup and let it clean up the .ibd files in the backup.

Export and Import (mysqldump)

You can use mysqldump to dump your tables on one machine and then import the dump files on the other machine. Using this method, it does not matter whether the formats differ or if your tables contain floating-point data.

One way to increase the performance of this method is to switch off autocommit mode when importing data, assuming that the tablespace has enough space for the big rollback segment that the import transactions generate. Do the commit only after importing a whole table or a segment of a table.

15.8.5 Converting Tables from MyISAM to InnoDB

If you have MyISAM tables that you want to convert to InnoDB for better reliability and scalability, review the following guidelines and tips before making the conversion.

Reduce Memory Usage for MyISAM, Increase Memory Usage for InnoDB

As you transition away from MyISAM tables, lower the value of the key_buffer_size configuration option to free memory no longer needed for caching results. Increase the value of the innodb_buffer_pool_size configuration option, which performs a similar role of allocating cache memory for InnoDB tables. The InnoDB buffer pool caches both table data and index data, so it does double duty in speeding up lookups for queries and keeping query results in memory for reuse. For guidance regarding buffer pool size configuration, see Section 9.12.4.1, “How MySQL Uses Memory”.

On a busy server, run benchmarks with the Query Cache turned off. The InnoDB buffer pool provides similar benefits, so the Query Cache might be tying up memory unnecessarily.

Watch Out for Too-Long Or Too-Short Transactions

Because MyISAM tables do not support transactions, you might not have paid much attention to the autocommit configuration option and the COMMIT and ROLLBACK statements. These keywords are important to allow multiple sessions to read and write InnoDB tables concurrently, providing substantial scalability benefits in write-heavy workloads.

While a transaction is open, the system keeps a snapshot of the data as seen at the beginning of the transaction, which can cause substantial overhead if the system inserts, updates, and deletes millions of rows while a stray transaction keeps running. Thus, take care to avoid transactions that run for too long:

  • If you are using a mysql session for interactive experiments, always COMMIT (to finalize the changes) or ROLLBACK (to undo the changes) when finished. Close down interactive sessions rather than leaving them open for long periods, to avoid keeping transactions open for long periods by accident.

  • Make sure that any error handlers in your application also ROLLBACK incomplete changes or COMMIT completed changes.

  • ROLLBACK is a relatively expensive operation, because INSERT, UPDATE, and DELETE operations are written to InnoDB tables prior to the COMMIT, with the expectation that most changes are committed successfully and rollbacks are rare. When experimenting with large volumes of data, avoid making changes to large numbers of rows and then rolling back those changes.

  • When loading large volumes of data with a sequence of INSERT statements, periodically COMMIT the results to avoid having transactions that last for hours. In typical load operations for data warehousing, if something goes wrong, you truncate the table (using TRUNCATE TABLE) and start over from the beginning rather than doing a ROLLBACK.

The preceding tips save memory and disk space that can be wasted during too-long transactions. When transactions are shorter than they should be, the problem is excessive I/O. With each COMMIT, MySQL makes sure each change is safely recorded to disk, which involves some I/O.

  • For most operations on InnoDB tables, you should use the setting autocommit=0. From an efficiency perspective, this avoids unnecessary I/O when you issue large numbers of consecutive INSERT, UPDATE, or DELETE statements. From a safety perspective, this allows you to issue a ROLLBACK statement to recover lost or garbled data if you make a mistake on the mysql command line, or in an exception handler in your application.

  • The time when autocommit=1 is suitable for InnoDB tables is when running a sequence of queries for generating reports or analyzing statistics. In this situation, there is no I/O penalty related to COMMIT or ROLLBACK, and InnoDB can automatically optimize the read-only workload.

  • If you make a series of related changes, finalize all those changes at once with a single COMMIT at the end. For example, if you insert related pieces of information into several tables, do a single COMMIT after making all the changes. Or if you run many consecutive INSERT statements, do a single COMMIT after all the data is loaded; if you are doing millions of INSERT statements, perhaps split up the huge transaction by issuing a COMMIT every ten thousand or hundred thousand records, so the transaction does not grow too large.

  • Remember that even a SELECT statement opens a transaction, so after running some report or debugging queries in an interactive mysql session, either issue a COMMIT or close the mysql session.

Don't Worry Too Much About Deadlocks

You might see warning messages referring to deadlocks in the MySQL error log, or the output of SHOW ENGINE INNODB STATUS. Despite the scary-sounding name, a deadlock is not a serious issue for InnoDB tables, and often does not require any corrective action. When two transactions start modifying multiple tables, accessing the tables in a different order, they can reach a state where each transaction is waiting for the other and neither can proceed. When deadlock detection is enabled (the default), MySQL immediately detects this condition and cancels (rolls back) the smaller transaction, allowing the other to proceed. If deadlock detection is disabled using the innodb_deadlock_detect configuration option, InnoDB relies on the innodb_lock_wait_timeout setting to roll back transactions in case of a deadlock.

Either way, your applications need error-handling logic to restart a transaction that is forcibly cancelled due to a deadlock. When you re-issue the same SQL statements as before, the original timing issue no longer applies: either the other transaction has already finished and yours can proceed, or the other transaction is still in progress and your transaction waits until it finishes.

If deadlock warnings occur constantly, you might review the application code to reorder the SQL operations in a consistent way, or to shorten the transactions. You can test with the innodb_print_all_deadlocks option enabled to see all deadlock warnings in the MySQL error log, rather than only the last warning in the SHOW ENGINE INNODB STATUS output.

For more information, see Section 15.5.5, “Deadlocks in InnoDB”.

Plan the Storage Layout

To get the best performance from InnoDB tables, you can adjust a number of parameters related to storage layout.

When you convert MyISAM tables that are large, frequently accessed, and hold vital data, investigate and consider the innodb_file_per_table, innodb_file_format, and innodb_page_size configuration options, and the ROW_FORMAT and KEY_BLOCK_SIZE clauses of the CREATE TABLE statement.

During your initial experiments, the most important setting is innodb_file_per_table. When this setting is enabled, which is the default as of MySQL 5.6.6, new InnoDB tables are implicitly created in file-per-table tablespaces. In contrast with the InnoDB system tablespace, file-per-table tablespaces allow disk space to be reclaimed by the operating system when a table is truncated or dropped. File-per-table tablespaces also support the Barracuda file format and associated features such as table compression and off-page storage for long variable-length columns. For more information, see Section 15.7.4, “InnoDB File-Per-Table Tablespaces”.

You can also store InnoDB tables in a shared general tablespace. General tablespaces support the Barracuda file format and can contain multiple tables. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

Converting an Existing Table

To convert a non-InnoDB table to use InnoDB use ALTER TABLE:

ALTER TABLE table_name ENGINE=InnoDB;
Important

Do not convert MySQL system tables in the mysql database from MyISAM to the InnoDB type. This is an unsupported operation. type.

Cloning the Structure of a Table

You might make an InnoDB table that is a clone of a MyISAM table, rather than doing the ALTER TABLE conversion, to test the old and new table side-by-side before switching.

Create an empty InnoDB table with identical column and index definitions. Use show create table table_name\G to see the full CREATE TABLE statement to use. Change the ENGINE clause to ENGINE=INNODB.

Transferring Existing Data

To transfer a large volume of data into an empty InnoDB table created as shown in the previous section, insert the rows with INSERT INTO innodb_table SELECT * FROM myisam_table ORDER BY primary_key_columns.

You can also create the indexes for the InnoDB table after inserting the data. Historically, creating new secondary indexes was a slow operation for InnoDB, but now you can create the indexes after the data is loaded with relatively little overhead from the index creation step.

If you have UNIQUE constraints on secondary keys, you can speed up a table import by turning off the uniqueness checks temporarily during the import operation:

SET unique_checks=0;
... import operation ...
SET unique_checks=1;

For big tables, this saves disk I/O because InnoDB can use its change buffer to write secondary index records as a batch. Be certain that the data contains no duplicate keys. unique_checks permits but does not require storage engines to ignore duplicate keys.

To get better control over the insertion process, you might insert big tables in pieces:

INSERT INTO newtable SELECT * FROM oldtable
   WHERE yourkey > something AND yourkey <= somethingelse;

After all records have been inserted, you can rename the tables.

During the conversion of big tables, increase the size of the InnoDB buffer pool to reduce disk I/O, to a maximum of 80% of physical memory. You can also increase the sizes of the InnoDB log files.

Storage Requirements

If you intend to make several temporary copies of your data in InnoDB tables during the conversion process, it is recommended that you create the tables in file-per-table tablespaces so that you can reclaim the disk space when you drop the tables. As mentioned previously, when the innodb_file_per_table option is enabled (the default), newly created InnoDB tables are implicitly created in file-per-table tablespaces.

Whether you convert the MyISAM table directly or create a cloned InnoDB table, make sure that you have sufficient disk space to hold both the old and new tables during the process. InnoDB tables require more disk space than MyISAM tables. If an ALTER TABLE operation runs out of space, it starts a rollback, and that can take hours if it is disk-bound. For inserts, InnoDB uses the insert buffer to merge secondary index records to indexes in batches. That saves a lot of disk I/O. For rollback, no such mechanism is used, and the rollback can take 30 times longer than the insertion.

In the case of a runaway rollback, if you do not have valuable data in your database, it may be advisable to kill the database process rather than wait for millions of disk I/O operations to complete. For the complete procedure, see Section 15.21.2, “Forcing InnoDB Recovery”.

Carefully Choose a PRIMARY KEY for Each Table

The PRIMARY KEY clause is a critical factor affecting the performance of MySQL queries and the space usage for tables and indexes. Perhaps you have phoned a financial institution where you are asked for an account number. If you do not have the number, you are asked for a dozen different pieces of information to uniquely identify yourself. The primary key is like that unique account number that lets you get straight down to business when querying or modifying the information in a table. Every row in the table must have a primary key value, and no two rows can have the same primary key value.

Here are guidelines for the primary key, followed by more detailed explanations.

  • Declare a PRIMARY KEY for each table. Typically, it is the most important column that you refer to in WHERE clauses when looking up a single row.

  • Declare the PRIMARY KEY clause in the original CREATE TABLE statement, rather than adding it later through an ALTER TABLE statement.

  • Choose the column and its data type carefully. Prefer numeric columns over character or string ones.

  • Consider using an auto-increment column if there is not another stable, unique, non-null, numeric column to use.

  • An auto-increment column is also a good choice if there is any doubt whether the value of the primary key column could ever change. Changing the value of a primary key column is an expensive operation, possibly involving rearranging data within the table and within each secondary index.

Consider adding a primary key to any table that does not already have one. Use the smallest practical numeric type based on the maximum projected size of the table. This can make each row slightly more compact, which can yield substantial space savings for large tables. The space savings are multiplied if the table has any secondary indexes, because the primary key value is repeated in each secondary index entry. In addition to reducing data size on disk, a small primary key also lets more data fit into the buffer pool, speeding up all kinds of operations and improving concurrency.

If the table already has a primary key on some longer column, such as a VARCHAR, consider adding a new unsigned AUTO_INCREMENT column and switching the primary key to that, even if that column is not referenced in queries. This design change can produce substantial space savings in the secondary indexes. You can designate the former primary key columns as UNIQUE NOT NULL to enforce the same constraints as the PRIMARY KEY clause, that is, to prevent duplicate or null values across all those columns.

If you spread related information across multiple tables, typically each table uses the same column for its primary key. For example, a personnel database might have several tables, each with a primary key of employee number. A sales database might have some tables with a primary key of customer number, and other tables with a primary key of order number. Because lookups using the primary key are very fast, you can construct efficient join queries for such tables.

If you leave the PRIMARY KEY clause out entirely, MySQL creates an invisible one for you. It is a 6-byte value that might be longer than you need, thus wasting space. Because it is hidden, you cannot refer to it in queries.

Application Performance Considerations

The extra reliability and scalability features of InnoDB do require more disk storage than equivalent MyISAM tables. You might change the column and index definitions slightly, for better space utilization, reduced I/O and memory consumption when processing result sets, and better query optimization plans making efficient use of index lookups.

If you do set up a numeric ID column for the primary key, use that value to cross-reference with related values in any other tables, particularly for join queries. For example, rather than accepting a country name as input and doing queries searching for the same name, do one lookup to determine the country ID, then do other queries (or a single join query) to look up relevant information across several tables. Rather than storing a customer or catalog item number as a string of digits, potentially using up several bytes, convert it to a numeric ID for storing and querying. A 4-byte unsigned INT column can index over 4 billion items (with the US meaning of billion: 1000 million). For the ranges of the different integer types, see Section 12.2.1, “Integer Types (Exact Value) - INTEGER, INT, SMALLINT, TINYINT, MEDIUMINT, BIGINT”.

Understand Files Associated with InnoDB Tables

InnoDB files require more care and planning than MyISAM files do:

  • You must not delete the ibdata files that represent the InnoDB system tablespace.

  • Copying InnoDB tables from one server to another requires issuing the FLUSH TABLES ... FOR EXPORT statement first, and copying the table_name.cfg file along with the table_name.ibd file.

15.8.6 AUTO_INCREMENT Handling in InnoDB

InnoDB provides a configurable locking mechanism that can significantly improve scalability and performance of SQL statements that add rows to tables with AUTO_INCREMENT columns. To use the AUTO_INCREMENT mechanism with an InnoDB table, an AUTO_INCREMENT column must be defined as part of an index such that it is possible to perform the equivalent of an indexed SELECT MAX(ai_col) lookup on the table to obtain the maximum column value. Typically, this is achieved by making the column the first column of some table index.

This section describes the behavior of AUTO_INCREMENT lock modes, usage implications for different AUTO_INCREMENT lock mode settings, and how InnoDB initializes the AUTO_INCREMENT counter.

InnoDB AUTO_INCREMENT Lock Modes

This section describes the behavior of AUTO_INCREMENT lock modes used to generate auto-increment values, and how each lock mode affects replication. Auto-increment lock modes are configured at startup using the innodb_autoinc_lock_mode configuration parameter.

The following terms are used in describing innodb_autoinc_lock_mode settings:

  • INSERT-like statements

    All statements that generate new rows in a table, including INSERT, INSERT ... SELECT, REPLACE, REPLACE ... SELECT, and LOAD DATA. Includes simple-inserts, bulk-inserts, and mixed-mode inserts.

  • Simple inserts

    Statements for which the number of rows to be inserted can be determined in advance (when the statement is initially processed). This includes single-row and multiple-row INSERT and REPLACE statements that do not have a nested subquery, but not INSERT ... ON DUPLICATE KEY UPDATE.

  • Bulk inserts

    Statements for which the number of rows to be inserted (and the number of required auto-increment values) is not known in advance. This includes INSERT ... SELECT, REPLACE ... SELECT, and LOAD DATA statements, but not plain INSERT. InnoDB assigns new values for the AUTO_INCREMENT column one at a time as each row is processed.

  • Mixed-mode inserts

    These are simple insert statements that specify the auto-increment value for some (but not all) of the new rows. An example follows, where c1 is an AUTO_INCREMENT column of table t1:

    INSERT INTO t1 (c1,c2) VALUES (1,'a'), (NULL,'b'), (5,'c'), (NULL,'d');


    Another type of mixed-mode insert is INSERT ... ON DUPLICATE KEY UPDATE, which in the worst case is in effect an INSERT followed by a UPDATE, where the allocated value for the AUTO_INCREMENT column may or may not be used during the update phase.

There are three possible settings for the innodb_autoinc_lock_mode configuration parameter. The settings are 0, 1, or 2, for traditional, consecutive, or interleaved lock mode, respectively.

  • innodb_autoinc_lock_mode = 0 (traditional lock mode)

    The traditional lock mode provides the same behavior that existed before the innodb_autoinc_lock_mode configuration parameter was introduced in MySQL 5.1. The traditional lock mode option is provided for backward compatibility, performance testing, and working around issues with “mixed-mode inserts”, due to possible differences in semantics.

    In this lock mode, all INSERT-like statements obtain a special table-level AUTO-INC lock for inserts into tables with AUTO_INCREMENT columns. This lock is normally held to the end of the statement (not to the end of the transaction) to ensure that auto-increment values are assigned in a predictable and repeatable order for a given sequence of INSERT statements, and to ensure that auto-increment values assigned by any given statement are consecutive.

    In the case of statement-based replication, this means that when an SQL statement is replicated on a slave server, the same values are used for the auto-increment column as on the master server. The result of execution of multiple INSERT statements is deterministic, and the slave reproduces the same data as on the master. If auto-increment values generated by multiple INSERT statements were interleaved, the result of two concurrent INSERT statements would be nondeterministic, and could not reliably be propagated to a slave server using statement-based replication.

    To make this clear, consider an example that uses this table:

    CREATE TABLE t1 (
      c1 INT(11) NOT NULL AUTO_INCREMENT,
      c2 VARCHAR(10) DEFAULT NULL,
      PRIMARY KEY (c1)
    ) ENGINE=InnoDB;


    Suppose that there are two transactions running, each inserting rows into a table with an AUTO_INCREMENT column. One transaction is using an INSERT ... SELECT statement that inserts 1000 rows, and another is using a simple INSERT statement that inserts one row:

    Tx1: INSERT INTO t1 (c2) SELECT 1000 rows from another table ...
    Tx2: INSERT INTO t1 (c2) VALUES ('xxx');


    InnoDB cannot tell in advance how many rows are retrieved from the SELECT in the INSERT statement in Tx1, and it assigns the auto-increment values one at a time as the statement proceeds. With a table-level lock, held to the end of the statement, only one INSERT statement referring to table t1 can execute at a time, and the generation of auto-increment numbers by different statements is not interleaved. The auto-increment value generated by the Tx1 INSERT ... SELECT statement is consecutive, and the (single) auto-increment value used by the INSERT statement in Tx2 is either be smaller or larger than all those used for Tx1, depending on which statement executes first.

    As long as the SQL statements execute in the same order when replayed from the binary log (when using statement-based replication, or in recovery scenarios), the results are the same as they were when Tx1 and Tx2 first ran. Thus, table-level locks held until the end of a statement make INSERT statements using auto-increment safe for use with statement-based replication. However, those table-level locks limit concurrency and scalability when multiple transactions are executing insert statements at the same time.

    In the preceding example, if there were no table-level lock, the value of the auto-increment column used for the INSERT in Tx2 depends on precisely when the statement executes. If the INSERT of Tx2 executes while the INSERT of Tx1 is running (rather than before it starts or after it completes), the specific auto-increment values assigned by the two INSERT statements are nondeterministic, and may vary from run to run.

    Under the consecutive lock mode, InnoDB can avoid using table-level AUTO-INC locks for simple insert statements where the number of rows is known in advance, and still preserve deterministic execution and safety for statement-based replication.

    If you are not using the binary log to replay SQL statements as part of recovery or replication, the interleaved lock mode can be used to eliminate all use of table-level AUTO-INC locks for even greater concurrency and performance, at the cost of permitting gaps in auto-increment numbers assigned by a statement and potentially having the numbers assigned by concurrently executing statements interleaved.

  • innodb_autoinc_lock_mode = 1 (consecutive lock mode)

    This is the default lock mode. In this mode, bulk inserts use the special AUTO-INC table-level lock and hold it until the end of the statement. This applies to all INSERT ... SELECT, REPLACE ... SELECT, and LOAD DATA statements. Only one statement holding the AUTO-INC lock can execute at a time.

    Simple inserts (for which the number of rows to be inserted is known in advance) avoid table-level AUTO-INC locks by obtaining the required number of auto-increment values under the control of a mutex (a light-weight lock) that is only held for the duration of the allocation process, not until the statement completes. No table-level AUTO-INC lock is used unless an AUTO-INC lock is held by another transaction. If another transaction holds an AUTO-INC lock, a simple insert waits for the AUTO-INC lock, as if it were a bulk insert.

    This lock mode ensures that, in the presence of INSERT statements where the number of rows is not known in advance (and where auto-increment numbers are assigned as the statement progresses), all auto-increment values assigned by any INSERT-like statement are consecutive, and operations are safe for statement-based replication.

    Simply put, this lock mode significantly improves scalability while being safe for use with statement-based replication. Further, as with traditional lock mode, auto-increment numbers assigned by any given statement are consecutive. There is no change in semantics compared to traditional mode for any statement that uses auto-increment, with one important exception.

    The exception is for mixed-mode inserts, where the user provides explicit values for an AUTO_INCREMENT column for some, but not all, rows in a multiple-row simple insert. For such inserts, InnoDB allocates more auto-increment values than the number of rows to be inserted. However, all values automatically assigned are consecutively generated (and thus higher than) the auto-increment value generated by the most recently executed previous statement. Excess numbers are lost.

  • innodb_autoinc_lock_mode = 2 (interleaved lock mode)

    In this lock mode, no INSERT-like statements use the table-level AUTO-INC lock, and multiple statements can execute at the same time. This is the fastest and most scalable lock mode, but it is not safe when using statement-based replication or recovery scenarios when SQL statements are replayed from the binary log.

    In this lock mode, auto-increment values are guaranteed to be unique and monotonically increasing across all concurrently executing INSERT-like statements. However, because multiple statements can be generating numbers at the same time (that is, allocation of numbers is interleaved across statements), the values generated for the rows inserted by any given statement may not be consecutive.

    If the only statements executing are simple inserts where the number of rows to be inserted is known ahead of time, there are no gaps in the numbers generated for a single statement, except for mixed-mode inserts. However, when bulk inserts are executed, there may be gaps in the auto-increment values assigned by any given statement.

InnoDB AUTO_INCREMENT Lock Mode Usage Implications

  • Using auto-increment with replication

    If you are using statement-based replication, set innodb_autoinc_lock_mode to 0 or 1 and use the same value on the master and its slaves. Auto-increment values are not ensured to be the same on the slaves as on the master if you use innodb_autoinc_lock_mode = 2 (interleaved) or configurations where the master and slaves do not use the same lock mode.

    If you are using row-based or mixed-format replication, all of the auto-increment lock modes are safe, since row-based replication is not sensitive to the order of execution of the SQL statements (and the mixed format uses row-based replication for any statements that are unsafe for statement-based replication).

  • Lost auto-increment values and sequence gaps

    In all lock modes (0, 1, and 2), if a transaction that generated auto-increment values rolls back, those auto-increment values are lost. Once a value is generated for an auto-increment column, it cannot be rolled back, whether or not the INSERT-like statement is completed, and whether or not the containing transaction is rolled back. Such lost values are not reused. Thus, there may be gaps in the values stored in an AUTO_INCREMENT column of a table.

  • Specifying NULL or 0 for the AUTO_INCREMENT column

    In all lock modes (0, 1, and 2), if a user specifies NULL or 0 for the AUTO_INCREMENT column in an INSERT, InnoDB treats the row as if the value was not specified and generates a new value for it.

  • Assigning a negative value to the AUTO_INCREMENT column

    In all lock modes (0, 1, and 2), the behavior of the auto-increment mechanism is not defined if you assign a negative value to the AUTO_INCREMENT column.

  • If the AUTO_INCREMENT value becomes larger than the maximum integer for the specified integer type

    In all lock modes (0, 1, and 2), the behavior of the auto-increment mechanism is not defined if the value becomes larger than the maximum integer that can be stored in the specified integer type.

  • Gaps in auto-increment values for bulk inserts

    With innodb_autoinc_lock_mode set to 0 (traditional) or 1 (consecutive), the auto-increment values generated by any given statement are consecutive, without gaps, because the table-level AUTO-INC lock is held until the end of the statement, and only one such statement can execute at a time.

    With innodb_autoinc_lock_mode set to 2 (interleaved), there may be gaps in the auto-increment values generated by bulk inserts, but only if there are concurrently executing INSERT-like statements.

    For lock modes 1 or 2, gaps may occur between successive statements because for bulk inserts the exact number of auto-increment values required by each statement may not be known and overestimation is possible.

  • Auto-increment values assigned by mixed-mode inserts

    Consider a mixed-mode insert, where a simple insert specifies the auto-increment value for some (but not all) resulting rows. Such a statement behaves differently in lock modes 0, 1, and 2. For example, assume c1 is an AUTO_INCREMENT column of table t1, and that the most recent automatically generated sequence number is 100.

    mysql> CREATE TABLE t1 (
        -> c1 INT UNSIGNED NOT NULL AUTO_INCREMENT PRIMARY KEY,
        -> c2 CHAR(1)
        -> ) ENGINE = INNODB;

    mysql> INSERT INTO t1 VALUES(1,'a'),(101,'b'),(5,'c'),(102,'d');

    Now, consider the following mixed-mode insert statement:

    mysql> INSERT INTO t1 (c1,c2) VALUES (1,'a'), (NULL,'b'), (5,'c'), (NULL,'d');


    With innodb_autoinc_lock_mode set to 0 (traditional), the four new rows are:

    mysql> SELECT c1, c2 FROM t1 ORDER BY c2;
    +-----+------+
    | c1  | c2   |
    +-----+------+
    |   1 | a    |
    | 101 | b    |
    |   5 | c    |
    | 102 | d    |
    +-----+------+


    The next available auto-increment value is 103 because the auto-increment values are allocated one at a time, not all at once at the beginning of statement execution. This result is true whether or not there are concurrently executing INSERT-like statements (of any type).

    With innodb_autoinc_lock_mode set to 1 (consecutive), the four new rows are also:

    mysql> SELECT c1, c2 FROM t1 ORDER BY c2;
    +-----+------+
    | c1  | c2   |
    +-----+------+
    |   1 | a    |
    | 101 | b    |
    |   5 | c    |
    | 102 | d    |
    +-----+------+


    However, in this case, the next available auto-increment value is 105, not 103 because four auto-increment values are allocated at the time the statement is processed, but only two are used. This result is true whether or not there are concurrently executing INSERT-like statements (of any type).

    With innodb_autoinc_lock_mode set to mode 2 (interleaved), the four new rows are:

    mysql> SELECT c1, c2 FROM t1 ORDER BY c2;
    +-----+------+
    | c1  | c2   |
    +-----+------+
    |   1 | a    |
    |   x | b    |
    |   5 | c    |
    |   y | d    |
    +-----+------+


    The values of x and y are unique and larger than any previously generated rows. However, the specific values of x and y depend on the number of auto-increment values generated by concurrently executing statements.

    Finally, consider the following statement, issued when the most-recently generated sequence number was the value 4:

    mysql> INSERT INTO t1 (c1,c2) VALUES (1,'a'), (NULL,'b'), (5,'c'), (NULL,'d');


    With any innodb_autoinc_lock_mode setting, this statement generates a duplicate-key error 23000 (Can't write; duplicate key in table) because 5 is allocated for the row (NULL, 'b') and insertion of the row (5, 'c') fails.

  • Modifying AUTO_INCREMENT column values in the middle of a sequence of INSERT statements

    In all lock modes (0, 1, and 2), modifying an AUTO_INCREMENT column value in the middle of a sequence of INSERT statements could lead to Duplicate entry errors. For example, if you perform an UPDATE operation that changes an AUTO_INCREMENT column value to a value larger than the current maximum auto-increment value, subsequent INSERT operations that do not specify an unused auto-increment value could encounter Duplicate entry errors. This behavior is demonstrated in the following example.

    mysql> CREATE TABLE t1 (
        -> c1 INT NOT NULL AUTO_INCREMENT,
        -> PRIMARY KEY (c1)
        ->  ) ENGINE = InnoDB;

    mysql> INSERT INTO t1 VALUES(0), (0), (3);

    mysql> SELECT c1 FROM t1;
    +----+
    | c1 |
    +----+
    |  1 |
    |  2 |
    |  3 |
    +----+

    mysql> UPDATE t1 SET c1 = 4 WHERE c1 = 1;

    mysql> SELECT c1 FROM t1;
    +----+
    | c1 |
    +----+
    |  2 |
    |  3 |
    |  4 |
    +----+

    mysql> INSERT INTO t1 VALUES(0);
    ERROR 1062 (23000): Duplicate entry '4' for key 'PRIMARY'

InnoDB AUTO_INCREMENT Counter Initialization

This section describes how InnoDB initializes AUTO_INCREMENT counters.

If you specify an AUTO_INCREMENT column for an InnoDB table, the table handle in the InnoDB data dictionary contains a special counter called the auto-increment counter that is used in assigning new values for the column. This counter is stored only in main memory, not on disk.

To initialize an auto-increment counter after a server restart, InnoDB executes the equivalent of the following statement on the first insert into a table containing an AUTO_INCREMENT column.

SELECT MAX(ai_col) FROM table_name FOR UPDATE;

InnoDB increments the value retrieved by the statement and assigns it to the column and to the auto-increment counter for the table. By default, the value is incremented by 1. This default can be overridden by the auto_increment_increment configuration setting.

If the table is empty, InnoDB uses the value 1. This default can be overridden by the auto_increment_offset configuration setting.

If a SHOW TABLE STATUS statement examines the table before the auto-increment counter is initialized, InnoDB initializes but does not increment the value. The value is stored for use by later inserts. This initialization uses a normal exclusive-locking read on the table and the lock lasts to the end of the transaction. InnoDB follows the same procedure for initializing the auto-increment counter for a newly created table.

After the auto-increment counter has been initialized, if you do not explicitly specify a value for an AUTO_INCREMENT column, InnoDB increments the counter and assigns the new value to the column. If you insert a row that explicitly specifies the column value, and the value is greater than the current counter value, the counter is set to the specified column value.

InnoDB uses the in-memory auto-increment counter as long as the server runs. When the server is stopped and restarted, InnoDB reinitializes the counter for each table for the first INSERT to the table, as described earlier.

A server restart also cancels the effect of the AUTO_INCREMENT = N table option in CREATE TABLE and ALTER TABLE statements, which you can use with InnoDB tables to set the initial counter value or alter the current counter value.

15.8.7 InnoDB and FOREIGN KEY Constraints

This section describes differences in the InnoDB storage engine's handling of foreign keys as compared with that of the MySQL Server.

For foreign key usage information and examples, see Section 14.1.18.5, “Using FOREIGN KEY Constraints”.

Foreign Key Definitions

Foreign key definitions for InnoDB tables are subject to the following conditions:

  • InnoDB permits a foreign key to reference any index column or group of columns. However, in the referenced table, there must be an index where the referenced columns are listed as the first columns in the same order.

  • InnoDB does not currently support foreign keys for tables with user-defined partitioning. This means that no user-partitioned InnoDB table may contain foreign key references or columns referenced by foreign keys.

  • InnoDB allows a foreign key constraint to reference a non-unique key. This is an InnoDB extension to standard SQL.

Referential Actions

Referential actions for foreign keys of InnoDB tables are subject to the following conditions:

  • While SET DEFAULT is allowed by the MySQL Server, it is rejected as invalid by InnoDB. CREATE TABLE and ALTER TABLE statements using this clause are not allowed for InnoDB tables.

  • If there are several rows in the parent table that have the same referenced key value, InnoDB acts in foreign key checks as if the other parent rows with the same key value do not exist. For example, if you have defined a RESTRICT type constraint, and there is a child row with several parent rows, InnoDB does not permit the deletion of any of those parent rows.

  • InnoDB performs cascading operations through a depth-first algorithm, based on records in the indexes corresponding to the foreign key constraints.

  • If ON UPDATE CASCADE or ON UPDATE SET NULL recurses to update the same table it has previously updated during the cascade, it acts like RESTRICT. This means that you cannot use self-referential ON UPDATE CASCADE or ON UPDATE SET NULL operations. This is to prevent infinite loops resulting from cascaded updates. A self-referential ON DELETE SET NULL, on the other hand, is possible, as is a self-referential ON DELETE CASCADE. Cascading operations may not be nested more than 15 levels deep.

  • Like MySQL in general, in an SQL statement that inserts, deletes, or updates many rows, InnoDB checks UNIQUE and FOREIGN KEY constraints row-by-row. When performing foreign key checks, InnoDB sets shared row-level locks on child or parent records it has to look at. InnoDB checks foreign key constraints immediately; the check is not deferred to transaction commit. According to the SQL standard, the default behavior should be deferred checking. That is, constraints are only checked after the entire SQL statement has been processed. Until InnoDB implements deferred constraint checking, some things are impossible, such as deleting a record that refers to itself using a foreign key.

Foreign Key Restrictions for Generated Columns and Virtual Indexes

  • A foreign key constraint on a generated stored column cannot use ON UPDATE CASCADE, ON DELETE SET NULL, ON UPDATE SET NULL, ON DELETE SET DEFAULT, or ON UPDATE SET DEFAULT.

  • A foreign key constraint cannot reference a generated virtual column.

  • Prior to 5.7.16, a foreign key constraint cannot reference a secondary index defined on a generated virtual column.

  • In MySQL 5.7.13 and earlier, InnoDB does not permit defining a foreign key constraint with a cascading referential action on the base column of an indexed generated virtual column. This restriction is lifted in MySQL 5.7.14.

  • In MySQL 5.7.13 and earlier, InnoDB does not permit defining cascading referential actions on non-virtual foreign key columns that are explicitly included in a virtual index. This restriction is lifted in MySQL 5.7.14.

Foreign Key Usage and Error Information

You can obtain general information about foreign keys and their usage from querying the INFORMATION_SCHEMA.KEY_COLUMN_USAGE table, and more information more specific to InnoDB tables can be found in the INNODB_SYS_FOREIGN and INNODB_SYS_FOREIGN_COLS tables, also in the INFORMATION_SCHEMA database.

In addition to SHOW ERRORS, in the event of a foreign key error involving InnoDB tables (usually Error 150 in the MySQL Server), you can obtain a detailed explanation of the most recent InnoDB foreign key error by checking the output of SHOW ENGINE INNODB STATUS.

15.8.8 Limits on InnoDB Tables

Warning

Do not convert MySQL system tables in the mysql database from MyISAM to InnoDB tables. This is an unsupported operation. If you do this, MySQL does not restart until you restore the old system tables from a backup or regenerate them by reinitializing the data directory (see Section 2.10.1, “Initializing the Data Directory”).

Warning

Before using NFS with InnoDB, review potential issues outlined in Using NFS with MySQL.

Maximums and Minimums

  • A table can contain a maximum of 1017 columns (raised in MySQL 5.6.9 from the earlier limit of 1000). Virtual generated columns are included in this limit.

  • A table can contain a maximum of 64 secondary indexes.

  • If innodb_large_prefix is enabled (the default), the index key prefix limit is 3072 bytes for InnoDB tables that use DYNAMIC or COMPRESSED row format. If innodb_large_prefix is disabled, the index key prefix limit is 767 bytes for tables of any row format.

    innodb_large_prefix is deprecated and will be removed in a future release. innodb_large_prefix was introduced in MySQL 5.5 to disable large index key prefixes for compatibility with earlier versions of InnoDB that do not support large index key prefixes.

    The index key prefix length limit is 767 bytes for InnoDB tables that use the REDUNDANT or COMPACT row format. For example, you might hit this limit with a column prefix index of more than 255 characters on a TEXT or VARCHAR column, assuming a utf8mb3 character set and the maximum of 3 bytes for each character.

    Attempting to use an index key prefix length that exceeds the limit returns an error. To avoid such errors in replication configurations, avoid enabling innodb_large_prefix on the master if it cannot also be enabled on slaves.

    The limits that apply to index key prefixes also apply to full-column index keys.

  • If you reduce the InnoDB page size to 8KB or 4KB by specifying the innodb_page_size option when creating the MySQL instance, the maximum length of the index key is lowered proportionally, based on the limit of 3072 bytes for a 16KB page size. That is, the maximum index key length is 1536 bytes when the page size is 8KB, and 768 bytes when the page size is 4KB.

  • A maximum of 16 columns is permitted for multicolumn indexes. Exceeding the limit returns an error.

    ERROR 1070 (42000): Too many key parts specified; max 16 parts allowed

  • The maximum row length, except for variable-length columns (VARBINARY, VARCHAR, BLOB and TEXT), is slightly less than half of a page for 4KB, 8KB, 16KB, and 32KB page sizes. For example, the maximum row length for the default innodb_page_size of 16KB is about 8000 bytes. For an InnoDB page size of 64KB, the maximum row length is about 16000 bytes. LONGBLOB and LONGTEXT columns must be less than 4GB, and the total row length, including BLOB and TEXT columns, must be less than 4GB.

    If a row is less than half a page long, all of it is stored locally within the page. If it exceeds half a page, variable-length columns are chosen for external off-page storage until the row fits within half a page, as described in Section 15.12.2, “File Space Management”.

  • Although InnoDB supports row sizes larger than 65,535 bytes internally, MySQL itself imposes a row-size limit of 65,535 for the combined size of all columns:

    mysql> CREATE TABLE t (a VARCHAR(8000), b VARCHAR(10000),
        -> c VARCHAR(10000), d VARCHAR(10000), e VARCHAR(10000),
        -> f VARCHAR(10000), g VARCHAR(10000)) ENGINE=InnoDB;
    ERROR 1118 (42000): Row size too large. The maximum row size for the
    used table type, not counting BLOBs, is 65535. You have to change some
    columns to TEXT or BLOBs


    See Section C.10.4, “Limits on Table Column Count and Row Size”.

  • On some older operating systems, files must be less than 2GB. This is not a limitation of InnoDB itself, but if you require a large tablespace, configure it using several smaller data files rather than one large data file.

  • The combined size of the InnoDB log files can be up to 512GB.

  • The minimum tablespace size is slightly larger than 10MB. The maximum tablespace size depends on the InnoDB page size.

    Table 15.6 InnoDB Maximum Tablespace Size

    InnoDB Page SizeMaximum Tablespace Size
    4KB16TB
    8KB32TB
    16KB64TB
    32KB128TB
    64KB256TB

    The maximum tablespace size is also the maximum size for a table.

  • The default page size in InnoDB is 16KB. You can increase or decrease the page size by configuring the innodb_page_size option when creating the MySQL instance.

    ROW_FORMAT=COMPRESSED in the Barracuda file format assumes that the page size is at most 16KB and uses 14-bit pointers.

    32KB and 64KB page sizes are supported, but ROW_FORMAT=COMPRESSED is unsupported for page sizes greater than 16KB. For both 32KB and 64KB page sizes, the maximum record size is 16KB. For innodb_page_size=32k, extent size is 2MB. For innodb_page_size=64k, extent size is 4MB.

    A MySQL instance using a particular InnoDB page size cannot use data files or log files from an instance that uses a different page size.

Restrictions on InnoDB Tables

  • ANALYZE TABLE determines index cardinality (as displayed in the Cardinality column of SHOW INDEX output) by doing random dives to each of the index trees and updating index cardinality estimates accordingly. Because these are only estimates, repeated runs of ANALYZE TABLE could produce different numbers. This makes ANALYZE TABLE fast on InnoDB tables but not 100% accurate because it does not take all rows into account.

    You can make the statistics collected by ANALYZE TABLE more precise and more stable by turning on the innodb_stats_persistent configuration option, as explained in Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”. When that setting is enabled, it is important to run ANALYZE TABLE after major changes to indexed column data, because the statistics are not recalculated periodically (such as after a server restart) as they traditionally have been.

    You can change the number of random dives by modifying the innodb_stats_persistent_sample_pages system variable (if the persistent statistics setting is turned on), or the innodb_stats_transient_sample_pages system variable (if the persistent statistics setting is turned off).

    MySQL uses index cardinality estimates only in join optimization. If some join is not optimized in the right way, you can try using ANALYZE TABLE. In the few cases that ANALYZE TABLE does not produce values good enough for your particular tables, you can use FORCE INDEX with your queries to force the use of a particular index, or set the max_seeks_for_key system variable to ensure that MySQL prefers index lookups over table scans. See Section 6.1.5, “Server System Variables”, and Section B.5.5, “Optimizer-Related Issues”.

  • If statements or transactions are running on a table and ANALYZE TABLE is run on the same table followed by a second ANALYZE TABLE operation, the second ANALYZE TABLE operation is blocked until the statements or transactions are completed. This behavior occurs because ANALYZE TABLE marks the currently loaded table definition as obsolete when ANALYZE TABLE is finished running. New statements or transactions (including a second ANALYZE TABLE statement) must load the new table definition into the table cache, which cannot occur until currently running statements or transactions are completed and the old table definition is purged. Loading multiple concurrent table definitions is not supported.

  • SHOW TABLE STATUS does not give accurate statistics on InnoDB tables, except for the physical size reserved by the table. The row count is only a rough estimate used in SQL optimization.

  • InnoDB does not keep an internal count of rows in a table because concurrent transactions might see different numbers of rows at the same time. Consequently, SELECT COUNT(*) statements only count rows visible to the current transaction.

    Prior to MySQL 5.7.18, InnoDB processes SELECT COUNT(*) statements by scanning the clustered index. As of MySQL 5.7.18, InnoDB processes SELECT COUNT(*) statements by traversing a smaller secondary index, if present.

    Processing SELECT COUNT(*) statements takes some time if index records are not entirely in the buffer pool. For a faster count, you can create a counter table and let your application update it according to the inserts and deletes it does. However, this method may not scale well in situations where thousands of concurrent transactions are initiating updates to the same counter table. If an approximate row count is sufficient, SHOW TABLE STATUS can be used.

    InnoDB handles SELECT COUNT(*) and SELECT COUNT(1) operations in the same way. There is no performance difference.

  • On Windows, InnoDB always stores database and table names internally in lowercase. To move databases in a binary format from Unix to Windows or from Windows to Unix, create all databases and tables using lowercase names.

  • An AUTO_INCREMENT column ai_col must be defined as part of an index such that it is possible to perform the equivalent of an indexed SELECT MAX(ai_col) lookup on the table to obtain the maximum column value. Typically, this is achieved by making the column the first column of some table index.

  • InnoDB sets an exclusive lock on the end of the index associated with the AUTO_INCREMENT column while initializing a previously specified AUTO_INCREMENT column on a table.

    With innodb_autoinc_lock_mode=0, InnoDB uses a special AUTO-INC table lock mode where the lock is obtained and held to the end of the current SQL statement while accessing the auto-increment counter. Other clients cannot insert into the table while the AUTO-INC table lock is held. The same behavior occurs for bulk inserts with innodb_autoinc_lock_mode=1. Table-level AUTO-INC locks are not used with innodb_autoinc_lock_mode=2. For more information, See Section 15.8.6, “AUTO_INCREMENT Handling in InnoDB”.

  • When you restart the MySQL server, InnoDB may reuse an old value that was generated for an AUTO_INCREMENT column but never stored (that is, a value that was generated during an old transaction that was rolled back).

  • When an AUTO_INCREMENT integer column runs out of values, a subsequent INSERT operation returns a duplicate-key error. This is general MySQL behavior, similar to how MyISAM works.

  • DELETE FROM tbl_name does not regenerate the table but instead deletes all rows, one by one.

  • Cascaded foreign key actions do not activate triggers.

  • You cannot create a table with a column name that matches the name of an internal InnoDB column (including DB_ROW_ID, DB_TRX_ID, DB_ROLL_PTR, and DB_MIX_ID). This restriction applies to use of the names in any letter case.

    mysql> CREATE TABLE t1 (c1 INT, db_row_id INT) ENGINE=INNODB;
    ERROR 1166 (42000): Incorrect column name 'db_row_id'


Locking and Transactions

  • LOCK TABLES acquires two locks on each table if innodb_table_locks=1 (the default). In addition to a table lock on the MySQL layer, it also acquires an InnoDB table lock. Versions of MySQL before 4.1.2 did not acquire InnoDB table locks; the old behavior can be selected by setting innodb_table_locks=0. If no InnoDB table lock is acquired, LOCK TABLES completes even if some records of the tables are being locked by other transactions.

    In MySQL 5.7, innodb_table_locks=0 has no effect for tables locked explicitly with LOCK TABLES ... WRITE. It does have an effect for tables locked for read or write by LOCK TABLES ... WRITE implicitly (for example, through triggers) or by LOCK TABLES ... READ.

  • All InnoDB locks held by a transaction are released when the transaction is committed or aborted. Thus, it does not make much sense to invoke LOCK TABLES on InnoDB tables in autocommit=1 mode because the acquired InnoDB table locks would be released immediately.

  • You cannot lock additional tables in the middle of a transaction because LOCK TABLES performs an implicit COMMIT and UNLOCK TABLES.

  • The limit on data-modifying transactions is 96 * 1023 concurrent transactions that generate undo records. 32 of 128 rollback segments are assigned to non-redo logs for transactions that modify temporary tables and related objects. This reduces the maximum number of concurrent data-modifying transactions from 128K to 96K. The 96K limit assumes that transactions do not modify temporary tables. If all data-modifying transactions also modify temporary tables, the limit is 32K concurrent transactions.

15.8.9 Clustered and Secondary Indexes

Every InnoDB table has a special index called the clustered index where the data for the rows is stored. Typically, the clustered index is synonymous with the primary key. To get the best performance from queries, inserts, and other database operations, you must understand how InnoDB uses the clustered index to optimize the most common lookup and DML operations for each table.

  • When you define a PRIMARY KEY on your table, InnoDB uses it as the clustered index. Define a primary key for each table that you create. If there is no logical unique and non-null column or set of columns, add a new auto-increment column, whose values are filled in automatically.

  • If you do not define a PRIMARY KEY for your table, MySQL locates the first UNIQUE index where all the key columns are NOT NULL and InnoDB uses it as the clustered index.

  • If the table has no PRIMARY KEY or suitable UNIQUE index, InnoDB internally generates a hidden clustered index on a synthetic column containing row ID values. The rows are ordered by the ID that InnoDB assigns to the rows in such a table. The row ID is a 6-byte field that increases monotonically as new rows are inserted. Thus, the rows ordered by the row ID are physically in insertion order.

How the Clustered Index Speeds Up Queries

Accessing a row through the clustered index is fast because the index search leads directly to the page with all the row data. If a table is large, the clustered index architecture often saves a disk I/O operation when compared to storage organizations that store row data using a different page from the index record. (For example, MyISAM uses one file for data rows and another for index records.)

How Secondary Indexes Relate to the Clustered Index

All indexes other than the clustered index are known as secondary indexes. In InnoDB, each record in a secondary index contains the primary key columns for the row, as well as the columns specified for the secondary index. InnoDB uses this primary key value to search for the row in the clustered index.

If the primary key is long, the secondary indexes use more space, so it is advantageous to have a short primary key.

For coding guidelines to take advantage of InnoDB clustered and secondary indexes, see Section 9.3.2, “Using Primary Keys” Section 9.3, “Optimization and Indexes” Section 9.5, “Optimizing for InnoDB Tables” Section 9.3.2, “Using Primary Keys”.

15.8.10 InnoDB FULLTEXT Indexes

FULLTEXT indexes are created on text-based columns (CHAR, VARCHAR, or TEXT columns) to help speed up queries and DML operations on data contained within those columns, omitting any words that are defined as stopwords.

A FULLTEXT index can be defined as part of a CREATE TABLE statement, or added later using ALTER TABLE or CREATE INDEX.

Full-text searching is performed using MATCH() ... AGAINST syntax. For usage information, see Section 13.9, “Full-Text Search Functions”.

There are several aspects to InnoDB FULLTEXT indexes, described under the following topics in this section:

InnoDB Full-Text Index Design

InnoDB FULLTEXT indexes have an inverted index design. Inverted indexes store a list of words, and for each word, a list of documents that the word appears in. To support proximity search, position information for each word is also stored, as a byte offset.

InnoDB Full-Text Index Tables

For each InnoDB FULLTEXT index, a set of index tables is created, as shown in the following example:

CREATE TABLE opening_lines (
id INT UNSIGNED AUTO_INCREMENT NOT NULL PRIMARY KEY,
opening_line TEXT(500),
author VARCHAR(200),
title VARCHAR(200),
FULLTEXT idx (opening_line)
) ENGINE=InnoDB;

mysql> SELECT table_id, name, space from INFORMATION_SCHEMA.INNODB_SYS_TABLES
WHERE name LIKE 'test/%';
+----------+----------------------------------------------------+-------+
| table_id | name                                               | space |
+----------+----------------------------------------------------+-------+
|      333 | test/FTS_0000000000000147_00000000000001c9_INDEX_1 |   289 |
|      334 | test/FTS_0000000000000147_00000000000001c9_INDEX_2 |   290 |
|      335 | test/FTS_0000000000000147_00000000000001c9_INDEX_3 |   291 |
|      336 | test/FTS_0000000000000147_00000000000001c9_INDEX_4 |   292 |
|      337 | test/FTS_0000000000000147_00000000000001c9_INDEX_5 |   293 |
|      338 | test/FTS_0000000000000147_00000000000001c9_INDEX_6 |   294 |
|      330 | test/FTS_0000000000000147_BEING_DELETED            |   286 |
|      331 | test/FTS_0000000000000147_BEING_DELETED_CACHE      |   287 |
|      332 | test/FTS_0000000000000147_CONFIG                   |   288 |
|      328 | test/FTS_0000000000000147_DELETED                  |   284 |
|      329 | test/FTS_0000000000000147_DELETED_CACHE            |   285 |
|      327 | test/opening_lines                                 |   283 |
+----------+----------------------------------------------------+-------+

The first six tables represent the inverted index and are referred to as auxiliary index tables. When incoming documents are tokenized, the individual words (also referred to as tokens) are inserted into the index tables along with position information and the associated Document ID (DOC_ID). The words are fully sorted and partitioned among the six index tables based on the character set sort weight of the word's first character.

The inverted index is partitioned into six auxiliary index tables to support parallel index creation. By default, two threads tokenize, sort, and insert words and associated data into the index tables. The number of threads is configurable using the innodb_ft_sort_pll_degree option. When creating FULLTEXT indexes on large tables, consider increasing the number of threads.

Auxiliary index table names are prefixed with FTS_ and postfixed with INDEX_*. Each index table is associated with the indexed table by a hex value in the index table name that matches the table_id of the indexed table. For example, the table_id of the test/opening_lines table is 327, for which the hex value is 0x147. As shown in the preceding example, the 147 hex value appears in the names of index tables that are associated with the test/opening_lines table.

A hex value representing the index_id of the FULLTEXT index also appears in auxiliary index table names. For example, in the auxiliary table name test/FTS_0000000000000147_00000000000001c9_INDEX_1, the hex value 1c9 has a decimal value of 457. The index defined on the opening_lines table (idx) can be identified by querying the INFORMATION_SCHEMA.INNODB_SYS_INDEXES table for this value (457).

mysql> SELECT index_id, name, table_id, space from INFORMATION_SCHEMA.INNODB_SYS_INDEXES
  WHERE index_id=457;
+----------+------+----------+-------+
| index_id | name | table_id | space |
+----------+------+----------+-------+
|      457 | idx  |      327 |   283 |
+----------+------+----------+-------+

Index tables are stored in their own tablespace if the primary table is created in a file-per-table tablespace.

The other index tables shown in the preceding example are used for deletion handling and for storing the internal state of the FULLTEXT index.

  • FTS_*_DELETED and FTS_*_DELETED_CACHE: Contain the document IDs (DOC_ID) for documents that are deleted but whose data is not yet removed from the full-text index. The FTS_*_DELETED_CACHE is the in-memory version of the FTS_*_DELETED table.

  • FTS_*_BEING_DELETED and FTS_*_BEING_DELETED_CACHE: Contain the document IDs (DOC_ID) for documents that are deleted and whose data is currently in the process of being removed from the full-text index. The FTS_*_BEING_DELETED_CACHE table is the in-memory version of the FTS_*_BEING_DELETED table.

  • FTS_*_CONFIG: Stores information about the internal state of the FULLTEXT index. Most importantly, it stores the FTS_SYNCED_DOC_ID, which identifies documents that have been parsed and flushed to disk. In case of crash recovery, FTS_SYNCED_DOC_ID values are used to identify documents that have not been flushed to disk so that the documents can be re-parsed and added back to the FULLTEXT index cache. To view the data in this table, query the INFORMATION_SCHEMA.INNODB_FT_CONFIG table.

InnoDB Full-Text Index Cache

When a document is inserted, it is tokenized, and the individual words and associated data are inserted into the FULLTEXT index. This process, even for small documents, could result in numerous small insertions into the auxiliary index tables, making concurrent access to these tables a point of contention. To avoid this problem, InnoDB uses a FULLTEXT index cache to temporarily cache index table insertions for recently inserted rows. This in-memory cache structure holds insertions until the cache is full and then batch flushes them to disk (to the auxiliary index tables). You can query the INFORMATION_SCHEMA.INNODB_FT_INDEX_CACHE table to view tokenized data for recently inserted rows.

The caching and batch flushing behavior avoids frequent updates to auxiliary index tables, which could result in concurrent access issues during busy insert and update times. The batching technique also avoids multiple insertions for the same word, and minimizes duplicate entries. Instead of flushing each word individually, insertions for the same word are merged and flushed to disk as a single entry, improving insertion efficiency while keeping auxiliary index tables as small as possible.

The innodb_ft_cache_size variable is used to configure the full-text index cache size (on a per-table basis), which affects how often the full-text index cache is flushed. You can also define a global full-text index cache size limit for all tables in a given instance using the innodb_ft_total_cache_size option.

The full-text index cache stores the same information as auxiliary index tables. However, the full-text index cache only caches tokenized data for recently inserted rows. The data that is already flushed to disk (to the full-text auxiliary tables) is not brought back into the full-text index cache when queried. The data in auxiliary index tables is queried directly, and results from the auxiliary index tables are merged with results from the full-text index cache before being returned.

InnoDB Full-Text Index Document ID and FTS_DOC_ID Column

InnoDB uses a unique document identifier referred to as a Document ID (DOC_ID) to map words in the full-text index to document records where the word appears. The mapping requires an FTS_DOC_ID column on the indexed table. If an FTS_DOC_ID column is not defined, InnoDB automatically adds a hidden FTS_DOC_ID column when the full-text index is created. The following example demonstrates this behavior.

The following table definition does not include an FTS_DOC_ID column:

CREATE TABLE opening_lines (
id INT UNSIGNED AUTO_INCREMENT NOT NULL PRIMARY KEY,
opening_line TEXT(500),
author VARCHAR(200),
title VARCHAR(200)
) ENGINE=InnoDB;

When you create a full-text index on the table using CREATE FULLTEXT INDEX syntax, a warning is returned which reports that InnoDB is rebuilding the table to add the FTS_DOC_ID column.

mysql> CREATE FULLTEXT INDEX idx ON opening_lines(opening_line);
Query OK, 0 rows affected, 1 warning (0.19 sec)
Records: 0  Duplicates: 0  Warnings: 1

mysql> SHOW WARNINGS;
+---------+------+--------------------------------------------------+
| Level   | Code | Message                                          |
+---------+------+--------------------------------------------------+
| Warning |  124 | InnoDB rebuilding table to add column FTS_DOC_ID |
+---------+------+--------------------------------------------------+

The same warning is returned when using ALTER TABLE to add a full-text index to a table that does not have an FTS_DOC_ID column. If you create a full-text index at CREATE TABLE time and do not specify an FTS_DOC_ID column, InnoDB adds a hidden FTS_DOC_ID column, without warning.

Defining an FTS_DOC_ID column at CREATE TABLE time reduces the time required to create a full-text index on a table that is already loaded with data. If an FTS_DOC_ID column is defined on a table prior to loading data, the table and its indexes do not have to be rebuilt to add the new column. If you are not concerned with CREATE FULLTEXT INDEX performance, leave out the FTS_DOC_ID column to have InnoDB create it for you. InnoDB creates a hidden FTS_DOC_ID column along with a unique index (FTS_DOC_ID_INDEX) on the FTS_DOC_ID column. If you want to create your own FTS_DOC_ID column, the column must be defined as BIGINT UNSIGNED NOT NULL and named FTS_DOC_ID (all upper case), as in the following example:

Note

The FTS_DOC_ID column does not need to be defined as an AUTO_INCREMENT column but AUTO_INCREMENT could make loading data easier.

CREATE TABLE opening_lines (
FTS_DOC_ID BIGINT UNSIGNED AUTO_INCREMENT NOT NULL PRIMARY KEY,
opening_line TEXT(500),
author VARCHAR(200),
title VARCHAR(200)
) ENGINE=InnoDB;

If you choose to define the FTS_DOC_ID column yourself, you are responsible for managing the column to avoid empty or duplicate values. FTS_DOC_ID values cannot be reused, which means FTS_DOC_ID values must be ever increasing.

Optionally, you can create the required unique FTS_DOC_ID_INDEX (all upper case) on the FTS_DOC_ID column.

CREATE UNIQUE INDEX FTS_DOC_ID_INDEX on opening_lines(FTS_DOC_ID);

If you do not create the FTS_DOC_ID_INDEX, InnoDB creates it automatically.

Before MySQL 5.7.13, the permitted gap between the largest used FTS_DOC_ID value and new FTS_DOC_ID value is 10000. In MySQL 5.7.13 and later, the permitted gap is 65535.

InnoDB Full-Text Index Deletion Handling

Deleting a record that has a full-text index column could result in numerous small deletions in the auxiliary index tables, making concurrent access to these tables a point of contention. To avoid this problem, the Document ID (DOC_ID) of a deleted document is logged in a special FTS_*_DELETED table whenever a record is deleted from an indexed table, and the indexed record remains in the full-text index. Before returning query results, information in the FTS_*_DELETED table is used to filter out deleted Document IDs. The benefit of this design is that deletions are fast and inexpensive. The drawback is that the size of the index is not immediately reduced after deleting records. To remove full-text index entries for deleted records, you must run OPTIMIZE TABLE on the indexed table with innodb_optimize_fulltext_only=ON to rebuild the full-text index. For more information, see Optimizing InnoDB Full-Text Indexes.

InnoDB Full-Text Index Transaction Handling

InnoDB FULLTEXT indexes have special transaction handling characteristics due its caching and batch processing behavior. Specifically, updates and insertions on a FULLTEXT index are processed at transaction commit time, which means that a FULLTEXT search can only see committed data. The following example demonstrates this behavior. The FULLTEXT search only returns a result after the inserted lines are committed.

mysql> CREATE TABLE opening_lines (
id INT UNSIGNED AUTO_INCREMENT NOT NULL PRIMARY KEY,
opening_line TEXT(500),
author VARCHAR(200),
title VARCHAR(200),
FULLTEXT idx (opening_line)
) ENGINE=InnoDB;

mysql> BEGIN;
Query OK, 0 rows affected (0.00 sec)

mysql> INSERT INTO opening_lines(opening_line,author,title) VALUES
('Call me Ishmael.','Herman Melville','Moby-Dick'),
('A screaming comes across the sky.','Thomas Pynchon','Gravity\'s Rainbow'),
('I am an invisible man.','Ralph Ellison','Invisible Man'),
('Where now? Who now? When now?','Samuel Beckett','The Unnamable'),
('It was love at first sight.','Joseph Heller','Catch-22'),
('All this happened, more or less.','Kurt Vonnegut','Slaughterhouse-Five'),
('Mrs. Dalloway said she would buy the flowers herself.','Virginia Woolf','Mrs. Dalloway'),
('It was a pleasure to burn.','Ray Bradbury','Fahrenheit 451');
Query OK, 8 rows affected (0.00 sec)
Records: 8  Duplicates: 0  Warnings: 0

mysql> SELECT COUNT(*) FROM opening_lines WHERE MATCH(opening_line) AGAINST('Ishmael');
+----------+
| COUNT(*) |
+----------+
|        0 |
+----------+

mysql> COMMIT;
Query OK, 0 rows affected (0.00 sec)

mysql> SELECT COUNT(*) FROM opening_lines WHERE MATCH(opening_line) AGAINST('Ishmael');
+----------+
| COUNT(*) |
+----------+
|        1 |
+----------+

Monitoring InnoDB Full-Text Indexes

You can monitor and examine the special text-processing aspects of InnoDB FULLTEXT indexes by querying the following INFORMATION_SCHEMA tables:

You can also view basic information for FULLTEXT indexes and tables by querying INNODB_SYS_INDEXES and INNODB_SYS_TABLES.

See Section 15.15.4, “InnoDB INFORMATION_SCHEMA FULLTEXT Index Tables” for more information.

15.8.11 Physical Structure of an InnoDB Index

With the exception of spatial indexes, InnoDB indexes are B-tree data structures. Spatial indexes use R-trees, which are specialized data structures for indexing multi-dimensional data. Index records are stored in the leaf pages of their B-tree or R-tree data structure. The default size of an index page is 16KB.

When new records are inserted into an InnoDB clustered index, InnoDB tries to leave 1/16 of the page free for future insertions and updates of the index records. If index records are inserted in a sequential order (ascending or descending), the resulting index pages are about 15/16 full. If records are inserted in a random order, the pages are from 1/2 to 15/16 full.

InnoDB performs a bulk load when creating or rebuilding B-tree indexes. This method of index creation is known as a sorted index build. innodb_fill_factor defines the percentage of space on each B-tree page that is filled during a sorted index build, with the remaining space reserved for future index growth. Sorted index builds are not supported for spatial indexes. For more information, see Section 15.8.12, “Sorted Index Builds”. An innodb_fill_factor setting of 100 leaves 1/16 of the space in clustered index pages free for future index growth.

If the fill factor of an InnoDB index page drops below the MERGE_THRESHOLD, which is 50% by default if not specified, InnoDB tries to contract the index tree to free the page. The MERGE_THRESHOLD setting applies to both B-tree and R-tree indexes. For more information, see Section 15.6.13, “Configuring the Merge Threshold for Index Pages”.

You can configure the page size for all InnoDB tablespaces in a MySQL instance by setting the innodb_page_size configuration option before creating the instance. Once the page size for an instance is set, you cannot change it. Supported sizes are 64KB, 32KB, 16KB (default), 8KB, and 4KB, corresponding to the option values 64k, 32k, 16k, 8k, and 4k.

Support for 32KB and 64KB pages sizes was added in MySQL 5.7. For more information, refer to the innodb_page_size documentation.

A MySQL instance using a particular InnoDB page size cannot use data files or log files from an instance that uses a different page size.

15.8.12 Sorted Index Builds

InnoDB performs a bulk load instead of inserting one index record at a time when creating or rebuilding indexes. This method of index creation is also known as a sorted index build. Sorted index builds are not supported for spatial indexes.

There are three phases to an index build. In the first phase, the clustered index is scanned, and index entries are generated and added to the sort buffer. When the sort buffer becomes full, entries are sorted and written out to a temporary intermediate file. This process is also known as a run. In the second phase, with one or more runs written to the temporary intermediate file, a merge sort is performed on all entries in the file. In the third and final phase, the sorted entries are inserted into the B-tree.

Prior to the introduction of sorted index builds, index entries were inserted into the B-tree one record at a time using insert APIs. This method involved opening a B-tree cursor to find the insert position and then inserting entries into a B-tree page using an optimistic insert. If an insert failed due to a page being full, a pessimistic insert would be performed, which involves opening a B-tree cursor and splitting and merging B-tree nodes as necessary to find space for the entry. The drawbacks of this top-down method of building an index are the cost of searching for an insert position and the constant splitting and merging of B-tree nodes.

Sorted index builds use a bottom up approach to building an index. With this approach, a reference to the right-most leaf page is held at all levels of the B-tree. The right-most leaf page at the necessary B-tree depth is allocated and entries are inserted according to their sorted order. Once a leaf page is full, a node pointer is appended to the parent page and a sibling leaf page is allocated for the next insert. This process continues until all entries are inserted, which may result in inserts up to the root level. When a sibling page is allocated, the reference to the previously pinned leaf page is released, and the newly allocated leaf page becomes the right-most leaf page and new default insert location.

Reserving B-tree Page Space for Future Index Growth

To set aside space for future index growth, you can use the innodb_fill_factor configuration option to reserve a percentage of B-tree page space. For example, setting innodb_fill_factor to 80 reserves 20 percent of the space in B-tree pages during a sorted index build. This setting applies to both B-tree leaf and non-leaf pages. It does not apply to external pages used for TEXT or BLOB entries. The amount of space that is reserved may not be exactly as configured, as the innodb_fill_factor value is interpreted as a hint rather than a hard limit.

Sorted Index Builds and Full-Text Index Support

Sorted index builds are supported for fulltext indexes. Previously, SQL was used to insert entries into a fulltext index.

Sorted Index Builds and Compressed Tables

For compressed tables, the previous index creation method appended entries to both compressed and uncompressed pages. When the modification log (representing free space on the compressed page) became full, the compressed page would be recompressed. If compression failed due to a lack of space, the page would be split. With sorted index builds, entries are only appended to uncompressed pages. When an uncompressed page becomes full, it is compressed. Adaptive padding is used to ensure that compression succeeds in most cases, but if compression fails, the page is split and compression is attempted again. This process continues until compression is successful. For additional information about compression of B-Tree pages, see Section 15.9.1.5, “How Compression Works for InnoDB Tables”.

Sorted Index Builds and Redo Logging

Redo logging is turned off during a sorted index build. Instead, there is a checkpoint to ensure that the index build can withstand a crash or failure. The checkpoint forces a write of all dirty pages to disk. During a sorted index build, the page cleaner thread is signaled periodically to flush dirty pages to ensure that the checkpoint operation can be processed quickly. Normally, the page cleaner thread flushes dirty pages when the number of clean pages falls below a set threshold. For sorted index builds, dirty pages are flushed promptly to reduce checkpoint overhead and to parallelize IO and CPU activity.

Sorted Index Builds and Optimizer Statistics

Sorted index builds may result in optimizer statistics that differ from those generated by the previous method of index creation. The difference in statistics, which is not expected to affect workload performance, is due to the different algorithm that is used to populate the index.

15.9 InnoDB Table and Page Compression

This section provides information about the InnoDB table compression and InnoDB page compression features. The page compression feature is referred to as transparent page compression.

Using the compression features of InnoDB, you can create tables where the data is stored in compressed form. Compression can help to improve both raw performance and scalability. The compression means less data is transferred between disk and memory, and takes up less space on disk and in memory. The benefits are amplified for tables with secondary indexes, because index data is compressed also. Compression can be especially important for SSD storage devices, because they tend to have lower capacity than HDD devices.

15.9.1 InnoDB Table Compression

This section describes InnoDB table compression, which is supported with InnoDB tables that reside in file_per_table tablespaces or general tablespaces. Table compression is enabled using the ROW_FORMAT=COMPRESSED attribute with CREATE TABLE or ALTER TABLE.

15.9.1.1 Overview of Table Compression

Because processors and cache memories have increased in speed more than disk storage devices, many workloads are disk-bound. Data compression enables smaller database size, reduced I/O, and improved throughput, at the small cost of increased CPU utilization. Compression is especially valuable for read-intensive applications, on systems with enough RAM to keep frequently used data in memory.

An InnoDB table created with ROW_FORMAT=COMPRESSED can use a smaller page size on disk than the configured innodb_page_size value. Smaller pages require less I/O to read from and write to disk, which is especially valuable for SSD devices.

The compressed page size is specified through the CREATE TABLE or ALTER TABLE KEY_BLOCK_SIZE parameter. The different page size requires that the table be placed in a file-per-table tablespace or general tablespace rather than in the system tablespace, as the system tablespace cannot store compressed tables. For more information, see Section 15.7.4, “InnoDB File-Per-Table Tablespaces”, and Section 15.7.9, “InnoDB General Tablespaces”.

The level of compression is the same regardless of the KEY_BLOCK_SIZE value. As you specify smaller values for KEY_BLOCK_SIZE, you get the I/O benefits of increasingly smaller pages. But if you specify a value that is too small, there is additional overhead to reorganize the pages when data values cannot be compressed enough to fit multiple rows in each page. There is a hard limit on how small KEY_BLOCK_SIZE can be for a table, based on the lengths of the key columns for each of its indexes. Specify a value that is too small, and the CREATE TABLE or ALTER TABLE statement fails.

In the buffer pool, the compressed data is held in small pages, with a page size based on the KEY_BLOCK_SIZE value. For extracting or updating the column values, MySQL also creates an uncompressed page in the buffer pool with the uncompressed data. Within the buffer pool, any updates to the uncompressed page are also re-written back to the equivalent compressed page. You might need to size your buffer pool to accommodate the additional data of both compressed and uncompressed pages, although the uncompressed pages are evicted from the buffer pool when space is needed, and then uncompressed again on the next access.

15.9.1.2 Creating Compressed Tables

Compressed tables can be created in file-per-table tablespaces or in general tablespaces. Table compression is not available for the InnoDB system tablespace. The system tablespace (space 0, the .ibdata files) can contain user-created tables, but it also contains internal system data, which is never compressed. Thus, compression applies only to tables (and indexes) stored in file-per-table or general tablespaces.

Creating a Compressed Table in File-Per-Table Tablespace

To create a compressed table in a file-per-table tablespace, innodb_file_per_table must be enabled (the default in MySQL 5.6.6) and innodb_file_format must be set to Barracuda. You can set these parameters in the MySQL configuration file (my.cnf or my.ini) or dynamically, using a SET statement.

After the innodb_file_per_table and innodb_file_format options are configured, specify the ROW_FORMAT=COMPRESSED clause or KEY_BLOCK_SIZE clause, or both, in a CREATE TABLE or ALTER TABLE statement to create a compressed table in a file-per-table tablespace.

For example, you might use the following statements:

SET GLOBAL innodb_file_per_table=1;
SET GLOBAL innodb_file_format=Barracuda;
CREATE TABLE t1
 (c1 INT PRIMARY KEY)
 ROW_FORMAT=COMPRESSED
KEY_BLOCK_SIZE=8;
Creating a Compressed Table in a General Tablespace

To create a compressed table in a general tablespace, FILE_BLOCK_SIZE must be defined for the general tablespace, which is specified when the tablespace is created. The FILE_BLOCK_SIZE value must be a valid compressed page size in relation to the innodb_page_size value, and the page size of the compressed table, defined by the CREATE TABLE or ALTER TABLE KEY_BLOCK_SIZE clause, must be equal to FILE_BLOCK_SIZE/1024. For example, if innodb_page_size=16384 and FILE_BLOCK_SIZE=8192, the KEY_BLOCK_SIZE of the table must be 8. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

The following example demonstrates creating a general tablespace and adding a compressed table. The example assumes a default innodb_page_size of 16K. The FILE_BLOCK_SIZE of 8192 requires that the compressed table have a KEY_BLOCK_SIZE of 8.

mysql> CREATE TABLESPACE `ts2` ADD DATAFILE 'ts2.ibd' FILE_BLOCK_SIZE = 8192 Engine=InnoDB;
Query OK, 0 rows affected (0.01 sec)

mysql> CREATE TABLE t4 (c1 INT PRIMARY KEY) TABLESPACE ts2 ROW_FORMAT=COMPRESSED KEY_BLOCK_SIZE=8;
Query OK, 0 rows affected (0.00 sec)
Notes
  • If you specify ROW_FORMAT=COMPRESSED, you can omit KEY_BLOCK_SIZE; the KEY_BLOCK_SIZE setting defaults to half the innodb_page_size value.

  • If you specify a valid KEY_BLOCK_SIZE value, you can omit ROW_FORMAT=COMPRESSED; compression is enabled automatically.

  • To determine the best value for KEY_BLOCK_SIZE, typically you create several copies of the same table with different values for this clause, then measure the size of the resulting .ibd files and see how well each performs with a realistic workload. For general tablespaces, keep in mind that dropping a table does not reduce the size of the general tablespace .ibd file, nor does it return disk space to the operating system. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

  • The KEY_BLOCK_SIZE value is treated as a hint; a different size could be used by InnoDB if necessary. For file-per-table tablespaces, the KEY_BLOCK_SIZE can only be less than or equal to the innodb_page_size value. If you specify a value greater than the innodb_page_size value, the specified value is ignored, a warning is issued, and KEY_BLOCK_SIZE is set to half of the innodb_page_size value. If innodb_strict_mode=ON, specifying an invalid KEY_BLOCK_SIZE value returns an error. For general tablespaces, valid KEY_BLOCK_SIZE values depend on the FILE_BLOCK_SIZE setting of the tablespace. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

  • 32k and 64k page sizes do not support compression. For more information, refer to the innodb_page_size documentation.

  • The default uncompressed size of InnoDB data pages is 16KB. Depending on the combination of option values, MySQL uses a page size of 1KB, 2KB, 4KB, 8KB, or 16KB for the tablespace data file (.ibd file). The actual compression algorithm is not affected by the KEY_BLOCK_SIZE value; the value determines how large each compressed chunk is, which in turn affects how many rows can be packed into each compressed page.

  • When creating a compressed table in a file-per-table tablespace, setting KEY_BLOCK_SIZE equal to the InnoDB page size does not typically result in much compression. For example, setting KEY_BLOCK_SIZE=16 typically would not result in much compression, since the normal InnoDB page size is 16KB. This setting may still be useful for tables with many long BLOB, VARCHAR or TEXT columns, because such values often do compress well, and might therefore require fewer overflow pages as described in Section 15.9.1.5, “How Compression Works for InnoDB Tables”. For general tablespaces, a KEY_BLOCK_SIZE value equal to the InnoDB page size is not permitted. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

  • All indexes of a table (including the clustered index) are compressed using the same page size, as specified in the CREATE TABLE or ALTER TABLE statement. Table attributes such as ROW_FORMAT and KEY_BLOCK_SIZE are not part of the CREATE INDEX syntax for InnoDB tables, and are ignored if they are specified (although, if specified, they will appear in the output of the SHOW CREATE TABLE statement).

  • For performance-related configuration options, see Section 15.9.1.3, “Tuning Compression for InnoDB Tables”.

Restrictions on Compressed Tables
  • MySQL versions prior to 5.1 cannot process compressed tables.

  • Compressed tables cannot be stored in the InnoDB system tablespace.

  • General tablespaces can contain multiple tables, but compressed and uncompressed tables cannot coexist within the same general tablespace.

  • Compression applies to an entire table and all its associated indexes, not to individual rows, despite the clause name ROW_FORMAT.

15.9.1.3 Tuning Compression for InnoDB Tables

Most often, the internal optimizations described in InnoDB Data Storage and Compression ensure that the system runs well with compressed data. However, because the efficiency of compression depends on the nature of your data, you can make decisions that affect the performance of compressed tables:

  • Which tables to compress.

  • What compressed page size to use.

  • Whether to adjust the size of the buffer pool based on run-time performance characteristics, such as the amount of time the system spends compressing and uncompressing data. Whether the workload is more like a data warehouse (primarily queries) or an OLTP system (mix of queries and DML).

  • If the system performs DML operations on compressed tables, and the way the data is distributed leads to expensive compression failures at runtime, you might adjust additional advanced configuration options.

Use the guidelines in this section to help make those architectural and configuration choices. When you are ready to conduct long-term testing and put compressed tables into production, see Section 15.9.1.4, “Monitoring InnoDB Table Compression at Runtime” for ways to verify the effectiveness of those choices under real-world conditions.

When to Use Compression

In general, compression works best on tables that include a reasonable number of character string columns and where the data is read far more often than it is written. Because there are no guaranteed ways to predict whether or not compression benefits a particular situation, always test with a specific workload and data set running on a representative configuration. Consider the following factors when deciding which tables to compress.

Data Characteristics and Compression

A key determinant of the efficiency of compression in reducing the size of data files is the nature of the data itself. Recall that compression works by identifying repeated strings of bytes in a block of data. Completely randomized data is the worst case. Typical data often has repeated values, and so compresses effectively. Character strings often compress well, whether defined in CHAR, VARCHAR, TEXT or BLOB columns. On the other hand, tables containing mostly binary data (integers or floating point numbers) or data that is previously compressed (for example JPEG or PNG images) may not generally compress well, significantly or at all.

You choose whether to turn on compression for each InnoDB table. A table and all of its indexes use the same (compressed) page size. It might be that the primary key (clustered) index, which contains the data for all columns of a table, compresses more effectively than the secondary indexes. For those cases where there are long rows, the use of compression might result in long column values being stored off-page, as discussed in Section 15.11.3, “DYNAMIC and COMPRESSED Row Formats”. Those overflow pages may compress well. Given these considerations, for many applications, some tables compress more effectively than others, and you might find that your workload performs best only with a subset of tables compressed.

To determine whether or not to compress a particular table, conduct experiments. You can get a rough estimate of how efficiently your data can be compressed by using a utility that implements LZ77 compression (such as gzip or WinZip) on a copy of the .ibd file for an uncompressed table. You can expect less compression from a MySQL compressed table than from file-based compression tools, because MySQL compresses data in chunks based on the page size, 16KB by default. In addition to user data, the page format includes some internal system data that is not compressed. File-based compression utilities can examine much larger chunks of data, and so might find more repeated strings in a huge file than MySQL can find in an individual page.

Another way to test compression on a specific table is to copy some data from your uncompressed table to a similar, compressed table (having all the same indexes) in a file-per-table tablespace and look at the size of the resulting .ibd file. For example:

use test;
set global innodb_file_per_table=1;
set global innodb_file_format=Barracuda;
set global autocommit=0;

-- Create an uncompressed table with a million or two rows.
create table big_table as select * from information_schema.columns;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
commit;
alter table big_table add id int unsigned not null primary key auto_increment;

show create table big_table\G

select count(id) from big_table;

-- Check how much space is needed for the uncompressed table.
\! ls -l data/test/big_table.ibd

create table key_block_size_4 like big_table;
alter table key_block_size_4 key_block_size=4 row_format=compressed;

insert into key_block_size_4 select * from big_table;
commit;

-- Check how much space is needed for a compressed table
-- with particular compression settings.
\! ls -l data/test/key_block_size_4.ibd

This experiment produced the following numbers, which of course could vary considerably depending on your table structure and data:

-rw-rw----  1 cirrus  staff  310378496 Jan  9 13:44 data/test/big_table.ibd
-rw-rw----  1 cirrus  staff  83886080 Jan  9 15:10 data/test/key_block_size_4.ibd

To see whether compression is efficient for your particular workload:

Database Compression versus Application Compression

Decide whether to compress data in your application or in the table; do not use both types of compression for the same data. When you compress the data in the application and store the results in a compressed table, extra space savings are extremely unlikely, and the double compression just wastes CPU cycles.

Compressing in the Database

When enabled, MySQL table compression is automatic and applies to all columns and index values. The columns can still be tested with operators such as LIKE, and sort operations can still use indexes even when the index values are compressed. Because indexes are often a significant fraction of the total size of a database, compression could result in significant savings in storage, I/O or processor time. The compression and decompression operations happen on the database server, which likely is a powerful system that is sized to handle the expected load.

Compressing in the Application

If you compress data such as text in your application, before it is inserted into the database, You might save overhead for data that does not compress well by compressing some columns and not others. This approach uses CPU cycles for compression and uncompression on the client machine rather than the database server, which might be appropriate for a distributed application with many clients, or where the client machine has spare CPU cycles.

Hybrid Approach

Of course, it is possible to combine these approaches. For some applications, it may be appropriate to use some compressed tables and some uncompressed tables. It may be best to externally compress some data (and store it in uncompressed tables) and allow MySQL to compress (some of) the other tables in the application. As always, up-front design and real-life testing are valuable in reaching the right decision.

Workload Characteristics and Compression

In addition to choosing which tables to compress (and the page size), the workload is another key determinant of performance. If the application is dominated by reads, rather than updates, fewer pages need to be reorganized and recompressed after the index page runs out of room for the per-page modification log that MySQL maintains for compressed data. If the updates predominantly change non-indexed columns or those containing BLOBs or large strings that happen to be stored off-page, the overhead of compression may be acceptable. If the only changes to a table are INSERTs that use a monotonically increasing primary key, and there are few secondary indexes, there is little need to reorganize and recompress index pages. Since MySQL can delete-mark and delete rows on compressed pages in place by modifying uncompressed data, DELETE operations on a table are relatively efficient.

For some environments, the time it takes to load data can be as important as run-time retrieval. Especially in data warehouse environments, many tables may be read-only or read-mostly. In those cases, it might or might not be acceptable to pay the price of compression in terms of increased load time, unless the resulting savings in fewer disk reads or in storage cost is significant.

Fundamentally, compression works best when the CPU time is available for compressing and uncompressing data. Thus, if your workload is I/O bound, rather than CPU-bound, you might find that compression can improve overall performance. When you test your application performance with different compression configurations, test on a platform similar to the planned configuration of the production system.

Configuration Characteristics and Compression

Reading and writing database pages from and to disk is the slowest aspect of system performance. Compression attempts to reduce I/O by using CPU time to compress and uncompress data, and is most effective when I/O is a relatively scarce resource compared to processor cycles.

This is often especially the case when running in a multi-user environment with fast, multi-core CPUs. When a page of a compressed table is in memory, MySQL often uses additional memory, typically 16KB, in the buffer pool for an uncompressed copy of the page. The adaptive LRU algorithm attempts to balance the use of memory between compressed and uncompressed pages to take into account whether the workload is running in an I/O-bound or CPU-bound manner. Still, a configuration with more memory dedicated to the buffer pool tends to run better when using compressed tables than a configuration where memory is highly constrained.

Choosing the Compressed Page Size

The optimal setting of the compressed page size depends on the type and distribution of data that the table and its indexes contain. The compressed page size should always be bigger than the maximum record size, or operations may fail as noted in Compression of B-Tree Pages.

Setting the compressed page size too large wastes some space, but the pages do not have to be compressed as often. If the compressed page size is set too small, inserts or updates may require time-consuming recompression, and the B-tree nodes may have to be split more frequently, leading to bigger data files and less efficient indexing.

Typically, you set the compressed page size to 8K or 4K bytes. Given that the maximum row size for an InnoDB table is around 8K, KEY_BLOCK_SIZE=8 is usually a safe choice.

15.9.1.4 Monitoring InnoDB Table Compression at Runtime

Overall application performance, CPU and I/O utilization and the size of disk files are good indicators of how effective compression is for your application. This section builds on the performance tuning advice from Section 15.9.1.3, “Tuning Compression for InnoDB Tables”, and shows how to find problems that might not turn up during initial testing.

To dig deeper into performance considerations for compressed tables, you can monitor compression performance at runtime using the Information Schema tables described in Example 15.10, “Using the Compression Information Schema Tables”. These tables reflect the internal use of memory and the rates of compression used overall.

The INNODB_CMP table reports information about compression activity for each compressed page size (KEY_BLOCK_SIZE) in use. The information in these tables is system-wide: it summarizes the compression statistics across all compressed tables in your database. You can use this data to help decide whether or not to compress a table by examining these tables when no other compressed tables are being accessed. It involves relatively low overhead on the server, so you might query it periodically on a production server to check the overall efficiency of the compression feature.

The INNODB_CMP_PER_INDEX table reports information about compression activity for individual tables and indexes. This information is more targeted and more useful for evaluating compression efficiency and diagnosing performance issues one table or index at a time. (Because that each InnoDB table is represented as a clustered index, MySQL does not make a big distinction between tables and indexes in this context.) The INNODB_CMP_PER_INDEX table does involve substantial overhead, so it is more suitable for development servers, where you can compare the effects of different workloads, data, and compression settings in isolation. To guard against imposing this monitoring overhead by accident, you must enable the innodb_cmp_per_index_enabled configuration option before you can query the INNODB_CMP_PER_INDEX table.

The key statistics to consider are the number of, and amount of time spent performing, compression and uncompression operations. Since MySQL splits B-tree nodes when they are too full to contain the compressed data following a modification, compare the number of successful compression operations with the number of such operations overall. Based on the information in the INNODB_CMP and INNODB_CMP_PER_INDEX tables and overall application performance and hardware resource utilization, you might make changes in your hardware configuration, adjust the size of the buffer pool, choose a different page size, or select a different set of tables to compress.

If the amount of CPU time required for compressing and uncompressing is high, changing to faster or multi-core CPUs can help improve performance with the same data, application workload and set of compressed tables. Increasing the size of the buffer pool might also help performance, so that more uncompressed pages can stay in memory, reducing the need to uncompress pages that exist in memory only in compressed form.

A large number of compression operations overall (compared to the number of INSERT, UPDATE and DELETE operations in your application and the size of the database) could indicate that some of your compressed tables are being updated too heavily for effective compression. If so, choose a larger page size, or be more selective about which tables you compress.

If the number of successful compression operations (COMPRESS_OPS_OK) is a high percentage of the total number of compression operations (COMPRESS_OPS), then the system is likely performing well. If the ratio is low, then MySQL is reorganizing, recompressing, and splitting B-tree nodes more often than is desirable. In this case, avoid compressing some tables, or increase KEY_BLOCK_SIZE for some of the compressed tables. You might turn off compression for tables that cause the number of compression failures in your application to be more than 1% or 2% of the total. (Such a failure ratio might be acceptable during a temporary operation such as a data load).

15.9.1.5 How Compression Works for InnoDB Tables

This section describes some internal implementation details about compression for InnoDB tables. The information presented here may be helpful in tuning for performance, but is not necessary to know for basic use of compression.

Compression Algorithms

Some operating systems implement compression at the file system level. Files are typically divided into fixed-size blocks that are compressed into variable-size blocks, which easily leads into fragmentation. Every time something inside a block is modified, the whole block is recompressed before it is written to disk. These properties make this compression technique unsuitable for use in an update-intensive database system.

MySQL implements compression with the help of the well-known zlib library, which implements the LZ77 compression algorithm. This compression algorithm is mature, robust, and efficient in both CPU utilization and in reduction of data size. The algorithm is lossless, so that the original uncompressed data can always be reconstructed from the compressed form. LZ77 compression works by finding sequences of data that are repeated within the data to be compressed. The patterns of values in your data determine how well it compresses, but typical user data often compresses by 50% or more.

Unlike compression performed by an application, or compression features of some other database management systems, InnoDB compression applies both to user data and to indexes. In many cases, indexes can constitute 40-50% or more of the total database size, so this difference is significant. When compression is working well for a data set, the size of the InnoDB data files (the file-per-table tablespace or general tablespace .idb files) is 25% to 50% of the uncompressed size or possibly smaller. Depending on the workload, this smaller database can in turn lead to a reduction in I/O, and an increase in throughput, at a modest cost in terms of increased CPU utilization. You can adjust the balance between compression level and CPU overhead by modifying the innodb_compression_level configuration option.

InnoDB Data Storage and Compression

All user data in InnoDB tables is stored in pages comprising a B-tree index (the clustered index). In some other database systems, this type of index is called an index-organized table. Each row in the index node contains the values of the (user-specified or system-generated) primary key and all the other columns of the table.

Secondary indexes in InnoDB tables are also B-trees, containing pairs of values: the index key and a pointer to a row in the clustered index. The pointer is in fact the value of the primary key of the table, which is used to access the clustered index if columns other than the index key and primary key are required. Secondary index records must always fit on a single B-tree page.

The compression of B-tree nodes (of both clustered and secondary indexes) is handled differently from compression of overflow pages used to store long VARCHAR, BLOB, or TEXT columns, as explained in the following sections.

Compression of B-Tree Pages

Because they are frequently updated, B-tree pages require special treatment. It is important to minimize the number of times B-tree nodes are split, as well as to minimize the need to uncompress and recompress their content.

One technique MySQL uses is to maintain some system information in the B-tree node in uncompressed form, thus facilitating certain in-place updates. For example, this allows rows to be delete-marked and deleted without any compression operation.

In addition, MySQL attempts to avoid unnecessary uncompression and recompression of index pages when they are changed. Within each B-tree page, the system keeps an uncompressed modification log to record changes made to the page. Updates and inserts of small records may be written to this modification log without requiring the entire page to be completely reconstructed.

When the space for the modification log runs out, InnoDB uncompresses the page, applies the changes and recompresses the page. If recompression fails (a situation known as a compression failure), the B-tree nodes are split and the process is repeated until the update or insert succeeds.

To avoid frequent compression failures in write-intensive workloads, such as for OLTP applications, MySQL sometimes reserves some empty space (padding) in the page, so that the modification log fills up sooner and the page is recompressed while there is still enough room to avoid splitting it. The amount of padding space left in each page varies as the system keeps track of the frequency of page splits. On a busy server doing frequent writes to compressed tables, you can adjust the innodb_compression_failure_threshold_pct, and innodb_compression_pad_pct_max configuration options to fine-tune this mechanism.

Generally, MySQL requires that each B-tree page in an InnoDB table can accommodate at least two records. For compressed tables, this requirement has been relaxed. Leaf pages of B-tree nodes (whether of the primary key or secondary indexes) only need to accommodate one record, but that record must fit, in uncompressed form, in the per-page modification log. If innodb_strict_mode is ON, MySQL checks the maximum row size during CREATE TABLE or CREATE INDEX. If the row does not fit, the following error message is issued: ERROR HY000: Too big row.

If you create a table when innodb_strict_mode is OFF, and a subsequent INSERT or UPDATE statement attempts to create an index entry that does not fit in the size of the compressed page, the operation fails with ERROR 42000: Row size too large. (This error message does not name the index for which the record is too large, or mention the length of the index record or the maximum record size on that particular index page.) To solve this problem, rebuild the table with ALTER TABLE and select a larger compressed page size (KEY_BLOCK_SIZE), shorten any column prefix indexes, or disable compression entirely with ROW_FORMAT=DYNAMIC or ROW_FORMAT=COMPACT.

innodb_strict_mode is not applicable to general tablespaces, which also support compressed tables. Tablespace management rules for general tablespaces are strictly enforced independently of innodb_strict_mode. For more information, see Section 14.1.19, “CREATE TABLESPACE Syntax”.

Compressing BLOB, VARCHAR, and TEXT Columns

In an InnoDB table, BLOB, VARCHAR, and TEXT columns that are not part of the primary key may be stored on separately allocated overflow pages. We refer to these columns as off-page columns. Their values are stored on singly-linked lists of overflow pages.

For tables created in ROW_FORMAT=DYNAMIC or ROW_FORMAT=COMPRESSED, the values of BLOB, TEXT, or VARCHAR columns may be stored fully off-page, depending on their length and the length of the entire row. For columns that are stored off-page, the clustered index record only contains 20-byte pointers to the overflow pages, one per column. Whether any columns are stored off-page depends on the page size and the total size of the row. When the row is too long to fit entirely within the page of the clustered index, MySQL chooses the longest columns for off-page storage until the row fits on the clustered index page. As noted above, if a row does not fit by itself on a compressed page, an error occurs.

Note

For tables created in ROW_FORMAT=DYNAMIC or ROW_FORMAT=COMPRESSED, TEXT and BLOB columns that are less than or equal to 40 bytes are always stored in-line.

Tables created in older versions of MySQL use the Antelope file format, which supports only ROW_FORMAT=REDUNDANT and ROW_FORMAT=COMPACT. In these formats, MySQL stores the first 768 bytes of BLOB, VARCHAR, and TEXT columns in the clustered index record along with the primary key. The 768-byte prefix is followed by a 20-byte pointer to the overflow pages that contain the rest of the column value.

When a table is in COMPRESSED format, all data written to overflow pages is compressed as is; that is, MySQL applies the zlib compression algorithm to the entire data item. Other than the data, compressed overflow pages contain an uncompressed header and trailer comprising a page checksum and a link to the next overflow page, among other things. Therefore, very significant storage savings can be obtained for longer BLOB, TEXT, or VARCHAR columns if the data is highly compressible, as is often the case with text data. Image data, such as JPEG, is typically already compressed and so does not benefit much from being stored in a compressed table; the double compression can waste CPU cycles for little or no space savings.

The overflow pages are of the same size as other pages. A row containing ten columns stored off-page occupies ten overflow pages, even if the total length of the columns is only 8K bytes. In an uncompressed table, ten uncompressed overflow pages occupy 160K bytes. In a compressed table with an 8K page size, they occupy only 80K bytes. Thus, it is often more efficient to use compressed table format for tables with long column values.

For file-per-table tablespaces, using a 16K compressed page size can reduce storage and I/O costs for BLOB, VARCHAR, or TEXT columns, because such data often compress well, and might therefore require fewer overflow pages, even though the B-tree nodes themselves take as many pages as in the uncompressed form. General tablespaces do not support a 16K compressed page size (KEY_BLOCK_SIZE). For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

Compression and the InnoDB Buffer Pool

In a compressed InnoDB table, every compressed page (whether 1K, 2K, 4K or 8K) corresponds to an uncompressed page of 16K bytes (or a smaller size if innodb_page_size is set). To access the data in a page, MySQL reads the compressed page from disk if it is not already in the buffer pool, then uncompresses the page to its original form. This section describes how InnoDB manages the buffer pool with respect to pages of compressed tables.

To minimize I/O and to reduce the need to uncompress a page, at times the buffer pool contains both the compressed and uncompressed form of a database page. To make room for other required database pages, MySQL can evict from the buffer pool an uncompressed page, while leaving the compressed page in memory. Or, if a page has not been accessed in a while, the compressed form of the page might be written to disk, to free space for other data. Thus, at any given time, the buffer pool might contain both the compressed and uncompressed forms of the page, or only the compressed form of the page, or neither.

MySQL keeps track of which pages to keep in memory and which to evict using a least-recently-used (LRU) list, so that hot (frequently accessed) data tends to stay in memory. When compressed tables are accessed, MySQL uses an adaptive LRU algorithm to achieve an appropriate balance of compressed and uncompressed pages in memory. This adaptive algorithm is sensitive to whether the system is running in an I/O-bound or CPU-bound manner. The goal is to avoid spending too much processing time uncompressing pages when the CPU is busy, and to avoid doing excess I/O when the CPU has spare cycles that can be used for uncompressing compressed pages (that may already be in memory). When the system is I/O-bound, the algorithm prefers to evict the uncompressed copy of a page rather than both copies, to make more room for other disk pages to become memory resident. When the system is CPU-bound, MySQL prefers to evict both the compressed and uncompressed page, so that more memory can be used for hot pages and reducing the need to uncompress data in memory only in compressed form.

Compression and the InnoDB Redo Log Files

Before a compressed page is written to a data file, MySQL writes a copy of the page to the redo log (if it has been recompressed since the last time it was written to the database). This is done to ensure that redo logs are usable for crash recovery, even in the unlikely case that the zlib library is upgraded and that change introduces a compatibility problem with the compressed data. Therefore, some increase in the size of log files, or a need for more frequent checkpoints, can be expected when using compression. The amount of increase in the log file size or checkpoint frequency depends on the number of times compressed pages are modified in a way that requires reorganization and recompression.

Compressed tables require the Barracuda file format. To create a compressed table in a file-per-table tablespace, innodb_file_per_table must be enabled and innodb_file_format must be set to Barracuda. There is no dependence on the innodb_file_format setting when creating a compressed table in a general tablespace. For more information, see Section 15.7.9, “InnoDB General Tablespaces”. The MySQL Enterprise Backup product supports the Barracuda file format.

15.9.1.6 Compression for OLTP Workloads

Traditionally, the InnoDB compression feature was recommended primarily for read-only or read-mostly workloads, such as in a data warehouse configuration. The rise of SSD storage devices, which are fast but relatively small and expensive, makes compression attractive also for OLTP workloads: high-traffic, interactive web sites can reduce their storage requirements and their I/O operations per second (IOPS) by using compressed tables with applications that do frequent INSERT, UPDATE, and DELETE operations.

Configuration options introduced in MySQL 5.6 let you adjust the way compression works for a particular MySQL instance, with an emphasis on performance and scalability for write-intensive operations:

  • innodb_compression_level lets you turn the degree of compression up or down. A higher value lets you fit more data onto a storage device, at the expense of more CPU overhead during compression. A lower value lets you reduce CPU overhead when storage space is not critical, or you expect the data is not especially compressible.

  • innodb_compression_failure_threshold_pct specifies a cutoff point for compression failures during updates to a compressed table. When this threshold is passed, MySQL begins to leave additional free space within each new compressed page, dynamically adjusting the amount of free space up to the percentage of page size specified by innodb_compression_pad_pct_max

  • innodb_compression_pad_pct_max lets you adjust the maximum amount of space reserved within each page to record changes to compressed rows, without needing to compress the entire page again. The higher the value, the more changes can be recorded without recompressing the page. MySQL uses a variable amount of free space for the pages within each compressed table, only when a designated percentage of compression operations fail at runtime, requiring an expensive operation to split the compressed page.

  • innodb_log_compressed_pages lets you disable writing of images of re-compressed pages to the redo log. Re-compression may occur when changes are made to compressed data. This option is enabled by default to prevent corruption that could occur if a different version of the zlib compression algorithm is used during recovery. If you are certain that the zlib version will not change, disable innodb_log_compressed_pages to reduce redo log generation for workloads that modify compressed data.

Because working with compressed data sometimes involves keeping both compressed and uncompressed versions of a page in memory at the same time, when using compression with an OLTP-style workload, be prepared to increase the value of the innodb_buffer_pool_size configuration option.

15.9.1.7 SQL Compression Syntax Warnings and Errors

This section describes syntax warnings and errors that you may encounter when using the table compression feature with file-per-table tablespaces and general tablespaces.

SQL Compression Syntax Warnings and Errors for File-Per-Table Tablespaces

When innodb_strict_mode is enabled (the default), specifying ROW_FORMAT=COMPRESSED or KEY_BLOCK_SIZE in CREATE TABLE or ALTER TABLE statements produces the following error if innodb_file_per_table is disabled or if innodb_file_format is set to Antelope rather than Barracuda.

ERROR 1031 (HY000): Table storage engine for 't1' doesn't have this option
Note

The table is not created if the current configuration does not permit using compressed tables.

When innodb_strict_mode is disabled, specifying ROW_FORMAT=COMPRESSED or KEY_BLOCK_SIZE in CREATE TABLE or ALTER TABLE statements produces the following warnings if innodb_file_per_table is disabled.

mysql> SHOW WARNINGS;
+---------+------+---------------------------------------------------------------+
| Level   | Code | Message                                                       |
+---------+------+---------------------------------------------------------------+
| Warning | 1478 | InnoDB: KEY_BLOCK_SIZE requires innodb_file_per_table.        |
| Warning | 1478 | InnoDB: ignoring KEY_BLOCK_SIZE=4.                            |
| Warning | 1478 | InnoDB: ROW_FORMAT=COMPRESSED requires innodb_file_per_table. |
| Warning | 1478 | InnoDB: assuming ROW_FORMAT=DYNAMIC.                          |
+---------+------+---------------------------------------------------------------+

Similar warnings are issued if innodb_file_format is set to Antelope rather than Barracuda.

Note

These messages are only warnings, not errors, and the table is created without compression, as if the options were not specified.

The non-strict behavior lets you import a mysqldump file into a database that does not support compressed tables, even if the source database contained compressed tables. In that case, MySQL creates the table in ROW_FORMAT=COMPACT instead of preventing the operation.

To import the dump file into a new database, and have the tables re-created as they exist in the original database, ensure the server has the proper settings for the configuration parameters innodb_file_format and innodb_file_per_table.

The attribute KEY_BLOCK_SIZE is permitted only when ROW_FORMAT is specified as COMPRESSED or is omitted. Specifying a KEY_BLOCK_SIZE with any other ROW_FORMAT generates a warning that you can view with SHOW WARNINGS. However, the table is non-compressed; the specified KEY_BLOCK_SIZE is ignored).

LevelCodeMessage
Warning1478 InnoDB: ignoring KEY_BLOCK_SIZE=n unless ROW_FORMAT=COMPRESSED.

If you are running with innodb_strict_mode enabled, the combination of a KEY_BLOCK_SIZE with any ROW_FORMAT other than COMPRESSED generates an error, not a warning, and the table is not created.

Table 15.7, “ROW_FORMAT and KEY_BLOCK_SIZE Options” provides an overview the ROW_FORMAT and KEY_BLOCK_SIZE options that are used with CREATE TABLE or ALTER TABLE.

Table 15.7 ROW_FORMAT and KEY_BLOCK_SIZE Options

OptionUsage NotesDescription
ROW_FORMAT=​REDUNDANTStorage format used prior to MySQL 5.0.3Less efficient than ROW_FORMAT=COMPACT; for backward compatibility
ROW_FORMAT=​COMPACTDefault storage format since MySQL 5.0.3Stores a prefix of 768 bytes of long column values in the clustered index page, with the remaining bytes stored in an overflow page
ROW_FORMAT=​DYNAMICFile-per-table tablespaces require innodb_file​_format=BarracudaStore values within the clustered index page if they fit; if not, stores only a 20-byte pointer to an overflow page (no prefix)
ROW_FORMAT=​COMPRESSEDFile-per-table tablespaces require innodb_file​_format=BarracudaCompresses the table and indexes using zlib
KEY_BLOCK_​SIZE=nFile-per-table tablespaces require innodb_file​_format=BarracudaSpecifies compressed page size of 1, 2, 4, 8 or 16 kilobytes; implies ROW_FORMAT=COMPRESSED. For general tablespaces, a KEY_BLOCK_SIZE value equal to the InnoDB page size is not permitted.

Table 15.8, “CREATE/ALTER TABLE Warnings and Errors when InnoDB Strict Mode is OFF” summarizes error conditions that occur with certain combinations of configuration parameters and options on the CREATE TABLE or ALTER TABLE statements, and how the options appear in the output of SHOW TABLE STATUS.

When innodb_strict_mode is OFF, MySQL creates or alters the table, but ignores certain settings as shown below. You can see the warning messages in the MySQL error log. When innodb_strict_mode is ON, these specified combinations of options generate errors, and the table is not created or altered. To see the full description of the error condition, issue the SHOW ERRORS statement: example:

mysql> CREATE TABLE x (id INT PRIMARY KEY, c INT)

-> ENGINE=INNODB KEY_BLOCK_SIZE=33333;

ERROR 1005 (HY000): Can't create table 'test.x' (errno: 1478)

mysql> SHOW ERRORS;
+-------+------+-------------------------------------------+
| Level | Code | Message                                   |
+-------+------+-------------------------------------------+
| Error | 1478 | InnoDB: invalid KEY_BLOCK_SIZE=33333.     |
| Error | 1005 | Can't create table 'test.x' (errno: 1478) |
+-------+------+-------------------------------------------+

Table 15.8 CREATE/ALTER TABLE Warnings and Errors when InnoDB Strict Mode is OFF

SyntaxWarning or Error ConditionResulting ROW_FORMAT, as shown in SHOW TABLE STATUS
ROW_FORMAT=REDUNDANTNoneREDUNDANT
ROW_FORMAT=COMPACTNoneCOMPACT
ROW_FORMAT=COMPRESSED or ROW_FORMAT=DYNAMIC or KEY_BLOCK_SIZE is specifiedIgnored for file-per-table tablespaces unless both innodb_file_format=Barracuda and innodb_file_per_table are enabled. General tablespaces support all row formats (with some restrictions) regardless of innodb_file_format and innodb_file_per_table settings. See Section 15.7.9, “InnoDB General Tablespaces”.the default row format for file-per-table tablespaces; the specified row format for general tablespaces
Invalid KEY_BLOCK_SIZE is specified (not 1, 2, 4, 8 or 16)KEY_BLOCK_SIZE is ignoredthe specified row format, or the default row format
ROW_FORMAT=COMPRESSED and valid KEY_BLOCK_SIZE are specifiedNone; KEY_BLOCK_SIZE specified is usedCOMPRESSED
KEY_BLOCK_SIZE is specified with REDUNDANT, COMPACT or DYNAMIC row formatKEY_BLOCK_SIZE is ignoredREDUNDANT, COMPACT or DYNAMIC
ROW_FORMAT is not one of REDUNDANT, COMPACT, DYNAMIC or COMPRESSEDIgnored if recognized by the MySQL parser. Otherwise, an error is issued.the default row format or N/A

When innodb_strict_mode is ON, MySQL rejects invalid ROW_FORMAT or KEY_BLOCK_SIZE parameters and issues errors. When innodb_strict_mode is OFF, MySQL issues warnings instead of errors for ignored invalid parameters. innodb_strict_mode is ON by default.

When innodb_strict_mode is ON, MySQL rejects invalid ROW_FORMAT or KEY_BLOCK_SIZE parameters. For compatibility with earlier versions of MySQL, strict mode is not enabled by default; instead, MySQL issues warnings (not errors) for ignored invalid parameters.

It is not possible to see the chosen KEY_BLOCK_SIZE using SHOW TABLE STATUS. The statement SHOW CREATE TABLE displays the KEY_BLOCK_SIZE (even if it was ignored when creating the table). The real compressed page size of the table cannot be displayed by MySQL.

SQL Compression Syntax Warnings and Errors for General Tablespaces
  • If FILE_BLOCK_SIZE was not defined for the general tablespace when the tablespace was created, the tablespace cannot contain compressed tables. If you attempt to add a compressed table, an error is returned, as shown in the following example:

    mysql> CREATE TABLESPACE `ts1` ADD DATAFILE 'ts1.ibd' Engine=InnoDB;
    Query OK, 0 rows affected (0.01 sec)

    mysql> CREATE TABLE t1 (c1 INT PRIMARY KEY) TABLESPACE ts1 ROW_FORMAT=COMPRESSED
    KEY_BLOCK_SIZE=8;
    ERROR 1478 (HY000): InnoDB: Tablespace `ts1` cannot contain a COMPRESSED table
  • Attempting to add a table with an invalid KEY_BLOCK_SIZE to a general tablespace returns an error, as shown in the following example:

    mysql> CREATE TABLESPACE `ts2` ADD DATAFILE 'ts2.ibd' FILE_BLOCK_SIZE = 8192 Engine=InnoDB;
    Query OK, 0 rows affected (0.01 sec)

    mysql> CREATE TABLE t2 (c1 INT PRIMARY KEY) TABLESPACE ts2 ROW_FORMAT=COMPRESSED
    KEY_BLOCK_SIZE=4;
    ERROR 1478 (HY000): InnoDB: Tablespace `ts2` uses block size 8192 and cannot
    contain a table with physical page size 4096

    For general tablespaces, the KEY_BLOCK_SIZE of the table must be equal to the FILE_BLOCK_SIZE of the tablespace divided by 1024. For example, if the FILE_BLOCK_SIZE of the tablespace is 8192, the KEY_BLOCK_SIZE of the table must be 8.

  • Attempting to add a table with an uncompressed row format to a general tablespace configured to store compressed tables returns an error, as shown in the following example:

    mysql> CREATE TABLESPACE `ts3` ADD DATAFILE 'ts3.ibd' FILE_BLOCK_SIZE = 8192 Engine=InnoDB;
    Query OK, 0 rows affected (0.01 sec)

    mysql> CREATE TABLE t3 (c1 INT PRIMARY KEY) TABLESPACE ts3 ROW_FORMAT=COMPACT;
    ERROR 1478 (HY000): InnoDB: Tablespace `ts3` uses block size 8192 and cannot
    contain a table with physical page size 16384

innodb_strict_mode is not applicable to general tablespaces. Tablespace management rules for general tablespaces are strictly enforced independently of innodb_strict_mode. For more information, see Section 14.1.19, “CREATE TABLESPACE Syntax”.

For more information about using compressed tables with general tablespaces, see Section 15.7.9, “InnoDB General Tablespaces”.

15.9.2 InnoDB Page Compression

InnoDB supports page-level compression for tables that reside in file-per-table tablespaces. This feature is referred to as Transparent Page Compression. Page compression is enabled by specifying the COMPRESSION attribute with CREATE TABLE or ALTER TABLE. Supported compression algorithms include Zlib and LZ4.

Supported Platforms

Page compression requires sparse file and hole punching support. Page compression is supported on Windows with NTFS, and on the following subset of MySQL-supported Linux platforms where the kernel level provides hole punching support:

  • RHEL 7 and derived distributions that use kernel version 3.10.0-123 or higher

  • OEL 5.10 (UEK2) kernel version 2.6.39 or higher

  • OEL 6.5 (UEK3) kernel version 3.8.13 or higher

  • OEL 7.0 kernel version 3.8.13 or higher

  • SLE11 kernel version 3.0-x

  • SLE12 kernel version 3.12-x

  • OES11 kernel version 3.0-x

  • Ubuntu 14.0.4 LTS kernel version 3.13 or higher

  • Ubuntu 12.0.4 LTS kernel version 3.2 or higher

  • Debian 7 kernel version 3.2 or higher

Note

All of the available file systems for a given Linux distribution may not support hole punching.

How Page Compression Works

When a page is written, it is compressed using the specified compression algorithm. The compressed data is written to disk, where the hole punching mechanism releases empty blocks from the end of the page. If compression fails, data is written out as-is.

Hole Punch Size on Linux

On Linux systems, the file system block size is the unit size used for hole punching. Therefore, page compression only works if page data can be compressed to a size that is less than or equal to the InnoDB page size minus the file system block size. For example, if innodb_page_size=16K and the file system block size is 4K, page data must compress to less than or equal to 12K to make hole punching possible.

Hole Punch Size on Windows

On Windows systems, the underlying infrastructure for sparse files is based on NTFS compression. Hole punching size is the NTFS compression unit, which is 16 times the NTFS cluster size. Cluster sizes and their compression units are shown in the following table:

Table 15.9 Windows NTFS Cluster Size and Compression Units

Cluster SizeCompression Unit
512 Bytes8 KB
1 KB16 KB
2 KB32 KB
4 KB64 KB

Page compression on Windows systems only works if page data can be compressed to a size that is less than or equal to the InnoDB page size minus the compression unit size.

The default NTFS cluster size is 4K, for which the compression unit size is 64K. This means that page compression has no benefit for an out-of-the box Windows NTFS configuration, as the maximum innodb_page_size is also 64K.

For page compression to work on Windows, the file system must be created with a cluster size smaller than 4K, and the innodb_page_size must be at least twice the size of the compression unit. For example, for page compression to work on Windows, you could build the file system with a cluster size of 512 Bytes (which has a compression unit of 8KB) and initialize InnoDB with an innodb_page_size value of 16K or greater.

Enabling Page Compression

To enable page compression, specify the COMPRESSION attribute in the CREATE TABLE statement. For example:

CREATE TABLE t1 (c1 INT) COMPRESSION="zlib";

You can also enable page compression in an ALTER TABLE statement. However, ALTER TABLE ... COMPRESSION only updates the tablespace compression attribute. Writes to the tablespace that occur after setting the new compression algorithm use the new setting, but to apply the new compression algorithm to existing pages, you must rebuild the table using OPTIMIZE TABLE.

ALTER TABLE t1 COMPRESSION="zlib";
OPTIMIZE TABLE t1;

Disabling Page Compression

To disable page compression, set COMPRESSION=None using ALTER TABLE. Writes to the tablespace that occur after setting COMPRESSION=None no longer use page compression. To uncompress existing pages, you must rebuild the table using OPTIMIZE TABLE after setting COMPRESSION=None.

ALTER TABLE t1 COMPRESSION="None";
OPTIMIZE TABLE t1;

Page Compression Metadata

Page compression metadata is found in the INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES table, in the following columns:

  • FS_BLOCK_SIZE: The file system block size, which is the unit size used for hole punching.

  • FILE_SIZE: The apparent size of the file, which represents the maximum size of the file, uncompressed.

  • ALLOCATED_SIZE: The actual size of the file, which is the amount of space allocated on disk.

Note

On Unix-like systems, ls -l tablespace_name.ibd shows the apparent file size (equivalent to FILE_SIZE) in bytes. To view the actual amount of space allocated on disk (equivalent to ALLOCATED_SIZE), use du --block-size=1 tablespace_name.ibd. The --block-size=1 option prints the allocated space in bytes instead of blocks, so that it can be compared to ls -l output.

Use SHOW CREATE TABLE to view the current page compression setting (Zlib, Lz4, or None). A table may contain a mix of pages with different compression settings.

In the following example, page compression metadata for the employees table is retrieved from the INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES table.

# Create the employees table with Zlib page compression

CREATE TABLE employees (
    emp_no      INT             NOT NULL,
    birth_date  DATE            NOT NULL,
    first_name  VARCHAR(14)     NOT NULL,
    last_name   VARCHAR(16)     NOT NULL,
    gender      ENUM ('M','F')  NOT NULL,
    hire_date   DATE            NOT NULL,
    PRIMARY KEY (emp_no)
) COMPRESSION="zlib";

# Insert data (not shown)

# Query page compression metadata in INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES

mysql> SELECT SPACE, NAME, FS_BLOCK_SIZE, FILE_SIZE, ALLOCATED_SIZE FROM
INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES WHERE NAME='employees/employees'\G
*************************** 1. row ***************************
SPACE: 45
NAME: employees/employees
FS_BLOCK_SIZE: 4096
FILE_SIZE: 23068672
ALLOCATED_SIZE: 19415040

Page compression metadata for the employees table shows that the apparent file size is 23068672 bytes while the actual file size (with page compression) is 19415040 bytes. The file system block size is 4096 bytes, which is the block size used for hole punching.

Page Compression Limitations and Usage Notes

  • Page compression is disabled if the file system block size (or compression unit size on Windows) * 2 > innodb_page_size.

  • Page compression is not supported for tables that reside in shared tablespaces, which include the system tablespace, the temporary tablespace, and general tablespaces.

  • Page compression is not supported for undo log tablespaces.

  • Page compression is not supported for redo log pages.

  • R-tree pages, which are used for spatial indexes, are not compressed.

  • Pages that belong to compressed tables (ROW_FORMAT=COMPRESSED) are left as-is.

  • During recovery, updated pages are written out in an uncompressed form.

  • Loading a page-compressed tablespace on a server that does not support the compression algorithm that was used causes an I/O error.

  • Before downgrading to an earlier version of MySQL that does not support page compression, uncompress the tables that use the page compression feature. To uncompress a table, run ALTER TABLE ... COMPRESSION=None and OPTIMIZE TABLE.

  • Page-compressed tablespaces can be copied between Linux and Windows servers if the compression algorithm that was used is available on both servers.

  • Preserving page compression when moving a page-compressed tablespace file from one host to another requires a utility that preserves sparse files.

  • Better page compression may be achieved on Fusion-io hardware with NVMFS than on other platforms, as NVMFS is designed to take advantage of punch hole functionality.

  • Using the page compression feature with a large InnoDB page size and relatively small file system block size could result in write amplification. For example, a maximum InnoDB page size of 64KB with a 4KB file system block size may improve compression but may also increase demand on the buffer pool, leading to increased I/O and potential write amplification.

15.10 InnoDB File-Format Management

As InnoDB evolves, data file formats that are not compatible with prior versions of InnoDB are sometimes required to support new features. To help manage compatibility in upgrade and downgrade situations, and systems that run different versions of MySQL, InnoDB uses named file formats. InnoDB currently supports two named file formats, Antelope and Barracuda.

This section discusses enabling InnoDB file formats for new InnoDB tables, verifying compatibility of different file formats between MySQL releases, and identifying the file format in use.

InnoDB file format settings do not apply to tables stored in general tablespaces. General tablespaces provide support for all row formats and associated features. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

Note

The following file format configuration parameters have new default values:

  • The innodb_file_format default value was changed to Barracuda. The previous default value was Antelope.

  • The innodb_large_prefix default value was changed to ON. The previous default was OFF.

The following file format configuration parameters are deprecated in and may be removed in a future release:

The file format configuration parameters were provided for creating tables compatible with earlier versions of InnoDB in MySQL 5.1. Now that MySQL 5.1 has reached the end of its product lifecycle, the parameters are no longer required.

15.10.1 Enabling File Formats

The innodb_file_format configuration option enables an InnoDB file format for file-per-table tablespaces.

Barracuda is the default innodb_file_format setting. In earlier releases, the default file format was Antelope.

Note

The innodb_file_format configuration option is deprecated and may be removed in a future release. For more information, see Section 15.10, “InnoDB File-Format Management”.

You can set the value of innodb_file_format on the command line when you start mysqld, or in the option file (my.cnf on Unix, my.ini on Windows). You can also change it dynamically with a SET GLOBAL statement.

SET GLOBAL innodb_file_format=Barracuda;

Usage notes

15.10.2 Verifying File Format Compatibility

InnoDB incorporates several checks to guard against the possible crashes and data corruptions that might occur if you run an old release of the MySQL server on InnoDB data files that use a newer file format. These checks take place when the server is started, and when you first access a table. This section describes these checks, how you can control them, and error and warning conditions that might arise.

Backward Compatibility

You only need to consider backward file format compatibility when using a recent version of InnoDB (MySQL 5.5 and higher with InnoDB) alongside an older version (MySQL 5.1 or earlier, with the built-in InnoDB rather than the InnoDB Plugin). To minimize the chance of compatibility issues, you can standardize on the InnoDB Plugin for all your MySQL 5.1 and earlier database servers.

In general, a newer version of InnoDB may create a table or index that cannot safely be read or written with an older version of InnoDB without risk of crashes, hangs, wrong results or corruptions. InnoDB includes a mechanism to guard against these conditions, and to help preserve compatibility among database files and versions of InnoDB. This mechanism lets you take advantage of some new features of an InnoDB release (such as performance improvements and bug fixes), and still preserve the option of using your database with an old version of InnoDB, by preventing accidental use of new features that create downward-incompatible disk files.

If a version of InnoDB supports a particular file format (whether or not that format is the default), you can query and update any table that requires that format or an earlier format. Only the creation of new tables using new features is limited based on the particular file format enabled. Conversely, if a tablespace contains a table or index that uses a file format that is not supported, it cannot be accessed at all, even for read access.

The only way to downgrade an InnoDB tablespace to the earlier Antelope file format is to copy the data to a new table, in a tablespace that uses the earlier format.

The easiest way to determine the file format of an existing InnoDB tablespace is to examine the properties of the table it contains, using the SHOW TABLE STATUS command or querying the table INFORMATION_SCHEMA.TABLES. If the Row_format of the table is reported as 'Compressed' or 'Dynamic', the tablespace containing the table supports the Barracuda format.

Internal Details

Every InnoDB file-per-table tablespace (represented by a *.ibd file) file is labeled with a file format identifier. The system tablespace (represented by the ibdata files) is tagged with the highest file format in use in a group of InnoDB database files, and this tag is checked when the files are opened.

Creating a compressed table, or a table with ROW_FORMAT=DYNAMIC, updates the file header of the corresponding file-per-table .ibd file and the table type in the InnoDB data dictionary with the identifier for the Barracuda file format. From that point forward, the table cannot be used with a version of InnoDB that does not support the Barracuda file format. To protect against anomalous behavior, InnoDB performs a compatibility check when the table is opened. (In many cases, the ALTER TABLE statement recreates a table and thus changes its properties. The special case of adding or dropping indexes without rebuilding the table is described in Section 15.13.1, “Overview of Online DDL”.)

General tablespaces, which are also represented by a *.ibd file, support both Antelope and Barracuda file formats. For more information about general tablespaces, see Section 15.7.9, “InnoDB General Tablespaces”.

Definition of ib-file set

To avoid confusion, for the purposes of this discussion we define the term ib-file set to mean the set of operating system files that InnoDB manages as a unit. The ib-file set includes the following files:

  • The system tablespace (one or more ibdata files) that contain internal system information (including internal catalogs and undo information) and may include user data and indexes.

  • Zero or more single-table tablespaces (also called file per table files, named *.ibd files).

  • InnoDB log files; usually two, ib_logfile0 and ib_logfile1. Used for crash recovery and in backups.

An ib-file set does not include the corresponding .frm files that contain metadata about InnoDB tables. The .frm files are created and managed by MySQL, and can sometimes get out of sync with the internal metadata in InnoDB.

Multiple tables, even from more than one database, can be stored in a single ib-file set. (In MySQL, a database is a logical collection of tables, what other systems refer to as a schema or catalog.)

15.10.2.1 Compatibility Check When InnoDB Is Started

To prevent possible crashes or data corruptions when InnoDB opens an ib-file set, it checks that it can fully support the file formats in use within the ib-file set. If the system is restarted following a crash, or a fast shutdown (i.e., innodb_fast_shutdown is greater than zero), there may be on-disk data structures (such as redo or undo entries, or doublewrite pages) that are in a too-new format for the current software. During the recovery process, serious damage can be done to your data files if these data structures are accessed. The startup check of the file format occurs before any recovery process begins, thereby preventing consistency issues with the new tables or startup problems for the MySQL server.

Beginning with version InnoDB 1.0.1, the system tablespace records an identifier or tag for the highest file format used by any table in any of the tablespaces that is part of the ib-file set. Checks against this file format tag are controlled by the configuration parameter innodb_file_format_check, which is ON by default.

If the file format tag in the system tablespace is newer or higher than the highest version supported by the particular currently executing software and if innodb_file_format_check is ON, the following error is issued when the server is started:

InnoDB: Error: the system tablespace is in a
file format that this version doesn't support

You can also set innodb_file_format to a file format name. Doing so prevents InnoDB from starting if the current software does not support the file format specified. It also sets the high water mark to the value you specify. The ability to set innodb_file_format_check is useful (with future releases) if you manually downgrade all of the tables in an ib-file set. You can then rely on the file format check at startup if you subsequently use an older version of InnoDB to access the ib-file set.

In some limited circumstances, you might want to start the server and use an ib-file set that is in a new file format that is not supported by the software you are using. If you set the configuration parameter innodb_file_format_check to OFF, InnoDB opens the database, but issues this warning message in the error log:

InnoDB: Warning: the system tablespace is in a
file format that this version doesn't support
Note

This is a dangerous setting, as it permits the recovery process to run, possibly corrupting your database if the previous shutdown was a crash or fast shutdown. You should only set innodb_file_format_check to OFF if you are sure that the previous shutdown was done with innodb_fast_shutdown=0, so that essentially no recovery process occurs.

The parameter innodb_file_format_check affects only what happens when a database is opened, not subsequently. Conversely, the parameter innodb_file_format (which enables a specific format) only determines whether or not a new table can be created in the enabled format and has no effect on whether or not a database can be opened.

The file format tag is a high water mark, and as such it is increased after the server is started, if a table in a higher format is created or an existing table is accessed for read or write (assuming its format is supported). If you access an existing table in a format higher than the format the running software supports, the system tablespace tag is not updated, but table-level compatibility checking applies (and an error is issued), as described in Section 15.10.2.2, “Compatibility Check When a Table Is Opened”. Any time the high water mark is updated, the value of innodb_file_format_check is updated as well, so the command SELECT @@innodb_file_format_check; displays the name of the latest file format known to be used by tables in the currently open ib-file set and supported by the currently executing software.

15.10.2.2 Compatibility Check When a Table Is Opened

When a table is first accessed, InnoDB (including some releases prior to InnoDB 1.0) checks that the file format of the tablespace in which the table is stored is fully supported. This check prevents crashes or corruptions that would otherwise occur when tables using a too new data structure are encountered.

All tables using any file format supported by a release can be read or written (assuming the user has sufficient privileges). The setting of the system configuration parameter innodb_file_format can prevent creating a new table that uses a specific file format, even if the file format is supported by a given release. Such a setting might be used to preserve backward compatibility, but it does not prevent accessing any table that uses a supported format.

Versions of MySQL older than 5.0.21 cannot reliably use database files created by newer versions if a new file format was used when a table was created. To prevent various error conditions or corruptions, InnoDB checks file format compatibility when it opens a file (for example, upon first access to a table). If the currently running version of InnoDB does not support the file format identified by the table type in the InnoDB data dictionary, MySQL reports the following error:

ERROR 1146 (42S02): Table 'test.t1' doesn't exist

InnoDB also writes a message to the error log:

InnoDB: table test/t1: unknown table type 33

The table type should be equal to the tablespace flags, which contains the file format version as discussed in Section 15.10.3, “Identifying the File Format in Use”.

Versions of InnoDB prior to MySQL 4.1 did not include table format identifiers in the database files, and versions prior to MySQL 5.0.21 did not include a table format compatibility check. Therefore, there is no way to ensure proper operations if a table in a newer file format is used with versions of InnoDB prior to 5.0.21.

The file format management capability in InnoDB 1.0 and higher (tablespace tagging and run-time checks) allows InnoDB to verify as soon as possible that the running version of software can properly process the tables existing in the database.

If you permit InnoDB to open a database containing files in a format it does not support (by setting the parameter innodb_file_format_check to OFF), the table-level checking described in this section still applies.

Users are strongly urged not to use database files that contain Barracuda file format tables with releases of InnoDB older than the MySQL 5.1 with the InnoDB Plugin. It may be possible to rebuild such tables to use the Antelope format.

15.10.3 Identifying the File Format in Use

If you enable a different file format using the innodb_file_format configuration option, the change only applies to newly created tables. Also, when you create a new table, the tablespace containing the table is tagged with the earliest or simplest file format that is required to support the table's features. For example, if you enable the Barracuda file format, and create a new table that does not use the Dynamic or Compressed row format, the new tablespace that contains the table is tagged as using the Antelope file format .

It is easy to identify the file format used by a given table. The table uses the Antelope file format if the row format reported by SHOW TABLE STATUS is either Compact or Redundant. The table uses the Barracuda file format if the row format reported by SHOW TABLE STATUS is either Compressed or Dynamic.

mysql> SHOW TABLE STATUS\G
*************************** 1. row ***************************
           Name: t1
         Engine: InnoDB
        Version: 10
     Row_format: Compact
           Rows: 0
 Avg_row_length: 0
    Data_length: 16384
Max_data_length: 0
   Index_length: 16384
      Data_free: 0
 Auto_increment: 1
    Create_time: 2014-11-03 13:32:10
    Update_time: NULL
     Check_time: NULL
      Collation: latin1_swedish_ci
       Checksum: NULL
 Create_options:
        Comment:

You can also identify the file format used by a given table or tablespace using InnoDB INFORMATION_SCHEMA tables. For example:

mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME='test/t1'\G
*************************** 1. row ***************************
     TABLE_ID: 44
         NAME: test/t1
         FLAG: 1
       N_COLS: 6
        SPACE: 30
  FILE_FORMAT: Antelope
   ROW_FORMAT: Compact
ZIP_PAGE_SIZE: 0

mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES WHERE NAME='test/t1'\G
*************************** 1. row ***************************
        SPACE: 30
         NAME: test/t1
         FLAG: 0
  FILE_FORMAT: Antelope
   ROW_FORMAT: Compact or Redundant
    PAGE_SIZE: 16384
ZIP_PAGE_SIZE: 0

15.10.4 Modifying the File Format

Each InnoDB tablespace file (with a name matching *.ibd) is tagged with the file format used to create its table and indexes. The way to modify the file format is to re-create the table and its indexes. The easiest way to recreate a table and its indexes is to use the following command on each table that you want to modify:

ALTER TABLE t ROW_FORMAT=format_name;

If you are modifying the file format to downgrade to an older MySQL version, there may be incompatibilities in table storage formats that require additional steps. For information about downgrading to a previous MySQL version, see Section 2.11.2, “Downgrading MySQL”.

15.11 InnoDB Row Storage and Row Formats

This section discusses how InnoDB features such as table compression, off-page storage of long variable-length column values, and large index key prefixes (innodb_large_prefix) are controlled by the row format of an InnoDB table. It also discusses considerations for choosing the right row format, and compatibility of row formats between MySQL releases.

15.11.1 Overview of InnoDB Row Storage

The storage for rows and associated columns affects performance for queries and DML operations. As more rows fit into a single disk page, queries and index lookups can work faster, less cache memory is required in the InnoDB buffer pool, and less I/O is required to write out updated values for the numeric and short string columns.

The data in each InnoDB table is divided into pages. The pages that make up each table are arranged in a tree data structure called a B-tree index. Table data and secondary indexes both use this type of structure. The B-tree index that represents an entire table is known as the clustered index, which is organized according to the primary key columns. The nodes of the index data structure contain the values of all the columns in that row (for the clustered index) or the index columns and the primary key columns (for secondary indexes).

Variable-length columns are an exception to this rule. Columns such as BLOB and VARCHAR that are too long to fit on a B-tree page are stored on separately allocated disk pages called overflow pages. We call such columns off-page columns. The values of these columns are stored in singly-linked lists of overflow pages, and each such column has its own list of one or more overflow pages. In some cases, all or a prefix of the long column value is stored in the B-tree, to avoid wasting storage and eliminating the need to read a separate page.

The following sections describe how to configure the row format of InnoDB tables to control how variable-length columns values are stored. Row format configuration also determines the availability of the table compression feature and the large index key prefix feature (innodb_large_prefix).

15.11.2 Specifying the Row Format for a Table

The default row format is defined by innodb_default_row_format, which has a default value of DYNAMIC. The default row format is used when the ROW_FORMAT table option is not defined explicitly or when ROW_FORMAT=DEFAULT is specified.

The row format of a table can be defined explicitly using the ROW_FORMAT table option in a CREATE TABLE or ALTER TABLE statement. For example:

CREATE TABLE t1 (c1 INT) ROW_FORMAT=DYNAMIC;

An explicitly defined ROW_FORMAT setting overrides the implicit default. Specifying ROW_FORMAT=DEFAULT is equivalent to using the implicit default.

The innodb_default_row_format option can be set dynamically:

mysql> SET GLOBAL innodb_default_row_format=DYNAMIC;

Valid innodb_default_row_format options include DYNAMIC, COMPACT, and REDUNDANT. The COMPRESSED row format, which is not supported for use in the system tablespace, cannot be defined as the default. It can only be specified explicitly in a CREATE TABLE or ALTER TABLE statement. Attempting to set innodb_default_row_format to COMPRESSED returns an error:

mysql> SET GLOBAL innodb_default_row_format=COMPRESSED;
ERROR 1231 (42000): Variable 'innodb_default_row_format'
can't be set to the value of 'COMPRESSED'

Newly created tables use the row format defined by innodb_default_row_format when a ROW_FORMAT option is not specified explicitly or when ROW_FORMAT=DEFAULT is used. For example, the following CREATE TABLE statements use the row format defined by innodb_default_row_format.

CREATE TABLE t1 (c1 INT);
CREATE TABLE t2 (c1 INT) ROW_FORMAT=DEFAULT;

When a ROW_FORMAT option is not specified explicitly or when ROW_FORMAT=DEFAULT is used, any operation that rebuilds a table also silently changes the row format of the table to the format defined by innodb_default_row_format.

Table-rebuilding operations include ALTER TABLE operations that use ALGORITHM=COPY or ALTER TABLE operations that use ALGORITM=INPLACE where table rebuilding is required. See Table 15.10, “Summary of Online Status for DDL Operations” for an overview of the online status of DDL operations. OPTIMIZE TABLE is also a table-rebuilding operation.

The following example demonstrates a table-rebuilding operation that silently changes the row format of a table created without an explicitly defined row format.

mysql> SELECT @@innodb_default_row_format;
+-----------------------------+
| @@innodb_default_row_format |
+-----------------------------+
| dynamic                     |
+-----------------------------+

mysql> CREATE TABLE t1 (c1 INT);

mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME LIKE 'test/t1' \G
*************************** 1. row ***************************
     TABLE_ID: 54
         NAME: test/t1
         FLAG: 33
       N_COLS: 4
        SPACE: 35
  FILE_FORMAT: Barracuda
   ROW_FORMAT: Dynamic
ZIP_PAGE_SIZE: 0
   SPACE_TYPE: Single

mysql> SET GLOBAL innodb_default_row_format=COMPACT;

mysql> ALTER TABLE t1 ADD COLUMN (c2 INT);

mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME LIKE 'test/t1' \G
*************************** 1. row ***************************
     TABLE_ID: 55
         NAME: test/t1
         FLAG: 1
       N_COLS: 5
        SPACE: 36
  FILE_FORMAT: Antelope
   ROW_FORMAT: Compact
ZIP_PAGE_SIZE: 0
   SPACE_TYPE: Single

Consider the following potential issues before changing the row format of existing tables from REDUNDANT or COMPACT to DYNAMIC.

  • The REDUNDANT and COMPACT row format supports a maximum index key prefix length of 767 bytes whereas DYNAMIC and COMPRESSED row formats support an index key prefix length of 3072 bytes if the innodb_large_prefix configuration option is enabled. In a replication environment, if innodb_default_row_format is set to DYNAMIC on the master and set to COMPACT on the slave, the following DDL statement, which does not explicitly define a row format, succeeds on the master but fails on the slave:

    CREATE TABLE t1 (c1 INT PRIMARY KEY, c2 VARCHAR(5000), KEY i1(c2(3070)));

    For related information, see Section 15.8.8, “Limits on InnoDB Tables”.

  • Importing a table that does not explicitly define a row format results in a schema mismatch error if the innodb_default_row_format setting on the source server differs from the setting on the destination server. For more information, refer to the limitations outlined in Section 15.7.6, “Copying File-Per-Table Tablespaces to Another Server”.

To view the row format of a table, issue a SHOW TABLE STATUS statement or query INFORMATION_SCHEMA.TABLES.

SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME LIKE 'test/t1' \G

The row format of an InnoDB table determines its physical row structure. See Section 15.8.3, “Physical Row Structure of InnoDB Tables” for more information.

15.11.3 DYNAMIC and COMPRESSED Row Formats

When a table is created with ROW_FORMAT=DYNAMIC or ROW_FORMAT=COMPRESSED, InnoDB can store long variable-length column values (for VARCHAR, VARBINARY, and BLOB and TEXT types) fully off-page, with the clustered index record containing only a 20-byte pointer to the overflow page. InnoDB also encodes fixed-length fields greater than or equal to 768 bytes in length as variable-length fields. For example, a CHAR(255) column can exceed 768 bytes if the maximum byte length of the character set is greater than 3, as it is with utf8mb4.

Whether any columns are stored off-page depends on the page size and the total size of the row. When the row is too long, InnoDB chooses the longest columns for off-page storage until the clustered index record fits on the B-tree page. TEXT and BLOB columns that are less than or equal to 40 bytes are always stored in-line.

The DYNAMIC row format maintains the efficiency of storing the entire row in the index node if it fits (as do the COMPACT and REDUNDANT formats), but the DYNAMIC row format avoids the problem of filling B-tree nodes with a large number of data bytes of long columns. The DYNAMIC format is based on the idea that if a portion of a long data value is stored off-page, it is usually most efficient to store all of the value off-page. With DYNAMIC format, shorter columns are likely to remain in the B-tree node, minimizing the number of overflow pages needed for any given row.

The COMPRESSED row format uses similar internal details for off-page storage as the DYNAMIC row format, with additional storage and performance considerations from the table and index data being compressed and using smaller page sizes. With the COMPRESSED row format, the KEY_BLOCK_SIZE option controls how much column data is stored in the clustered index, and how much is placed on overflow pages. For full details about the COMPRESSED row format, see Section 15.9, “InnoDB Table and Page Compression”.

Both DYNAMIC and COMPRESSED row formats support index key prefixes up to 3072 bytes. This feature is controlled by the innodb_large_prefix configuration option, which is enabled by default. See the innodb_large_prefix option description for more information.

Tables that use the COMPRESSED row format can be created in file-per-table tablespaces or general tablespaces. The system tablespace does not support the COMPRESSED row format. To store a COMPRESSED table in a file-per-table tablespace, innodb_file_per_table must be enabled and innodb_file_format must be set to Barracuda. The innodb_file_per_table and innodb_file_format configuration options are not applicable to general tablespaces. General tablespaces support all row formats with the caveat that compressed and uncompressed tables cannot coexist in the same general tablespace due to different physical page sizes. For more information about general tablespaces, see Section 15.7.9, “InnoDB General Tablespaces”.

DYNAMIC tables can be stored in file-per-table tablespaces, general tablespaces, and the system tablespace. To store DYNAMIC tables in the system tablespace, you must use the TABLESPACE [=] innodb_system table option with CREATE TABLE or ALTER TABLE. The innodb_file_per_table and innodb_file_format configuration options are not applicable to general tablespaces, nor are they applicable when using the TABLESPACE [=] innodb_system table option to store DYNAMIC tables in the system tablespace.

You can add a DYNAMIC table to the system tablespace by disabling innodb_file_per_table and using a regular CREATE TABLE or ALTER TABLE statement. The innodb_file_format setting is ignored. A DYNAMIC table always uses the Barracuda file format.

DYNAMIC and COMPRESSED row formats are variations of the COMPACT row format and therefore handle CHAR storage in the same way as the COMPACT row format. For more information, see Section 15.8.3, “Physical Row Structure of InnoDB Tables”.

15.11.4 COMPACT and REDUNDANT Row Formats

Early versions of InnoDB used an unnamed file format (now called Antelope) for database files. With that file format, tables are defined with ROW_FORMAT=COMPACT or ROW_FORMAT=REDUNDANT. With these row formats, InnoDB stores up to the first 768 bytes of variable-length columns (VARCHAR, VARBINARY, and BLOB and TEXT types) in the index record within the B-tree node, with the remainder stored on the overflow pages. InnoDB also encodes fixed-length fields greater than or equal to 768 bytes in length as variable-length fields, which can be stored off-page. For example, a CHAR(255) column can exceed 768 bytes if the maximum byte length of the character set is greater than 3, as it is with utf8mb4.

With the Antelope file format, if the value of a column is 768 bytes or less, no overflow page is needed, and some savings in I/O may result, since the value is in the B-tree node. This works well for relatively short BLOBs, but may cause B-tree nodes to fill with data rather than key values, reducing their efficiency. Tables with many BLOB columns could cause B-tree nodes to become too full of data, and contain too few rows, making the entire index less efficient than if the rows were shorter or if the column values were stored off-page.

For information about the physical row structure of tables that use the REDUNDANT or COMPACT row format, see Section 15.8.3, “Physical Row Structure of InnoDB Tables”.

15.12 InnoDB Disk I/O and File Space Management

As a DBA, you must manage disk I/O to keep the I/O subsystem from becoming saturated, and manage disk space to avoid filling up storage devices. The ACID design model requires a certain amount of I/O that might seem redundant, but helps to ensure data reliability. Within these constraints, InnoDB tries to optimize the database work and the organization of disk files to minimize the amount of disk I/O. Sometimes, I/O is postponed until the database is not busy, or until everything needs to be brought to a consistent state, such as during a database restart after a fast shutdown.

This section discusses the main considerations for I/O and disk space with the default kind of MySQL tables (also known as InnoDB tables):

  • Controlling the amount of background I/O used to improve query performance.

  • Enabling or disabling features that provide extra durability at the expense of additional I/O.

  • Organizing tables into many small files, a few larger files, or a combination of both.

  • Balancing the size of redo log files against the I/O activity that occurs when the log files become full.

  • How to reorganize a table for optimal query performance.

15.12.1 InnoDB Disk I/O

InnoDB uses asynchronous disk I/O where possible, by creating a number of threads to handle I/O operations, while permitting other database operations to proceed while the I/O is still in progress. On Linux and Windows platforms, InnoDB uses the available OS and library functions to perform native asynchronous I/O. On other platforms, InnoDB still uses I/O threads, but the threads may actually wait for I/O requests to complete; this technique is known as simulated asynchronous I/O.

Read-Ahead

If InnoDB can determine there is a high probability that data might be needed soon, it performs read-ahead operations to bring that data into the buffer pool so that it is available in memory. Making a few large read requests for contiguous data can be more efficient than making several small, spread-out requests. There are two read-ahead heuristics in InnoDB:

  • In sequential read-ahead, if InnoDB notices that the access pattern to a segment in the tablespace is sequential, it posts in advance a batch of reads of database pages to the I/O system.

  • In random read-ahead, if InnoDB notices that some area in a tablespace seems to be in the process of being fully read into the buffer pool, it posts the remaining reads to the I/O system.

For information about configuring read-ahead heuristics, see Section 15.6.3.5, “Configuring InnoDB Buffer Pool Prefetching (Read-Ahead)”.

Doublewrite Buffer

InnoDB uses a novel file flush technique involving a structure called the doublewrite buffer, which is enabled by default in most cases (innodb_doublewrite=ON). It adds safety to recovery following a crash or power outage, and improves performance on most varieties of Unix by reducing the need for fsync() operations.

Before writing pages to a data file, InnoDB first writes them to a contiguous tablespace area called the doublewrite buffer. Only after the write and the flush to the doublewrite buffer has completed does InnoDB write the pages to their proper positions in the data file. If there is an operating system, storage subsystem, or mysqld process crash in the middle of a page write (causing a torn page condition), InnoDB can later find a good copy of the page from the doublewrite buffer during recovery.

If system tablespace files (ibdata files) are located on Fusion-io devices that support atomic writes, doublewrite buffering is automatically disabled and Fusion-io atomic writes are used for all data files. Because the doublewrite buffer setting is global, doublewrite buffering is also disabled for data files residing on non-Fusion-io hardware. This feature is only supported on Fusion-io hardware and is only enabled for Fusion-io NVMFS on Linux. To take full advantage of this feature, an innodb_flush_method setting of O_DIRECT is recommended.

15.12.2 File Space Management

The data files that you define in the configuration file using the innodb_data_file_path configuration option form the InnoDB system tablespace. The files are logically concatenated to form the system tablespace. There is no striping in use. You cannot define where within the system tablespace your tables are allocated. In a newly created system tablespace, InnoDB allocates space starting from the first data file.

To avoid the issues that come with storing all tables and indexes inside the system tablespace, you can enable the innodb_file_per_table configuration option (the default), which stores each newly created table in a separate tablespace file (with extension .ibd). For tables stored this way, there is less fragmentation within the disk file, and when the table is truncated, the space is returned to the operating system rather than still being reserved by InnoDB within the system tablespace. For more information, see Section 15.7.4, “InnoDB File-Per-Table Tablespaces”.

You can also store tables in general tablespaces. General tablespaces are shared tablespaces created using CREATE TABLESPACE syntax. They can be created outside of the MySQL data directory, are capable of holding multiple tables, and support tables of all row formats. For more information, see Section 15.7.9, “InnoDB General Tablespaces”.

Pages, Extents, Segments, and Tablespaces

Each tablespace consists of database pages. Every tablespace in a MySQL instance has the same page size. By default, all tablespaces have a page size of 16KB; you can reduce the page size to 8KB or 4KB by specifying the innodb_page_size option when you create the MySQL instance. You can also increase the page size to 32KB or 64KB. For more information, refer to the innodb_page_size documentation.

The pages are grouped into extents of size 1MB for pages up to 16KB in size (64 consecutive 16KB pages, or 128 8KB pages, or 256 4KB pages). For a page size of 32KB, extent size is 2MB. For page size of 64KB, extent size is 4MB. The files inside a tablespace are called segments in InnoDB. (These segments are different from the rollback segment, which actually contains many tablespace segments.)

When a segment grows inside the tablespace, InnoDB allocates the first 32 pages to it one at a time. After that, InnoDB starts to allocate whole extents to the segment. InnoDB can add up to 4 extents at a time to a large segment to ensure good sequentiality of data.

Two segments are allocated for each index in InnoDB. One is for nonleaf nodes of the B-tree, the other is for the leaf nodes. Keeping the leaf nodes contiguous on disk enables better sequential I/O operations, because these leaf nodes contain the actual table data.

Some pages in the tablespace contain bitmaps of other pages, and therefore a few extents in an InnoDB tablespace cannot be allocated to segments as a whole, but only as individual pages.

When you ask for available free space in the tablespace by issuing a SHOW TABLE STATUS statement, InnoDB reports the extents that are definitely free in the tablespace. InnoDB always reserves some extents for cleanup and other internal purposes; these reserved extents are not included in the free space.

When you delete data from a table, InnoDB contracts the corresponding B-tree indexes. Whether the freed space becomes available for other users depends on whether the pattern of deletes frees individual pages or extents to the tablespace. Dropping a table or deleting all rows from it is guaranteed to release the space to other users, but remember that deleted rows are physically removed only by the purge operation, which happens automatically some time after they are no longer needed for transaction rollbacks or consistent reads. (See Section 15.3, “InnoDB Multi-Versioning”.)

How Pages Relate to Table Rows

The maximum row length is slightly less than half a database page for 4KB, 8KB, 16KB, and 32KB innodb_page_size settings. For example, the maximum row length is slightly less than 8KB for the default 16KB InnoDB page size. For 64KB pages, the maximum row length is slightly less than 16KB.

If a row does not exceed the maximum row length, all of it is stored locally within the page. If a row exceeds the maximum row length, variable-length columns are chosen for external off-page storage until the row fits within the maximum row length limit. External off-page storage for variable-length columns differs by row format:

  • COMPACT and REDUNDANT Row Formats

    When a variable-length column is chosen for external off-page storage, InnoDB stores the first 768 bytes locally in the row, and the rest externally into overflow pages. Each such column has its own list of overflow pages. The 768-byte prefix is accompanied by a 20-byte value that stores the true length of the column and points into the overflow list where the rest of the value is stored. See Section 15.11.4, “COMPACT and REDUNDANT Row Formats”.

  • DYNAMIC and COMPRESSED Row Formats

    When a variable-length column is chosen for external off-page storage, InnoDB stores a 20-byte pointer locally in the row, and the rest externally into overflow pages. See Section 15.11.3, “DYNAMIC and COMPRESSED Row Formats”.

LONGBLOB and LONGTEXT columns must be less than 4GB, and the total row length, including BLOB and TEXT columns, must be less than 4GB.

15.12.3 InnoDB Checkpoints

Making your log files very large may reduce disk I/O during checkpointing. It often makes sense to set the total size of the log files as large as the buffer pool or even larger. Although in the past large log files could make crash recovery take excessive time, starting with MySQL 5.5, performance enhancements to crash recovery make it possible to use large log files with fast startup after a crash. (Strictly speaking, this performance improvement is available for MySQL 5.1 with the InnoDB Plugin 1.0.7 and higher. It is with MySQL 5.5 that this improvement is available in the default InnoDB storage engine.)

How Checkpoint Processing Works

InnoDB implements a checkpoint mechanism known as fuzzy checkpointing. InnoDB flushes modified database pages from the buffer pool in small batches. There is no need to flush the buffer pool in one single batch, which would disrupt processing of user SQL statements during the checkpointing process.

During crash recovery, InnoDB looks for a checkpoint label written to the log files. It knows that all modifications to the database before the label are present in the disk image of the database. Then InnoDB scans the log files forward from the checkpoint, applying the logged modifications to the database.

15.12.4 Defragmenting a Table

Random insertions into or deletions from a secondary index can cause the index to become fragmented. Fragmentation means that the physical ordering of the index pages on the disk is not close to the index ordering of the records on the pages, or that there are many unused pages in the 64-page blocks that were allocated to the index.

One symptom of fragmentation is that a table takes more space than it should take. How much that is exactly, is difficult to determine. All InnoDB data and indexes are stored in B-trees, and their fill factor may vary from 50% to 100%. Another symptom of fragmentation is that a table scan such as this takes more time than it should take:

SELECT COUNT(*) FROM t WHERE non_indexed_column <> 12345;

The preceding query requires MySQL to perform a full table scan, the slowest type of query for a large table.

To speed up index scans, you can periodically perform a null ALTER TABLE operation, which causes MySQL to rebuild the table:

ALTER TABLE tbl_name ENGINE=INNODB

You can also use ALTER TABLE tbl_name FORCE to perform a null alter operation that rebuilds the table.

Both ALTER TABLE tbl_name ENGINE=INNODB and ALTER TABLE tbl_name FORCE use online DDL. For more information, see Section 15.13.1, “Overview of Online DDL”.

Another way to perform a defragmentation operation is to use mysqldump to dump the table to a text file, drop the table, and reload it from the dump file.

If the insertions into an index are always ascending and records are deleted only from the end, the InnoDB filespace management algorithm guarantees that fragmentation in the index does not occur.

15.12.5 Reclaiming Disk Space with TRUNCATE TABLE

To reclaim operating system disk space when truncating an InnoDB table, the table must be stored in its own .ibd file. For a table to be stored in its own .ibd file, innodb_file_per_table must enabled when the table is created. Additionally, there cannot be a foreign key constraint between the table being truncated and other tables, otherwise the TRUNCATE TABLE operation fails. A foreign key constraint between two columns in the same table, however, is permitted.

When a table is truncated, it is dropped and re-created in a new .ibd file, and the freed space is returned to the operating system. This is in contrast to truncating InnoDB tables that are stored within the InnoDB system tablespace (tables created when innodb_file_per_table=OFF) and tables stored in shared general tablespaces, where only InnoDB can use the freed space after the table is truncated.

The ability to truncate tables and return disk space to the operating system also means that physical backups can be smaller. Truncating tables that are stored in the system tablespace (tables created when innodb_file_per_table=OFF) or in a general tablespace leaves blocks of unused space in the tablespace.

15.13 InnoDB and Online DDL

The InnoDB online DDL feature permits in-place table alterations or concurrent DML, or both. Benefits of this feature include:

  • Improved responsiveness and availability in busy production environments, where making a table unavailable for minutes or hours is not practical.

  • The ability to adjust the balance between performance and concurrency during a DDL operations using the LOCK clause.

    • LOCK=EXCLUSIVE blocks access to the table entirely.

    • LOCK=SHARED allows queries but not DML.

    • LOCK=NONE allows full query and DML access to the table.

    • LOCK=DEFAULT or omitting the LOCK clause permits as much concurrency as possible depending on the type of DDL operation.

  • Avoidance of disk space usage and I/O overhead associated with copying the table and reconstructing secondary indexes.

15.13.1 Overview of Online DDL

Historically, many DDL operations on InnoDB tables were expensive. Many ALTER TABLE operations worked by creating a new, empty table defined with the requested table options and indexes, then copying the existing rows to the new table one-by-one, updating the indexes as the rows were inserted. After all rows from the original table were copied, the old table was dropped and the copy was renamed with the name of the original table.

MySQL 5.5, and MySQL 5.1 with the InnoDB Plugin, optimized CREATE INDEX and DROP INDEX to avoid the table-copying behavior. That feature was known as Fast Index Creation. MySQL 5.6 enhanced many other types of ALTER TABLE operations to avoid copying the table. Another enhancement allowed SELECT queries and INSERT, UPDATE, and DELETE (DML) statements to proceed while the table is being altered. In MySQL 5.7, ALTER TABLE RENAME INDEX was also enhanced to avoid table copying. This combination of features is now known as online DDL.

This mechanism also means that you can generally speed the overall process of creating and loading a table and associated indexes by creating the table without any secondary indexes, then adding the secondary indexes after the data is loaded.

Although no syntax changes are required in the CREATE INDEX or DROP INDEX commands, some factors affect the performance, space usage, and semantics of this operation (see Section 15.13.9, “Limitations of Online DDL”).

The online DDL enhancements in MySQL 5.6 improved many DDL operations that formerly required a table copy or blocked DML operations on the table, or both. Table 15.10, “Summary of Online Status for DDL Operations” shows the variations of the ALTER TABLE statement and shows how the online DDL feature applies to each.

With the exception of ALTER TABLE partitioning clauses, online DDL operations for partitioned InnoDB tables follow the same rules that apply to regular InnoDB tables. For more information, see Section 15.13.8, “Online DDL for Partitioned InnoDB Tables”.

  • The In-Place? column shows which operations permit the ALGORITHM=INPLACE clause.

  • The Rebuilds Table? column shows which operations rebuild the table. For operations that use the INPLACE algorithm, the table is rebuilt in place. For operations that do not support the INPLACE algorithm, the table copy method is used to rebuild the table.

  • The Permits Concurrent DML? column shows which operations are performed fully online. You can specify LOCK=NONE to assert that concurrent DML is permitted during the DDL operation. MySQL automatically permits concurrent DML when possible.

    Concurrent queries are permitted during all online DDL operations. You can specify LOCK=SHARED to assert that concurrent queries are permitted during a DDL operation. MySQL automatically permits concurrent queries when possible.

  • The Notes column provides additional information and explains exceptions and dependencies related to the Yes/No values of the other columns. An asterisk indicates an exception or dependency.

Table 15.10 Summary of Online Status for DDL Operations

OperationIn-Place?Rebuilds Table?Permits Concurrent DML?Only Modifies Metadata?Notes
CREATE INDEX, ADD INDEXYes*No*YesNoRestrictions apply for FULLTEXT indexes; see next row.
ADD FULLTEXT INDEXYes*No*NoNoAdding the first FULLTEXT index rebuilds the table if there is no user-defined FTS_DOC_ID column. Subsequent FULLTEXT indexes may be added on the same table without rebuilding the table.
ADD SPATIAL INDEXYesNoNoNo
RENAME INDEXYesNoYesYesOnly modifies table metadata.
DROP INDEXYesNoYesYesOnly modifies table metadata.
OPTIMIZE TABLEYes*YesYesNoIn-place operation is not supported for tables with FULLTEXT indexes.
Set column default valueYesNoYesYesOnly modifies table metadata.
Change auto-increment valueYesNoYesNo*Modifies a value stored in memory, not the data file.
Add foreign key constraintYes*NoYesYesThe INPLACE algorithm is supported when foreign_key_checks is disabled. Otherwise, only the COPY algorithm is supported.
Drop foreign key constraintYesNoYesYesforeign_key_checks can be enabled or disabled.
Rename columnYes*NoYes*YesTo permit concurrent DML, keep the same data type and only change the column name. ALGORITHM=INPLACE is not supported for renaming a generated column.
Add columnYes*Yes*Yes*NoConcurrent DML is not permitted when adding an auto-increment column. Data is reorganized substantially, making it an expensive operation. ALGORITHM=INPLACE is supported for adding a generated virtual column but not for adding a generated stored column. Adding a generated virtual column does not require a table rebuild.
Drop columnYesYes*YesNoData is reorganized substantially, making it an expensive operation. ALGORITHM=INPLACE is supported for dropping a generated column. Dropping a generated virtual column does not require a table rebuild.
Reorder columnsYesYesYesNoData is reorganized substantially, making it an expensive operation.
Change ROW_FORMAT propertyYesYesYesNoData is reorganized substantially, making it an expensive operation.
Change KEY_BLOCK_SIZE propertyYesYesYesNoData is reorganized substantially, making it an expensive operation.
Make column NULLYesYesYesNoData is reorganized substantially, making it an expensive operation.
Make column NOT NULLYes*YesYesNoSTRICT_ALL_TABLES or STRICT_TRANS_TABLES SQL_MODE is required for the operation to succeed. The operation fails if the column contains NULL values. The server prohibits changes to foreign key columns that have the potential to cause loss of referential integrity. See Section 14.1.8, “ALTER TABLE Syntax”. Data is reorganized substantially, making it an expensive operation.
Change column data typeNo*YesNoNoVARCHAR size may be increased using online ALTER TABLE. See InnoDB Online DDL Column Properties for more information.
Add primary keyYes*YesYesNoData is reorganized substantially, making it an expensive operation. ALGORITHM=INPLACE is not permitted under certain conditions if columns have to be converted to NOT NULL. See Example 15.9, “Creating and Dropping the Primary Key”.
Drop primary key and add anotherYesYesYesNoData is reorganized substantially, making it an expensive operation.
Drop primary keyNoYesNoNoOnly ALGORITHM=COPY supports dropping a primary key without adding a new one in the same ALTER TABLE statement.
Convert character setNoYes*NoNoRebuilds the table if the new character encoding is different.
Specify character setNoYes*NoNoRebuilds the table if the new character encoding is different.
Rebuild with FORCE optionYes*YesYesNoUses ALGORITHM=INPLACE. ALGORITHM=INPLACE is not supported for tables with FULLTEXT indexes.
null rebuild using ALTER TABLE ... ENGINE=INNODBYes*YesYesNoUses ALGORITHM=INPLACE. ALGORITHM=INPLACE is not supported for tables with FULLTEXT indexes.
Set STATS_PERSISTENT, STATS_AUTO_RECALC, STATS_SAMPLE_PAGES persistent statistics optionsYesNoYesYesOnly modifies table metadata.
ALTER TABLE … ENCRYPTIONNoYesNoYes

The following sections shows the basic syntax, and usage notes related to online DDL, for each of the major operations that can be performed with concurrent DML, in-place, or both:

Secondary Indexes

  • Create secondary indexes: CREATE INDEX name ON table (col_list) or ALTER TABLE table ADD INDEX name (col_list). (Creating a FULLTEXT index still requires locking the table.)

  • Drop secondary indexes: DROP INDEX name ON table; or ALTER TABLE table DROP INDEX name

Creating and dropping secondary indexes on InnoDB tables skips the table-copying behavior.

In MySQL 5.6 and higher, the table remains available for read and write operations while the index is being created or dropped. The CREATE INDEX or DROP INDEX statement only finishes after all transactions that are accessing the table are completed, so that the initial state of the index reflects the most recent contents of the table. Previously, modifying the table while an index is being created or dropped typically resulted in a deadlock that cancelled the INSERT, UPDATE, or DELETE statement on the table.

Column Properties

  • Set a default value for a column: ALTER TABLE tbl ALTER COLUMN col SET DEFAULT literal or ALTER TABLE tbl ALTER COLUMN col DROP DEFAULT

    The default values for columns are stored in the .frm file for the table, not the InnoDB data dictionary.

  • Changing the auto-increment value for a column: ALTER TABLE table AUTO_INCREMENT=next_value;

    Especially in a distributed system using replication or sharding, you sometimes reset the auto-increment counter for a table to a specific value. The next row inserted into the table uses the specified value for its auto-increment column. You might also use this technique in a data warehousing environment where you periodically empty all the tables and reload them, and you can restart the auto-increment sequence from 1.

  • Renaming a column: ALTER TABLE tbl CHANGE old_col_name new_col_name datatype

    When you keep the same data type and [NOT] NULL attribute, only changing the column name, this operation can always be performed online.

    You can also rename a column that is part of a foreign key constraint. The foreign key definition is automatically updated to use the new column name. Renaming a column participating in a foreign key only works with the in-place mode of ALTER TABLE. If you use the ALGORITHM=COPY clause, or some other condition causes the command to use ALGORITHM=COPY behind the scenes, the ALTER TABLE statement fails.

  • Extending VARCHAR size using an in-place ALTER TABLE statement, as in this example:

    ALTER TABLE t1 ALGORITHM=INPLACE, CHANGE COLUMN c1 c1 VARCHAR(255);


    The number of length bytes required by a VARCHAR column must remain the same. For VARCHAR values of 0 to 255, one length byte is required to encode the value. For VARCHAR values of 256 bytes or more, two length bytes are required. As a result, in-place ALTER TABLE only supports increasing VARCHAR size from 0 to 255 bytes or increasing VARCHAR size from a value equal to or greater than 256 bytes. In-place ALTER TABLE does not support increasing VARCHAR size from less than 256 bytes to a value equal to or greater than 256 bytes. In this case, the number of required length bytes would change from 1 to 2, which is only supported by a table copy (ALGORITHM=COPY). For example, attempting to change VARCHAR column size from 255 to 256 using in-place ALTER TABLE would return an error:

    ALTER TABLE t1 ALGORITHM=INPLACE, CHANGE COLUMN c1 c1 VARCHAR(256);
    ERROR 0A000: ALGORITHM=INPLACE is not supported. Reason: Cannot change
    column type INPLACE. Try ALGORITHM=COPY.


    Decreasing VARCHAR size using in-place ALTER TABLE is not supported. Decreasing VARCHAR size requires a table copy (ALGORITHM=COPY).

Foreign Keys

  • Adding or dropping a foreign key constraint:

    ALTER TABLE tbl1 ADD CONSTRAINT fk_name FOREIGN KEY index (col1) REFERENCES tbl2(col2) referential_actions;
    ALTER TABLE tbl DROP FOREIGN KEY fk_name;


    Dropping a foreign key can be performed online with the foreign_key_checks option enabled or disabled. Creating a foreign key online requires foreign_key_checks to be disabled.

    If you do not know the names of the foreign key constraints on a particular table, issue the following statement and find the constraint name in the CONSTRAINT clause for each foreign key:

    show create table table\G


    Or, query the information_schema.table_constraints table and use the constraint_name and constraint_type columns to identify the foreign key names.

    You can also drop a foreign key and its associated index in a single statement:

    ALTER TABLE table DROP FOREIGN KEY constraint, DROP INDEX index;


If foreign keys are already present in the table being altered (that is, it is a child table containing any FOREIGN KEY ... REFERENCE clauses), additional restrictions apply to online DDL operations, even those not directly involving the foreign key columns:

  • An ALTER TABLE on the child table could wait for another transaction to commit, if a change to the parent table caused associated changes in the child table through an ON UPDATE or ON DELETE clause using the CASCADE or SET NULL parameters.

  • In the same way, if a table is the parent table in a foreign key relationship, even though it does not contain any FOREIGN KEY clauses, it could wait for the ALTER TABLE to complete if an INSERT, UPDATE, or DELETE statement caused an ON UPDATE or ON DELETE action in the child table.

Notes on ALGORITHM=COPY

Any ALTER TABLE operation run with the ALGORITHM=COPY clause prevents concurrent DML operations. Concurrent queries are still allowed. That is, a table-copying operation always includes at least the concurrency restrictions of LOCK=SHARED (allow queries but not DML). You can further restrict concurrency for such operations by specifying LOCK=EXCLUSIVE, which prevents DML and queries.

Concurrent DML but Table Copy Still Required

Some other ALTER TABLE operations allow concurrent DML but still require a table copy. However, the table copy for these operations is faster than it was in MySQL 5.5 and prior.

  • Adding, dropping, or reordering columns.

  • Adding or dropping a primary key.

  • Changing the ROW_FORMAT or KEY_BLOCK_SIZE properties for a table.

  • Changing the nullable status for a column.

  • OPTIMIZE TABLE

  • Rebuilding a table with the FORCE option

  • Rebuilding a table using a null ALTER TABLE ... ENGINE=INNODB statement

Maintaining CREATE TABLE Statements

As your database schema evolves with new columns, data types, constraints, indexes, and so on, keep your CREATE TABLE statements up to date with the latest table definitions. Even with the performance improvements of online DDL, it is more efficient to create stable database structures at the beginning, rather than creating part of the schema and then issuing ALTER TABLE statements afterward.

The main exception to this guideline is for secondary indexes on tables with large numbers of rows. It is typically most efficient to create the table with all details specified except the secondary indexes, load the data, then create the secondary indexes. You can use the same technique with foreign keys (load the data first, then set up the foreign keys) if you know the initial data is clean and do not need consistency checks during the loading process.

Whatever sequence of CREATE TABLE, CREATE INDEX, ALTER TABLE, and similar statements went into putting a table together, you can capture the SQL needed to reconstruct the current form of the table by issuing the statement SHOW CREATE TABLE table\G (uppercase \G required for tidy formatting). This output shows clauses such as numeric precision, NOT NULL, and CHARACTER SET that are sometimes added behind the scenes, which you may want to leave out when cloning the table on a new system or setting up foreign key columns with identical type.

15.13.2 Performance and Concurrency Considerations for Online DDL

Online DDL improves several aspects of MySQL operation, such as performance, concurrency, availability, and scalability:

  • Because queries and DML operations on the table can proceed while the DDL is in progress, applications that access the table are more responsive. Reduced locking and waiting for other resources throughout the MySQL server leads to greater scalability, even for operations not involving the table being altered.

  • For in-place operations, by avoiding the disk I/O and CPU cycles to rebuild the table, you minimize the overall load on the database and maintain good performance and high throughput during the DDL operation.

  • For in-place operations, because less data is read into the buffer pool than if all the data was copied, you avoid purging frequently accessed data from memory, which formerly could cause a temporary performance dip after a DDL operation.

If an online operation requires temporary sort files, InnoDB creates them in the temporary file directory by default, not the directory containing the original table. If this directory is not large enough to hold such files, you may need to set the tmpdir system variable to a different directory. Alternatively, you can define a separate temporary directory for InnoDB online ALTER TABLE operations using the innodb_tmpdir configuration option. This option was introduced in MySQL 5.7.11 to help avoid temporary directory overflows that could occur as a result of large temporary sort files created during online ALTER TABLE operations. For more information, see Section B.5.3.5, “Where MySQL Stores Temporary Files”.

Locking Options for Online DDL

While an InnoDB table is being changed by a DDL operation, the table may or may not be locked, depending on the internal workings of that operation and the LOCK clause of the ALTER TABLE statement. By default, MySQL uses as little locking as possible during a DDL operation; you specify the clause either to make the locking more restrictive than it normally would be (thus limiting concurrent DML, or DML and queries), or to ensure that some expected degree of locking is allowed for an operation. If the LOCK clause specifies a level of locking that is not available for that specific kind of DDL operation, such as LOCK=SHARED or LOCK=NONE while creating or dropping a primary key, the clause works like an assertion, causing the statement to fail with an error. The following list shows the different possibilities for the LOCK clause, from the most permissive to the most restrictive:

  • For DDL operations with LOCK=NONE, both queries and concurrent DML are allowed. This clause makes the ALTER TABLE fail if the kind of DDL operation cannot be performed with the requested type of locking, so specify LOCK=NONE if keeping the table fully available is vital and it is OK to cancel the DDL if that is not possible. For example, you might use this clause in DDLs for tables involving customer signups or purchases, to avoid making those tables unavailable by mistakenly issuing an expensive ALTER TABLE statement.

  • For DDL operations with LOCK=SHARED, any writes to the table (that is, DML operations) are blocked, but the data in the table can be read. This clause makes the ALTER TABLE fail if the kind of DDL operation cannot be performed with the requested type of locking, so specify LOCK=SHARED if keeping the table available for queries is vital and it is OK to cancel the DDL if that is not possible. For example, you might use this clause in DDLs for tables in a data warehouse, where it is OK to delay data load operations until the DDL is finished, but queries cannot be delayed for long periods.

  • For DDL operations with LOCK=DEFAULT, or with the LOCK clause omitted, MySQL uses the lowest level of locking that is available for that kind of operation, allowing concurrent queries, DML, or both wherever possible. This is the setting to use when making pre-planned, pre-tested changes that you know do not cause any availability problems based on the workload for that table.

  • For DDL operations with LOCK=EXCLUSIVE, both queries and DML operations are blocked. This clause makes the ALTER TABLE fail if the kind of DDL operation cannot be performed with the requested type of locking, so specify LOCK=EXCLUSIVE if the primary concern is finishing the DDL in the shortest time possible, and it is OK to make applications wait when they try to access the table. You might also use LOCK=EXCLUSIVE if the server is supposed to be idle, to avoid unexpected accesses to the table.

Depending on the internal workings of the online DDL operation and the LOCK clause of the ALTER TABLE statement, an online DDL operation may wait for currently executing transactions that are accessing the table to commit or roll back before completing because exclusive access to the table is required for a brief time during the initial and final phases of the DDL operation. These online DDL statements also wait for table-accessing transactions started while the DDL is in progress to commit or roll back before completing. Consequently, in the case of long running transactions performing inserts, updates, deletes, or SELECT ... FOR UPDATE on the table, an online ALTER TABLE operation can time out as it waits for exclusive access to the table. DML operations that are run on the table while the online ALTER TABLE operation waits for an exclusive table lock may also be blocked.

Because there is some processing work involved with recording the changes made by concurrent DML operations, then applying those changes at the end, an online DDL operation could take longer overall than the old-style mechanism that blocks table access from other sessions. The reduction in raw performance is balanced against better responsiveness for applications that use the table. When evaluating the ideal techniques for changing table structure, consider end-user perception of performance, based on factors such as load times for web pages.

A newly created InnoDB secondary index contains only the committed data in the table at the time the CREATE INDEX or ALTER TABLE statement finishes executing. It does not contain any uncommitted values, old versions of values, or values marked for deletion but not yet removed from the old index.

Performance of In-Place versus Table-Copying DDL Operations

The raw performance of an online DDL operation is largely determined by whether the operation is performed in-place, or requires copying and rebuilding the entire table. See Table 15.10, “Summary of Online Status for DDL Operations” to see what kinds of operations can be performed in-place, and any requirements for avoiding table-copy operations.

The performance speedup from in-place DDL applies to operations on secondary indexes, not to the primary key index. The rows of an InnoDB table are stored in a clustered index organized based on the primary key, forming what some database systems call an index-organized table. Because the table structure is closely tied to the primary key, redefining the primary key still requires copying the data.

When an operation on the primary key uses ALGORITHM=INPLACE, even though the data is still copied, it is more efficient than using ALGORITHM=COPY because:

  • No undo logging or associated redo logging is required for ALGORITHM=INPLACE. These operations add overhead to DDL statements that use ALGORITHM=COPY.

  • The secondary index entries are pre-sorted, and so can be loaded in order.

  • The change buffer is not used, because there are no random-access inserts into the secondary indexes.

To judge the relative performance of online DDL operations, you can run such operations on a big InnoDB table using current and earlier versions of MySQL. You can also run all the performance tests under the latest MySQL version, simulating the previous DDL behavior for the before results, by setting the old_alter_table system variable. Issue the statement set old_alter_table=1 in the session, and measure DDL performance to record the before figures. Then set old_alter_table=0 to re-enable the newer, faster behavior, and run the DDL operations again to record the after figures.

For a basic idea of whether a DDL operation does its changes in-place or performs a table copy, look at the rows affected value displayed after the command finishes. For example, here are lines you might see after doing different types of DDL operations:

  • Changing the default value of a column (super-fast, does not affect the table data at all):

    Query OK, 0 rows affected (0.07 sec)

  • Adding an index (takes time, but 0 rows affected shows that the table is not copied):

    Query OK, 0 rows affected (21.42 sec)

  • Changing the data type of a column (takes substantial time and does require rebuilding all the rows of the table):

    Query OK, 1671168 rows affected (1 min 35.54 sec)

    Note

    Changing the data type of a column requires rebuilding all the rows of the table with the exception of changing VARCHAR size, which may be performed using online ALTER TABLE. See InnoDB Online DDL Column Properties for more information.

For example, before running a DDL operation on a big table, you might check whether the operation is fast or slow as follows:

  1. Clone the table structure.

  2. Populate the cloned table with a tiny amount of data.

  3. Run the DDL operation on the cloned table.

  4. Check whether the rows affected value is zero or not. A non-zero value means the operation requires rebuilding the entire table, which might require special planning. For example, you might do the DDL operation during a period of scheduled downtime, or on each replication slave server one at a time.

For a deeper understanding of the reduction in MySQL processing, examine the performance_schema and INFORMATION_SCHEMA tables related to InnoDB before and after DDL operations, to see the number of physical reads, writes, memory allocations, and so on.

15.13.3 SQL Syntax for Online DDL

Typically, you do not need to do anything special to enable online DDL when using the ALTER TABLE statement for InnoDB tables. See Table 15.10, “Summary of Online Status for DDL Operations” for the kinds of DDL operations that can be performed in-place, allowing concurrent DML, or both. Some variations require particular combinations of configuration settings or ALTER TABLE clauses.

You can control the various aspects of a particular online DDL operation by using the LOCK and ALGORITHM clauses of the ALTER TABLE statement. These clauses come at the end of the statement, separated from the table and column specifications by commas. The LOCK clause is useful for fine-tuning the degree of concurrent access to the table. The ALGORITHM clause is primarily intended for performance comparisons and as a fallback to the older table-copying behavior in case you encounter any issues with existing DDL code. For example:

  • To avoid accidentally making the table unavailable for reads, writes, or both, specify a clause on the ALTER TABLE statement such as LOCK=NONE (allow both reads and writes) or LOCK=SHARED (allow reads). The operation halts immediately if the requested level of concurrency is not available.

  • To compare performance, run one statement with ALGORITHM=INPLACE and another with ALGORITHM=COPY, as an alternative to setting the old_alter_table configuration option.

  • To avoid tying up the server with an ALTER TABLE operation that copies the table, include ALGORITHM=INPLACE. The statement halts immediately if it cannot use the in-place mechanism. See Table 15.10, “Summary of Online Status for DDL Operations” for a list of the DDL operations that can or cannot be performed in-place.

See Section 15.13.2, “Performance and Concurrency Considerations for Online DDL” for more details about the LOCK clause. For full examples of using online DDL, see Section 15.13.5, “Examples of Online DDL”.

15.13.4 Combining or Separating DDL Statements

Before the introduction of online DDL, it was common practice to combine many DDL operations into a single ALTER TABLE statement. Because each ALTER TABLE statement involved copying and rebuilding the table, it was more efficient to make several changes to the same table at once, since those changes could all be done with a single rebuild operation for the table. The downside was that SQL code involving DDL operations was harder to maintain and to reuse in different scripts. If the specific changes were different each time, you might have to construct a new complex ALTER TABLE for each slightly different scenario.

For DDL operations that can be done in-place, as shown in Table 15.10, “Summary of Online Status for DDL Operations”, now you can separate them into individual ALTER TABLE statements for easier scripting and maintenance, without sacrificing efficiency. For example, you might take a complicated statement such as:

ALTER TABLE t1 ADD INDEX i1(c1), ADD UNIQUE INDEX i2(c2),
  CHANGE c4_old_name c4_new_name INTEGER UNSIGNED;

and break it down into simpler parts that can be tested and performed independently, such as:

ALTER TABLE t1 ADD INDEX i1(c1);
ALTER TABLE t1 ADD UNIQUE INDEX i2(c2);
ALTER TABLE t1 CHANGE c4_old_name c4_new_name INTEGER UNSIGNED NOT NULL;

You might still use multi-part ALTER TABLE statements for:

  • Operations that must be performed in a specific sequence, such as creating an index followed by a foreign key constraint that uses that index.

  • Operations all using the same specific LOCK clause, that you want to either succeed or fail as a group.

  • Operations that cannot be performed in-place, that is, that still copy and rebuild the table.

  • Operations for which you specify ALGORITHM=COPY or old_alter_table=1, to force the table-copying behavior if needed for precise backward-compatibility in specialized scenarios.

15.13.5 Examples of Online DDL

Here are code examples showing some operations whose performance, concurrency, and scalability are improved by the latest online DDL enhancements.

Example 15.1 Schema Setup Code for Online DDL Experiments

Here is the code that sets up the initial tables used in these demonstrations:

/*
Setup code for the online DDL demonstration:
- Set up some config variables.
- Create 2 tables that are clones of one of the INFORMATION_SCHEMA tables
  that always has some data. The "small" table has a couple of thousand rows.
  For the "big" table, keep doubling the data until it reaches over a million rows.
- Set up a primary key for the sample tables, since we are demonstrating InnoDB aspects.
*/

set autocommit = 0;
set foreign_key_checks = 1;
set global innodb_file_per_table = 1;
set old_alter_table=0;
prompt mysql:

use test;

\! echo "Setting up 'small' table:"
drop table if exists small_table;
create table small_table as select * from information_schema.columns;
alter table small_table add id int unsigned not null primary key auto_increment;
select count(id) from small_table;

\! echo "Setting up 'big' table:"
drop table if exists big_table;
create table big_table as select * from information_schema.columns;
show create table big_table\G

insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
insert into big_table select * from big_table;
commit;

alter table big_table add id int unsigned not null primary key auto_increment;
select count(id) from big_table;

Running this code gives this output, condensed for brevity and with the most important points bolded:

Setting up 'small' table:
Query OK, 0 rows affected (0.01 sec)

Query OK, 1678 rows affected (0.13 sec)
Records: 1678  Duplicates: 0  Warnings: 0

Query OK, 1678 rows affected (0.07 sec)
Records: 1678  Duplicates: 0  Warnings: 0

+-----------+
| count(id) |
+-----------+
|      1678 |
+-----------+
1 row in set (0.00 sec)

Setting up 'big' table:
Query OK, 0 rows affected (0.16 sec)

Query OK, 1678 rows affected (0.17 sec)
Records: 1678  Duplicates: 0  Warnings: 0

*************************** 1. row ***************************
       Table: big_table
Create Table: CREATE TABLE `big_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT ''
) ENGINE=InnoDB DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

Query OK, 1678 rows affected (0.09 sec)
Records: 1678  Duplicates: 0  Warnings: 0

Query OK, 3356 rows affected (0.07 sec)
Records: 3356  Duplicates: 0  Warnings: 0

Query OK, 6712 rows affected (0.17 sec)
Records: 6712  Duplicates: 0  Warnings: 0

Query OK, 13424 rows affected (0.44 sec)
Records: 13424  Duplicates: 0  Warnings: 0

Query OK, 26848 rows affected (0.63 sec)
Records: 26848  Duplicates: 0  Warnings: 0

Query OK, 53696 rows affected (1.72 sec)
Records: 53696  Duplicates: 0  Warnings: 0

Query OK, 107392 rows affected (3.02 sec)
Records: 107392  Duplicates: 0  Warnings: 0

Query OK, 214784 rows affected (6.28 sec)
Records: 214784  Duplicates: 0  Warnings: 0

Query OK, 429568 rows affected (13.25 sec)
Records: 429568  Duplicates: 0  Warnings: 0

Query OK, 859136 rows affected (28.16 sec)
Records: 859136  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.03 sec)

Query OK, 1718272 rows affected (1 min 9.22 sec)
Records: 1718272  Duplicates: 0  Warnings: 0

+-----------+
| count(id) |
+-----------+
|   1718272 |
+-----------+
1 row in set (1.75 sec)

Example 15.2 Speed and Efficiency of CREATE INDEX and DROP INDEX

Here is a sequence of statements demonstrating the relative speed of CREATE INDEX and DROP INDEX statements. For a small table, the elapsed time is less than a second whether we use the fast or slow technique, so we look at the rows affected output to verify which operations can avoid the table rebuild. For a large table, the difference in efficiency is obvious because skipping the table rebuild saves substantial time.

\! clear

\! echo "=== Create and drop index (small table, new/fast technique) ==="
\! echo
\! echo "Data size (kilobytes) before index created: "
\! du -k data/test/small_table.ibd
create index i_dtyp_small on small_table (data_type), algorithm=inplace;
\! echo "Data size after index created: "
\! du -k data/test/small_table.ibd
drop index i_dtyp_small on small_table, algorithm=inplace;

-- Compare against the older slower DDL.

\! echo "=== Create and drop index (small table, old/slow technique) ==="
\! echo
\! echo "Data size (kilobytes) before index created: "
\! du -k data/test/small_table.ibd
create index i_dtyp_small on small_table (data_type), algorithm=copy;
\! echo "Data size after index created: "
\! du -k data/test/small_table.ibd
drop index i_dtyp_small on small_table, algorithm=copy;

-- In the above example, we examined the "rows affected" number,
-- ideally looking for a zero figure. Let's try again with a larger
-- sample size, where we'll see that the actual time taken can
-- vary significantly.

\! echo "=== Create and drop index (big table, new/fast technique) ==="
\! echo
\! echo "Data size (kilobytes) before index created: "
\! du -k data/test/big_table.ibd
create index i_dtyp_big on big_table (data_type), algorithm=inplace;
\! echo "Data size after index created: "
\! du -k data/test/big_table.ibd
drop index i_dtyp_big on big_table, algorithm=inplace;

\! echo "=== Create and drop index (big table, old/slow technique) ==="
\! echo
\! echo "Data size (kilobytes) before index created: "
\! du -k data/test/big_table.ibd
create index i_dtyp_big on big_table (data_type), algorithm=copy;
\! echo "Data size after index created: "
\! du -k data/test/big_table.ibd
drop index i_dtyp_big on big_table, algorithm=copy;

Running this code gives this output, condensed for brevity and with the most important points bolded:

Query OK, 0 rows affected (0.00 sec)

=== Create and drop index (small table, new/fast technique) ===

Data size (kilobytes) before index created:
384  data/test/small_table.ibd
Query OK, 0 rows affected (0.04 sec)
Records: 0  Duplicates: 0  Warnings: 0

Data size after index created:
432  data/test/small_table.ibd
Query OK, 0 rows affected (0.02 sec)
Records: 0  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.00 sec)

=== Create and drop index (small table, old/slow technique) ===

Data size (kilobytes) before index created:
432  data/test/small_table.ibd
Query OK, 1678 rows affected (0.12 sec)
Records: 1678  Duplicates: 0  Warnings: 0

Data size after index created:
448  data/test/small_table.ibd
Query OK, 1678 rows affected (0.10 sec)
Records: 1678  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.00 sec)

=== Create and drop index (big table, new/fast technique) ===

Data size (kilobytes) before index created:
315392  data/test/big_table.ibd
Query OK, 0 rows affected (33.32 sec)
Records: 0  Duplicates: 0  Warnings: 0

Data size after index created:
335872  data/test/big_table.ibd
Query OK, 0 rows affected (0.02 sec)
Records: 0  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.00 sec)

=== Create and drop index (big table, old/slow technique) ===

Data size (kilobytes) before index created:
335872  data/test/big_table.ibd
Query OK, 1718272 rows affected (1 min 5.01 sec)
Records: 1718272  Duplicates: 0  Warnings: 0

Data size after index created:
348160  data/test/big_table.ibd
Query OK, 1718272 rows affected (46.59 sec)
Records: 1718272  Duplicates: 0  Warnings: 0

Example 15.3 Concurrent DML During CREATE INDEX and DROP INDEX

Here are some snippets of code that are run in separate mysql sessions connected to the same database, to illustrate DML statements (insert, update, or delete) running at the same time as CREATE INDEX and DROP INDEX.

/*
CREATE INDEX statement to run against a table while
insert/update/delete statements are modifying the
column being indexed.
*/

-- Run this script in one session, while simultaneously creating and dropping
-- an index on test/big_table.table_name in another session.

use test;
create index i_concurrent on big_table(table_name);
/*
DROP INDEX statement to run against a table while
insert/update/delete statements are modifying the
column being indexed.
*/

-- Run this script in one session, while simultaneously creating and dropping
-- an index on test/big_table.table_name in another session.

use test;
drop index i_concurrent on big_table;
/*
Some queries and insert/update/delete statements to run against a table
while an index is being created or dropped. Previously, these operations
would have stalled during the index create/drop period and possibly
timed out or deadlocked.
*/

-- Run this script in one session, while simultaneously creating and dropping
-- an index on test/big_table.table_name in another session.

-- In the test instance, that column has about 1.7M rows, with 136 different values.
-- Sample values: COLUMNS (20480), ENGINES (6144), EVENTS (24576), FILES (38912),
-- TABLES (21504), VIEWS (10240).

set autocommit = 0;
use test;

select distinct character_set_name from big_table where table_name = 'FILES';
delete from big_table where table_name = 'FILES';
select distinct character_set_name from big_table where table_name = 'FILES';

-- I'll issue the final rollback interactively, not via script,
-- the better to control the timing.
-- rollback;

Running this code gives this output, condensed for brevity and with the most important points bolded:

mysql: source concurrent_ddl_create.sql
Database changed
Query OK, 0 rows affected (1 min 25.15 sec)
Records: 0  Duplicates: 0  Warnings: 0

mysql: source concurrent_ddl_drop.sql
Database changed
Query OK, 0 rows affected (24.98 sec)
Records: 0  Duplicates: 0  Warnings: 0

mysql: source concurrent_dml.sql
Query OK, 0 rows affected (0.00 sec)

Database changed
+--------------------+
| character_set_name |
+--------------------+
| NULL               |
| utf8               |
+--------------------+
2 rows in set (0.32 sec)

Query OK, 38912 rows affected (1.84 sec)

Empty set (0.01 sec)

mysql: rollback;
Query OK, 0 rows affected (1.05 sec)

Example 15.4 Renaming a Column

Here is a demonstration of using ALTER TABLE to rename a column. We use the new, fast DDL mechanism to change the name, then the old, slow DDL mechanism (with old_alter_table=1) to restore the original column name.

Notes:

  • Because the syntax for renaming a column also involves re-specifying the data type, be careful to specify exactly the same data type to avoid a costly table rebuild. In this case, we checked the output of show create table table\G and copied any clauses such as CHARACTER SET and NOT NULL from the original column definition.

  • Again, renaming a column for a small table is fast enough that we need to examine the rows affected number to verify that the new DDL mechanism is more efficient than the old one. With a big table, the difference in elapsed time makes the improvement obvious.

/*
Run through a sequence of 'rename column' statements.
Because this operation involves only metadata, not table data,
it is fast for big and small tables, with new or old DDL mechanisms.
*/

\! clear

\! echo "Rename column (fast technique, small table):"
alter table small_table change `IS_NULLABLE` `NULLABLE` varchar(3) character
  set utf8 not null, algorithm=inplace;
\! echo "Rename back to original name (slow technique):"
alter table small_table change `NULLABLE` `IS_NULLABLE` varchar(3) character
  set utf8 not null, algorithm=copy;


\! echo "Rename column (fast technique, big table):"
alter table big_table change `IS_NULLABLE` `NULLABLE` varchar(3) character
  set utf8 not null, algorithm=inplace;
\! echo "Rename back to original name (slow technique):"
alter table big_table change `NULLABLE` `IS_NULLABLE` varchar(3) character
  set utf8 not null, algorithm=copy;

Running this code gives this output, condensed for brevity and with the most important points bolded:

Rename column (fast technique, small table):
Query OK, 0 rows affected (0.05 sec)

Query OK, 0 rows affected (0.13 sec)
Records: 0  Duplicates: 0  Warnings: 0

Rename back to original name (slow technique):
Query OK, 0 rows affected (0.00 sec)

Query OK, 1678 rows affected (0.35 sec)
Records: 1678  Duplicates: 0  Warnings: 0

Rename column (fast technique, big table):
Query OK, 0 rows affected (0.00 sec)

Query OK, 0 rows affected (0.11 sec)
Records: 0  Duplicates: 0  Warnings: 0

Rename back to original name (slow technique):
Query OK, 0 rows affected (0.00 sec)

Query OK, 1718272 rows affected (1 min 0.00 sec)
Records: 1718272  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.00 sec)

Example 15.5 Dropping Foreign Keys

Here is a demonstration of foreign keys, including improvement to the speed of dropping a foreign key constraint.

/*
Demonstrate aspects of foreign keys that are or aren't affected by the DDL improvements.
- Create a new table with only a few values to serve as the parent table.
- Set up the 'small' and 'big' tables as child tables using a foreign key.
- Verify that the ON DELETE CASCADE clause makes changes ripple from parent to child tables.
- Drop the foreign key constraints, and optionally associated indexes. (This is the operation that is sped up.)
*/

\! clear

-- Make sure foreign keys are being enforced, and allow
-- rollback after doing some DELETEs that affect both
-- parent and child tables.
set foreign_key_checks = 1;
set autocommit = 0;

-- Create a parent table, containing values that we know are already present
-- in the child tables.
drop table if exists schema_names;
create table schema_names (id int unsigned not null primary key auto_increment, schema_name
  varchar(64) character set utf8 not null, index i_schema (schema_name)) as select distinct
  table_schema schema_name from small_table;

show create table schema_names\G
show create table small_table\G
show create table big_table\G

-- Creating the foreign key constraint still involves a table rebuild when foreign_key_checks=1,
-- as illustrated by the "rows affected" figure.
alter table small_table add constraint small_fk foreign key i_table_schema (table_schema)
  references schema_names(schema_name) on delete cascade;
alter table big_table add constraint big_fk foreign key i_table_schema (table_schema)
  references schema_names(schema_name) on delete cascade;

show create table small_table\G
show create table big_table\G

select schema_name from schema_names order by schema_name;
select count(table_schema) howmany, table_schema from small_table group by table_schema;
select count(table_schema) howmany, table_schema from big_table group by table_schema;

-- big_table is the parent table.
-- schema_names is the parent table.
-- big_table is the child table.
-- (One row in the parent table can have many "children" in the child table.)
-- Changes to the parent table can ripple through to the child table.
-- For example, removing the value 'test' from schema_names.schema_name
-- results in the removal of 20K or so rows from big_table.

delete from schema_names where schema_name = 'test';

select schema_name from schema_names order by schema_name;
select count(table_schema) howmany, table_schema from small_table group by table_schema;
select count(table_schema) howmany, table_schema from big_table group by table_schema;

-- Because we've turned off autocommit, we can still get back those deleted rows
-- if the DELETE was issued by mistake.
rollback;

select schema_name from schema_names order by schema_name;
select count(table_schema) howmany, table_schema from small_table group by table_schema;
select count(table_schema) howmany, table_schema from big_table group by table_schema;

-- All of the cross-checking between parent and child tables would be
-- deadly slow if there wasn't the requirement for the corresponding
-- columns to be indexed!

-- But we can get rid of the foreign key using a fast operation
-- that doesn't rebuild the table.
-- If we didn't specify a constraint name when setting up the foreign key, we would
-- have to find the auto-generated name such as 'big_table_ibfk_1' in the
-- output from 'show create table'.

-- For the small table, drop the foreign key and the associated index.
-- Having an index on a small table is less critical.

\! echo "DROP FOREIGN KEY and INDEX from small_table:"
alter table small_table drop foreign key small_fk, drop index small_fk;

-- For the big table, drop the foreign key and leave the associated index.
-- If we are still doing queries that reference the indexed column, the index is
-- very important to avoid a full table scan of the big table.
\! echo "DROP FOREIGN KEY from big_table:"
alter table big_table drop foreign key big_fk;


show create table small_table\G
show create table big_table\G

Running this code gives this output, condensed for brevity and with the most important points bolded:

Query OK, 0 rows affected (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

Query OK, 0 rows affected (0.01 sec)

Query OK, 4 rows affected (0.03 sec)
Records: 4  Duplicates: 0  Warnings: 0

*************************** 1. row ***************************
       Table: schema_names
Create Table: CREATE TABLE `schema_names` (
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `schema_name` varchar(64) CHARACTER SET utf8 NOT NULL,
  PRIMARY KEY (`id`),
  KEY `i_schema` (`schema_name`)
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

*************************** 1. row ***************************
       Table: small_table
Create Table: CREATE TABLE `small_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL,
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1679 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

*************************** 1. row ***************************
       Table: big_table
Create Table: CREATE TABLE `big_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL,
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`id`),
  KEY `big_fk` (`TABLE_SCHEMA`)
) ENGINE=InnoDB AUTO_INCREMENT=1718273 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

Query OK, 1678 rows affected (0.10 sec)
Records: 1678  Duplicates: 0  Warnings: 0

Query OK, 1718272 rows affected (1 min 14.54 sec)
Records: 1718272  Duplicates: 0  Warnings: 0

*************************** 1. row ***************************
       Table: small_table
Create Table: CREATE TABLE `small_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL,
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`id`),
  KEY `small_fk` (`TABLE_SCHEMA`),
  CONSTRAINT `small_fk` FOREIGN KEY (`TABLE_SCHEMA`)
    REFERENCES `schema_names` (`schema_name`) ON DELETE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=1679 DEFAULT CHARSET=latin1
1 row in set (0.12 sec)

*************************** 1. row ***************************
       Table: big_table
Create Table: CREATE TABLE `big_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL,
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`id`),
  KEY `big_fk` (`TABLE_SCHEMA`),
  CONSTRAINT `big_fk` FOREIGN KEY (`TABLE_SCHEMA`)
    REFERENCES `schema_names` (`schema_name`) ON DELETE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=1718273 DEFAULT CHARSET=latin1
1 row in set (0.01 sec)

+--------------------+
| schema_name        |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| test               |
+--------------------+
4 rows in set (0.00 sec)

+---------+--------------------+
| howmany | table_schema       |
+---------+--------------------+
|     563 | information_schema |
|     286 | mysql              |
|     786 | performance_schema |
|      43 | test               |
+---------+--------------------+
4 rows in set (0.01 sec)

+---------+--------------------+
| howmany | table_schema       |
+---------+--------------------+
|  576512 | information_schema |
|  292864 | mysql              |
|  804864 | performance_schema |
|   44032 | test               |
+---------+--------------------+
4 rows in set (2.10 sec)

Query OK, 1 row affected (1.52 sec)

+--------------------+
| schema_name        |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
+--------------------+
3 rows in set (0.00 sec)

+---------+--------------------+
| howmany | table_schema       |
+---------+--------------------+
|     563 | information_schema |
|     286 | mysql              |
|     786 | performance_schema |
+---------+--------------------+
3 rows in set (0.00 sec)

+---------+--------------------+
| howmany | table_schema       |
+---------+--------------------+
|  576512 | information_schema |
|  292864 | mysql              |
|  804864 | performance_schema |
+---------+--------------------+
3 rows in set (1.74 sec)

Query OK, 0 rows affected (0.60 sec)

+--------------------+
| schema_name        |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| test               |
+--------------------+
4 rows in set (0.00 sec)

+---------+--------------------+
| howmany | table_schema       |
+---------+--------------------+
|     563 | information_schema |
|     286 | mysql              |
|     786 | performance_schema |
|      43 | test               |
+---------+--------------------+
4 rows in set (0.01 sec)

+---------+--------------------+
| howmany | table_schema       |
+---------+--------------------+
|  576512 | information_schema |
|  292864 | mysql              |
|  804864 | performance_schema |
|   44032 | test               |
+---------+--------------------+
4 rows in set (1.59 sec)

DROP FOREIGN KEY and INDEX from small_table:
Query OK, 0 rows affected (0.02 sec)
Records: 0  Duplicates: 0  Warnings: 0

DROP FOREIGN KEY from big_table:
Query OK, 0 rows affected (0.02 sec)
Records: 0  Duplicates: 0  Warnings: 0

*************************** 1. row ***************************
       Table: small_table
Create Table: CREATE TABLE `small_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL,
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1679 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

*************************** 1. row ***************************
       Table: big_table
Create Table: CREATE TABLE `big_table` (
  `TABLE_CATALOG` varchar(512) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_SCHEMA` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `TABLE_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_NAME` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `ORDINAL_POSITION` bigint(21) unsigned NOT NULL DEFAULT '0',
  `COLUMN_DEFAULT` longtext CHARACTER SET utf8,
  `IS_NULLABLE` varchar(3) CHARACTER SET utf8 NOT NULL,
  `DATA_TYPE` varchar(64) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `CHARACTER_MAXIMUM_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_OCTET_LENGTH` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `NUMERIC_SCALE` bigint(21) unsigned DEFAULT NULL,
  `DATETIME_PRECISION` bigint(21) unsigned DEFAULT NULL,
  `CHARACTER_SET_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLLATION_NAME` varchar(32) CHARACTER SET utf8 DEFAULT NULL,
  `COLUMN_TYPE` longtext CHARACTER SET utf8 NOT NULL,
  `COLUMN_KEY` varchar(3) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `EXTRA` varchar(30) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `PRIVILEGES` varchar(80) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `COLUMN_COMMENT` varchar(1024) CHARACTER SET utf8 NOT NULL DEFAULT '',
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`id`),
  KEY `big_fk` (`TABLE_SCHEMA`)
) ENGINE=InnoDB AUTO_INCREMENT=1718273 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

Example 15.6 Changing Auto-Increment Value

Here is an illustration of increasing the auto-increment lower limit for a table column, demonstrating how this operation now avoids a table rebuild, plus other facts about InnoDB auto-increment columns.

/*
If this script is run after foreign_key.sql, the schema_names table is
already set up. But to allow this script to run multiple times without
running into duplicate ID errors, we set up the schema_names table
all over again.
*/

\! clear

\! echo "=== Adjusting the Auto-Increment Limit for a Table ==="
\! echo

drop table if exists schema_names;
create table schema_names (id int unsigned not null primary key auto_increment,
  schema_name varchar(64) character set utf8 not null, index i_schema (schema_name))
  as select distinct table_schema schema_name from small_table;

\! echo "Initial state of schema_names table."
\! echo "AUTO_INCREMENT is included in SHOW CREATE TABLE output."
\! echo "Note how MySQL reserved a block of IDs."
\! echo "Only 4 IDs are needed in this transaction. The next inserted values get IDs 8 and 9."
show create table schema_names\G
select * from schema_names order by id;

\! echo "Inserting even a tiny amount of data can produce gaps in the ID sequence."
insert into schema_names (schema_name) values ('eight'), ('nine');

\! echo "Bumping auto-increment lower limit to 20 (fast mechanism):"
alter table schema_names auto_increment=20, algorithm=inplace;

\! echo "Inserting 2 rows that should get IDs 20 and 21:"
insert into schema_names (schema_name) values ('foo'), ('bar');
commit;

\! echo "Bumping auto-increment lower limit to 30 (slow mechanism):"
alter table schema_names auto_increment=30, algorithm=copy;

\! echo "Inserting 2 rows that should get IDs 30 and 31:"
insert into schema_names (schema_name) values ('bletch'),('baz');
commit;

select * from schema_names order by id;

\! echo "Final state of schema_names table."
\! echo "AUTO_INCREMENT value shows the next inserted row would get ID=32."
show create table schema_names\G

Running this code gives this output, condensed for brevity and with the most important points bolded:

=== Adjusting the Auto-Increment Limit for a Table ===

Query OK, 0 rows affected (0.01 sec)

Query OK, 4 rows affected (0.02 sec)
Records: 4  Duplicates: 0  Warnings: 0

Initial state of schema_names table.
AUTO_INCREMENT is included in SHOW CREATE TABLE output.
Note how MySQL reserved a block of IDs.
Only 4 IDs are needed in this transaction. The next inserted values get IDs 8 and 9.
*************************** 1. row ***************************
       Table: schema_names
Create Table: CREATE TABLE `schema_names` (
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `schema_name` varchar(64) CHARACTER SET utf8 NOT NULL,
  PRIMARY KEY (`id`),
  KEY `i_schema` (`schema_name`)
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

+----+--------------------+
| id | schema_name        |
+----+--------------------+
|  1 | information_schema |
|  2 | mysql              |
|  3 | performance_schema |
|  4 | test               |
+----+--------------------+
4 rows in set (0.00 sec)

Inserting even a tiny amount of data can produce gaps in the ID sequence.
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.00 sec)

Bumping auto-increment lower limit to 20 (fast mechanism):
Query OK, 0 rows affected (0.01 sec)
Records: 0  Duplicates: 0  Warnings: 0

Inserting 2 rows that should get IDs 20 and 21:
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

Bumping auto-increment lower limit to 30 (slow mechanism):
Query OK, 8 rows affected (0.02 sec)
Records: 8  Duplicates: 0  Warnings: 0

Inserting 2 rows that should get IDs 30 and 31:
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

Query OK, 0 rows affected (0.01 sec)

+----+--------------------+
| id | schema_name        |
+----+--------------------+
|  1 | information_schema |
|  2 | mysql              |
|  3 | performance_schema |
|  4 | test               |
|  8 | eight              |
|  9 | nine               |
| 20 | foo                |
| 21 | bar                |
| 30 | bletch             |
| 31 | baz                |
+----+--------------------+
10 rows in set (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

Final state of schema_names table.
AUTO_INCREMENT value shows the next inserted row would get ID=32.
*************************** 1. row ***************************
       Table: schema_names
Create Table: CREATE TABLE `schema_names` (
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `schema_name` varchar(64) CHARACTER SET utf8 NOT NULL,
  PRIMARY KEY (`id`),
  KEY `i_schema` (`schema_name`)
) ENGINE=InnoDB AUTO_INCREMENT=32 DEFAULT CHARSET=latin1
1 row in set (0.00 sec)

Example 15.7 Controlling Concurrency with the LOCK Clause

This example shows how to use the LOCK clause of the ALTER TABLE statement to allow or deny concurrent access to the table while an online DDL operation is in progress. The clause has settings that allow queries and DML statements (LOCK=NONE), just queries (LOCK=SHARED), or no concurrent access at all (LOCK=EXCLUSIVE).

In one session, we run a succession of ALTER TABLE statements to create and drop an index, using different values for the LOCK clause to see what happens with waiting or deadlocking in either session. We are using the same BIG_TABLE table as in previous examples, starting with approximately 1.7 million rows. For illustration purposes, we index and query the IS_NULLABLE column. (Although in real life it would be silly to make an index for a tiny column with only 2 distinct values.)

mysql: desc big_table;
+--------------------------+---------------------+------+-----+---------+----------------+
| Field                    | Type                | Null | Key | Default | Extra          |
+--------------------------+---------------------+------+-----+---------+----------------+
| TABLE_CATALOG            | varchar(512)        | NO   |     |         |                |
| TABLE_SCHEMA             | varchar(64)         | NO   |     |         |                |
| TABLE_NAME               | varchar(64)         | NO   |     |         |                |
| COLUMN_NAME              | varchar(64)         | NO   |     |         |                |
| ORDINAL_POSITION         | bigint(21) unsigned | NO   |     | 0       |                |
| COLUMN_DEFAULT           | longtext            | YES  |     | NULL    |                |

| IS_NULLABLE              | varchar(3)          | NO   |     |         |                |
...
+--------------------------+---------------------+------+-----+---------+----------------+
21 rows in set (0.14 sec)

mysql: alter table big_table add index i1(is_nullable);
Query OK, 0 rows affected (20.71 sec)

mysql: alter table big_table drop index i1;
Query OK, 0 rows affected (0.02 sec)

mysql: alter table big_table add index i1(is_nullable), lock=exclusive;
Query OK, 0 rows affected (19.44 sec)

mysql: alter table big_table drop index i1;
Query OK, 0 rows affected (0.03 sec)

mysql: alter table big_table add index i1(is_nullable), lock=shared;
Query OK, 0 rows affected (16.71 sec)

mysql: alter table big_table drop index i1;
Query OK, 0 rows affected (0.05 sec)

mysql: alter table big_table add index i1(is_nullable), lock=none;
Query OK, 0 rows affected (12.26 sec)

mysql: alter table big_table drop index i1;
Query OK, 0 rows affected (0.01 sec)

... repeat statements like the above while running queries ...
... and DML statements at the same time in another session ...

Nothing dramatic happens in the session running the DDL statements. Sometimes, an ALTER TABLE takes unusually long because it is waiting for another transaction to finish, when that transaction modified the table during the DDL or queried the table before the DDL:

mysql: alter table big_table add index i1(is_nullable), lock=none;

Query OK, 0 rows affected (59.27 sec)

mysql: -- The previous ALTER took so long because it was waiting for all the concurrent
mysql: -- transactions to commit or roll back.

mysql: alter table big_table drop index i1;
Query OK, 0 rows affected (41.05 sec)

mysql: -- Even doing a SELECT on the table in the other session first causes
mysql: -- the ALTER TABLE above to stall until the transaction
mysql: -- surrounding the SELECT is committed or rolled back.

Here is the log from another session running concurrently, where we issue queries and DML statements against the table before, during, and after the DDL operations shown in the previous listings. This first listing shows queries only. We expect the queries to be allowed during DDL operations using LOCK=NONE or LOCK=SHARED, and for the query to wait until the DDL is finished if the ALTER TABLE statement includes LOCK=EXCLUSIVE.

mysql: show variables like 'autocommit';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| autocommit    | ON    |
+---------------+-------+
1 row in set (0.01 sec)

mysql: -- A trial query before any ADD INDEX in the other session:
mysql: -- Note: because autocommit is enabled, each
mysql: -- transaction finishes immediately after the query.
mysql: select distinct is_nullable from big_table;
+-------------+
| is_nullable |
+-------------+
| NO          |
| YES         |
+-------------+
2 rows in set (4.49 sec)

mysql: -- Index is being created with LOCK=EXCLUSIVE on the ALTER statement.
mysql: -- The query waits until the DDL is finished before proceeding.
mysql: select distinct is_nullable from big_table;
+-------------+
| is_nullable |
+-------------+
| NO          |
| YES         |
+-------------+

2 rows in set (17.26 sec)

mysql: -- Index is being created with LOCK=SHARED on the ALTER statement.
mysql: -- The query returns its results while the DDL is in progress.
mysql: -- The same thing happens with LOCK=NONE on the ALTER statement.
mysql: select distinct is_nullable from big_table;
+-------------+
| is_nullable |
+-------------+
| NO          |
| YES         |
+-------------+
2 rows in set (3.11 sec)

mysql: -- Once the index is created, and with no DDL in progress,
mysql: -- queries referencing the indexed column are very fast:
mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   411648 |
+----------+
1 row in set (0.20 sec)

mysql: select distinct is_nullable from big_table;
+-------------+
| is_nullable |
+-------------+
| NO          |
| YES         |
+-------------+
2 rows in set (0.00 sec)

Now in this concurrent session, we run some transactions including DML statements, or a combination of DML statements and queries. We use DELETE statements to illustrate predictable, verifiable changes to the table. Because the transactions in this part can span multiple statements, we run these tests with autocommit turned off.

mysql: set global autocommit = off;
Query OK, 0 rows affected (0.00 sec)

mysql: -- Count the rows that are involved in the DELETE statements:
mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   411648 |
+----------+
1 row in set (0.95 sec)

mysql: -- After this point, any DDL statements back in the other session
mysql: -- stall until we commit or roll back.

mysql: delete from big_table where is_nullable = 'YES' limit 11648;
Query OK, 11648 rows affected (0.14 sec)

mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   400000 |
+----------+
1 row in set (1.04 sec)

mysql: rollback;
Query OK, 0 rows affected (0.09 sec)

mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   411648 |
+----------+
1 row in set (0.93 sec)

mysql: -- OK, now we're going to try that during index creation with LOCK=NONE.
mysql: delete from big_table where is_nullable = 'YES' limit 11648;
Query OK, 11648 rows affected (0.21 sec)

mysql: -- We expect 400000 'YES' rows to be left:
mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   400000 |
+----------+
1 row in set (1.25 sec)

mysql: -- In the other session, the ALTER TABLE is waiting before finishing,
mysql: -- because _this_ transaction hasn't committed or rolled back yet.
mysql: rollback;
Query OK, 0 rows affected (0.11 sec)

mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   411648 |
+----------+
1 row in set (0.19 sec)

mysql: -- The ROLLBACK left the table in the same state we originally found it.
mysql: -- Now let's make a permanent change while the index is being created,
mysql: -- again with ALTER TABLE ... , LOCK=NONE.
mysql: -- First, commit so the DROP INDEX in the other shell can finish;
mysql: -- the previous SELECT started a transaction that accessed the table.
mysql: commit;
Query OK, 0 rows affected (0.00 sec)

mysql: -- Now we add the index back in the other shell, then issue DML in this one
mysql: -- while the DDL is running.
mysql: delete from big_table where is_nullable = 'YES' limit 11648;
Query OK, 11648 rows affected (0.23 sec)

mysql: commit;
Query OK, 0 rows affected (0.01 sec)

mysql: -- In the other shell, the ADD INDEX has finished.
mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   400000 |
+----------+
1 row in set (0.19 sec)

mysql: -- At the point the new index is finished being created, it contains entries
mysql: -- only for the 400000 'YES' rows left when all concurrent transactions are finished.
mysql:
mysql: -- Now we run a similar test, while ALTER TABLE ... , LOCK=SHARED is running.
mysql: -- We expect a query to complete during the ALTER TABLE, but for the DELETE
mysql: -- to run into some kind of issue.
mysql: commit;
Query OK, 0 rows affected (0.00 sec)

mysql: -- As expected, the query returns results while the LOCK=SHARED DDL is running:
mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   400000 |
+----------+
1 row in set (2.07 sec)

mysql: -- The DDL in the other session is not going to finish until this transaction
mysql: -- is committed or rolled back. If we tried a DELETE now and it waited because
mysql: -- of LOCK=SHARED on the DDL, both transactions would wait forever (deadlock).
mysql: -- MySQL detects this condition and cancels the attempted DML statement.
mysql: delete from big_table where is_nullable = 'YES' limit 100000;
ERROR 1213 (40001): Deadlock found when trying to get lock; try restarting transaction
mysql: -- The transaction here is still going, so in the other shell, the ADD INDEX operation
mysql: -- is waiting for this transaction to commit or roll back.
mysql: rollback;
Query OK, 0 rows affected (0.00 sec)

mysql: -- Now let's try issuing a query and some DML, on one line, while running
mysql: -- ALTER TABLE ... , LOCK=EXCLUSIVE in the other shell.
mysql: -- Notice how even the query is held up until the DDL is finished.
mysql: -- By the time the DELETE is issued, there is no conflicting access
mysql: -- to the table and we avoid the deadlock error.
mysql: select count(*) from big_table where is_nullable = 'YES'; delete from big_table
  where is_nullable = 'YES' limit 100000;
+----------+
| count(*) |
+----------+
|   400000 |
+----------+

1 row in set (15.98 sec)

Query OK, 100000 rows affected (2.81 sec)

mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   300000 |
+----------+
1 row in set (0.17 sec)

mysql: rollback;
Query OK, 0 rows affected (1.36 sec)

mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   400000 |
+----------+
1 row in set (0.19 sec)

mysql: commit;
Query OK, 0 rows affected (0.00 sec)

mysql: -- Next, we try ALTER TABLE ... , LOCK=EXCLUSIVE in the other session
mysql: -- and only issue DML, not any query, in the concurrent transaction here.
mysql: delete from big_table where is_nullable = 'YES' limit 100000;
Query OK, 100000 rows affected (16.37 sec)

mysql: -- That was OK because the ALTER TABLE did not have to wait for the transaction
mysql: -- here to complete. The DELETE in this session waited until the index was ready.
mysql: select count(*) from big_table where is_nullable = 'YES';
+----------+
| count(*) |
+----------+
|   300000 |
+----------+
1 row in set (0.16 sec)

mysql: commit;
Query OK, 0 rows affected (0.00 sec)

In the preceding example listings, we learned that:

  • The LOCK clause for ALTER TABLE is set off from the rest of the statement by a comma.

  • Online DDL operations might wait before starting, until any prior transactions that access the table are committed or rolled back.

  • Online DDL operations might wait before completing, until any concurrent transactions that access the table are committed or rolled back.

  • While an online DDL operation is running, concurrent queries are relatively straightforward, as long as the ALTER TABLE statement uses LOCK=NONE or LOCK=SHARED.

  • Pay attention to whether autocommit is turned on or off. If it is turned off, be careful to end transactions in other sessions (even just queries) before performing DDL operations on the table.

  • With LOCK=SHARED, concurrent transactions that mix queries and DML could encounter deadlock errors and have to be restarted after the DDL is finished.

  • With LOCK=NONE, concurrent transactions can freely mix queries and DML. The DDL operation waits until the concurrent transactions are committed or rolled back.

  • With LOCK=EXCLUSIVE, concurrent transactions can freely mix queries and DML, but those transactions wait until the DDL operation is finished before they can access the table.


Example 15.8 Schema Setup Code for Online DDL Experiments

You can create multiple indexes on a table with one ALTER TABLE statement. This is relatively efficient, because the clustered index of the table needs to be scanned only once (although the data is sorted separately for each new index). For example:

CREATE TABLE T1(A INT PRIMARY KEY, B INT, C CHAR(1)) ENGINE=InnoDB;
INSERT INTO T1 VALUES (1,2,'a'), (2,3,'b'), (3,2,'c'), (4,3,'d'), (5,2,'e');
COMMIT;
ALTER TABLE T1 ADD INDEX (B), ADD UNIQUE INDEX (C);

The above statements create table T1 with the primary key on column A, insert several rows, then build two new indexes on columns B and C. If there were many rows inserted into T1 before the ALTER TABLE statement, this approach is much more efficient than creating all the secondary indexes before loading the data.

Because dropping InnoDB secondary indexes also does not require any copying of table data, it is equally efficient to drop multiple indexes with a single ALTER TABLE statement or multiple DROP INDEX statements:

ALTER TABLE T1 DROP INDEX B, DROP INDEX C;

or:

DROP INDEX B ON T1;
DROP INDEX C ON T1;

Example 15.9 Creating and Dropping the Primary Key

Restructuring the clustered index for an InnoDB table always requires copying the table data. Thus, it is best to define the primary key when you create a table, rather than issuing ALTER TABLE ... ADD PRIMARY KEY later, to avoid rebuilding the table.

Defining a PRIMARY KEY later causes the data to be copied, as in the following example:

CREATE TABLE T2 (A INT, B INT);
INSERT INTO T2 VALUES (NULL, 1);
ALTER TABLE T2 ADD PRIMARY KEY (B);

When you create a UNIQUE or PRIMARY KEY index, MySQL must do some extra work. For UNIQUE indexes, MySQL checks that the table contains no duplicate values for the key. For a PRIMARY KEY index, MySQL also checks that none of the PRIMARY KEY columns contains a NULL.

When you add a primary key using the ALGORITHM=COPY clause, MySQL actually converts NULL values in the associated columns to default values: 0 for numbers, the empty string for character-based columns and BLOBs, and 0000-00-00 00:00:00 for DATETIME. This is a non-standard behavior that Oracle recommends you not rely on. Adding a primary key using ALGORITHM=INPLACE is only allowed when the SQL_MODE setting includes the strict_trans_tables or strict_all_tables flags; when the SQL_MODE setting is strict, ADD PRIMARY KEY ... , ALGORITHM=INPLACE is allowed, but the statement can still fail if the requested primary key columns contain any NULL values. The ALGORITHM=INPLACE behavior is more standard-compliant.

The following examples show the different possibilities for the ADD PRIMARY KEY clause. With the ALGORITHM=COPY clause, the operation succeeds despite the presence of NULL values in the primary key columns; the data is silently changed, which could cause problems.

mysql> CREATE TABLE add_pk_via_copy (c1 INT, c2 VARCHAR(10), c3 DATETIME);
Query OK, 0 rows affected (0.03 sec)

mysql> INSERT INTO add_pk_via_copy VALUES (1,'a','2014-11-03 11:01:37'),(NULL,NULL,NULL);
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

mysql> SET sql_mode = '';
Query OK, 0 rows affected (0.00 sec)

mysql> ALTER TABLE add_pk_via_copy ADD PRIMARY KEY (c1,c2,c3), ALGORITHM=COPY;
Query OK, 2 rows affected, 3 warnings (0.07 sec)
Records: 2  Duplicates: 0  Warnings: 3

mysql> SHOW WARNINGS;
+---------+------+-----------------------------------------+
| Level   | Code | Message                                 |
+---------+------+-----------------------------------------+
| Warning | 1265 | Data truncated for column 'c1' at row 2 |
| Warning | 1265 | Data truncated for column 'c2' at row 2 |
| Warning | 1265 | Data truncated for column 'c3' at row 2 |
+---------+------+-----------------------------------------+
3 rows in set (0.00 sec)

mysql> SELECT * FROM add_pk_via_copy;
+----+----+---------------------+
| c1 | c2 | c3                  |
+----+----+---------------------+
|  0 |    | 0000-00-00 00:00:00 |
|  1 | a  | 2014-11-03 11:01:37 |
+----+----+---------------------+
2 rows in set (0.00 sec)



With the ALGORITHM=INPLACE clause, the operation could fail for different reasons, because this setting considers data integrity a high priority: the statement gives an error if the SQL_MODE setting is not strict enough, or if the primary key columns contain any NULL values. Once we address both of those requirements, the ALTER TABLE operation succeeds.

mysql> CREATE TABLE add_pk_via_inplace (c1 INT, c2 VARCHAR(10), c3 DATETIME);
Query OK, 0 rows affected (0.02 sec)

mysql> INSERT INTO add_pk_via_inplace VALUES (1,'a','2014-11-03 11:01:37'),(NULL,NULL,NULL);
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

mysql> SELECT * FROM add_pk_via_inplace;
+------+------+---------------------+
| c1   | c2   | c3                  |
+------+------+---------------------+
|    1 | a    | 2014-11-03 11:01:37 |
| NULL | NULL | NULL                |
+------+------+---------------------+
2 rows in set (0.00 sec)

mysql> SET sql_mode = '';
Query OK, 0 rows affected (0.00 sec)

mysql> ALTER TABLE add_pk_via_inplace ADD PRIMARY KEY (c1,c2,c3), ALGORITHM=INPLACE;
ERROR 1846 (0A000): ALGORITHM=INPLACE is not supported. Reason: cannot silently convert NULL
values, as required in this SQL_MODE. Try ALGORITHM=COPY.

mysql> SET sql_mode ='strict_trans_tables';
Query OK, 0 rows affected (0.00 sec)

mysql> ALTER TABLE add_pk_via_inplace ADD PRIMARY KEY (c1,c2,c3), ALGORITHM=INPLACE;
ERROR 1138 (22004): Invalid use of NULL value
mysql> DELETE FROM add_pk_via_inplace WHERE c1 IS NULL OR c2 IS NULL OR c3 IS NULL;
Query OK, 1 row affected (0.01 sec)

mysql> SELECT * FROM add_pk_via_inplace;
+------+------+---------------------+
| c1   | c2   | c3                  |
+------+------+---------------------+
|    1 | a    | 2014-11-03 11:01:37 |
+------+------+---------------------+
1 row in set (0.00 sec)

mysql> ALTER TABLE add_pk_via_inplace ADD PRIMARY KEY (c1,c2,c3), ALGORITHM=INPLACE;
Query OK, 0 rows affected (0.09 sec)
Records: 0  Duplicates: 0  Warnings: 0

If you create a table without a primary key, InnoDB chooses one for you, which can be the first UNIQUE key defined on NOT NULL columns, or a system-generated key. To avoid any uncertainty and the potential space requirement for an extra hidden column, specify the PRIMARY KEY clause as part of the CREATE TABLE statement.


15.13.6 Implementation Details of Online DDL

Each ALTER TABLE operation for an InnoDB table is governed by several aspects:

  • Whether there is any change to the physical representation of the table, or whether it purely a change to metadata that can be done without touching the table itself.

  • Whether the volume of data in the table stays the same, increases, or decreases.

  • Whether a change in table data involves the clustered index, secondary indexes, or both.

  • Whether there are any foreign key relationships between the table being altered and some other table. The mechanics differ depending on whether the foreign_key_checks configuration option is enabled or disabled.

  • Whether the table is partitioned. Partitioning clauses of ALTER TABLE are turned into low-level operations involving one or more tables, and those operations follow the regular rules for online DDL.

  • Whether the table data must be copied, whether the table can be reorganized in-place, or a combination of both.

  • Whether the table contains any auto-increment columns.

  • What degree of locking is required, either by the nature of the underlying database operations, or a LOCK clause that you specify in the ALTER TABLE statement.

This section explains how these factors affect the different kinds of ALTER TABLE operations on InnoDB tables.

Error Conditions for Online DDL

Here are the primary reasons why an online DDL operation could fail:

  • If a LOCK clause specifies a low degree of locking (SHARED or NONE) that is not compatible with the particular type of DDL operation.

  • If a timeout occurs while waiting to get an exclusive lock on the table, which may be needed briefly during the initial and final phases of the DDL operation.

  • If the tmpdir or innodb_tmpdir file system runs out of disk space, while MySQL writes temporary sort files on disk during index creation. For more information, see Section B.5.3.5, “Where MySQL Stores Temporary Files”.

  • If the ALTER TABLE takes so long, and concurrent DML modifies the table so much, that the size of the temporary online log exceeds the value of the innodb_online_alter_log_max_size configuration option. This condition causes a DB_ONLINE_LOG_TOO_BIG error.

  • If concurrent DML makes changes to the table that are allowed with the original table definition, but not with the new one. The operation only fails at the very end, when MySQL tries to apply all the changes from concurrent DML statements. For example, you might insert duplicate values into a column while a unique index is being created, or you might insert NULL values into a column while creating a primary key index on that column. The changes made by the concurrent DML take precedence, and the ALTER TABLE operation is effectively rolled back.

Although the configuration option innodb_file_per_table has a dramatic effect on the representation for an InnoDB table, all online DDL operations work equally well whether that option is enabled or disabled, and whether the table is physically located in its own .ibd file or inside the system tablespace.

InnoDB has two types of indexes: the clustered index representing all the data in the table, and optional secondary indexes to speed up queries. Since the clustered index contains the data values in its B-tree nodes, adding or dropping a clustered index does involve copying the data, and creating a new copy of the table. A secondary index, however, contains only the index key and the value of the primary key. This type of index can be created or dropped without copying the data in the clustered index. Because each secondary index contains copies of the primary key values (used to access the clustered index when needed), when you change the definition of the primary key, all secondary indexes are recreated as well.

Dropping a secondary index is simple. Only the internal InnoDB system tables and the MySQL data dictionary tables are updated to reflect the fact that the index no longer exists. InnoDB returns the storage used for the index to the tablespace that contained it, so that new indexes or additional table rows can use the space.

To add a secondary index to an existing table, InnoDB scans the table, and sorts the rows using memory buffers and temporary files in order by the values of the secondary index key columns. The B-tree is then built in key-value order, which is more efficient than inserting rows into an index in random order. Because the B-tree nodes are split when they fill, building the index in this way results in a higher fill-factor for the index, making it more efficient for subsequent access.

Primary Key and Secondary Key Indexes

Historically, the MySQL server and InnoDB have each kept their own metadata about table and index structures. The MySQL server stores this information in .frm files that are not protected by a transactional mechanism, while InnoDB has its own data dictionary as part of the system tablespace. If a DDL operation was interrupted by a crash or other unexpected event partway through, the metadata could be left inconsistent between these two locations, causing problems such as startup errors or inability to access the table that was being altered. Now that InnoDB is the default storage engine, addressing such issues is a high priority. These enhancements to DDL operations reduce the window of opportunity for such issues to occur.

15.13.7 How Crash Recovery Works with Online DDL

Although no data is lost if the server crashes while an ALTER TABLE statement is executing, the crash recovery process is different for clustered indexes and secondary indexes.

If the server crashes while creating an InnoDB secondary index, upon recovery, MySQL drops any partially created indexes. You must re-run the ALTER TABLE or CREATE INDEX statement.

When a crash occurs during the creation of an InnoDB clustered index, recovery is more complicated, because the data in the table must be copied to an entirely new clustered index. Remember that all InnoDB tables are stored as clustered indexes.

MySQL creates the new clustered index by copying the existing data from the original InnoDB table to a temporary table that has the desired index structure. Once the data is completely copied to this temporary table, the original table is renamed with a different temporary table name. The temporary table comprising the new clustered index is renamed with the name of the original table, and the original table is dropped from the database.

If a system crash occurs while creating a new clustered index, no data is lost, but you must complete the recovery process using the temporary tables that exist during the process. Since it is rare to re-create a clustered index or re-define primary keys on large tables, or to encounter a system crash during this operation, this manual does not provide information on recovering from this scenario.

15.13.8 Online DDL for Partitioned InnoDB Tables

With the exception of ALTER TABLE partitioning clauses, online DDL operations for partitioned InnoDB tables follow the same rules that apply to regular InnoDB tables. Online DDL rules are outlined in Table 15.10, “Summary of Online Status for DDL Operations”.

ALTER TABLE partitioning clauses do not go through the same internal online DDL API as regular non-partitioned InnoDB tables, and are only allowed in conjunction with ALGORITHM=DEFAULT and LOCK=DEFAULT.

If you use an ALTER TABLE partitioning clause in an ALTER TABLE statement, the partitioned table is re-partitioned using the ALTER TABLE COPY algorithm. In other words, a new partitioned table is created with the new partitioning scheme. The newly created table includes any changes applied by the ALTER TABLE statement and the table data is copied into the new table structure.

If you do not change the table partitioning using ALTER TABLE partitioning clauses or perform any other partition management in your ALTER TABLE statement, ALTER TABLE uses the INPLACE algorithm on each table partition. Be aware, however, that when INPLACE ALTER TABLE operations are performed on each partition, there is increased demand on system resources due to operations being performed on multiple partitions.

Even though partitioning clauses of the ALTER TABLE statement do not go through the same internal online DDL API as regular non-partitioned InnoDB tables, MySQL still attempts to minimize data copying and locking where possible:

  • ADD PARTITION and DROP PARTITION for tables partitioned by RANGE or LIST do not copy any existing data.

  • TRUNCATE PARTITION does not copy any existing data, for all types of partitioned tables.

  • Concurrent queries are allowed during ADD PARTITION and COALESCE PARTITION for tables partitioned by HASH or LIST. MySQL copies the data while holding a shared lock.

  • For REORGANIZE PARTITION, REBUILD PARTITION, or ADD PARTITION or COALESCE PARTITION for a table partitioned by LINEAR HASH or LIST, concurrent queries are allowed. Data from the affected partitions is copied while holding a shared metadata (read) lock at the table level.

Note

Full-text search (FTS) and foreign keys are not supported by InnoDB partitioned tables. For more information, see Section 13.9.5, “Full-Text Restrictions” and Section 22.6.2, “Partitioning Limitations Relating to Storage Engines”.

15.13.9 Limitations of Online DDL

Take the following limitations into account when running online DDL operations:

  • An online DDL operation that copies the table can cause an error if the operation uses all of the available disk space on the file system where the data directory (datadir) resides. To avoid this problem, ensure that there is enough disk space to accommodate online ALTER TABLE operations that copy the table. During these operations, MySQL writes temporary sort files to the MySQL temporary directory ($TMPDIR on Unix, %TEMP% on Windows, or the directory specified by the --tmpdir configuration variable). Each temporary file is large enough to hold one column in the new table or index, and each one is removed as soon as it is merged into the final table or index. Such operations may require temporary space equal to the amount of data in the table plus indexes.

    As of MySQL 5.7.11, you can use the innodb_tmpdir configuration option to define a separate temporary directory for online DDL operations. The innodb_tmpdir option was introduced to help avoid temporary directory overflows that could occur as a result of large temporary sort files created during online ALTER TABLE operations that rebuild the table.

  • The table is copied, rather than using Fast Index Creation when you create an index on a TEMPORARY TABLE. This has been reported as MySQL Bug #39833.

  • InnoDB handles error cases when users attempt to drop indexes needed for foreign keys. See Section B.3, “Server Error Codes and Messages” for information related to error 1553.

  • The ALTER TABLE clause LOCK=NONE is not allowed if there are ON...CASCADE or ON...SET NULL constraints on the table.

  • Depending on the internal workings of the online DDL operation and the LOCK clause of the ALTER TABLE statement, an online DDL operation may require exclusive access to the table for a brief time during the initial and final phases of the DDL operation. Thus, an online DDL operation might wait before finishing if there is a long-running transaction performing inserts, updates, deletes, or SELECT ... FOR UPDATE on the table; and an online DDL operation might wait before finishing if a similar long-running transaction is started while the ALTER TABLE is in progress.

  • When running an online DDL operation, the thread that runs the ALTER TABLE statement applies an online log of DML operations that were run concurrently on the same table from other connection threads. When the DML operations are applied, it is possible to encounter a duplicate key entry error (ERROR 1062 (23000): Duplicate entry), even if the duplicate entry is only temporary and would be reverted by a later entry in the online log. This is similar to the idea of a foreign key constraint check in InnoDB in which constraints must hold during a transaction.

  • OPTIMIZE TABLE for an InnoDB table is mapped to an ALTER TABLE operation to rebuild the table and update index statistics and free unused space in the clustered index. Secondary indexes are not created as efficiently because keys are inserted in the order they appeared in the primary key. OPTIMIZE TABLE is supported with the addition of online DDL support for rebuilding regular and partitioned InnoDB tables. For additional information, see Section 15.13.1, “Overview of Online DDL”.

  • InnoDB tables created before MySQL 5.6 do not support ALTER TABLE ... ALGORITHM=INPLACE for tables that include temporal columns (DATE, DATETIME or TIMESTAMP) and have not been rebuilt using ALTER TABLE ... ALGORITHM=COPY. In this case, an ALTER TABLE ... ALGORITHM=INPLACE operation returns the following error:

    ERROR 1846 (0A000): ALGORITHM=INPLACE is not supported.
    Reason: Cannot change column type INPLACE. Try ALGORITHM=COPY.

  • These limitations are generally applicable to online DDL operations on large tables where table copying is involved:

    • There is no mechanism to pause an online DDL operation or to throttle I/O or CPU usage for an online DDL operation.

    • Rollback of an online DDL operation can be expensive should the operation fail.

    • Long running online DDL operations can cause replication lag. An online DDL operation must finish running on the master before it is run on the slave. Also, DML that was processed concurrently on the master is only processed on the slave after the DDL operation on the slave is completed (Bug #73196).

    For additional information related to running online DDL operations on large tables, see Section 15.13.2, “Performance and Concurrency Considerations for Online DDL”.

15.14 InnoDB Startup Options and System Variables

Table 15.11 InnoDB Option/Variable Reference

NameCmd-LineOption FileSystem VarStatus VarVar ScopeDynamic
daemon_memcached_enable_binlogYesYesYes GlobalNo
daemon_memcached_engine_lib_nameYesYesYes GlobalNo
daemon_memcached_engine_lib_pathYesYesYes GlobalNo
daemon_memcached_optionYesYesYes GlobalNo
daemon_memcached_r_batch_sizeYesYesYes GlobalNo
daemon_memcached_w_batch_sizeYesYesYes GlobalNo
foreign_key_checks  Yes BothYes
ignore-builtin-innodbYesYes  GlobalNo
- Variable: ignore_builtin_innodb  Yes GlobalNo
innodbYesYes
innodb_adaptive_flushingYesYesYes GlobalYes
innodb_adaptive_flushing_lwmYesYesYes GlobalYes
innodb_adaptive_hash_indexYesYesYes GlobalYes
innodb_adaptive_hash_index_partsYesYesYes GlobalNo
innodb_adaptive_max_sleep_delayYesYesYes GlobalYes
innodb_additional_mem_pool_sizeYesYesYes GlobalNo
innodb_api_bk_commit_intervalYesYesYes GlobalYes
innodb_api_disable_rowlockYesYesYes GlobalNo
innodb_api_enable_binlogYesYesYes GlobalNo
innodb_api_enable_mdlYesYesYes GlobalNo
innodb_api_trx_levelYesYesYes GlobalYes
innodb_autoextend_incrementYesYesYes GlobalYes
innodb_autoinc_lock_modeYesYesYes GlobalNo
Innodb_available_undo_logs   YesGlobalNo
innodb_background_drop_list_emptyYesYesYes GlobalYes
Innodb_buffer_pool_bytes_data   YesGlobalNo
Innodb_buffer_pool_bytes_dirty   YesGlobalNo
innodb_buffer_pool_chunk_sizeYesYesYes GlobalNo
innodb_buffer_pool_dump_at_shutdownYesYesYes GlobalYes
innodb_buffer_pool_dump_nowYesYesYes GlobalYes
innodb_buffer_pool_dump_pctYesYesYes GlobalYes
Innodb_buffer_pool_dump_status   YesGlobalNo
innodb_buffer_pool_filenameYesYesYes GlobalYes
innodb_buffer_pool_instancesYesYesYes GlobalNo
innodb_buffer_pool_load_abortYesYesYes GlobalYes
innodb_buffer_pool_load_at_startupYesYesYes GlobalNo
innodb_buffer_pool_load_nowYesYesYes GlobalYes
Innodb_buffer_pool_load_status   YesGlobalNo
Innodb_buffer_pool_pages_data   YesGlobalNo
Innodb_buffer_pool_pages_dirty   YesGlobalNo
Innodb_buffer_pool_pages_flushed   YesGlobalNo
Innodb_buffer_pool_pages_free   YesGlobalNo
Innodb_buffer_pool_pages_latched   YesGlobalNo
Innodb_buffer_pool_pages_misc   YesGlobalNo
Innodb_buffer_pool_pages_total   YesGlobalNo
Innodb_buffer_pool_read_ahead   YesGlobalNo
Innodb_buffer_pool_read_ahead_evicted   YesGlobalNo
Innodb_buffer_pool_read_ahead_rnd   YesGlobalNo
Innodb_buffer_pool_read_requests   YesGlobalNo
Innodb_buffer_pool_reads   YesGlobalNo
Innodb_buffer_pool_resize_status   YesGlobalNo
innodb_buffer_pool_sizeYesYesYes GlobalVaries
Innodb_buffer_pool_wait_free   YesGlobalNo
Innodb_buffer_pool_write_requests   YesGlobalNo
innodb_change_buffer_max_sizeYesYesYes GlobalYes
innodb_change_bufferingYesYesYes GlobalYes
innodb_change_buffering_debugYesYesYes GlobalYes
innodb_checksum_algorithmYesYesYes GlobalYes
innodb_checksumsYesYesYes GlobalNo
innodb_cmp_per_index_enabledYesYesYes GlobalYes
innodb_commit_concurrencyYesYesYes GlobalYes
innodb_compress_debugYesYesYes GlobalYes
innodb_compression_failure_threshold_pctYesYesYes GlobalYes
innodb_compression_levelYesYesYes GlobalYes
innodb_compression_pad_pct_maxYesYesYes GlobalYes
innodb_concurrency_ticketsYesYesYes GlobalYes
innodb_create_intrinsicYesYesYes SessionYes
innodb_data_file_pathYesYesYes GlobalNo
Innodb_data_fsyncs   YesGlobalNo
innodb_data_home_dirYesYesYes GlobalNo
Innodb_data_pending_fsyncs   YesGlobalNo
Innodb_data_pending_reads   YesGlobalNo
Innodb_data_pending_writes   YesGlobalNo
Innodb_data_read   YesGlobalNo
Innodb_data_reads   YesGlobalNo
Innodb_data_writes   YesGlobalNo
Innodb_data_written   YesGlobalNo
Innodb_dblwr_pages_written   YesGlobalNo
Innodb_dblwr_writes   YesGlobalNo
innodb_default_row_formatYesYesYes GlobalYes
innodb_disable_resize_buffer_pool_debugYesYesYes GlobalYes
innodb_disable_sort_file_cacheYesYesYes GlobalYes
innodb_doublewriteYesYesYes GlobalNo
innodb_fast_shutdownYesYesYes GlobalYes
innodb_fil_make_page_dirty_debugYesYesYes GlobalYes
innodb_file_formatYesYesYes GlobalYes
innodb_file_format_checkYesYesYes GlobalNo
innodb_file_format_maxYesYesYes GlobalYes
innodb_file_per_tableYesYesYes GlobalYes
innodb_fill_factorYesYesYes GlobalYes
innodb_flush_log_at_timeout  Yes GlobalYes
innodb_flush_log_at_trx_commitYesYesYes GlobalYes
innodb_flush_methodYesYesYes GlobalNo
innodb_flush_neighborsYesYesYes GlobalYes
innodb_flush_syncYesYesYes GlobalYes
innodb_flushing_avg_loopsYesYesYes GlobalYes
innodb_force_load_corruptedYesYesYes GlobalNo
innodb_force_recoveryYesYesYes GlobalNo
innodb_ft_aux_tableYesYesYes GlobalYes
innodb_ft_cache_sizeYesYesYes GlobalNo
innodb_ft_enable_diag_printYesYesYes GlobalYes
innodb_ft_enable_stopwordYesYesYes GlobalYes
innodb_ft_max_token_sizeYesYesYes GlobalNo
innodb_ft_min_token_sizeYesYesYes GlobalNo
innodb_ft_num_word_optimizeYesYesYes GlobalYes
innodb_ft_result_cache_limitYesYesYes GlobalYes
innodb_ft_server_stopword_tableYesYesYes GlobalYes
innodb_ft_sort_pll_degreeYesYesYes GlobalNo
innodb_ft_total_cache_sizeYesYesYes GlobalNo
innodb_ft_user_stopword_tableYesYesYes BothYes
Innodb_have_atomic_builtins   YesGlobalNo
innodb_io_capacityYesYesYes GlobalYes
innodb_io_capacity_maxYesYesYes GlobalYes
innodb_large_prefixYesYesYes GlobalYes
innodb_limit_optimistic_insert_debugYesYesYes GlobalYes
innodb_lock_wait_timeoutYesYesYes BothYes
innodb_locks_unsafe_for_binlogYesYesYes GlobalNo
innodb_log_buffer_sizeYesYesYes GlobalNo
innodb_log_checksum_algorithmYesYesYes GlobalYes
innodb_log_checksumsYesYesYes GlobalYes
innodb_log_compressed_pagesYesYesYes GlobalYes
innodb_log_file_sizeYesYesYes GlobalNo
innodb_log_files_in_groupYesYesYes GlobalNo
innodb_log_group_home_dirYesYesYes GlobalNo
Innodb_log_waits   YesGlobalNo
innodb_log_write_ahead_sizeYesYesYes GlobalYes
Innodb_log_write_requests   YesGlobalNo
Innodb_log_writes   YesGlobalNo
innodb_lru_scan_depthYesYesYes GlobalYes
innodb_max_dirty_pages_pctYesYesYes GlobalYes
innodb_max_dirty_pages_pct_lwmYesYesYes GlobalYes
innodb_max_purge_lagYesYesYes GlobalYes
innodb_max_purge_lag_delayYesYesYes GlobalYes
innodb_max_undo_log_sizeYesYesYes GlobalYes
innodb_merge_threshold_set_all_debugYesYesYes GlobalYes
innodb_monitor_disableYesYesYes GlobalYes
innodb_monitor_enableYesYesYes GlobalYes
innodb_monitor_resetYesYesYes GlobalYes
innodb_monitor_reset_allYesYesYes GlobalYes
Innodb_num_open_files   YesGlobalNo
innodb_numa_interleaveYesYesYes GlobalNo
innodb_old_blocks_pctYesYesYes GlobalYes
innodb_old_blocks_timeYesYesYes GlobalYes
innodb_online_alter_log_max_sizeYesYesYes GlobalYes
innodb_open_filesYesYesYes GlobalNo
innodb_optimize_fulltext_onlyYesYesYes GlobalYes
innodb_optimize_point_storageYesYesYes SessionYes
Innodb_os_log_fsyncs   YesGlobalNo
Innodb_os_log_pending_fsyncs   YesGlobalNo
Innodb_os_log_pending_writes   YesGlobalNo
Innodb_os_log_written   YesGlobalNo
innodb_page_cleanersYesYesYes GlobalNo
Innodb_page_size   YesGlobalNo
innodb_page_sizeYesYesYes GlobalNo
Innodb_pages_created   YesGlobalNo
Innodb_pages_read   YesGlobalNo
Innodb_pages_written   YesGlobalNo
innodb_print_all_deadlocksYesYesYes GlobalYes
innodb_purge_batch_sizeYesYesYes GlobalYes
innodb_purge_rseg_truncate_frequencyYesYesYes GlobalYes
innodb_purge_threadsYesYesYes GlobalNo
innodb_random_read_aheadYesYesYes GlobalYes
innodb_read_ahead_thresholdYesYesYes GlobalYes
innodb_read_io_threadsYesYesYes GlobalNo
innodb_read_onlyYesYesYes GlobalNo
innodb_replication_delayYesYesYes GlobalYes
innodb_rollback_on_timeoutYesYesYes GlobalNo
innodb_rollback_segmentsYesYesYes GlobalYes
Innodb_row_lock_current_waits   YesGlobalNo
Innodb_row_lock_time   YesGlobalNo
Innodb_row_lock_time_avg   YesGlobalNo
Innodb_row_lock_time_max   YesGlobalNo
Innodb_row_lock_waits   YesGlobalNo
Innodb_rows_deleted   YesGlobalNo
Innodb_rows_inserted   YesGlobalNo
Innodb_rows_read   YesGlobalNo
Innodb_rows_updated   YesGlobalNo
innodb_saved_page_number_debugYesYesYes GlobalYes
innodb_sort_buffer_sizeYesYesYes GlobalNo
innodb_spin_wait_delayYesYesYes GlobalYes
innodb_stats_auto_recalcYesYesYes GlobalYes
innodb_stats_include_delete_markedYesYesYes GlobalYes
innodb_stats_methodYesYesYes GlobalYes
innodb_stats_on_metadataYesYesYes GlobalYes
innodb_stats_persistentYesYesYes GlobalYes
innodb_stats_persistent_sample_pagesYesYesYes GlobalYes
innodb_stats_sample_pagesYesYesYes GlobalYes
innodb_stats_transient_sample_pagesYesYesYes GlobalYes
innodb-status-fileYesYes
innodb_status_outputYesYesYes GlobalYes
innodb_status_output_locksYesYesYes GlobalYes
innodb_strict_modeYesYesYes BothYes
innodb_support_xaYesYesYes BothYes
innodb_sync_array_sizeYesYesYes GlobalNo
innodb_sync_debugYesYesYes GlobalNo
innodb_sync_spin_loopsYesYesYes GlobalYes
innodb_table_locksYesYesYes BothYes
innodb_temp_data_file_pathYesYesYes GlobalNo
innodb_thread_concurrencyYesYesYes GlobalYes
innodb_thread_sleep_delayYesYesYes GlobalYes
innodb_tmpdirYesYesYes BothYes
Innodb_truncated_status_writes   YesGlobalNo
innodb_trx_purge_view_update_only_debugYesYesYes GlobalYes
innodb_trx_rseg_n_slots_debugYesYesYes GlobalYes
innodb_undo_directoryYesYesYes GlobalNo
innodb_undo_log_truncateYesYesYes GlobalYes
innodb_undo_logsYesYesYes GlobalYes
innodb_undo_tablespacesYesYesYes GlobalNo
innodb_use_native_aioYesYesYes GlobalNo
innodb_use_sys_mallocYesYesYes GlobalNo
innodb_version  Yes GlobalNo
innodb_write_io_threadsYesYesYes GlobalNo
mecab_rc_fileYesYesYes GlobalNo
ngram_token_sizeYesYesYes GlobalNo
timed_mutexesYesYesYes GlobalYes
unique_checks  Yes BothYes

InnoDB Command Options

  • --ignore-builtin-innodb

    Deprecated5.5.22
    Command-Line Format--ignore-builtin-innodb
    System VariableNameignore_builtin_innodb
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean

    In MySQL 5.1, this option caused the server to behave as if the built-in InnoDB were not present, which enabled the InnoDB Plugin to be used instead. In MySQL 5.7, InnoDB is the default storage engine and InnoDB Plugin is not used, so this option is ignored.

  • --innodb[=value]

    Deprecated5.7.5
    Command-Line Format--innodb[=value]
    Permitted ValuesTypeenumeration
    DefaultON
    Valid ValuesOFF
    ON
    FORCE

    Controls loading of the InnoDB storage engine, if the server was compiled with InnoDB support. This option has a tristate format, with possible values of OFF, ON, or FORCE. See Section 6.5.2, “Installing and Uninstalling Plugins”.

    To disable InnoDB, use --innodb=OFF or --skip-innodb. In this case, because the default storage engine is InnoDB, the server does not start unless you also use --default-storage-engine and --default-tmp-storage-engine to set the default to some other engine for both permanent and TEMPORARY tables.

    The InnoDB storage engine can no longer be disabled, and the --innodb=OFF and --skip-innodb options are deprecated and have no effect. Their use results in a warning. These options will be removed in a future MySQL release.

  • --innodb-status-file

    Command-Line Format--innodb-status-file
    Permitted ValuesTypeboolean
    DefaultOFF

    Controls whether InnoDB creates a file named innodb_status.pid in the MySQL data directory. If enabled, InnoDB periodically writes the output of SHOW ENGINE INNODB STATUS to this file.

    By default, the file is not created. To create it, start mysqld with the --innodb-status-file=1 option. The file is deleted during normal shutdown.

  • --skip-innodb

    Disable the InnoDB storage engine. See the description of --innodb.

InnoDB System Variables

  • daemon_memcached_enable_binlog

    Command-Line Format--daemon_memcached_enable_binlog=#
    System VariableNamedaemon_memcached_enable_binlog
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    Defaultfalse

    Enable this option on the master server to use the InnoDB memcached plugin (daemon_memcached) with the MySQL binary log. This option can only be set at server startup. You must also enable the MySQL binary log on the master server using the --log-bin option.

    For more information, see Section 15.20.6, “The InnoDB memcached Plugin and Replication”.

  • daemon_memcached_engine_lib_name

    Command-Line Format--daemon_memcached_engine_lib_name=library
    System VariableNamedaemon_memcached_engine_lib_name
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypefile name
    Defaultinnodb_engine.so

    Specifies the shared library that implements the InnoDB memcached plugin.

    For more information, see Section 15.20.3, “Setting Up the InnoDB memcached Plugin”.

  • daemon_memcached_engine_lib_path

    Command-Line Format--daemon_memcached_engine_lib_path=directory
    System VariableNamedaemon_memcached_engine_lib_path
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypedirectory name
    DefaultNULL

    The path of the directory containing the shared library that implements the InnoDB memcached plugin. The default value is NULL, representing the MySQL plugin directory. You should not need to modify this parameter unless specifying a memcached plugin for a different storage engine that is located outside of the MySQL plugin directory.

    For more information, see Section 15.20.3, “Setting Up the InnoDB memcached Plugin”.

  • daemon_memcached_option

    Command-Line Format--daemon_memcached_option=options
    System VariableNamedaemon_memcached_option
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypestring
    Default

    Used to pass space-separated memcached options to the underlying memcached memory object caching daemon on startup. For example, you might change the port that memcached listens on, reduce the maximum number of simultaneous connections, change the maximum memory size for a key/value pair, or enable debugging messages for the error log.

    See Section 15.20.3, “Setting Up the InnoDB memcached Plugin” for usage details. For information about memcached options, refer to the memcached man page.

  • daemon_memcached_r_batch_size

    Command-Line Format--daemon_memcached_r_batch_size=#
    System VariableNamedaemon_memcached_r_batch_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default1

    Specifies how many memcached read operations (get operations) to perform before doing a COMMIT to start a new transaction. Counterpart of daemon_memcached_w_batch_size.

    This value is set to 1 by default, so that any changes made to the table through SQL statements are immediately visible to memcached operations. You might increase it to reduce the overhead from frequent commits on a system where the underlying table is only being accessed through the memcached interface. If you set the value too large, the amount of undo or redo data could impose some storage overhead, as with any long-running transaction.

    For more information, see Section 15.20.3, “Setting Up the InnoDB memcached Plugin”.

  • daemon_memcached_w_batch_size

    Command-Line Format--daemon_memcached_w_batch_size=#
    System VariableNamedaemon_memcached_w_batch_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default1

    Specifies how many memcached write operations, such as add, set, and incr, to perform before doing a COMMIT to start a new transaction. Counterpart of daemon_memcached_r_batch_size.

    This value is set to 1 by default, on the assumption that data being stored is important to preserve in case of an outage and should immediately be committed. When storing non-critical data, you might increase this value to reduce the overhead from frequent commits; but then the last N-1 uncommitted write operations could be lost if a crash occurs.

    For more information, see Section 15.20.3, “Setting Up the InnoDB memcached Plugin”.

  • ignore_builtin_innodb

    Deprecated5.5.22
    Command-Line Format--ignore-builtin-innodb
    System VariableNameignore_builtin_innodb
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean

    See the description of --ignore-builtin-innodb under InnoDB Command Options earlier in this section.

  • innodb_adaptive_flushing

    Command-Line Format--innodb_adaptive_flushing=#
    System VariableNameinnodb_adaptive_flushing
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Specifies whether to dynamically adjust the rate of flushing dirty pages in the InnoDB buffer pool based on the workload. Adjusting the flush rate dynamically is intended to avoid bursts of I/O activity. This setting is enabled by default. See Section 15.6.3.6, “Configuring InnoDB Buffer Pool Flushing” for more information. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_adaptive_flushing_lwm

    Command-Line Format--innodb_adaptive_flushing_lwm=#
    System VariableNameinnodb_adaptive_flushing_lwm
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default10
    Min Value0
    Max Value70

    Defines the low water mark representing percentage of redo log capacity at which adaptive flushing is enabled. For more information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”.

  • innodb_adaptive_hash_index

    Command-Line Format--innodb_adaptive_hash_index=#
    System VariableNameinnodb_adaptive_hash_index
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Whether the InnoDB adaptive hash index is enabled or disabled. It may be desirable, depending on your workload, to dynamically enable or disable adaptive hash indexing to improve query performance. Because the adaptive hash index may not be useful for all workloads, conduct benchmarks with it both enabled and disabled, using realistic workloads. See Section 15.4.3, “Adaptive Hash Index” for details.

    This variable is enabled by default. You can modify this parameter using the SET GLOBAL statement, without restarting the server. Changing the setting requires the SUPER privilege. You can also use --skip-innodb_adaptive_hash_index at server startup to disable it.

    Disabling the adaptive hash index empties the hash table immediately. Normal operations can continue while the hash table is emptied, and executing queries that were using the hash table access the index B-trees directly instead. When the adaptive hash index is re-enabled, the hash table is populated again during normal operation.

  • innodb_adaptive_hash_index_parts

    Introduced5.7.8
    Command-Line Format--innodb_adaptive_hash_index_parts=#
    System VariableNameinnodb_adaptive_hash_index_parts
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypenumeric
    Default8
    Min Value1
    Max Value512

    Partitions the adaptive hash index search system. Each index is bound to a specific partition, with each partition protected by a separate latch.

    In earlier releases, the adaptive hash index search system was protected by a single latch (btr_search_latch) which could become a point of contention. With the introduction of the innodb_adaptive_hash_index_parts option, the search system is partitioned into 8 parts by default. The maximum setting is 512.

    For related information, see Section 15.4.3, “Adaptive Hash Index”.

  • innodb_adaptive_max_sleep_delay

    Command-Line Format--innodb_adaptive_max_sleep_delay=#
    System VariableNameinnodb_adaptive_max_sleep_delay
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default150000
    Min Value0
    Max Value1000000

    Permits InnoDB to automatically adjust the value of innodb_thread_sleep_delay up or down according to the current workload. Any non-zero value enables automated, dynamic adjustment of the innodb_thread_sleep_delay value, up to the maximum value specified in the innodb_adaptive_max_sleep_delay option. The value represents the number of microseconds. This option can be useful in busy systems, with greater than 16 InnoDB threads. (In practice, it is most valuable for MySQL systems with hundreds or thousands of simultaneous connections.)

    For more information, see Section 15.6.6, “Configuring Thread Concurrency for InnoDB”.

  • innodb_additional_mem_pool_size

    Deprecated5.6.3
    Removed5.7.4
    Command-Line Format--innodb_additional_mem_pool_size=#
    System VariableNameinnodb_additional_mem_pool_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default8388608
    Min Value2097152
    Max Value4294967295

    The size in bytes of a memory pool InnoDB uses to store data dictionary information and other internal data structures. The more tables you have in your application, the more memory you allocate here. If InnoDB runs out of memory in this pool, it starts to allocate memory from the operating system and writes warning messages to the MySQL error log. The default value is 8MB.

    This variable relates to the InnoDB internal memory allocator, which is unused if innodb_use_sys_malloc is enabled. For more information, see Section 15.6.4, “Configuring the Memory Allocator for InnoDB”.

  • innodb_api_bk_commit_interval

    Command-Line Format--innodb_api_bk_commit_interval=#
    System VariableNameinnodb_api_bk_commit_interval
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default5
    Min Value1
    Max Value1073741824

    How often to auto-commit idle connections that use the InnoDB memcached interface, in seconds. For more information, see Section 15.20.5.4, “Controlling Transactional Behavior of the InnoDB memcached Plugin”.

  • innodb_api_disable_rowlock

    Command-Line Format--innodb_api_disable_rowlock=#
    System VariableNameinnodb_api_disable_rowlock
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Use this option to disable row locks when InnoDB memcached performs DML operations. By default, innodb_api_disable_rowlock is disabled, which means that memcached requests row locks for get and set operations. When innodb_api_disable_rowlock is enabled, memcached requests a table lock instead of row locks.

    innodb_api_disable_rowlock is not dynamic. It must be specified on the mysqld command line or entered in the MySQL configuration file. Configuration takes effect when the plugin is installed, which occurs when the MySQL server is started.

    For more information, see Section 15.20.5.4, “Controlling Transactional Behavior of the InnoDB memcached Plugin”.

  • innodb_api_enable_binlog

    Command-Line Format--innodb_api_enable_binlog=#
    System VariableNameinnodb_api_enable_binlog
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Lets you use the InnoDB memcached plugin with the MySQL binary log. For more information, see Enabling the InnoDB memcached Binary Log.

  • innodb_api_enable_mdl

    Command-Line Format--innodb_api_enable_mdl=#
    System VariableNameinnodb_api_enable_mdl
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Locks the table used by the InnoDB memcached plugin, so that it cannot be dropped or altered by DDL through the SQL interface. For more information, see Section 15.20.5.4, “Controlling Transactional Behavior of the InnoDB memcached Plugin”.

  • innodb_api_trx_level

    Command-Line Format--innodb_api_trx_level=#
    System VariableNameinnodb_api_trx_level
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0

    Controls the transaction isolation level on queries processed by the memcached interface. The constants corresponding to the familiar names are:

    For more information, see Section 15.20.5.4, “Controlling Transactional Behavior of the InnoDB memcached Plugin”.

  • innodb_autoextend_increment

    Command-Line Format--innodb_autoextend_increment=#
    System VariableNameinnodb_autoextend_increment
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default64
    Min Value1
    Max Value1000

    The increment size (in megabytes) for extending the size of an auto-extending InnoDB system tablespace file when it becomes full. The default value is 64. For related information, see System Tablespace Data File Configuration, and Section 15.7.1, “Resizing the InnoDB System Tablespace”.

    The innodb_autoextend_increment setting does not affect file-per-table tablespace files or general tablespace files. These files are auto-extending regardless of the innodb_autoextend_increment setting. The initial extensions are by small amounts, after which extensions occur in increments of 4MB.

  • innodb_autoinc_lock_mode

    Command-Line Format--innodb_autoinc_lock_mode=#
    System VariableNameinnodb_autoinc_lock_mode
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default1
    Valid Values0
    1
    2

    The lock mode to use for generating auto-increment values. Permissible values are 0, 1, or 2, for traditional, consecutive, or interleaved, respectively. The default setting is 1 (consecutive). For the characteristics of each lock mode, see InnoDB AUTO_INCREMENT Lock Modes.

  • innodb_background_drop_list_empty

    Introduced5.7.10
    Command-Line Format--innodb_background_drop_list_empty=#
    System VariableNameinnodb_background_drop_list_empty
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Enabling the innodb_background_drop_list_empty debug option helps avoid test case failures by delaying table creation until the background drop list is empty. For example, if test case A places table t1 on the background drop list, test case B waits until the background drop list is empty before creating table t1.

  • innodb_buffer_pool_chunk_size

    Introduced5.7.5
    Command-Line Format--innodb_buffer_pool_chunk_size
    System VariableNameinnodb_buffer_pool_chunk_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default134217728
    Min Value1048576
    Max Valueinnodb_buffer_pool_size / innodb_buffer_pool_instances

    innodb_buffer_pool_chunk_size defines the chunk size for InnoDB buffer pool resizing operations. The innodb_buffer_pool_size parameter is dynamic, which allows you to resize the buffer pool without restarting the server.

    To avoid copying all buffer pool pages during resizing operations, the operation is performed in chunks. By default, innodb_buffer_pool_chunk_size is 128MB (134217728 bytes). The number of pages contained in a chunk depends on the value of innodb_page_size. innodb_buffer_pool_chunk_size can be increased or decreased in units of 1MB (1048576 bytes).

    The following conditions apply when altering the innodb_buffer_pool_chunk_size value:

    Important

    Care should be taken when changing innodb_buffer_pool_chunk_size, as changing this value can automatically increase the size of the buffer pool. Before changing innodb_buffer_pool_chunk_size, calculate the effect it will have on innodb_buffer_pool_size to ensure that the resulting buffer pool size is acceptable.

    To avoid potential performance issues, the number of chunks (innodb_buffer_pool_size / innodb_buffer_pool_chunk_size) should not exceed 1000.

    See Section 15.6.3.2, “Configuring InnoDB Buffer Pool Size” for more information.

  • innodb_buffer_pool_dump_at_shutdown

    Command-Line Format--innodb_buffer_pool_dump_at_shutdown=#
    System VariableNameinnodb_buffer_pool_dump_at_shutdown
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.6)Typeboolean
    DefaultOFF
    Permitted Values (>= 5.7.7)Typeboolean
    DefaultON

    Specifies whether to record the pages cached in the InnoDB buffer pool when the MySQL server is shut down, to shorten the warmup process at the next restart. Typically used in combination with innodb_buffer_pool_load_at_startup. The innodb_buffer_pool_dump_pct option defines the percentage of most recently used buffer pool pages to dump.

    Both innodb_buffer_pool_dump_at_shutdown and innodb_buffer_pool_load_at_startup are enabled by default.

    For more information, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

  • innodb_buffer_pool_dump_now

    Command-Line Format--innodb_buffer_pool_dump_now=#
    System VariableNameinnodb_buffer_pool_dump_now
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Immediately records the pages cached in the InnoDB buffer pool. Typically used in combination with innodb_buffer_pool_load_now.

    For more information, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

  • innodb_buffer_pool_dump_pct

    Introduced5.7.2
    Command-Line Format--innodb_buffer_pool_dump_pct=#
    System VariableNameinnodb_buffer_pool_dump_pct
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.6)Typeinteger
    Default100
    Min Value1
    Max Value100
    Permitted Values (>= 5.7.7)Typeinteger
    Default25
    Min Value1
    Max Value100

    Specifies the percentage of the most recently used pages for each buffer pool to read out and dump. The range is 1 to 100. The default value is 25. For example, if there are 4 buffer pools with 100 pages each, and innodb_buffer_pool_dump_pct is set to 25, the 25 most recently used pages from each buffer pool are dumped.

    The change to the innodb_buffer_pool_dump_pct default value coincides with default value changes for innodb_buffer_pool_dump_at_shutdown and innodb_buffer_pool_load_at_startup, which are both enabled by default in MySQL 5.7.

  • innodb_buffer_pool_filename

    Command-Line Format--innodb_buffer_pool_filename=file
    System VariableNameinnodb_buffer_pool_filename
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypefile name
    Defaultib_buffer_pool

    Specifies the name of the file that holds the list of tablespace IDs and page IDs produced by innodb_buffer_pool_dump_at_shutdown or innodb_buffer_pool_dump_now. Tablespace IDs and page IDs are saved in the following format: space, page_id. By default, the file is named ib_buffer_pool and is located in the InnoDB data directory. A non-default location must be specified relative to the data directory.

    A file name can be specified at runtime, using a SET statement:

    SET GLOBAL innodb_buffer_pool_filename='file_name';

    You can also specify a file name at startup, in a startup string or MySQL configuration file. When specifying a file name at startup, the file must exist or InnoDB will return a startup error indicating that there is no such file or directory.

    For more information, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

  • innodb_buffer_pool_instances

    Command-Line Format--innodb_buffer_pool_instances=#
    System VariableNameinnodb_buffer_pool_instances
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (Windows, 32-bit platforms)Typeinteger
    Default(autosized)
    Min Value1
    Max Value64
    Permitted Values (Other)Typeinteger
    Default8 (or 1 if innodb_buffer_pool_size < 1GB
    Min Value1
    Max Value64

    The number of regions that the InnoDB buffer pool is divided into. For systems with buffer pools in the multi-gigabyte range, dividing the buffer pool into separate instances can improve concurrency, by reducing contention as different threads read and write to cached pages. Each page that is stored in or read from the buffer pool is assigned to one of the buffer pool instances randomly, using a hashing function. Each buffer pool manages its own free lists, flush lists, LRUs, and all other data structures connected to a buffer pool, and is protected by its own buffer pool mutex.

    This option only takes effect when setting innodb_buffer_pool_size to 1GB or more. The total buffer pool size is divided among all the buffer pools. For best efficiency, specify a combination of innodb_buffer_pool_instances and innodb_buffer_pool_size so that each buffer pool instance is at least 1GB.

    The default value on 32-bit Windows systems depends on the value of innodb_buffer_pool_size, as described below:

    • If innodb_buffer_pool_size is greater than 1.3GB, the default for innodb_buffer_pool_instances is innodb_buffer_pool_size/128MB, with individual memory allocation requests for each chunk. 1.3GB was chosen as the boundary at which there is significant risk for 32-bit Windows to be unable to allocate the contiguous address space needed for a single buffer pool.

    • Otherwise, the default is 1.

    On all other platforms, the default value is 8 when innodb_buffer_pool_size is greater than or equal to 1GB. Otherwise, the default is 1.

    For related information, see Section 15.6.3.2, “Configuring InnoDB Buffer Pool Size”.

  • innodb_buffer_pool_load_abort

    Command-Line Format--innodb_buffer_pool_load_abort=#
    System VariableNameinnodb_buffer_pool_load_abort
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Interrupts the process of restoring InnoDB buffer pool contents triggered by innodb_buffer_pool_load_at_startup or innodb_buffer_pool_load_now.

    For more information, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

  • innodb_buffer_pool_load_at_startup

    Command-Line Format--innodb_buffer_pool_load_at_startup=#
    System VariableNameinnodb_buffer_pool_load_at_startup
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.6)Typeboolean
    DefaultOFF
    Permitted Values (>= 5.7.7)Typeboolean
    DefaultON

    Specifies that, on MySQL server startup, the InnoDB buffer pool is automatically warmed up by loading the same pages it held at an earlier time. Typically used in combination with innodb_buffer_pool_dump_at_shutdown.

    Both innodb_buffer_pool_dump_at_shutdown and innodb_buffer_pool_load_at_startup are enabled by default.

    For more information, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

  • innodb_buffer_pool_load_now

    Command-Line Format--innodb_buffer_pool_load_now=#
    System VariableNameinnodb_buffer_pool_load_now
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Immediately warms up the InnoDB buffer pool by loading a set of data pages, without waiting for a server restart. Can be useful to bring cache memory back to a known state during benchmarking, or to ready the MySQL server to resume its normal workload after running queries for reports or maintenance.

    For more information, see Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

  • innodb_buffer_pool_size

    Command-Line Format--innodb_buffer_pool_size=#
    System Variable (<= 5.7.4)Nameinnodb_buffer_pool_size
    Variable ScopeGlobal
    Dynamic VariableNo
    System Variable (>= 5.7.5)Nameinnodb_buffer_pool_size
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (32-bit platforms)Typeinteger
    Default134217728
    Min Value5242880
    Max Value2**32-1
    Permitted Values (64-bit platforms)Typeinteger
    Default134217728
    Min Value5242880
    Max Value2**64-1

    The size in bytes of the buffer pool, the memory area where InnoDB caches table and index data. The default value is 128MB. The maximum value depends on the CPU architecture; the maximum is 4294967295 (232-1) on 32-bit systems and 18446744073709551615 (264-1) on 64-bit systems. On 32-bit systems, the CPU architecture and operating system may impose a lower practical maximum size than the stated maximum. When the size of the buffer pool is greater than 1GB, setting innodb_buffer_pool_instances to a value greater than 1 can improve the scalability on a busy server.

    A larger buffer pool requires less disk I/O to access the same table data more than once. On a dedicated database server, you might set the buffer pool size to 80% of the machine's physical memory size. Be aware of the following potential issues when configuring buffer pool size, and be prepared to scale back the size of the buffer pool if necessary.

    • Competition for physical memory can cause paging in the operating system.

    • InnoDB reserves additional memory for buffers and control structures, so that the total allocated space is approximately 10% greater than the specified buffer pool size.

    • Address space for the buffer pool must be contiguous, which can be an issue on Windows systems with DLLs that load at specific addresses.

    • The time to initialize the buffer pool is roughly proportional to its size. On instances with large buffer pools, initialization time might be significant. To reduce the initialization period, you can save the buffer pool state at server shutdown and restore it at server startup. See Section 15.6.3.8, “Saving and Restoring the Buffer Pool State”.

    When you increase or decrease buffer pool size, the operation is performed in chunks. Chunk size is defined by the innodb_buffer_pool_chunk_size configuration option, which has a default of 128 MB.

    Buffer pool size must always be equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances. If you alter the buffer pool size to a value that is not equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances, buffer pool size is automatically adjusted to a value that is equal to or a multiple of innodb_buffer_pool_chunk_size * innodb_buffer_pool_instances that is not less than the specified buffer pool size.

    innodb_buffer_pool_size can be set dynamically, which allows you to resize the buffer pool without restarting the server. The Innodb_buffer_pool_resize_status status variable reports the status of online buffer pool resizing operations. See Section 15.6.3.2, “Configuring InnoDB Buffer Pool Size” for more information.

  • innodb_change_buffer_max_size

    Command-Line Format--innodb_change_buffer_max_size=#
    System VariableNameinnodb_change_buffer_max_size
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default25
    Min Value0
    Max Value50

    Maximum size for the InnoDB change buffer, as a percentage of the total size of the buffer pool. You might increase this value for a MySQL server with heavy insert, update, and delete activity, or decrease it for a MySQL server with unchanging data used for reporting. For more information, see Section 15.4.2, “Change Buffer”, and Section 15.6.5, “Configuring InnoDB Change Buffering”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_change_buffering

    Command-Line Format--innodb_change_buffering=#
    System VariableNameinnodb_change_buffering
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeenumeration
    Defaultall
    Valid Valuesnone
    inserts
    deletes
    changes
    purges
    all

    Whether InnoDB performs change buffering, an optimization that delays write operations to secondary indexes so that the I/O operations can be performed sequentially. Permitted values are described in the following table.

    Table 15.12 Permitted Values for innodb_change_buffering

    ValueDescription
    noneDo not buffer any operations.
    insertsBuffer insert operations.
    deletesBuffer delete marking operations; strictly speaking, the writes that mark index records for later deletion during a purge operation.
    changesBuffer inserts and delete-marking operations.
    purgesBuffer the physical deletion operations that happen in the background.
    allThe default. Buffer inserts, delete-marking operations, and purges.

    For more information, see Section 15.4.2, “Change Buffer”, and Section 15.6.5, “Configuring InnoDB Change Buffering”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_change_buffering_debug

    Command-Line Format--innodb_change_buffering_debug=#
    System VariableNameinnodb_change_buffering_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Max Value2

    Sets a debug flag for InnoDB change buffering. A value of 1 forces all changes to the change buffer. A value of 2 causes a crash at merge. A default value of 0 indicates that the change buffering debug flag is not set. This option is only available when debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_checksum_algorithm

    Command-Line Format--innodb_checksum_algorithm=#
    System VariableNameinnodb_checksum_algorithm
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.6)Typeenumeration
    Defaultinnodb
    Valid Valuesinnodb
    crc32
    none
    strict_innodb
    strict_crc32
    strict_none
    Permitted Values (>= 5.7.7)Typeenumeration
    Defaultcrc32
    Valid Valuesinnodb
    crc32
    none
    strict_innodb
    strict_crc32
    strict_none

    Specifies how to generate and verify the checksum stored in the disk blocks of InnoDB tablespaces. crc32 is the default value as of MySQL 5.7.7.

    innodb_checksum_algorithm replaces the innodb_checksums option. The following values were provided for compatibility, up to and including MySQL 5.7.6:

    • innodb_checksums=ON is the same as innodb_checksum_algorithm=innodb.

    • innodb_checksums=OFF is the same as innodb_checksum_algorithm=none.

    As of MySQL 5.7.7, with a default innodb_checksum_algorithm value of crc32, innodb_checksums=ON is now the same as innodb_checksum_algorithm=crc32. innodb_checksums=OFF is still the same as innodb_checksum_algorithm=none.

    To avoid conflicts, remove references to innodb_checksums from MySQL configuration files and startup scripts.

    The value innodb is backward-compatible with earlier versions of MySQL. The value crc32 uses an algorithm that is faster to compute the checksum for every modified block, and to check the checksums for each disk read. It scans blocks 32 bits at a time, which is faster than the innodb checksum algorithm, which scans blocks 8 bits at a time. The value none writes a constant value in the checksum field rather than computing a value based on the block data. The blocks in a tablespace can use a mix of old, new, and no checksum values, being updated gradually as the data is modified; once blocks in a tablespace are modified to use the crc32 algorithm, the associated tables cannot be read by earlier versions of MySQL.

    The strict form of a checksum algorithm reports an error if it encounters a valid but non-matching checksum value in a tablespace. It is recommended that you only use strict settings in a new instance, to set up tablespaces for the first time. Strict settings are somewhat faster, because they do not need to compute all checksum values during disk reads.

    Note

    Prior to MySQL 5.7.8, a strict mode setting for innodb_checksum_algorithm caused InnoDB to halt when encountering a valid but non-matching checksum. In MySQL 5.7.8 and later, only an error message is printed, and the page is accepted as valid if it has a valid innodb, crc32 or none checksum.

    The following table shows the difference between the none, innodb, and crc32 option values, and their strict counterparts. none, innodb, and crc32 write the specified type of checksum value into each data block, but for compatibility accept other checksum values when verifying a block during a read operation. Strict settings also accept valid checksum values but print an error message when a valid non-matching checksum value is encountered. Using the strict form can make verification faster if all InnoDB data files in an instance are created under an identical innodb_checksum_algorithm value.

    Table 15.13 innodb_checksum_algorithm Settings

    ValueGenerated checksum (when writing)Permitted checksums (when reading)
    noneA constant number.Any of the checksums generated by none, innodb, or crc32.
    innodbA checksum calculated in software, using the original algorithm from InnoDB.Any of the checksums generated by none, innodb, or crc32.
    crc32A checksum calculated using the crc32 algorithm, possibly done with a hardware assist.Any of the checksums generated by none, innodb, or crc32.
    strict_noneA constant numberAny of the checksums generated by none, innodb, or crc32. InnoDB prints an error message if a valid but non-matching checksum is encountered.
    strict_innodbA checksum calculated in software, using the original algorithm from InnoDB.Any of the checksums generated by none, innodb, or crc32. InnoDB prints an error message if a valid but non-matching checksum is encountered.
    strict_crc32A checksum calculated using the crc32 algorithm, possibly done with a hardware assist.Any of the checksums generated by none, innodb, or crc32. InnoDB prints an error message if a valid but non-matching checksum is encountered.

    Versions of MySQL Enterprise Backup up to 3.8.0 do not support backing up tablespaces that use CRC32 checksums. MySQL Enterprise Backup adds CRC32 checksum support in 3.8.1, with some limitations. Refer to the MySQL Enterprise Backup 3.8.1 Change History for more information.

  • innodb_checksums

    Deprecated5.6.3
    Command-Line Format--innodb_checksums
    System VariableNameinnodb_checksums
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultON

    InnoDB can use checksum validation on all tablespace pages read from disk to ensure extra fault tolerance against hardware faults or corrupted data files. This validation is enabled by default. Under specialized circumstances (such as when running benchmarks) this safety feature can be disabled with --skip-innodb-checksums. You can specify the method of calculating the checksum using the innodb_checksum_algorithm option.

    innodb_checksums is deprecated, replaced by innodb_checksum_algorithm.

    Prior to MySQL 5.7.7, innodb_checksums=ON is the same as innodb_checksum_algorithm=innodb. As of MySQL 5.7.7, the innodb_checksum_algorithm default value is crc32, and innodb_checksums=ON is the same as innodb_checksum_algorithm=crc32. innodb_checksums=OFF is the same as innodb_checksum_algorithm=none.

    Remove any innodb_checksums options from your configuration files and startup scripts to avoid conflicts with innodb_checksum_algorithm. innodb_checksums=OFF automatically sets innodb_checksum_algorithm=none. innodb_checksums=ON is ignored and overridden by any other setting for innodb_checksum_algorithm.

  • innodb_cmp_per_index_enabled

    Command-Line Format--innodb_cmp_per_index_enabled=#
    System VariableNameinnodb_cmp_per_index_enabled
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF
    Valid ValuesOFF
    ON

    Enables per-index compression-related statistics in the INFORMATION_SCHEMA.INNODB_CMP_PER_INDEX table. Because these statistics can be expensive to gather, only enable this option on development, test, or slave instances during performance tuning related to InnoDB compressed tables.

    For more information, see Section 24.31.6, “The INFORMATION_SCHEMA INNODB_CMP_PER_INDEX and INNODB_CMP_PER_INDEX_RESET Tables”, and Section 15.9.1.4, “Monitoring InnoDB Table Compression at Runtime”.

  • innodb_commit_concurrency

    Command-Line Format--innodb_commit_concurrency=#
    System VariableNameinnodb_commit_concurrency
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Min Value0
    Max Value1000

    The number of threads that can commit at the same time. A value of 0 (the default) permits any number of transactions to commit simultaneously.

    The value of innodb_commit_concurrency cannot be changed at runtime from zero to nonzero or vice versa. The value can be changed from one nonzero value to another.

  • innodb_compress_debug

    Introduced5.7.8
    Command-Line Format--innodb_compress_debug=#
    System VariableNameinnodb_compress_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeenumeration
    Defaultnone
    Valid Valuesnone
    zlib
    lz4
    lz4hc

    Compresses all tables using a specified compression algorithm without having to define a COMPRESSION attribute for each table. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

    For related information, see Section 15.9.2, “InnoDB Page Compression”.

  • innodb_compression_failure_threshold_pct

    Command-Line Format--innodb_compression_failure_threshold_pct=#
    System VariableNameinnodb_compression_failure_threshold_pct
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default5
    Min Value0
    Max Value100

    Sets the cutoff point at which MySQL begins adding padding within compressed pages to avoid expensive compression failures. A value of zero disables the mechanism that monitors compression efficiency and dynamically adjusts the padding amount.

    For more information, see Section 15.9.1.6, “Compression for OLTP Workloads”.

  • innodb_compression_level

    Command-Line Format--innodb_compression_level=#
    System VariableNameinnodb_compression_level
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default6
    Min Value0
    Max Value9

    Specifies the level of zlib compression to use for InnoDB compressed tables and indexes.

    For more information, see Section 15.9.1.6, “Compression for OLTP Workloads”.

  • innodb_compression_pad_pct_max

    Command-Line Format--innodb_compression_pad_pct_max=#
    System VariableNameinnodb_compression_pad_pct_max
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default50
    Min Value0
    Max Value75

    Specifies the maximum percentage that can be reserved as free space within each compressed page, allowing room to reorganize the data and modification log within the page when a compressed table or index is updated and the data might be recompressed. Only applies when innodb_compression_failure_threshold_pct is set to a non-zero value, and the rate of compression failures passes the cutoff point.

    For more information, see Section 15.9.1.6, “Compression for OLTP Workloads”.

  • innodb_concurrency_tickets

    Command-Line Format--innodb_concurrency_tickets=#
    System VariableNameinnodb_concurrency_tickets
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default5000
    Min Value1
    Max Value4294967295

    Determines the number of threads that can enter InnoDB concurrently. A thread is placed in a queue when it tries to enter InnoDB if the number of threads has already reached the concurrency limit. When a thread is permitted to enter InnoDB, it is given a number of tickets equal to the value of innodb_concurrency_tickets, and the thread can enter and leave InnoDB freely until it has used up its tickets. After that point, the thread again becomes subject to the concurrency check (and possible queuing) the next time it tries to enter InnoDB. The default value is 5000.

    With a small innodb_concurrency_tickets value, small transactions that only need to process a few rows compete fairly with larger transactions that process many rows. The disadvantage of a small innodb_concurrency_tickets value is that large transactions must loop through the queue many times before they can complete, which extends the amount of time required to complete their task.

    With a large innodb_concurrency_tickets value, large transactions spend less time waiting for a position at the end of the queue (controlled by innodb_thread_concurrency) and more time retrieving rows. Large transactions also require fewer trips through the queue to complete their task. The disadvantage of a large innodb_concurrency_tickets value is that too many large transactions running at the same time can starve smaller transactions by making them wait a longer time before executing.

    With a non-zero innodb_thread_concurrency value, you may need to adjust the innodb_concurrency_tickets value up or down to find the optimal balance between larger and smaller transactions. The SHOW ENGINE INNODB STATUS report shows the number of tickets remaining for an executing transaction in its current pass through the queue. This data may also be obtained from the TRX_CONCURRENCY_TICKETS column of the INFORMATION_SCHEMA.INNODB_TRX table.

    For more information, see Section 15.6.6, “Configuring Thread Concurrency for InnoDB”.

  • innodb_create_intrinsic

    Introduced5.7.5
    Removed5.7.6
    Command-Line Format--innodb_create_intrinsic=#
    System VariableNameinnodb_create_intrinsic
    Variable ScopeSession
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    When innodb_create_intrinsic is enabled, CREATE TEMPORY TABLE creates optimized temporary tables instead of normal temporary tables.

    An optimized temporary table is a lightweight subclass of temporary table that excludes certain functionality and benefits from optimizations that make it faster than a normal temporary table. Like normal temporary tables, optimized temporary tables are only visible to the current connection and are dropped when the connection is terminated. Unlike normal temporary tables, optimized temporary tables are operational when InnoDB is in read-only mode.

    Row format COMPRESSED is not supported. If you attempt to create a compressed optimized temporary table, the innodb_create_intrinsic=ON setting is ignored and InnoDB creates a normal temporary table.

    Metadata for optimized temporary tables is not available in the INFORMATION_SCHEMA.INNODB_TEMP_TABLE_INFO table.

    Undo logging is disabled for optimized temporary tables, which means that rollback is not supported.

    Atomicity for optimized temporary tables is supported at the row-level, not at the statement level.

    Statistics generated by the same workload may differ for optimized temporary tables compared to normal temporary tables, as optimized temporary tables may use a different algorithm to complete certain types of operations.

    The innodb_create_intrinsic option is removed in MySQL 5.7.

  • innodb_data_file_path

    Command-Line Format--innodb_data_file_path=name
    System VariableNameinnodb_data_file_path
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypestring
    Defaultibdata1:12M:autoextend

    Defines the path and file size for individual InnoDB system tablespace data files. The full directory path for system tablespace data files is formed by concatenating path defined by innodb_data_home_dir and innodb_data_file_path. File sizes are specified KB, MB or GB (1024MB) by appending K, M or G to the size value. If specifying the data file size in kilobytes (KB), do so in multiples of 1024. Otherwise, KB values are rounded to nearest megabyte (MB) boundary. The sum of the sizes of the files must be at least slightly larger than 10MB. If you do not specify innodb_data_file_path, the default behavior is to create a single auto-extending data file, slightly larger than 12MB, named ibdata1. The size limit of individual files is determined by your operating system. You can set the file size to more than 4GB on operating systems that support large files. You can also use raw disk partitions as data files. For more information about configuring system tablespace data files, see Section 15.6.1, “InnoDB Startup Configuration”.

    The following minimum file sizes are enforced for the first system tablespace data file (ibdata1) to ensure that there is enough space for doublewrite buffer pages:

  • innodb_data_home_dir

    Command-Line Format--innodb_data_home_dir=dir_name
    System VariableNameinnodb_data_home_dir
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypedirectory name

    The common part of the directory path for InnoDB system tablespace data files. This setting does not affect the location of file-per-table tablespaces when innodb_file_per_table is enabled. The default value is the MySQL data directory. If you specify the value as an empty string, you can specify an absolute file paths for innodb_data_file_path.

    A trailing slash is required when specifying a value for innodb_data_home_dir. For example:

    [mysqld]
    innodb_data_home_dir = /path/to/myibdata/


    For related information, see Section 15.6.1, “InnoDB Startup Configuration”.

  • innodb_deadlock_detect

    Introduced5.7.15
    Command-Line Format--innodb_deadlock_detect
    System VariableNameinnodb_deadlock_detect
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    This option is used to disable deadlock detection. On high concurrency systems, deadlock detection can cause a slowdown when numerous threads wait for the same lock. At times, it may be more efficient to disable deadlock detection and rely on the innodb_lock_wait_timeout setting for transaction rollback when a deadlock occurs.

    For related information, see Section 15.5.5.2, “Deadlock Detection and Rollback”.

  • innodb_default_row_format

    Introduced5.7.9
    Command-Line Format--innodb_default_row_format=#
    System VariableNameinnodb_default_row_format
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeenumeration
    DefaultDYNAMIC
    Valid ValuesDYNAMIC
    COMPACT
    REDUNDANT

    The innodb_default_row_format option defines the default row format for InnoDB tables and user-created temporary tables. The default setting is DYNAMIC. Other permitted values are COMPACT and REDUNDANT. The COMPRESSED row format, which is not supported for use in the system tablespace, cannot be defined as the default.

    Newly created tables use the row format defined by innodb_default_row_format when a ROW_FORMAT option is not specified explicitly or when ROW_FORMAT=DEFAULT is used.

    When a ROW_FORMAT option is not specified explicitly or when ROW_FORMAT=DEFAULT is used, any operation that rebuilds a table also silently changes the row format of the table to the format defined by innodb_default_row_format. For more information, see Section 15.11.2, “Specifying the Row Format for a Table”.

    Internal InnoDB temporary tables created by the server to process queries use the DYNAMIC row format, regardless of the innodb_default_row_format setting.

  • innodb_disable_sort_file_cache

    Command-Line Format--innodb_disable_sort_file_cache=#
    System VariableNameinnodb_disable_sort_file_cache
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Disables the operating system file system cache for merge-sort temporary files. The effect is to open such files with the equivalent of O_DIRECT.

  • innodb_disable_resize_buffer_pool_debug

    Introduced5.7.6
    Command-Line Format--innodb_disable_resize_buffer_pool_debug=#
    System VariableNameinnodb_disable_resize_buffer_pool_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Disables resizing of the InnoDB buffer pool. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_doublewrite

    Command-Line Format--innodb-doublewrite
    System VariableNameinnodb_doublewrite
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultON

    When enabled (the default), InnoDB stores all data twice, first to the doublewrite buffer, then to the actual data files. This variable can be turned off with --skip-innodb_doublewrite for benchmarks or cases when top performance is needed rather than concern for data integrity or possible failures.

    If system tablespace data files (ibdata* files) are located on Fusion-io devices that support atomic writes, doublewrite buffering is automatically disabled and Fusion-io atomic writes are used for all data files. Because the doublewrite buffer setting is global, doublewrite buffering is also disabled for data files residing on non-Fusion-io hardware. This feature is only supported on Fusion-io hardware and only enabled for Fusion-io NVMFS on Linux. To take full advantage of this feature, an innodb_flush_method setting of O_DIRECT is recommended.

    For related information, see Section 15.4.7, “Doublewrite Buffer”.

  • innodb_fast_shutdown

    Command-Line Format--innodb_fast_shutdown[=#]
    System VariableNameinnodb_fast_shutdown
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default1
    Valid Values0
    1
    2

    The InnoDB shutdown mode. If the value is 0, InnoDB does a slow shutdown, a full purge and a change buffer merge before shutting down. If the value is 1 (the default), InnoDB skips these operations at shutdown, a process known as a fast shutdown. If the value is 2, InnoDB flushes its logs and shuts down cold, as if MySQL had crashed; no committed transactions are lost, but the crash recovery operation makes the next startup take longer.

    The slow shutdown can take minutes, or even hours in extreme cases where substantial amounts of data are still buffered. Use the slow shutdown technique before upgrading or downgrading between MySQL major releases, so that all data files are fully prepared in case the upgrade process updates the file format.

    Use innodb_fast_shutdown=2 in emergency or troubleshooting situations, to get the absolute fastest shutdown if data is at risk of corruption.

  • innodb_fil_make_page_dirty_debug

    Command-Line Format--innodb_fil_make_page_dirty_debug=#
    System VariableNameinnodb_fil_make_page_dirty_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Max Value2**32-1

    By default, setting innodb_fil_make_page_dirty_debug to the ID of a tablespace immediately dirties the first page of the tablespace. If innodb_saved_page_number_debug is set to a non-default value, setting innodb_fil_make_page_dirty_debug dirties the specified page. The innodb_fil_make_page_dirty_debug option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_file_format

    Deprecated5.7.7
    Command-Line Format--innodb_file_format=#
    System VariableNameinnodb_file_format
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.6)Typestring
    DefaultAntelope
    Valid ValuesAntelope
    Barracuda
    Permitted Values (>= 5.7.7)Typestring
    DefaultBarracuda
    Valid ValuesAntelope
    Barracuda

    Enables an InnoDB file format for file-per-table tablespaces. Supported file formats are Antelope and Barracuda. Antelope is the original InnoDB file format, which supports REDUNDANT and COMPACT row formats. Barracuda is the newer file format, which supports COMPRESSED and DYNAMIC row formats.

    COMPRESSED and DYNAMIC row formats enable important storage features for InnoDB tables. See Section 15.11, “InnoDB Row Storage and Row Formats”.

    Changing the innodb_file_format setting does not affect the file format of existing InnoDB tablespace files.

    The innodb_file_format setting does not apply to general tablespaces, which support tables of all row formats. See Section 15.7.9, “InnoDB General Tablespaces”.

    The innodb_file_format default value was changed to Barracuda in MySQL 5.7.

    The innodb_file_format setting is ignored when creating tables that use the DYNAMIC row format. A table created using the DYNAMIC row format always uses the Barracuda file format, regardless of the innodb_file_format setting. To use the COMPRESSED row format, innodb_file_format must be set to Barracuda.

    The innodb_file_format option is deprecated and will be removed in a future release. The purpose of the innodb_file_format option was to allow users to downgrade to the built-in version of InnoDB in MySQL 5.1. Now that MySQL 5.1 has reached the end of its product lifecycle, downgrade support provided by this option is no longer necessary.

    For more information, see Section 15.10, “InnoDB File-Format Management”.

  • innodb_file_format_check

    Deprecated5.7.7
    Command-Line Format--innodb_file_format_check=#
    System VariableNameinnodb_file_format_check
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultON

    This variable can be set to 1 or 0 at server startup to enable or disable whether InnoDB checks the file format tag in the system tablespace (for example, Antelope or Barracuda). If the tag is checked and is higher than that supported by the current version of InnoDB, an error occurs and InnoDB does not start. If the tag is not higher, InnoDB sets the value of innodb_file_format_max to the file format tag.

    Note

    Despite the default value sometimes being displayed as ON or OFF, always use the numeric values 1 or 0 to turn this option on or off in your configuration file or command line string.

    For more information, see Section 15.10.2.1, “Compatibility Check When InnoDB Is Started”.

    The innodb_file_format_check option is deprecated together with the innodb_file_format option. Both options will be removed in a future release.

  • innodb_file_format_max

    Deprecated5.7.7
    Command-Line Format--innodb_file_format_max=#
    System VariableNameinnodb_file_format_max
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.8)Typestring
    DefaultAntelope
    Valid ValuesAntelope
    Barracuda
    Permitted Values (>= 5.7.9)Typestring
    DefaultBarracuda
    Valid ValuesAntelope
    Barracuda

    At server startup, InnoDB sets the value of this variable to the file format tag in the system tablespace (for example, Antelope or Barracuda). If the server creates or opens a table with a higher file format, it sets the value of innodb_file_format_max to that format.

    For related information, see Section 15.10, “InnoDB File-Format Management”.

    The innodb_file_format_max option is deprecated together with the innodb_file_format option. Both options will be removed in a future release.

  • innodb_file_per_table

    Command-Line Format--innodb_file_per_table
    System VariableNameinnodb_file_per_table
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    When innodb_file_per_table is enabled (the default), InnoDB stores the data and indexes for each newly created table in a separate .ibd file instead of the system tablespace. The storage for these tables is reclaimed when the tables are dropped or truncated. This setting enables InnoDBfeatures such as table compression. See Section 15.7.4, “InnoDB File-Per-Table Tablespaces” for more information.

    Enabling innodb_file_per_table also means that an ALTER TABLE operation moves an InnoDB table from the system tablespace to an individual .ibd file in cases where ALTER TABLE rebuilds the table (ALGORITHM=COPY). An exception to this rule is for tables placed in the system tablespace using the TABLESPACE=innodb_system option with CREATE TABLE or ALTER TABLE. These tables are unaffected by the innodb_file_per_table setting and can only be moved to file-per-table tablespaces using ALTER TABLE ... TABLESPACE=innodb_file_per_table.

    When innodb_file_per_table is disabled, InnoDB stores the data for tables and indexes in the ibdata files that make up the system tablespace. This setting reduces the performance overhead of file system operations for operations such as DROP TABLE or TRUNCATE TABLE. It is most appropriate for a server environment where entire storage devices are devoted to MySQL data. Because the system tablespace never shrinks, and is shared across all databases in an instance, avoid loading huge amounts of temporary data on a space-constrained system when innodb_file_per_table is disabled. Set up a separate instance in such cases, so that you can drop the entire instance to reclaim the space.

    innodb_file_per_table is enabled by default. Consider disabling it if backward compatibility with MySQL 5.5 or 5.1 is a concern. This will prevent ALTER TABLE from moving InnoDB tables from the system tablespace to individual .ibd files.

    innodb_file_per_table is dynamic and can be set ON or OFF using SET GLOBAL. You can also set this option in the MySQL configuration file (my.cnf or my.ini) but this requires shutting down and restarting the server.

    Dynamically changing the value requires the SUPER privilege and immediately affects the operation of all connections.

  • innodb_fill_factor

    Introduced5.7.5
    Command-Line Format--innodb_fill_factor=#
    System VariableNameinnodb_fill_factor
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default100
    Min Value10
    Max Value100

    InnoDB performs a bulk load when creating or rebuilding indexes. This method of index creation is known as a sorted index build.

    innodb_fill_factor defines the percentage of space on each B-tree page that is filled during a sorted index build, with the remaining space reserved for future index growth. For example, setting innodb_fill_factor to 80 reserves 20 percent of the space on each B-tree page for future index growth. Actual percentages may vary. The innodb_fill_factor setting is interpreted as a hint rather than a hard limit.

    An innodb_fill_factor setting of 100 leaves 1/16 of the space in clustered index pages free for future index growth.

    innodb_fill_factor applies to both B-tree leaf and non-leaf pages. It does not apply to external pages used for TEXT or BLOB entries.

    For more information, see Section 15.8.12, “Sorted Index Builds”.

  • innodb_flush_log_at_timeout

    System VariableNameinnodb_flush_log_at_timeout
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default1
    Min Value1
    Max Value2700

    Write and flush the logs every N seconds. innodb_flush_log_at_timeout allows the timeout period between flushes to be increased in order to reduce flushing and avoid impacting performance of binary log group commit. The default setting for innodb_flush_log_at_timeout is once per second.

  • innodb_flush_log_at_trx_commit

    Command-Line Format--innodb_flush_log_at_trx_commit[=#]
    System VariableNameinnodb_flush_log_at_trx_commit
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeenumeration
    Default1
    Valid Values0
    1
    2

    Controls the balance between strict ACID compliance for commit operations and higher performance that is possible when commit-related I/O operations are rearranged and done in batches. You can achieve better performance by changing the default value but then you can lose up to a second of transactions in a crash.

    • The default value of 1 is required for full ACID compliance. With this value, the contents of the InnoDB log buffer are written out to the log file at each transaction commit and the log file is flushed to disk.

    • With a value of 0, the contents of the InnoDB log buffer are written to the log file approximately once per second and the log file is flushed to disk. No writes from the log buffer to the log file are performed at transaction commit. Once-per-second flushing is not guaranteed to happen every second due to process scheduling issues. Because the flush to disk operation only occurs approximately once per second, you can lose up to a second of transactions with any mysqld process crash.

    • With a value of 2, the contents of the InnoDB log buffer are written to the log file after each transaction commit and the log file is flushed to disk approximately once per second. Once-per-second flushing is not 100% guaranteed to happen every second, due to process scheduling issues. Because the flush to disk operation only occurs approximately once per second, you can lose up to a second of transactions in an operating system crash or a power outage.

    • InnoDB log flushing frequency is controlled by innodb_flush_log_at_timeout, which allows you to set log flushing frequency to N seconds (where N is 1 ... 2700, with a default value of 1). However, any mysqld process crash can erase up to N seconds of transactions.

    • DDL changes and other internal InnoDB activities flush the InnoDB log independent of the innodb_flush_log_at_trx_commit setting.

    • InnoDB crash recovery works regardless of the innodb_flush_log_at_trx_commit setting. Transactions are either applied entirely or erased entirely.

    For durability and consistency in a replication setup that uses InnoDB with transactions:

    • If binary logging is enabled, set sync_binlog=1.

    • Always set innodb_flush_log_at_trx_commit=1.

    Caution

    Many operating systems and some disk hardware fool the flush-to-disk operation. They may tell mysqld that the flush has taken place, even though it has not. In this case, the durability of transactions is not guaranteed even with the setting 1, and in the worst case, a power outage can corrupt InnoDB data. Using a battery-backed disk cache in the SCSI disk controller or in the disk itself speeds up file flushes, and makes the operation safer. You can also try to disable the caching of disk writes in hardware caches.

  • innodb_flush_method

    Command-Line Format--innodb_flush_method=name
    System VariableNameinnodb_flush_method
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (Unix)Typestring
    DefaultNULL
    Valid Valuesfsync
    O_DSYNC
    littlesync
    nosync
    O_DIRECT
    O_DIRECT_NO_FSYNC
    Permitted Values (Windows)Typestring
    DefaultNULL
    Valid Valuesasync_unbuffered
    normal
    unbuffered

    Defines the method used to flush data to InnoDB data files and log files, which can affect I/O throughput.

    If innodb_flush_method is set to NULL on a Unix-like system, the fsync option is used by default. If innodb_flush_method is set to NULL on Windows, the async_unbuffered option is used by default.

    The innodb_flush_method options for Unix-like systems include:

    • fsync: InnoDB uses the fsync() system call to flush both the data and log files. fsync is the default setting.

    • O_DSYNC: InnoDB uses O_SYNC to open and flush the log files, and fsync() to flush the data files. InnoDB does not use O_DSYNC directly because there have been problems with it on many varieties of Unix.

    • littlesync: This option is used for internal performance testing and is currently unsupported. Use at your own risk.

    • nosync: This option is used for internal performance testing and is currently unsupported. Use at your own risk.

    • O_DIRECT: InnoDB uses O_DIRECT (or directio() on Solaris) to open the data files, and uses fsync() to flush both the data and log files. This option is available on some GNU/Linux versions, FreeBSD, and Solaris.

    • O_DIRECT_NO_FSYNC: InnoDB uses O_DIRECT during flushing I/O, but skips the fsync() system call afterward. This setting is suitable for some types of file systems but not others. For example, it is not suitable for XFS. If you are not sure whether the file system you use requires an fsync(), for example to preserve all file metadata, use O_DIRECT instead.

    The innodb_flush_method options for Windows systems include:

    • async_unbuffered: InnoDB uses Windows asynchronous I/O and non-buffered I/O. async_unbuffered is the default setting on Windows systems.

    • normal: InnoDB uses simulated asynchronous I/O and buffered I/O.

    • unbuffered: InnoDB uses simulated asynchronous I/O and non-buffered I/O.

    How each setting affects performance depends on hardware configuration and workload. Benchmark your particular configuration to decide which setting to use, or whether to keep the default setting. Examine the Innodb_data_fsyncs status variable to see the overall number of fsync() calls for each setting. The mix of read and write operations in your workload can affect how a setting performs. For example, on a system with a hardware RAID controller and battery-backed write cache, O_DIRECT can help to avoid double buffering between the InnoDB buffer pool and the operating system file system cache. On some systems where InnoDB data and log files are located on a SAN, the default value or O_DSYNC might be faster for a read-heavy workload with mostly SELECT statements. Always test this parameter with hardware and workload that reflect your production environment. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_flush_neighbors

    Command-Line Format--innodb_flush_neighbors
    System VariableNameinnodb_flush_neighbors
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeenumeration
    Default1
    Valid Values0
    1
    2

    Specifies whether flushing a page from the InnoDB buffer pool also flushes other dirty pages in the same extent.

    • The default value of 1 flushes contiguous dirty pages in the same extent from the buffer pool.

    • A setting of 0 turns innodb_flush_neighbors off and no other dirty pages are flushed from the buffer pool.

    • A setting of 2 flushes dirty pages in the same extent from the buffer pool.

    When the table data is stored on a traditional HDD storage device, flushing such neighbor pages in one operation reduces I/O overhead (primarily for disk seek operations) compared to flushing individual pages at different times. For table data stored on SSD, seek time is not a significant factor and you can turn this setting off to spread out write operations. For related information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”.

  • innodb_flush_sync

    Introduced5.7.8
    Command-Line Format--innodb_flush_sync=#
    System VariableNameinnodb_flush_sync
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    The innodb_flush_sync parameter, which is enabled by default, causes the innodb_io_capacity setting to be ignored for bursts of I/O activity that occur at checkpoints. To adhere to the limit on InnoDB background I/O activity defined by the innodb_io_capacity setting, disable innodb_flush_sync.

    For related information, see Section 15.6.9, “Configuring the InnoDB Master Thread I/O Rate”.

  • innodb_flushing_avg_loops

    Command-Line Format--innodb_flushing_avg_loops=#
    System VariableNameinnodb_flushing_avg_loops
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default30
    Min Value1
    Max Value1000

    Number of iterations for which InnoDB keeps the previously calculated snapshot of the flushing state, controlling how quickly adaptive flushing responds to changing workloads. Increasing the value makes the rate of flush operations change smoothly and gradually as the workload changes. Decreasing the value makes adaptive flushing adjust quickly to workload changes, which can cause spikes in flushing activity if the workload increases and decreases suddenly.

    For related information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”.

  • innodb_force_load_corrupted

    Command-Line Format--innodb_force_load_corrupted
    System VariableNameinnodb_force_load_corrupted
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Permits InnoDB to load tables at startup that are marked as corrupted. Use only during troubleshooting, to recover data that is otherwise inaccessible. When troubleshooting is complete, disable this setting and restart the server.

  • innodb_force_recovery

    Command-Line Format--innodb_force_recovery=#
    System VariableNameinnodb_force_recovery
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default0
    Min Value0
    Max Value6

    The crash recovery mode, typically only changed in serious troubleshooting situations. Possible values are from 0 to 6. For the meanings of these values and important information about innodb_force_recovery, see Section 15.21.2, “Forcing InnoDB Recovery”.

    Warning

    Only set this variable to a value greater than 0 in an emergency situation so that you can start InnoDB and dump your tables. As a safety measure, InnoDB prevents INSERT, UPDATE, or DELETE operations when innodb_force_recovery is greater than 0. An innodb_force_recovery setting of 4 or greater places InnoDB into read-only mode.

    These restrictions may cause replication administration commands to fail with an error, as replication options such as --relay-log-info-repository=TABLE and --master-info-repository=TABLE store information in InnoDB tables.

  • innodb_ft_aux_table

    Command-Line Format--innodb_ft_aux_table=# (>= 5.7.2)
    System VariableNameinnodb_ft_aux_table
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypestring

    Specifies the qualified name of an InnoDB table containing a FULLTEXT index. This variable is intended for diagnostic purposes.

    After you set this variable to a name in the format db_name/table_name, the INFORMATION_SCHEMA tables INNODB_FT_INDEX_TABLE, INNODB_FT_INDEX_CACHE, INNODB_FT_CONFIG, INNODB_FT_DELETED, and INNODB_FT_BEING_DELETED show information about the search index for the specified table.

    For more information, see Section 15.15.4, “InnoDB INFORMATION_SCHEMA FULLTEXT Index Tables”.

  • innodb_ft_cache_size

    Command-Line Format--innodb_ft_cache_size=#
    System VariableNameinnodb_ft_cache_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default8000000
    Min Value1600000
    Max Value80000000

    The memory allocated, in bytes, for the InnoDB FULLTEXT search index cache, which holds a parsed document in memory while creating an InnoDB FULLTEXT index. Index inserts and updates are only committed to disk when the innodb_ft_cache_size size limit is reached. innodb_ft_cache_size defines the cache size on a per table basis. To set a global limit for all tables, see innodb_ft_total_cache_size.

    For more information, see InnoDB Full-Text Index Cache.

  • innodb_ft_enable_diag_print

    Command-Line Format--innodb_ft_enable_diag_print=#
    System VariableNameinnodb_ft_enable_diag_print
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Whether to enable additional full-text search (FTS) diagnostic output. This option is primarily intended for advanced FTS debugging and will not be of interest to most users. Output is printed to the error log and includes information such as:

    • FTS index sync progress (when the FTS cache limit is reached). For example:

      FTS SYNC for table test, deleted count: 100 size: 10000 bytes
      SYNC words: 100

    • FTS optimize progress. For example:

      FTS start optimize test
      FTS_OPTIMIZE: optimize "mysql"
      FTS_OPTIMIZE: processed "mysql"

    • FTS index build progress. For example:

      Number of doc processed: 1000

    • For FTS queries, the query parsing tree, word weight, query processing time, and memory usage are printed. For example:

      FTS Search Processing time: 1 secs: 100 millisec: row(s) 10000
      Full Search Memory: 245666 (bytes),  Row: 10000

  • innodb_ft_enable_stopword

    Command-Line Format--innodb_ft_enable_stopword=#
    System VariableNameinnodb_ft_enable_stopword
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Specifies that a set of stopwords is associated with an InnoDB FULLTEXT index at the time the index is created. If the innodb_ft_user_stopword_table option is set, the stopwords are taken from that table. Else, if the innodb_ft_server_stopword_table option is set, the stopwords are taken from that table. Otherwise, a built-in set of default stopwords is used.

    For more information, see Section 13.9.4, “Full-Text Stopwords”.

  • innodb_ft_max_token_size

    Command-Line Format--innodb_ft_max_token_size=#
    System VariableNameinnodb_ft_max_token_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default84
    Min Value10
    Max Value84
    Permitted Values (<= 5.7.2)Typeinteger
    Default84
    Min Value10
    Max Value252
    Permitted Values (>= 5.7.3)Typeinteger
    Default84
    Min Value10
    Max Value84

    Maximum character length of words that are stored in an InnoDB FULLTEXT index. Setting a limit on this value reduces the size of the index, thus speeding up queries, by omitting long keywords or arbitrary collections of letters that are not real words and are not likely to be search terms.

    For more information, see Section 13.9.6, “Fine-Tuning MySQL Full-Text Search”.

  • innodb_ft_min_token_size

    Command-Line Format--innodb_ft_min_token_size=#
    System VariableNameinnodb_ft_min_token_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default3
    Min Value0
    Max Value16

    Minimum length of words that are stored in an InnoDB FULLTEXT index. Increasing this value reduces the size of the index, thus speeding up queries, by omitting common words that are unlikely to be significant in a search context, such as the English words a and to. For content using a CJK (Chinese, Japanese, Korean) character set, specify a value of 1.

    For more information, see Section 13.9.6, “Fine-Tuning MySQL Full-Text Search”.

  • innodb_ft_num_word_optimize

    Command-Line Format--innodb_ft_num_word_optimize=#
    System VariableNameinnodb_ft_num_word_optimize
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default2000

    Number of words to process during each OPTIMIZE TABLE operation on an InnoDB FULLTEXT index. Because a bulk insert or update operation to a table containing a full-text search index could require substantial index maintenance to incorporate all changes, you might do a series of OPTIMIZE TABLE statements, each picking up where the last left off.

    For more information, see Section 13.9.6, “Fine-Tuning MySQL Full-Text Search”.

  • innodb_ft_result_cache_limit

    Introduced5.7.2
    Command-Line Format--innodb_ft_result_cache_limit=#
    System VariableNameinnodb_ft_result_cache_limit
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (>= 5.7.4)Typeinteger
    Default2000000000
    Min Value1000000
    Max Value2**32-1
    Permitted Values (Unix, 32-bit platforms, >= 5.7.2, <= 5.7.3)Typeinteger
    Default2000000000
    Min Value1000000
    Max Value2**32-1
    Permitted Values (Unix, 64-bit platforms, >= 5.7.2, <= 5.7.3)Typeinteger
    Default2000000000
    Min Value1000000
    Max Value2**64-1
    Permitted Values (Windows, >= 5.7.2, <= 5.7.3)Typeinteger
    Default2000000000
    Min Value1000000
    Max Value2**32-1

    The InnoDB full-text search query result cache limit (defined in bytes) per full-text search query or per thread. Intermediate and final InnoDB full-text search query results are handled in memory. Use innodb_ft_result_cache_limit to place a size limit on the full-text search query result cache to avoid excessive memory consumption in case of very large InnoDB full-text search query results (millions or hundreds of millions of rows, for example). Memory is allocated as required when a full-text search query is processed. If the result cache size limit is reached, an error is returned indicating that the query exceeds the maximum allowed memory.

    The maximum value of innodb_ft_result_cache_limit for all platform types and bit sizes is 2**32-1.

  • innodb_ft_server_stopword_table

    Command-Line Format--innodb_ft_server_stopword_table=db_name/table_name
    System VariableNameinnodb_ft_server_stopword_table
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypestring
    DefaultNULL

    This option is used to specify your own InnoDB FULLTEXT index stopword list for all InnoDB tables. To configure your own stopword list for a specific InnoDB table, use innodb_ft_user_stopword_table.

    Set innodb_ft_server_stopword_table to the name of the table containing a list of stopwords, in the format db_name/table_name.

    The stopword table must exist before you configure innodb_ft_server_stopword_table. innodb_ft_enable_stopword must be enabled and innodb_ft_server_stopword_table option must be configured before you create the FULLTEXT index.

    The stopword table must be an InnoDB table, containing a single VARCHAR column named value.

    For more information, see Section 13.9.4, “Full-Text Stopwords”.

  • innodb_ft_sort_pll_degree

    Command-Line Format--innodb_ft_sort_pll_degree=#
    System VariableNameinnodb_ft_sort_pll_degree
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default2
    Min Value1
    Max Value32

    Number of threads used in parallel to index and tokenize text in an InnoDB FULLTEXT index when building a search index.

    For related information, see Section 15.8.10, “InnoDB FULLTEXT Indexes”, and innodb_sort_buffer_size.

  • innodb_ft_total_cache_size

    Introduced5.7.2
    Command-Line Format--innodb_ft_total_cache_size=#
    System VariableNameinnodb_ft_total_cache_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default640000000
    Min Value32000000
    Max Value1600000000

    The total memory allocated, in bytes, for the InnoDB full-text search index cache for all tables. Creating numerous tables, each with a FULLTEXT search index, could consume a significant portion of available memory. innodb_ft_total_cache_size defines a global memory limit for all full-text search indexes to help avoid excessive memory consumption. If the global limit is reached by an index operation, a forced sync is triggered.

    For more information, see InnoDB Full-Text Index Cache.

  • innodb_ft_user_stopword_table

    Command-Line Format--innodb_ft_user_stopword_table=db_name/table_name
    System VariableNameinnodb_ft_user_stopword_table
    Variable ScopeGlobal, Session
    Dynamic VariableYes
    Permitted ValuesTypestring
    DefaultNULL

    This option is used to specify your own InnoDB FULLTEXT index stopword list on a specific table. To configure your own stopword list for all InnoDB tables, use innodb_ft_server_stopword_table.

    Set innodb_ft_user_stopword_table to the name of the table containing a list of stopwords, in the format db_name/table_name.

    The stopword table must exist before you configure innodb_ft_user_stopword_table. innodb_ft_enable_stopword must be enabled and innodb_ft_user_stopword_table must be configured before you create the FULLTEXT index.

    The stopword table must be an InnoDB table, containing a single VARCHAR column named value.

    For more information, see Section 13.9.4, “Full-Text Stopwords”.

  • innodb_io_capacity

    Command-Line Format--innodb_io_capacity=#
    System VariableNameinnodb_io_capacity
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (32-bit platforms)Typeinteger
    Default200
    Min Value100
    Max Value2**32-1
    Permitted Values (64-bit platforms)Typeinteger
    Default200
    Min Value100
    Max Value2**64-1

    The innodb_io_capacity parameter sets an upper limit on I/O activity performed by InnoDB background tasks, such as flushing pages from the buffer pool and merging data from the change buffer.

    The innodb_io_capacity limit is a total limit for all buffer pool instances. When dirty pages are flushed, the limit is divided equally among buffer pool instances.

    innodb_io_capacity should be set to approximately the number of I/O operations that the system can perform per second. Ideally, keep the setting as low as practical, but not so low that background activities fall behind. If the value is too high, data is removed from the buffer pool and insert buffer too quickly for caching to provide a significant benefit.

    The default value is 200. For busy systems capable of higher I/O rates, you can set a higher value to help the server handle the background maintenance work associated with a high rate of row changes.

    In general, you can increase the value as a function of the number of drives used for InnoDB I/O. For example, you can increase the value on systems that use multiple disks or solid-state disks (SSD).

    The default setting of 200 is generally sufficient for a lower-end SSD. For a higher-end, bus-attached SSD, consider a higher setting such as 1000, for example. For systems with individual 5400 RPM or 7200 RPM drives, you might lower the value to 100, which represents an estimated proportion of the I/O operations per second (IOPS) available to older-generation disk drives that can perform about 100 IOPS.

    Although you can specify a very high value such as one million, in practice such large values have little if any benefit. Generally, a value of 20000 or higher is not recommended unless you have proven that lower values are insufficient for your workload.

    Consider write workload when tuning innodb_io_capacity. Systems with large write workloads are likely to benefit from a higher setting. A lower setting may be sufficient for systems with a small write workload.

    You can set innodb_io_capacity to any number 100 or greater to a maximum defined by innodb_io_capacity_max. innodb_io_capacity can be set in the MySQL option file (my.cnf or my.ini) or changed dynamically using a SET GLOBAL statement, which requires the SUPER privilege.

    The innodb_flush_sync configuration option causes the innodb_io_capacity setting to be ignored during bursts of I/O activity that occur at checkpoints. innodb_flush_sync is enabled by default.

    See Section 15.6.9, “Configuring the InnoDB Master Thread I/O Rate” for more information. For general information about InnoDB I/O performance, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_io_capacity_max

    Command-Line Format--innodb_io_capacity_max=#
    System VariableNameinnodb_io_capacity_max
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (32-bit platforms)Typeinteger
    Defaultsee description
    Min Value100
    Max Value2**32-1
    Permitted Values (Unix, 64-bit platforms)Typeinteger
    Defaultsee description
    Min Value100
    Max Value2**64-1
    Permitted Values (Windows, 64-bit platforms)Typeinteger
    Defaultsee description
    Min Value100
    Max Value2**32-1

    If flushing activity falls behind, InnoDB can flush more aggressively than the limit imposed by innodb_io_capacity. innodb_io_capacity_max defines an upper limit for I/O capacity in such situations.

    The innodb_io_capacity_max setting is a total limit for all buffer pool instances.

    If you specify an innodb_io_capacity setting at startup but do not specify a value for innodb_io_capacity_max, innodb_io_capacity_max defaults to twice the value of innodb_io_capacity, with a minimum value of 2000.

    When configuring innodb_io_capacity_max, twice the innodb_io_capacity is often a good starting point. The default value of 2000 is intended for workloads that use a solid-state disk (SSD) or more than one regular disk drive. A setting of 2000 is likely too high for workloads that do not use SSD or multiple disk drives, and could allow too much flushing. For a single regular disk drive, a setting between 200 and 400 is recommended. For a high-end, bus-attached SSD, consider a higher setting such as 2500. As with the innodb_io_capacity setting, keep the setting as low as practical, but not so low that InnoDB cannot sufficiently extend beyond the innodb_io_capacity limit, if necessary.

    Consider write workload when tuning innodb_io_capacity_max. Systems with large write workloads may benefit from a higher setting. A lower setting may be sufficient for systems with a small write workload.

    innodb_io_capacity_max cannot be set to a value lower than the innodb_io_capacity value.

    Setting innodb_io_capacity_max to DEFAULT using a SET statement (SET GLOBAL innodb_io_capacity_max=DEFAULT) sets innodb_io_capacity_max to the maximum value.

    For related information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”.

  • innodb_large_prefix

    Deprecated5.7.7
    Command-Line Format--innodb_large_prefix
    System VariableNameinnodb_large_prefix
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.6)Typeboolean
    DefaultOFF
    Permitted Values (>= 5.7.7)Typeboolean
    DefaultON

    When this option is enabled, index key prefixes longer than 767 bytes (up to 3072 bytes) are allowed for InnoDB tables that use DYNAMIC or COMPRESSED row format. See Section 15.8.8, “Limits on InnoDB Tables” for maximums associated with index key prefixes under various settings.

    For tables that use REDUNDANT or COMPACT row format, this option does not affect the permitted index key prefix length.

    innodb_large_prefix is enabled by default in MySQL 5.7. This change coincides with the default value change for innodb_file_format, which is set to Barracuda by default in MySQL 5.7. Together, these default value changes allow larger index key prefixes to be created when using DYNAMIC or COMPRESSED row format. If either option is set to a non-default value, index key prefixes larger than 767 bytes are silently truncated.

    innodb_large_prefix is deprecated and will be removed in a future release. innodb_large_prefix was introduced in MySQL 5.5 to disable large index key prefixes for compatibility with earlier versions of InnoDB that do not support large index key prefixes.

  • innodb_limit_optimistic_insert_debug

    Command-Line Format--innodb_limit_optimistic_insert_debug=#
    System VariableNameinnodb_limit_optimistic_insert_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Min Value0
    Max Value2**32-1

    Limits the number of records per B-tree page. A default value of 0 means that no limit is imposed. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_lock_wait_timeout

    Command-Line Format--innodb_lock_wait_timeout=#
    System VariableNameinnodb_lock_wait_timeout
    Variable ScopeGlobal, Session
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default50
    Min Value1
    Max Value1073741824

    The length of time in seconds an InnoDB transaction waits for a row lock before giving up. The default value is 50 seconds. A transaction that tries to access a row that is locked by another InnoDB transaction waits at most this many seconds for write access to the row before issuing the following error:

    ERROR 1205 (HY000): Lock wait timeout exceeded; try restarting transaction


    When a lock wait timeout occurs, the current statement is rolled back (not the entire transaction). To have the entire transaction roll back, start the server with the --innodb_rollback_on_timeout option. See also Section 15.21.4, “InnoDB Error Handling”.

    You might decrease this value for highly interactive applications or OLTP systems, to display user feedback quickly or put the update into a queue for processing later. You might increase this value for long-running back-end operations, such as a transform step in a data warehouse that waits for other large insert or update operations to finish.

    innodb_lock_wait_timeout applies to InnoDB row locks only. A MySQL table lock does not happen inside InnoDB and this timeout does not apply to waits for table locks.

    The lock wait timeout value does not apply to deadlocks when innodb_deadlock_detect is enabled (the default) because InnoDB detects deadlocks immediately and rolls back one of the deadlocked transactions. When innodb_deadlock_detect is disabled, InnoDB relies on innodb_lock_wait_timeout for transaction rollback when a deadlock occurs. See Section 15.5.5.2, “Deadlock Detection and Rollback”.

    innodb_lock_wait_timeout can be set at runtime with the SET GLOBAL or SET SESSION statement. Changing the GLOBAL setting requires the SUPER privilege and affects the operation of all clients that subsequently connect. Any client can change the SESSION setting for innodb_lock_wait_timeout, which affects only that client.

  • innodb_locks_unsafe_for_binlog

    Deprecated5.6.3
    Command-Line Format--innodb_locks_unsafe_for_binlog
    System VariableNameinnodb_locks_unsafe_for_binlog
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    This variable affects how InnoDB uses gap locking for searches and index scans. innodb_locks_unsafe_for_binlog is deprecated and will be removed in a future MySQL release.

    Normally, InnoDB uses an algorithm called next-key locking that combines index-row locking with gap locking. InnoDB performs row-level locking in such a way that when it searches or scans a table index, it sets shared or exclusive locks on the index records it encounters. Thus, row-level locks are actually index-record locks. In addition, a next-key lock on an index record also affects the gap before the index record. That is, a next-key lock is an index-record lock plus a gap lock on the gap preceding the index record. If one session has a shared or exclusive lock on record R in an index, another session cannot insert a new index record in the gap immediately before R in the index order. See Section 15.5.1, “InnoDB Locking”.

    By default, the value of innodb_locks_unsafe_for_binlog is 0 (disabled), which means that gap locking is enabled: InnoDB uses next-key locks for searches and index scans. To enable the variable, set it to 1. This causes gap locking to be disabled: InnoDB uses only index-record locks for searches and index scans.

    Enabling innodb_locks_unsafe_for_binlog does not disable the use of gap locking for foreign-key constraint checking or duplicate-key checking.

    The effects of enabling innodb_locks_unsafe_for_binlog are the same as setting the transaction isolation level to READ COMMITTED, with these exceptions:

    • Enabling innodb_locks_unsafe_for_binlog is a global setting and affects all sessions, whereas the isolation level can be set globally for all sessions, or individually per session.

    • innodb_locks_unsafe_for_binlog can be set only at server startup, whereas the isolation level can be set at startup or changed at runtime.

    READ COMMITTED therefore offers finer and more flexible control than innodb_locks_unsafe_for_binlog. For more information about the effect of isolation level on gap locking, see Section 15.5.2.1, “Transaction Isolation Levels”.

    Enabling innodb_locks_unsafe_for_binlog may cause phantom problems because other sessions can insert new rows into the gaps when gap locking is disabled. Suppose that there is an index on the id column of the child table and that you want to read and lock all rows from the table having an identifier value larger than 100, with the intention of updating some column in the selected rows later:

    SELECT * FROM child WHERE id > 100 FOR UPDATE;


    The query scans the index starting from the first record where the id is greater than 100. If the locks set on the index records in that range do not lock out inserts made in the gaps, another session can insert a new row into the table. Consequently, if you were to execute the same SELECT again within the same transaction, you would see a new row in the result set returned by the query. This also means that if new items are added to the database, InnoDB does not guarantee serializability. Therefore, if innodb_locks_unsafe_for_binlog is enabled, InnoDB guarantees at most an isolation level of READ COMMITTED. (Conflict serializability is still guaranteed.) For more information about phantoms, see Section 15.5.4, “Phantom Rows”.

    Enabling innodb_locks_unsafe_for_binlog has additional effects:

    • For UPDATE or DELETE statements, InnoDB holds locks only for rows that it updates or deletes. Record locks for nonmatching rows are released after MySQL has evaluated the WHERE condition. This greatly reduces the probability of deadlocks, but they can still happen.

    • For UPDATE statements, if a row is already locked, InnoDB performs a semi-consistent read, returning the latest committed version to MySQL so that MySQL can determine whether the row matches the WHERE condition of the UPDATE. If the row matches (must be updated), MySQL reads the row again and this time InnoDB either locks it or waits for a lock on it.

    Consider the following example, beginning with this table:

    CREATE TABLE t (a INT NOT NULL, b INT) ENGINE = InnoDB;
    INSERT INTO t VALUES (1,2),(2,3),(3,2),(4,3),(5,2);
    COMMIT;


    In this case, table has no indexes, so searches and index scans use the hidden clustered index for record locking (see Section 15.8.9, “Clustered and Secondary Indexes”).

    Suppose that one client performs an UPDATE using these statements:

    SET autocommit = 0;
    UPDATE t SET b = 5 WHERE b = 3;


    Suppose also that a second client performs an UPDATE by executing these statements following those of the first client:

    SET autocommit = 0;
    UPDATE t SET b = 4 WHERE b = 2;


    As InnoDB executes each UPDATE, it first acquires an exclusive lock for each row, and then determines whether to modify it. If InnoDB does not modify the row and innodb_locks_unsafe_for_binlog is enabled, it releases the lock. Otherwise, InnoDB retains the lock until the end of the transaction. This affects transaction processing as follows.

    If innodb_locks_unsafe_for_binlog is disabled, the first UPDATE acquires x-locks and does not release any of them:

    x-lock(1,2); retain x-lock
    x-lock(2,3); update(2,3) to (2,5); retain x-lock
    x-lock(3,2); retain x-lock
    x-lock(4,3); update(4,3) to (4,5); retain x-lock
    x-lock(5,2); retain x-lock


    The second UPDATE blocks as soon as it tries to acquire any locks (because the first update has retained locks on all rows), and does not proceed until the first UPDATE commits or rolls back:

    x-lock(1,2); block and wait for first UPDATE to commit or roll back


    If innodb_locks_unsafe_for_binlog is enabled, the first UPDATE acquires x-locks and releases those for rows that it does not modify:

    x-lock(1,2); unlock(1,2)
    x-lock(2,3); update(2,3) to (2,5); retain x-lock
    x-lock(3,2); unlock(3,2)
    x-lock(4,3); update(4,3) to (4,5); retain x-lock
    x-lock(5,2); unlock(5,2)


    For the second UPDATE, InnoDB does a semi-consistent read, returning the latest committed version of each row to MySQL so that MySQL can determine whether the row matches the WHERE condition of the UPDATE:

    x-lock(1,2); update(1,2) to (1,4); retain x-lock
    x-lock(2,3); unlock(2,3)
    x-lock(3,2); update(3,2) to (3,4); retain x-lock
    x-lock(4,3); unlock(4,3)
    x-lock(5,2); update(5,2) to (5,4); retain x-lock

  • innodb_log_buffer_size

    Command-Line Format--innodb_log_buffer_size=#
    System VariableNameinnodb_log_buffer_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.5)Typeinteger
    Default8388608
    Min Value262144
    Max Value4294967295
    Permitted Values (>= 5.7.6)Typeinteger
    Default16777216
    Min Value1048576
    Max Value4294967295

    The size in bytes of the buffer that InnoDB uses to write to the log files on disk. The default value changed from 8MB to 16MB with the introduction of 32k and 64k innodb_page_size values. A large log buffer enables large transactions to run without the need to write the log to disk before the transactions commit. Thus, if you have transactions that update, insert, or delete many rows, making the log buffer larger saves disk I/O. For related information, see InnoDB Memory Configuration, and Section 9.5.4, “Optimizing InnoDB Redo Logging”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_log_checksum_algorithm

    Introduced5.7.8
    Removed5.7.9
    Command-Line Format--innodb_log_checksum_algorithm=#
    System VariableNameinnodb_log_checksum_algorithm
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (>= 5.7.8)Typeenumeration
    Defaultinnodb
    Valid Valuesinnodb
    crc32
    none
    strict_innodb
    strict_crc32
    strict_none

    This configuration option was removed and replaced by innodb_log_checksums.

    Specifies how to generate and verify the checksum stored in each redo log disk block. innodb_log_checksum_algorithm supports same algorithms as innodb_checksum_algorithm. Previously, only the innodb algorithm was supported for redo log disk blocks. innodb_log_checksum_algorithm=innodb is the default setting.

    The strict forms work the same as innodb, crc32, and none, except that InnoDB halts if it encounters a mix of checksum values in the same redo log. You can only use the strict settings in a completely new instance. The strict settings are somewhat faster, because they do not need to compute both new and old checksum values to accept both during disk reads.

    The following table shows the difference between the none, innodb, and crc32 option values, and their strict counterparts. none, innodb, and crc32 write the specified type of checksum value into each data block, but for compatibility accept any of the other checksum values when verifying a block during a read operation. The strict form of each option only recognizes one kind of checksum, which makes verification faster but requires that all InnoDB redo logs in an instance are created under an identical innodb_log_checksum_algorithm value.

    Table 15.14 innodb_log_checksum_algorithm Settings

    ValueGenerated checksum (when writing)Permitted checksums (when reading)
    noneA constant number.Any of the checksums generated by none, innodb, or crc32.
    innodbA checksum calculated in software, using the original algorithm from InnoDB.Any of the checksums generated by none, innodb, or crc32.
    crc32A checksum calculated using the crc32 algorithm, possibly done with a hardware assist.Any of the checksums generated by none, innodb, or crc32.
    strict_noneA constant numberOnly the checksum generated by none.
    strict_innodbA checksum calculated in software, using the original algorithm from InnoDB.Only the checksum generated by innodb.
    strict_crc32A checksum calculated using the crc32 algorithm, possibly done with a hardware assist.Only the checksum generated by crc32.

  • innodb_log_checksums

    Introduced5.7.9
    Command-Line Format--innodb_log_checksums=#
    System VariableNameinnodb_log_checksums
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Enables or disables checksums for redo log pages. innodb_log_checksums replaces innodb_log_checksum_algorithm.

    innodb_log_checksums=ON enables the CRC-32C checksum algorithm for redo log pages. When innodb_log_checksums is disabled, the contents of the redo log page checksum field are ignored.

    Checksums on the redo log header page and redo log checkpoint pages are never disabled.

  • innodb_log_compressed_pages

    Command-Line Format--innodb_log_compressed_pages=#
    System VariableNameinnodb_log_compressed_pages
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Specifies whether images of re-compressed pages are written to the redo log. Re-compression may occur when changes are made to compressed data.

    innodb_log_compressed_pages is enabled by default to prevent corruption that could occur if a different version of the zlib compression algorithm is used during recovery. If you are certain that the zlib version will not change, you can disable innodb_log_compressed_pages to reduce redo log generation for workloads that modify compressed data.

    To measure the effect of enabling or disabling innodb_log_compressed_pages, compare redo log generation for both settings under the same workload. Options for measuring redo log generation include observing the Log sequence number (LSN) in the LOG section of SHOW ENGINE INNODB STATUS output, or monitoring Innodb_os_log_written status for the number of bytes written to the redo log files.

    For related information, see Section 15.9.1.6, “Compression for OLTP Workloads”.

  • innodb_log_file_size

    Command-Line Format--innodb_log_file_size=#
    System VariableNameinnodb_log_file_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.10)Typeinteger
    Default50331648
    Min Value1048576
    Max Value512GB / innodb_log_files_in_group
    Permitted Values (>= 5.7.11)Typeinteger
    Default50331648
    Min Value4194304
    Max Value512GB / innodb_log_files_in_group

    The size in bytes of each log file in a log group. The combined size of log files (innodb_log_file_size * innodb_log_files_in_group) cannot exceed a maximum value that is slightly less than 512GB. A pair of 255 GB log files, for example, approaches the limit but does not exceed it. The default value is 48MB.

    Generally, the combined size of the log files should be large enough that the server can smooth out peaks and troughs in workload activity, which often means that there is enough redo log space to handle more than an hour of write activity. The larger the value, the less checkpoint flush activity is required in the buffer pool, saving disk I/O. Larger log files also make crash recovery slower, although improvements to recovery performance in MySQL 5.5 and higher make the log file size less of a consideration.

    The minimum innodb_log_file_size value was increased from 1MB to 4MB in MySQL 5.7.11.

    For related information, see InnoDB Log File Configuration. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_log_files_in_group

    Command-Line Format--innodb_log_files_in_group=#
    System VariableNameinnodb_log_files_in_group
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default2
    Min Value2
    Max Value100

    The number of log files in the log group. InnoDB writes to the files in a circular fashion. The default (and recommended) value is 2. The location of the files is specified by innodb_log_group_home_dir. The combined size of log files (innodb_log_file_size * innodb_log_files_in_group) can be up to 512GB.

    For related information, see InnoDB Log File Configuration.

  • innodb_log_group_home_dir

    Command-Line Format--innodb_log_group_home_dir=dir_name
    System VariableNameinnodb_log_group_home_dir
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypedirectory name

    The directory path to the InnoDB redo log files, whose number is specified by innodb_log_files_in_group. If you do not specify any InnoDB log variables, the default is to create two files named ib_logfile0 and ib_logfile1 in the MySQL data directory. Log file size is given by the innodb_log_file_size system variable.

    For related information, see InnoDB Log File Configuration.

  • innodb_log_write_ahead_size

    Introduced5.7.4
    Command-Line Format--innodb_log_write_ahead_size=#
    System VariableNameinnodb_log_write_ahead_size
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default8192
    Min Value512 (log file block size)
    Max ValueEqual to innodb_page_size

    The write-ahead block size for the redo log, in bytes. To avoid read-on-write, set innodb_log_write_ahead_size to match the operating system or file system cache block size. Read-on-write occurs when redo log blocks are not entirely cached to the operating system or file system due to a mismatch between write-ahead block size for redo logs and operating system or file system cache block size.

    Valid values for innodb_log_write_ahead_size are multiples of the InnoDB log file block size (2^n). The minimum value is the InnoDB log file block size (512). Write-ahead does not occur when the minimum value is specified. The maximum value is equal to innodb_page_size. If you specify a value for innodb_log_write_ahead_size that is larger than the innodb_page_size value, the innodb_log_write_ahead_size value is truncated to the innodb_page_size value.

    Setting the innodb_log_write_ahead_size value too low in relation to the operating system or file system cache block size results in read-on-write. Setting the value too high may have a slight impact on fsync performance for log file writes due to several blocks being written at once.

  • innodb_lru_scan_depth

    Command-Line Format--innodb_lru_scan_depth=#
    System VariableNameinnodb_lru_scan_depth
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (32-bit platforms)Typeinteger
    Default1024
    Min Value100
    Max Value2**32-1
    Permitted Values (64-bit platforms)Typeinteger
    Default1024
    Min Value100
    Max Value2**64-1

    A parameter that influences the algorithms and heuristics for the flush operation for the InnoDB buffer pool. Primarily of interest to performance experts tuning I/O-intensive workloads. It specifies, per buffer pool instance, how far down the buffer pool LRU list the page cleaner thread scans looking for dirty pages to flush. This is a background operation performed once per second.

    A setting smaller than the default is generally suitable for most workloads. A value that is much higher than necessary may impact performance. Only consider increasing the value if you have spare I/O capacity under a typical workload. Conversely, if a write-intensive workload saturates your I/O capacity, decrease the value, especially in the case of a large buffer pool.

    When tuning innodb_lru_scan_depth, start with a low value and configure the setting upward with the goal of rarely seeing zero free pages. Also, consider adjusting innodb_lru_scan_depth when changing the number of buffer pool instances, since innodb_lru_scan_depth * innodb_buffer_pool_instances defines the amount of work performed by the page cleaner thread each second.

    For related information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_max_dirty_pages_pct

    Command-Line Format--innodb_max_dirty_pages_pct=#
    System VariableNameinnodb_max_dirty_pages_pct
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.4)Typenumeric
    Default75
    Min Value0
    Max Value99
    Permitted Values (>= 5.7.5)Typenumeric
    Default75
    Min Value0
    Max Value99.99

    InnoDB tries to flush data from the buffer pool so that the percentage of dirty pages does not exceed this value. The default value is 75.

    The innodb_max_dirty_pages_pct setting establishes a target for flushing activity. It does not affect the rate of flushing. For information about managing the rate of flushing, see Section 15.6.3.6, “Configuring InnoDB Buffer Pool Flushing”.

    For related information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_max_dirty_pages_pct_lwm

    Command-Line Format--innodb_max_dirty_pages_pct_lwm=#
    System VariableNameinnodb_max_dirty_pages_pct_lwm
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (<= 5.7.4)Typenumeric
    Default0
    Min Value0
    Max Value99
    Permitted Values (>= 5.7.5)Typenumeric
    Default0
    Min Value0
    Max Value99.99

    Defines a low water mark representing the percentage of dirty pages at which preflushing is enabled to control the dirty page ratio. The default of 0 disables the pre-flushing behavior entirely. For more information, see Section 15.6.3.7, “Fine-tuning InnoDB Buffer Pool Flushing”.

  • innodb_max_purge_lag

    Command-Line Format--innodb_max_purge_lag=#
    System VariableNameinnodb_max_purge_lag
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Min Value0
    Max Value4294967295

    Controls how to delay INSERT, UPDATE, and DELETE operations when purge operations are lagging (see Section 15.3, “InnoDB Multi-Versioning”). The default value is 0 (no delays).

    The InnoDB transaction system maintains a list of transactions that have index records delete-marked by UPDATE or DELETE operations. The length of the list represents the purge_lag value. When purge_lag exceeds innodb_max_purge_lag, INSERT, UPDATE, and DELETE operations are delayed.

    To prevent excessive delays in extreme situations where purge_lag becomes huge, you can limit the delay by setting the innodb_max_purge_lag_delay configuration option. The delay is computed at the beginning of a purge batch.

    A typical setting for a problematic workload might be 1 million, assuming that transactions are small, only 100 bytes in size, and it is permissible to have 100MB of unpurged InnoDB table rows.

    The lag value is displayed as the history list length in the TRANSACTIONS section of InnoDB Monitor output . For example, if the output includes the following lines, the lag value is 20:

    ------------
    TRANSACTIONS
    ------------
    Trx id counter 0 290328385
    Purge done for trx's n:o < 0 290315608 undo n:o < 0 17
    History list length 20


    For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_max_purge_lag_delay

    Command-Line Format--innodb_max_purge_lag_delay=#
    System VariableNameinnodb_max_purge_lag_delay
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Min Value0

    Specifies the maximum delay in milliseconds for the delay imposed by the innodb_max_purge_lag configuration option. A non-zero value represents an upper limit on the delay period computed from the formula based on the value of innodb_max_purge_lag. The default of zero means that there is no upper limit imposed on the delay interval.

    For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_max_undo_log_size

    Introduced5.7.5
    Command-Line Format--innodb_max_undo_log_size=#
    System VariableNameinnodb_max_undo_log_size
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default1073741824
    Min Value10485760
    Max Value2**64-1

    Defines a threshold size for undo tablespaces. If an undo tablespace exceeds the threshold, it can be marked for truncation when innodb_undo_log_truncate is enabled. The default value is 1024 MiB (1073741824 bytes).

    For more information, see Section 15.7.8, “Truncating Undo Logs That Reside in Undo Tablespaces”.

  • innodb_merge_threshold_set_all_debug

    Introduced5.7.6
    Command-Line Format--innodb_merge_threshold_set_all_debug=#
    System VariableNameinnodb_merge_threshold_set_all_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default50
    Min Value1
    Max Value50

    Overrides the current MERGE_THRESHOLD setting with the specified value for all indexes that are currently in the dictionary cache. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option. For related information, see Section 15.6.13, “Configuring the Merge Threshold for Index Pages”.

  • innodb_monitor_disable

    Command-Line Format--innodb_monitor_disable=[counter|module|pattern|all]
    System VariableNameinnodb_monitor_disable
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypestring

    Disables InnoDB metrics counters. Counter data may be queried using the INFORMATION_SCHEMA.INNODB_METRICS table. For usage information, see Section 15.15.6, “InnoDB INFORMATION_SCHEMA Metrics Table”.

    innodb_monitor_disable='latch' disables statistics collection for SHOW ENGINE INNODB MUTEX. For more information, see Section 14.7.5.15, “SHOW ENGINE Syntax”.

  • innodb_monitor_enable

    Command-Line Format--innodb_monitor_enable=[counter|module|pattern|all]
    System VariableNameinnodb_monitor_enable
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypestring

    Enables InnoDB metrics counters. Counter data may be queried using the INFORMATION_SCHEMA.INNODB_METRICS table. For usage information, see Section 15.15.6, “InnoDB INFORMATION_SCHEMA Metrics Table”.

    innodb_monitor_enable='latch' enables statistics collection for SHOW ENGINE INNODB MUTEX. For more information, see Section 14.7.5.15, “SHOW ENGINE Syntax”.

  • innodb_monitor_reset

    Command-Line Format--innodb_monitor_reset=[counter|module|pattern|all]
    System VariableNameinnodb_monitor_reset
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypestring

    Resets the count value for InnoDB metrics counters to zero. Counter data may be queried using the INFORMATION_SCHEMA.INNODB_METRICS table. For usage information, see Section 15.15.6, “InnoDB INFORMATION_SCHEMA Metrics Table”.

    innodb_monitor_reset='latch' resets statistics reported by SHOW ENGINE INNODB MUTEX. For more information, see Section 14.7.5.15, “SHOW ENGINE Syntax”.

  • innodb_monitor_reset_all

    Command-Line Format--innodb_monitor_reset_all=[counter|module|pattern|all]
    System VariableNameinnodb_monitor_reset_all
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypestring

    Resets all values (minimum, maximum, and so on) for InnoDB metrics counters. Counter data may be queried using the INFORMATION_SCHEMA.INNODB_METRICS table. For usage information, see Section 15.15.6, “InnoDB INFORMATION_SCHEMA Metrics Table”.

  • innodb_numa_interleave

    Introduced5.7.9
    Command-Line Format--innodb_numa_interleave=#
    System VariableNameinnodb_numa_interleave
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Enables the NUMA interleave memory policy for allocation of the InnoDB buffer pool. When innodb_numa_interleave is enabled, the NUMA memory policy is set to MPOL_INTERLEAVE for the mysqld process. After the InnoDB buffer pool is allocated, the NUMA memory policy is set back to MPOL_DEFAULT. For the innodb_numa_interleave option to be available, MySQL must be compiled on a NUMA-enabled Linux system.

    As of MySQL 5.7.17, CMake sets the default WITH_NUMA value based on whether the current platform has NUMA support. For more information, see Section 2.9.4, “MySQL Source-Configuration Options”.

  • innodb_old_blocks_pct

    Command-Line Format--innodb_old_blocks_pct=#
    System VariableNameinnodb_old_blocks_pct
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default37
    Min Value5
    Max Value95

    Specifies the approximate percentage of the InnoDB buffer pool used for the old block sublist. The range of values is 5 to 95. The default value is 37 (that is, 3/8 of the pool). Often used in combination with innodb_old_blocks_time.

    For more information, see Section 15.6.3.4, “Making the Buffer Pool Scan Resistant”. For information about buffer pool management, the LRU algorithm, and eviction policies, see Section 15.6.3.1, “The InnoDB Buffer Pool”.

  • innodb_old_blocks_time

    Command-Line Format--innodb_old_blocks_time=#
    System VariableNameinnodb_old_blocks_time
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default1000
    Min Value0
    Max Value2**32-1

    Non-zero values protect against the buffer pool being filled by data that is referenced only for a brief period, such as during a full table scan. Increasing this value offers more protection against full table scans interfering with data cached in the buffer pool.

    Specifies how long in milliseconds a block inserted into the old sublist must stay there after its first access before it can be moved to the new sublist. If the value is 0, a block inserted into the old sublist moves immediately to the new sublist the first time it is accessed, no matter how soon after insertion the access occurs. If the value is greater than 0, blocks remain in the old sublist until an access occurs at least that many milliseconds after the first access. For example, a value of 1000 causes blocks to stay in the old sublist for 1 second after the first access before they become eligible to move to the new sublist.

    The default value is 1000.

    This configuration option is often used in combination with innodb_old_blocks_pct. For more information, see Section 15.6.3.4, “Making the Buffer Pool Scan Resistant”. For information about buffer pool management, the LRU algorithm, and eviction policies, see Section 15.6.3.1, “The InnoDB Buffer Pool”.

  • innodb_online_alter_log_max_size

    Command-Line Format--innodb_online_alter_log_max_size=#
    System VariableNameinnodb_online_alter_log_max_size
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default134217728
    Min Value65536
    Max Value2**64-1

    Specifies an upper limit on the size of the temporary log files used during online DDL operations for InnoDB tables. There is one such log file for each index being created or table being altered. This log file stores data inserted, updated, or deleted in the table during the DDL operation. The temporary log file is extended when needed by the value of innodb_sort_buffer_size, up to the maximum specified by innodb_online_alter_log_max_size. If a temporary log file exceeds the upper size limit, the ALTER TABLE operation fails and all uncommitted concurrent DML operations are rolled back. Thus, a large value for this option allows more DML to happen during an online DDL operation, but also extends the period of time at the end of the DDL operation when the table is locked to apply the data from the log.

  • innodb_open_files

    Command-Line Format--innodb_open_files=#
    System VariableNameinnodb_open_files
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default-1 (autosized)
    Min Value10
    Max Value4294967295

    This configuration option is only relevant if you use multiple InnoDB tablespaces. It specifies the maximum number of .ibd files that MySQL can keep open at one time. The minimum value is 10. The default value is 300 if innodb_file_per_table is not enabled, and the higher of 300 and table_open_cache otherwise.

    The file descriptors used for .ibd files are for InnoDB tables only. They are independent of those specified by the --open-files-limit server option, and do not affect the operation of the table cache. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_optimize_fulltext_only

    Command-Line Format--innodb_optimize_fulltext_only=#
    System VariableNameinnodb_optimize_fulltext_only
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Changes the way OPTIMIZE TABLE operates on InnoDB tables. Intended to be enabled temporarily, during maintenance operations for InnoDB tables with FULLTEXT indexes.

    By default, OPTIMIZE TABLE reorganizes data in the clustered index of the table. When this option is enabled, OPTIMIZE TABLE skips the reorganization of table data, and instead processes newly added, deleted, and updated token data for InnoDB FULLTEXT indexes. Fore more information, see Optimizing InnoDB Full-Text Indexes.

  • innodb_optimize_point_storage

    Introduced5.7.5
    Removed5.7.6
    Command-Line Format--innodb_optimize_point_storage=#
    System VariableNameinnodb_optimize_point_storage
    Variable ScopeSession
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Enable this variable before creating a column of type POINT to store the POINT data type internally as variable-length BLOB data.

  • innodb_page_cleaners

    Introduced5.7.4
    Command-Line Format--innodb_page_cleaners=#
    System VariableNameinnodb_page_cleaners
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.7)Typeinteger
    Default1
    Min Value1
    Max Value64
    Permitted Values (>= 5.7.8)Typeinteger
    Default4
    Min Value1
    Max Value64

    The number of page cleaner threads that flush dirty pages from buffer pool instances. Page cleaner threads perform flush list and LRU flushing. A single page cleaner thread was introduced in MySQL 5.6 to offload buffer pool flushing work from the InnoDB master thread. In MySQL 5.7, InnoDB provides support for multiple page cleaner threads. A value of 1 maintains the pre-MySQL 5.7 configuration in which there is a single page cleaner thread. When there are multiple page cleaner threads, buffer pool flushing tasks for each buffer pool instance are dispatched to idle page cleaner threads. The innodb_page_cleaners default value was changed from 1 to 4 in MySQL 5.7. If the number of page cleaner threads exceeds the number of buffer pool instances, innodb_page_cleaners is automatically set to the same value as innodb_buffer_pool_instances.

    If your workload is write-IO bound when flushing dirty pages from buffer pool instances to data files, and if your system hardware has available capacity, increasing the number of page cleaner threads may help improve write-IO throughput.

    Multi-threaded page cleaner support is extended to shutdown and recovery phases in MySQL 5.7.

    The setpriority() system call is used on Linux platforms where it is supported, and where the mysqld execution user is authorized, to give page_cleaner threads priority over other MySQL and InnoDB threads to help page flushing keep pace with the current workload. mysqld execution user authorization can be configured in /etc/security/limits.conf. For example, if mysqld is run under the mysql user, you can authorize the mysql user by adding lines similar to the following to /etc/security/limits.conf:

    mysql              hard    nice       -20
    mysql              soft    nice       -20

    Refer to your Linux operating system documentation for more information.

  • innodb_page_size

    Command-Line Format--innodb_page_size=#k
    System VariableNameinnodb_page_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.5)Typeenumeration
    Default16384
    Valid Values4k
    8k
    16k
    4096
    8192
    16384
    Permitted Values (>= 5.7.6)Typeenumeration
    Default16384
    Valid Values4k
    8k
    16k
    32k
    64k
    4096
    8192
    16384
    32768
    65536

    Specifies the page size for all InnoDB tablespaces in a MySQL instance. You can specify page size using the values 64k, 32k, 16k (the default), 8k, or 4k. Alternatively, you can specify page size in bytes (65536, 32768, 16384, 8192, 4096).

    innodb_page_size can only be configured prior to initializing the MySQL instance and cannot be changed afterward. If no value is specified, the instance is initialized using the default page size. See Section 15.6.1, “InnoDB Startup Configuration”.

    Support for 32k and 64k page sizes was added in MySQL 5.7. For both 32k and 64k page sizes, the maximum row length is approximately 16000 bytes. ROW_FORMAT=COMPRESSED is not supported when innodb_page_size is set to 32KB or 64KB. For innodb_page_size=32k, extent size is 2MB. For innodb_page_size=64k, extent size is 4MB. innodb_log_buffer_size should be set to at least 16M (the default) when using 32k or 64k page sizes.

    The default 16KB page size or larger is appropriate for a wide range of workloads, particularly for queries involving table scans and DML operations involving bulk updates. Smaller page sizes might be more efficient for OLTP workloads involving many small writes, where contention can be an issue when single pages contain many rows. Smaller pages might also be efficient with SSD storage devices, which typically use small block sizes. Keeping the InnoDB page size close to the storage device block size minimizes the amount of unchanged data that is rewritten to disk.

    The minimum file size for the first system tablespace data file (ibdata1) differs depending on the innodb_page_size value. See the innodb_data_file_path option description for more information.

    For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_print_all_deadlocks

    Command-Line Format--innodb_print_all_deadlocks=#
    System VariableNameinnodb_print_all_deadlocks
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    When this option is enabled, information about all deadlocks in InnoDB user transactions is recorded in the mysqld error log. Otherwise, you see information about only the last deadlock, using the SHOW ENGINE INNODB STATUS command. An occasional InnoDB deadlock is not necessarily an issue, because InnoDB detects the condition immediately and rolls back one of the transactions automatically. You might use this option to troubleshoot why deadlocks are occurring if an application does not have appropriate error-handling logic to detect the rollback and retry its operation. A large number of deadlocks might indicate the need to restructure transactions that issue DML or SELECT ... FOR UPDATE statements for multiple tables, so that each transaction accesses the tables in the same order, thus avoiding the deadlock condition.

    For related information, see Section 15.5.5, “Deadlocks in InnoDB”.

  • innodb_purge_batch_size

    Command-Line Format--innodb_purge_batch_size=#
    System VariableNameinnodb_purge_batch_size
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default300
    Min Value1
    Max Value5000

    Defines the number of undo log pages that purge parses and processes in one batch from the history list. In a multi-threaded purge configuration, the coordinator purge thread divides innodb_purge_batch_size by innodb_purge_threads and assigns that number of pages to each purge thread. The innodb_purge_batch_size option also defines the number of undo log pages that purge frees after every 128 iterations through the undo logs.

    The innodb_purge_batch_size option is intended for advanced performance tuning in combination with the innodb_purge_threads setting. Most MySQL users need not change innodb_purge_batch_size from its default value.

    For related information, see Section 15.6.11, “Configuring InnoDB Purge Scheduling”.

  • innodb_purge_threads

    Command-Line Format--innodb_purge_threads=#
    System VariableNameinnodb_purge_threads
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.7)Typeinteger
    Default1
    Min Value1
    Max Value32
    Permitted Values (>= 5.7.8)Typeinteger
    Default4
    Min Value1
    Max Value32

    The number of background threads devoted to the InnoDB purge operation. A minimum value of 1 signifies that the purge operation is always performed by a background thread, never as part of the master thread. Running the purge operation in one or more background threads helps reduce internal contention within InnoDB, improving scalability. Increasing the value to greater than 1 creates that many separate purge threads, which can improve efficiency on systems where DML operations are performed on multiple tables. The maximum is 32.

    For related information, see Section 15.6.11, “Configuring InnoDB Purge Scheduling”.

  • innodb_purge_rseg_truncate_frequency

    Introduced5.7.5
    Command-Line Format--innodb_purge_rseg_truncate_frequency=#
    System VariableNameinnodb_purge_rseg_truncate_frequency
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default128
    Min Value1
    Max Value128

    Defines the frequency with which the purge system frees rollback segments. An undo tablespace cannot be truncated until its rollback segments are freed. Normally, the purge system frees rollback segments once every 128 times that purge is invoked. Reducing the innodb_purge_rseg_truncate_frequency value increases the frequency with which the purge thread frees rollback segments. The default value is 128.

    innodb_purge_rseg_truncate_frequency is intended for use with innodb_undo_log_truncate. For more information, see Section 15.7.8, “Truncating Undo Logs That Reside in Undo Tablespaces”.

  • innodb_random_read_ahead

    Command-Line Format--innodb_random_read_ahead=#
    System VariableNameinnodb_random_read_ahead
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Enables the random read-ahead technique for optimizing InnoDB I/O.

    For details about performance considerations for different types of read-ahead requests, see Section 15.6.3.5, “Configuring InnoDB Buffer Pool Prefetching (Read-Ahead)”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_read_ahead_threshold

    Command-Line Format--innodb_read_ahead_threshold=#
    System VariableNameinnodb_read_ahead_threshold
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default56
    Min Value0
    Max Value64

    Controls the sensitivity of linear read-ahead that InnoDB uses to prefetch pages into the buffer pool. If InnoDB reads at least innodb_read_ahead_threshold pages sequentially from an extent (64 pages), it initiates an asynchronous read for the entire following extent. The permissible range of values is 0 to 64. A value of 0 disables read-ahead. For the default of 56, InnoDB must read at least 56 pages sequentially from an extent to initiate an asynchronous read for the following extent.

    Knowing how many pages are read through the read-ahead mechanism, and how many of these pages are evicted from the buffer pool without ever being accessed, can be useful when fine-tuning the innodb_read_ahead_threshold setting. SHOW ENGINE INNODB STATUS output displays counter information from the Innodb_buffer_pool_read_ahead and Innodb_buffer_pool_read_ahead_evicted global status variables, which report the number of pages brought into the buffer pool by read-ahead requests, and the number of such pages evicted from the buffer pool without ever being accessed, respectively. The status variables report global values since the last server restart.

    SHOW ENGINE INNODB STATUS also shows the rate at which the read-ahead pages are read in and the rate at which such pages are evicted without being accessed. The per-second averages are based on the statistics collected since the last invocation of SHOW ENGINE INNODB STATUS and are displayed in the BUFFER POOL AND MEMORY section of the SHOW ENGINE INNODB STATUS output.

    For more information, see Section 15.6.3.5, “Configuring InnoDB Buffer Pool Prefetching (Read-Ahead)”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

  • innodb_read_io_threads

    Command-Line Format--innodb_read_io_threads=#
    System VariableNameinnodb_read_io_threads
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default4
    Min Value1
    Max Value64

    The number of I/O threads for read operations in InnoDB. Its counterpart for write threads is innodb_write_io_threads. For more information, see Section 15.6.7, “Configuring the Number of Background InnoDB I/O Threads”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

    Note

    On Linux systems, running multiple MySQL servers (typically more than 12) with default settings for innodb_read_io_threads, innodb_write_io_threads, and the Linux aio-max-nr setting can exceed system limits. Ideally, increase the aio-max-nr setting; as a workaround, you might reduce the settings for one or both of the MySQL configuration options.

  • innodb_read_only

    Command-Line Format--innodb_read_only=#
    System VariableNameinnodb_read_only
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Starts InnoDB in read-only mode. For distributing database applications or data sets on read-only media. Can also be used in data warehouses to share the same data directory between multiple instances. For more information, see Section 15.6.2, “Configuring InnoDB for Read-Only Operation”.

  • innodb_replication_delay

    Command-Line Format--innodb_replication_delay=#
    System VariableNameinnodb_replication_delay
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Min Value0
    Max Value4294967295

    The replication thread delay (in ms) on a slave server if innodb_thread_concurrency is reached.

  • innodb_rollback_on_timeout

    Command-Line Format--innodb_rollback_on_timeout
    System VariableNameinnodb_rollback_on_timeout
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    InnoDB rolls back only the last statement on a transaction timeout by default. If --innodb_rollback_on_timeout is specified, a transaction timeout causes InnoDB to abort and roll back the entire transaction.

    Note

    If the start-transaction statement was START TRANSACTION or BEGIN statement, rollback does not cancel that statement. Further SQL statements become part of the transaction until the occurrence of COMMIT, ROLLBACK, or some SQL statement that causes an implicit commit.

    For more information, see Section 15.21.4, “InnoDB Error Handling”.

  • innodb_rollback_segments

    Command-Line Format--innodb_rollback_segments=#
    System VariableNameinnodb_rollback_segments
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default128
    Min Value1
    Max Value128

    Defines how many of the rollback segments in the system tablespace are used for InnoDB transactions. This setting, while still valid, is replaced by innodb_undo_logs.

  • innodb_saved_page_number_debug

    Command-Line Format--innodb_saved_page_number_debug=#
    System VariableNameinnodb_saved_page_number_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Max Value2**23-1

    Saves a page number. Setting the innodb_fil_make_page_dirty_debug option dirties the page defined by innodb_saved_page_number_debug. The innodb_saved_page_number_debug option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_sort_buffer_size

    Command-Line Format--innodb_sort_buffer_size=#
    System VariableNameinnodb_sort_buffer_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default1048576
    Min Value65536
    Max Value67108864

    Specifies the size of sort buffers used to sort data during creation of an InnoDB index. The specified size defines the amount of data that is read into memory for internal sorting and then written out to disk. This process is referred to as a run. During the merge phase, pairs of buffers of the specified size are read in and merged. The larger the setting, the fewer runs and merges there are.

    This sort area is only used for merge sorts during index creation, not during later index maintenance operations. Buffers are deallocated when index creation completes.

    The value of this option also controls the amount by which the temporary log file is extended to record concurrent DML during online DDL operations.

    Before this setting was made configurable, the size was hardcoded to 1048576 bytes (1MB), which remains the default.

    During an ALTER TABLE or CREATE TABLE statement that creates an index, 3 buffers are allocated, each with a size defined by this option. Additionally, auxiliary pointers are allocated to rows in the sort buffer so that the sort can run on pointers (as opposed to moving rows during the sort operation).

    For a typical sort operation, a formula such as this one can be used to estimate memory consumption:

    (6 /*FTS_NUM_AUX_INDEX*/ * (3*@@global.innodb_sort_buffer_size)
    + 2 * number_of_partitions * number_of_secondary_indexes_created
    * (@@global.innodb_sort_buffer_size/dict_index_get_min_size(index)*/)
    * 8 /*64-bit sizeof *buf->tuples*/")


    @@global.innodb_sort_buffer_size/dict_index_get_min_size(index) indicates the maximum tuples held. 2 * (@@global.innodb_sort_buffer_size/*dict_index_get_min_size(index)*/) * 8 /*64-bit size of *buf->tuples*/ indicates auxiliary pointers allocated.

    Note

    For 32-bit, multiply by 4 instead of 8.

    For parallel sorts on a full-text index, multiply by the innodb_ft_sort_pll_degree setting:

    (6 /*FTS_NUM_AUX_INDEX*/ * @@global.innodb_ft_sort_pll_degree)

  • innodb_spin_wait_delay

    Command-Line Format--innodb_spin_wait_delay=#
    System VariableNameinnodb_spin_wait_delay
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (32-bit platforms)Typeinteger
    Default6
    Min Value0
    Max Value2**32-1
    Permitted Values (64-bit platforms)Typeinteger
    Default6
    Min Value0
    Max Value2**64-1

    The maximum delay between polls for a spin lock. The low-level implementation of this mechanism varies depending on the combination of hardware and operating system, so the delay does not correspond to a fixed time interval. For more information, see Section 15.6.10, “Configuring Spin Lock Polling”.

  • innodb_stats_auto_recalc

    Command-Line Format--innodb_stats_auto_recalc=#
    System VariableNameinnodb_stats_auto_recalc
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON

    Causes InnoDB to automatically recalculate persistent statistics after the data in a table is changed substantially. The threshold value is 10% of the rows in the table. This setting applies to tables created when the innodb_stats_persistent option is enabled. Automatic statistics recalculation may also be configured by specifying STATS_PERSISTENT=1 in a CREATE TABLE or ALTER TABLE statement. The amount of data sampled to produce the statistics is controlled by the innodb_stats_persistent_sample_pages configuration option.

    For more information, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”.

  • innodb_stats_include_delete_marked

    Introduced5.7.17
    Command-Line Format--innodb_stats_include_delete_marked=#
    System VariableNameinnodb_stats_include_delete_marked
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    By default, InnoDB reads uncommitted data when calculating statistics. In the case of an uncommitted transaction that deletes rows from a table, InnoDB excludes records that are delete-marked when calculating row estimates and index statistics, which can lead to non-optimal execution plans for other transactions that are operating on the table concurrently using a transaction isolation level other than READ UNCOMMITTED. To avoid this scenario, innodb_stats_include_delete_marked can be enabled to ensure that InnoDB includes delete-marked records when calculating persistent optimizer statistics.

    When innodb_stats_include_delete_marked is enabled, ANALYZE TABLE considers delete-marked records when recalculating statistics.

    innodb_stats_include_delete_marked is a global setting that affects all InnoDB tables. It is only applicable to persistent optimizer statistics.

    For related information, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”.

  • innodb_stats_method

    Command-Line Format--innodb_stats_method=name
    System VariableNameinnodb_stats_method
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeenumeration
    Defaultnulls_equal
    Valid Valuesnulls_equal
    nulls_unequal
    nulls_ignored

    How the server treats NULL values when collecting statistics about the distribution of index values for InnoDB tables. Permitted values are nulls_equal, nulls_unequal, and nulls_ignored. For nulls_equal, all NULL index values are considered equal and form a single value group with a size equal to the number of NULL values. For nulls_unequal, NULL values are considered unequal, and each NULL forms a distinct value group of size 1. For nulls_ignored, NULL values are ignored.

    The method used to generate table statistics influences how the optimizer chooses indexes for query execution, as described in Section 9.3.7, “InnoDB and MyISAM Index Statistics Collection”.

  • innodb_stats_on_metadata

    Command-Line Format--innodb_stats_on_metadata
    System VariableNameinnodb_stats_on_metadata
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    This option only applies when optimizer statistics are configured to be non-persistent. Optimizer statistics are not persisted to disk when innodb_stats_persistent is disabled or when individual tables are created or altered with STATS_PERSISTENT=0. For more information, see Section 15.6.12.2, “Configuring Non-Persistent Optimizer Statistics Parameters”.

    When innodb_stats_on_metadata is enabled, InnoDB updates non-persistent statistics when metadata statements such as SHOW TABLE STATUS or when accessing the INFORMATION_SCHEMA.TABLES or INFORMATION_SCHEMA.STATISTICS tables. (These updates are similar to what happens for ANALYZE TABLE.) When disabled, InnoDB does not update statistics during these operations. Leaving the setting disabled can improve access speed for schemas that have a large number of tables or indexes. It can also improve the stability of execution plans for queries that involve InnoDB tables.

    To change the setting, issue the statement SET GLOBAL innodb_stats_on_metadata=mode, where mode is either ON or OFF (or 1 or 0). Changing the setting requires the SUPER privilege and immediately affects the operation of all connections.

  • innodb_stats_persistent

    Command-Line Format--innodb_stats_persistent=setting
    System VariableNameinnodb_stats_persistent
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultON
    Valid ValuesOFF
    ON
    0
    1

    Specifies whether InnoDB index statistics are persisted to disk. Otherwise, statistics may be recalculated frequently which can lead to variations in query execution plans. This setting is stored with each table when the table is created. You can set innodb_stats_persistent at the global level before creating a table, or use the STATS_PERSISTENT clause of the CREATE TABLE and ALTER TABLE statements to override the system-wide setting and configure persistent statistics for individual tables.

    For more information, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”.

  • innodb_stats_persistent_sample_pages

    Command-Line Format--innodb_stats_persistent_sample_pages=#
    System VariableNameinnodb_stats_persistent_sample_pages
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default20

    The number of index pages to sample when estimating cardinality and other statistics for an indexed column, such as those calculated by ANALYZE TABLE. Increasing the value improves the accuracy of index statistics, which can improve the query execution plan, at the expense of increased I/O during the execution of ANALYZE TABLE for an InnoDB table. For more information, see Section 15.6.12.1, “Configuring Persistent Optimizer Statistics Parameters”.

    Note

    Setting a high value for innodb_stats_persistent_sample_pages could result in lengthy ANALYZE TABLE execution time. To estimate the number of database pages accessed by ANALYZE TABLE, see Section 15.6.12.3, “Estimating ANALYZE TABLE Complexity for InnoDB Tables”.

    innodb_stats_persistent_sample_pages only applies when innodb_stats_persistent is enabled for a table; when innodb_stats_persistent is disabled, innodb_stats_transient_sample_pages applies instead.

  • innodb_stats_sample_pages

    Deprecated5.6.3
    Command-Line Format--innodb_stats_sample_pages=#
    System VariableNameinnodb_stats_sample_pages
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default8
    Min Value1
    Max Value2**64-1

    Deprecated. Use innodb_stats_transient_sample_pages instead.

  • innodb_stats_transient_sample_pages

    Command-Line Format--innodb_stats_transient_sample_pages=#
    System VariableNameinnodb_stats_transient_sample_pages
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default8

    The number of index pages to sample when estimating cardinality and other statistics for an indexed column, such as those calculated by ANALYZE TABLE. The default value is 8. Increasing the value improves the accuracy of index statistics, which can improve the query execution plan, at the expense of increased I/O when opening an InnoDB table or recalculating statistics. For more information, see Section 15.6.12.2, “Configuring Non-Persistent Optimizer Statistics Parameters”.

    Note

    Setting a high value for innodb_stats_transient_sample_pages could result in lengthy ANALYZE TABLE execution time. To estimate the number of database pages accessed by ANALYZE TABLE, see Section 15.6.12.3, “Estimating ANALYZE TABLE Complexity for InnoDB Tables”.

    innodb_stats_transient_sample_pages only applies when innodb_stats_persistent is disabled for a table; when innodb_stats_persistent is enabled, innodb_stats_persistent_sample_pages applies instead. Takes the place of innodb_stats_sample_pages. For more information, see Section 15.6.12.2, “Configuring Non-Persistent Optimizer Statistics Parameters”.

  • innodb_status_output

    Introduced5.7.4
    Command-Line Format--innodb_status_output
    System VariableNameinnodb_status_output
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Enables or disables periodic output for the standard InnoDB Monitor. Also used in combination with innodb_status_output_locks to enable or disable periodic output for the InnoDB Lock Monitor. For more information, see Section 15.17.2, “Enabling InnoDB Monitors”.

  • innodb_status_output_locks

    Introduced5.7.4
    Command-Line Format--innodb_status_output_locks
    System VariableNameinnodb_status_output_locks
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Enables or disables the InnoDB Lock Monitor. When enabled, the InnoDB Lock Monitor prints additional information about locks in SHOW ENGINE INNODB STATUS output and in periodic output printed to the MySQL error log. Periodic output for the InnoDB Lock Monitor is printed as part of the standard InnoDB Monitor output. The standard InnoDB Monitor must therefore be enabled for the InnoDB Lock Monitor to print data to the MySQL error log periodically. For more information, see Section 15.17.2, “Enabling InnoDB Monitors”.

  • innodb_strict_mode

    Command-Line Format--innodb_strict_mode=#
    System VariableNameinnodb_strict_mode
    Variable ScopeGlobal, Session
    Dynamic VariableYes
    Permitted Values (<= 5.7.6)Typeboolean
    DefaultOFF
    Permitted Values (>= 5.7.7)Typeboolean
    DefaultON

    When innodb_strict_mode is enabled, InnoDB returns errors rather than warnings for certain conditions.

    Strict mode helps guard against ignored typos and syntax errors in SQL, or other unintended consequences of various combinations of operational modes and SQL statements. When innodb_strict_mode is enabled, InnoDB raises error conditions in certain cases, rather than issuing a warning and processing the specified statement (perhaps with unintended behavior). This is analogous to sql_mode in MySQL, which controls what SQL syntax MySQL accepts, and determines whether it silently ignores errors, or validates input syntax and data values.

    The innodb_strict_mode setting affects the handling of syntax errors for CREATE TABLE, ALTER TABLE, CREATE INDEX, and OPTIMIZE TABLE statements. innodb_strict_mode also enables a record size check, so that an INSERT or UPDATE never fails due to the record being too large for the selected page size.

    Oracle recommends enabling innodb_strict_mode when using ROW_FORMAT and KEY_BLOCK_SIZE clauses in CREATE TABLE, ALTER TABLE, and CREATE INDEX statements. When innodb_strict_mode is disabled, InnoDB ignores conflicting clauses and creates the table or index with only a warning in the message log. The resulting table might have different characteristics than intended, such as lack of compression support when attempting to create a compressed table. When innodb_strict_mode is enabled, such problems generate an immediate error and the table or index is not created.

    You can enable or disable innodb_strict_mode on the command line when starting mysqld, or in a MySQL configuration file. You can also enable or disable innodb_strict_mode at runtime with the statement SET [GLOBAL|SESSION] innodb_strict_mode=mode, where mode is either ON or OFF. Changing the GLOBAL setting requires the SUPER privilege and affects the operation of all clients that subsequently connect. Any client can change the SESSION setting for innodb_strict_mode, and the setting affects only that client.

    innodb_strict_mode is not applicable to general tablespaces. Tablespace management rules for general tablespaces are strictly enforced independently of innodb_strict_mode. For more information, see Section 14.1.19, “CREATE TABLESPACE Syntax”.

  • innodb_support_xa

    Deprecated5.7.10
    Command-Line Format--innodb_support_xa
    System VariableNameinnodb_support_xa
    Variable ScopeGlobal, Session
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultTRUE

    Enables InnoDB support for two-phase commit in XA transactions, causing an extra disk flush for transaction preparation. The XA mechanism is used internally and is essential for any server that has its binary log turned on and is accepting changes to its data from more than one thread. If you disable innodb_support_xa, transactions can be written to the binary log in a different order than the live database is committing them, which can produce different data when the binary log is replayed in disaster recovery or on a replication slave. Do not disable innodb_support_xa on a replication master server unless you have an unusual setup where only one thread is able to change data.

    innodb_support_xa is deprecated and will be removed in a future MySQL release. InnoDB support for two-phase commit in XA transactions is always enabled as of MySQL 5.7.10. Disabling innodb_support_xa is no longer permitted as it makes replication unsafe and prevents performance gains associated with binary log group commit.

  • innodb_sync_array_size

    Command-Line Format--innodb_sync_array_size=#
    System VariableNameinnodb_sync_array_size
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default1
    Min Value1
    Max Value1024

    Splits an internal data structure used to coordinate threads, for higher concurrency in workloads with large numbers of waiting threads. This setting must be configured when the MySQL instance is starting up, and cannot be changed afterward. Increasing the value is recommended for workloads that frequently produce a large number of waiting threads, typically greater than 768.

  • innodb_sync_spin_loops

    Command-Line Format--innodb_sync_spin_loops=#
    System VariableNameinnodb_sync_spin_loops
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default30
    Min Value0
    Max Value4294967295

    The number of times a thread waits for an InnoDB mutex to be freed before the thread is suspended.

  • innodb_sync_debug

    Introduced5.7.8
    Command-Line Format--innodb_sync_debug=#
    System VariableNameinnodb_sync_debug
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultOFF

    Enables sync debug checking for the InnoDB storage engine. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

    Previously, enabling InnoDB sync debug checking required that the Debug Sync facility be enabled using the ENABLE_DEBUG_SYNC CMake option. This requirement was removed in MySQL 5.7 with the introduction of this configuration option.

  • innodb_table_locks

    Command-Line Format--innodb_table_locks
    System VariableNameinnodb_table_locks
    Variable ScopeGlobal, Session
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultTRUE

    If autocommit = 0, InnoDB honors LOCK TABLES; MySQL does not return from LOCK TABLES ... WRITE until all other threads have released all their locks to the table. The default value of innodb_table_locks is 1, which means that LOCK TABLES causes InnoDB to lock a table internally if autocommit = 0.

    In MySQL 5.7, innodb_table_locks = 0 has no effect for tables locked explicitly with LOCK TABLES ... WRITE. It does have an effect for tables locked for read or write by LOCK TABLES ... WRITE implicitly (for example, through triggers) or by LOCK TABLES ... READ.

    For related information, see Section 15.5, “InnoDB Locking and Transaction Model”.

  • innodb_temp_data_file_path

    Introduced5.7.1
    Command-Line Format--innodb_temp_data_file_path=file
    System VariableNameinnodb_temp_data_file_path
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypestring
    Defaultibtmp1:12M:autoextend

    Specifies the path, file name, and file size for InnoDB temporary tablespace data files. The full directory path for a file is formed by concatenating innodb_data_home_dir to the path specified by innodb_temp_data_file_path. File size is specified in KB, MB, or GB (1024MB) by appending K, M, or G to the size value. The sum of the sizes of the files must be slightly larger than 12MB. If you do not specify a value for innodb_temp_data_file_path, the default behavior is to create a single auto-extending temporary tablespace data file, slightly larger than 12MB, named ibtmp1. The size limit of individual files is determined by your operating system. You can set the file size to more than 4GB on operating systems that support big files. Use of raw disk partitions for temporary tablespace data files is not supported.

    A temporary tablespace data file name cannot be the same as an InnoDB data file name. Any inability or error creating a temporary tablespace data file is treated as fatal and server startup is refused. The temporary tablespace has a dynamically generated space ID, which can change on each server restart.

    The InnoDB temporary tablespace is shared by all non-compressed InnoDB temporary tables. Compressed InnoDB temporary tables reside in file-per-table tablespace files, located in the temporary file directory defined by tmpdir.

    Metadata about active InnoDB temporary tables is located in INFORMATION_SCHEMA.INNODB_TEMP_TABLE_INFO.

    For related information, see Section 15.4.12, “Temporary Tablespace”.

  • innodb_tmpdir

    Introduced5.7.11
    Command-Line Format--innodb_tmpdir=path
    System VariableNameinnodb_tmpdir
    Variable ScopeGlobal, Session
    Dynamic VariableYes
    Permitted ValuesTypedirectory name
    DefaultNULL

    Used to define an alternate directory for temporary sort files created during online ALTER TABLE operations that rebuild the table.

    Online ALTER TABLE operations that rebuild the table also create an intermediate table file in the same directory as the original table. The innodb_tmpdir option is not applicable to intermediate table files.

    A valid value is any directory path other than the MySQL data directory path. If the value is NULL (the default), temporary files are created MySQL temporary directory ($TMPDIR on Unix, %TEMP% on Windows, or the directory specified by the --tmpdir configuration option). If a directory is specified, existence of the directory and permissions are only checked when innodb_tmpdir is configured using a SET statement. If a symlink is provided in a directory string, the symlink is resolved and stored as an absolute path. The path should not exceed 512 bytes. An online ALTER TABLE operation reports an error if innodb_tmpdir is set to an invalid directory. innodb_tmpdir overrides the MySQL tmpdir setting but only for online ALTER TABLE operations.

    The FILE privilege is required to configure innodb_tmpdir.

    The innodb_tmpdir option was introduced to help avoid overflowing a temporary file directory located on a tmpfs file system. Such overflows could occur as a result of large temporary sort files created during online ALTER TABLE operations that rebuild the table.

    In replication environments, only consider replicating the innodb_tmpdir setting if all servers have the same operating system environment. Otherwise, replicating the innodb_tmpdir setting could result in a replication failure when running online ALTER TABLE operations that rebuild the table. If server operating environments differ, it is recommended that you configure innodb_tmpdir on each server individually.

    For more information, see Where InnoDB Stores Temporary Files. For information about online ALTER TABLE operations, see Section 15.13, “InnoDB and Online DDL”.

  • innodb_thread_concurrency

    Command-Line Format--innodb_thread_concurrency=#
    System VariableNameinnodb_thread_concurrency
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Min Value0
    Max Value1000

    InnoDB tries to keep the number of operating system threads concurrently inside InnoDB less than or equal to the limit given by this variable (InnoDB uses operating system threads to process user transactions). Once the number of threads reaches this limit, additional threads are placed into a wait state within a First In, First Out (FIFO) queue for execution. Threads waiting for locks are not counted in the number of concurrently executing threads.

    The range of this variable is 0 to 1000. A value of 0 (the default) is interpreted as infinite concurrency (no concurrency checking). Disabling thread concurrency checking enables InnoDB to create as many threads as it needs. A value of 0 also disables the queries inside InnoDB and queries in queue counters in the ROW OPERATIONS section of SHOW ENGINE INNODB STATUS output.

    Consider setting this variable if your MySQL instance shares CPU resources with other applications, or if your workload or number of concurrent users is growing. The correct setting depends on workload, computing environment, and the version of MySQL that you are running. You will need to test a range of values to determine the setting that provides the best performance. innodb_thread_concurrency is a dynamic variable, which allows you to experiment with different settings on a live test system. If a particular setting performs poorly, you can quickly set innodb_thread_concurrency back to 0.

    Use the following guidelines to help find and maintain an appropriate setting:

    • If the number of concurrent user threads for a workload is less than 64, set innodb_thread_concurrency=0.

    • If your workload is consistently heavy or occasionally spikes, start by setting innodb_thread_concurrency=128 and then lowering the value to 96, 80, 64, and so on, until you find the number of threads that provides the best performance. For example, suppose your system typically has 40 to 50 users, but periodically the number increases to 60, 70, or even 200. You find that performance is stable at 80 concurrent users but starts to show a regression above this number. In this case, you would set innodb_thread_concurrency=80 to avoid impacting performance.

    • If you do not want InnoDB to use more than a certain number of vCPUs for user threads (20 vCPUs, for example), set innodb_thread_concurrency to this number (or possibly lower, depending on performance results). If your goal is to isolate MySQL from other applications, you may consider binding the mysqld process exclusively to the vCPUs. Be aware, however, that exclusive binding could result in non-optimal hardware usage if the mysqld process is not consistently busy. In this case, you might bind the mysqld process to the vCPUs but also allow other applications to use some or all of the vCPUs.

      Note

      From an operating system perspective, using a resource management solution to manage how CPU time is shared among applications may be preferable to binding the mysqld process. For example, you could assign 90% of vCPU time to a given application while other critical process are not running, and scale that value back to 40% when other critical processes are running.

    • innodb_thread_concurrency values that are too high can cause performance regression due to increased contention on system internals and resources.

    • In some cases, the optimal innodb_thread_concurrency setting can be smaller than the number of vCPUs.

    • Monitor and analyze your system regularly. Changes to workload, number of users, or computing environment may require that you adjust the innodb_thread_concurrency setting.

    For related information, see Section 15.6.6, “Configuring Thread Concurrency for InnoDB”.

  • innodb_trx_purge_view_update_only_debug

    Command-Line Format--innodb_trx_purge_view_update_only_debug=#
    System VariableNameinnodb_trx_purge_view_update_only_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    Pauses purging of delete-marked records while allowing the purge view to be updated. This option artificially creates a situation in which the purge view is updated but purges have not yet been performed. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_trx_rseg_n_slots_debug

    Command-Line Format--innodb_trx_rseg_n_slots_debug=#
    System VariableNameinnodb_trx_rseg_n_slots_debug
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default0
    Max Value1024

    Sets a debug flag that limits TRX_RSEG_N_SLOTS to a given value for the trx_rsegf_undo_find_free function that looks for free slots for undo log segments. This option is only available if debugging support is compiled in using the WITH_DEBUG CMake option.

  • innodb_thread_sleep_delay

    Command-Line Format--innodb_thread_sleep_delay=#
    System VariableNameinnodb_thread_sleep_delay
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted Values (>= 5.7.4)Typeinteger
    Default10000
    Min Value0
    Max Value1000000
    Permitted Values (32-bit platforms, <= 5.7.3)Typeinteger
    Default10000
    Min Value0
    Max Value4294967295
    Permitted Values (64-bit platforms, <= 5.7.3)Typeinteger
    Default10000
    Min Value0
    Max Value18446744073709551615

    Defines how long InnoDB threads sleep before joining the InnoDB queue, in microseconds. The default value is 10000. A value of 0 disables sleep. You can set the configuration option innodb_adaptive_max_sleep_delay to the highest value you would allow for innodb_thread_sleep_delay, and InnoDB automatically adjusts innodb_thread_sleep_delay up or down depending on current thread-scheduling activity. This dynamic adjustment helps the thread scheduling mechanism to work smoothly during times when the system is lightly loaded or when it is operating near full capacity.

    For more information, see Section 15.6.6, “Configuring Thread Concurrency for InnoDB”.

  • innodb_undo_directory

    Command-Line Format--innodb_undo_directory=dir_name
    System VariableNameinnodb_undo_directory
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.7)Typedirectory name
    Default.
    Permitted Values (>= 5.7.8)Typedirectory name

    The path where InnoDB creates separate tablespaces for the undo logs. Typically used to place undo logs on a different storage device. Used in conjunction with innodb_undo_logs and innodb_undo_tablespaces, which determine the disk layout of the undo logs outside the system tablespace.

    There is no default value (it is NULL). If a path is not specified, undo tablespaces are created in the MySQL data directory, as defined by datadir.

    For more information, see Section 15.7.7, “Storing InnoDB Undo Logs in Separate Tablespaces”.

  • innodb_undo_log_truncate

    Introduced5.7.5
    Command-Line Format--innodb_undo_log_truncate=#
    System VariableNameinnodb_undo_log_truncate
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeboolean
    DefaultOFF

    When enabled, undo tablespaces that exceed the threshold value defined by innodb_max_undo_log_size are marked for truncation. Only undo logs that reside in undo tablespaces can be truncated. Truncating undo logs that reside in the system tablespace is not supported. For truncation to occur, there must be at least two undo tablespaces and two redo-enabled undo logs configured to use undo tablespaces. This means that innodb_undo_tablespaces must be set to a value equal to or greater than 2, and innodb_undo_logs must set to a value equal to or greater than 35.

    The innodb_purge_rseg_truncate_frequency configuration option can be used to expedite truncation of undo tablepaces.

    For more information, see Section 15.7.8, “Truncating Undo Logs That Reside in Undo Tablespaces”.

  • innodb_undo_logs

    Command-Line Format--innodb_undo_logs=#
    System VariableNameinnodb_undo_logs
    Variable ScopeGlobal
    Dynamic VariableYes
    Permitted ValuesTypeinteger
    Default128
    Min Value0
    Max Value128

    Defines the number of rollback segments used by InnoDB. The innodb_undo_logs option replaces innodb_rollback_segments.

    One rollback segment is always assigned to the system tablespace, and 32 rollback segments are reserved for use by temporary tables and are hosted in the temporary tablespace (ibtmp1). To allocate additional rollback segments for data-modifying transactions that generate undo records, innodb_undo_logs must be set to a value greater than 33. If you configure separate undo tablespaces, the rollback segment in the system tablespace is rendered inactive. Each rollback segment can support a maximum of 1024 data-modifying transactions.

    When innodb_undo_logs is set to 32 or less, InnoDB assigns one rollback segment to the system tablespace and 32 to the temporary tablespace (ibtmp1).

    When innodb_undo_logs is set to a value greater than 32, InnoDB assigns one rollback segment to the system tablespace, 32 to the temporary tablespace (ibtmp1), and additional rollback segments to undo tablespaces, if present. If undo tabespaces are not present, additional rollback segments are assigned to the system tablespace.

    Although you can increase or decrease the number of rollback segments used by InnoDB, the number of rollback segments physically present in the system never decreases. Thus, you might start with a low value for this parameter and gradually increase it, to avoid allocating rollback segments that are not required. If innodb_undo_logs is not set, it defaults to the maximum value of 128. For the total number of available rollback segments, rather than the number of active ones, see the Innodb_available_undo_logs status variable.

    For information about rollback segments, see Section 15.3, “InnoDB Multi-Versioning”. For information about configuring separate undo tablespaces, see Section 15.7.7, “Storing InnoDB Undo Logs in Separate Tablespaces”.

  • innodb_undo_tablespaces

    Command-Line Format--innodb_undo_tablespaces=#
    System VariableNameinnodb_undo_tablespaces
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted Values (<= 5.7.7)Typeinteger
    Default0
    Min Value0
    Max Value126
    Permitted Values (>= 5.7.8)Typeinteger
    Default0
    Min Value0
    Max Value95

    The number of tablespace files that rollback segments are divided between. By default, rollback segments are assigned to the system tablespace, and the system tablespace is always assigned at least one rollback segment.

    Because undo logs can become large during long-running transactions, having undo logs in multiple tablespaces reduces the maximum size of any one tablespace. The undo tablespace files are created in the location defined by innodb_undo_directory, with names in the form of undoN, where N is a sequential series of integers (including leading zeros). The default size of an undo tablespace file is 10M.

    Important

    innodb_undo_tablespaces can only be configured prior to initializing the MySQL instance and cannot be changed afterward. If no value is specified, the instance is initialized using the default setting (0). Attempting to restart InnoDB with a greater number of undo tablespaces than specified when the MySQL instance was initialized results in a startup failure and an error stating that InnoDB did not find the expected number of undo tablespaces.

    32 of 128 rollback segments are reserved for temporary tables, as described in Section 15.4.12.1, “InnoDB Temporary Table Undo Logs”. One rollback segment is always assigned to the system tablespace, which leaves 95 rollback segments available for undo tablepaces. This means the innodb_undo_tablespaces maximum limit is 95.

    For more information, see Section 15.7.7, “Storing InnoDB Undo Logs in Separate Tablespaces”.

  • innodb_use_native_aio

    Command-Line Format--innodb_use_native_aio=#
    System VariableNameinnodb_use_native_aio
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultON

    Specifies whether to use the Linux asynchronous I/O subsystem. This variable applies to Linux systems only, and cannot be changed while the server is running. Normally, you do not need to configure this option, because it is enabled by default.

    The asynchronous I/O capability that InnoDB has on Windows systems is available on Linux systems. (Other Unix-like systems continue to use synchronous I/O calls.) This feature improves the scalability of heavily I/O-bound systems, which typically show many pending reads/writes in SHOW ENGINE INNODB STATUS\G output.

    Running with a large number of InnoDB I/O threads, and especially running multiple such instances on the same server machine, can exceed capacity limits on Linux systems. In this case, you may receive the following error:

    EAGAIN: The specified maxevents exceeds the user's limit of available events.


    You can typically address this error by writing a higher limit to /proc/sys/fs/aio-max-nr.

    However, if a problem with the asynchronous I/O subsystem in the OS prevents InnoDB from starting, you can start the server with innodb_use_native_aio=0. This option may also be disabled automatically during startup if InnoDB detects a potential problem such as a combination of tmpdir location, tmpfs file system, and Linux kernel that does not support AIO on tmpfs.

    For more information, see Section 15.6.8, “Using Asynchronous I/O on Linux”.

  • innodb_use_sys_malloc

    Deprecated5.6.3
    Removed5.7.4
    Command-Line Format--innodb_use_sys_malloc=#
    System VariableNameinnodb_use_sys_malloc
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeboolean
    DefaultON

    Enables the operating system memory allocator. If disabled, InnoDB uses its own allocator. The default value is ON. For more information, see Section 15.6.4, “Configuring the Memory Allocator for InnoDB”.

    innodb_use_sys_malloc is removed in MySQL 5.7.

  • innodb_version

    The InnoDB version number. In MySQL 5.7, separate version numbering for InnoDB does not apply and this value is the same the version number of the server.

  • innodb_write_io_threads

    Command-Line Format--innodb_write_io_threads=#
    System VariableNameinnodb_write_io_threads
    Variable ScopeGlobal
    Dynamic VariableNo
    Permitted ValuesTypeinteger
    Default4
    Min Value1
    Max Value64

    The number of I/O threads for write operations in InnoDB. The default value is 4. Its counterpart for read threads is innodb_read_io_threads. For more information, see Section 15.6.7, “Configuring the Number of Background InnoDB I/O Threads”. For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

    Note

    On Linux systems, running multiple MySQL servers (typically more than 12) with default settings for innodb_read_io_threads, innodb_write_io_threads, and the Linux aio-max-nr setting can exceed system limits. Ideally, increase the aio-max-nr setting; as a workaround, you might reduce the settings for one or both of the MySQL configuration options.

    Also take into consideration the value of sync_binlog, which controls synchronization of the binary log to disk.

    For general I/O tuning advice, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

15.15 InnoDB INFORMATION_SCHEMA Tables

This section provides information and usage examples for InnoDB INFORMATION_SCHEMA tables.

InnoDB INFORMATION_SCHEMA tables provide metadata, status information, and statistics about various aspects of the InnoDB storage engine. You can view a list of InnoDB INFORMATION_SCHEMA tables by issuing a SHOW TABLES statement on the INFORMATION_SCHEMA database:

mysql> SHOW TABLES FROM INFORMATION_SCHEMA LIKE 'INNODB%';

For table definitions, see Section 24.31, “InnoDB INFORMATION_SCHEMA Tables”. For general information regarding the MySQL INFORMATION_SCHEMA database, see Chapter 24, INFORMATION_SCHEMA Tables.

15.15.1 InnoDB INFORMATION_SCHEMA Tables about Compression

There are two pairs of InnoDB INFORMATION_SCHEMA tables about compression that can provide insight into how well compression is working overall:

15.15.1.1 INNODB_CMP and INNODB_CMP_RESET

The INNODB_CMP and INNODB_CMP_RESET tables contain status information about operations related to compressed tables, which are described in Section 15.9, “InnoDB Table and Page Compression”. The PAGE_SIZE column reports the compressed page size.

These two tables have identical contents, but reading from INNODB_CMP_RESET resets the statistics on compression and uncompression operations. For example, if you archive the output of INNODB_CMP_RESET every 60 minutes, you see the statistics for each hourly period. If you monitor the output of INNODB_CMP (making sure never to read INNODB_CMP_RESET), you see the cumulated statistics since InnoDB was started.

For the table definition, see Section 24.31.4, “The INFORMATION_SCHEMA INNODB_CMP and INNODB_CMP_RESET Tables”.

15.15.1.2 INNODB_CMPMEM and INNODB_CMPMEM_RESET

The INNODB_CMPMEM and INNODB_CMPMEM_RESET tables contain status information about compressed pages that reside in the buffer pool. Please consult Section 15.9, “InnoDB Table and Page Compression” for further information on compressed tables and the use of the buffer pool. The INNODB_CMP and INNODB_CMP_RESET tables should provide more useful statistics on compression.

Internal Details

InnoDB uses a buddy allocator system to manage memory allocated to pages of various sizes, from 1KB to 16KB. Each row of the two tables described here corresponds to a single page size.

The INNODB_CMPMEM and INNODB_CMPMEM_RESET tables have identical contents, but reading from INNODB_CMPMEM_RESET resets the statistics on relocation operations. For example, if every 60 minutes you archived the output of INNODB_CMPMEM_RESET, it would show the hourly statistics. If you never read INNODB_CMPMEM_RESET and monitored the output of INNODB_CMPMEM instead, it would show the cumulated statistics since InnoDB was started.

For the table definition, see Section 24.31.5, “The INFORMATION_SCHEMA INNODB_CMPMEM and INNODB_CMPMEM_RESET Tables”.

15.15.1.3 Using the Compression Information Schema Tables

Example 15.10 Using the Compression Information Schema Tables

The following is sample output from a database that contains compressed tables (see Section 15.9, “InnoDB Table and Page Compression”, INNODB_CMP, INNODB_CMP_PER_INDEX, and INNODB_CMPMEM).

The following table shows the contents of INFORMATION_SCHEMA.INNODB_CMP under a light workload. The only compressed page size that the buffer pool contains is 8K. Compressing or uncompressing pages has consumed less than a second since the time the statistics were reset, because the columns COMPRESS_TIME and UNCOMPRESS_TIME are zero.

page sizecompress opscompress ops okcompress timeuncompress opsuncompress time
102400000
204800000
409600000
819210489210610
1638400000

According to INNODB_CMPMEM, there are 6169 compressed 8KB pages in the buffer pool. The only other allocated block size is 64 bytes. The smallest PAGE_SIZE in INNODB_CMPMEM is used for block descriptors of those compressed pages for which no uncompressed page exists in the buffer pool. We see that there are 5910 such pages. Indirectly, we see that 259 (6169-5910) compressed pages also exist in the buffer pool in uncompressed form.

The following table shows the contents of INFORMATION_SCHEMA.INNODB_CMPMEM under a light workload. Some memory is unusable due to fragmentation of the memory allocator for compressed pages: SUM(PAGE_SIZE*PAGES_FREE)=6784. This is because small memory allocation requests are fulfilled by splitting bigger blocks, starting from the 16K blocks that are allocated from the main buffer pool, using the buddy allocation system. The fragmentation is this low because some allocated blocks have been relocated (copied) to form bigger adjacent free blocks. This copying of SUM(PAGE_SIZE*RELOCATION_OPS) bytes has consumed less than a second (SUM(RELOCATION_TIME)=0).

page sizepages usedpages freerelocation opsrelocation time
645910024360
1280100
2560000
5120100
10240000
20480100
40960100
81926169050
163840000

15.15.2 InnoDB INFORMATION_SCHEMA Transaction and Locking Information

Three InnoDB INFORMATION_SCHEMA tables enable you to monitor transactions and diagnose potential locking problems:

  • INNODB_TRX: Contains information about every transaction currently executing inside InnoDB, including the transaction state (for example, whether it is running or waiting for a lock), when the transaction started, and the particular SQL statement the transaction is executing.

  • INNODB_LOCKS: Each transaction in InnoDB that is waiting for another transaction to release a lock (INNODB_TRX.TRX_STATE is LOCK WAIT) is blocked by exactly one blocking lock request. That blocking lock request is for a row or table lock held by another transaction in an incompatible mode. A lock that blocks a transaction is always held in a mode incompatible with the mode of requested lock (read vs. write, shared vs. exclusive). The blocked transaction cannot proceed until the other transaction commits or rolls back, thereby releasing the requested lock. For every blocked transaction, INNODB_LOCKS contains one row that describes each lock the transaction has requested, and for which it is waiting. INNODB_LOCKS also contains one row for each lock that is blocking another transaction, whatever the state of the transaction that holds the lock (INNODB_TRX.TRX_STATE is RUNNING, LOCK WAIT, ROLLING BACK or COMMITTING).

  • INNODB_LOCK_WAITS: This table indicates which transactions are waiting for a given lock, or for which lock a given transaction is waiting. This table contains one or more rows for each blocked transaction, indicating the lock it has requested and any locks that are blocking that request. The REQUESTED_LOCK_ID value refers to the lock requested by a transaction, and the BLOCKING_LOCK_ID value refers to the lock (held by another transaction) that prevents the first transaction from proceeding. For any given blocked transaction, all rows in INNODB_LOCK_WAITS have the same value for REQUESTED_LOCK_ID and different values for BLOCKING_LOCK_ID.

For more information about the preceding tables, see Section 24.31.27, “The INFORMATION_SCHEMA INNODB_TRX Table”, Section 24.31.13, “The INFORMATION_SCHEMA INNODB_LOCKS Table”, and Section 24.31.14, “The INFORMATION_SCHEMA INNODB_LOCK_WAITS Table”.

15.15.2.1 Using InnoDB Transaction and Locking Information

Identifying Blocking Transactions

It is sometimes helpful to identify which transaction blocks another. The tables that contain information about InnoDB transactions and data locks enable you to determine which transaction is waiting for another, and which resource is being requested. (For descriptions of these tables, see Section 15.15.2, “InnoDB INFORMATION_SCHEMA Transaction and Locking Information”.)

Suppose that three sessions are running concurrently. Each session corresponds to a MySQL thread, and executes one transaction after another. Consider the state of the system when these sessions have issued the following statements, but none has yet committed its transaction:

  • Session A:

    BEGIN;
    SELECT a FROM t FOR UPDATE;
    SELECT SLEEP(100);

  • Session B:

    SELECT b FROM t FOR UPDATE;

  • Session C:

    SELECT c FROM t FOR UPDATE;


In this scenario, use the following query to see which transactions are waiting and which transactions are blocking them:

SELECT
  r.trx_id waiting_trx_id,
  r.trx_mysql_thread_id waiting_thread,
  r.trx_query waiting_query,
  b.trx_id blocking_trx_id,
  b.trx_mysql_thread_id blocking_thread,
  b.trx_query blocking_query
FROM       information_schema.innodb_lock_waits w
INNER JOIN information_schema.innodb_trx b
  ON b.trx_id = w.blocking_trx_id
INNER JOIN information_schema.innodb_trx r
  ON r.trx_id = w.requesting_trx_id;

Or, more simply, use the sys schema innodb_lock_waits view:

SELECT
  waiting_trx_id,
  waiting_pid,
  waiting_query,
  blocking_trx_id,
  blocking_pid,
  blocking_query
FROM sys.innodb_lock_waits;
waiting trx idwaiting threadwaiting queryblocking trx idblocking threadblocking query
A46SELECT b FROM t FOR UPDATEA35SELECT SLEEP(100)
A57SELECT c FROM t FOR UPDATEA35SELECT SLEEP(100)
A57SELECT c FROM t FOR UPDATEA46SELECT b FROM t FOR UPDATE

In the preceding table, you can identify sessions by the waiting query or blocking query columns. As you can see:

  • Session B (trx id A4, thread 6) and Session C (trx id A5, thread 7) are both waiting for Session A (trx id A3, thread 5).

  • Session C is waiting for Session B as well as Session A.

You can see the underlying data in the tables INNODB_TRX, INNODB_LOCKS, and INNODB_LOCK_WAITS.

The following table shows some sample contents of INFORMATION_SCHEMA.INNODB_TRX.

trx idtrx statetrx startedtrx requested lock idtrx wait startedtrx weighttrx mysql thread idtrx query
A3RUN­NING2008-01-15 16:44:54NULLNULL25SELECT SLEEP(100)
A4LOCK WAIT2008-01-15 16:45:09A4:1:3:22008-01-15 16:45:0926SELECT b FROM t FOR UPDATE
A5LOCK WAIT2008-01-15 16:45:14A5:1:3:22008-01-15 16:45:1427SELECT c FROM t FOR UPDATE

The following table shows some sample contents of INFORMATION_SCHEMA.INNODB_LOCKS.

lock idlock trx idlock modelock typelock tablelock indexlock data
A3:1:3:2A3XRECORDtest.tPRIMARY0x0200
A4:1:3:2A4XRECORDtest.tPRIMARY0x0200
A5:1:3:2A5XRECORDtest.tPRIMARY0x0200

The following table shows some sample contents of INFORMATION_SCHEMA.INNODB_LOCK_WAITS.

requesting trx idrequested lock idblocking trx idblocking lock id
A4A4:1:3:2A3A3:1:3:2
A5A5:1:3:2A3A3:1:3:2
A5A5:1:3:2A4A4:1:3:2
Correlating InnoDB Transactions with MySQL Sessions

Sometimes it is useful to correlate internal InnoDB locking information with the session-level information maintained by MySQL. For example, you might like to know, for a given InnoDB transaction ID, the corresponding MySQL session ID and name of the session that may be holding a lock, and thus blocking other transactions.

The following output from the INFORMATION_SCHEMA tables is taken from a somewhat loaded system. As can be seen, there are several transactions running.

The following INNODB_LOCKS and INNODB_LOCK_WAITS tables show that:

  • Transaction 77F (executing an INSERT) is waiting for transactions 77E, 77D, and 77B to commit.

  • Transaction 77E (executing an INSERT) is waiting for transactions 77D and 77B to commit.

  • Transaction 77D (executing an INSERT) is waiting for transaction 77B to commit.

  • Transaction 77B (executing an INSERT) is waiting for transaction 77A to commit.

  • Transaction 77A is running, currently executing SELECT.

  • Transaction E56 (executing an INSERT) is waiting for transaction E55 to commit.

  • Transaction E55 (executing an INSERT) is waiting for transaction 19C to commit.

  • Transaction 19C is running, currently executing an INSERT.

Note

There may be inconsistencies between queries shown in the INFORMATION_SCHEMA PROCESSLIST and INNODB_TRX tables. For an explanation, see Section 15.15.2.3, “Persistence and Consistency of InnoDB Transaction and Locking Information”.

The following table shows the contents of INFORMATION_SCHEMA.PROCESSLIST for a system running a heavy workload.

IDUSERHOSTDBCOMMANDTIMESTATEINFO
384rootlocalhosttestQuery10updateINSERT INTO t2 VALUES …
257rootlocalhosttestQuery3updateINSERT INTO t2 VALUES …
130rootlocalhosttestQuery0updateINSERT INTO t2 VALUES …
61rootlocalhosttestQuery1updateINSERT INTO t2 VALUES …
8rootlocalhosttestQuery1updateINSERT INTO t2 VALUES …
4rootlocalhosttestQuery0preparingSELECT * FROM PROCESSLIST
2rootlocalhosttestSleep566NULL

The following table shows the contents of INFORMATION_SCHEMA.INNODB_TRX for a system running a heavy workload.

trx idtrx statetrx startedtrx requested lock idtrx wait startedtrx weighttrx mysql thread idtrx query
77FLOCK WAIT2008-01-15 13:10:1677F2008-01-15 13:10:161876INSERT INTO t09 (D, B, C) VALUES …
77ELOCK WAIT2008-01-15 13:10:1677E2008-01-15 13:10:161875INSERT INTO t09 (D, B, C) VALUES …
77DLOCK WAIT2008-01-15 13:10:1677D2008-01-15 13:10:161874INSERT INTO t09 (D, B, C) VALUES …
77BLOCK WAIT2008-01-15 13:10:1677B:733:12:12008-01-15 13:10:164873INSERT INTO t09 (D, B, C) VALUES …
77ARUN­NING2008-01-15 13:10:16NULLNULL4872SELECT b, c FROM t09 WHERE …
E56LOCK WAIT2008-01-15 13:10:06E56:743:6:22008-01-15 13:10:065384INSERT INTO t2 VALUES …
E55LOCK WAIT2008-01-15 13:10:06E55:743:38:22008-01-15 13:10:13965257INSERT INTO t2 VALUES …
19CRUN­NING2008-01-15 13:09:10NULLNULL2900130INSERT INTO t2 VALUES …
E15RUN­NING2008-01-15 13:08:59NULLNULL539561INSERT INTO t2 VALUES …
51DRUN­NING2008-01-15 13:08:47NULLNULL98078INSERT INTO t2 VALUES …

The following table shows the contents of INFORMATION_SCHEMA.INNODB_LOCK_WAITS for a system running a heavy workload.

requesting trx idrequested lock idblocking trx idblocking lock id
77F77F:80677E77E:806
77F77F:80677D77D:806
77F77F:80677B77B:806
77E77E:80677D77D:806
77E77E:80677B77B:806
77D77D:80677B77B:806
77B77B:733:12:177A77A:733:12:1
E56E56:743:6:2E55E55:743:6:2
E55E55:743:38:219C19C:743:38:2

The following table shows the contents of INFORMATION_SCHEMA.INNODB_LOCKS for a system running a heavy workload.

lock idlock trx idlock modelock typelock tablelock indexlock data
77F:80677FAUTO_INCTABLEtest.t09NULLNULL
77E:80677EAUTO_INCTABLEtest.t09NULLNULL
77D:80677DAUTO_INCTABLEtest.t09NULLNULL
77B:80677BAUTO_INCTABLEtest.t09NULLNULL
77B:733:12:177BXRECORDtest.t09PRIMARYsupremum pseudo-record
77A:733:12:177AXRECORDtest.t09PRIMARYsupremum pseudo-record
E56:743:6:2E56SRECORDtest.t2PRIMARY0, 0
E55:743:6:2E55XRECORDtest.t2PRIMARY0, 0
E55:743:38:2E55SRECORDtest.t2PRIMARY1922, 1922
19C:743:38:219CXRECORDtest.t2PRIMARY1922, 1922

15.15.2.2 InnoDB Lock and Lock-Wait Information

When a transaction updates a row in a table, or locks it with SELECT FOR UPDATE, InnoDB establishes a list or queue of locks on that row. Similarly, InnoDB maintains a list of locks on a table for table-level locks. If a second transaction wants to update a row or lock a table already locked by a prior transaction in an incompatible mode, InnoDB adds a lock request for the row to the corresponding queue. For a lock to be acquired by a transaction, all incompatible lock requests previously entered into the lock queue for that row or table must be removed (which occurs when the transactions holding or requesting those locks either commit or roll back).

A transaction may have any number of lock requests for different rows or tables. At any given time, a transaction may request a lock that is held by another transaction, in which case it is blocked by that other transaction. The requesting transaction must wait for the transaction that holds the blocking lock to commit or roll back. If a transaction is not waiting for a lock, it is in a RUNNING state. If a transaction is waiting for a lock, it is in a LOCK WAIT state. (The INFORMATION_SCHEMA INNODB_TRX table indicates transaction state values.)

The INNODB_LOCKS table holds one or more rows for each LOCK WAIT transaction, indicating any lock requests that prevent its progress. This table also contains one row describing each lock in a queue of locks pending for a given row or table. The INNODB_LOCK_WAITS table shows which locks already held by a transaction are blocking locks requested by other transactions.

15.15.2.3 Persistence and Consistency of InnoDB Transaction and Locking Information

The data exposed by the transaction and locking tables (INNODB_TRX, INNODB_LOCKS, and INNODB_LOCK_WAITS) represents a glimpse into fast-changing data. This is not like user tables, where the data changes only when application-initiated updates occur. The underlying data is internal system-managed data, and can change very quickly.

For performance reasons, and to minimize the chance of misleading joins between the transaction and locking tables, InnoDB collects the required transaction and locking information into an intermediate buffer whenever a SELECT on any of the tables is issued. This buffer is refreshed only if more than 0.1 seconds has elapsed since the last time the buffer was read. The data needed to fill the three tables is fetched atomically and consistently and is saved in this global internal buffer, forming a point-in-time snapshot. If multiple table accesses occur within 0.1 seconds (as they almost certainly do when MySQL processes a join among these tables), then the same snapshot is used to satisfy the query.

A correct result is returned when you join any of these tables together in a single query, because the data for the three tables comes from the same snapshot. Because the buffer is not refreshed with every query of any of these tables, if you issue separate queries against these tables within a tenth of a second, the results are the same from query to query. On the other hand, two separate queries of the same or different tables issued more than a tenth of a second apart may see different results, since the data come from different snapshots.

Because InnoDB must temporarily stall while the transaction and locking data is collected, too frequent queries of these tables can negatively impact performance as seen by other users.

As these tables contain sensitive information (at least INNODB_LOCKS.LOCK_DATA and INNODB_TRX.TRX_QUERY), for security reasons, only the users with the PROCESS privilege are allowed to SELECT from them.

As described previously, the data that fills the transaction and locking tables (INNODB_TRX, INNODB_LOCKS and INNODB_LOCK_WAITS) is fetched automatically and saved to an intermediate buffer that provides a point-in-time snapshot. The data across all three tables is consistent when queried from the same snapshot. However, the underlying data changes so fast that similar glimpses at other, similarly fast-changing data, may not be in synchrony. Thus, you should be careful when comparing data in the InnoDB transaction and locking tables with data in the PROCESSLIST table. The data from the PROCESSLIST table does not come from the same snapshot as the data about locking and transactions. Even if you issue a single SELECT (joining INNODB_TRX and PROCESSLIST, for example), the content of those tables is generally not consistent. INNODB_TRX may reference rows that are not present in PROCESSLIST or the currently executing SQL query of a transaction shown in INNODB_TRX.TRX_QUERY may differ from the one in PROCESSLIST.INFO.

15.15.3 InnoDB INFORMATION_SCHEMA System Tables

You can extract metadata about schema objects managed by InnoDB using InnoDB INFORMATION_SCHEMA system tables. This information comes from the InnoDB internal system tables (also referred to as the InnoDB data dictionary), which cannot be queried directly like regular InnoDB tables. Traditionally, you would get this type of information using the techniques from Section 15.17, “InnoDB Monitors”, setting up InnoDB monitors and parsing the output from the SHOW ENGINE INNODB STATUS statement. The InnoDB INFORMATION_SCHEMA table interface allows you to query this data using SQL.

With the exception of INNODB_SYS_TABLESTATS, for which there is no corresponding internal system table, InnoDB INFORMATION_SCHEMA system tables are populated with data read directly from internal InnoDB system tables rather than from metadata that is cached in memory.

InnoDB INFORMATION_SCHEMA system tables include the tables listed below. INNODB_SYS_DATAFILES and INNODB_SYS_TABLESPACES were added in MySQL 5.6.6 with the introduction of support for the DATA DIRECTORY='directory' clause of the CREATE TABLE statement, which allows InnoDB file-per-table tablespaces (.ibd files) to be created in a location outside the MySQL data directory.

mysql> SHOW TABLES FROM INFORMATION_SCHEMA LIKE 'INNODB_SYS%';
+--------------------------------------------+
| Tables_in_information_schema (INNODB_SYS%) |
+--------------------------------------------+
| INNODB_SYS_DATAFILES                       |
| INNODB_SYS_TABLESTATS                      |
| INNODB_SYS_FOREIGN                         |
| INNODB_SYS_COLUMNS                         |
| INNODB_SYS_INDEXES                         |
| INNODB_SYS_FIELDS                          |
| INNODB_SYS_TABLESPACES                     |
| INNODB_SYS_FOREIGN_COLS                    |
| INNODB_SYS_TABLES                          |
+--------------------------------------------+

The table names are indicative of the type of data provided:

  • INNODB_SYS_TABLES provides metadata about InnoDB tables, equivalent to the information in the SYS_TABLES table in the InnoDB data dictionary.

  • INNODB_SYS_COLUMNS provides metadata about InnoDB table columns, equivalent to the information in the SYS_COLUMNS table in the InnoDB data dictionary.

  • INNODB_SYS_INDEXES provides metadata about InnoDB indexes, equivalent to the information in the SYS_INDEXES table in the InnoDB data dictionary.

  • INNODB_SYS_FIELDS provides metadata about the key columns (fields) of InnoDB indexes, equivalent to the information in the SYS_FIELDS table in the InnoDB data dictionary.

  • INNODB_SYS_TABLESTATS provides a view of low-level status information about InnoDB tables that is derived from in-memory data structures. There is no corresponding internal InnoDB system table.

  • INNODB_SYS_DATAFILES provides data file path information for InnoDB file-per-table and general tablespaces, equivalent to information in the SYS_DATAFILES table in the InnoDB data dictionary.

  • INNODB_SYS_TABLESPACES provides metadata about InnoDB file-per-table and general tablespaces, equivalent to the information in the SYS_TABLESPACES table in the InnoDB data dictionary.

  • INNODB_SYS_FOREIGN provides metadata about foreign keys defined on InnoDB tables, equivalent to the information in the SYS_FOREIGN table in the InnoDB data dictionary.

  • INNODB_SYS_FOREIGN_COLS provides metadata about the columns of foreign keys that are defined on InnoDB tables, equivalent to the information in the SYS_FOREIGN_COLS table in the InnoDB data dictionary.

InnoDB INFORMATION_SCHEMA system tables can be joined together through fields such as TABLE_ID, INDEX_ID, and SPACE, allowing you to easily retrieve all available data for an object you want to study or monitor.

Refer to the InnoDB INFORMATION_SCHEMA documentation for information about the columns of each table.

Example 15.11 InnoDB INFORMATION_SCHEMA System Tables

This example uses a simple table (t1) with a single index (i1) to demonstrate the type of metadata found in the InnoDB INFORMATION_SCHEMA system tables.

  1. Create a test database and table t1:

    mysql> CREATE DATABASE test;

    mysql> USE test;

    mysql> CREATE TABLE t1 (
    col1 INT,
    col2 CHAR(10),
    col3 VARCHAR(10))
    ENGINE = InnoDB;

    mysql> CREATE INDEX i1 ON t1(col1);
  2. After creating the table t1, query INNODB_SYS_TABLES to locate the metadata for test/t1:

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME='test/t1' \G

    *************************** 1. row ***************************
         TABLE_ID: 71
             NAME: test/t1
             FLAG: 1
           N_COLS: 6
            SPACE: 57
      FILE_FORMAT: Antelope
       ROW_FORMAT: Compact
    ZIP_PAGE_SIZE: 0
    ...

    Table t1 has a TABLE_ID of 71. The FLAG field provides bit level information about table format and storage characteristics. There are six columns, three of which are hidden columns created by InnoDB (DB_ROW_ID, DB_TRX_ID, and DB_ROLL_PTR). The ID of the table's SPACE is 57 (a value of 0 would indicate that the table resides in the system tablespace). The FILE_FORMAT is Antelope, and the ROW_FORMAT is Compact. ZIP_PAGE_SIZE only applies to tables with a Compressed row format.

  3. Using the TABLE_ID information from INNODB_SYS_TABLES, query the INNODB_SYS_COLUMNS table for information about the table's columns.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_COLUMNS where TABLE_ID = 71 \G
    *************************** 1. row ***************************
    TABLE_ID: 71
        NAME: col1
         POS: 0
       MTYPE: 6
      PRTYPE: 1027
         LEN: 4
    *************************** 2. row ***************************
    TABLE_ID: 71
        NAME: col2
         POS: 1
       MTYPE: 2
      PRTYPE: 524542
         LEN: 10
    *************************** 3. row ***************************
    TABLE_ID: 71
        NAME: col3
         POS: 2
       MTYPE: 1
      PRTYPE: 524303
         LEN: 10

    In addition to the TABLE_ID and column NAME, INNODB_SYS_COLUMNS provides the ordinal position (POS) of each column (starting from 0 and incrementing sequentially), the column MTYPE or main type (6 = INT, 2 = CHAR, 1 = VARCHAR), the PRTYPE or precise type (a binary value with bits that represent the MySQL data type, character set code, and nullability), and the column length (LEN).

  4. Using the TABLE_ID information from INNODB_SYS_TABLES once again, query INNODB_SYS_INDEXES for information about the indexes associated with table t1.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_INDEXES WHERE TABLE_ID = 71 \G
    *************************** 1. row ***************************
           INDEX_ID: 111
               NAME: GEN_CLUST_INDEX
           TABLE_ID: 71
               TYPE: 1
           N_FIELDS: 0
            PAGE_NO: 3
              SPACE: 57
    MERGE_THRESHOLD: 50
    *************************** 2. row ***************************
           INDEX_ID: 112
               NAME: i1
           TABLE_ID: 71
               TYPE: 0
           N_FIELDS: 1
            PAGE_NO: 4
              SPACE: 57
    MERGE_THRESHOLD: 50

    INNODB_SYS_INDEXES returns data for two indexes. The first index is GEN_CLUST_INDEX, which is a clustered index created by InnoDB if the table does not have a user-defined clustered index. The second index (i1) is the user-defined secondary index.

    The INDEX_ID is an identifier for the index that is unique across all databases in an instance. The TABLE_ID identifies the table that the index is associated with. The index TYPE value indicates the type of index (1 = Clustered Index, 0 = Secondary index). The N_FILEDS value is the number of fields that comprise the index. PAGE_NO is the root page number of the index B-tree, and SPACE is the ID of the tablespace where the index resides. A non-zero value indicates that the index does not reside in the system tablespace. MERGE_THRESHOLD defines a percentage threshold value for the amount of data in an index page. If the amount of data in an index page falls below the this value (the default is 50%) when a row is deleted or when a row is shortened by an update operation, InnoDB attempts to merge the index page with a neighboring index page.

  5. Using the INDEX_ID information from INNODB_SYS_INDEXES, query INNODB_SYS_FIELDS for information about the fields of index i1.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_FIELDS where INDEX_ID = 112 \G
    *************************** 1. row ***************************
    INDEX_ID: 112
        NAME: col1
         POS: 0

    INNODB_SYS_FIELDS provides the NAME of the indexed field and its ordinal position within the index. If the index (i1) had been defined on multiple fields, INNODB_SYS_FIELDS would provide metadata for each of the indexed fields.

  6. Using the SPACE information from INNODB_SYS_TABLES, query INNODB_SYS_TABLESPACES table for information about the table's tablespace.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES WHERE SPACE = 57 \G
    *************************** 1. row ***************************
            SPACE: 57
             NAME: test/t1
             FLAG: 0
      FILE_FORMAT: Antelope
       ROW_FORMAT: Compact or Redundant
        PAGE_SIZE: 16384
    ZIP_PAGE_SIZE: 0

    In addition to the SPACE ID of the tablespace and the NAME of the associated table, INNODB_SYS_TABLESPACES provides tablespace FLAG data, which is bit level information about tablespace format and storage characteristics. Also provided are tablespace FILE_FORMAT, ROW_FORMAT, PAGE_SIZE, and ZIP_PAGE_SIZE data (ZIP_PAGE_SIZE is applicable to tablespaces with a Compressed row format).

  7. Using the SPACE information from INNODB_SYS_TABLES once again, query INNODB_SYS_DATAFILES for the location of the tablespace data file.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_DATAFILES WHERE SPACE = 57 \G
    *************************** 1. row ***************************
    SPACE: 57
     PATH: ./test/t1.ibd

    The datafile is located in the test directory under MySQL's data directory. If a file-per-table tablespace were created in a location outside the MySQL data directory using the DATA DIRECTORY clause of the CREATE TABLE statement, the tablespace PATH would be a fully qualified directory path.

  8. As a final step, insert a row into table t1 (TABLE_ID = 71) and view the data in the INNODB_SYS_TABLESTATS table. The data in this table is used by the MySQL optimizer to calculate which index to use when querying an InnoDB table. This information is derived from in-memory data structures. There is no corresponding internal InnoDB system table.

    mysql> INSERT INTO t1 VALUES(5, 'abc', 'def');
    Query OK, 1 row affected (0.06 sec)

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLESTATS where TABLE_ID = 71 \G
    *************************** 1. row ***************************
             TABLE_ID: 71
                 NAME: test/t1
    STATS_INITIALIZED: Initialized
             NUM_ROWS: 1
     CLUST_INDEX_SIZE: 1
     OTHER_INDEX_SIZE: 0
     MODIFIED_COUNTER: 1
              AUTOINC: 0
            REF_COUNT: 1

    The STATS_INITIALIZED field indicates whether or not statistics have been collected for the table. NUM_ROWS is the current estimated number of rows in the table. The CLUST_INDEX_SIZE and OTHER_INDEX_SIZE fields report the number of pages on disk that store clustered and secondary indexes for the table, respectively. The MODIFIED_COUNTER value shows the number of rows modified by DML operations and cascade operations from foreign keys. The AUTOINC value is the next number to be issued for any autoincrement-based operation. There are no autoincrement columns defined on table t1, so the value is 0. The REF_COUNT value is a counter. When the counter reaches 0, it signifies that the table metadata can be evicted from the table cache.


Example 15.12 Foreign Key INFORMATION_SCHEMA System Tables

The INNODB_SYS_FOREIGN and INNODB_SYS_FOREIGN_COLS tables provide data about foreign key relationships. This example uses a parent table and child table with a foreign key relationship to demonstrate the data found in the INNODB_SYS_FOREIGN and INNODB_SYS_FOREIGN_COLS tables.

  1. Create the test database with parent and child tables:

    mysql> CREATE DATABASE test;

    mysql> USE test;

    mysql> CREATE TABLE parent (id INT NOT NULL,
        -> PRIMARY KEY (id)) ENGINE=INNODB;

    mysql> CREATE TABLE child (id INT, parent_id INT,
        -> INDEX par_ind (parent_id),
        -> CONSTRAINT fk1
        -> FOREIGN KEY (parent_id) REFERENCES parent(id)
        -> ON DELETE CASCADE) ENGINE=INNODB;
  2. After the parent and child tables are created, query INNODB_SYS_FOREIGN and locate the foreign key data for the test/child and test/parent foreign key relationship:

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_FOREIGN \G
    *************************** 1. row ***************************
          ID: test/fk1
    FOR_NAME: test/child
    REF_NAME: test/parent
      N_COLS: 1
        TYPE: 1

    Metadata includes the foreign key ID (fk1), which is named for the CONSTRAINT that was defined on the child table. The FOR_NAME is the name of the child table where the foreign key is defined. REF_NAME is the name of the parent table (the referenced table). N_COLS is the number of columns in the foreign key index. TYPE is a numerical value representing bit flags that provide additional information about the foreign key column. In this case, the TYPE value is 1, which indicates that the ON DELETE CASCADE option was specified for the foreign key. See the INNODB_SYS_FOREIGN table definition for more information about TYPE values.

  3. Using the foreign key ID, query INNODB_SYS_FOREIGN_COLS to view data about the columns of the foreign key.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_FOREIGN_COLS WHERE ID = 'test/fk1' \G
    *************************** 1. row ***************************
              ID: test/fk1
    FOR_COL_NAME: parent_id
    REF_COL_NAME: id
             POS: 0

    FOR_COL_NAME is the name of the foreign key column in the child table, and REF_COL_NAME is the name of the referenced column in the parent table. The POS value is the ordinal position of the key field within the foreign key index, starting at zero.


Example 15.13 Joining InnoDB INFORMATION_SCHEMA System Tables

This example demonstrates joining three InnoDB INFORMATION_SCHEMA system tables (INNODB_SYS_TABLES, INNODB_SYS_TABLESPACES, and INNODB_SYS_TABLESTATS) to gather file format, row format, page size, and index size information about tables in the employees sample database.

The following table name aliases are used to shorten the query string:

An IF() control flow function is used to account for compressed tables. If a table is compressed, the index size is calculated using ZIP_PAGE_SIZE rather than PAGE_SIZE. CLUST_INDEX_SIZE and OTHER_INDEX_SIZE, which are reported in bytes, are divided by 1024*1024 to provide index sizes in megabytes (MBs). MB values are rounded to zero decimal spaces using the ROUND() function.

mysql> SELECT a.NAME, a.FILE_FORMAT, a.ROW_FORMAT,
 @page_size :=
  IF(a.ROW_FORMAT='Compressed',
   b.ZIP_PAGE_SIZE, b.PAGE_SIZE)
   AS page_size,
  ROUND((@page_size * c.CLUST_INDEX_SIZE)
   /(1024*1024)) AS pk_mb,
  ROUND((@page_size * c.OTHER_INDEX_SIZE)
   /(1024*1024)) AS secidx_mb
FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES a
INNER JOIN INFORMATION_SCHEMA.INNODB_SYS_TABLESPACES b on a.NAME = b.NAME
INNER JOIN INFORMATION_SCHEMA.INNODB_SYS_TABLESTATS c on b.NAME = c.NAME
WHERE a.NAME LIKE 'employees/%'
ORDER BY a.NAME DESC;
+------------------------+-------------+------------+-----------+-------+-----------+
| NAME                   | FILE_FORMAT | ROW_FORMAT | page_size | pk_mb | secidx_mb |
+------------------------+-------------+------------+-----------+-------+-----------+
| employees/titles       | Antelope    | Compact    |     16384 |    20 |        11 |
| employees/salaries     | Antelope    | Compact    |     16384 |    91 |        33 |
| employees/employees    | Antelope    | Compact    |     16384 |    15 |         0 |
| employees/dept_manager | Antelope    | Compact    |     16384 |     0 |         0 |
| employees/dept_emp     | Antelope    | Compact    |     16384 |    12 |        10 |
| employees/departments  | Antelope    | Compact    |     16384 |     0 |         0 |
+------------------------+-------------+------------+-----------+-------+-----------+

15.15.4 InnoDB INFORMATION_SCHEMA FULLTEXT Index Tables

With the introduction of FULLTEXT index support for InnoDB tables in MySQL 5.6.4, the following tables were added to the INFORMATION_SCHEMA database:

mysql> SHOW TABLES FROM INFORMATION_SCHEMA LIKE 'INNODB_FT%';
+-------------------------------------------+
| Tables_in_INFORMATION_SCHEMA (INNODB_FT%) |
+-------------------------------------------+
| INNODB_FT_CONFIG                          |
| INNODB_FT_BEING_DELETED                   |
| INNODB_FT_DELETED                         |
| INNODB_FT_DEFAULT_STOPWORD                |
| INNODB_FT_INDEX_TABLE                     |
| INNODB_FT_INDEX_CACHE                     |
+-------------------------------------------+

Table Overview

Note

With the exception of the INNODB_FT_DEFAULT_STOPWORD table, you must set the innodb_ft_aux_table configuration variable to the name of the table (database_name/table_name) that contains the FULLTEXT index. Otherwise, the InnoDB FULLTEXT index INFORMATION_SCHEMA tables appear empty.

Example 15.14 InnoDB FULLTEXT Index INFORMATION_SCHEMA Tables

This example uses a table with a FULLTEXT index to demonstrate the data contained in the FULLTEXT index INFORMATION_SCHEMA tables.

  1. Create a table with a FULLTEXT index and insert some data:

    mysql> CREATE TABLE articles (
          id INT UNSIGNED AUTO_INCREMENT NOT NULL PRIMARY KEY,
          title VARCHAR(200),
          body TEXT,
          FULLTEXT (title,body)
         ) ENGINE=InnoDB;

    INSERT INTO articles (title,body) VALUES
        ('MySQL Tutorial','DBMS stands for DataBase ...'),
        ('How To Use MySQL Well','After you went through a ...'),
        ('Optimizing MySQL','In this tutorial we will show ...'),
        ('1001 MySQL Tricks','1. Never run mysqld as root. 2. ...'),
        ('MySQL vs. YourSQL','In the following database comparison ...'),
        ('MySQL Security','When configured properly, MySQL ...');
  2. Set the innodb_ft_aux_table variable to the name of the table with the FULLTEXT index. If this variable is not set, the InnoDB FULLTEXT INFORMATION_SCHEMA tables appear empty, with the exception of the INNODB_FT_DEFAULT_STOPWORD table.

    SET GLOBAL innodb_ft_aux_table = 'test/articles';
  3. Query the INNODB_FT_INDEX_CACHE table, which shows information about newly inserted rows in a FULLTEXT index. To avoid expensive index reorganization during DML operations, data for newly inserted rows remains in the FULLTEXT index cache until OPTIMIZE TABLE is run (or until the server is shutdown or cache limits are exceeded).

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_FT_INDEX_CACHE LIMIT 5;
    +------------+--------------+-------------+-----------+--------+----------+
    | WORD       | FIRST_DOC_ID | LAST_DOC_ID | DOC_COUNT | DOC_ID | POSITION |
    +------------+--------------+-------------+-----------+--------+----------+
    | 1001       |            5 |           5 |         1 |      5 |        0 |
    | after      |            3 |           3 |         1 |      3 |       22 |
    | comparison |            6 |           6 |         1 |      6 |       44 |
    | configured |            7 |           7 |         1 |      7 |       20 |
    | database   |            2 |           6 |         2 |      2 |       31 |
    +------------+--------------+-------------+-----------+--------+----------+
  4. Enable innodb_optimize_fulltext_only and run OPTIMIZE TABLE on the table that contains the FULLTEXT index. This operation flushes the contents of the FULLTEXT index cache to the main FULLTEXT index. innodb_optimize_fulltext_only changes the way the OPTIMIZE TABLE statement operates on InnoDB tables, and is intended to be enabled temporarily, during maintenance operations on InnoDB tables with FULLTEXT indexes.

    mysql> SET GLOBAL innodb_optimize_fulltext_only=ON;
    Query OK, 0 rows affected (0.00 sec)

    mysql> OPTIMIZE TABLE articles;
    +---------------+----------+----------+----------+
    | Table         | Op       | Msg_type | Msg_text |
    +---------------+----------+----------+----------+
    | test.articles | optimize | status   | OK       |
    +---------------+----------+----------+----------+
  5. Query the INNODB_FT_INDEX_TABLE table to view information about data in the main FULLTEXT index, including information about the data that was just flushed from the FULLTEXT index cache.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_FT_INDEX_TABLE LIMIT 5;
    +------------+--------------+-------------+-----------+--------+----------+
    | WORD       | FIRST_DOC_ID | LAST_DOC_ID | DOC_COUNT | DOC_ID | POSITION |
    +------------+--------------+-------------+-----------+--------+----------+
    | 1001       |            5 |           5 |         1 |      5 |        0 |
    | after      |            3 |           3 |         1 |      3 |       22 |
    | comparison |            6 |           6 |         1 |      6 |       44 |
    | configured |            7 |           7 |         1 |      7 |       20 |
    | database   |            2 |           6 |         2 |      2 |       31 |
    +------------+--------------+-------------+-----------+--------+----------+

    The INNODB_FT_INDEX_CACHE table is now empty since the OPTIMIZE TABLE operation flushed the FULLTEXT index cache.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_FT_INDEX_CACHE LIMIT 5;
    Empty set (0.00 sec)
  6. Delete some records from the test/articles table.

    mysql> DELETE FROM test.articles WHERE id < 4;
    Query OK, 3 rows affected (0.11 sec)
  7. Query the INNODB_FT_DELETED table. This table records rows that are deleted from the FULLTEXT index. To avoid expensive index reorganization during DML operations, information about newly deleted records is stored separately, filtered out of search results when you do a text search, and removed from the main search index when you run OPTIMIZE TABLE.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_FT_DELETED;
    +--------+
    | DOC_ID |
    +--------+
    |      2 |
    |      3 |
    |      4 |
    +--------+
  8. Run OPTIMIZE TABLE to remove the deleted records.

    mysql> OPTIMIZE TABLE articles;
    +---------------+----------+----------+----------+
    | Table         | Op       | Msg_type | Msg_text |
    +---------------+----------+----------+----------+
    | test.articles | optimize | status   | OK       |
    +---------------+----------+----------+----------+

    The INNODB_FT_DELETED table should now appear empty.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_FT_DELETED;
    Empty set (0.00 sec)
  9. Query the INNODB_FT_CONFIG table. This table contains metadata about the FULLTEXT index and related processing:

    • optimize_checkpoint_limit is the number of seconds after which an OPTIMIZE TABLE run stops.

    • synced_doc_id is the next DOC_ID to be issued.

    • stopword_table_name is the database/table name for a user-defined stopword table. This field appears empty if there is no user-defined stopword table.

    • use_stopword indicates whether or not a stopword table is used, which is defined when the FULLTEXT index is created.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_FT_CONFIG;
    +---------------------------+-------+
    | KEY                       | VALUE |
    +---------------------------+-------+
    | optimize_checkpoint_limit | 180   |
    | synced_doc_id             | 8     |
    | stopword_table_name       |       |
    | use_stopword              | 1     |
    +---------------------------+-------+

15.15.5 InnoDB INFORMATION_SCHEMA Buffer Pool Tables

The InnoDB INFORMATION_SCHEMA buffer pool tables provide buffer pool status information and metadata about the pages within the InnoDB buffer pool. The tables were introduced in MySQL 5.6.2 and later backported to MySQL 5.5 (in MySQL 5.5.28) and MySQL 5.1 (in MySQL 5.1.66).

The InnoDB INFORMATION_SCHEMA buffer pool tables include those listed below:

mysql> SHOW TABLES FROM INFORMATION_SCHEMA LIKE 'INNODB_BUFFER%';
+-----------------------------------------------+
| Tables_in_INFORMATION_SCHEMA (INNODB_BUFFER%) |
+-----------------------------------------------+
| INNODB_BUFFER_PAGE_LRU                        |
| INNODB_BUFFER_PAGE                            |
| INNODB_BUFFER_POOL_STATS                      |
+-----------------------------------------------+

Table Overview

Warning

Querying the INNODB_BUFFER_PAGE table or INNODB_BUFFER_PAGE_LRU table can introduce significant performance overhead. Do not query these tables on a production system unless you are aware of the performance impact that your query may have, and have determined it to be acceptable. To avoid impacting performance, reproduce the issue you want to investigate on a test instance and run your queries on the test instance.

Example 15.15 Querying System Data in the INNODB_BUFFER_PAGE Table

This query provides an approximate count of pages that contain system data by excluding pages where the TABLE_NAME value is either NULL or includes a slash / or period . in the table name, which indicates a user-defined table.

SELECT COUNT(*) FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME IS NULL OR (INSTR(TABLE_NAME, '/') = 0 AND INSTR(TABLE_NAME, '.') = 0);
+----------+
| COUNT(*) |
+----------+
|     1516 |
+----------+

This query returns the approximate number of pages that contain system data, the total number of buffer pool pages, and an approximate percentage of pages that contain system data.

SELECT
(SELECT COUNT(*) FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME IS NULL OR (INSTR(TABLE_NAME, '/') = 0 AND INSTR(TABLE_NAME, '.') = 0)
) AS system_pages,
(
SELECT COUNT(*)
FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
) AS total_pages,
(
SELECT ROUND((system_pages/total_pages) * 100)
) AS system_page_percentage;
+--------------+-------------+------------------------+
| system_pages | total_pages | system_page_percentage |
+--------------+-------------+------------------------+
|          295 |        8192 |                      4 |
+--------------+-------------+------------------------+

The type of system data in the buffer pool can be determined by querying the PAGE_TYPE value. For example, the following query returns eight distinct PAGE_TYPE values among the pages that contain system data:

mysql> SELECT DISTINCT PAGE_TYPE FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME IS NULL OR (INSTR(TABLE_NAME, '/') = 0 AND INSTR(TABLE_NAME, '.') = 0);
+-------------------+
| PAGE_TYPE         |
+-------------------+
| SYSTEM            |
| IBUF_BITMAP       |
| UNKNOWN           |
| FILE_SPACE_HEADER |
| INODE             |
| UNDO_LOG          |
| ALLOCATED         |
+-------------------+

Example 15.16 Querying User Data in the INNODB_BUFFER_PAGE Table

This query provides an approximate count of pages containing user data by counting pages where the TABLE_NAME value is NOT NULL and NOT LIKE '%INNODB_SYS_TABLES%'.

mysql> SELECT COUNT(*) FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME IS NOT NULL AND TABLE_NAME NOT LIKE '%INNODB_SYS_TABLES%';
+----------+
| COUNT(*) |
+----------+
|     7897 |
+----------+

This query returns the approximate number of pages that contain user data, the total number of buffer pool pages, and an approximate percentage of pages that contain user data.

mysql> SELECT
(SELECT COUNT(*) FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME IS NOT NULL AND (INSTR(TABLE_NAME, '/') > 0 OR INSTR(TABLE_NAME, '.') > 0)
) AS user_pages,
(
SELECT COUNT(*)
FROM information_schema.INNODB_BUFFER_PAGE
) AS total_pages,
(
SELECT ROUND((user_pages/total_pages) * 100)
) AS user_page_percentage;
+------------+-------------+----------------------+
| user_pages | total_pages | user_page_percentage |
+------------+-------------+----------------------+
|       7897 |        8192 |                   96 |
+------------+-------------+----------------------+

This query identifies user-defined tables with pages in the buffer pool:

mysql> SELECT DISTINCT TABLE_NAME FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME IS NOT NULL AND (INSTR(TABLE_NAME, '/') > 0 OR INSTR(TABLE_NAME, '.') > 0)
AND TABLE_NAME NOT LIKE '`mysql`.`innodb_%';
+-------------------------+
| TABLE_NAME              |
+-------------------------+
| `employees`.`salaries`  |
| `employees`.`employees` |
+-------------------------+

Example 15.17 Querying Index Data in the INNODB_BUFFER_PAGE Table

For information about index pages, query the INDEX_NAME column using the name of the index. For example, the following query returns the number of pages and total data size of pages for the emp_no index that is defined on the employees.salaries table:

mysql> SELECT INDEX_NAME, COUNT(*) AS Pages,
ROUND(SUM(IF(COMPRESSED_SIZE = 0, @@global.innodb_page_size, COMPRESSED_SIZE))/1024/1024)
AS 'Total Data (MB)'
FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE INDEX_NAME='emp_no' AND TABLE_NAME = '`employees`.`salaries`';
+------------+-------+-----------------+
| INDEX_NAME | Pages | Total Data (MB) |
+------------+-------+-----------------+
| emp_no     |  1609 |              25 |
+------------+-------+-----------------+

This query returns the number of pages and total data size of pages for all indexes defined on the employees.salaries table:

mysql> SELECT INDEX_NAME, COUNT(*) AS Pages,
ROUND(SUM(IF(COMPRESSED_SIZE = 0, @@global.innodb_page_size, COMPRESSED_SIZE))/1024/1024)
AS 'Total Data (MB)'
FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE
WHERE TABLE_NAME = '`employees`.`salaries`'
GROUP BY INDEX_NAME;
+------------+-------+-----------------+
| INDEX_NAME | Pages | Total Data (MB) |
+------------+-------+-----------------+
| emp_no     |  1608 |              25 |
| PRIMARY    |  6086 |              95 |
+------------+-------+-----------------+

Example 15.18 Querying LRU_POSITION Data in the INNODB_BUFFER_PAGE_LRU Table

The INNODB_BUFFER_PAGE_LRU table holds information about the pages in the InnoDB buffer pool, in particular how they are ordered that determines which pages to evict from the buffer pool when it becomes full. The definition for this page is the same as for INNODB_BUFFER_PAGE, except this table has an LRU_POSITION column instead of a BLOCK_ID column.

This query counts the number of positions at a specific location in the LRU list occupied by pages of the employees.employees table.

mysql> SELECT COUNT(LRU_POSITION) FROM INFORMATION_SCHEMA.INNODB_BUFFER_PAGE_LRU
WHERE TABLE_NAME='`employees`.`employees`' AND LRU_POSITION < 3072;
+---------------------+
| COUNT(LRU_POSITION) |
+---------------------+
|                 548 |
+---------------------+

Example 15.19 Querying the INNODB_BUFFER_POOL_STATS Table

The INNODB_BUFFER_POOL_STATS table provides information similar to SHOW ENGINE INNODB STATUS and InnoDB buffer pool status variables.

mysql> SELECT * FROM information_schema.INNODB_BUFFER_POOL_STATS \G
*************************** 1. row ***************************
                         POOL_ID: 0
                       POOL_SIZE: 8192
                    FREE_BUFFERS: 1
                  DATABASE_PAGES: 8173
              OLD_DATABASE_PAGES: 3014
         MODIFIED_DATABASE_PAGES: 0
              PENDING_DECOMPRESS: 0
                   PENDING_READS: 0
               PENDING_FLUSH_LRU: 0
              PENDING_FLUSH_LIST: 0
                PAGES_MADE_YOUNG: 15907
            PAGES_NOT_MADE_YOUNG: 3803101
           PAGES_MADE_YOUNG_RATE: 0
       PAGES_MADE_NOT_YOUNG_RATE: 0
               NUMBER_PAGES_READ: 3270
            NUMBER_PAGES_CREATED: 13176
            NUMBER_PAGES_WRITTEN: 15109
                 PAGES_READ_RATE: 0
               PAGES_CREATE_RATE: 0
              PAGES_WRITTEN_RATE: 0
                NUMBER_PAGES_GET: 33069332
                        HIT_RATE: 0
    YOUNG_MAKE_PER_THOUSAND_GETS: 0
NOT_YOUNG_MAKE_PER_THOUSAND_GETS: 0
         NUMBER_PAGES_READ_AHEAD: 2713
       NUMBER_READ_AHEAD_EVICTED: 0
                 READ_AHEAD_RATE: 0
         READ_AHEAD_EVICTED_RATE: 0
                    LRU_IO_TOTAL: 0
                  LRU_IO_CURRENT: 0
                UNCOMPRESS_TOTAL: 0
              UNCOMPRESS_CURRENT: 0

For comparison, SHOW ENGINE INNODB STATUS output and InnoDB buffer pool status variable output is shown below, based on the same data set.

For more information about SHOW ENGINE INNODB STATUS output, see Section 15.17.3, “InnoDB Standard Monitor and Lock Monitor Output”.

mysql> SHOW ENGINE INNODB STATUS \G
...
----------------------
BUFFER POOL AND MEMORY
----------------------
Total large memory allocated 137428992
Dictionary memory allocated 579084
Buffer pool size   8192
Free buffers       1
Database pages     8173
Old database pages 3014
Modified db pages  0
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 15907, not young 3803101
0.00 youngs/s, 0.00 non-youngs/s
Pages read 3270, created 13176, written 15109
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 8173, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
...

For status variable descriptions, see Section 6.1.7, “Server Status Variables”.

mysql> SHOW STATUS LIKE 'Innodb_buffer%';
+---------------------------------------+-------------+
| Variable_name                         | Value       |
+---------------------------------------+-------------+
| Innodb_buffer_pool_dump_status        | not started |
| Innodb_buffer_pool_load_status        | not started |
| Innodb_buffer_pool_resize_status      | not started |
| Innodb_buffer_pool_pages_data         | 8173        |
| Innodb_buffer_pool_bytes_data         | 133906432   |
| Innodb_buffer_pool_pages_dirty        | 0           |
| Innodb_buffer_pool_bytes_dirty        | 0           |
| Innodb_buffer_pool_pages_flushed      | 15109       |
| Innodb_buffer_pool_pages_free         | 1           |
| Innodb_buffer_pool_pages_misc         | 18          |
| Innodb_buffer_pool_pages_total        | 8192        |
| Innodb_buffer_pool_read_ahead_rnd     | 0           |
| Innodb_buffer_pool_read_ahead         | 2713        |
| Innodb_buffer_pool_read_ahead_evicted | 0           |
| Innodb_buffer_pool_read_requests      | 33069332    |
| Innodb_buffer_pool_reads              | 558         |
| Innodb_buffer_pool_wait_free          | 0           |
| Innodb_buffer_pool_write_requests     | 11985961    |
+---------------------------------------+-------------+

15.15.6 InnoDB INFORMATION_SCHEMA Metrics Table

The INNODB_METRICS table, introduced in MySQL 5.6.2, consolidates all InnoDB performance and resource-related counters into a single INFORMATION_SCHEMA table.

The columns of the INNODB_METRICS table are shown in the following example. For a description of each column, see Section 24.31.15, “The INFORMATION_SCHEMA INNODB_METRICS Table”.

mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts" \G
*************************** 1. row ***************************
           NAME: dml_inserts
      SUBSYSTEM: dml
          COUNT: 46273
      MAX_COUNT: 46273
      MIN_COUNT: NULL
      AVG_COUNT: 492.2659574468085
    COUNT_RESET: 46273
MAX_COUNT_RESET: 46273
MIN_COUNT_RESET: NULL
AVG_COUNT_RESET: NULL
   TIME_ENABLED: 2014-11-28 16:07:53
  TIME_DISABLED: NULL
   TIME_ELAPSED: 94
     TIME_RESET: NULL
         STATUS: enabled
           TYPE: status_counter
COMMENT: Number of rows inserted

Enabling, Disabling, and Resetting Counters

You can enable, disable, and reset counters using the following configuration options:

  • innodb_monitor_enable: Enables one or more counters.

    SET GLOBAL innodb_monitor_enable = [counter-name|module_name|pattern|all];
  • innodb_monitor_disable: Disables one or more counters.

    SET GLOBAL innodb_monitor_disable = [counter-name|module_name|pattern|all];
  • innodb_monitor_reset: Resets the count value for one or more counters to zero.

    SET GLOBAL innodb_monitor_reset = [counter-name|module_name|pattern|all];
  • innodb_monitor_reset_all: Resets all values for one or more counters. A counter must be disabled before using innodb_monitor_reset_all.

    SET GLOBAL innodb_monitor_reset_all = [counter-name|module_name|pattern|all];

You can also enable counters and counter modules at startup using the MySQL server configuration file. For example, to enable the log module, metadata_table_handles_opened and metadata_table_handles_closed counters, enter the following line in the [mysqld] section of your my.cnf configuration file.

[mysqld]
innodb_monitor_enable = module_recovery,metadata_table_handles_opened,metadata_table_handles_closed

When enabling multiple counters or modules in your configuration file, you must specify the innodb_monitor_enable configuration option followed by counter and module names separated by a comma, as shown in the example above. Only the innodb_monitor_enable option can be used in your configuration file. The disable and reset configuration options are only supported on the command line.

Note

Because each counter imposes some degree of runtime overhead on the server, typically you enable more counters on test and development servers during experimentation and benchmarking, and only enable counters on production servers to diagnose known issues or monitor aspects that are likely to be bottlenecks for a particular server and workload.

Counters

The counters represented in the INNODB_METRICS table are subject to change, so for the most up-to-date list, query a running MySQL server.

Counters that are enabled by default correspond to those used by SHOW ENGINE INNODB STATUS. Counters used by SHOW ENGINE INNODB STATUS are always on at a system level but you can disable these counters for the INNODB_METRICS table, as required. Also, counter status is not persistent. Unless specified otherwise, counters revert to their default enabled or disabled status when the server is restarted.

If you run programs that would be affected by additions or changes to the INNODB_METRICS table, it is recommended that you review releases notes and query the INNODB_METRICS table for the new release prior to upgrading.

mysql> SELECT name, subsystem, status FROM INFORMATION_SCHEMA.INNODB_METRICS ORDER BY NAME;
+------------------------------------------+---------------------+----------+
| name                                     | subsystem           | status   |
+------------------------------------------+---------------------+----------+
| adaptive_hash_pages_added                | adaptive_hash_index | disabled |
| adaptive_hash_pages_removed              | adaptive_hash_index | disabled |
| adaptive_hash_rows_added                 | adaptive_hash_index | disabled |
| adaptive_hash_rows_deleted_no_hash_entry | adaptive_hash_index | disabled |
| adaptive_hash_rows_removed               | adaptive_hash_index | disabled |
| adaptive_hash_rows_updated               | adaptive_hash_index | disabled |
| adaptive_hash_searches                   | adaptive_hash_index | enabled  |
| adaptive_hash_searches_btree             | adaptive_hash_index | enabled  |
| buffer_data_reads                        | buffer              | enabled  |
| buffer_data_written                      | buffer              | enabled  |
| buffer_flush_adaptive                    | buffer              | disabled |
| buffer_flush_adaptive_avg_pass           | buffer              | disabled |
| buffer_flush_adaptive_avg_time_est       | buffer              | disabled |
| buffer_flush_adaptive_avg_time_slot      | buffer              | disabled |
| buffer_flush_adaptive_avg_time_thread    | buffer              | disabled |
| buffer_flush_adaptive_pages              | buffer              | disabled |
| buffer_flush_adaptive_total_pages        | buffer              | disabled |
| buffer_flush_avg_page_rate               | buffer              | disabled |
| buffer_flush_avg_pass                    | buffer              | disabled |
| buffer_flush_avg_time                    | buffer              | disabled |
| buffer_flush_background                  | buffer              | disabled |
| buffer_flush_background_pages            | buffer              | disabled |
| buffer_flush_background_total_pages      | buffer              | disabled |
| buffer_flush_batches                     | buffer              | disabled |
| buffer_flush_batch_num_scan              | buffer              | disabled |
| buffer_flush_batch_pages                 | buffer              | disabled |
| buffer_flush_batch_scanned               | buffer              | disabled |
| buffer_flush_batch_scanned_per_call      | buffer              | disabled |
| buffer_flush_batch_total_pages           | buffer              | disabled |
| buffer_flush_lsn_avg_rate                | buffer              | disabled |
| buffer_flush_neighbor                    | buffer              | disabled |
| buffer_flush_neighbor_pages              | buffer              | disabled |
| buffer_flush_neighbor_total_pages        | buffer              | disabled |
| buffer_flush_n_to_flush_by_age           | buffer              | disabled |
| buffer_flush_n_to_flush_requested        | buffer              | disabled |
| buffer_flush_pct_for_dirty               | buffer              | disabled |
| buffer_flush_pct_for_lsn                 | buffer              | disabled |
| buffer_flush_sync                        | buffer              | disabled |
| buffer_flush_sync_pages                  | buffer              | disabled |
| buffer_flush_sync_total_pages            | buffer              | disabled |
| buffer_flush_sync_waits                  | buffer              | disabled |
| buffer_LRU_batches_evict                 | buffer              | disabled |
| buffer_LRU_batches_flush                 | buffer              | disabled |
| buffer_LRU_batch_evict_pages             | buffer              | disabled |
| buffer_LRU_batch_evict_total_pages       | buffer              | disabled |
| buffer_LRU_batch_flush_avg_pass          | buffer              | disabled |
| buffer_LRU_batch_flush_avg_time_est      | buffer              | disabled |
| buffer_LRU_batch_flush_avg_time_slot     | buffer              | disabled |
| buffer_LRU_batch_flush_avg_time_thread   | buffer              | disabled |
| buffer_LRU_batch_flush_pages             | buffer              | disabled |
| buffer_LRU_batch_flush_total_pages       | buffer              | disabled |
| buffer_LRU_batch_num_scan                | buffer              | disabled |
| buffer_LRU_batch_scanned                 | buffer              | disabled |
| buffer_LRU_batch_scanned_per_call        | buffer              | disabled |
| buffer_LRU_get_free_loops                | buffer              | disabled |
| buffer_LRU_get_free_search               | Buffer              | disabled |
| buffer_LRU_get_free_waits                | buffer              | disabled |
| buffer_LRU_search_num_scan               | buffer              | disabled |
| buffer_LRU_search_scanned                | buffer              | disabled |
| buffer_LRU_search_scanned_per_call       | buffer              | disabled |
| buffer_LRU_single_flush_failure_count    | Buffer              | disabled |
| buffer_LRU_single_flush_num_scan         | buffer              | disabled |
| buffer_LRU_single_flush_scanned          | buffer              | disabled |
| buffer_LRU_single_flush_scanned_per_call | buffer              | disabled |
| buffer_LRU_unzip_search_num_scan         | buffer              | disabled |
| buffer_LRU_unzip_search_scanned          | buffer              | disabled |
| buffer_LRU_unzip_search_scanned_per_call | buffer              | disabled |
| buffer_pages_created                     | buffer              | enabled  |
| buffer_pages_read                        | buffer              | enabled  |
| buffer_pages_written                     | buffer              | enabled  |
| buffer_page_read_blob                    | buffer_page_io      | disabled |
| buffer_page_read_fsp_hdr                 | buffer_page_io      | disabled |
| buffer_page_read_ibuf_bitmap             | buffer_page_io      | disabled |
| buffer_page_read_ibuf_free_list          | buffer_page_io      | disabled |
| buffer_page_read_index_ibuf_leaf         | buffer_page_io      | disabled |
| buffer_page_read_index_ibuf_non_leaf     | buffer_page_io      | disabled |
| buffer_page_read_index_inode             | buffer_page_io      | disabled |
| buffer_page_read_index_leaf              | buffer_page_io      | disabled |
| buffer_page_read_index_non_leaf          | buffer_page_io      | disabled |
| buffer_page_read_other                   | buffer_page_io      | disabled |
| buffer_page_read_system_page             | buffer_page_io      | disabled |
| buffer_page_read_trx_system              | buffer_page_io      | disabled |
| buffer_page_read_undo_log                | buffer_page_io      | disabled |
| buffer_page_read_xdes                    | buffer_page_io      | disabled |
| buffer_page_read_zblob                   | buffer_page_io      | disabled |
| buffer_page_read_zblob2                  | buffer_page_io      | disabled |
| buffer_page_written_blob                 | buffer_page_io      | disabled |
| buffer_page_written_fsp_hdr              | buffer_page_io      | disabled |
| buffer_page_written_ibuf_bitmap          | buffer_page_io      | disabled |
| buffer_page_written_ibuf_free_list       | buffer_page_io      | disabled |
| buffer_page_written_index_ibuf_leaf      | buffer_page_io      | disabled |
| buffer_page_written_index_ibuf_non_leaf  | buffer_page_io      | disabled |
| buffer_page_written_index_inode          | buffer_page_io      | disabled |
| buffer_page_written_index_leaf           | buffer_page_io      | disabled |
| buffer_page_written_index_non_leaf       | buffer_page_io      | disabled |
| buffer_page_written_other                | buffer_page_io      | disabled |
| buffer_page_written_system_page          | buffer_page_io      | disabled |
| buffer_page_written_trx_system           | buffer_page_io      | disabled |
| buffer_page_written_undo_log             | buffer_page_io      | disabled |
| buffer_page_written_xdes                 | buffer_page_io      | disabled |
| buffer_page_written_zblob                | buffer_page_io      | disabled |
| buffer_page_written_zblob2               | buffer_page_io      | disabled |
| buffer_pool_bytes_data                   | buffer              | enabled  |
| buffer_pool_bytes_dirty                  | buffer              | enabled  |
| buffer_pool_pages_data                   | buffer              | enabled  |
| buffer_pool_pages_dirty                  | buffer              | enabled  |
| buffer_pool_pages_free                   | buffer              | enabled  |
| buffer_pool_pages_misc                   | buffer              | enabled  |
| buffer_pool_pages_total                  | buffer              | enabled  |
| buffer_pool_reads                        | buffer              | enabled  |
| buffer_pool_read_ahead                   | buffer              | enabled  |
| buffer_pool_read_ahead_evicted           | buffer              | enabled  |
| buffer_pool_read_requests                | buffer              | enabled  |
| buffer_pool_size                         | server              | enabled  |
| buffer_pool_wait_free                    | buffer              | enabled  |
| buffer_pool_write_requests               | buffer              | enabled  |
| compression_pad_decrements               | compression         | disabled |
| compression_pad_increments               | compression         | disabled |
| compress_pages_compressed                | compression         | disabled |
| compress_pages_decompressed              | compression         | disabled |
| ddl_background_drop_indexes              | ddl                 | disabled |
| ddl_background_drop_tables               | ddl                 | disabled |
| ddl_log_file_alter_table                 | ddl                 | disabled |
| ddl_online_create_index                  | ddl                 | disabled |
| ddl_pending_alter_table                  | ddl                 | disabled |
| ddl_sort_file_alter_table                | ddl                 | disabled |
| dml_deletes                              | dml                 | enabled  |
| dml_inserts                              | dml                 | enabled  |
| dml_reads                                | dml                 | disabled |
| dml_updates                              | dml                 | enabled  |
| file_num_open_files                      | file_system         | enabled  |
| ibuf_merges                              | change_buffer       | enabled  |
| ibuf_merges_delete                       | change_buffer       | enabled  |
| ibuf_merges_delete_mark                  | change_buffer       | enabled  |
| ibuf_merges_discard_delete               | change_buffer       | enabled  |
| ibuf_merges_discard_delete_mark          | change_buffer       | enabled  |
| ibuf_merges_discard_insert               | change_buffer       | enabled  |
| ibuf_merges_insert                       | change_buffer       | enabled  |
| ibuf_size                                | change_buffer       | enabled  |
| icp_attempts                             | icp                 | disabled |
| icp_match                                | icp                 | disabled |
| icp_no_match                             | icp                 | disabled |
| icp_out_of_range                         | icp                 | disabled |
| index_page_discards                      | index               | disabled |
| index_page_merge_attempts                | index               | disabled |
| index_page_merge_successful              | index               | disabled |
| index_page_reorg_attempts                | index               | disabled |
| index_page_reorg_successful              | index               | disabled |
| index_page_splits                        | index               | disabled |
| innodb_activity_count                    | server              | enabled  |
| innodb_background_drop_table_usec        | server              | disabled |
| innodb_checkpoint_usec                   | server              | disabled |
| innodb_dblwr_pages_written               | server              | enabled  |
| innodb_dblwr_writes                      | server              | enabled  |
| innodb_dict_lru_count                    | server              | disabled |
| innodb_dict_lru_usec                     | server              | disabled |
| innodb_ibuf_merge_usec                   | server              | disabled |
| innodb_log_flush_usec                    | server              | disabled |
| innodb_master_active_loops               | server              | disabled |
| innodb_master_idle_loops                 | server              | disabled |
| innodb_master_purge_usec                 | server              | disabled |
| innodb_master_thread_sleeps              | server              | disabled |
| innodb_mem_validate_usec                 | server              | disabled |
| innodb_page_size                         | server              | enabled  |
| innodb_rwlock_sx_os_waits                | server              | enabled  |
| innodb_rwlock_sx_spin_rounds             | server              | enabled  |
| innodb_rwlock_sx_spin_waits              | server              | enabled  |
| innodb_rwlock_s_os_waits                 | server              | enabled  |
| innodb_rwlock_s_spin_rounds              | server              | enabled  |
| innodb_rwlock_s_spin_waits               | server              | enabled  |
| innodb_rwlock_x_os_waits                 | server              | enabled  |
| innodb_rwlock_x_spin_rounds              | server              | enabled  |
| innodb_rwlock_x_spin_waits               | server              | enabled  |
| lock_deadlocks                           | lock                | enabled  |
| lock_rec_locks                           | lock                | disabled |
| lock_rec_lock_created                    | lock                | disabled |
| lock_rec_lock_removed                    | lock                | disabled |
| lock_rec_lock_requests                   | lock                | disabled |
| lock_rec_lock_waits                      | lock                | disabled |
| lock_row_lock_current_waits              | lock                | enabled  |
| lock_row_lock_time                       | lock                | enabled  |
| lock_row_lock_time_avg                   | lock                | enabled  |
| lock_row_lock_time_max                   | lock                | enabled  |
| lock_row_lock_waits                      | lock                | enabled  |
| lock_table_locks                         | lock                | disabled |
| lock_table_lock_created                  | lock                | disabled |
| lock_table_lock_removed                  | lock                | disabled |
| lock_table_lock_waits                    | lock                | disabled |
| lock_timeouts                            | lock                | enabled  |
| log_checkpoints                          | recovery            | disabled |
| log_lsn_buf_pool_oldest                  | recovery            | disabled |
| log_lsn_checkpoint_age                   | recovery            | disabled |
| log_lsn_current                          | recovery            | disabled |
| log_lsn_last_checkpoint                  | recovery            | disabled |
| log_lsn_last_flush                       | recovery            | disabled |
| log_max_modified_age_async               | recovery            | disabled |
| log_max_modified_age_sync                | recovery            | disabled |
| log_num_log_io                           | recovery            | disabled |
| log_padded                               | recovery            | enabled  |
| log_pending_checkpoint_writes            | recovery            | disabled |
| log_pending_log_flushes                  | recovery            | disabled |
| log_waits                                | recovery            | enabled  |
| log_writes                               | recovery            | enabled  |
| log_write_requests                       | recovery            | enabled  |
| metadata_table_handles_closed            | metadata            | disabled |
| metadata_table_handles_opened            | metadata            | disabled |
| metadata_table_reference_count           | metadata            | disabled |
| os_data_fsyncs                           | os                  | enabled  |
| os_data_reads                            | os                  | enabled  |
| os_data_writes                           | os                  | enabled  |
| os_log_bytes_written                     | os                  | enabled  |
| os_log_fsyncs                            | os                  | enabled  |
| os_log_pending_fsyncs                    | os                  | enabled  |
| os_log_pending_writes                    | os                  | enabled  |
| os_pending_reads                         | os                  | disabled |
| os_pending_writes                        | os                  | disabled |
| purge_del_mark_records                   | purge               | disabled |
| purge_dml_delay_usec                     | purge               | disabled |
| purge_invoked                            | purge               | disabled |
| purge_resume_count                       | purge               | disabled |
| purge_stop_count                         | purge               | disabled |
| purge_undo_log_pages                     | purge               | disabled |
| purge_upd_exist_or_extern_records        | purge               | disabled |
| trx_active_transactions                  | transaction         | disabled |
| trx_commits_insert_update                | transaction         | disabled |
| trx_nl_ro_commits                        | transaction         | disabled |
| trx_rollbacks                            | transaction         | disabled |
| trx_rollbacks_savepoint                  | transaction         | disabled |
| trx_rollback_active                      | transaction         | disabled |
| trx_ro_commits                           | transaction         | disabled |
| trx_rseg_current_size                    | transaction         | disabled |
| trx_rseg_history_len                     | transaction         | enabled  |
| trx_rw_commits                           | transaction         | disabled |
| trx_undo_slots_cached                    | transaction         | disabled |
| trx_undo_slots_used                      | transaction         | disabled |
+------------------------------------------+---------------------+----------+
235 rows in set (0.01 sec)

Counter Modules

The module names correspond to, but are not identical to, the values from the SUBSYSTEM column of the INNODB_METRICS table. Rather enabling, disabling, or resetting counters individually, you can use module names to quickly enable, disable, or reset all counters for a particular subsystem. For example, use module_dml to enable all counters associated with the dml subsystem.

mysql> SET GLOBAL innodb_monitor_enable = module_dml;

mysql> SELECT name, subsystem, status FROM INFORMATION_SCHEMA.INNODB_METRICS
WHERE subsystem ='dml';
+-------------+-----------+---------+
| name        | subsystem | status  |
+-------------+-----------+---------+
| dml_reads   | dml       | enabled |
| dml_inserts | dml       | enabled |
| dml_deletes | dml       | enabled |
| dml_updates | dml       | enabled |
+-------------+-----------+---------+

Here are the values you can use for module_name with the innodb_monitor_enable and related configuration options, along with the corresponding SUBSYSTEM names:

  • module_adaptive_hash (subsystem = adaptive_hash_index)

  • module_buffer (subsystem = buffer)

  • module_buffer_page (subsystem = buffer_page_io)

  • module_compress (subsystem = compression)

  • module_ddl (subsystem = ddl)

  • module_dml (subsystem = dml)

  • module_file (subsystem = file_system)

  • module_ibuf_system (subsystem = change_buffer)

  • module_icp (subsystem = icp)

  • module_index (subsystem = index)

  • module_innodb (subsystem = innodb)

  • module_lock (subsystem = lock)

  • module_log (subsystem = recovery)

  • module_metadata (subsystem = metadata)

  • module_os (subsystem = os)

  • module_purge (subsystem = purge)

  • module_trx (subsystem = transaction)

Example 15.20 Working with INNODB_METRICS Table Counters

This example demonstrates enabling, disabling, and resetting a counter, and querying counter data in the INNODB_METRICS table.

  1. Create a simple InnoDB table:

    mysql> USE test;
    Database changed

    mysql> CREATE TABLE t1 (c1 INT) ENGINE=INNODB;
    Query OK, 0 rows affected (0.02 sec)
  2. Enable the dml_inserts counter.

    mysql> SET GLOBAL innodb_monitor_enable = dml_inserts;
    Query OK, 0 rows affected (0.01 sec)

    A description of the dml_inserts counter can be found in the COMMENT column of the INNODB_METRICS table:

    mysql> SELECT NAME, COMMENT FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts";
    +-------------+-------------------------+
    | NAME        | COMMENT                 |
    +-------------+-------------------------+
    | dml_inserts | Number of rows inserted |
    +-------------+-------------------------+
  3. Query the INNODB_METRICS table for the dml_inserts counter data. Because no DML operations have been performed, the counter values are zero or NULL. The TIME_ENABLED and TIME_ELAPSED values indicate when the counter was last enabled and how many seconds have elapsed since this time.

    mysql>  SELECT * FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts" \G
    *************************** 1. row ***************************
               NAME: dml_inserts
          SUBSYSTEM: dml
              COUNT: 0
          MAX_COUNT: 0
          MIN_COUNT: NULL
          AVG_COUNT: 0
        COUNT_RESET: 0
    MAX_COUNT_RESET: 0
    MIN_COUNT_RESET: NULL
    AVG_COUNT_RESET: NULL
       TIME_ENABLED: 2014-12-04 14:18:28
      TIME_DISABLED: NULL
       TIME_ELAPSED: 28
         TIME_RESET: NULL
             STATUS: enabled
               TYPE: status_counter
            COMMENT: Number of rows inserted
  4. Insert three rows of data into the table.

    mysql> INSERT INTO t1 values(1);
    Query OK, 1 row affected (0.00 sec)

    mysql> INSERT INTO t1 values(2);
    Query OK, 1 row affected (0.00 sec)

    mysql> INSERT INTO t1 values(3);
    Query OK, 1 row affected (0.00 sec)
  5. Query the INNODB_METRICS table again for the dml_inserts counter data. A number of counter values have now incremented including COUNT, MAX_COUNT, AVG_COUNT, and COUNT_RESET. Refer to the INNODB_METRICS table definition for descriptions of these values.

    mysql>  SELECT * FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts"\G
    *************************** 1. row ***************************
               NAME: dml_inserts
          SUBSYSTEM: dml
              COUNT: 3
          MAX_COUNT: 3
          MIN_COUNT: NULL
          AVG_COUNT: 0.046153846153846156
        COUNT_RESET: 3
    MAX_COUNT_RESET: 3
    MIN_COUNT_RESET: NULL
    AVG_COUNT_RESET: NULL
       TIME_ENABLED: 2014-12-04 14:18:28
      TIME_DISABLED: NULL
       TIME_ELAPSED: 65
         TIME_RESET: NULL
             STATUS: enabled
               TYPE: status_counter
            COMMENT: Number of rows inserted
  6. Reset the dml_inserts counter, and query the INNODB_METRICS table again for the dml_inserts counter data. The %_RESET values that were reported previously, such as COUNT_RESET and MAX_RESET, are set back to zero. Values such as COUNT, MAX_COUNT, and AVG_COUNT, which cumulatively collect data from the time the counter is enabled, are unaffected by the reset.

    mysql> SET GLOBAL innodb_monitor_reset = dml_inserts;
    Query OK, 0 rows affected (0.00 sec)

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts"\G
    *************************** 1. row ***************************
               NAME: dml_inserts
          SUBSYSTEM: dml
              COUNT: 3
          MAX_COUNT: 3
          MIN_COUNT: NULL
          AVG_COUNT: 0.03529411764705882
        COUNT_RESET: 0
    MAX_COUNT_RESET: 0
    MIN_COUNT_RESET: NULL
    AVG_COUNT_RESET: 0
       TIME_ENABLED: 2014-12-04 14:18:28
      TIME_DISABLED: NULL
       TIME_ELAPSED: 85
         TIME_RESET: 2014-12-04 14:19:44
             STATUS: enabled
               TYPE: status_counter
            COMMENT: Number of rows inserted
  7. To reset all counter values, you must first disable the counter. Disabling the counter sets the STATUS value to disbaled.

    mysql> SET GLOBAL innodb_monitor_disable = dml_inserts;
    Query OK, 0 rows affected (0.00 sec)

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts"\G
    *************************** 1. row ***************************
               NAME: dml_inserts
          SUBSYSTEM: dml
              COUNT: 3
          MAX_COUNT: 3
          MIN_COUNT: NULL
          AVG_COUNT: 0.030612244897959183
        COUNT_RESET: 0
    MAX_COUNT_RESET: 0
    MIN_COUNT_RESET: NULL
    AVG_COUNT_RESET: 0
       TIME_ENABLED: 2014-12-04 14:18:28
      TIME_DISABLED: 2014-12-04 14:20:06
       TIME_ELAPSED: 98
         TIME_RESET: NULL
             STATUS: disabled
               TYPE: status_counter
    COMMENT: Number of rows inserted
    Note

    Wildcard match is supported for counter and module names. For example, instead of specifying the full dml_inserts counter name, you can specify dml_i%. You can also enable, disable, or reset multiple counters or modules at once using a wildcard match. For example, specify dml_% to enable, disable, or reset all counters that begin with dml_%.

  8. After the counter is disabled, you can reset all counter values using the innodb_monitor_reset_all option. All values are set to zero or NULL.

    mysql> SET GLOBAL innodb_monitor_reset_all = dml_inserts;
    Query OK, 0 rows affected (0.00 sec)

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_METRICS WHERE NAME="dml_inserts"\G
    *************************** 1. row ***************************
               NAME: dml_inserts
          SUBSYSTEM: dml
              COUNT: 0
          MAX_COUNT: NULL
          MIN_COUNT: NULL
          AVG_COUNT: NULL
        COUNT_RESET: 0
    MAX_COUNT_RESET: NULL
    MIN_COUNT_RESET: NULL
    AVG_COUNT_RESET: NULL
       TIME_ENABLED: NULL
      TIME_DISABLED: NULL
       TIME_ELAPSED: NULL
         TIME_RESET: NULL
             STATUS: disabled
               TYPE: status_counter
    COMMENT: Number of rows inserted

15.15.7 InnoDB INFORMATION_SCHEMA Temporary Table Information Table

The INNODB_TEMP_TABLE_INFO table provides users with a snapshot of active InnoDB temporary tables. The table contains metadata about all user and system-created temporary tables that are active within a given InnoDB instance with the exception of optimized temporary tables that are used internally by InnoDB.

mysql> SHOW TABLES FROM INFORMATION_SCHEMA LIKE 'INNODB_TEMP%';
+---------------------------------------------+
| Tables_in_INFORMATION_SCHEMA (INNODB_TEMP%) |
+---------------------------------------------+
| INNODB_TEMP_TABLE_INFO                      |
+---------------------------------------------+

For the table definition, see Section 24.31.26, “The INFORMATION_SCHEMA INNODB_TEMP_TABLE_INFO Table”.

Example 15.21 INNODB_TEMP_TABLE_INFO

This example demonstrates characteristics of the INNODB_TEMP_TABLE_INFO table.

  1. Create a simple InnoDB temporary table with a single column:

    mysql> CREATE TEMPORARY TABLE t1 (c1 INT PRIMARY KEY) ENGINE=INNODB;
    Query OK, 0 rows affected (0.00 sec)
  2. Query the INNODB_TEMP_TABLE_INFO table to view the temporary table's metadata.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_TEMP_TABLE_INFO\G
    *************************** 1. row ***************************
                TABLE_ID: 194
                    NAME: #sql7a79_1_0
                  N_COLS: 4
                   SPACE: 182
    PER_TABLE_TABLESPACE: FALSE
           IS_COMPRESSED: FALSE

    The TABLE_ID is a unique identifier for the temporary table. The NAME column displays the system-generated name for the temporary table, which is prefixed with #sql. The number of columns (N_COLS) is 4 rather than 1 because InnoDB always creates three hidden table columns (DB_ROW_ID, DB_TRX_ID, and DB_ROLL_PTR). PER_TABLE_TABLESPACE and IS_COMPRESSED only report TRUE for compressed temporary tables.

  3. Create a compressed temporary table. Before you do so, ensure that innodb_file_format is set to Barracuda, which is required to create tables with a compressed row format.

    mysql> SET GLOBAL innodb_file_format="Barracuda";
    Query OK, 0 rows affected (0.00 sec)

    mysql> CREATE TEMPORARY TABLE t2 (c1 INT) ROW_FORMAT=COMPRESSED ENGINE=INNODB;
    Query OK, 0 rows affected (0.01 sec)
  4. Query the INNODB_TEMP_TABLE_INFO table again.

    mysql> CREATE TEMPORARY TABLE t2 (c1 INT) ROW_FORMAT=COMPRESSED ENGINE=INNODB;
    Query OK, 0 rows affected (0.01 sec)

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_TEMP_TABLE_INFO\G
    *************************** 1. row ***************************
                TABLE_ID: 195
                    NAME: #sql7a79_1_1
                  N_COLS: 4
                   SPACE: 183
    PER_TABLE_TABLESPACE: TRUE
           IS_COMPRESSED: TRUE
    *************************** 2. row ***************************
                TABLE_ID: 194
                    NAME: #sql7a79_1_0
                  N_COLS: 4
                   SPACE: 182
    PER_TABLE_TABLESPACE: FALSE
           IS_COMPRESSED: FALSE

    PER_TABLE_TABLESPACE and IS_COMPRESSED report TRUE for the compressed temporary table. The SPACE ID for the compressed temporary table is different because compressed temporary tables are created in separate per-table tablespaces. Non-compressed temporary tables share a single tablespace (ibtmp1, by default) and report the same SPACE ID.

  5. Restart MySQL and query the INNODB_TEMP_TABLE_INFO table.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_TEMP_TABLE_INFO\G
    Empty set (0.00 sec)


    An empty set is returned because the INNODB_TEMP_TABLE_INFO table and the data within it are not persisted to disk on server shutdown.

  6. Create a new temporary table.

    mysql> CREATE TEMPORARY TABLE t1 (c1 INT PRIMARY KEY) ENGINE=INNODB;
    Query OK, 0 rows affected (0.00 sec)
  7. Query the INNODB_TEMP_TABLE_INFO table to view the temporary table's metadata.

    mysql> SELECT * FROM INFORMATION_SCHEMA.INNODB_TEMP_TABLE_INFO\G
    *************************** 1. row ***************************
                TABLE_ID: 196
                    NAME: #sql7b0e_1_0
                  N_COLS: 4
                   SPACE: 184
    PER_TABLE_TABLESPACE: FALSE
           IS_COMPRESSED: FALSE

    The SPACE ID is new because it is dynamically generated on server restart.


15.15.8 Retrieving InnoDB Tablespace Metadata from INFORMATION_SCHEMA.FILES

The INFORMATION_SCHEMA.FILES table provides metadata about all InnoDB tablespace types including file-per-table tablespaces, general tablespaces, the system tablespace, temporary table tablespaces, and undo tablespaces (if present).

This section provides InnoDB-specific usage examples. For more information about data provided by the INFORMATION_SCHEMA.FILES table, see Section 24.8, “The INFORMATION_SCHEMA FILES Table”.

Note

The INNODB_SYS_TABLESPACES and INNODB_SYS_DATAFILES tables also provide metadata about InnoDB tablespaces, but data is limited to file-per-table and general tablespaces.

This query retrieves metadata about the InnoDB system tablespace from fields of the INFORMATION_SCHEMA.FILES table that are pertinent to InnoDB tablespaces. INFORMATION_SCHEMA.FILES fields that are not relevant to InnoDB always return NULL, and are excluded from the query.

mysql> SELECT FILE_ID, FILE_NAME, FILE_TYPE, TABLESPACE_NAME, FREE_EXTENTS,
TOTAL_EXTENTS,  EXTENT_SIZE, INITIAL_SIZE, MAXIMUM_SIZE, AUTOEXTEND_SIZE, DATA_FREE, STATUS ENGINE
FROM INFORMATION_SCHEMA.FILES WHERE TABLESPACE_NAME LIKE 'innodb_system' \G
*************************** 1. row ***************************
        FILE_ID: 0
      FILE_NAME: ./ibdata1
      FILE_TYPE: TABLESPACE
TABLESPACE_NAME: innodb_system
   FREE_EXTENTS: 0
  TOTAL_EXTENTS: 12
    EXTENT_SIZE: 1048576
   INITIAL_SIZE: 12582912
   MAXIMUM_SIZE: NULL
AUTOEXTEND_SIZE: 67108864
      DATA_FREE: 4194304
         ENGINE: NORMAL

This query retrieves the FILE_ID (equivalent to the space ID) and the FILE_NAME (which includes path information) for InnoDB file-per-table and general tablespaces. File-per-table and general tablespaces have a .ibd file extension.

mysql> SELECT FILE_ID, FILE_NAME FROM INFORMATION_SCHEMA.FILES
WHERE FILE_NAME LIKE '%.ibd%' ORDER BY FILE_ID;
    +---------+---------------------------------------+
    | FILE_ID | FILE_NAME                             |
    +---------+---------------------------------------+
    |       2 | ./mysql/plugin.ibd                    |
    |       3 | ./mysql/servers.ibd                   |
    |       4 | ./mysql/help_topic.ibd                |
    |       5 | ./mysql/help_category.ibd             |
    |       6 | ./mysql/help_relation.ibd             |
    |       7 | ./mysql/help_keyword.ibd              |
    |       8 | ./mysql/time_zone_name.ibd            |
    |       9 | ./mysql/time_zone.ibd                 |
    |      10 | ./mysql/time_zone_transition.ibd      |
    |      11 | ./mysql/time_zone_transition_type.ibd |
    |      12 | ./mysql/time_zone_leap_second.ibd     |
    |      13 | ./mysql/innodb_table_stats.ibd        |
    |      14 | ./mysql/innodb_index_stats.ibd        |
    |      15 | ./mysql/slave_relay_log_info.ibd      |
    |      16 | ./mysql/slave_master_info.ibd         |
    |      17 | ./mysql/slave_worker_info.ibd         |
    |      18 | ./mysql/gtid_executed.ibd             |
    |      19 | ./mysql/server_cost.ibd               |
    |      20 | ./mysql/engine_cost.ibd               |
    |      21 | ./sys/sys_config.ibd                  |
    |      23 | ./test/t1.ibd                         |
    |      26 | /home/user/test/test/t2.ibd           |
    +---------+---------------------------------------+

This query retrieves the FILE_ID and FILE_NAME for InnoDB temporary tablespaces. Temporary tablespace file names are prefixed by ibtmp.

mysql> SELECT FILE_ID, FILE_NAME FROM INFORMATION_SCHEMA.FILES
WHERE FILE_NAME LIKE '%ibtmp%';
+---------+-----------+
| FILE_ID | FILE_NAME |
+---------+-----------+
|      22 | ./ibtmp1  |
+---------+-----------+

Similarly, InnoDB undo tablespace file names are prefixed by undo. The following query returns the FILE_ID and FILE_NAME for InnoDB undo tablespaces, if separate undo tablespaces are configured.

mysql> SELECT FILE_ID, FILE_NAME FROM INFORMATION_SCHEMA.FILES
WHERE FILE_NAME LIKE '%undo%';

15.16 InnoDB Integration with MySQL Performance Schema

This section provides a brief introduction to InnoDB integration with Performance Schema. For comprehensive Performance Schema documentation, see Chapter 25, MySQL Performance Schema.

You can profile certain internal InnoDB operations using the MySQL Performance Schema feature. This type of tuning is primarily for expert users who evaluate optimization strategies to overcome performance bottlenecks. DBAs can also use this feature for capacity planning, to see whether their typical workload encounters any performance bottlenecks with a particular combination of CPU, RAM, and disk storage; and if so, to judge whether performance can be improved by increasing the capacity of some part of the system.

To use this feature to examine InnoDB performance:

  • You must be generally familiar with how to use the Performance Schema feature. For example, you should know how enable instruments and consumers, and how to query performance_schema tables to retrieve data. For an introductory overview, see Section 25.1, “Performance Schema Quick Start”.

  • You should be familiar with Performance Schema instruments that are available for InnoDB. To view InnoDB-related instruments, you can query the setup_instruments table for instrument names that contain 'innodb'.

    mysql> SELECT * FROM setup_instruments WHERE NAME LIKE '%innodb%';
    +-------------------------------------------------------+---------+-------+
    | NAME                                                  | ENABLED | TIMED |
    +-------------------------------------------------------+---------+-------+
    | wait/synch/mutex/innodb/commit_cond_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/innobase_share_mutex          | NO      | NO    |
    | wait/synch/mutex/innodb/autoinc_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/buf_pool_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/buf_pool_zip_mutex            | NO      | NO    |
    | wait/synch/mutex/innodb/cache_last_read_mutex         | NO      | NO    |
    | wait/synch/mutex/innodb/dict_foreign_err_mutex        | NO      | NO    |
    | wait/synch/mutex/innodb/dict_sys_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/recalc_pool_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/file_format_max_mutex         | NO      | NO    |
    ...
    | wait/io/file/innodb/innodb_data_file                  | YES     | YES   |
    | wait/io/file/innodb/innodb_log_file                   | YES     | YES   |
    | wait/io/file/innodb/innodb_temp_file                  | YES     | YES   |
    | stage/innodb/alter table (end)                        | YES     | YES   |
    | stage/innodb/alter table (flush)                      | YES     | YES   |
    | stage/innodb/alter table (insert)                     | YES     | YES   |
    | stage/innodb/alter table (log apply index)            | YES     | YES   |
    | stage/innodb/alter table (log apply table)            | YES     | YES   |
    | stage/innodb/alter table (merge sort)                 | YES     | YES   |
    | stage/innodb/alter table (read PK and internal sort)  | YES     | YES   |
    | stage/innodb/buffer pool load                         | YES     | YES   |
    | memory/innodb/buf_buf_pool                            | NO      | NO    |
    | memory/innodb/dict_stats_bg_recalc_pool_t             | NO      | NO    |
    | memory/innodb/dict_stats_index_map_t                  | NO      | NO    |
    | memory/innodb/dict_stats_n_diff_on_level              | NO      | NO    |
    | memory/innodb/other                                   | NO      | NO    |
    | memory/innodb/row_log_buf                             | NO      | NO    |
    | memory/innodb/row_merge_sort                          | NO      | NO    |
    | memory/innodb/std                                     | NO      | NO    |
    | memory/innodb/sync_debug_latches                      | NO      | NO    |
    | memory/innodb/trx_sys_t::rw_trx_ids                   | NO      | NO    |
    ...
    +-------------------------------------------------------+---------+-------+
    155 rows in set (0.00 sec)

    For additional information about the instrumented InnoDB objects, you can query Performance Schema instances tables, which provide additional information about instrumented objects. Instance tables relevant to InnoDB include:

    Note

    Mutexes and RW-locks related to the InnoDB buffer pool are not included in this coverage; the same applies to the output of the SHOW ENGINE INNODB MUTEX command.

    For example, to view information about instrumented InnoDB file objects seen by the Performance Schema when executing file I/O instrumentation, you might issue the following query:

    mysql> SELECT * FROM file_instances WHERE EVENT_NAME LIKE '%innodb%'\G
    *************************** 1. row ***************************
     FILE_NAME: /path/to/mysql-5.7/data/ibdata1
    EVENT_NAME: wait/io/file/innodb/innodb_data_file
    OPEN_COUNT: 3
    *************************** 2. row ***************************
     FILE_NAME: /path/to/mysql-5.7/data/ib_logfile0
    EVENT_NAME: wait/io/file/innodb/innodb_log_file
    OPEN_COUNT: 2
    *************************** 3. row ***************************
     FILE_NAME: /path/to/mysql-5.7/data/ib_logfile1
    EVENT_NAME: wait/io/file/innodb/innodb_log_file
    OPEN_COUNT: 2
    *************************** 4. row ***************************
     FILE_NAME: /path/to/mysql-5.7/data/mysql/engine_cost.ibd
    EVENT_NAME: wait/io/file/innodb/innodb_data_file
    OPEN_COUNT: 3
    ...
  • You should be familiar with performance_schema tables that store InnoDB event data. Tables relevant to InnoDB-related events include:

    If you are only interested in InnoDB-related objects, use the clause WHERE EVENT_NAME LIKE '%innodb%' or WHERE NAME LIKE '%innodb%' (as required) when querying these tables.

15.16.1 Monitoring ALTER TABLE Progress for InnoDB Tables Using Performance Schema

You can monitor ALTER TABLE progress for InnoDB tables using Performance Schema.

There are seven stage events that represent different phases of ALTER TABLE. Each stage event reports a running total of WORK_COMPLETED and WORK_ESTIMATED for the overall ALTER TABLE operation as it progresses through its different phases. WORK_ESTIMATED is calculated using a formula that takes into account all of the work that ALTER TABLE performs, and may be revised during ALTER TABLE processing. WORK_COMPLETED and WORK_ESTIMATED values are an abstract representation of all of the work performed by ALTER TABLE.

In order of occurrence, ALTER TABLE stage events include:

  • stage/innodb/alter table (read PK and internal sort): This stage is active when ALTER TABLE is in the reading-primary-key phase. It starts with WORK_COMPLETED=0 and WORK_ESTIMATED set to the estimated number of pages in the primary key. When the stage is completed, WORK_ESTIMATED is updated to the actual number of pages in the primary key.

  • stage/innodb/alter table (merge sort): This stage is repeated for each index added by the ALTER TABLE operation.

  • stage/innodb/alter table (insert): This stage is repeated for each index added by the ALTER TABLE operation.

  • stage/innodb/alter table (log apply index): This stage includes the application of DML log generated while ALTER TABLE was running.

  • stage/innodb/alter table (flush): Before this stage begins, WORK_ESTIMATED is updated with a more accurate estimate, based on the length of the flush list.

  • stage/innodb/alter table (log apply table): This stage includes the application of concurrent DML log generated while ALTER TABLE was running. The duration of this phase depends on the extent of table changes. This phase is instant if no concurrent DML was run on the table.

  • stage/innodb/alter table (end): Includes any remaining work that appeared after the flush phase, such as reapplying DML that was executed on the table while ALTER TABLE was running.

Note

InnoDB ALTER TABLE stage events do not currently account for the addition of spatial indexes.

ALTER TABLE Monitoring Example Using Performance Schema

The following example demonstrates how to enable the stage/innodb/alter table% stage event instruments and related consumer tables to monitor ALTER TABLE progress. For information about Performance Schema stage event instruments and related consumers, see Section 25.10.5, “Performance Schema Stage Event Tables”.

  1. Enable the stage/innodb/alter% instruments:

    mysql> UPDATE setup_instruments SET ENABLED = 'YES' WHERE NAME LIKE 'stage/innodb/alter%';
    Query OK, 7 rows affected (0.00 sec)
    Rows matched: 7  Changed: 7  Warnings: 0
  2. Enable the stage event consumer tables, which include events_stages_current, events_stages_history, and events_stages_history_long.

    mysql> UPDATE setup_consumers SET ENABLED = 'YES' WHERE NAME LIKE '%stages%';
    Query OK, 3 rows affected (0.00 sec)
    Rows matched: 3  Changed: 3  Warnings: 0
  3. Run an ALTER TABLE operation. In this example, a middle_name column is added to the employees table of the employees sample database.

    mysql> ALTER TABLE employees.employees ADD COLUMN middle_name varchar(14) AFTER first_name;
    Query OK, 0 rows affected (9.27 sec)
    Records: 0  Duplicates: 0  Warnings: 0
  4. Check the progress of the ALTER TABLE operation by querying the Performance Schema events_stages_current table. The stage event shown differs depending on which ALTER TABLE phase is currently in progress. The WORK_COMPLETED column shows the work completed. The WORK_ESTIMATED column provides an estimate of the remaining work.

    mysql> SELECT EVENT_NAME, WORK_COMPLETED, WORK_ESTIMATED FROM events_stages_current;
    +------------------------------------------------------+----------------+----------------+
    | EVENT_NAME                                           | WORK_COMPLETED | WORK_ESTIMATED |
    +------------------------------------------------------+----------------+----------------+
    | stage/innodb/alter table (read PK and internal sort) |            280 |           1245 |
    +------------------------------------------------------+----------------+----------------+
    1 row in set (0.01 sec)

    The events_stages_current table returns an empty set if the ALTER TABLE operation has completed. In this case, you can check the events_stages_history table to view event data for the completed operation. For example:

    mysql> SELECT EVENT_NAME, WORK_COMPLETED, WORK_ESTIMATED FROM events_stages_history;
    +------------------------------------------------------+----------------+----------------+
    | EVENT_NAME                                           | WORK_COMPLETED | WORK_ESTIMATED |
    +------------------------------------------------------+----------------+----------------+
    | stage/innodb/alter table (read PK and internal sort) |            886 |           1213 |
    | stage/innodb/alter table (flush)                     |           1213 |           1213 |
    | stage/innodb/alter table (log apply table)           |           1597 |           1597 |
    | stage/innodb/alter table (end)                       |           1597 |           1597 |
    | stage/innodb/alter table (log apply table)           |           1981 |           1981 |
    +------------------------------------------------------+----------------+----------------+
    5 rows in set (0.00 sec)

    As shown above, the WORK_ESTIMATED value was revised during ALTER TABLE processing. The estimated work after completion of the initial stage is 1213. When ALTER TABLE processing completed, WORK_ESTIMATED was set to the actual value, which is 1981.

15.16.2 Monitoring InnoDB Mutex Waits Using Performance Schema

A mutex is a synchronization mechanism used in the code to enforce that only one thread at a given time can have access to a common resource. When two or more threads executing in the server need to access the same resource, the threads compete against each other. The first thread to obtain a lock on the mutex causes the other threads to wait until the lock is released.

For InnoDB mutexes that are instrumented, mutex waits can be monitored using Performance Schema. Wait event data collected in Performance Schema tables can help identify mutexes with the most waits or the greatest total wait time, for example.

The following example demonstrates how to enable InnoDB mutex wait instruments, how to enable associated consumers, and how to query wait event data.

  1. To view available InnoDB mutex wait instruments, query the Performance Schema setup_instruments table, as shown below. All InnoDB mutex wait instruments are disabled by default.

    mysql> SELECT * FROM performance_schema.setup_instruments
        -> WHERE NAME LIKE '%wait/synch/mutex/innodb%';
    +-------------------------------------------------------+---------+-------+
    | NAME                                                  | ENABLED | TIMED |
    +-------------------------------------------------------+---------+-------+
    | wait/synch/mutex/innodb/commit_cond_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/innobase_share_mutex          | NO      | NO    |
    | wait/synch/mutex/innodb/autoinc_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/buf_pool_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/buf_pool_zip_mutex            | NO      | NO    |
    | wait/synch/mutex/innodb/cache_last_read_mutex         | NO      | NO    |
    | wait/synch/mutex/innodb/dict_foreign_err_mutex        | NO      | NO    |
    | wait/synch/mutex/innodb/dict_sys_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/recalc_pool_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/file_format_max_mutex         | NO      | NO    |
    | wait/synch/mutex/innodb/fil_system_mutex              | NO      | NO    |
    | wait/synch/mutex/innodb/flush_list_mutex              | NO      | NO    |
    | wait/synch/mutex/innodb/fts_bg_threads_mutex          | NO      | NO    |
    | wait/synch/mutex/innodb/fts_delete_mutex              | NO      | NO    |
    | wait/synch/mutex/innodb/fts_optimize_mutex            | NO      | NO    |
    | wait/synch/mutex/innodb/fts_doc_id_mutex              | NO      | NO    |
    | wait/synch/mutex/innodb/log_flush_order_mutex         | NO      | NO    |
    | wait/synch/mutex/innodb/hash_table_mutex              | NO      | NO    |
    | wait/synch/mutex/innodb/ibuf_bitmap_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/ibuf_mutex                    | NO      | NO    |
    | wait/synch/mutex/innodb/ibuf_pessimistic_insert_mutex | NO      | NO    |
    | wait/synch/mutex/innodb/log_sys_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/page_zip_stat_per_index_mutex | NO      | NO    |
    | wait/synch/mutex/innodb/purge_sys_pq_mutex            | NO      | NO    |
    | wait/synch/mutex/innodb/recv_sys_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/recv_writer_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/redo_rseg_mutex               | NO      | NO    |
    | wait/synch/mutex/innodb/noredo_rseg_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/rw_lock_list_mutex            | NO      | NO    |
    | wait/synch/mutex/innodb/rw_lock_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/srv_dict_tmpfile_mutex        | NO      | NO    |
    | wait/synch/mutex/innodb/srv_innodb_monitor_mutex      | NO      | NO    |
    | wait/synch/mutex/innodb/srv_misc_tmpfile_mutex        | NO      | NO    |
    | wait/synch/mutex/innodb/srv_monitor_file_mutex        | NO      | NO    |
    | wait/synch/mutex/innodb/buf_dblwr_mutex               | NO      | NO    |
    | wait/synch/mutex/innodb/trx_undo_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/trx_pool_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/trx_pool_manager_mutex        | NO      | NO    |
    | wait/synch/mutex/innodb/srv_sys_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/lock_mutex                    | NO      | NO    |
    | wait/synch/mutex/innodb/lock_wait_mutex               | NO      | NO    |
    | wait/synch/mutex/innodb/trx_mutex                     | NO      | NO    |
    | wait/synch/mutex/innodb/srv_threads_mutex             | NO      | NO    |
    | wait/synch/mutex/innodb/rtr_active_mutex              | NO      | NO    |
    | wait/synch/mutex/innodb/rtr_match_mutex               | NO      | NO    |
    | wait/synch/mutex/innodb/rtr_path_mutex                | NO      | NO    |
    | wait/synch/mutex/innodb/rtr_ssn_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/trx_sys_mutex                 | NO      | NO    |
    | wait/synch/mutex/innodb/zip_pad_mutex                 | NO      | NO    |
    +-------------------------------------------------------+---------+-------+
    49 rows in set (0.02 sec)
  2. Some InnoDB mutex instances are created at server startup and are only instrumented if the associated instrument is also enabled at server startup. To ensure that all InnoDB mutex instances are instrumented and enabled, add the following performance-schema-instrument rule to your MySQL configuration file:

    performance-schema-instrument='wait/synch/mutex/innodb/%=ON'

    If you do not require wait event data for all InnoDB mutexes, you can disable specific instruments by adding additional performance-schema-instrument rules to your MySQL configuration file. For example, to disable InnoDB mutex wait event instruments related to full-text search, add the following rule:

    performance-schema-instrument='wait/synch/mutex/innodb/fts%=OFF'
    Note

    Rules with a longer prefix such as wait/synch/mutex/innodb/fts% take precedence over rules with shorter prefixes such as wait/synch/mutex/innodb/%.

    After adding the performance-schema-instrument rules to your configuration file, restart the server. All the InnoDB mutexes except for those related to full text search are enabled. To verify, query the setup_instruments table. The ENABLED and TIMED columns should be set to YES for the instruments that you enabled.

    mysql> SELECT * FROM performance_schema.setup_instruments
        -> WHERE NAME LIKE '%wait/synch/mutex/innodb%';
    +-------------------------------------------------------+---------+-------+
    | NAME                                                  | ENABLED | TIMED |
    +-------------------------------------------------------+---------+-------+
    | wait/synch/mutex/innodb/commit_cond_mutex             | YES     | YES   |
    | wait/synch/mutex/innodb/innobase_share_mutex          | YES     | YES   |
    | wait/synch/mutex/innodb/autoinc_mutex                 | YES     | YES   |
    ...
    | wait/synch/mutex/innodb/zip_pad_mutex                 | YES     | YES   |
    +-------------------------------------------------------+---------+-------+
    49 rows in set (0.00 sec)
  3. Enable wait event consumers by updating the setup_consumers table. Wait event consumers are disabled by default.

    mysql> UPDATE performance_schema.setup_consumers SET enabled = 'YES'
        -> WHERE name like 'events_waits%';
    Query OK, 3 rows affected (0.00 sec)
    Rows matched: 3  Changed: 3  Warnings: 0

    You can verify that wait event consumers are enabled by querying the setup_consumers table. The events_waits_current, events_waits_history, and events_waits_history_long consumers should be enabled.

    mysql> SELECT * FROM performance_schema.setup_consumers;
    +----------------------------------+---------+
    | NAME                             | ENABLED |
    +----------------------------------+---------+
    | events_stages_current            | NO      |
    | events_stages_history            | NO      |
    | events_stages_history_long       | NO      |
    | events_statements_current        | YES     |
    | events_statements_history        | YES     |
    | events_statements_history_long   | NO      |
    | events_transactions_current      | YES     |
    | events_transactions_history      | YES     |
    | events_transactions_history_long | NO      |
    | events_waits_current             | YES     |
    | events_waits_history             | YES     |
    | events_waits_history_long        | YES     |
    | global_instrumentation           | YES     |
    | thread_instrumentation           | YES     |
    | statements_digest                | YES     |
    +----------------------------------+---------+
    15 rows in set (0.00 sec)
  4. Once instruments and consumers are enabled, run the workload that you want to monitor. In this example, the mysqlslap load emulation client is used to simulate a workload.

    shell> ./mysqlslap --auto-generate-sql --concurrency=100 --iterations=10
        -> --number-of-queries=1000 --number-char-cols=6 --number-int-cols=6;
  5. Query the wait event data. In this example, wait event data is queried from the events_waits_summary_global_by_event_name table which aggregates data found in the events_waits_current, events_waits_history, and events_waits_history_long tables. Data is summarized by event name (EVENT_NAME), which is the name of the instrument that produced the event. Summarized data includes:

    • COUNT_STAR

      The number of summarized wait events.

    • SUM_TIMER_WAIT

      The total wait time of the summarized timed wait events.

    • MIN_TIMER_WAIT

      The minimum wait time of the summarized timed wait events.

    • AVG_TIMER_WAIT

      The average wait time of the summarized timed wait events.

    • MAX_TIMER_WAIT

      The maximum wait time of the summarized timed wait events.

    The following query returns the instrument name (EVENT_NAME), the number of wait events (COUNT_STAR), and the total wait time for the events for that instrument (SUM_TIMER_WAIT). Because waits are timed in picoseconds (trillionths of a second) by default, wait times are divided by 1000000000 to show wait times in milliseconds. Data is presented in descending order, by the number of summarized wait events (COUNT_STAR). You can adjust the ORDER BY clause to order the data by total wait time.

    mysql> SELECT EVENT_NAME, COUNT_STAR, SUM_TIMER_WAIT/1000000000 SUM_TIMER_WAIT_MS
        -> FROM performance_schema.events_waits_summary_global_by_event_name
        -> WHERE SUM_TIMER_WAIT > 0 AND EVENT_NAME LIKE 'wait/synch/mutex/innodb/%'
        -> ORDER BY COUNT_STAR DESC;
    +--------------------------------------------------+------------+-------------------+
    | EVENT_NAME                                       | COUNT_STAR | SUM_TIMER_WAIT_MS |
    +--------------------------------------------------+------------+-------------------+
    | wait/synch/mutex/innodb/os_mutex                 |      78831 |           10.3283 |
    | wait/synch/mutex/innodb/log_sys_mutex            |      41488 |         6510.3233 |
    | wait/synch/mutex/innodb/trx_sys_mutex            |      29770 |         1107.9687 |
    | wait/synch/mutex/innodb/lock_mutex               |      24212 |          104.0724 |
    | wait/synch/mutex/innodb/trx_mutex                |      22756 |            1.9421 |
    | wait/synch/mutex/innodb/rseg_mutex               |      20333 |            3.6220 |
    | wait/synch/mutex/innodb/dict_sys_mutex           |      13422 |            2.2284 |
    | wait/synch/mutex/innodb/mutex_list_mutex         |      12694 |          344.1164 |
    | wait/synch/mutex/innodb/fil_system_mutex         |       9208 |            0.9542 |
    | wait/synch/mutex/innodb/rw_lock_list_mutex       |       8304 |            0.1794 |
    | wait/synch/mutex/innodb/trx_undo_mutex           |       6190 |            0.6801 |
    | wait/synch/mutex/innodb/buf_pool_mutex           |       2869 |           29.4623 |
    | wait/synch/mutex/innodb/innobase_share_mutex     |       2005 |            0.1349 |
    | wait/synch/mutex/innodb/flush_list_mutex         |       1274 |            0.1300 |
    | wait/synch/mutex/innodb/file_format_max_mutex    |       1016 |            0.0469 |
    | wait/synch/mutex/innodb/purge_sys_bh_mutex       |       1004 |            0.0326 |
    | wait/synch/mutex/innodb/buf_dblwr_mutex          |        640 |            0.0437 |
    | wait/synch/mutex/innodb/log_flush_order_mutex    |        437 |            0.0510 |
    | wait/synch/mutex/innodb/recv_sys_mutex           |        394 |            0.0202 |
    | wait/synch/mutex/innodb/srv_sys_mutex            |        169 |            0.5259 |
    | wait/synch/mutex/innodb/lock_wait_mutex          |        154 |            0.1172 |
    | wait/synch/mutex/innodb/ibuf_mutex               |          9 |            0.0027 |
    | wait/synch/mutex/innodb/srv_innodb_monitor_mutex |          2 |            0.0009 |
    | wait/synch/mutex/innodb/ut_list_mutex            |          1 |            0.0001 |
    | wait/synch/mutex/innodb/recv_writer_mutex        |          1 |            0.0005 |
    +--------------------------------------------------+------------+-------------------+
    25 rows in set (0.01 sec)
    Note

    The preceding result set includes wait event data produced during the startup process. To exclude this data, you can truncate the events_waits_summary_global_by_event_name table immediately after startup and before running your workload. However, the truncate operation itself may produce a negligible amount wait event data.

    mysql> TRUNCATE performance_schema.events_waits_summary_global_by_event_name;

15.17 InnoDB Monitors

InnoDB monitors provide information about the InnoDB internal state. This information is useful for performance tuning.

15.17.1 InnoDB Monitor Types

There are two types of InnoDB monitor:

  • The standard InnoDB Monitor displays the following types of information:

    • Table and record locks held by each active transaction.

    • Lock waits of a transaction.

    • Semaphore waits of threads.

    • Pending file I/O requests.

    • Buffer pool statistics.

    • Purge and change buffer merge activity of the main InnoDB thread.

  • The InnoDB Lock Monitor prints additional lock information as part of the standard InnoDB Monitor output.

15.17.2 Enabling InnoDB Monitors

When you enable InnoDB monitors for periodic output, InnoDB writes their output to the mysqld server standard error output (stderr). In this case, no output is sent to clients. When switched on, InnoDB monitors print data about every 15 seconds. Server output usually is directed to the error log (see Section 6.4.2, “The Error Log”). This data is useful in performance tuning. On Windows, start the server from a command prompt in a console window with the --console option if you want to direct the output to the window rather than to the error log.

InnoDB sends diagnostic output to stderr or to files rather than to stdout or fixed-size memory buffers, to avoid potential buffer overflows. As a side effect, the output of SHOW ENGINE INNODB STATUS is written to a status file in the MySQL data directory every fifteen seconds. The name of the file is innodb_status.pid, where pid is the server process ID. InnoDB removes the file for a normal shutdown. If abnormal shutdowns have occurred, instances of these status files may be present and must be removed manually. Before removing them, you might want to examine them to see whether they contain useful information about the cause of abnormal shutdowns. The innodb_status.pid file is created only if the configuration option innodb-status-file=1 is set.

InnoDB monitors should be enabled only when you actually want to see monitor information because output generation does result in some performance decrement. Also, if you enable monitor output, your error log may become quite large if you forget to disable it later.

Note

To assist with troubleshooting, InnoDB temporarily enables standard InnoDB Monitor output under certain conditions. For more information, see Section 15.21, “InnoDB Troubleshooting”.

InnoDB monitor output begins with a header containing a timestamp and the monitor name. For example:

=====================================
2014-10-16 18:37:29 0x7fc2a95c1700 INNODB MONITOR OUTPUT
=====================================

The header for the standard InnoDB Monitor (INNODB MONITOR OUTPUT) is also used for the Lock Monitor because the latter produces the same output with the addition of extra lock information.

The innodb_status_output and innodb_status_output_locks system variables are used to enable the standard InnoDB Monitor and InnoDB Lock Monitor.

The PROCESS privilege is required to enable and disable InnoDB Monitors.

Enabling the Standard InnoDB Monitor

Enable the standard InnoDB Monitor by setting the innodb_status_output system variable to ON.

set GLOBAL innodb_status_output=ON;

To disable the standard InnoDB Monitor, set innodb_status_output to OFF.

When you shut down the server, the innodb_status_output variable is set to the default OFF value.

Obtaining Standard InnoDB Monitor Output On Demand

As an alternative to enabling the standard InnoDB Monitor for periodic output, you can obtain standard InnoDB Monitor output on demand using the SHOW ENGINE INNODB STATUS SQL statement, which fetches the output to your client program. If you are using the mysql interactive client, the output is more readable if you replace the usual semicolon statement terminator with \G:

mysql> SHOW ENGINE INNODB STATUS\G

SHOW ENGINE INNODB STATUS output also includes InnoDB Lock Monitor data if the InnoDB Lock Monitor is enabled.

Enabling the InnoDB Lock Monitor

InnoDB Lock Monitor data is printed with the InnoDB Standard Monitor output. Both the InnoDB Standard Monitor and InnoDB Lock Monitor must be enabled to have InnoDBLock Monitor data printed periodically.

To enable the InnoDB Lock Monitor, set the innodb_status_output_locks system variable to ON. Both the InnoDB standard Monitor and InnoDB Lock Monitor must be enabled to have InnoDB Lock Monitor data printed periodically:

set GLOBAL innodb_status_output=ON;
set GLOBAL innodb_status_output_locks=ON;

When you shut down the server, the innodb_status_output and innodb_status_output_locks variables are set to the default OFF value.

To disable the InnoDB Lock Monitor, set innodb_status_output_locks to OFF. Set innodb_status_output to OFF to also disable the InnoDB Standard Monitor.

Note

To enable the InnoDB Lock Monitor for SHOW ENGINE INNODB STATUS output, you are only required to enable innodb_status_output_locks.

15.17.3 InnoDB Standard Monitor and Lock Monitor Output

The Lock Monitor is the same as the Standard Monitor except that it includes additional lock information. Enabling either monitor for periodic output turns on the same output stream, but the stream includes extra information if the Lock Monitor is enabled. For example, if you enable the Standard Monitor and Lock Monitor, that turns on a single output stream. The stream includes extra lock information until you disable the Lock Monitor.

Standard Monitor output is limited to 1MB when produced using the SHOW ENGINE INNODB STATUS statement. This limit does not apply to output written to the server's error output.

Example Standard Monitor output:

mysql> SHOW ENGINE INNODB STATUS\G
*************************** 1. row ***************************
  Type: InnoDB
  Name:
Status:
=====================================
2014-10-16 18:37:29 0x7fc2a95c1700 INNODB MONITOR OUTPUT
=====================================
Per second averages calculated from the last 20 seconds
-----------------
BACKGROUND THREAD
-----------------
srv_master_thread loops: 38 srv_active, 0 srv_shutdown, 252 srv_idle
srv_master_thread log flush and writes: 290
----------
SEMAPHORES
----------
OS WAIT ARRAY INFO: reservation count 119
OS WAIT ARRAY INFO: signal count 103
Mutex spin waits 0, rounds 0, OS waits 0
RW-shared spins 38, rounds 76, OS waits 38
RW-excl spins 2, rounds 9383715, OS waits 3
RW-sx spins 0, rounds 0, OS waits 0
Spin rounds per wait: 0.00 mutex, 2.00 RW-shared, 4691857.50 RW-excl,
0.00 RW-sx
------------------------
LATEST FOREIGN KEY ERROR
------------------------
2014-10-16 18:35:18 0x7fc2a95c1700 Transaction:
TRANSACTION 1814, ACTIVE 0 sec inserting
mysql tables in use 1, locked 1
4 lock struct(s), heap size 1136, 3 row lock(s), undo log entries 3
MySQL thread id 2, OS thread handle 140474041767680, query id 74 localhost
root update
INSERT INTO child VALUES
    (NULL, 1)
    , (NULL, 2)
    , (NULL, 3)
    , (NULL, 4)
    , (NULL, 5)
    , (NULL, 6)
Foreign key constraint fails for table `mysql`.`child`:
,
  CONSTRAINT `child_ibfk_1` FOREIGN KEY (`parent_id`) REFERENCES `parent`
  (`id`) ON DELETE CASCADE ON UPDATE CASCADE
Trying to add in child table, in index par_ind tuple:
DATA TUPLE: 2 fields;
 0: len 4; hex 80000003; asc     ;;
 1: len 4; hex 80000003; asc     ;;

But in parent table `mysql`.`parent`, in index PRIMARY,
the closest match we can find is record:
PHYSICAL RECORD: n_fields 3; compact format; info bits 0
 0: len 4; hex 80000004; asc     ;;
 1: len 6; hex 00000000070a; asc       ;;
 2: len 7; hex aa0000011d0134; asc       4;;

------------------------
LATEST DETECTED DEADLOCK
------------------------
2014-10-16 18:36:30 0x7fc2a95c1700
*** (1) TRANSACTION:
TRANSACTION 1824, ACTIVE 9 sec starting index read
mysql tables in use 1, locked 1
LOCK WAIT 2 lock struct(s), heap size 1136, 1 row lock(s)
MySQL thread id 3, OS thread handle 140474041501440, query id 80 localhost
root updating
DELETE FROM t WHERE i = 1
*** (1) WAITING FOR THIS LOCK TO BE GRANTED:
RECORD LOCKS space id 35 page no 3 n bits 72 index GEN_CLUST_INDEX of table
`mysql`.`t` trx id 1824 lock_mode X waiting
Record lock, heap no 2 PHYSICAL RECORD: n_fields 4; compact format; info
bits 0
 0: len 6; hex 000000000200; asc       ;;
 1: len 6; hex 00000000071f; asc       ;;
 2: len 7; hex b80000012b0110; asc     +  ;;
 3: len 4; hex 80000001; asc     ;;

*** (2) TRANSACTION:
TRANSACTION 1825, ACTIVE 29 sec starting index read
mysql tables in use 1, locked 1
4 lock struct(s), heap size 1136, 3 row lock(s)
MySQL thread id 2, OS thread handle 140474041767680, query id 81 localhost
root updating
DELETE FROM t WHERE i = 1
*** (2) HOLDS THE LOCK(S):
RECORD LOCKS space id 35 page no 3 n bits 72 index GEN_CLUST_INDEX of table
`mysql`.`t` trx id 1825 lock mode S
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info
bits 0
 0: len 8; hex 73757072656d756d; asc supremum;;

Record lock, heap no 2 PHYSICAL RECORD: n_fields 4; compact format; info bits 0
 0: len 6; hex 000000000200; asc       ;;
 1: len 6; hex 00000000071f; asc       ;;
 2: len 7; hex b80000012b0110; asc     +  ;;
 3: len 4; hex 80000001; asc     ;;

*** (2) WAITING FOR THIS LOCK TO BE GRANTED:
RECORD LOCKS space id 35 page no 3 n bits 72 index GEN_CLUST_INDEX of table
`mysql`.`t` trx id 1825 lock_mode X waiting
Record lock, heap no 2 PHYSICAL RECORD: n_fields 4; compact format; info
bits 0
 0: len 6; hex 000000000200; asc       ;;
 1: len 6; hex 00000000071f; asc       ;;
 2: len 7; hex b80000012b0110; asc     +  ;;
 3: len 4; hex 80000001; asc     ;;

*** WE ROLL BACK TRANSACTION (1)
------------
TRANSACTIONS
------------
Trx id counter 1950
Purge done for trx's n:o < 1933 undo n:o < 0 state: running but idle
History list length 23
LIST OF TRANSACTIONS FOR EACH SESSION:
---TRANSACTION 421949033065200, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421949033064280, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 1949, ACTIVE 0 sec inserting
mysql tables in use 1, locked 1
8 lock struct(s), heap size 1136, 1850 row lock(s), undo log entries 17415
MySQL thread id 4, OS thread handle 140474041235200, query id 176 localhost
root update
INSERT INTO `salaries` VALUES (55723,39746,'1997-02-25','1998-02-25'),
(55723,40758,'1998-02-25','1999-02-25'),(55723,44559,'1999-02-25','2000-02-25'),
(55723,44081,'2000-02-25','2001-02-24'),(55723,44112,'2001-02-24','2001-08-16'),
(55724,46461,'1996-12-06','1997-12-06'),(55724,48916,'1997-12-06','1998-12-06'),
(55724,51269,'1998-12-06','1999-12-06'),(55724,51932,'1999-12-06','2000-12-05'),
(55724,52617,'2000-12-05','2001-12-05'),(55724,56658,'2001-12-05','9999-01-01'),
(55725,40000,'1993-01-30','1994-01-30'),(55725,41472,'1994-01-30','1995-01-30'),
(55725,45293,'1995-01-30','1996-01-30'),(55725,473
--------
FILE I/O
--------
I/O thread 0 state: waiting for completed aio requests (insert buffer thread)
I/O thread 1 state: waiting for completed aio requests (log thread)
I/O thread 2 state: waiting for completed aio requests (read thread)
I/O thread 3 state: waiting for completed aio requests (read thread)
I/O thread 4 state: waiting for completed aio requests (read thread)
I/O thread 5 state: waiting for completed aio requests (read thread)
I/O thread 6 state: waiting for completed aio requests (write thread)
I/O thread 7 state: waiting for completed aio requests (write thread)
I/O thread 8 state: waiting for completed aio requests (write thread)
I/O thread 9 state: waiting for completed aio requests (write thread)
Pending normal aio reads: 0 [0, 0, 0, 0] , aio writes: 0 [0, 0, 0, 0] ,
 ibuf aio reads: 0, log i/o's: 0, sync i/o's: 0
Pending flushes (fsync) log: 0; buffer pool: 0
224 OS file reads, 5770 OS file writes, 803 OS fsyncs
0.00 reads/s, 0 avg bytes/read, 264.84 writes/s, 23.05 fsyncs/s
-------------------------------------
INSERT BUFFER AND ADAPTIVE HASH INDEX
-------------------------------------
Ibuf: size 1, free list len 0, seg size 2, 0 merges
merged operations:
 insert 0, delete mark 0, delete 0
discarded operations:
 insert 0, delete mark 0, delete 0
Hash table size 4425293, node heap has 444 buffer(s)
68015.25 hash searches/s, 106259.24 non-hash searches/s
---
LOG
---
Log sequence number 165913808
Log flushed up to   164814979
Pages flushed up to 141544038
Last checkpoint at  130503656
0 pending log flushes, 0 pending chkp writes
258 log i/o's done, 6.65 log i/o's/second
----------------------
BUFFER POOL AND MEMORY
----------------------
Total large memory allocated 2198863872
Dictionary memory allocated 776332
Buffer pool size   131072
Free buffers       124908
Database pages     5720
Old database pages 2071
Modified db pages  910
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 4, not young 0
0.10 youngs/s, 0.00 non-youngs/s
Pages read 197, created 5523, written 5060
0.00 reads/s, 190.89 creates/s, 244.94 writes/s
Buffer pool hit rate 1000 / 1000, young-making rate 0 / 1000 not
0 / 1000
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read
ahead 0.00/s
LRU len: 5720, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
----------------------
INDIVIDUAL BUFFER POOL INFO
----------------------
---BUFFER POOL 0
Buffer pool size   65536
Free buffers       62412
Database pages     2899
Old database pages 1050
Modified db pages  449
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 3, not young 0
0.05 youngs/s, 0.00 non-youngs/s
Pages read 107, created 2792, written 2586
0.00 reads/s, 92.65 creates/s, 122.89 writes/s
Buffer pool hit rate 1000 / 1000, young-making rate 0 / 1000 not 0 / 1000
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead
0.00/s
LRU len: 2899, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 1
Buffer pool size   65536
Free buffers       62496
Database pages     2821
Old database pages 1021
Modified db pages  461
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 1, not young 0
0.05 youngs/s, 0.00 non-youngs/s
Pages read 90, created 2731, written 2474
0.00 reads/s, 98.25 creates/s, 122.04 writes/s
Buffer pool hit rate 1000 / 1000, young-making rate 0 / 1000 not 0 / 1000
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead
0.00/s
LRU len: 2821, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
--------------
ROW OPERATIONS
--------------
0 queries inside InnoDB, 0 queries in queue
0 read views open inside InnoDB
Process ID=35909, Main thread ID=140471692396288, state: sleeping
Number of rows inserted 1526363, updated 0, deleted 3, read 11
52671.72 inserts/s, 0.00 updates/s, 0.00 deletes/s, 0.00 reads/s
----------------------------
END OF INNODB MONITOR OUTPUT
============================

Standard Monitor Output Sections

For a description of each metric reported by the Standard Monitor, refer to the Metrics chapter in the Oracle Enterprise Manager for MySQL Database User's Guide.

Status

This section shows the timestamp, the monitor name, and the number of seconds that per-second averages are based on. The number of seconds is the elapsed time between the current time and the last time InnoDB Monitor output was printed.

BACKGROUND THREAD

The srv_master_thread lines shows work done by the main background thread.

SEMAPHORES

This section reports threads waiting for a semaphore and statistics on how many times threads have needed a spin or a wait on a mutex or a rw-lock semaphore. A large number of threads waiting for semaphores may be a result of disk I/O, or contention problems inside InnoDB. Contention can be due to heavy parallelism of queries or problems in operating system thread scheduling. Setting the innodb_thread_concurrency system variable smaller than the default value might help in such situations. The Spin rounds per wait line shows the number of spinlock rounds per OS wait for a mutex.

The line that reports mutex spin waits, rounds, and OS waits information was removed from SHOW ENGINE INNODB STATUS output in MySQL 5.7.8. Mutex metrics are reported by SHOW ENGINE INNODB MUTEX.

LATEST FOREIGN KEY ERROR

This section provides information about the most recent foreign key constraint error. It is not present if no such error has occurred. The contents include the statement that failed as well as information about the constraint that failed and the referenced and referencing tables.

LATEST DETECTED DEADLOCK

This section provides information about the most recent deadlock. It is not present if no deadlock has occurred. The contents show which transactions are involved, the statement each was attempting to execute, the locks they have and need, and which transaction InnoDB decided to roll back to break the deadlock. The lock modes reported in this section are explained in Section 15.5.1, “InnoDB Locking”.

TRANSACTIONS

If this section reports lock waits, your applications might have lock contention. The output can also help to trace the reasons for transaction deadlocks.

FILE I/O

This section provides information about threads that InnoDB uses to perform various types of I/O. The first few of these are dedicated to general InnoDB processing. The contents also display information for pending I/O operations and statistics for I/O performance.

The number of these threads are controlled by the innodb_read_io_threads and innodb_write_io_threads parameters. See Section 15.14, “InnoDB Startup Options and System Variables”.

INSERT BUFFER AND ADAPTIVE HASH INDEX

This section shows the status of the InnoDB insert buffer (also referred to as the change buffer) and the adaptive hash index.

For related information, see Section 15.4.2, “Change Buffer”, and Section 15.4.3, “Adaptive Hash Index”.

LOG

This section displays information about the InnoDB log. The contents include the current log sequence number, how far the log has been flushed to disk, and the position at which InnoDB last took a checkpoint. (See Section 15.12.3, “InnoDB Checkpoints”.) The section also displays information about pending writes and write performance statistics.

BUFFER POOL AND MEMORY

This section gives you statistics on pages read and written. You can calculate from these numbers how many data file I/O operations your queries currently are doing.

For buffer pool statistics descriptions, see Section 15.6.3.9, “Monitoring the Buffer Pool Using the InnoDB Standard Monitor”. For additional information about the operation of the buffer pool, see Section 15.6.3.1, “The InnoDB Buffer Pool”.

ROW OPERATIONS

This section shows what the main thread is doing, including the number and performance rate for each type of row operation.

15.18 InnoDB Backup and Recovery

This section covers topics related to InnoDB backup and recovery.

15.18.1 InnoDB Backup

The key to safe database management is making regular backups. Depending on your data volume, number of MySQL servers, and database workload, you can use these backup techniques, alone or in combination: hot backup with MySQL Enterprise Backup; cold backup by copying files while the MySQL server is shut down; logical backup with mysqldump for smaller data volumes or to record the structure of schema objects. Hot and cold backups are physical backups that copy actual data files, which can be used directly by the mysqld server for faster restore.

Hot Backups

The mysqlbackup command, part of the MySQL Enterprise Backup component, lets you back up a running MySQL instance, including InnoDB tables, with minimal disruption to operations while producing a consistent snapshot of the database. When mysqlbackup is copying InnoDB tables, reads and writes to InnoDB tables can continue. MySQL Enterprise Backup can also create compressed backup files, and back up subsets of tables and databases. In conjunction with the MySQL binary log, users can perform point-in-time recovery. MySQL Enterprise Backup is part of the MySQL Enterprise subscription. For more details, see Section 29.2, “MySQL Enterprise Backup Overview”.

Cold Backups

If you can shut down the MySQL server, you can make a physical backup that consists of all files used by InnoDB to manage its tables. Use the following procedure:

  1. Perform a slow shutdown of the MySQL server and make sure that it stops without errors.

  2. Copy all InnoDB data files (ibdata files and .ibd files) into a safe place.

  3. Copy all the .frm files for InnoDB tables to a safe place.

  4. Copy all InnoDB log files (ib_logfile files) to a safe place.

  5. Copy your my.cnf configuration file or files to a safe place.

Logical Backups Using mysqldump

In addition to physical backups, it is recommended that you regularly create logical backups by dumping your tables using mysqldump. A binary file might be corrupted without you noticing it. Dumped tables are stored into text files that are human-readable, so spotting table corruption becomes easier. Also, because the format is simpler, the chance for serious data corruption is smaller. mysqldump also has a --single-transaction option for making a consistent snapshot without locking out other clients. See Section 8.3.1, “Establishing a Backup Policy”.

Replication works with InnoDB tables, so you can use MySQL replication capabilities to keep a copy of your database at database sites requiring high availability. See Section 15.19, “InnoDB and MySQL Replication”.

15.18.2 InnoDB Recovery

This section describes InnoDB recovery. Topics include:

Point-in-Time Recovery

To recover an InnoDB database to the present from the time at which the physical backup was made, you must run MySQL server with binary logging enabled, even before taking the backup. To achieve point-in-time recovery after restoring a backup, you can apply changes from the binary log that occurred after the backup was made. See Section 8.5, “Point-in-Time (Incremental) Recovery Using the Binary Log”.

Recovery from Data Corruption or Disk Failure

If your database becomes corrupted or disk failure occurs, you must perform the recovery using a backup. In the case of corruption, first find a backup that is not corrupted. After restoring the base backup, do a point-in-time recovery from the binary log files using mysqlbinlog and mysql to restore the changes that occurred after the backup was made.

In some cases of database corruption, it is enough to dump, drop, and re-create one or a few corrupt tables. You can use the CHECK TABLE statement to check whether a table is corrupt, although CHECK TABLE naturally cannot detect every possible kind of corruption.

In some cases, apparent database page corruption is actually due to the operating system corrupting its own file cache, and the data on disk may be okay. It is best to try restarting the computer first. Doing so may eliminate errors that appeared to be database page corruption. If MySQL still has trouble starting because of InnoDB consistency problems, see Section 15.21.2, “Forcing InnoDB Recovery” for steps to start the instance in recovery mode, which permits you to dump the data.

InnoDB Crash Recovery

To recover from a MySQL server crash, the only requirement is to restart the MySQL server. InnoDB automatically checks the logs and performs a roll-forward of the database to the present. InnoDB automatically rolls back uncommitted transactions that were present at the time of the crash. During recovery, mysqld displays output similar to this:

InnoDB: Log scan progressed past the checkpoint lsn 369163704
InnoDB: Doing recovery: scanned up to log sequence number 374340608
InnoDB: Doing recovery: scanned up to log sequence number 379583488
InnoDB: Doing recovery: scanned up to log sequence number 384826368
InnoDB: Doing recovery: scanned up to log sequence number 390069248
InnoDB: Doing recovery: scanned up to log sequence number 395312128
InnoDB: Doing recovery: scanned up to log sequence number 400555008
InnoDB: Doing recovery: scanned up to log sequence number 405797888
InnoDB: Doing recovery: scanned up to log sequence number 411040768
InnoDB: Doing recovery: scanned up to log sequence number 414724794
InnoDB: Database was not shutdown normally!
InnoDB: Starting crash recovery.
InnoDB: 1 transaction(s) which must be rolled back or cleaned up in
total 518425 row operations to undo
InnoDB: Trx id counter is 1792
InnoDB: Starting an apply batch of log records to the database...
InnoDB: Progress in percent: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81
82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99
InnoDB: Apply batch completed
...
InnoDB: Starting in background the rollback of uncommitted transactions
InnoDB: Rolling back trx with id 1511, 518425 rows to undo
...
InnoDB: Waiting for purge to start
InnoDB: 5.7.18 started; log sequence number 414724794
...
./mysqld: ready for connections.

InnoDB crash recovery consists of several steps:

  • Applying the redo log

    Redo log application is the first step and is performed during initialization, before accepting any connections. If all changes are flushed from the buffer pool to the tablespaces (ibdata* and *.ibd files) at the time of the shutdown or crash, redo log application is skipped. InnoDB also skips redo log application if redo log files are missing at startup.

    Removing redo logs to speed up recovery is not recommended, even if some data loss is acceptable. Removing redo logs should only be considered after a clean shutdown, with innodb_fast_shutdown set to 0 or 1.

    For information about the process that InnoDB uses to identify tablespaces that require redo log application, see Tablespace Discovery During Crash Recovery.

  • Rolling back incomplete transactions

    Incomplete transactions are any transactions that were active at the time of crash or fast shutdown. The time it takes to roll back an incomplete transaction can be three or four times the amount of time a transaction is active before it is interrupted, depending on server load.

    You cannot cancel transactions that are being rolled back. In extreme cases, when rolling back transactions is expected to take an exceptionally long time, it may be faster to start InnoDB with an innodb_force_recovery setting of 3 or greater. See Section 15.21.2, “Forcing InnoDB Recovery”.

  • Change buffer merge

    Applying changes from the change buffer (part of the system tablespace) to leaf pages of secondary indexes, as the index pages are read to the buffer pool.

  • Purge

    Deleting delete-marked records that are no longer visible to active transactions.

The steps that follow redo log application do not depend on the redo log (other than for logging the writes) and are performed in parallel with normal processing. Of these, only rollback of incomplete transactions is special to crash recovery. The insert buffer merge and the purge are performed during normal processing.

After redo log application, InnoDB attempts to accept connections as early as possible, to reduce downtime. As part of crash recovery, InnoDB rolls back transactions that were not committed or in XA PREPARE state when the server crashed. The rollback is performed by a background thread, executed in parallel with transactions from new connections. Until the rollback operation is completed, new connections may encounter locking conflicts with recovered transactions.

In most situations, even if the MySQL server was killed unexpectedly in the middle of heavy activity, the recovery process happens automatically and no action is required of the DBA. If a hardware failure or severe system error corrupted InnoDB data, MySQL might refuse to start. In this case, see Section 15.21.2, “Forcing InnoDB Recovery”.

For information about the binary log and InnoDB crash recovery, see Section 6.4.4, “The Binary Log”.

Tablespace Discovery During Crash Recovery

If, during recovery, InnoDB encounters redo logs written since the last checkpoint, the redo logs must be applied to affected tablespaces. The process that identifies affected tablespaces during recovery is referred to as tablespace discovery.

Tablespace discovery is performed by scanning redo logs from the last checkpoint to the end of the log for MLOG_FILE_NAME records that are written when a tablespace page is modified. An MLOG_FILE_NAME record contains the tablespace space ID and file name.

On startup, InnoDB opens the system tablespace and redo log. If there are redo log records written since the last checkpoint, affected tablespace files are opened based on MLOG_FILE_NAME records.

MLOG_FILE_NAME records are written for all persistent tablespace types including file-per-table tablespaces, general tablespaces, the system tablespace, and undo log tablespaces.

Redo-log-based discovery has the following characteristics:

  • Only tablespace *.ibd files modified since the last checkpoint are accessed.

  • Tablespace *.ibd files that are not attached to the InnoDB instance are ignored when redo logs are applied.

  • If MLOG_FILE_NAME records for the system tablespace do not match the server configuration affecting system tablespace data file names, recovery fails with an error before redo logs are applied.

  • If tablespace files referenced in the scanned portion of the log are missing, startup is refused.

  • Redo logs for missing tablespace *.ibd files are only disregarded if there is a file-delete redo log record (MLOG_FILE_DELETE) in the log. For example, a table rename failure could result in a missing *.ibd file without an MLOG_FILE_DELETE record. In this case, you could manually rename the tablespace file and restart crash recovery, or you could restart the server in recovery mode using the innodb_force_recovery option. Missing *.ibd files are ignored when the server is started in recovery mode.

Redo-log-based discovery, introduced in MySQL 5.7, replaces directory scans that were used in earlier MySQL releases to construct a space ID-to-tablespace file name map that was required to apply redo logs.

15.19 InnoDB and MySQL Replication

MySQL replication works for InnoDB tables as it does for MyISAM tables. It is also possible to use replication in a way where the storage engine on the slave is not the same as the original storage engine on the master. For example, you can replicate modifications to an InnoDB table on the master to a MyISAM table on the slave.

To set up a new slave for a master, make a copy of the InnoDB tablespace and the log files, as well as the .frm files of the InnoDB tables, and move the copies to the slave. If the innodb_file_per_table option is enabled, copy the .ibd files as well. For the proper procedure to do this, see Section 15.18.1, “InnoDB Backup”.

To make a new slave without taking down the master or an existing slave, use the MySQL Enterprise Backup product. If you can shut down the master or an existing slave, take a cold backup of the InnoDB tablespaces and log files and use that to set up a slave.

Transactions that fail on the master do not affect replication at all. MySQL replication is based on the binary log where MySQL writes SQL statements that modify data. A transaction that fails (for example, because of a foreign key violation, or because it is rolled back) is not written to the binary log, so it is not sent to slaves. See Section 14.3.1, “START TRANSACTION, COMMIT, and ROLLBACK Syntax”.

Replication and CASCADE.  Cascading actions for InnoDB tables on the master are replicated on the slave only if the tables sharing the foreign key relation use InnoDB on both the master and slave. This is true whether you are using statement-based or row-based replication. Suppose that you have started replication, and then create two tables on the master using the following CREATE TABLE statements:

CREATE TABLE fc1 (
    i INT PRIMARY KEY,
    j INT
) ENGINE = InnoDB;

CREATE TABLE fc2 (
    m INT PRIMARY KEY,
    n INT,
    FOREIGN KEY ni (n) REFERENCES fc1 (i)
        ON DELETE CASCADE
) ENGINE = InnoDB;

Suppose that the slave does not have InnoDB support enabled. If this is the case, then the tables on the slave are created, but they use the MyISAM storage engine, and the FOREIGN KEY option is ignored. Now we insert some rows into the tables on the master:

master> INSERT INTO fc1 VALUES (1, 1), (2, 2);
Query OK, 2 rows affected (0.09 sec)
Records: 2  Duplicates: 0  Warnings: 0

master> INSERT INTO fc2 VALUES (1, 1), (2, 2), (3, 1);
Query OK, 3 rows affected (0.19 sec)
Records: 3  Duplicates: 0  Warnings: 0

At this point, on both the master and the slave, table fc1 contains 2 rows, and table fc2 contains 3 rows, as shown here:

master> SELECT * FROM fc1;
+---+------+
| i | j    |
+---+------+
| 1 |    1 |
| 2 |    2 |
+---+------+
2 rows in set (0.00 sec)

master> SELECT * FROM fc2;
+---+------+
| m | n    |
+---+------+
| 1 |    1 |
| 2 |    2 |
| 3 |    1 |
+---+------+
3 rows in set (0.00 sec)

slave> SELECT * FROM fc1;
+---+------+
| i | j    |
+---+------+
| 1 |    1 |
| 2 |    2 |
+---+------+
2 rows in set (0.00 sec)

slave> SELECT * FROM fc2;
+---+------+
| m | n    |
+---+------+
| 1 |    1 |
| 2 |    2 |
| 3 |    1 |
+---+------+
3 rows in set (0.00 sec)

Now suppose that you perform the following DELETE statement on the master:

master> DELETE FROM fc1 WHERE i=1;
Query OK, 1 row affected (0.09 sec)

Due to the cascade, table fc2 on the master now contains only 1 row:

master> SELECT * FROM fc2;
+---+---+
| m | n |
+---+---+
| 2 | 2 |
+---+---+
1 row in set (0.00 sec)

However, the cascade does not propagate on the slave because on the slave the DELETE for fc1 deletes no rows from fc2. The slave's copy of fc2 still contains all of the rows that were originally inserted:

slave> SELECT * FROM fc2;
+---+---+
| m | n |
+---+---+
| 1 | 1 |
| 3 | 1 |
| 2 | 2 |
+---+---+
3 rows in set (0.00 sec)

This difference is due to the fact that the cascading deletes are handled internally by the InnoDB storage engine, which means that none of the changes are logged.

15.20 InnoDB memcached Plugin

The InnoDB memcached plugin (daemon_memcached) provides an integrated memcached daemon that automatically stores and retrieves data from InnoDB tables, turning the MySQL server into a fast key-value store. Instead of formulating queries in SQL, you can use simple get, set, and incr operations that avoid the performance overhead associated with SQL parsing and constructing a query optimization plan. You can also access the same InnoDB tables through SQL for convenience, complex queries, bulk operations, and other strengths of traditional database software.

This NoSQL-style interface uses the memcached API to speed up database operations, letting InnoDB handle memory caching using its buffer pool mechanism. Data modified through memcached operations such as add, set, and incr are stored to disk, in InnoDB tables. The combination of memcached simplicity and InnoDB reliability and consistency provides users with the best of both worlds, as explained in Section 15.20.1, “Benefits of the InnoDB memcached Plugin”. For an architectural overview, see Section 15.20.2, “InnoDB memcached Architecture”.

15.20.1 Benefits of the InnoDB memcached Plugin

This section outlines advantages the daemon_memcached plugin. The combination of InnoDB tables and memcached offers advantages over using either by themselves.

  • Direct access to the InnoDB storage engine avoids the parsing and planning overhead of SQL.

  • Running memcached in the same process space as the MySQL server avoids the network overhead of passing requests back and forth.

  • Data written using the memcached protocol is transparently written to an InnoDB table, without going through the MySQL SQL layer. You can control frequency of writes to achieve higher raw performance when updating non-critical data.

  • Data requested through the memcached protocol is transparently queried from an InnoDB table, without going through the MySQL SQL layer.

  • Subsequent requests for the same data is served from the InnoDB buffer pool. The buffer pool handles the in-memory caching. You can tune performance of data-intensive operations using InnoDB configuration options.

  • Data can be unstructured or structured, depending on the type of application. You can create a new table for data, or use existing tables.

  • InnoDB can handle composing and decomposing multiple column values into a single memcached item value, reducing the amount of string parsing and concatenation required in your application. For example, you can store the string value 2|4|6|8 in the memcached cache, and have InnoDB split the value based on a separator character, then store the result in four numeric columns.

  • The transfer between memory and disk is handled automatically, simplifying application logic.

  • Data is stored in a MySQL database to protect against crashes, outages, and corruption.

  • You can access the underlying InnoDB table through SQL for reporting, analysis, ad hoc queries, bulk loading, multi-step transactional computations, set operations such as union and intersection, and other operations suited to the expressiveness and flexibility of SQL.

  • You can ensure high availability by using the daemon_memcached plugin on a master server in combination with MySQL replication.

  • The integration of memcached with MySQL provides a way to make in-memory data persistent, so you can use it for more significant kinds of data. You can use more add, incr, and similar write operations in your application without concern that data could be lost. You can stop and start the memcached server without losing updates made to cached data. To guard against unexpected outages, you can take advantage of InnoDB crash recovery, replication, and backup capabilities.

  • The way InnoDB does fast primary key lookups is a natural fit for memcached single-item queries. The direct, low-level database access path used by the daemon_memcached plugin is much more efficient for key-value lookups than equivalent SQL queries.

  • The serialization features of memcached, which can turn complex data structures, binary files, or even code blocks into storeable strings, offer a simple way to get such objects into a database.

  • Because you can access the underlying data through SQL, you can produce reports, search or update across multiple keys, and call functions such as AVG() and MAX() on memcached data. All of these operations are expensive or complicated using memcached by itself.

  • You do not need to manually load data into memcached at startup. As particular keys are requested by an application, values are retrieved from the database automatically, and cached in memory using the InnoDB buffer pool.

  • Because memcached consumes relatively little CPU, and its memory footprint is easy to control, it can run comfortably alongside a MySQL instance on the same system.

  • Because data consistency is enforced by mechanisms used for regular InnoDB tables, you do not have to worry about stale memcached data or fallback logic to query the database in the case of a missing key.

15.20.2 InnoDB memcached Architecture

The InnoDB memcached plugin implements memcached as a MySQL plugin daemon that accesses the InnoDB storage engine directly, bypassing the MySQL SQL layer.

The following diagram illustrates how an application accesses data through the daemon_memcached plugin, compared with SQL.

Architecture Diagram for MySQL Server with Integrated memcached Server

Features of the daemon_memcached plugin:

  • memcached as a daemon plugin of mysqld. Both mysqld and memcached run in the same process space, with very low latency access to data.

  • Direct access to InnoDB tables, bypassing the SQL parser, the optimizer, and even the Handler API layer.

  • Standard memcached protocols, including the text-based protocol and the binary protocol. The daemon_memcached plugin passes all 55 compatibility tests of the memcapable command.

  • Multi-column support. You can map multiple columns into the value part of the key/value store, with column values delimited by a user-specified separator character.

  • By default, the memcached protocol is used to read and write data directly to InnoDB, letting MySQL manage in-memory caching using the InnoDB buffer pool. The default settings represent a combination of high reliability and the fewest surprises for database applications. For example, default settings avoid uncommitted data on the database side, or stale data returned for memcached get requests.

  • Advanced users can configure the system as a traditional memcached server, with all data cached only in the memcached engine (memory caching), or use a combination of the memcached engine (memory caching) and the InnoDB memcached engine (InnoDB as backend persistent storage).

  • Control over how often data is passed back and forth between InnoDB and memcached operations through the innodb_api_bk_commit_interval, daemon_memcached_r_batch_size, and daemon_memcached_w_batch_size configuration options. Batch size options default to a value of 1 for maximum reliability.

  • The ability to specify memcached options through the daemon_memcached_option configuration parameter. For example, you can change the port that memcached listens on, reduce the maximum number of simultaneous connections, change the maximum memory size for a key/value pair, or enable debugging messages for the error log.

  • The innodb_api_trx_level configuration option controls the transaction isolation level on queries processed by memcached. Although memcached has no concept of transactions, you can use this option to control how soon memcached sees changes caused by SQL statements issued on the table used by the daemon_memcached plugin. By default, innodb_api_trx_level is set to READ UNCOMMITTED.

  • The innodb_api_enable_mdl option can be used to lock the table at the MySQL level, so that the mapped table cannot be dropped or altered by DDL through the SQL interface. Without the lock, the table can be dropped from the MySQL layer, but kept in InnoDB storage until memcached or some other user stops using it. MDL stands for metadata locking.

Differences Between InnoDB memcached and Traditional memcached

You may already be familiar with using memcached with MySQL, as described in Section 17.2, “Using MySQL with memcached. This section describes how features of the integrated InnoDB memcached plugin differ from traditional memcached.

  • Installation: The memcached library comes with the MySQL server, making installation and setup relatively easy. Installation involves running the innodb_memcached_config.sql script to create a demo_test table for memcached to use, issuing an INSTALL PLUGIN statement to enable the daemon_memcached plugin, and adding desired memcached options to a MySQL configuration file or startup script. You might still install the traditional memcached distribution for additional utilities such as memcp, memcat, and memcapable.

    For comparison with traditional memcached, see Section 17.2.1, “Installing memcached.

  • Deployment: With traditional memcached, it is typical to run large numbers of low-capacity memcached servers. A typical deployment of the daemon_memcached plugin, however, involves a smaller number of moderate or high-powered servers that are already running MySQL. The benefit of this configuration is in improving efficiency of individual database servers rather than exploiting unused memory or distributing lookups across large numbers of servers. In the default configuration, very little memory is used for memcached, and in-memory lookups are served from the InnoDB buffer pool, which automatically caches the most recently and frequently used data. As with a traditional MySQL server instance, keep the value of the innodb_buffer_pool_size configuration option as high as practical (without causing paging at the OS level), so that as much work as possible is performed in memory.

    For comparison with traditional memcached, see Section 17.2.2.2, “memcached Deployment”.

  • Expiry: By default (that is, using the innodb_only caching policy), the latest data from the InnoDB table is always returned, so the expiry options have no practical effect. If you change the caching policy to caching or cache-only, the expiry options work as usual, but requested data might be stale if it is updated in the underlying table before it expires from the memory cache.

    For comparison with traditional memcached, see Section 17.2.2.4, “Data Expiry”.

  • Namespaces: memcached is like a large directory where you give files elaborate names with prefixes and suffixes to keep the files from conflicting. The daemon_memcached plugin lets you use similar naming conventions for keys, with one addition. Key names in the format @@table_id.key.table_id are decoded to reference a specific a table, using mapping data from the innodb_memcache.containers table. The key is looked up in or written to the specified table.

    The @@ notation only works for individual calls to get, add, and set functions, but not others such as incr or delete. To designate a default table for subsequent memcached operations within a session, perform a get request using the @@ notation with a table_id, but without the key portion. For example:

    get @@table_id

    Subsequent get, set, incr, delete, and other operations use the table designated by table_id in the innodb_memcache.containers.name column.

    For comparison with traditional memcached, see Section 17.2.2.3, “Using Namespaces”.

  • Hashing and distribution: The default configuration, which uses the innodb_only caching policy, is suitable for a traditional deployment configuration where all data is available on all servers, such as a set of replication slave servers.

    If you physically divide data, as in a sharded configuration, you can split data across several machines running the daemon_memcached plugin, and use the traditional memcached hashing mechanism to route requests to a particular machine. On the MySQL side, you would typically let all data be inserted by add requests to memcached so that appropriate values are stored in the database on the appropriate server.

    For comparison with traditional memcached, see Section 17.2.2.5, “memcached Hashing/Distribution Types”.

  • Memory usage: By default (with the innodb_only caching policy), the memcached protocol passes information back and forth with InnoDB tables, and the InnoDB buffer pool handles in-memory lookups instead of memcached memory usage growing and shrinking. Relatively little memory is used on the memcached side.

    If you switch the caching policy to caching or cache-only, the normal rules of memcached memory usage apply. Memory for memcached data values is allocated in terms of slabs. You can control slab size and maximum memory used for memcached.

    Either way, you can monitor and troubleshoot the daemon_memcached plugin using the familiar statistics system, accessed through the standard protocol, over a telnet session, for example. Extra utilities are not included with the daemon_memcached plugin. You can use the memcached-tool script to install a full memcached distribution.

    For comparison with traditional memcached, see Section 17.2.2.7, “Memory Allocation within memcached.

  • Thread usage: MySQL threads and memcached threads co-exist on the same server. Limits imposed on threads by the operating system apply to the total number of threads.

    For comparison with traditional memcached, see Section 17.2.2.8, “memcached Thread Support”.

  • Log usage: Because the memcached daemon is run alongside the MySQL server and writes to stderr, the -v, -vv, and -vvv options for logging write output to the MySQL error log.

    For comparison with traditional memcached, see Section 17.2.2.9, “memcached Logs”.

  • memcached operations: Familiar memcached operations such as get, set, add, and delete are available. Serialization (that is, the exact string format representing complex data structures) depends on the language interface.

    For comparison with traditional memcached, see Section 17.2.3.1, “Basic memcached Operations”.

  • Using memcached as a MySQL front end: This is the primary purpose of the InnoDB memcached plugin. An integrated memcached daemon improves application performance, and having InnoDB handle data transfers between memory and disk simplifies application logic.

    For comparison with traditional memcached, see Section 17.2.3.2, “Using memcached as a MySQL Caching Layer”.

  • Utilities: The MySQL server includes the libmemcached library but not additional command-line utilities. To use commands such as memcp, memcat, and memcapable commands, install a full memcached distribution. When memrm and memflush remove items from the cache, the items are also removed from the underlying InnoDB table.

    For comparison with traditional memcached, see Section 17.2.3.3.6, “libmemcached Command-Line Utilities”.

  • Programming interfaces: You can access the MySQL server through the daemon_memcached plugin using all supported languages: C and C++, Java, Perl, Python, PHP, and Ruby. Specify the server hostname and port as with a traditional memcached server. By default, the daemon_memcached plugin listens on port 11211. You can use both the text and binary protocols. You can customize the behavior of memcached functions at runtime. Serialization (that is, the exact string format representing complex data structures) depends on the language interface.

    For comparison with traditional memcached, see Section 17.2.3, “Developing a memcached Application”.

  • Frequently asked questions: MySQL has an extensive FAQ for traditional memcached. The FAQ is mostly applicable, except that using InnoDB tables as a storage medium for memcached data means that you can use memcached for more write-intensive applications than before, rather than as a read-only cache.

    See Section 17.2.5, “memcached FAQ”.

15.20.3 Setting Up the InnoDB memcached Plugin

This section describes how to set up the daemon_memcached plugin on a MySQL server. Because the memcached daemon is tightly integrated with the MySQL server to avoid network traffic and minimize latency, you perform this process on each MySQL instance that uses this feature.

Note

Before setting up the daemon_memcached plugin, consult Section 15.20.4, “Security Considerations for the InnoDB memcached Plugin” to understand the security procedures required to prevent unauthorized access.

Prerequisites

  • The daemon_memcached plugin is only supported on Linux, Solaris, and OS X platforms. Other operating systems are not supported.

  • When building MySQL from source, you must build with -DWITH_INNODB_MEMCACHED=ON. This build option generates two shared libraries in the MySQL plugin directory (plugin_dir) that are required to run the daemon_memcached plugin:

    • libmemcached.so: the memcached daemon plugin to MySQL.

    • innodb_engine.so: an InnoDB API plugin to memcached.

  • libevent must be installed.

    • If you did not build MySQL from source, the libevent library is not included in your installation. Use the installation method for your operating system to install libevent 1.4.12 or later. For example, depending on the operating system, you might use apt-get, yum, or port install. For example, on Ubuntu Linux, use:

      sudo apt-get install libevent-dev
    • If you installed MySQL from a source code release, libevent 1.4.12 is bundled with the package and is located at the top level of the MySQL source code directory. If you use the bundled version of libevent, no action is required. If you want to use a local system version of libevent, you must build MySQL with the -DWITH_LIBEVENT build option set to system or yes.

Installing and Configuring the InnoDB memcached Plugin

  1. Configure the daemon_memcached plugin so it can interact with InnoDB tables by running the innodb_memcached_config.sql configuration script, which is located in MYSQL_HOME/share. This script installs the innodb_memcache database with three required tables (cache_policies, config_options, and containers). It also installs the demo_test sample table in the test database.

    mysql> source MYSQL_HOME/share/innodb_memcached_config.sql


    Running the innodb_memcached_config.sql script is a one-time operation. The tables remain in place if you later uninstall and re-install the daemon_memcached plugin.

    mysql> USE innodb_memcache;
    mysql> SHOW TABLES;
    +---------------------------+
    | Tables_in_innodb_memcache |
    +---------------------------+
    | cache_policies            |
    | config_options            |
    | containers                |
    +---------------------------+

    mysql> USE test;
    mysql> SHOW TABLES;
    +----------------+
    | Tables_in_test |
    +----------------+
    | demo_test      |
    +----------------+

    Of these tables, the innodb_memcache.containers table is the most important. Entries in the containers table provide a mapping to InnoDB table columns. Each InnoDB table used with the daemon_memcached plugin requires an entry in the containers table.

    The innodb_memcached_config.sql script inserts a single entry in the containers table that provides a mapping for the demo_test table. It also inserts a single row of data into the demo_test table. This data allows you to immediately verify the installation after the setup is completed.

    mysql> SELECT * FROM innodb_memcache.containers\G
    *************************** 1. row ***************************
                      name: aaa
                 db_schema: test
                  db_table: demo_test
               key_columns: c1
             value_columns: c2
                     flags: c3
                cas_column: c4
        expire_time_column: c5
    unique_idx_name_on_key: PRIMARY

    mysql> SELECT * FROM test.demo_test;
    +----+------------------+------+------+------+
    | c1 | c2               | c3   | c4   | c5   |
    +----+------------------+------+------+------+
    | AA | HELLO, HELLO     |    8 |    0 |    0 |
    +----+------------------+------+------+------+


    For more information about innodb_memcache tables and the demo_test sample table, see Section 15.20.7, “InnoDB memcached Plugin Internals”.

  2. Activate the daemon_memcached plugin by running the INSTALL PLUGIN statement:

    mysql> INSTALL PLUGIN daemon_memcached soname "libmemcached.so";


    Once the plugin is installed, it is automatically activated each time the MySQL server is restarted.

Verifying the InnoDB and memcached Setup

To verify the daemon_memcached plugin setup, use a telnet session to issue memcached commands. By default, the memcached daemon listens on port 11211.

  1. Retrieve data from the test.demo_test table. The single row of data in the demo_test table has a key value of AA.

    telnet localhost 11211
    Trying 127.0.0.1...
    Connected to localhost.
    Escape character is '^]'.
    get AA
    VALUE AA 8 12
    HELLO, HELLO
    END

  2. Insert data using a set command.

    set BB 10 0 16
    GOODBYE, GOODBYE
    STORED


    where:

    • set is the command to store a value

    • BB is the key

    • 10 is a flag for the operation; ignored by memcached but may be used by the client to indicate any type of information; specify 0 if unused

    • 0 is the expiration time (TTL); specify 0 if unused

    • 16 is the length of the supplied value block in bytes

    • GOODBYE, GOODBYE is the value that is stored

  3. Verify that the data inserted is stored in MySQL by connecting to the MySQL server and querying the test.demo_test table.

    mysql> SELECT * FROM test.demo_test;
    +----+------------------+------+------+------+
    | c1 | c2               | c3   | c4   | c5   |
    +----+------------------+------+------+------+
    | AA | HELLO, HELLO     |    8 |    0 |    0 |
    | BB | GOODBYE, GOODBYE |   10 |    1 |    0 |
    +----+------------------+------+------+------+

  4. Return to the telnet session and retrieve the data that you inserted earlier using key BB.

    get BB
    VALUE BB 10 16
    GOODBYE, GOODBYE
    END
    quit


If you shut down the MySQL server, which also shuts off the integrated memcached server, further attempts to access the memcached data fail with a connection error. Normally, the memcached data also disappears at this point, and you would require application logic to load the data back into memory when memcached is restarted. However, the InnoDB memcached plugin automates this process for you.

When you restart MySQL, get operations once again return the key/value pairs you stored in the earlier memcached session. When a key is requested and the associated value is not already in the memory cache, the value is automatically queried from the MySQL test.demo_test table.

Creating a New Table and Column Mapping

This example shows how to setup your own InnoDB table with the daemon_memcached plugin.

  1. Create an InnoDB table. The table must have a key column with a unique index. The key column of the city table is city_id, which is defined as the primary key. The table must also include columns for flags, cas, and expiry values. There may be one or more value columns. The city table has three value columns (name, state, country).

    Note

    There is no special requirement with respect to column names as along as a valid mapping is added to the innodb_memcache.containers table.

    mysql> CREATE TABLE city (
        -> city_id VARCHAR(32),
        -> name VARCHAR(1024),
        -> state VARCHAR(1024),
        -> country VARCHAR(1024),
        -> flags INT,
        -> cas BIGINT UNSIGNED,
        -> expiry INT,
        -> primary key(city_id)
        -> ) ENGINE=InnoDB;
  2. Add an entry to the innodb_memcache.containers table so that the daemon_memcached plugin knows how to access the InnoDB table. The entry must satisfy the innodb_memcache.containers table definition. For a description of each field, see Section 15.20.7, “InnoDB memcached Plugin Internals”.

    mysql> DESCRIBE innodb_memcache.containers;
    +------------------------+--------------+------+-----+---------+-------+
    | Field                  | Type         | Null | Key | Default | Extra |
    +------------------------+--------------+------+-----+---------+-------+
    | name                   | varchar(50)  | NO   | PRI | NULL    |       |
    | db_schema              | varchar(250) | NO   |     | NULL    |       |
    | db_table               | varchar(250) | NO   |     | NULL    |       |
    | key_columns            | varchar(250) | NO   |     | NULL    |       |
    | value_columns          | varchar(250) | YES  |     | NULL    |       |
    | flags                  | varchar(250) | NO   |     | 0       |       |
    | cas_column             | varchar(250) | YES  |     | NULL    |       |
    | expire_time_column     | varchar(250) | YES  |     | NULL    |       |
    | unique_idx_name_on_key | varchar(250) | NO   |     | NULL    |       |
    +------------------------+--------------+------+-----+---------+-------+

    The innodb_memcache.containers table entry for the city table is defined as:

    mysql> INSERT INTO `innodb_memcache`.`containers` (
        -> `name`, `db_schema`, `db_table`, `key_columns`, `value_columns`,
        -> `flags`, `cas_column`, `expire_time_column`, `unique_idx_name_on_key`)
        -> VALUES ('default', 'test', 'city', 'city_id', 'name|state|country',
    -> 'flags','cas','expiry','PRIMARY');
    • default is specified for the containers.name column to configure the city table as the default InnoDB table to be used with the daemon_memcached plugin.

    • Multiple InnoDB table columns (name, state, country) are mapped to containers.value_columns using a | delimiter.

    • The flags, cas_column, and expire_time_column fields of the innodb_memcache.containers table are typically not significant in applications using the daemon_memcached plugin. However, a designated InnoDB table column is required for each. When inserting data, specify 0 for these columns if they are unused.

  3. After updating the innodb_memcache.containers table, restart the daemon_memcache plugin to apply the changes.

    mysql> UNINSTALL PLUGIN daemon_memcached;

    mysql> INSTALL PLUGIN daemon_memcached soname "libmemcached.so";

  4. Using telnet, insert data into the city table using a memcached set command.

    telnet localhost 11211
    Trying 127.0.0.1...
    Connected to localhost.
    Escape character is '^]'.
    set B 0 0 22
    BANGALORE|BANGALORE|IN
    STORED

  5. Using MySQL, query the test.city table to verify that the data you inserted was stored.

    mysql> SELECT * FROM test.city;
    +---------+-----------+-----------+---------+-------+------+--------+
    | city_id | name      | state     | country | flags | cas  | expiry |
    +---------+-----------+-----------+---------+-------+------+--------+
    | B       | BANGALORE | BANGALORE | IN      |     0 |    3 |      0 |
    +---------+-----------+-----------+---------+-------+------+--------+

  6. Using MySQL, insert additional data into the test.city table.

    mysql> INSERT INTO city VALUES ('C','CHENNAI','TAMIL NADU','IN', 0, 0 ,0);
    mysql> INSERT INTO city VALUES ('D','DELHI','DELHI','IN', 0, 0, 0);
    mysql> INSERT INTO city VALUES ('H','HYDERABAD','TELANGANA','IN', 0, 0, 0);
    mysql> INSERT INTO city VALUES ('M','MUMBAI','MAHARASHTRA','IN', 0, 0, 0);
    Note

    It is recommended that you specify a value of 0 for the flags, cas_column, and expire_time_column fields if they are unused.

  7. Using telnet, issue a memcached get command to retrieve data you inserted using MySQL.

    get H
    VALUE H 0 22
    HYDERABAD|TELANGANA|IN
    END

Configuring the InnoDB memcached Plugin

Traditional memcached configuration options may be specified in a MySQL configuration file or a mysqld startup string, encoded in the argument of the daemon_memcached_option configuration parameter. memcached configuration options take effect when the plugin is loaded, which occurs each time the MySQL server is started.

For example, to make memcached listen on port 11222 instead of the default port 11211, specify -p11222 as an argument of the daemon_memcached_option configuration option:

mysqld .... --daemon_memcached_option="-p11222"

Other memcached options can be encoded in the daemon_memcached_option string. For example, you can specify options to reduce the maximum number of simultaneous connections, change the maximum memory size for a key/value pair, or enable debugging messages for the error log, and so on.

There are also configuration options specific to the daemon_memcached plugin. These include:

  • daemon_memcached_engine_lib_name: Specifies the shared library that implements the InnoDB memcached plugin. The default setting is innodb_engine.so.

  • daemon_memcached_engine_lib_path: The path of the directory containing the shared library that implements the InnoDB memcached plugin. The default is NULL, representing the plugin directory.

  • daemon_memcached_r_batch_size: Defines the batch commit size for read operations (get). It specifies the number of memcached read operations after which a commit occurs. daemon_memcached_r_batch_size is set to 1 by default so that every get request accesses the most recently committed data in the InnoDB table, whether the data was updated through memcached or by SQL. When the value is greater than 1, the counter for read operations is incremented with each get call. A flush_all call resets both read and write counters.

  • daemon_memcached_w_batch_size: Defines the batch commit size for write operations (set, replace, append, prepend, incr, decr, and so on). daemon_memcached_w_batch_size is set to 1 by default so that no uncommitted data is lost in case of an outage, and so that SQL queries on the underlying table access the most recent data. When the value is greater than 1, the counter for write operations is incremented for each add, set, incr, decr, and delete call. A flush_all call resets both read and write counters.

By default, you do not need to modify daemon_memcached_engine_lib_name or daemon_memcached_engine_lib_path. You might configure these options if, for example, you want to use a different storage engine for memcached (such as the NDB memcached engine).

daemon_memcached plugin configuration parameters may be specified in the MySQL configuration file or in a mysqld startup string. They take effect when you load the daemon_memcached plugin.

When making changes to daemon_memcached plugin configuration, reload the plugin to apply the changes. To do so, issue the following statements:

mysql> UNINSTALL PLUGIN daemon_memcached;

mysql> INSTALL PLUGIN daemon_memcached soname "libmemcached.so";

Configuration settings, required tables, and data are preserved when the plugin is restarted.

For additional information about enabling and disabling plugins, see Section 6.5.2, “Installing and Uninstalling Plugins”.

15.20.4 Security Considerations for the InnoDB memcached Plugin

Caution

Consult this section before deploying the daemon_memcached plugin on a production server, or even on a test server if the MySQL instance contains sensitive data.

Because memcached does not use an authentication mechanism by default, and the optional SASL authentication is not as strong as traditional DBMS security measures, only keep non-sensitive data in the MySQL instance that uses the daemon_memcached plugin, and wall off any servers that use this configuration from potential intruders. Do not allow memcached access to these servers from the Internet; only allow access from within a firewalled intranet, ideally from a subnet whose membership you can restrict.

Password-Protecting memcached Using SASL

SASL support provides the capability to protect your MySQL database from unauthenticated access through memcached clients. This section explains how to enable SASL with the daemon_memcached plugin. The steps are almost identical to those performed to enabled SASL for a traditional memcached server.

SASL stands for Simple Authentication and Security Layer, a standard for adding authentication support to connection-based protocols. memcached added SASL support in version 1.4.3.

SASL authentication is only supported with the binary protocol.

memcached clients are only able to access InnoDB tables that are registered in the innodb_memcache.containers table. Even though a DBA can place access restrictions on such tables, access through memcached applications cannot be controlled. For this reason, SASL support is provided to control access to InnoDB tables associated with the daemon_memcached plugin.

The following section shows how to build, enable, and test an SASL-enabled daemon_memcached plugin.

Building and Enabling SASL with the InnoDB memcached Plugin

By default, an SASL-enabled daemon_memcached plugin is not included in MySQL release packages, since an SASL-enabled daemon_memcached plugin requires building memcached with SASL libraries. To enable SASL support, download the MySQL source and rebuild the daemon_memcached plugin after downloading the SASL libraries:

  1. Install the SASL development and utility libraries. For example, on Ubuntu, use apt-get to obtain the libraries:

    sudo apt-get -f install libsasl2-2 sasl2-bin libsasl2-2 libsasl2-dev libsasl2-modules

  2. Build the daemon_memcached plugin shared libraries with SASL capability by adding ENABLE_MEMCACHED_SASL=1 to your cmake options. memcached also provides simple cleartext password support, which facilitates testing. To enable simple cleartext password support, specify the ENABLE_MEMCACHED_SASL_PWDB=1 cmake option.

    In summary, add following three cmake options:

    cmake ... -DWITH_INNODB_MEMCACHED=1 -DENABLE_MEMCACHED_SASL=1 -DENABLE_MEMCACHED_SASL_PWDB=1

  3. Install the daemon_memcached plugin, as described in Section 15.20.3, “Setting Up the InnoDB memcached Plugin”.

  4. Configure a user name and password file. (This example uses memcached simple cleartext password support.)

    1. In a file, create a user named testname and define the password as testpasswd:

      echo "testname:testpasswd:::::::" >/home/jy/memcached-sasl-db

    2. Configure the MEMCACHED_SASL_PWDB environment variable to inform memcached of the user name and password file:

      export MEMCACHED_SASL_PWDB=/home/jy/memcached-sasl-db

    3. Inform memcached that a cleartext password is used:

      echo "mech_list: plain" > /home/jy/work2/msasl/clients/memcached.conf
      export SASL_CONF_PATH=/home/jy/work2/msasl/clients

  5. Enable SASL by restarting the MySQL server with the memcached -S option encoded in the daemon_memcached_option configuration parameter:

    mysqld ... --daemon_memcached_option="-S"

  6. To test the setup, use an SASL-enabled client such as SASL-enabled libmemcached.

    memcp --servers=localhost:11211 --binary  --username=testname
      --password=testpasswd myfile.txt

    memcat --servers=localhost:11211 --binary --username=testname
      --password=testpasswd myfile.txt


    If you specify an incorrect user name or password, the operation is rejected with a memcache error AUTHENTICATION FAILURE message. In this case, examine the cleartext password set in the memcached-sasl-db file to verify that the credentials you supplied are correct.

There are other methods to test SASL authentication with memcached, but the method described above is the most straightforward.

15.20.5 Writing Applications for the InnoDB memcached Plugin

Typically, writing an application for the InnoDB memcached plugin involves some degree of rewriting or adapting existing code that uses MySQL or the memcached API.

  • With the daemon_memcached plugin, instead of many traditional memcached servers running on low-powered machines, you have the same number of memcached servers as MySQL servers, running on relatively high-powered machines with substantial disk storage and memory. You might reuse some existing code that works with the memcached API, but adaptation is likely required due to the different server configuration.

  • The data stored through the daemon_memcached plugin goes into VARCHAR, TEXT, or BLOB columns, and must be converted to do numeric operations. You can perform the conversion on the application side, or by using the CAST() function in queries.

  • Coming from a database background, you might be used to general-purpose SQL tables with many columns. The tables accessed by memcached code likely have only a few or even a single column holding data values.

  • You might adapt parts of your application that perform single-row queries, inserts, updates, or deletes, to improve performance in critical sections of code. Both queries (read) and DML (write) operations can be substantially faster when performed through the InnoDB memcached interface. The performance improvement for writes is typically greater than the performance improvement for reads, so you might focus on adapting code that performs logging or records interactive choices on a web site.

The following sections explore these points in more detail.

15.20.5.1 Adapting an Existing MySQL Schema for the InnoDB memcached Plugin

Consider these aspects of memcached applications when adapting an existing MySQL schema or application to use the daemon_memcached plugin:

  • memcached keys cannot contain spaces or newlines, because these characters are used as separators in the ASCII protocol. If you are using lookup values that contain spaces, transform or hash them into values without spaces before using them as keys in calls to add(), set(), get(), and so on. Although theoretically these characters are allowed in keys in programs that use the binary protocol, you should restrict the characters used in keys to ensure compatibility with a broad range of clients.

  • If there is a short numeric primary key column in an InnoDB table, use it as the unique lookup key for memcached by converting the integer to a string value. If the memcached server is used for multiple applications, or with more than one InnoDB table, consider modifying the name to ensure that it is unique. For example, prepend the table name, or the database name and the table name, before the numeric value.

    Note

    The daemon_memcached plugin supports inserts and reads on mapped InnoDB tables that have an INTEGER defined as the primary key.

  • You cannot use a partitioned table for data queried or stored using memcached.

  • The memcached protocol passes numeric values around as strings. To store numeric values in the underlying InnoDB table, to implement counters that can be used in SQL functions such as SUM() or AVG(), for example:

    • Use VARCHAR columns with enough characters to hold all the digits of the largest expected number (and additional characters if appropriate for the negative sign, decimal point, or both).

    • In any query that performs arithmetic using column values, use the CAST() function to convert the values from string to integer, or to some other numeric type. For example:

      -- Alphabetic entries are returned as zero.
      select cast(c2 as unsigned integer) from demo_test;
      -- Since there could be numeric values of 0, can't disqualify them.
      -- Test the string values to find the ones that are integers, and average only those.
      select avg(cast(c2 as unsigned integer)) from demo_test
        where c2 between '0' and '9999999999';
      -- Views let you hide the complexity of queries. The results are already converted;
      -- no need to repeat conversion functions and WHERE clauses each time.
      create view numbers as select c1 key, cast(c2 as unsigned integer) val
        from demo_test where c2 between '0' and '9999999999';
      select sum(val) from numbers;

      Note

      Any alphabetic values in the result set are converted into 0 by the call to CAST(). When using functions such as AVG(), which depend on the number of rows in the result set, include WHERE clauses to filter out non-numeric values.

  • If the InnoDB column used as a key could have values longer than 250 bytes, hash the value to less than 250 bytes.

  • To use an existing table with the daemon_memcached plugin, define an entry for it in the innodb_memcache.containers table. To make that table the default for all memcached requests, specify a value of default in the name column, then restart the MySQL server to make the change take effect. If you use multiple tables for different classes of memcached data, set up multiple entries in the innodb_memcache.containers table with name values of your choice, then issue a memcached request in the form of get @@name or set @@name within the application to specify the table to be used for subsequent memcached requests.

    For an example of using a table other than the predefined test.demo_test table, see Example 15.22, “Using Your Own Table with an InnoDB memcached Application”. For the required table layout, see Section 15.20.7, “InnoDB memcached Plugin Internals”.

  • To use multiple InnoDB table column values with memcached key/value pairs, specify column names separated by comma, semicolon, space, or pipe characters in the value_columns field of the innodb_memcache.containers entry for the InnoDB table. For example, specify col1,col2,col3 or col1|col2|col3 in the value_columns field.

    Concatenate the column values into a single string using the pipe character as a separator before passing the string to memcached add or set calls. The string is unpacked automatically into the correct column. Each get call returns a single string containing the column values that is also delimited by the pipe character. You can unpack the values using the appropriate application language syntax.

Example 15.22 Using Your Own Table with an InnoDB memcached Application

This example shows how to use your own table with a sample Python application that uses memcached for data manipulation.

The example assumes that the daemon_memcached plugin is installed as described in Section 15.20.3, “Setting Up the InnoDB memcached Plugin”. It also assumes that your system is configured to run a Python script that uses the python-memcache module.

  1. Create the multicol table which stores country information including population, area, and driver side data ('R' for right and 'L' for left).

    mysql> USE test;

    mysql> CREATE TABLE `multicol` (
        ->  `country` varchar(128) NOT NULL DEFAULT '',
        ->  `population` varchar(10) DEFAULT NULL,
        ->  `area_sq_km` varchar(9) DEFAULT NULL,
        ->  `drive_side` varchar(1) DEFAULT NULL,
        ->  `c3` int(11) DEFAULT NULL,
        ->  `c4` bigint(20) unsigned DEFAULT NULL,
        ->  `c5` int(11) DEFAULT NULL,
        ->  PRIMARY KEY (`country`)
        ->  ) ENGINE=InnoDB DEFAULT CHARSET=latin1;

  2. Insert a record into the innodb_memcache.containers table so that the daemon_memcached plugin can access the multicol table.

    mysql> INSERT INTO innodb_memcache.containers
        ->  (name,db_schema,db_table,key_columns,value_columns,flags,cas_column,
        ->   expire_time_column,unique_idx_name_on_key)
        -> VALUES
        ->  ('bbb','test','multicol','country','population,area_sq_km,drive_side',
        ->   'c3','c4','c5','PRIMARY');

    mysql> COMMIT;

    • The innodb_memcache.containers record for the multicol table specifies a name value of 'bbb', which is the table identifier.

      Note

      If a single InnoDB table is used for all memcached applications, the name value can be set to default to avoid using @@ notation to switch tables.

    • The db_schema column is set to test, which is the name of the database where the multicol table resides.

    • The db_table column is set to multicol, which is the name of the InnoDB table.

    • key_columns is set to the unique country column. The country column is defined as the primary key in the multicol table definition.

    • Rather than a single InnoDB table column to hold a composite data value, data is divided among three table columns (population, area_sq_km, and drive_side). To accommodate multiple value columns, a comma-separated list of columns is specified in the value_columns field. The columns defined in the value_columns field are the columns used when storing or retrieving values.

    • Values for the flags, expire_time, and cas_column fields are based on values used in the demo.test sample table. These fields are typically not significant in applications that use the daemon_memcached plugin because MySQL keeps data synchronized, and there is no need to worry about data expiring or becoming stale.

    • The unique_idx_name_on_key field is set to PRIMARY, which refers to the primary index defined on the unique country column in the multicol table.

  3. Copy the sample Python application into a file. In this example, the sample script is copied to a file named multicol.py.

    The sample Python application inserts data into the multicol table and retrieves data for all keys, demonstrating how to access an InnoDB table through the daemon_memcached plugin.

    import sys, os
    import memcache

    def connect_to_memcached():
      memc = memcache.Client(['127.0.0.1:11211'], debug=0);
      print "Connected to memcached."
      return memc

    def banner(message):
      print
      print "=" * len(message)
      print message
      print "=" * len(message)

    country_data = [
    ("Canada","34820000","9984670","R"),
    ("USA","314242000","9826675","R"),
    ("Ireland","6399152","84421","L"),
    ("UK","62262000","243610","L"),
    ("Mexico","113910608","1972550","R"),
    ("Denmark","5543453","43094","R"),
    ("Norway","5002942","385252","R"),
    ("UAE","8264070","83600","R"),
    ("India","1210193422","3287263","L"),
    ("China","1347350000","9640821","R"),
    ]

    def switch_table(memc,table):
      key = "@@" + table
      print "Switching default table to '" + table + "' by issuing GET for '" + key + "'."
      result = memc.get(key)

    def insert_country_data(memc):
      banner("Inserting initial data via memcached interface")
      for item in country_data:
        country = item[0]
        population = item[1]
        area = item[2]
        drive_side = item[3]

        key = country
        value = "|".join([population,area,drive_side])
        print "Key = " + key
        print "Value = " + value

        if memc.add(key,value):
          print "Added new key, value pair."
        else:
          print "Updating value for existing key."
          memc.set(key,value)

    def query_country_data(memc):
      banner("Retrieving data for all keys (country names)")
      for item in country_data:
        key = item[0]
        result = memc.get(key)
        print "Here is the result retrieved from the database for key " + key + ":"
        print result
        (m_population, m_area, m_drive_side) = result.split("|")
        print "Unpacked population value: " + m_population
        print "Unpacked area value      : " + m_area
        print "Unpacked drive side value: " + m_drive_side

    if __name__ == '__main__':

      memc = connect_to_memcached()
      switch_table(memc,"bbb")
      insert_country_data(memc)
      query_country_data(memc)

      sys.exit(0)


    Sample Python application notes:

    • No database authorization is required to run the application, since data manipulation is performed through the memcached interface. The only required information is the port number on the local system where the memcached daemon listens.

    • To make sure the application uses the multicol table, the switch_table() function is called, which performs a dummy get or set request using @@ notation. The name value in the request is bbb, which is the multicol table identifier defined in the innodb_memcache.containers.name field.

      A more descriptive name value might be used in a real-world application. This example simply illustrates that a table identifier is specified rather than the table name in get @@... requests.

    • The utility functions used to insert and query data demonstrate how to turn a Python data structure into pipe-separated values for sending data to MySQL with add or set requests, and how to unpack the pipe-separated values returned by get requests. This extra processing is only required when mapping a single memcached value to multiple MySQL table columns.

  4. Run the sample Python application.

    shell> python multicol.py

    If successful, the sample application returns this output:

    Connected to memcached.
    Switching default table to 'bbb' by issuing GET for '@@bbb'.

    ==============================================
    Inserting initial data via memcached interface
    ==============================================
    Key = Canada
    Value = 34820000|9984670|R
    Added new key, value pair.
    Key = USA
    Value = 314242000|9826675|R
    Added new key, value pair.
    Key = Ireland
    Value = 6399152|84421|L
    Added new key, value pair.
    Key = UK
    Value = 62262000|243610|L
    Added new key, value pair.
    Key = Mexico
    Value = 113910608|1972550|R
    Added new key, value pair.
    Key = Denmark
    Value = 5543453|43094|R
    Added new key, value pair.
    Key = Norway
    Value = 5002942|385252|R
    Added new key, value pair.
    Key = UAE
    Value = 8264070|83600|R
    Added new key, value pair.
    Key = India
    Value = 1210193422|3287263|L
    Added new key, value pair.
    Key = China
    Value = 1347350000|9640821|R
    Added new key, value pair.

    ============================================
    Retrieving data for all keys (country names)
    ============================================
    Here is the result retrieved from the database for key Canada:
    34820000|9984670|R
    Unpacked population value: 34820000
    Unpacked area value      : 9984670
    Unpacked drive side value: R
    Here is the result retrieved from the database for key USA:
    314242000|9826675|R
    Unpacked population value: 314242000
    Unpacked area value      : 9826675
    Unpacked drive side value: R
    Here is the result retrieved from the database for key Ireland:
    6399152|84421|L
    Unpacked population value: 6399152
    Unpacked area value      : 84421
    Unpacked drive side value: L
    Here is the result retrieved from the database for key UK:
    62262000|243610|L
    Unpacked population value: 62262000
    Unpacked area value      : 243610
    Unpacked drive side value: L
    Here is the result retrieved from the database for key Mexico:
    113910608|1972550|R
    Unpacked population value: 113910608
    Unpacked area value      : 1972550
    Unpacked drive side value: R
    Here is the result retrieved from the database for key Denmark:
    5543453|43094|R
    Unpacked population value: 5543453
    Unpacked area value      : 43094
    Unpacked drive side value: R
    Here is the result retrieved from the database for key Norway:
    5002942|385252|R
    Unpacked population value: 5002942
    Unpacked area value      : 385252
    Unpacked drive side value: R
    Here is the result retrieved from the database for key UAE:
    8264070|83600|R
    Unpacked population value: 8264070
    Unpacked area value      : 83600
    Unpacked drive side value: R
    Here is the result retrieved from the database for key India:
    1210193422|3287263|L
    Unpacked population value: 1210193422
    Unpacked area value      : 3287263
    Unpacked drive side value: L
    Here is the result retrieved from the database for key China:
    1347350000|9640821|R
    Unpacked population value: 1347350000
    Unpacked area value      : 9640821
    Unpacked drive side value: R
    dtprice@ubuntu:~$
  5. Query the innodb_memcache.containers table to view the record you inserted earlier for the multicol table. The first record is the sample entry for the demo_test table that is created during the initial daemon_memcached plugin setup. The second record is the entry you inserted for the multicol table.

    mysql> SELECT * FROM innodb_memcache.containers\G
    *************************** 1. row ***************************
                      name: aaa
                 db_schema: test
                  db_table: demo_test
               key_columns: c1
             value_columns: c2
                     flags: c3
                cas_column: c4
        expire_time_column: c5
    unique_idx_name_on_key: PRIMARY
    *************************** 2. row ***************************
                      name: bbb
                 db_schema: test
                  db_table: multicol
               key_columns: country
             value_columns: population,area_sq_km,drive_side
                     flags: c3
                cas_column: c4
        expire_time_column: c5
    unique_idx_name_on_key: PRIMARY
  6. Query the multicol table to view data inserted by the sample Python application. The data is available for MySQL queries, which demonstrates how the same data can be accessed using SQL or through applications (using the appropriate MySQL Connector or API).

    mysql> SELECT * FROM test.multicol;
    +---------+------------+------------+------------+------+------+------+
    | country | population | area_sq_km | drive_side | c3   | c4   | c5   |
    +---------+------------+------------+------------+------+------+------+
    | Canada  | 34820000   | 9984670    | R          |    0 |   11 |    0 |
    | China   | 1347350000 | 9640821    | R          |    0 |   20 |    0 |
    | Denmark | 5543453    | 43094      | R          |    0 |   16 |    0 |
    | India   | 1210193422 | 3287263    | L          |    0 |   19 |    0 |
    | Ireland | 6399152    | 84421      | L          |    0 |   13 |    0 |
    | Mexico  | 113910608  | 1972550    | R          |    0 |   15 |    0 |
    | Norway  | 5002942    | 385252     | R          |    0 |   17 |    0 |
    | UAE     | 8264070    | 83600      | R          |    0 |   18 |    0 |
    | UK      | 62262000   | 243610     | L          |    0 |   14 |    0 |
    | USA     | 314242000  | 9826675    | R          |    0 |   12 |    0 |
    +---------+------------+------------+------------+------+------+------+
    Note

    Always allow sufficient size to hold necessary digits, decimal points, sign characters, leading zeros, and so on when defining the length for columns that are treated as numbers. Too-long values in a string column such as a VARCHAR are truncated by removing some characters, which could produce nonsensical numeric values.

  7. Optionally, run report-type queries on the InnoDB table that stores the memcached data.

    You can produce reports through SQL queries, performing calculations and tests across any columns, not just the country key column. (Because the following examples use data from only a few countries, the numbers are for illustration purposes only.) The following queries return the average population of countries where people drive on the right, and the average size of countries whose names start with U:

    mysql> SELECT AVG(population) FROM multicol WHERE drive_side = 'R';
    +-------------------+
    | avg(population)   |
    +-------------------+
    | 261304724.7142857 |
    +-------------------+

    mysql> SELECT SUM(area_sq_km) FROM multicol WHERE country LIKE 'U%';
    +-----------------+
    | sum(area_sq_km) |
    +-----------------+
    |        10153885 |
    +-----------------+


    Because the population and area_sq_km columns store character data rather than strongly typed numeric data, functions such as AVG() and SUM() work by converting each value to a number first. This approach does not work for operators such as < or >, for example, when comparing character-based values, 9 > 1000, which is not expected from a clause such as ORDER BY population DESC. For the most accurate type treatment, perform queries against views that cast numeric columns to the appropriate types. This technique lets you issue simple SELECT * queries from database applications, while ensuring that casting, filtering, and ordering is correct. The following example shows a view that can be queried to find the top three countries in descending order of population, with the results reflecting the latest data in the multicol table, and with population and area figures treated as numbers:

    mysql> CREATE VIEW populous_countries AS
        -> SELECT
        ->    country,
        ->    cast(population as unsigned integer) population,
        ->    cast(area_sq_km as unsigned integer) area_sq_km,
        ->    drive_side FROM multicol
        ->  ORDER BY CAST(population as unsigned integer) DESC
        ->  LIMIT 3;

    mysql> SELECT * FROM populous_countries;
    +---------+------------+------------+------------+
    | country | population | area_sq_km | drive_side |
    +---------+------------+------------+------------+
    | China   | 1347350000 |    9640821 | R          |
    | India   | 1210193422 |    3287263 | L          |
    | USA     |  314242000 |    9826675 | R          |
    +---------+------------+------------+------------+

    mysql> DESC populous_countries;
    +------------+---------------------+------+-----+---------+-------+
    | Field      | Type                | Null | Key | Default | Extra |
    +------------+---------------------+------+-----+---------+-------+
    | country    | varchar(128)        | NO   |     |         |       |
    | population | bigint(10) unsigned | YES  |     | NULL    |       |
    | area_sq_km | int(9) unsigned     | YES  |     | NULL    |       |
    | drive_side | varchar(1)          | YES  |     | NULL    |       |
    +------------+---------------------+------+-----+---------+-------+


15.20.5.2 Adapting a memcached Application for the InnoDB memcached Plugin

Consider these aspects of MySQL and InnoDB tables when adapting existing memcached applications to use the daemon_memcached plugin:

  • If there are key values longer than a few bytes, it may be more efficient to use a numeric auto-increment column as the primary key of the InnoDB table, and to create a unique secondary index on the column that contains the memcached key values. This is because InnoDB performs best for large-scale insertions if primary key values are added in sorted order (as they are with auto-increment values). Primary key values are included in secondary indexes, which takes up unnecessary space if the primary key is a long string value.

  • If you store several different classes of information using memcached, consider setting up a separate InnoDB table for each type of data. Define additional table identifiers in the innodb_memcache.containers table, and use the @@table_id.key notation to store and retrieve items from different tables. Physically dividing different types of information allows you tune the characteristics of each table for optimum space utilization, performance, and reliability. For example, you might enable compression for a table that holds blog posts, but not for a table that holds thumbnail images. You might back up one table more frequently than another because it holds critical data. You might create additional secondary indexes on tables that are frequently used to generate reports using SQL.

  • Preferably, configure a stable set of table definitions for use with the daemon_memcached plugin, and leave the tables in place permanently. Changes to the innodb_memcache.containers table take effect the next time the innodb_memcache.containers table is queried. Entries in the containers table are processed at startup, and are consulted whenever an unrecognized table identifier (as defined by containers.name) is requested using @@ notation. Thus, new entries are visible as soon as you use the associated table identifier, but changes to existing entries require a server restart before they take effect.

  • When you use the default innodb_only caching policy, calls to add(), set(), incr(), and so on can succeed but still trigger debugging messages such as while expecting 'STORED', got unexpected response 'NOT_STORED. Debug messages occur because new and updated values are sent directly to the InnoDB table without being saved in the memory cache, due to the innodb_only caching policy.

15.20.5.3 Tuning InnoDB memcached Plugin Performance

Because using InnoDB in combination with memcached involves writing all data to disk, whether immediately or sometime later, raw performance is expected to be somewhat slower than using memcached by itself. When using the InnoDB memcached plugin, focus tuning goals for memcached operations on achieving better performance than equivalent SQL operations.

Benchmarks suggest that queries and DML operations (inserts, updates, and deletes) that use the memcached interface are faster than traditional SQL. DML operations typically see a larger improvements. Therefore, consider adapting write-intensive applications to use the memcached interface first. Also consider prioritizing adaptation of write-intensive applications that use fast, lightweight mechanisms that lack reliability.

Adapting SQL Queries

The types of queries that are most suited to simple GET requests are those with a single clause or a set of AND conditions in the WHERE clause:

SQL:
SELECT col FROM tbl WHERE key = 'key_value';

memcached:
GET key_value

SQL:
SELECT col FROM tbl WHERE col1 = val1 and col2 = val2 and col3 = val3;

memcached:
# Since you must always know these 3 values to look up the key,
# combine them into a unique string and use that as the key
# for all ADD, SET, and GET operations.
key_value = val1 + ":" + val2 + ":" + val3
GET key_value

SQL:
SELECT 'key exists!' FROM tbl
  WHERE EXISTS (SELECT col1 FROM tbl WHERE KEY = 'key_value') LIMIT 1;

memcached:
# Test for existence of key by asking for its value and checking if the call succeeds,
# ignoring the value itself. For existence checking, you typically only store a very
# short value such as "1".
GET key_value

Using System Memory

For best performance, deploy the daemon_memcached plugin on machines that are configured as typical database servers, where the majority of system RAM is devoted to the InnoDB buffer pool, through the innodb_buffer_pool_size configuration option. For systems with multi-gigabyte buffer pools, consider raising the value of innodb_buffer_pool_instances for maximum throughput when most operations involve data that is already cached in memory.

Reducing Redundant I/O

InnoDB has a number of settings that let you choose the balance between high reliability, in case of a crash, and the amount of I/O overhead during high write workloads. For example, consider setting the innodb_doublewrite to 0 and innodb_flush_log_at_trx_commit to 2. Measure performance with different innodb_flush_method settings.

Note

innodb_support_xa is deprecated and will be removed in a future release. As of MySQL 5.7.10, InnoDB support for two-phase commit in XA transactions is always enabled and disabling innodb_support_xa is no longer permitted.

For other ways to reduce or tune I/O for table operations, see Section 9.5.8, “Optimizing InnoDB Disk I/O”.

Reducing Transactional Overhead

A default value of 1 for daemon_memcached_r_batch_size and daemon_memcached_w_batch_size is intended for maximum reliability of results and safety of stored or updated data.

Depending on the type of application, you might increase one or both of these settings to reduce the overhead of frequent commit operations. On a busy system, you might increase daemon_memcached_r_batch_size, knowing that changes to data made through SQL may not become visible to memcached immediately (that is, until N more get operations are processed). When processing data where every write operation must be reliably stored, leave daemon_memcached_w_batch_size set to 1. Increase the setting when processing large numbers of updates intended only for statistical analysis, where losing the last N updates in a crash is an acceptable risk.

For example, imagine a system that monitors traffic crossing a busy bridge, recording data for approximately 100,000 vehicles each day. If the application counts different types of vehicles to analyze traffic patterns, changing daemon_memcached_w_batch_size from 1 to 100 reduces I/O overhead for commit operations by 99%. In case of an outage, a maximum of 100 records are lost, which may be an acceptable margin of error. If instead the application performed automated toll collection for each car, you would set daemon_memcached_w_batch_size to 1 to ensure that each toll record is immediately saved to disk.

Because of the way InnoDB organizes memcached key values on disk, if you have a large number of keys to create, it may be faster to sort the data items by key value in the application and add them in sorted order, rather than create keys in arbitrary order.

The memslap command, which is part of the regular memcached distribution but not included with the daemon_memcached plugin, can be useful for benchmarking different configurations. It can also be used to generate sample key/value pairs to use in your own benchmarks. See Section 17.2.3.3.6, “libmemcached Command-Line Utilities” for details.

15.20.5.4 Controlling Transactional Behavior of the InnoDB memcached Plugin

Unlike traditional memcached, the daemon_memcached plugin allows you to control durability of data values produced through calls to add, set, incr, and so on. By default, data written through the memcached interface is stored to disk, and calls to get return the most recent value from disk. Although the default behavior does not offer the best possible raw performance, it is still fast compared to the SQL interface for InnoDB tables.

As you gain experience using the daemon_memcached plugin, you can consider relaxing durability settings for non-critical classes of data, at the risk of losing some updated values in the event of an outage, or returning data that is slightly out-of-date.

Frequency of Commits

One tradeoff between durability and raw performance is how frequently new and changed data is committed. If data is critical, is should be committed immediately so that it is safe in case of a crash or outage. If data is less critical, such as counters that are reset after a crash or logging data that you can afford to lose, you might prefer higher raw throughput that is available with less frequent commits.

When a memcached operation inserts, updates, or deletes data in the underlying InnoDB table, the change might be committed to the InnoDB table instantly (if daemon_memcached_w_batch_size=1) or some time later (if the daemon_memcached_w_batch_size value is greater than 1). In either case, the change cannot be rolled back. If you increase the value of daemon_memcached_w_batch_size to avoid high I/O overhead during busy times, commits could become infrequent when the workload decreases. As a safety measure, a background thread automatically commits changes made through the memcached API at regular intervals. The interval is controlled by the innodb_api_bk_commit_interval configuration option, which has a default setting of 5 seconds.

When a memcached operation inserts or updates data in the underlying InnoDB table, the changed data is immediately visible to other memcached requests because the new value remains in the memory cache, even if it is not yet committed on the MySQL side.

Transaction Isolation

When a memcached operation such as get or incr causes a query or DML operation on the underlying InnoDB table, you can control whether the operation sees the very latest data written to the table, only data that has been committed, or other variations of transaction isolation level. Use the innodb_api_trx_level configuration option to control this feature. The numeric values specified for this option correspond to isolation levels such as REPEATABLE READ. See the description of the innodb_api_trx_level option for information about other settings.

A strict isolation level ensures that data you retrieve is not rolled back or changed suddenly causing subsequent queries to return different values. However, strict isolation levels require greater locking overhead, which can cause waits. For a NoSQL-style application that does not use long-running transactions, you can typically use the default isolation level or switch to a less strict isolation level.

Disabling Row Locks for memcached DML Operations

The innodb_api_disable_rowlock option can be used to disable row locks when memcached requests through the daemon_memcached plugin cause DML operations. By default, innodb_api_disable_rowlock is set to OFF which means that memcached requests row locks for get and set operations. When innodb_api_disable_rowlock is set to ON, memcached requests a table lock instead of row locks.

The innodb_api_disable_rowlock option is not dynamic. It must be specified at startup on the mysqld command line or entered in a MySQL configuration file.

Allowing or Disallowing DDL

By default, you can perform DDL operations such as ALTER TABLE on tables used by the daemon_memcached plugin. To avoid potential slowdowns when these tables are used for high-throughput applications, disable DDL operations on these tables by enabling innodb_api_enable_mdl at startup. This option is less appropriate when accessing the same tables through both memcached and SQL, because it blocks CREATE INDEX statements on the tables, which could be important for running reporting queries.

Storing Data on Disk, in Memory, or Both

The innodb_memcache.cache_policies table specifies whether to store data written through the memcached interface to disk (innodb_only, the default); in memory only, as with traditional memcached (cache-only); or both (caching).

With the caching setting, if memcached cannot find a key in memory, it searches for the value in an InnoDB table. Values returned from get calls under the caching setting could be out-of-date if the values were updated on disk in the InnoDB table but are not yet expired from the memory cache.

The caching policy can be set independently for get, set (including incr and decr), delete, and flush operations.

For example, you might allow get and set operations to query or update a table and the memcached memory cache at the same time (using the caching setting), while making delete, flush, or both operate only on the in-memory copy (using the cache_only setting). That way, deleting or flushing an item only expires the item from the cache, and the latest value is returned from the InnoDB table the next time the item is requested.

mysql> SELECT * FROM innodb_memcache.cache_policies;
+--------------+-------------+-------------+---------------+--------------+
| policy_name  | get_policy  | set_policy  | delete_policy | flush_policy |
+--------------+-------------+-------------+---------------+--------------+
| cache_policy | innodb_only | innodb_only | innodb_only   | innodb_only  |
+--------------+-------------+-------------+---------------+--------------+

mysql> UPDATE innodb_memcache.cache_policies SET set_policy = 'caching'
    -> WHERE policy_name = 'cache_policy';

innodb_memcache.cache_policies values are only read at startup. After changing values in this table, uninstall and reinstall the daemon_memcached plugin to ensure that changes take effect.

mysql> UNINSTALL PLUGIN daemon_memcached;

mysql> INSTALL PLUGIN daemon_memcached soname "libmemcached.so";

15.20.5.5 Adapting DML Statements to memcached Operations

Benchmarks suggest that the daemon_memcached plugin speeds up DML operations (inserts, updates, and deletes) more than it speeds up queries. Therefore, consider focussing initial development efforts on write-intensive applications that are I/O-bound, and look for opportunities to use MySQL with the daemon_memcached plugin for new write-intensive applications.

Single-row DML statements are the easiest types of statements to turn into memcached operations. INSERT becomes add, UPDATE becomes set, incr or decr, and DELETE becomes delete. These operations are guaranteed to only affect one row when issued through the memcached interface, because the key is unique within the table.

In the following SQL examples, t1 refers to the table used for memcached operations, based on the configuration in the innodb_memcache.containers table. key refers to the column listed under key_columns, and val refers to the column listed under value_columns.

INSERT INTO t1 (key,val) VALUES (some_key,some_value);
SELECT val FROM t1 WHERE key = some_key;
UPDATE t1 SET val = new_value WHERE key = some_key;
UPDATE t1 SET val = val + x WHERE key = some_key;
DELETE FROM t1 WHERE key = some_key;

The following TRUNCATE TABLE and DELETE statements, which remove all rows from the table, correspond to the flush_all operation, where t1 is configured as the table for memcached operations, as in the previous example.

TRUNCATE TABLE t1;
DELETE FROM t1;

15.20.5.6 Performing DML and DDL Statements on the Underlying InnoDB Table

You can access the underlying InnoDB table (which is test.demo_test by default) through standard SQL interfaces. However, there are some restrictions:

  • When querying a table that is also accessed through the memcached interface, remember that memcached operations can be configured to be committed periodically rather than after every write operation. This behavior is controlled by the daemon_memcached_w_batch_size option. If this option is set to a value greater than 1, use READ UNCOMMITTED queries to find rows that were just inserted.

    mysql> SET SESSSION TRANSACTION ISOLATION LEVEL READ UNCOMMITTED;

    mysql> SELECT * FROM demo_test;
    +------+------+------+------+-----------+------+------+------+------+------+------+
    | cx   | cy   | c1   | cz   | c2        | ca   | CB   | c3   | cu   | c4   | C5   |
    +------+------+------+------+-----------+------+------+------+------+------+------+
    | NULL | NULL | a11  | NULL | 123456789 | NULL | NULL |   10 | NULL |    3 | NULL |
    +------+------+------+------+-----------+------+------+------+------+------+------+

  • When modifying a table using SQL that is also accessed through the memcached interface, you can configure memcached operations to start a new transaction periodically rather than for every read operation. This behavior is controlled by the daemon_memcached_r_batch_size option. If this option is set to a value greater than 1, changes made to the table using SQL are not immediately visible to memcached operations.

  • The InnoDB table is either IS (intention shared) or IX (intention exclusive) locked for all operations in a transaction. If you increase daemon_memcached_r_batch_size and daemon_memcached_w_batch_size substantially from their default value of 1, the table is most likely locked between each operation, preventing DDL statements on the table.

15.20.6 The InnoDB memcached Plugin and Replication

Because the daemon_memcached plugin supports the MySQL binary log, updates made on a master server through the memcached interface can be replicated for backup, balancing intensive read workloads, and high availability. All memcached commands are supported with binary logging.

You do not need to set up the daemon_memcached plugin on slave servers. The primary advantage of this configuration is increased write throughput on the master. The speed of the replication mechanism is not affected.

The following sections show how to use the binary log capability when using the daemon_memcached plugin with MySQL replication. It is assumed that you have completed the setup described in Section 15.20.3, “Setting Up the InnoDB memcached Plugin”.

Enabling the InnoDB memcached Binary Log

  1. To use the daemon_memcached plugin with the MySQL binary log, enable the innodb_api_enable_binlog configuration option on the master server. This option can only be set at server startup. You must also enable the MySQL binary log on the master server using the --log-bin option. You can add these options to the MySQL configuration file, or on the mysqld command line.

    mysqld ... --log-bin -–innodb_api_enable_binlog=1

  2. Configure the master and slave server, as described in Section 18.1.2, “Setting Up Binary Log File Position Based Replication”.

  3. Use mysqldump to create a master data snapshot, and sync the snapshot to the slave server.

    master shell> mysqldump --all-databases --lock-all-tables > dbdump.db
    slave shell> mysql < dbdump.db

  4. On the master server, issue SHOW MASTER STATUS to obtain the master binary log coordinates.

    mysql> SHOW MASTER STATUS;

  5. On the slave server, use a CHANGE MASTER TO statement to set up a slave server using the master binary log coordinates.

    mysql> CHANGE MASTER TO
           MASTER_HOST='localhost',
           MASTER_USER='root',
           MASTER_PASSWORD='',
           MASTER_PORT = 13000,
           MASTER_LOG_FILE='0.000001,
           MASTER_LOG_POS=114;

  6. Start the slave.

    mysql> START SLAVE;

    If the error log prints output similar to the following, the slave is ready for replication.

    2013-09-24T13:04:38.639684Z 49 [Note] Slave I/O thread: connected to
    master 'root@localhost:13000', replication started in log '0.000001'
    at position 114


Testing the InnoDB memcached Replication Configuration

This example demonstrates how to test the InnoDB memcached replication configuration using the memcached and telnet to insert, update, and delete data. A MySQL client is used to verify results on the master and slave servers.

The example uses the demo_test table, which was created by the innodb_memcached_config.sql configuration script during the initial setup of the daemon_memcached plugin. The demo_test table contains a single example record.

  1. Use the set command to insert a record with a key of test1, a flag value of 10, an expiration value of 0, a cas value of 1, and a value of t1.

    telnet 127.0.0.1 11211
    Trying 127.0.0.1...
    Connected to 127.0.0.1.
    Escape character is '^]'.
    set test1 10 0 1
    t1
    STORED
  2. On the master server, check that the record was inserted into the demo_test table. Assuming the demo_test table was not previously modified, there should be two records. The example record with a key of AA, and the record you just inserted, with a key of test1. The c1 column maps to the key, the c2 column to the value, the c3 column to the flag value, the c4 column to the cas value, and the c5 column to the expiration time. The expiration time was set to 0, since it is unused.

    mysql> SELECT * FROM test.demo_test;
    +-------+--------------+------+------+------+
    | c1    | c2           | c3   | c4   | c5   |
    +-------+--------------+------+------+------+
    | AA    | HELLO, HELLO |    8 |    0 |    0 |
    | test1 | t1           |   10 |    1 |    0 |
    +-------+--------------+------+------+------+
  3. Check to verify that the same record was replicated to the slave server.

    mysql> SELECT * FROM test.demo_test;
    +-------+--------------+------+------+------+
    | c1    | c2           | c3   | c4   | c5   |
    +-------+--------------+------+------+------+
    | AA    | HELLO, HELLO |    8 |    0 |    0 |
    | test1 | t1           |   10 |    1 |    0 |
    +-------+--------------+------+------+------+
  4. Use the set command to update the key to a value of new.

    telnet 127.0.0.1 11211
    Trying 127.0.0.1...
    Connected to 127.0.0.1.
    Escape character is '^]'.
    set test1 10 0 2
    new
    STORED


    The update is replicated to the slave server (notice that the cas value is also updated).

    mysql> SELECT * FROM test.demo_test;
    +-------+--------------+------+------+------+
    | c1    | c2           | c3   | c4   | c5   |
    +-------+--------------+------+------+------+
    | AA    | HELLO, HELLO |    8 |    0 |    0 |
    | test1 | new          |   10 |    2 |    0 |
    +-------+--------------+------+------+------+
  5. Delete the test1 record using a delete command.

    telnet 127.0.0.1 11211
    Trying 127.0.0.1...
    Connected to 127.0.0.1.
    Escape character is '^]'.
    delete test1
    DELETED

    When the delete operation is replicated to the slave, the test1 record on the slave is also deleted.

    mysql> SELECT * FROM test.demo_test;
    +----+--------------+------+------+------+
    | c1 | c2           | c3   | c4   | c5   |
    +----+--------------+------+------+------+
    | AA | HELLO, HELLO |    8 |    0 |    0 |
    +----+--------------+------+------+------+
  6. Remove all rows from the table using the flush_all command.

    telnet 127.0.0.1 11211
    Trying 127.0.0.1...
    Connected to 127.0.0.1.
    Escape character is '^]'.
    flush_all
    OK
    mysql> SELECT * FROM test.demo_test;
    Empty set (0.00 sec)
  7. Telnet to the master server and enter two new records.

    telnet 127.0.0.1 11211
    Trying 127.0.0.1...
    Connected to 127.0.0.1.
    Escape character is '^]'
    set test2 10 0 4
    again
    STORED
    set test3 10 0 5
    again1
    STORED
  8. Confirm that the two records were replicated to the slave server.

    mysql> SELECT * FROM test.demo_test;
    +-------+--------------+------+------+------+
    | c1    | c2           | c3   | c4   | c5   |
    +-------+--------------+------+------+------+
    | test2 | again        |   10 |    4 |    0 |
    | test3 | again1       |   10 |    5 |    0 |
    +-------+--------------+------+------+------+
  9. Remove all rows from the table using the flush_all command.

    telnet 127.0.0.1 11211
    Trying 127.0.0.1...
    Connected to 127.0.0.1.
    Escape character is '^]'.
    flush_all
    OK
  10. Check to ensure that the flush_all operation was replicated on the slave server.

    mysql> SELECT * FROM test.demo_test;
    Empty set (0.00 sec)

InnoDB memcached Binary Log Notes

Binary Log Format:

  • Most memcached operations are mapped to DML statements (analogous to insert, delete, update). Since there is no actual SQL statement being processed by the MySQL server, all memcached commands (except for flush_all) use Row-Based Replication (RBR) logging, which is independent of any server binlog_format setting.

  • The memcached flush_all command is mapped to the TRUNCATE TABLE command. Since DDL commands can only use statement-based logging, the flush_all command is replicated by sending a TRUNCATE TABLE statement.

Transactions:

  • The concept of transactions has not typically been part of memcached applications. For performance considerations, daemon_memcached_r_batch_size and daemon_memcached_w_batch_size are used to control the batch size for read and write transactions. These settings do not affect replication. Each SQL operation on the underlying InnoDB table is replicated after successful completion.

  • The default value of daemon_memcached_w_batch_size is 1, which means that each memcached write operation is committed immediately. This default setting incurs a certain amount of performance overhead to avoid inconsistencies in the data that is visible on the master and slave servers. The replicated records are always available immediately on the slave server. If you set daemon_memcached_w_batch_size to a value greater than 1, records inserted or updated through memcached are not immediately visible on the master server; to view the records on the master server before they are committed, issue SET TRANSACTION ISOLATION LEVEL READ UNCOMMITTED.

15.20.7 InnoDB memcached Plugin Internals

InnoDB API for the InnoDB memcached Plugin

The InnoDB memcached engine accesses InnoDB through InnoDB APIs, most of which are directly adopted from embedded InnoDB. InnoDB API functions are passed to the InnoDB memcached engine as callback functions. InnoDB API functions access the InnoDB tables directly, and are mostly DML operations with the exception of TRUNCATE TABLE.

memcached commands are implemented through the InnoDB memcached API. The following table outlines how memcached commands are mapped to DML or DDL operations.

Table 15.15 memcached Commands and Associated DML or DDL Operations

memcached CommandDML or DDL Operations
geta read/fetch command
seta search followed by an INSERT or UPDATE (depending on whether or not a key exists)
adda search followed by an INSERT or UPDATE
replacea search followed by an UPDATE
appenda search followed by an UPDATE (appends data to the result before UPDATE)
prependa search followed by an UPDATE (prepends data to the result before UPDATE)
incra search followed by an UPDATE
decra search followed by an UPDATE
deletea search followed by a DELETE
flush_allTRUNCATE TABLE (DDL)

InnoDB memcached Plugin Configuration Tables

This section describes configuration tables used by the daemon_memcached plugin. The cache_policies table, config_options table, and containers table are created by the innodb_memcached_config.sql configuration script in the innodb_memcache database.

mysql> USE innodb_memcache;
Database changed
mysql> SHOW TABLES;
+---------------------------+
| Tables_in_innodb_memcache |
+---------------------------+
| cache_policies            |
| config_options            |
| containers                |
+---------------------------+

cache_policies Table

The cache_policies table defines a cache policy for the InnoDB memcached installation. You can specify individual policies for get, set, delete, and flush operations, within a single cache policy. The default setting for all operations is innodb_only.

  • innodb_only: Use InnoDB as the data store.

  • cache-only: Use the memcached engine as the data store.

  • caching: Use both InnoDB and the memcached engine as data stores. In this case, if memcached cannot find a key in memory, it searches for the value in an InnoDB table.

  • disable: Disable caching.

Table 15.16 cache_policies Columns

ColumnDescription
policy_nameName of the cache policy. The default cache policy name is cache_policy.
get_policyThe cache policy for get operations. Valid values are innodb_only, cache-only, caching, or disabled. The default setting is innodb_only.
set_policyThe cache policy for set operations. Valid values are innodb_only, cache-only, caching, or disabled. The default setting is innodb_only.
delete_policyThe cache policy for delete operations. Valid values are innodb_only, cache-only, caching, or disabled. The default setting is innodb_only.
flush_policyThe cache policy for flush operations. Valid values are innodb_only, cache-only, caching, or disabled. The default setting is innodb_only.

config_options Table

The config_options table stores memcached-related settings that can be changed at runtime using SQL. Supported configuration options are separator and table_map_delimiter.

Table 15.17 config_options Columns

ColumnDescription
NameName of the memcached-related configuration option. The following configuration options are supported by the config_options table:
  • separator: Used to separate values of a long string into separate values when there are multiple value_columns defined. By default, the separator is a | character. For example, if you define col1, col2 as value columns, and you define | as the separator, you can issue the following memcached command to insert values into col1 and col2, respectively:

    set keyx 10 0 19
    valuecolx|valuecoly

    valuecol1x is stored in col1 and valuecoly is stored in col2.

  • table_map_delimiter: The character separating the schema name and the table name when you use the @@ notation in a key name to access a key in a specific table. For example, @@t1.some_key and @@t2.some_key have the same key value, but are stored in different tables.

ValueThe value assigned to the memcached-related configuration option.


containers Table

The containers table is the most important of the three configuration tables. Each InnoDB table that is used to store memcached values must have an entry in the containers table. The entry provides a mapping between InnoDB table columns and container table columns, which is required for memcached to work with InnoDB tables.

The containers table contains a default entry for the test.demo_test table, which is created by the innodb_memcached_config.sql configuration script. To use the daemon_memcached plugin with your own InnoDB table, you must create an entry in the containers table.

Table 15.18 containers Columns

ColumnDescription
nameThe name given to the container. If an InnoDB table is not requested by name using @@ notation, the daemon_memcached plugin uses the InnoDB table with a containers.name value of default. If there is no such entry, the first entry in the containers table, ordered alphabetically by name (ascending), determines the default InnoDB table.
db_schemaThe name of the database where the InnoDB table resides. This is a required value.
db_tableThe name of the InnoDB table that stores memcached values. This is a required value.
key_columnsThe column in the InnoDB table that contains lookup key values for memcached operations. This is a required value.
value_columnsThe InnoDB table columns (one or more) that store memcached data. Multiple columns can be specified using the separator character specified in the innodb_memcached.config_options table. By default, the separator is a pipe character (|). To specify multiple columns, separate them with the defined separator character. For example: col1|col2|col3. This is a required value.
flagsThe InnoDB table columns that are used as flags (a user-defined numeric value that is stored and retrieved along with the main value) for memcached. A flag value can be used as a column specifier for some operations (such as incr, prepend) if a memcached value is mapped to multiple columns, so that an operation is performed on a specified column. For example, if you have mapped a value_columns to three InnoDB table columns, and only want the increment operation performed on one columns, use the flags column to specify the column. If you do not use the flags column, set a value of 0 to indicate that it is unused.
cas_columnThe InnoDB table column that stores compare-and-swap (cas) values. The cas_column value is related to the way memcached hashes requests to different servers and caches data in memory. Because the InnoDB memcached plugin is tightly integrated with a single memcached daemon, and the in-memory caching mechanism is handled by MySQL and the InnoDB buffer pool, this column is rarely needed. If you do not use this column, set a value of 0 to indicate that it is unused.
expire_time_columnThe InnoDB table column that stores expiration values. The expire_time_column value is related to the way memcached hashes requests to different servers and caches data in memory. Because the InnoDB memcached plugin is tightly integrated with a single memcached daemon, and the in-memory caching mechanism is handled by MySQL and the InnoDB buffer pool, this column is rarely needed. If you do not use this column, set a value of 0 to indicate that the column is unused. Maximum expire time is defined as INT_MAX32 or 2147483647 seconds (approximately 68 years).
unique_idx_name_on_keyThe name of the index on the key column. It must be a unique index. It can be the primary key or a secondary index. Preferably, use the primary key of the InnoDB table. Using the primary key avoids a lookup that is performed when using a secondary index. You cannot make a covering index for memcached lookups; InnoDB returns an error if you try to define a composite secondary index over both the key and value columns.

containers Table Column Constraints
  • You must supply a value for db_schema, db_name, key_columns, value_columns and unique_idx_name_on_key. Specify 0 for flags, cas_column, and expire_time_column if they are unused. Failing to do so could cause your setup to fail.

  • key_columns: The maximum limit for a memcached key is 250 characters, which is enforced by memcached. The mapped key must be a non-Null CHAR or VARCHAR type.

  • value_columns: Must be mapped to a CHAR, VARCHAR, or BLOB column. There is no length restriction and the value can be NULL.

  • cas_column: The cas value is a 64 bit integer. It must be mapped to a BIGINT of at least 8 bytes. If you do not use this column, set a value of 0 to indicate that it is unused.

  • expiration_time_column: Must mapped to an INTEGER of at least 4 bytes. Expiration time is defined as a 32-bit integer for Unix time (the number of seconds since January 1, 1970, as a 32-bit value), or the number of seconds starting from the current time. For the latter, the number of seconds may not exceed 60*60*24*30 (the number of seconds in 30 days). If the number sent by a client is larger, the server considers it to be a real Unix time value rather than an offset from the current time. If you do not use this column, set a value of 0 to indicate that it is unused.

  • flags: Must be mapped to an INTEGER of at least 32-bits and can be NULL. If you do not use this column, set a value of 0 to indicate that it is unused.

A pre-check is performed at plugin load time to enforce column constraints. If mismatches are found, the plugin is not loaded.

Multiple Value Column Mapping
  • During plugin initialization, when InnoDB memcached is configured with information defined in the containers table, each mapped column defined in containers.value_columns is verified against the mapped InnoDB table. If multiple InnoDB table columns are mapped, there is a check to ensure that each column exists and is the right type.

  • At run-time, for memcached insert operations, if there are more delimited values than the number of mapped columns, only the number of mapped values are taken. For example, if there are six mapped columns, and seven delimited values are provided, only the first six delimited values are taken. The seventh delimited value is ignored.

  • If there are fewer delimited values than mapped columns, unfilled columns are set to NULL. If an unfilled column cannot be set to NULL, insert operations fail.

  • If a table has more columns than mapped values, the extra columns do not affect results.

The demo_test Example Table

The innodb_memcached_config.sql configuration script creates a demo_test table in the test database, which can be used to verify InnoDB memcached plugin installation immediately after setup.

The innodb_memcached_config.sql configuration script also creates an entry for the demo_test table in the innodb_memcache.containers table.

mysql> SELECT * FROM innodb_memcache.containers\G
*************************** 1. row ***************************
                  name: aaa
             db_schema: test
              db_table: demo_test
           key_columns: c1
         value_columns: c2
                 flags: c3
            cas_column: c4
    expire_time_column: c5
unique_idx_name_on_key: PRIMARY

mysql> SELECT * FROM test.demo_test;
+----+------------------+------+------+------+
| c1 | c2               | c3   | c4   | c5   |
+----+------------------+------+------+------+
| AA | HELLO, HELLO     |    8 |    0 |    0 |
+----+------------------+------+------+------+

15.20.8 Troubleshooting the InnoDB memcached Plugin

This section describes issues that you may encounter when using the InnoDB memcached plugin.

  • If you encounter the following error in the MySQL error log, the server might fail to start:

    failed to set rlimit for open files. Try running as root or requesting smaller maxconns value.

    The error message is from the memcached daemon. One solution is to raise the OS limit for the number of open files. The commands for checking and increasing the open file limit varies by operating system. This example shows commands for Linux and OS X:

    # Linux
    shell> ulimit -n
    1024
    shell> ulimit -n 4096
    shell> ulimit -n
    4096

    # OS X
    shell> ulimit -n
    256
    shell> ulimit -n 4096
    shell> ulimit -n
    4096


    The other solution is to reduce the number of concurrent connections permitted for the memcached daemon. To do so, encode the -c memcached option in the daemon_memcached_option configuration parameter in the MySQL configuration file. The -c option has a default value of 1024.

    [mysqld]
    ...
    loose-daemon_memcached_option='-c 64'

  • To troubleshoot problems where the memcached daemon is unable to store or retrieve InnoDB table data, encode the -vvv memcached option in the daemon_memcached_option configuration parameter in the MySQL configuration file. Examine the MySQL error log for debug output related to memcached operations.

    [mysqld]
    ...
    loose-daemon_memcached_option='-vvv'

  • If columns specified to hold memcached values are the wrong data type, such as a numeric type instead of a string type, attempts to store key/value pairs fail with no specific error code or message.

  • If the daemon_memcached plugin causes MySQL server startup issues, you can temporarily disable the daemon_memcached plugin while troubleshooting by adding this line under the [mysqld] group in the MySQL configuration file:

    daemon_memcached=OFF


    For example, if you run the INSTALL PLUGIN statement before running the innodb_memcached_config.sql configuration script to set up the necessary database and tables, the server might crash and fail to start. The server could also fail to start if you incorrectly configure an entry in the innodb_memcache.containers table.

    To uninstall the memcached plugin for a MySQL instance, issue the following statement:

    mysql> UNINSTALL PLUGIN daemon_memcached;

  • If you run more than one instance of MySQL on the same machine with the daemon_memcached plugin enabled in each instance, use the daemon_memcached_option configuration parameter to specify a unique memcached port for each daemon_memcached plugin.

  • If an SQL statement cannot find the InnoDB table or finds no data in the table, but memcached API calls retrieve the expected data, you may be missing an entry for the InnoDB table in the innodb_memcache.containers table, or you may have not switched to the correct InnoDB table by issuing a get or set request using @@table_id notation. This problem could also occur if you change an existing entry in the innodb_memcache.containers table without restarting the MySQL server afterward. The free-form storage mechanism is flexible enough that your requests to store or retrieve a multi-column value such as col1|col2|col3 may still work, even if the daemon is using the test.demo_test table which stores values in a single column.

  • When defining your own InnoDB table for use with the daemon_memcached plugin, and columns in the table are defined as NOT NULL, ensure that values are supplied for the NOT NULL columns when inserting a record for the table into the innodb_memcache.containers table. If the INSERT statement for the innodb_memcache.containers record contains fewer delimited values than there are mapped columns, unfilled columns are set to NULL. Attempting to insert a NULL value into a NOT NULL column causes the INSERT to fail, which may only become evident after you reinitialize the daemon_memcached plugin to apply changes to the innodb_memcache.containers table.

  • If cas_column and expire_time_column fields of the innodb_memcached.containers table are set to NULL, the following error is returned when attempting to load the memcached plugin:

    InnoDB_Memcached: column 6 in the entry for config table 'containers' in
    database 'innodb_memcache' has an invalid NULL value.


    The memcached plugin rejects usage of NULL in the cas_column and expire_time_column columns. Set the value of these columns to 0 when the columns are unused.

  • As the length of the memcached key and values increase, you might encounter size and length limits.

    • When the key exceeds 250 bytes, memcached operations return an error. This is currently a fixed limit within memcached.

    • InnoDB table limits may be encountered if values exceed 768 bytes in size, 3072 bytes in size, or half of the innodb_page_size value. These limits primarily apply if you intend to create an index on a value column to run report-generating queries on that column using SQL. See Section 15.8.8, “Limits on InnoDB Tables” for details.

    • The maximum size for the key-value combination is 1 MB.

  • If you share configuration files across MySQL servers of different versions, using the latest configuration options for the daemon_memcached plugin could cause startup errors on older MySQL versions. To avoid compatibility problems, use the loose prefix with option names. For example, use loose-daemon_memcached_option='-c 64' instead of daemon_memcached_option='-c 64'.

  • There is no restriction or check in place to validate character set settings. memcached stores and retrieves keys and values in bytes and is therefore not character set sensitive. However, you must ensure that the memcached client and the MySQL table use the same character set.

  • memcached connections are blocked from accessing tables that contain an indexed virtual column. Accessing an indexed virtual column requires a callback to the server, but a memcached connection does not have access to the server code.

15.21 InnoDB Troubleshooting

The following general guidelines apply to troubleshooting InnoDB problems:

  • When an operation fails or you suspect a bug, look at the MySQL server error log (see Section 6.4.2, “The Error Log”). Section B.3, “Server Error Codes and Messages” provides troubleshooting information for some of the common InnoDB-specific errors that you may encounter.

  • If the failure is related to a deadlock, run with the innodb_print_all_deadlocks option enabled so that details about each deadlock are printed to the MySQL server error log. For information about deadlocks, see Section 15.5.5, “Deadlocks in InnoDB”.

  • Issues relating to the InnoDB data dictionary include failed CREATE TABLE statements (orphan table files), inability to open InnoDB files, and system cannot find the path specified errors. For information about these sorts of problems and errors, see Section 15.21.3, “Troubleshooting InnoDB Data Dictionary Operations”.

  • When troubleshooting, it is usually best to run the MySQL server from the command prompt, rather than through mysqld_safe or as a Windows service. You can then see what mysqld prints to the console, and so have a better grasp of what is going on. On Windows, start mysqld with the --console option to direct the output to the console window.

  • Enable the InnoDB Monitors to obtain information about a problem (see Section 15.17, “InnoDB Monitors”). If the problem is performance-related, or your server appears to be hung, you should enable the standard Monitor to print information about the internal state of InnoDB. If the problem is with locks, enable the Lock Monitor. If the problem is with table creation, tablespaces, or data dictionary operations, refer to the InnoDB Information Schema system tables to examine contents of the InnoDB internal data dictionary.

    InnoDB temporarily enables standard InnoDB Monitor output under the following conditions:

    • A long semaphore wait

    • InnoDB cannot find free blocks in the buffer pool

    • Over 67% of the buffer pool is occupied by lock heaps or the adaptive hash index

  • If you suspect that a table is corrupt, run CHECK TABLE on that table.

15.21.1 Troubleshooting InnoDB I/O Problems

The troubleshooting steps for InnoDB I/O problems depend on when the problem occurs: during startup of the MySQL server, or during normal operations when a DML or DDL statement fails due to problems at the file system level.

Initialization Problems

If something goes wrong when InnoDB attempts to initialize its tablespace or its log files, delete all files created by InnoDB: all ibdata files and all ib_logfile files. If you already created some InnoDB tables, also delete the corresponding .frm files for these tables, and any .ibd files if you are using multiple tablespaces, from the MySQL database directories. Then try the InnoDB database creation again. For easiest troubleshooting, start the MySQL server from a command prompt so that you see what is happening.

Runtime Problems

If InnoDB prints an operating system error during a file operation, usually the problem has one of the following solutions:

  • Make sure the InnoDB data file directory and the InnoDB log directory exist.

  • Make sure mysqld has access rights to create files in those directories.

  • Make sure mysqld can read the proper my.cnf or my.ini option file, so that it starts with the options that you specified.

  • Make sure the disk is not full and you are not exceeding any disk quota.

  • Make sure that the names you specify for subdirectories and data files do not clash.

  • Doublecheck the syntax of the innodb_data_home_dir and innodb_data_file_path values. In particular, any MAX value in the innodb_data_file_path option is a hard limit, and exceeding that limit causes a fatal error.

15.21.2 Forcing InnoDB Recovery

To investigate database page corruption, you might dump your tables from the database with SELECT ... INTO OUTFILE. Usually, most of the data obtained in this way is intact. Serious corruption might cause SELECT * FROM tbl_name statements or InnoDB background operations to crash or assert, or even cause InnoDB roll-forward recovery to crash. In such cases, you can use the innodb_force_recovery option to force the InnoDB storage engine to start up while preventing background operations from running, so that you can dump your tables. For example, you can add the following line to the [mysqld] section of your option file before restarting the server:

[mysqld]
innodb_force_recovery = 1
Warning

Only set innodb_force_recovery to a value greater than 0 in an emergency situation, so that you can start InnoDB and dump your tables. Before doing so, ensure that you have a backup copy of your database in case you need to recreate it. Values of 4 or greater can permanently corrupt data files. Only use an innodb_force_recovery setting of 4 or greater on a production server instance after you have successfully tested the setting on separate physical copy of your database. When forcing InnoDB recovery, you should always start with innodb_force_recovery=1 and only increase the value incrementally, as necessary.

innodb_force_recovery is 0 by default (normal startup without forced recovery). The permissible nonzero values for innodb_force_recovery are 1 to 6. A larger value includes the functionality of lesser values. For example, a value of 3 includes all of the functionality of values 1 and 2.

If you are able to dump your tables with an innodb_force_recovery value of 3 or less, then you are relatively safe that only some data on corrupt individual pages is lost. A value of 4 or greater is considered dangerous because data files can be permanently corrupted. A value of 6 is considered drastic because database pages are left in an obsolete state, which in turn may introduce more corruption into B-trees and other database structures.

As a safety measure, InnoDB prevents INSERT, UPDATE, or DELETE operations when innodb_force_recovery is greater than 0. An innodb_force_recovery setting of 4 or greater places InnoDB in read-only mode.

  • 1 (SRV_FORCE_IGNORE_CORRUPT)

    Lets the server run even if it detects a corrupt page. Tries to make SELECT * FROM tbl_name jump over corrupt index records and pages, which helps in dumping tables.

  • 2 (SRV_FORCE_NO_BACKGROUND)

    Prevents the master thread and any purge threads from running. If a crash would occur during the purge operation, this recovery value prevents it.

  • 3 (SRV_FORCE_NO_TRX_UNDO)

    Does not run transaction rollbacks after crash recovery.

  • 4 (SRV_FORCE_NO_IBUF_MERGE)

    Prevents insert buffer merge operations. If they would cause a crash, does not do them. Does not calculate table statistics. This value can permanently corrupt data files. After using this value, be prepared to drop and recreate all secondary indexes. Sets InnoDB to read-only.

  • 5 (SRV_FORCE_NO_UNDO_LOG_SCAN)

    Does not look at undo logs when starting the database: InnoDB treats even incomplete transactions as committed. This value can permanently corrupt data files. Sets InnoDB to read-only.

  • 6 (SRV_FORCE_NO_LOG_REDO)

    Does not do the redo log roll-forward in connection with recovery. This value can permanently corrupt data files. Leaves database pages in an obsolete state, which in turn may introduce more corruption into B-trees and other database structures. Sets InnoDB to read-only.

You can SELECT from tables to dump them. With an innodb_force_recovery value of 3 or less you can DROP or CREATE tables. DROP TABLE is also supported with an innodb_force_recovery value greater than 3, up to MySQL 5.7.17. As of MySQL 5.7.18, DROP TABLE is not permitted with an innodb_force_recovery value greater than 4.

If you know that a given table is causing a crash on rollback, you can drop it. If you encounter a runaway rollback caused by a failing mass import or ALTER TABLE, you can kill the mysqld process and set innodb_force_recovery to 3 to bring the database up without the rollback, and then DROP the table that is causing the runaway rollback.

If corruption within the table data prevents you from dumping the entire table contents, a query with an ORDER BY primary_key DESC clause might be able to dump the portion of the table after the corrupted part.

If a high innodb_force_recovery value is required to start InnoDB, there may be corrupted data structures that could cause complex queries (queries containing WHERE, ORDER BY, or other clauses) to fail. In this case, you may only be able to run basic SELECT * FROM t queries.

15.21.3 Troubleshooting InnoDB Data Dictionary Operations

Information about table definitions is stored both in the .frm files, and in the InnoDB data dictionary. If you move .frm files around, or if the server crashes in the middle of a data dictionary operation, these sources of information can become inconsistent.

If a data dictionary corruption or consistency issue prevents you from starting InnoDB, see Section 15.21.2, “Forcing InnoDB Recovery” for information about manual recovery.

CREATE TABLE Failure Due to Orphan Table

A symptom of an out-of-sync data dictionary is that a CREATE TABLE statement fails. If this occurs, look in the server's error log. If the log says that the table already exists inside the InnoDB internal data dictionary, you have an orphan table inside the InnoDB tablespace files that has no corresponding .frm file. The error message looks like this:

InnoDB: Error: table test/parent already exists in InnoDB internal
InnoDB: data dictionary. Have you deleted the .frm file
InnoDB: and not used DROP TABLE? Have you used DROP DATABASE
InnoDB: for InnoDB tables in MySQL version <= 3.23.43?
InnoDB: See the Restrictions section of the InnoDB manual.
InnoDB: You can drop the orphaned table inside InnoDB by
InnoDB: creating an InnoDB table with the same name in another
InnoDB: database and moving the .frm file to the current database.
InnoDB: Then MySQL thinks the table exists, and DROP TABLE will
InnoDB: succeed.

You can drop the orphan table by following the instructions given in the error message. If you are still unable to use DROP TABLE successfully, the problem may be due to name completion in the mysql client. To work around this problem, start the mysql client with the --skip-auto-rehash option and try DROP TABLE again. (With name completion on, mysql tries to construct a list of table names, which fails when a problem such as just described exists.)

Cannot Open File Error

Another symptom of an out-of-sync data dictionary is that MySQL prints an error that it cannot open an InnoDB file:

ERROR 1016: Can't open file: 'child2.ibd'. (errno: 1)

In the error log you can find a message like this:

InnoDB: Cannot find table test/child2 from the internal data dictionary
InnoDB: of InnoDB though the .frm file for the table exists. Maybe you
InnoDB: have deleted and recreated InnoDB data files but have forgotten
InnoDB: to delete the corresponding .frm files of InnoDB tables?

This means that there is an orphan .frm file without a corresponding table inside InnoDB. You can drop the orphan .frm file by deleting it manually.

Orphan Intermediate Tables

If MySQL exits in the middle of an in-place ALTER TABLE operation (ALGORITHM=INPLACE), you may be left with an orphan intermediate table that takes up space on your system. Also, an orphan intermediate table in an otherwise empty general tablespace prevents you from dropping the general tablepace. This section describes how to identify and remove orphan intermediate tables.

Intermediate table names begin with an #sql-ib prefix (e.g., #sql-ib87-856498050). The accompanying .frm file has an #sql-* prefix and is named differently (e.g., #sql-36ab_2.frm).

To identify orphan intermediate tables on your system, you can query INFORMATION_SCHEMA.INNODB_SYS_TABLES. Look for table names that begin with #sql. If the original table resides in a file-per-table tablespace, the tablespace file (the #sql-*.ibd file) for the orphan intermediate table should be visible in the database directory.

SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME LIKE '%#sql%';

To remove an orphan intermediate table, perform the following steps:

  1. In the database directory, rename the #sql-*.frm file to match the base name of the orphan intermediate table:

    shell> mv #sql-36ab_2.frm #sql-ib87-856498050.frm
    Note

    If there is no .frm file, you can recreate it. The .frm file must have the same table schema as the orphan intermediate table (it must have the same columns and indexes) and must be placed in the database directory of the orphan intermediate table.

  2. Drop the orphan intermediate table by issuing a DROP TABLE statement, prefixing the name of the table with #mysql50# and enclosing the table name in backticks. For example:

    mysql> DROP TABLE `#mysql50##sql-ib87-856498050`;

    The #mysql50# prefix tells MySQL to ignore file name safe encoding introduced in MySQL 5.1. Enclosing the table name in backticks is required to perform SQL statements on table names with special characters such as #.

Note

If a crash occurs during an in-place ALTER TABLE operation that was moving a table to a different tablespace, the recovery process restores the table to its original location but leaves an orphan intermediate table in the destination tablespace.

Orphan Temporary Tables

If MySQL exits in the middle of a table-copying ALTER TABLE operation (ALGORITHM=COPY), you may be left with an orphan temporary table that takes up space on your system. Also, an orphan temporary table in an otherwise empty general tablespace prevents you from dropping the general tablepace. This section describes how to identify and remove orphan temporary tables.

Orphan temporary table names begin with an #sql- prefix (e.g., #sql-540_3). The accompanying .frm file has the same base name as the orphan temporary table.

Note

If there is no .frm file, you can recreate it. The .frm file must have the same table schema as the orphan temporary table (it must have the same columns and indexes) and must be placed in the database directory of the orphan temporary table.

To identify orphan temporary tables on your system, you can query INFORMATION_SCHEMA.INNODB_SYS_TABLES. Look for table names that begin with #sql. If the original table resides in a file-per-table tablespace, the tablespace file (the #sql-*.ibd file) for the orphan temporary table should be visible in the database directory.

SELECT * FROM INFORMATION_SCHEMA.INNODB_SYS_TABLES WHERE NAME LIKE '%#sql%';

To remove an orphan temporary table, drop the table by issuing a DROP TABLE statement, prefixing the name of the table with #mysql50# and enclosing the table name in backticks. For example:

mysql> DROP TABLE `#mysql50##sql-540_3`;

The #mysql50# prefix tells MySQL to ignore file name safe encoding introduced in MySQL 5.1. Enclosing the table name in backticks is required to perform SQL statements on table names with special characters such as #.

Tablespace Does Not Exist

With innodb_file_per_table enabled, the following message might occur if the .frm or .ibd files (or both) are missing:

InnoDB: in InnoDB data dictionary has tablespace id N,
InnoDB: but tablespace with that id or name does not exist. Have
InnoDB: you deleted or moved .ibd files?
InnoDB: This may also be a table created with CREATE TEMPORARY TABLE
InnoDB: whose .ibd and .frm files MySQL automatically removed, but the
InnoDB: table still exists in the InnoDB internal data dictionary.

If this occurs, try the following procedure to resolve the problem:

  1. Create a matching .frm file in some other database directory and copy it to the database directory where the orphan table is located.

  2. Issue DROP TABLE for the original table. That should successfully drop the table and InnoDB should print a warning to the error log that the .ibd file was missing.

Restoring Orphan File-Per-Table ibd Files

This procedure describes how to restore orphan file-per-table .ibd files to another MySQL instance. You might use this procedure if the system tablespace is lost or unrecoverable and you want to restore .idb file backups on a new MySQL instance.

The procedure is not supported for general tablespace .ibd files.

The procedure assumes that you only have .ibd file backups, you are recovering to the same version of MySQL that initially created the orphan .idb files, and that .idb file backups are clean. See Section 15.8.4, “Moving or Copying InnoDB Tables to Another Machine” for information about creating clean backups.

Tablespace copying limitations outlined in Section 15.7.6, “Copying File-Per-Table Tablespaces to Another Server” are applicable to this procedure.

  1. On the new MySQL instance, recreate the table in a database of the same name.

    mysql> CREATE DATABASE sakila;

    mysql> USE sakila;

    mysql> CREATE TABLE actor (
        ->    actor_id SMALLINT UNSIGNED NOT NULL AUTO_INCREMENT,
        ->    first_name VARCHAR(45) NOT NULL,
        ->    last_name VARCHAR(45) NOT NULL,
        ->    last_update TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
        ->    PRIMARY KEY  (actor_id),
        ->    KEY idx_actor_last_name (last_name)
        -> )ENGINE=InnoDB DEFAULT CHARSET=utf8;
  2. Discard the tablespace of the newly created table.

    mysql> ALTER TABLE sakila.actor DISCARD TABLESPACE;
  3. Copy the orphan .idb file from your backup directory to the new database directory.

    shell> cp /backup_directory/actor.ibd path/to/mysql-5.7/data/sakila/
  4. Ensure that the .ibd file has the necessary file permissions.

  5. Import the orphan .ibd file. A warning is issued indicating that InnoDB will attempt to import the file without schema verification.

    mysql> ALTER TABLE sakila.actor IMPORT TABLESPACE; SHOW WARNINGS;
    Query OK, 0 rows affected, 1 warning (0.15 sec)

    Warning | 1810 | InnoDB: IO Read error: (2, No such file or directory)
    Error opening './sakila/actor.cfg', will attempt to import
    without schema verification
  6. Query the table to verify that the .ibd file was successfully restored.

    mysql> SELECT COUNT(*) FROM sakila.actor;
    +----------+
    | count(*) |
    +----------+
    |      200 |
    +----------+

15.21.4 InnoDB Error Handling

The following items describe how InnoDB performs error handling. InnoDB sometimes rolls back only the statement that failed, other times it rolls back the entire transaction.

  • If you run out of file space in a tablespace, a MySQL Table is full error occurs and InnoDB rolls back the SQL statement.

  • A transaction deadlock causes InnoDB to roll back the entire transaction. Retry the whole transaction when this happens.

    A lock wait timeout causes InnoDB to roll back only the single statement that was waiting for the lock and encountered the timeout. (To have the entire transaction roll back, start the server with the --innodb_rollback_on_timeout option.) Retry the statement if using the current behavior, or the entire transaction if using --innodb_rollback_on_timeout.

    Both deadlocks and lock wait timeouts are normal on busy servers and it is necessary for applications to be aware that they may happen and handle them by retrying. You can make them less likely by doing as little work as possible between the first change to data during a transaction and the commit, so the locks are held for the shortest possible time and for the smallest possible number of rows. Sometimes splitting work between different transactions may be practical and helpful.

    When a transaction rollback occurs due to a deadlock or lock wait timeout, it cancels the effect of the statements within the transaction. But if the start-transaction statement was START TRANSACTION or BEGIN statement, rollback does not cancel that statement. Further SQL statements become part of the transaction until the occurrence of COMMIT, ROLLBACK, or some SQL statement that causes an implicit commit.

  • A duplicate-key error rolls back the SQL statement, if you have not specified the IGNORE option in your statement.

  • A row too long error rolls back the SQL statement.

  • Other errors are mostly detected by the MySQL layer of code (above the InnoDB storage engine level), and they roll back the corresponding SQL statement. Locks are not released in a rollback of a single SQL statement.

During implicit rollbacks, as well as during the execution of an explicit ROLLBACK SQL statement, SHOW PROCESSLIST displays Rolling back in the State column for the relevant connection.
