Version: 3.0.3 |
wxTreeEvent Class Reference
#include <wx/treectrl.h>

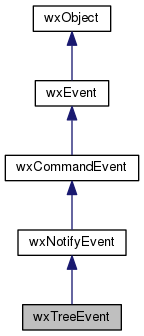

Inheritance diagram for wxTreeEvent:
Detailed Description
A tree event holds information about events associated with wxTreeCtrl objects.
To process input from a tree control, use these event handler macros to direct input to member functions that take a wxTreeEvent argument.
Events using this class
The following event handler macros redirect the events to member function handlers 'func' with prototypes like:
void handlerFuncName(wxTreeEvent& event)
Event macros:
- EVT_TREE_BEGIN_DRAG(id, func):Begin dragging with the left mouse button. If you want to enable left-dragging you need to intercept this event and explicitly call wxTreeEvent::Allow(), as it's vetoed by default. Also notice that the control must have an associated image list (see SetImageList()) to drag its items under MSW.
- EVT_TREE_BEGIN_RDRAG(id, func):Begin dragging with the right mouse button. If you want to enable right-dragging you need to intercept this event and explicitly call wxTreeEvent::Allow(), as it's vetoed by default.
- EVT_TREE_END_DRAG(id, func):End dragging with the left or right mouse button.
- EVT_TREE_BEGIN_LABEL_EDIT(id, func):Begin editing a label. This can be prevented by calling Veto().
- EVT_TREE_END_LABEL_EDIT(id, func):Finish editing a label. This can be prevented by calling Veto().
- EVT_TREE_DELETE_ITEM(id, func):Delete an item.
- EVT_TREE_GET_INFO(id, func):Request information from the application.
- EVT_TREE_SET_INFO(id, func):Information is being supplied.
- EVT_TREE_ITEM_ACTIVATED(id, func):The item has been activated, i.e. chosen by double clicking it with mouse or from keyboard.
- EVT_TREE_ITEM_COLLAPSED(id, func):The item has been collapsed.
- EVT_TREE_ITEM_COLLAPSING(id, func):The item is being collapsed. This can be prevented by calling Veto().
- EVT_TREE_ITEM_EXPANDED(id, func):The item has been expanded.
- EVT_TREE_ITEM_EXPANDING(id, func):The item is being expanded. This can be prevented by calling Veto().
- EVT_TREE_ITEM_RIGHT_CLICK(id, func):The user has clicked the item with the right mouse button.
- EVT_TREE_ITEM_MIDDLE_CLICK(id, func):The user has clicked the item with the middle mouse button.
- EVT_TREE_SEL_CHANGED(id, func):Selection has changed.
- EVT_TREE_SEL_CHANGING(id, func):Selection is changing. This can be prevented by calling Veto().
- EVT_TREE_KEY_DOWN(id, func):A key has been pressed.
- EVT_TREE_ITEM_GETTOOLTIP(id, func):The opportunity to set the item tooltip is being given to the application (call SetToolTip()). Windows only.
- EVT_TREE_ITEM_MENU(id, func):The context menu for the selected item has been requested, either by a right click or by using the menu key.
- EVT_TREE_STATE_IMAGE_CLICK(id, func):The state image has been clicked.
Library: wxCore
Category: Events
- See also
- wxTreeCtrl
Public Member Functions | |
| wxTreeEvent (wxEventType commandType, wxTreeCtrl *tree, const wxTreeItemId &item=wxTreeItemId()) | |
| Constructor, used by wxWidgets itself only. More... | |
| wxTreeItemId | GetItem () const |
| Returns the item (valid for all events). More... | |
| int | GetKeyCode () const |
| Returns the key code if the event is a key event. More... | |
| const wxKeyEvent & | GetKeyEvent () const |
Returns the key event for EVT_TREE_KEY_DOWN events. More... | |
| const wxString & | GetLabel () const |
| Returns the label if the event is a begin or end edit label event. More... | |
| wxTreeItemId | GetOldItem () const |
Returns the old item index (valid for EVT_TREE_ITEM_CHANGING and EVT_TREE_ITEM_CHANGED events). More... | |
| wxPoint | GetPoint () const |
| Returns the position of the mouse pointer if the event is a drag or menu-context event. More... | |
| bool | IsEditCancelled () const |
| Returns true if the label edit was cancelled. More... | |
| void | SetToolTip (const wxString &tooltip) |
Set the tooltip for the item (valid for EVT_TREE_ITEM_GETTOOLTIP events). More... | |
| Public Member Functions inherited from wxNotifyEvent | |
| wxNotifyEvent (wxEventType eventType=wxEVT_NULL, int id=0) | |
| Constructor (used internally by wxWidgets only). More... | |
| void | Allow () |
| This is the opposite of Veto(): it explicitly allows the event to be processed. More... | |
| bool | IsAllowed () const |
| Returns true if the change is allowed (Veto() hasn't been called) or false otherwise (if it was). More... | |
| void | Veto () |
| Prevents the change announced by this event from happening. More... | |
| Public Member Functions inherited from wxCommandEvent | |
| wxCommandEvent (wxEventType commandEventType=wxEVT_NULL, int id=0) | |
| Constructor. More... | |
| void * | GetClientData () const |
| Returns client data pointer for a listbox or choice selection event (not valid for a deselection). More... | |
| wxClientData * | GetClientObject () const |
| Returns client object pointer for a listbox or choice selection event (not valid for a deselection). More... | |
| long | GetExtraLong () const |
| Returns extra information dependent on the event objects type. More... | |
| int | GetInt () const |
| Returns the integer identifier corresponding to a listbox, choice or radiobox selection (only if the event was a selection, not a deselection), or a boolean value representing the value of a checkbox. More... | |
| int | GetSelection () const |
| Returns item index for a listbox or choice selection event (not valid for a deselection). More... | |
| wxString | GetString () const |
| Returns item string for a listbox or choice selection event. More... | |
| bool | IsChecked () const |
| This method can be used with checkbox and menu events: for the checkboxes, the method returns true for a selection event and false for a deselection one. More... | |
| bool | IsSelection () const |
| For a listbox or similar event, returns true if it is a selection, false if it is a deselection. More... | |
| void | SetClientData (void *clientData) |
| Sets the client data for this event. More... | |
| void | SetClientObject (wxClientData *clientObject) |
| Sets the client object for this event. More... | |
| void | SetExtraLong (long extraLong) |
| Sets the m_extraLong member. More... | |
| void | SetInt (int intCommand) |
| Sets the m_commandInt member. More... | |
| void | SetString (const wxString &string) |
| Sets the m_commandString member. More... | |
| Public Member Functions inherited from wxEvent | |
| wxEvent (int id=0, wxEventType eventType=wxEVT_NULL) | |
| Constructor. More... | |
| virtual wxEvent * | Clone () const =0 |
| Returns a copy of the event. More... | |
| wxObject * | GetEventObject () const |
| Returns the object (usually a window) associated with the event, if any. More... | |
| wxEventType | GetEventType () const |
Returns the identifier of the given event type, such as wxEVT_BUTTON. More... | |
| virtual wxEventCategory | GetEventCategory () const |
| Returns a generic category for this event. More... | |
| int | GetId () const |
| Returns the identifier associated with this event, such as a button command id. More... | |
| wxObject * | GetEventUserData () const |
| Return the user data associated with a dynamically connected event handler. More... | |
| bool | GetSkipped () const |
| Returns true if the event handler should be skipped, false otherwise. More... | |
| long | GetTimestamp () const |
| Gets the timestamp for the event. More... | |
| bool | IsCommandEvent () const |
| Returns true if the event is or is derived from wxCommandEvent else it returns false. More... | |
| void | ResumePropagation (int propagationLevel) |
| Sets the propagation level to the given value (for example returned from an earlier call to wxEvent::StopPropagation). More... | |
| void | SetEventObject (wxObject *object) |
| Sets the originating object. More... | |
| void | SetEventType (wxEventType type) |
| Sets the event type. More... | |
| void | SetId (int id) |
| Sets the identifier associated with this event, such as a button command id. More... | |
| void | SetTimestamp (long timeStamp=0) |
| Sets the timestamp for the event. More... | |
| bool | ShouldPropagate () const |
| Test if this event should be propagated or not, i.e. if the propagation level is currently greater than 0. More... | |
| void | Skip (bool skip=true) |
| This method can be used inside an event handler to control whether further event handlers bound to this event will be called after the current one returns. More... | |
| int | StopPropagation () |
| Stop the event from propagating to its parent window. More... | |
| Public Member Functions inherited from wxObject | |
| wxObject () | |
| Default ctor; initializes to NULL the internal reference data. More... | |
| wxObject (const wxObject &other) | |
| Copy ctor. More... | |
| virtual | ~wxObject () |
| Destructor. More... | |
| virtual wxClassInfo * | GetClassInfo () const |
| This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More... | |
| wxObjectRefData * | GetRefData () const |
| Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More... | |
| bool | IsKindOf (const wxClassInfo *info) const |
| Determines whether this class is a subclass of (or the same class as) the given class. More... | |
| bool | IsSameAs (const wxObject &obj) const |
| Returns true if this object has the same data pointer as obj. More... | |
| void | Ref (const wxObject &clone) |
| Makes this object refer to the data in clone. More... | |
| void | SetRefData (wxObjectRefData *data) |
| Sets the wxObject::m_refData pointer. More... | |
| void | UnRef () |
| Decrements the reference count in the associated data, and if it is zero, deletes the data. More... | |
| void | UnShare () |
| This is the same of AllocExclusive() but this method is public. More... | |
| void | operator delete (void *buf) |
The delete operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More... | |
| void * | operator new (size_t size, const wxString &filename=NULL, int lineNum=0) |
The new operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from wxObject | |
| void | AllocExclusive () |
| Ensure that this object's data is not shared with any other object. More... | |
| virtual wxObjectRefData * | CreateRefData () const |
| Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More... | |
| virtual wxObjectRefData * | CloneRefData (const wxObjectRefData *data) const |
| Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More... | |
| Protected Attributes inherited from wxEvent | |
| int | m_propagationLevel |
| Indicates how many levels the event can propagate. More... | |
| Protected Attributes inherited from wxObject | |
| wxObjectRefData * | m_refData |
| Pointer to an object which is the object's reference-counted data. More... | |
Constructor & Destructor Documentation
| wxTreeEvent::wxTreeEvent | ( | wxEventType | commandType, |
| wxTreeCtrl * | tree, | ||
| const wxTreeItemId & | item = wxTreeItemId() |
||
| ) |
Constructor, used by wxWidgets itself only.
Member Function Documentation
| wxTreeItemId wxTreeEvent::GetItem | ( | ) | const |
Returns the item (valid for all events).
| int wxTreeEvent::GetKeyCode | ( | ) | const |
Returns the key code if the event is a key event.
Use GetKeyEvent() to get the values of the modifier keys for this event (i.e. Shift or Ctrl).
| const wxKeyEvent& wxTreeEvent::GetKeyEvent | ( | ) | const |
Returns the key event for EVT_TREE_KEY_DOWN events.
| const wxString& wxTreeEvent::GetLabel | ( | ) | const |
Returns the label if the event is a begin or end edit label event.
| wxTreeItemId wxTreeEvent::GetOldItem | ( | ) | const |
Returns the old item index (valid for EVT_TREE_ITEM_CHANGING and EVT_TREE_ITEM_CHANGED events).
| wxPoint wxTreeEvent::GetPoint | ( | ) | const |
Returns the position of the mouse pointer if the event is a drag or menu-context event.
In both cases the position is in client coordinates - i.e. relative to the wxTreeCtrl window (so that you can pass it directly to e.g. wxWindow::PopupMenu()).
| bool wxTreeEvent::IsEditCancelled | ( | ) | const |
Returns true if the label edit was cancelled.
This should be called from within an EVT_TREE_END_LABEL_EDIT handler.
| void wxTreeEvent::SetToolTip | ( | const wxString & | tooltip | ) |
Set the tooltip for the item (valid for EVT_TREE_ITEM_GETTOOLTIP events).
Windows only.
