#include <wx/richtext/richtextbuffer.h>

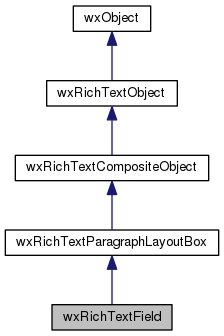

Inheritance diagram for wxRichTextField:

Detailed Description

This class implements the general concept of a field, an object that represents additional functionality such as a footnote, a bookmark, a page number, a table of contents, and so on.

Extra information (such as a bookmark name) can be stored in the object properties.

Drawing, layout, and property editing is delegated to classes derived from wxRichTextFieldType, such as instances of wxRichTextFieldTypeStandard; this makes the use of fields an efficient method of introducing extra functionality, since most of the information required to draw a field (such as a bitmap) is kept centrally in a single field type definition.

The FieldType property, accessed by SetFieldType/GetFieldType, is used to retrieve the field type definition. So be careful not to overwrite this property.

wxRichTextField is derived from wxRichTextParagraphLayoutBox, which means that it can contain its own read-only content, refreshed when the application calls the UpdateField function. Whether a field is treated as a composite or a single graphic is determined by the field type definition. If using wxRichTextFieldTypeStandard, passing the display type wxRICHTEXT_FIELD_STYLE_COMPOSITE to the field type definition causes the field to behave like a composite; the other display styles display a simple graphic. When implementing a composite field, you will still need to derive from wxRichTextFieldTypeStandard or wxRichTextFieldType, if only to implement UpdateField to refresh the field content appropriately. wxRichTextFieldTypeStandard is only one possible implementation, but covers common needs especially for simple, static fields using text or a bitmap.

Register field types on application initialisation with the static function wxRichTextBuffer::AddFieldType. They will be deleted automatically on application exit.

An application can write a field to a control with wxRichTextCtrl::WriteField, taking a field type, the properties for the field, and optional attributes.

Library: wxRichText

Category: Rich Text

See also: wxRichTextFieldTypeStandard, wxRichTextFieldType, wxRichTextParagraphLayoutBox, wxRichTextProperties, wxRichTextCtrl

Public Member Functions
	wxRichTextField (const wxString &fieldType=wxEmptyString, wxRichTextObject *parent=NULL)
	Default constructor; optionally pass the parent object. More...

	wxRichTextField (const wxRichTextField &obj)
	Copy constructor. More...

virtual bool	Draw (wxDC &dc, wxRichTextDrawingContext &context, const wxRichTextRange &range, const wxRichTextSelection &selection, const wxRect &rect, int descent, int style)
	Draw the item, within the given range. More...

virtual bool	Layout (wxDC &dc, wxRichTextDrawingContext &context, const wxRect &rect, const wxRect &parentRect, int style)
	Lay the item out at the specified position with the given size constraint. More...

virtual bool	GetRangeSize (const wxRichTextRange &range, wxSize &size, int &descent, wxDC &dc, wxRichTextDrawingContext &context, int flags, const wxPoint &position=wxPoint(0, 0), const wxSize &parentSize=wxDefaultSize, wxArrayInt *partialExtents=NULL) const
	Returns the object size for the given range. More...

virtual wxString	GetXMLNodeName () const
	Returns the XML node name of this object. More...

virtual bool	CanEditProperties () const
	Returns true if we can edit the object's properties via a GUI. More...

virtual bool	EditProperties (wxWindow parent, wxRichTextBuffer buffer)
	Edits the object's properties via a GUI. More...

virtual wxString	GetPropertiesMenuLabel () const
	Returns the label to be used for the properties context menu item. More...

virtual bool	AcceptsFocus () const
	Returns true if objects of this class can accept the focus, i.e. a call to SetFocusObject is possible. More...

virtual void	CalculateRange (long start, long &end)
	Calculates the range of the object. More...

virtual bool	IsAtomic () const
	If a field has children, we don't want the user to be able to edit it. More...

virtual bool	IsEmpty () const
	Returns true if the buffer is empty. More...

virtual bool	IsTopLevel () const
	Returns true if this object is top-level, i.e. contains its own paragraphs, such as a text box. More...

void	SetFieldType (const wxString &fieldType)

wxString	GetFieldType () const

virtual bool	UpdateField (wxRichTextBuffer *buffer)
	Update the field; delegated to the associated field type. More...

virtual wxRichTextObject *	Clone () const
	Clones the object. More...

void	Copy (const wxRichTextField &obj)

Public Member Functions inherited from wxRichTextParagraphLayoutBox
	wxRichTextParagraphLayoutBox (wxRichTextObject *parent=NULL)

	wxRichTextParagraphLayoutBox (const wxRichTextParagraphLayoutBox &obj)

	~wxRichTextParagraphLayoutBox ()

virtual int	HitTest (wxDC &dc, wxRichTextDrawingContext &context, const wxPoint &pt, long &textPosition, wxRichTextObject obj, wxRichTextObject contextObj, int flags=0)
	Hit-testing: returns a flag indicating hit test details, plus information about position. More...

virtual bool	DeleteRange (const wxRichTextRange &range)
	Deletes the given range. More...

virtual wxString	GetTextForRange (const wxRichTextRange &range) const
	Returns any text in this object for the given range. More...

virtual bool	ImportFromXML (wxRichTextBuffer buffer, wxXmlNode node, wxRichTextXMLHandler handler, bool recurse)
	Imports this object from XML. More...

void	SetRichTextCtrl (wxRichTextCtrl *ctrl)
	Associates a control with the buffer, for operations that for example require refreshing the window. More...

wxRichTextCtrl *	GetRichTextCtrl () const
	Returns the associated control. More...

void	SetPartialParagraph (bool partialPara)
	Sets a flag indicating whether the last paragraph is partial or complete. More...

bool	GetPartialParagraph () const
	Returns a flag indicating whether the last paragraph is partial or complete. More...

virtual wxRichTextStyleSheet *	GetStyleSheet () const
	Returns the style sheet associated with the overall buffer. More...

bool	InsertParagraphsWithUndo (wxRichTextBuffer buffer, long pos, const wxRichTextParagraphLayoutBox &paragraphs, wxRichTextCtrl ctrl, int flags=0)
	Submits a command to insert paragraphs. More...

bool	InsertTextWithUndo (wxRichTextBuffer buffer, long pos, const wxString &text, wxRichTextCtrl ctrl, int flags=0)
	Submits a command to insert the given text. More...

bool	InsertNewlineWithUndo (wxRichTextBuffer buffer, long pos, wxRichTextCtrl ctrl, int flags=0)
	Submits a command to insert the given text. More...

bool	InsertImageWithUndo (wxRichTextBuffer buffer, long pos, const wxRichTextImageBlock &imageBlock, wxRichTextCtrl ctrl, int flags, const wxRichTextAttr &textAttr)
	Submits a command to insert the given image. More...

wxRichTextField *	InsertFieldWithUndo (wxRichTextBuffer buffer, long pos, const wxString &fieldType, const wxRichTextProperties &properties, wxRichTextCtrl ctrl, int flags, const wxRichTextAttr &textAttr)
	Submits a command to insert the given field. More...

wxRichTextAttr	GetStyleForNewParagraph (wxRichTextBuffer *buffer, long pos, bool caretPosition=false, bool lookUpNewParaStyle=false) const
	Returns the style that is appropriate for a new paragraph at this position. More...

wxRichTextObject *	InsertObjectWithUndo (wxRichTextBuffer buffer, long pos, wxRichTextObject object, wxRichTextCtrl *ctrl, int flags=0)
	Inserts an object. More...

bool	DeleteRangeWithUndo (const wxRichTextRange &range, wxRichTextCtrl ctrl, wxRichTextBuffer buffer)
	Submits a command to delete this range. More...

void	DrawFloats (wxDC &dc, wxRichTextDrawingContext &context, const wxRichTextRange &range, const wxRichTextSelection &selection, const wxRect &rect, int descent, int style)
	Draws the floating objects in this buffer. More...

void	MoveAnchoredObjectToParagraph (wxRichTextParagraph from, wxRichTextParagraph to, wxRichTextObject *obj)
	Moves an anchored object to another paragraph. More...

void	Init ()
	Initializes the object. More...

virtual void	Clear ()
	Clears all the children. More...

virtual void	Reset ()
	Clears and initializes with one blank paragraph. More...

virtual wxRichTextRange	AddParagraph (const wxString &text, wxRichTextAttr *paraStyle=NULL)
	Convenience function to add a paragraph of text. More...

virtual wxRichTextRange	AddImage (const wxImage &image, wxRichTextAttr *paraStyle=NULL)
	Convenience function to add an image. More...

virtual wxRichTextRange	AddParagraphs (const wxString &text, wxRichTextAttr *paraStyle=NULL)
	Adds multiple paragraphs, based on newlines. More...

virtual wxRichTextLine *	GetLineAtPosition (long pos, bool caretPosition=false) const
	Returns the line at the given position. More...

virtual wxRichTextLine *	GetLineAtYPosition (int y) const
	Returns the line at the given y pixel position, or the last line. More...

virtual wxRichTextParagraph *	GetParagraphAtPosition (long pos, bool caretPosition=false) const
	Returns the paragraph at the given character or caret position. More...

virtual wxSize	GetLineSizeAtPosition (long pos, bool caretPosition=false) const
	Returns the line size at the given position. More...

virtual long	GetVisibleLineNumber (long pos, bool caretPosition=false, bool startOfLine=false) const
	Given a position, returns the number of the visible line (potentially many to a paragraph), starting from zero at the start of the buffer. More...

virtual wxRichTextLine *	GetLineForVisibleLineNumber (long lineNumber) const
	Given a line number, returns the corresponding wxRichTextLine object. More...

virtual wxRichTextObject *	GetLeafObjectAtPosition (long position) const
	Returns the leaf object in a paragraph at this position. More...

virtual wxRichTextParagraph *	GetParagraphAtLine (long paragraphNumber) const
	Returns the paragraph by number. More...

virtual wxRichTextParagraph *	GetParagraphForLine (wxRichTextLine *line) const
	Returns the paragraph for a given line. More...

virtual int	GetParagraphLength (long paragraphNumber) const
	Returns the length of the paragraph. More...

virtual int	GetParagraphCount () const
	Returns the number of paragraphs. More...

virtual int	GetLineCount () const
	Returns the number of visible lines. More...

virtual wxString	GetParagraphText (long paragraphNumber) const
	Returns the text of the paragraph. More...

virtual long	XYToPosition (long x, long y) const
	Converts zero-based line column and paragraph number to a position. More...

virtual bool	PositionToXY (long pos, long x, long y) const
	Converts a zero-based position to line column and paragraph number. More...

virtual bool	SetStyle (const wxRichTextRange &range, const wxRichTextAttr &style, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO)
	Sets the attributes for the given range. More...

virtual void	SetStyle (wxRichTextObject *obj, const wxRichTextAttr &textAttr, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO)
	Sets the attributes for the given object only, for example the box attributes for a text box. More...

virtual bool	GetStyle (long position, wxRichTextAttr &style)
	Returns the combined text attributes for this position. More...

virtual bool	GetUncombinedStyle (long position, wxRichTextAttr &style)
	Returns the content (uncombined) attributes for this position. More...

virtual bool	DoGetStyle (long position, wxRichTextAttr &style, bool combineStyles=true)
	Implementation helper for GetStyle. More...

virtual bool	GetStyleForRange (const wxRichTextRange &range, wxRichTextAttr &style)
	This function gets a style representing the common, combined attributes in the given range. More...

bool	CollectStyle (wxRichTextAttr &currentStyle, const wxRichTextAttr &style, wxRichTextAttr &clashingAttr, wxRichTextAttr &absentAttr)
	Combines style with currentStyle for the purpose of summarising the attributes of a range of content. More...

virtual bool	ClearListStyle (const wxRichTextRange &range, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO)
	Clears the list style from the given range, clearing list-related attributes and applying any named paragraph style associated with each paragraph. More...

virtual bool	DoNumberList (const wxRichTextRange &range, const wxRichTextRange &promotionRange, int promoteBy, wxRichTextListStyleDefinition *def, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int startFrom=1, int specifiedLevel=-1)
	Helper for NumberList and PromoteList, that does renumbering and promotion simultaneously def can be NULL/empty to indicate that the existing list style should be used. More...

virtual bool	FindNextParagraphNumber (wxRichTextParagraph *previousParagraph, wxRichTextAttr &attr) const
	Fills in the attributes for numbering a paragraph after previousParagraph. More...

virtual bool	SetProperties (const wxRichTextRange &range, const wxRichTextProperties &properties, int flags=wxRICHTEXT_SETPROPERTIES_WITH_UNDO)
	Sets the properties for the given range, passing flags to determine how the attributes are set. More...

virtual bool	SetObjectPropertiesWithUndo (wxRichTextObject &obj, const wxRichTextProperties &properties, wxRichTextObject *objToSet=NULL)
	Sets with undo the properties for the given object. More...

virtual bool	HasCharacterAttributes (const wxRichTextRange &range, const wxRichTextAttr &style) const
	Test if this whole range has character attributes of the specified kind. More...

virtual bool	HasParagraphAttributes (const wxRichTextRange &range, const wxRichTextAttr &style) const
	Test if this whole range has paragraph attributes of the specified kind. More...

virtual void	PrepareContent (wxRichTextParagraphLayoutBox &container)
	Prepares the content just before insertion (or after buffer reset). More...

virtual bool	InsertFragment (long position, wxRichTextParagraphLayoutBox &fragment)
	Insert fragment into this box at the given position. More...

virtual bool	CopyFragment (const wxRichTextRange &range, wxRichTextParagraphLayoutBox &fragment)
	Make a copy of the fragment corresponding to the given range, putting it in fragment. More...

virtual bool	ApplyStyleSheet (wxRichTextStyleSheet *styleSheet)
	Apply the style sheet to the buffer, for example if the styles have changed. More...

void	Copy (const wxRichTextParagraphLayoutBox &obj)

void	operator= (const wxRichTextParagraphLayoutBox &obj)

virtual void	UpdateRanges ()
	Calculate ranges. More...

virtual wxString	GetText () const
	Get all the text. More...

virtual bool	SetDefaultStyle (const wxRichTextAttr &style)
	Sets the default style, affecting the style currently being applied (for example, setting the default style to bold will cause subsequently inserted text to be bold). More...

virtual const wxRichTextAttr &	GetDefaultStyle () const
	Returns the current default style, affecting the style currently being applied (for example, setting the default style to bold will cause subsequently inserted text to be bold). More...

virtual void	SetBasicStyle (const wxRichTextAttr &style)
	Sets the basic (overall) style. More...

virtual const wxRichTextAttr &	GetBasicStyle () const
	Returns the basic (overall) style. More...

virtual void	Invalidate (const wxRichTextRange &invalidRange=wxRICHTEXT_ALL)
	Invalidates the buffer. More...

virtual void	DoInvalidate (const wxRichTextRange &invalidRange)
	Do the (in)validation for this object only. More...

virtual void	InvalidateHierarchy (const wxRichTextRange &invalidRange=wxRICHTEXT_ALL)
	Do the (in)validation both up and down the hierarchy. More...

virtual bool	UpdateFloatingObjects (const wxRect &availableRect, wxRichTextObject *untilObj=NULL)
	Gather information about floating objects. More...

wxRichTextRange	GetInvalidRange (bool wholeParagraphs=false) const
	Get invalid range, rounding to entire paragraphs if argument is true. More...

bool	IsDirty () const
	Returns true if this object needs layout. More...

wxRichTextFloatCollector *	GetFloatCollector ()
	Returns the wxRichTextFloatCollector of this object. More...

int	GetFloatingObjectCount () const
	Returns the number of floating objects at this level. More...

bool	GetFloatingObjects (wxRichTextObjectList &objects) const
	Returns a list of floating objects. More...

virtual bool	SetListStyle (const wxRichTextRange &range, wxRichTextListStyleDefinition *def, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int startFrom=1, int specifiedLevel=-1)
	Sets the list attributes for the given range, passing flags to determine how the attributes are set. More...

virtual bool	SetListStyle (const wxRichTextRange &range, const wxString &defName, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int startFrom=1, int specifiedLevel=-1)
	Sets the list attributes for the given range, passing flags to determine how the attributes are set. More...

virtual bool	NumberList (const wxRichTextRange &range, wxRichTextListStyleDefinition *def=NULL, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int startFrom=1, int specifiedLevel=-1)
	Numbers the paragraphs in the given range. More...

virtual bool	NumberList (const wxRichTextRange &range, const wxString &defName, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int startFrom=1, int specifiedLevel=-1)
	Numbers the paragraphs in the given range. More...

virtual bool	PromoteList (int promoteBy, const wxRichTextRange &range, wxRichTextListStyleDefinition *def=NULL, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int specifiedLevel=-1)
	Promotes the list items within the given range. More...

virtual bool	PromoteList (int promoteBy, const wxRichTextRange &range, const wxString &defName, int flags=wxRICHTEXT_SETSTYLE_WITH_UNDO, int specifiedLevel=-1)
	Promotes the list items within the given range. More...

Public Member Functions inherited from wxRichTextCompositeObject
	wxRichTextCompositeObject (wxRichTextObject *parent=NULL)

virtual	~wxRichTextCompositeObject ()

virtual bool	FindPosition (wxDC &dc, wxRichTextDrawingContext &context, long index, wxPoint &pt, int *height, bool forceLineStart)
	Finds the absolute position and row height for the given character position. More...

virtual void	Dump (wxTextOutputStream &stream)
	Dump object data to the given output stream for debugging. More...

wxRichTextObjectList &	GetChildren ()
	Returns the children. More...

const wxRichTextObjectList &	GetChildren () const
	Returns the children. More...

size_t	GetChildCount () const
	Returns the number of children. More...

wxRichTextObject *	GetChild (size_t n) const
	Returns the nth child. More...

virtual bool	IsComposite () const
	Returns true if this object is composite. More...

virtual wxRichTextObject *	GetChildAtPosition (long pos) const
	Returns the child object at the given character position. More...

void	Copy (const wxRichTextCompositeObject &obj)

void	operator= (const wxRichTextCompositeObject &obj)

size_t	AppendChild (wxRichTextObject *child)
	Appends a child, returning the position. More...

bool	InsertChild (wxRichTextObject child, wxRichTextObject inFrontOf)
	Inserts the child in front of the given object, or at the beginning. More...

bool	RemoveChild (wxRichTextObject *child, bool deleteChild=false)
	Removes and optionally deletes the specified child. More...

bool	DeleteChildren ()
	Deletes all the children. More...

bool	Defragment (wxRichTextDrawingContext &context, const wxRichTextRange &range=wxRICHTEXT_ALL)
	Recursively merges all pieces that can be merged. More...

virtual void	Move (const wxPoint &pt)
	Moves the object recursively, by adding the offset from old to new. More...

Public Member Functions inherited from wxRichTextObject
	wxRichTextObject (wxRichTextObject *parent=NULL)
	Constructor, taking an optional parent pointer. More...

virtual	~wxRichTextObject ()

virtual wxSize	GetBestSize () const
	Returns the best size, i.e. the ideal starting size for this object irrespective of available space. More...

virtual wxRichTextObject *	DoSplit (long pos)
	Do a split from pos, returning an object containing the second part, and setting the first part in 'this'. More...

virtual bool	IsFloatable () const
	Returns true if this class of object is floatable. More...

virtual bool	IsFloating () const
	Returns true if this object is currently floating. More...

virtual int	GetFloatDirection () const
	Returns the floating direction. More...

virtual bool	CanMerge (wxRichTextObject *object, wxRichTextDrawingContext &context) const
	Returns true if this object can merge itself with the given one. More...

virtual bool	Merge (wxRichTextObject *object, wxRichTextDrawingContext &context)
	Returns true if this object merged itself with the given one. More...

virtual bool	CanSplit (wxRichTextDrawingContext &context) const
	Returns true if this object can potentially be split, by virtue of having different virtual attributes for individual sub-objects. More...

virtual wxRichTextObject *	Split (wxRichTextDrawingContext &context)
	Returns the final object in the split objects if this object was split due to differences between sub-object virtual attributes. More...

virtual bool	UsesParagraphAttributes () const
	Returns true if this object takes note of paragraph attributes (text and image objects don't). More...

virtual bool	HandlesChildSelections () const
	Returns true if this object can handle the selections of its children, fOr example a table. More...

virtual wxRichTextSelection	GetSelection (long start, long end) const
	Returns a selection object specifying the selections between start and end character positions. More...

virtual wxSize	GetCachedSize () const
	Gets the cached object size as calculated by Layout. More...

virtual void	SetCachedSize (const wxSize &sz)
	Sets the cached object size as calculated by Layout. More...

virtual wxSize	GetMaxSize () const
	Gets the maximum object size as calculated by Layout. More...

virtual void	SetMaxSize (const wxSize &sz)
	Sets the maximum object size as calculated by Layout. More...

virtual wxSize	GetMinSize () const
	Gets the minimum object size as calculated by Layout. More...

virtual void	SetMinSize (const wxSize &sz)
	Sets the minimum object size as calculated by Layout. More...

virtual wxTextAttrSize	GetNaturalSize () const
	Gets the 'natural' size for an object. More...

virtual wxPoint	GetPosition () const
	Returns the object position in pixels. More...

virtual void	SetPosition (const wxPoint &pos)
	Sets the object position in pixels. More...

virtual wxPoint	GetAbsolutePosition () const
	Returns the absolute object position, by traversing up the child/parent hierarchy. More...

virtual wxRect	GetRect () const
	Returns the rectangle enclosing the object. More...

void	SetRange (const wxRichTextRange &range)
	Sets the object's range within its container. More...

const wxRichTextRange &	GetRange () const
	Returns the object's range. More...

wxRichTextRange &	GetRange ()
	Returns the object's range. More...

void	SetOwnRange (const wxRichTextRange &range)
	Set the object's own range, for a top-level object with its own position space. More...

const wxRichTextRange &	GetOwnRange () const
	Returns the object's own range (valid if top-level). More...

wxRichTextRange &	GetOwnRange ()
	Returns the object's own range (valid if top-level). More...

wxRichTextRange	GetOwnRangeIfTopLevel () const
	Returns the object's own range only if a top-level object. More...

virtual wxRichTextObject *	GetParent () const
	Returns a pointer to the parent object. More...

virtual void	SetParent (wxRichTextObject *parent)
	Sets the pointer to the parent object. More...

virtual wxRichTextParagraphLayoutBox *	GetContainer () const
	Returns the top-level container of this object. More...

virtual wxRichTextParagraphLayoutBox *	GetParentContainer () const
	Returns the top-level container of this object. More...

virtual void	SetMargins (int margin)
	Set the margin around the object, in pixels. More...

virtual void	SetMargins (int leftMargin, int rightMargin, int topMargin, int bottomMargin)
	Set the margin around the object, in pixels. More...

virtual int	GetLeftMargin () const
	Returns the left margin of the object, in pixels. More...

virtual int	GetRightMargin () const
	Returns the right margin of the object, in pixels. More...

virtual int	GetTopMargin () const
	Returns the top margin of the object, in pixels. More...

virtual int	GetBottomMargin () const
	Returns the bottom margin of the object, in pixels. More...

virtual wxRect	GetAvailableContentArea (wxDC &dc, wxRichTextDrawingContext &context, const wxRect &outerRect) const
	Calculates the available content space in the given rectangle, given the margins, border and padding specified in the object's attributes. More...

virtual bool	LayoutToBestSize (wxDC &dc, wxRichTextDrawingContext &context, wxRichTextBuffer *buffer, const wxRichTextAttr &parentAttr, const wxRichTextAttr &attr, const wxRect &availableParentSpace, const wxRect &availableContainerSpace, int style)
	Lays out the object first with a given amount of space, and then if no width was specified in attr, lays out the object again using the minimum size. More...

virtual bool	AdjustAttributes (wxRichTextAttr &attr, wxRichTextDrawingContext &context)
	Adjusts the attributes for virtual attribute provision, collapsed borders, etc. More...

void	SetAttributes (const wxRichTextAttr &attr)
	Sets the object's attributes. More...

const wxRichTextAttr &	GetAttributes () const
	Returns the object's attributes. More...

wxRichTextAttr &	GetAttributes ()
	Returns the object's attributes. More...

wxRichTextProperties &	GetProperties ()
	Returns the object's properties. More...

const wxRichTextProperties &	GetProperties () const
	Returns the object's properties. More...

void	SetProperties (const wxRichTextProperties &props)
	Sets the object's properties. More...

void	SetDescent (int descent)
	Sets the stored descent value. More...

int	GetDescent () const
	Returns the stored descent value. More...

wxRichTextBuffer *	GetBuffer () const
	Returns the containing buffer. More...

void	SetName (const wxString &name)
	Sets the identifying name for this object as a property using the "name" key. More...

wxString	GetName () const
	Returns the identifying name for this object from the properties, using the "name" key. More...

bool	IsShown () const
	Returns true if the object will be shown, false otherwise. More...

virtual void	Show (bool show)
	Call to show or hide this object. More...

void	Copy (const wxRichTextObject &obj)
	Copies the object. More...

void	Reference ()
	Reference-counting allows us to use the same object in multiple lists (not yet used). More...

void	Dereference ()
	Reference-counting allows us to use the same object in multiple lists (not yet used). More...

int	ConvertTenthsMMToPixels (wxDC &dc, int units) const
	Converts units in tenths of a millimetre to device units. More...

int	ConvertPixelsToTenthsMM (wxDC &dc, int pixels) const
	Convert units in pixels to tenths of a millimetre. More...

Public Member Functions inherited from wxObject
	wxObject ()
	Default ctor; initializes to NULL the internal reference data. More...

	wxObject (const wxObject &other)
	Copy ctor. More...

virtual	~wxObject ()
	Destructor. More...

virtual wxClassInfo *	GetClassInfo () const
	This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefData *	GetRefData () const
	Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool	IsKindOf (const wxClassInfo *info) const
	Determines whether this class is a subclass of (or the same class as) the given class. More...

bool	IsSameAs (const wxObject &obj) const
	Returns true if this object has the same data pointer as obj. More...

void	Ref (const wxObject &clone)
	Makes this object refer to the data in clone. More...

void	SetRefData (wxObjectRefData *data)
	Sets the wxObject::m_refData pointer. More...

void	UnRef ()
	Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void	UnShare ()
	This is the same of AllocExclusive() but this method is public. More...

void	operator delete (void *buf)
	The delete operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

void *	operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
	The new operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

Additional Inherited Members
Static Public Member Functions inherited from wxRichTextObject
static int	ConvertTenthsMMToPixels (int ppi, int units, double scale=1.0)
	Converts units in tenths of a millimetre to device units. More...

static int	ConvertPixelsToTenthsMM (int ppi, int pixels, double scale=1.0)
	Convert units in pixels to tenths of a millimetre. More...

static bool	DrawBoxAttributes (wxDC &dc, wxRichTextBuffer buffer, const wxRichTextAttr &attr, const wxRect &boxRect, int flags=0, wxRichTextObject obj=NULL)
	Draws the borders and background for the given rectangle and attributes. More...

static bool	DrawBorder (wxDC &dc, wxRichTextBuffer *buffer, const wxTextAttrBorders &attr, const wxRect &rect, int flags=0)
	Draws a border. More...

static bool	GetBoxRects (wxDC &dc, wxRichTextBuffer *buffer, const wxRichTextAttr &attr, wxRect &marginRect, wxRect &borderRect, wxRect &contentRect, wxRect &paddingRect, wxRect &outlineRect)
	Returns the various rectangles of the box model in pixels. More...

static bool	GetTotalMargin (wxDC &dc, wxRichTextBuffer *buffer, const wxRichTextAttr &attr, int &leftMargin, int &rightMargin, int &topMargin, int &bottomMargin)
	Returns the total margin for the object in pixels, taking into account margin, padding and border size. More...

static wxRect	AdjustAvailableSpace (wxDC &dc, wxRichTextBuffer *buffer, const wxRichTextAttr &parentAttr, const wxRichTextAttr &childAttr, const wxRect &availableParentSpace, const wxRect &availableContainerSpace)
	Returns the rectangle which the child has available to it given restrictions specified in the child attribute, e.g. More...

Protected Member Functions inherited from wxObject
void	AllocExclusive ()
	Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefData *	CreateRefData () const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefData *	CloneRefData (const wxObjectRefData *data) const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...

Protected Attributes inherited from wxRichTextParagraphLayoutBox
wxRichTextCtrl *	m_ctrl

wxRichTextAttr	m_defaultAttributes

wxRichTextRange	m_invalidRange

bool	m_partialParagraph

wxRichTextFloatCollector *	m_floatCollector

Protected Attributes inherited from wxRichTextCompositeObject
wxRichTextObjectList	m_children

Protected Attributes inherited from wxRichTextObject
wxSize	m_size

wxSize	m_maxSize

wxSize	m_minSize

wxPoint	m_pos

int	m_descent

int	m_refCount

bool	m_show

wxRichTextObject *	m_parent

wxRichTextRange	m_range

wxRichTextRange	m_ownRange

wxRichTextAttr	m_attributes

wxRichTextProperties	m_properties

Protected Attributes inherited from wxObject
wxObjectRefData *	m_refData
	Pointer to an object which is the object's reference-counted data. More...

Constructor & Destructor Documentation

wxRichTextField::wxRichTextField	(	const wxString &	fieldType = `wxEmptyString`,
		wxRichTextObject *	parent = `NULL`
	)

Default constructor; optionally pass the parent object.

wxRichTextField::wxRichTextField ( const wxRichTextField & obj )

inline

Copy constructor.

Member Function Documentation

virtual bool wxRichTextField::AcceptsFocus ( ) const

inlinevirtual

Returns true if objects of this class can accept the focus, i.e. a call to SetFocusObject is possible.

For example, containers supporting text, such as a text box object, can accept the focus, but a table can't (set the focus to individual cells instead).

Reimplemented from wxRichTextParagraphLayoutBox.

virtual void wxRichTextField::CalculateRange	(	long	start,
		long &	end
	)

virtual

Calculates the range of the object.

By default, guess that the object is 1 unit long.

Reimplemented from wxRichTextCompositeObject.

virtual bool wxRichTextField::CanEditProperties ( ) const

virtual

Returns true if we can edit the object's properties via a GUI.

Reimplemented from wxRichTextObject.

virtual wxRichTextObject* wxRichTextField::Clone ( ) const

inlinevirtual

Clones the object.

Reimplemented from wxRichTextParagraphLayoutBox.

void wxRichTextField::Copy ( const wxRichTextField & obj )

virtual bool wxRichTextField::Draw	(	wxDC &	dc,
		wxRichTextDrawingContext &	context,
		const wxRichTextRange &	range,
		const wxRichTextSelection &	selection,
		const wxRect &	rect,
		int	descent,
		int	style
	)

virtual

Draw the item, within the given range.

Some objects may ignore the range (for example paragraphs) while others must obey it (lines, to implement wrapping)

Reimplemented from wxRichTextParagraphLayoutBox.

virtual bool wxRichTextField::EditProperties	(	wxWindow *	parent,
		wxRichTextBuffer *	buffer
	)

virtual

Edits the object's properties via a GUI.

Reimplemented from wxRichTextObject.

wxString wxRichTextField::GetFieldType ( ) const

inline

virtual wxString wxRichTextField::GetPropertiesMenuLabel ( ) const

virtual

Returns the label to be used for the properties context menu item.

Reimplemented from wxRichTextObject.

virtual bool wxRichTextField::GetRangeSize	(	const wxRichTextRange &	range,
		wxSize &	size,
		int &	descent,
		wxDC &	dc,
		wxRichTextDrawingContext &	context,
		int	flags,
		const wxPoint &	position = `wxPoint(0, 0)`,
		const wxSize &	parentSize = `wxDefaultSize`,
		wxArrayInt *	partialExtents = `NULL`
	)		const

virtual

Returns the object size for the given range.

Returns false if the range is invalid for this object.

Reimplemented from wxRichTextParagraphLayoutBox.

virtual wxString wxRichTextField::GetXMLNodeName ( ) const

inlinevirtual

Returns the XML node name of this object.

This must be overridden for wxXmlNode-base XML export to work.

Reimplemented from wxRichTextParagraphLayoutBox.

virtual bool wxRichTextField::IsAtomic ( ) const

inlinevirtual

If a field has children, we don't want the user to be able to edit it.

Reimplemented from wxRichTextCompositeObject.

virtual bool wxRichTextField::IsEmpty ( ) const

inlinevirtual

Returns true if the buffer is empty.

Reimplemented from wxRichTextCompositeObject.

virtual bool wxRichTextField::IsTopLevel ( ) const

virtual

Returns true if this object is top-level, i.e. contains its own paragraphs, such as a text box.

Reimplemented from wxRichTextParagraphLayoutBox.

virtual bool wxRichTextField::Layout	(	wxDC &	dc,
		wxRichTextDrawingContext &	context,
		const wxRect &	rect,
		const wxRect &	parentRect,
		int	style
	)

virtual

Lay the item out at the specified position with the given size constraint.

Layout must set the cached size. rect is the available space for the object, and parentRect is the container that is used to determine a relative size or position (for example if a text box must be 50% of the parent text box).

Reimplemented from wxRichTextParagraphLayoutBox.

void wxRichTextField::SetFieldType ( const wxString & fieldType )

inline

virtual bool wxRichTextField::UpdateField ( wxRichTextBuffer * buffer )

virtual

Update the field; delegated to the associated field type.

This would typically expand the field to its value, if this is a dynamically changing and/or composite field.

Detailed Description

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
