#include <wx/protocol/protocol.h>

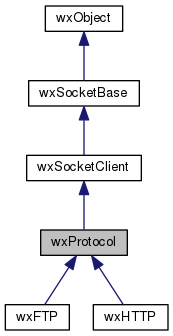

Inheritance diagram for wxProtocol:

Detailed Description

Represents a protocol for use with wxURL.

Note that you may want to change the default time-out for HTTP/FTP connections and network operations (using SetDefaultTimeout()) since the default time-out value is quite long (60 seconds).

Library: wxNet

Category: Networking

See also: wxSocketBase, wxURL

Public Member Functions
virtual bool	Abort ()=0
	Abort the current stream. More...

virtual wxString	GetContentType () const
	Returns the type of the content of the last opened stream. More...

virtual wxProtocolError	GetError () const
	Returns the last occurred error. More...

virtual wxInputStream *	GetInputStream (const wxString &path)=0
	Creates a new input stream on the specified path. More...

bool	Reconnect ()
	Tries to reestablish a previous opened connection (close and renegotiate connection). More...

virtual void	SetPassword (const wxString &user)
	Sets the authentication password. More...

virtual void	SetUser (const wxString &user)
	Sets the authentication user. More...

void	SetDefaultTimeout (wxUint32 Value)
	Sets a new default timeout for the network operations. More...

Logging support.
Each wxProtocol object may have the associated logger (by default there is none) which is used to log network requests and responses. See also wxProtocolLog
void	SetLog (wxProtocolLog *log)
	Set the logger, deleting the old one and taking ownership of this one. More...

wxProtocolLog *	GetLog () const
	Return the current logger, may be NULL. More...

wxProtocolLog *	DetachLog ()
	Detach the existing logger without deleting it. More...

void	LogRequest (const wxString &str)
	Call wxProtocolLog::LogRequest() if we have a valid logger or do nothing otherwise. More...

void	LogResponse (const wxString &str)
	Call wxProtocolLog::LogResponse() if we have a valid logger or do nothing otherwise. More...

Public Member Functions inherited from wxSocketClient
	wxSocketClient (wxSocketFlags flags=wxSOCKET_NONE)
	Constructor. More...

virtual	~wxSocketClient ()
	Destructor. More...

virtual bool	Connect (const wxSockAddress &address, bool wait=true)
	Connects to a server using the specified address. More...

bool	Connect (const wxSockAddress &address, const wxSockAddress &local, bool wait=true)
	Connects to a server using the specified address. More...

bool	WaitOnConnect (long seconds=-1, long milliseconds=0)
	Wait until a connection request completes, or until the specified timeout elapses. More...

Public Member Functions inherited from wxSocketBase
bool	Error () const
	Returns true if an error occurred in the last IO operation. More...

virtual bool	GetLocal (wxSockAddress &addr) const
	Return the local address of the socket. More...

virtual bool	GetPeer (wxSockAddress &addr) const
	Return the peer address field of the socket. More...

long	GetTimeout () const
	Return the socket timeout in seconds. More...

bool	IsConnected () const
	Returns true if the socket is connected. More...

bool	IsData ()
	Check if the socket can be currently read or written. More...

bool	IsDisconnected () const
	Returns true if the socket is not connected. More...

bool	IsOk () const
	Returns true if the socket is initialized and ready and false in other cases. More...

wxUint32	LastCount () const
	Returns the number of bytes read or written by the last IO call. More...

wxUint32	LastReadCount () const
	Returns the number of bytes read by the last Read() or ReadMsg() call (receive direction only). More...

wxUint32	LastWriteCount () const
	Returns the number of bytes written by the last Write() or WriteMsg() call (transmit direction only). More...

wxSocketError	LastError () const
	Returns the last wxSocket error. More...

void	RestoreState ()
	Restore the previous state of the socket, as saved with SaveState(). More...

void	SaveState ()
	Save the current state of the socket in a stack. More...

virtual bool	Close ()
	Shut down the socket, disabling further transmission and reception of data and disable events for the socket and frees the associated system resources. More...

void	ShutdownOutput ()
	Shuts down the writing end of the socket. More...

wxSocketBase &	Discard ()
	Delete all bytes in the incoming queue. More...

wxSocketFlags	GetFlags () const
	Returns current IO flags, as set with SetFlags() More...

void	InterruptWait ()
	Use this function to interrupt any wait operation currently in progress. More...

wxSocketBase &	Peek (void *buffer, wxUint32 nbytes)
	Peek into the socket by copying the next bytes which would be read by Read() into the provided buffer. More...

wxSocketBase &	Read (void *buffer, wxUint32 nbytes)
	Read up to the given number of bytes from the socket. More...

wxSocketBase &	ReadMsg (void *buffer, wxUint32 nbytes)
	Receive a message sent by WriteMsg(). More...

void	SetFlags (wxSocketFlags flags)
	Use SetFlags to customize IO operation for this socket. More...

virtual bool	SetLocal (const wxIPV4address &local)
	Set the local address and port to use. More...

void	SetTimeout (long seconds)
	Set the default socket timeout in seconds. More...

wxSocketBase &	Unread (const void *buffer, wxUint32 nbytes)
	Put the specified data into the input queue. More...

bool	Wait (long seconds=-1, long millisecond=0)
	Wait for any socket event. More...

bool	WaitForLost (long seconds=-1, long millisecond=0)
	Wait until the connection is lost. More...

bool	WaitForRead (long seconds=-1, long millisecond=0)
	Wait until the socket is readable. More...

bool	WaitForWrite (long seconds=-1, long millisecond=0)
	Wait until the socket becomes writable. More...

wxSocketBase &	Write (const void *buffer, wxUint32 nbytes)
	Write up to the given number of bytes to the socket. More...

wxSocketBase &	WriteMsg (const void *buffer, wxUint32 nbytes)
	Sends a buffer which can be read using ReadMsg(). More...

void *	GetClientData () const
	Returns a pointer of the client data for this socket, as set with SetClientData() More...

void	Notify (bool notify)
	According to the notify value, this function enables or disables socket events. More...

void	SetClientData (void *data)
	Sets user-supplied client data for this socket. More...

void	SetEventHandler (wxEvtHandler &handler, int id=-1)
	Sets an event handler to be called when a socket event occurs. More...

void	SetNotify (wxSocketEventFlags flags)
	Specifies which socket events are to be sent to the event handler. More...

wxSOCKET_T	GetSocket () const
	Returns the native socket descriptor. More...

	wxSocketBase ()
	Default constructor. More...

virtual	~wxSocketBase ()
	Destructor. More...

bool	Destroy ()
	Destroys the socket safely. More...

Public Member Functions inherited from wxObject
	wxObject ()
	Default ctor; initializes to NULL the internal reference data. More...

	wxObject (const wxObject &other)
	Copy ctor. More...

virtual	~wxObject ()
	Destructor. More...

virtual wxClassInfo *	GetClassInfo () const
	This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefData *	GetRefData () const
	Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool	IsKindOf (const wxClassInfo *info) const
	Determines whether this class is a subclass of (or the same class as) the given class. More...

bool	IsSameAs (const wxObject &obj) const
	Returns true if this object has the same data pointer as obj. More...

void	Ref (const wxObject &clone)
	Makes this object refer to the data in clone. More...

void	SetRefData (wxObjectRefData *data)
	Sets the wxObject::m_refData pointer. More...

void	UnRef ()
	Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void	UnShare ()
	This is the same of AllocExclusive() but this method is public. More...

void	operator delete (void *buf)
	The delete operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

void *	operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
	The new operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

Additional Inherited Members
Static Public Member Functions inherited from wxSocketBase
static bool	Initialize ()
	Perform the initialization needed in order to use the sockets. More...

static void	Shutdown ()
	Shut down the sockets. More...

Protected Member Functions inherited from wxObject
void	AllocExclusive ()
	Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefData *	CreateRefData () const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefData *	CloneRefData (const wxObjectRefData *data) const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...

Protected Attributes inherited from wxObject
wxObjectRefData *	m_refData
	Pointer to an object which is the object's reference-counted data. More...

Member Function Documentation

virtual bool wxProtocol::Abort ( )

pure virtual

Abort the current stream.

Warning: It is advised to destroy the input stream instead of aborting the stream this way.

Returns: Returns true, if successful, else false.

Implemented in wxFTP.

wxProtocolLog* wxProtocol::DetachLog ( )

Detach the existing logger without deleting it.

The caller is responsible for deleting the returned pointer if it's non-NULL.

virtual wxString wxProtocol::GetContentType ( ) const

virtual

Returns the type of the content of the last opened stream.

It is a mime-type. May be an empty string if the content-type is unknown.

virtual wxProtocolError wxProtocol::GetError ( ) const

virtual

Returns the last occurred error.

See also: wxProtocolError

virtual wxInputStream* wxProtocol::GetInputStream ( const wxString & path )

pure virtual

Creates a new input stream on the specified path.

You can use all but seek() functionality of wxStream. Seek() isn't available on all streams. For example, HTTP or FTP streams don't deal with it. Other functions like StreamSize() and Tell() aren't available for the moment for this sort of stream. You will be notified when the EOF is reached by an error.

Returns: Returns the initialized stream. You will have to delete it yourself once you don't use it anymore. The destructor closes the network connection.

See also: wxInputStream

Implemented in wxFTP, and wxHTTP.

wxProtocolLog* wxProtocol::GetLog ( ) const

inline

Return the current logger, may be NULL.

void wxProtocol::LogRequest ( const wxString & str )

Call wxProtocolLog::LogRequest() if we have a valid logger or do nothing otherwise.

void wxProtocol::LogResponse ( const wxString & str )

Call wxProtocolLog::LogResponse() if we have a valid logger or do nothing otherwise.

bool wxProtocol::Reconnect ( )

Tries to reestablish a previous opened connection (close and renegotiate connection).

Returns: true, if the connection is established, else false.

void wxProtocol::SetDefaultTimeout ( wxUint32 Value )

Sets a new default timeout for the network operations.

The default timeout is 60 seconds.

See also: wxSocketBase::SetTimeout

void wxProtocol::SetLog ( wxProtocolLog * log )

Set the logger, deleting the old one and taking ownership of this one.

Parameters

log	New logger allocated on the heap or NULL.

virtual void wxProtocol::SetPassword ( const wxString & user )

virtual

Sets the authentication password.

Reimplemented in wxFTP.

virtual void wxProtocol::SetUser ( const wxString & user )

virtual

Sets the authentication user.

Reimplemented in wxFTP.
