#include <wx/propgrid/property.h>

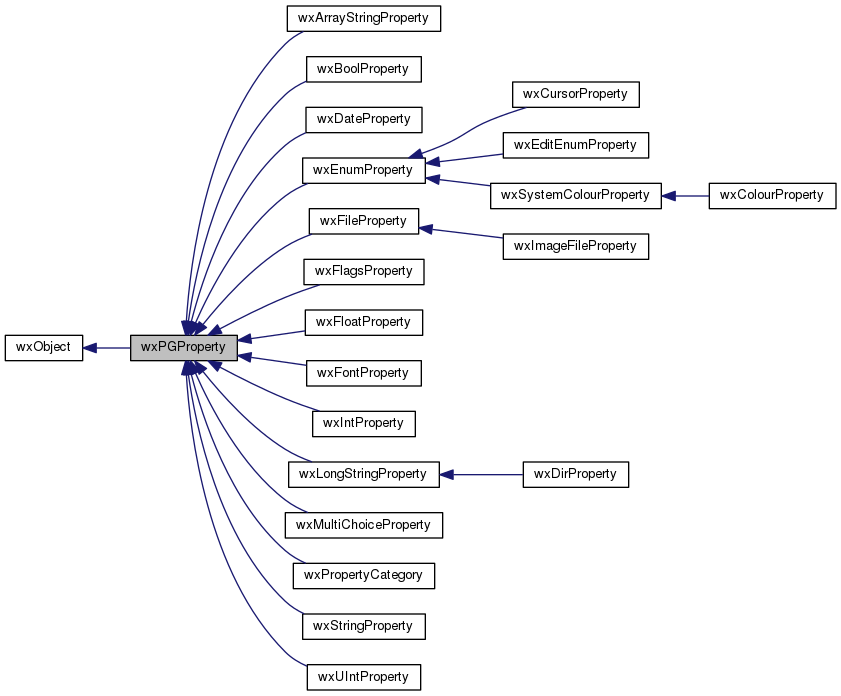

Inheritance diagram for wxPGProperty:

Detailed Description

wxPGProperty is base class for all wxPropertyGrid properties.

In sections below we cover few related topics.

Supplied Ready-to-use Property Classes

Here is a list and short description of supplied fully-functional property classes. They are located in either props.h or advprops.h.

wxPropertyCategory

Not an actual property per se, but a header for a group of properties. Regardless inherits from wxPGProperty, and supports displaying 'labels' for columns other than the first one. Easiest way to set category's label for second column is to call wxPGProperty::SetValue() with string argument.

wxStringProperty

Simple string property. wxPG_STRING_PASSWORD attribute may be used to echo value as asterisks and use wxTE_PASSWORD for wxTextCtrl. wxPG_ATTR_AUTOCOMPLETE attribute may be used to enable auto-completion (use a wxArrayString value), and is also supported by any property that happens to use a wxTextCtrl-based editor.

Remarks: wxStringProperty has a special trait: if it has value of "<composed>", and also has child properties, then its displayed value becomes composition of child property values, similar as with wxFontProperty, for instance.

wxIntProperty

Like wxStringProperty, but converts text to a signed long integer. wxIntProperty seamlessly supports 64-bit integers (ie. wxLongLong). To safely convert variant to integer, use code like this:

wxLongLong ll;
ll << property->GetValue();
// or
wxLongLong ll = propertyGrid->GetPropertyValueAsLong(property);

wxUIntProperty

Like wxIntProperty, but displays value as unsigned int. To set the prefix used globally, manipulate wxPG_UINT_PREFIX string attribute. To set the globally used base, manipulate wxPG_UINT_BASE int attribute. Regardless of current prefix, understands (hex) values starting with both "0x" and "$". Like wxIntProperty, wxUIntProperty seamlessly supports 64-bit unsigned integers (ie. wxULongLong). Same wxVariant safety rules apply.

wxFloatProperty

Like wxStringProperty, but converts text to a double-precision floating point. Default float-to-text precision is 6 decimals, but this can be changed by modifying wxPG_FLOAT_PRECISION attribute.

Note that when displaying the value, sign is omitted if the resulting textual representation is effectively zero (for example, -0.0001 with precision of 3 will become 0.0 instead of -0.0). This behaviour is unlike what C standard library does, but should result in better end-user experience in almost all cases.

wxBoolProperty

Represents a boolean value. wxChoice is used as editor control, by the default. wxPG_BOOL_USE_CHECKBOX attribute can be set to true in order to use check box instead.

wxLongStringProperty

Like wxStringProperty, but has a button that triggers a small text editor dialog. Note that in long string values, tabs are represented by "\t" and line break by "\n".

To display custom dialog on button press, you can subclass wxLongStringProperty and implement OnButtonClick, like this:

virtual bool OnButtonClick( wxPropertyGrid* propGrid, wxString& value )
{
    wxSize dialogSize(...size of your dialog...);
    wxPoint dlgPos = propGrid->GetGoodEditorDialogPosition(this,
                                                           dialogSize)
    // Create dialog dlg at dlgPos. Use value as initial string
    // value.
    ...
    if ( dlg.ShowModal() == wxID_OK )
    {
        value = dlg.GetStringValue);
        return true;
    }
    return false;
}

Also, if you wish not to have line breaks and tabs translated to escape sequences, then do following in constructor of your subclass:

m_flags |= wxPG_PROP_NO_ESCAPE;

wxDirProperty

Like wxLongStringProperty, but the button triggers dir selector instead. Supported properties (all with string value): wxPG_DIR_DIALOG_MESSAGE.

wxFileProperty

Like wxLongStringProperty, but the button triggers file selector instead. Default wildcard is "All files..." but this can be changed by setting wxPG_FILE_WILDCARD attribute (see wxFileDialog for format details). Attribute wxPG_FILE_SHOW_FULL_PATH can be set to false in order to show only the filename, not the entire path.

wxEnumProperty

Represents a single selection from a list of choices - wxOwnerDrawnComboBox is used to edit the value.

wxFlagsProperty

Represents a bit set that fits in a long integer. wxBoolProperty sub- properties are created for editing individual bits. Textctrl is created to manually edit the flags as a text; a continuous sequence of spaces, commas and semicolons are considered as a flag id separator.

Note: When changing "choices" (ie. flag labels) of wxFlagsProperty, you will need to use wxPGProperty::SetChoices() - otherwise they will not get updated properly.

wxFlagsProperty supports the same attributes as wxBoolProperty.

wxArrayStringProperty

Allows editing of a list of strings in wxTextCtrl and in a separate dialog. Supports "Delimiter" attribute, which defaults to comma (',').

wxDateProperty

wxDateTime property. Default editor is DatePickerCtrl, although TextCtrl should work as well. wxPG_DATE_FORMAT attribute can be used to change string wxDateTime::Format uses (although default is recommended as it is locale-dependent), and wxPG_DATE_PICKER_STYLE allows changing window style given to DatePickerCtrl (default is wxDP_DEFAULT|wxDP_SHOWCENTURY). Using wxDP_ALLOWNONE will enable better unspecified value support.

wxEditEnumProperty

Represents a string that can be freely edited or selected from list of choices - custom combobox control is used to edit the value.

wxMultiChoiceProperty

Allows editing a multiple selection from a list of strings. This is property is pretty much built around concept of wxMultiChoiceDialog. It uses wxArrayString value.

wxImageFileProperty

Like wxFileProperty, but has thumbnail of the image in front of the filename and autogenerates wildcard from available image handlers.

wxColourProperty

Useful alternate editor: Choice.

Represents wxColour. wxButton is used to trigger a colour picker dialog. There are various sub-classing opportunities with this class. See below in wxSystemColourProperty section for details.

Setting "HasAlpha" attribute to true for this property allows user to edit the alpha colour component.

wxFontProperty

Represents wxFont. Various sub-properties are used to edit individual subvalues.

wxSystemColourProperty

Represents wxColour and a system colour index. wxChoice is used to edit the value. Drop-down list has color images. Note that value type is wxColourPropertyValue instead of wxColour (which wxColourProperty uses).

class wxColourPropertyValue : public wxObject
{
public:
    //  An integer value relating to the colour, and which exact
    //  meaning depends on the property with which it is used.
    //
    //  For wxSystemColourProperty:
    //  Any of wxSYS_COLOUR_XXX, or any web-colour ( use wxPG_TO_WEB_COLOUR
    //  macro - (currently unsupported) ), or wxPG_COLOUR_CUSTOM.
    wxUint32    m_type;
    // Resulting colour. Should be correct regardless of type.
    wxColour    m_colour;
};

in wxSystemColourProperty, and its derived class wxColourProperty, there are various sub-classing features. To set a basic list of colour names, call wxPGProperty::SetChoices().

// Override in derived class to customize how colours are translated
// to strings.
virtual wxString ColourToString( const wxColour& col, int index ) const;
// Returns index of entry that triggers colour picker dialog
// (default is last).
virtual int GetCustomColourIndex() const;
// Helper function to show the colour dialog
bool QueryColourFromUser( wxVariant& variant ) const;
// Returns colour for given choice.
// Default function returns wxSystemSettings::GetColour(index).
virtual wxColour GetColour( int index ) const;

wxCursorProperty

Represents a wxCursor. wxChoice is used to edit the value. Drop-down list has cursor images under some (wxMSW) platforms.

Creating Custom Properties

New properties can be created by subclassing wxPGProperty or one of the provided property classes, and (re)implementing necessary member functions. Below, each virtual member function has ample documentation about its purpose and any odd details which to keep in mind.

Here is a very simple 'template' code:

class MyProperty : public wxPGProperty
{
public:
    // Default constructor
    MyProperty() { }
    // All arguments of this ctor must have a default value -
    // use wxPG_LABEL for label and name
    MyProperty( const wxString& label = wxPG_LABEL,
                const wxString& name = wxPG_LABEL,
                const wxString& value = wxEmptyString )
        : wxPGProperty(label, name)
    {
        // m_value is wxVariant
        m_value = value;
    }
    virtual ~MyProperty() { }
    const wxPGEditor* DoGetEditorClass() const
    {
        // Determines editor used by property.
        // You can replace 'TextCtrl' below with any of these
        // builtin-in property editor identifiers: Choice, ComboBox,
        // TextCtrlAndButton, ChoiceAndButton, CheckBox, SpinCtrl,
        // DatePickerCtrl.
        return wxPGEditor_TextCtrl;
    }
    virtual wxString ValueToString( wxVariant& value,
                                    int argFlags ) const
    {
        // TODO: Convert given property value to a string
    }
    virtual bool StringToValue( wxVariant& variant, const wxString& text, int argFlags )
    {
        // TODO: Adapt string to property value.
    }
protected:
};

Since wxPGProperty derives from wxObject, you can use standard wxDECLARE_DYNAMIC_CLASS and wxIMPLEMENT_DYNAMIC_CLASS macros. From the above example they were omitted for sake of simplicity, and besides, they are only really needed if you need to use wxRTTI with your property class.

You can change the 'value type' of a property by simply assigning different type of variant with SetValue. It is mandatory to implement wxVariantData class for all data types used as property values. You can use macros declared in wxPropertyGrid headers. For instance:

// In header file:
// (If you need to have export declaration, use version of macros
// with _EXPORTED postfix)
WX_PG_DECLARE_VARIANT_DATA(MyDataClass)
// In sources file:
WX_PG_IMPLEMENT_VARIANT_DATA(MyDataClass)
// Or, if you don't have valid == operator:
WX_PG_IMPLEMENT_VARIANT_DATA_DUMMY_EQ(MyDataClass)

Library: wxPropertyGrid

Category: wxPropertyGrid

Public Types
typedef wxUint32	FlagType

Public Member Functions
	wxPGProperty ()
	Default constructor. More...

	wxPGProperty (const wxString &label, const wxString &name)
	Constructor. More...

virtual	~wxPGProperty ()
	Virtual destructor. More...

virtual void	OnSetValue ()
	This virtual function is called after m_value has been set. More...

virtual wxVariant	DoGetValue () const
	Override this to return something else than m_value as the value. More...

virtual bool	ValidateValue (wxVariant &value, wxPGValidationInfo &validationInfo) const
	Implement this function in derived class to check the value. More...

virtual bool	StringToValue (wxVariant &variant, const wxString &text, int argFlags=0) const
	Converts text into wxVariant value appropriate for this property. More...

virtual bool	IntToValue (wxVariant &variant, int number, int argFlags=0) const
	Converts integer (possibly a choice selection) into wxVariant value appropriate for this property. More...

virtual wxString	ValueToString (wxVariant &value, int argFlags=0) const
	Converts property value into a text representation. More...

bool	SetValueFromString (const wxString &text, int flags=0)
	Converts string to a value, and if successful, calls SetValue() on it. More...

bool	SetValueFromInt (long value, int flags=0)
	Converts integer to a value, and if successful, calls SetValue() on it. More...

virtual wxSize	OnMeasureImage (int item=-1) const
	Returns size of the custom painted image in front of property. More...

virtual bool	OnEvent (wxPropertyGrid propgrid, wxWindow wnd_primary, wxEvent &event)
	Events received by editor widgets are processed here. More...

virtual wxVariant	ChildChanged (wxVariant &thisValue, int childIndex, wxVariant &childValue) const
	Called after value of a child property has been altered. More...

virtual const wxPGEditor *	DoGetEditorClass () const
	Returns pointer to an instance of used editor. More...

virtual wxValidator *	DoGetValidator () const
	Returns pointer to the wxValidator that should be used with the editor of this property (NULL for no validator). More...

virtual void	OnCustomPaint (wxDC &dc, const wxRect &rect, wxPGPaintData &paintdata)
	Override to paint an image in front of the property value text or drop-down list item (but only if wxPGProperty::OnMeasureImage is overridden as well). More...

virtual wxPGCellRenderer *	GetCellRenderer (int column) const
	Returns used wxPGCellRenderer instance for given property column (label=0, value=1). More...

virtual int	GetChoiceSelection () const
	Returns which choice is currently selected. More...

virtual void	RefreshChildren ()
	Refresh values of child properties. More...

virtual bool	DoSetAttribute (const wxString &name, wxVariant &value)
	Reimplement this member function to add special handling for attributes of this property. More...

virtual wxVariant	DoGetAttribute (const wxString &name) const
	Returns value of an attribute. More...

virtual wxPGEditorDialogAdapter *	GetEditorDialog () const
	Returns instance of a new wxPGEditorDialogAdapter instance, which is used when user presses the (optional) button next to the editor control;. More...

virtual void	OnValidationFailure (wxVariant &pendingValue)
	Called whenever validation has failed with given pending value. More...

int	AddChoice (const wxString &label, int value=wxPG_INVALID_VALUE)
	Append a new choice to property's list of choices. More...

void	AddChild (wxPGProperty *prop)
	Adds a private child property. More...

void	AddPrivateChild (wxPGProperty *prop)
	Adds a private child property. More...

void	AdaptListToValue (wxVariant &list, wxVariant *value) const
	Adapts list variant into proper value using consecutive ChildChanged() calls. More...

wxPGProperty *	AppendChild (wxPGProperty *childProperty)
	Use this member function to add independent (ie. More...

bool	AreAllChildrenSpecified (wxVariant *pendingList=NULL) const
	Determines, recursively, if all children are not unspecified. More...

bool	AreChildrenComponents () const
	Returns true if children of this property are component values (for instance, points size, face name, and is_underlined are component values of a font). More...

void	ChangeFlag (wxPGPropertyFlags flag, bool set)
	Sets or clears given property flag. More...

void	DeleteChildren ()
	Deletes children of the property. More...

void	DeleteChoice (int index)
	Removes entry from property's wxPGChoices and editor control (if it is active). More...

void	Enable (bool enable=true)
	Enables or disables the property. More...

void	EnableCommonValue (bool enable=true)
	Call to enable or disable usage of common value (integer value that can be selected for properties instead of their normal values) for this property. More...

wxString	GenerateComposedValue () const
	Composes text from values of child properties. More...

wxVariant	GetAttribute (const wxString &name) const
	Returns property attribute value, null variant if not found. More...

wxString	GetAttribute (const wxString &name, const wxString &defVal) const
	Returns named attribute, as string, if found. More...

long	GetAttributeAsLong (const wxString &name, long defVal) const
	Returns named attribute, as long, if found. More...

double	GetAttributeAsDouble (const wxString &name, double defVal) const
	Returns named attribute, as double, if found. More...

wxVariant	GetAttributesAsList () const
	Returns attributes as list wxVariant. More...

const wxPGAttributeStorage &	GetAttributes () const
	Return atributes storage map. More...

const wxPGEditor *	GetColumnEditor (int column) const
	Returns editor used for given column. More...

const wxString &	GetBaseName () const
	Returns property's base name (ie. More...

const wxPGCell &	GetCell (unsigned int column) const
	Returns wxPGCell of given column. More...

wxPGCell &	GetCell (unsigned int column)
	Returns wxPGCell of given column, creating one if necessary. More...

wxPGCell &	GetOrCreateCell (unsigned int column)
	Returns wxPGCell of given column, creating one if necessary. More...

unsigned int	GetChildCount () const
	Returns number of child properties. More...

int	GetChildrenHeight (int lh, int iMax=-1) const
	Returns height of children, recursively, and by taking expanded/collapsed status into account. More...

const wxPGChoices &	GetChoices () const
	Returns read-only reference to property's list of choices. More...

void *	GetClientData () const
	Returns client data (void*) of a property. More...

wxClientData *	GetClientObject () const
	Sets managed client object of a property. More...

wxVariant	GetDefaultValue () const
	Returns property's default value. More...

wxString	GetDisplayedString () const
	Returns property's displayed text. More...

const wxPGEditor *	GetEditorClass () const
	Returns wxPGEditor that will be used and created when property becomes selected. More...

FlagType	GetFlags () const
	Returns property flags. More...

wxPropertyGrid *	GetGrid () const
	Returns property grid where property lies. More...

wxPropertyGrid *	GetGridIfDisplayed () const
	Returns owner wxPropertyGrid, but only if one is currently on a page displaying this property. More...

const wxString &	GetHelpString () const
	Returns property's help or description text. More...

unsigned int	GetIndexInParent () const
	Returns position in parent's array. More...

const wxString &	GetLabel () const
	Returns property's label. More...

const wxPGProperty *	GetLastVisibleSubItem () const
	Returns last visible child property, recursively. More...

wxPGProperty *	GetMainParent () const
	Returns highest level non-category, non-root parent. More...

int	GetMaxLength () const
	Returns maximum allowed length of property's text value. More...

wxString	GetName () const
	Returns property's name with all (non-category, non-root) parents. More...

wxPGProperty *	GetParent () const
	Return parent of property. More...

wxPGProperty *	GetPropertyByName (const wxString &name) const
	Returns (direct) child property with given name (or NULL if not found). More...

wxValidator *	GetValidator () const
	Gets assignable version of property's validator. More...

wxVariant	GetValue () const
	Returns property's value. More...

wxBitmap *	GetValueImage () const
	Returns bitmap that appears next to value text. More...

virtual wxString	GetValueAsString (int argFlags=0) const
	Returns text representation of property's value. More...

wxString	GetValueString (int argFlags=0) const
	Synonymous to GetValueAsString(). More...

wxString	GetValueType () const
	Returns value type used by this property. More...

int	GetY () const
	Returns coordinate to the top y of the property. More...

FlagType	HasFlag (wxPGPropertyFlags flag) const
	Returns non-zero if property has given flag set. More...

bool	HasVisibleChildren () const
	Returns true if property has even one visible child. More...

bool	Hide (bool hide, int flags=wxPG_RECURSE)
	Hides or reveals the property. More...

int	Index (const wxPGProperty *p) const
	Returns index of given child property. More...

wxPGProperty *	InsertChild (int index, wxPGProperty *childProperty)
	Use this member function to add independent (ie. More...

int	InsertChoice (const wxString &label, int index, int value=wxPG_INVALID_VALUE)
	Inserts a new choice to property's list of choices. More...

bool	IsCategory () const
	Returns true if this property is actually a wxPropertyCategory. More...

bool	IsEnabled () const
	Returns true if property is enabled. More...

bool	IsExpanded () const
	Returns true if property has visible children. More...

bool	IsRoot () const
	Returns true if this property is actually a wxRootProperty. More...

bool	IsSubProperty () const
	Returns true if this is a sub-property. More...

bool	IsSomeParent (wxPGProperty *candidateParent) const
	Returns true if candidateParent is some parent of this property. More...

bool	IsTextEditable () const
	Returns true if property has editable wxTextCtrl when selected. More...

bool	IsValueUnspecified () const
	Returns true if property's value is considered unspecified. More...

bool	IsVisible () const
	Returns true if all parents expanded. More...

wxPGProperty *	Item (unsigned int i) const
	Returns child property at index i. More...

void	RefreshEditor ()
	If property's editor is active, then update it's value. More...

void	SetAttribute (const wxString &name, wxVariant value)
	Sets an attribute for this property. More...

void	SetAttributes (const wxPGAttributeStorage &attributes)

void	SetAutoUnspecified (bool enable=true)
	Set if user can change the property's value to unspecified by modifying the value of the editor control (usually by clearing it). More...

void	SetBackgroundColour (const wxColour &colour, int flags=wxPG_RECURSE)
	Sets property's background colour. More...

void	SetEditor (const wxPGEditor *editor)
	Sets editor for a property. More...

void	SetEditor (const wxString &editorName)
	Sets editor for a property, by editor name. More...

void	SetCell (int column, const wxPGCell &cell)
	Sets cell information for given column. More...

bool	SetChoices (wxPGChoices &choices)
	Sets new set of choices for the property. More...

void	SetClientData (void *clientData)
	Sets client data (void*) of a property. More...

void	SetClientObject (wxClientData *clientObject)
	Returns client object of a property. More...

void	SetChoiceSelection (int newValue)
	Sets selected choice and changes property value. More...

void	SetDefaultValue (wxVariant &value)
	Set default value of a property. More...

void	SetFlagRecursively (wxPGPropertyFlags flag, bool set)
	Sets or clears given property flag, recursively. More...

void	SetHelpString (const wxString &helpString)
	Sets property's help string, which is shown, for example, in wxPropertyGridManager's description text box. More...

void	SetLabel (const wxString &label)
	Sets property's label. More...

bool	SetMaxLength (int maxLen)
	Set max length of text in text editor. More...

void	SetModifiedStatus (bool modified)
	Sets property's "is it modified?" flag. More...

void	SetName (const wxString &newName)
	Sets new (base) name for property. More...

void	SetParentalType (int flag)
	Changes what sort of parent this property is for its children. More...

void	SetTextColour (const wxColour &colour, int flags=wxPG_RECURSE)
	Sets property's text colour. More...

void	SetValidator (const wxValidator &validator)
	Sets wxValidator for a property. More...

void	SetValue (wxVariant value, wxVariant *pList=NULL, int flags=wxPG_SETVAL_REFRESH_EDITOR)
	Call this to set value of the property. More...

void	SetValueImage (wxBitmap &bmp)
	Set wxBitmap in front of the value. More...

void	SetValueInEvent (wxVariant value) const
	Call this function in OnEvent(), OnButtonClick() etc. More...

void	SetValueToUnspecified ()
	Sets property's value to unspecified (ie. More...

void	SetWasModified (bool set=true)
	Call with false in OnSetValue() to cancel value changes after all (ie. More...

wxPGProperty *	UpdateParentValues ()
	Updates composed values of parent non-category properties, recursively. More...

bool	UsesAutoUnspecified () const
	Returns true if containing grid uses wxPG_EX_AUTO_UNSPECIFIED_VALUES. More...

void	SetValuePlain (wxVariant value)
	Helper for language bindings. More...

Public Member Functions inherited from wxObject
	wxObject ()
	Default ctor; initializes to NULL the internal reference data. More...

	wxObject (const wxObject &other)
	Copy ctor. More...

virtual	~wxObject ()
	Destructor. More...

virtual wxClassInfo *	GetClassInfo () const
	This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefData *	GetRefData () const
	Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool	IsKindOf (const wxClassInfo *info) const
	Determines whether this class is a subclass of (or the same class as) the given class. More...

bool	IsSameAs (const wxObject &obj) const
	Returns true if this object has the same data pointer as obj. More...

void	Ref (const wxObject &clone)
	Makes this object refer to the data in clone. More...

void	SetRefData (wxObjectRefData *data)
	Sets the wxObject::m_refData pointer. More...

void	UnRef ()
	Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void	UnShare ()
	This is the same of AllocExclusive() but this method is public. More...

void	operator delete (void *buf)
	The delete operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

void *	operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
	The new operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

Public Attributes
void *	m_clientData

Protected Member Functions
void	Empty ()
	Deletes all child properties. More...

void	SetFlag (wxPGPropertyFlags flag)

void	ClearFlag (FlagType flag)

Protected Member Functions inherited from wxObject
void	AllocExclusive ()
	Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefData *	CreateRefData () const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefData *	CloneRefData (const wxObjectRefData *data) const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...

Additional Inherited Members
Protected Attributes inherited from wxObject
wxObjectRefData *	m_refData
	Pointer to an object which is the object's reference-counted data. More...

Member Typedef Documentation

typedef wxUint32 wxPGProperty::FlagType

Constructor & Destructor Documentation

wxPGProperty::wxPGProperty ( )

Default constructor.

wxPGProperty::wxPGProperty	(	const wxString &	label,
		const wxString &	name
	)

Constructor.

Non-abstract property classes should have constructor of this style:

MyProperty( const wxString& label, const wxString& name, const T& value )
    : wxPGProperty(label, name)
{
    // Generally recommended way to set the initial value
    // (as it should work in pretty much 100% of cases).
    wxVariant variant;
    variant << value;
    SetValue(variant);
    // If has private child properties then create them here.
    // For example:
    //     AddPrivateChild( new wxStringProperty("Subprop 1",
    //                                           wxPG_LABEL,
    //                                           value.GetSubProp1()));
}

virtual wxPGProperty::~wxPGProperty ( )

virtual

Virtual destructor.

It is customary for derived properties to implement this.

Member Function Documentation

void wxPGProperty::AdaptListToValue	(	wxVariant &	list,
		wxVariant *	value
	)		const

Adapts list variant into proper value using consecutive ChildChanged() calls.

void wxPGProperty::AddChild ( wxPGProperty * prop )

Adds a private child property.

Deprecated:: Use AddPrivateChild() instead.

See also: AddPrivateChild()

int wxPGProperty::AddChoice	(	const wxString &	label,
		int	value = `wxPG_INVALID_VALUE`
	)

Append a new choice to property's list of choices.

Parameters

label	Label for added choice.
value	Value for new choice. Do not specify if you wish this to equal choice index.

Returns: Index to added choice.

void wxPGProperty::AddPrivateChild ( wxPGProperty * prop )

Adds a private child property.

If you use this instead of wxPropertyGridInterface::Insert() or wxPropertyGridInterface::AppendIn(), then property's parental type will automatically be set up to wxPG_PROP_AGGREGATE. In other words, all properties of this property will become private.

wxPGProperty* wxPGProperty::AppendChild ( wxPGProperty * childProperty )

Use this member function to add independent (ie.

regular) children to a property.

Returns: Appended childProperty.

Remarks: wxPropertyGrid is not automatically refreshed by this function.

See also: InsertChild(), AddPrivateChild()

bool wxPGProperty::AreAllChildrenSpecified ( wxVariant * pendingList = NULL ) const

Determines, recursively, if all children are not unspecified.

Parameters

pendingList Assumes members in this wxVariant list as pending replacement values.

bool wxPGProperty::AreChildrenComponents ( ) const

Returns true if children of this property are component values (for instance, points size, face name, and is_underlined are component values of a font).

void wxPGProperty::ChangeFlag	(	wxPGPropertyFlags	flag,
		bool	set
	)

Sets or clears given property flag.

Mainly for internal use.

Remarks: Setting a property flag never has any side-effect, and is intended almost exclusively for internal use. So, for example, if you want to disable a property, call Enable(false) instead of setting wxPG_PROP_DISABLED flag.

See also: HasFlag(), GetFlags()

virtual wxVariant wxPGProperty::ChildChanged	(	wxVariant &	thisValue,
		int	childIndex,
		wxVariant &	childValue
	)		const

virtual

Called after value of a child property has been altered.

Must return new value of the whole property (after any alterations warranted by child's new value).

Note that this function is usually called at the time that value of this property, or given child property, is still pending for change, and as such, result of GetValue() or m_value should not be relied on.

Sample pseudo-code implementation:

wxVariant MyProperty::ChildChanged( wxVariant& thisValue,
                                    int childIndex,
                                    wxVariant& childValue ) const
{
    // Acquire reference to actual type of data stored in variant
    // (TFromVariant only exists if wxPropertyGrid's wxVariant-macros
    // were used to create the variant class).
    T& data = TFromVariant(thisValue);
    // Copy childValue into data.
    switch ( childIndex )
    {
        case 0:
            data.SetSubProp1( childvalue.GetLong() );
            break;
        case 1:
            data.SetSubProp2( childvalue.GetString() );
            break;
        ...
    }
    // Return altered data
    return data;
}

Parameters

thisValue	Value of this property. Changed value should be returned (in previous versions of wxPropertyGrid it was only necessary to write value back to this argument).
childIndex	Index of child changed (you can use Item(childIndex) to get child property).
childValue	(Pending) value of the child property.

Returns: Modified value of the whole property.

Reimplemented in wxFlagsProperty, and wxFontProperty.

void wxPGProperty::ClearFlag ( FlagType flag )

protected

void wxPGProperty::DeleteChildren ( )

Deletes children of the property.

void wxPGProperty::DeleteChoice ( int index )

Removes entry from property's wxPGChoices and editor control (if it is active).

If selected item is deleted, then the value is set to unspecified.

virtual wxVariant wxPGProperty::DoGetAttribute ( const wxString & name ) const

virtual

Returns value of an attribute.

Override if custom handling of attributes is needed.

Default implementation simply return NULL variant.

Reimplemented in wxFloatProperty.

virtual const wxPGEditor* wxPGProperty::DoGetEditorClass ( ) const

virtual

Returns pointer to an instance of used editor.

virtual wxValidator* wxPGProperty::DoGetValidator ( ) const

virtual

Returns pointer to the wxValidator that should be used with the editor of this property (NULL for no validator).

Setting validator explicitly via SetPropertyValidator will override this.

In most situations, code like this should work well (macros are used to maintain one actual validator instance, so on the second call the function exits within the first macro):

wxValidator* wxMyPropertyClass::DoGetValidator () const
{
    WX_PG_DOGETVALIDATOR_ENTRY()
    wxMyValidator* validator = new wxMyValidator(...);
    ... prepare validator...
    WX_PG_DOGETVALIDATOR_EXIT(validator)
}

Remarks: You can get common filename validator by returning wxFileProperty::GetClassValidator(). wxDirProperty, for example, uses it.

Reimplemented in wxDirProperty, wxFileProperty, wxFloatProperty, wxUIntProperty, and wxIntProperty.

virtual wxVariant wxPGProperty::DoGetValue ( ) const

virtual

Override this to return something else than m_value as the value.

virtual bool wxPGProperty::DoSetAttribute	(	const wxString &	name,
		wxVariant &	value
	)

virtual

Reimplement this member function to add special handling for attributes of this property.

Returns: Return false to have the attribute automatically stored in m_attributes. Default implementation simply does that and nothing else.

Remarks: To actually set property attribute values from the application, use wxPGProperty::SetAttribute() instead.

Reimplemented in wxArrayStringProperty, wxDirProperty, wxFileProperty, wxFlagsProperty, wxDateProperty, wxBoolProperty, wxFloatProperty, wxUIntProperty, wxSystemColourProperty, and wxStringProperty.

void wxPGProperty::Empty ( )

protected

Deletes all child properties.

void wxPGProperty::Enable ( bool enable = true )

Enables or disables the property.

Disabled property usually appears as having grey text.

Parameters

enable If false, property is disabled instead.

See also: wxPropertyGridInterface::EnableProperty()

void wxPGProperty::EnableCommonValue ( bool enable = true )

Call to enable or disable usage of common value (integer value that can be selected for properties instead of their normal values) for this property.

Common values are disabled by the default for all properties.

wxString wxPGProperty::GenerateComposedValue ( ) const

Composes text from values of child properties.

wxVariant wxPGProperty::GetAttribute ( const wxString & name ) const

Returns property attribute value, null variant if not found.

wxString wxPGProperty::GetAttribute	(	const wxString &	name,
		const wxString &	defVal
	)		const

Returns named attribute, as string, if found.

Otherwise defVal is returned.

double wxPGProperty::GetAttributeAsDouble	(	const wxString &	name,
		double	defVal
	)		const

Returns named attribute, as double, if found.

Otherwise defVal is returned.

long wxPGProperty::GetAttributeAsLong	(	const wxString &	name,
		long	defVal
	)		const

Returns named attribute, as long, if found.

Otherwise defVal is returned.

const wxPGAttributeStorage& wxPGProperty::GetAttributes ( ) const

Return atributes storage map.

wxVariant wxPGProperty::GetAttributesAsList ( ) const

Returns attributes as list wxVariant.

const wxString& wxPGProperty::GetBaseName ( ) const

Returns property's base name (ie.

parent's name is not added in any case)

const wxPGCell& wxPGProperty::GetCell ( unsigned int column ) const

Returns wxPGCell of given column.

Remarks: const version of this member function returns 'default' wxPGCell object if the property itself didn't hold cell data.

wxPGCell& wxPGProperty::GetCell ( unsigned int column )

Returns wxPGCell of given column, creating one if necessary.

virtual wxPGCellRenderer* wxPGProperty::GetCellRenderer ( int column ) const

virtual

Returns used wxPGCellRenderer instance for given property column (label=0, value=1).

Default implementation returns editor's renderer for all columns.

unsigned int wxPGProperty::GetChildCount ( ) const

Returns number of child properties.

int wxPGProperty::GetChildrenHeight	(	int	lh,
		int	iMax = `-1`
	)		const

Returns height of children, recursively, and by taking expanded/collapsed status into account.

Parameters

lh	Line height. Pass result of GetGrid()->GetRowHeight() here.
iMax	Only used (internally) when finding property y-positions.

const wxPGChoices& wxPGProperty::GetChoices ( ) const

Returns read-only reference to property's list of choices.

virtual int wxPGProperty::GetChoiceSelection ( ) const

virtual

Returns which choice is currently selected.

Only applies to properties which have choices.

Needs to reimplemented in derived class if property value does not map directly to a choice. Integer as index, bool, and string usually do.

Reimplemented in wxFlagsProperty, and wxEnumProperty.

void* wxPGProperty::GetClientData ( ) const

Returns client data (void*) of a property.

wxClientData* wxPGProperty::GetClientObject ( ) const

Sets managed client object of a property.

const wxPGEditor* wxPGProperty::GetColumnEditor ( int column ) const

Returns editor used for given column.

NULL for no editor.

wxVariant wxPGProperty::GetDefaultValue ( ) const

Returns property's default value.

If property's value type is not a built-in one, and "DefaultValue" attribute is not defined, then this function usually returns Null variant.

wxString wxPGProperty::GetDisplayedString ( ) const

Returns property's displayed text.

const wxPGEditor* wxPGProperty::GetEditorClass ( ) const

Returns wxPGEditor that will be used and created when property becomes selected.

Returns more accurate value than DoGetEditorClass().

virtual wxPGEditorDialogAdapter* wxPGProperty::GetEditorDialog ( ) const

virtual

Returns instance of a new wxPGEditorDialogAdapter instance, which is used when user presses the (optional) button next to the editor control;.

Default implementation returns NULL (ie. no action is generated when button is pressed).

Reimplemented in wxFileProperty.

FlagType wxPGProperty::GetFlags ( ) const

Returns property flags.

wxPropertyGrid* wxPGProperty::GetGrid ( ) const

Returns property grid where property lies.

wxPropertyGrid* wxPGProperty::GetGridIfDisplayed ( ) const

Returns owner wxPropertyGrid, but only if one is currently on a page displaying this property.

const wxString& wxPGProperty::GetHelpString ( ) const

Returns property's help or description text.

See also: SetHelpString()

unsigned int wxPGProperty::GetIndexInParent ( ) const

Returns position in parent's array.

const wxString& wxPGProperty::GetLabel ( ) const

Returns property's label.

const wxPGProperty* wxPGProperty::GetLastVisibleSubItem ( ) const

Returns last visible child property, recursively.

wxPGProperty* wxPGProperty::GetMainParent ( ) const

Returns highest level non-category, non-root parent.

Useful when you have nested properties with children.

Remarks: If immediate parent is root or category, this will return the property itself.

int wxPGProperty::GetMaxLength ( ) const

Returns maximum allowed length of property's text value.

wxString wxPGProperty::GetName ( ) const

Returns property's name with all (non-category, non-root) parents.

wxPGCell& wxPGProperty::GetOrCreateCell ( unsigned int column )

Returns wxPGCell of given column, creating one if necessary.

wxPGProperty* wxPGProperty::GetParent ( ) const

Return parent of property.

wxPGProperty* wxPGProperty::GetPropertyByName ( const wxString & name ) const

Returns (direct) child property with given name (or NULL if not found).

wxValidator* wxPGProperty::GetValidator ( ) const

Gets assignable version of property's validator.

wxVariant wxPGProperty::GetValue ( ) const

Returns property's value.

virtual wxString wxPGProperty::GetValueAsString ( int argFlags = 0 ) const

virtual

Returns text representation of property's value.

Parameters

argFlags If 0 (default value), then displayed string is returned. If wxPG_FULL_VALUE is set, returns complete, storable string value instead of displayable. If wxPG_EDITABLE_VALUE is set, returns string value that must be editable in textctrl. If wxPG_COMPOSITE_FRAGMENT is set, returns text that is appropriate to display as a part of string property's composite text representation.

Remarks: In older versions, this function used to be overridden to convert property's value into a string representation. This function is now handled by ValueToString(), and overriding this function now will result in run-time assertion failure.

Reimplemented in wxPropertyCategory.

wxBitmap* wxPGProperty::GetValueImage ( ) const

Returns bitmap that appears next to value text.

Only returns non-NULL bitmap if one was set with SetValueImage().

wxString wxPGProperty::GetValueString ( int argFlags = 0 ) const

Synonymous to GetValueAsString().

Deprecated:: Use GetValueAsString() instead.

See also: GetValueAsString()

wxString wxPGProperty::GetValueType ( ) const

Returns value type used by this property.

int wxPGProperty::GetY ( ) const

Returns coordinate to the top y of the property.

Note that the position of scrollbars is not taken into account.

FlagType wxPGProperty::HasFlag ( wxPGPropertyFlags flag ) const

Returns non-zero if property has given flag set.

See also: propgrid_propflags

bool wxPGProperty::HasVisibleChildren ( ) const

Returns true if property has even one visible child.

bool wxPGProperty::Hide	(	bool	hide,
		int	flags = `wxPG_RECURSE`
	)

Hides or reveals the property.

Parameters

hide	true for hide, false for reveal.
flags	By default changes are applied recursively. Set this parameter wxPG_DONT_RECURSE to prevent this.

int wxPGProperty::Index ( const wxPGProperty * p ) const

Returns index of given child property.

wxNOT_FOUND if given property is not child of this.

wxPGProperty* wxPGProperty::InsertChild	(	int	index,
		wxPGProperty *	childProperty
	)

Use this member function to add independent (ie.

regular) children to a property.

Returns: Inserted childProperty.

Remarks: wxPropertyGrid is not automatically refreshed by this function.

See also: AppendChild(), AddPrivateChild()

int wxPGProperty::InsertChoice	(	const wxString &	label,
		int	index,
		int	value = `wxPG_INVALID_VALUE`
	)

Inserts a new choice to property's list of choices.

Parameters

label	Text for new choice
index	Insertion position. Use wxNOT_FOUND to append.
value	Value for new choice. Do not specify if you wish this to equal choice index.

virtual bool wxPGProperty::IntToValue	(	wxVariant &	variant,
		int	number,
		int	argFlags = `0`
	)		const

virtual

Converts integer (possibly a choice selection) into wxVariant value appropriate for this property.

Parameters

variant	On function entry this is the old value (should not be wxNullVariant in normal cases). Translated value must be assigned back to it.
number	Integer to be translated into variant.
argFlags	If wxPG_FULL_VALUE is set, returns complete, storable value instead of displayable one.

Returns: Returns true if resulting wxVariant value was different.

Remarks

If property is not supposed to use choice or spinctrl or other editor with int-based value, it is not necessary to implement this method.
Default implementation simply assign given int to m_value.
If property uses choice control, and displays a dialog on some choice items, then it is preferred to display that dialog in IntToValue instead of OnEvent.
You might want to take into account that m_value is Mull variant if property value is unspecified (which is usually only case if you explicitly enabled that sort behaviour).

Reimplemented in wxEnumProperty, wxBoolProperty, wxUIntProperty, wxIntProperty, and wxSystemColourProperty.

bool wxPGProperty::IsCategory ( ) const

Returns true if this property is actually a wxPropertyCategory.

bool wxPGProperty::IsEnabled ( ) const

Returns true if property is enabled.

bool wxPGProperty::IsExpanded ( ) const

Returns true if property has visible children.

bool wxPGProperty::IsRoot ( ) const

Returns true if this property is actually a wxRootProperty.

bool wxPGProperty::IsSomeParent ( wxPGProperty * candidateParent ) const

Returns true if candidateParent is some parent of this property.

bool wxPGProperty::IsSubProperty ( ) const

Returns true if this is a sub-property.

bool wxPGProperty::IsTextEditable ( ) const

Returns true if property has editable wxTextCtrl when selected.

Remarks: Although disabled properties do not displayed editor, they still return true here as being disabled is considered a temporary condition (unlike being read-only or having limited editing enabled).

bool wxPGProperty::IsValueUnspecified ( ) const

Returns true if property's value is considered unspecified.

This usually means that value is Null variant.

bool wxPGProperty::IsVisible ( ) const

Returns true if all parents expanded.

wxPGProperty* wxPGProperty::Item ( unsigned int i ) const

Returns child property at index i.

virtual void wxPGProperty::OnCustomPaint	(	wxDC &	dc,
		const wxRect &	rect,
		wxPGPaintData &	paintdata
	)

virtual

Override to paint an image in front of the property value text or drop-down list item (but only if wxPGProperty::OnMeasureImage is overridden as well).

If property's OnMeasureImage() returns size that has height != 0 but less than row height ( < 0 has special meanings), wxPropertyGrid calls this method to draw a custom image in a limited area in front of the editor control or value text/graphics, and if control has drop-down list, then the image is drawn there as well (even in the case OnMeasureImage() returned higher height than row height).

NOTE: Following applies when OnMeasureImage() returns a "flexible" height ( using wxPG_FLEXIBLE_SIZE(W,H) macro), which implies variable height items: If rect.x is < 0, then this is a measure item call, which means that dc is invalid and only thing that should be done is to set paintdata.m_drawnHeight to the height of the image of item at index paintdata.m_choiceItem. This call may be done even as often as once every drop-down popup show.

Parameters

dc	wxDC to paint on.
rect	Box reserved for custom graphics. Includes surrounding rectangle, if any. If x is < 0, then this is a measure item call (see above).
paintdata	wxPGPaintData structure with much useful data about painted item. struct wxPGPaintData { // wxPropertyGrid. const wxPropertyGrid* m_parent; // Normally -1, otherwise index to drop-down list item that has to be drawn. int m_choiceItem; // Set to drawn width in OnCustomPaint (optional). int m_drawnWidth; // In a measure item call, set this to the height of item at m_choiceItem index int m_drawnHeight; };

Remarks

You can actually exceed rect width, but if you do so then paintdata.m_drawnWidth must be set to the full width drawn in pixels.
Due to technical reasons, rect's height will be default even if custom height was reported during measure call.
Brush is guaranteed to be default background colour. It has been already used to clear the background of area being painted. It can be modified.
Pen is guaranteed to be 1-wide 'black' (or whatever is the proper colour) pen for drawing framing rectangle. It can be changed as well.

See also: ValueToString()

Reimplemented in wxImageFileProperty, wxCursorProperty, and wxSystemColourProperty.

virtual bool wxPGProperty::OnEvent	(	wxPropertyGrid *	propgrid,
		wxWindow *	wnd_primary,
		wxEvent &	event
	)

virtual

Events received by editor widgets are processed here.

Note that editor class usually processes most events. Some, such as button press events of TextCtrlAndButton class, can be handled here. Also, if custom handling for regular events is desired, then that can also be done (for example, wxSystemColourProperty custom handles wxEVT_CHOICE to display colour picker dialog when 'custom' selection is made).

If the event causes value to be changed, SetValueInEvent() should be called to set the new value.

The parameter event is the associated wxEvent.

Return values

Should return true if any changes in value should be reported.

Remarks

If property uses choice control, and displays a dialog on some choice items, then it is preferred to display that dialog in IntToValue instead of OnEvent.

Reimplemented in wxArrayStringProperty, wxLongStringProperty, wxMultiChoiceProperty, wxSystemColourProperty, and wxFontProperty.

virtual wxSize wxPGProperty::OnMeasureImage ( int item = -1 ) const

virtual

Returns size of the custom painted image in front of property.

This method must be overridden to return non-default value if OnCustomPaint is to be called.

Parameters

item	Normally -1, but can be an index to the property's list of items.

Remarks

Default behaviour is to return wxSize(0,0), which means no image.
Default image width or height is indicated with dimension -1.
You can also return wxPG_DEFAULT_IMAGE_SIZE which equals wxSize(-1, -1).

Reimplemented in wxImageFileProperty, wxCursorProperty, and wxSystemColourProperty.

virtual void wxPGProperty::OnSetValue ( )

virtual

This virtual function is called after m_value has been set.

Remarks

If m_value was set to Null variant (ie. unspecified value), OnSetValue() will not be called.
m_value may be of any variant type. Typically properties internally support only one variant type, and as such OnSetValue() provides a good opportunity to convert supported values into internal type.
Default implementation does nothing.

Reimplemented in wxArrayStringProperty, wxFileProperty, wxFlagsProperty, wxEnumProperty, wxDateProperty, wxMultiChoiceProperty, wxImageFileProperty, wxSystemColourProperty, wxFontProperty, and wxStringProperty.

virtual void wxPGProperty::OnValidationFailure ( wxVariant & pendingValue )

virtual

Called whenever validation has failed with given pending value.

Remarks: If you implement this in your custom property class, please remember to call the baser implementation as well, since they may use it to revert property into pre-change state.

Reimplemented in wxEnumProperty.

virtual void wxPGProperty::RefreshChildren ( )

virtual

Refresh values of child properties.

Automatically called after value is set.

Reimplemented in wxFlagsProperty, and wxFontProperty.

void wxPGProperty::RefreshEditor ( )

If property's editor is active, then update it's value.

void wxPGProperty::SetAttribute	(	const wxString &	name,
		wxVariant	value
	)

Sets an attribute for this property.

Parameters

name	Text identifier of attribute. See wxPropertyGrid Property Attribute Identifiers.
value	Value of attribute.

Remarks: Setting attribute's value to Null variant will simply remove it from property's set of attributes.

void wxPGProperty::SetAttributes ( const wxPGAttributeStorage & attributes )

void wxPGProperty::SetAutoUnspecified ( bool enable = true )

Set if user can change the property's value to unspecified by modifying the value of the editor control (usually by clearing it).

Currently, this can work with following properties: wxIntProperty, wxUIntProperty, wxFloatProperty, wxEditEnumProperty.

Parameters

enable Whether to enable or disable this behaviour (it is disabled by default).

void wxPGProperty::SetBackgroundColour	(	const wxColour &	colour,
		int	flags = `wxPG_RECURSE`
	)

Sets property's background colour.

Parameters

colour	Background colour to use.
flags	Default is wxPG_RECURSE which causes colour to be set recursively. Omit this flag to only set colour for the property in question and not any of its children.

void wxPGProperty::SetCell	(	int	column,
		const wxPGCell &	cell
	)

Sets cell information for given column.

bool wxPGProperty::SetChoices ( wxPGChoices & choices )

Sets new set of choices for the property.

Remarks: This operation deselects the property and clears its value.

void wxPGProperty::SetChoiceSelection ( int newValue )

Sets selected choice and changes property value.

Tries to retain value type, although currently if it is not string, then it is forced to integer.

void wxPGProperty::SetClientData ( void * clientData )

Sets client data (void*) of a property.

Remarks: This untyped client data has to be deleted manually.

void wxPGProperty::SetClientObject ( wxClientData * clientObject )

Returns client object of a property.

void wxPGProperty::SetDefaultValue ( wxVariant & value )

Set default value of a property.

Synonymous to

SetAttribute("DefaultValue", value);

void wxPGProperty::SetEditor ( const wxPGEditor * editor )

Sets editor for a property.

Parameters

editor For builtin editors, use wxPGEditor_X, where X is builtin editor's name (TextCtrl, Choice, etc. see wxPGEditor documentation for full list).

For custom editors, use pointer you received from wxPropertyGrid::RegisterEditorClass().

void wxPGProperty::SetEditor ( const wxString & editorName )

Sets editor for a property, by editor name.

void wxPGProperty::SetFlag ( wxPGPropertyFlags flag )

protected

void wxPGProperty::SetFlagRecursively	(	wxPGPropertyFlags	flag,
		bool	set
	)

Sets or clears given property flag, recursively.

This function is primarily intended for internal use.

See also: ChangeFlag()

void wxPGProperty::SetHelpString ( const wxString & helpString )

Sets property's help string, which is shown, for example, in wxPropertyGridManager's description text box.

void wxPGProperty::SetLabel ( const wxString & label )

Sets property's label.

Remarks: Properties under same parent may have same labels. However, property names must still remain unique.

bool wxPGProperty::SetMaxLength ( int maxLen )

Set max length of text in text editor.

void wxPGProperty::SetModifiedStatus ( bool modified )

Sets property's "is it modified?" flag.

Affects children recursively.

void wxPGProperty::SetName ( const wxString & newName )

Sets new (base) name for property.

void wxPGProperty::SetParentalType ( int flag )

Changes what sort of parent this property is for its children.

Parameters

flag	Use one of the following values: wxPG_PROP_MISC_PARENT (for generic parents), wxPG_PROP_CATEGORY (for categories), or wxPG_PROP_AGGREGATE (for derived property classes with private children).

Remarks: You generally do not need to call this function.

void wxPGProperty::SetTextColour	(	const wxColour &	colour,
		int	flags = `wxPG_RECURSE`
	)

Sets property's text colour.

Parameters

colour	Text colour to use.
flags	Default is wxPG_RECURSE which causes colour to be set recursively. Omit this flag to only set colour for the property in question and not any of its children.

void wxPGProperty::SetValidator ( const wxValidator & validator )

Sets wxValidator for a property.

void wxPGProperty::SetValue	(	wxVariant	value,
		wxVariant *	pList = `NULL`,
		int	flags = `wxPG_SETVAL_REFRESH_EDITOR`
	)

Call this to set value of the property.

Unlike methods in wxPropertyGrid, this does not automatically update the display.

Remarks: Use wxPropertyGrid::ChangePropertyValue() instead if you need to run through validation process and send property change event.

If you need to change property value in event, based on user input, use SetValueInEvent() instead.

Parameters

value	The value to set.
pList	Pointer to list variant that contains child values. Used to indicate which children should be marked as modified. Usually you just use NULL.
flags	wxPG_SETVAL_REFRESH_EDITOR is set by default, to refresh editor and redraw properties.

bool wxPGProperty::SetValueFromInt	(	long	value,
		int	flags = `0`
	)

Converts integer to a value, and if successful, calls SetValue() on it.

Default behaviour is to do nothing.

Parameters

value	Int to get the value from.
flags	If has wxPG_FULL_VALUE, then the value given is a actual value and not an index.

Returns: true if value was changed.

bool wxPGProperty::SetValueFromString	(	const wxString &	text,
		int	flags = `0`
	)

Converts string to a value, and if successful, calls SetValue() on it.

Default behaviour is to do nothing.

Parameters

text	String to get the value from.
flags

Todo:: docme

Returns: true if value was changed.

void wxPGProperty::SetValueImage ( wxBitmap & bmp )

Set wxBitmap in front of the value.

This bitmap may be ignored by custom cell renderers.

void wxPGProperty::SetValueInEvent ( wxVariant value ) const

Call this function in OnEvent(), OnButtonClick() etc.

to change the property value based on user input.

Remarks: This method is const since it doesn't actually modify value, but posts given variant as pending value, stored in wxPropertyGrid.

void wxPGProperty::SetValuePlain ( wxVariant value )

Helper for language bindings.

void wxPGProperty::SetValueToUnspecified ( )

Sets property's value to unspecified (ie.

Null variant).

void wxPGProperty::SetWasModified ( bool set = true )

Call with false in OnSetValue() to cancel value changes after all (ie.

cancel true returned by StringToValue() or IntToValue()).

virtual bool wxPGProperty::StringToValue	(	wxVariant &	variant,
		const wxString &	text,
		int	argFlags = `0`
	)		const

virtual

Converts text into wxVariant value appropriate for this property.

Parameters

variant	On function entry this is the old value (should not be wxNullVariant in normal cases). Translated value must be assigned back to it.
text	Text to be translated into variant.
argFlags	If wxPG_FULL_VALUE is set, returns complete, storable value instead of displayable one (they may be different). If wxPG_COMPOSITE_FRAGMENT is set, text is interpreted as a part of composite property string value (as generated by ValueToString() called with this same flag).

Returns: Returns true if resulting wxVariant value was different.

Remarks: Default implementation converts semicolon delimited tokens into child values. Only works for properties with children.

You might want to take into account that m_value is Null variant if property value is unspecified (which is usually only case if you explicitly enabled that sort behaviour).

Reimplemented in wxArrayStringProperty, wxLongStringProperty, wxFileProperty, wxFlagsProperty, wxEnumProperty, wxDateProperty, wxBoolProperty, wxMultiChoiceProperty, wxFloatProperty, wxUIntProperty, wxIntProperty, wxSystemColourProperty, and wxStringProperty.

wxPGProperty* wxPGProperty::UpdateParentValues ( )

Updates composed values of parent non-category properties, recursively.

Returns topmost property updated.

bool wxPGProperty::UsesAutoUnspecified ( ) const

Returns true if containing grid uses wxPG_EX_AUTO_UNSPECIFIED_VALUES.

virtual bool wxPGProperty::ValidateValue	(	wxVariant &	value,
		wxPGValidationInfo &	validationInfo
	)		const

virtual

Implement this function in derived class to check the value.

Return true if it is ok. Returning false prevents property change events from occurring.

Remarks

Default implementation always returns true.

Reimplemented in wxEnumProperty, wxFloatProperty, wxUIntProperty, and wxIntProperty.

virtual wxString wxPGProperty::ValueToString	(	wxVariant &	value,
		int	argFlags = `0`
	)		const

virtual

Converts property value into a text representation.

Parameters

value	Value to be converted.
argFlags	If 0 (default value), then displayed string is returned. If wxPG_FULL_VALUE is set, returns complete, storable string value instead of displayable. If wxPG_EDITABLE_VALUE is set, returns string value that must be editable in textctrl. If wxPG_COMPOSITE_FRAGMENT is set, returns text that is appropriate to display as a part of string property's composite text representation.

Remarks: Default implementation calls GenerateComposedValue().

Reimplemented in wxPropertyCategory, wxArrayStringProperty, wxLongStringProperty, wxFileProperty, wxFlagsProperty, wxEnumProperty, wxDateProperty, wxBoolProperty, wxMultiChoiceProperty, wxFloatProperty, wxUIntProperty, wxColourProperty, wxIntProperty, wxSystemColourProperty, wxFontProperty, and wxStringProperty.

Member Data Documentation

void* wxPGProperty::m_clientData

Detailed Description

Supplied Ready-to-use Property Classes

wxPropertyCategory

wxStringProperty

wxIntProperty

wxUIntProperty

wxFloatProperty

wxBoolProperty

wxLongStringProperty

wxDirProperty

wxFileProperty

wxEnumProperty

wxFlagsProperty

wxArrayStringProperty

wxDateProperty

wxEditEnumProperty

wxMultiChoiceProperty

wxImageFileProperty

wxColourProperty

wxFontProperty

wxSystemColourProperty

wxCursorProperty

Creating Custom Properties

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
