#include <wx/dataview.h>

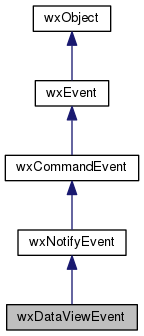

Inheritance diagram for wxDataViewEvent:

Detailed Description

This is the event class for the wxDataViewCtrl notifications.

Events using this class

The following event handler macros redirect the events to member function handlers 'func' with prototypes like:

void handlerFuncName(wxDataViewEvent& event)

Event macros:

EVT_DATAVIEW_SELECTION_CHANGED(id, func):
Process a wxEVT_DATAVIEW_SELECTION_CHANGED event.
EVT_DATAVIEW_ITEM_ACTIVATED(id, func):
Process a wxEVT_DATAVIEW_ITEM_ACTIVATED event.
EVT_DATAVIEW_ITEM_EDITING_STARTED(id, func):
Process a wxEVT_DATAVIEW_ITEM_EDITING_STARTED event.
EVT_DATAVIEW_ITEM_EDITING_DONE(id, func):
Process a wxEVT_DATAVIEW_ITEM_EDITING_DONE event.
EVT_DATAVIEW_ITEM_COLLAPSING(id, func):
Process a wxEVT_DATAVIEW_ITEM_COLLAPSING event.
EVT_DATAVIEW_ITEM_COLLAPSED(id, func):
Process a wxEVT_DATAVIEW_ITEM_COLLAPSED event.
EVT_DATAVIEW_ITEM_EXPANDING(id, func):
Process a wxEVT_DATAVIEW_ITEM_EXPANDING event.
EVT_DATAVIEW_ITEM_EXPANDED(id, func):
Process a wxEVT_DATAVIEW_ITEM_EXPANDED event.
EVT_DATAVIEW_ITEM_VALUE_CHANGED(id, func):
Process a wxEVT_DATAVIEW_ITEM_VALUE_CHANGED event.
EVT_DATAVIEW_ITEM_CONTEXT_MENU(id, func):
Process a wxEVT_DATAVIEW_ITEM_CONTEXT_MENU event.
EVT_DATAVIEW_COLUMN_HEADER_CLICK(id, func):
Process a wxEVT_DATAVIEW_COLUMN_HEADER_CLICK event.
EVT_DATAVIEW_COLUMN_HEADER_RIGHT_CLICK(id, func):
Process a wxEVT_DATAVIEW_COLUMN_HEADER_RIGHT_CLICK event.
EVT_DATAVIEW_COLUMN_SORTED(id, func):
Process a wxEVT_DATAVIEW_COLUMN_SORTED event.
EVT_DATAVIEW_COLUMN_REORDERED(id, func):
Process a wxEVT_DATAVIEW_COLUMN_REORDERED event. Currently this even is only generated when using the native OSX version.
EVT_DATAVIEW_ITEM_BEGIN_DRAG(id, func):
Process a wxEVT_DATAVIEW_ITEM_BEGIN_DRAG event.
EVT_DATAVIEW_ITEM_DROP_POSSIBLE(id, func):
Process a wxEVT_DATAVIEW_ITEM_DROP_POSSIBLE event.
EVT_DATAVIEW_ITEM_DROP(id, func):
Process a wxEVT_DATAVIEW_ITEM_DROP event.
EVT_DATAVIEW_CACHE_HINT(id, func):
Process a wxEVT_DATAVIEW_CACHE_HINT event.

Library: wxAdvanced

Category: Events, wxDataViewCtrl Related Classes

Public Member Functions
	wxDataViewEvent (wxEventType commandType=wxEVT_NULL, int winid=0)
	Constructor. More...

int	GetColumn () const
	Returns the position of the column in the control or -1 if no column field was set by the event emitter. More...

wxDataViewColumn *	GetDataViewColumn () const
	Returns a pointer to the wxDataViewColumn from which the event was emitted or NULL. More...

wxDataViewModel *	GetModel () const
	Returns the wxDataViewModel associated with the event. More...

wxPoint	GetPosition () const
	Returns the position of a context menu event in screen coordinates. More...

const wxVariant &	GetValue () const
	Returns a reference to a value. More...

bool	IsEditCancelled () const
	Can be used to determine whether the new value is going to be accepted in wxEVT_DATAVIEW_ITEM_EDITING_DONE handler. More...

void	SetColumn (int col)
	Sets the column index associated with this event. More...

void	SetDataViewColumn (wxDataViewColumn *col)
	For `wxEVT_DATAVIEW_COLUMN_HEADER_CLICK` only. More...

void	SetModel (wxDataViewModel *model)
	Sets the dataview model associated with this event. More...

void	SetValue (const wxVariant &value)
	Sets the value associated with this event. More...

void	SetDataObject (wxDataObject *obj)
	Set wxDataObject for data transfer within a drag operation. More...

wxDataFormat	GetDataFormat () const
	Gets the wxDataFormat during a drop operation. More...

size_t	GetDataSize () const
	Gets the data size for a drop data transfer. More...

void *	GetDataBuffer () const
	Gets the data buffer for a drop data transfer. More...

void	SetDragFlags (int flags)
	Specify the kind of the drag operation to perform. More...

wxDragResult	GetDropEffect () const
	Returns the effect the user requested to happen to the dropped data. More...

int	GetCacheFrom () const
	Return the first row that will be displayed. More...

int	GetCacheTo () const
	Return the last row that will be displayed. More...

wxDataViewItem	GetItem () const

void	SetItem (const wxDataViewItem &item)

void	SetEditCanceled (bool editCancelled)

void	SetPosition (int x, int y)

void	SetCache (int from, int to)

wxDataObject *	GetDataObject () const

void	SetDataFormat (const wxDataFormat &format)

void	SetDataSize (size_t size)

void	SetDataBuffer (void *buf)

int	GetDragFlags () const

void	SetDropEffect (wxDragResult effect)

Public Member Functions inherited from wxNotifyEvent
	wxNotifyEvent (wxEventType eventType=wxEVT_NULL, int id=0)
	Constructor (used internally by wxWidgets only). More...

void	Allow ()
	This is the opposite of Veto(): it explicitly allows the event to be processed. More...

bool	IsAllowed () const
	Returns true if the change is allowed (Veto() hasn't been called) or false otherwise (if it was). More...

void	Veto ()
	Prevents the change announced by this event from happening. More...

Public Member Functions inherited from wxCommandEvent
	wxCommandEvent (wxEventType commandEventType=wxEVT_NULL, int id=0)
	Constructor. More...

void *	GetClientData () const
	Returns client data pointer for a listbox or choice selection event (not valid for a deselection). More...

wxClientData *	GetClientObject () const
	Returns client object pointer for a listbox or choice selection event (not valid for a deselection). More...

long	GetExtraLong () const
	Returns extra information dependent on the event objects type. More...

int	GetInt () const
	Returns the integer identifier corresponding to a listbox, choice or radiobox selection (only if the event was a selection, not a deselection), or a boolean value representing the value of a checkbox. More...

int	GetSelection () const
	Returns item index for a listbox or choice selection event (not valid for a deselection). More...

wxString	GetString () const
	Returns item string for a listbox or choice selection event. More...

bool	IsChecked () const
	This method can be used with checkbox and menu events: for the checkboxes, the method returns true for a selection event and false for a deselection one. More...

bool	IsSelection () const
	For a listbox or similar event, returns true if it is a selection, false if it is a deselection. More...

void	SetClientData (void *clientData)
	Sets the client data for this event. More...

void	SetClientObject (wxClientData *clientObject)
	Sets the client object for this event. More...

void	SetExtraLong (long extraLong)
	Sets the m_extraLong member. More...

void	SetInt (int intCommand)
	Sets the m_commandInt member. More...

void	SetString (const wxString &string)
	Sets the m_commandString member. More...

Public Member Functions inherited from wxEvent
	wxEvent (int id=0, wxEventType eventType=wxEVT_NULL)
	Constructor. More...

virtual wxEvent *	Clone () const =0
	Returns a copy of the event. More...

wxObject *	GetEventObject () const
	Returns the object (usually a window) associated with the event, if any. More...

wxEventType	GetEventType () const
	Returns the identifier of the given event type, such as `wxEVT_BUTTON`. More...

virtual wxEventCategory	GetEventCategory () const
	Returns a generic category for this event. More...

int	GetId () const
	Returns the identifier associated with this event, such as a button command id. More...

wxObject *	GetEventUserData () const
	Return the user data associated with a dynamically connected event handler. More...

bool	GetSkipped () const
	Returns true if the event handler should be skipped, false otherwise. More...

long	GetTimestamp () const
	Gets the timestamp for the event. More...

bool	IsCommandEvent () const
	Returns true if the event is or is derived from wxCommandEvent else it returns false. More...

void	ResumePropagation (int propagationLevel)
	Sets the propagation level to the given value (for example returned from an earlier call to wxEvent::StopPropagation). More...

void	SetEventObject (wxObject *object)
	Sets the originating object. More...

void	SetEventType (wxEventType type)
	Sets the event type. More...

void	SetId (int id)
	Sets the identifier associated with this event, such as a button command id. More...

void	SetTimestamp (long timeStamp=0)
	Sets the timestamp for the event. More...

bool	ShouldPropagate () const
	Test if this event should be propagated or not, i.e. if the propagation level is currently greater than 0. More...

void	Skip (bool skip=true)
	This method can be used inside an event handler to control whether further event handlers bound to this event will be called after the current one returns. More...

int	StopPropagation ()
	Stop the event from propagating to its parent window. More...

Public Member Functions inherited from wxObject
	wxObject ()
	Default ctor; initializes to NULL the internal reference data. More...

	wxObject (const wxObject &other)
	Copy ctor. More...

virtual	~wxObject ()
	Destructor. More...

virtual wxClassInfo *	GetClassInfo () const
	This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefData *	GetRefData () const
	Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool	IsKindOf (const wxClassInfo *info) const
	Determines whether this class is a subclass of (or the same class as) the given class. More...

bool	IsSameAs (const wxObject &obj) const
	Returns true if this object has the same data pointer as obj. More...

void	Ref (const wxObject &clone)
	Makes this object refer to the data in clone. More...

void	SetRefData (wxObjectRefData *data)
	Sets the wxObject::m_refData pointer. More...

void	UnRef ()
	Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void	UnShare ()
	This is the same of AllocExclusive() but this method is public. More...

void	operator delete (void *buf)
	The delete operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

void *	operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
	The new operator is defined for debugging versions of the library only, when the identifier `WXDEBUG` is defined. More...

Additional Inherited Members
Protected Member Functions inherited from wxObject
void	AllocExclusive ()
	Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefData *	CreateRefData () const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefData *	CloneRefData (const wxObjectRefData *data) const
	Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...

Protected Attributes inherited from wxEvent
int	m_propagationLevel
	Indicates how many levels the event can propagate. More...

Protected Attributes inherited from wxObject
wxObjectRefData *	m_refData
	Pointer to an object which is the object's reference-counted data. More...

Constructor & Destructor Documentation

wxDataViewEvent::wxDataViewEvent	(	wxEventType	commandType = `wxEVT_NULL`,
		int	winid = `0`
	)

Constructor.

Typically used by wxWidgets internals only.

Member Function Documentation

int wxDataViewEvent::GetCacheFrom ( ) const

Return the first row that will be displayed.

int wxDataViewEvent::GetCacheTo ( ) const

Return the last row that will be displayed.

int wxDataViewEvent::GetColumn ( ) const

Returns the position of the column in the control or -1 if no column field was set by the event emitter.

void* wxDataViewEvent::GetDataBuffer ( ) const

Gets the data buffer for a drop data transfer.

wxDataFormat wxDataViewEvent::GetDataFormat ( ) const

Gets the wxDataFormat during a drop operation.

wxDataObject* wxDataViewEvent::GetDataObject ( ) const

size_t wxDataViewEvent::GetDataSize ( ) const

Gets the data size for a drop data transfer.

wxDataViewColumn* wxDataViewEvent::GetDataViewColumn ( ) const

Returns a pointer to the wxDataViewColumn from which the event was emitted or NULL.

int wxDataViewEvent::GetDragFlags ( ) const

wxDragResult wxDataViewEvent::GetDropEffect ( ) const

Returns the effect the user requested to happen to the dropped data.

This function can be used inside wxEVT_DATAVIEW_ITEM_DROP_POSSIBLE and wxEVT_DATAVIEW_ITEM_DROP handlers and returns whether the user is trying to copy (the return value is wxDragCopy) or move (if the return value is wxDragMove) the data.

Currently this is only available when using the generic version of wxDataViewCtrl (used e.g. under MSW) and always returns wxDragNone in the GTK and OS X native versions.

Since: 2.9.4

wxDataViewItem wxDataViewEvent::GetItem ( ) const

wxDataViewModel* wxDataViewEvent::GetModel ( ) const

Returns the wxDataViewModel associated with the event.

wxPoint wxDataViewEvent::GetPosition ( ) const

Returns the position of a context menu event in screen coordinates.

const wxVariant& wxDataViewEvent::GetValue ( ) const

Returns a reference to a value.

bool wxDataViewEvent::IsEditCancelled ( ) const

Can be used to determine whether the new value is going to be accepted in wxEVT_DATAVIEW_ITEM_EDITING_DONE handler.

Returns true if editing the item was cancelled or if the user tried to enter an invalid value (refused by wxDataViewRenderer::Validate()). If this method returns false, it means that the value in the model is about to be changed to the new one.

Notice that wxEVT_DATAVIEW_ITEM_EDITING_DONE event handler can call wxNotifyEvent::Veto() to prevent this from happening.

Currently support for setting this field and for vetoing the change is only available in the generic version of wxDataViewCtrl, i.e. under MSW but not GTK nor OS X.

Since: 2.9.3

void wxDataViewEvent::SetCache	(	int	from,
		int	to
	)

void wxDataViewEvent::SetColumn ( int col )

Sets the column index associated with this event.

void wxDataViewEvent::SetDataBuffer ( void * buf )

void wxDataViewEvent::SetDataFormat ( const wxDataFormat & format )

void wxDataViewEvent::SetDataObject ( wxDataObject * obj )

Set wxDataObject for data transfer within a drag operation.

void wxDataViewEvent::SetDataSize ( size_t size )

void wxDataViewEvent::SetDataViewColumn ( wxDataViewColumn * col )

For wxEVT_DATAVIEW_COLUMN_HEADER_CLICK only.

void wxDataViewEvent::SetDragFlags ( int flags )

Specify the kind of the drag operation to perform.

This method can be used inside a wxEVT_DATAVIEW_ITEM_BEGIN_DRAG handler in order to configure the drag operation. Valid values are wxDrag_CopyOnly (default), wxDrag_AllowMove (allow the data to be moved) and wxDrag_DefaultMove.

Currently it is only honoured by the generic version of wxDataViewCtrl (used e.g. under MSW) and not supported by the native GTK and OS X versions.

See also: GetDropEffect()

Since: 2.9.4

void wxDataViewEvent::SetDropEffect ( wxDragResult effect )

void wxDataViewEvent::SetEditCanceled ( bool editCancelled )

void wxDataViewEvent::SetItem ( const wxDataViewItem & item )

void wxDataViewEvent::SetModel ( wxDataViewModel * model )

Sets the dataview model associated with this event.

void wxDataViewEvent::SetPosition	(	int	x,
		int	y
	)

void wxDataViewEvent::SetValue ( const wxVariant & value )

Sets the value associated with this event.

Detailed Description

Events using this class

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
