Designing for Multiple Screens:

Supporting Different Screen Sizes

This lesson shows you how to support different screen sizes by:

  • Ensuring your layout can be adequately resized to fit the screen
  • Providing appropriate UI layout according to screen configuration
  • Ensuring the correct layout is applied to the correct screen
  • Providing bitmaps that scale correctly

Use "wrap_content" and "match_parent"

To ensure that your layout is flexible and adapts to different screen sizes, you should use "wrap_content" and "match_parent" for the width and height of some view components. If you use "wrap_content", the width or height of the view is set to the minimum size necessary to fit the content within that view, while "match_parent" (also known as "fill_parent" before API level 8) makes the component expand to match the size of its parent view.

By using the "wrap_content" and "match_parent" size values instead of hard-coded sizes, your views either use only the space required for that view or expand to fill the available space, respectively. For example:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <LinearLayout android:layout_width="match_parent"
                  android:id="@+id/linearLayout1"
                  android:gravity="center"
                  android:layout_height="50dp">
        <ImageView android:id="@+id/imageView1"
                   android:layout_height="wrap_content"
                   android:layout_width="wrap_content"
                   android:src="@drawable/logo"
                   android:paddingRight="30dp"
                   android:layout_gravity="left"
                   android:layout_weight="0" />
        <View android:layout_height="wrap_content"
              android:id="@+id/view1"
              android:layout_width="wrap_content"
              android:layout_weight="1" />
        <Button android:id="@+id/categorybutton"
                android:background="@drawable/button_bg"
                android:layout_height="match_parent"
                android:layout_weight="0"
                android:layout_width="120dp"
                style="@style/CategoryButtonStyle"/>
    </LinearLayout>
    <fragment android:id="@+id/headlines"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.HeadlinesFragment"
              android:layout_width="match_parent" />
</LinearLayout>

Notice how the sample uses "wrap_content" and "match_parent" for component sizes rather than specific dimensions. This allows the layout to adapt correctly to different screen sizes and orientations.

For example, this is what this layout looks like in portrait and landscape mode. Notice that the sizes of the components adapt automatically to the width and height:

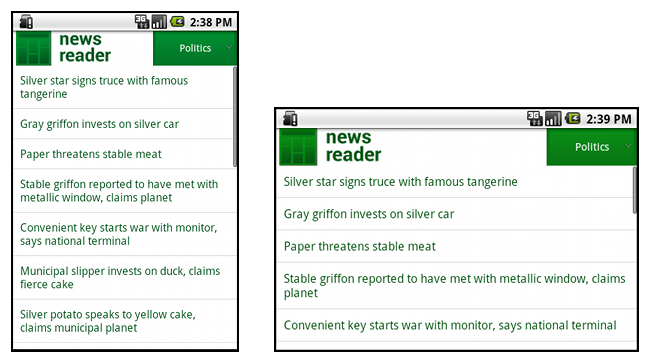

Figure 1. The News Reader sample app in portrait (left) and landscape (right).

Use RelativeLayout

You can construct fairly complex layouts using nested instances of LinearLayout and combinations of "wrap_content" and "match_parent" sizes. However, LinearLayout does not allow you to precisely control the spacial relationships of child views; views in a LinearLayout simply line up side-by-side. If you need child views to be oriented in variations other than a straight line, a better solution is often to use a RelativeLayout, which allows you to specify your layout in terms of the spacial relationships between components. For instance, you can align one child view on the left side and another view on the right side of the screen.

For example:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <TextView
        android:id="@+id/label"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Type here:"/>
    <EditText
        android:id="@+id/entry"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@id/label"/>
    <Button
        android:id="@+id/ok"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/entry"
        android:layout_alignParentRight="true"
        android:layout_marginLeft="10dp"
        android:text="OK" />
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_toLeftOf="@id/ok"
        android:layout_alignTop="@id/ok"
        android:text="Cancel" />
</RelativeLayout>

Figure 2 shows how this layout appears on a QVGA screen.

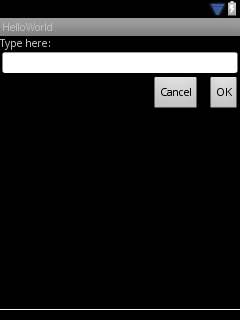

Figure 2. Screenshot on a QVGA screen (small screen).

Figure 3 shows how it appears on a larger screen.

Figure 3. Screenshot on a WSVGA screen (large screen).

Notice that although the size of the components changed, their spatial relationships are preserved as specified by the RelativeLayout.LayoutParams.

Use Size Qualifiers

There's only so much mileage you can get from a flexible layout or relative layout like the one in the previous sections. While those layouts adapt to different screens by stretching the space within and around components, they may not provide the best user experience for each screen size. Therefore, your application should not only implement flexible layouts, but should also provide several alternative layouts to target different screen configurations. You do so by using configuration qualifiers, which allows the runtime to automatically select the appropriate resource based on the current device’s configuration (such as a different layout design for different screen sizes).

For example, many applications implement the "two pane" pattern for large screens (the app might show a list of items on one pane and the content on another pane). Tablets and TVs are large enough for both panes to fit simultaneously on screen, but phone screens have to show them separately. So, to implement these layouts, you could have the following files:

  • res/layout/main.xml, single-pane (default) layout:
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="match_parent">
        <fragment android:id="@+id/headlines"
                  android:layout_height="fill_parent"
                  android:name="com.example.android.newsreader.HeadlinesFragment"
                  android:layout_width="match_parent" />
    </LinearLayout>
  • res/layout-large/main.xml, two-pane layout:
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:orientation="horizontal">
        <fragment android:id="@+id/headlines"
                  android:layout_height="fill_parent"
                  android:name="com.example.android.newsreader.HeadlinesFragment"
                  android:layout_width="400dp"
                  android:layout_marginRight="10dp"/>
        <fragment android:id="@+id/article"
                  android:layout_height="fill_parent"
                  android:name="com.example.android.newsreader.ArticleFragment"
                  android:layout_width="fill_parent" />
    </LinearLayout>

Notice the large qualifier in the directory name of the second layout. This layout will be selected on devices with screens classified as large (for example, 7" tablets and above). The other layout (without qualifiers) will be selected for smaller devices.

Use the Smallest-width Qualifier

One of the difficulties developers had in pre-3.2 Android devices was the "large" screen size bin, which encompasses the Dell Streak, the original Galaxy Tab, and 7" tablets in general. However, many applications may want to show different layouts for different devices in this category (such as for 5" and 7" devices), even though they are all considered to be "large" screens. That's why Android introduced the "Smallest-width" qualifier (amongst others) in Android 3.2.

The Smallest-width qualifier allows you to target screens that have a certain minimum width given in dp. For example, the typical 7" tablet has a minimum width of 600 dp, so if you want your UI to have two panes on those screens (but a single list on smaller screens), you can use the same two layouts from the previous section for single and two-pane layouts, but instead of the large size qualifier, use sw600dp to indicate the two-pane layout is for screens on which the smallest-width is 600 dp:

  • res/layout/main.xml, single-pane (default) layout:
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="match_parent">
        <fragment android:id="@+id/headlines"
                  android:layout_height="fill_parent"
                  android:name="com.example.android.newsreader.HeadlinesFragment"
                  android:layout_width="match_parent" />
    </LinearLayout>
  • res/layout-sw600dp/main.xml, two-pane layout:
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:orientation="horizontal">
        <fragment android:id="@+id/headlines"
                  android:layout_height="fill_parent"
                  android:name="com.example.android.newsreader.HeadlinesFragment"
                  android:layout_width="400dp"
                  android:layout_marginRight="10dp"/>
        <fragment android:id="@+id/article"
                  android:layout_height="fill_parent"
                  android:name="com.example.android.newsreader.ArticleFragment"
                  android:layout_width="fill_parent" />
    </LinearLayout>

This means that devices whose smallest width is greater than or equal to 600dp will select the layout-sw600dp/main.xml (two-pane) layout, while smaller screens will select the layout/main.xml (single-pane) layout.

However, this won't work well on pre-3.2 devices, because they don't recognize sw600dp as a size qualifier, so you still have to use the large qualifier as well. So, you should have a file named res/layout-large/main.xml which is identical to res/layout-sw600dp/main.xml. In the next section you'll see a technique that allows you to avoid duplicating the layout files this way.

Use Layout Aliases

The smallest-width qualifier is available only on Android 3.2 and above. Therefore, you should also still use the abstract size bins (small, normal, large and xlarge) to be compatible with earlier versions. For example, if you want to design your UI so that it shows a single-pane UI on phones but a multi-pane UI on 7" tablets, TVs and other large devices, you'd have to supply these files:

  • res/layout/main.xml: single-pane layout
  • res/layout-large: multi-pane layout
  • res/layout-sw600dp: multi-pane layout

The last two files are identical, because one of them will be matched by Android 3.2 devices, and the other one is for the benefit of tablets and TVs with earlier versions of Android.

To avoid this duplication of the same file for tablets and TVs (and the maintenance headache resulting from it), you can use alias files. For example, you can define the following layouts:

  • res/layout/main.xml, single-pane layout
  • res/layout/main_twopanes.xml, two-pane layout

And add these two files:

  • res/values-large/layout.xml:
    <resources>
        <item name="main" type="layout">@layout/main_twopanes</item>
    </resources>

  • res/values-sw600dp/layout.xml:
    <resources>
        <item name="main" type="layout">@layout/main_twopanes</item>
    </resources>


These latter two files have identical content, but they don’t actually define the layout. They merely set up main to be an alias to main_twopanes. Since these files have large and sw600dp selectors, they are applied to tablets and TVs regardless of Android version (pre-3.2 tablets and TVs match large, and post-3.2 will match sw600dp).

Use Orientation Qualifiers

Some layouts work well in both landscape and portrait orientations, but most of them can benefit from adjustments. In the News Reader sample app, here is how the layout behaves in each screen size and orientation:

  • small screen, portrait: single pane, with logo
  • small screen, landscape: single pane, with logo
  • 7" tablet, portrait: single pane, with action bar
  • 7" tablet, landscape: dual pane, wide, with action bar
  • 10" tablet, portrait: dual pane, narrow, with action bar
  • 10" tablet, landscape: dual pane, wide, with action bar
  • TV, landscape: dual pane, wide, with action bar

So each of these layouts is defined in an XML file in the res/layout/ directory. To then assign each layout to the various screen configurations, the app uses layout aliases to match them to each configuration:

res/layout/onepane.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <fragment android:id="@+id/headlines"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.HeadlinesFragment"
              android:layout_width="match_parent" />
</LinearLayout>

res/layout/onepane_with_bar.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <LinearLayout android:layout_width="match_parent"
                  android:id="@+id/linearLayout1"
                  android:gravity="center"
                  android:layout_height="50dp">
        <ImageView android:id="@+id/imageView1"
                   android:layout_height="wrap_content"
                   android:layout_width="wrap_content"
                   android:src="@drawable/logo"
                   android:paddingRight="30dp"
                   android:layout_gravity="left"
                   android:layout_weight="0" />
        <View android:layout_height="wrap_content"
              android:id="@+id/view1"
              android:layout_width="wrap_content"
              android:layout_weight="1" />
        <Button android:id="@+id/categorybutton"
                android:background="@drawable/button_bg"
                android:layout_height="match_parent"
                android:layout_weight="0"
                android:layout_width="120dp"
                style="@style/CategoryButtonStyle"/>
    </LinearLayout>
    <fragment android:id="@+id/headlines"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.HeadlinesFragment"
              android:layout_width="match_parent" />
</LinearLayout>

res/layout/twopanes.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="horizontal">
    <fragment android:id="@+id/headlines"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.HeadlinesFragment"
              android:layout_width="400dp"
              android:layout_marginRight="10dp"/>
    <fragment android:id="@+id/article"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.ArticleFragment"
              android:layout_width="fill_parent" />
</LinearLayout>

res/layout/twopanes_narrow.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="horizontal">
    <fragment android:id="@+id/headlines"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.HeadlinesFragment"
              android:layout_width="200dp"
              android:layout_marginRight="10dp"/>
    <fragment android:id="@+id/article"
              android:layout_height="fill_parent"
              android:name="com.example.android.newsreader.ArticleFragment"
              android:layout_width="fill_parent" />
</LinearLayout>

Now that all possible layouts are defined, it's just a matter of mapping the correct layout to each configuration using the configuration qualifiers. You can now do it using the layout alias technique:

res/values/layouts.xml:

<resources>
    <item name="main_layout" type="layout">@layout/onepane_with_bar</item>
    <bool name="has_two_panes">false</bool>
</resources>

res/values-sw600dp-land/layouts.xml:

<resources>
    <item name="main_layout" type="layout">@layout/twopanes</item>
    <bool name="has_two_panes">true</bool>
</resources>

res/values-sw600dp-port/layouts.xml:

<resources>
    <item name="main_layout" type="layout">@layout/onepane</item>
    <bool name="has_two_panes">false</bool>
</resources>

res/values-large-land/layouts.xml:

<resources>
    <item name="main_layout" type="layout">@layout/twopanes</item>
    <bool name="has_two_panes">true</bool>
</resources>

res/values-large-port/layouts.xml:

<resources>
    <item name="main_layout" type="layout">@layout/twopanes_narrow</item>
    <bool name="has_two_panes">true</bool>
</resources>

Use Nine-patch Bitmaps

Supporting different screen sizes usually means that your image resources must also be capable of adapting to different sizes. For example, a button background must fit whichever button shape it is applied to.

If you use simple images on components that can change size, you will quickly notice that the results are somewhat less than impressive, since the runtime will stretch or shrink your images uniformly. The solution is using nine-patch bitmaps, which are specially formatted PNG files that indicate which areas can and cannot be stretched.

Therefore, when designing bitmaps that will be used on components with variable size, always use nine-patches. To convert a bitmap into a nine-patch, you can start with a regular image (figure 4, shown with in 4x zoom for clarity).

Figure 4. button.png

And then run it through the draw9patch utility of the SDK (which is located in the tools/ directory), in which you can mark the areas that should be stretched by drawing pixels along the left and top borders. You can also mark the area that should hold the content by drawing pixels along the right and bottom borders, resulting in figure 5.

Figure 5. button.9.png

Notice the black pixels along the borders. The ones on the top and left borders indicate the places where the image can be stretched, and the ones on the right and bottom borders indicate where the content should be placed.

Also, notice the .9.png extension. You must use this extension, since this is how the framework detects that this is a nine-patch image, as opposed to a regular PNG image.

When you apply this background to a component (by setting android:background="@drawable/button"), the framework stretches the image correctly to accommodate the size of the button, as shown in various sizes in figure 6.

Figure 6. A button using the button.9.png nine-patch in various sizes.

↑ Go to top

← Back to Designing for Multiple Screens
