pylab_examples example code: log_bar.py¶

(Source code, png, pdf)

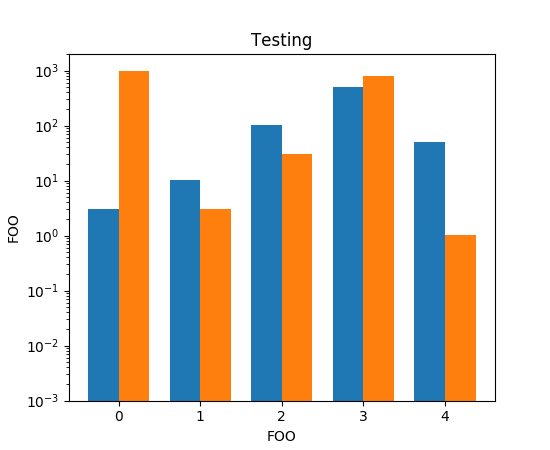

../../_images/log_bar.png

import matplotlib.pyplot as plt
import numpy as np

data = ((3, 1000), (10, 3), (100, 30), (500, 800), (50, 1))

plt.xlabel("FOO")
plt.ylabel("FOO")
plt.title("Testing")
plt.yscale('log')

dim = len(data[0])
w = 0.75
dimw = w / dim

x = np.arange(len(data))
for i in range(len(data[0])):
    y = [d[i] for d in data]
    b = plt.bar(x + i * dimw, y, dimw, bottom=0.001)

plt.xticks(x + dimw / 2, map(str, x))

plt.show()
