How-To

Plotting: howto

Plot numpy.datetime64 values

For Matplotlib to plot dates (or any scalar with units) a converter to float needs to be registered with the matplolib.units module. The current best converters for datetime64 values are in pandas. Simply importing pandas

import pandas as pd

should be sufficient as pandas will try to install the converters on import. If that does not work, or you need to reset munits.registry you can explicitly install the pandas converters by

from pandas.tseries import converter as pdtc
pdtc.register()

If you only want to use the pandas converter for datetime64 values

from pandas.tseries import converter as pdtc
import matplotlib.units as munits
import numpy as np

munits.registry[np.datetime64] = pdtc.DatetimeConverter()

Find all objects in a figure of a certain type

Every Matplotlib artist (see Artist tutorial) has a method called findobj() that can be used to recursively search the artist for any artists it may contain that meet some criteria (e.g., match all Line2D instances or match some arbitrary filter function). For example, the following snippet finds every object in the figure which has a set_color property and makes the object blue:

def myfunc(x):
    return hasattr(x, 'set_color')

for o in fig.findobj(myfunc):
    o.set_color('blue')

You can also filter on class instances:

import matplotlib.text as text
for o in fig.findobj(text.Text):
    o.set_fontstyle('italic')

How to prevent ticklabels from having an offset

The default formatter will use an offset to reduce the length of the ticklabels. To turn this feature off on a per-axis basis:

ax.get_xaxis().get_major_formatter().set_useOffset(False)

set the rcParam axes.formatter.useoffset, or use a different formatter. See ticker for details.

Save transparent figures

The savefig() command has a keyword argument transparent which, if ‘True’, will make the figure and axes backgrounds transparent when saving, but will not affect the displayed image on the screen.

If you need finer grained control, e.g., you do not want full transparency or you want to affect the screen displayed version as well, you can set the alpha properties directly. The figure has a Rectangle instance called patch and the axes has a Rectangle instance called patch. You can set any property on them directly (facecolor, edgecolor, linewidth, linestyle, alpha). e.g.:

fig = plt.figure()
fig.patch.set_alpha(0.5)
ax = fig.add_subplot(111)
ax.patch.set_alpha(0.5)

If you need all the figure elements to be transparent, there is currently no global alpha setting, but you can set the alpha channel on individual elements, e.g.:

ax.plot(x, y, alpha=0.5)
ax.set_xlabel('volts', alpha=0.5)

Save multiple plots to one pdf file

Many image file formats can only have one image per file, but some formats support multi-page files. Currently only the pdf backend has support for this. To make a multi-page pdf file, first initialize the file:

from matplotlib.backends.backend_pdf import PdfPages
pp = PdfPages('multipage.pdf')

You can give the PdfPages object to savefig(), but you have to specify the format:

plt.savefig(pp, format='pdf')

An easier way is to call PdfPages.savefig:

pp.savefig()

Finally, the multipage pdf object has to be closed:

pp.close()

Move the edge of an axes to make room for tick labels

For subplots, you can control the default spacing on the left, right, bottom, and top as well as the horizontal and vertical spacing between multiple rows and columns using the matplotlib.figure.Figure.subplots_adjust() method (in pyplot it is subplots_adjust()). For example, to move the bottom of the subplots up to make room for some rotated x tick labels:

fig = plt.figure()
fig.subplots_adjust(bottom=0.2)
ax = fig.add_subplot(111)

You can control the defaults for these parameters in your matplotlibrc file; see Customizing matplotlib. For example, to make the above setting permanent, you would set:

figure.subplot.bottom : 0.2   # the bottom of the subplots of the figure

The other parameters you can configure are, with their defaults

left = 0.125
the left side of the subplots of the figure
right = 0.9
the right side of the subplots of the figure
bottom = 0.1
the bottom of the subplots of the figure
top = 0.9
the top of the subplots of the figure
wspace = 0.2
the amount of width reserved for blank space between subplots, expressed as a fraction of the average axis width
hspace = 0.2
the amount of height reserved for white space between subplots, expressed as a fraction of the average axis height

If you want additional control, you can create an Axes using the axes() command (or equivalently the figure add_axes() method), which allows you to specify the location explicitly:

ax = fig.add_axes([left, bottom, width, height])

where all values are in fractional (0 to 1) coordinates. See pylab_examples example code: axes_demo.py for an example of placing axes manually.

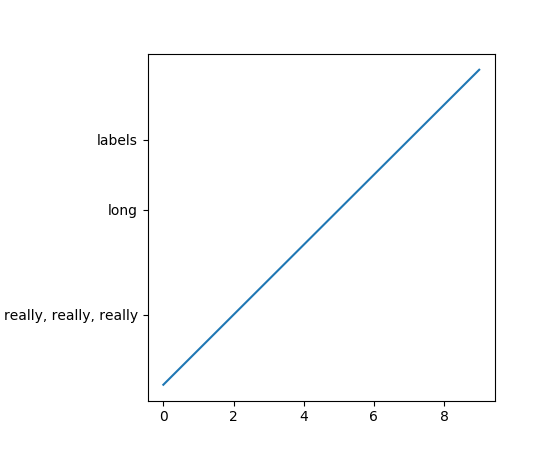

Automatically make room for tick labels

Note

This is now easier to handle than ever before. Calling tight_layout() can fix many common layout issues. See the Tight Layout guide.

The information below is kept here in case it is useful for other purposes.

In most use cases, it is enough to simply change the subplots adjust parameters as described in Move the edge of an axes to make room for tick labels. But in some cases, you don’t know ahead of time what your tick labels will be, or how large they will be (data and labels outside your control may be being fed into your graphing application), and you may need to automatically adjust your subplot parameters based on the size of the tick labels. Any Text instance can report its extent in window coordinates (a negative x coordinate is outside the window), but there is a rub.

The RendererBase instance, which is used to calculate the text size, is not known until the figure is drawn (draw()). After the window is drawn and the text instance knows its renderer, you can call get_window_extent(). One way to solve this chicken and egg problem is to wait until the figure is draw by connecting (mpl_connect()) to the “on_draw” signal (DrawEvent) and get the window extent there, and then do something with it, e.g., move the left of the canvas over; see Event handling and picking.

Here is an example that gets a bounding box in relative figure coordinates (0..1) of each of the labels and uses it to move the left of the subplots over so that the tick labels fit in the figure

import matplotlib.pyplot as plt
import matplotlib.transforms as mtransforms
fig = plt.figure()
ax = fig.add_subplot(111)
ax.plot(range(10))
ax.set_yticks((2,5,7))
labels = ax.set_yticklabels(('really, really, really', 'long', 'labels'))

def on_draw(event):
   bboxes = []
   for label in labels:
       bbox = label.get_window_extent()
       # the figure transform goes from relative coords->pixels and we
       # want the inverse of that
       bboxi = bbox.inverse_transformed(fig.transFigure)
       bboxes.append(bboxi)

   # this is the bbox that bounds all the bboxes, again in relative
   # figure coords
   bbox = mtransforms.Bbox.union(bboxes)
   if fig.subplotpars.left < bbox.width:
       # we need to move it over
       fig.subplots_adjust(left=1.1*bbox.width) # pad a little
       fig.canvas.draw()
   return False

fig.canvas.mpl_connect('draw_event', on_draw)

plt.show()

(Source code, png, pdf)

../_images/auto_subplots_adjust.png

Configure the tick linewidths

In Matplotlib, the ticks are markers. All Line2D objects support a line (solid, dashed, etc) and a marker (circle, square, tick). The tick linewidth is controlled by the “markeredgewidth” property:

import matplotlib.pyplot as plt
fig = plt.figure()
ax = fig.add_subplot(111)
ax.plot(range(10))

for line in ax.get_xticklines() + ax.get_yticklines():
    line.set_markersize(10)

plt.show()

The other properties that control the tick marker, and all markers, are markerfacecolor, markeredgecolor, markeredgewidth, markersize. For more information on configuring ticks, see Axis containers and Tick containers.

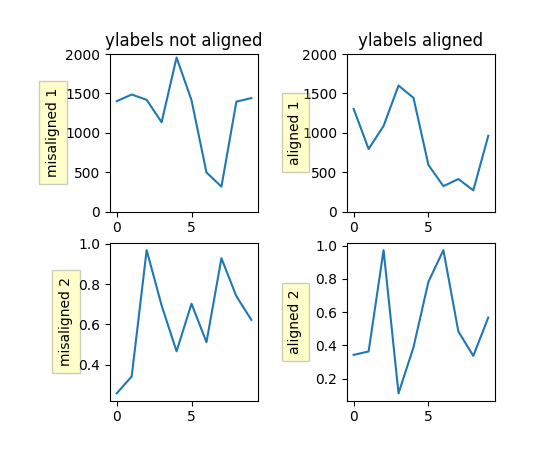

Align my ylabels across multiple subplots

If you have multiple subplots over one another, and the y data have different scales, you can often get ylabels that do not align vertically across the multiple subplots, which can be unattractive. By default, Matplotlib positions the x location of the ylabel so that it does not overlap any of the y ticks. You can override this default behavior by specifying the coordinates of the label. The example below shows the default behavior in the left subplots, and the manual setting in the right subplots.

import numpy as np
import matplotlib.pyplot as plt

box = dict(facecolor='yellow', pad=5, alpha=0.2)

fig = plt.figure()
fig.subplots_adjust(left=0.2, wspace=0.6)

# Fixing random state for reproducibility
np.random.seed(19680801)

ax1 = fig.add_subplot(221)
ax1.plot(2000*np.random.rand(10))
ax1.set_title('ylabels not aligned')
ax1.set_ylabel('misaligned 1', bbox=box)
ax1.set_ylim(0, 2000)
ax3 = fig.add_subplot(223)
ax3.set_ylabel('misaligned 2',bbox=box)
ax3.plot(np.random.rand(10))


labelx = -0.3  # axes coords

ax2 = fig.add_subplot(222)
ax2.set_title('ylabels aligned')
ax2.plot(2000*np.random.rand(10))
ax2.set_ylabel('aligned 1', bbox=box)
ax2.yaxis.set_label_coords(labelx, 0.5)
ax2.set_ylim(0, 2000)

ax4 = fig.add_subplot(224)
ax4.plot(np.random.rand(10))
ax4.set_ylabel('aligned 2', bbox=box)
ax4.yaxis.set_label_coords(labelx, 0.5)


plt.show()

(Source code, png, pdf)

../_images/align_ylabels.png

Skip dates where there is no data

When plotting time series, e.g., financial time series, one often wants to leave out days on which there is no data, e.g., weekends. By passing in dates on the x-xaxis, you get large horizontal gaps on periods when there is not data. The solution is to pass in some proxy x-data, e.g., evenly sampled indices, and then use a custom formatter to format these as dates. The example below shows how to use an ‘index formatter’ to achieve the desired plot:

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.mlab as mlab
import matplotlib.ticker as ticker

r = mlab.csv2rec('../data/aapl.csv')
r.sort()
r = r[-30:]  # get the last 30 days

N = len(r)
ind = np.arange(N)  # the evenly spaced plot indices

def format_date(x, pos=None):
    thisind = np.clip(int(x+0.5), 0, N-1)
    return r.date[thisind].strftime('%Y-%m-%d')

fig = plt.figure()
ax = fig.add_subplot(111)
ax.plot(ind, r.adj_close, 'o-')
ax.xaxis.set_major_formatter(ticker.FuncFormatter(format_date))
fig.autofmt_xdate()

plt.show()

Control the depth of plot elements

Within an axes, the order that the various lines, markers, text, collections, etc appear is determined by the set_zorder() property. The default order is patches, lines, text, with collections of lines and collections of patches appearing at the same level as regular lines and patches, respectively:

line, = ax.plot(x, y, zorder=10)
See pylab_examples example code: zorder_demo.py for a complete example.

You can also use the Axes property set_axisbelow() to control whether the grid lines are placed above or below your other plot elements.

Make the aspect ratio for plots equal

The Axes property set_aspect() controls the aspect ratio of the axes. You can set it to be ‘auto’, ‘equal’, or some ratio which controls the ratio:

ax = fig.add_subplot(111, aspect='equal')
See pylab_examples example code: equal_aspect_ratio.py for a complete example.

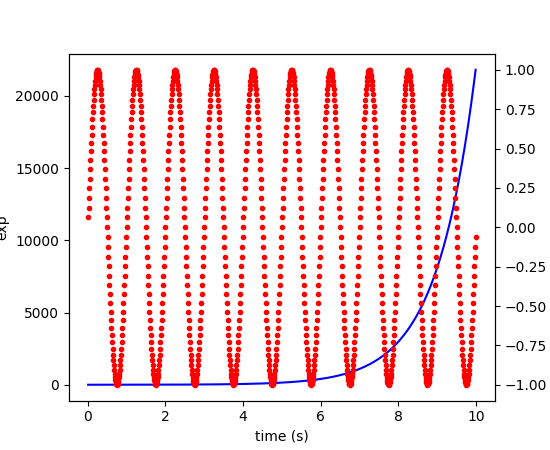

Multiple y-axis scales

A frequent request is to have two scales for the left and right y-axis, which is possible using twinx() (more than two scales are not currently supported, though it is on the wish list). This works pretty well, though there are some quirks when you are trying to interactively pan and zoom, because both scales do not get the signals.

The approach uses twinx() (and its sister twiny()) to use 2 different axes, turning the axes rectangular frame off on the 2nd axes to keep it from obscuring the first, and manually setting the tick locs and labels as desired. You can use separate matplotlib.ticker formatters and locators as desired because the two axes are independent.

(Source code, png, pdf)

../_images/howto_faq-1.png
See api example code: two_scales.py for a complete example

Generate images without having a window appear

The easiest way to do this is use a non-interactive backend (see What is a backend?) such as Agg (for PNGs), PDF, SVG or PS. In your figure-generating script, just call the matplotlib.use() directive before importing pylab or pyplot:

import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
plt.plot([1,2,3])
plt.savefig('myfig')

See also

Matplotlib in a web application server for information about running matplotlib inside of a web application.

Use show()

When you want to view your plots on your display, the user interface backend will need to start the GUI mainloop. This is what show() does. It tells Matplotlib to raise all of the figure windows created so far and start the mainloop. Because this mainloop is blocking by default (i.e., script execution is paused), you should only call this once per script, at the end. Script execution is resumed after the last window is closed. Therefore, if you are using Matplotlib to generate only images and do not want a user interface window, you do not need to call show (see Generate images without having a window appear and What is a backend?).

Note

Because closing a figure window invokes the destruction of its plotting elements, you should call savefig() before calling show if you wish to save the figure as well as view it.

New in version v1.0.0: show now starts the GUI mainloop only if it isn’t already running. Therefore, multiple calls to show are now allowed.

Having show block further execution of the script or the python interpreter depends on whether Matplotlib is set for interactive mode or not. In non-interactive mode (the default setting), execution is paused until the last figure window is closed. In interactive mode, the execution is not paused, which allows you to create additional figures (but the script won’t finish until the last figure window is closed).

Note

Support for interactive/non-interactive mode depends upon the backend. Until version 1.0.0 (and subsequent fixes for 1.0.1), the behavior of the interactive mode was not consistent across backends. As of v1.0.1, only the macosx backend differs from other backends because it does not support non-interactive mode.

Because it is expensive to draw, you typically will not want Matplotlib to redraw a figure many times in a script such as the following:

plot([1,2,3])            # draw here ?
xlabel('time')           # and here ?
ylabel('volts')          # and here ?
title('a simple plot')   # and here ?
show()

However, it is possible to force Matplotlib to draw after every command, which might be what you want when working interactively at the python console (see Using matplotlib in a python shell), but in a script you want to defer all drawing until the call to show. This is especially important for complex figures that take some time to draw. show() is designed to tell Matplotlib that you’re all done issuing commands and you want to draw the figure now.

Note

show() should typically only be called at most once per script and it should be the last line of your script. At that point, the GUI takes control of the interpreter. If you want to force a figure draw, use draw() instead.

Many users are frustrated by show because they want it to be a blocking call that raises the figure, pauses the script until they close the figure, and then allow the script to continue running until the next figure is created and the next show is made. Something like this:

# WARNING : illustrating how NOT to use show
for i in range(10):
    # make figure i
    show()

This is not what show does and unfortunately, because doing blocking calls across user interfaces can be tricky, is currently unsupported, though we have made significant progress towards supporting blocking events.

New in version v1.0.0: As noted earlier, this restriction has been relaxed to allow multiple calls to show. In most backends, you can now expect to be able to create new figures and raise them in a subsequent call to show after closing the figures from a previous call to show.

Interpreting box plots and violin plots

Tukey’s box plots (Robert McGill, John W. Tukey and Wayne A. Larsen: “The American Statistician” Vol. 32, No. 1, Feb., 1978, pp. 12-16) are statistical plots that provide useful information about the data distribution such as skewness. However, bar plots with error bars are still the common standard in most scientific literature, and thus, the interpretation of box plots can be challenging for the unfamiliar reader. The figure below illustrates the different visual features of a box plot.

../_images/boxplot_explanation.png

Violin plots are closely related to box plots but add useful information such as the distribution of the sample data (density trace). Violin plots were added in Matplotlib 1.4.

Contributing: howto

Request a new feature

Is there a feature you wish Matplotlib had? Then ask! The best way to get started is to email the developer mailing list for discussion. This is an open source project developed primarily in the contributors free time, so there is no guarantee that your feature will be added. The best way to get the feature you need added is to contribute it your self.

Reporting a bug or submitting a patch

The development of Matplotlib is organized through github. If you would like to report a bug or submit a patch please use that interface.

To report a bug create an issue on github (this requires having a github account). Please include a Short, Self Contained, Correct (Compilable), Example demonstrating what the bug is. Including a clear, easy to test example makes it easy for the developers to evaluate the bug. Expect that the bug reports will be a conversation. If you do not want to register with github, please email bug reports to the mailing list.

The easiest way to submit patches to Matplotlib is through pull requests on github. Please see the The Matplotlib Developers’ Guide for the details.

Contribute to Matplotlib documentation

Matplotlib is a big library, which is used in many ways, and the documentation has only scratched the surface of everything it can do. So far, the place most people have learned all these features are through studying the examples (Search examples), which is a recommended and great way to learn, but it would be nice to have more official narrative documentation guiding people through all the dark corners. This is where you come in.

There is a good chance you know more about Matplotlib usage in some areas, the stuff you do every day, than many of the core developers who wrote most of the documentation. Just pulled your hair out compiling Matplotlib for windows? Write a FAQ or a section for the Installation page. Are you a digital signal processing wizard? Write a tutorial on the signal analysis plotting functions like xcorr(), psd() and specgram(). Do you use Matplotlib with django or other popular web application servers? Write a FAQ or tutorial and we’ll find a place for it in the User’s Guide. Bundle Matplotlib in a py2exe app? ... I think you get the idea.

Matplotlib is documented using the sphinx extensions to restructured text (ReST). sphinx is an extensible python framework for documentation projects which generates HTML and PDF, and is pretty easy to write; you can see the source for this document or any page on this site by clicking on the Show Source link at the end of the page in the sidebar.

The sphinx website is a good resource for learning sphinx, but we have put together a cheat-sheet at Developer’s tips for documenting matplotlib which shows you how to get started, and outlines the Matplotlib conventions and extensions, e.g., for including plots directly from external code in your documents.

Once your documentation contributions are working (and hopefully tested by actually building the docs) you can submit them as a patch against git. See Install git and Reporting a bug or submitting a patch. Looking for something to do? Search for TODO or look at the open issues on github.

Matplotlib in a web application server

Many users report initial problems trying to use maptlotlib in web application servers, because by default Matplotlib ships configured to work with a graphical user interface which may require an X11 connection. Since many barebones application servers do not have X11 enabled, you may get errors if you don’t configure Matplotlib for use in these environments. Most importantly, you need to decide what kinds of images you want to generate (PNG, PDF, SVG) and configure the appropriate default backend. For 99% of users, this will be the Agg backend, which uses the C++ antigrain rendering engine to make nice PNGs. The Agg backend is also configured to recognize requests to generate other output formats (PDF, PS, EPS, SVG). The easiest way to configure Matplotlib to use Agg is to call:

# do this before importing pylab or pyplot
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt

For more on configuring your backend, see What is a backend?.

Alternatively, you can avoid pylab/pyplot altogether, which will give you a little more control, by calling the API directly as shown in api example code: agg_oo.py.

You can either generate hardcopy on the filesystem by calling savefig:

# do this before importing pylab or pyplot
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
fig = plt.figure()
ax = fig.add_subplot(111)
ax.plot([1,2,3])
fig.savefig('test.png')

or by saving to a file handle:

import sys
fig.savefig(sys.stdout)

Here is an example using Pillow. First, the figure is saved to a BytesIO object which is then fed to Pillow for further processing:

from io import BytesIO
from PIL import Image
imgdata = BytesIO()
fig.savefig(imgdata, format='png')
imgdata.seek(0)  # rewind the data
im = Image.open(imgdata)

Matplotlib with apache

TODO; see Contribute to Matplotlib documentation.

Matplotlib with django

TODO; see Contribute to Matplotlib documentation.

Matplotlib with zope

TODO; see Contribute to Matplotlib documentation.

Clickable images for HTML

Andrew Dalke of Dalke Scientific has written a nice article on how to make html click maps with Matplotlib agg PNGs. We would also like to add this functionality to SVG. If you are interested in contributing to these efforts that would be great.

Search examples

The nearly 300 code Matplotlib Examples included with the Matplotlib source distribution are full-text searchable from the Search Page page, but sometimes when you search, you get a lot of results from the The Matplotlib API or other documentation that you may not be interested in if you just want to find a complete, free-standing, working piece of example code. To facilitate example searches, we have tagged every code example page with the keyword codex for code example which shouldn’t appear anywhere else on this site except in the FAQ. So if you want to search for an example that uses an ellipse, Search Page for codex ellipse.

Cite Matplotlib

If you want to refer to Matplotlib in a publication, you can use “Matplotlib: A 2D Graphics Environment” by J. D. Hunter In Computing in Science & Engineering, Vol. 9, No. 3. (2007), pp. 90-95 (see this reference page):

@article{Hunter:2007,
        Address = {10662 LOS VAQUEROS CIRCLE, PO BOX 3014, LOS ALAMITOS, CA 90720-1314 USA},
        Author = {Hunter, John D.},
        Date-Added = {2010-09-23 12:22:10 -0700},
        Date-Modified = {2010-09-23 12:22:10 -0700},
        Isi = {000245668100019},
        Isi-Recid = {155389429},
        Journal = {Computing In Science \& Engineering},
        Month = {May-Jun},
        Number = {3},
        Pages = {90--95},
        Publisher = {IEEE COMPUTER SOC},
        Times-Cited = {21},
        Title = {Matplotlib: A 2D graphics environment},
        Type = {Editorial Material},
        Volume = {9},
        Year = {2007},
        Abstract = {Matplotlib is a 2D graphics package used for Python for application
                    development, interactive scripting, and publication-quality image
                    generation across user interfaces and operating systems.},
        Bdsk-Url-1 = {http://gateway.isiknowledge.com/gateway/Gateway.cgi?GWVersion=2&SrcAuth=Alerting&SrcApp=Alerting&DestApp=WOS&DestLinkType=FullRecord;KeyUT=000245668100019}}
