mplot3d example code: wire3d_demo.py¶

(Source code, png, pdf)

../../_images/wire3d_demo.png

'''
=================

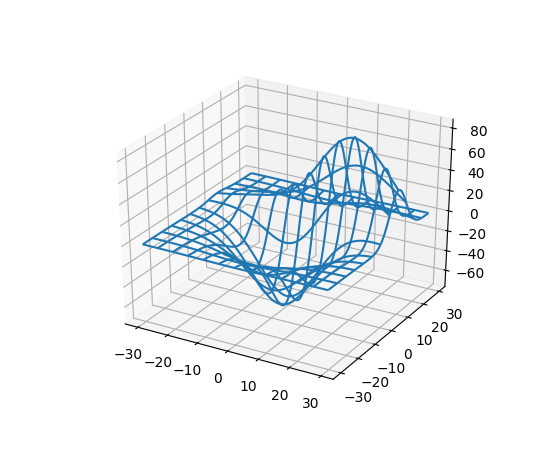

3D wireframe plot
=================

A very basic demonstration of a wireframe plot.
'''

from mpl_toolkits.mplot3d import axes3d
import matplotlib.pyplot as plt


fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

# Grab some test data.
X, Y, Z = axes3d.get_test_data(0.05)

# Plot a basic wireframe.
ax.plot_wireframe(X, Y, Z, rstride=10, cstride=10)

plt.show()
