lines_bars_and_markers example code: line_styles_reference.py

(Source code, png, pdf)

"""

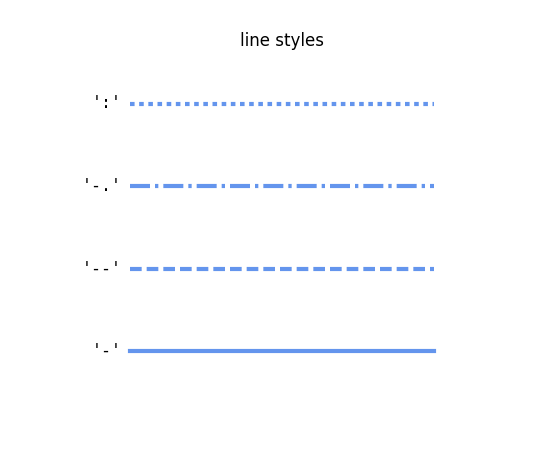

Reference for line-styles included with Matplotlib.
"""
import numpy as np
import matplotlib.pyplot as plt


color = 'cornflowerblue'
points = np.ones(5)  # Draw 5 points for each line
text_style = dict(horizontalalignment='right', verticalalignment='center',
                  fontsize=12, fontdict={'family': 'monospace'})


def format_axes(ax):
    ax.margins(0.2)
    ax.set_axis_off()


def nice_repr(text):
    return repr(text).lstrip('u')


# Plot all line styles.
fig, ax = plt.subplots()

linestyles = ['-', '--', '-.', ':']
for y, linestyle in enumerate(linestyles):
    ax.text(-0.1, y, nice_repr(linestyle), **text_style)
    ax.plot(y * points, linestyle=linestyle, color=color, linewidth=3)
    format_axes(ax)
    ax.set_title('line styles')

plt.show()
