Feature Detection

Classes
class	cv::LineSegmentDetector
	Line segment detector class. More...

Enumerations
enum	cv::LineSegmentDetectorModes {   cv::LSD_REFINE_NONE = 0,   cv::LSD_REFINE_STD = 1,   cv::LSD_REFINE_ADV = 2 }

Functions
void	cv::Canny (InputArray image, OutputArray edges, double threshold1, double threshold2, int apertureSize=3, bool L2gradient=false)
	Finds edges in an image using the Canny algorithm [26] . More...
void	cv::Canny (InputArray dx, InputArray dy, OutputArray edges, double threshold1, double threshold2, bool L2gradient=false)
void	cv::cornerEigenValsAndVecs (InputArray src, OutputArray dst, int blockSize, int ksize, int borderType=BORDER_DEFAULT)
	Calculates eigenvalues and eigenvectors of image blocks for corner detection. More...
void	cv::cornerHarris (InputArray src, OutputArray dst, int blockSize, int ksize, double k, int borderType=BORDER_DEFAULT)
	Harris corner detector. More...
void	cv::cornerMinEigenVal (InputArray src, OutputArray dst, int blockSize, int ksize=3, int borderType=BORDER_DEFAULT)
	Calculates the minimal eigenvalue of gradient matrices for corner detection. More...
void	cv::cornerSubPix (InputArray image, InputOutputArray corners, Size winSize, Size zeroZone, TermCriteria criteria)
	Refines the corner locations. More...
Ptr< LineSegmentDetector >	cv::createLineSegmentDetector (int _refine=LSD_REFINE_STD, double _scale=0.8, double _sigma_scale=0.6, double _quant=2.0, double _ang_th=22.5, double _log_eps=0, double _density_th=0.7, int _n_bins=1024)
	Creates a smart pointer to a LineSegmentDetector object and initializes it. More...
void	cv::goodFeaturesToTrack (InputArray image, OutputArray corners, int maxCorners, double qualityLevel, double minDistance, InputArray mask=noArray(), int blockSize=3, bool useHarrisDetector=false, double k=0.04)
	Determines strong corners on an image. More...
void	cv::HoughCircles (InputArray image, OutputArray circles, int method, double dp, double minDist, double param1=100, double param2=100, int minRadius=0, int maxRadius=0)
	Finds circles in a grayscale image using the Hough transform. More...
void	cv::HoughLines (InputArray image, OutputArray lines, double rho, double theta, int threshold, double srn=0, double stn=0, double min_theta=0, double max_theta=CV_PI)
	Finds lines in a binary image using the standard Hough transform. More...
void	cv::HoughLinesP (InputArray image, OutputArray lines, double rho, double theta, int threshold, double minLineLength=0, double maxLineGap=0)
	Finds line segments in a binary image using the probabilistic Hough transform. More...
void	cv::preCornerDetect (InputArray src, OutputArray dst, int ksize, int borderType=BORDER_DEFAULT)
	Calculates a feature map for corner detection. More...

Detailed Description

Enumeration Type Documentation

LineSegmentDetectorModes

enum cv::LineSegmentDetectorModes

Variants of Line Segment Detector

Enumerator
LSD_REFINE_NONE	No refinement applied.
LSD_REFINE_STD	Standard refinement is applied. E.g. breaking arches into smaller straighter line approximations.
LSD_REFINE_ADV	Advanced refinement. Number of false alarms is calculated, lines are refined through increase of precision, decrement in size, etc.

Function Documentation

Canny() [1/2]

void cv::Canny	(	InputArray	image,
		OutputArray	edges,
		double	threshold1,
		double	threshold2,
		int	apertureSize = 3,
		bool	L2gradient = false
	)

Finds edges in an image using the Canny algorithm [26] .

The function finds edges in the input image image and marks them in the output map edges using the Canny algorithm. The smallest value between threshold1 and threshold2 is used for edge linking. The largest value is used to find initial segments of strong edges. See http://en.wikipedia.org/wiki/Canny_edge_detector

Parameters

image	8-bit input image.
edges	output edge map; single channels 8-bit image, which has the same size as image .
threshold1	first threshold for the hysteresis procedure.
threshold2	second threshold for the hysteresis procedure.
apertureSize	aperture size for the Sobel operator.
L2gradient	a flag, indicating whether a more accurate \(L_2\) norm \(=\sqrt{(dI/dx)^2 + (dI/dy)^2}\) should be used to calculate the image gradient magnitude ( L2gradient=true ), or whether the default \(L_1\) norm \(=|dI/dx|+|dI/dy|\) is enough ( L2gradient=false ).

Examples:

edge.cpp, houghlines.cpp, and lsd_lines.cpp.

Canny() [2/2]

void cv::Canny	(	InputArray	dx,
		InputArray	dy,
		OutputArray	edges,
		double	threshold1,
		double	threshold2,
		bool	L2gradient = false
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Finds edges in an image using the Canny algorithm with custom image gradient.

Parameters

dx	16-bit x derivative of input image (CV_16SC1 or CV_16SC3).
dy	16-bit y derivative of input image (same type as dx).
edges,threshold1,threshold2,L2gradient	See cv::Canny

cornerEigenValsAndVecs()

void cv::cornerEigenValsAndVecs	(	InputArray	src,
		OutputArray	dst,
		int	blockSize,
		int	ksize,
		int	borderType = BORDER_DEFAULT
	)

Calculates eigenvalues and eigenvectors of image blocks for corner detection.

For every pixel \(p\) , the function cornerEigenValsAndVecs considers a blockSize \(\times\) blockSize neighborhood \(S(p)\) . It calculates the covariation matrix of derivatives over the neighborhood as:

\[M = \begin{bmatrix} \sum _{S(p)}(dI/dx)^2 & \sum _{S(p)}dI/dx dI/dy \\ \sum _{S(p)}dI/dx dI/dy & \sum _{S(p)}(dI/dy)^2 \end{bmatrix}\]

where the derivatives are computed using the Sobel operator.

After that, it finds eigenvectors and eigenvalues of \(M\) and stores them in the destination image as \((\lambda_1, \lambda_2, x_1, y_1, x_2, y_2)\) where

• \(\lambda_1, \lambda_2\) are the non-sorted eigenvalues of \(M\)
• \(x_1, y_1\) are the eigenvectors corresponding to \(\lambda_1\)
• \(x_2, y_2\) are the eigenvectors corresponding to \(\lambda_2\)

The output of the function can be used for robust edge or corner detection.

Parameters

src	Input single-channel 8-bit or floating-point image.
dst	Image to store the results. It has the same size as src and the type CV_32FC(6) .
blockSize	Neighborhood size (see details below).
ksize	Aperture parameter for the Sobel operator.
borderType	Pixel extrapolation method. See cv::BorderTypes.

See also

cornerMinEigenVal, cornerHarris, preCornerDetect

cornerHarris()

void cv::cornerHarris	(	InputArray	src,
		OutputArray	dst,
		int	blockSize,
		int	ksize,
		double	k,
		int	borderType = BORDER_DEFAULT
	)

Harris corner detector.

The function runs the Harris corner detector on the image. Similarly to cornerMinEigenVal and cornerEigenValsAndVecs , for each pixel \((x, y)\) it calculates a \(2\times2\) gradient covariance matrix \(M^{(x,y)}\) over a \(\texttt{blockSize} \times \texttt{blockSize}\) neighborhood. Then, it computes the following characteristic:

\[\texttt{dst} (x,y) = \mathrm{det} M^{(x,y)} - k \cdot \left ( \mathrm{tr} M^{(x,y)} \right )^2\]

Corners in the image can be found as the local maxima of this response map.

Parameters

src	Input single-channel 8-bit or floating-point image.
dst	Image to store the Harris detector responses. It has the type CV_32FC1 and the same size as src .
blockSize	Neighborhood size (see the details on cornerEigenValsAndVecs ).
ksize	Aperture parameter for the Sobel operator.
k	Harris detector free parameter. See the formula below.
borderType	Pixel extrapolation method. See cv::BorderTypes.

cornerMinEigenVal()

void cv::cornerMinEigenVal	(	InputArray	src,
		OutputArray	dst,
		int	blockSize,
		int	ksize = 3,
		int	borderType = BORDER_DEFAULT
	)

Calculates the minimal eigenvalue of gradient matrices for corner detection.

The function is similar to cornerEigenValsAndVecs but it calculates and stores only the minimal eigenvalue of the covariance matrix of derivatives, that is, \(\min(\lambda_1, \lambda_2)\) in terms of the formulae in the cornerEigenValsAndVecs description.

Parameters

src	Input single-channel 8-bit or floating-point image.
dst	Image to store the minimal eigenvalues. It has the type CV_32FC1 and the same size as src .
blockSize	Neighborhood size (see the details on cornerEigenValsAndVecs ).
ksize	Aperture parameter for the Sobel operator.
borderType	Pixel extrapolation method. See cv::BorderTypes.

cornerSubPix()

void cv::cornerSubPix	(	InputArray	image,
		InputOutputArray	corners,
		Size	winSize,
		Size	zeroZone,
		TermCriteria	criteria
	)

Refines the corner locations.

The function iterates to find the sub-pixel accurate location of corners or radial saddle points, as shown on the figure below.

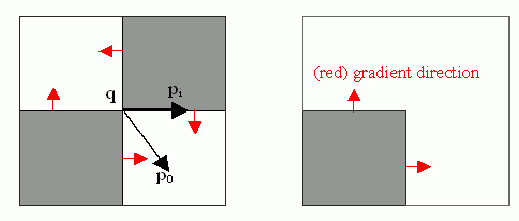

Sub-pixel accurate corner locator is based on the observation that every vector from the center \(q\) to a point \(p\) located within a neighborhood of \(q\) is orthogonal to the image gradient at \(p\) subject to image and measurement noise. Consider the expression:

\[\epsilon _i = {DI_{p_i}}^T \cdot (q - p_i)\]

where \({DI_{p_i}}\) is an image gradient at one of the points \(p_i\) in a neighborhood of \(q\) . The value of \(q\) is to be found so that \(\epsilon_i\) is minimized. A system of equations may be set up with \(\epsilon_i\) set to zero:

\[\sum _i(DI_{p_i} \cdot {DI_{p_i}}^T) - \sum _i(DI_{p_i} \cdot {DI_{p_i}}^T \cdot p_i)\]

where the gradients are summed within a neighborhood ("search window") of \(q\) . Calling the first gradient term \(G\) and the second gradient term \(b\) gives:

\[q = G^{-1} \cdot b\]

The algorithm sets the center of the neighborhood window at this new center \(q\) and then iterates until the center stays within a set threshold.

Parameters

image	Input image.
corners	Initial coordinates of the input corners and refined coordinates provided for output.
winSize	Half of the side length of the search window. For example, if winSize=Size(5,5) , then a \(5*2+1 \times 5*2+1 = 11 \times 11\) search window is used.
zeroZone	Half of the size of the dead region in the middle of the search zone over which the summation in the formula below is not done. It is used sometimes to avoid possible singularities of the autocorrelation matrix. The value of (-1,-1) indicates that there is no such a size.
criteria	Criteria for termination of the iterative process of corner refinement. That is, the process of corner position refinement stops either after criteria.maxCount iterations or when the corner position moves by less than criteria.epsilon on some iteration.

createLineSegmentDetector()

Ptr<LineSegmentDetector> cv::createLineSegmentDetector	(	int	_refine = LSD_REFINE_STD,
		double	_scale = 0.8,
		double	_sigma_scale = 0.6,
		double	_quant = 2.0,
		double	_ang_th = 22.5,
		double	_log_eps = 0,
		double	_density_th = 0.7,
		int	_n_bins = 1024
	)

Creates a smart pointer to a LineSegmentDetector object and initializes it.

The LineSegmentDetector algorithm is defined using the standard values. Only advanced users may want to edit those, as to tailor it for their own application.

Parameters

_refine	The way found lines will be refined, see cv::LineSegmentDetectorModes
_scale	The scale of the image that will be used to find the lines. Range (0..1].
_sigma_scale	Sigma for Gaussian filter. It is computed as sigma = _sigma_scale/_scale.
_quant	Bound to the quantization error on the gradient norm.
_ang_th	Gradient angle tolerance in degrees.
_log_eps	Detection threshold: -log10(NFA) > log_eps. Used only when advancent refinement is chosen.
_density_th	Minimal density of aligned region points in the enclosing rectangle.
_n_bins	Number of bins in pseudo-ordering of gradient modulus.

Examples:

fld_lines.cpp, and lsd_lines.cpp.

goodFeaturesToTrack()

void cv::goodFeaturesToTrack	(	InputArray	image,
		OutputArray	corners,
		int	maxCorners,
		double	qualityLevel,
		double	minDistance,
		InputArray	mask = noArray(),
		int	blockSize = 3,
		bool	useHarrisDetector = false,
		double	k = 0.04
	)

Determines strong corners on an image.

The function finds the most prominent corners in the image or in the specified image region, as described in [140]

• Function calculates the corner quality measure at every source image pixel using the cornerMinEigenVal or cornerHarris .
• Function performs a non-maximum suppression (the local maximums in 3 x 3 neighborhood are retained).
• The corners with the minimal eigenvalue less than \(\texttt{qualityLevel} \cdot \max_{x,y} qualityMeasureMap(x,y)\) are rejected.
• The remaining corners are sorted by the quality measure in the descending order.
• Function throws away each corner for which there is a stronger corner at a distance less than maxDistance.

The function can be used to initialize a point-based tracker of an object.

Note

If the function is called with different values A and B of the parameter qualityLevel , and A > B, the vector of returned corners with qualityLevel=A will be the prefix of the output vector with qualityLevel=B .

Parameters

image	Input 8-bit or floating-point 32-bit, single-channel image.
corners	Output vector of detected corners.
maxCorners	Maximum number of corners to return. If there are more corners than are found, the strongest of them is returned. maxCorners <= 0 implies that no limit on the maximum is set and all detected corners are returned.
qualityLevel	Parameter characterizing the minimal accepted quality of image corners. The parameter value is multiplied by the best corner quality measure, which is the minimal eigenvalue (see cornerMinEigenVal ) or the Harris function response (see cornerHarris ). The corners with the quality measure less than the product are rejected. For example, if the best corner has the quality measure = 1500, and the qualityLevel=0.01 , then all the corners with the quality measure less than 15 are rejected.
minDistance	Minimum possible Euclidean distance between the returned corners.
mask	Optional region of interest. If the image is not empty (it needs to have the type CV_8UC1 and the same size as image ), it specifies the region in which the corners are detected.
blockSize	Size of an average block for computing a derivative covariation matrix over each pixel neighborhood. See cornerEigenValsAndVecs .
useHarrisDetector	Parameter indicating whether to use a Harris detector (see cornerHarris) or cornerMinEigenVal.
k	Free parameter of the Harris detector.

See also

cornerMinEigenVal, cornerHarris, calcOpticalFlowPyrLK, estimateRigidTransform,

HoughCircles()

void cv::HoughCircles	(	InputArray	image,
		OutputArray	circles,
		int	method,
		double	dp,
		double	minDist,
		double	param1 = 100,
		double	param2 = 100,
		int	minRadius = 0,
		int	maxRadius = 0
	)

Finds circles in a grayscale image using the Hough transform.

The function finds circles in a grayscale image using a modification of the Hough transform.

Example: :

#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <math.h>

using namespace cv;
using namespace std;

int main(int argc, char** argv)
{
    Mat img, gray;
    if( argc != 2 || !(img=imread(argv[1], 1)).data)
        return -1;
    cvtColor(img, gray, COLOR_BGR2GRAY);
    // smooth it, otherwise a lot of false circles may be detected
    GaussianBlur( gray, gray, Size(9, 9), 2, 2 );
    vector<Vec3f> circles;
    HoughCircles(gray, circles, HOUGH_GRADIENT,
                 2, gray.rows/4, 200, 100 );
    for( size_t i = 0; i < circles.size(); i++ )
    {
         Point center(cvRound(circles[i][0]), cvRound(circles[i][1]));
         int radius = cvRound(circles[i][2]);
         // draw the circle center
         circle( img, center, 3, Scalar(0,255,0), -1, 8, 0 );
         // draw the circle outline
         circle( img, center, radius, Scalar(0,0,255), 3, 8, 0 );
    }
    namedWindow( "circles", 1 );
    imshow( "circles", img );

    waitKey(0);
    return 0;
}

Note

Usually the function detects the centers of circles well. However, it may fail to find correct radii. You can assist to the function by specifying the radius range ( minRadius and maxRadius ) if you know it. Or, you may ignore the returned radius, use only the center, and find the correct radius using an additional procedure.

Parameters

image	8-bit, single-channel, grayscale input image.
circles	Output vector of found circles. Each vector is encoded as a 3-element floating-point vector \((x, y, radius)\) .
method	Detection method, see cv::HoughModes. Currently, the only implemented method is HOUGH_GRADIENT
dp	Inverse ratio of the accumulator resolution to the image resolution. For example, if dp=1 , the accumulator has the same resolution as the input image. If dp=2 , the accumulator has half as big width and height.
minDist	Minimum distance between the centers of the detected circles. If the parameter is too small, multiple neighbor circles may be falsely detected in addition to a true one. If it is too large, some circles may be missed.
param1	First method-specific parameter. In case of CV_HOUGH_GRADIENT , it is the higher threshold of the two passed to the Canny edge detector (the lower one is twice smaller).
param2	Second method-specific parameter. In case of CV_HOUGH_GRADIENT , it is the accumulator threshold for the circle centers at the detection stage. The smaller it is, the more false circles may be detected. Circles, corresponding to the larger accumulator values, will be returned first.
minRadius	Minimum circle radius.
maxRadius	Maximum circle radius.

See also

fitEllipse, minEnclosingCircle

Examples:

houghcircles.cpp.

HoughLines()

void cv::HoughLines	(	InputArray	image,
		OutputArray	lines,
		double	rho,
		double	theta,
		int	threshold,
		double	srn = 0,
		double	stn = 0,
		double	min_theta = 0,
		double	max_theta = CV_PI
	)

Finds lines in a binary image using the standard Hough transform.

The function implements the standard or standard multi-scale Hough transform algorithm for line detection. See http://homepages.inf.ed.ac.uk/rbf/HIPR2/hough.htm for a good explanation of Hough transform.

Parameters

image	8-bit, single-channel binary source image. The image may be modified by the function.
lines	Output vector of lines. Each line is represented by a two-element vector \((\rho, \theta)\) . \(\rho\) is the distance from the coordinate origin \((0,0)\) (top-left corner of the image). \(\theta\) is the line rotation angle in radians ( \(0 \sim \textrm{vertical line}, \pi/2 \sim \textrm{horizontal line}\) ).
rho	Distance resolution of the accumulator in pixels.
theta	Angle resolution of the accumulator in radians.
threshold	Accumulator threshold parameter. Only those lines are returned that get enough votes ( \(>\texttt{threshold}\) ).
srn	For the multi-scale Hough transform, it is a divisor for the distance resolution rho . The coarse accumulator distance resolution is rho and the accurate accumulator resolution is rho/srn . If both srn=0 and stn=0 , the classical Hough transform is used. Otherwise, both these parameters should be positive.
stn	For the multi-scale Hough transform, it is a divisor for the distance resolution theta.
min_theta	For standard and multi-scale Hough transform, minimum angle to check for lines. Must fall between 0 and max_theta.
max_theta	For standard and multi-scale Hough transform, maximum angle to check for lines. Must fall between min_theta and CV_PI.

HoughLinesP()

void cv::HoughLinesP	(	InputArray	image,
		OutputArray	lines,
		double	rho,
		double	theta,
		int	threshold,
		double	minLineLength = 0,
		double	maxLineGap = 0
	)

Finds line segments in a binary image using the probabilistic Hough transform.

The function implements the probabilistic Hough transform algorithm for line detection, described in [107]

See the line detection example below:

#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>

using namespace cv;
using namespace std;

int main(int argc, char** argv)
{
    Mat src, dst, color_dst;
    if( argc != 2 || !(src=imread(argv[1], 0)).data)
        return -1;

    Canny( src, dst, 50, 200, 3 );
    cvtColor( dst, color_dst, COLOR_GRAY2BGR );

#if 0
    vector<Vec2f> lines;
    HoughLines( dst, lines, 1, CV_PI/180, 100 );

    for( size_t i = 0; i < lines.size(); i++ )
    {
        float rho = lines[i][0];
        float theta = lines[i][1];
        double a = cos(theta), b = sin(theta);
        double x0 = a*rho, y0 = b*rho;
        Point pt1(cvRound(x0 + 1000*(-b)),
                  cvRound(y0 + 1000*(a)));
        Point pt2(cvRound(x0 - 1000*(-b)),
                  cvRound(y0 - 1000*(a)));
        line( color_dst, pt1, pt2, Scalar(0,0,255), 3, 8 );
    }
#else
    vector<Vec4i> lines;
    HoughLinesP( dst, lines, 1, CV_PI/180, 80, 30, 10 );
    for( size_t i = 0; i < lines.size(); i++ )
    {
        line( color_dst, Point(lines[i][0], lines[i][1]),
            Point(lines[i][2], lines[i][3]), Scalar(0,0,255), 3, 8 );
    }
#endif
    namedWindow( "Source", 1 );
    imshow( "Source", src );

    namedWindow( "Detected Lines", 1 );
    imshow( "Detected Lines", color_dst );

    waitKey(0);
    return 0;
}

This is a sample picture the function parameters have been tuned for:


And this is the output of the above program in case of the probabilistic Hough transform:


Parameters

image	8-bit, single-channel binary source image. The image may be modified by the function.
lines	Output vector of lines. Each line is represented by a 4-element vector \((x_1, y_1, x_2, y_2)\) , where \((x_1,y_1)\) and \((x_2, y_2)\) are the ending points of each detected line segment.
rho	Distance resolution of the accumulator in pixels.
theta	Angle resolution of the accumulator in radians.
threshold	Accumulator threshold parameter. Only those lines are returned that get enough votes ( \(>\texttt{threshold}\) ).
minLineLength	Minimum line length. Line segments shorter than that are rejected.
maxLineGap	Maximum allowed gap between points on the same line to link them.

See also

LineSegmentDetector

Examples:

houghlines.cpp.

preCornerDetect()

void cv::preCornerDetect	(	InputArray	src,
		OutputArray	dst,
		int	ksize,
		int	borderType = BORDER_DEFAULT
	)

Calculates a feature map for corner detection.

The function calculates the complex spatial derivative-based function of the source image

\[\texttt{dst} = (D_x \texttt{src} )^2 \cdot D_{yy} \texttt{src} + (D_y \texttt{src} )^2 \cdot D_{xx} \texttt{src} - 2 D_x \texttt{src} \cdot D_y \texttt{src} \cdot D_{xy} \texttt{src}\]

where \(D_x\), \(D_y\) are the first image derivatives, \(D_{xx}\), \(D_{yy}\) are the second image derivatives, and \(D_{xy}\) is the mixed derivative.

The corners can be found as local maximums of the functions, as shown below:

Mat corners, dilated_corners;
preCornerDetect(image, corners, 3);
// dilation with 3x3 rectangular structuring element
dilate(corners, dilated_corners, Mat(), 1);
Mat corner_mask = corners == dilated_corners;

Parameters

src	Source single-channel 8-bit of floating-point image.
dst	Output image that has the type CV_32F and the same size as src .
ksize	Aperture size of the Sobel .
borderType	Pixel extrapolation method. See cv::BorderTypes.
